mups제형(Ver 11.0).pptx

Oral Modified Release Multiple-Unit
Particulate Systems
( Version 7.0)
Introduction of MUPS
Challenges in Formulating MUPS

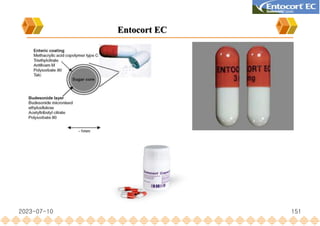

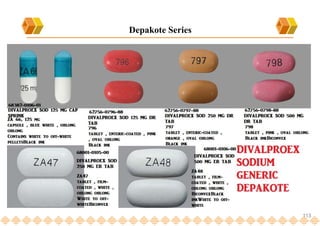

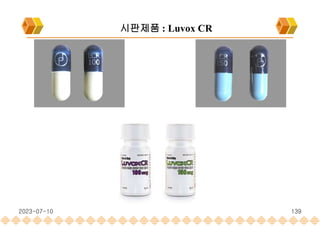

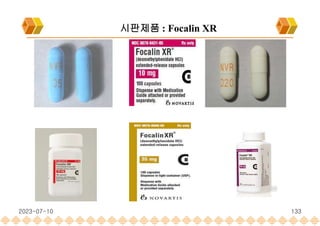

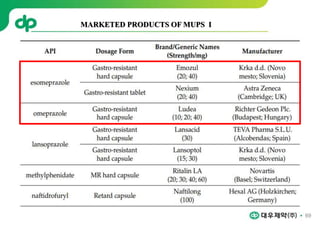

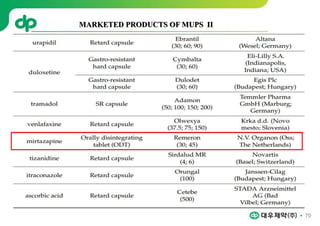

Marketed Products of MUPS

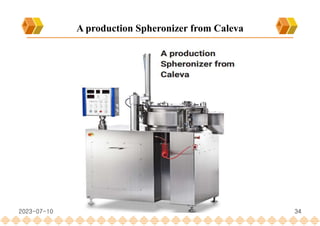

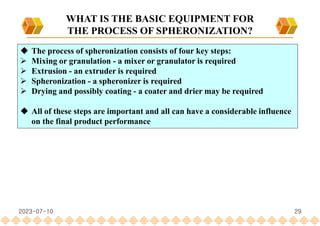

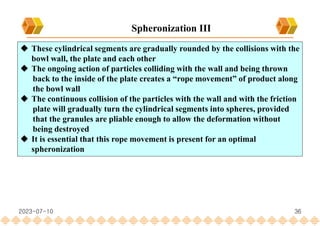

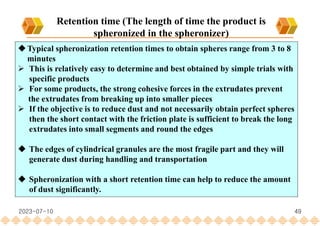

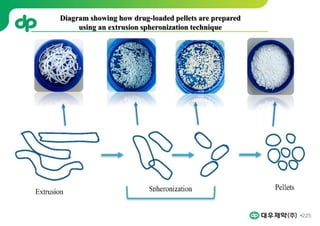

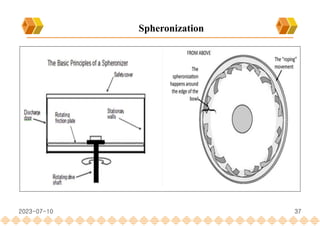

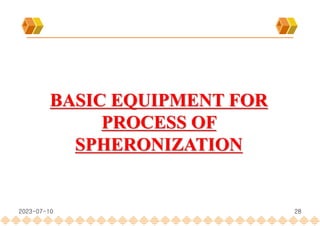

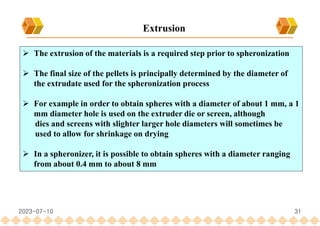

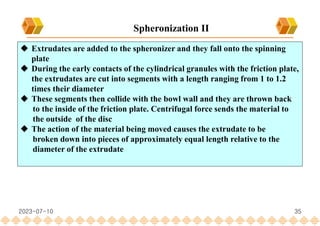

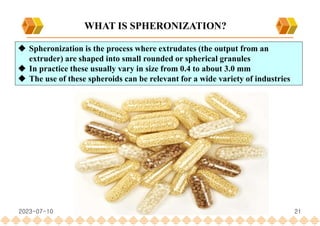

Extrusion & SPHERONIZATION

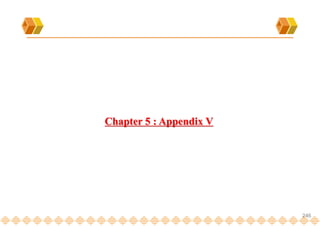

5 Appendix
Prepared by
Changbaek Lim

2
Chapter 1. Introduction of MUPS

3
 A design principle of increasing importance for sustained, controlled, delayed, site specific or
pulsatile release preparations is the compaction of coated particles into disintegrating multiple
unit tablets
 One challenge in the production of disintegrating multiple unit tablets is maintaining the
modified drug release after compaction, as the application of the compaction pressure can
lead to deformation of film coating and, consequently, altered drug release
 To protect the coating from such changes, excipients with so-called cushioning or protective
properties are usually incorporated in the tablet formulation in addition to fillers
 The compression-induced changes in the structure of a film coating may depend on
physical factors of pellets such as the size, shape, density, porosity and formulation factors
such as type and amount of coating, the properties and structure of the substrate pellets and
the incorporation of excipient particles
 The demand for MUPS tablets has been increasing due to its greater advantage over
other dosage forms
Introduction

4

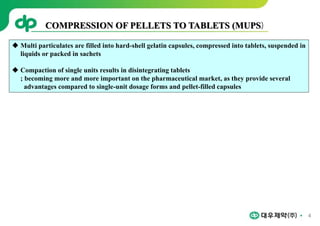

 Multi particulates are filled into hard-shell gelatin capsules, compressed into tablets, suspended in
liquids or packed in sachets
 Compaction of single units results in disintegrating tablets
; becoming more and more important on the pharmaceutical market, as they provide several
advantages compared to single-unit dosage forms and pellet-filled capsules

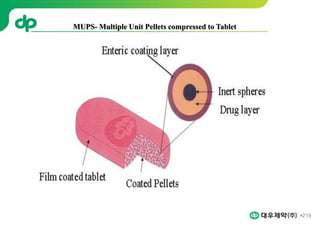

COMPRESSION OF PELLETS TO TABLETS (MUPS)

5
1. The compression of multiparticulates into tablets, unlike the hard gelatin capsule, is a
tamper-proof dosage form and has greater physicochemical and microbiological stability of
pellets as they are embedment in the inert matrix
2. Tablets have less difficulty in oesophageal transport than capsules
3. Tablets containing coated subunits can be prepared at a lower cost than these subunits filled
into hard gelatin capsules because of higher production rate of the tablet press
4. The expensive control of capsule integrity after filling is also eliminated
5. In addition, tablets containing multiparticulates without losing the controlled-release properties
could be scored, which allow a more flexible dosage regimen
ADVANTAGES of MUPS
6. Composing the tablet with equal or different kinds of particles can be combined and so that
very specific release profiles can be generated
7. Once the coated subunits have been developed different dose strengths can be prepared just by
varying the tablet size keeping the same composition – no additional development efforts
need to be taken
8. Another option for dose strength variation is the development of dividable multi-unit tablets
Since the release characteristics are related to the single subunits, dividing the tablet does not
affect the release characteristics as it is true for monolithic tablets
9. Rapid and uniform transit of subunits contained in tablets from the stomach into small intestine
owing to their small size, drug release is more uniform and possibility of dose dumping is
avoided with minimized tendency for intersubject variations

6

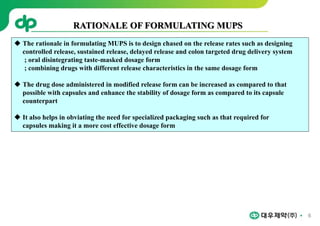

RATIONALE OF FORMULATING MUPS
 The rationale in formulating MUPS is to design chased on the release rates such as designing
controlled release, sustained release, delayed release and colon targeted drug delivery system
; oral disintegrating taste-masked dosage form
; combining drugs with different release characteristics in the same dosage form
 The drug dose administered in modified release form can be increased as compared to that
possible with capsules and enhance the stability of dosage form as compared to its capsule
counterpart
 It also helps in obviating the need for specialized packaging such as that required for
capsules making it a more cost effective dosage form

7

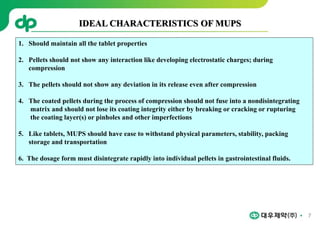

IDEAL CHARACTERISTICS OF MUPS
1. Should maintain all the tablet properties
2. Pellets should not show any interaction like developing electrostatic charges; during
compression
3. The pellets should not show any deviation in its release even after compression
4. The coated pellets during the process of compression should not fuse into a nondisintegrating
matrix and should not lose its coating integrity either by breaking or cracking or rupturing
the coating layer(s) or pinholes and other imperfections
5. Like tablets, MUPS should have ease to withstand physical parameters, stability, packing
storage and transportation
6. The dosage form must disintegrate rapidly into individual pellets in gastrointestinal fluids.

8

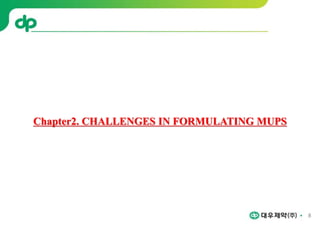

Chapter2. CHALLENGES IN FORMULATING MUPS

9

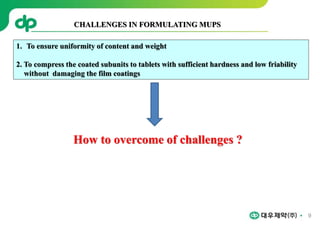

1. To ensure uniformity of content and weight
2. To compress the coated subunits to tablets with sufficient hardness and low friability
without damaging the film coatings
CHALLENGES IN FORMULATING MUPS
How to overcome of challenges ?

10

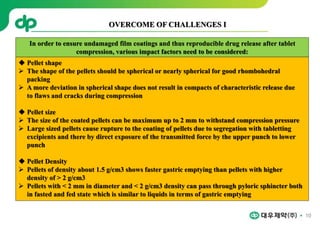

 Pellet shape
 The shape of the pellets should be spherical or nearly spherical for good rhombohedral
packing
 A more deviation in spherical shape does not result in compacts of characteristic release due
to flaws and cracks during compression
 Pellet size
 The size of the coated pellets can be maximum up to 2 mm to withstand compression pressure
 Large sized pellets cause rupture to the coating of pellets due to segregation with tabletting
excipients and there by direct exposure of the transmitted force by the upper punch to lower
punch
 Pellet Density
 Pellets of density about 1.5 g/cm3 shows faster gastric emptying than pellets with higher
density of > 2 g/cm3
 Pellets with < 2 mm in diameter and < 2 g/cm3 density can pass through pyloric sphincter both
in fasted and fed state which is similar to liquids in terms of gastric emptying
OVERCOME OF CHALLENGES I
In order to ensure undamaged film coatings and thus reproducible drug release after tablet
compression, various impact factors need to be considered:

11

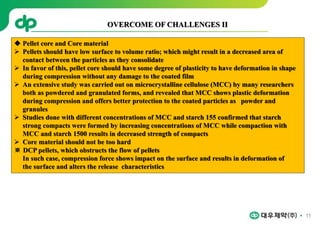

 Pellet core and Core material
 Pellets should have low surface to volume ratio; which might result in a decreased area of
contact between the particles as they consolidate
 In favor of this, pellet core should have some degree of plasticity to have deformation in shape
during compression without any damage to the coated film
 An extensive study was carried out on microcrystalline cellulose (MCC) by many researchers
both as powdered and granulated forms, and revealed that MCC shows plastic deformation
during compression and offers better protection to the coated particles as powder and
granules
 Studies done with different concentrations of MCC and starch 155 confirmed that starch
strong compacts were formed by increasing concentrations of MCC while compaction with
MCC and starch 1500 results in decreased strength of compacts
 Core material should not be too hard
※ DCP pellets, which obstructs the flow of pellets
In such case, compression force shows impact on the surface and results in deformation of
the surface and alters the release characteristics
OVERCOME OF CHALLENGES II

12

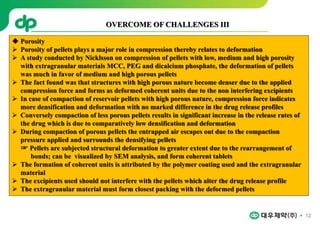

 Porosity
 Porosity of pellets plays a major role in compression thereby relates to deformation
 A study conducted by Nicklsson on compression of pellets with low, medium and high porosity
with extragranular materials MCC, PEG and dicalcium phosphate, the deformation of pellets
was much in favor of medium and high porous pellets
 The fact found was that structures with high porous nature become denser due to the applied
compression force and forms as deformed coherent units due to the non interfering excipients
 In case of compaction of reservoir pellets with high porous nature, compression force indicates
more densification and deformation with no marked difference in the drug release profiles
 Conversely compaction of less porous pellets results in significant increase in the release rates of
the drug which is due to comparatively low densification and deformation
 During compaction of porous pellets the entrapped air escapes out due to the compaction
pressure applied and surrounds the densifying pellets
☞ Pellets are subjected structural deformation to greater extent due to the rearrangement of
bonds; can be visualized by SEM analysis, and form coherent tablets
 The formation of coherent units is attributed by the polymer coating used and the extragranular
material
 The excipients used should not interfere with the pellets which alter the drug release profile
 The extragranular material must form closest packing with the deformed pellets
OVERCOME OF CHALLENGES III

13

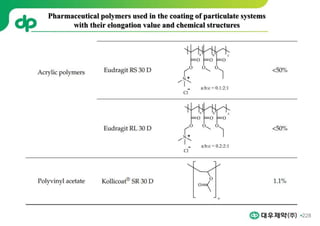

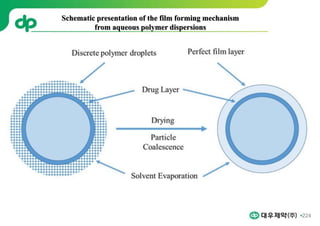

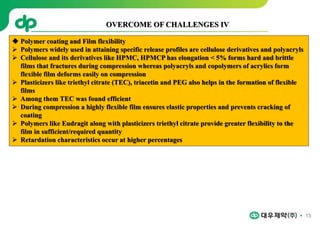

 Polymer coating and Film flexibility
 Polymers widely used in attaining specific release profiles are cellulose derivatives and polyacryls
 Cellulose and its derivatives like HPMC, HPMCP has elongation < 5% forms hard and brittle
films that fractures during compression whereas polyacryls and copolymers of acrylics form
flexible film deforms easily on compression
 Plasticizers like triethyl citrate (TEC), triacetin and PEG also helps in the formation of flexible
films
 Among them TEC was found efficient
 During compression a highly flexible film ensures elastic properties and prevents cracking of
coating
 Polymers like Eudragit along with plasticizers triethyl citrate provide greater flexibility to the
film in sufficient/required quantity
 Retardation characteristics occur at higher percentages
OVERCOME OF CHALLENGES IV

14
 Mechanical resistance
 Film flexibility provides mechanical stability to pellets during compaction
 During compression, high mechanical resistance support film integrity by preventing deformation
of pellets
 High mechanical stability is given by a dense structure like that provided by mini-tablets,
extrusion pellets or roller compaction granules
 Furthermore, a bigger particle size supports mechanical stability and in addition leads to less
interparticle contacts which also support less film damages
OVERCOME OF CHALLENGES V
 Coating thickness
 The thickness of coating layer is related to mechanical resistance of pellets during compaction
 Greater thicknesses support elastic properties, whereas below a certain thickness even highly
flexible films will break
 The manner in which deformation of the coated pellets occurs during compaction alters the
thickness of the coating layer which has an impact on the release profile of the drug
 If the deformation of the substrate pellet may stretch out the coating, making it thinner or more
permeable, faster drug release was observed
 Whereas the densification of the substrate pellet may compress the coating, making it thicker or
less permeable, and consequently results in prolonged drug release

15

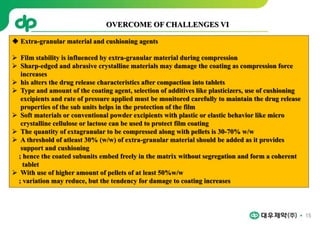

 Extra-granular material and cushioning agents
 Film stability is influenced by extra-granular material during compression
 Sharp-edged and abrasive crystalline materials may damage the coating as compression force
increases
 his alters the drug release characteristics after compaction into tablets
 Type and amount of the coating agent, selection of additives like plasticizers, use of cushioning
excipients and rate of pressure applied must be monitored carefully to maintain the drug release
properties of the sub units helps in the protection of the film
 Soft materials or conventional powder excipients with plastic or elastic behavior like micro
crystalline cellulose or lactose can be used to protect film coating
 The quantity of extagranular to be compressed along with pellets is 30-70% w/w
 A threshold of atleast 30% (w/w) of extra-granular material should be added as it provides
support and cushioning
; hence the coated subunits embed freely in the matrix without segregation and form a coherent
tablet
 With use of higher amount of pellets of at least 50%w/w
; variation may reduce, but the tendency for damage to coating increases
OVERCOME OF CHALLENGES VI

16

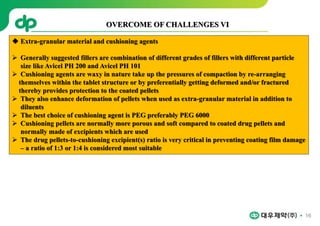

 Extra-granular material and cushioning agents
 Generally suggested fillers are combination of different grades of fillers with different particle
size like Avicel PH 200 and Avicel PH 101
 Cushioning agents are waxy in nature take up the pressures of compaction by re-arranging
themselves within the tablet structure or by preferentially getting deformed and/or fractured
thereby provides protection to the coated pellets
 They also enhance deformation of pellets when used as extra-granular material in addition to
diluents
 The best choice of cushioning agent is PEG preferably PEG 6000
 Cushioning pellets are normally more porous and soft compared to coated drug pellets and
normally made of excipients which are used
 The drug pellets-to-cushioning excipient(s) ratio is very critical in preventing coating film damage
– a ratio of 1:3 or 1:4 is considered most suitable
OVERCOME OF CHALLENGES VI

17

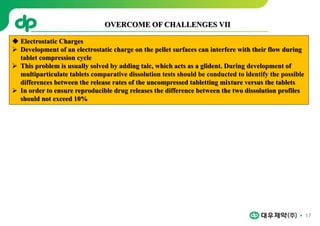

 Electrostatic Charges
 Development of an electrostatic charge on the pellet surfaces can interfere with their flow during
tablet compression cycle
 This problem is usually solved by adding talc, which acts as a glident. During development of
multiparticulate tablets comparative dissolution tests should be conducted to identify the possible
differences between the release rates of the uncompressed tabletting mixture versus the tablets
 In order to ensure reproducible drug releases the difference between the two dissolution profiles
should not exceed 10%
OVERCOME OF CHALLENGES VII

18

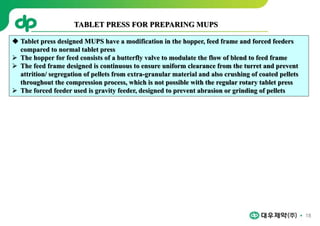

 Tablet press designed MUPS have a modification in the hopper, feed frame and forced feeders
compared to normal tablet press
 The hopper for feed consists of a butterfly valve to modulate the flow of blend to feed frame
 The feed frame designed is continuous to ensure uniform clearance from the turret and prevent
attrition/ segregation of pellets from extra-granular material and also crushing of coated pellets
throughout the compression process, which is not possible with the regular rotary tablet press
 The forced feeder used is gravity feeder, designed to prevent abrasion or grinding of pellets
TABLET PRESS FOR PREPARING MUPS

19

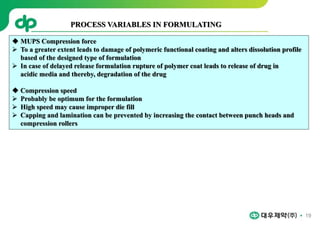

 MUPS Compression force
 To a greater extent leads to damage of polymeric functional coating and alters dissolution profile
based of the designed type of formulation
 In case of delayed release formulation rupture of polymer coat leads to release of drug in
acidic media and thereby, degradation of the drug
 Compression speed
 Probably be optimum for the formulation
 High speed may cause improper die fill
 Capping and lamination can be prevented by increasing the contact between punch heads and
compression rollers
PROCESS VARIABLES IN FORMULATING

20
Chapter 3. Extrusion & SPHERONIZATION
2023-07-10

21
 Spheronization is the process where extrudates (the output from an
extruder) are shaped into small rounded or spherical granules
 In practice these usually vary in size from 0.4 to about 3.0 mm
 The use of these spheroids can be relevant for a wide variety of industries
WHAT IS SPHERONIZATION?
2023-07-10

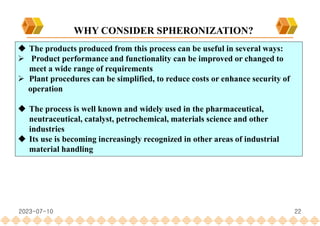

22
 The products produced from this process can be useful in several ways:
 Product performance and functionality can be improved or changed to
meet a wide range of requirements
 Plant procedures can be simplified, to reduce costs or enhance security of
operation
 The process is well known and widely used in the pharmaceutical,
neutraceutical, catalyst, petrochemical, materials science and other
industries
 Its use is becoming increasingly recognized in other areas of industrial
material handling
WHY CONSIDER SPHERONIZATION?
2023-07-10

23

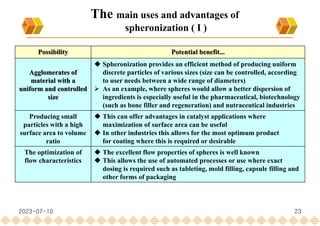

The main uses and advantages of
spheronization ( I )
Possibility Potential benefit...
Agglomerates of
material with a
uniform and controlled
size
 Spheronization provides an efficient method of producing uniform
discrete particles of various sizes (size can be controlled, according
to user needs between a wide range of diameters)
 As an example, where spheres would allow a better dispersion of
ingredients is especially useful in the pharmaceutical, biotechnology
(such as bone filler and regeneration) and nutraceutical industries
Producing small
particles with a high
surface area to volume
ratio
 This can offer advantages in catalyst applications where
maximization of surface area can be useful
 In other industries this allows for the most optimum product
for coating where this is required or desirable
The optimization of
flow characteristics
 The excellent flow properties of spheres is well known
 This allows the use of automated processes or use where exact
dosing is required such as tableting, mold filling, capsule filling and
other forms of packaging
2023-07-10

24
spheronization ( II )
Producing the
optimum shape for
coating
 Granules and spheres can require coating for a variety of reasons such as
the stabilization of the active ingredients or the controlled release of the
active ingredients
 The most widespread use of coated spheroids is the controlled
release of medicine in the pharmaceutical industry
 The easiest and most economical shape to coat is a small sphere, as no
additional material is required to coat or fill irregularities in the surface of
the particles
To facilitate the
mixing of non-
compatible Products
 Filling of two incompatible active products into capsules can be easily and
cheaply done using spheronized products.
To improve
appearance of
powder or granulated
materials
 Having spheres of a uniform and controlled size can significantly improve
the physical appearance of products
 In markets where product differentiation is necessary to assist marketing
success, spheronization is a rapid and inexpensive way of separating your
products from the competition
2023-07-10

25
spheronization ( III )
To improve the ability
to reproduce the same
physical properties of
packing beds
 In several industrial applications columns or porous beds are used as
chemical reactors
 The use of small spheres rather than irregular granules allow for easier
calculations, predictions and reproducibility.
To improve the
hardness and friability
of granules
 The hardness of any tablet or sphere depends partly upon the internal
cohesive forces and partly on the surface characteristics of the product.
Spheronization increases the hardness and reduces the friability of the
materials being treated
 This will reduce the amount of fines or dust during transportation or
subsequent handling
To increase the density
of granules
 With spheronization both the true and the bulk density of the products
are increased
 The amount of the increase depends upon the formulations being
processed
 This gives the opportunity to improve both the processing and
packaging of products
2023-07-10

26

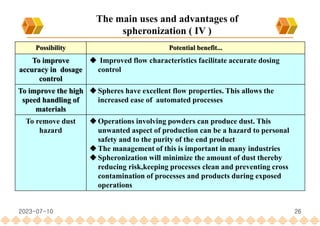

spheronization ( IV )
To improve
accuracy in dosage
control
 Improved flow characteristics facilitate accurate dosing
control
To improve the high
speed handling of
materials
Spheres have excellent flow properties. This allows the
increased ease of automated processes
To remove dust
hazard
Operations involving powders can produce dust. This
unwanted aspect of production can be a hazard to personal
safety and to the purity of the end product
The management of this is important in many industries
Spheronization will minimize the amount of dust thereby
reducing risk,keeping processes clean and preventing cross
contamination of processes and products during exposed
operations
2023-07-10

27

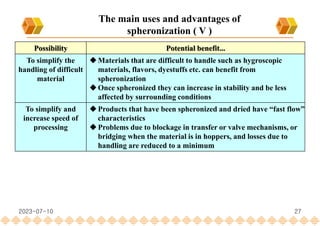

spheronization ( V )
To simplify the
handling of difficult
material
Materials that are difficult to handle such as hygroscopic
materials, flavors, dyestuffs etc. can benefit from
spheronization
Once spheronized they can increase in stability and be less
affected by surrounding conditions
To simplify and
increase speed of
processing
Products that have been spheronized and dried have “fast flow”
characteristics
Problems due to blockage in transfer or valve mechanisms, or
bridging when the material is in hoppers, and losses due to
handling are reduced to a minimum
2023-07-10

28
BASIC EQUIPMENT FOR
PROCESS OF
SPHERONIZATION
2023-07-10

29
WHAT IS THE BASIC EQUIPMENT FOR
THE PROCESS OF SPHERONIZATION?
 The process of spheronization consists of four key steps:
 Mixing or granulation - a mixer or granulator is required
 Extrusion - an extruder is required
 Spheronization - a spheronizer is required
 Drying and possibly coating - a coater and drier may be required
 All of these steps are important and all can have a considerable influence
on the final product performance
2023-07-10

30

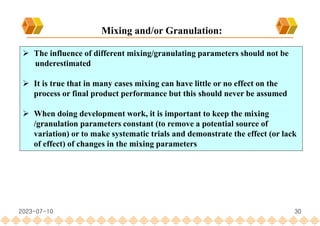

 The influence of different mixing/granulating parameters should not be
underestimated
 It is true that in many cases mixing can have little or no effect on the
process or final product performance but this should never be assumed
 When doing development work, it is important to keep the mixing
/granulation parameters constant (to remove a potential source of
variation) or to make systematic trials and demonstrate the effect (or lack
of effect) of changes in the mixing parameters
Mixing and/or Granulation:
2023-07-10

31
 The extrusion of the materials is a required step prior to spheronization
 The final size of the pellets is principally determined by the diameter of
the extrudate used for the spheronization process
 For example in order to obtain spheres with a diameter of about 1 mm, a 1
mm diameter hole is used on the extruder die or screen, although
dies and screens with slighter larger hole diameters will sometimes be
used to allow for shrinkage on drying
 In a spheronizer, it is possible to obtain spheres with a diameter ranging
from about 0.4 mm to about 8 mm
Extrusion
2023-07-10

32
A Twin Screw Variable Density production
extruder from Caleva
2023-07-10

33

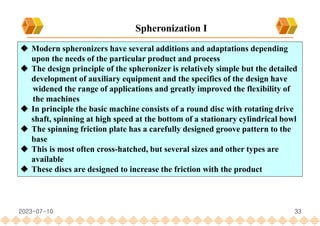

 Modern spheronizers have several additions and adaptations depending
upon the needs of the particular product and process
 The design principle of the spheronizer is relatively simple but the detailed
development of auxiliary equipment and the specifics of the design have
widened the range of applications and greatly improved the flexibility of
the machines
 In principle the basic machine consists of a round disc with rotating drive
shaft, spinning at high speed at the bottom of a stationary cylindrical bowl

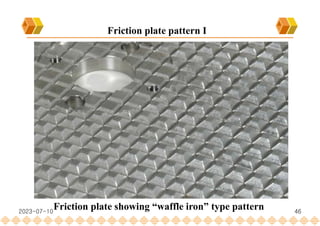

 The spinning friction plate has a carefully designed groove pattern to the
base
 This is most often cross-hatched, but several sizes and other types are
available
 These discs are designed to increase the friction with the product
Spheronization I
2023-07-10

34
A production Spheronizer from Caleva
2023-07-10

35
 Extrudates are added to the spheronizer and they fall onto the spinning
plate
 During the early contacts of the cylindrical granules with the friction plate,
the extrudates are cut into segments with a length ranging from 1 to 1.2
times their diameter
 These segments then collide with the bowl wall and they are thrown back
to the inside of the friction plate. Centrifugal force sends the material to
the outside of the disc
 The action of the material being moved causes the extrudate to be
broken down into pieces of approximately equal length relative to the
diameter of the extrudate
Spheronization II
2023-07-10

36
 These cylindrical segments are gradually rounded by the collisions with the
bowl wall, the plate and each other
 The ongoing action of particles colliding with the wall and being thrown
back to the inside of the plate creates a “rope movement” of product along
the bowl wall
 The continuous collision of the particles with the wall and with the friction
plate will gradually turn the cylindrical segments into spheres, provided
that the granules are pliable enough to allow the deformation without
being destroyed
 It is essential that this rope movement is present for an optimal
spheronization
Spheronization III
2023-07-10

39
 These cylindrical segments are gradually rounded by the collisions with the
bowl wall, the plate and each other
 The ongoing action of particles colliding with the wall and being thrown
back to the inside of the plate creates a “rope movement” of product along
the bowl wall
 The continuous collision of the particles with the wall and with the friction
plate will gradually turn the cylindrical segments into spheres, provided
that the granules are pliable enough to allow the deformation without
being destroyed
 It is essential that this rope movement is present for an optimal
spheronization
Spheronization III
2023-07-10

40

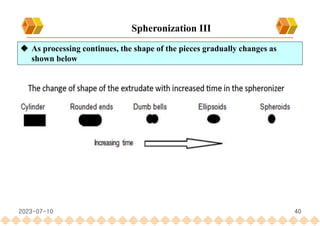

 As processing continues, the shape of the pieces gradually changes as
shown below
Spheronization III
2023-07-10

41
 When the particles have reached the desired shape (usually in about 2 to 10
minutes) then the spheroids can be removed
 When the particles have obtained the desired spherical shape, the discharge
valve of the spheronization chamber is opened and the granules are
discharged by the centrifugal force
Spheronization IV
2023-07-10

42
Spheronization IV
2023-07-10

43

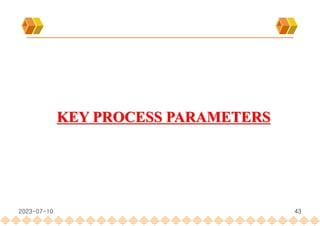

KEY PROCESS PARAMETERS
2023-07-10

44
Part I : Machine Parameters
2023-07-10

45

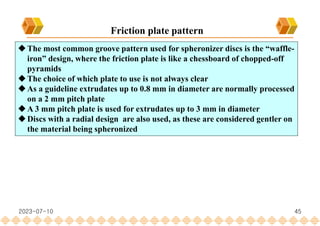

Friction plate pattern
The most common groove pattern used for spheronizer discs is the “waffle-
iron” design, where the friction plate is like a chessboard of chopped-off
pyramids
The choice of which plate to use is not always clear
As a guideline extrudates up to 0.8 mm in diameter are normally processed
on a 2 mm pitch plate
A 3 mm pitch plate is used for extrudates up to 3 mm in diameter
Discs with a radial design are also used, as these are considered gentler on
the material being spheronized
2023-07-10

46
Friction plate pattern I
Friction plate showing “waffle iron” type pattern
2023-07-10

47
Friction plate pattern II
Friction plate showing radial design pattern
2023-07-10

48

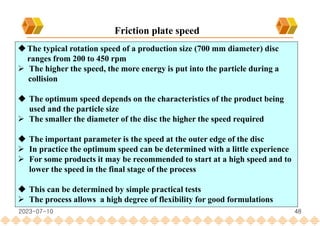

Friction plate speed
The typical rotation speed of a production size (700 mm diameter) disc
ranges from 200 to 450 rpm
 The higher the speed, the more energy is put into the particle during a
collision
 The optimum speed depends on the characteristics of the product being
used and the particle size
 The smaller the diameter of the disc the higher the speed required
 The important parameter is the speed at the outer edge of the disc
 In practice the optimum speed can be determined with a little experience
 For some products it may be recommended to start at a high speed and to
lower the speed in the final stage of the process
 This can be determined by simple practical tests
 The process allows a high degree of flexibility for good formulations
2023-07-10

49
Retention time (The length of time the product is
spheronized in the spheronizer)
Typical spheronization retention times to obtain spheres range from 3 to 8
minutes
 This is relatively easy to determine and best obtained by simple trials with
specific products
 For some products, the strong cohesive forces in the extrudates prevent
the extrudates from breaking up into smaller pieces
 If the objective is to reduce dust and not necessarily obtain perfect spheres
then the short contact with the friction plate is sufficient to break the long
extrudates into small segments and round the edges
 The edges of cylindrical granules are the most fragile part and they will
generate dust during handling and transportation
 Spheronization with a short retention time can help to reduce the amount
of dust significantly.
2023-07-10

50
The charge volume or weight (The quantity of
product loaded into the spheronizer)
The optimum level depends upon the machine size and the product
characteristics;
 there is an optimum quantity of product to be charged per batch into the
spheronizer chamber that will produce the most narrow particle
distribution and the best spheres
 A typical charge volume for a machine with a 380 mm diameter disc is 4
kg depending upon the density of the material
 Increasing the load per batch increases the hardness of the spheres and
smooths the granule surface
 With the larger 700 spheronizer a load of from 2 kg to about 12 kg is
normal
2023-07-10

51
Part II. Product Parameters
2023-07-10

52
Rheology I
The rheology of the product can be changed by using binders or
lubricants, or by changing the mixing time and by altering the liquid
content of the mix
Although the examination of the rheology of the product seems complex
and potentially time consuming to perfect, with a Caleva Mixer Torque
Rheometer (MTR) the ideal formulation can be determined very quickly
and easily
2023-07-10

53
Rheology II
Binders can be used to increase the strength of the granules and reduce the
amount of fine dust generated during spheronization
 If too much binder is added and the granules become too hard, it will be
difficult to obtain good spheres
 Lubricants will increase the plasticity but may also increase the amount of
fine dust generated during spheronization
 Water can also be used as a lubricant
 If too much water is used, sticking can occur on the friction plate and bowl
wall
 It can also happen that the granules will stick together, forming big lumps
 If the extrudates are too dry, a high amount of fine dust will be generated
 The optimum moisture content for spheronization is slightly less than for
extrusion only
2023-07-10

54

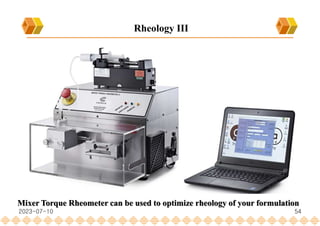

Mixer Torque Rheometer can be used to optimize rheology of your formulation
Rheology III
2023-07-10

55
Auxiliary options for
spheronizer configuration
2023-07-10

56

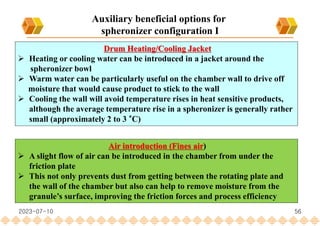

Drum Heating/Cooling Jacket
 Heating or cooling water can be introduced in a jacket around the
spheronizer bowl
 Warm water can be particularly useful on the chamber wall to drive off
moisture that would cause product to stick to the wall
 Cooling the wall will avoid temperature rises in heat sensitive products,
although the average temperature rise in a spheronizer is generally rather
small (approximately 2 to 3 °C)
Air introduction (Fines air)
 A slight flow of air can be introduced in the chamber from under the
friction plate
 This not only prevents dust from getting between the rotating plate and
the wall of the chamber but also can help to remove moisture from the
granule’s surface, improving the friction forces and process efficiency
Auxiliary beneficial options for
spheronizer configuration I
2023-07-10

57

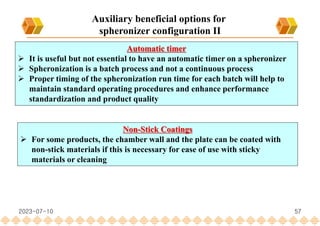

Automatic timer
 It is useful but not essential to have an automatic timer on a spheronizer
 Spheronization is a batch process and not a continuous process
 Proper timing of the spheronization run time for each batch will help to
maintain standard operating procedures and enhance performance
standardization and product quality
Non-Stick Coatings
 For some products, the chamber wall and the plate can be coated with
non-stick materials if this is necessary for ease of use with sticky
materials or cleaning
spheronizer configuration II
2023-07-10

58

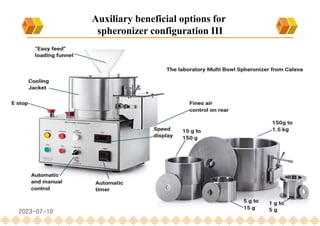

spheronizer configuration III
2023-07-10

59
Machines for Mass Production
2023-07-10

60
Twin Dome Granulator
 Twin Dome Granulator
 Applicable to the fine-granule with a pilot scale production and the low-
volume high-mix production
 GMP design
 Dome Die and Screw Case are easily disassembled so that the powder-
contacting parts can be cleaned by a water.
 Particle diameter: 0.3 mm to 2 mm in diameter
 Product shape: Cylindrical
 Application examples
 Pharmaceutical products
 Seasonings
 Granulated sugar
 Health food products
 Agrochemical products
 Fish Feed
2023-07-10

61

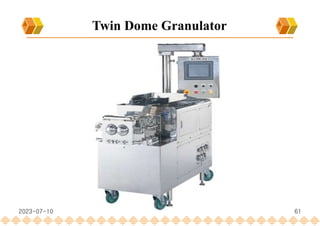

Twin Dome Granulator
2023-07-10

62
Extruder Twin Screw type EXD
(Radial Extrusion)
 Extruder Twin Screw type EXD (Radial Extrusion)
 The pioneer of wet extrusion granulator in the world.
 All powder-contact parts to the product can be easily disassembled and
re-assembled.
 Available in Heating/ Cooling Jacket
 GMP design is available
 Particle diameter: 0.5 mm to 3.0 mm in diameter
 Product shape: Cylindrical
 Pharmaceutical products
 Seasonings
 Granulated sugar
 Health food products
 Agrochemical products
 Fish Feed
2023-07-10

63

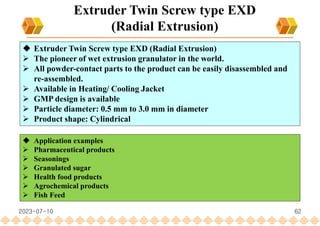

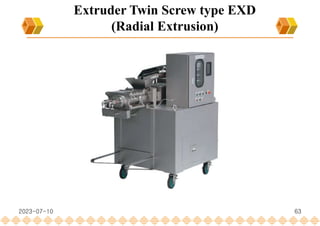

Extruder Twin Screw type EXD
(Radial Extrusion)
2023-07-10

64

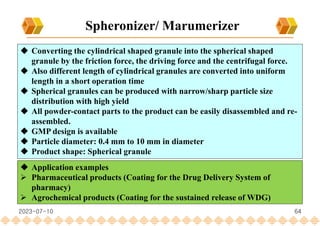

Spheronizer/ Marumerizer
 Converting the cylindrical shaped granule into the spherical shaped
granule by the friction force, the driving force and the centrifugal force.
 Also different length of cylindrical granules are converted into uniform
length in a short operation time
 Spherical granules can be produced with narrow/sharp particle size
distribution with high yield
 All powder-contact parts to the product can be easily disassembled and re-
assembled.
 GMP design is available
 Particle diameter: 0.4 mm to 10 mm in diameter
 Product shape: Spherical granule
 Pharmaceutical products (Coating for the Drug Delivery System of
pharmacy)
 Agrochemical products (Coating for the sustained release of WDG)
2023-07-10

65
Spheronizer/ Marumerizer
2023-07-10

66

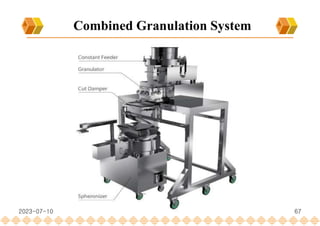

Combined Granulation System
 Multiple devices are combined from the product feeding to spheronization
 By reducing the human intervention in the process, it contributes to the
stable product quality and the labor cost reduction
 Each device is redesigned so that its structure is suitable for integration
 Granulator can be chosen to meet the desired capacity, granule size
2023-07-10

67
Combined Granulation System
2023-07-10

68
Chapter 4. Marketed Products of MUPS(Worldwide)

69
MARKETED PRODUCTS OF MUPS I

70
MARKETED PRODUCTS OF MUPS II

71
MARKETED PRODUCTS OF MUPS III

Tablet I : Nexium(Esomeprazole)
72

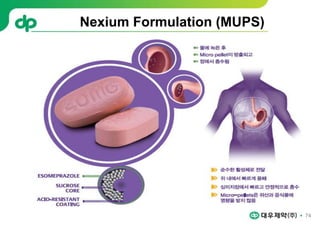

Nexium Formulation (MUPS)
Acid-resistant
coating
Esomeprazole
Sugar core
MUPS(Multiple Unit Pellet System)
0.5 mm의 소형 pellet을 부형제와
혼합하여 타정

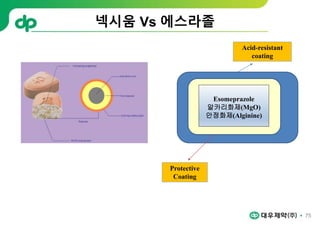

넥시움 Vs 에스라졸
75
Esomeprazole
알카리화제(MgO)
안정화제(Alginine)
Acid-resistant
coating
Protective
Coating

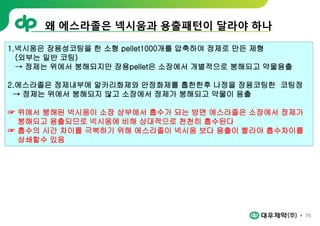

왜 에스라졸은 넥시움과 용출패턴이 달라야 하나
76
1.넥시움은 장용성코팅을 한 소형 pellet1000개를 압축하여 정제로 만든 제형
(외부는 일반 코팅)
→ 정제는 위에서 붕해되지만 장용pellet은 소장에서 개별적으로 붕해되고 약물용출
2.에스라졸은 정제내부에 알카리화제와 안정화제를 홉한한후 나정을 장용코팅한 코팅정
→ 정제는 위에서 붕해되지 않고 소장에서 정제가 붕해되고 약물이 용출
☞ 위에서 붕해된 넥시움이 소장 상부에서 흡수가 되는 방면 에스라졸은 소장에서 정제가
붕해되고 용출되므로 넥시움에 비해 상대적으로 천천히 흡수된다
☞ 흡수의 시간 차이를 극복하기 위해 에스라졸이 넥시움 보다 용출이 빨라야 흡수차이를
상쇄할수 있음

77
넥시움 Vs 종근당 / 대원제약

78

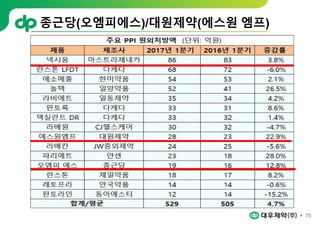

종근당(오엠피에스)/대원제약(에스원 엠프)

79

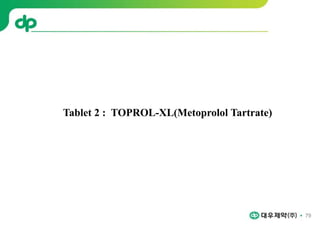

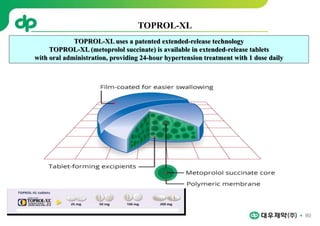

Tablet 2 : TOPROL-XL(Metoprolol Tartrate)

80
TOPROL-XL uses a patented extended-release technology
TOPROL-XL (metoprolol succinate) is available in extended-release tablets
with oral administration, providing 24-hour hypertension treatment with 1 dose daily
TOPROL-XL

81

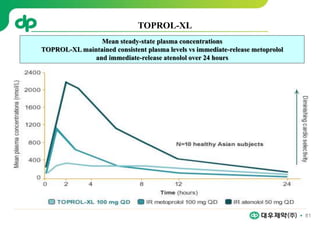

Mean steady-state plasma concentrations
TOPROL-XL maintained consistent plasma levels vs immediate-release metoprolol
and immediate-release atenolol over 24 hours
TOPROL-XL

82

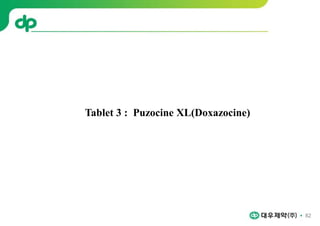

Tablet 3 : Puzocine XL(Doxazocine)

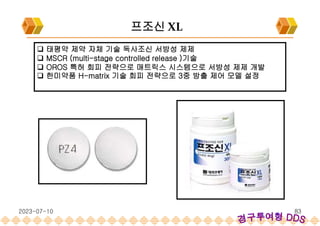

 태평약 제약 자체 기술 독사조신 서방성 제제
 MSCR (multi-stage controlled release )기술
 OROS 특허 회피 전략으로 매트릭스 시스템으로 서방성 제제 개발
 한미약품 H-matrix 기술 회피 전략으로 3중 방출 제어 모델 설정
프조신 XL
2023-07-10 83

86

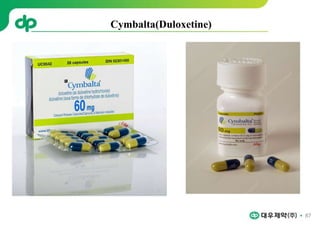

Hard Capsule 1 : Cymbalta(Duloxetine)

88
Hard Capsule II : Effexor XL(Vanlafaxine)

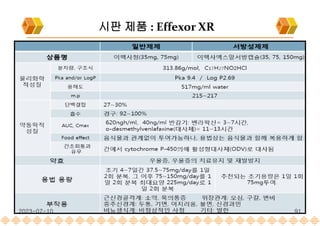

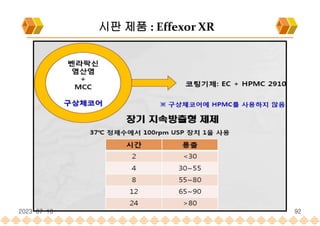

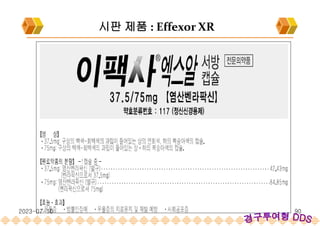

시판 제품 : Effexor XR
2023-07-10 89

2023-07-10 90

2023-07-10 91

2023-07-10 92

93

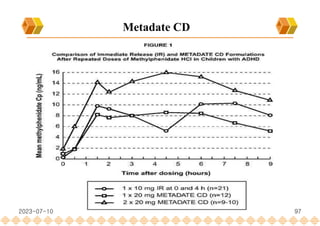

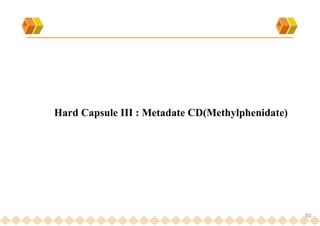

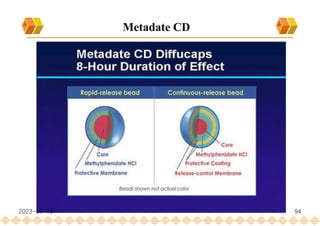

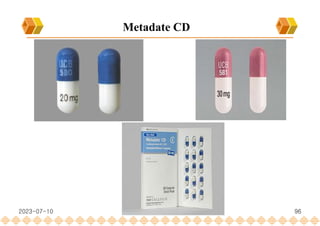

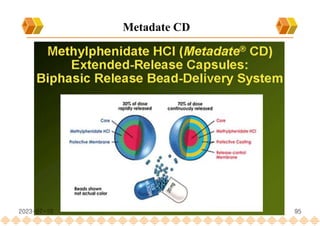

Hard Capsule III : Metadate CD(Methylphenidate)

98

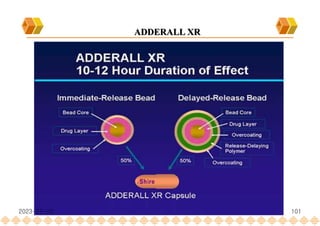

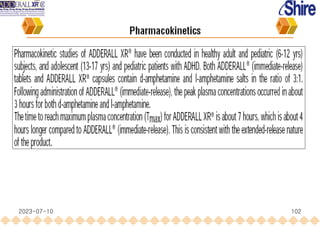

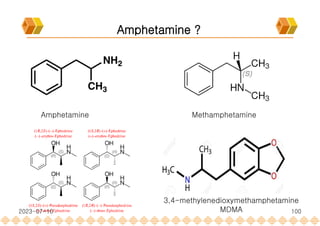

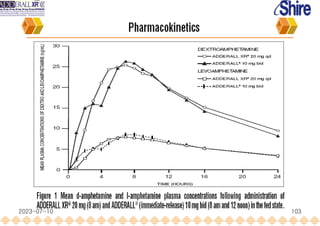

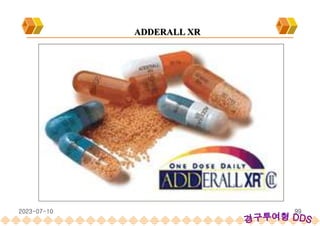

Hard Capsule IV :ADDERALL XR(Amphetamine)

Amphetamine ?
Amphetamine Methamphetamine
3,4-methylenedioxymethamphetamine
MDMA
2023-07-10 100

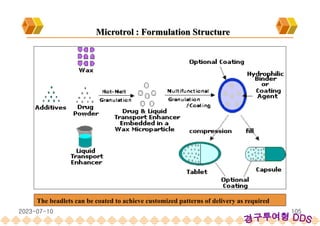

Microtrol : Formulation Structure
2023-07-10 104

The beadlets can be coated to achieve customized patterns of delivery as required
Microtrol : Formulation Structure
2023-07-10 105

106
Hard Capsule V : Snico-S
(Loratadine +Pseudoephedrine)

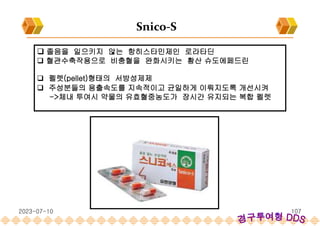

 졸음을 일으키지 않는 항히스타민제인 로라타딘
 혈관수축작용으로 비충혈을 완화시키는 황산 슈도에페드린
 펠렛(pellet)형태의 서방성제제
 주성분들의 용출속도를 지속적이고 균일하게 이뤄지도록 개선시켜
->체내 투여시 약물의 유효혈중농도가 장시간 유지되는 복합 펠렛
Snico-S
2023-07-10 107

108

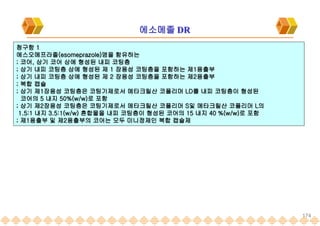

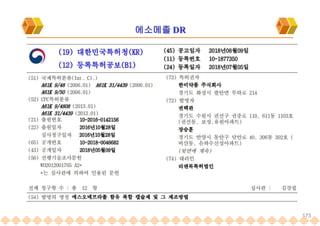

Hard Capsule VI : Esmezole DR
(Esomeprazole)

109

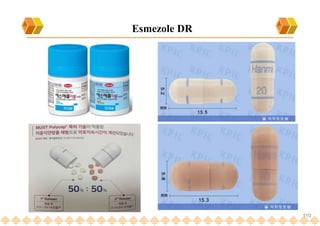

Esmezole DR
Schematic diagram of esomeprazole magnesium dual release mini-tablet polycap (DR polycaps)

111

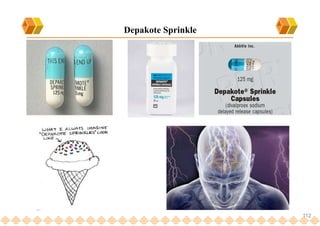

Hard Capsule VII : Depakote(Sodium Valporate)

114
Hard Capsule VIII : Dexilant DR(Dexlansoprazole)

116
Dexilant DR : Dual-Release Formulation

117
Dexilant DR : Pharmacokinetics I

118

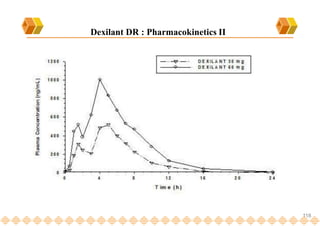

Dexilant DR : Pharmacokinetics II

119
Hard Capsule IV : SODAS Technology

SODAS
(Spheroidal Oral Drug Absorption System)
2023-07-10 120

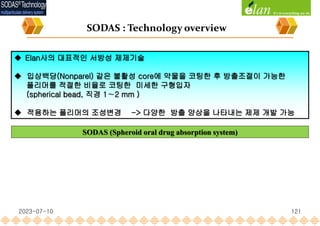

 Elan사의 대표적인 서방성 제제기술
 입상백당(Nonparel) 같은 불활성 core에 약물을 코팅한 후 방출조절이 가능한
폴리머를 적절한 비율로 코팅한 미세한 구형입자
(spherical bead, 직경 1∼2 mm )
 적용하는 폴리머의 조성변경 -> 다양한 방출 양상을 나타내는 제제 개발 가능
SODAS (Spheroid oral drug absorption system)
SODAS : Technology overview
2023-07-10 121

 Sodas® multilayer tablet technology is a multilayer drug delivery system
which focuses on the production of controlled release beads
 The Sodas® technology is characterized by its inherent flexibility that
enables the production of customized dosage forms that respond directly
to individual needs such as pain and blood pressure
 The technology essentially leads a pursatile drug release where the drug is
released in pulses that are separated by defined time intervals
 Examples of this technology include Ritalin® LA and Focalin® XR
 They are both used to treat Attention Deficit Hyperativity Disorder
(ADHD)
 They provide a once-daily pulsed profile that offers the patient
efficacy throughout the day negating the need for taking the dose during
working hours unlike the twice-daily dosing of the conventional
immediate release tablet

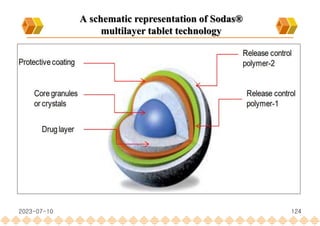

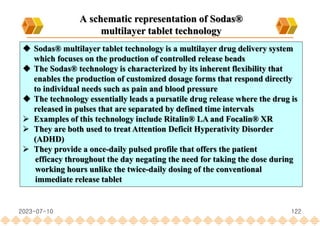

A schematic representation of Sodas®
multilayer tablet technology
2023-07-10 122

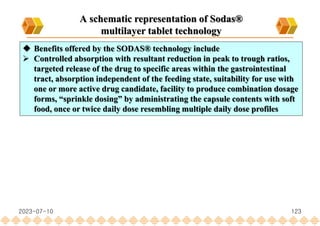

 Benefits offered by the SODAS® technology include
 Controlled absorption with resultant reduction in peak to trough ratios,
targeted release of the drug to specific areas within the gastrointestinal
tract, absorption independent of the feeding state, suitability for use with
one or more active drug candidate, facility to produce combination dosage
forms, “sprinkle dosing” by administrating the capsule contents with soft
food, once or twice daily dose resembling multiple daily dose profiles
2023-07-10 123

2023-07-10 124

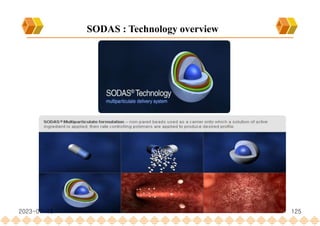

2023-07-10 125

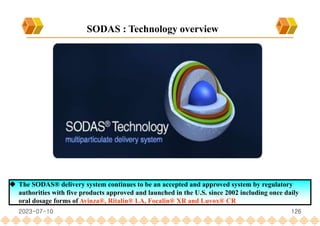

 The SODAS® delivery system continues to be an accepted and approved system by regulatory
authorities with five products approved and launched in the U.S. since 2002 including once daily
oral dosage forms of Avinza®, Ritalin® LA, Focalin® XR and Luvox® CR
2023-07-10 126

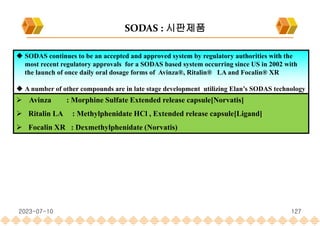

 SODAS continues to be an accepted and approved system by regulatory authorities with the
most recent regulatory approvals for a SODAS based system occurring since US in 2002 with
the launch of once daily oral dosage forms of Avinza®, Ritalin® LA and Focalin® XR
 A number of other compounds are in late stage development utilizing Elan’s SODAS technology
 Avinza : Morphine Sulfate Extended release capsule[Norvatis]
 Ritalin LA : Methylphenidate HCl , Extended release capsule[Ligand]
 Focalin XR : Dexmethylphenidate (Norvatis)
SODAS : 시판제품
2023-07-10 127

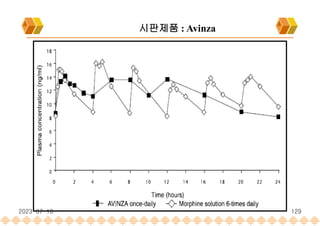

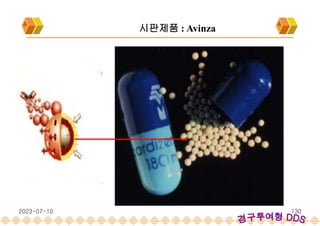

시판제품 : Avinza
2023-07-10 128

2023-07-10 129

2023-07-10 130

시판제품 : Ritalin LA
2023-07-10 131

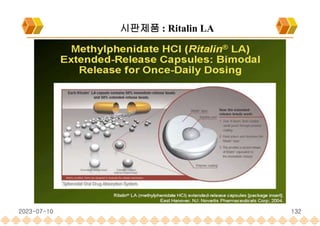

시판제품 : Ritalin LA
2023-07-10 132

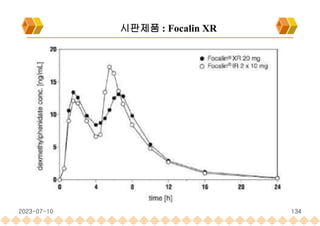

시판제품 : Focalin XR
2023-07-10 133

시판제품 : Focalin XR
2023-07-10 134

SODAS 시판제품 : Focalin XR
2023-07-10 135

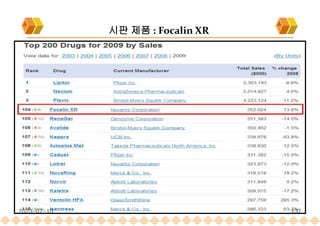

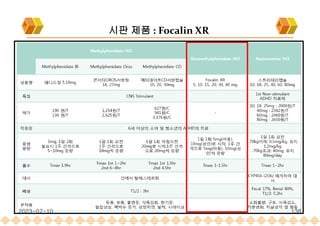

시판 제품 : Focalin XR
2023-07-10 136

2023-07-10 137

2023-07-10 138

시판제품 : Luvox CR
2023-07-10 139

140

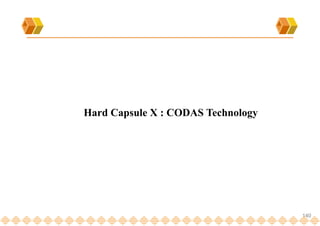

Hard Capsule X : CODAS Technology

CODAS
(Chronotherapeutic Oral Drug Absorption System)
2023-07-10 141

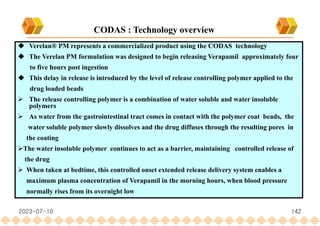

 Verelan® PM represents a commercialized product using the CODAS technology
 The Verelan PM formulation was designed to begin releasing Verapamil approximately four
to five hours post ingestion
 This delay in release is introduced by the level of release controlling polymer applied to the
drug loaded beads
 The release controlling polymer is a combination of water soluble and water insoluble
polymers
 As water from the gastrointestinal tract comes in contact with the polymer coat beads, the
water soluble polymer slowly dissolves and the drug diffuses through the resulting pores in
the coating
The water insoluble polymer continues to act as a barrier, maintaining controlled release of
the drug
 When taken at bedtime, this controlled onset extended release delivery system enables a
maximum plasma concentration of Verapamil in the morning hours, when blood pressure
normally rises from its overnight low
CODAS : Technology overview
2023-07-10 142

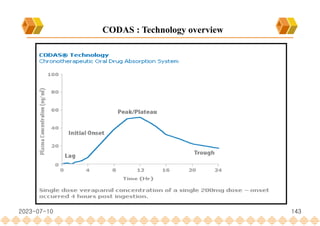

CODAS : Technology overview
2023-07-10 143

시판제품 : Verelan PM
2023-07-10 144

145

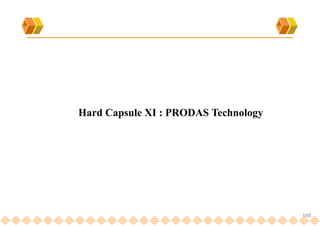

Hard Capsule XI : PRODAS Technology

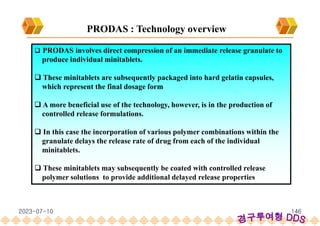

 PRODAS involves direct compression of an immediate release granulate to
produce individual minitablets.
 These minitablets are subsequently packaged into hard gelatin capsules,
which represent the final dosage form
 A more beneficial use of the technology, however, is in the production of
controlled release formulations.
 In this case the incorporation of various polymer combinations within the
granulate delays the release rate of drug from each of the individual
minitablets.
 These minitablets may subsequently be coated with controlled release
polymer solutions to provide additional delayed release properties

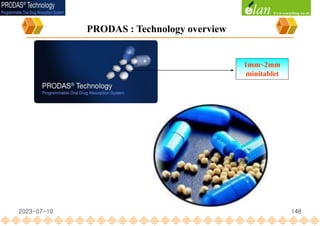

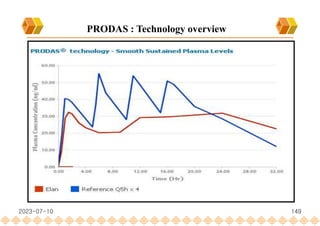

PRODAS : Technology overview
2023-07-10 146

PRODAS
(Programmable Oral Drug Absorption system)
2023-07-10 147

1mm~2mm
minitablet
2023-07-10 148

2023-07-10 149

150
Hard Capsule XII : Entocort EC(Budesonide)

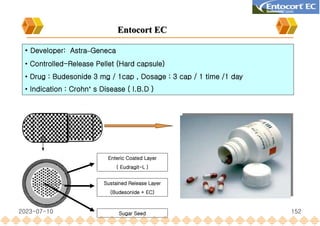

Sugar Seed
Sustained Release Layer
(Budesonide + EC)
Enteric Coated Layer
( Eudragit-L )
• Developer: Astra–Geneca
• Controlled-Release Pellet (Hard capsule)
• Drug : Budesonide 3 mg / 1cap , Dosage : 3 cap / 1 time /1 day
• Indication : Crohn’ s Disease ( I.B.D )
Entocort EC
2023-07-10 152

153

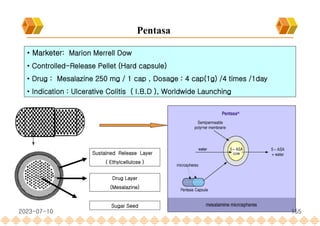

Hard Capsule XIII : Pentasa(Mesalazine, 5-ASA)

Sugar Seed
Drug Layer
(Mesalazine)
Sustained Release Layer
( Ethylcellulose )
• Marketer: Marion Merrell Dow
• Controlled-Release Pellet (Hard capsule)
• Drug : Mesalazine 250 mg / 1 cap , Dosage : 4 cap(1g) /4 times /1day
• Indication : Ulcerative Colitis ( I.B.D ), Worldwide Launching
Pentasa
2023-07-10 155

156
Chapter 4. Marketed Products of MUPS(Korea)

157
2023-07-10
개량신약 개발 사례 I
(한국 유나이티드 제약)

2023-07-10 158

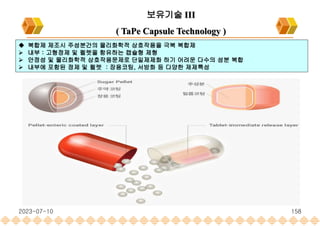

보유기술 III
( TaPe Capsule Technology )
 복합제 제조시 주성분간의 물리화학적 상호작용을 극복 복합제
 내부 : 고형정제 및 펠렛을 함유하는 캡슐형 제형
 안정성 및 물리화학적 상호작용문제로 단일제제화 하기 어려운 다수의 성분 복합
 내부에 포함된 정제 및 펠렛 : 장용코팅, 서방화 등 다양한 제제특성

2023-07-10 159

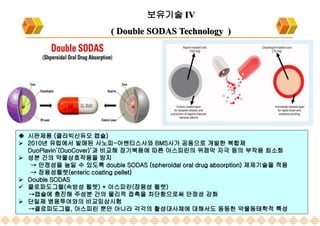

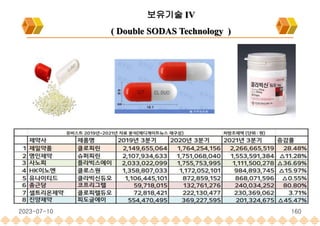

보유기술 IV
( Double SODAS Technology )
 시판제품 (클라빅신듀오 캡슐)
 2010년 유럽에서 발매된 사노피-아벤티스사와 BMS사가 공동으로 개발한 복합제
DuoPlavin’(DuoCover)‘과 비교해 장기복용에 따른 아스피린의 위점막 자극 등의 부작용 최소화
 성분 간의 약물상호작용을 방지
→ 안정성을 높일 수 있도록 double SODAS (spheroidal oral drug absorption) 제제기술을 적용
→ 장용성펠렛(enteric coating pellet)
 Double SODAS
 클로피도그렐(속방성 펠렛) + 아스피린(장용성 펠렛)
→캡슐에 충진해 주성분 간의 물리적 접촉을 차단함으로써 안정성 강화
 단일제 병용투여와의 비교임상시험
→클로피도그렐, 아스피린 뿐만 아니라 각각의 활성대사체에 대해서도 동등한 약물동태학적 특성

2023-07-10 160
보유기술 IV
( Double SODAS Technology )

161
2023-07-10
개량신약 개발 사례 II
; Fenofibrate
트리코 ( Nanocrystal Technology)
Fenofibric acid (페노시드)
Choline Fenofibrate(티지페노)
스타펜( Fenofibrate + Pitavastatin)

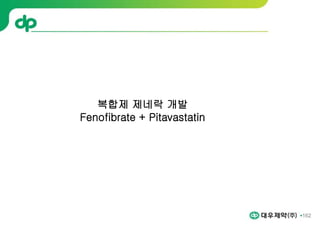

162

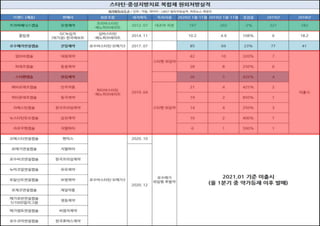

복합제 제네락 개발
Fenofibrate + Pitavastatin

165

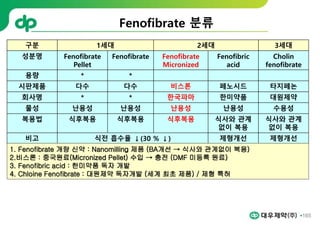

Fenofibrate 분류
구분 1세대 2세대 3세대
성분명 Fenofibrate
Pellet
Fenofibrate Fenofibrate
Micronized
Fenofibric
acid
Cholin
fenofibrate
용량 * *
시판제품 다수 다수 비스론 페노시드 타지페논
회사명 * * 한국파마 한미약품 대원제약
물성 난용성 난용성 난용성 난용성 수용성
복용법 식후복용 식후복용 식후복용 식사와 관계
없이 복용
식사와 관계
없이 복용
비고 식전 흡수율 ↓(30 % ↓) 제형개선 제형개선
1. Fenofibrate 개량 신약 : Nanomilling 제품 (BA개선 → 식사와 관계없이 복용)
2.비스론 : 중국원료(Micronized Pellet) 수입 → 충전 (DMF 미등록 원료)
3. Fenofibric acid : 한미약품 독자 개발
4. Chloine Fenofibrate : 대원제약 독자개발 (세계 최초 제품) / 제형 특허

167

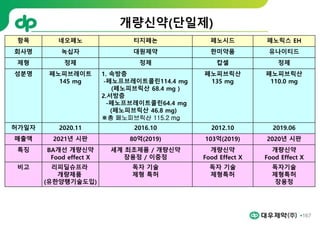

개량신약(단일제)
항목 네오페노 티지페논 페노시드 페노릭스 EH
회사명 녹십자 대원제약 한미약품 유나이티드
제형 정제 정제 캅셀 정제
성분명 페노피브레이트
145 mg
1. 속방층
-페노프브레이트콜린114.4 mg
(페노피브릭산 68.4 mg )
2.서방층
-페노프브레이트콜린64.4 mg
(페노피브릭산 46.8 mg)
※총 페노피브릭산 115.2 mg
페노피브릭산
135 mg
페노피브릭산
110.0 mg
허가일자 2020.11 2016.10 2012.10 2019.06
매출액 2021년 시판 80억(2019) 103억(2019) 2020년 시판
특징 BA개선 개량신약
Food effect X
세계 최초제품 / 개량신약
장용정 / 이중정
개량신약
Food Effect X
개량신약
Food Effect X
비고 리피딜슈프라
개량제품
(유한양행기술도입)
독자 기술
제형 특허
독자 기술
제형특허
독자기술
제형특허
장용정

168

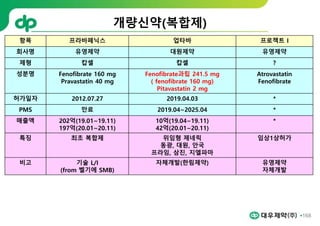

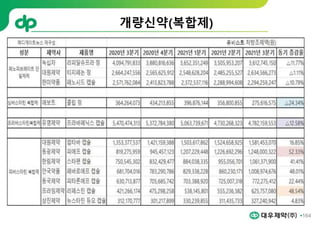

개량신약(복합제)
항목 프라바페닉스 업타바 프로젝트 I
회사명 유영제약 대원제약 유영제약
제형 캅셀 캅셀 ?
성분명 Fenofibrate 160 mg
Pravastatin 40 mg
Fenofibrate과립 241.5 mg
( fenofibrate 160 mg)
Pitavastatin 2 mg
Atrovastatin
Fenofibrate
허가일자 2012.07.27 2019.04.03 *
PMS 만료 2019.04~2025.04 *
매출액 202억(19.01~19.11)
197억(20.01~20.11)
10억(19.04~19.11)
42억(20.01~20.11)
*
특징 최초 복합제 위임형 제네릭
동광, 대원, 안국
프라임, 삼진, 지엘파마
임상1상허가
비고 기술 L/I
(from 벨기에 SMB)
자체개발(한림제약) 유영제약
자체개발

169

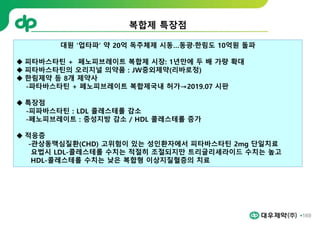

대원 '업타파' 약 20억 독주체제 시동…동광·한림도 10억원 돌파
 피타바스타틴 + 페노피브레이트 복합제 시장: 1년만에 두 배 가량 확대
 피타바스타틴의 오리지널 의약품 : JW중외제약(리바로정)
 한림제약 등 8개 제약사
-파타바스타틴 + 페노피브레이트 복합제국내 허가→2019.07 시판
 특장점
-피파바스타틴 : LDL 콜레스테롤 감소
-페노피브레이트 : 중성지방 감소 / HDL 콜레스테롤 증가
 적응증
-관상동맥심질환(CHD) 고위험이 있는 성인환자에서 피타바스타틴 2mg 단일치료
요법시 LDL-콜레스테롤 수치는 적절히 조절되지만 트리글리세라이드 수치는 높고
HDL-콜레스테롤 수치는 낮은 복합형 이상지질혈증의 치료
복합제 특장점

170

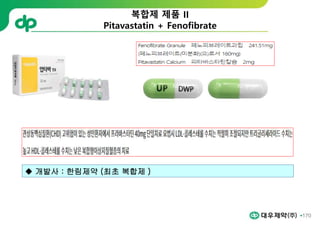

복합제 제품 II
Pitavastatin + Fenofibrate
 개발사 : 한림제약 (최초 복합제 )

171
Fenofibrate + Pitavasatatin 복합제
Fenofibrate
pellet
Pitavasattin
정제
Pitavasattin 정제
Fenofibrate pellet

172

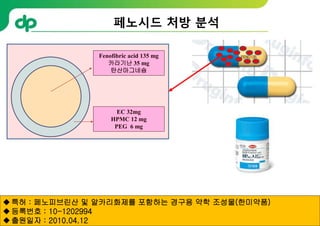

페노시드 처방 분석
Fenofibric acid 135 mg
카라기난 35 mg
탄산마그네슘
EC 32mg
HPMC 12 mg
PEG 6 mg
특허 : 페노피브린산 및 알카리화제를 포함하는 경구용 약학 조성물(한미약품)
등록번호 : 10-1202994
출원일자 : 2010.04.12

174

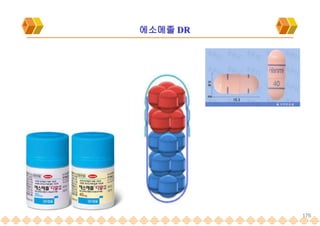

에소메졸 DR
청구항 1
에스오메프라졸(esomeprazole)염을 함유하는
; 코어, 상기 코어 상에 형성된 내피 코팅층
; 상기 내피 코팅층 상에 형성된 제 1 장용성 코팅층을 포함하는 제1용출부
; 상기 내피 코팅층 상에 형성된 제 2 장용성 코팅층을 포함하는 제2용출부
; 복합 캡슐
; 상기 제1장용성 코팅층은 코팅기제로서 메타크릴산 코폴리머 LD를 내피 코팅층이 형성된
코어의 5 내지 50%(w/w)로 포함
; 상기 제2장용성 코팅층은 코팅기제로서 메타크릴산 코폴리머 S및 메타크릴산 코폴리머 L의
1.5:1 내지 3.5:1(w/w) 혼합물을 내피 코팅층이 형성된 코어의 15 내지 40 %(w/w)로 포함
; 제1용출부 및 제2용출부의 코어는 모두 미니정제인 복합 캡슐제

177

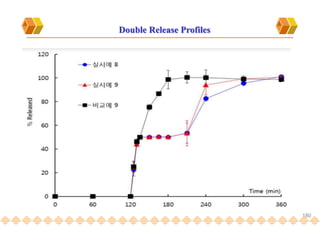

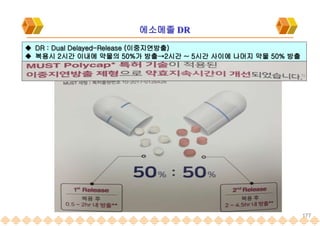

 DR : Dual Delayed-Release (이중지연방출)
 복용시 2시간 이내에 약물의 50%가 방출→2시간 ~ 5시간 사이에 나머지 약물 50% 방출
에소메졸 DR

178

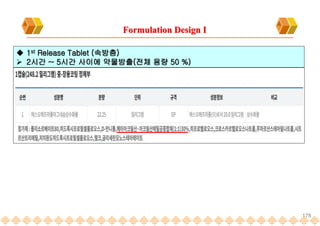

Formulation Design I
 1st Release Tablet (속방층)
 2시간 ~ 5시간 사이에 약물방출(전체 용량 50 %)

179

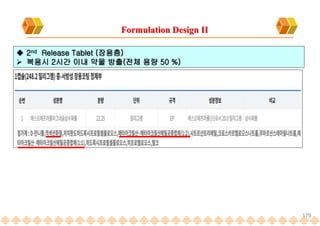

Formulation Design II
 2nd Release Tablet (장용층)
 복용시 2시간 이내 약물 방출(전체 용량 50 %)

181
Chapter 5 : Appendix I
; Sprinkle Formulation

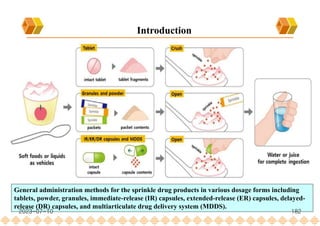

Introduction
General administration methods for the sprinkle drug products in various dosage forms including
tablets, powder, granules, immediate-release (IR) capsules, extended-release (ER) capsules, delayed-
release (DR) capsules, and multiarticulate drug delivery system (MDDS).
2023-07-10 182

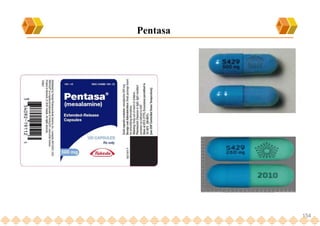

Pentasa
The number of approved New Drug Applications (NDAs) for sprinkle drug products since 1941
A total of sixty-five original sprinkle products are available on the US pharmaceutical market
2023-07-10 183

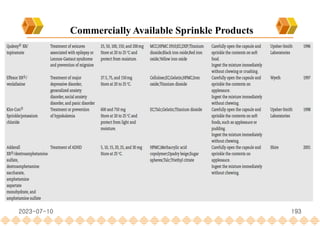

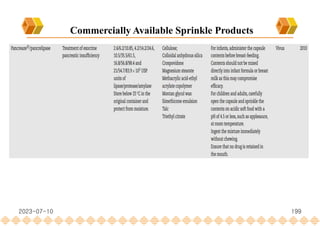

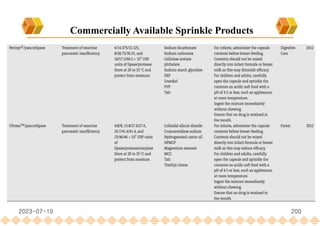

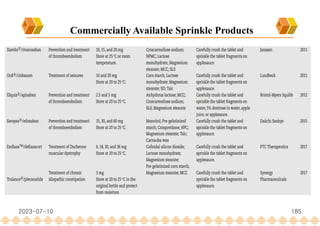

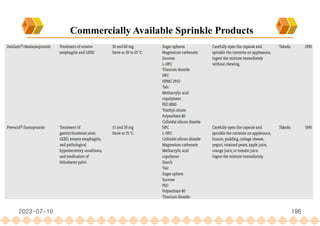

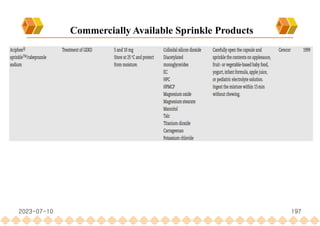

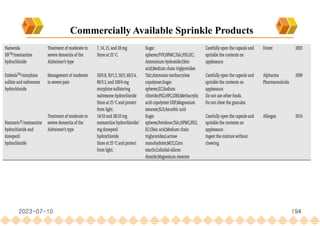

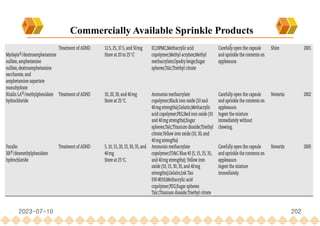

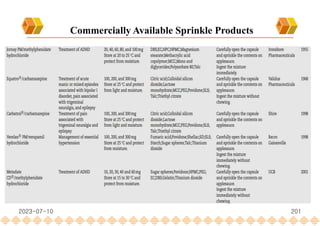

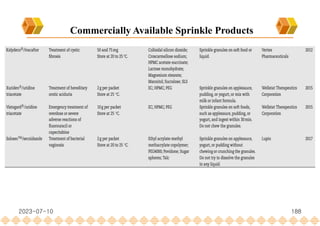

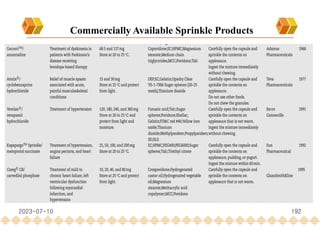

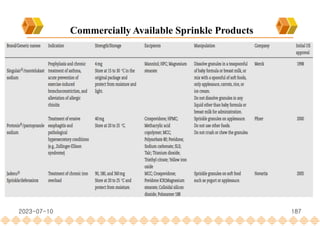

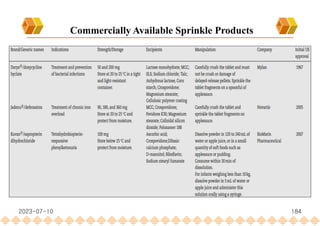

Commercially Available Sprinkle Products
2023-07-10 184

2023-07-10 185

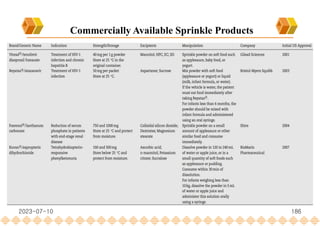

2023-07-10 186

2023-07-10 187

2023-07-10 188

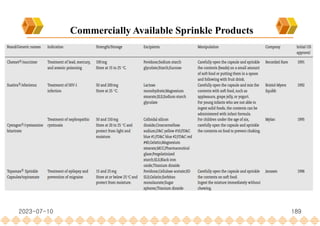

2023-07-10 189

2023-07-10 190

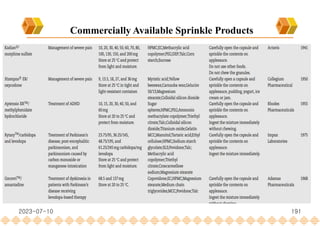

2023-07-10 191

2023-07-10 192

2023-07-10 193

2023-07-10 194

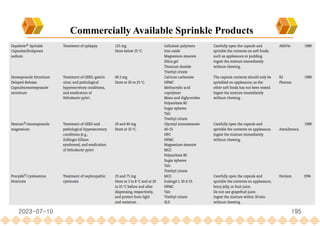

2023-07-10 195

2023-07-10 196

2023-07-10 197

2023-07-10 198

2023-07-10 199

2023-07-10 200

2023-07-10 201

2023-07-10 202

203

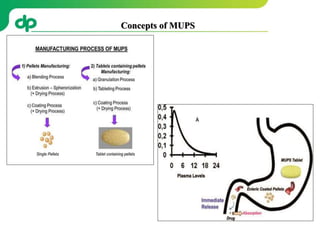

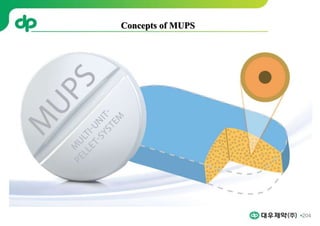

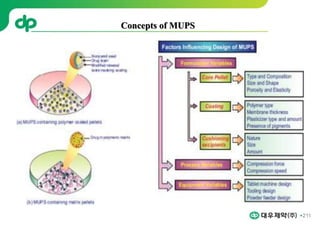

Concepts of MUPS
2023-07-10

206

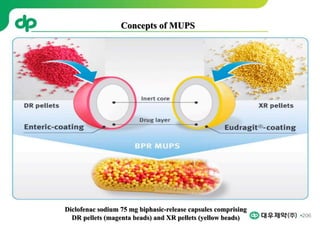

Diclofenac sodium 75 mg biphasic-release capsules comprising
DR pellets (magenta beads) and XR pellets (yellow beads)
Concepts of MUPS

207

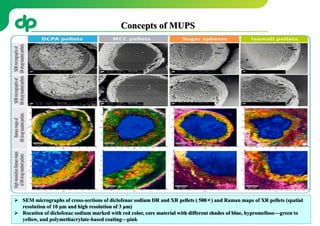

 SEM micrographs of cross-sections of diclofenac sodium DR and XR pellets ( 500×) and Raman maps of XR pellets (spatial
resolution of 10 µm and high resolution of 3 µm)
 Rocation of diclofenac sodium marked with red color, core material with different shades of blue, hypromellose—green to
yellow, and polymethacrylate-based coating—pink
Concepts of MUPS

209

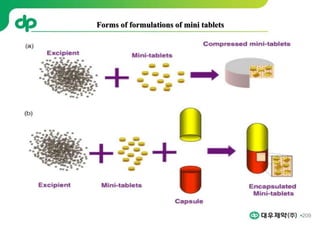

Forms of formulations of mini tablets

210
Multi Mini Tablet System provide
the flexibility of multiparticulate dosage forms

212

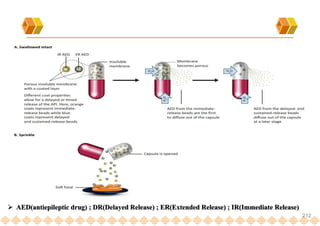

 AED(antiepileptic drug) ; DR(Delayed Release) ; ER(Extended Release) ; IR(Immediate Release)

213

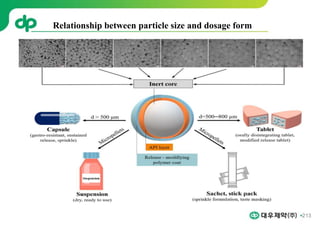

Relationship between particle size and dosage form

214
MUPS consisting pellets prepared by reservoir,
matrix and combined pellets system

215

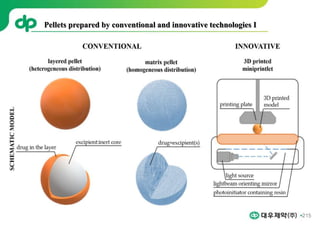

Pellets prepared by conventional and innovative technologies I

216

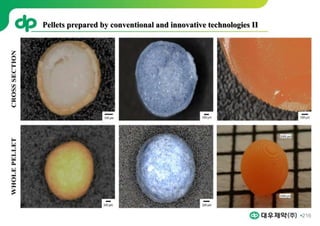

Pellets prepared by conventional and innovative technologies II

217

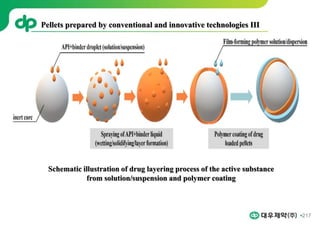

Pellets prepared by conventional and innovative technologies III
Schematic illustration of drug layering process of the active substance
from solution/suspension and polymer coating

218
Pellets prepared by conventional and innovative technologies IV

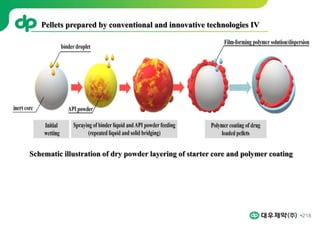

Schematic illustration of dry powder layering of starter core and polymer coating

219
MUPS- Multiple Unit Pellets compressed to Tablet

220

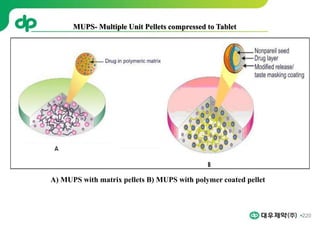

A) MUPS with matrix pellets B) MUPS with polymer coated pellet
MUPS- Multiple Unit Pellets compressed to Tablet

221
Impact of compaction on pellet deformation and drug release

222

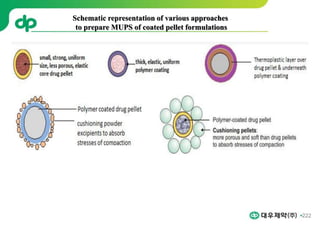

Schematic representation of various approaches
to prepare MUPS of coated pellet formulations

223

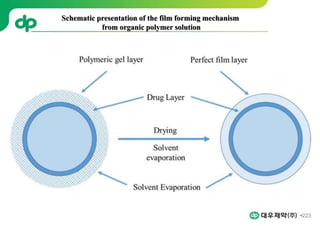

Schematic presentation of the film forming mechanism
from organic polymer solution

224
Schematic presentation of the film forming mechanism
from aqueous polymer dispersions

225
Diagram showing how drug-loaded pellets are prepared
using an extrusion spheronization technique

226

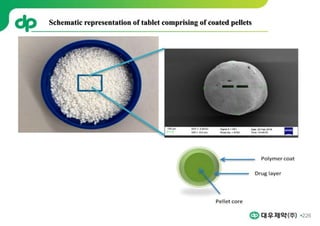

Schematic representation of tablet comprising of coated pellets

227
Pharmaceutical polymers used in the coating of particulate systems
with their elongation value and chemical structures

228
Pharmaceutical polymers used in the coating of particulate systems
with their elongation value and chemical structures

229

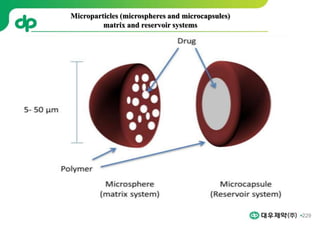

Microparticles (microspheres and microcapsules)
matrix and reservoir systems

230

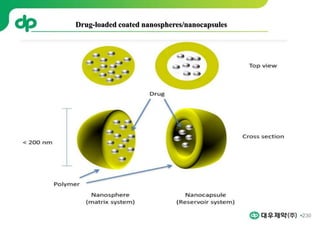

Drug-loaded coated nanospheres/nanocapsules

231

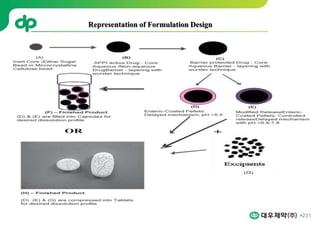

Representation of Formulation Design

232

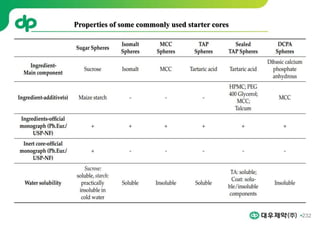

Properties of some commonly used starter cores

233
2023-07-10
NON-PAREIL SEEDS
(Sugar Spheres USP / NF)

LEADING THE WORLD IN EXCIPIENTS JRS PHARMA
Capsule Filling with
JRS Pharma‘s
NON-PAREIL SEEDS
Sacchari spheri Ph.Eur.,
Sugar Spheres USP / NF

4 names for one dosage form:
Globuli
Pellets
Spheres
Non-Pareils
JRS Pharma‘s
NON-PAREIL SEEDS
Sacchari spheri Ph.Eur.,
Sugar Spheres USP / NF

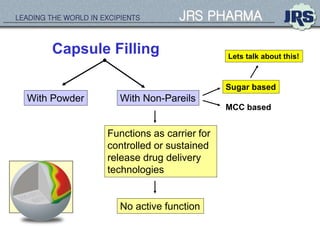

Capsule Filling
With Powder With Non-Pareils
Functions as carrier for
controlled or sustained
release drug delivery
technologies
No active function
Sugar based
MCC based
Lets talk about this!

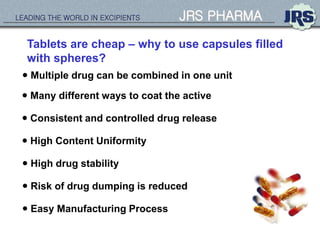

Tablets are cheap – why to use capsules filled
with spheres?
 High Content Uniformity
 Consistent and controlled drug release
 Multiple drug can be combined in one unit
 High drug stability
 Many different ways to coat the active
 Easy Manufacturing Process
 Risk of drug dumping is reduced

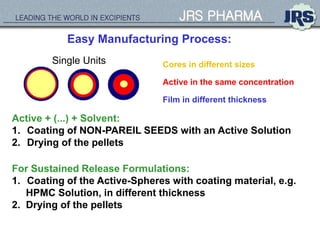

Easy Manufacturing Process:
Active + (...) + Solvent:
1. Coating of NON-PAREIL SEEDS with an Active Solution
2. Drying of the pellets
For Sustained Release Formulations:
1. Coating of the Active-Spheres with coating material, e.g.
HPMC Solution, in different thickness
2. Drying of the pellets
Single Units Cores in different sizes
Active in the same concentration
Film in different thickness

Multiple Units
core
active
film
Single Units
Body
Disintegration with
different
release profiles

Easy Manufacturing Process:

Sustained Release Systems
Film coating systems: Limits
Working with spheres
(multiple dosage):
No problem !
Working with tablets
(single unit):
High risk !

Benefits of sustained release formulations?
 Homogenous blood concentration levels due to
their consistent distribution in the GI-tract
 Improved patient compliance by reducing
dose frequency
 Therefore reduced side effects
 Resistance of API to stomach acid

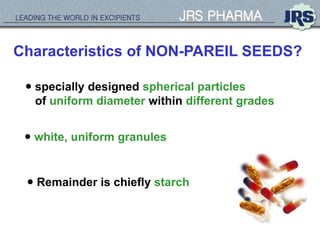

Characteristics of NON-PAREIL SEEDS?
 specially designed spherical particles
of uniform diameter within different grades
 white, uniform granules
 Remainder is chiefly starch

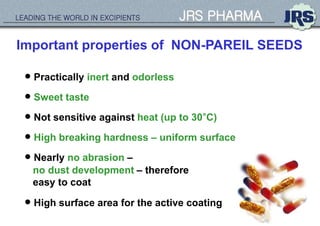

Important properties of NON-PAREIL SEEDS
 Sweet taste
 Practically inert and odorless
 Not sensitive against heat (up to 30°C)
 High breaking hardness – uniform surface
 Nearly no abrasion –
no dust development – therefore
easy to coat
 High surface area for the active coating

Monograph Specifications: Sugar Spheres NF
1. Appearance White, hard, brittle, free-flowing, spherical masses
2. Identification The insoluble portion of a slurry gives a reddish-violet
to deep blue color with iodine
3. Specific rotation + 41° - + 61°
4. Loss on drying not more than 4.0 %
5. Sucrose 62.5 – 91.5 % on dried basis
6. Residue on ignition not more than 0.25 %
7. Particle size (by RoTap)
not less than 90.0 % passes the coarser sieve
sieze stated in the labelling; 100 % passes the
next coarser sieve size listed in the labelling.
Not more than 10.0 % passes the finer sieve
size stated in the labeling.

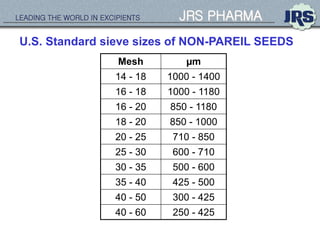

U.S. Standard sieve sizes of NON-PAREIL SEEDS
Mesh µm
14 - 18 1000 - 1400
16 - 18 1000 - 1180
16 - 20 850 - 1180
18 - 20 850 - 1000
20 - 25 710 - 850
25 - 30 600 - 710
30 - 35 500 - 600
35 - 40 425 - 500
40 - 50 300 - 425
40 - 60 250 - 425

247
신규복합제 Formulation Design

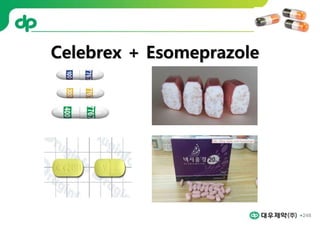

249

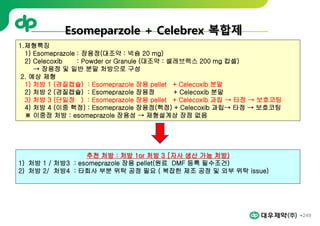

Esomeparzole + Celebrex 복합제
1.제형특징
1) Esomeprazole : 장용정(대조약 : 넥슘 20 mg)
2) Celecoxib : Powder or Granule (대조약 : 셀레브렉스 200 mg 캅셀)
→ 장용정 및 일반 분말 처방으로 구성
2. 예상 제형
1) 처방 1 (경질캡슐) : Esomeprazole 장용 pellet + Celecoxib 분말
2) 처방 2 (경질캡슐) : Esomeprazole 장용정 + Celecoxib 분말
3) 처방 3 (단일정 ) : Esomeprazole 장용 pellet + Celecoxib 과립 → 타정 → 보호코팅
4) 처방 4 (이중 핵정) : Esomeprazole 장용정(핵정) + Celecoxib 과립→ 타정 → 보호코팅
※ 이중정 처방 : esomeprazole 장용성 → 제형설계상 장점 없음
추천 처방 : 처방 1or 처방 3 [자사 생산 가능 처방)
1) 처방 1 / 처방3 : esomeprazole 장용 pellet(원료 DMF 등록 필수조건)
2) 처방 2/ 처방4 : 타회사 부분 위탁 공정 필요 ( 복잡한 제조 공정 및 외부 위탁 issue)

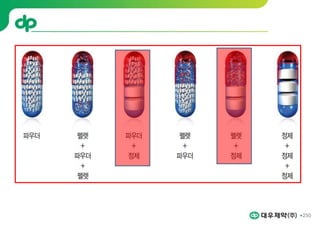

Esomeparzole + Celebrex : 처방 1
Powder + Enteric Coated pellet in Capsule
Celebrex Powder
200 mg
Esomeprazole 장용 pellet
(esomeprazole 20 mg)
251

252

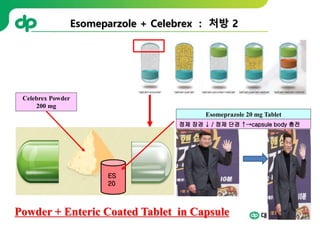

Celebrex Powder
200 mg
Esomeprazole 20 mg Tablet
정제 장경 ↓ / 정제 단경 ↑→capsule body 충전
Powder + Enteric Coated Tablet in Capsule
ES
20

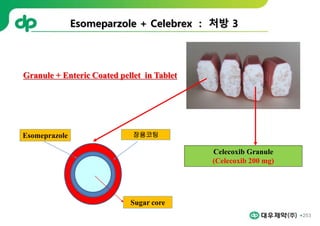

장용코팅
Esomeprazole
Sugar core
Celecoxib Granule
(Celecoxib 200 mg)
Granule + Enteric Coated pellet in Tablet
253

254

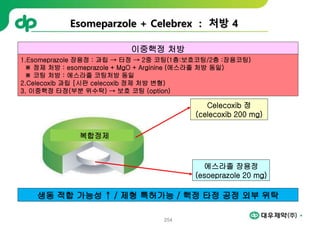

복합정제
에스라졸 장용정
(esoeprazole 20 mg)
Celecoxib 정
(celecoxib 200 mg)
이중핵정 처방
1.Esomeprazole 장용정 : 과립 → 타정 → 2중 코팅(1층:보호코팅/2층 :장용코팅)
※ 정제 처방 : esomeprazole + MgO + Arginine (에스라졸 처방 동일)
※ 코팅 처방 : 에스라졸 코팅처방 동일
2.Celecoxib 과립 [시판 celecoxib 정제 처방 변형)
3. 이중핵정 타정(부분 위수탁) → 보호 코팅 (option)
생동 적합 가능성 ↑ / 제형 특허가능 / 핵정 타정 공정 외부 위탁

255

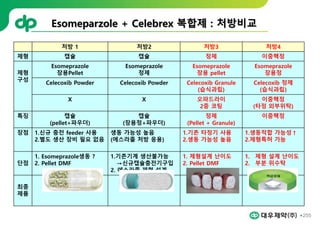

Esomeparzole + Celebrex 복합제 : 처방비교
처방 1 처방2 처방3 처방4
제형 캡슐 캡슐 정제 이중핵정
제형
구성
Esomeprazole
장용Pellet
Esomeprazole
정제
Esomeprazole
장용 pellet
Esomeprazole
장용정
Celecoxib Powder Celecoxib Powder Celecoxib Granule
(습식과립)
Celecoxib 정제
(습식과립)
X X 오파드라이
2중 코팅
이중핵정
(타정 외부위탁)
특징 캡슐
(pellet+파우더)
캡슐
(장용정+파우더)
정제
(Pellet + Granule)
이중핵정
장점 1.신규 충전 feeder 사용
2.별도 생산 장비 필요 없음
생동 가능성 높음
(에스라졸 처방 응용)
1.기존 타정기 사용
2.생동 가능성 높음
1.생동적합 가능성↑
2.제형특허 가능
단점
1. Esomeprazole생동 ?
2. Pellet DMF
1.기존기계 생산불가능
→신규캡슐충전기구입
2. 에스라졸 제형 설계
1. 제형설계 난이도
2. Pellet DMF
1. 제형 설계 난이도
2. 부분 위수탁
최종
제품

256

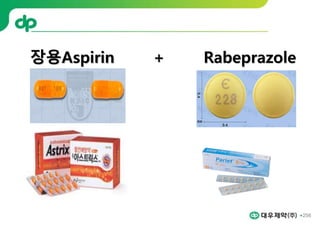

장용Aspirin + Rabeprazole

257

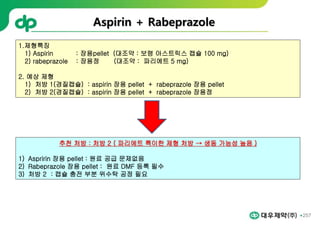

Aspirin + Rabeprazole
1.제형특징
1) Aspirin : 장용pellet (대조약 : 보령 아스트릭스 캡슐 100 mg)
2) rabeprazole : 장용정 (대조약 : 파리에트 5 mg)
2. 예상 제형
1) 처방 1(경질캡슐) : aspirin 장용 pellet + rabeprazole 장용 pellet
2) 처방 2(경질캡슐) : aspirin 장용 pellet + rabeprazole 장용정
추천 처방 : 처방 2 ( 파리에트 특이한 제형 처방 → 생동 가능성 높음 )
1) Aspririn 장용 pellet : 원료 공급 문제없음
2) Rabeprazole 장용 pellet : 원료 DMF 등록 필수
3) 처방 2 : 캡슐 충전 부분 위수탁 공정 필요

258

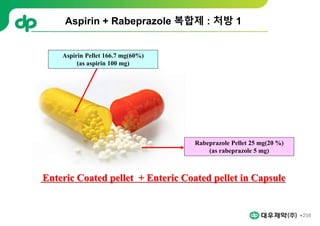

Rabeprazole Pellet 25 mg(20 %)
(as rabeprazole 5 mg)
Aspirin Pellet 166.7 mg(60%)
(as aspirin 100 mg)
Aspirin + Rabeprazole 복합제 : 처방 1
Enteric Coated pellet + Enteric Coated pellet in Capsule

259

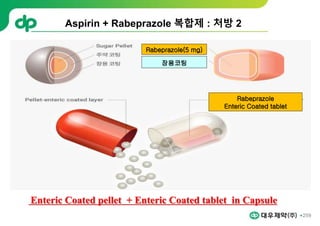

Aspirin + Rabeprazole 복합제 : 처방 2
장용코팅
Rabeprazole
Enteric Coated tablet
Rabeprazole(5 mg)
Enteric Coated pellet + Enteric Coated tablet in Capsule

260

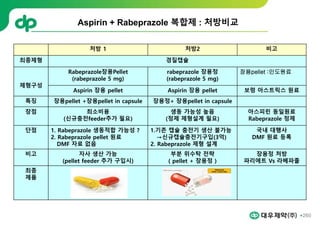

처방 1 처방2 비고
최종제형 경질캡슐
제형구성
Rabeprazole장용Pellet
(rabeprazole 5 mg)
rabeprazole 장용정
(rabeprazole 5 mg)
장용pellet :인도원료
Aspirin 장용 pellet Aspirin 장용 pellet 보령 아스트릭스 원료
특징 장용pellet +장용pellet in capsule 장용정+ 장용pellet in capsule
장점 최소비용
(신규충전feeder추가 필요)
생동 가능성 높음
(정제 제형설계 필요)
아스피린 동일원료
Rabeprazole 정제
단점 1. Rabeprazole 생동적합 가능성 ?
2. Rabeprazole pellet 원료
DMF 자료 없음
1.기존 캡슐 충전기 생산 불가능
→신규캡슐충전기구입(3억)
2. Rabeprazole 제형 설계
국내 대행사
DMF 원료 등록
비고 자사 생산 가능
(pellet feeder 추가 구입시)
부분 위수탁 전략
( pellet + 장용정 )
장용정 처방
파리에트 Vs 라베파졸
최종
제품
Aspirin + Rabeprazole 복합제 : 처방비교

mups제형(Ver 11.0).pptx

More Related Content

What's hot

Similar to mups제형(Ver 11.0).pptx

More from Changbaeg Lim

Recently uploaded

mups제형(Ver 11.0).pptx
