The MAST pod provides a flexible platform for testing sensor systems. It has configurable bays for nose, tail, and center payloads. The pod collects data through an onboard system and can transmit data via L-band downlink. It is designed to accommodate different payloads and a subsonic aircraft flight envelope.

1. MAST_1.pdf 11/1/2011 11:54:52 AM

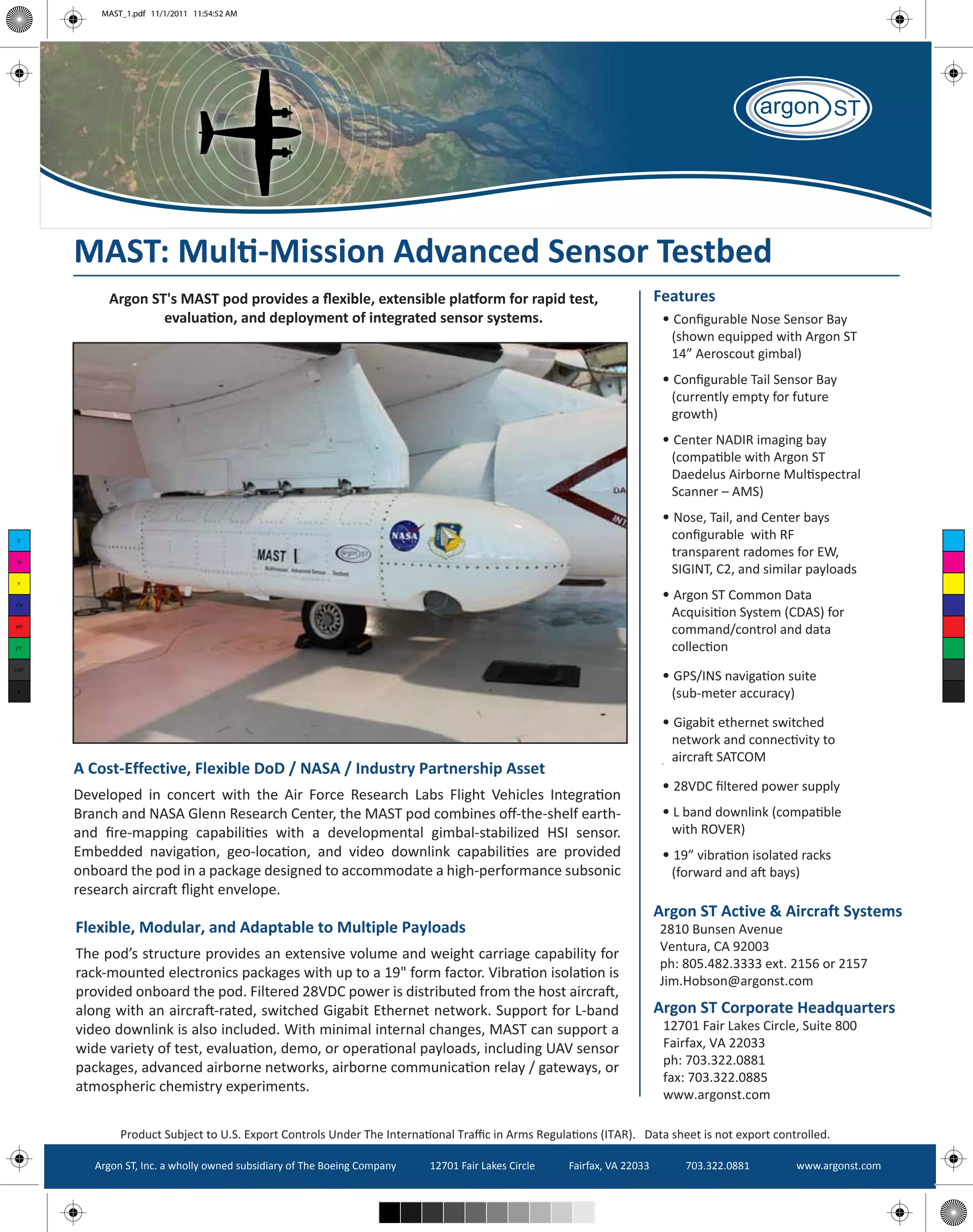

MAST: Multi-Mission Advanced Sensor Testbed
Argon ST's MAST pod provides a flexible, extensible platform for rapid test, Features
evaluation, and deployment of integrated sensor systems. • Configurable Nose Sensor Bay
(shown equipped with Argon ST
14” Aeroscout gimbal)
• Configurable Tail Sensor Bay
(currently empty for future
growth)
• Center NADIR imaging bay
(compatible with Argon ST
Daedelus Airborne Multispectral
Scanner – AMS)
• Nose, Tail, and Center bays
C
configurable with RF
transparent radomes for EW,
M
SIGINT, C2, and similar payloads
Y
CM
• Argon ST Common Data
Acquisition System (CDAS) for
MY
command/control and data
CY collection
• GPS/INS navigation suite
CMY
K
(sub-meter accuracy)
• Gigabit ethernet switched
network and connectivity to
aircraft SATCOM
A Cost-Effective, Flexible DoD / NASA / Industry Partnership Asset
3
• 28VDC filtered power supply
Developed in concert with the Air Force Research Labs Flight Vehicles Integration
Branch and NASA Glenn Research Center, the MAST pod combines off-the-shelf earth- • L band downlink (compatible
and fire-mapping capabilities with a developmental gimbal-stabilized HSI sensor. with ROVER)
Embedded navigation, geo-location, and video downlink capabilities are provided • 19” vibration isolated racks
onboard the pod in a package designed to accommodate a high-performance subsonic (forward and aft bays)
research aircraft flight envelope.
Argon ST Active & Aircraft Systems
Flexible, Modular, and Adaptable to Multiple Payloads 2810 Bunsen Avenue
Ventura, CA 92003
The pod’s structure provides an extensive volume and weight carriage capability for
ph: 805.482.3333 ext. 2156 or 2157
rack-mounted electronics packages with up to a 19" form factor. Vibration isolation is
Jim.Hobson@argonst.com
provided onboard the pod. Filtered 28VDC power is distributed from the host aircraft,
along with an aircraft-rated, switched Gigabit Ethernet network. Support for L-band Argon ST Corporate Headquarters
video downlink is also included. With minimal internal changes, MAST can support a 12701 Fair Lakes Circle, Suite 800
wide variety of test, evaluation, demo, or operational payloads, including UAV sensor Fairfax, VA 22033
ph: 703.322.0881
packages, advanced airborne networks, airborne communication relay / gateways, or
fax: 703.322.0885
atmospheric chemistry experiments.
www.argonst.com
Product Subject to U.S. Export Controls Under The International Traffic in Arms Regulations (ITAR). Data sheet is not export controlled.
Argon ST, Inc. a wholly owned subsidiary of The Boeing Company 12701 Fair Lakes Circle Fairfax, VA 22033 703.322.0881 www.argonst.com

2. MAST_2.pdf 11/1/2011 11:55:23 AM
MAST: Multi-Mission Advanced Sensor Testbed
MAST Pod Components
• MIL STD suspension, power,
and data connections
• 28VDC filtered power supply
• GPS Antenna
• Argon ST AEROSCOUT 14” Gimbal
• 4 port gigabit ethernet switch
• 19” vibration isolated racks (aft)
C
M
• 19” vibration isolated racks (fwd)
• Argon ST Common Data
Y
CM
Acquisition System (CDAS)
MY
CY • Argon ST Daedelus Airborne
CMY
Multispectral Scanner (AMS)
K
• Near Vis / Near IR (NVIS/NIR) HSI sensor
Multi-Mission Payload Bays: MAST Pod Specifications
Nose Payload Bay: Length: 153.8” • Inertial + GPS nav system
• EO/IR turrets (C-MIGITS installed)
Width: 25.71”
• LADAR / Directed energy systems Weight: 517 lb. (with sensor payload) • L-band antenna and video
• RADAR 298 lb. (empty) transmitter (ROVER compatible)
• Steerable antennas
Aircraft Interface:
Center Payload Bay: • 14” or 30” MIL STD wing
store suspension
• Antenna arrays
• MIL STD 1760 power, data, and
• Imaging radars (e.g. SAR)
video connector
• Nadir sensors
• Configurable COTS test and research
data connectors (e.g. ethernet)
Tail Payload Bay:
• Steerable antennas
• Datalinks
• Environmental Control System
Inverted view – showing optional
lower radome, installation
area for RF payloads
