This document describes a methodology for simulating signal propagation on multiconductor transmission lines directly in the time domain using the Transmission Line Modeling (TLM) method combined with Z-transform techniques. The approach models a two-conductor transmission line using telegrapher's equations converted to the TLM format. It defines quantities such as incident and total voltages/currents and applies a bilinear Z-transform to obtain a numerical algorithm to calculate the total line quantities from the incident quantities. As an example, it simulates propagation of a short pulse on a hypothetical two-channel carbon nanotube transmission line.
Toward coordinated transmission and distribution operationsMikhail Bragin
Proliferation of smart grid technologies has enhanced observability and controllability of distribution systems. If coordinated with the transmission system, resources of both systems can be used more efficiently. This paper proposes a model to operate transmission and distribution systems in a coordinated manner. The proposed model is solved using a Surrogate Lagrangian Relaxation (SLR) approach. The computational performance of this approach is compared against existing methods (e.g. subgradient method). Finally, the usefulness of the proposed model and solution approach is demonstrated via numerical experiments on the illustrative example and IEEE benchmarks.
Effect of Mobility on (I-V) Characteristics of Gaas MESFET Yayah Zakaria
We present in this paper an analytical model of the current–voltage (I-V) characteristics for submicron GaAs MESFET transistors. This model takes into account the analysis of the charge distribution in the active region and incorporate a field depended electron mobility, velocity saturation and charge
build-up in the channel. We propose in this frame work an algorithm of simulation based on mathematical expressions obtained previously. We propose a new mobility model describing the electric field-dependent. predictions of the simulator are compared with the experimental data [1] and
have been shown to be good.
Load Balancing of Modern Distribution Networks by Genetic AlgorithmITIIIndustries
The main purpose of this paper is to establish a multi-objective function for optimal load balancing in modern distribution networks. The proposed approach can reduce the three-phase voltage unbalance ratio and system power loss; furthermore, the system operation performance will be improved. The genetic algorithm and three-phase power flow algorithm are coded in Matlab. Finally, the IEEE 37-Bus test system is used as the sample system to verify the accuracy of the proposed approach. The simulation results demonstrate that the proposed approach is systematic and efficient for solving the load balancing problem in active distribution networks
Quantum Current in Graphene Nano Scrolls Based Transistortheijes
Graphene based material application as a new centuery material are growing rappidly its carrier transport phenomenon with fast mobility have been focused resently. In the graphene family nanoscrolls because of their especial structure need to be explored. In the presented work a theoretical model for carrier transport in the arcemedus graphene nanoscrolls is reported. Graphene nanoscroll chairal dependent electrical property is considered and then schottky transistor based platform is modeled. The transport coeficient as a fundamental transport factor is discussed. The geometrical paprameter effect on the working phenomenon is considered as well.
Design and Fabrication of the Novel Miniaturized Microstrip Coupler 3dB Using...TELKOMNIKA JOURNAL
In this work, a novel miniaturized compact coupler using the shunt-stubs artificial transimission
lines with high and low impedances is presented. Design of the proposed coupler is accomplished by
modifying the length and impedance of the branch lines in the conventional structure with the planar
resonators in order to achieve branch line coupler with compact size and improvement of the
performances. First part of this work is focusing on the theorical study of the proposed resonators where
the equations are obtained. Secondly, the proposed coupler is designed on FR4 susbtrate, and simulated
by using the EM Solver (ADS from Agilent technologies and CST microwave studio) in order to operate in
the ISM band. The obtained results show good agreement with the simulations and the coupler shows a
good perfo6rmance in the hole bandwidth. The size of the proposed coupler is reduced around 50%
compared to the conventional design. The last part conerns the fabrication and test of the proposed
coupler. The measurement and simulation results are in good agreements.
Toward coordinated transmission and distribution operationsMikhail Bragin
Proliferation of smart grid technologies has enhanced observability and controllability of distribution systems. If coordinated with the transmission system, resources of both systems can be used more efficiently. This paper proposes a model to operate transmission and distribution systems in a coordinated manner. The proposed model is solved using a Surrogate Lagrangian Relaxation (SLR) approach. The computational performance of this approach is compared against existing methods (e.g. subgradient method). Finally, the usefulness of the proposed model and solution approach is demonstrated via numerical experiments on the illustrative example and IEEE benchmarks.
Effect of Mobility on (I-V) Characteristics of Gaas MESFET Yayah Zakaria
We present in this paper an analytical model of the current–voltage (I-V) characteristics for submicron GaAs MESFET transistors. This model takes into account the analysis of the charge distribution in the active region and incorporate a field depended electron mobility, velocity saturation and charge
build-up in the channel. We propose in this frame work an algorithm of simulation based on mathematical expressions obtained previously. We propose a new mobility model describing the electric field-dependent. predictions of the simulator are compared with the experimental data [1] and
have been shown to be good.
Load Balancing of Modern Distribution Networks by Genetic AlgorithmITIIIndustries
The main purpose of this paper is to establish a multi-objective function for optimal load balancing in modern distribution networks. The proposed approach can reduce the three-phase voltage unbalance ratio and system power loss; furthermore, the system operation performance will be improved. The genetic algorithm and three-phase power flow algorithm are coded in Matlab. Finally, the IEEE 37-Bus test system is used as the sample system to verify the accuracy of the proposed approach. The simulation results demonstrate that the proposed approach is systematic and efficient for solving the load balancing problem in active distribution networks
Quantum Current in Graphene Nano Scrolls Based Transistortheijes
Graphene based material application as a new centuery material are growing rappidly its carrier transport phenomenon with fast mobility have been focused resently. In the graphene family nanoscrolls because of their especial structure need to be explored. In the presented work a theoretical model for carrier transport in the arcemedus graphene nanoscrolls is reported. Graphene nanoscroll chairal dependent electrical property is considered and then schottky transistor based platform is modeled. The transport coeficient as a fundamental transport factor is discussed. The geometrical paprameter effect on the working phenomenon is considered as well.
Design and Fabrication of the Novel Miniaturized Microstrip Coupler 3dB Using...TELKOMNIKA JOURNAL
In this work, a novel miniaturized compact coupler using the shunt-stubs artificial transimission
lines with high and low impedances is presented. Design of the proposed coupler is accomplished by
modifying the length and impedance of the branch lines in the conventional structure with the planar
resonators in order to achieve branch line coupler with compact size and improvement of the
performances. First part of this work is focusing on the theorical study of the proposed resonators where
the equations are obtained. Secondly, the proposed coupler is designed on FR4 susbtrate, and simulated
by using the EM Solver (ADS from Agilent technologies and CST microwave studio) in order to operate in
the ISM band. The obtained results show good agreement with the simulations and the coupler shows a
good perfo6rmance in the hole bandwidth. The size of the proposed coupler is reduced around 50%
compared to the conventional design. The last part conerns the fabrication and test of the proposed
coupler. The measurement and simulation results are in good agreements.
A NOVEL FULL ADDER CELL BASED ON CARBON NANOTUBE FIELD EFFECT TRANSISTORSVLSICS Design
Presenting a novel full adder cell will be increases all the arithmetic logic unit performance. In this paper, We present two new full adder cell designs using carbon nanotube field effect transistors (CNTFETs). In the first design we have 42 transistors and 5 pull-up resistance so that we have achieved an improvement in the output parameters. Simulations were carried out using HSPICE based on the CNTFET model with 0.9V VDD. The denouments results in that we have a considerable improvement in power, Delay and power delay product than the previous works.
Effect of mesh grid structure in reducing hot carrier effect of nmos device s...ijcsa
This paper presents the critical effect of mesh grid that should be considered during process and device
simulation using modern TCAD tools in order to develop and optimize their accurate electrical
characteristics. Here, the computational modelling process of developing the NMOS device structure is
performed in Athena and Atlas. The effect of Mesh grid on net doping profile, n++, and LDD sheet
resistance that could link to unwanted “Hot Carrier Effect” were investigated by varying the device grid
resolution in both directions. It is found that y-grid give more profound effect in the doping concentration,
the junction depth formation and the value of threshold voltage during simulation. Optimized mesh grid is
obtained and tested for more accurate and faster simulation. Process parameter (such as oxide thicknesses
and Sheet resistance) as well as Device Parameter (such as linear gain “beta” and SPICE level 3 mobility
roll-off parameter “ Theta”) are extracted and investigated for further different applications.
MODELING OF BUILT-IN POTENTIAL VARIATIONS OF CYLINDRICAL SURROUNDING GATE (CS...VLSICS Design
Due to aggressive scaling of MOSFETs the parasitic fringing field plays a major role in deciding its characteristics. These fringing fields are now not negligible and should be taken into account for deriving the MOSFET models. Due to this fringing field effect there are some charges induced in the source/drain extension regions which will change the potential barrier at the source-channel from its theoretical nominal values. In this paper an attempt has been made to model variation of built-in potential variation for a cylindrical surrounding gate MOSFET. The model has been verified to be working in good agreement with the variations of gate length and channel radius.
Multi carrier equalization by restoration of redundanc y (merry) for adaptive...IJNSA Journal
This paper proposes a new blind adaptive channel shortening approach for multi-carrier systems. The
performance of the discrete Fourier transform-DMT (DFT-DMT) system is investigated with the proposed
DST-DMT system over the standard carrier serving area (CSA) loop1. Enhanced bit rates demonstrated
and less complexity also involved by the simulation of the DST-DMT system.
Optimized OFDM Model Using CMA Channel Equalization for BER EvaluationjournalBEEI
Orthogonal Frequency Division Multiplexing (OFDM) is a type of Multicarrier Modulation (MCM) technique in which entire bandwidth is divided into large number of small sub-carriers and each subcarrier is transmitted parallel to achieve higher data rates. It has various applications like Digital Audio Broadcasting (DAB), Digital Video Broadcasting (DVB) and wireless LAN.OFDM technique is widely used in wireless communication system because of its very high data rate. The performance of FFT based OFDM system using Linear and cyclic channel coding and Constant Modulus Algorithm (CMA) equalizer is simulated using simulink model. The BER saving using the optimized proposed model with both linear and cyclic channel coding along with CMA equalizer is evaluated. The proposed work using cyclic channel coding with QPSK/QAM modulation and CMA as channel equalization under AWGN channel results in 52.6% and 96.3% BER reduction as compared to conventional OFDM model without channel coding, channel equalization and channel fading. So, CMA equalizer is used to enhance the performance of OFDM system.
Comparison of Different Absorbing Boundary Conditions for GPR Simulation by t...IJMER
This paper compares three boundary conditions, i.e. transmitting boundary condition, Sarma
absorbing boundary condition and the uniaxial complete matched layerabsorbing boundary condition for
simulation of ground penetrating radar (GPR) by the time domain finite element (FEM) method. The
formulations of the three boundary conditions for the FEM method are described. Their effectiveness in
absorbing the incident electromagnetic waves are evaluated by the reflection coefficient on the boundary
of a simple GPR model.The results demonstrate that UPML boundary condition can yield a reflection
coefficient smaller than -50 dB, which is -20 dB smaller than other two boundary conditions.
Analysis Of 3C-Sic Double Implanted MOSFET With Gaussian Profile Doping In Th...IJRES Journal
The present work aims at the design of 3C-SiC Double Implanted Metal Oxide Semiconductor Field Effect Transistor (DIMOSFET) with Gaussian doping profile in drift region for high breakdown voltages. By varying the device height ‘h’, function constant m and peak concentration 𝑁0, analysis has been done for an optimum profile for high breakdown voltage. With Gaussian profile peak concentration 𝑁0 = 1016 𝑐𝑚−3 at drain end and m as 1.496 ×10−2cm, highest breakdown voltage of 6.84kV has been estimated with device height of 200μm.
Cables are invaluable structural elements. They have been used in guyed towers, bridges marine vehicles, offshore structures, transmission lines and tensioning applications etc. Briefly, cables are necessary elements for long spans. As known, cables are tension elements; they cannot carry any compression load due to its unique geometry. This tangential convoluted geometry makes them hard to analyze. Engineers solve cables assuming them as linear elements even now, because cables cannot be solved by classical finite element methods. Having almost zero bending rigidity makes it vulnerable to drastic vertical movements. Hence, engineers either define a bending rigidity or apply a checker for drastic movements in each nonlinear iteration to solve cable by classical FEM. Therefore, engineers propose a different iterative finite element method to solve cables more stabilized way. In this research, a 3D static solution method is presented for a cable supported at its ends. This method first makes the cable determinant by releasing one cusp of the cable. Then playing with the reaction at the other cusp changes the position of the released cusp. Thus, one can determine the correct reactions at the first cusp, which makes the second cusp position same with the released support’s. Cable equilibrium equations and stiffness matrix is derived accordingly and some sample cables are solved.
PERFORMANCE ANALYSIS OF SPATIALLY CORRELATED CYLINDRICAL ANTENNA ARRAY FOR 3D...ijwmn
The spectral efficiency of three-dimensional (3D) massive MIMO is impaired due to the spatial correlation
(SC) between closed-spaced elements of antenna arrays (AAs). This paper investigates the impacts of
arbitrary Q-power variations of the Power Cosine distribution for a precise characterization of the SC.
This is done by presenting mathematical expressions characterizing the SC of cylindrical antenna array
(CAA) regarding Student’s -t, Von Mises and Cosine distributions, for the direction of arrival (DoA) of the
electromagnetic waves impinging on the receiving antenna. Unlike the Student's -t and Von Mises
distribution, our outcome recorded huge mismatch between theoretical and simulation correlation
coefficients for arbitrary Q-power values above ten (10) which also reduced the downlink channel
capacity. The practical relevance is that even though higher Q-power values are the key parameters for
system performance, meticulous selection of arbitrary Q-power values above ten (10) is essential to
minimize errors regarding channel modelling.
Enhancing phase margin of ota using self biasingelelijjournal
In this paper, a new adaptive biased low voltage cascode current mirror with high input/output swing is presented. This advantage is achieved using a self-biasing transistor and compensation resistor. The new structure profits from better input dynamic range and lower supply voltage without frequency response limitation and increasing input impedance. Also, the proposed current mirror is incorporated in folded cascode amplifier in order to enhance its phase-margin. The simulation results in 0.18 μm CMOS technology confirm the theoretical analysis and exhibits 478μA linear input/output current swing and a
phase-margin enhancement of 12o for the proposed current mirror and amplifier compared to the conventional circuits, respectively
An operational amplifier with recycling folded cascode topology and adaptive ...VLSICS Design
This paper presents a highly adaptive operational amplifier with high gain, high bandwidth, high speed
and low power consumption. By adopting the recycling folded cascode topology along with an adaptivebiasing
circuit, this design achieves high performance in terms of gain-bandwidth product (GBW) and slew
rate (SR). This single stage op-amp has been designed in 0.18μm technology with a power supply of 1.8V
and a 5pF load. The simulation results show that the amplifier achieved a GBW of 335.5MHz, Unity Gain
Bandwidth of 247.1MHz and a slew rate of 92.8V/μs.
A NOVEL FULL ADDER CELL BASED ON CARBON NANOTUBE FIELD EFFECT TRANSISTORSVLSICS Design
Presenting a novel full adder cell will be increases all the arithmetic logic unit performance. In this paper, We present two new full adder cell designs using carbon nanotube field effect transistors (CNTFETs). In the first design we have 42 transistors and 5 pull-up resistance so that we have achieved an improvement in the output parameters. Simulations were carried out using HSPICE based on the CNTFET model with 0.9V VDD. The denouments results in that we have a considerable improvement in power, Delay and power delay product than the previous works.
Effect of mesh grid structure in reducing hot carrier effect of nmos device s...ijcsa
This paper presents the critical effect of mesh grid that should be considered during process and device
simulation using modern TCAD tools in order to develop and optimize their accurate electrical
characteristics. Here, the computational modelling process of developing the NMOS device structure is
performed in Athena and Atlas. The effect of Mesh grid on net doping profile, n++, and LDD sheet
resistance that could link to unwanted “Hot Carrier Effect” were investigated by varying the device grid
resolution in both directions. It is found that y-grid give more profound effect in the doping concentration,
the junction depth formation and the value of threshold voltage during simulation. Optimized mesh grid is
obtained and tested for more accurate and faster simulation. Process parameter (such as oxide thicknesses
and Sheet resistance) as well as Device Parameter (such as linear gain “beta” and SPICE level 3 mobility
roll-off parameter “ Theta”) are extracted and investigated for further different applications.
MODELING OF BUILT-IN POTENTIAL VARIATIONS OF CYLINDRICAL SURROUNDING GATE (CS...VLSICS Design
Due to aggressive scaling of MOSFETs the parasitic fringing field plays a major role in deciding its characteristics. These fringing fields are now not negligible and should be taken into account for deriving the MOSFET models. Due to this fringing field effect there are some charges induced in the source/drain extension regions which will change the potential barrier at the source-channel from its theoretical nominal values. In this paper an attempt has been made to model variation of built-in potential variation for a cylindrical surrounding gate MOSFET. The model has been verified to be working in good agreement with the variations of gate length and channel radius.
Multi carrier equalization by restoration of redundanc y (merry) for adaptive...IJNSA Journal
This paper proposes a new blind adaptive channel shortening approach for multi-carrier systems. The
performance of the discrete Fourier transform-DMT (DFT-DMT) system is investigated with the proposed
DST-DMT system over the standard carrier serving area (CSA) loop1. Enhanced bit rates demonstrated
and less complexity also involved by the simulation of the DST-DMT system.
Optimized OFDM Model Using CMA Channel Equalization for BER EvaluationjournalBEEI
Orthogonal Frequency Division Multiplexing (OFDM) is a type of Multicarrier Modulation (MCM) technique in which entire bandwidth is divided into large number of small sub-carriers and each subcarrier is transmitted parallel to achieve higher data rates. It has various applications like Digital Audio Broadcasting (DAB), Digital Video Broadcasting (DVB) and wireless LAN.OFDM technique is widely used in wireless communication system because of its very high data rate. The performance of FFT based OFDM system using Linear and cyclic channel coding and Constant Modulus Algorithm (CMA) equalizer is simulated using simulink model. The BER saving using the optimized proposed model with both linear and cyclic channel coding along with CMA equalizer is evaluated. The proposed work using cyclic channel coding with QPSK/QAM modulation and CMA as channel equalization under AWGN channel results in 52.6% and 96.3% BER reduction as compared to conventional OFDM model without channel coding, channel equalization and channel fading. So, CMA equalizer is used to enhance the performance of OFDM system.
Comparison of Different Absorbing Boundary Conditions for GPR Simulation by t...IJMER
This paper compares three boundary conditions, i.e. transmitting boundary condition, Sarma
absorbing boundary condition and the uniaxial complete matched layerabsorbing boundary condition for
simulation of ground penetrating radar (GPR) by the time domain finite element (FEM) method. The
formulations of the three boundary conditions for the FEM method are described. Their effectiveness in
absorbing the incident electromagnetic waves are evaluated by the reflection coefficient on the boundary
of a simple GPR model.The results demonstrate that UPML boundary condition can yield a reflection
coefficient smaller than -50 dB, which is -20 dB smaller than other two boundary conditions.
Analysis Of 3C-Sic Double Implanted MOSFET With Gaussian Profile Doping In Th...IJRES Journal
The present work aims at the design of 3C-SiC Double Implanted Metal Oxide Semiconductor Field Effect Transistor (DIMOSFET) with Gaussian doping profile in drift region for high breakdown voltages. By varying the device height ‘h’, function constant m and peak concentration 𝑁0, analysis has been done for an optimum profile for high breakdown voltage. With Gaussian profile peak concentration 𝑁0 = 1016 𝑐𝑚−3 at drain end and m as 1.496 ×10−2cm, highest breakdown voltage of 6.84kV has been estimated with device height of 200μm.
Cables are invaluable structural elements. They have been used in guyed towers, bridges marine vehicles, offshore structures, transmission lines and tensioning applications etc. Briefly, cables are necessary elements for long spans. As known, cables are tension elements; they cannot carry any compression load due to its unique geometry. This tangential convoluted geometry makes them hard to analyze. Engineers solve cables assuming them as linear elements even now, because cables cannot be solved by classical finite element methods. Having almost zero bending rigidity makes it vulnerable to drastic vertical movements. Hence, engineers either define a bending rigidity or apply a checker for drastic movements in each nonlinear iteration to solve cable by classical FEM. Therefore, engineers propose a different iterative finite element method to solve cables more stabilized way. In this research, a 3D static solution method is presented for a cable supported at its ends. This method first makes the cable determinant by releasing one cusp of the cable. Then playing with the reaction at the other cusp changes the position of the released cusp. Thus, one can determine the correct reactions at the first cusp, which makes the second cusp position same with the released support’s. Cable equilibrium equations and stiffness matrix is derived accordingly and some sample cables are solved.
PERFORMANCE ANALYSIS OF SPATIALLY CORRELATED CYLINDRICAL ANTENNA ARRAY FOR 3D...ijwmn
The spectral efficiency of three-dimensional (3D) massive MIMO is impaired due to the spatial correlation
(SC) between closed-spaced elements of antenna arrays (AAs). This paper investigates the impacts of
arbitrary Q-power variations of the Power Cosine distribution for a precise characterization of the SC.
This is done by presenting mathematical expressions characterizing the SC of cylindrical antenna array
(CAA) regarding Student’s -t, Von Mises and Cosine distributions, for the direction of arrival (DoA) of the
electromagnetic waves impinging on the receiving antenna. Unlike the Student's -t and Von Mises
distribution, our outcome recorded huge mismatch between theoretical and simulation correlation
coefficients for arbitrary Q-power values above ten (10) which also reduced the downlink channel
capacity. The practical relevance is that even though higher Q-power values are the key parameters for
system performance, meticulous selection of arbitrary Q-power values above ten (10) is essential to
minimize errors regarding channel modelling.
Enhancing phase margin of ota using self biasingelelijjournal
In this paper, a new adaptive biased low voltage cascode current mirror with high input/output swing is presented. This advantage is achieved using a self-biasing transistor and compensation resistor. The new structure profits from better input dynamic range and lower supply voltage without frequency response limitation and increasing input impedance. Also, the proposed current mirror is incorporated in folded cascode amplifier in order to enhance its phase-margin. The simulation results in 0.18 μm CMOS technology confirm the theoretical analysis and exhibits 478μA linear input/output current swing and a
phase-margin enhancement of 12o for the proposed current mirror and amplifier compared to the conventional circuits, respectively
An operational amplifier with recycling folded cascode topology and adaptive ...VLSICS Design
This paper presents a highly adaptive operational amplifier with high gain, high bandwidth, high speed
and low power consumption. By adopting the recycling folded cascode topology along with an adaptivebiasing
circuit, this design achieves high performance in terms of gain-bandwidth product (GBW) and slew
rate (SR). This single stage op-amp has been designed in 0.18μm technology with a power supply of 1.8V
and a 5pF load. The simulation results show that the amplifier achieved a GBW of 335.5MHz, Unity Gain
Bandwidth of 247.1MHz and a slew rate of 92.8V/μs.
Framing of charge means drawing up in writing by the Judge or Magistrate in separate prescribed form of charge sheet regarding specific accusation , appeared prima facie , in the materials collected during investigation , against the accused , mentioning therein the detail information of the crime for which he is charged .
It is fundamental principle of law that the accused should know the exact nature of allegation brought against him . It is, therefore, imperative that before a person is convicted of any offence he should be formally charged, i.e., informed with committed by him, and be given an opportunity to defend himself against such charge.
In other words, a charge is a written document containing the description of the offence which the court, in inquiry or trial, finds Prima facie proved by evidence before it to have been committed by the accused and requires him to defend it.
He is entitled to be informed with the greatest precision what acts he is said to have committed, and under what sections of the penal law these acts fall.
Sections 211 to 214 give clear and explicit directions as to how a charge should be drawn up to tell an accused person as precisely and concisely as possible of the matter with which he is charged.
Position of humans under different personal laws Shreya Chaurasia
People of India belong to different religions and faiths. They are governed by different sets of personal laws in respect of matters relating to family affairs i.e. marriage, divorce, succession, etc. Indian personal law is fairly complex, with each religion adhering to its specific laws. Separate laws govern Hindus, Muslims, Christians, Sikhs and followers of other religions. But not much progress has been made towards achieving the ideal of a uniform civil code which still remains a distant dream.
Position of humans is different under Hindu, Muslim, Christian as well as other personal laws with respect to Marriage, Divorce, Maintenance, Succession etc.
CONTEMPORNEA EXPOSITIO EXTERNAL AID TO INTERPRETATIONShreya Chaurasia
Interpretation means the art of finding out the true sense of an enactment by giving the words of the enactment their natural and ordinary meaning.
It is the process of ascertaining the true meaning of the words used in a statute.
The Court is not expected to interpret arbitrarily and therefore there have been certain principles which have evolved out of the continuous exercise by the Courts. These principles are sometimes called ‘rules of interpretation’.
The object of interpretation of statutes is to determine the intention of the legislature conveyed expressly or impliedly in the language used.
Contempornea Expositio means that the meaning of words in a document are to be understood in the sense which they bore at the time of the document.
Contemporaneous exposition is the best and strongest in law. It is said that the best exposition of a statute or any other document is that which it has received from contemporary authority.
Contemporanea expositio est optima means usage or practice developed under a statute is indicative of the meaning ascribed to its words by contemporary opinion.
External Aid includes Historical Background,The original bill drafted and introduced,Legal Dictionaries,Debates in the Legislature,Judicial Construction etc.
The Advocates Act, 1961 is an act to consolidate and amend the law relating to legal practitioners and to provide for the constitution of the Bar Councils and an All-India Bar. It was enacted by the Parliament in the Twelfth Year of the Republic of India.
The Advocates Act,1961 provides for the constitution of two types of councils:
State Bar Council-Section 3
Bar Council of India-Section 4
The Bar Council as well as the State Bar Councils have various functions to perform
Wideband Modeling of Twisted-Pair Cables for MIMO ApplicationsLantiq
Computer modeling and simulation approach to speed development of broadband networking technologies. http://bit.ly/1853xoY
More on our expertise: http://www.lantiq.com
International Journal of Engineering Research and DevelopmentIJERD Editor
Electrical, Electronics and Computer Engineering,
Information Engineering and Technology,
Mechanical, Industrial and Manufacturing Engineering,
Automation and Mechatronics Engineering,
Material and Chemical Engineering,
Civil and Architecture Engineering,
Biotechnology and Bio Engineering,
Environmental Engineering,
Petroleum and Mining Engineering,
Marine and Agriculture engineering,
Aerospace Engineering.
Carbon nano tube based delay model for high speed energy efficient on chip da...elelijjournal
Speed is a major concern for high density VLSI networks. In this paper the closed form delay model for current mode signalling in VLSI interconnects has been proposed with resistive load termination.RLC interconnect line is modelled using characteristic impedance of transmission line and inductive effect.The inductive effect is dominant at lower technology node is modelled into an equivalent resistance. In this model first order transfer function is designed using finite difference equation, and by applying the boundary conditions at the source and load termination. It has been observed that the dominant pole determines system response and delay in the proposed model. Using CNIA tool (carbon nanotube interconnect analyzer) the interconnect line parameters has been estimated at 45nm technology node. The novel proposed current mode model superiority has been validated for CNT type of material. It superiority factor remains to 66.66% as compared to voltage mode signalling. And current mode dissipates 0.015pJ energy where as VM consume 0.045pJ for a single bit transmission across the interconnect over CNT
material. Secondly the damping factor of a lumped RLC circuit is shown to be a useful figure of merit.
Convergence analysis of the triangular-based power flow method for AC distribu...IJECEIAES
This paper addresses the convergence analysis of the triangular-based power flow (PF) method in alternating current radial distribution networks. The PF formulation is made via upper-triangular matrices, which enables finding a general iterative PF formula that does not require admittance matrix calculations. The convergence analysis of this iterative formula is carried out by applying the Banach fixed-point theorem (BFPT), which allows demonstrating that under an adequate voltage profile the triangular-based PF always converges. Numerical validations are made, on the well-known 33 and 69 distribution networks test systems. Gauss-seidel, newton-raphson, and backward/forward PF methods are considered for the sake of comparison. All the simulations are carried out in MATLAB software.
Effect of Mobility on (I-V) Characteristics of Gaas MESFET IJECEIAES
We present in this paper an analytical model of the current–voltage (I-V) characteristics for submicron GaAs MESFET transistors. This model takes into account the analysis of the charge distribution in the active region and incorporate a field depended electron mobility, velocity saturation and charge build-up in the channel. We propose in this frame work an algorithm of simulation based on mathematical expressions obtained previously. We propose a new mobility model describing the electric field-dependent. The predictions of the simulator are compared with the experimental data [1] and have been shown to be good.
This paper recommends the use of grasshopper optimization algorithm (GOA), a nature-inspired optimization algorithm, for optimizing switching-angle applied to cascaded H-bridge multilevel inverter (CHBMLI). Switching angles are selected based on the minimum value of the objective function formulated using the concept of selective harmonic minimization pulse width modulation (SHMPWM) technique. MATLAB/Simulink-PSIM dynamic co-simulation conducted on a 3-phase 9-level CHBMLI shows that the CHBMLI controlled using GOA derived switching-angle is able to respond to varying modulation index demand and synthesize an AC staircase output voltage waveform with the desired fundamental harmonic and minimized selected low-order harmonics. Compared to Newton Raphson (NR) technique, GOA is able to find optimum switching-angle solutions over a wider modulation index range. Compared to Genetic Algorithm (GA), GOA is able to find global minima with higher probability. The simulation results validate the performance of GOA for switching-angle calculation based on the concept of SHMPWM.
Due to increasing complexity, space and cost of communication network, the Electric Power Network has been considered a great option for the solution of all problems. Power line communications (PLC) term stands for the technologies for the data communication over the electrical power supply network. Existing power system is not designed for having data transfer. In this paper we have developed a simulation model of power-line for low voltage distribution network in home. Impulse response of the channel is generated in order to characterize the behavior of power line channel for high speed data communication purpose. To represent Multi-branch network mathematically, ABCD matrix parameters are used. Load mismatching is experimented on three parameters multiple loading, multi branch and different cable length and analysis is presented of its effect on impulse response. All the simulation work has been done using MATLAB.
Optimum Network Reconfiguration using Grey Wolf OptimizerTELKOMNIKA JOURNAL
Distribution system Reconfiguration is the process of changing the topology of the distribution
network by opening and closing switches to satisfy a specific objective. It is a complex, combinatorial
optimization problem involving a nonlinear objective function and constraints. Grey Wolf Optimizer (GWO)
is a recently developed metaheuristic search algorithm inspired by the leadership hierarchy and hunting
strategy of grey wolves in nature. The objective of this paper is to determine an optimal network
reconfiguration that presents the minimum power losses, considering network constraints, and using GWO
algorithm. The proposed algorithm was tested using some standard networks (33 bus, 69 bus, 84 bus and
118 bus), and the obtained results reveal the efficiency and effectiveness of the proposed approach.
Memristor-Capacitor Based Startup Circuit for Voltage Reference Generatorsmangal das
This paper presents the design of Memristorcapacitor based startup circuit. Memristor is a novel device and has many advantages over conventional CMOS devices such as no leakage current and is easy to manufacture. In this work the switching characteristics of memristor is utilized. First the
theoretical equations describing the switching behavior of memristor are derived. To prove the switching capabilities of Memristor, a startup circuit based on series combination of Memristor-capacitor is proposed. This circuit is compared with the reference circuit (which utilizes resistor in place of memristor) and the previously reported MOSFET based startup circuits. Comparison of different circuits was done to validate the results. Simulation results shows that memristor based circuit attains on (I = 2.25 mA) to off state (I = 10 μA) in 2.8 ns while the MOSFET based startup circuits takes (I = 1 mA) to off state (I = 10 μA) in 55.56 ns. However no significant difference in switching time was observed when compared with resistance based startup circuit. The benefit comes in terms of area because much larger die area is required for manufacturing of resistance in comparison to fabrication of memristor.
Fdtd calculation model for the transient analyses of grounding systems
MultiConductor,2016

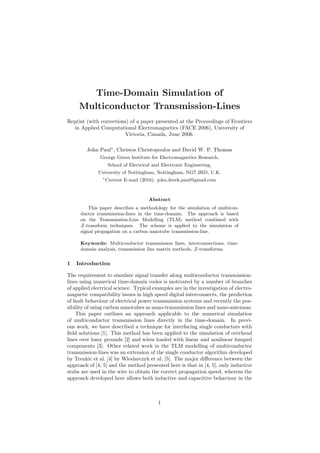

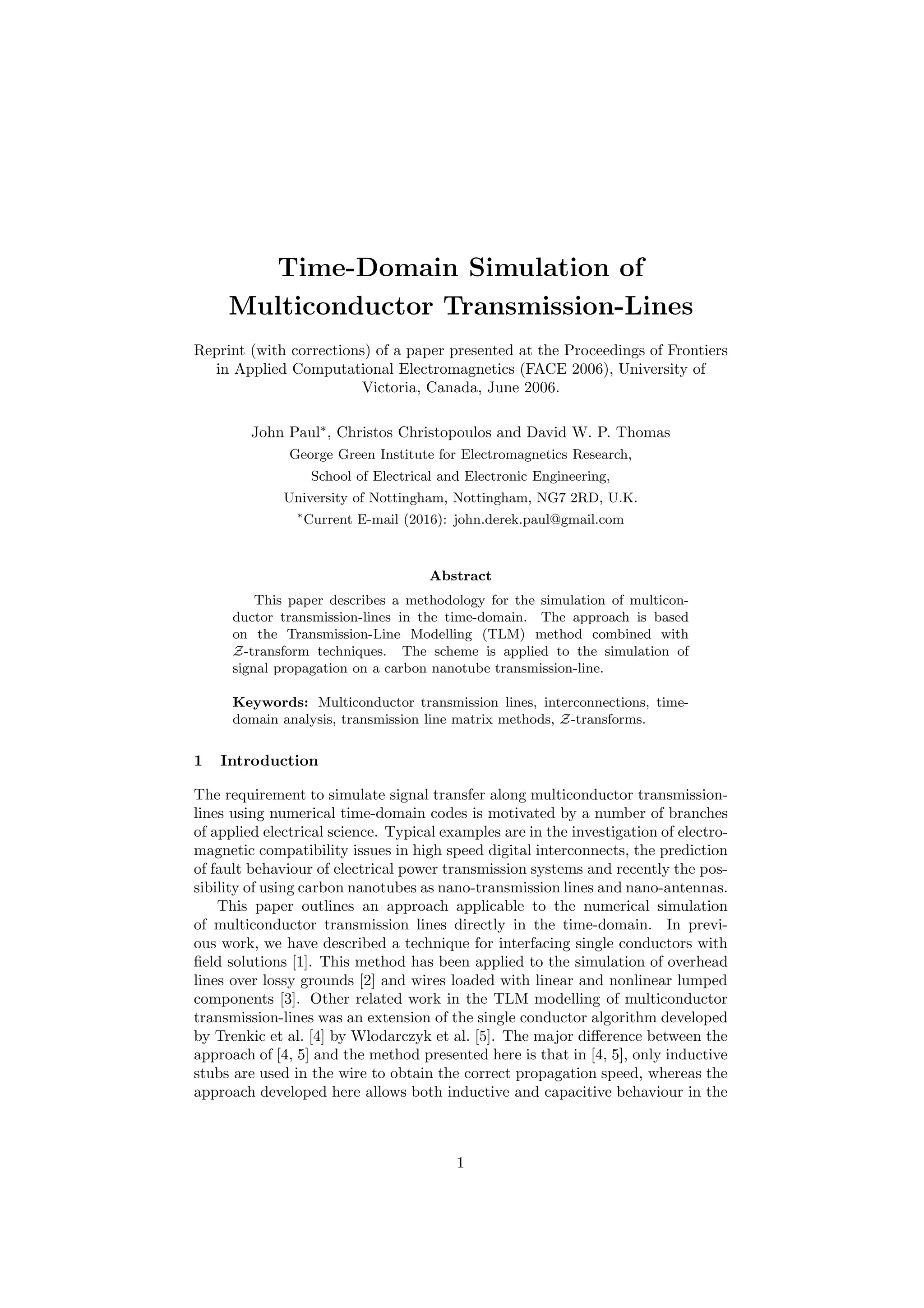

1. Time-Domain Simulation of
Multiconductor Transmission-Lines
Reprint (with corrections) of a paper presented at the Proceedings of Frontiers
in Applied Computational Electromagnetics (FACE 2006), University of
Victoria, Canada, June 2006.
John Paul∗
, Christos Christopoulos and David W. P. Thomas
George Green Institute for Electromagnetics Research,
School of Electrical and Electronic Engineering,
University of Nottingham, Nottingham, NG7 2RD, U.K.
∗
Current E-mail (2016): john.derek.paul@gmail.com
Abstract
This paper describes a methodology for the simulation of multicon-
ductor transmission-lines in the time-domain. The approach is based
on the Transmission-Line Modelling (TLM) method combined with
Z-transform techniques. The scheme is applied to the simulation of
signal propagation on a carbon nanotube transmission-line.
Keywords: Multiconductor transmission lines, interconnections, time-
domain analysis, transmission line matrix methods, Z-transforms.
1 Introduction
The requirement to simulate signal transfer along multiconductor transmission-
lines using numerical time-domain codes is motivated by a number of branches
of applied electrical science. Typical examples are in the investigation of electro-
magnetic compatibility issues in high speed digital interconnects, the prediction
of fault behaviour of electrical power transmission systems and recently the pos-
sibility of using carbon nanotubes as nano-transmission lines and nano-antennas.
This paper outlines an approach applicable to the numerical simulation
of multiconductor transmission lines directly in the time-domain. In previ-
ous work, we have described a technique for interfacing single conductors with
field solutions [1]. This method has been applied to the simulation of overhead
lines over lossy grounds [2] and wires loaded with linear and nonlinear lumped
components [3]. Other related work in the TLM modelling of multiconductor
transmission-lines was an extension of the single conductor algorithm developed
by Trenkic et al. [4] by Wlodarczyk et al. [5]. The major difference between the
approach of [4, 5] and the method presented here is that in [4, 5], only inductive
stubs are used in the wire to obtain the correct propagation speed, whereas the
approach developed here allows both inductive and capacitive behaviour in the
1
2. wire and the inductance and capacitance may be balanced to achieve the cor-
rect propagation speed without dispersion. In addition, the method presented
here is based on using Z-transforms in TLM as pioneered by de Menezes and
Hoefer [6] whereas the approach described in [1] is based on stub loading rather
than Z-transforms. Note that the two approaches are identical when the bilin-
ear Z-transform is used. However, in the multiconductor case, we argue that
the Z-transform approach gives a simpler formulation because the coupling be-
tween wires is handled in a straightforward manner. This advantage of the
Z-transform formulation over the traditional stub method has been previously
exploited by us in the development of methods for simulation of EM propagation
in chiral materials [7, 8].
An alternative approach based on modal expansions which can locate wires
anywhere within a two-dimensional TLM node was described by Choong et
al. [9] and the method was extended to multiconductor configurations by Bi-
wojno et al. [10]. This technique is based on coupling the modal solution for
wire(s) to the surrounding mesh describing the fields.
There is much interest currently in the prediction and modelling of carbon
nanotube based transmission-lines [11, 12, 13] and nanotube antennas [14, 15].
These nano-transmission lines offer exciting properties such as ballistic electron
transport. Although to date much theoretical work has been carried out, e.g. see
the references in [11]–[15], there still remain difficult practical challenges to be
solved before nanotubes can be incorporated into applications, for example,
methods for obtaining consistent ohmic contacts have not yet been developed.
These will be required to connect, for example, generators or loads to nanotubes.
This paper is organized as follows, in section 2 the TLM model of a multicon-
ductor transmission-line is developed for the two conductor case and in section
3, the model is applied to the simulation of the charge-mode (common-mode)
and the spin-mode (differential-mode) in a hypothetical metallic nanotube hav-
ing two channels. The paper is concluded in Section 4. Note that the aspects of
the coupling of the multiconductor to an external electric field or multiconduc-
tor junctions is not treated here, but these modifications may be incorporated
into this formulation without too much difficulty.
2 Theory
The theory developed here is analogous to the methods described in [16, 7] for
the simulation of general linear materials in TLM. Considering a multiconductor
transmission-line directed in x, the Telegrapher’s equations in the time-domain
are:
−
∂Vw
∂x
= L ·
∂Iw
∂t
+ R · Iw (1)
−
∂Iw
∂x
= C ·
∂Vw
∂t
+ G · Vw (2)
In (1) and (2), Vw is the vector of wire potentials with respect to the common
ground conductor, Iw is the vector of wire currents and {L, R, C, G} are the
inductance, resistance, capacitance and conductance matrices per unit (p.u.)
length. For simple conductor configurations, expressions for the p.u. matrices
may be derived analytically. For general conductor configurations, the p.u. ma-
trices are evaluated numerically.
2
3. For simplicity in the formulation, consider a two conductor line with a per-
fectly conducting ground return as shown in Fig. 1. The conductors are labelled
A and B and the ground plane is indicated by E. For this case, (1) and (2) are
simplified to:
−
∂
∂x
VA
VB
=
LAA LAB
LBA LBB
·
∂
∂t
IA
IB
+
RA 0
0 RB
·
IA
IB
(3)
−
∂
∂x
IA
IB
=
CAA CAB
CBA CBB
·
∂
∂t
VA
VB
+
GAA GAB
GBA GBB
·
VA
VB
(4)
The equivalent circuit of a 1m segment of the two-conductor transmission
line is in Fig. 2. In this figure, it is assumed that the two lines A and B have
identical p.u. parameters, i.e.,
LAA = LBB = Le + Lm (5)
LAB = LBA = Lm (6)
RA = RB = Rs (7)
CAA = CBB = Ce + Cm (8)
CAB = CBA = −Cm (9)
GAA = GBB = Ge + Gm (10)
GAB = GBA = −Gm (11)
In (5)–(11), the self inductances of the line are Le+Lm, the mutual inductance is
Lm and the series resistances are Rs. As indicated in Fig. 2, the line capacitances
and conductances are described using delta networks where the self capacitances
are Ce +Cm, the mutual capacitance is −Cm, the self conductances are Ge +Gm
and the mutual conductance is −Gm. Using (5)–(11) in (3) and (4) yields
−
∂
∂x
VA
VB
=
Le + Lm −Lm
−Lm Le + Lm
·
∂
∂t
IA
IB
+ RS
IA
IB
(12)
A
B
E
x
Figure 1: A two-conductor transmission-line over a ground plane
3
4. −
∂
∂x
IA
IB
=
Ce + Cm −Cm
−Cm Ce + Cm
·
∂
∂t
VA
VB
+
Ge + Gm −Gm
−Gm Ge + Gm
·
VA
VB
(13)
These equations are converted into the TLM format using:
Le = L0(1 + χLe) , Lm = L0 χLm (14)
Ce = C0(1 + χCe) , Cm = C0 χCm (15)
Z0 = L0/C0 , ∆t = ∆ℓ L0C0 (16)
IA = iA/Z0 , IB = iB/Z0 (17)
∂
∂x
→
1
∆ℓ
∂
∂X
,
∂
∂t
→
1
∆t
∂
∂T
(18)
Rs = rsZ0/∆ℓ (19)
Ge = ge/(Z0∆ℓ) , Gm = gm/(Z0∆ℓ) (20)
In these equations, L0 and C0 are the wire link-line inductance and capacitance
p.u. length, {χLe, χLm, χCe, χCm} are dimensionless positive numbers, Z0 is the
characteristic impedance of the wire link-lines and iA and iB are the normalized
wire currents. The space-step is ∆ℓ and the time-step is ∆t. Note that when
the model is coupled to a numerical field solver, the time-step will in general be
set by the field code. The normalized wire resistance is rs and the normalized
conductances are ge and gm. By substituting (14)–(20) into (12) and (13) gives
−
∂
∂X
VA
VB
−
∂
∂T
iA
iB
=
χLe + χLm χLm
χLm χLe + χLm
·
∂
∂T
iA
iB
+ rs
iA
iB
(21)
−
∂
∂X
iA
iB
−
∂
∂T
VA
VB
=
χCe + χCm −χCm
−χCm χCe + χCm
·
∂
∂T
VA
VB
1m
Ce
Ce
Cm
Ge
Gm
Ge
Rs
Rs
A
B
Le
Le
Lm
Lm
x
Figure 2: Equivalent circuit of a 1m segment of a two-conductor transmission-
line over a lossless ground plane
4
5. +
ge + gm −gm
−gm ge + gm
·
VA
VB
(22)
The expressions on the left-hand sides of these equations are converted to the
travelling wave format by extending the TLM identities between the normalized
mixed derivatives and the incident wave components [16], i.e.,
−
∂
∂X
VA
VB
−
∂
∂T
iA
iB
≡ 2
V i
A4 − V i
A5
V i
B4 − V i
B5
− 2
iA
iB
(23)
−
∂
∂X
iA
iB
−
∂
∂T
VA
VB
≡ 2
V i
A4 + V i
A5
V i
B4 + V i
B5
− 2
VA
VB
(24)
Fig. 3 shows the definition of the incident voltages {V i
A4, V i
B4, V i
A5, V i
B5} and the
total line quantities {VA, VB, iA, iB} in the TLM model of the multiconductor
transmission-line.
To obtain a compact notation describing the multiconductor system and ease
the extension of the approach to lines having more than two conductors, the
following quantities are defined
V i
A4 − V i
A5
V i
B4 − V i
B5
= −
ir
A
ir
B
= −ir
w (25)
V i
A4 + V i
A5
V i
B4 + V i
B5
=
V r
A
V r
B
= V r
w (26)
VA
VB
= Vw ,
iA
iB
= iw (27)
χLe + χLm χLm
χLm χLe + χLm
= l (28)
+_2VA4
i
1
+_2VB4
i
1
+_2VB5
i
1
+_2VA5
i
1
VA
V
B
iA
iB
0V
Figure 3: Definition of the incident voltages and the total line quantities in the
travelling wave model
5
6. rs 0
0 rs
= r (29)
χCe + χCm −χCm
−χCm χCe + χCm
= c (30)
ge + gm −gm
−gm ge + gm
= g (31)
where {ir
w, V r
w} are combinations of the incident wire voltages, {Vw, iw} are the
total line quantities and {l, r, c, g} are the normalized inductance, resistance,
capacitance and conductance p.u. matrices. Using (23)–(31) in (21) and (22)
gives
−2ir
w = 2 + r · iw + l ·
∂iw
∂T
(32)
2V r
w = 2 + g · Vw + c ·
∂Vw
∂T
(33)
here the matrix 2 = 21 where 1 is the identity matrix. The bilinear transform
is
∂
∂T
= 2
1 − z−1
1 + z−1
(34)
where z−1
represents a delay of one time-step. The numerical algorithm is
obtained by application of (34) to (32) and (33). By defining the coefficient
matrices
2 + r + 2l = Tiw
−1
, − 2 + r − 2l = κiw (35)
2 + g + 2c = Tvw
−1
, − 2 + g − 2c = κvw (36)
and the accumulator vectors
−2ir
w + κiw · iw = Siw (37)
2ir
w + κvw · Vw = Svw (38)
leads to the algorithm for the calculation of the total line quantities
iw = Tiw · −2ir
w + z−1
Siw (39)
V = Tvw · 2V r
w + z−1
Svw (40)
For the two line case considered here, the reflected wire voltage pulses are
V r
A4 = VA − iA − V i
A5
V r
A5 = VA + iA − V i
A4
V r
B4 = VB − iB − V i
B5
V r
B5 = VB + iB − V i
B4 (41)
by analogy with the single wire model described in [1].
6
7. 3 Results
In this section the propagation of a short pulse along a hypothetical two-channel
carbon nanotube transmission-line is calculated. The model parameters were:
LAA = LBB = LK = R0/vF , CQ = 1/(R0vF ) and CE = 2πε0/ cosh−1
(h/a)
where LK is the kinetic inductance, CQ is the quantum capacitance, R0 =
12.91kΩ is the resistance quantum, vF = 0.8Mm/s is the Fermi speed, CE is
the electrostatic capacitance, h = 100nm is the height of the nanotube above
the ground plane and a = 1nm is the nanotube radius. The model capacitances
were obtained from the star to delta transformation, giving CAA = CBB =
CQ(CQ + CE)/(CE + 2CQ) and CAB = CBA = −C2
Q/(CE + 2CQ). The space-
step was ∆ℓ = 100nm, the time-step was ∆t ∼ 14fs and the model consisted
of 1000 cells. The result shown in Fig. 4 was obtained by sourcing the line
with a short Gaussian pulse at left-hand end of the line and allowing the pulse
to propagate for 2000∆t. As shown, the differential-mode (spin-mode) pulse
travels at the Fermi speed and the common-mode (charge-mode) pulse travels
at about 4.4vF . These results are in agreement with references [11, 12, 13]. No
losses have been included in this model because at present there is no consensus
in the literature as to their numerical value. However, loss may be included into
the resistance and conductance p.u. matrices.
-40
-20
0
20
40
60
80
100
0 10 20 30 40 50 60 70 80 90 100
NormalizedVoltage(mV/V)
Distance (um)
Common mode
Differential mode (A)
Differential mode (B)
Figure 4: Propagation of common-mode and differential-mode signals on a nano-
transmission line
4 Conclusions
In this paper we have described a TLM/Z-transform based time-domain model
for simulation of multiconductor transmission-lines. The model was used to
predict the propagation of a pulse along a carbon nanotube. In further work,
this model will be coupled to field solutions and extended to deal with multi-
conductor junctions.
7
8. References
[1] J. Paul, C. Christopoulos, D. W. P. Thomas and X. Liu. Time-Domain
Modeling of Electromagnetic Wave Interaction with Thin-Wires using
TLM. IEEE Transactions on Electromagnetic Compatibility, 47(3):447–
455, August 2005.
[2] J. Paul, C. Christopoulos and D. W. P. Thomas. Time-Domain Simulation
of Wave Propagation in an Overhead Wire with a Lossy Ground Return.
In 2005 Workshop on Computational Electromagnetics in Time-Domain
(CEM-TD), Atlanta, GA, U.S.A., pages 80–83, September 2005.
[3] C. Christopoulos, J. Paul and D. W. P. Thomas. Time-domain simulation of
thin-wires loaded with lumped components for EMC prediction. In XXVIII
General Assembly of the Union of Radio Science (URSI), New Delhi, India,
EB.2(01637), October 2005.
[4] V. Trenkic, A. J. Wlodarczyk, and R. A. Scaramuzza. Modelling of cou-
pling between transient electromagnetic field and complex wire structures.
International Journal of Numerical Modelling, 12(4):257–273, July 1999.
[5] A. J. Wlodarczyk, V. Trenkic, R. A. Scaramuzza and C. Christopoulos. A
Fully Integrated Multiconductor Model for TLM. IEEE Transactions on
Microwave Theory and Techniques, 46(12):2431–2437, December 1998.
[6] L. de Menezes and W. J. R. Hoefer. Modeling of General Constitutive
Relationships using SCN TLM. IEEE Transactions on Microwave Theory
and Techniques, 44(6):854–861, June 1996.
[7] J. Paul, C. Christopoulos and D. W. P. Thomas. Generalized Material Mod-
els in TLM—Part 2: Materials with Anisotropic Properties. IEEE Trans-
actions on Antennas and Propagation, 47(10):1535–1542, October 1999.
[8] J. Paul, C. Christopoulos and D. W. P. Thomas. Time-Domain Modeling
of Electromagnetic Wave Propagation in Complex Materials. Electromag-
netics, 19(6):527–546, November 1999.
[9] Y. K. Choong, P. Sewell and C. Christopoulos. Accurate modelling of an
arbitrary placed thin wire in a coarse mesh. IEE Proceedings: Science
Measurement and Technology, 149(5):250–253, September 2002.
[10] K. Biwojno, P. Sewell, Y. Liu and C. Christopoulos. Embedding Multiple
Wires Within a Single TLM Node. In EUROEM, Magdburg, Germany,
pages 173–174, July 2004.
[11] P. J. Burke. L¨uttinger Liquid Theory as a Model of the Gigahertz Electrical
Properties of Carbon Nanotubes. IEEE Transactions on Nanotechnology,
1(3):129–144, September 2002.
[12] P. J. Burke. An RF Circuit Model for Carbon Nanotubes. IEEE Transac-
tions on Nanotechnology, 2(1):55–58, March 2003.
8
9. [13] M. S. Sarto, M. D’Amore and A. Tamburrano. Signal carrying capability
of nano-transmission lines. In Proc. 9th International Conference on Elec-
tromagnetics in Advanced Applications, ICEAA ’05, Torino, Italy, pages
71–74, September 2005.
[14] G. W. Hanson. Fundamental transmitting properties of carbon nanotube
antennas. IEEE Transactions on Antennas and Propagation, 53(11):3426–
3435, Nov 2005.
[15] G. W. Hanson. Current on an Infinitely-Long Carbon Nanotube Antenna
Excited by a Gap Generator. IEEE Transactions on Antennas and Propa-
gation, 54(1):76–81, January 2006.
[16] J. Paul, C. Christopoulos and D. W. P. Thomas. Generalized Material
Models in TLM—Part 1: Materials with Frequency-Dependent Properties.
IEEE Transactions on Antennas and Propagation, 47(10):1528–1534, Oc-
tober 1999.
9
