1. MuleSoft Surat Meetup Group
Deep Dive into MuleSoft Batch
Processing (ELT/ETL/Batch
Processing)
Date – 27th Nov 2021
Time – 11:00 IST (GMT+05:30)

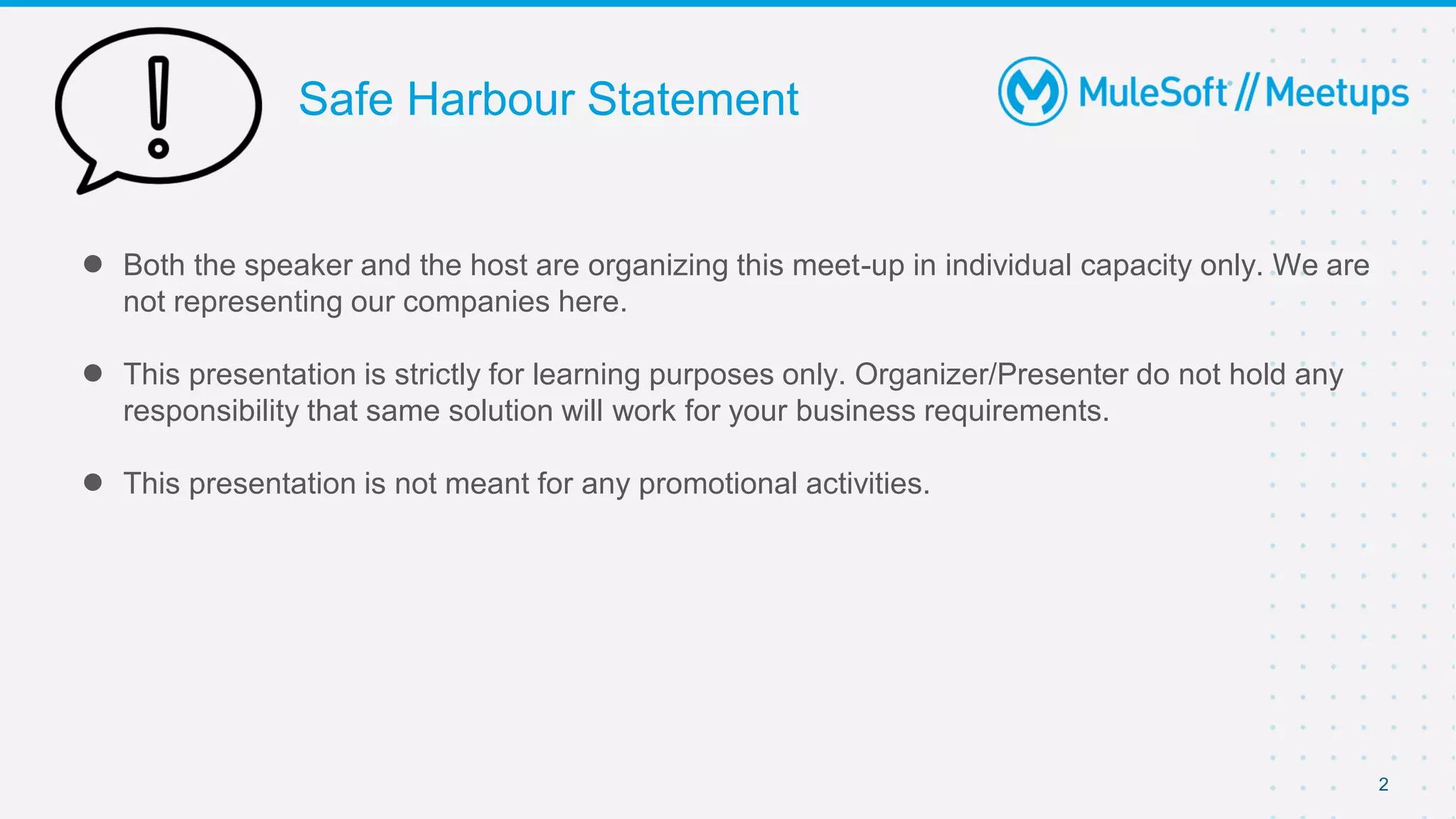

2. Safe Harbour Statement
● Both the speaker and the host are organizing this meet-up in individual capacity only. We are
not representing our companies here.
● This presentation is strictly for learning purposes only. Organizer/Presenter do not hold any
responsibility that same solution will work for your business requirements.
● This presentation is not meant for any promotional activities.
2

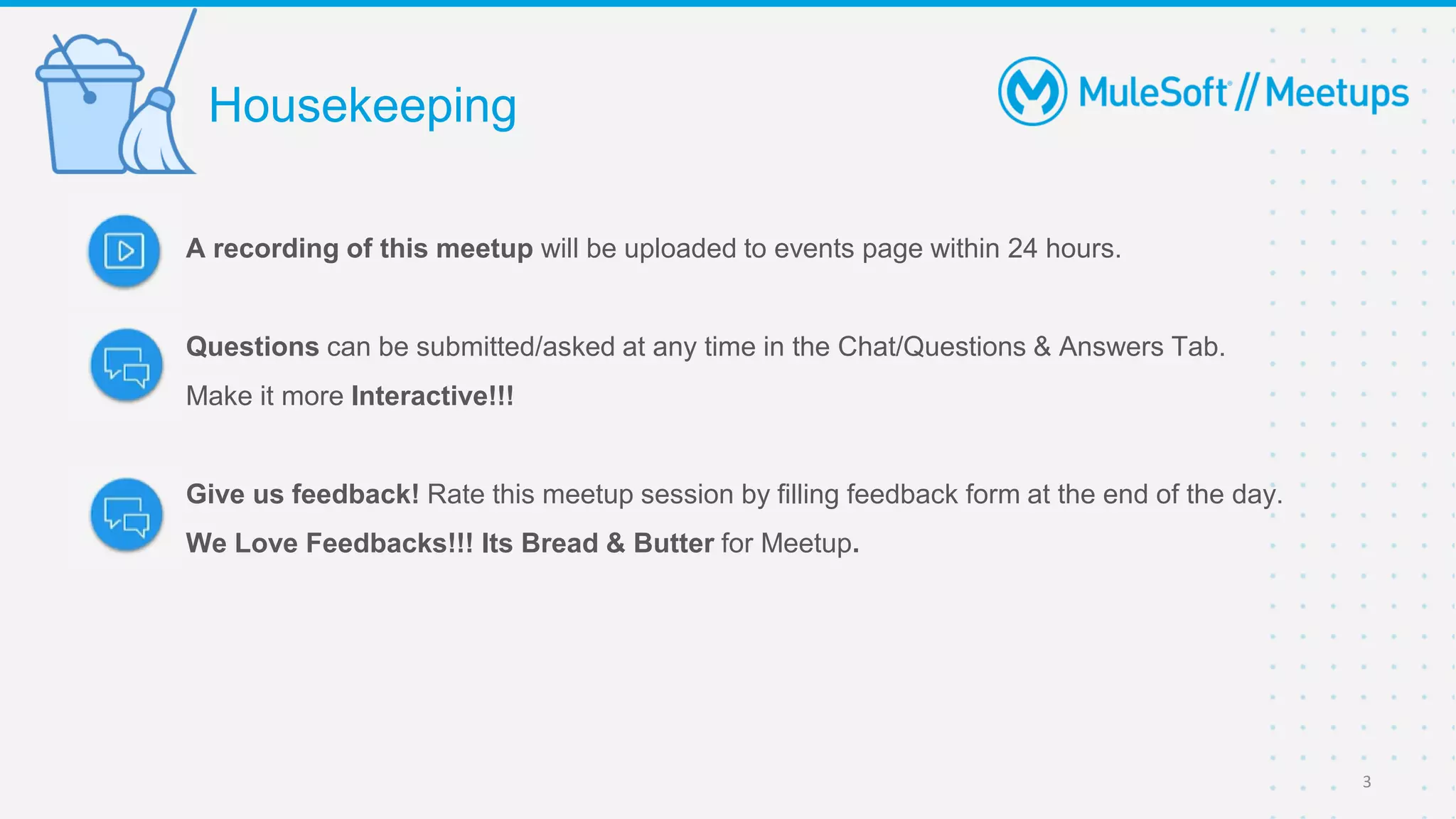

3. A recording of this meetup will be uploaded to events page within 24 hours.
Questions can be submitted/asked at any time in the Chat/Questions & Answers Tab.
Make it more Interactive!!!
Give us feedback! Rate this meetup session by filling feedback form at the end of the day.
We Love Feedbacks!!! Its Bread & Butter for Meetup.
Housekeeping
3

4. Organizers
4
Nitish Jain
Jitendra Bafna

5. Speaker
5
Chetan Joshi
Associate Solution Architect as Apisero

6. 6

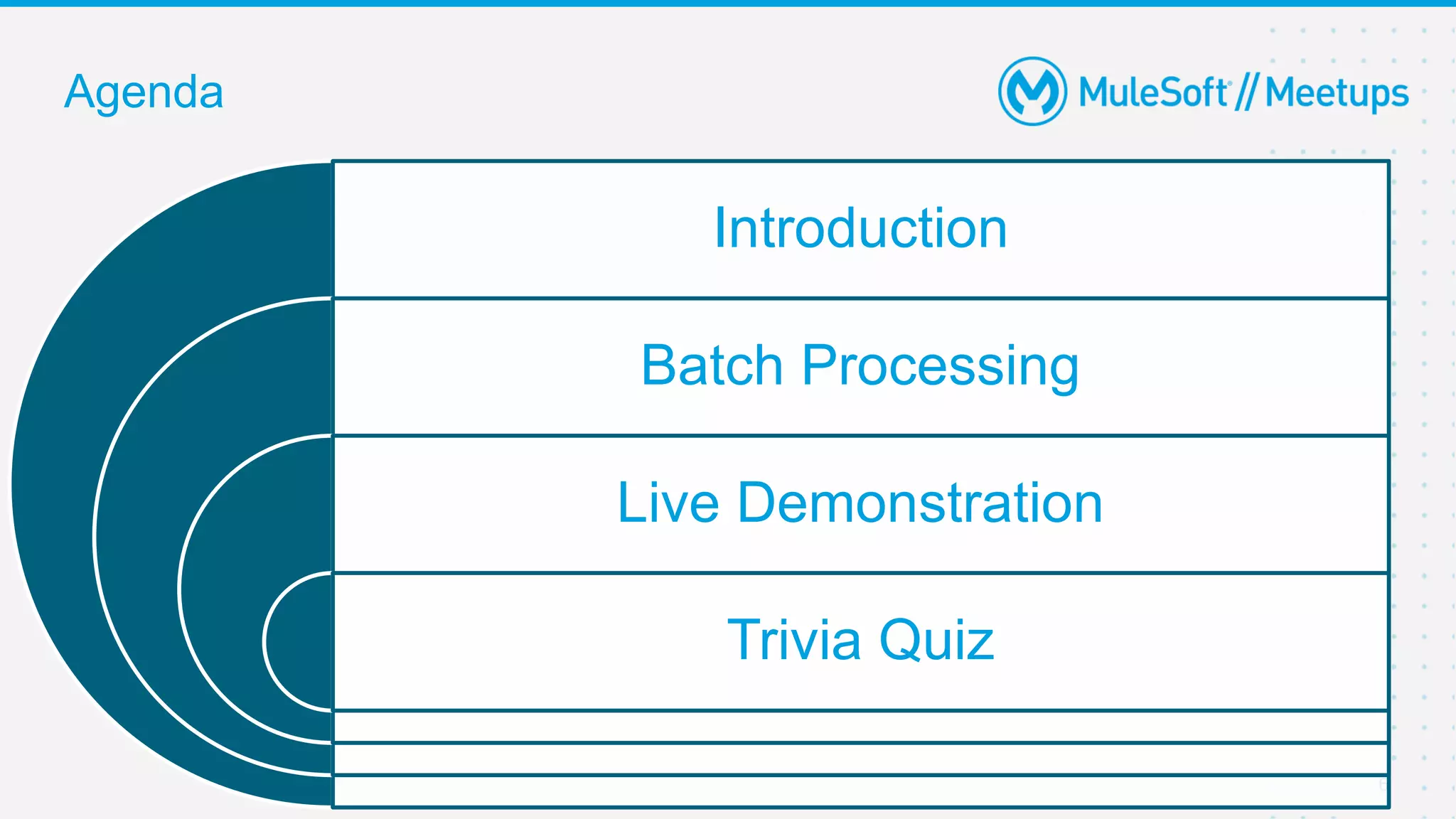

Agenda
Introduction
Batch Processing
Live Demonstration
Trivia Quiz

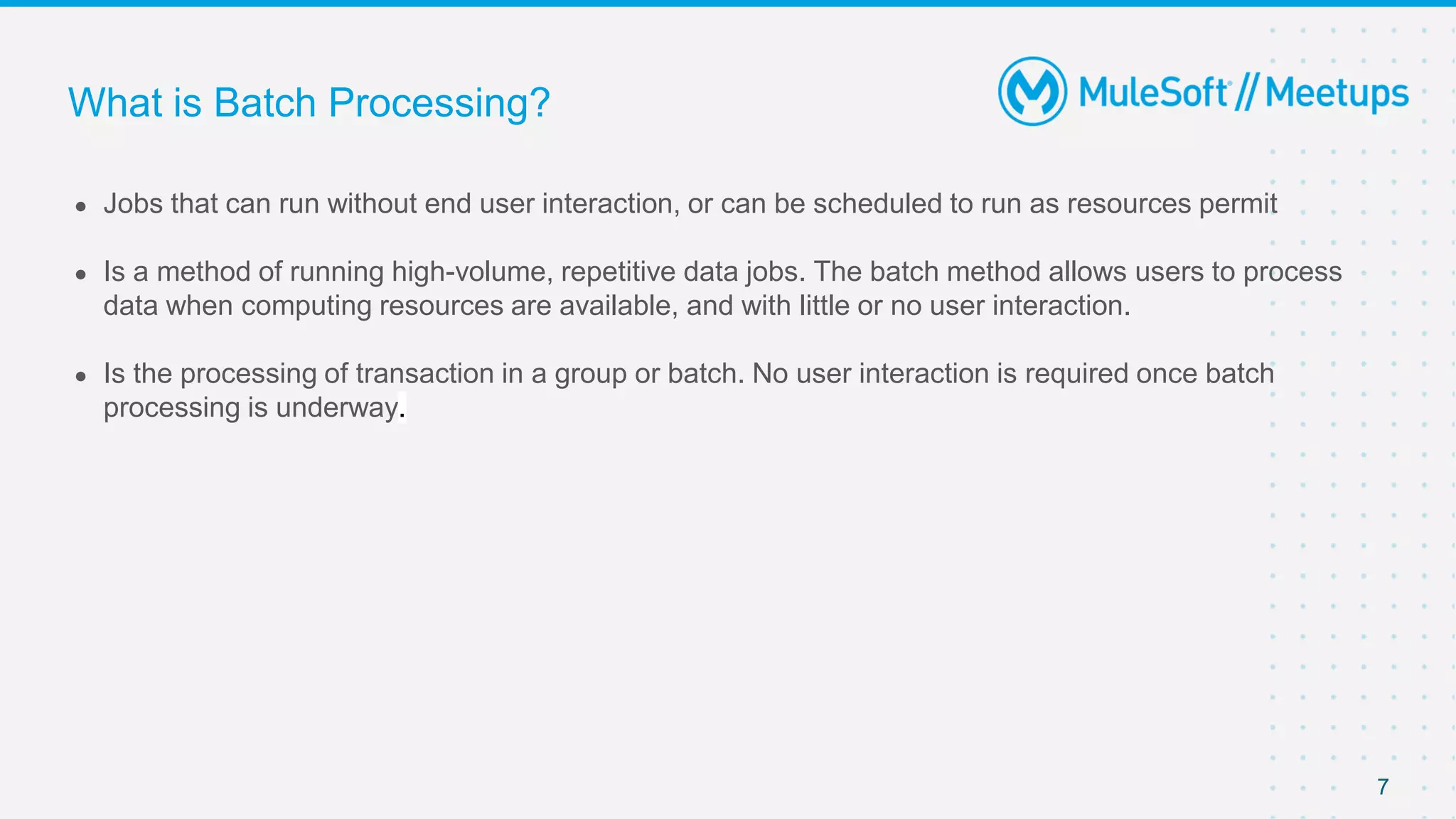

7. 7
● Jobs that can run without end user interaction, or can be scheduled to run as resources permit
● Is a method of running high-volume, repetitive data jobs. The batch method allows users to process
data when computing resources are available, and with little or no user interaction.
● Is the processing of transaction in a group or batch. No user interaction is required once batch
processing is underway.
What is Batch Processing?

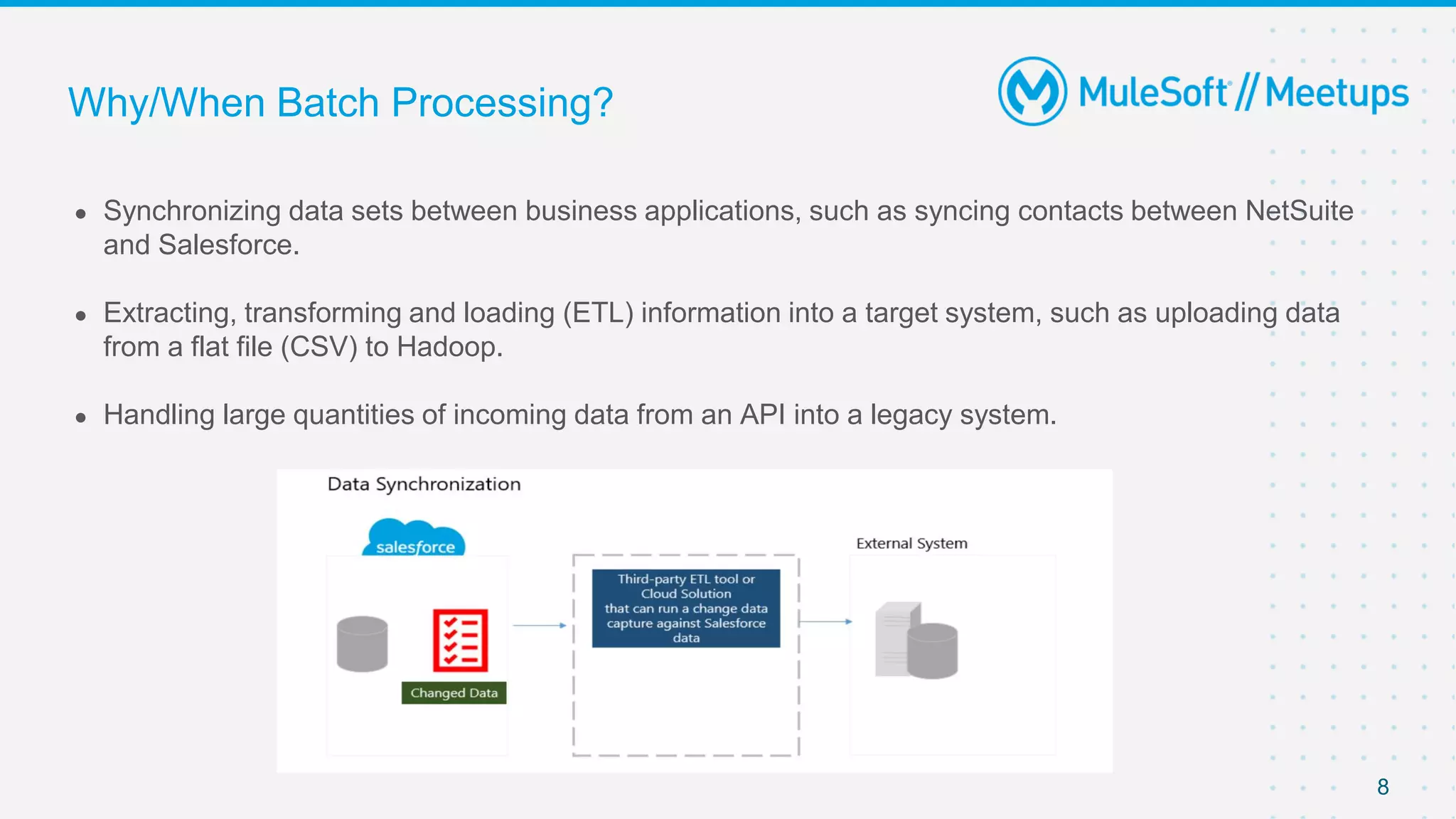

8. 8
● Synchronizing data sets between business applications, such as syncing contacts between NetSuite
and Salesforce.
● Extracting, transforming and loading (ETL) information into a target system, such as uploading data
from a flat file (CSV) to Hadoop.
● Handling large quantities of incoming data from an API into a legacy system.
Why/When Batch Processing?

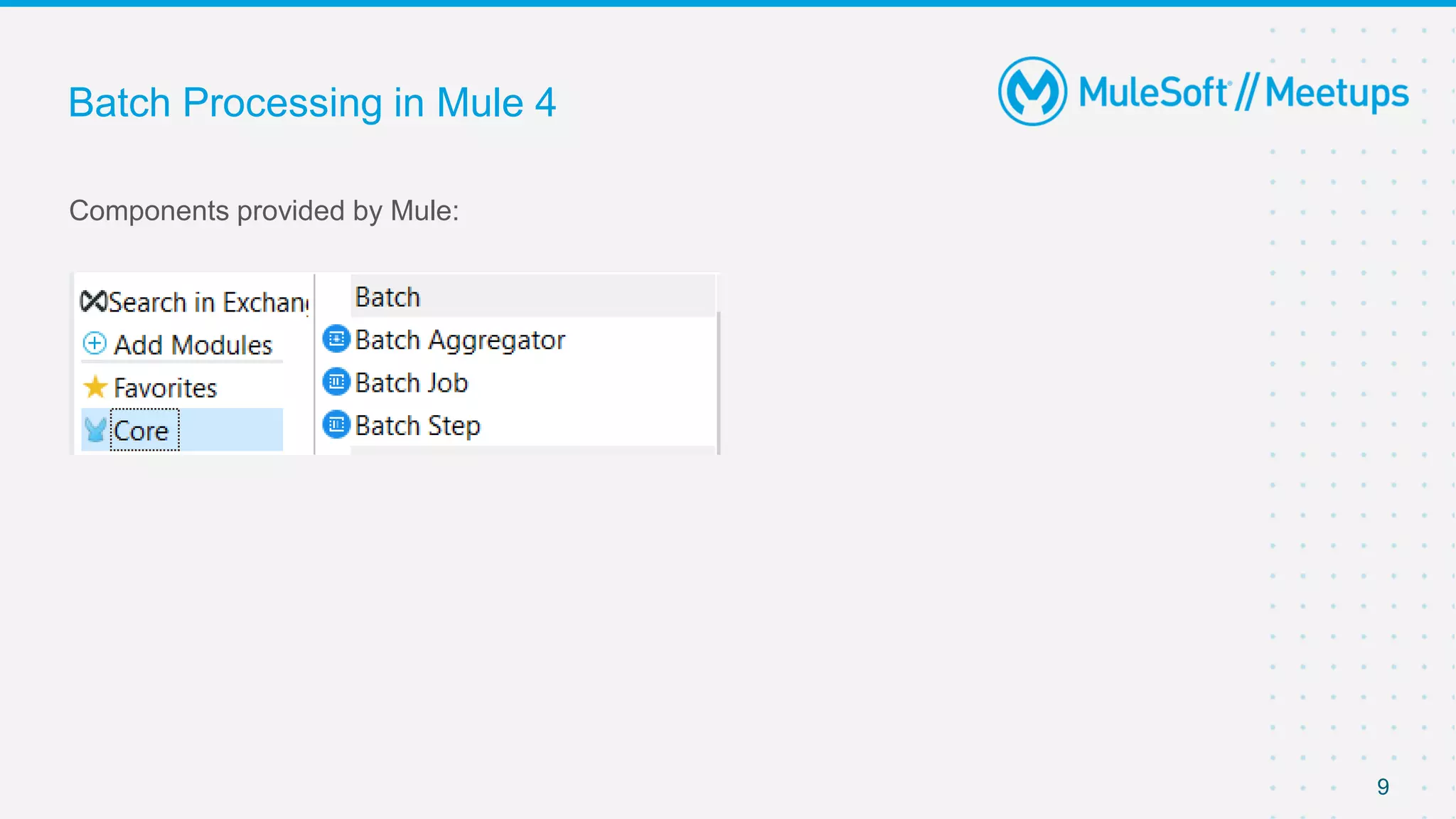

9. 9
Components provided by Mule:
Batch Processing in Mule 4

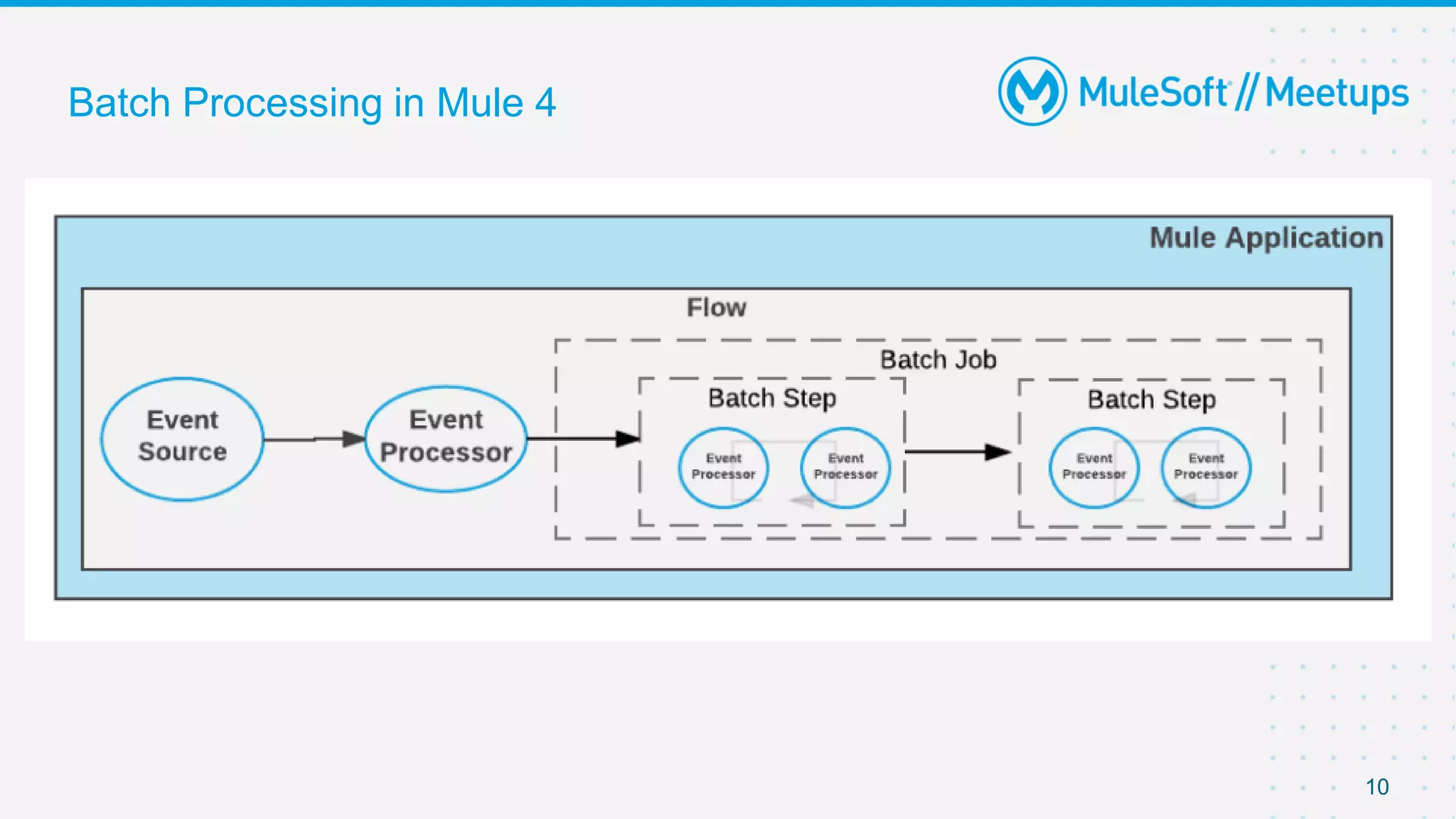

10. 10
Batch Processing in Mule 4

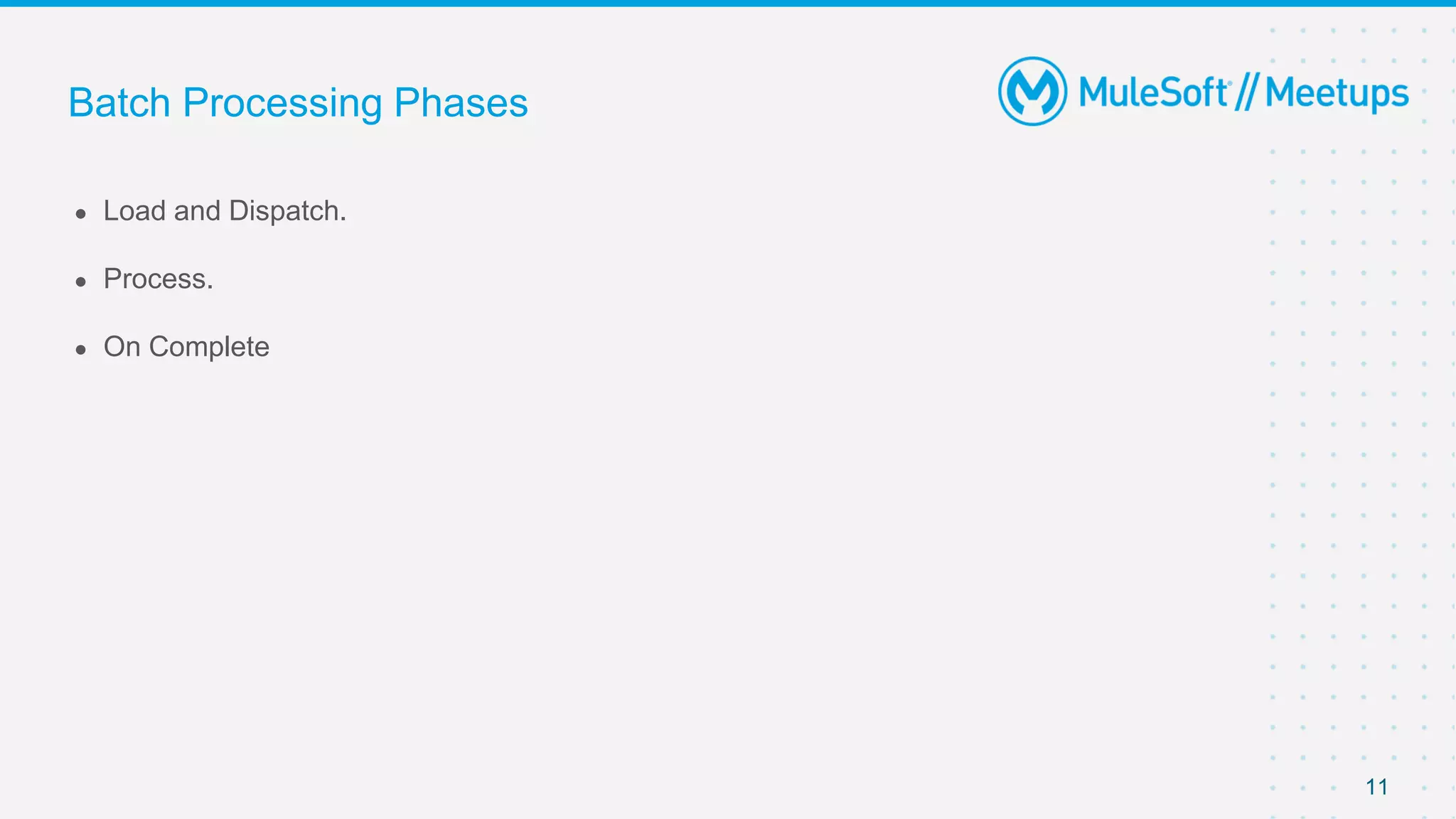

11. 11
● Load and Dispatch.
● Process.
● On Complete
Batch Processing Phases

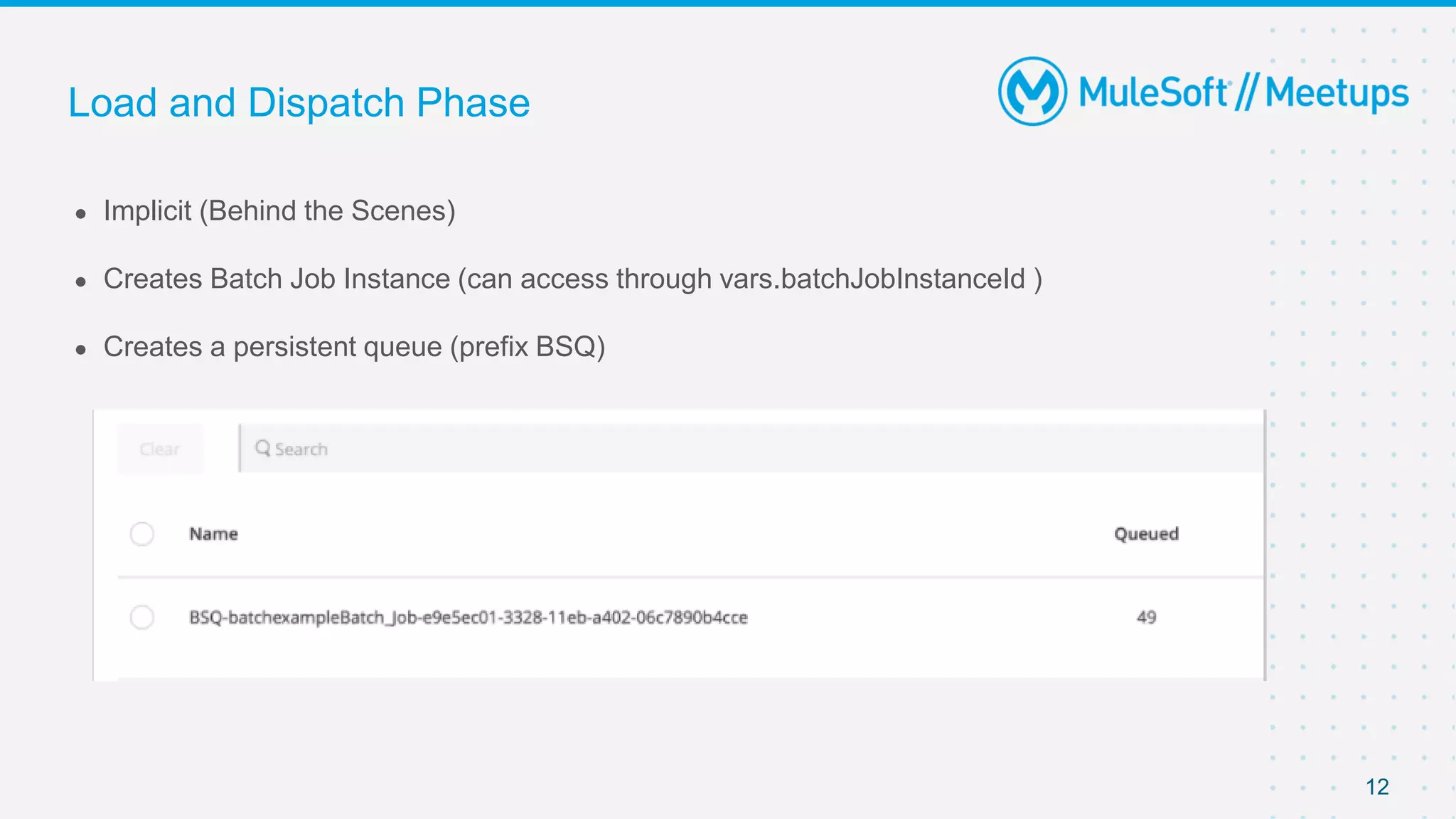

12. 12
● Implicit (Behind the Scenes)
● Creates Batch Job Instance (can access through vars.batchJobInstanceId )
● Creates a persistent queue (prefix BSQ)
Load and Dispatch Phase

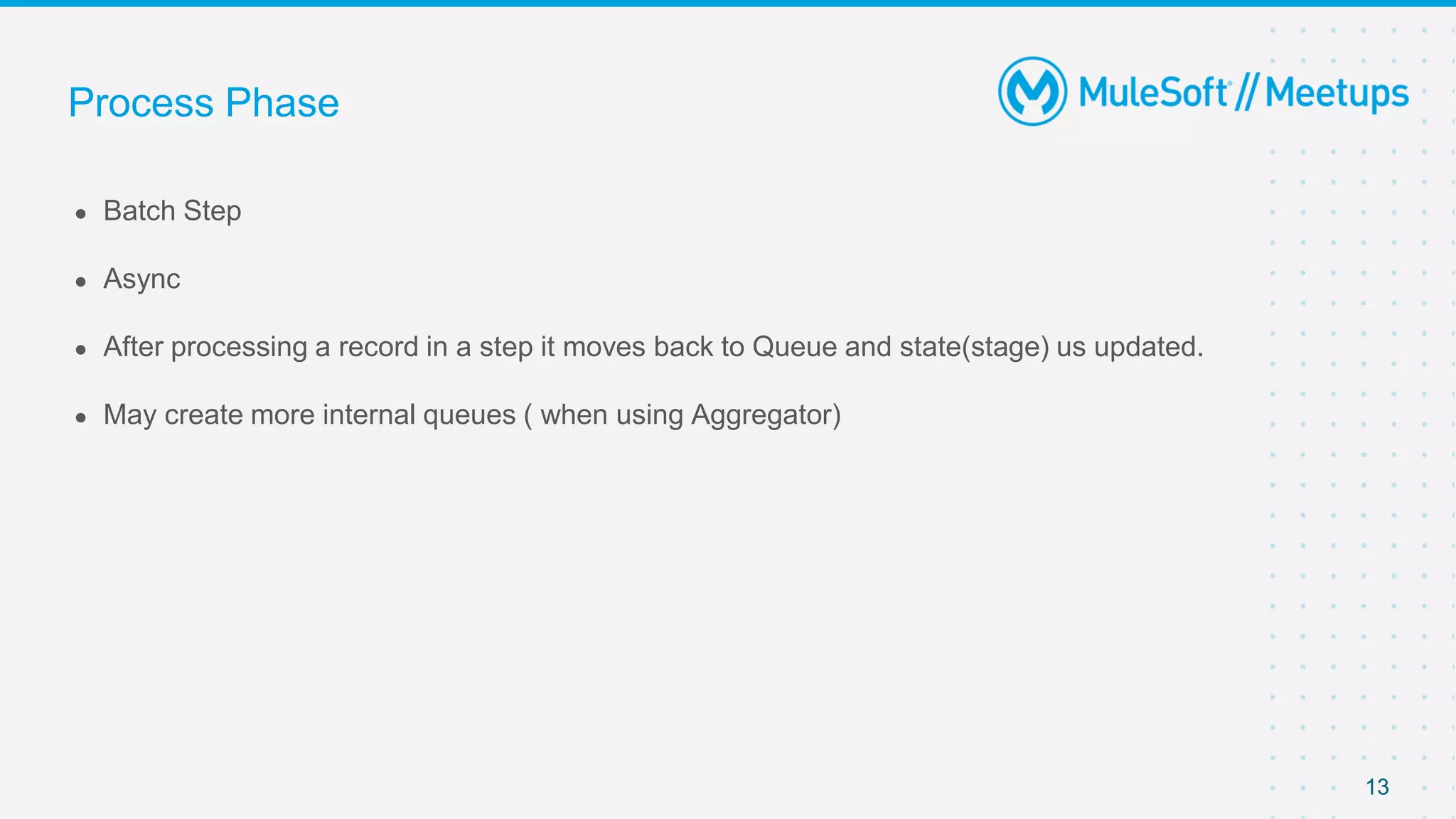

13. 13
● Batch Step
● Async
● After processing a record in a step it moves back to Queue and state(stage) us updated.
● May create more internal queues ( when using Aggregator)
Process Phase

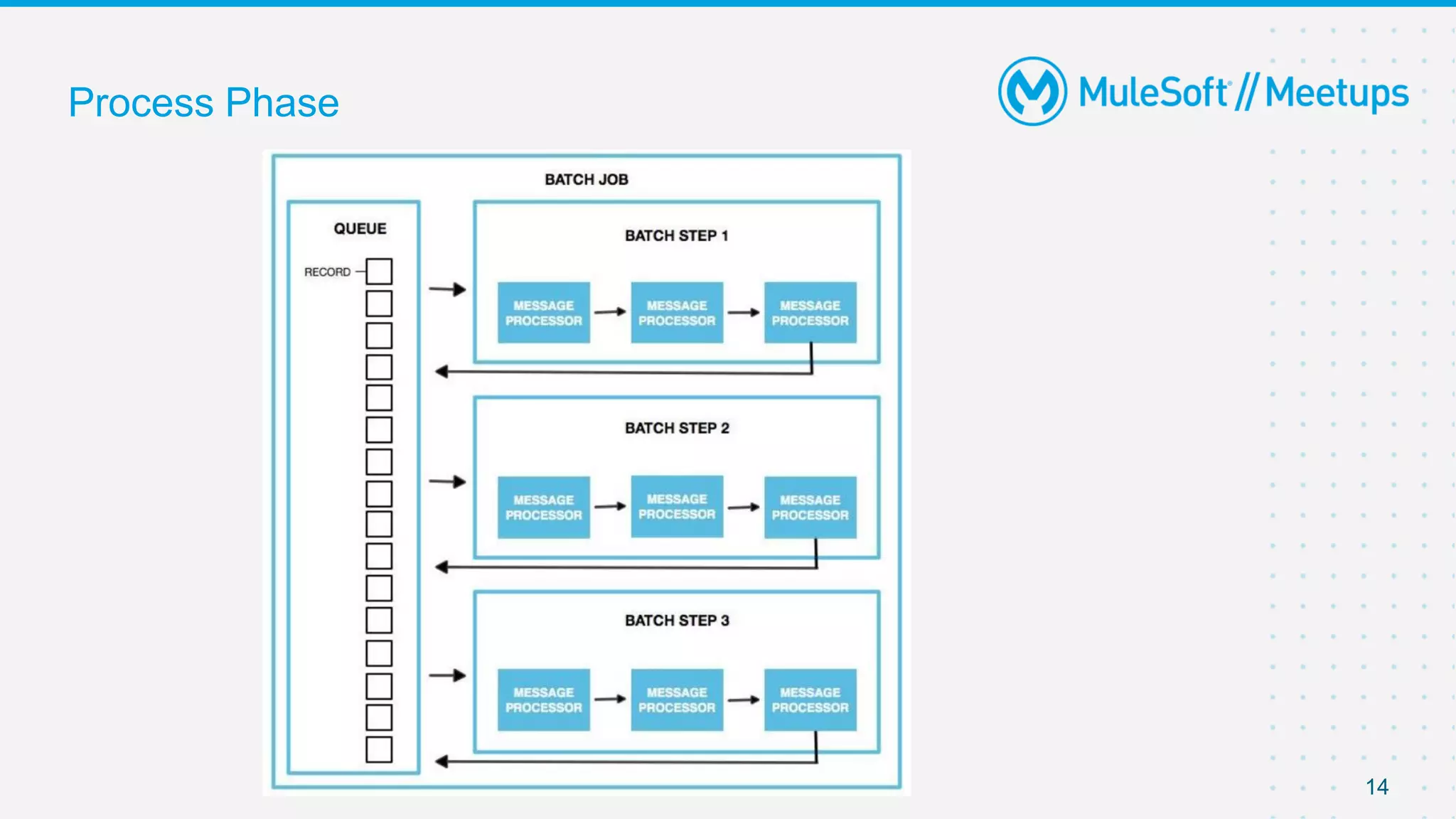

14. 14
Process Phase

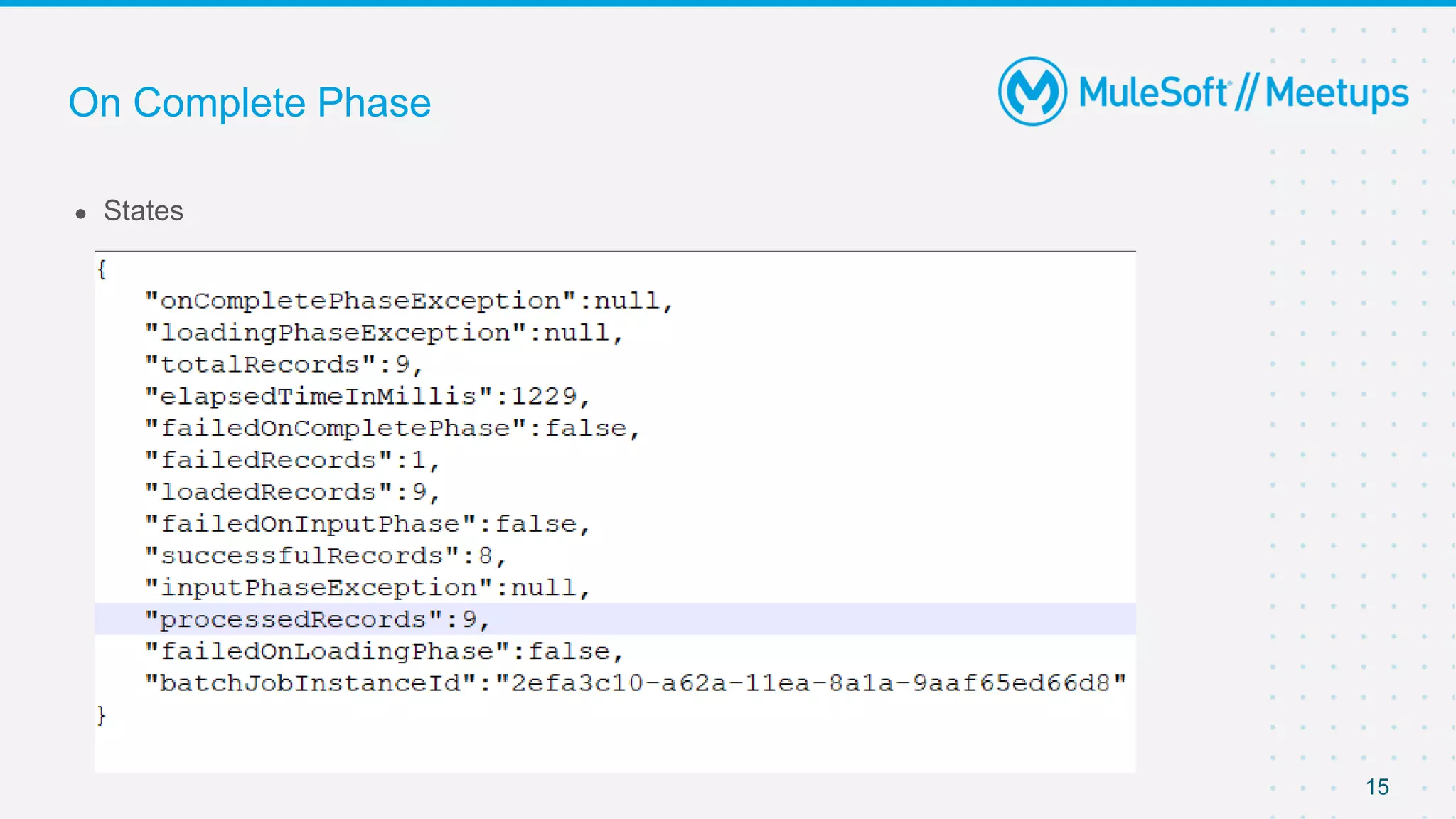

15. 15
● States
On Complete Phase

16. 16
DEMO

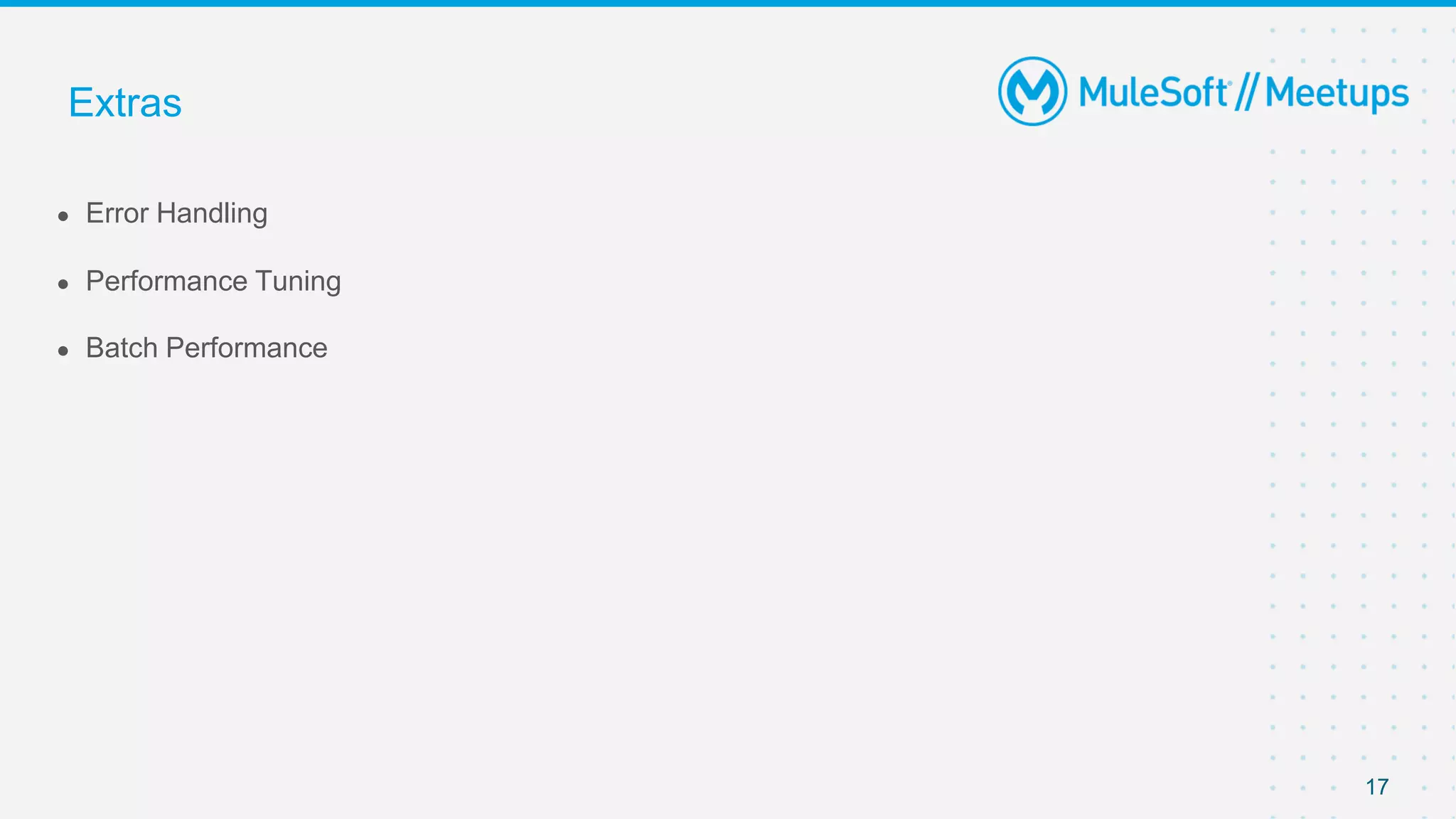

17. 17
● Error Handling
● Performance Tuning
● Batch Performance
Extras

18. Get ready to WIN a Special Gift from MuleSoft Community
Quiz Time
