Explore case studies from our most demanding deployments and provide a best practice approach to designing and tuning applications for optimal performance.

1. All contents © MuleSoft Inc.
Rupesh Ramachandran
Roy Prins
Performance Tuning

2. All contents © MuleSoft Inc.
What we’ll cover today…
• What does Mule runtime performance look like
• Why does it perform so well
• How do you tune for high performance
• Testing Process
• Quick Wins
• Fine Tuning

3. All contents © MuleSoft Inc.
Mule runtime performance
• Real-world customer examples
• Financial institution
• ~100 million transactions per day
• On-premise
• Elastic scale
• Large fast food chain
• ~40 million transactions per day
• CloudHub

4. All contents © MuleSoft Inc.
Stability under Concurrency very important for API’s
Performance characteristics
4

5. All contents © MuleSoft Inc.
Batch jobs and bulk load still relevant
Performance characteristics
5

6. All contents © MuleSoft Inc.
Scalability
6

7. All contents © MuleSoft Inc. 7

8. All contents © MuleSoft Inc.
Why does it perform this well (technology)
8
• Non-blocking
architecture
• Plus many others
• Streaming
• Log4j2
• Optimized xpath,
jms, jetty
• kryo serialize
• etc

9. All contents © MuleSoft Inc.
Why does it perform this well (people, process)
World class performance engineering team
• Regression tests for every release
• Realistic customer projects and production traffic
• Profile and optimize new capabilities
• Pass on lessons learnt
• Performance Tuning Guide
• Optimized defaults for tunables

10. All contents © MuleSoft Inc.
Tuning Mule Runtime

11. All contents © MuleSoft Inc.
Define Performance Goals
•Memory Footprint
• Large payload steady state
• Less important on 64-bit
• Prevent swapping
•Startup Time
• Somewhat important (e.g. production)
• Microservices, containerization requiring elastic scale up/down
•Throughput
• Transactions processed over time (e.g. TPS)
• Almost always Important
•Responsiveness
• Latency, round trip time, user wait time, etc
• Very Important for API’s
• Common mistake: using single message latency as indication of machine
performance, does not account for concurrency overheads
You can only pick two!!
Minimize
Memory
Footprint
Minimize
Latency
Minimize
Overhead

12. All contents © MuleSoft Inc.
Performance Tuning Process
•Repeatability - use a Controlled Environment
•High performance test driver
•External dependencies
•Mock if susceptible to outside constraints
•Keep CPU utilization under 75%
•Find the inflection point
•Tune one parameter at a time

13. All contents © MuleSoft Inc.Performance Tunables

14. All contents © MuleSoft Inc.
Mule Performance Tunables - Overview
•Mule Design time tuning
•Mule flows
•Mule configuration settings
•Mule Runtime tuning
•JVM
•GC
•Infrastructure tuning
•OS
•Network

15. All contents © MuleSoft Inc.
Longevity
Tests
Scalability
Tests
Tune test
infra
Tune
backend
Mule
flow/config
JVM/GC
Iterative Test,
Monitor, Profile
Final Report
Performance Test Lifecycle
Take
baseline
Tune test
infra and
tools
Functional
Tests
Design Mule
Flows

16. All contents © MuleSoft Inc.
Quick Wins

17. All contents © MuleSoft Inc.

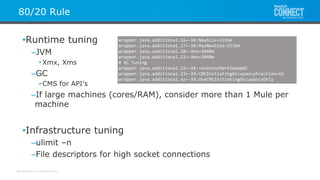

80/20 Rule
•Runtime tuning
–JVM
• Xmx, Xms
–GC
• CMS for API’s
–If large machines (cores/RAM), consider more than 1 Mule per
machine
•Infrastructure tuning
–ulimit –n
–File descriptors for high socket connections
wrapper.java.additional.16=-XX:NewSize=1536m
wrapper.java.additional.17=-XX:MaxNewSize=1536m
wrapper.java.additional.20=-Xms=2048m
wrapper.java.additional.21=-Xmx=2048m
# GC Tuning
wrapper.java.additional.22=-XX:+UseConcMarkSweepGC
wrapper.java.additional.23=-XX:CMSInitiatingOccupancyFraction=65
wrapper.java.additional.xz=-XX:UseCMSInitiatingOccupancyOnly

18. All contents © MuleSoft Inc.
Fine tuning Mule Runtime

19. All contents © MuleSoft Inc.
Design time tuning – Mule Flows
•Session Variables
• Fewer
• Smaller
•Payload Formats
• Java objects fastest
•Data Extraction
• MEL preferred to scripting languages
•Message Transformers
• DataWeave preferred option
• XSLT
• Java

20. All contents © MuleSoft Inc.
Design time tuning – Mule Flows
•Integration Patterns and performance implications
• Scatter-Gather
–Two or more independent data operations with a single source
–Results of the operations are combined
• Async scope
• Cache scope
• Transactional scope (cost)
• Stateful components (resequencer, idempotent, etc)
• Batch Module for bulk loads

21. All contents © MuleSoft Inc.
Design time tuning – Mule configurations
•HTTP Connections
• Don’t use Jetty connector
• Use latest runtime for best NIO performance
• NIO acceptor threads handoff to worker threads
• Acceptor threads default is #cores. Works well
• For worker threads tuning, adjust MaxThreadsActive on HTTP listener (default 128)
•HTTP Keep-alive
• For HTTP outbound, on by default
• Test driver or HTTP clients should use the same
•HTTPS
• Use latest TLS 1.1

22. All contents © MuleSoft Inc.
Design time tuning – Mule configurations
•Messaging
• Producer Mule flows
• JMS Connection Pooling (sessionCacheSize param)
• Consumer Mule flows
• JMS – ‘numberOfConsumers’
• AMQP – ‘numberOfChannels’
• JMS Server
• Disable message persistence if not needed
• Durable subscriber (cost)
• Message filtering (cost)
• VM Endpoints
• Flow references instead of VM endpoints within same app
• Unless HA save point required functionally

23. All contents © MuleSoft Inc.
Design time tuning – Mule configurations
•Threading
• Threading Profiles
• Synchronous vs Asynchronuos processing
• Thread Pools
•Logging
• Async logger vs sync

24. All contents © MuleSoft Inc.
Runtime tuning – Mind-map of 80/20 rule for GC tuning
24
Oracle
Hotspot (Deprecated in JDK 8. Use MetaSpaceSize
instead to bound native space use)

25. All contents © MuleSoft Inc. 25

26. All contents © MuleSoft Inc.
Thank you!
