  1. 1. All contents © MuleSoft Inc. Rupesh Ramachandran Ugorji Nwoke Microservices on Anypoint Platform

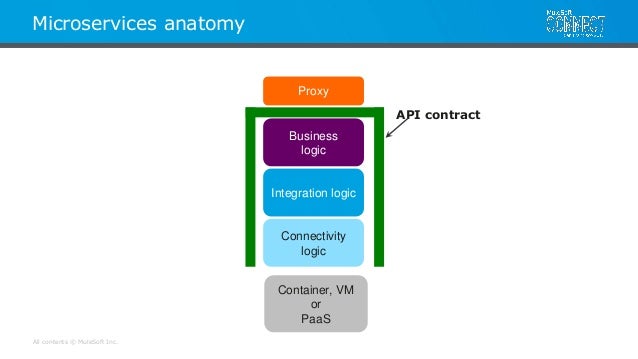

  2. 2. All contents © MuleSoft Inc. Container, VM or PaaS Microservices anatomy Business logic Integration logic Connectivity logic Proxy API contract

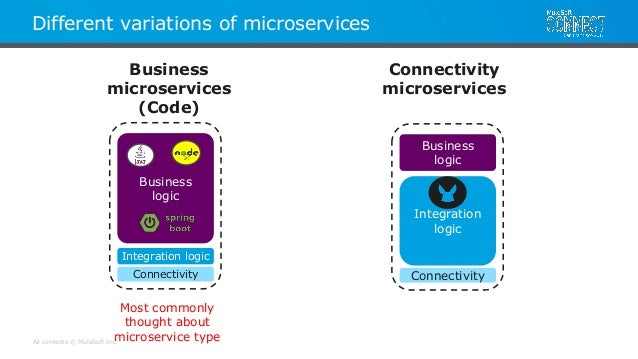

  3. 3. All contents © MuleSoft Inc. Different variations of microservices Business logic Integration logic Connectivity Business logic Integration logic Connectivity Business microservices (Code) Connectivity microservices Most commonly thought about microservice type

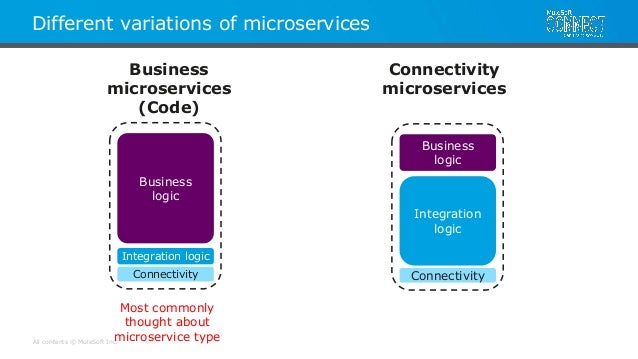

  4. 4. All contents © MuleSoft Inc. Different variations of microservices Business logic Integration logic Connectivity Business logic Integration logic Connectivity Business microservices (Code) Connectivity microservices Most commonly thought about microservice type
  5. 5. All contents © MuleSoft Inc. 6 Microservices Architecture & State Management Patterns Fine Grain SOA Message Driven Isolating State Layered API’s Event driven Replicating State

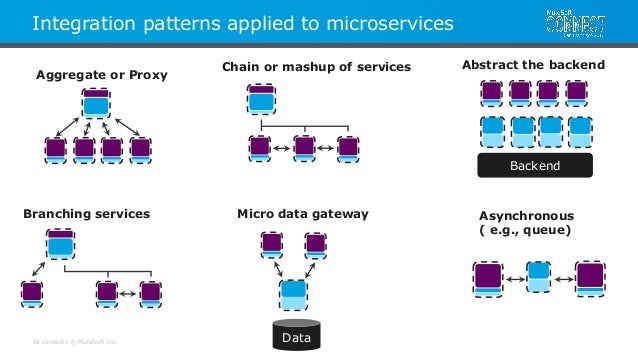

  6. 6. All contents © MuleSoft Inc. Integration patterns applied to microservices Backend Aggregate or Proxy Chain or mashup of services Abstract the backend Branching services Micro data gateway Asynchronous ( e.g., queue) Data

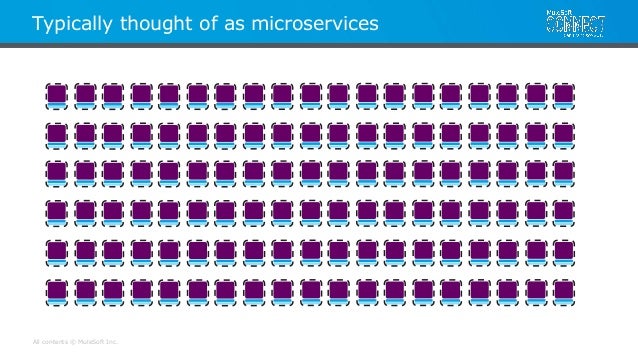

  7. 7. All contents © MuleSoft Inc. Typically thought of as microservices

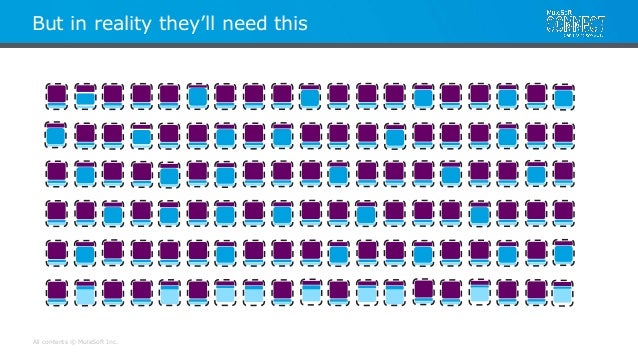

  8. 8. All contents © MuleSoft Inc. But in reality they’ll need this
  9. 9. All contents © MuleSoft Inc.Microservices on Anypoint Platform

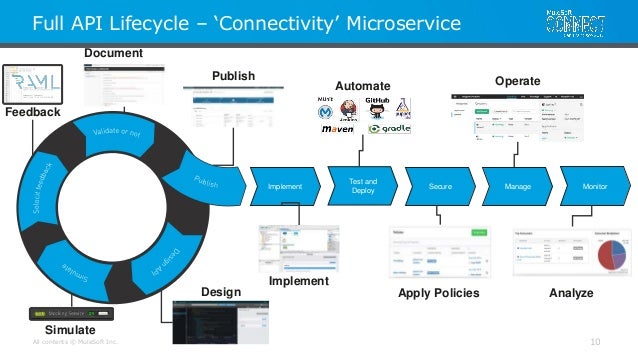

  10. 10. All contents © MuleSoft Inc. Operate AnalyzeApply Policies Publish Document Simulate Full API Lifecycle – ‘Connectivity’ Microservice 10 Implement Secure Manage Monitor Feedback Design Implement Test and Deploy Automate
  11. 11. All contents © MuleSoft Inc. Operate AnalyzeApply Policies Publish Document Simulate Full API Lifecycle – ‘Code’ Microservice 11 Implement Secure Manage Monitor Feedback Design Test and Deploy Automate
  12. 12. All contents © MuleSoft Inc. RAML specification • Traits • ResourceTypes • SecuritySchemes • Re-usable properties • …. Anatomy of a Mule microservice Mule deployable archive (.zip) Mule Runtime Logic Connectivity API Contract Conectivity • MQ, Database, SOAP, • HTTP, SaaS, COTS • Protocol implementation • Connections/resources • management • Pooling … Business Logic flows • Routing • Enrichment • Transformation • Aggregation • Parallel execution • Splitting • ….

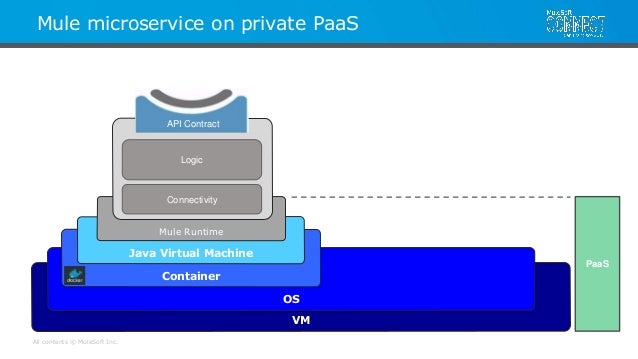

  13. 13. All contents © MuleSoft Inc. VM OS Container Java Virtual Machine Mule Runtime Mule microservice on private PaaS Logic Connectivity API Contract PaaS

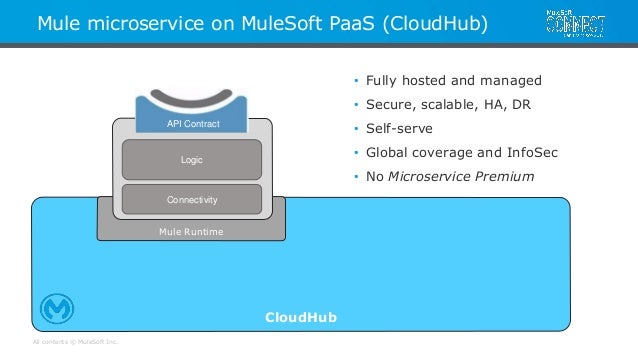

  14. 14. All contents © MuleSoft Inc. CloudHub Mule microservice on MuleSoft PaaS (CloudHub) Mule Runtime Logic Connectivity API Contract • Fully hosted and managed • Secure, scalable, HA, DR • Self-serve • Global coverage and InfoSec • No Microservice Premium

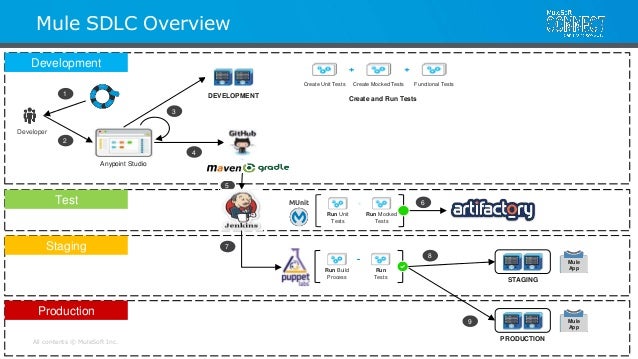

  15. 15. All contents © MuleSoft Inc. Test Staging Mule SDLC Overview Development Production 1 2 Anypoint Studio 3 4 5 6 7 8 9 Run Tests Run Build Process DEVELOPMENT STAGING PRODUCTION Create Mocked TestsCreate Unit Tests Functional Tests Create and Run Tests Mule App Developer MUnit Run Mocked Tests Run Unit Tests Mule App

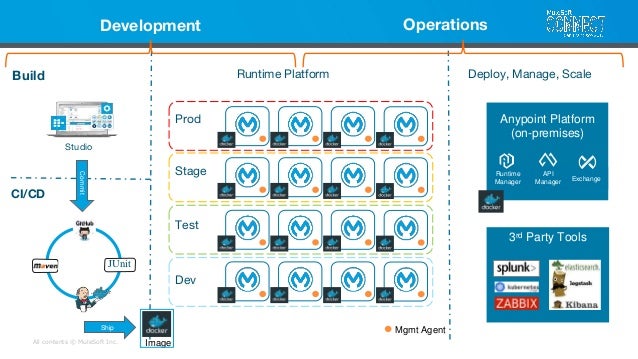

  16. 16. All contents © MuleSoft Inc. 3rd Party Tools Build Runtime Platform Deploy, Manage, Scale CI/CD Studio JUnit Dev Test Stage Prod Anypoint Platform (on-premises) Runtime Manager API Manager Exchange Commit Ship Image Development Operations Mgmt Agent

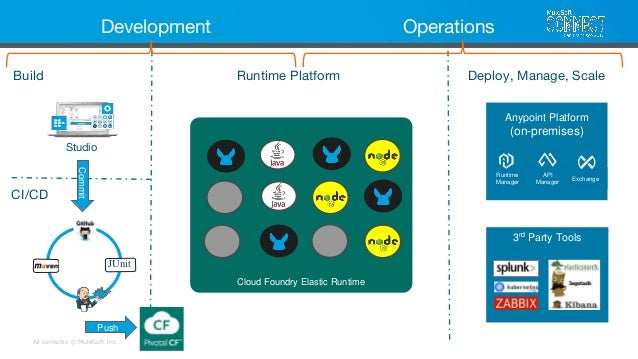

  17. 17. All contents © MuleSoft Inc. 3rd Party Tools Build Runtime Platform Deploy, Manage, Scale CI/CD Studio JUnit Anypoint Platform (on-premises) Runtime Manager API Manager Exchange Commit Push Development Operations Cloud Foundry Elastic Runtime

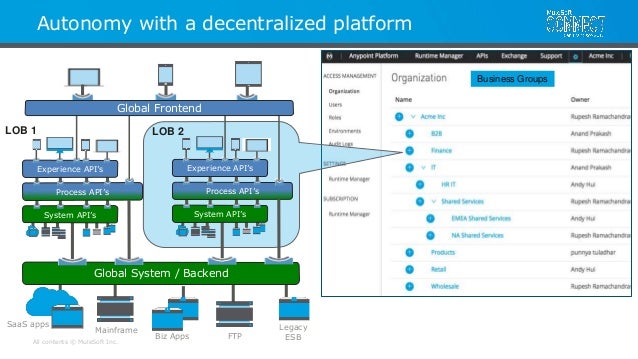

  18. 18. All contents © MuleSoft Inc. Legacy ESB Mainframe FTP SaaS apps LOB 1 Global System / Backend System API’s Process API’s Experience API’s LOB 2 System API’s Process API’s Experience API’s Global Frontend Autonomy with a decentralized platform Biz Apps Business Groups

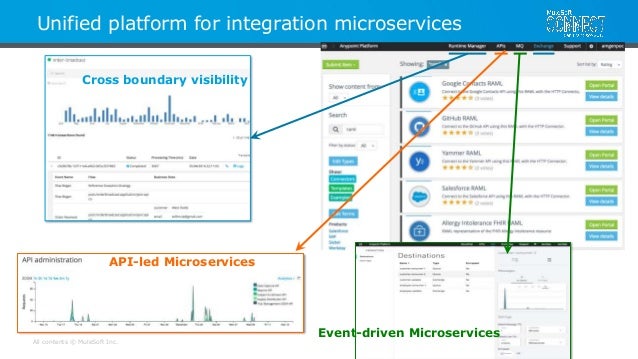

  19. 19. All contents © MuleSoft Inc. Unified platform for integration microservices Event-driven Microservices API-led Microservices Cross boundary visibility
  20. 20. All contents © MuleSoft Inc. Thank you!
  21. 21. All contents © MuleSoft Inc. Cloud Foundry Elastic Runtime Creating PCF services with Mule Flows Cloud Foundry Router Consumer Anypoint Exchange Anypoint API Manager Anypoint Studio Build services with Mule Flows Enforce policies, catalog and monitor directly from Anypoint Management Center

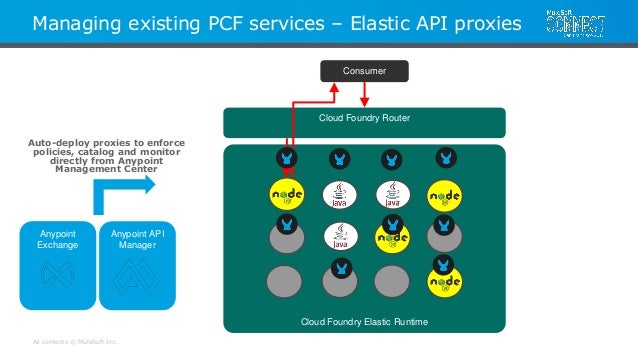

  22. 22. All contents © MuleSoft Inc. Managing existing PCF services – Elastic API proxies Cloud Foundry Elastic Runtime Cloud Foundry Router Consumer Anypoint Exchange Anypoint API Manager Auto-deploy proxies to enforce policies, catalog and monitor directly from Anypoint Management Center

×
