The document describes a Mule flow that uses a custom Java class filter to filter XML payload converted to JSON. The flow listens on port 8081, logs the payload, converts the XML payload to JSON, and passes it to the custom filter class for filtering before completing the flow. The custom filter class can be manipulated as needed to filter the JSON payload according to requirements.

1. Flow complete

2. Filter
 Custom
 É um filtro personalizado

3. Flow complete

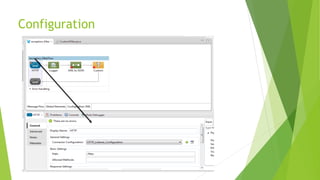

4. Configuration

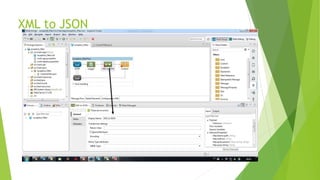

5. XML to JSON

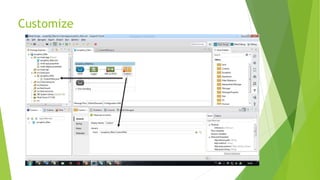

6. Customize

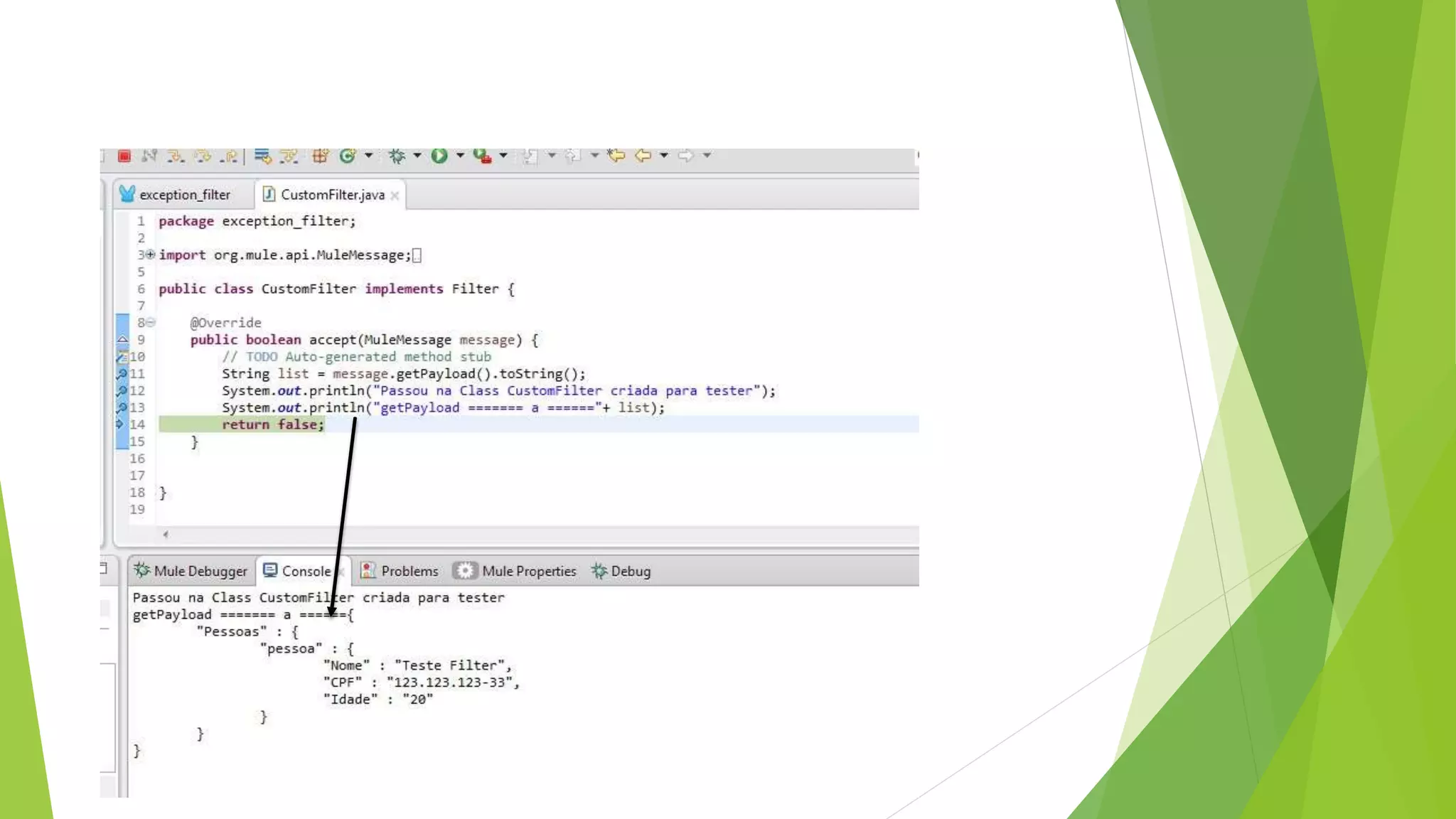

7. Class Java
Mostra o que foi
Você pode manipular de acordo com sua necessidade isso é
uma demonstração de como pode-se usar, podemos criar outros
métodos de necessário.

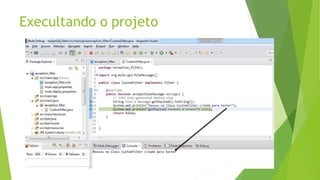

8. Execultando o projeto

10. XML complete
 <?xml version="1.0" encoding="UTF-8"?>







 <mule xmlns:json="http://www.mulesoft.org/schema/mule/json" xmlns:http="http://www.mulesoft.org/schema/mule/http"
xmlns="http://www.mulesoft.org/schema/mule/core" xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
 xmlns:spring="http://www.springframework.org/schema/beans"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-current.xsd
 http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
 http://www.mulesoft.org/schema/mule/json http://www.mulesoft.org/schema/mule/json/current/mule-json.xsd
 http://www.mulesoft.org/schema/mule/http http://www.mulesoft.org/schema/mule/http/current/mule-http.xsd">
<http:listener-config name="HTTP_Listener_Configuration" host="localhost" port="8081" doc:name="HTTP Listener
Configuration"/>
<flow name="exception_filterFlow">
<http:listener config-ref="HTTP_Listener_Configuration" path="/filter" doc:name="HTTP"/>
<logger message="#[payload]" level="INFO" doc:name="Logger"/>
<json:xml-to-json-transformer doc:name="XML to JSON"/>
<custom-filter class="exception_filter.CustomFilter" doc:name="Custom"/>
</flow>
 </mule>
