This document discusses sending email attachments using Mule ESB's SMTP connector. It describes how to configure a Mule flow to read a file from a source directory using the file inbound endpoint, transform it to a string using the file-to-string transformer, attach it to the message using the attachment transformer, and send it in an email using the SMTP outbound endpoint. The email will be sent to the specified recipient address with the file attached.

1. Send email attachment using
SMTP in Mule ESB

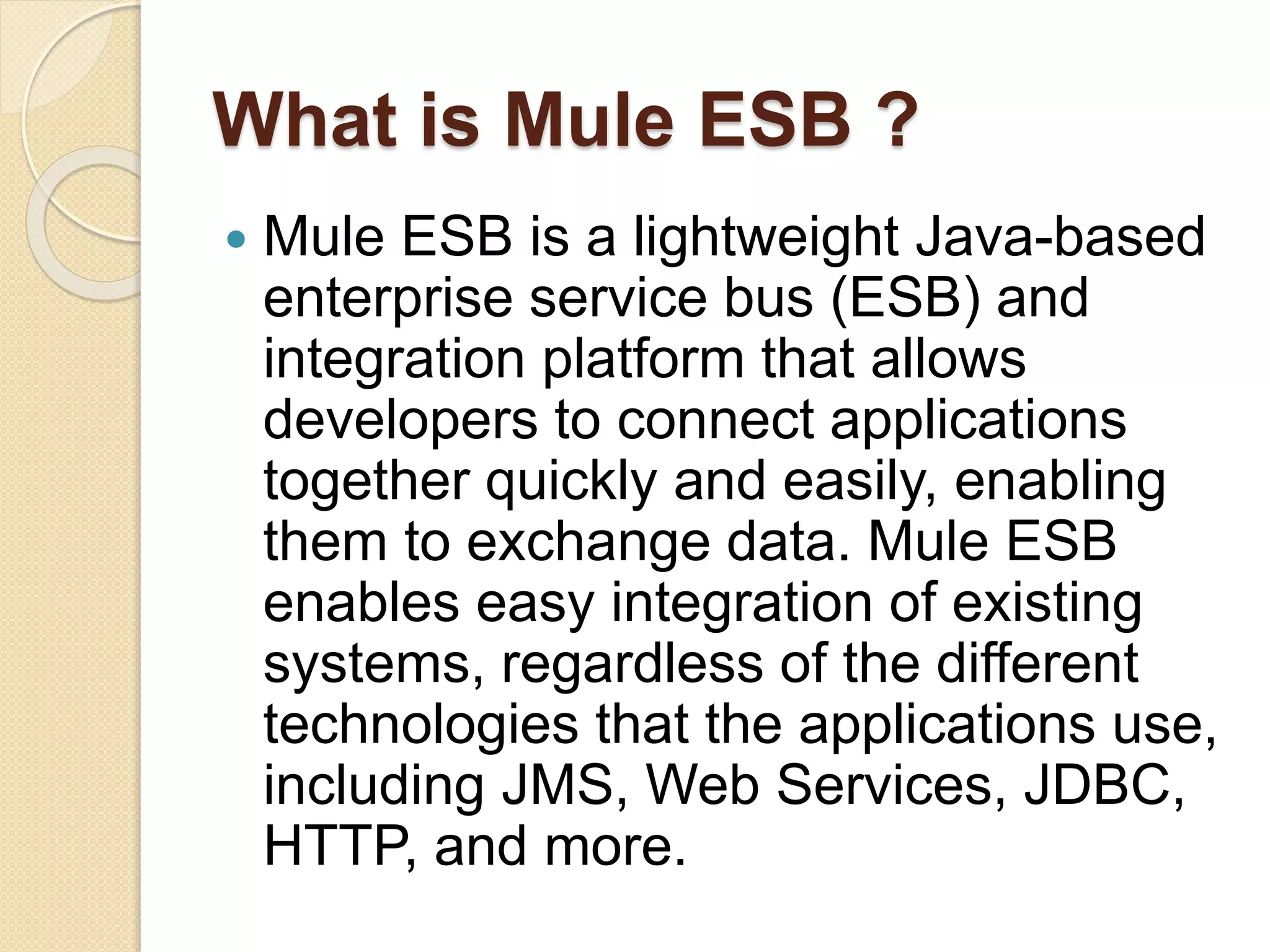

2. What is Mule ESB ?
 Mule ESB is a lightweight Java-based
enterprise service bus (ESB) and
integration platform that allows
developers to connect applications
together quickly and easily, enabling
them to exchange data. Mule ESB
enables easy integration of existing
systems, regardless of the different
technologies that the applications use,
including JMS, Web Services, JDBC,
HTTP, and more.

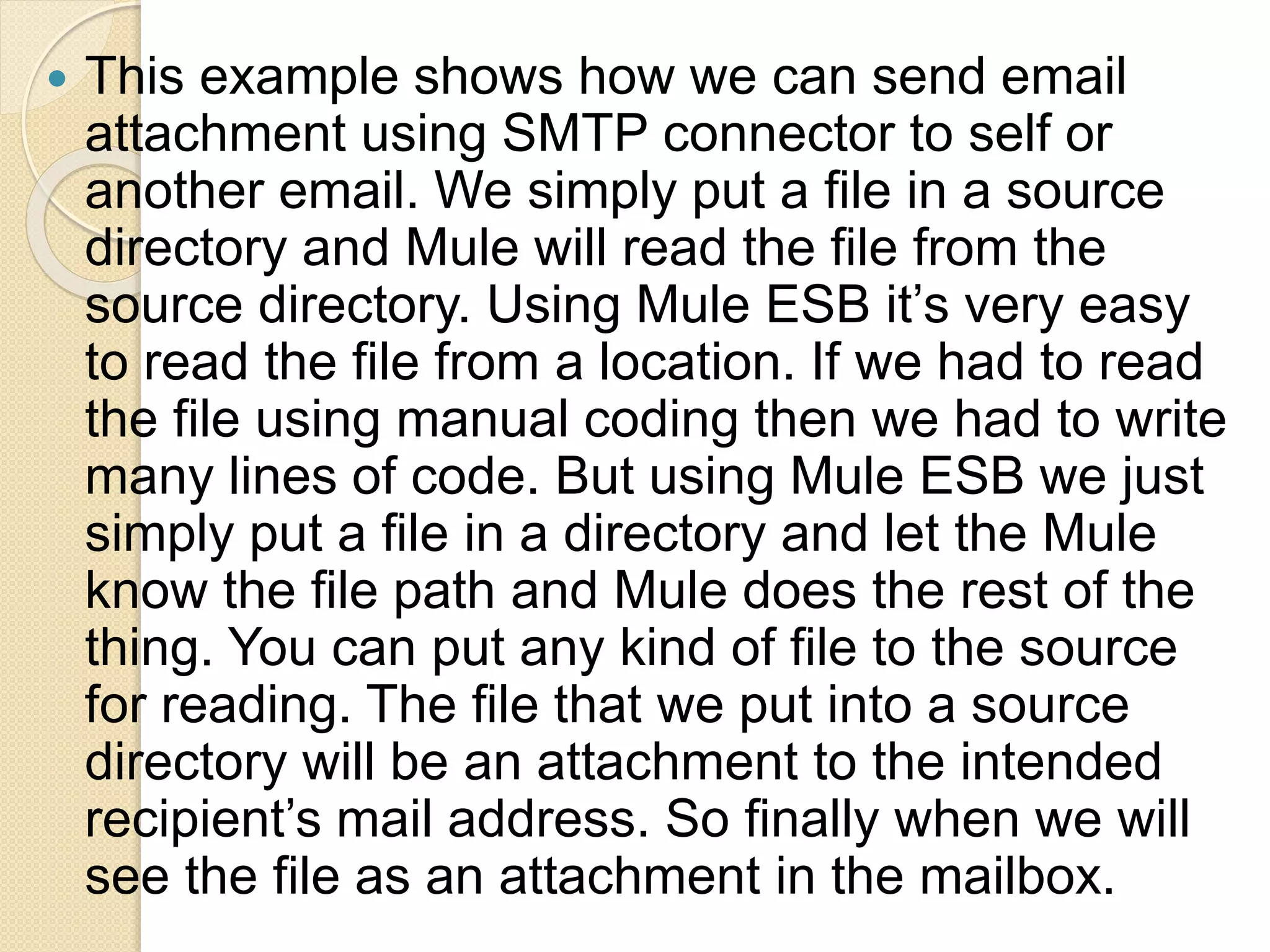

3.  This example shows how we can send email
attachment using SMTP connector to self or
another email. We simply put a file in a source
directory and Mule will read the file from the
source directory. Using Mule ESB it’s very easy
to read the file from a location. If we had to read
the file using manual coding then we had to write
many lines of code. But using Mule ESB we just
simply put a file in a directory and let the Mule
know the file path and Mule does the rest of the
thing. You can put any kind of file to the source
for reading. The file that we put into a source
directory will be an attachment to the intended
recipient’s mail address. So finally when we will
see the file as an attachment in the mailbox.

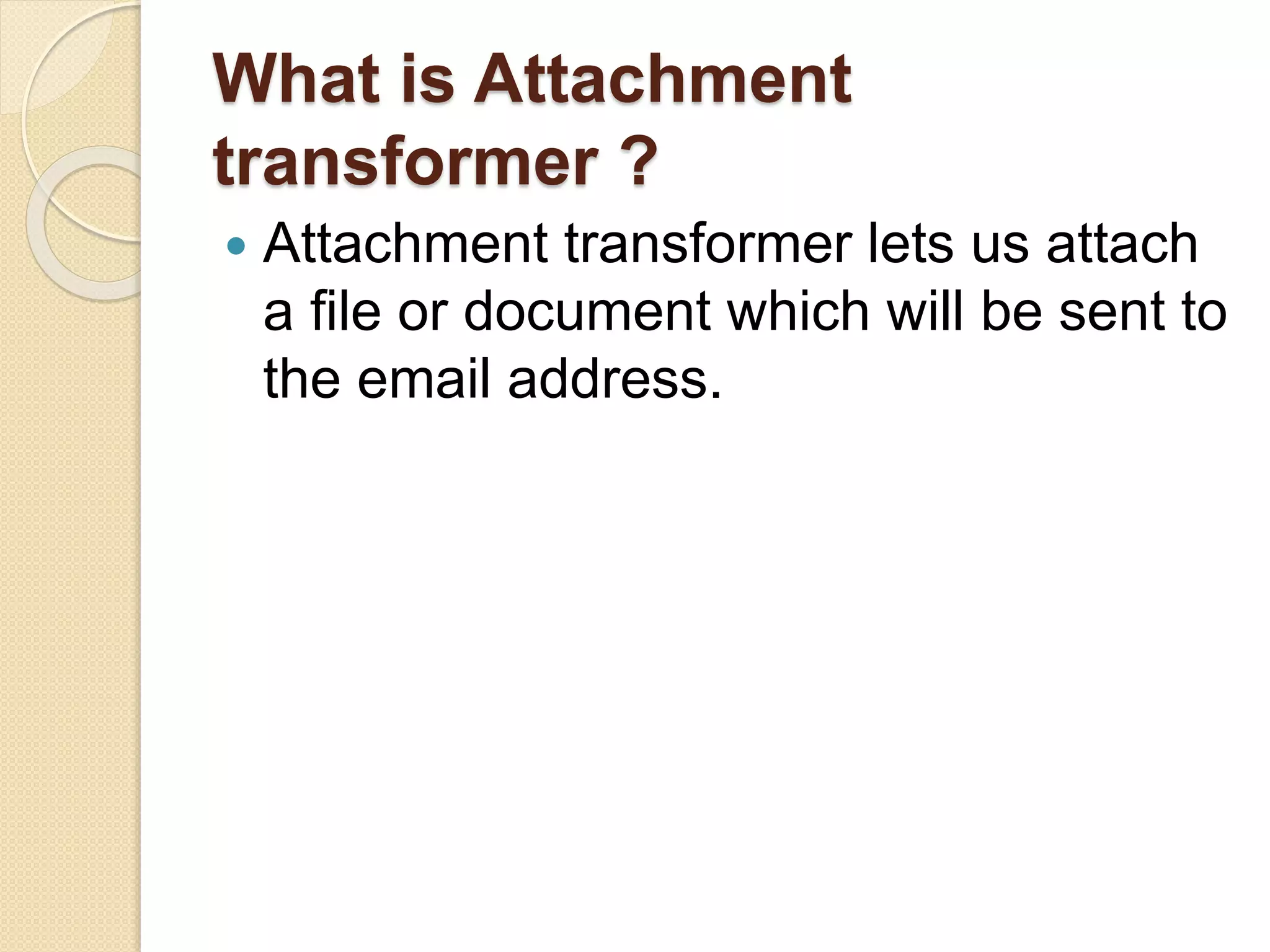

4. What is Attachment
transformer ?
 Attachment transformer lets us attach
a file or document which will be sent to
the email address.

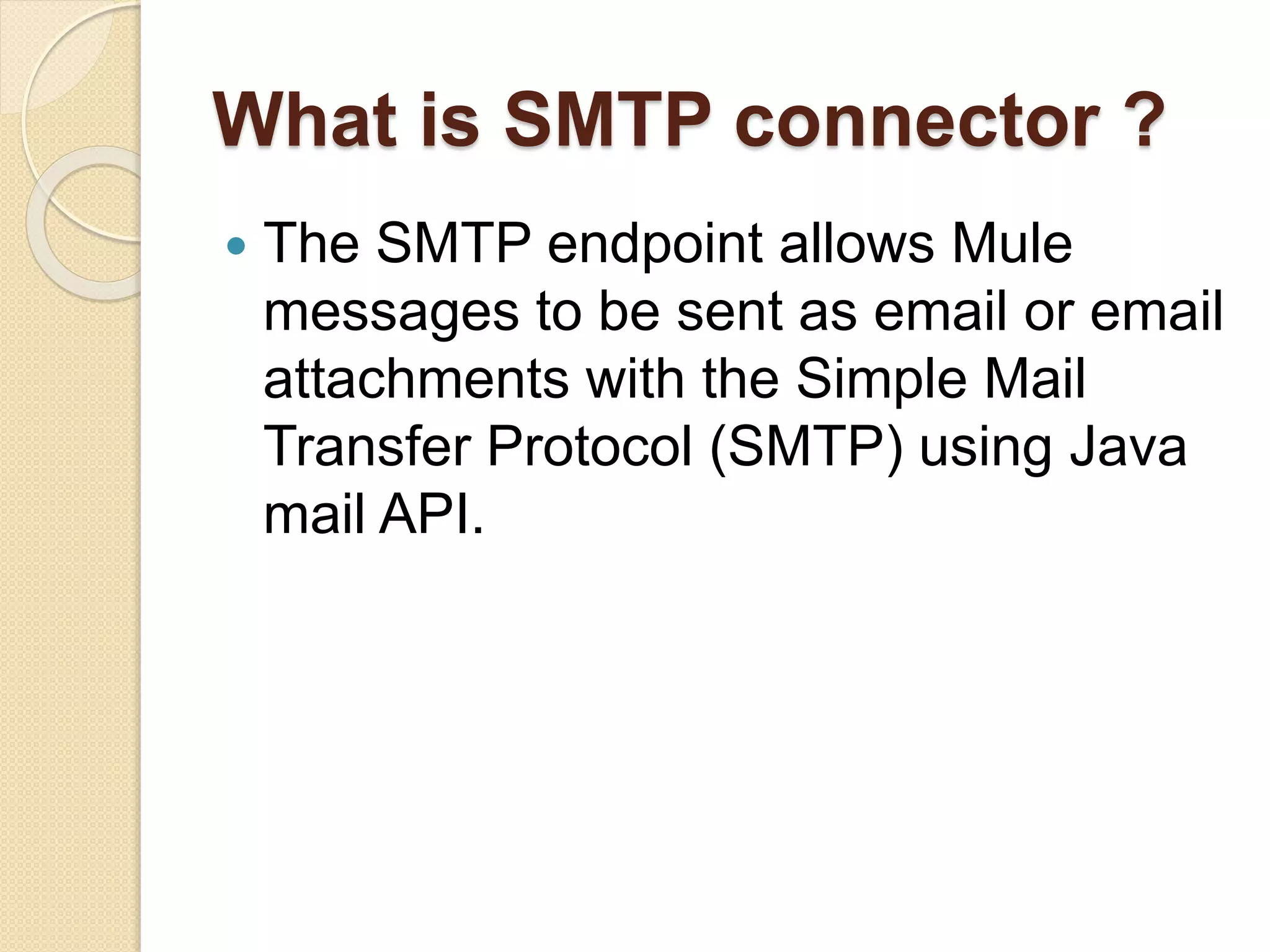

5. What is SMTP connector ?
 The SMTP endpoint allows Mule
messages to be sent as email or email
attachments with the Simple Mail
Transfer Protocol (SMTP) using Java
mail API.

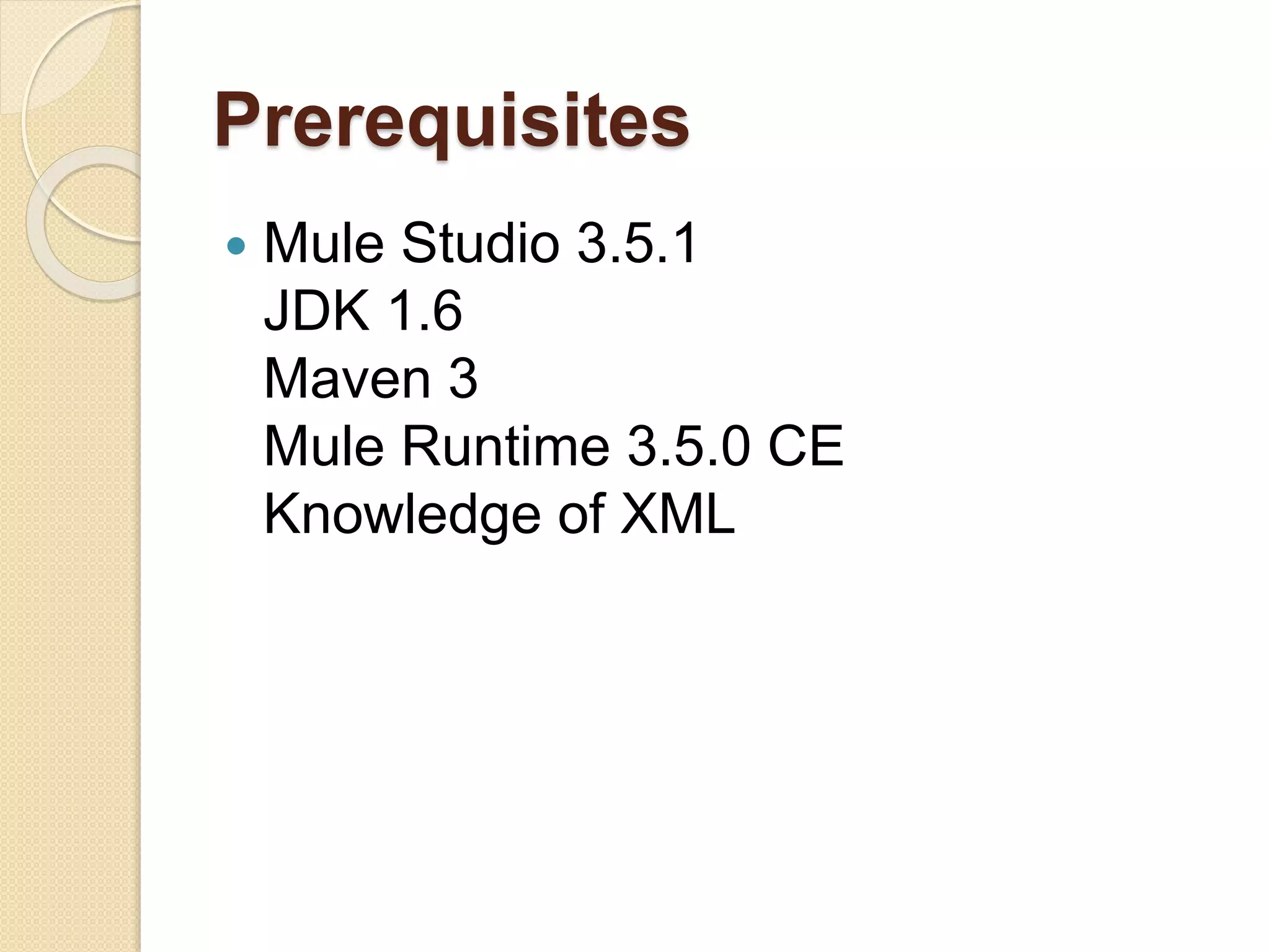

6. Prerequisites
 Mule Studio 3.5.1
JDK 1.6
Maven 3
Mule Runtime 3.5.0 CE
Knowledge of XML

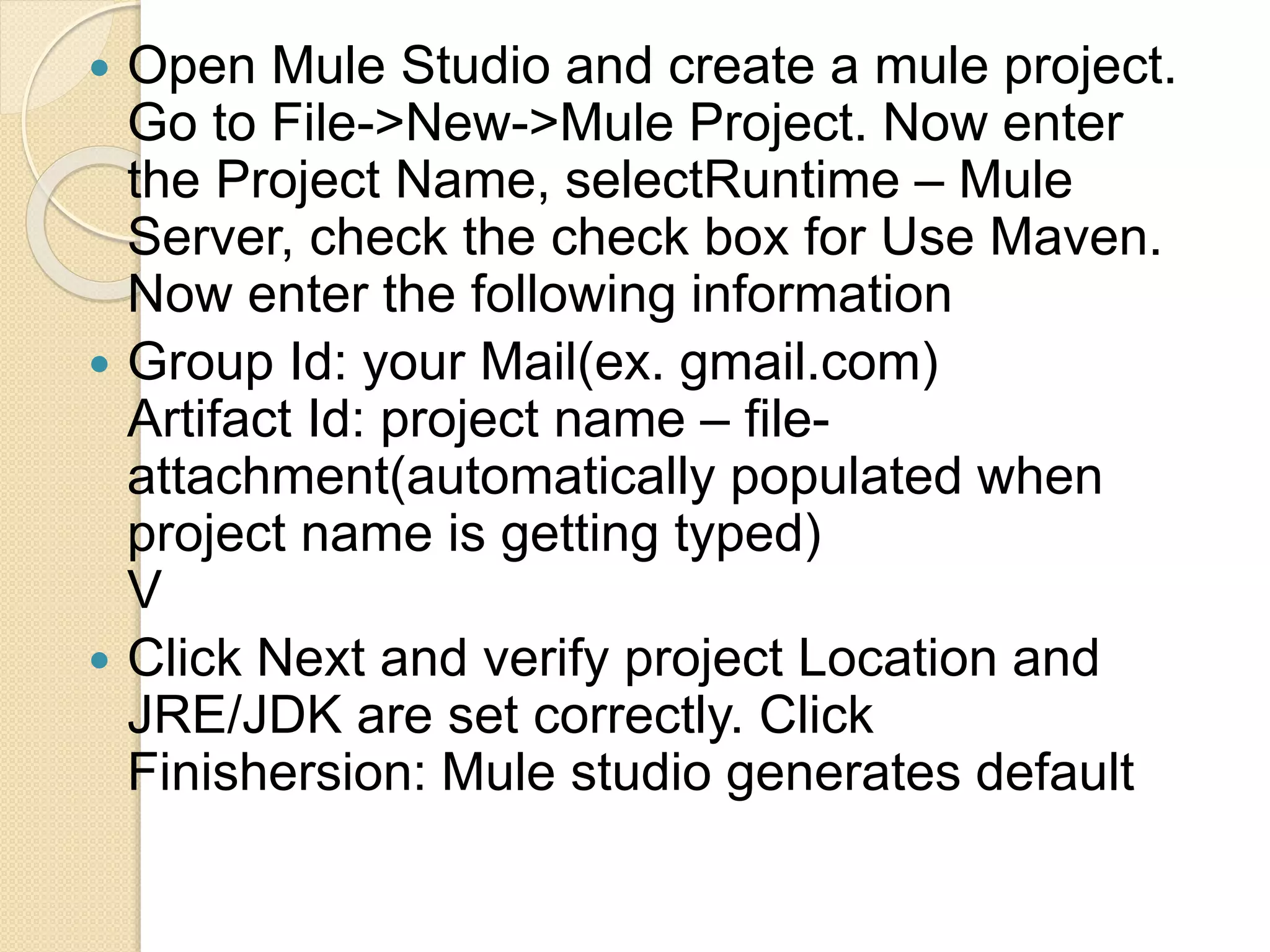

7.  Open Mule Studio and create a mule project.
Go to File->New->Mule Project. Now enter
the Project Name, selectRuntime – Mule
Server, check the check box for Use Maven.
Now enter the following information
 Group Id: your Mail(ex. gmail.com)
Artifact Id: project name – file-
attachment(automatically populated when
project name is getting typed)
V
 Click Next and verify project Location and
JRE/JDK are set correctly. Click
Finishersion: Mule studio generates default

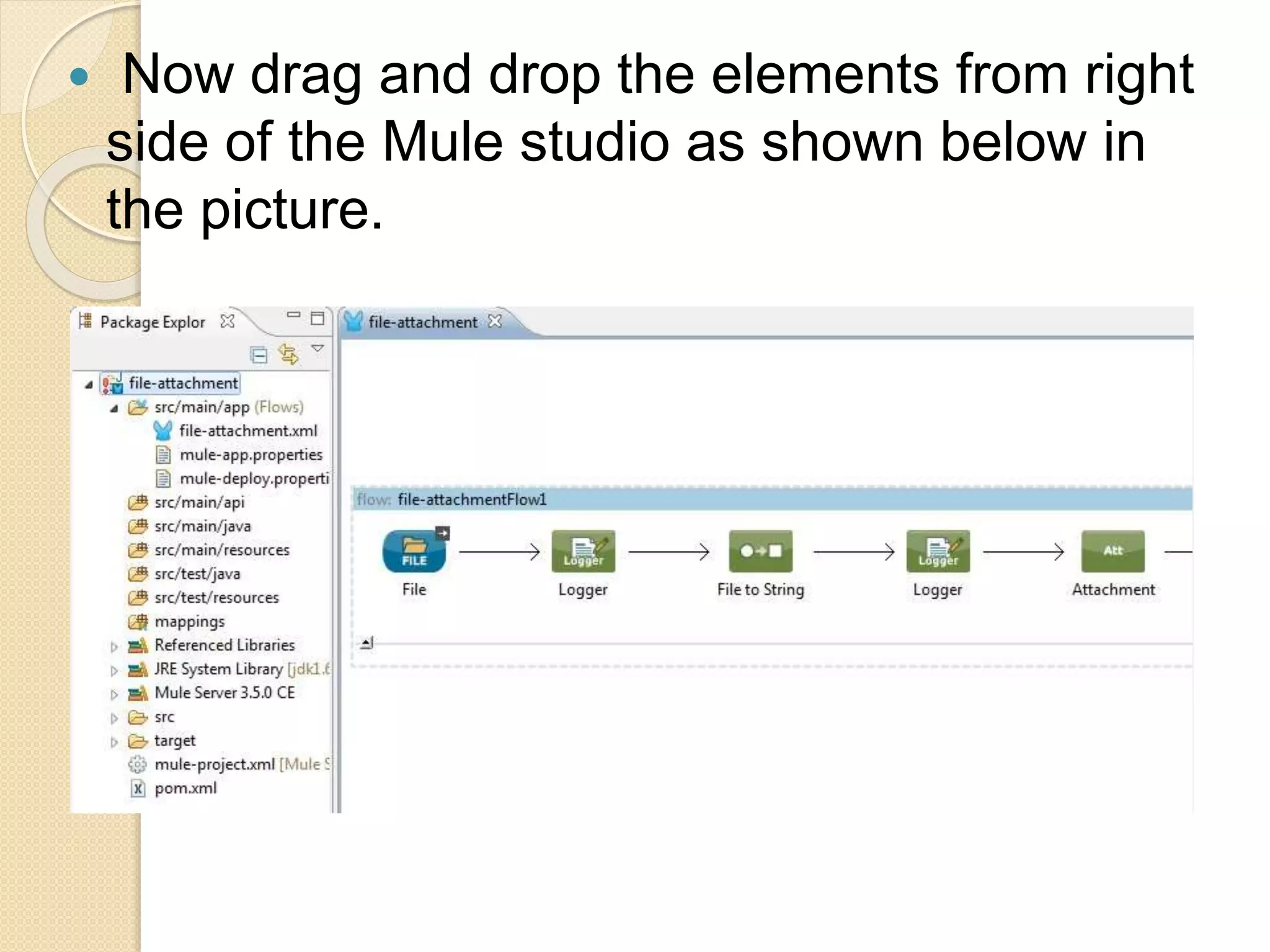

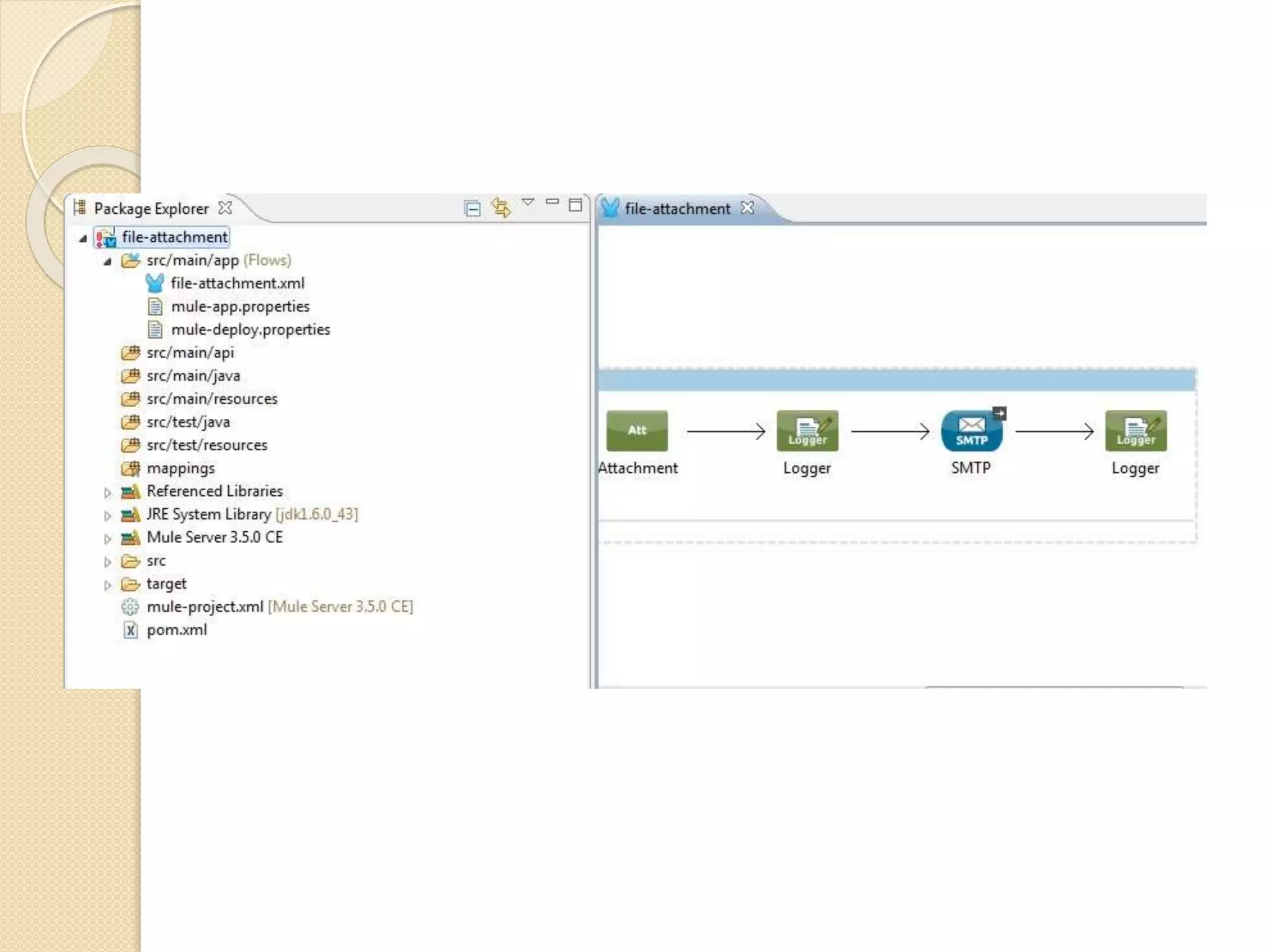

8.  Now drag and drop the elements from right
side of the Mule studio as shown below in
the picture.

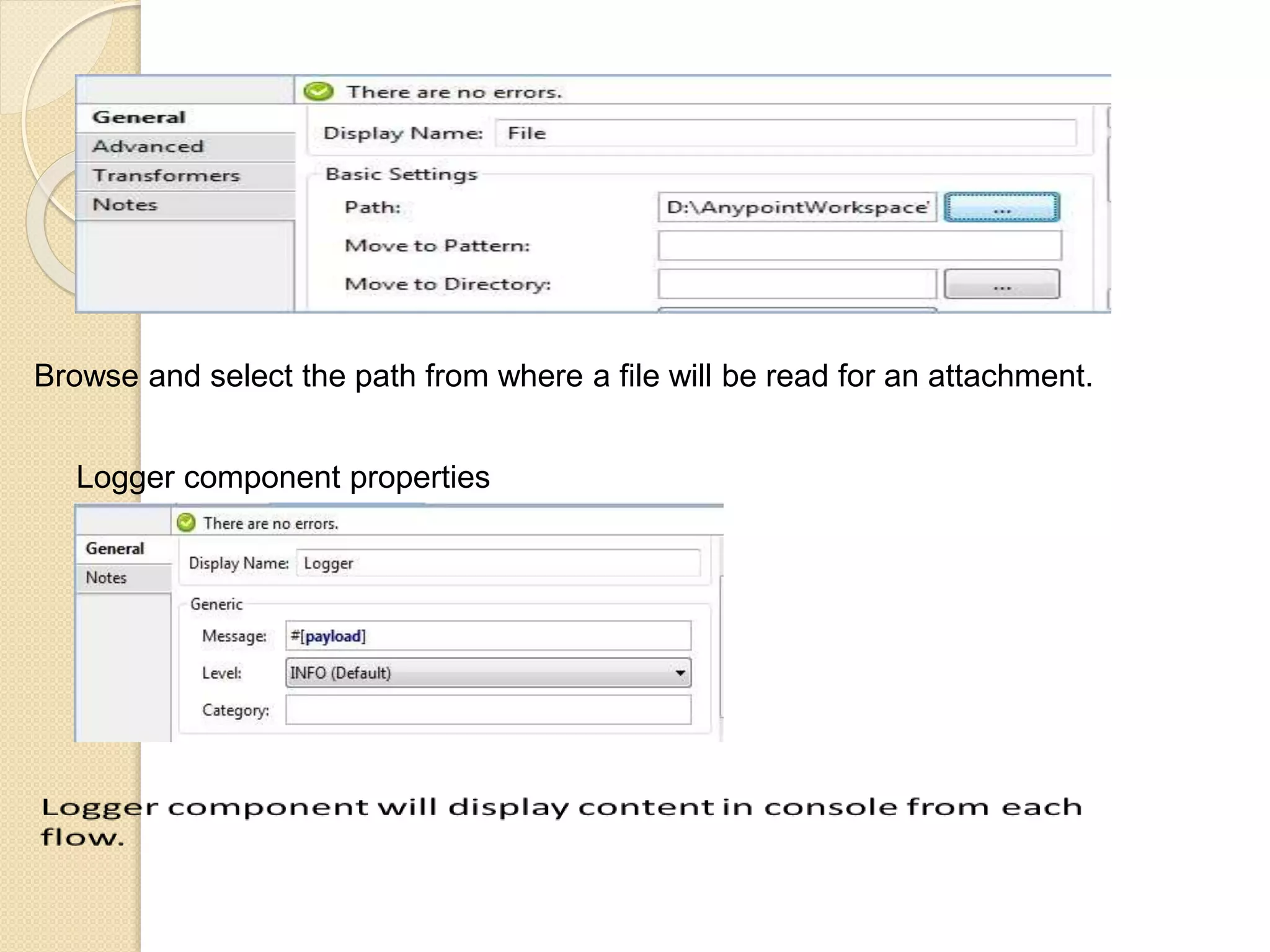

10. Browse and select the path from where a file will be read for an attachment.
Logger component properties

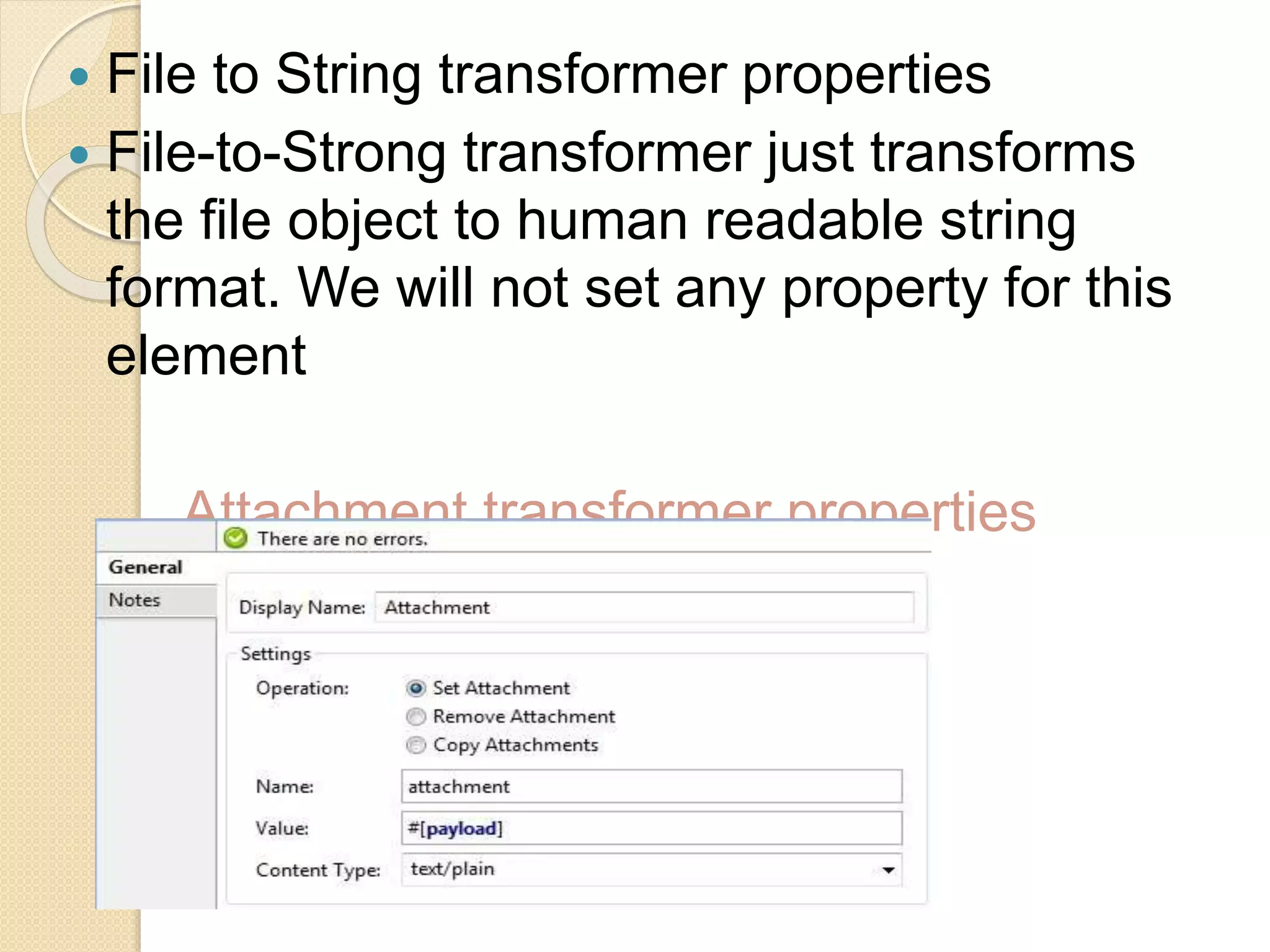

11.  File to String transformer properties
 File-to-Strong transformer just transforms
the file object to human readable string
format. We will not set any property for this
element
Attachment transformer properties

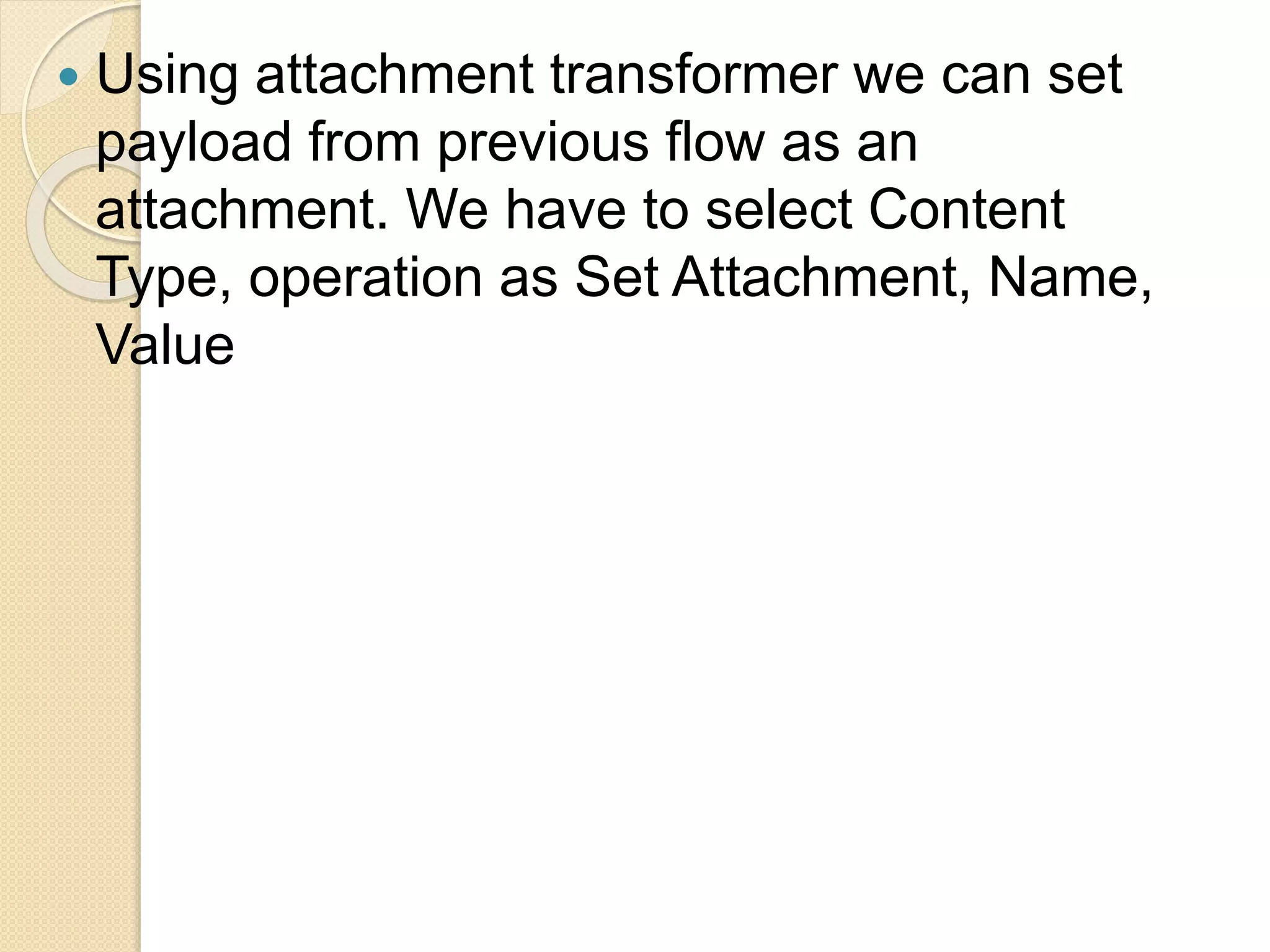

12.  Using attachment transformer we can set
payload from previous flow as an
attachment. We have to select Content
Type, operation as Set Attachment, Name,
Value

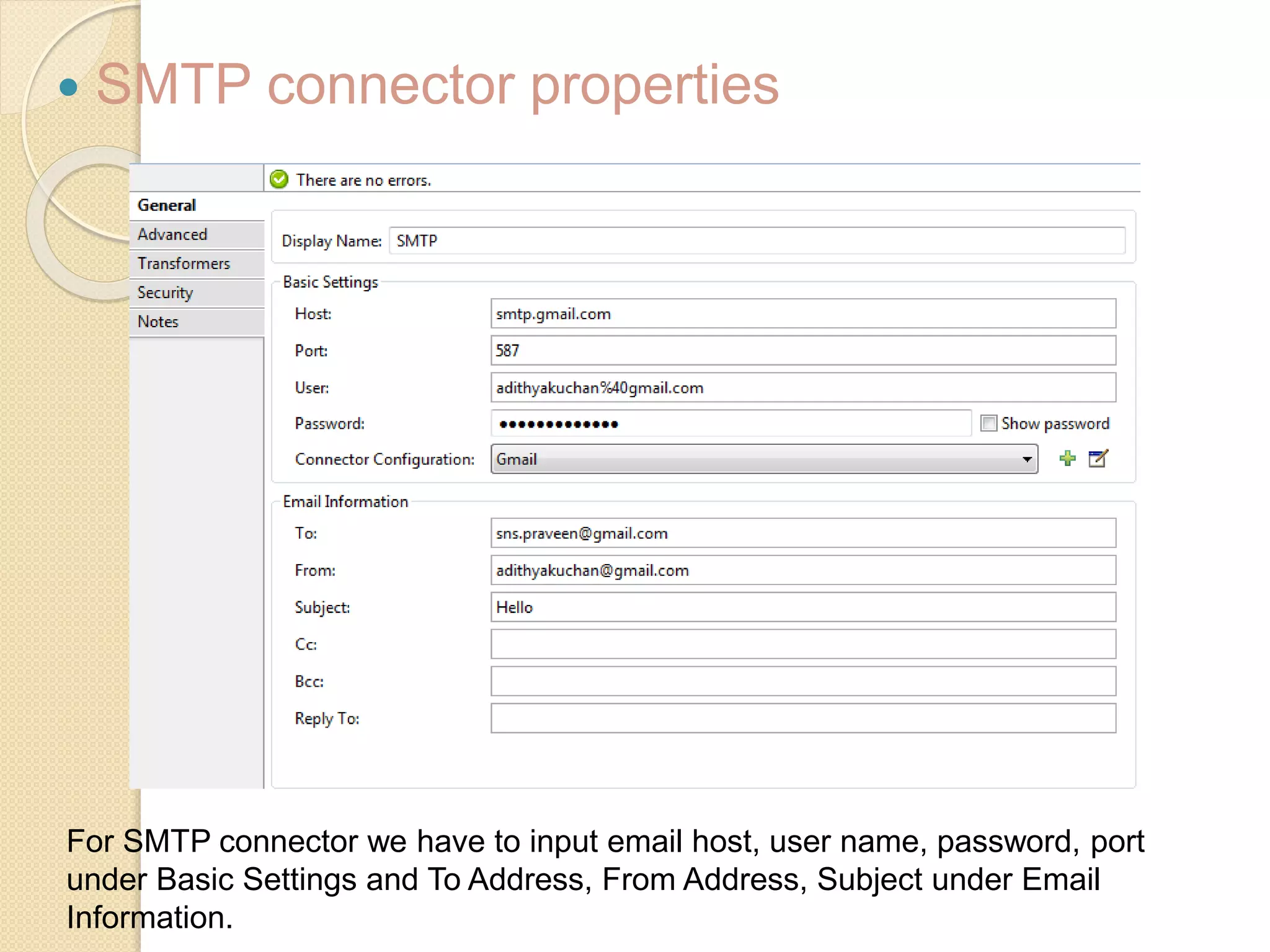

13.  SMTP connector properties
For SMTP connector we have to input email host, user name, password, port
under Basic Settings and To Address, From Address, Subject under Email
Information.

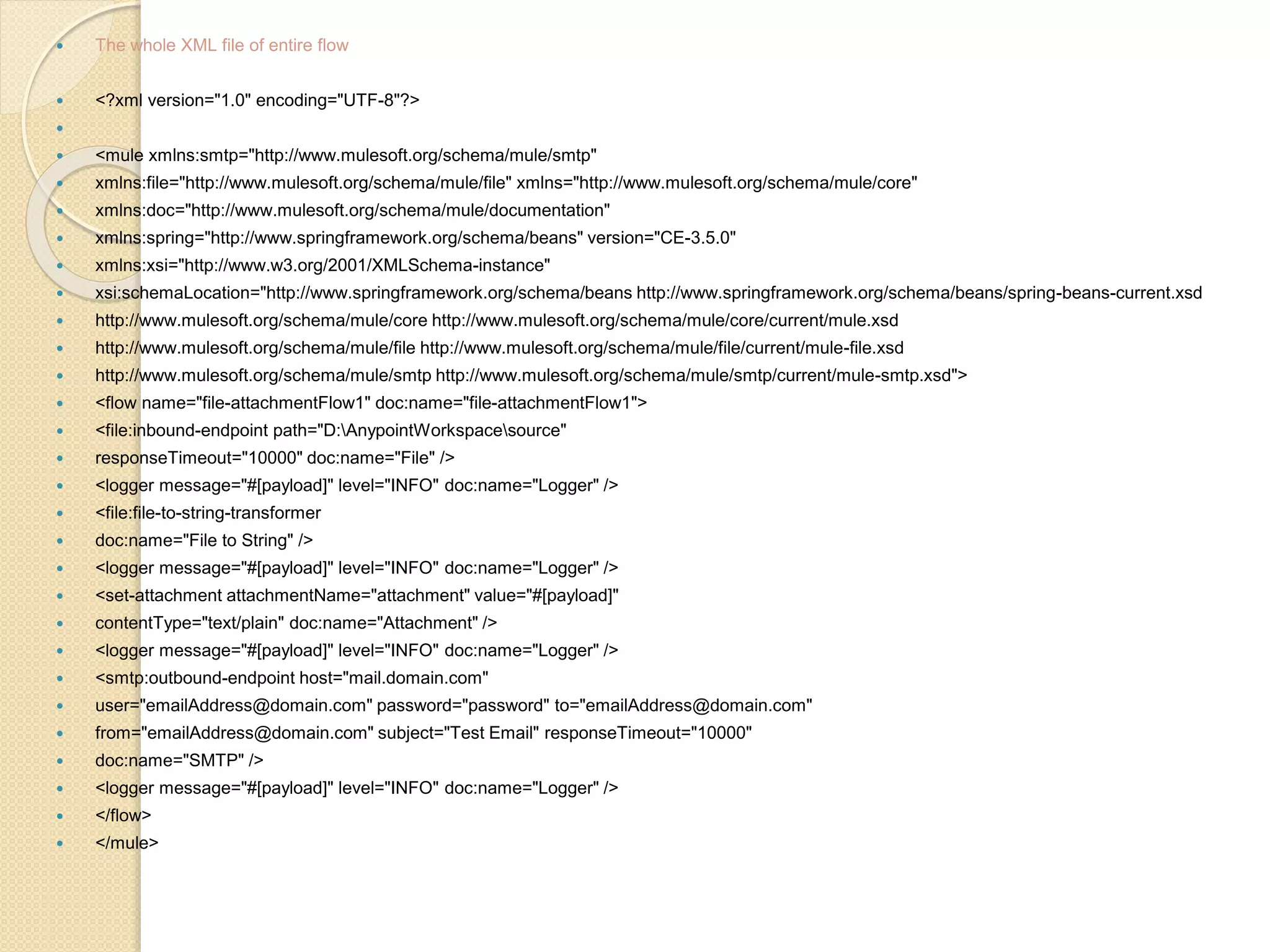

14.  The whole XML file of entire flow
 <?xml version="1.0" encoding="UTF-8"?>

 <mule xmlns:smtp="http://www.mulesoft.org/schema/mule/smtp"
 xmlns:file="http://www.mulesoft.org/schema/mule/file" xmlns="http://www.mulesoft.org/schema/mule/core"
 xmlns:doc="http://www.mulesoft.org/schema/mule/documentation"
 xmlns:spring="http://www.springframework.org/schema/beans" version="CE-3.5.0"
 xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
 xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-current.xsd
 http://www.mulesoft.org/schema/mule/core http://www.mulesoft.org/schema/mule/core/current/mule.xsd
 http://www.mulesoft.org/schema/mule/file http://www.mulesoft.org/schema/mule/file/current/mule-file.xsd
 http://www.mulesoft.org/schema/mule/smtp http://www.mulesoft.org/schema/mule/smtp/current/mule-smtp.xsd">
 <flow name="file-attachmentFlow1" doc:name="file-attachmentFlow1">
 <file:inbound-endpoint path="D:AnypointWorkspacesource"
 responseTimeout="10000" doc:name="File" />
 <logger message="#[payload]" level="INFO" doc:name="Logger" />
 <file:file-to-string-transformer
 doc:name="File to String" />
 <logger message="#[payload]" level="INFO" doc:name="Logger" />
 <set-attachment attachmentName="attachment" value="#[payload]"
 contentType="text/plain" doc:name="Attachment" />
 <logger message="#[payload]" level="INFO" doc:name="Logger" />
 <smtp:outbound-endpoint host="mail.domain.com"
 user="emailAddress@domain.com" password="password" to="emailAddress@domain.com"
 from="emailAddress@domain.com" subject="Test Email" responseTimeout="10000"
 doc:name="SMTP" />
 <logger message="#[payload]" level="INFO" doc:name="Logger" />
 </flow>
 </mule>

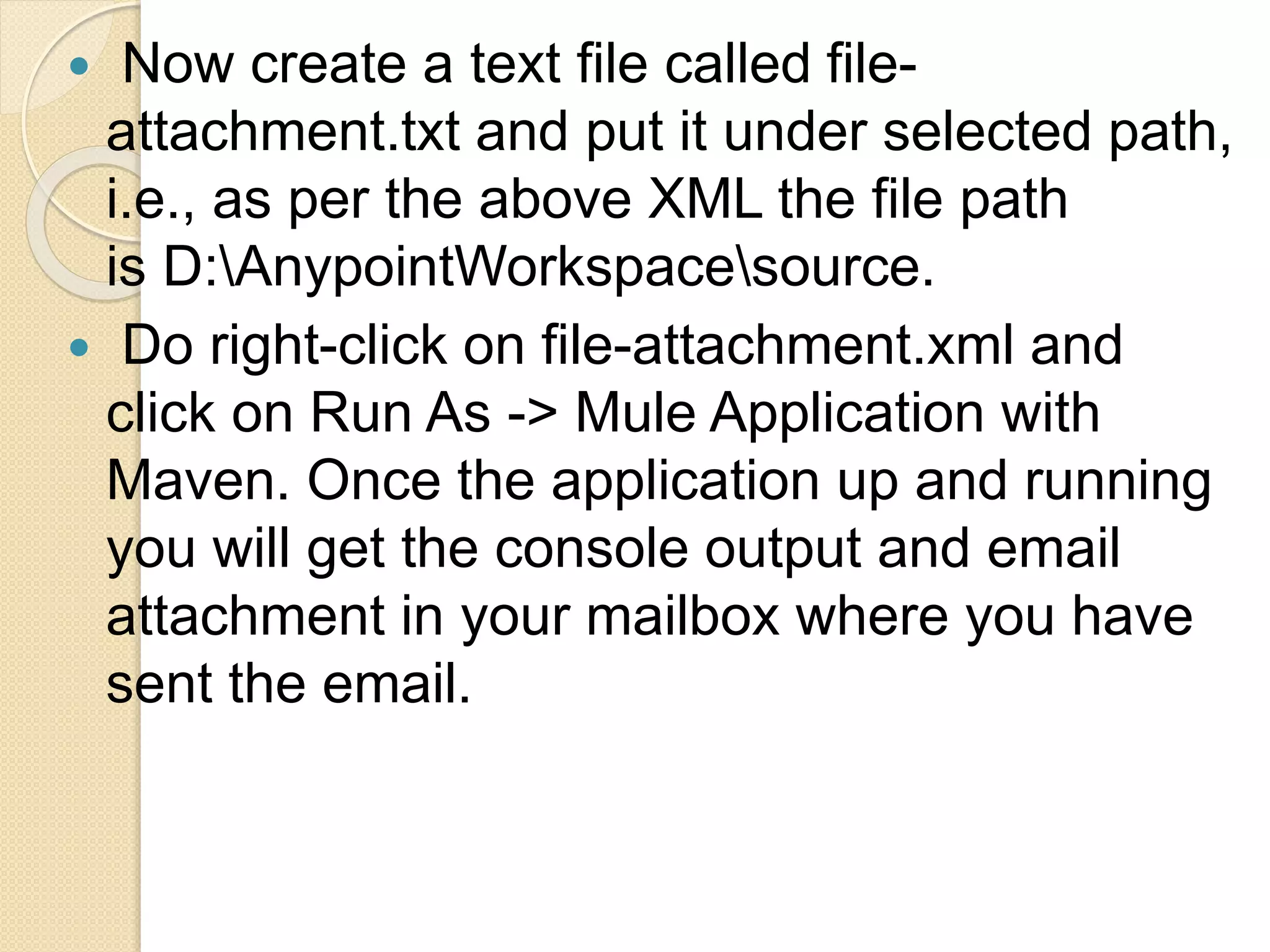

15.  Now create a text file called file-
attachment.txt and put it under selected path,
i.e., as per the above XML the file path
is D:AnypointWorkspacesource.
 Do right-click on file-attachment.xml and
click on Run As -> Mule Application with
Maven. Once the application up and running
you will get the console output and email
attachment in your mailbox where you have
sent the email.

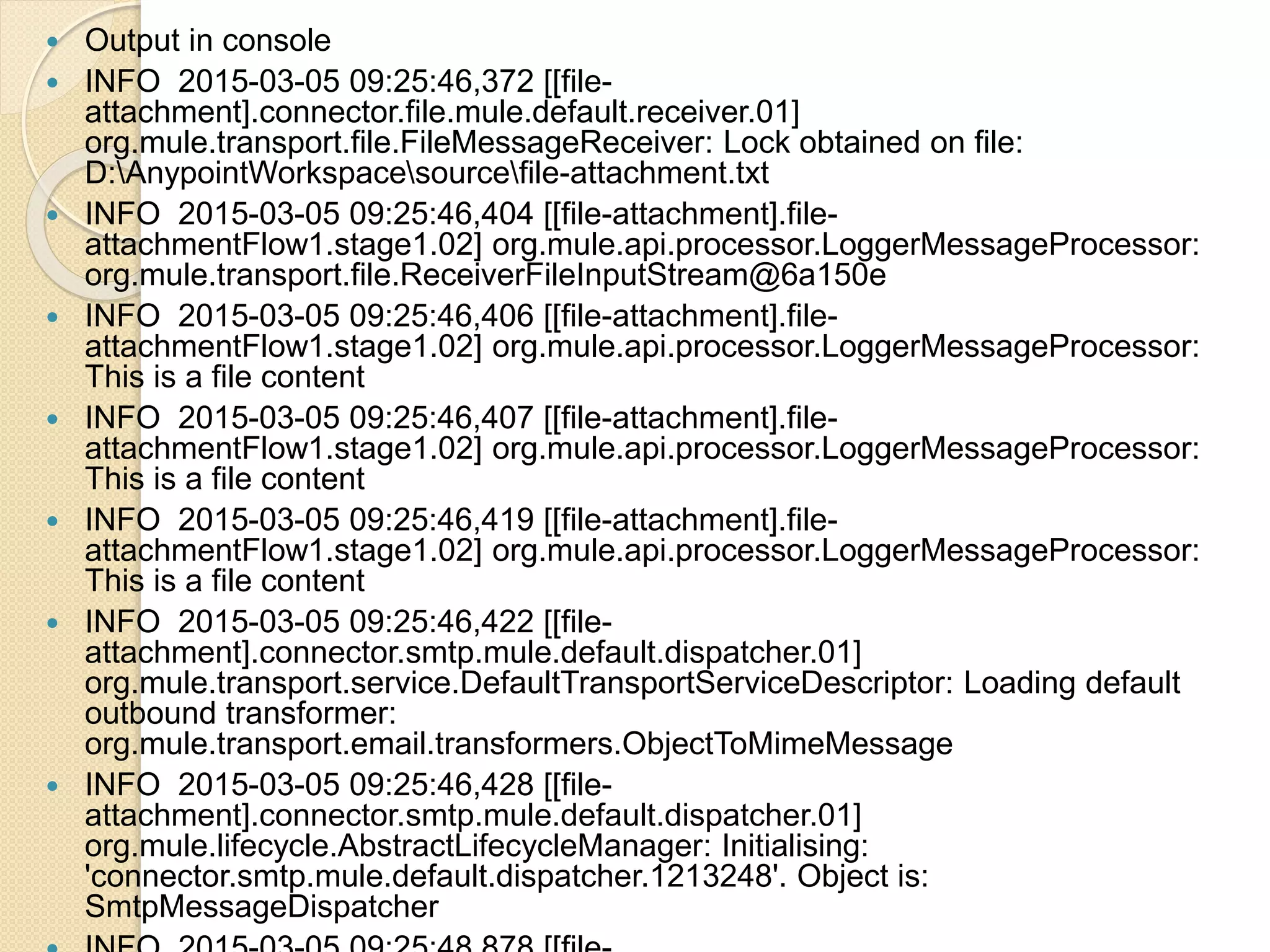

16.  Output in console
 INFO 2015-03-05 09:25:46,372 [[file-
attachment].connector.file.mule.default.receiver.01]
org.mule.transport.file.FileMessageReceiver: Lock obtained on file:
D:AnypointWorkspacesourcefile-attachment.txt
 INFO 2015-03-05 09:25:46,404 [[file-attachment].file-
attachmentFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor:
org.mule.transport.file.ReceiverFileInputStream@6a150e
 INFO 2015-03-05 09:25:46,406 [[file-attachment].file-
attachmentFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor:
This is a file content
 INFO 2015-03-05 09:25:46,407 [[file-attachment].file-
attachmentFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor:
This is a file content
 INFO 2015-03-05 09:25:46,419 [[file-attachment].file-
attachmentFlow1.stage1.02] org.mule.api.processor.LoggerMessageProcessor:
This is a file content
 INFO 2015-03-05 09:25:46,422 [[file-
attachment].connector.smtp.mule.default.dispatcher.01]
org.mule.transport.service.DefaultTransportServiceDescriptor: Loading default
outbound transformer:
org.mule.transport.email.transformers.ObjectToMimeMessage
 INFO 2015-03-05 09:25:46,428 [[file-
attachment].connector.smtp.mule.default.dispatcher.01]
org.mule.lifecycle.AbstractLifecycleManager: Initialising:
'connector.smtp.mule.default.dispatcher.1213248'. Object is:
SmtpMessageDispatcher

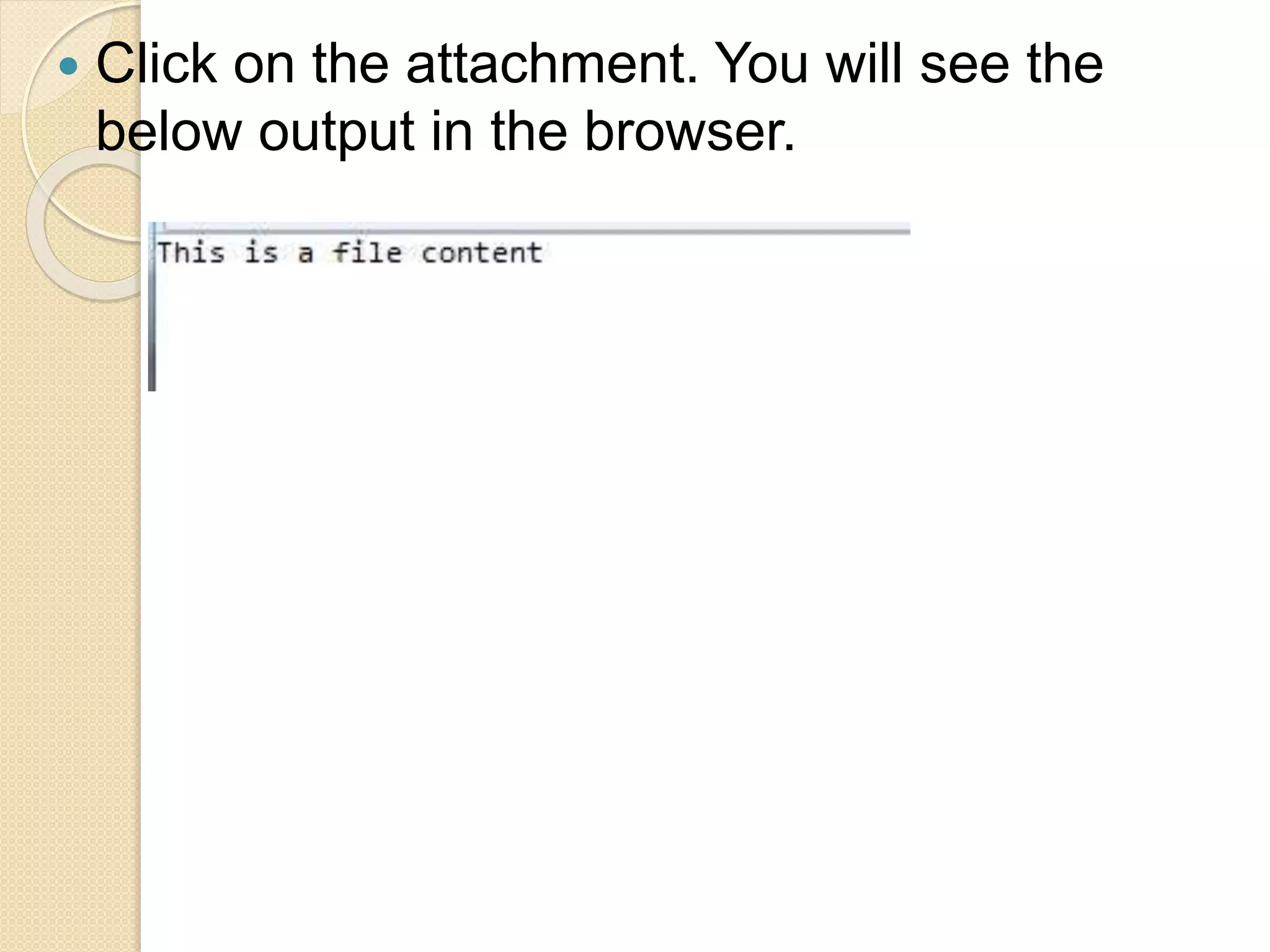

17.  Click on the attachment. You will see the
below output in the browser.
