1. Final Project Presentation on
KUDUMBASREE CDS AUTOMATION
By
Megha V
MSc. Computer Science
B4MCSC1010
Under the Guidance of
Dr. Rajkumar K K
Dept. IT
School of Information Science and Technology
Kannur University
2016

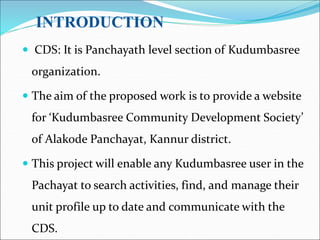

2. INTRODUCTION
 CDS: It is Panchayath level section of Kudumbasree
organization.
 The aim of the proposed work is to provide a website
for ‘Kudumbasree Community Development Society’
of Alakode Panchayat, Kannur district.
 This project will enable any Kudumbasree user in the
Pachayat to search activities, find, and manage their
unit profile up to date and communicate with the
CDS.

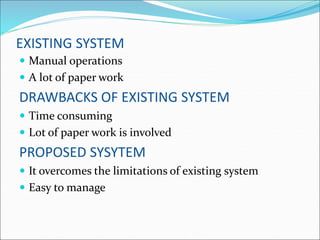

3. EXISTING SYSTEM
 Manual operations
 A lot of paper work
DRAWBACKS OF EXISTING SYSTEM
 Time consuming
 Lot of paper work is involved
PROPOSED SYSYTEM
 It overcomes the limitations of existing system
 Easy to manage

4. REQUIREMENT ENGINEERING

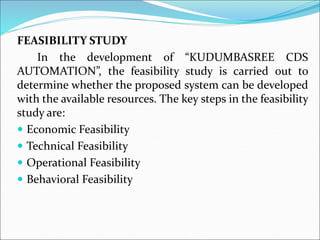

5. FEASIBILITY STUDY
In the development of “KUDUMBASREE CDS
AUTOMATION”, the feasibility study is carried out to
determine whether the proposed system can be developed
with the available resources. The key steps in the feasibility
study are:
 Economic Feasibility
 Technical Feasibility
 Operational Feasibility
 Behavioral Feasibility

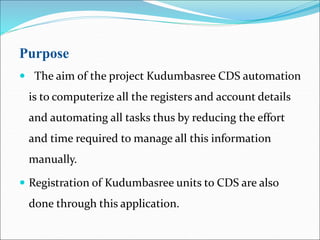

6. Purpose
 The aim of the project Kudumbasree CDS automation
is to computerize all the registers and account details
and automating all tasks thus by reducing the effort
and time required to manage all this information
manually.
 Registration of Kudumbasree units to CDS are also
done through this application.

7. Scope
 The CDS Automation basically focusing on
digitalizing the traditional system thus reducing paper
work.
 Manual work will be reduced and entire system will be
automated

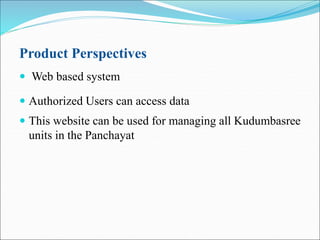

8. Product Perspectives
 Web based system
 Authorized Users can access data
 This website can be used for managing all Kudumbasree
units in the Panchayat

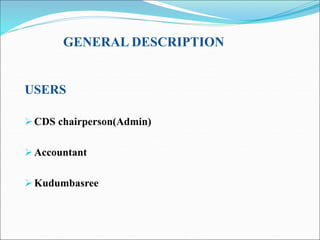

9. USERS
CDS chairperson(Admin)
Accountant
Kudumbasree
GENERAL DESCRIPTION

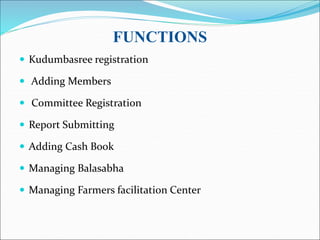

10. FUNCTIONS
 Kudumbasree registration
 Adding Members
 Committee Registration
 Report Submitting
 Adding Cash Book
 Managing Balasabha
 Managing Farmers facilitation Center

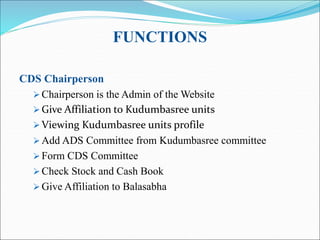

11. FUNCTIONS
CDS Chairperson
 Chairperson is the Admin of the Website
 Give Affiliation to Kudumbasree units
 Viewing Kudumbasree units profile
 Add ADS Committee from Kudumbasree committee
 Form CDS Committee
 Check Stock and Cash Book
 Give Affiliation to Balasabha

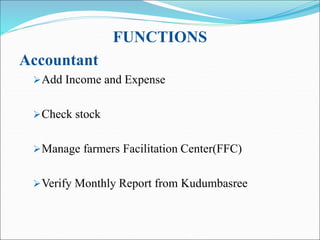

12. FUNCTIONS
Accountant
Add Income and Expense
Check stock
Manage farmers Facilitation Center(FFC)
Verify Monthly Report from Kudumbasree

13. Kudumbasree
Apply for Affiliation
Add Members to units
Update Profile
Form Committee
Add ADS Members
Submit Monthly report
Apply Loan
Submit re affiliation

14. Operating Environment
Technologies used:
 Language: C#
 Front end:ASP.NET
 IDE: Visual Studio 2010
 Backend: Microsoft SQL Server 2008
System Requirement:
 Minimum RAM : 512 MB
 Hard Disk : 40 GB
 Processor : Intel
 Operating System : Windows XP, Windows 7 and above

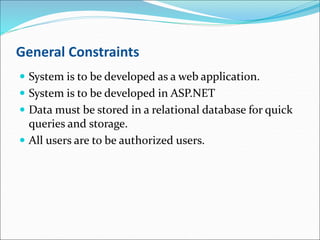

15. General Constraints
 System is to be developed as a web application.
 System is to be developed in ASP.NET
 Data must be stored in a relational database for quick
queries and storage.
 All users are to be authorized users.

16. External Interface Requirements
 System Interface
Database connection to the Microsoft SQL Server
2008 database
 User Interface
Forms and dialogues.

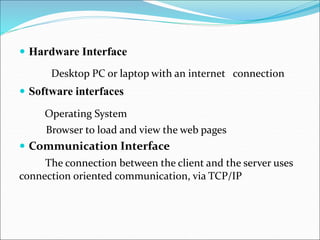

17.  Hardware Interface
Desktop PC or laptop with an internet connection
 Software interfaces
Operating System
Browser to load and view the web pages
 Communication Interface
The connection between the client and the server uses
connection oriented communication, via TCP/IP

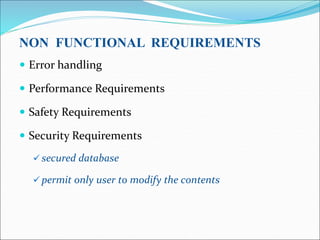

18. NON FUNCTIONAL REQUIREMENTS
 Error handling
 Performance Requirements
 Safety Requirements
 Security Requirements
 secured database
 permit only user to modify the contents

19. DESIGN
SPECIFICATION

20. INPUT DESIGN
Major Input Screens

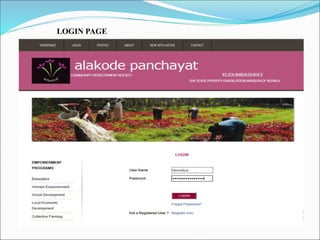

 Login Screen
 Kudumbasree Affiliation form
 Kudumbasree Committee Updating form
 CDS executive committee updating form
 Loan application form
 Monthly report form

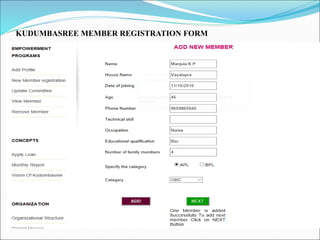

 Member registration form

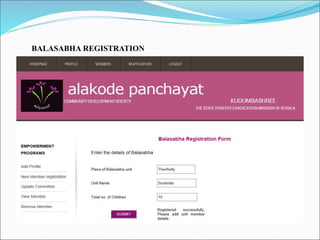

 Bala sabha registration form

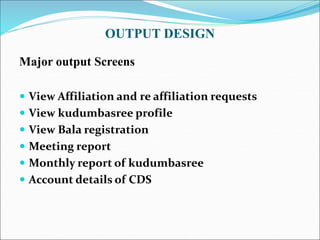

21. OUTPUT DESIGN
Major output Screens
 View Affiliation and re affiliation requests
 View kudumbasree profile
 View Bala registration
 Meeting report
 Monthly report of kudumbasree
 Account details of CDS

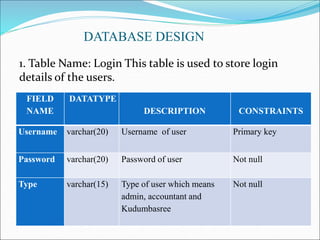

22. DATABASE DESIGN
1. Table Name: Login This table is used to store login
details of the users.
FIELD
NAME
DATATYPE
DESCRIPTION CONSTRAINTS
Username varchar(20) Username of user Primary key
Password varchar(20) Password of user Not null
Type varchar(15) Type of user which means
admin, accountant and
Kudumbasree
Not null

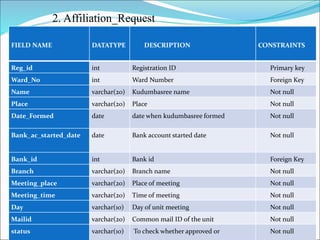

23. 2. Affiliation_Request
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
Reg_id int Registration ID Primary key
Ward_No int Ward Number Foreign Key
Name varchar(20) Kudumbasree name Not null
Place varchar(20) Place Not null
Date_Formed date date when kudumbasree formed Not null
Bank_ac_started_date date Bank account started date Not null
Bank_id int Bank id Foreign Key
Branch varchar(20) Branch name Not null
Meeting_place varchar(20) Place of meeting Not null
Meeting_time varchar(20) Time of meeting Not null
Day varchar(10) Day of unit meeting Not null
Mailid varchar(20) Common mail ID of the unit Not null
status varchar(10) To check whether approved or Not null

24. 3. NHG
FIELD NAME DATATYPE DESCRIPTION ONSTRAINTS
Affiliation_no varchar(20) Affiliation
number
Primary key
Reg_id varchar(50) Registration ID Foreign key
Next_date date Re affiliation date Not null
4.Profile
pFIELD NAME DATATYPE DESCRIPTION CONSTRAIN
TS
Affiliation_no varchar(20) Affiliation number of
unit
Foreign key
Total_member int Total members Not null
SCST int Total SCST members Not null
BPL int Total BPL members Not null
APL int Total APL members Not null

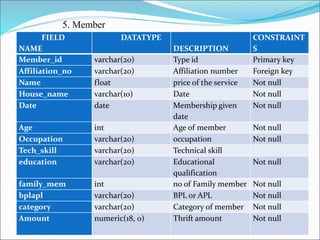

25. 5. Member
FIELD
NAME
DATATYPE
DESCRIPTION
CONSTRAINT
S
Member_id varchar(20) Type id Primary key
Affiliation_no varchar(20) Affiliation number Foreign key
Name float price of the service Not null
House_name varchar(10) Date Not null
Date date Membership given
date
Not null
Age int Age of member Not null
Occupation varchar(20) occupation Not null
Tech_skill varchar(20) Technical skill
education varchar(20) Educational
qualification
Not null
family_mem int no of Family member Not null
bplapl varchar(20) BPL or APL Not null
category varchar(20) Category of member Not null
Amount numeric(18, 0) Thrift amount Not null

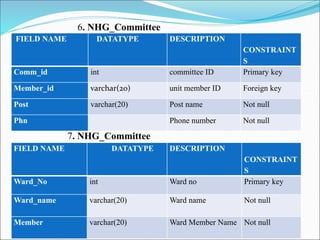

26. 6. NHG_Committee
FIELD NAME DATATYPE DESCRIPTION
CONSTRAINT
S
Comm_id int committee ID Primary key
Member_id varchar(20) unit member ID Foreign key
Post varchar(20) Post name Not null
Phn Phone number Not null
7. NHG_Committee
FIELD NAME DATATYPE DESCRIPTION
CONSTRAINT
S
Ward_No int Ward no Primary key
Ward_name varchar(20) Ward name Not null
Member varchar(20) Ward Member Name Not null

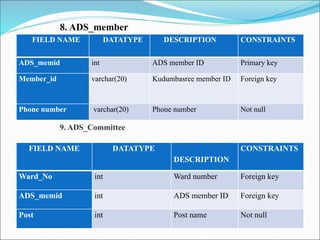

27. 8. ADS_member
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
ADS_memid int ADS member ID Primary key
Member_id varchar(20) Kudumbasree member ID Foreign key
Phone number varchar(20) Phone number Not null
9. ADS_Committee
FIELD NAME DATATYPE
DESCRIPTION
CONSTRAINTS
Ward_No int Ward number Foreign key
ADS_memid int ADS member ID Foreign key
Post int Post name Not null

28. FIELD NAME
DATATYPE
DESCRIPTION CONSTRAINTS
genid int General body member
ID
Primary key
ADS_memid varchar(20) ADS member ID Foreign key
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
exeid int Committee member ID Primary key
genid int General body member
id
Foreign key
Post Varchar(25) Post name Not null
10. General_body
11. Executive

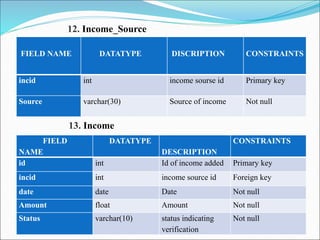

29. 12. Income_Source
FIELD NAME DATATYPE DISCRIPTION CONSTRAINTS
incid int income sourse id Primary key
Source varchar(30) Source of income Not null
13. Income
FIELD
NAME
DATATYPE
DESCRIPTION
CONSTRAINTS
id int Id of income added Primary key
incid int income source id Foreign key
date date Date Not null
Amount float Amount Not null
Status varchar(10) status indicating
verification
Not null

30. 14. Expense_category
FIELD NAME
DATATYPE
DESCRIPTION CONSTRAINTS
expid int Expense category ID Primary key
Category int category Not null
15. Expense
FIELD NAME DATATYPE
DESCRIPTION
CONSTRAINTS
id int Id of Expense
added
Primary key
expid int Expense category ID Foreign key
Date date Date Not null
Amount float expense amount Not null
Status varchar(10) status indicating
verification
Not null

31. FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
meeting_id int Meeting ID Primary key
genid int General body member
ID
Foreign key
attendance varchar(10) Attendance of member Not null
date date Date of meeting Not null

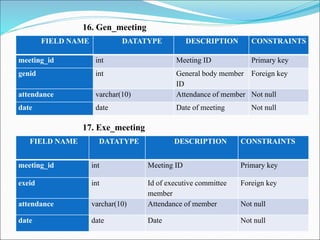

16. Gen_meeting
17. Exe_meeting
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
meeting_id int Meeting ID Primary key
exeid int Id of executive committee
member
Foreign key
attendance varchar(10) Attendance of member Not null
date date Date Not null

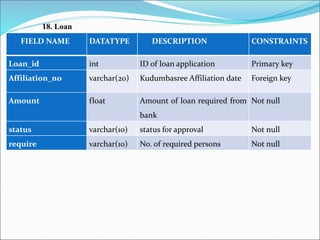

32. 18. Loan
19. Stock
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
Loan_id int ID of loan application Primary key
Affiliation_no varchar(20) Kudumbasree Affiliation date Foreign key
Amount float Amount of loan required from
bank
Not null
status varchar(10) status for approval Not null
require varchar(10) No. of required persons Not null

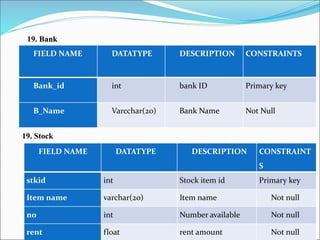

33. FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
Bank_id int bank ID Primary key
B_Name Varcchar(20) Bank Name Not Null
19. Bank
19. Stock
FIELD NAME DATATYPE DESCRIPTION CONSTRAINT
S
stkid int Stock item id Primary key
Item name varchar(20) Item name Not null
no int Number available Not null
rent float rent amount Not null

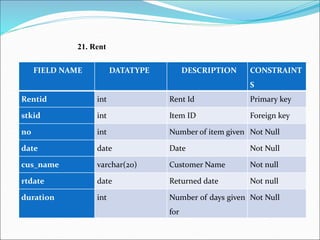

34. 21. Rent
FIELD NAME DATATYPE DESCRIPTION CONSTRAINT
S
Rentid int Rent Id Primary key
stkid int Item ID Foreign key
no int Number of item given Not Null
date date Date Not Null
cus_name varchar(20) Customer Name Not null
rtdate date Returned date Not null
duration int Number of days given
for
Not Null

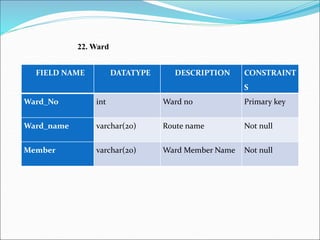

35. 22. Ward
FIELD NAME DATATYPE DESCRIPTION CONSTRAINT
S
Ward_No int Ward no Primary key
Ward_name varchar(20) Route name Not null
Member varchar(20) Ward Member Name Not null

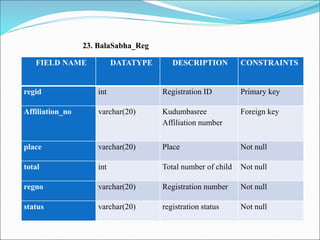

36. 23. BalaSabha_Reg
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
regid int Registration ID Primary key
Affiliation_no varchar(20) Kudumbasree
Affiliation number
Foreign key
place varchar(20) Place Not null
total int Total number of child Not null
regno varchar(20) Registration number Not null
status varchar(20) registration status Not null

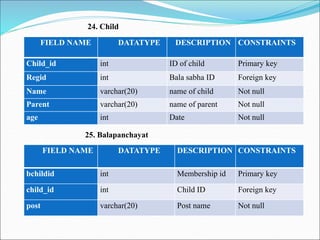

37. 24. Child
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
Child_id int ID of child Primary key
Regid int Bala sabha ID Foreign key
Name varchar(20) name of child Not null
Parent varchar(20) name of parent Not null
age int Date Not null
25. Balapanchayat
FIELD NAME DATATYPE DESCRIPTION CONSTRAINTS
bchildid int Membership id Primary key
child_id int Child ID Foreign key
post varchar(20) Post name Not null

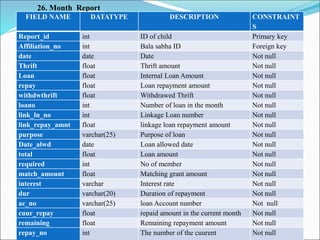

38. 26. Month_Report
FIELD NAME DATATYPE DESCRIPTION CONSTRAINT
S
Report_id int ID of child Primary key
Affiliation_no int Bala sabha ID Foreign key
date date Date Not null
Thrift float Thrift amount Not null
Loan float Internal Loan Amount Not null
repay float Loan repayment amount Not null
withdwthrift float Withdrawed Thrift Not null
loano int Number of loan in the month Not null
link_ln_no int Linkage Loan number Not null
link_repay_amnt float linkage loan repayment amount Not null
purpose varchar(25) Purpose of loan Not null
Date_alwd date Loan allowed date Not null
total float Loan amount Not null
required int No of member Not null
match_amount float Matching grant amount Not null
interest varchar Interest rate Not null
dur varchar(20) Duration of repayment Not null
ac_no varchar(25) loan Account number Not null
cuur_repay float repaid amount in the current month Not null
remaining float Remaining repayment amount Not null
repay_no int The number of the cuurent Not null

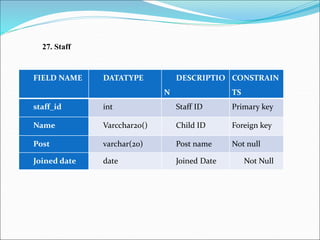

39. FIELD NAME DATATYPE DESCRIPTIO
N
CONSTRAIN
TS
staff_id int Staff ID Primary key
Name Varcchar20() Child ID Foreign key
Post varchar(20) Post name Not null
Joined date date Joined Date Not Null
27. Staff

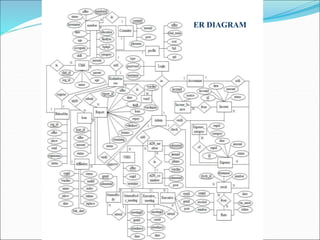

40. ER DIAGRAM

41. DATA FLOW DIAGRAM
Context Level

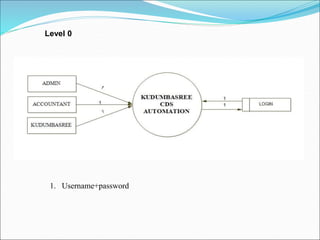

42. Level 0
1. Username+password

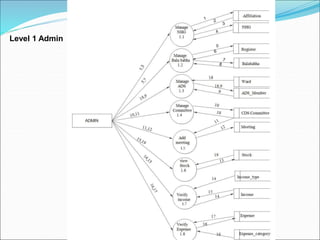

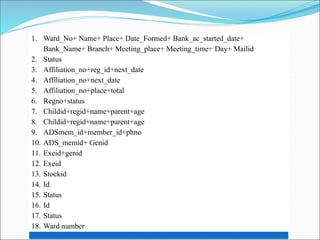

43. Level 1 Admin

44. 1. Ward_No+ Name+ Place+ Date_Formed+ Bank_ac_started_date+
Bank_Name+ Branch+ Meeting_place+ Meeting_time+ Day+ Mailid
2. Status
3. Affiliation_no+reg_id+next_date
4. Affiliation_no+next_date
5. Affiliation_no+place+total
6. Regno+status
7. Childid+regid+name+parent+age
8. Childid+regid+name+parent+age
9. ADSmem_id+member_id+phno
10. ADS_memid+ Genid
11. Exeid+genid
12. Exeid
13. Stockid
14. Id
15. Status
16. Id
17. Status
18. Ward number

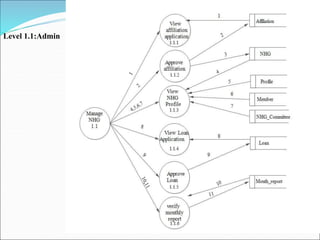

45. Level 1.1:Admin

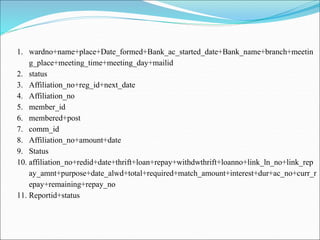

46. 1. wardno+name+place+Date_formed+Bank_ac_started_date+Bank_name+branch+meetin
g_place+meeting_time+meeting_day+mailid
2. status
3. Affiliation_no+reg_id+next_date
4. Affiliation_no
5. member_id
6. membered+post
7. comm_id
8. Affiliation_no+amount+date
9. Status
10. affiliation_no+redid+date+thrift+loan+repay+withdwthrift+loanno+link_ln_no+link_rep
ay_amnt+purpose+date_alwd+total+required+match_amount+interest+dur+ac_no+curr_r
epay+remaining+repay_no
11. Reportid+status

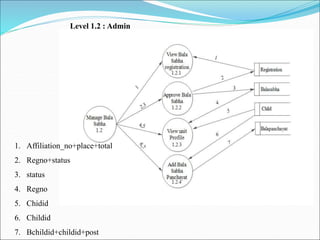

47. Level 1.2 : Admin
1. Affiliation_no+place+total
2. Regno+status
3. status
4. Regno
5. Chidid
6. Childid
7. Bchildid+childid+post

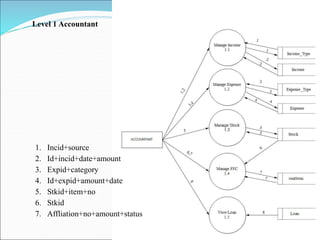

48. Level 1 Accountant
1. Incid+source
2. Id+incid+date+amount
3. Expid+category
4. Id+expid+amount+date
5. Stkid+item+no
6. Stkid
7. Affliation+no+amount+status

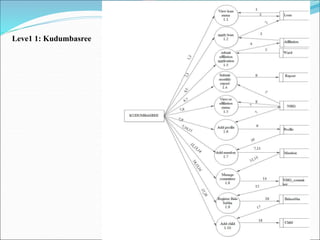

49. Leve1 1: Kudumbasree

50. 1. Status
2. Loanid+affiliation_no+amount
3. Affiliation_no
4. Reg_id+wardno+name+place+Date_formed+Bank_ac_started_date+Bank_name+branch+meeting_place+
meeting_time+meeting_day+mailid
5. Wardno
6. Reportid+affiliation_no+redid+date+thrift+loan+repay+withdwthrift+loanno+link_ln_no+link_repay_amnt
+purpose+date_alwd+total+required+match_amount+interest+dur+ac_no+curr_repay+remaining+repay_n
o
7. Affiliation_no
8. Affiliation_no
9. Affiliation_no+total_member+scst+bpl+apl
10. Affiliation_no
11. Member_id+Affiliation_no+Name+house_name+date+age+occupation+tech_skill+education+family_mem
+bplapl+category+amount
12. Member_id
13. Postid
14. Comm_id+member_id+post+phno
15. Affiliation_no
16. Regid+affiliation_no+place+total
17. Regno
18. Childid+regno+name+age+parent

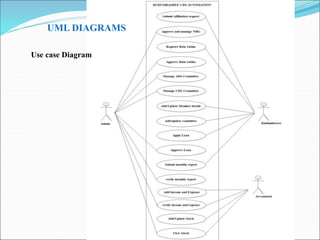

51. UML DIAGRAMS
Use case Diagram

52. 2. Activity Diagrams
1.Activity diagram of admin

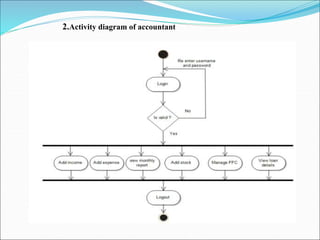

53. 2.Activity diagram of accountant

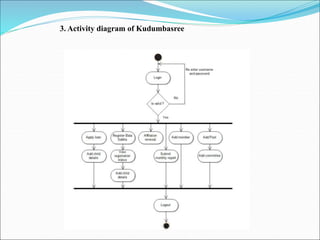

54. 3. Activity diagram of Kudumbasree

55. 3.SEQUENCE DIAGRAM

57. SYSTEM DEVELOPMENT
Coding structure
System development is a series of operation performed to manipulate
data to produce output from a computer system.
1. External system development
2. Internal system development
The major external system development activities are:
Planning
Equipment acquisition
Installation
Implementation

58. The major internal development activities are:
Coding structure
Computer program development
Performance testing

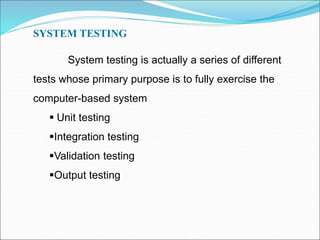

59. SYSTEM TESTING
System testing is actually a series of different
tests whose primary purpose is to fully exercise the
computer-based system
 Unit testing
Integration testing
Validation testing
Output testing

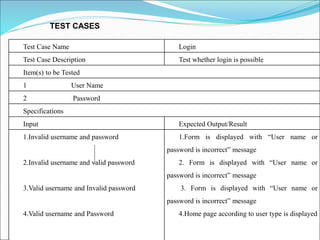

60. TEST CASES
Test Case Name Login
Test Case Description Test whether login is possible
Item(s) to be Tested
1 User Name
2 Password
Specifications
Input Expected Output/Result
1.Invalid username and password
2.Invalid username and valid password
3.Valid username and Invalid password
4.Valid username and Password
1.Form is displayed with “User name or
password is incorrect” message
2. Form is displayed with “User name or
password is incorrect” message
3. Form is displayed with “User name or
password is incorrect” message
4.Home page according to user type is displayed

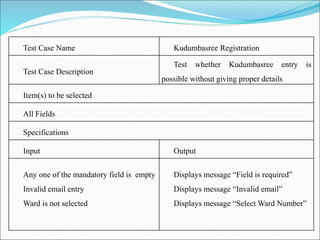

61. Test Case Name Kudumbasree Registration
Test Case Description
Test whether Kudumbasree entry is
possible without giving proper details
Item(s) to be selected
All Fields
Specifications
Input Output
Any one of the mandatory field is empty
Invalid email entry
Ward is not selected
Displays message “Field is required”
Displays message “Invalid email”
Displays message “Select Ward Number”

62. Test Case Name Member Registration
Test Case Description
Test whether Member registration is
possible without giving proper details
Item(s) to be selected
All Fields
Specifications
Input Output
Any one of the mandatory field is
Invalid email entry
Invalid phone no entry
Category is not selected
Displays message “Field is required”
Displays message “Invalid email”
Displays message “Invalid phone”
Displays message “Please Select
Category”

63. Test Case Name Account
Test Case Description
Test whether Income and expense
details entry is possible without giving
proper details
Item(s) to be selected
All Fields
Specifications
Input Output
Any one of the mandatory field is empty
Invalid amount entry
Displays message “Please fill the
field”
Displays message “Invalid amount”

64. SCREEN SHOTS

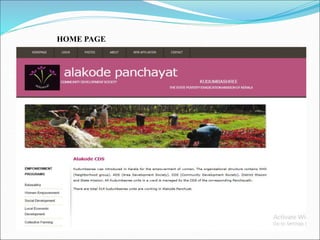

65. HOME PAGE

66. LOGIN PAGE

67. KUDUMBASREE REGISTRATION FORM

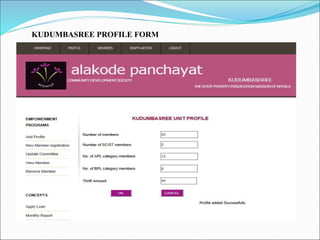

68. KUDUMBASREE PROFILE FORM

69. BALASABHA REGISTRATION

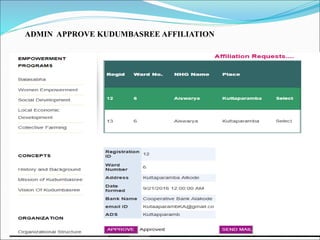

70. ADMIN APPROVE KUDUMBASREE AFFILIATION

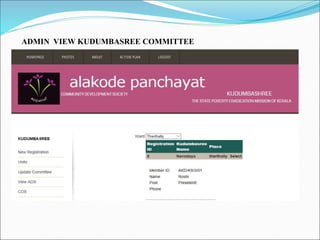

71. ADMIN ADD ADS COMMITTEE

72. ADMIN VIEW KUDUMBASREE COMMITTEE

73. KUDUMBASREE MEMBER REGISTRATION FORM

74. CHILD REGISTRATION FORM

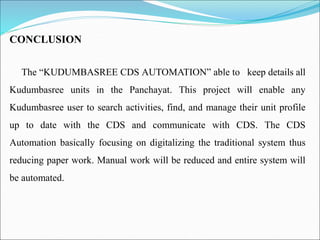

75. CONCLUSION
The “KUDUMBASREE CDS AUTOMATION” able to keep details all
Kudumbasree units in the Panchayat. This project will enable any
Kudumbasree user to search activities, find, and manage their unit profile
up to date with the CDS and communicate with CDS. The CDS
Automation basically focusing on digitalizing the traditional system thus
reducing paper work. Manual work will be reduced and entire system will
be automated.

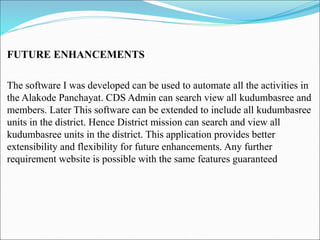

76. FUTURE ENHANCEMENTS
The software I was developed can be used to automate all the activities in
the Alakode Panchayat. CDS Admin can search view all kudumbasree and
members. Later This software can be extended to include all kudumbasree
units in the district. Hence District mission can search and view all
kudumbasree units in the district. This application provides better
extensibility and flexibility for future enhancements. Any further
requirement website is possible with the same features guaranteed

77. 3. REFERENCES
BOOKS
 Ragu Ramakrishna - Database Management Systems, Second Edition
 Roger S Pressman-Software Engineering, A Practitioner’s Approach.
WEBSITES
 www.w3school.com
