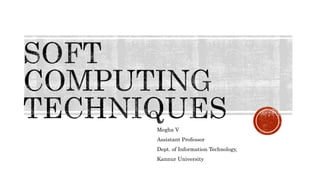

Soft Computing Techniques_Part 1

1. Megha V
Assistant Professor
Dept. of Information Technology,
Kannur University

2. Hard Computing:
 Hard computing uses traditional mathematical methods to solve
problems, such as algorithms and mathematical models.
 It is based on deterministic and precise calculations and is ideal for
solving problems that have well-defined mathematical solutions.

3. Soft Computing:
 Soft computing, on the other hand, uses techniques such as fuzzy logic, neural
networks, genetic algorithms, and other heuristic methods to solve problems.
 It is based on the idea of approximation and is ideal for solving problems that are
difficult or impossible to solve exactly.

4.  Soft Computing could be a computing model evolved to resolve the
non-linear issues that involve unsure, imprecise and approximate
solutions of a tangle.
 These sorts of issues square measure thought of as real-life issues
wherever the human-like intelligence is needed to resolve it.
 Hard Computing is that the ancient approach employed in
computing that desires Associate in Nursing accurately declared
analytical model.

5.  The outcome of hard computing approach is a warranted, settled,
correct result and defines definite management actions employing a
mathematical model or algorithmic rule.
 It deals with binary and crisp logic that need the precise input file
consecutive
 Hard computing isn’t capable of finding the real world problem’s
solution

6.  The following are some of the reasons why soft computing is needed:
1. Complexity of real-world problems:
 Many real-world problems are complex and involve uncertainty,
vagueness, and imprecision.
 Traditional computing methods are not well-suited to handle these
complexities.

7. 2. Incomplete information:
 In many cases, there is a lack of complete and accurate information
available to solve a problem.
 Soft computing techniques can provide approximate solutions even
in the absence of complete information.

8. 3. Noise and uncertainty:
 Real-world data is often noisy and uncertain, and classical methods
can produce incorrect results when dealing with such data.
 Soft computing techniques are designed to handle uncertainty and
imprecision.

9. 4. Non-linear problems:
 Many real-world problems are non-linear, and classical methods are
not well-suited to solve them.
 Soft computing techniques such as fuzzy logic and neural networks
can handle non-linear problems effectively.

10. 5. Human-like reasoning:
 Soft computing techniques are designed to mimic human-like
reasoning, which is often more effective in solving complex problems

11.  In the field of Big Data, soft computing working for data analyzing
models, data behavior models, data decision, etc.
 In case of Recommender system, soft computing plays an important
role for analyzing the problem on the based of algorithm and works
for precise results.
 In Behavior and decision science, soft computing used in this for
analyzing the behavior, and model of soft computing works
accordingly.

12.  In the fields of Mechanical Engineering, soft computing is a role
model for computing problems such that how a machine will works
and how it will make the decision for a specific problem or input
given.
 In this field of Computer Engineering, you can say it is core part of
soft computing and computing working on advanced level like
Machine learning, Artificial intelligence, etc.

13. Human expertise
 Soft computing utilizes human expertise in the form of fuzzy if-then
rules, as well as in conventional knowledge representations, to solve
practical problems.
 Biologically inspired computing models – Inspired by biological
neural networks, artificial neural networks are employed
extensively in soft computing to deal with perception, pattern
recognition, and nonlinear regression and classification problems.

14. New optimization techniques
 Soft computing applies innovative optimization methods arising
from various sources, they are genetic algorithms (inspired by the
evolution and selection process), simulated annealing (motivated by
thermodynamics), the random search method, and the downhill
Simplex method.
 These optimization methods do not require the gradient vector of an
objective function, so they are more flexible in dealing with complex
optimization problems.

15.  Numerical computation
 Unlike symbolic AI, soft computing relies mainly on numerical
computation.
 Incorporation of symbolic techniques in soft computing is an active
research area within this field.

16.  Real-world applications
 Goal driven characteristics- Neuro-fuzzy and soft computing are goal
driven;
 Fault tolerance- Both neural networks and fuzzy inference systems
exhibit fault tolerance.
 Intensive computation- Without assuming too much background
 Model-free learning- Neural networks and adaptive fuzzy inference
systems
 New application domains

17.  Handwritten Script Recognition using Soft Computing
 Handwritten Script Recognition is one of the demanding parts of
computer science.
 It can translate multilingual documents and sort the various scripts
accordingly.
 It uses the concept of “block-level technique” where the system
recognizes the particular script from a number of script documents
given.
 It uses a Discrete Cosine Transform (DCT), and discrete wavelets
Transform (DWT) together, which classify the scripts according to
their features

18.  Image Processing and Data Compression using Soft Computing
 Image analysis is one of the most important parts of the medical
field.
 It is a high-level processing technique which includes recognition
and bifurcation of patterns.
 Using soft computing solves the problem of computational
complexity and efficiency in the classification.

19.  Image Processing and Data Compression using Soft Computing
 Techniques of soft computing include Genetic Algorithms, Genetic
Programming, Classifier Systems, Evolution Strategies, artificial
life, and a few others, which are used here.
 These algorithms give the fastest solutions to pattern recognition.
 These help in analyzing the medical images obtained from
microscopes as well as examine the X-rays

20.  Soft Computing in Automotive Systems and Manufacturing
 The use of soft computing has solved a major misconception that the
automobile industry is slow to adapt.
 Fuzzy logic is a technique used in vehicles to build classic control
methods.
 It takes the example of human behavior, which is described in the
forms of rule – “If-Then “statements.
 The logic controller then converts the sensor inputs into fuzzy variables
that are then defined according to these rules.
 Fuzzy logic techniques are used in engine control, automatic
transmissions, antiskid steering, etc

21.  Soft Computing based Architecture
 An intelligent building takes inputs from the sensors and controls
effectors by using them.
 The construction industry uses the technique of DAI (Distributed
Artificial Intelligence) and fuzzy genetic agents to provide the
building with capabilities that match human intelligence.
 The fuzzy logic is used to create behavior-based architecture in
intelligent buildings to deal with the unpredictable nature of the
environment, and these agents embed sensory information in the
buildings

22.  Soft Computing and Decision Support System
 Soft computing gives an advantage of reducing the cost of the
decision support system.
 The techniques are used to design, maintain, and maximize the
value of the decision process.
 The first application of fuzzy logic is to create a decision system that
can predict any sort of risk.
 The second application is using fuzzy information that selects the
areas which need replacement

23.  Soft Computing Techniques in Power System Analysis
 Soft computing uses the method of Artificial Neural Network (ANN)
to predict any instability in the voltage of the power system.
 Using the ANN, the pending voltage instability can be predicted.
 The methods which are deployed here, are very low in cost.

24.  Soft Computing Techniques in Bioinformatics
 The techniques of soft computing help in modifying any uncertainty
and indifference that biometrics data may have.
 Soft computing is a technique that provides distinct low-cost
solutions with the help of algorithms, databases, Fuzzy Sets (FSs),
and Artificial Neural Networks (ANNs).
 These techniques are best suited to give quality results in an
efficient way.

25.  Soft Computing in Investment and Trading
 The data present in the finance field is in opulence and traditional
computing is not able to handle and process that kind of data.
 There are various approaches done through soft computing
techniques that help to handle noisy data.
 Pattern recognition technique is used to analyze the pattern or
behavior of the data and time series is used to predict future trading
points.

26.  Recent developments in soft computing
 People have started using techniques of soft computing like fuzzy
sets theory, neural nets, fuzzy neuro system, adaptive neuro-fuzzy
inference system (ANFIS), for driving various numerical simulation
analysis.
 Soft computing has helped in modeling the processes of machines
with the help of artificial intelligence.

27.  Also, there are certain areas where soft computing is in budding
stages only and is expected to see a massive evolution:
 Big Data
 Recommender system
 Behavior and decision science
 Mechanical Engineering
 Computer Engineering
 Civil Engineering

28.  Neural networks, also known as Artificial Neural Networks (ANNs)
or simulated neural networks (SNNs), are a subset of machine
learning and are at the heart of deep learning algorithms.
 Their name and structure are inspired by the human brain,
mimicking the way that biological neurons signal to one another.

29. ARTIFICIAL NEURAL
NETWORK
 ANNs are also named as “artificial neural systems,” or “parallel
distributed processing systems,” or “connectionist systems.”
 ANN acquires a large collection of units that are interconnected in
some pattern to allow communication between the units.
 These units, also referred to as nodes or neurons, are simple
processors which operate in parallel.

30. ARTIFICIAL NEURAL
NETWORK
 Every neuron is connected with other neuron through a connection
link.
 Each connection link is associated with a weight that has information
about the input signal.
 This is the most useful information for neurons to solve a particular
problem because the weight usually excites or inhibits the signal that
is being communicated.
 Each neuron has an internal state, which is called an activation
signal.
 Output signals, which are produced after combining the input signals
and activation rule, may be sent to other units.

31. Biological neural network Artificial neural network

32. WORKING OF A BIOLOGICAL
NEURON
 As shown in the above diagram, a typical neuron consists of the following
four parts with the help of which we can explain its working −
• Dendrites − They are tree-like branches, responsible for receiving the
information from other neurons. In other sense, we can say that they are
like the ears of neuron.
• Soma − It is the cell body of the neuron and is responsible for processing of
information, they have received from dendrites.
• Axon − It is just like a cable through which neurons send the information.
• Synapses − It is the connection between the axon and other neuron
dendrites.

34. MODEL OF ARTIFICIAL
NEURAL NETWORK

35. MODEL OF ARTIFICIAL NEURA
NETWORK

36.  Comprised of a node layers, containing
 An input layer
 One or more hidden layers
 An output layer.
 Each node connects to another and has an associated weight and
threshold.
 If the output of any individual node is above the specified threshold
value, that node is activated, sending data to the next layer of the
network.

37.  Otherwise, no data is passed along to the next layer of the network.
 Neural networks rely on training data to learn and improve their
accuracy over time.

39. 1. Input units are passed i.e data is passed with some weights
attached to it to the hidden layer.
2. Each hidden layer consists of neurons. All the inputs are connected
to each neuron.
3. After passing on the inputs, all the computation is performed in the
hidden layer

40. Computation performed in hidden layers are done in 2 steps
 All the inputs are multiplied by their weights.
 Weight is the gradient or coefficient of each variable.
 Shows the strength of the particular input.
 After assigning the weights, a bias variable is added.
 Bias is a constant that helps the model to fit in the best way
possible.
 Z1 = W1*In1 + W2*In2 + W3*In3 + W4*In4 + ….+Wn*Inn + b

41.  Activation function is applied to the linear equation Z1.
 Nonlinear transformation applied to the input before sending it to
the next layer of neurons.
 Mathematical equations that determine whether a neuron should
be activated or not.
 To introduce the nonlinearity in the data.
 There are several activation functions
 Sigmoid
 TanH
 Rectified Linear Unit Function (ReLU)

42. 4. The whole process described in point 3 is performed in each hidden
layer.
 After passing through every hidden layer, we move to the last
layer i.e our output layer which gives us the final output.
The process explained above is known as forwarding Propagation.
5. After getting the predictions from the output layer, the error is
calculated.
 If the error is large, then the steps are taken to minimize the error
and for the same purpose, Back Propagation is performed.

43. PERCEPTRON
 Developed by Frank Rosenblatt by using McCulloch and Pitts model,
perceptron is the basic operational unit of artificial neural networks.
 It employs supervised learning rule and is able to classify the data
into two classes.
 Operational characteristics of the perceptron:
 It consists of a single neuron with an arbitrary number of inputs
along with adjustable weights, but the output of the neuron is 1 or 0
depending upon the threshold.
 It also consists of a bias whose weight is always 1.

44.  Simple form of Neural Network
 Consists of a single layer where all the mathematical computations
are performed.

45. PERCEPTRON

46.  Perceptron thus has the following three basic elements −
• Links − It would have a set of connection links, which carries a
weight including a bias always having weight 1.
• Adder − It adds the input after they are multiplied with their
respective weights.
• Activation function − It limits the output of neuron.
• The most basic activation function has two possible outputs.
• This function returns 1, if the input is positive, and 0 for any
negative input.

47.  Consists of more than one perception which is grouped together to
form a multiple layer neural network.

48.  The following diagram is the architecture of perceptron for multiple output
classes.

49. TRAINING ALGORITHM
 Perceptron network can be trained for single output unit as well as
multiple output units.
 Training Algorithm for Single Output Unit
 Step 1 − Initialize the following to start the training −
 Weights
 Bias
 Learning rate α

50. TRAINING ALGORITHM
 Learning Rate is a tuning parameter in an optimization algorithm
that determines the step size at each iteration while moving toward
a minimum of a loss function.
For easy calculation and simplicity, weights and bias must be set
equal to 0 and the learning rate must be set equal to 1.
 Step 2 − Continue step 3-8 when the stopping condition is not true.
 Step 3 − Continue step 4-6 for every training vector x.

51. TRAINING ALGORITHM
 Step 4 − Activate each input unit as follows −
 Step 5 − Now obtain the net input with the following relation −
 Here ‘b’ is bias and ‘n’ is the total number of input neurons.

52. TRAINING ALGORITHM
 Step 6 − Apply the following activation function to obtain the
final output.
 Step 7 − Adjust the weight and bias as follows −
 Case 1 − if y ≠ t then,

53. TRAINING ALGORITHM
 Case 2 − if y = t then,
 Here ‘y’ is the actual output and ‘t’ is the desired/target output.
 Step 8 − Test for the stopping condition, which would happen
when there is no change in weight.

54. BACK PROPAGATION
NEURAL NETWORKS
 Back Propagation Neural (BPN) is a multilayer neural network
consisting of the input layer, at least one hidden layer and output
layer.
 As its name suggests, back propagating will take place in this
network.
 The error which is calculated at the output layer, by comparing the
target output and the actual output, will be propagated back
towards the input layer.

55. 1. Weights are initialized randomly and the errors are
calculated after all the computation.
2.Then the gradient is calculated i.e derivative of error w.r.t
current weights.
3. Then new weights are calculated using
4 This process continues till we reach global minima and loss is
minimized.

56. BACK PROPAGATION
NEURAL NETWORKS

57. BACK PROPAGATION
NEURAL NETWORKS
 As shown in the diagram, the architecture of BPN has three
interconnected layers having weights on them.
 The hidden layer as well as the output layer also has bias, whose
weight is always 1, on them.
 As is clear from the diagram, the working of BPN is in two phases.
 One phase sends the signal from the input layer to the output layer,
and the other phase back propagates the error from the output layer
to the input layer.

58. BACK PROPAGATION
NEURAL NETWORKS
 Training Algorithm
 For training, BPN will use binary sigmoid activation function.
 The training of BPN will have the following three phases.
 Phase 1 − Feed Forward Phase
 Phase 2 − Back Propagation of error
 Phase 3 − Updating of weights

59. BACK PROPAGATION NEURAL
NETWORKS
 Training Algorithm
 All these steps will be concluded in the algorithm as follows
 Step 1 − Initialize the following to start the training −
 Weights
 Learning rate α
 For easy calculation and simplicity, take some small random values.
 Step 2 − Continue step 3-11 when the stopping condition is not true.
 Step 3 − Continue step 4-10 for every training pair.

60. BACK PROPAGATION NEURAL
NETWORKS
 Training Algorithm
 Phase 1
 Step 4 − Each input unit receives input signal xi and sends it to the
hidden unit for all i = 1 to n
 Step 5 − Calculate the net input at the hidden unit using the following
relation −
 Here b0j is the bias on hidden unit, vij is the weight on j unit of the hidden
layer coming from i unit of the input layer.
 Now calculate the net output by applying the following activation
function

61. BACK PROPAGATION NEURAL
NETWORKS
 Training Algorithm
 Send these output signals of the hidden layer units to the output layer
units.
 Step 6 − Calculate the net input at the output layer unit using the
following relation −
 Here b0k is the bias on output unit, wjk is the weight on k unit of the
output layer coming from j unit of the hidden layer.
 Calculate the net output by applying the following activation function

62. BACK PROPAGATION NEURAL
NETWORKS
 Training Algorithm
 Phase 2
 Step 7 − Compute the error correcting term, in correspondence with the
target pattern received at each output unit, as follows −

63. BACK PROPAGATION NEURAL
NETWORKS
 Training Algorithm
 Step 8 − Now each hidden unit will be the sum of its delta inputs from the
output units.

64. BACK PROPAGATION NEURAL
NETWORKS
Training Algorithm
Phase 3
 Step 9 − Each output unit (ykk = 1 to m) updates the weight and bias as follows −
 Step 10 − Each output unit (zjj = 1 to p) updates the weight and bias as follows −

65.  Process of updating and finding the optimal values of weights or
coefficients which helps the model to minimize the error
 The weights are updated with the help of optimizers.
 Optimizers are the methods/ mathematical formulations to change
the attributes of neural networks.
 Gradient Descent is one of the optimizers.

66.  An associate memory network refers to a content addressable
memory structure that associates a relationship between the set of
input patterns and output patterns.
 A content addressable memory structure is a kind of memory
structure that enables the recollection of data based on the intensity
of similarity between the input pattern and the patterns stored in
the memory.

67. Let's understand this concept with an example:

68.  The figure given above illustrates a memory containing the names of
various people.
 If the given memory is content addressable, the incorrect string
"Albert Einstin" as a key is sufficient to recover the correct name
"Albert Einstein."
 In this condition, this type of memory is robust and fault-tolerant
because of this type of memory model, and some form of error-
correction capability.

69.  There are two types of associate memory- an auto-associative
memory and hetero associative memory.
 Auto-associative memory:
 An auto-associative memory recovers a previously stored pattern
that most closely relates to the current pattern.
 It is also known as an auto-associative correlator.
 Consider x[1], x[2], x[3],….. x[M], be the number of stored pattern
vectors, and let x[m] be the element of these vectors, showing
characteristics obtained from the patterns.
 The auto-associative memory will result in a pattern vector x[m]
when putting a noisy or incomplete version of x[m].

71.  In a hetero-associate memory, the recovered pattern is generally
different from the input pattern not only in type and format but also
in content.
 It is also known as a hetero-associative correlator.

72.  Consider we have a number of key response pairs {a(1), x(1)},
{a(2),x(2)},…..,{a(M), x(M)}.
 The hetero-associative memory will give a pattern vector x(m) when
a noisy or incomplete version of the a(m) is given.
 Neural networks are usually used to implement these associative
memory models called neural associative memory (NAM).
 The linear associate is the easiest artificial neural associative
memory.

73.  Associative memory is a depository of associated pattern which in
some form.
 If the depository is triggered with a pattern, the associated pattern
pair appear at the output.
 The input could be an exact or partial representation of a stored
pattern.

74.  If the memory is produced with an input pattern, may say α, the
associated pattern ω is recovered automatically.
 These are the terms which are related to the Associative memory
network:
 Encoding or memorization:
 Encoding or memorization refers to building an associative memory.
 It implies constructing an association weight matrix w such that
when an input pattern is given, the stored pattern connected with
the input pattern is recovered.

75.  Adaptive resonance theory is a type of neural network technique
developed by Stephen Grossberg and Gail Carpenter in 1987.
 The basic ART uses unsupervised learning technique.
 The term “adaptive” and “resonance” used in this suggests that they
are open to new learning(i.e. adaptive) without discarding the
previous or the old information(i.e. resonance).

76.  The ART networks are known to solve the stability-plasticity
dilemma i.e., stability refers to their nature of memorizing the
learning and plasticity refers to the fact that they are flexible to gain
new information.
 Due to this the nature of ART they are always able to learn new
input patterns without forgetting the past.
 ART networks implement a clustering algorithm.
 Input is presented to the network and the algorithm checks whether
it fits into one of the already stored clusters.
 If it fits then the input is added to the cluster that matches the
most, else a new cluster is formed.

77.  The main operation of ART classification can be divided into the
following phase
 Recognition phase − The input vector is compared with the
classification presented at every node in the output layer.
 The output of the neuron becomes “1” if it best matches with the
classification applied, otherwise it becomes “0”.
 Comparison phase − In this phase, a comparison of the input vector
to the comparison layer vector is done.
 The condition for reset is that the degree of similarity would be less
than vigilance parameter.

78.  Search phase − In this phase, the network will search for reset as
well as the match done in the above phases.
 Hence, if there would be no reset and the match is quite good, then
the classification is over.
 Otherwise, the process would be repeated and the other stored
pattern must be sent to find the correct match.

79.  Carpenter and Grossberg developed different ART architectures as a
result of 20 years of research. The ARTs can be classified as follows:
 ART1 – It is the simplest and the basic ART architecture. It is
capable of clustering binary input values.
 ART2 – It is extension of ART1 that is capable of clustering
continuous-valued input data.
 Fuzzy ART – It is the augmentation of fuzzy logic and ART.
 ARTMAP – It is a supervised form of ART learning where one ART
learns based on the previous ART module. It is also known as
predictive ART.
 FARTMAP – This is a supervised ART architecture with Fuzzy logic
included.

80.  The adaptive resonant theory is a type of neural network that is
self-organizing and competitive.
 It can be of both types, the unsupervised ones(ART1, ART2, ART3,
etc) or the supervised ones(ARTMAP).
 Generally, the supervised algorithms are named with the suffix
“MAP”. But the basic ART model is unsupervised in nature and
consists of :
 F1 layer or the comparison field(where the inputs are processed)
 F2 layer or the recognition field (which consists of the clustering
units)

81.  The Reset Module (that acts as a control mechanism)
 Generally two types of learning exists, slow learning and fast
learning.
 In fast learning, weight update during resonance occurs rapidly.
 It is used in ART1.
 In slow learning, the weight change occurs slowly relative to the
duration of the learning trial. It is used in ART2.

82.  It exhibits stability and is not disturbed by a wide variety of inputs
provided to its network.
 It can be integrated and used with various other techniques to give
more good results.
 It can be used for various fields such as mobile robot control, face
recognition, land cover classification, target recognition, medical
diagnosis, signature verification, clustering web users, etc.
 It has got advantages over competitive learning (like bpnn etc).
 The competitive learning lacks the capability to add new clusters
when deemed necessary.
 It does not guarantee stability in forming clusters.

83.  Some ART networks are inconsistent (like the Fuzzy ART and ART1) as they
depend upon the order of training data, or upon the learning rate.

84.  ART neural networks used for fast, stable learning and prediction
have been applied in different areas.
 The application incorporates target recognition, face recognition,
medical diagnosis, signature verification, mobile control robot.

85.  Target recognition:
 Fuzzy ARTMAP neural network can be used for automatic
classification of targets depend on their radar range profiles.
 Tests on synthetic data show the fuzzy ARTMAP can result in
substantial savings in memory requirements when related to k
nearest neighbor(kNN) classifiers.
 The utilization of multiwavelength profiles mainly improves the
performance of both kinds of classifiers.

86.  Medical diagnosis:
 Medical databases present huge numbers of challenges found in
general information management settings where speed, use,
efficiency, and accuracy are the prime concerns.
 A direct objective of improved computer-assisted medicine is to help
to deliver intensive care in situations that may be less than ideal.
 Working with these issues has stimulated several ART architecture
developments, including ARTMAP-IC.

87.  Signature verification:
 Automatic signature verification is a well known and active area of
research with various applications such as bank check confirmation,
ATM access, etc.
 The training of the network is finished using ART1 that uses global
features as input vector and the verification and recognition phase
uses a two-step process.
 In the initial step, the input vector is coordinated with the stored
reference vector, which was used as a training set, and in the second
step, cluster formation takes place.

88.  Mobile control robot:
 Nowadays, we perceive a wide range of robotic devices.
 It is still a field of research in their program part, called artificial
intelligence.
 The human brain is an interesting subject as a model for such an
intelligent system.
 Inspired by the structure of the human brain, an artificial neural emerges.
 Similar to the brain, the artificial neural network contains numerous
simple computational units, neurons that are interconnected mutually to
allow the transfer of the signal from the neurons to neurons.
 Artificial neural networks are used to solve different issues with good
outcomes compared to other decision algorithms.

89.  Grossberg presented the basic principles of the adaptive resonance theory. A
category of ART called ART1 has been described as an arrangement of ordinary
differential equations by carpenter and Grossberg. These theorems can predict
both the order of search as the function of the learning history of the system and
the input patterns.

92.  Self Organizing Map (or Kohonen Map or SOM) is a type of Artificial
Neural Network which is also inspired by biological models of neural
systems from the 1970s.
 It follows an unsupervised learning approach and trained its
network through a competitive learning algorithm.
 SOM is used for clustering and mapping (or dimensionality
reduction) techniques to map multidimensional data onto lower-
dimensional which allows people to reduce complex problems for
easy interpretation.
 SOM has two layers, one is the Input layer and the other one is the
Output layer.

93.  The architecture of the Self Organizing Map with two clusters and n
input features of any sample is given below:

94.  Let’s say an input data of size (m, n) where m is the number of
training examples and n is the number of features in each example.
 First, it initializes the weights of size (n, C) where C is the number
of clusters.
 Then iterating over the input data, for each training example, it
updates the winning vector (weight vector with the shortest distance
(e.g Euclidean distance) from training example).
 Weight updating rule is given by :

95.  where alpha is a learning rate at time t,
 j denotes the winning vector,
 i denotes the ith feature of training example and
 k denotes the kth training example from the input data.
 After training the SOM network, trained weights are used for
clustering new examples.
 A new example falls in the cluster of winning vectors.

97. CLUSTERING
 Clustering is probably the most trivial application where you can use
SOFM.
 In case of clustering, we treat every neuron as a centre of separate cluster.
 One of the problems is that during the training procedure when we pull
one neuron closer to one of the cluster we will be forced to pull its
neighbors as well.
 In order to avoid this issue, we need to break relations between neighbors,
so that any update will not have influence on other neurons.
 If we set up this value as 0 it will mean that neuron winner doesn’t have
any relations with other neurons which is exactly what we need for
clustering.

98. CLUSTERING
 In the image below you can see visualized two features from the iris dataset and
there are three SOFM neurons colored in grey. As you can see it managed to find
pretty good centers of the clusters.

99. SPACE APPROXIMATION
 Space approximation is similar to clustering, but the goal is here to find
the minimum number of points that cover as much data as possible.
 Since it’s similar to clustering we can use SOFM here as well.
 But as we saw in the previous example data points wasn’t using space
efficiently and some points were very close to each other and some are
further.
 Now the problem is that clusters don’t know about existence of other
clusters and they behave independently.
 To have more cooperative behavior between clusters we can enable
learning radius in SOFM.

100. HIGH-DIMENSIONAL DATA VISUALIZATION
 We can use SOFM with two-dimensional feature map in order to
catch dimensional properties of the datasets with only two features.
 If we increase number of dimensions to three it still would be
possible to visualize the result, but in four dimensions it will become
a bit trickier.
 If we use two-dimensional grid and train SOFM over the high-
dimensional data then we can encode network as a heat map where
each neuron in the network will be represented by the average
distance to its neighbors.
