This document discusses messaging in the cloud using IBM MQ Light and IBM Bluemix. It provides an overview of Bluemix and its capabilities for running applications. It then discusses application messaging and introduces the MQ Light service. The rest of the document demonstrates MQ Light, including its messaging model, programming interfaces for different languages like Node.js and Java, and tooling support. It emphasizes the ease of use of MQ Light for building scalable and responsive cloud applications.

1. C7: Messaging in the Cloud with IBM MQ
Light and IBM Bluemix
Robert Nicholson, STSM for Application Messaging
@nicholsr #mqlight

2. © 2014 IBM Corporation
Please Note
IBM’s statements regarding its plans, directions, and intent are subject to change or withdrawal
without notice at IBM’s sole discretion. Information regarding potential future products is
intended to outline our general product direction and it should not be relied on in making a
purchasing decision.
The information mentioned regarding potential future products is not a commitment, promise, or
legal obligation to deliver any material, code or functionality. Information about potential future
products may not be incorporated into any contract. The development, release, and timing of any
future features or functionality described for our products remains at our sole discretion
Performance is based on measurements and projections using standard IBM benchmarks in a
controlled environment. The actual throughput or performance that any user will experience
will vary depending upon many factors, including considerations such as the amount of
multiprogramming in the user’s job stream, the I/O configuration, the storage configuration, and
the workload processed. Therefore, no assurance can be given that an individual user will
achieve results similar to those stated here.
2

3. © 2014 IBM Corporation
Agenda
Introduction to Bluemix
Application Messaging
Introduction to MQ Light Service
Demo
3

4. The next billion
dollar idea starts
with a single
developer.
That developer
starts with a single
line of code
© 2014 IBM Corporation

5. IBM BlueMix
Delivering a Composable Services development environment
© 2014 IBM Corporation
Run Your Apps
The developer can chose any language runtime or
bring their own. Just upload your code and go.
DevOps
Development, monitoring, deployment and
logging tools allow the developer to run the
entire application
APIs and Services
A catalog of open source, IBM and third party
APIs services allow a developer to stitch
together an application in minutes.
Cloud Integration
Build hybrid environments. Connect to on-premises
systems of record plus other public and
private clouds. Expose your own APIs to your
developers.
Built on IBM SoftLayer
Runs automatically on top of IBM’s leading
infrastructure as a service. No need to worry
about provisioning or managing infrastructure.

6. © 2014 IBM Corporation
Agenda
Introduction to Bluemix
Application Messaging
Introduction to MQ Light Service
Demo
6

7. © 2014 IBM Corporation
IBM Messaging portfolio
7
Deliver Messaging Backbone for Enterprise
Focus on traditional MQ values, rock-solid enterprise-class
service, ease-of-operation, breadth of platform coverage,
availability, z/OS exploitation
Capture Big Data from Mobile and Internet of
Things
Focus on Internet-scale events, m2m device enablement,
security and privacy, feed into real-time analytics, location-based
notifications
Enable developers to build more scalable,
responsive applications
Focus on application developer use cases, breadth of language
support, no administration, ease-of-deployment, lightweight &
powerful API, as software or a cloud service

8. © 2014 IBM Corporation
MQ Light : Software and Cloud
 Messaging that application developers will
love to use, helping them make responsive
applications that scale easily
 3 ways to get it:
– Bluemix service
– MQ Light software download
– Statement of Direction for support in MQ Version 8.
 Open APIs crafted to feel natural in a
growing range of popular languages
 Tooling that makes modular app
development easy
8

9. © 2014 IBM Corporation
The journey that got us here…
From:
Centrally planned IT Architecture
Emerges:
Business sponsor driven
Developer led architecture
Developers select tools to get the job done
Focused on trying new apps and concepts in
the market
Centrally controlled common standards
Planned projects delivering core systems
Focused on skills and investment reuse

10. © 2014 IBM Corporation
The journey that got us here…
10
Ruby
Python
Node.js
C
Java
C++
C#
Perl
Go
Clojure
Lua
Erlang Scala
PHP

11. © 2014 IBM Corporation
Use Cases
11
Worker Offload
Intensive work offloaded and distributed
amongst worker processes to be performed
asynchronously
- Processing images or videos
- Performing text analytics
Event Driven
Take one or more actions when something
interesting happens
- Email logs and update dashboards when build finishes
- Upload videos once finished transcoding

12. © 2014 IBM Corporation
Use Cases
12
Delayed Processing
Schedule a task to happen at a specific point in
time
- Run in detailed reports when app use is low
- Generate end of day summary
3rd Party Integration
Ensure applications remain responsive even when
3rd party system are not available or responding
fast enough
- Updating existing CRM system
- Booking appointment

13. Trend in Cloud Application Architecture
Data Centre Architecture Cloud – centric Architecture
13
© 2014 IBM Corporation
HTML + Client Side
javascript
Business Logic
HTML + Client Side
javascript
Data Data
Data
•Test, deploy, operate as a whole.
•Often Scale monolithic app
•Powerful integration runtimes.
•Homogeneous technologies
Micro services
•Small empowered dev-ops teams own each
service.
•Test, deploy, monitor, operate individual
services.
•Polyglot languages & persistence.
•Services scale automatically as needed.
Caveat: Oversimplification

14. Trend in Cloud Application Architecture
14
© 2014 IBM Corporation
Cloud – centric Architecture
HTML + Client Side
javascript
Data
Data
Micro services
Interaction via REST and
lightweight asynchronous
messaging.

15. © 2014 IBM Corporation
Agenda
Introduction to Bluemix
Application Messaging
Introduction to MQ Light Service
Demo
15

16. Introduction to MQ Light Service
16
© 2014 IBM Corporation

17. MQ Light with Node.js using MQ Light API
17
MQ Light
© 2014 IBM Corporation
MQ
Light
MQ
Light
MQ Light API
.rb
Community
support. IBM
Priority based on
feedback.
……
.py
Simple, programming Language neutral messaging model
Idiomatic language & framework API Mappings
• Frictionless development
Open wire protocol (AMQP 1.0) & Open Source client libraries
• Facilitates community drivers for languages & frameworks

18. JMS JMS
© 2014 IBM Corporation
MQ Light with Java
JMS 1.1 API
• Pub/Sub and Queue
• Local Transactions only.
• Java SE model
• Java EE Model including MDBs
18
MQ Light

19. MQ Light
© 2014 IBM Corporation
Polyglot Messaging
19
MQ
JMS Light
.rb
……
Mapping from JMS to MQ Light enables apps using polyglot
model.
Worker offload with workers implemented in different
languages.
.py

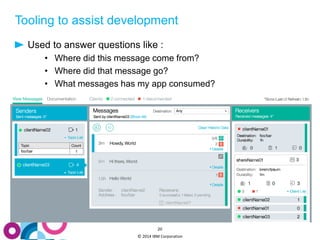

20. Tooling to assist development
Used to answer questions like :
• Where did this message come from?
• Where did that message go?
• What messages has my app consumed?
20
© 2014 IBM Corporation

21. MQ Light Messaging Model – Send Messages
Applications send messages to a topic.
A topic is an address in the topic space
either flat or arranged hierarchically.
21
© 2014 IBM Corporation
1. Send (‘/test/a’, “Hello”);
2. Send (‘/test/a’, “World!”);
Topic Address Space
Sender application

22. MQ Light Messaging Model – Simple Receive
•Applications receive messages by creating a destination with a pattern
which matches the topics they are interested in.
•Pattern matching scheme based on WMQ.
22
© 2014 IBM Corporation
1. Send (‘/test/a’, “Hello”);
2. Send (‘/test/a’, “World!”);
1. Hello
2. World!
Topic Address Space
Sender application
DESTINATION
Pattern=/test/a

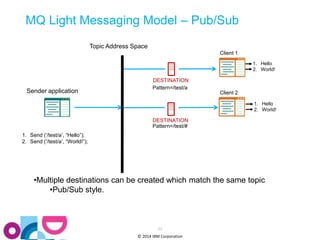

23. MQ Light Messaging Model – Pub/Sub
•Multiple destinations can be created which match the same topic
23
© 2014 IBM Corporation
•Pub/Sub style.
DESTINATION
1. Send (‘/test/a’, “Hello”);
2. Send (‘/test/a’, “World!”);
1. Hello
2. World!
1. Hello
2. World!
Topic Address Space
Sender application
DESTINATION
Pattern=/test/a
Pattern=/test/#
Client 1
Client 2

24. MQ Light Messaging Model – Persistent destinations
•Destinations persist for a defined “time to live” after receiver detaches.
24
© 2014 IBM Corporation
1. Send (‘/test/a’, “Hello”);
2. Send (‘/test/a’, “World!”);
Topic Address Space
Sender application
Hello
World!
DESTINATION
Pattern=/test/a
Disconnected client

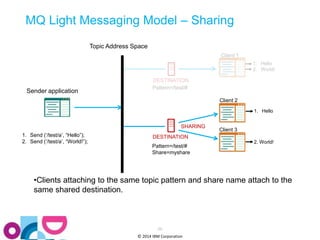

25. MQ Light Messaging Model – Sharing
1. Send (‘/test/a’, “Hello”); DESTINATION
2. Send (‘/test/a’, “World!”);
•Clients attaching to the same topic pattern and share name attach to the
same shared destination.
25
© 2014 IBM Corporation
1. Hello
2. World!
1. Hello
2. World!
SHARING
Topic Address Space
Sender application
DESTINATION
Pattern=/test/#
Pattern=/test/#
Share=myshare
Client 1
Client 2
Client 3

26. MQ Light Messaging Model – Client takeover
26
© 2014 IBM Corporation
1. Send (‘/test/a’, “Hello”);
Hello
Topic Address Space
Sender application
DESTINATION
Pattern=/test/#
Client 1
World!
Client 1
2. Send (‘/test/a’, “World!”);
•Applications connect to MQ Light service specify (optional) client ID.
•Re-using the same client ID pre-empts the original connection.
•Ideal for worker takeover in the cloud.

27. MQ Light Messaging Model
© 2014 IBM Corporation
Messages
• Payload is either Text or Binary.
• Content-type is used by clients to transfer JSON
• Per message time to live.
Message delivery model
• At most once delivery (QoS 0)
• At least once delivery (QoS 1)
• Acknowledge & Reject messages
• Control over the number of unacknowledged messages
delivered. (link credit)
27

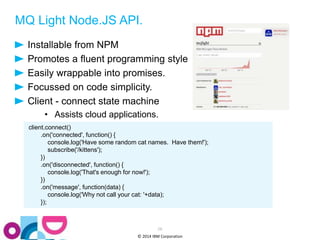

28. MQ Light Node.JS API.
Installable from NPM
Promotes a fluent programming style
Easily wrappable into promises.
Focussed on code simplicity.
Client - connect state machine
• Assists cloud applications.
28
© 2014 IBM Corporation
client.connect()
.on('connected', function() {
console.log('Have some random cat names. Have them!');
subscribe('/kittens');
})
.on('disconnected', function() {
console.log('That's enough for now!');
})
.on('message', function(data) {
console.log('Why not call your cat: '+data);
});

29. MQ Light Service JMS Support
Support “Java SE” style messaging.
• The WMQ classes for JMS now contain a provider service for
JmsFactoryFactory ff = JmsFactoryFactory.getInstance(JmsConstants.MQLIGHT_BLUEMIX_PROVIDER);
ConnectionFactory cf = ff.createConnectionFactory();
© 2014 IBM Corporation
Bluemix.
• Include WMQ Classes & Push the app to bluemix as .jar
Supports Liberty Profile “JEE” style messaging.
• Either push a .WAR
– Resource Adapter injected and JNDI namespace populated by
Liberty buildpack.
• Or push a packaged liberty server
– Supports MDBs
29

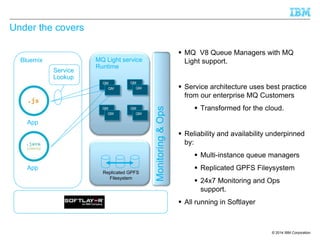

30. © 2014 IBM Corporation
Under the covers
App
Monitoring & Ops
Bluemix
MQ Light service
Runtime
Replicated GPFS
Filesystem
QM
QM
QM
QM
QM
QM
QM
QM
Service
Lookup
 MQ V8 Queue Managers with MQ
Light support.
 Service architecture uses best practice
from our enterprise MQ Customers
 Transformed for the cloud.
 Reliability and availability underpinned
by:
 Multi-instance queue managers
 Replicated GPFS Fileysystem
 24x7 Monitoring and Ops
support.
 All running in Softlayer
App

31. © 2014 IBM Corporation
Agenda
Introduction to Bluemix
Application Messaging
Introduction to MQ Light Service
Demo
31

32. © 2014 IBM Corporation
Demo Scenario
Twitter sentiment analysis
application.
Tracks a number of
“products”.
32
Live Twitter feed
Cumulative interest
and sentiment
Relevant tweets

33. Demo Architecture – Java workers
MQ Light
33
© 2014 IBM Corporation
Twitter API
Web UI
Front end
node app
Analytics
workers
DESTINATION
tweets
Analysed tweets (shared)

34. Demo Architecture – Node.JS workers
MQ Light
34
© 2014 IBM Corporation
Twitter API
Web UI
Front end
node app
Analytics
workers
DESTINATION
tweets
Analysed tweets (shared)

35. © 2014 IBM Corporation

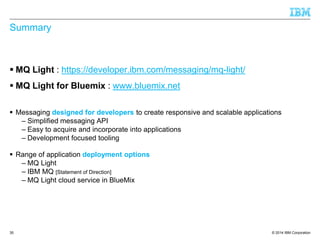

Summary
 MQ Light : https://developer.ibm.com/messaging/mq-light/
 MQ Light for Bluemix : www.bluemix.net
 Messaging designed for developers to create responsive and scalable applications
– Simplified messaging API
– Easy to acquire and incorporate into applications
– Development focused tooling
 Range of application deployment options
– MQ Light
– IBM MQ [Statement of Direction]
– MQ Light cloud service in BlueMix
35

36. IBM MQ Sessions this week
10:30 - 12:00 13:15 - 14:15 14:30 - 15:30 16:00 - 17:00 17:15 - 18:15
© 2014 IBM Corporation
Tuesday
Opening General Session- IBM Digital Experience
and WebSphere Technical University
Session A31: IBM MQ
CHLAUTH rules – with
MQ V8 updates
Speaker: Morag Hughson
Room 02
Session A4: WebSphere MQ
for z/OS: Performance and
Accounting
Speaker: Alexander Ross
Room 8
Session I26: DataPower-
MQ Connectivity Deep Dive
(Theory)
Speaker: Robin Wiley
Room 27
Session Z1: WebSphere MQ
for z/OS V8: Latest Features
Deep Dive
Speaker: Damon Cross
Room 6
9:00 - 10:00 10:30 - 11:30 11:45 - 12:45 14:00 - 15:00 15:15 - 16:15 16:45 - 17:45
Wednesday
Session Z5:
WebSphere MQ for
z/OS: Security
Speaker: Damon Cross
Room 02
Session A21: What's New
in IBM Messaging
Speaker: Morag Hughson
Room 8
Session C7: Messaging
in the Cloud with IBM
MQ Light and IBM
Bluemix
Speaker: Rob Nicholson
Room 27
Session A17: Managing work-loads,
scaling and availability
with IBM MQ clusters
Speaker: David Ware
Room 6
Lab IL5: DataPower-MQ Connectivity Deep Dive (Hands-On)
Speaker: Robin Wiley
Room 7b
Session A9: WebSphere MQ
for z/OS: The Inside Story
Speaker: Damon Cross
Room 6
Thursday
Session A35: How to
Develop Responsive
Applications with IBM MQ
Light
Speaker: Rob Nicholson
Room 27
Session A22: New IBM
MQ V8 Security
Features
Speaker: Morag Hughson
Room 01
Session A3: WebSphere MQ
for z/OS: Shared Queues
Speaker: Alex Ross
Room 6
Session A18: Using Publish
/Subscribe with IBM MQ
Speaker: David Ware
Room 27
Friday
Lab AL6: Developing a First Application with IBM
WebSphere MQ Light
Speakers: Robert Nicholson, Alex Ross
Room 7b
Session A16: Using
IBM MQ Pub/Sub in an
MQ network
Speaker: David Ware
Room 6

37. © 2014 IBM Corporation
Questions?
37

38. For Additional Information
© 2014 IBM Corporation
 IBM Training
 http://www.ibm.com/training
 IBM WebSphere
 http://www.ibm.com/software/websphere/
 http://www.ibm.com/software/products/ibm-mq
 IBM developerWorks
 http://www.ibm.com/developerworks/websphere
 https://www.ibm.com/developerworks/community/blogs/messaging
 WebSphere forums and community
 http://www.ibm.com/developerworks/websphere/community/

39. Your feedback is valuable - please complete your session evaluation
Either on paper or online at ibmeventconnect.eu/euxdx
Select Sessions, then Session Finder, and complete the survey
Thank You
Session C7: Messaging in the Cloud with IBM MQ Light and IBM Bluemix
Rob Nicholson
Senior Technical Staff Member
Software Group
rob_nicholson@uk.ibm.com
+44 1962 817517
Twitter: nicholsr
Linkedin: uk.linkedin.com/in/robertbnicholson/
