IBM Message Hub is a new Bluemix service for messaging in the cloud. It's ideal for linking together microservices to build a scalable, flexible application in the cloud. It's great for feeding data at speed into other services such as analytics. You can also use it to bridge securely from your enterprise MQ systems into the cloud.

1. 3499: Introducing IBM Message Hub
Cloud-scale messaging based on Apache Kafka
Andrew Schofield
Chief Architect, Hybrid Cloud Messaging

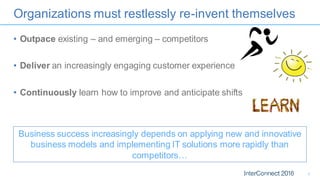

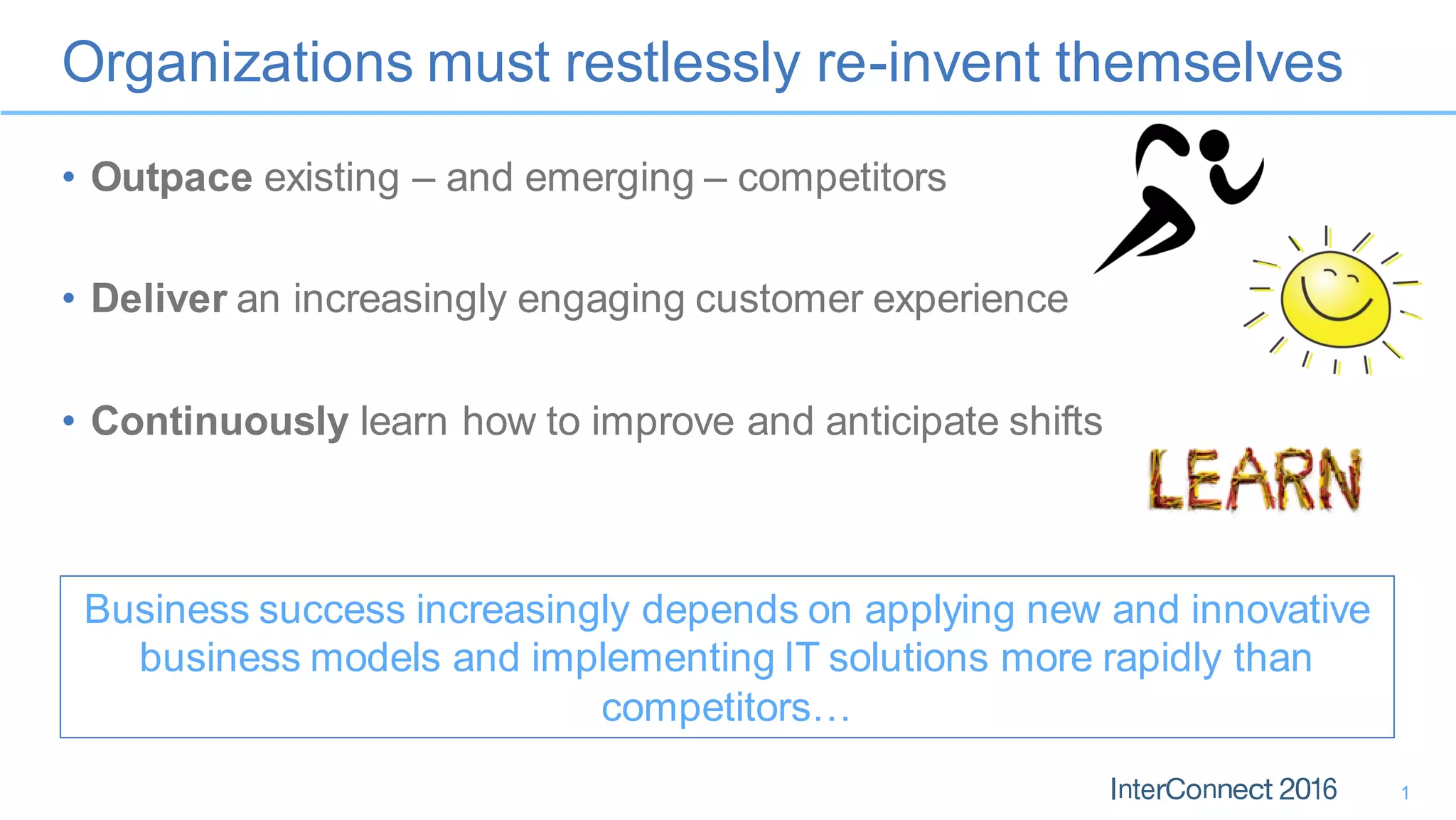

2. Organizations must restlessly re-invent themselves
• Outpace existing – and emerging – competitors
• Deliver an increasingly engaging customer experience
• Continuously learn how to improve and anticipate shifts
1
Business success increasingly depends on applying new and innovative
business models and implementing IT solutions more rapidly than
competitors…

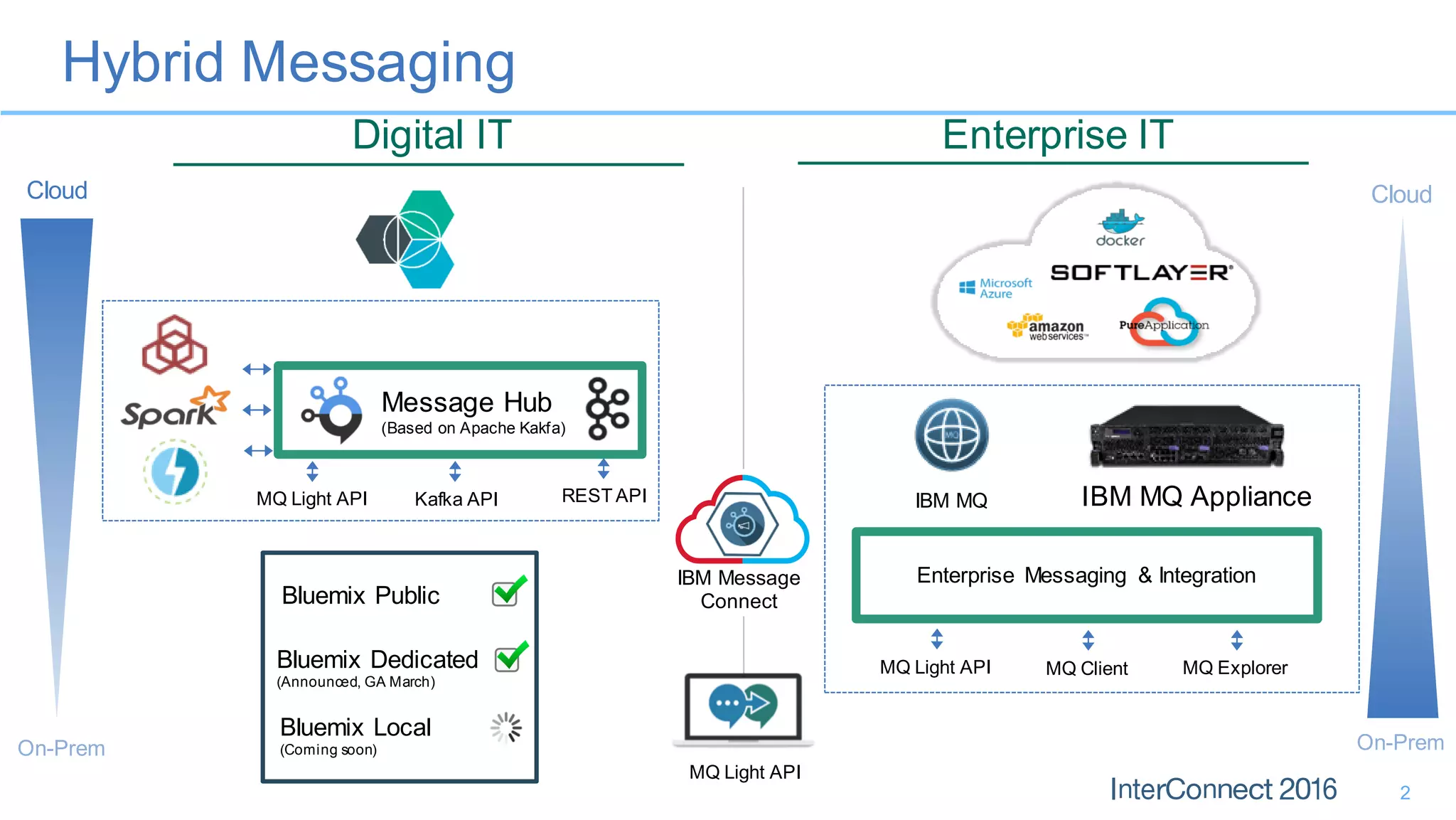

3. Digital IT Enterprise IT
Message Hub
(Based on Apache Kakfa)
MQ Light API
MQ Light API
2
Enterprise Messaging & Integration
Hybrid Messaging
MQ ExplorerMQ ClientMQ Light API
Kafka API REST API IBM MQ Appliance
Bluemix Public
Bluemix Dedicated
(Announced, GA March)
Bluemix Local
(Coming soon)
IBM MQ
Cloud
On-Prem
Cloud
On-Prem
IBM Message
Connect

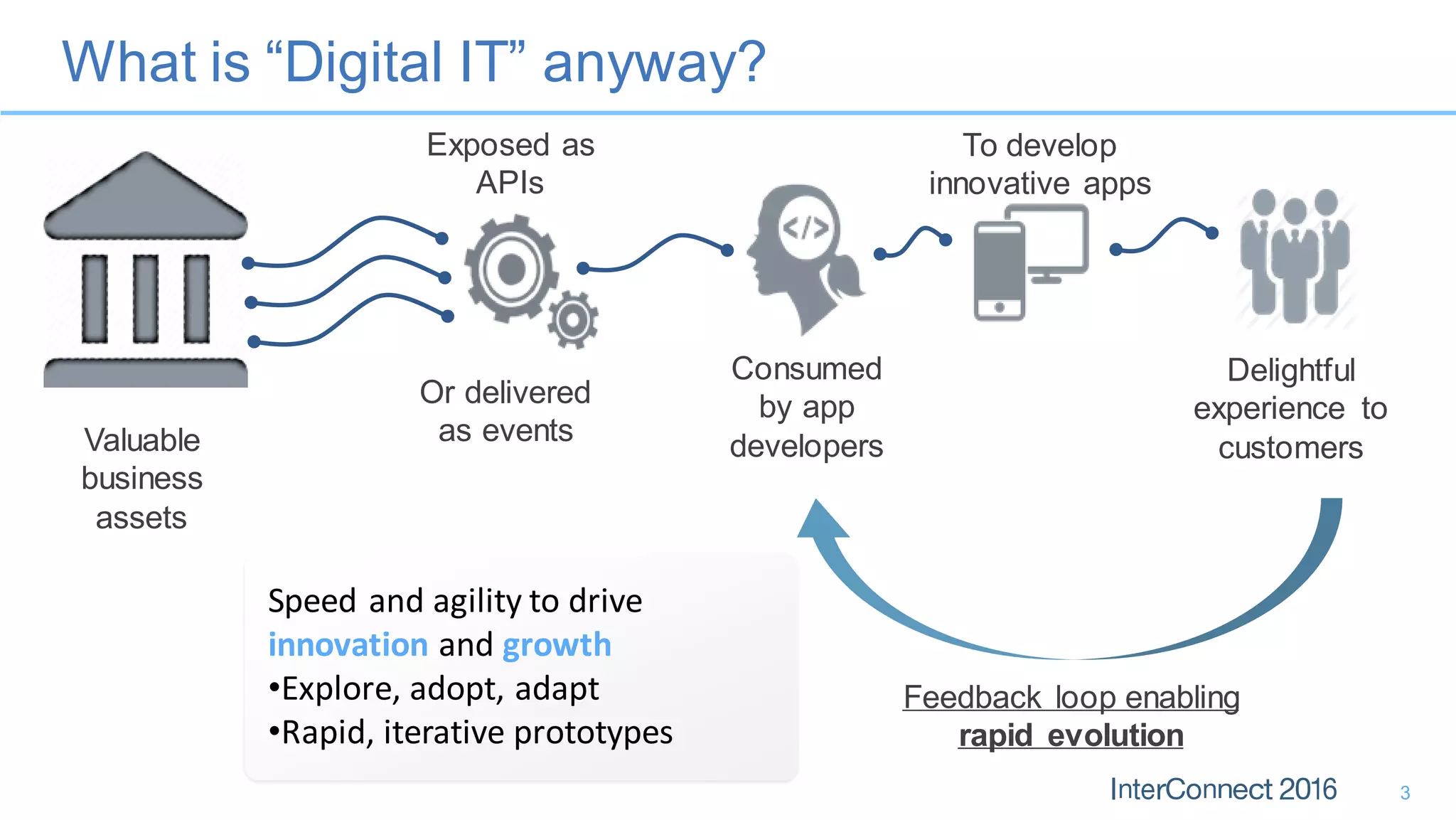

4. What is “Digital IT” anyway?
3
Speed and agility to drive
innovation and growth
•Explore, adopt, adapt
•Rapid, iterative prototypes
Valuable
business
assets
Exposed as
APIs
Consumed
by app
developers
To develop
innovative apps
Delightful
experience to
customers
Feedback loop enabling
rapid evolution
Or delivered
as events

5. IBM Bluemix
4
Bluemix is an open-standards, cloud-based platform for building,
running, and managing applications
Build your apps, your way
Use the most prominent compute
technologies to power your app:
Cloud Foundry, Docker,
OpenStack.
Extend apps with services
A catalog of IBM, third party, and
open source services allow the
developer to stitch an application
together quickly.
Scale more than just instances
Development, monitoring,
deployment, and logging tools
allow the developer to run and
manage the entire application.
Layered security
IBM secures the platform and
infrastructure and provides you with
the tools to secure your apps.
Deploy and manage hybrid apps
seamlessly
Get a seamless dev and
management experience across a
number of hybridoptions.
Flexible pricing
Try compute options and services
for free and, when you’re ready, pay
only for what you use. Pay as you
go and subscription models offer
choice and flexibility.

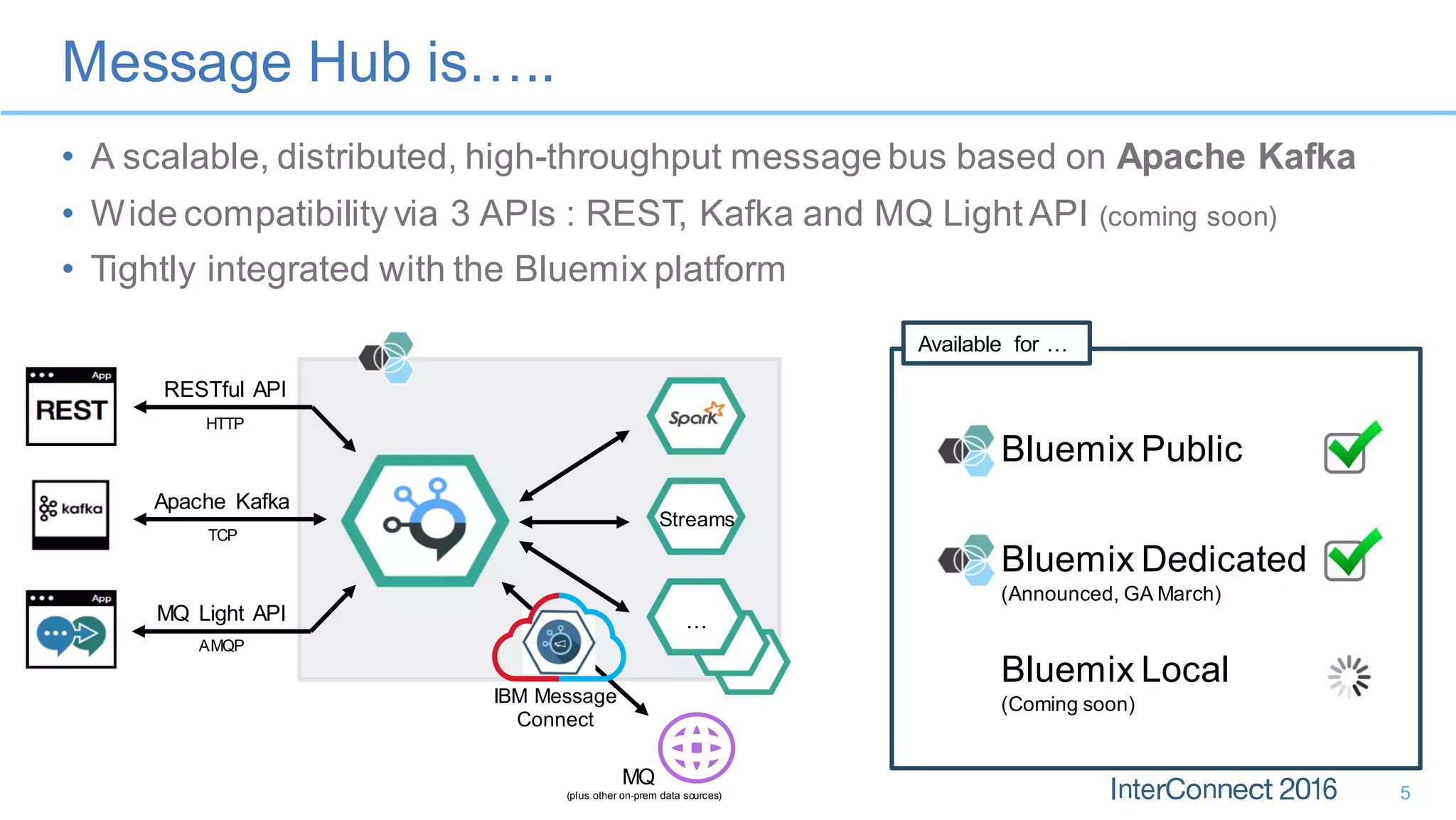

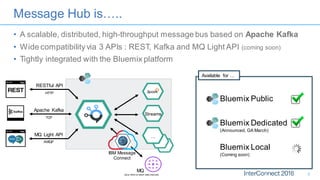

6. Message Hub is…..
• A scalable, distributed, high-throughput message bus based on Apache Kafka
• Wide compatibilityvia 3 APIs : REST, Kafka and MQ Light API (coming soon)
• Tightly integrated with the Bluemix platform
MQ
(plus other on-prem data sources)
MQ Light API
AMQP
RESTful API
HTTP
Apache Kafka
TCP
Streams
…
Bluemix Public
Bluemix Dedicated
(Announced, GA March)
Bluemix Local
(Coming soon)
Available for …
5
IBM Message
Connect

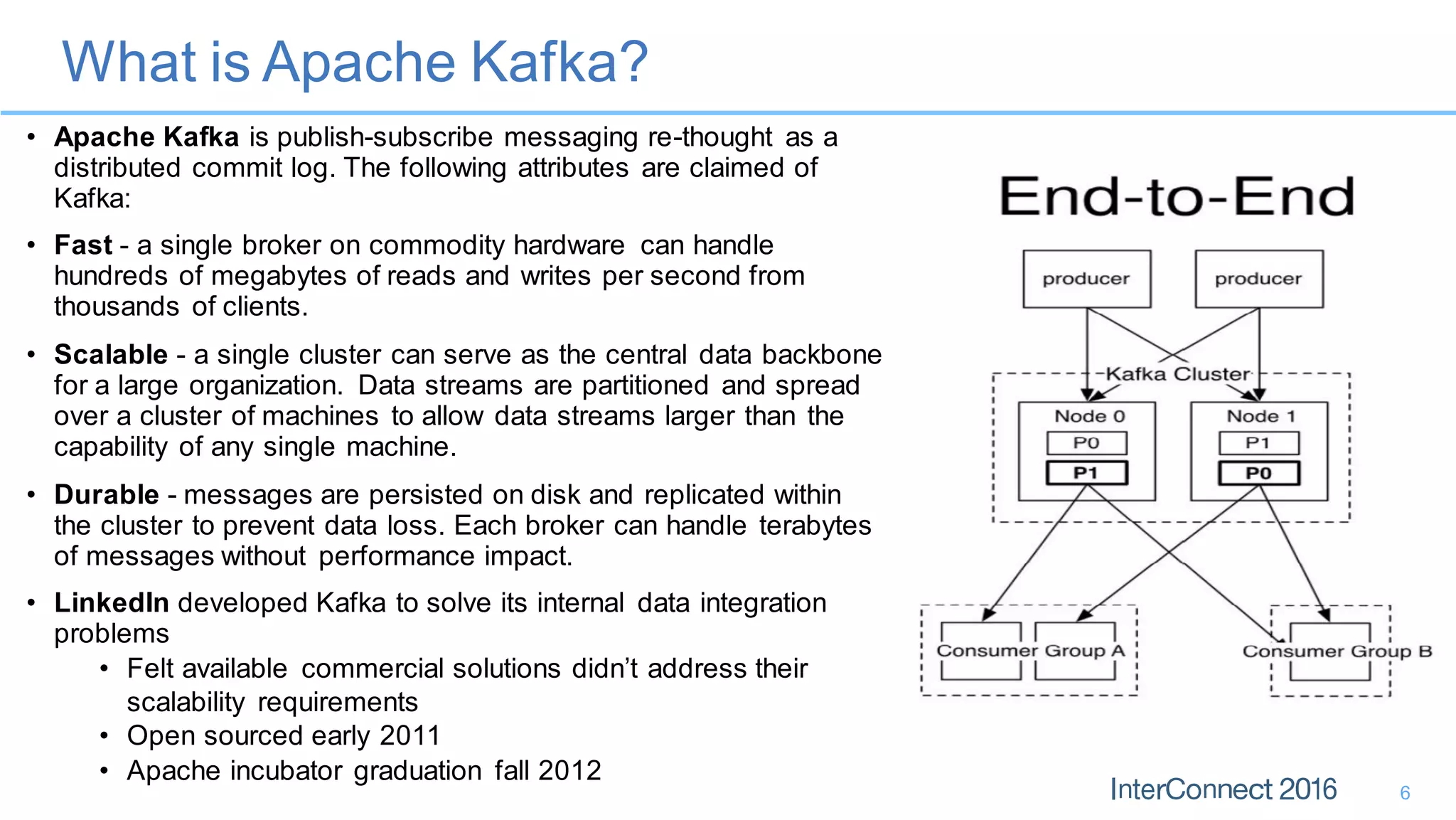

7. What is Apache Kafka?
• Apache Kafka is publish-subscribe messaging re-thought as a
distributed commit log. The following attributes are claimed of
Kafka:
• Fast - a single broker on commodity hardware can handle
hundreds of megabytes of reads and writes per second from
thousands of clients.
• Scalable - a single cluster can serve as the central data backbone
for a large organization. Data streams are partitioned and spread
over a cluster of machines to allow data streams larger than the
capability of any single machine.
• Durable - messages are persisted on disk and replicated within
the cluster to prevent data loss. Each broker can handle terabytes
of messages without performance impact.
• LinkedIn developed Kafka to solve its internal data integration
problems
• Felt available commercial solutions didn’t address their
scalability requirements
• Open sourced early 2011
• Apache incubator graduation fall 2012
6

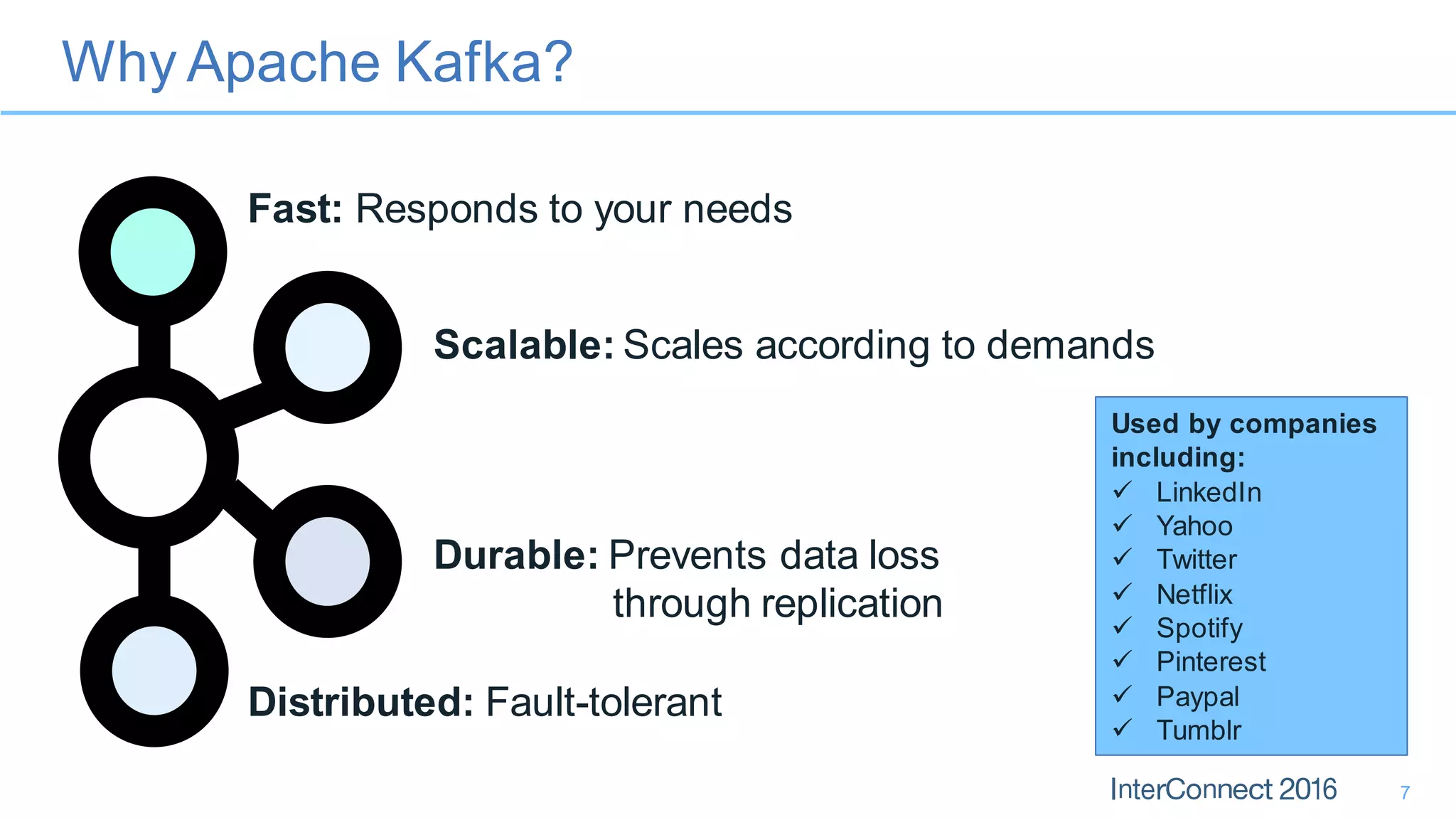

8. Why Apache Kafka?
7
Fast: Responds to your needs
Scalable: Scales according to demands
Durable: Prevents data loss
through replication
Distributed: Fault-tolerant
Used by companies
including:
 LinkedIn
 Yahoo
 Twitter
 Netflix
 Spotify
 Pinterest
 Paypal
 Tumblr

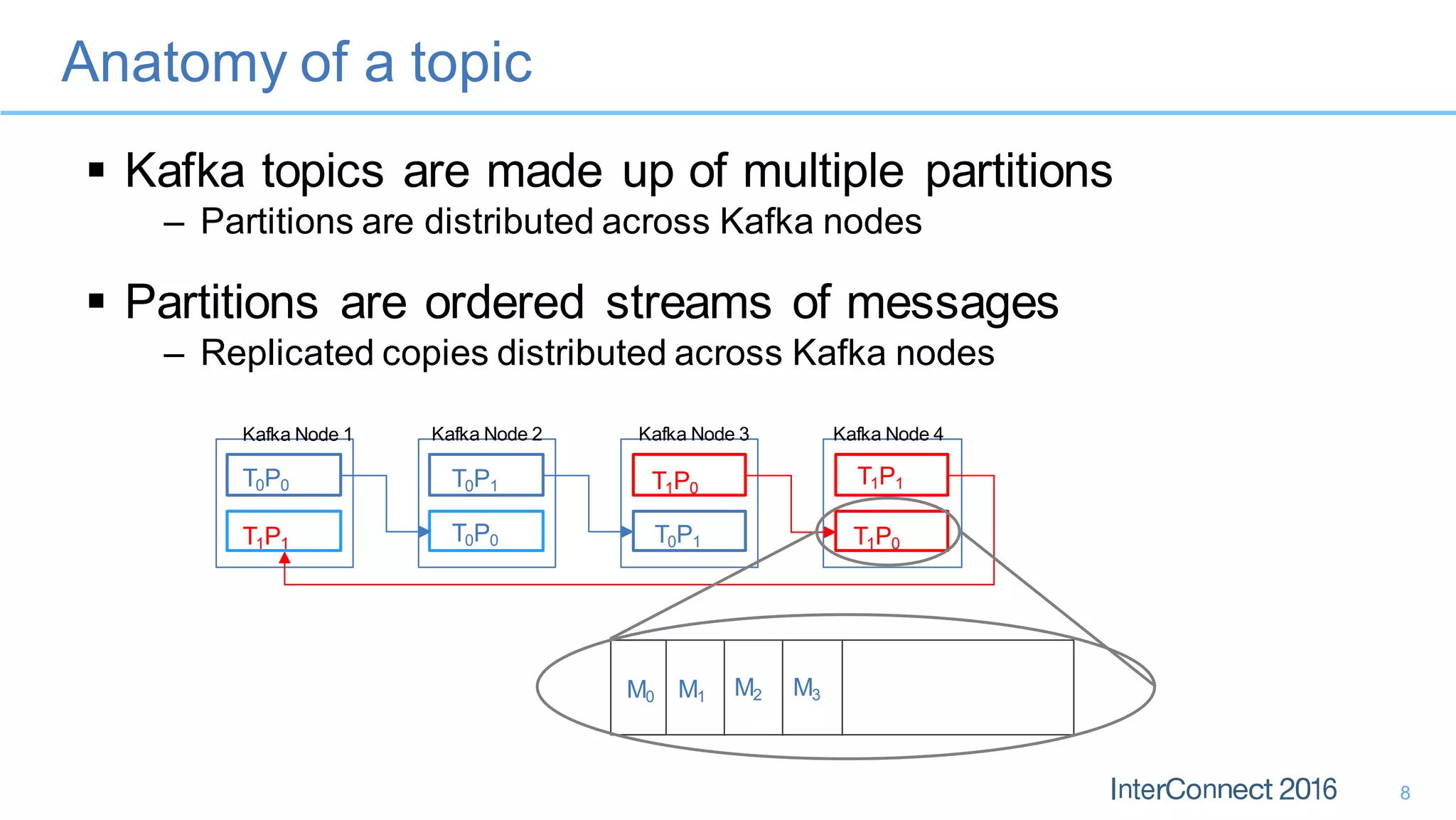

9. Anatomy of a topic
 Kafka topics are made up of multiple partitions
– Partitions are distributed across Kafka nodes
 Partitions are ordered streams of messages
– Replicated copies distributed across Kafka nodes
T0P0
T0P0
T0P1
T0P1
T1P1
T1P1
T1P0
T1P0
Kafka Node 1 Kafka Node 2 Kafka Node 3 Kafka Node 4
M0 M1 M2 M3
8

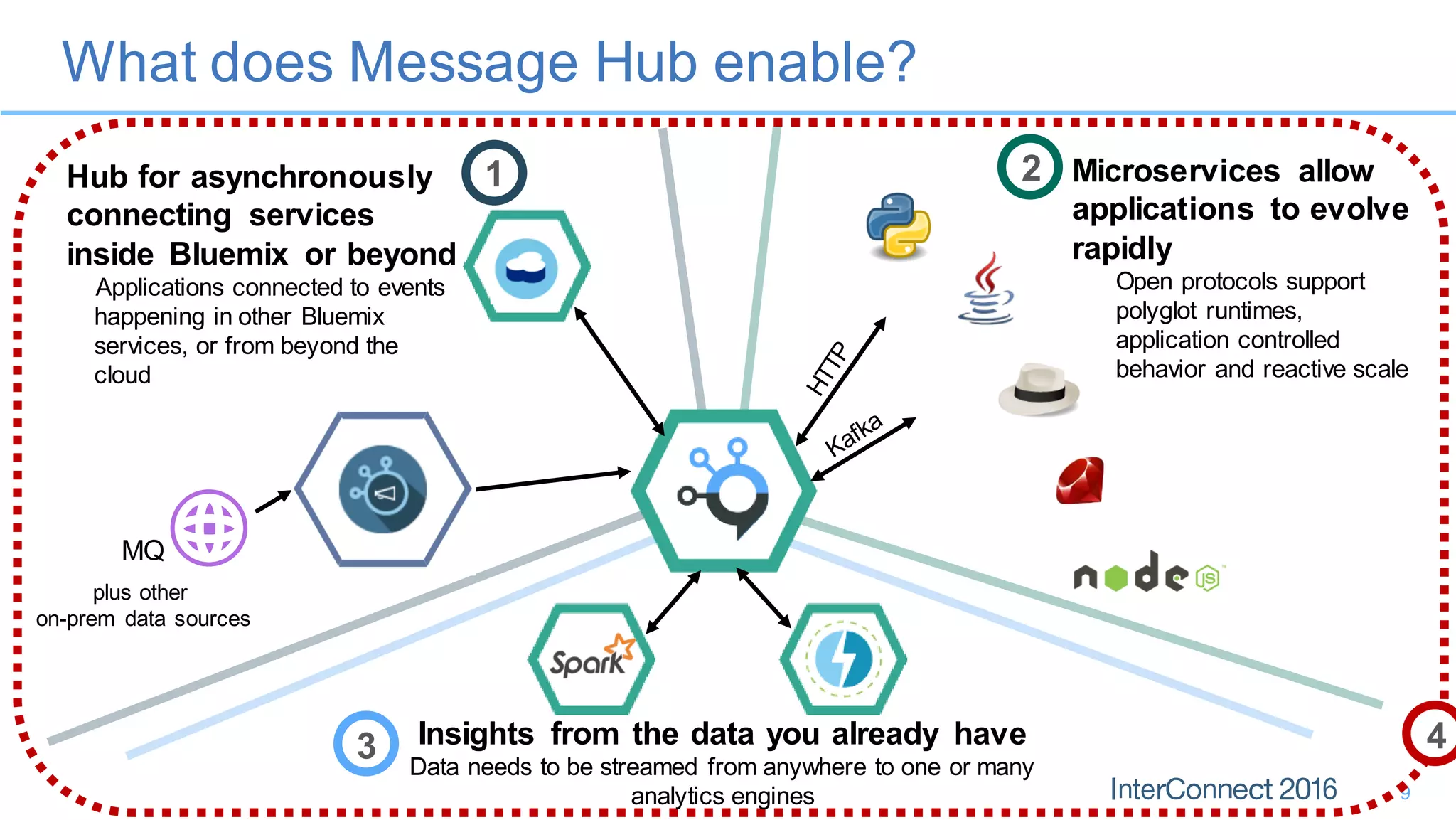

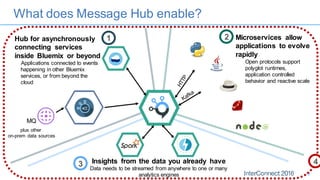

10. What does Message Hub enable?
9
Hub for asynchronously
connecting services
inside Bluemix or beyond
Applications connected to events
happening in other Bluemix
services, or from beyond the
cloud
Insights from the data you already have
Data needs to be streamed from anywhere to one or many
analytics engines
1 2
3
Microservices allow
applications to evolve
rapidly
Open protocols support
polyglot runtimes,
application controlled
behavior and reactive scale
MQ
plus other
on-prem data sources
4

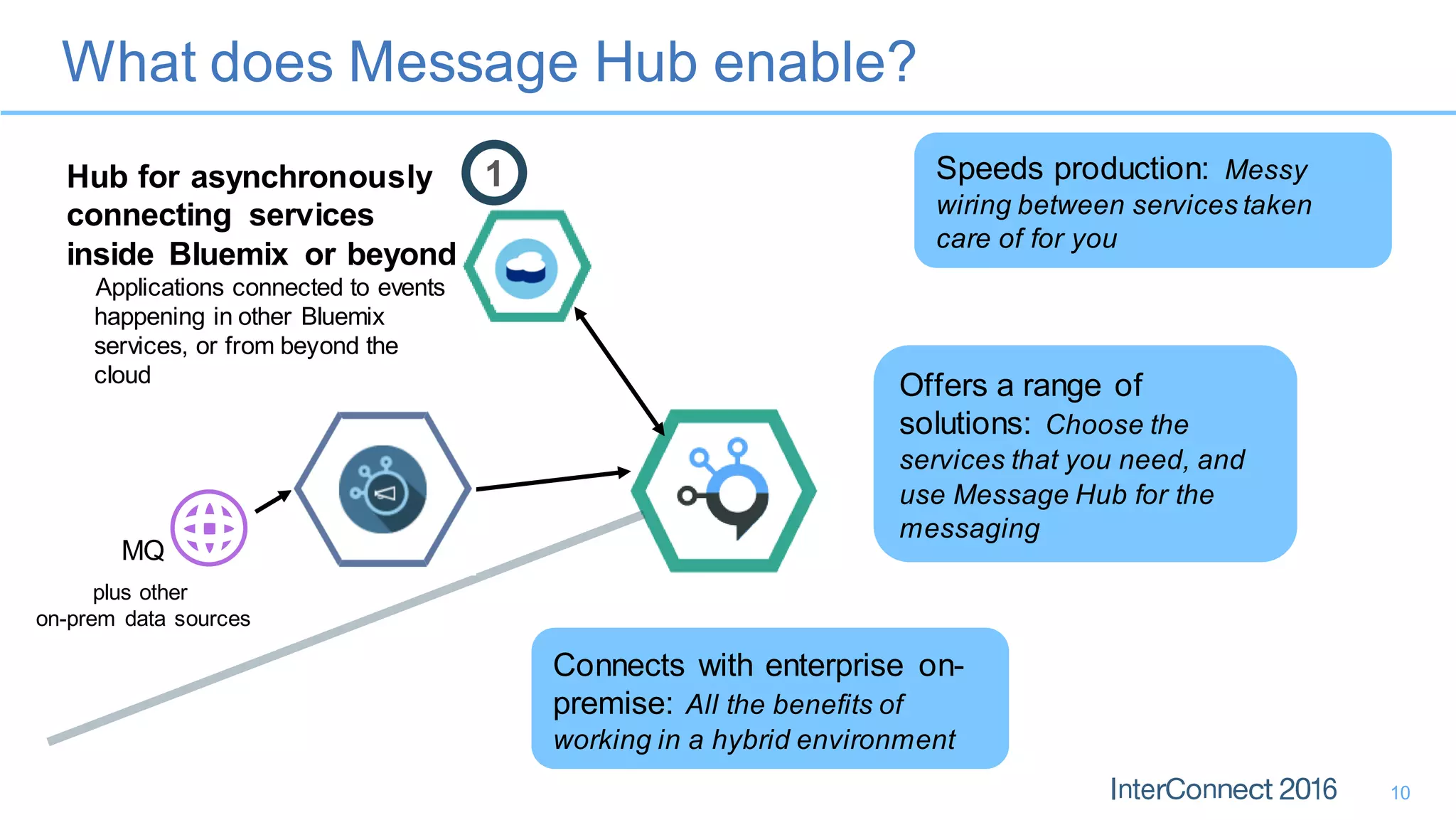

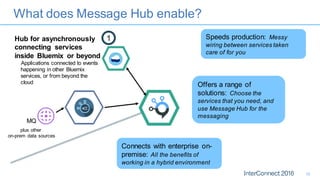

11. What does Message Hub enable?
10
Hub for asynchronously
connecting services
inside Bluemix or beyond
Applications connected to events
happening in other Bluemix
services, or from beyond the
cloud
MQ
plus other
on-prem data sources
Speeds production: Messy
wiring between services taken
care of for you
Offers a range of
solutions: Choose the
services that you need, and
use Message Hub for the
messaging
Connects with enterprise on-
premise: All the benefits of
working in a hybrid environment
1

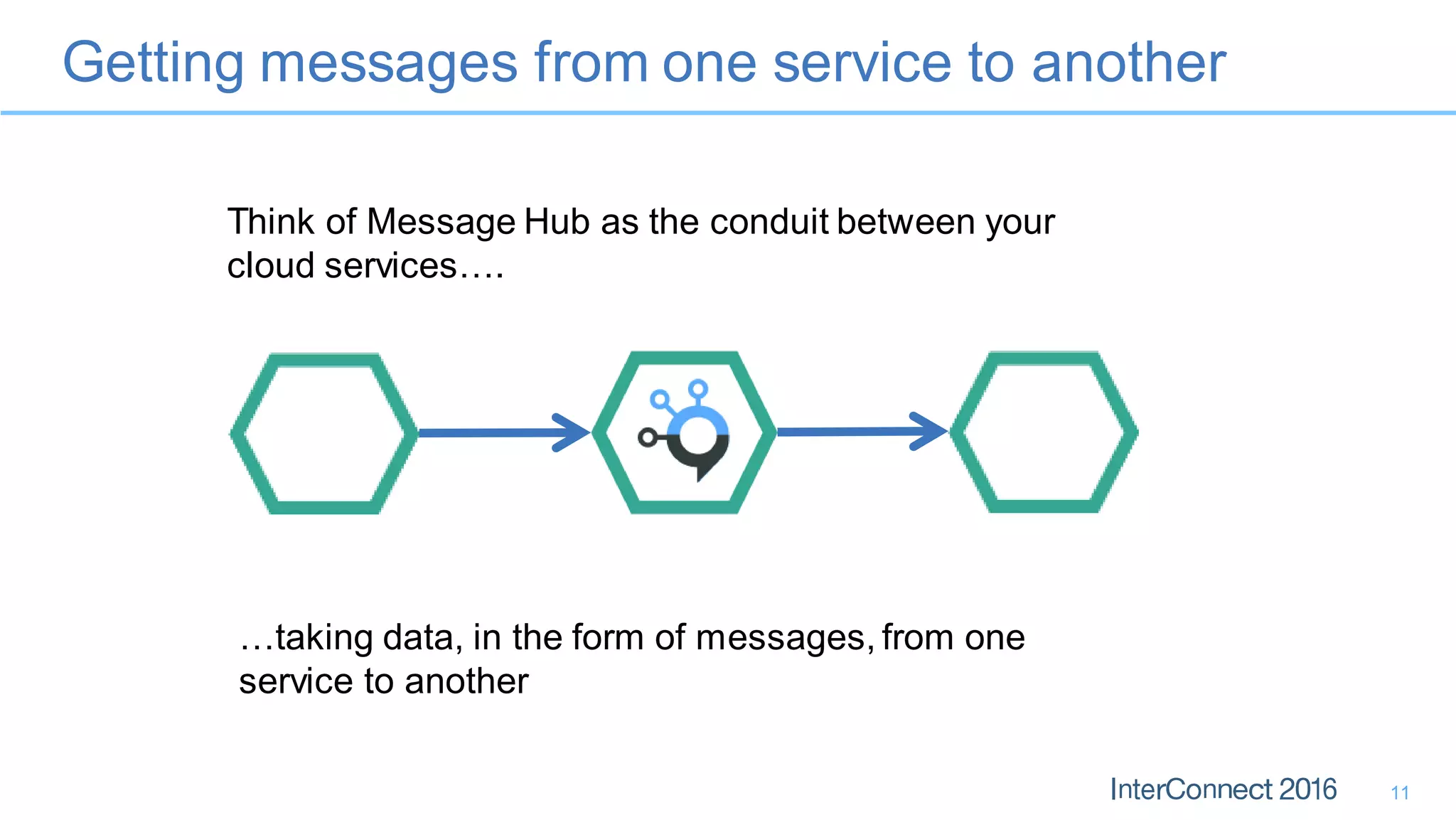

12. Getting messages from one service to another
11
Think of Message Hub as the conduit between your
cloud services….
…taking data, in the form of messages, from one
service to another

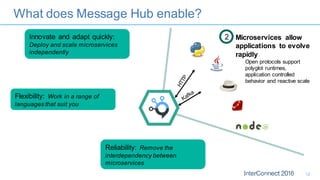

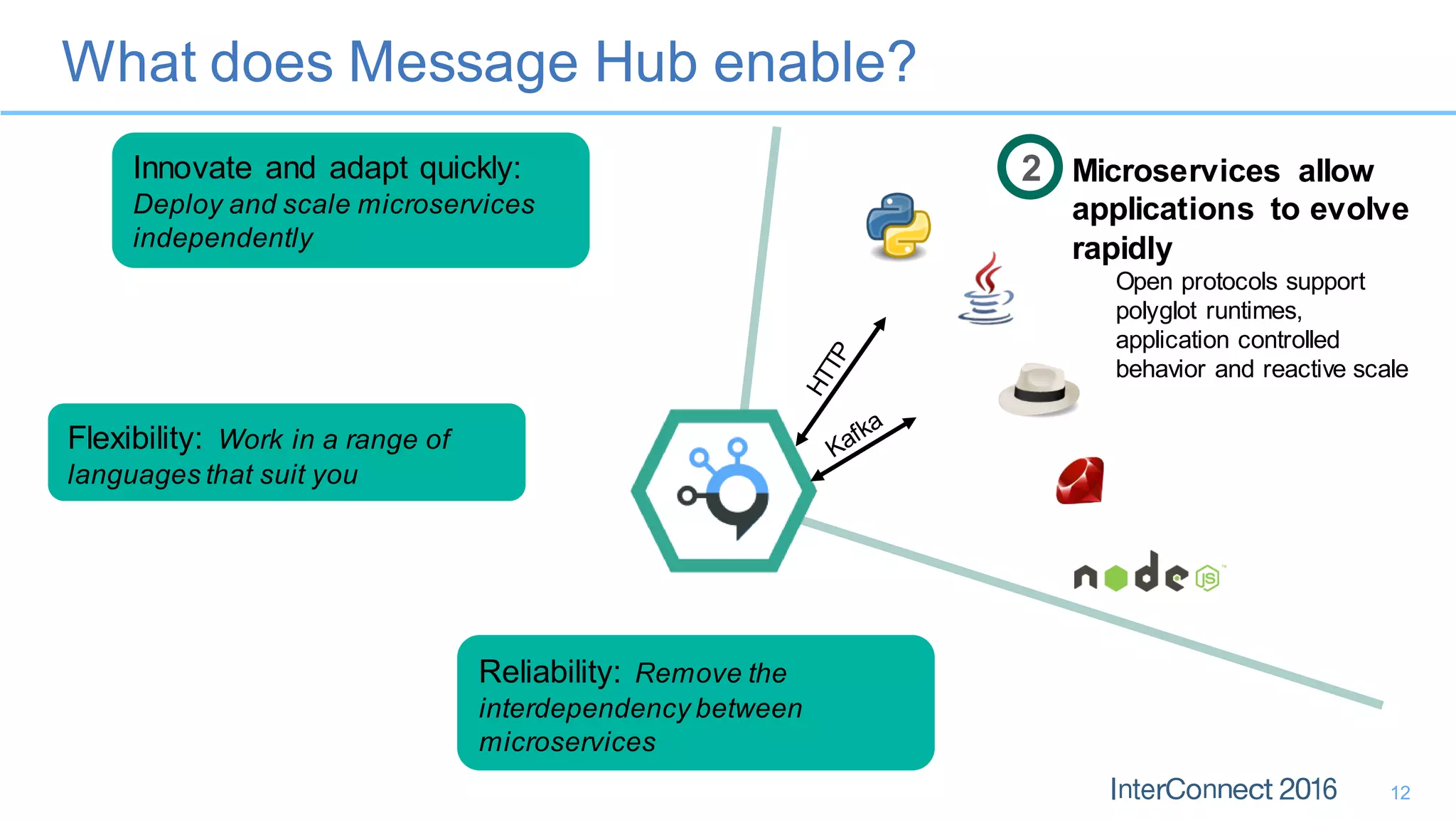

13. What does Message Hub enable?
12
2 Microservices allow
applications to evolve
rapidly
Open protocols support
polyglot runtimes,
application controlled
behavior and reactive scale
Innovate and adapt quickly:
Deploy and scale microservices
independently
Flexibility: Work in a range of
languages that suit you
Reliability: Remove the
interdependency between
microservices

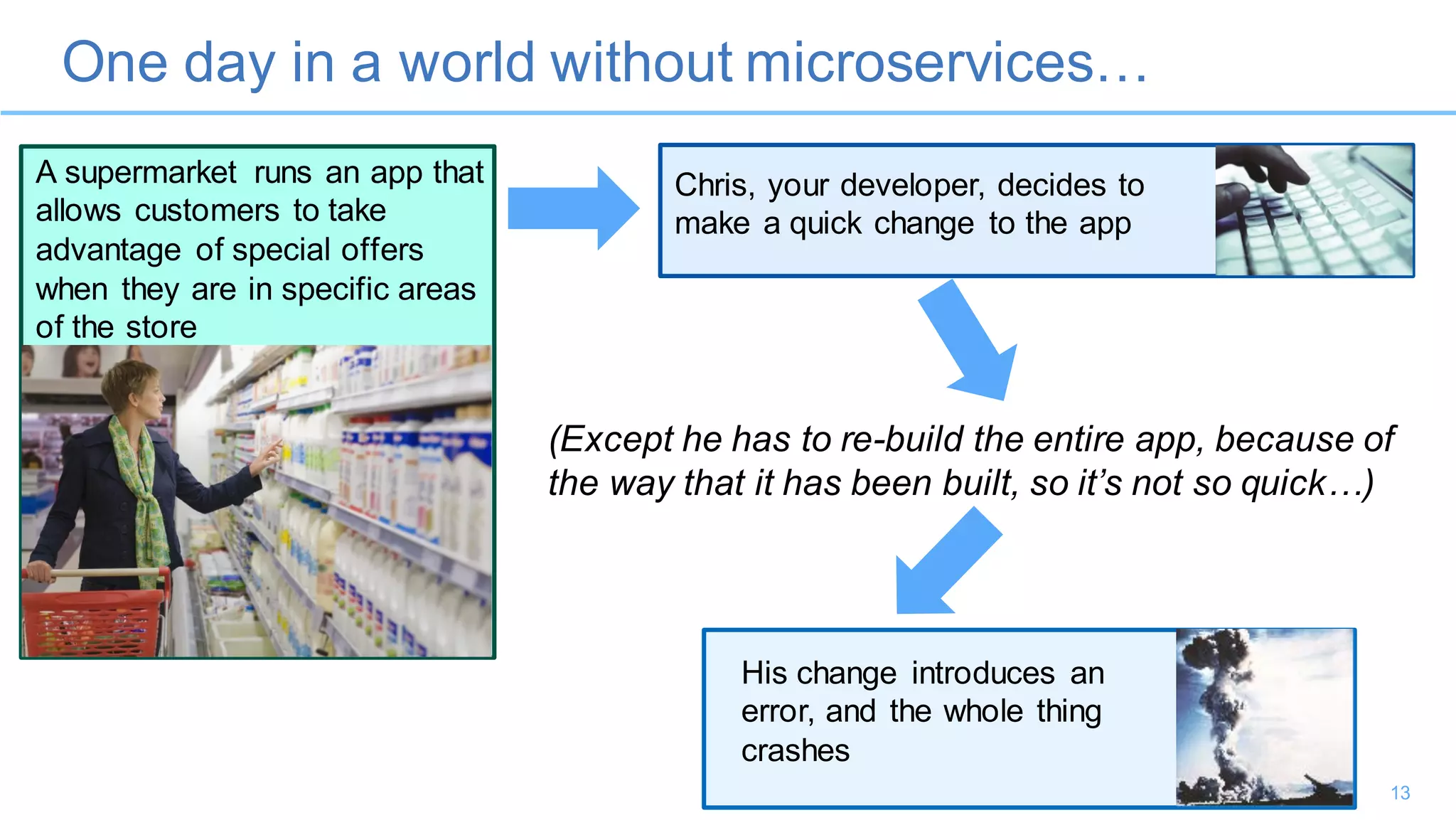

14. One day in a world without microservices…
13
(Except he has to re-build the entire app, because of
the way that it has been built, so it’s not so quick…)
Chris, your developer, decides to
make a quick change to the app
His change introduces an
error, and the whole thing
crashes
A supermarket runs an app that
allows customers to take
advantage of special offers
when they are in specific areas
of the store

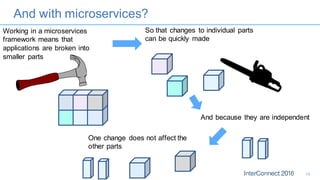

15. And with microservices?
14
Working in a microservices
framework means that
applications are broken into
smaller parts
And because they are independent
So that changes to individual parts
can be quickly made
One change does not affect the
other parts

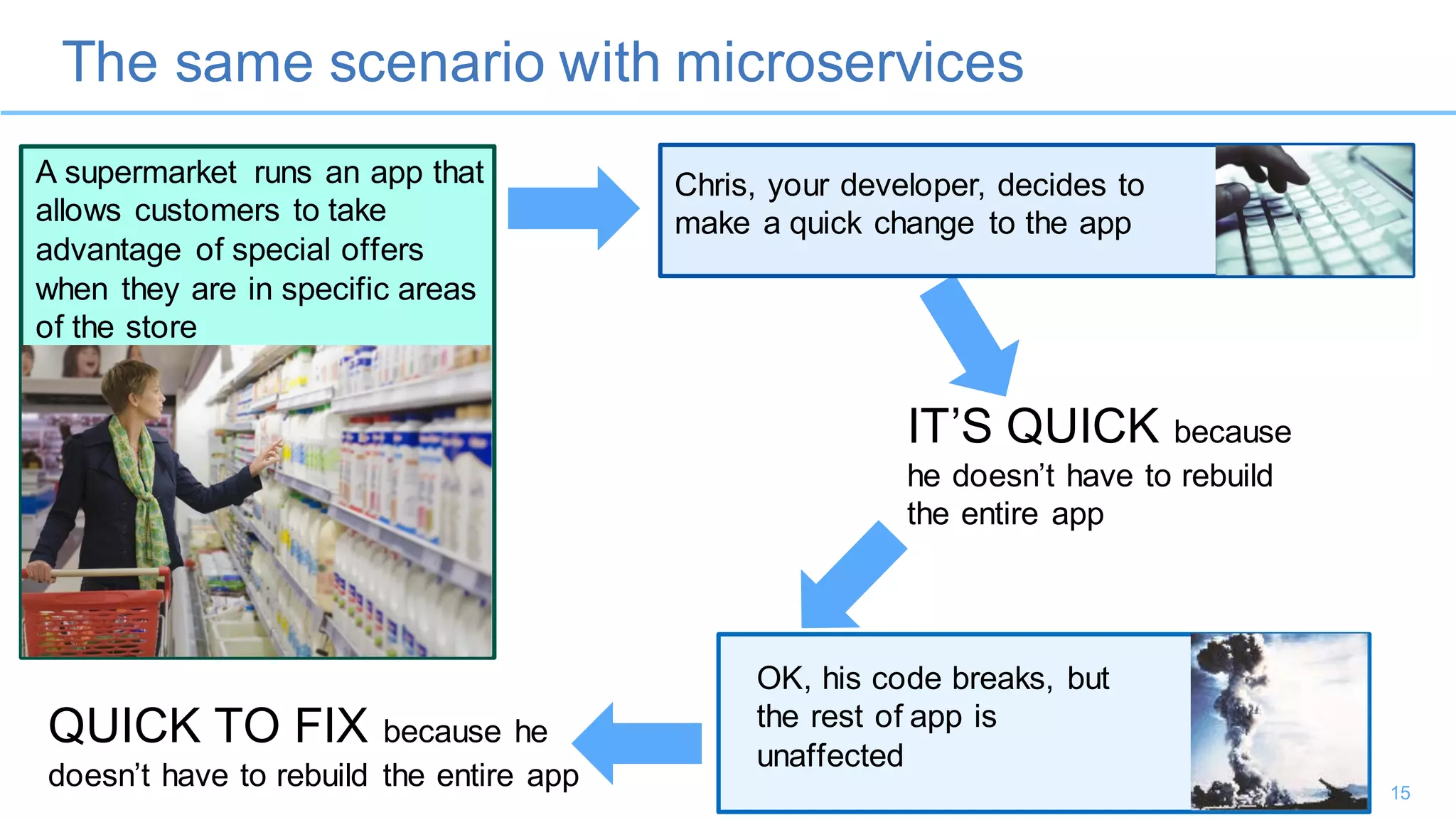

16. The same scenario with microservices
15
IT’S QUICK because
he doesn’t have to rebuild
the entire app
OK, his code breaks, but
the rest of app is
unaffected
QUICK TO FIX because he
doesn’t have to rebuild the entire app
Chris, your developer, decides to
make a quick change to the app
A supermarket runs an app that
allows customers to take
advantage of special offers
when they are in specific areas
of the store

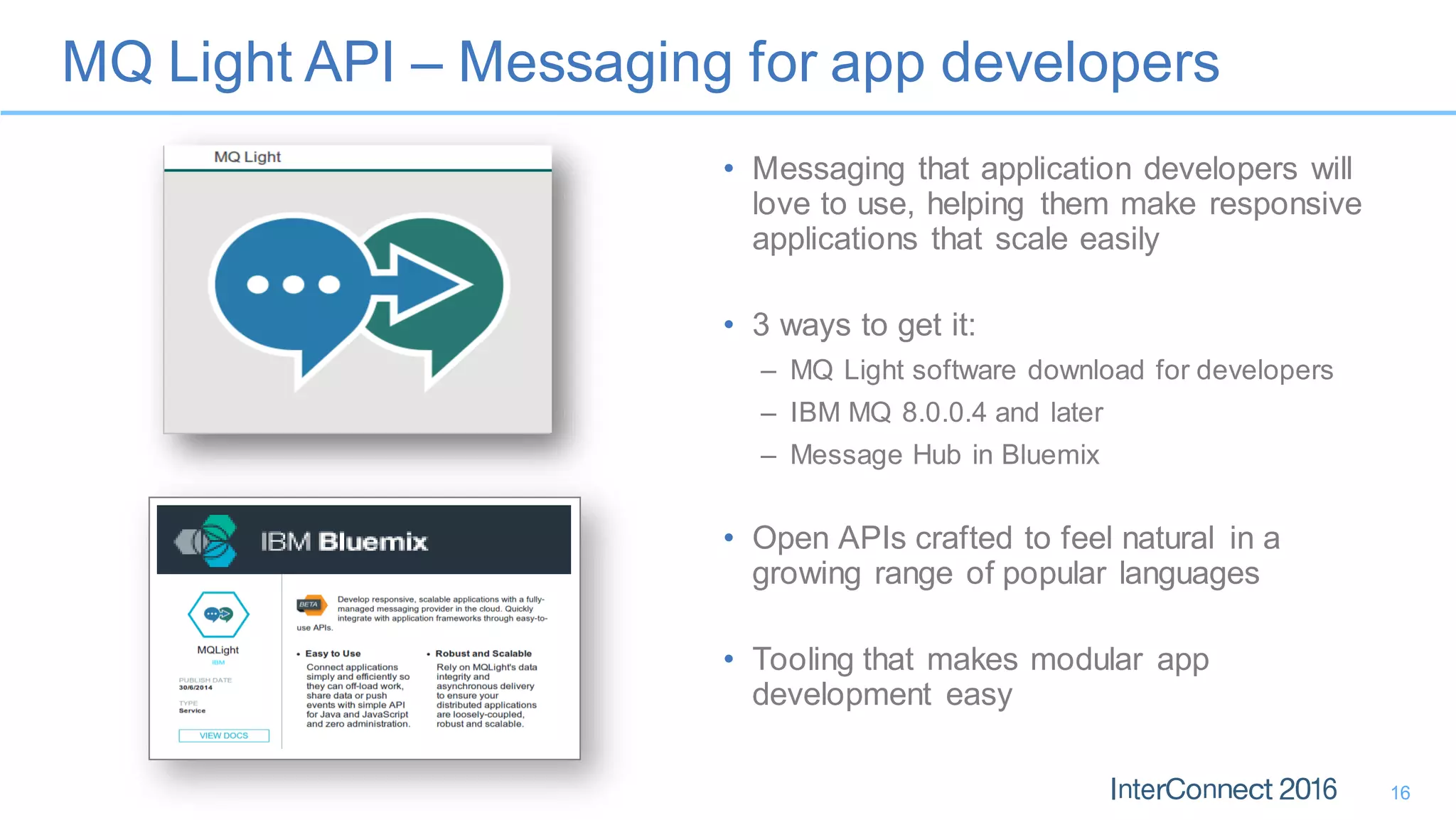

17. MQ Light API – Messaging for app developers
• Messaging that application developers will
love to use, helping them make responsive
applications that scale easily
• 3 ways to get it:
– MQ Light software download for developers
– IBM MQ 8.0.0.4 and later
– Message Hub in Bluemix
• Open APIs crafted to feel natural in a
growing range of popular languages
• Tooling that makes modular app
development easy
16

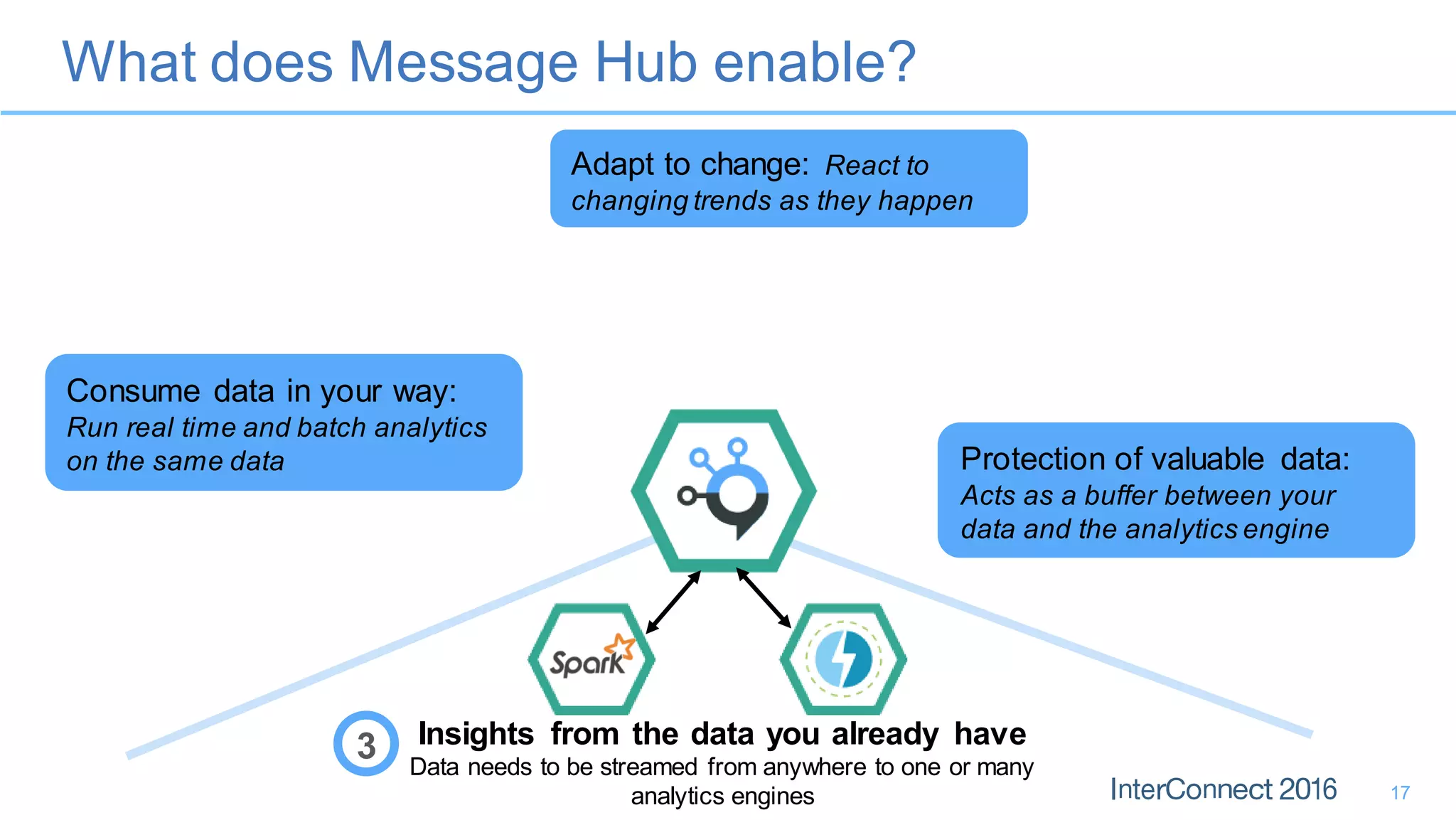

18. What does Message Hub enable?
17
Insights from the data you already have
Data needs to be streamed from anywhere to one or many
analytics engines
3
Adapt to change: React to
changing trends as they happen
Consume data in your way:
Run real time and batch analytics
on the same data Protection of valuable data:
Acts as a buffer between your
data and the analytics engine

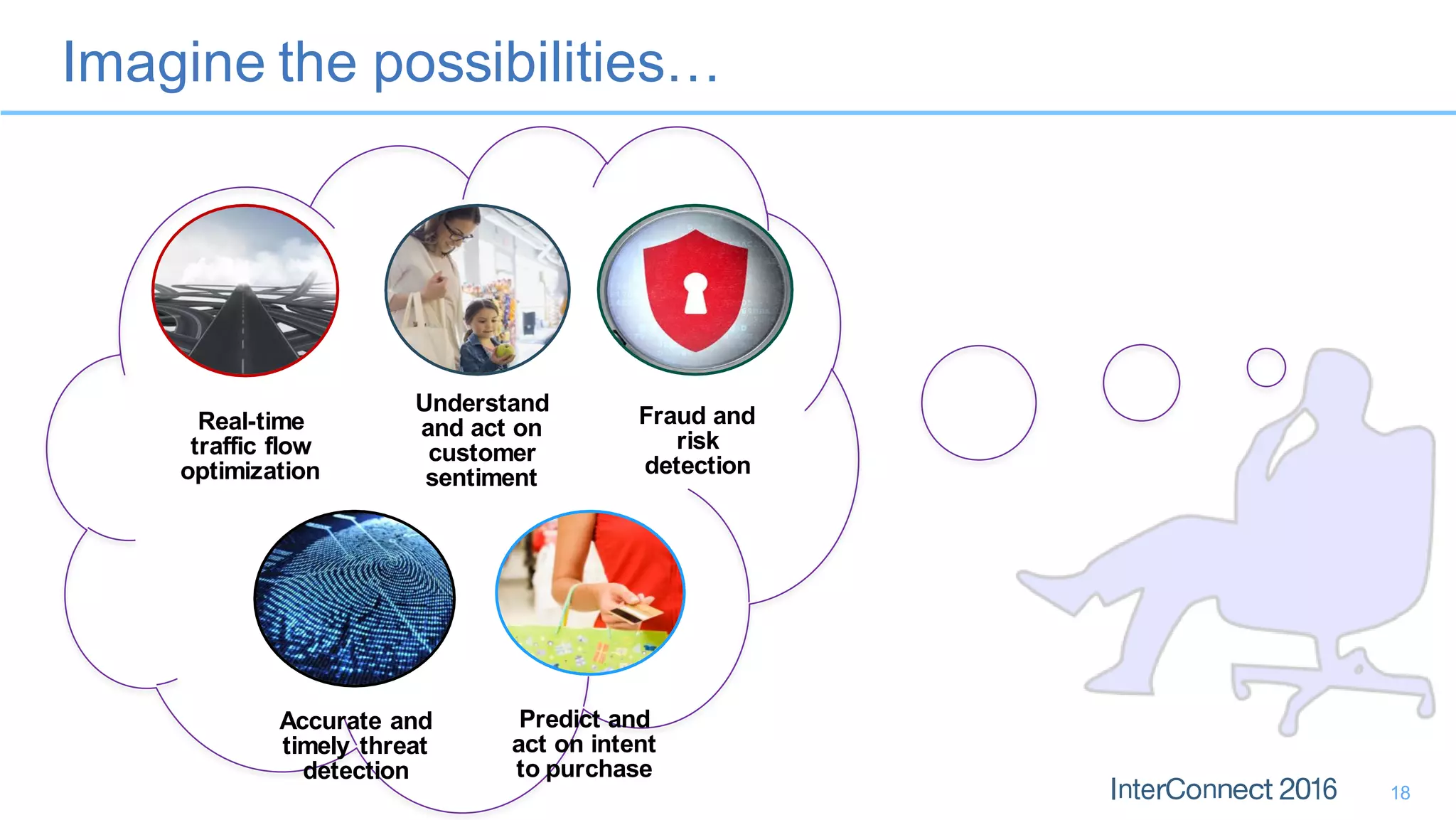

19. Imagine the possibilities…
18
Fraud and
risk
detection
Real-time
traffic flow
optimization
Accurate and
timely threat
detection
Understand
and act on
customer
sentiment
Predict and
act on intent
to purchase

20. What does Message Hub enable?
19
Hub for asynchronously
connecting services
inside Bluemix or beyond
Applications connected to events
happening in other Bluemix
services, or from beyond the
cloud
Insights from the data you already have
Data needs to be streamed from anywhere to one or many
analytics engines
1 2
3
Microservices allow
applications to evolve
rapidly
Open protocols support
polyglot runtimes,
application controlled
behavior and reactive scale
MQ
plus other
on-prem data sources
4

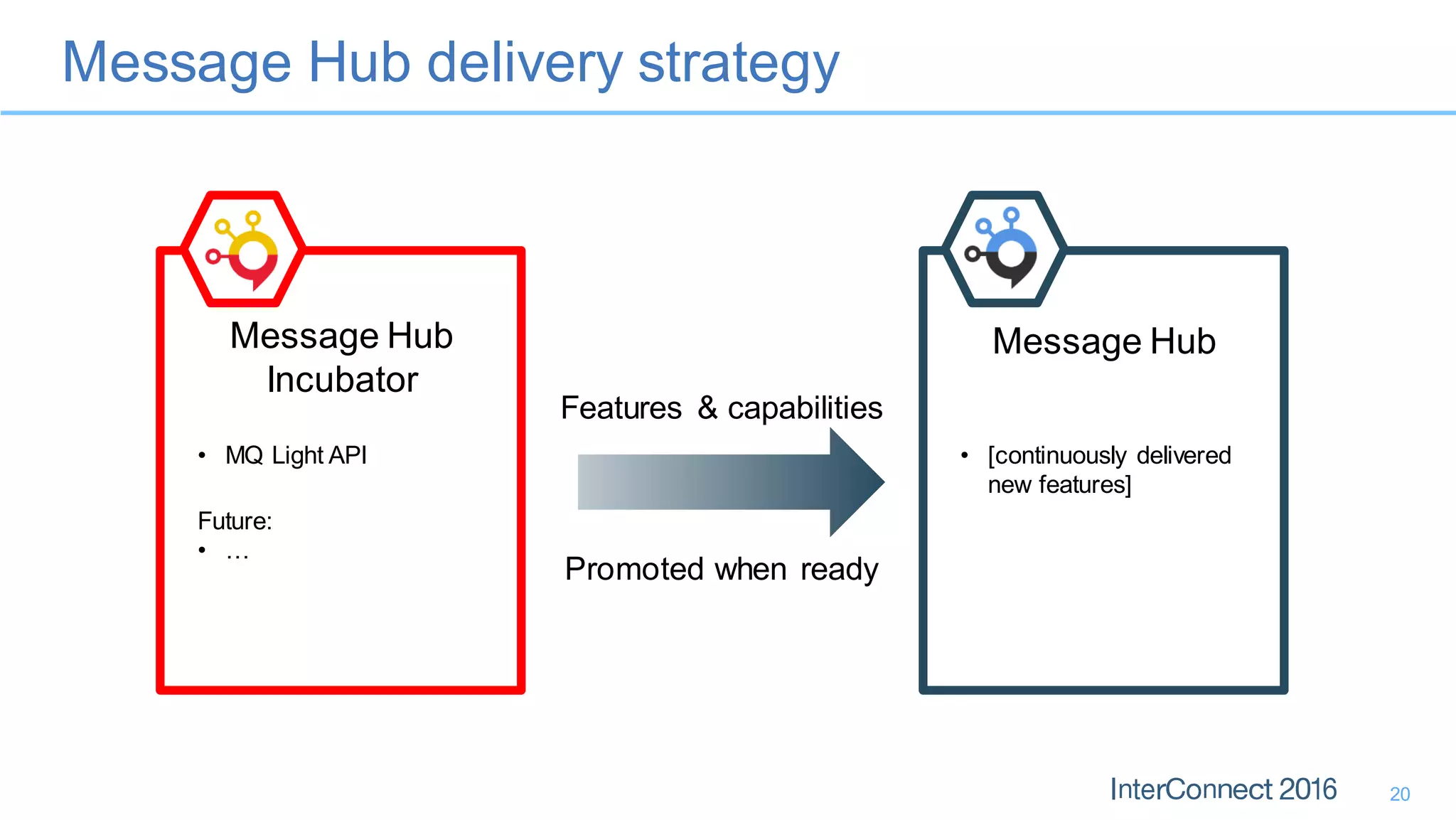

21. Message Hub delivery strategy
20
Message HubMessage Hub
Incubator
Features & capabilities
Promoted when ready
• MQ Light API
Future:
• …
• [continuously delivered
new features]

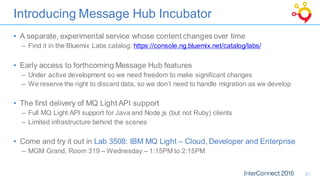

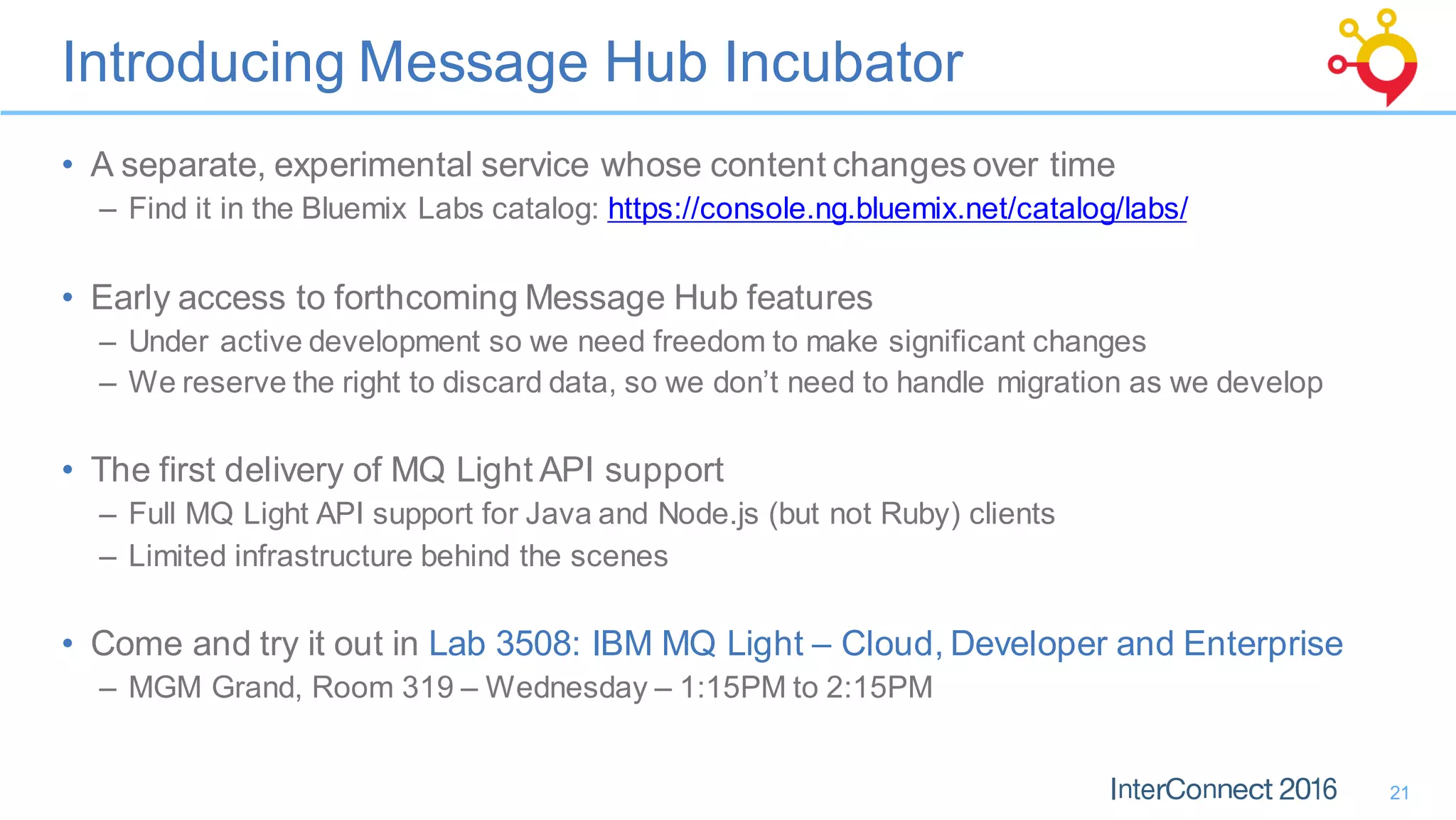

22. Introducing Message Hub Incubator
• A separate, experimental service whose content changes over time
– Find it in the Bluemix Labs catalog: https://console.ng.bluemix.net/catalog/labs/
• Early access to forthcoming Message Hub features
– Under active development so we need freedom to make significant changes
– We reserve the right to discard data, so we don’t need to handle migration as we develop
• The first delivery of MQ Light API support
– Full MQ Light API support for Java and Node.js (but not Ruby) clients
– Limited infrastructure behind the scenes
• Come and try it out in Lab 3508: IBM MQ Light – Cloud, Developer and Enterprise
– MGM Grand, Room 319 – Wednesday – 1:15PM to 2:15PM
21

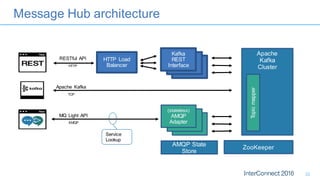

23. AMQP
Adapter
Message Hub architecture
Apache
Kafka
Cluster
HTTP Load
Balancer
MQ Light API
AMQP
RESTful API
HTTP
Apache Kafka
TCP
Topicmapper
ZooKeeper
AMQP
Adapter
(stateless)
AMQP
Adapter
AMQP
Adapter
AMQP
Adapter
Kafka
REST
Interface
AMQP State
Store
Service
Lookup
22

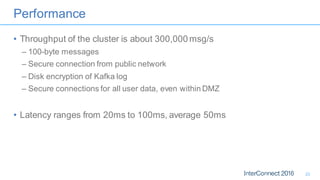

24. Performance
• Throughput of the cluster is about 300,000 msg/s
– 100-byte messages
– Secure connection from public network
– Disk encryption of Kafka log
– Secure connections for all user data, even within DMZ
• Latency ranges from 20ms to 100ms, average 50ms
23

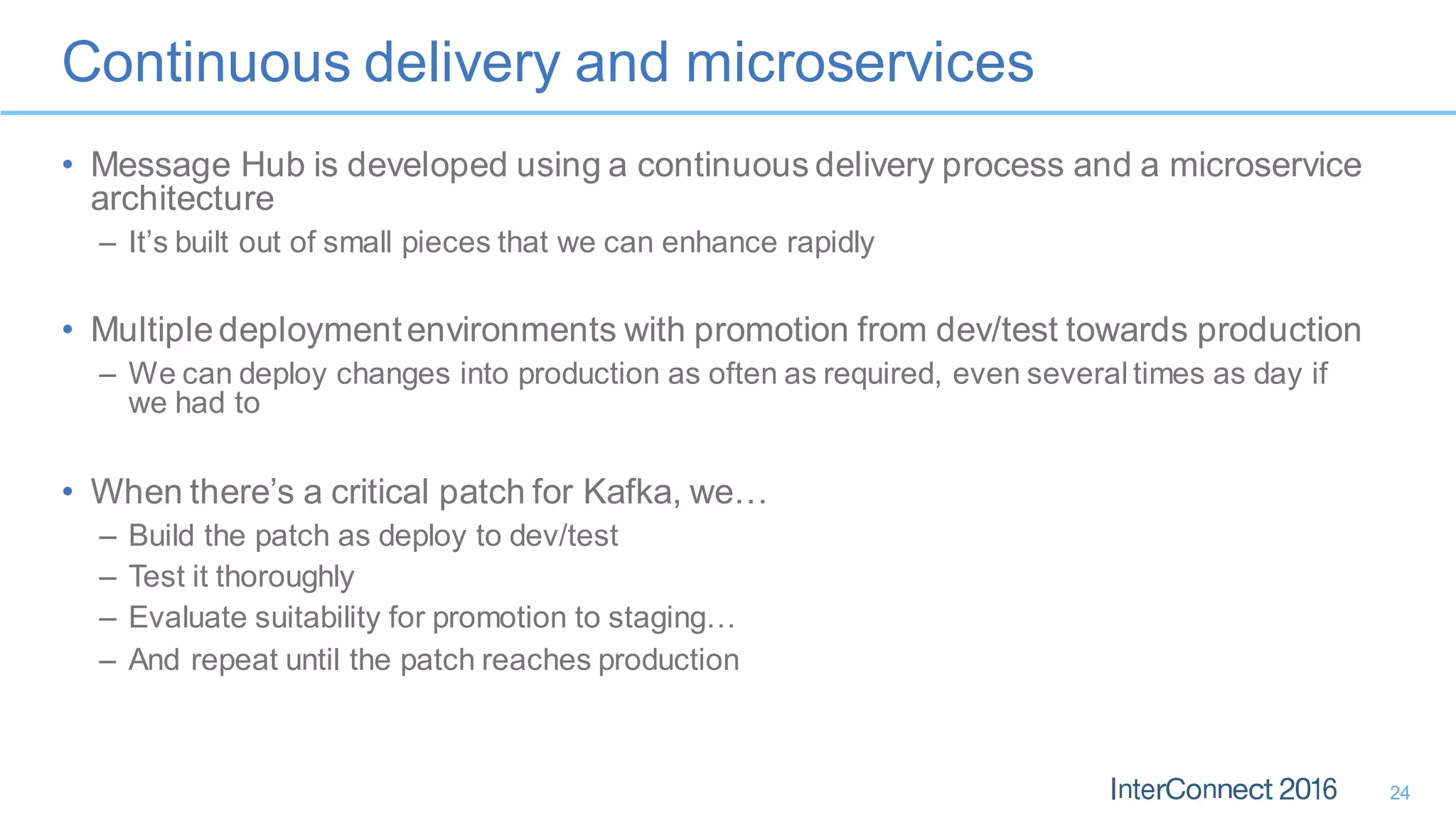

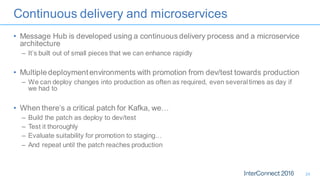

25. Continuous delivery and microservices
• Message Hub is developed using a continuous delivery process and a microservice
architecture
– It’s built out of small pieces that we can enhance rapidly
• Multiple deploymentenvironments with promotion from dev/test towards production
– We can deploy changes into production as often as required, even several times as day if
we had to
• When there’s a critical patch for Kafka, we…
– Build the patch as deploy to dev/test
– Test it thoroughly
– Evaluate suitability for promotion to staging…
– And repeat until the patch reaches production
24

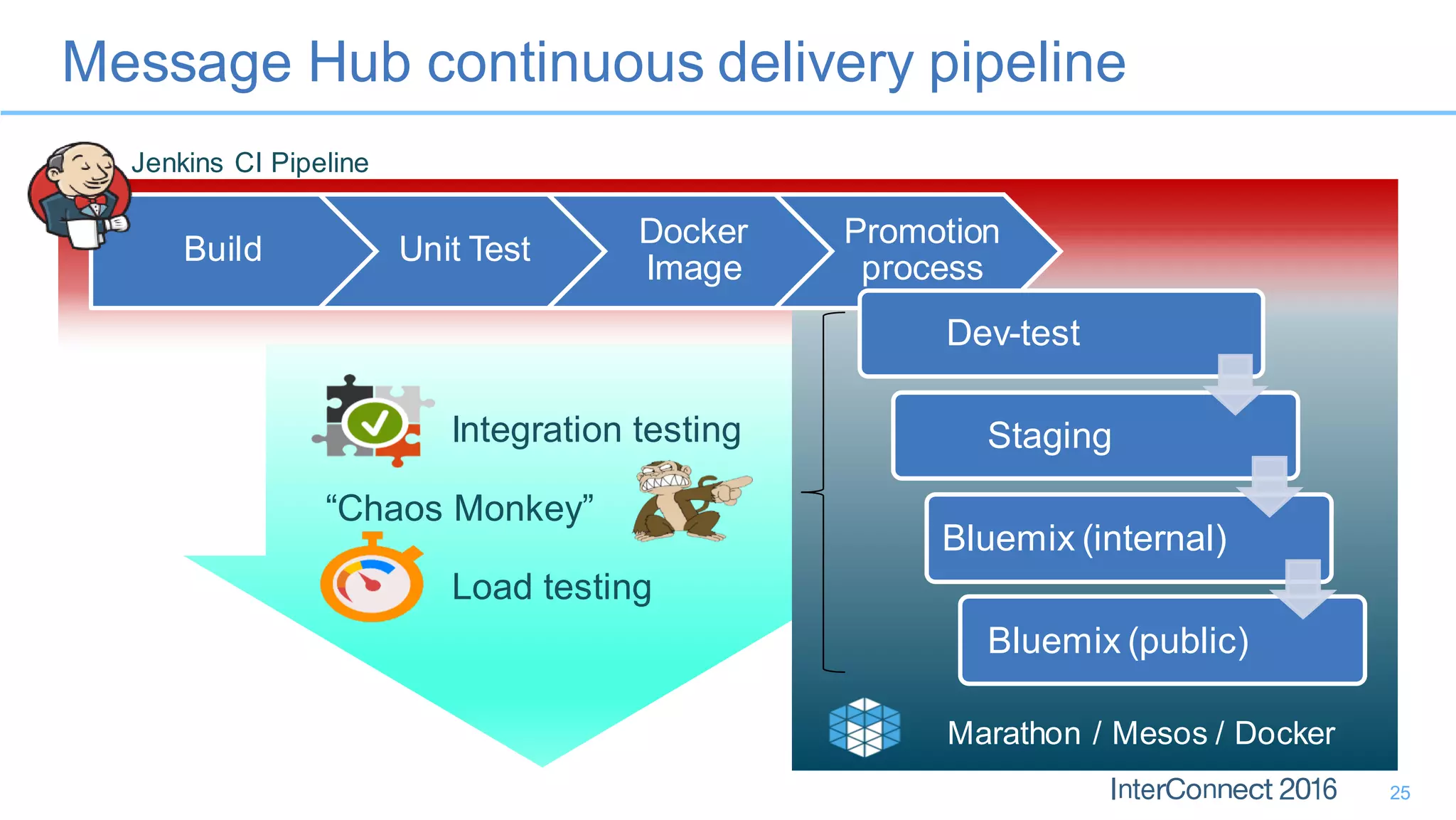

26. Message Hub continuous delivery pipeline
Build Unit Test
Docker
Promotion
process
Dev-test
Staging
Bluemix (internal)
Bluemix (public)
Marathon / Mesos / Docker
Jenkins CI Pipeline
Integration testing
“Chaos Monkey”
Load testing
25

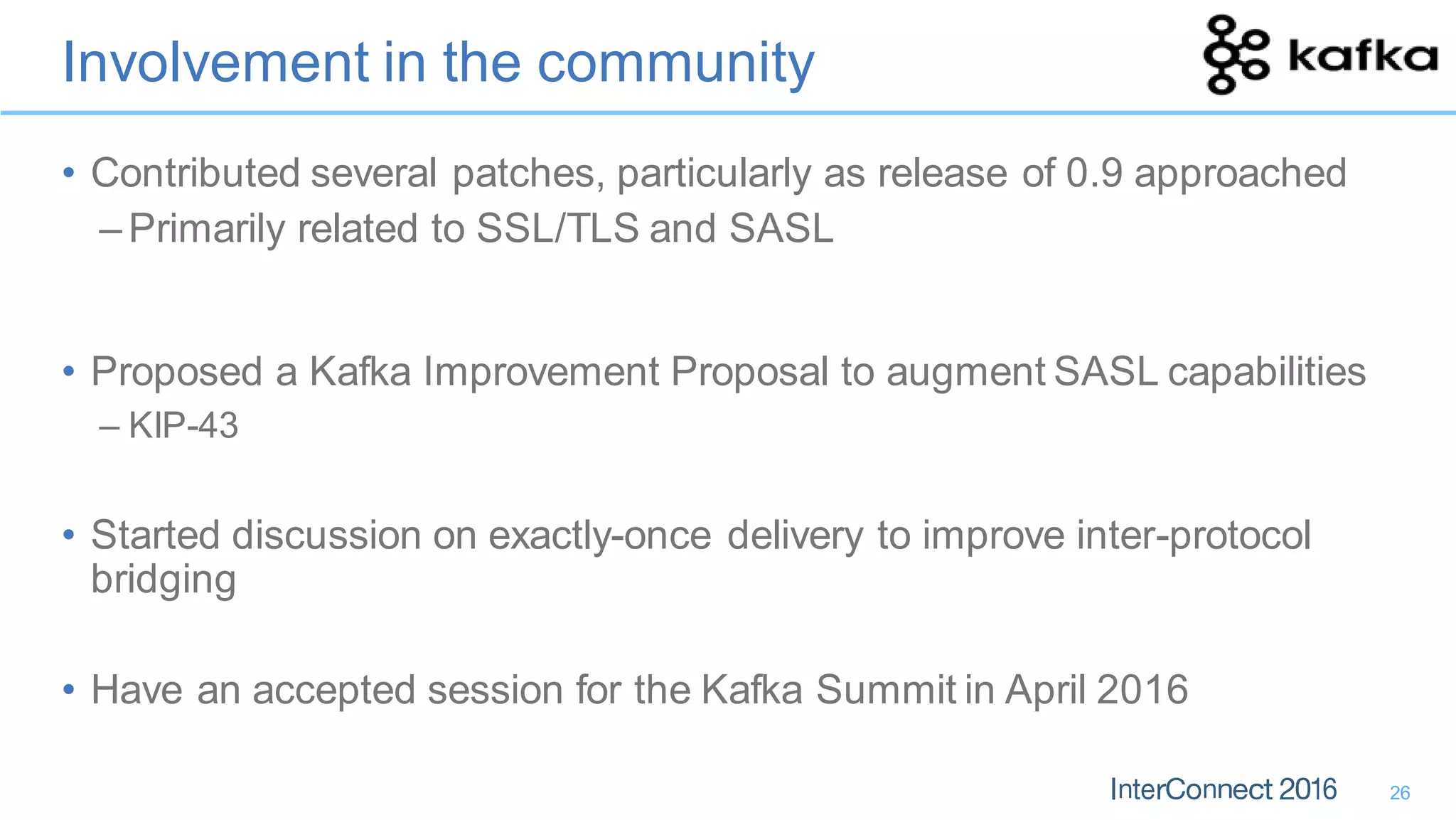

27. Involvement in the community
• Contributed several patches, particularly as release of 0.9 approached
– Primarily related to SSL/TLS and SASL
• Proposed a Kafka Improvement Proposal to augment SASL capabilities
– KIP-43
• Started discussion on exactly-once delivery to improve inter-protocol
bridging
• Have an accepted session for the Kafka Summit in April 2016
26

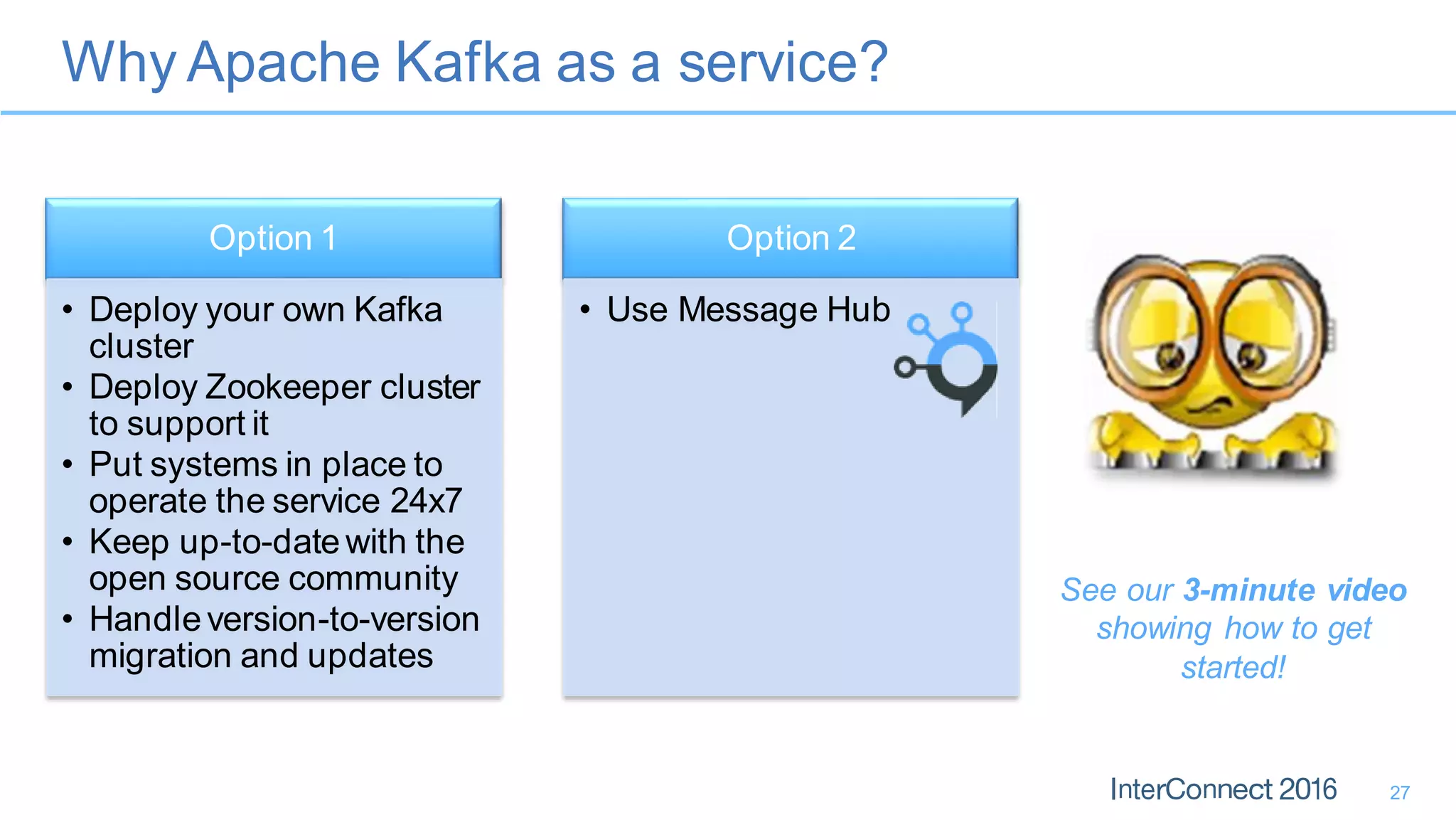

28. Why Apache Kafka as a service?
27
Option 1
• Deploy your own Kafka
cluster
• Deploy Zookeeper cluster
to support it
• Put systems in place to
operate the service 24x7
• Keep up-to-date with the
open source community
• Handleversion-to-version
migration and updates
Option 2
• Use Message Hub
See our 3-minute video
showing how to get
started!

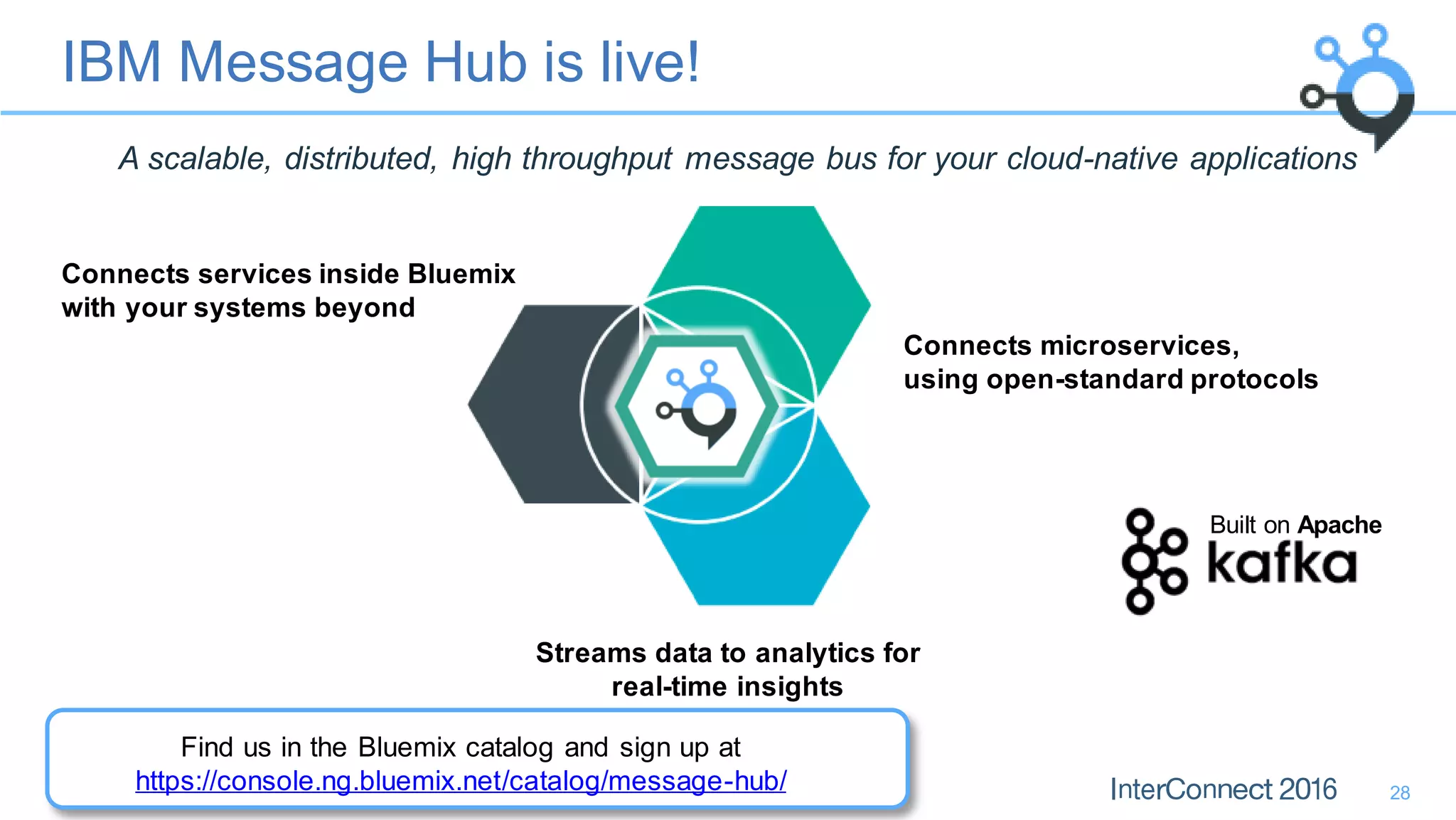

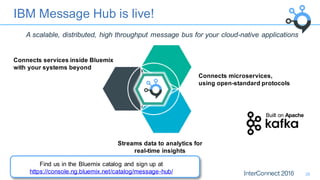

29. IBM Message Hub is live!
28
A scalable, distributed, high throughput message bus for your cloud-native applications
Connects services inside Bluemix
with your systems beyond
Connects microservices,
using open-standard protocols
Streams data to analytics for
real-time insights
Find us in the Bluemix catalog and sign up at
https://console.ng.bluemix.net/catalog/message-hub/
Built on Apache

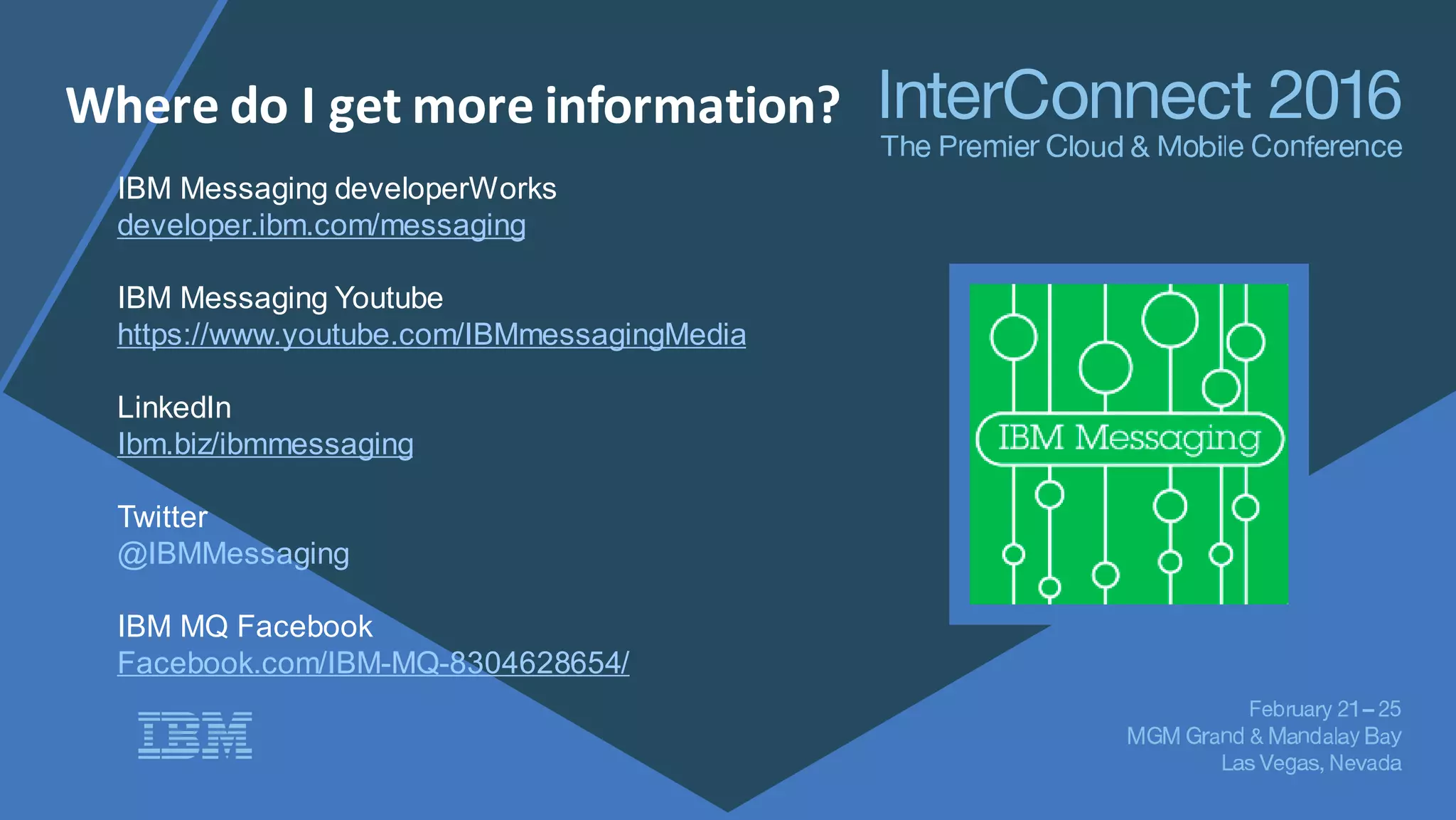

30. Where do I get more information?
IBM Messaging developerWorks
developer.ibm.com/messaging
IBM Messaging Youtube
https://www.youtube.com/IBMmessagingMedia
LinkedIn
Ibm.biz/ibmmessaging
Twitter
@IBMMessaging
IBM MQ Facebook
Facebook.com/IBM-MQ-8304628654/

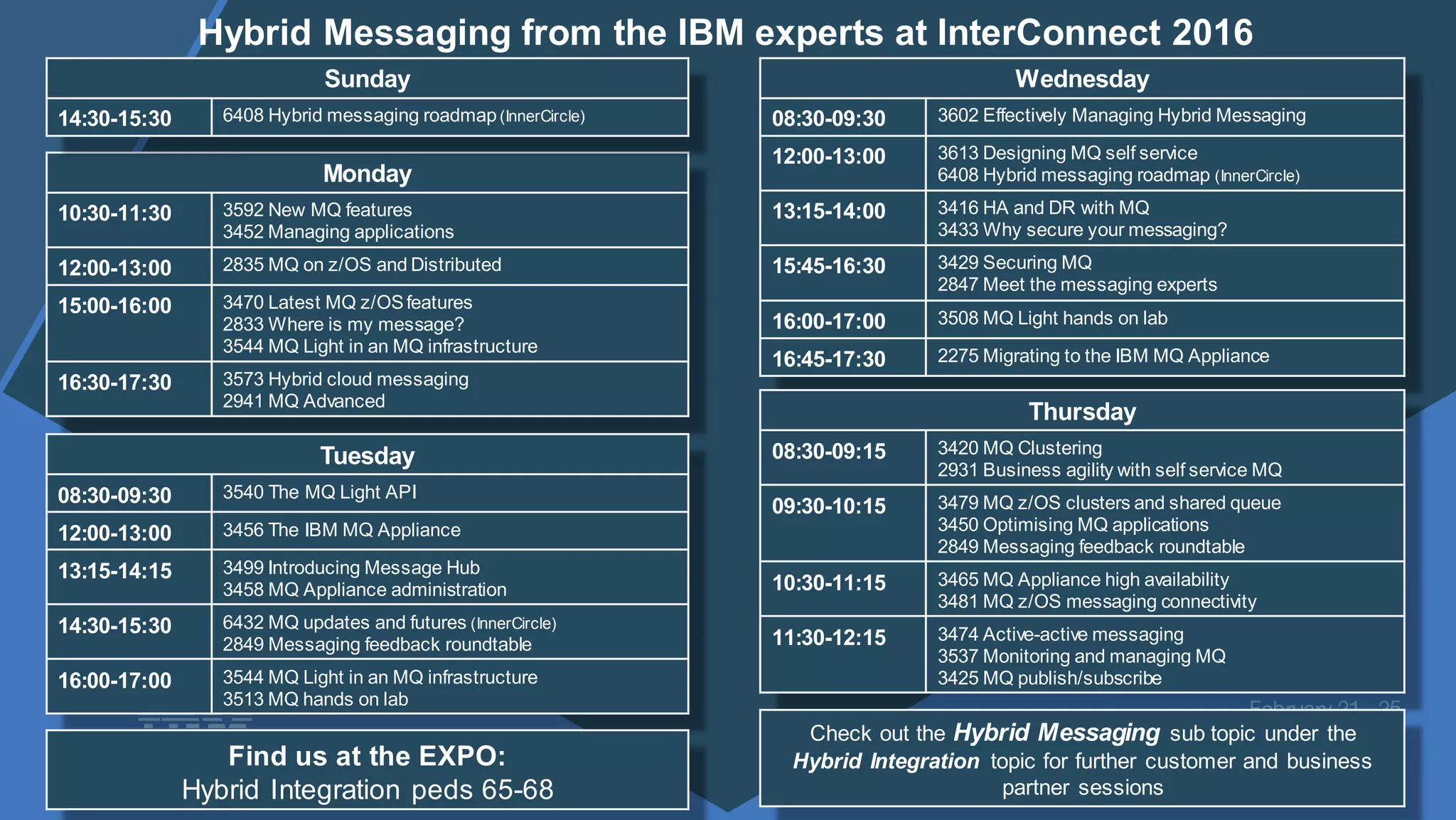

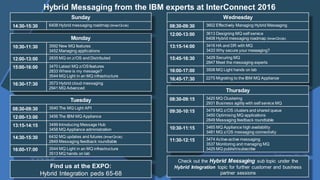

31. Monday
10:30-11:30 3592 New MQ features
3452 Managing applications
12:00-13:00 2835 MQ on z/OS and Distributed
15:00-16:00 3470 Latest MQ z/OSfeatures
2833 Where is my message?
3544 MQ Light in an MQ infrastructure
16:30-17:30 3573 Hybrid cloud messaging
2941 MQ Advanced
Tuesday
08:30-09:30 3540 The MQ Light API
12:00-13:00 3456 The IBM MQ Appliance
13:15-14:15 3499 Introducing Message Hub
3458 MQ Appliance administration
14:30-15:30 6432 MQ updates and futures (InnerCircle)
2849 Messaging feedback roundtable
16:00-17:00 3544 MQ Light in an MQ infrastructure
3513 MQ hands on lab
Wednesday
08:30-09:30 3602 Effectively Managing Hybrid Messaging
12:00-13:00 3613 Designing MQ self service
6408 Hybrid messaging roadmap (InnerCircle)
13:15-14:00 3416 HA and DR with MQ
3433 Why secure your messaging?
15:45-16:30 3429 Securing MQ
2847 Meet the messaging experts
16:00-17:00 3508 MQ Light hands on lab
16:45-17:30 2275 Migrating to the IBM MQ Appliance
Thursday
08:30-09:15 3420 MQ Clustering
2931 Business agility with self service MQ
09:30-10:15 3479 MQ z/OS clusters and shared queue
3450 Optimising MQ applications
2849 Messaging feedback roundtable
10:30-11:15 3465 MQ Appliance high availability
3481 MQ z/OS messaging connectivity
11:30-12:15 3474 Active-active messaging
3537 Monitoring and managing MQ
3425 MQ publish/subscribe
Find us at the EXPO:
Hybrid Integration peds 65-68
Check out the Hybrid Messaging sub topic under the
Hybrid Integration topic for further customer and business
partner sessions
Hybrid Messaging from the IBM experts at InterConnect 2016
Sunday
14:30-15:30 6408 Hybrid messaging roadmap (InnerCircle)

32. • Hybrid Integration Strategy
• Cloud Integration
• Accelerating Digital Business
• Integration Bus
• IBM MQ
• API Management
• BPM / ODM
• DataPower
• CICS
• WAS
Spend time with IBM experts, at the home of many of IBM's software products. This summit is by
invitation only - a limited seating engagement for executives and architects who would like to learn how to
harness IBM connectivity and application integration solutions to deliver access to data, applications and
information regardless of platform, device or data formats - across both on-premises and cloud
environments.
Learn more about how we are transforming our technologies using Hybrid Cloud to enable you to harness
your existing assets to achieve greater capacity, efficiency and integration across platforms, whilst retaining
the security, capability and resiliency you would expect from IBM.
• Discover and influence IBM's strategy for key messaging and integration technologies, including, IBM
MQ, IBM Integration Bus and IBM API Management
• Engage in technical sessions and one-on-one interactions with top IBM Hursley Lab architects and
senior executives to refine your 2016 strategic plans
• Expand your network with industry-leading peers from other companies
• Plus learn about other IBM technology, such as IBM intelligent business process management solutions
(BPM & ODM), DataPower gateways, CICS and WebSphere Application Server on-premise and cloud
This event is conducted under a Non-Disclosure agreement, so we will be able to share product
directions with you.
Hursley: a visit to talk about
The IBM Hursley Lab is the largest
softw are development facility in Europe;
situated in a beautiful 100 acre park w ith a
historic setting. Attendees stay in the local
city of Winchester w hich is a vibrant
heritage destination w ith many attractions
and classical architecture including a
magnificent cathedral.
Enjoy the aw ard-winning pubs and
restaurants and a tempting array of
independent shops.
Talk to your IBM rep to find out more
Be part of the conversation
Keep up to date with the latest
information, join the conversations
and help to shape the event to
meet your interests. Use
#IBMhursum in your Tweets to
keep in touch.
#IBMhursum
European & North American
Hursley Summit 2016
Integration across applications, data and processes for mobile and cloud
May 10 – 12 & May 16 - 19 | IBM Hursley Lab, UK
#IBMhursum

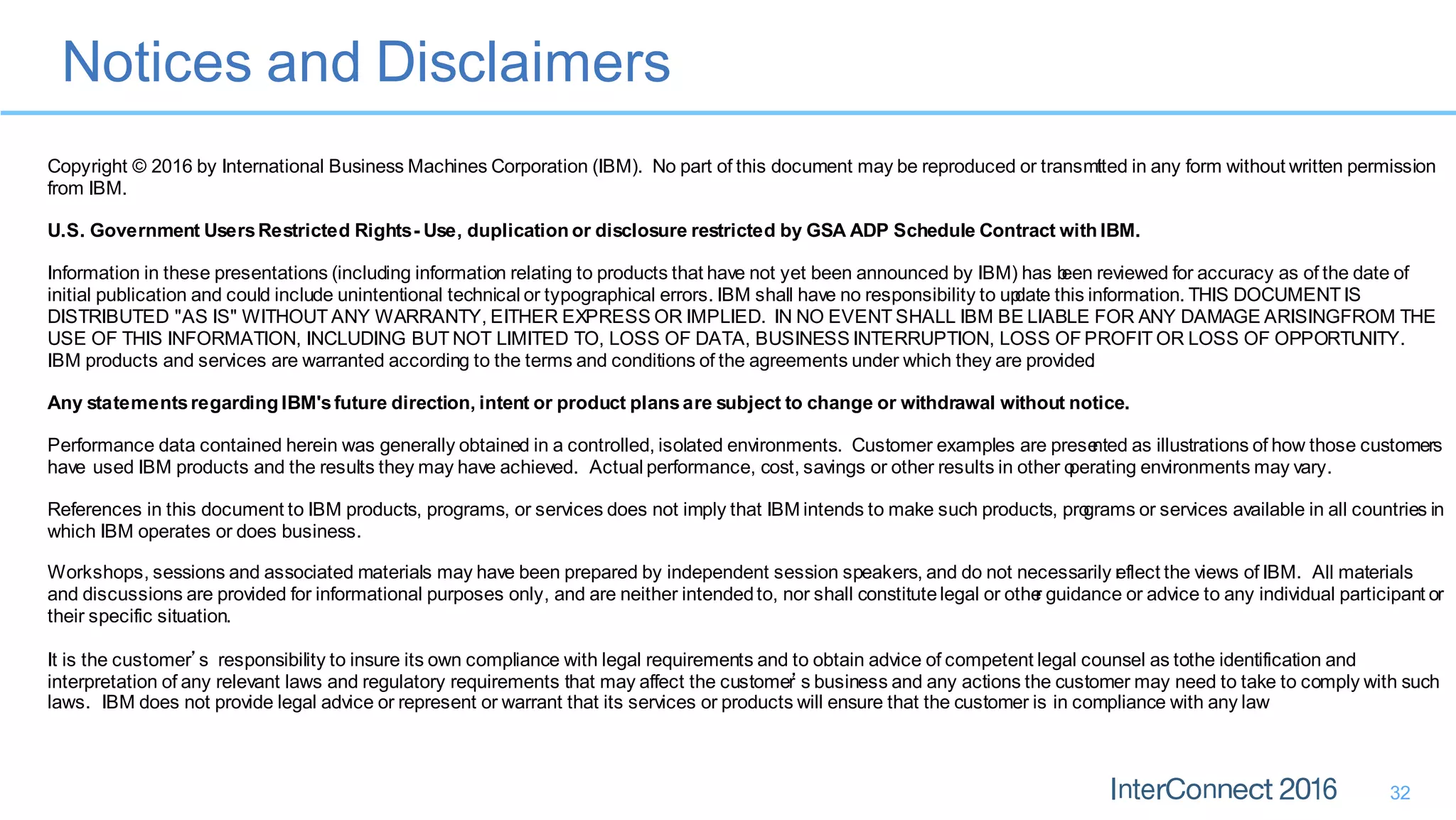

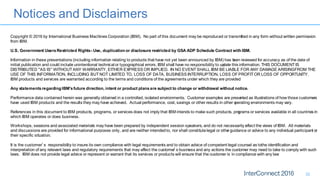

33. Notices and Disclaimers
32
Copyright © 2016 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission
from IBM.
U.S. Government UsersRestricted Rights- Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of
initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS
DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISINGFROM THE
USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY.
IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided.
Any statementsregarding IBM'sfuture direction, intent or product plansare subject to change or withdrawal without notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers
have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in
which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials
and discussions are provided for informational purposes only, and are neither intendedto, nor shall constitutelegal or other guidance or advice to any individual participant or
their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as tothe identification and
interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such
laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law

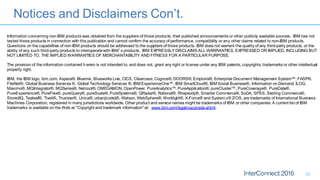

34. Notices and Disclaimers Con’t.
33
Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not
tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products.
Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the
ability of any such third-party products to interoperatewith IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT
NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
The provision of the information contained h erein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual
property right.
IBM, the IBM logo, ibm.com, Aspera®, Bluemix, Blueworks Live, CICS, Clearcase, Cognos®, DOORS®, Emptoris®, Enterprise Document Management System™, FASP®,
FileNet®, Global Business Services ®, Global Technology Services ®, IBM ExperienceOne™, IBM SmartCloud®, IBM Social Business®, Information on Demand, ILOG,
Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®,
PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, Smarter Commerce®, SoDA, SPSS, Sterling Commerce®,
StoredIQ, Tealeaf®, Tivoli®, Trusteer®, Unica®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International Business
Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM
trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.

35. Thank You
Your Feedback is Important!
Access the InterConnect 2016 Conference Attendee
Portal to complete your session surveys from your
smartphone,
laptop or conference kiosk.
