MySQL 8.0 makes it possible to write queries that do more. MySQL can now traverse hierarchies, analyze data in new ways, and combine JSON and spatial data with traditional types — all in the same query. In this presentation, we'll look at common table expressions (CTEs), window functions, geography support and JSON functionality, and how these can be used to do things no MySQL query has ever done before.

1. Copyright © 2018 Oracle and/or its afliates. All rights reserved.
More SQL in MySQL 8.0
Norvald H. Ryeng
Sofware Development Senior Manager
MySQL Optmizer Team
November, 2018

2. 2Copyright © 2018 Oracle and/or its afliates. All rights reserved.

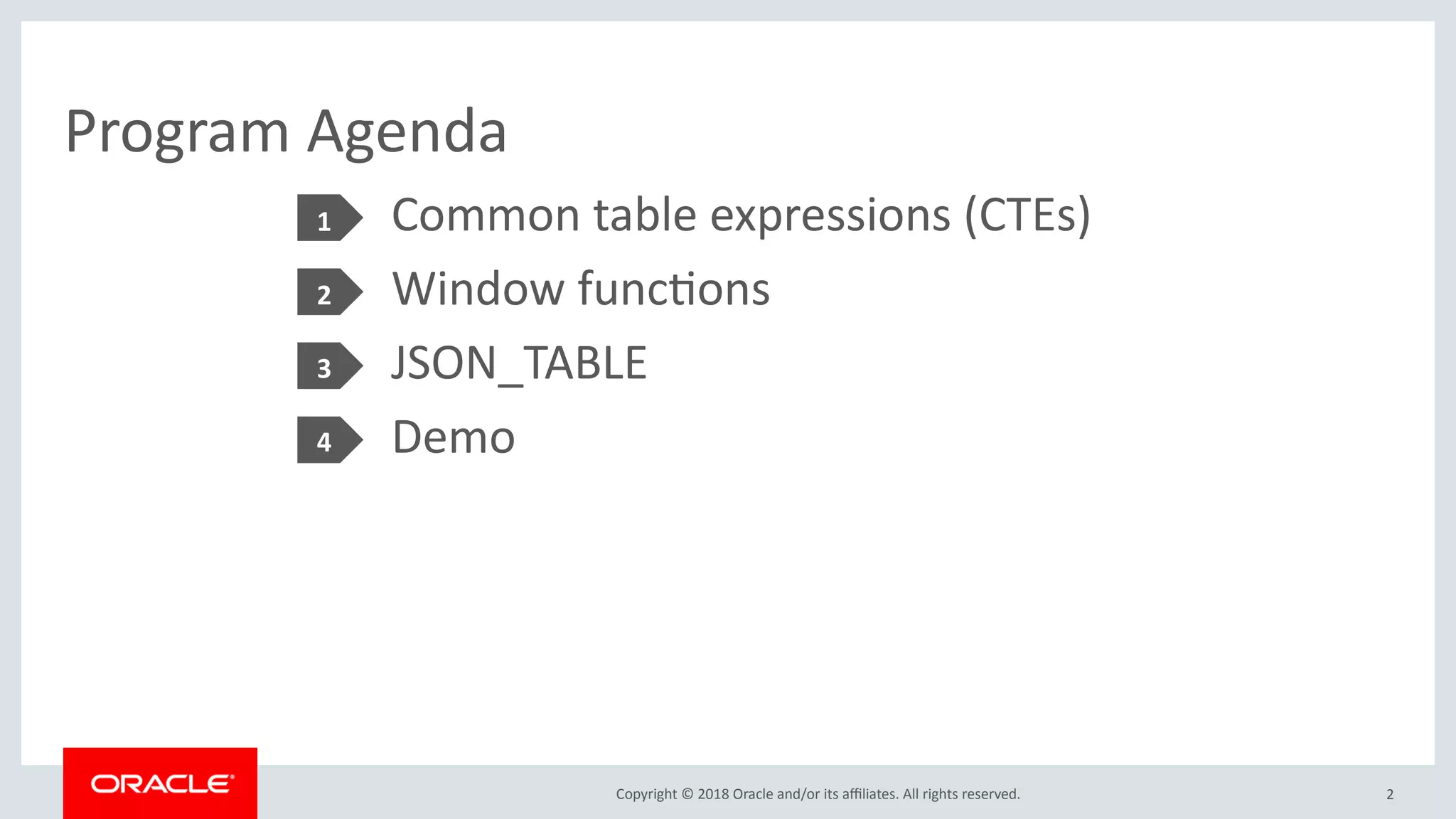

Program Agenda
Common table expressions (CTEs)
Window functons
JSON_TABLE
Demo
1
2
3
4
5
6
7

3. 3Copyright © 2018 Oracle and/or its afliates. All rights reserved.
Theory

4. 4Copyright © 2018 Oracle and/or its afliates. All rights reserved.

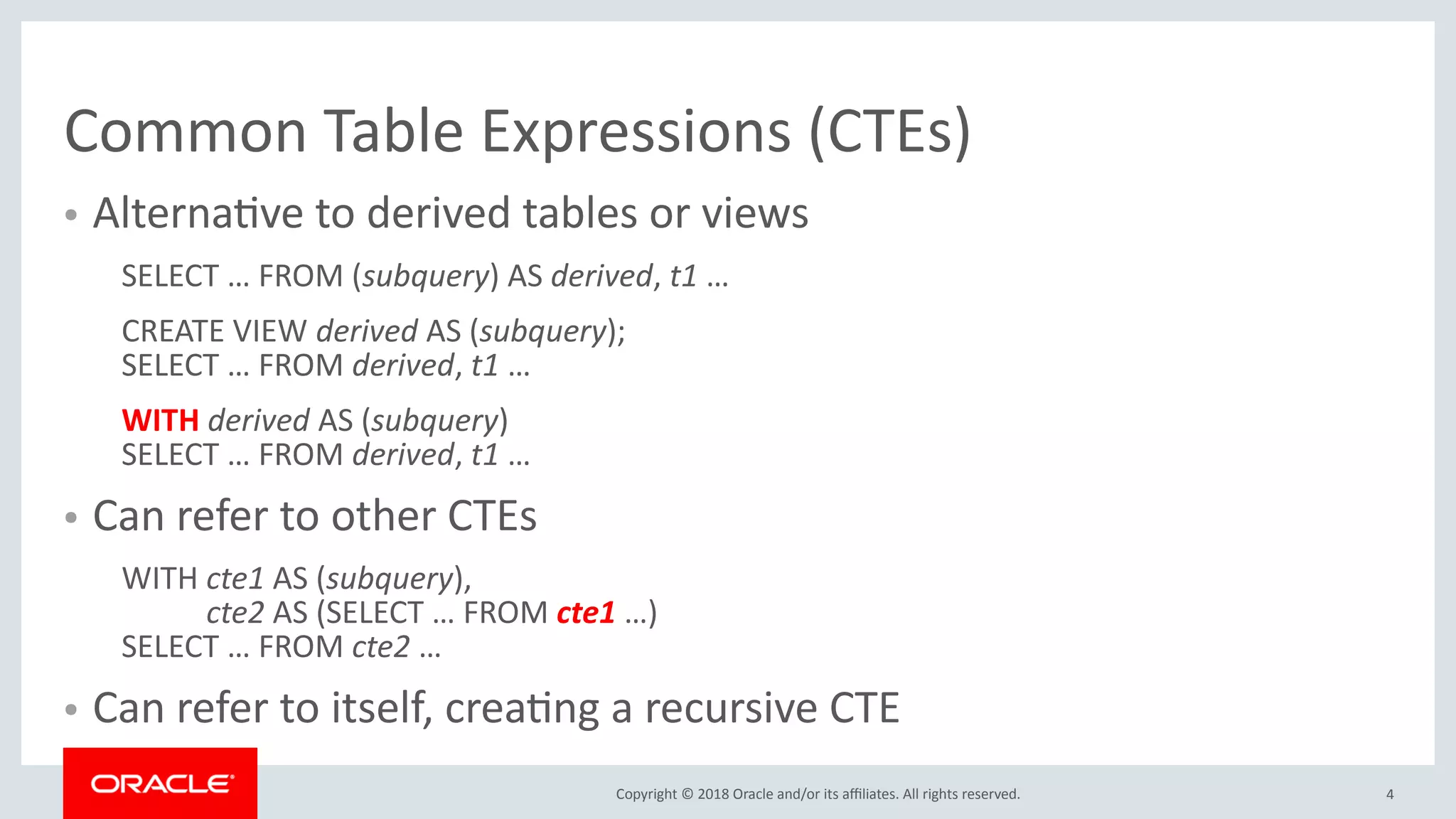

Common Table Expressions (CTEs)
● Alternatve to derived tables or views
SELECT … FROM (subquery) AS derived, t1 …
CREATE VIEW derived AS (subquery);
SELECT … FROM derived, t1 …
WITH derived AS (subquery)
SELECT … FROM derived, t1 …
● Can refer to other CTEs
WITH cte1 AS (subquery),
cte2 AS (SELECT … FROM cte1 …)
SELECT … FROM cte2 …
● Can refer to itself, creatng a recursive CTE

5. 5Copyright © 2018 Oracle and/or its afliates. All rights reserved.

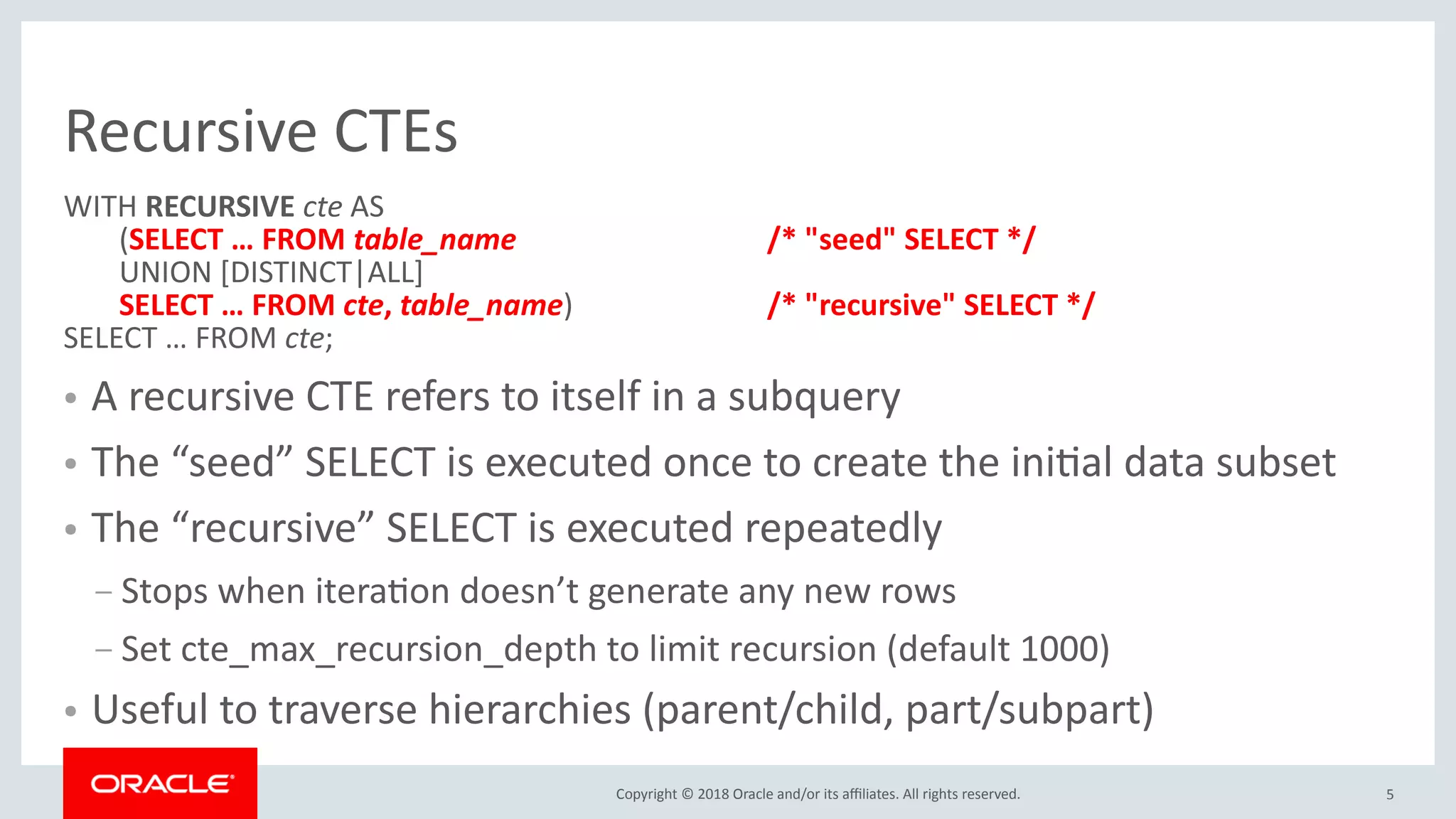

Recursive CTEs
WITH RECURSIVE cte AS
(SELECT … FROM table_name /* "seed" SELECT */
UNION [DISTINCT|ALL]
SELECT … FROM cte, table_name) /* "recursive" SELECT */
SELECT … FROM cte;
● A recursive CTE refers to itself in a subquery
● The “seed” SELECT is executed once to create the inital data subset
● The “recursive” SELECT is executed repeatedly
– Stops when iteraton doesn’t generate any new rows
– Set cte_max_recursion_depth to limit recursion (default 1000)
● Useful to traverse hierarchies (parent/child, part/subpart)

6. 6Copyright © 2018 Oracle and/or its afliates. All rights reserved.

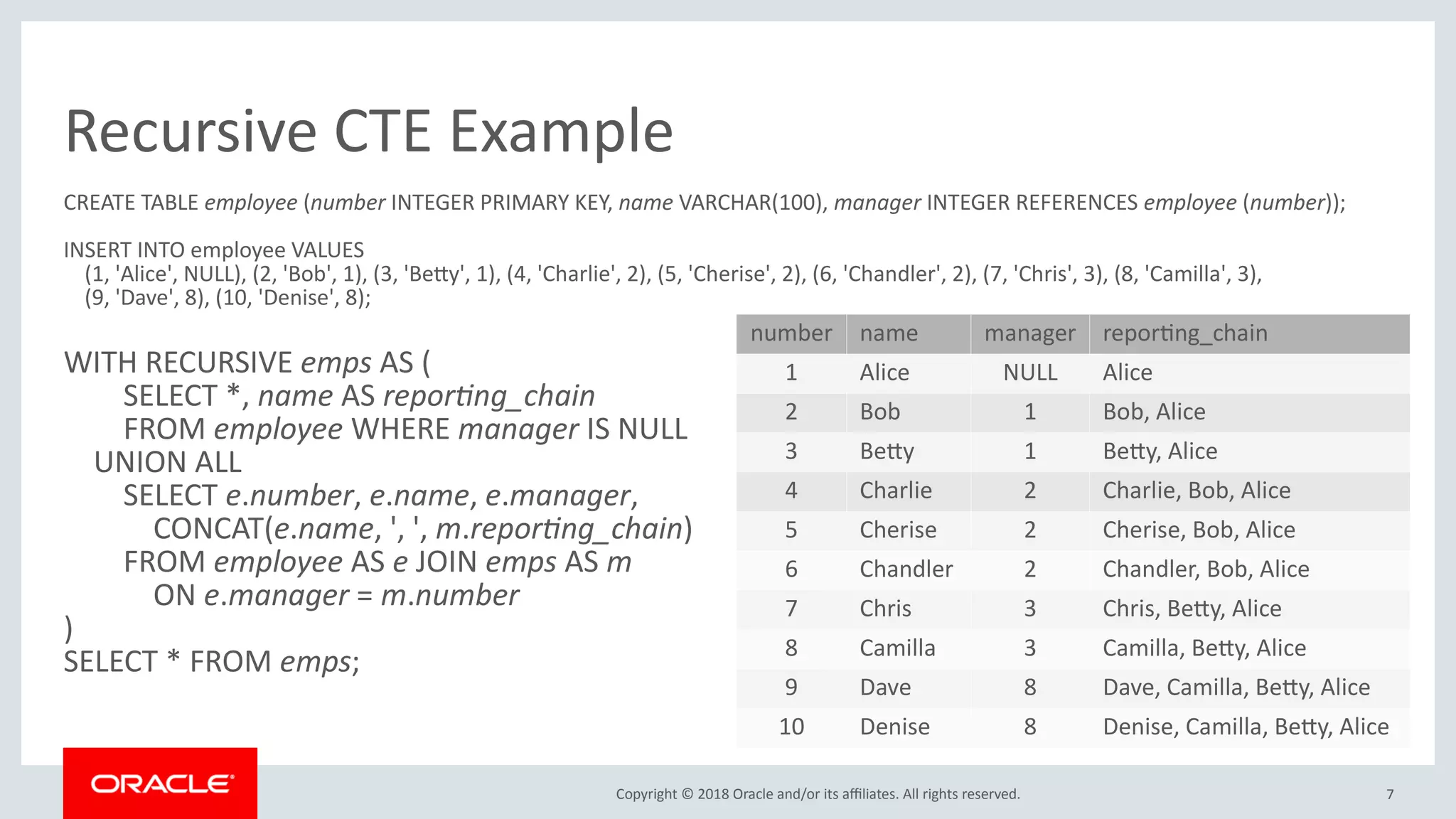

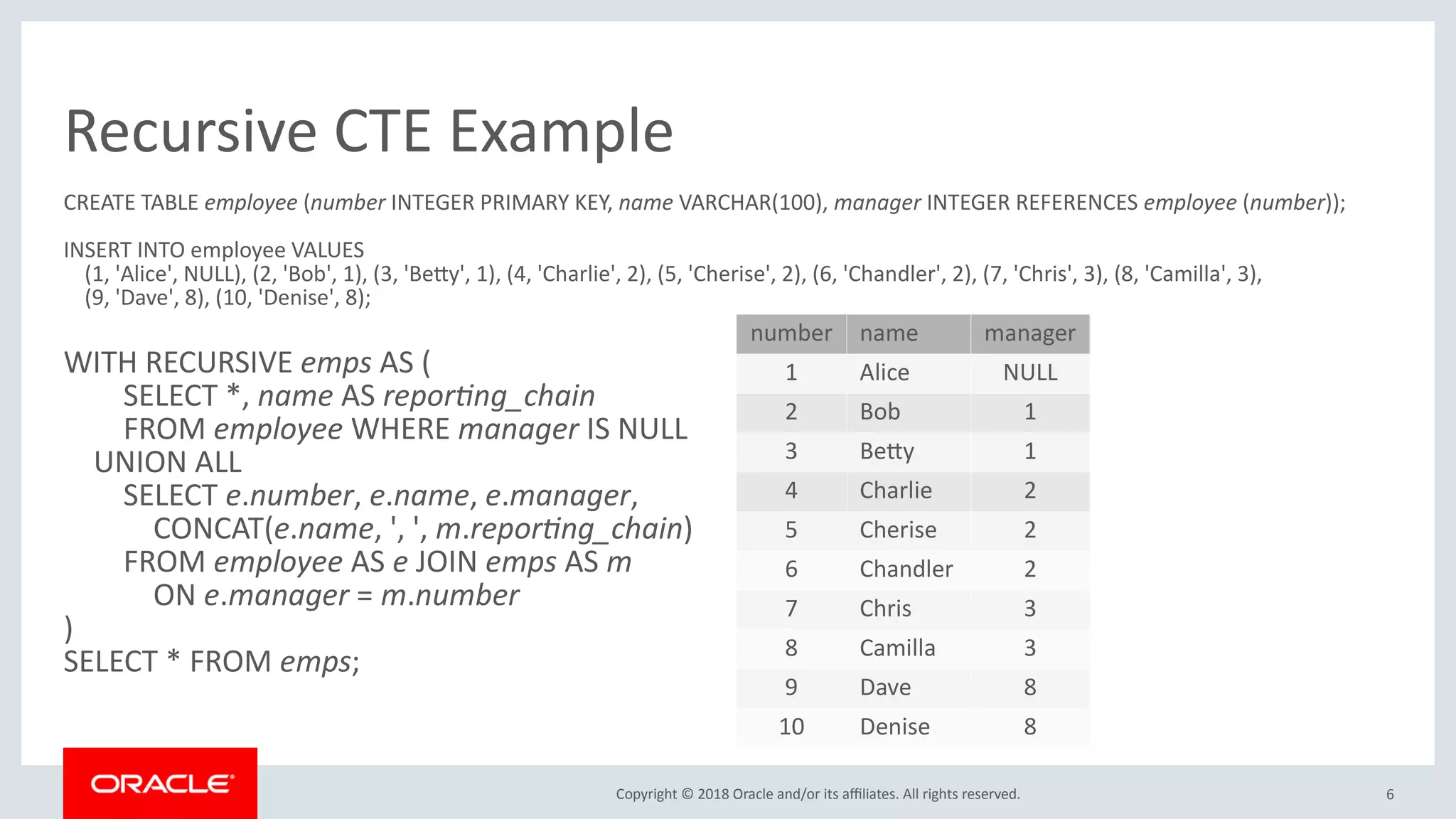

Recursive CTE Example
CREATE TABLE employee (number INTEGER PRIMARY KEY, name VARCHAR(100), manager INTEGER REFERENCES employee (number));
INSERT INTO employee VALUES
(1, 'Alice', NULL), (2, 'Bob', 1), (3, 'Bety', 1), (4, 'Charlie', 2), (5, 'Cherise', 2), (6, 'Chandler', 2), (7, 'Chris', 3), (8, 'Camilla', 3),
(9, 'Dave', 8), (10, 'Denise', 8);
WITH RECURSIVE emps AS (
SELECT *, name AS reportng_chain
FROM employee WHERE manager IS NULL
UNION ALL
SELECT e.number, e.name, e.manager,
CONCAT(e.name, ', ', m.reportng_chain)
FROM employee AS e JOIN emps AS m
ON e.manager = m.number
)
SELECT * FROM emps;
number name manager reportng_chain
1 Alice NULL Alice
2 Bob 1 Bob, Alice
3 Bety 1 Bety, Alice
4 Charlie 2 Charlie, Bob, Alice
5 Cherise 2 Cherise, Bob, Alice
6 Chandler 2 Chandler, Bob, Alice
7 Chris 3 Chris, Bety, Alice
8 Camilla 3 Camilla, Bety, Alice
9 Dave 8 Dave, Camilla, Bety, Alice
10 Denise 8 Denise, Camilla, Bety, Alice

7. 7Copyright © 2018 Oracle and/or its afliates. All rights reserved.
Recursive CTE Example
CREATE TABLE employee (number INTEGER PRIMARY KEY, name VARCHAR(100), manager INTEGER REFERENCES employee (number));
INSERT INTO employee VALUES
(1, 'Alice', NULL), (2, 'Bob', 1), (3, 'Bety', 1), (4, 'Charlie', 2), (5, 'Cherise', 2), (6, 'Chandler', 2), (7, 'Chris', 3), (8, 'Camilla', 3),
(9, 'Dave', 8), (10, 'Denise', 8);
WITH RECURSIVE emps AS (
SELECT *, name AS reportng_chain
FROM employee WHERE manager IS NULL
UNION ALL
SELECT e.number, e.name, e.manager,
CONCAT(e.name, ', ', m.reportng_chain)
FROM employee AS e JOIN emps AS m
ON e.manager = m.number
)
SELECT * FROM emps;
number name manager reportng_chain
1 Alice NULL Alice
2 Bob 1 Bob, Alice
3 Bety 1 Bety, Alice
4 Charlie 2 Charlie, Bob, Alice
5 Cherise 2 Cherise, Bob, Alice
6 Chandler 2 Chandler, Bob, Alice
7 Chris 3 Chris, Bety, Alice
8 Camilla 3 Camilla, Bety, Alice
9 Dave 8 Dave, Camilla, Bety, Alice
10 Denise 8 Denise, Camilla, Bety, Alice

8. 8Copyright © 2018 Oracle and/or its afliates. All rights reserved.

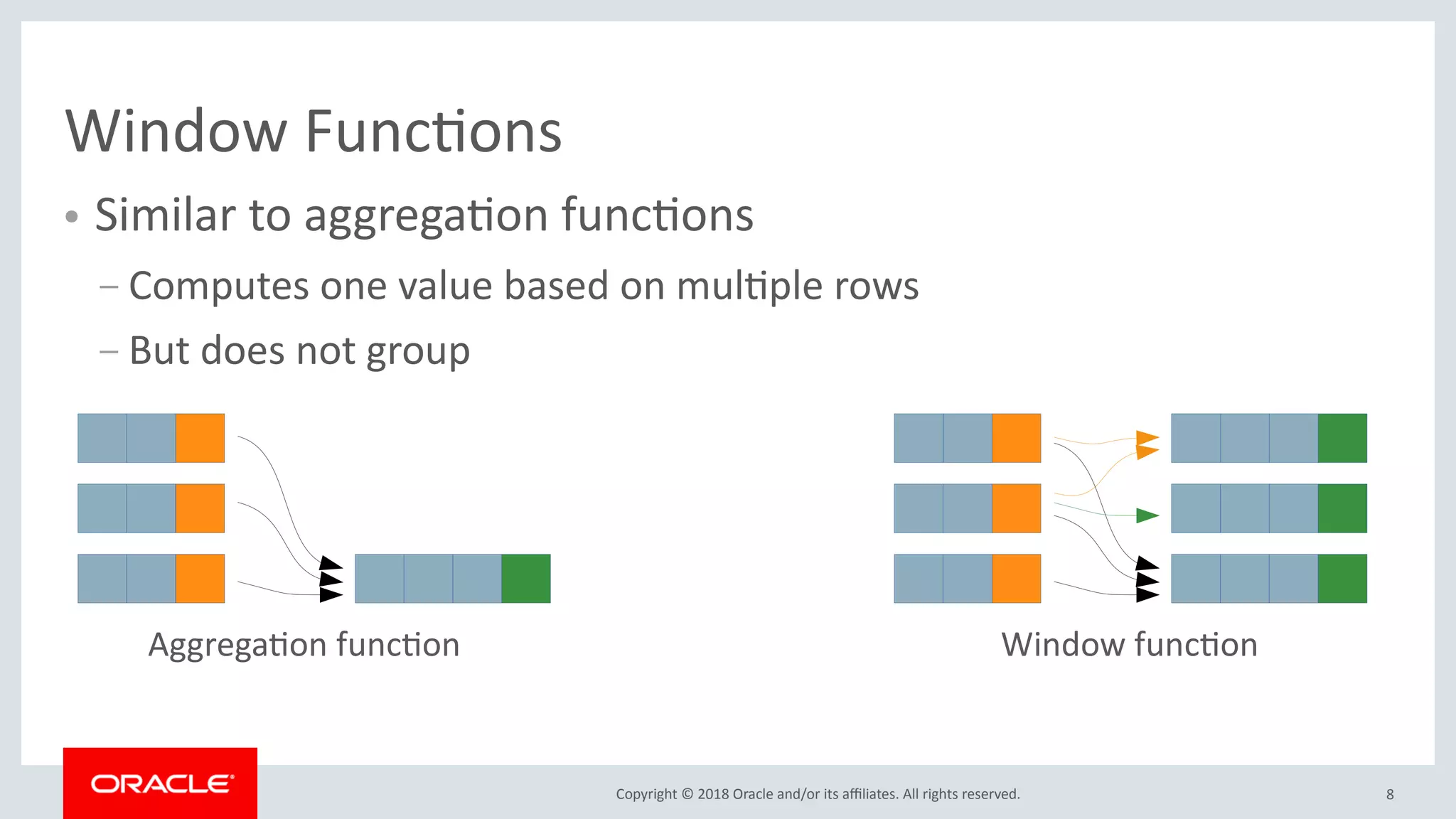

Window Functons
● Similar to aggregaton functons
– Computes one value based on multple rows
– But does not group
Aggregaton functon Window functon

9. 9Copyright © 2018 Oracle and/or its afliates. All rights reserved.

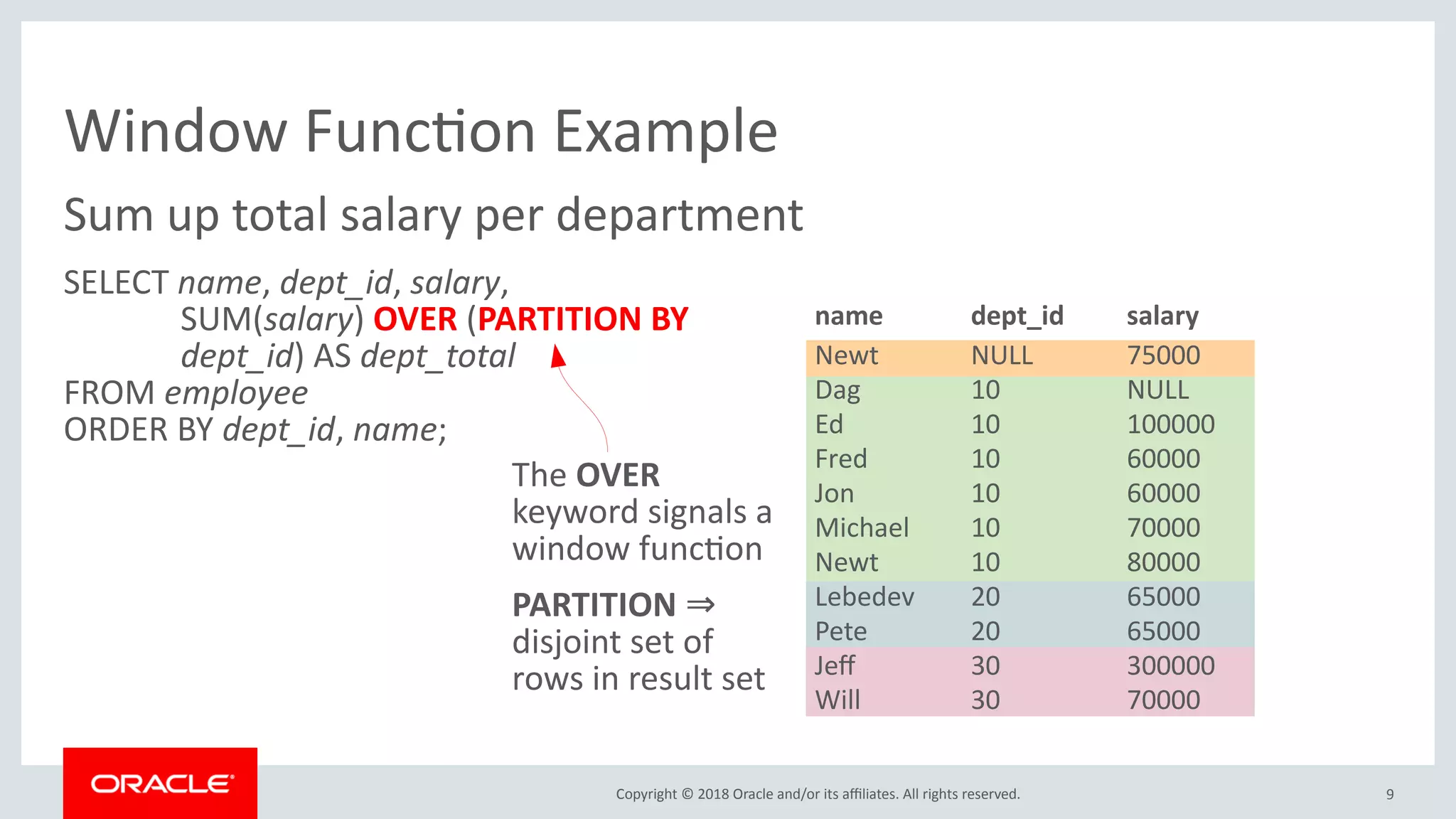

Window Functon Example
Sum up total salary per department
SELECT name, dept_id, salary,
SUM(salary) OVER (PARTITION BY
dept_id) AS dept_total
FROM employee
ORDER BY dept_id, name;
The OVER
keyword signals a
window functon
PARTITION ⇒
disjoint set of
rows in result set
name dept_id salary dept_total
Newt NULL 75000 75000
Dag 10 NULL 370000
Ed 10 100000 370000
Fred 10 60000 370000
Jon 10 60000 370000
Michael 10 70000 370000
Newt 10 80000 370000
Lebedev 20 65000 130000
Pete 20 65000 130000
Jef 30 300000 370000
Will 30 70000 370000

10. 10Copyright © 2018 Oracle and/or its afliates. All rights reserved.

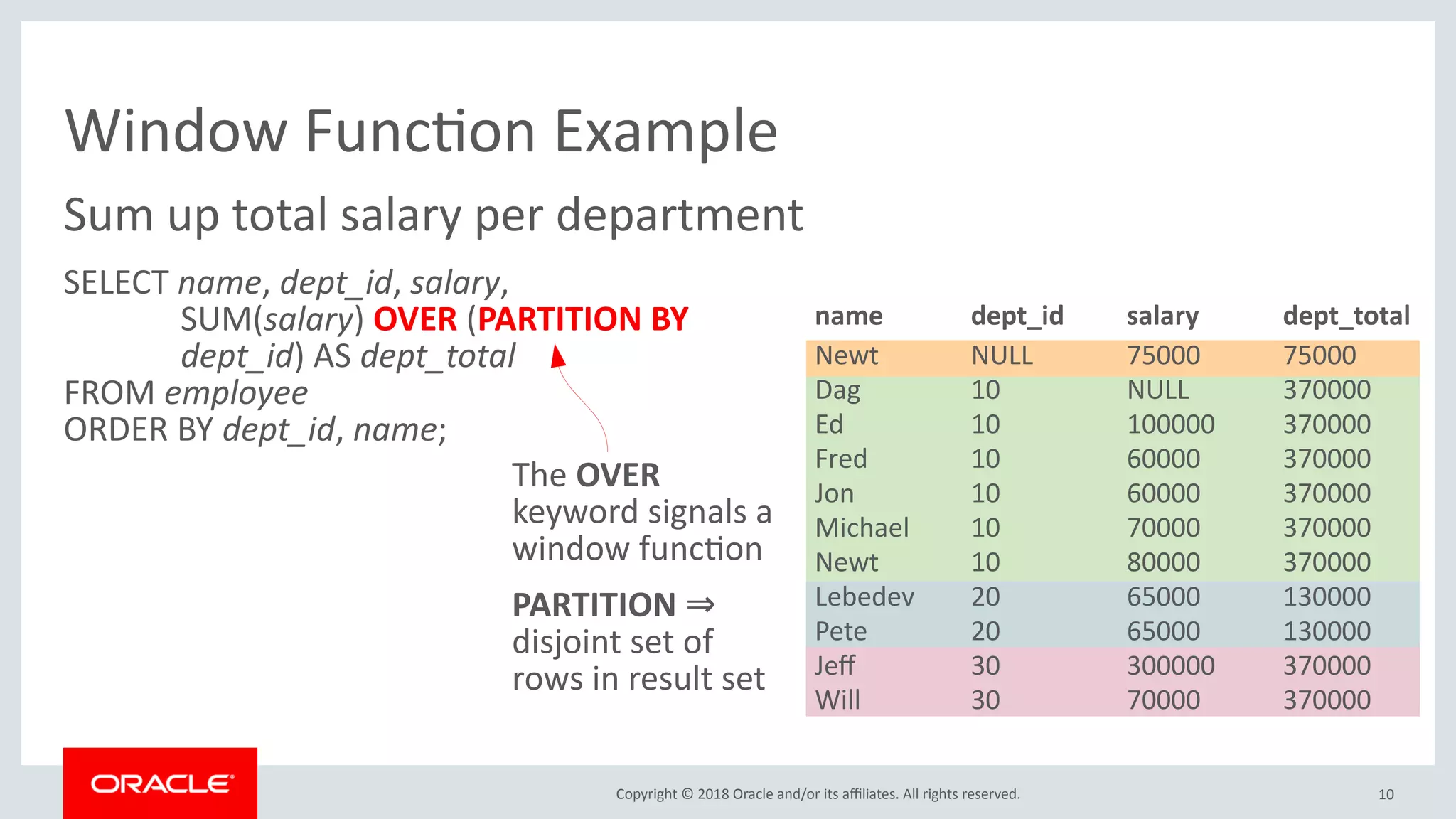

Window Functon Example
Sum up total salary per department
SELECT name, dept_id, salary,
SUM(salary) OVER (PARTITION BY
dept_id) AS dept_total
FROM employee
ORDER BY dept_id, name;
The OVER
keyword signals a
window functon
PARTITION ⇒
disjoint set of
rows in result set
name dept_id salary dept_total
Newt NULL 75000 75000
Dag 10 NULL 370000
Ed 10 100000 370000
Fred 10 60000 370000
Jon 10 60000 370000
Michael 10 70000 370000
Newt 10 80000 370000
Lebedev 20 65000 130000
Pete 20 65000 130000
Jef 30 300000 370000
Will 30 70000 370000

11. 11Copyright © 2018 Oracle and/or its afliates. All rights reserved.

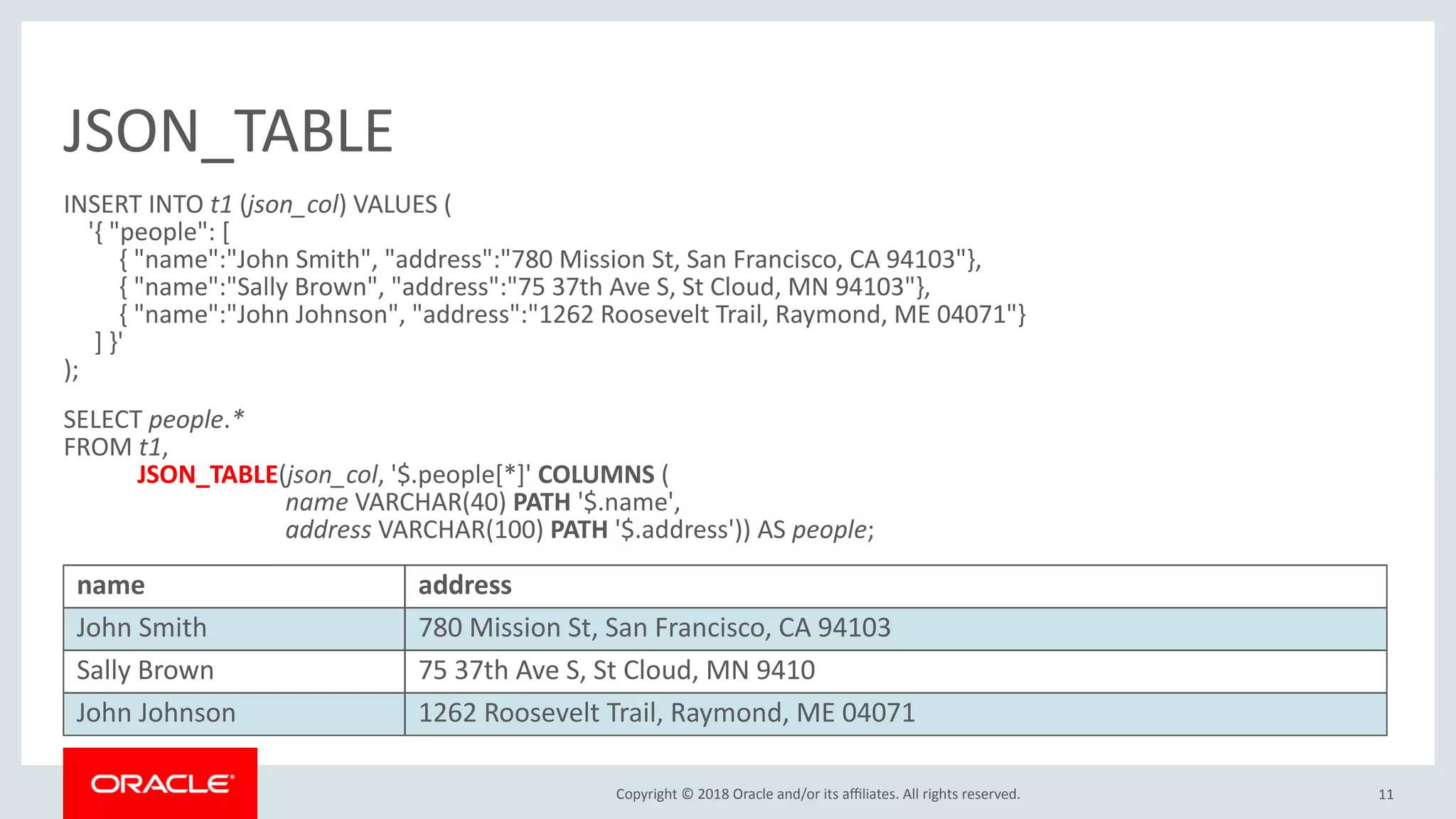

JSON_TABLE
INSERT INTO t1 (json_col) VALUES (
'{ "people": [
{ "name":"John Smith", "address":"780 Mission St, San Francisco, CA 94103"},
{ "name":"Sally Brown", "address":"75 37th Ave S, St Cloud, MN 94103"},
{ "name":"John Johnson", "address":"1262 Roosevelt Trail, Raymond, ME 04071"}
] }'
);
SELECT people.*
FROM t1,
JSON_TABLE(json_col, '$.people[*]' COLUMNS (
name VARCHAR(40) PATH '$.name',
address VARCHAR(100) PATH '$.address')) AS people;
name address
John Smith 780 Mission St, San Francisco, CA 94103
Sally Brown 75 37th Ave S, St Cloud, MN 9410
John Johnson 1262 Roosevelt Trail, Raymond, ME 04071

12. 12Copyright © 2018 Oracle and/or its afliates. All rights reserved.

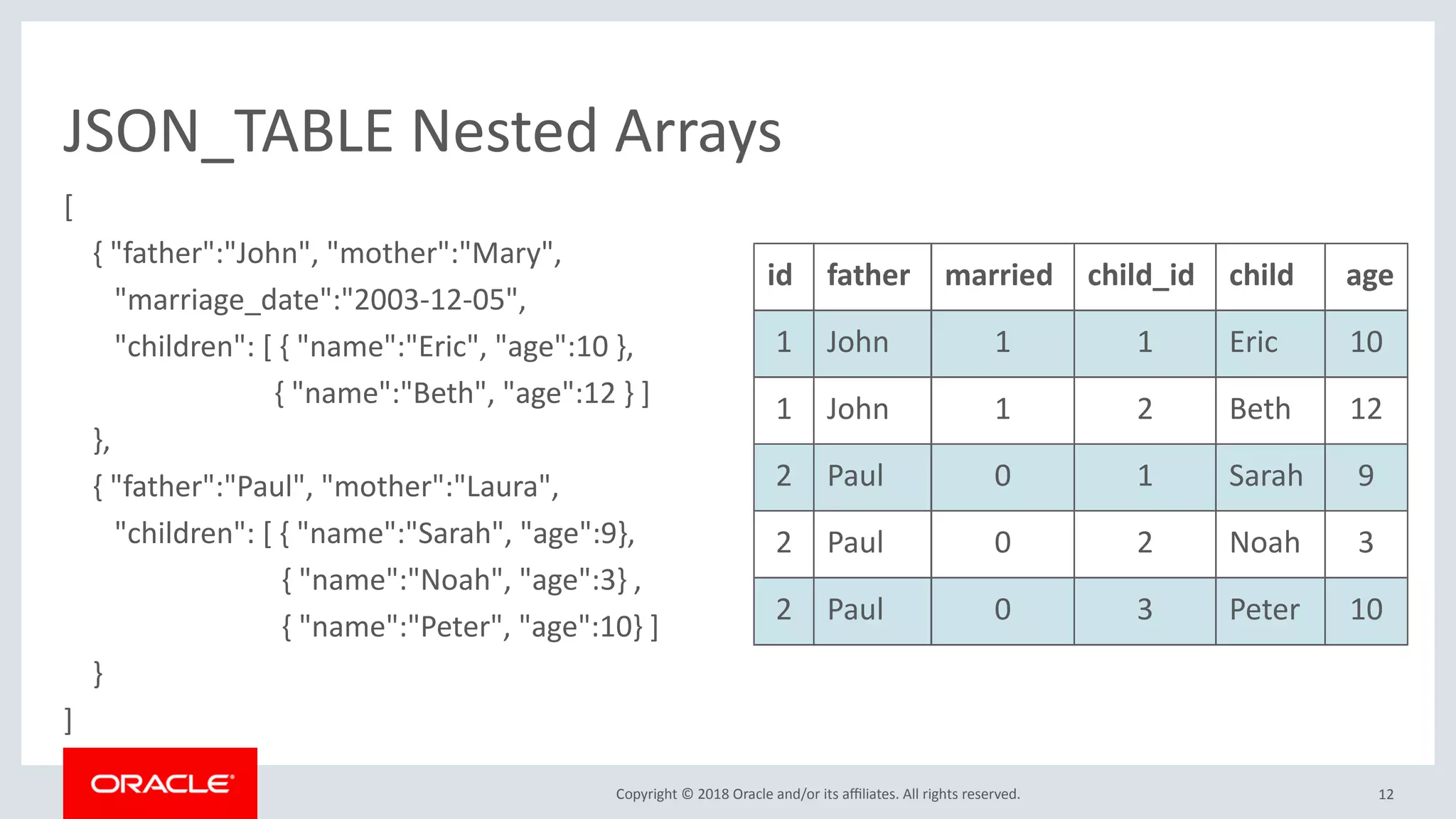

JSON_TABLE Nested Arrays
[
{ "father":"John", "mother":"Mary",
"marriage_date":"2003-12-05",
"children": [ { "name":"Eric", "age":10 },
{ "name":"Beth", "age":12 } ]
},
{ "father":"Paul", "mother":"Laura",
"children": [ { "name":"Sarah", "age":9},
{ "name":"Noah", "age":3} ,
{ "name":"Peter", "age":10} ]
}
]
id father married child_id child age
1 John 1 1 Eric 10
1 John 1 2 Beth 12
2 Paul 0 1 Sarah 9
2 Paul 0 2 Noah 3
2 Paul 0 3 Peter 10

13. 13Copyright © 2018 Oracle and/or its afliates. All rights reserved.

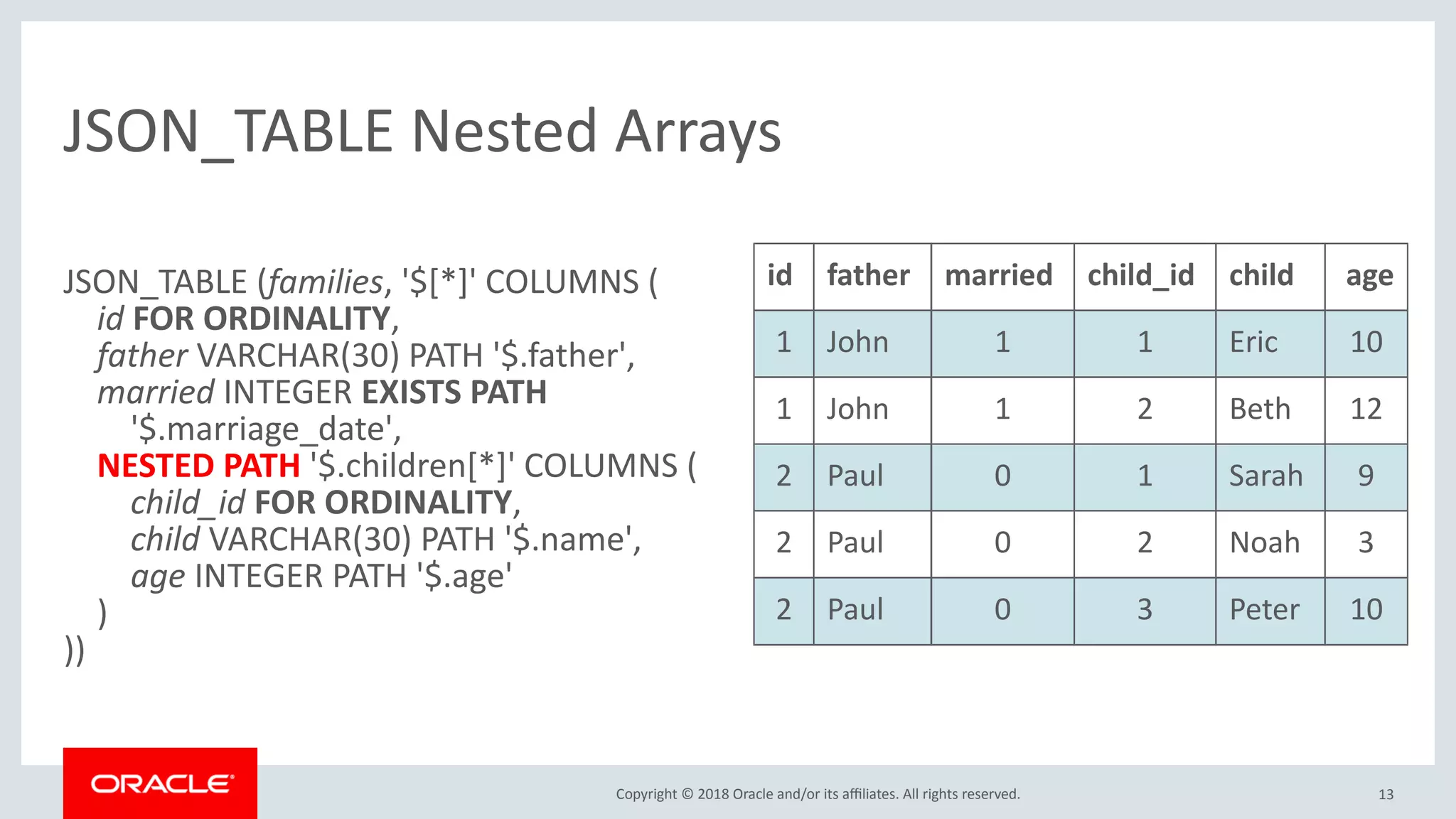

JSON_TABLE Nested Arrays
JSON_TABLE (families, '$[*]' COLUMNS (
id FOR ORDINALITY,
father VARCHAR(30) PATH '$.father',
married INTEGER EXISTS PATH
'$.marriage_date',
NESTED PATH '$.children[*]' COLUMNS (
child_id FOR ORDINALITY,
child VARCHAR(30) PATH '$.name',
age INTEGER PATH '$.age'
)
))
id father married child_id child age
1 John 1 1 Eric 10
1 John 1 2 Beth 12
2 Paul 0 1 Sarah 9
2 Paul 0 2 Noah 3
2 Paul 0 3 Peter 10

14. 14Copyright © 2018 Oracle and/or its afliates. All rights reserved.
Playtme

15. 15Copyright © 2018 Oracle and/or its afliates. All rights reserved.

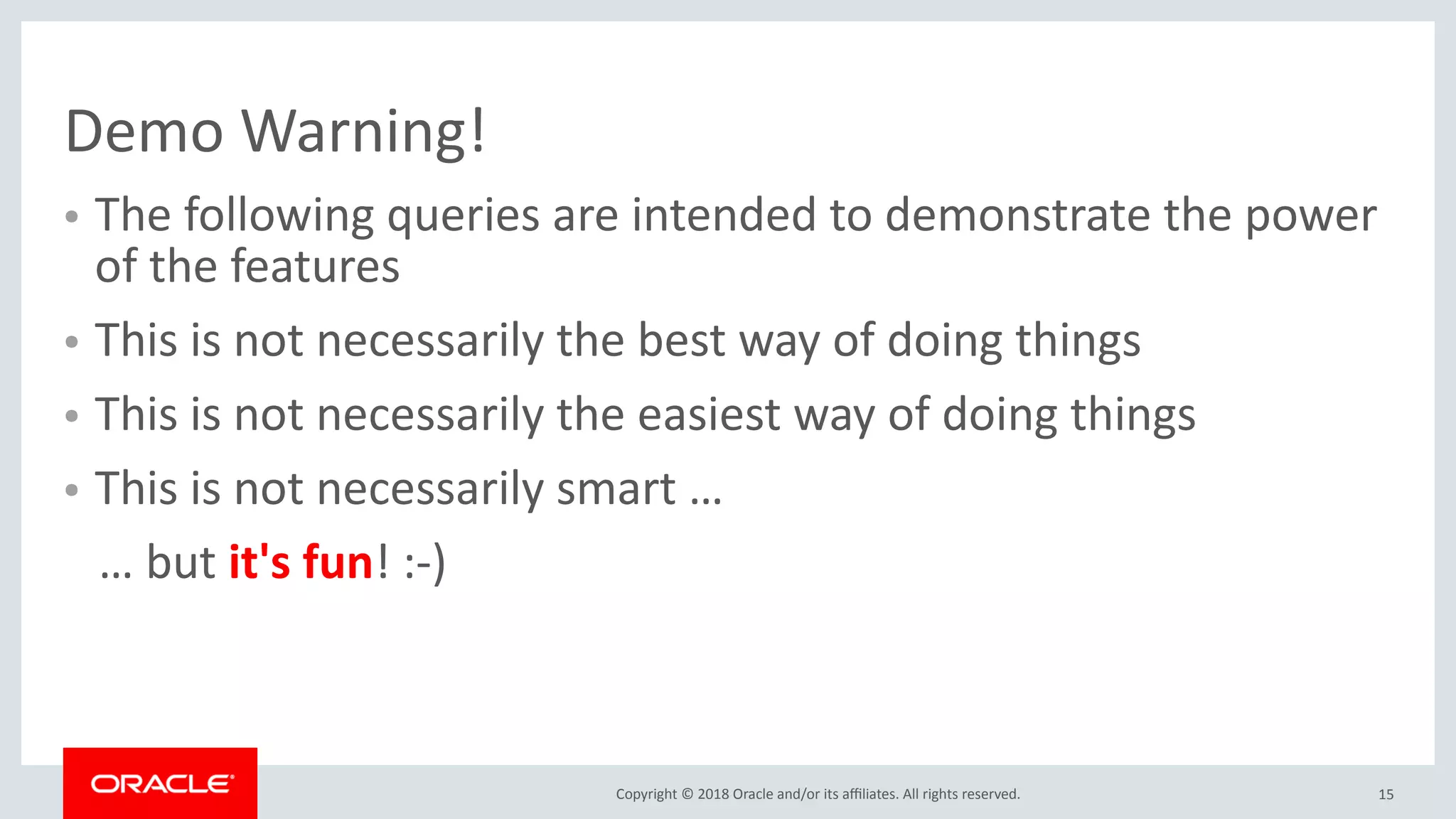

Demo Warning!
● The following queries are intended to demonstrate the power
of the features
● This is not necessarily the best way of doing things
● This is not necessarily the easiest way of doing things
● This is not necessarily smart …
… but it's fun! :-)

16. 16Copyright © 2018 Oracle and/or its afliates. All rights reserved.
JSON_TABLE

17. 17Copyright © 2018 Oracle and/or its afliates. All rights reserved.

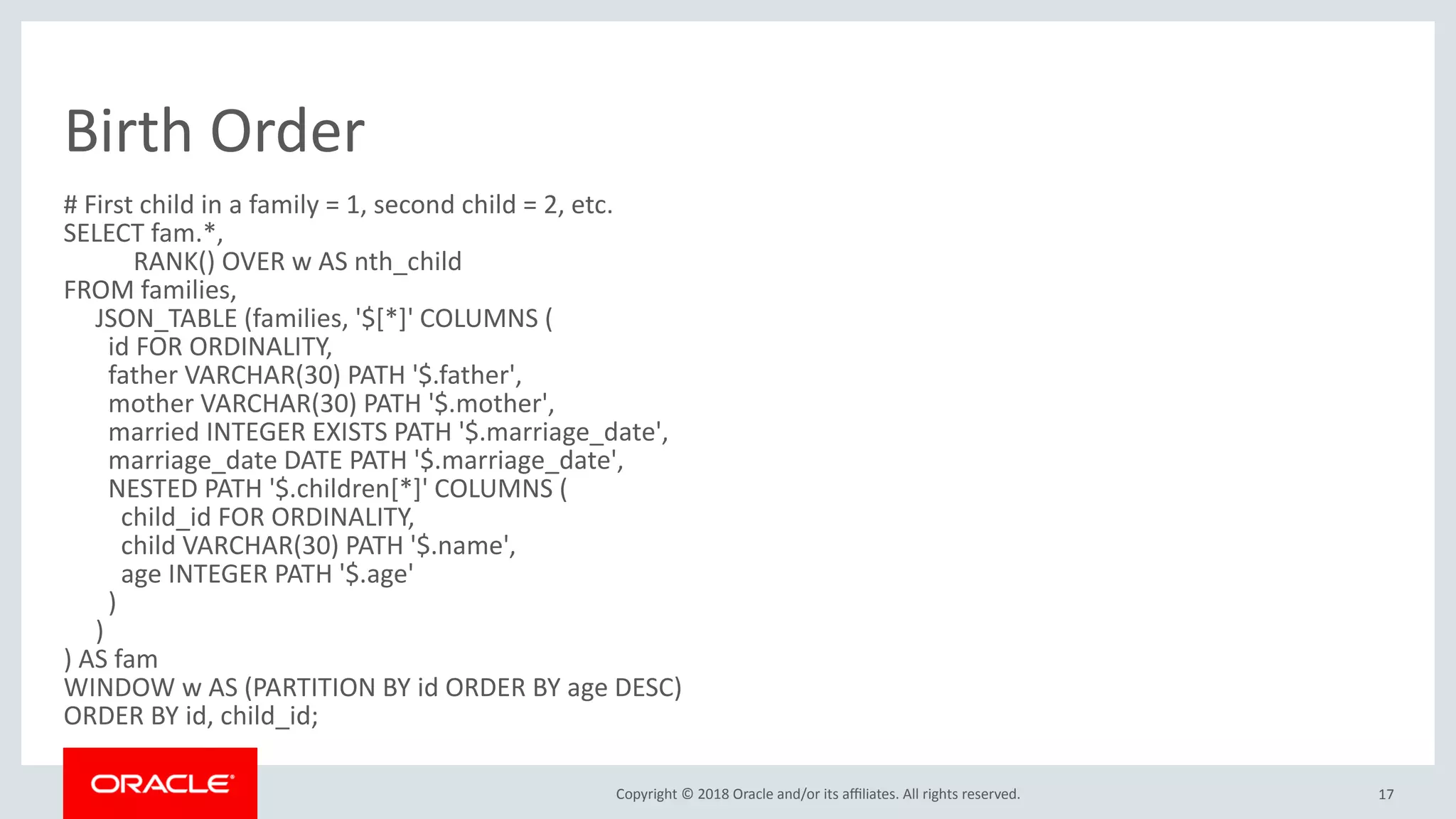

Birth Order
# First child in a family = 1, second child = 2, etc.
SELECT fam.*,
RANK() OVER w AS nth_child
FROM families,
JSON_TABLE (families, '$[*]' COLUMNS (
id FOR ORDINALITY,
father VARCHAR(30) PATH '$.father',
mother VARCHAR(30) PATH '$.mother',
married INTEGER EXISTS PATH '$.marriage_date',
marriage_date DATE PATH '$.marriage_date',
NESTED PATH '$.children[*]' COLUMNS (
child_id FOR ORDINALITY,
child VARCHAR(30) PATH '$.name',
age INTEGER PATH '$.age'
)
)
) AS fam
WINDOW w AS (PARTITION BY id ORDER BY age DESC)
ORDER BY id, child_id;

18. 18Copyright © 2018 Oracle and/or its afliates. All rights reserved.

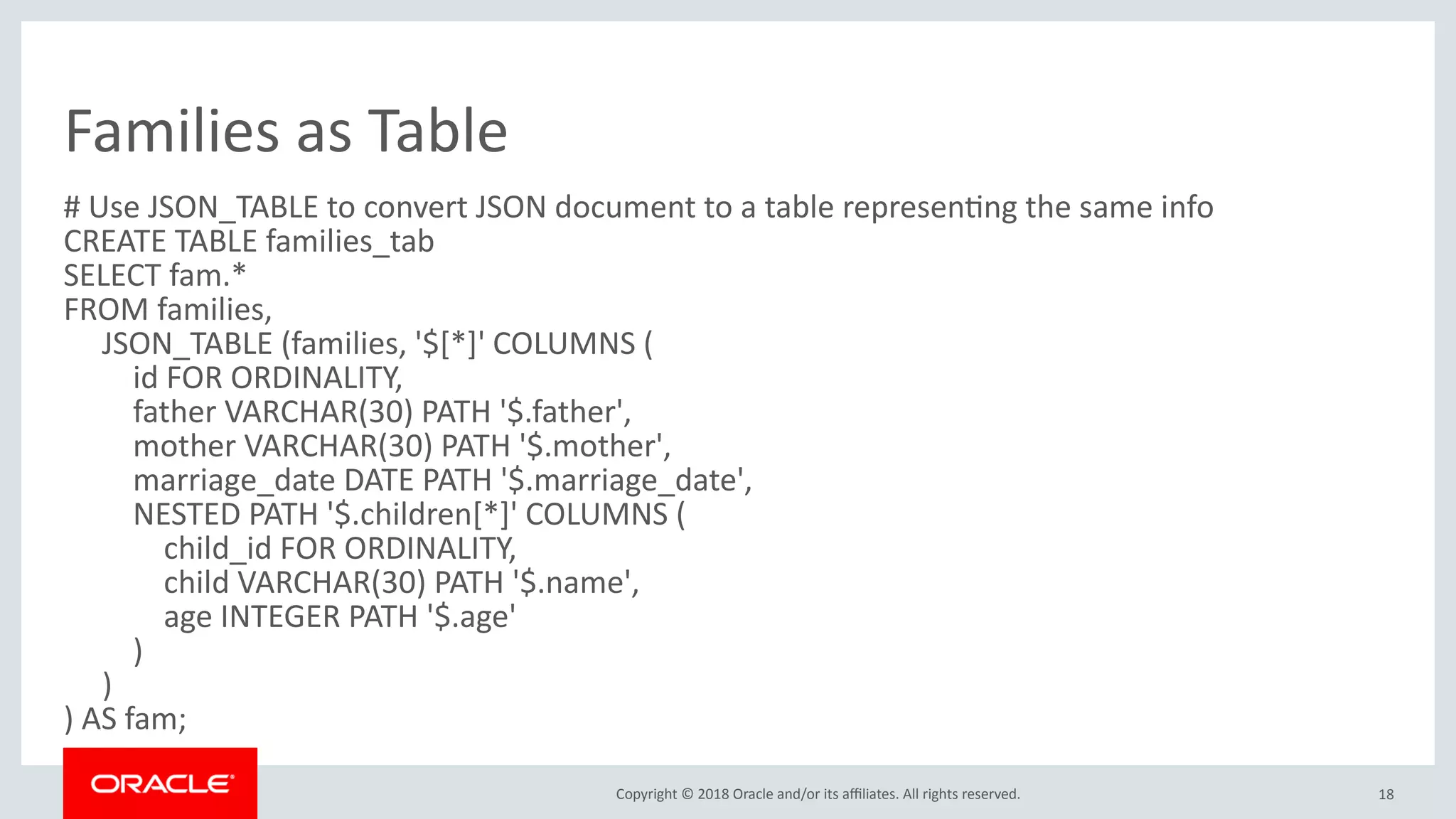

Families as Table
# Use JSON_TABLE to convert JSON document to a table representng the same info
CREATE TABLE families_tab
SELECT fam.*
FROM families,
JSON_TABLE (families, '$[*]' COLUMNS (
id FOR ORDINALITY,
father VARCHAR(30) PATH '$.father',
mother VARCHAR(30) PATH '$.mother',
marriage_date DATE PATH '$.marriage_date',
NESTED PATH '$.children[*]' COLUMNS (
child_id FOR ORDINALITY,
child VARCHAR(30) PATH '$.name',
age INTEGER PATH '$.age'
)
)
) AS fam;

19. 19Copyright © 2018 Oracle and/or its afliates. All rights reserved.

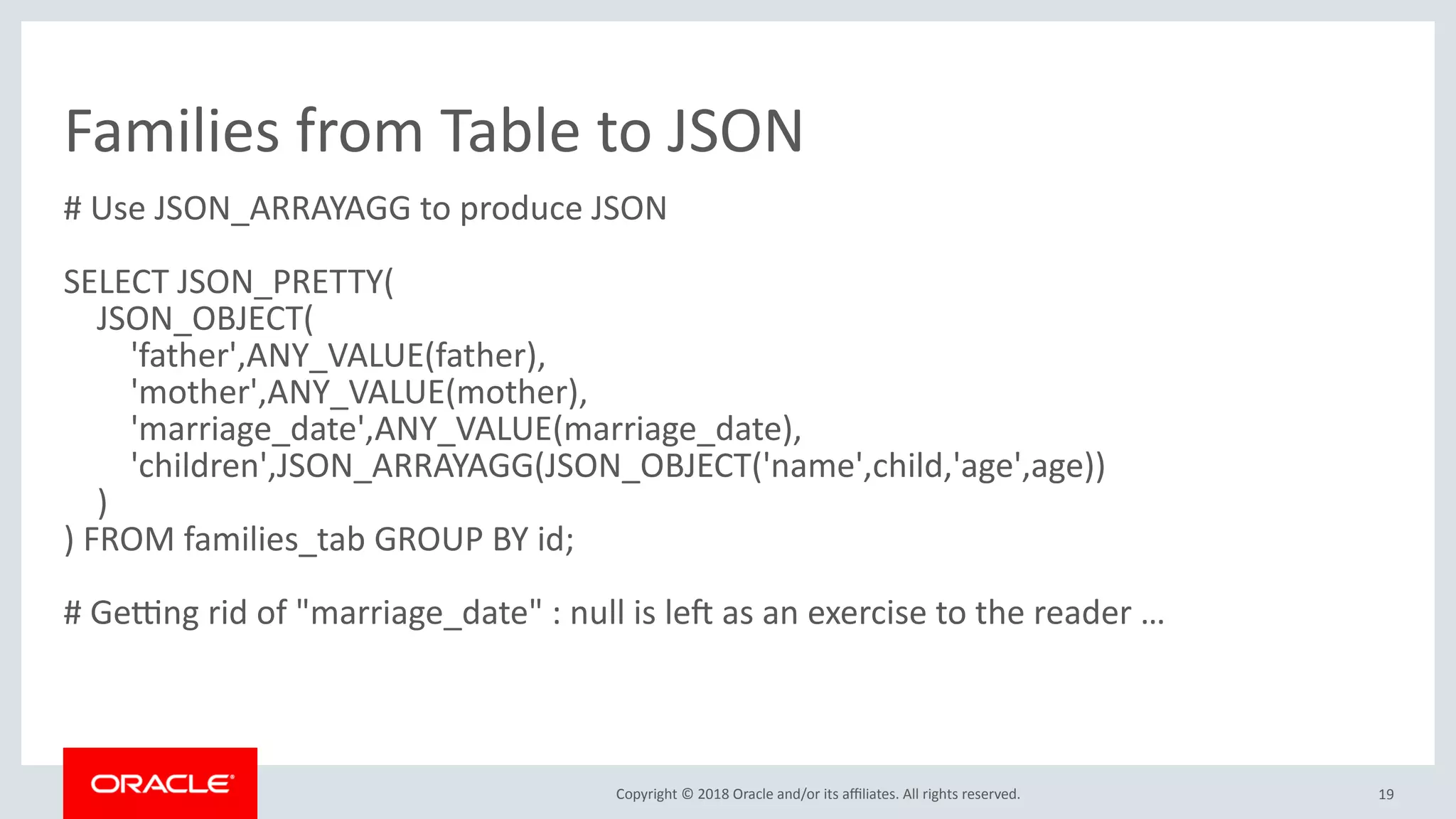

Families from Table to JSON
# Use JSON_ARRAYAGG to produce JSON
SELECT JSON_PRETTY(
JSON_OBJECT(
'father',ANY_VALUE(father),
'mother',ANY_VALUE(mother),
'marriage_date',ANY_VALUE(marriage_date),
'children',JSON_ARRAYAGG(JSON_OBJECT('name',child,'age',age))
)
) FROM families_tab GROUP BY id;
# Getng rid of "marriage_date" : null is lef as an exercise to the reader …

20. 20Copyright © 2018 Oracle and/or its afliates. All rights reserved.
GPS Tracking

21. 21Copyright © 2018 Oracle and/or its afliates. All rights reserved.

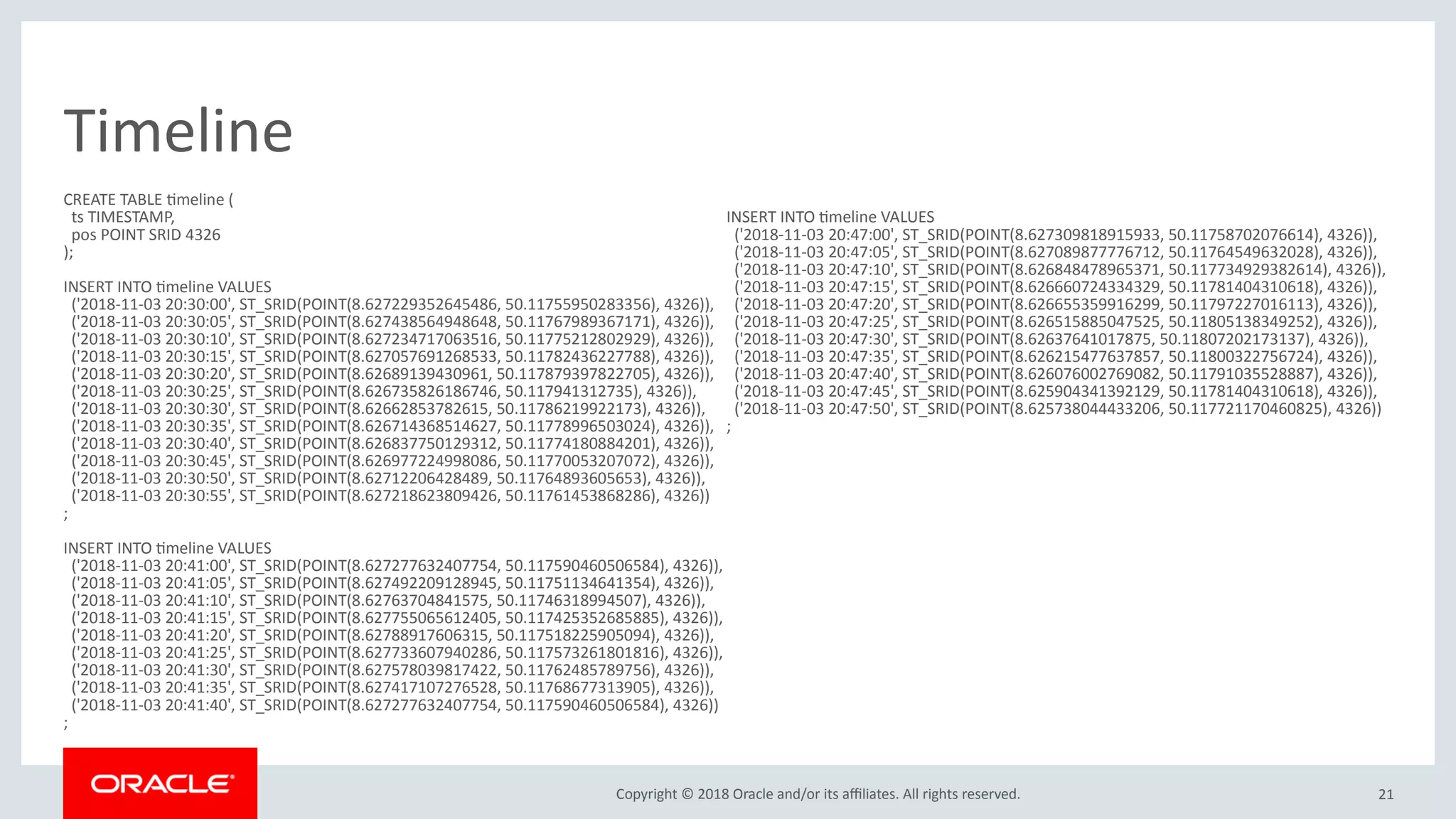

Timeline
CREATE TABLE tmeline (
ts TIMESTAMP,
pos POINT SRID 4326
);
INSERT INTO tmeline VALUES
('2018-11-03 20:30:00', ST_SRID(POINT(8.627229352645486, 50.11755950283356), 4326)),
('2018-11-03 20:30:05', ST_SRID(POINT(8.627438564948648, 50.11767989367171), 4326)),
('2018-11-03 20:30:10', ST_SRID(POINT(8.627234717063516, 50.11775212802929), 4326)),
('2018-11-03 20:30:15', ST_SRID(POINT(8.627057691268533, 50.11782436227788), 4326)),
('2018-11-03 20:30:20', ST_SRID(POINT(8.62689139430961, 50.117879397822705), 4326)),
('2018-11-03 20:30:25', ST_SRID(POINT(8.626735826186746, 50.117941312735), 4326)),
('2018-11-03 20:30:30', ST_SRID(POINT(8.62662853782615, 50.11786219922173), 4326)),
('2018-11-03 20:30:35', ST_SRID(POINT(8.626714368514627, 50.11778996503024), 4326)),
('2018-11-03 20:30:40', ST_SRID(POINT(8.626837750129312, 50.11774180884201), 4326)),
('2018-11-03 20:30:45', ST_SRID(POINT(8.626977224998086, 50.11770053207072), 4326)),
('2018-11-03 20:30:50', ST_SRID(POINT(8.62712206428489, 50.11764893605653), 4326)),
('2018-11-03 20:30:55', ST_SRID(POINT(8.627218623809426, 50.11761453868286), 4326))
;
INSERT INTO tmeline VALUES
('2018-11-03 20:41:00', ST_SRID(POINT(8.627277632407754, 50.117590460506584), 4326)),
('2018-11-03 20:41:05', ST_SRID(POINT(8.627492209128945, 50.11751134641354), 4326)),
('2018-11-03 20:41:10', ST_SRID(POINT(8.62763704841575, 50.11746318994507), 4326)),
('2018-11-03 20:41:15', ST_SRID(POINT(8.627755065612405, 50.117425352685885), 4326)),
('2018-11-03 20:41:20', ST_SRID(POINT(8.62788917606315, 50.117518225905094), 4326)),
('2018-11-03 20:41:25', ST_SRID(POINT(8.627733607940286, 50.117573261801816), 4326)),
('2018-11-03 20:41:30', ST_SRID(POINT(8.627578039817422, 50.11762485789756), 4326)),
('2018-11-03 20:41:35', ST_SRID(POINT(8.627417107276528, 50.11768677313905), 4326)),
('2018-11-03 20:41:40', ST_SRID(POINT(8.627277632407754, 50.117590460506584), 4326))
;
INSERT INTO tmeline VALUES
('2018-11-03 20:47:00', ST_SRID(POINT(8.627309818915933, 50.11758702076614), 4326)),
('2018-11-03 20:47:05', ST_SRID(POINT(8.627089877776712, 50.11764549632028), 4326)),
('2018-11-03 20:47:10', ST_SRID(POINT(8.626848478965371, 50.117734929382614), 4326)),
('2018-11-03 20:47:15', ST_SRID(POINT(8.626660724334329, 50.11781404310618), 4326)),
('2018-11-03 20:47:20', ST_SRID(POINT(8.626655359916299, 50.11797227016113), 4326)),
('2018-11-03 20:47:25', ST_SRID(POINT(8.626515885047525, 50.11805138349252), 4326)),
('2018-11-03 20:47:30', ST_SRID(POINT(8.62637641017875, 50.11807202173137), 4326)),
('2018-11-03 20:47:35', ST_SRID(POINT(8.626215477637857, 50.11800322756724), 4326)),
('2018-11-03 20:47:40', ST_SRID(POINT(8.626076002769082, 50.11791035528887), 4326)),
('2018-11-03 20:47:45', ST_SRID(POINT(8.625904341392129, 50.11781404310618), 4326)),
('2018-11-03 20:47:50', ST_SRID(POINT(8.625738044433206, 50.117721170460825), 4326))
;

22. 22Copyright © 2018 Oracle and/or its afliates. All rights reserved.

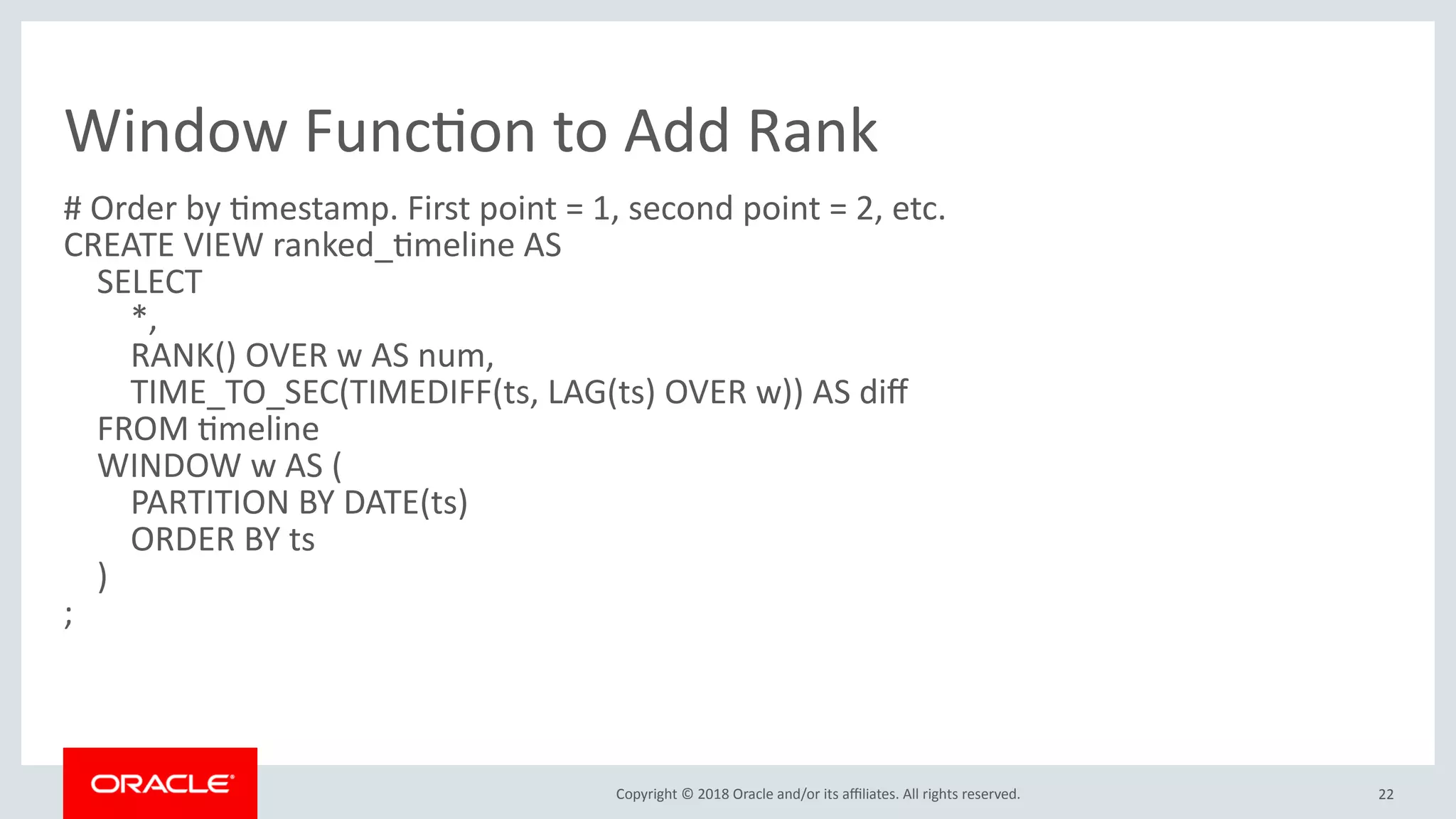

Window Functon to Add Rank
# Order by tmestamp. First point = 1, second point = 2, etc.
CREATE VIEW ranked_tmeline AS
SELECT
*,
RANK() OVER w AS num,
TIME_TO_SEC(TIMEDIFF(ts, LAG(ts) OVER w)) AS dif
FROM tmeline
WINDOW w AS (
PARTITION BY DATE(ts)
ORDER BY ts
)
;

23. 23Copyright © 2018 Oracle and/or its afliates. All rights reserved.

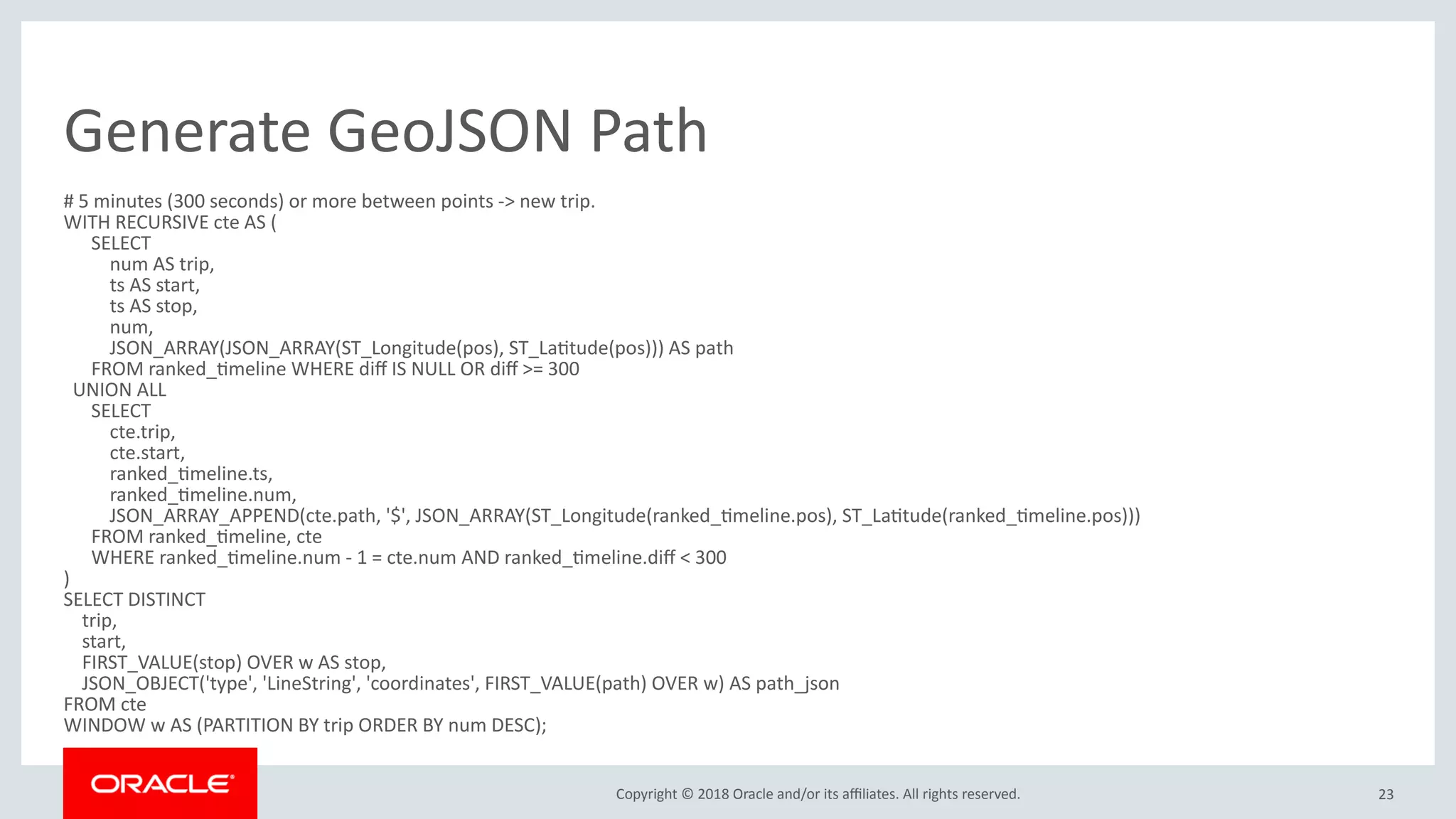

Generate GeoJSON Path
# 5 minutes (300 seconds) or more between points -> new trip.
WITH RECURSIVE cte AS (
SELECT
num AS trip,
ts AS start,
ts AS stop,
num,
JSON_ARRAY(JSON_ARRAY(ST_Longitude(pos), ST_Lattude(pos))) AS path
FROM ranked_tmeline WHERE dif IS NULL OR dif >= 300
UNION ALL
SELECT
cte.trip,
cte.start,
ranked_tmeline.ts,
ranked_tmeline.num,
JSON_ARRAY_APPEND(cte.path, '$', JSON_ARRAY(ST_Longitude(ranked_tmeline.pos), ST_Lattude(ranked_tmeline.pos)))
FROM ranked_tmeline, cte
WHERE ranked_tmeline.num - 1 = cte.num AND ranked_tmeline.dif < 300
)
SELECT DISTINCT
trip,
start,
FIRST_VALUE(stop) OVER w AS stop,
JSON_OBJECT('type', 'LineString', 'coordinates', FIRST_VALUE(path) OVER w) AS path_json
FROM cte
WINDOW w AS (PARTITION BY trip ORDER BY num DESC);

24. 24Copyright © 2018 Oracle and/or its afliates. All rights reserved.

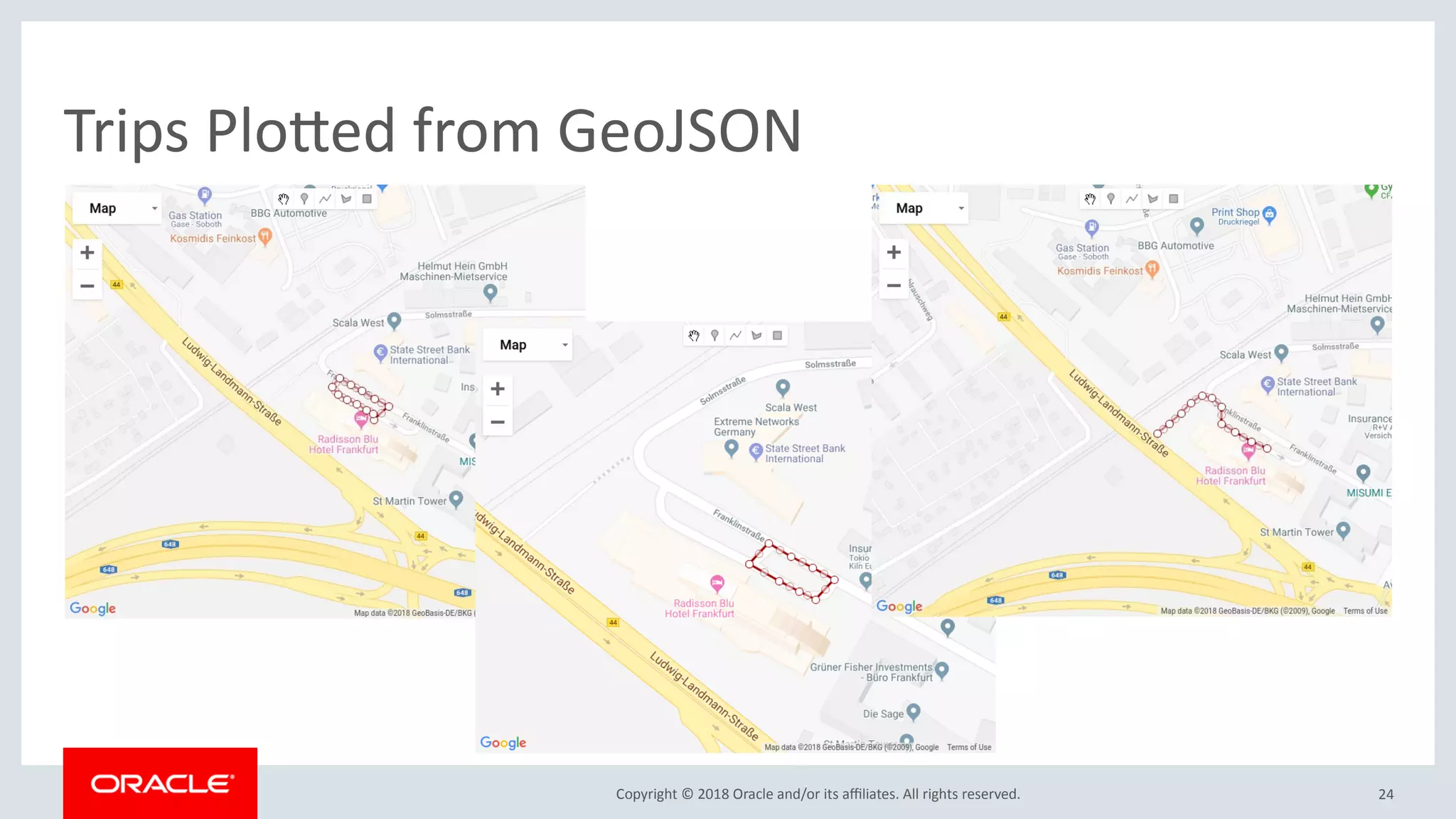

Trips Ploted from GeoJSON

25. 25Copyright © 2018 Oracle and/or its afliates. All rights reserved.
Feature descriptons and design details
directly from the source.
htp://mysqlserverteam.com/

26. 26Copyright © 2018 Oracle and/or its afliates. All rights reserved.

27. 27Copyright © 2018 Oracle and/or its afliates. All rights reserved.

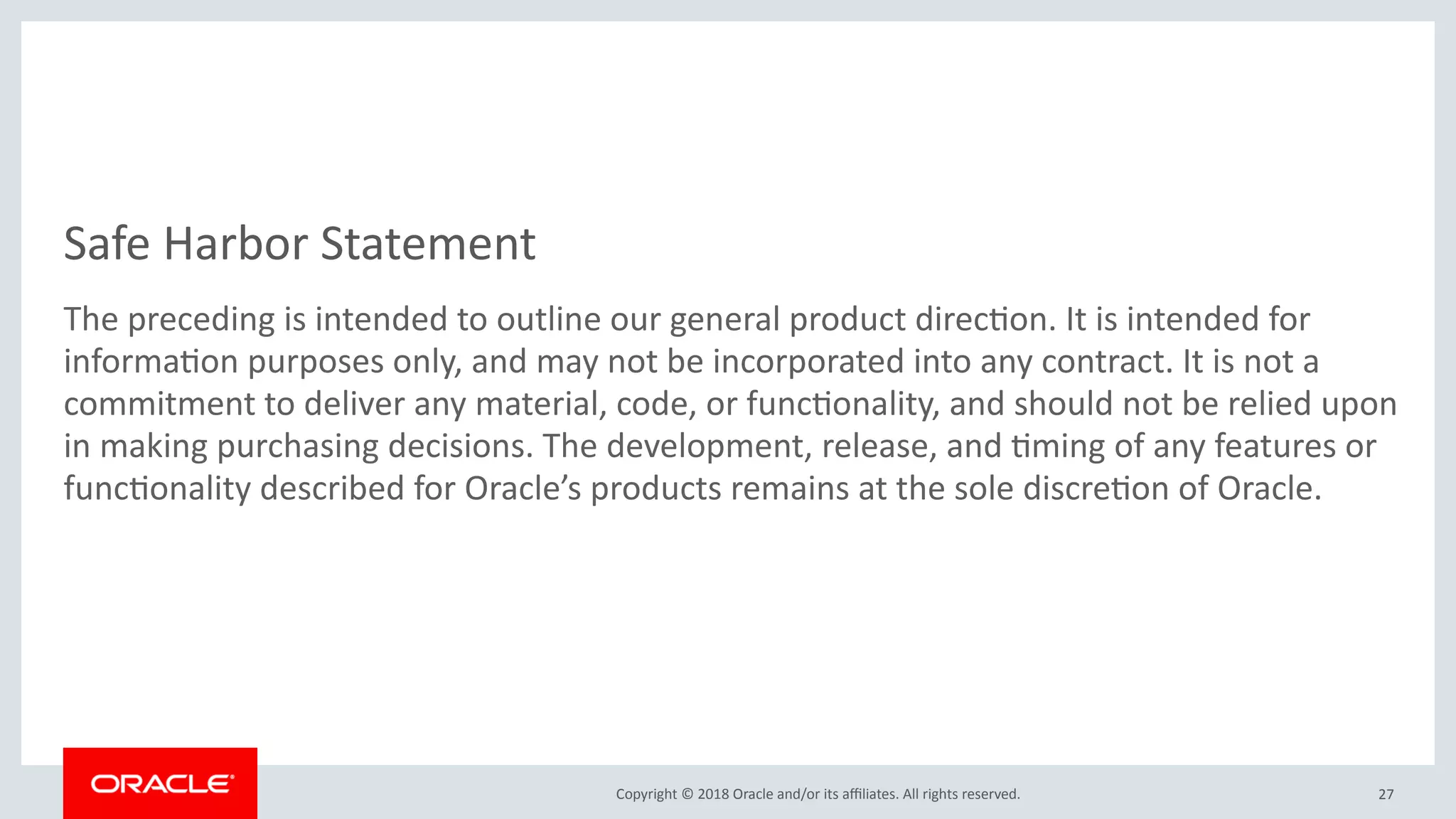

Safe Harbor Statement
The preceding is intended to outline our general product directon. It is intended for
informaton purposes only, and may not be incorporated into any contract. It is not a
commitment to deliver any material, code, or functonality, and should not be relied upon
in making purchasing decisions. The development, release, and tming of any features or
functonality described for Oracle’s products remains at the sole discreton of Oracle.
