Monoliths are so 2001 –
What you need is
Modularity
Graham Charters, STSM, WebSphere Liberty
Repository & OSGi Applications Architect
Ian Robinson, Distinguished Engineer,
WebSphere Foundation Chief Architect
Agenda
• Monoliths & Modularity
• Modularity and Java
• Introduction to OSGi
• Dismantling the Monolith
• A Case Study – Acme Air
• What’s new in OSGi Applications
• Summary
1
Monoliths &
Modularity
Why Monoliths

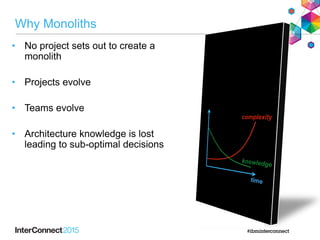

• No project sets out to create a
monolith
• Projects evolve
• Teams evolve
• Architecture knowledge is lost
leading to sub-optimal decisions

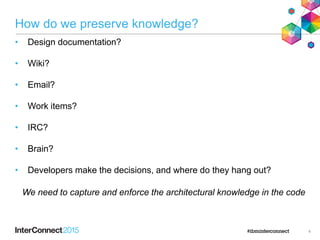

How do we preserve knowledge?
• Design documentation?
• Wiki?
• Email?
• Work items?
• IRC?
• Brain?
• Developers make the decisions, and where do they hang out?
4
We need to capture and enforce the architectural knowledge in the code

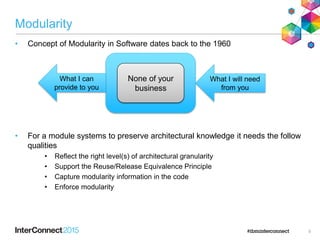

Modularity
• Concept of Modularity in Software dates back to the 1960
• For a module systems to preserve architectural knowledge it needs the follow
qualities
• Reflect the right level(s) of architectural granularity
• Support the Reuse/Release Equivalence Principle
• Capture modularity information in the code
• Enforce modularity
5
None of your
business
What I can
provide to you
What I will need
from you
Modularity and Java
7
Base Java modularity is inadequate
• Classes too fine-grained
• Jars are packaging with no explicit
requirements/capabilities
• Linear classpath
Java EE modularity is inadequate
• Across apps - each archive typically contains
all required libraries
• Common libraries/frameworks get
installed with each application
• Multiple copies of libraries in memory
• Within apps - 3rd party libraries
consume other 3rd party libraries
leading to conflicting versions on
the application classpath.
webB.war
WEB-INF/classes/servletB.class
WEB-INF/lib/json4j.jar
WEB-INF/lib/commons-logging.jar
WEB-INF/lib/junit.jar…
webC.war
WEB-INF/classes/servletC.class
WEB-INF/lib/json4j.jar
WEB-INF/lib/commons-logging.jar
WEB-INF/lib/junit.jar…
plankton.v1
plankton.v2
Modularity Issues in Java EE
Introduction to OSGi
9
Bundle
Manifest-Version: 1.0
Bundle-ManifestVersion: 2
Manifest-Version: 1.0
Bundle-ManifestVersion: 2
Bundle-Name: My Example Bundle
Bundle-SymbolicName: com.my.bundle
Bundle-Version: 1.0.0
Export-Package: com.something.i.provide;version="1.0.0"
Import-Package: com.something.i.need;version="[1.1,2.0)"
Bundle
Bundle
Bundle
Manifest-Version : 1.0
Bundle-ManifestVersi
Manifest-Version : 1.0
Bundle-ManifestVersi
Manifest-Version : 1.0
Bundle-ManifestVersi

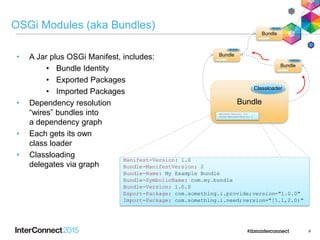

OSGi Modules (aka Bundles)
• A Jar plus OSGi Manifest, includes:
• Bundle Identity
• Exported Packages
• Imported Packages
• Dependency resolution
“wires” bundles into
a dependency graph
• Each gets its own
class loader
• Classloading
delegates via graph
Classloader
Classloader
Classloader
Classloader
10

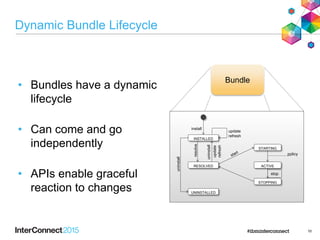

Dynamic Bundle Lifecycle
• Bundles have a dynamic
lifecycle
• Can come and go
independently
• APIs enable graceful
reaction to changes
Bundle
INSTALLED
RESOLVED
UNINSTALLED
STARTING
ACTIVE
STOPPING
install
update
refresh
uninstall
update
refresh
stop
policy
resolve
uninstall
11

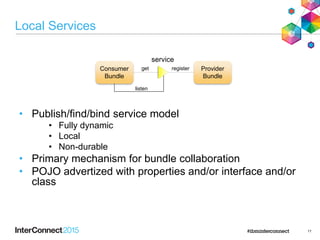

Local Services
• Publish/find/bind service model
• Fully dynamic
• Local
• Non-durable
• Primary mechanism for bundle collaboration
• POJO advertized with properties and/or interface and/or
class
service
Provider
Bundle
Consumer
Bundle
registerget
listen
WebSphere OSGi
Applications

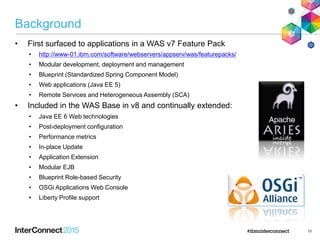

Background
• First surfaced to applications in a WAS v7 Feature Pack
• http://www-01.ibm.com/software/webservers/appserv/was/featurepacks/
• Modular development, deployment and management
• Blueprint (Standardized Spring Component Model)
• Web applications (Java EE 5)
• Remote Services and Heterogeneous Assembly (SCA)
• Included in the WAS Base in v8 and continually extended:
• Java EE 6 Web technologies
• Post-deployment configuration
• Performance metrics
• In-place Update
• Application Extension
• Modular EJB
• Blueprint Role-based Security
• OSGi Applications Web Console
• Liberty Profile support
13

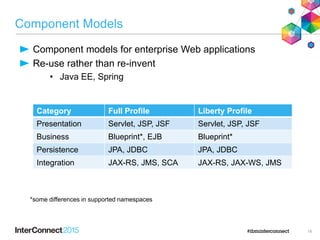

Component Models
Category Full Profile Liberty Profile
Presentation Servlet, JSP, JSF Servlet, JSP, JSF
Business Blueprint*, EJB Blueprint*
Persistence JPA, JDBC JPA, JDBC
Integration JAX-RS, JMS, SCA JAX-RS, JAX-WS, JMS
14
Component models for enterprise Web applications
Re-use rather than re-invent
• Java EE, Spring
*some differences in supported namespaces

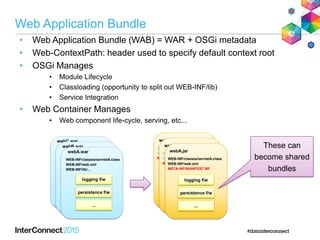

Web Application Bundle
• Web Application Bundle (WAB) = WAR + OSGi metadata
• Web-ContextPath: header used to specify default context root
• OSGi Manages
• Module Lifecycle
• Classloading (opportunity to split out WEB-INF/lib)
• Service Integration
• Web Container Manages
• Web component life-cycle, serving, etc...
webC.war
logging f/w
persistence f/w
MVC f/w
webB.war
logging f/w
persistence f/w
MVC f/w
webA.war
logging f/w
persistence f/w
...
WEB-INF/classes/servletA.class
WEB-INF/web.xml
WEB-INF/lib/…
webA.jar
WEB-INF/classes/servletA.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
webA.jar
WEB-INF/classes/servletA.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
webA.jar
WEB-INF/classes/servletA.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
logging f/w
persistence f/w
...
These can
become shared
bundles
Bundle

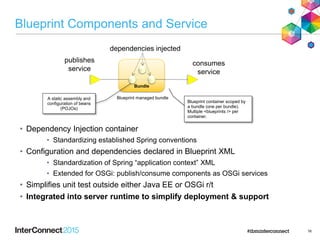

Blueprint Components and Service
• Dependency Injection container
• Standardizing established Spring conventions
• Configuration and dependencies declared in Blueprint XML
• Standardization of Spring “application context” XML
• Extended for OSGi: publish/consume components as OSGi services
• Simplifies unit test outside either Java EE or OSGi r/t
• Integrated into server runtime to simplify deployment & support
16
dependencies injected
publishes
service
consumes
service
Blueprint container scoped by
a bundle (one per bundle).
Multiple <blueprints /> per
container.
A static assembly and
configuration of beans
(POJOs)
Blueprint managed bundle
Brightness

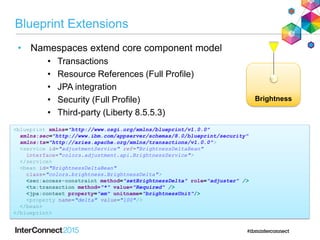

Blueprint Extensions
• Namespaces extend core component model
• Transactions
• Resource References (Full Profile)
• JPA integration
• Security (Full Profile)
• Third-party (Liberty 8.5.5.3)
<blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0"
xmlns:sec="http://www.ibm.com/appserver/schemas/8.0/blueprint/security"
xmlns:tx="http://aries.apache.org/xmlns/transactions/v1.0.0">
<service id="adjustmentService" ref="BrightnessDeltaBean"
interface="colors.adjustment.api.BrightnessService">
</service>
<bean id="BrightnessDeltaBean"
class="colors.brightness.BrightnessDelta">
<sec:access-constraint method="setBrightnessDelta" role="adjuster" />
<tx:transaction method="*" value="Required" />
<jpa:context property="em" unitname="brightnessUnit"/>
<property name="delta" value="100"/>
</bean>
</blueprint>

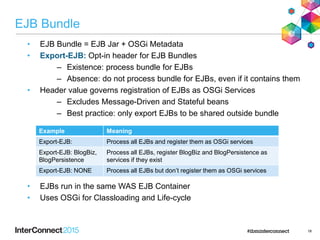

EJB Bundle
• EJB Bundle = EJB Jar + OSGi Metadata
• Export-EJB: Opt-in header for EJB Bundles
– Existence: process bundle for EJBs
– Absence: do not process bundle for EJBs, even if it contains them
• Header value governs registration of EJBs as OSGi Services
– Excludes Message-Driven and Stateful beans
– Best practice: only export EJBs to be shared outside bundle
• EJBs run in the same WAS EJB Container
• Uses OSGi for Classloading and Life-cycle
18
Example Meaning
Export-EJB: Process all EJBs and register them as OSGi services
Export-EJB: BlogBiz,
BlogPersistence
Process all EJBs, register BlogBiz and BlogPersistence as
services if they exist
Export-EJB: NONE Process all EJBs but don’t register them as OSGi services

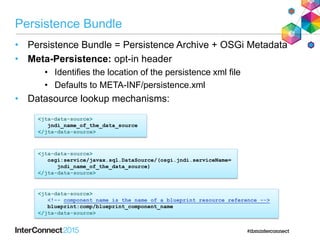

Persistence Bundle
• Persistence Bundle = Persistence Archive + OSGi Metadata
• Meta-Persistence: opt-in header
• Identifies the location of the persistence xml file
• Defaults to META-INF/persistence.xml
• Datasource lookup mechanisms:
<jta-data-source>
<!-- component name is the name of a blueprint resource reference -->
blueprint:comp/blueprint_component_name
</jta-data-source>
<jta-data-source>
osgi:service/javax.sql.DataSource/(osgi.jndi.serviceName=
jndi_name_of_the_data_source)
</jta-data-source>
<jta-data-source>
jndi_name_of_the_data_source
</jta-data-source>
.eba

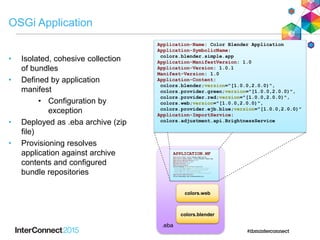

OSGi Application
• Isolated, cohesive collection
of bundles
• Defined by application
manifest
• Configuration by
exception
• Deployed as .eba archive (zip
file)
• Provisioning resolves
application against archive
contents and configured
bundle repositories
APPLICATION.MF
Application-Name: Color Blender Application
Application-SymbolicName: colors.blender.simple.app
Application-ManifestVersion: 1.0
Application-Version: 1.0.1
Manifest-Version: 1.0
Application-Content:
colors.blender;version="[1.0.0,2.0.0)",
colors.provider.green;version="[1.0.0,2.0.0)",
colors.provider.red;version="[1.0.0,2.0.0)",
colors.web;version="[1.0.0,2.0.0)",
colors.provider.ejb.blue;version="[1.0.0,2.0.0)"
Application-ImportService:
colors.adjustment.api.BrightnessService
Application-Name: Color Blender Application
Application-SymbolicName:
colors.blender.simple.app
Application-ManifestVersion: 1.0
Application-Version: 1.0.1
Manifest-Version: 1.0
Application-Content:
colors.blender;version="[1.0.0,2.0.0)",
colors.provider.green;version="[1.0.0,2.0.0)",
colors.provider.red;version="[1.0.0,2.0.0)",
colors.web;version="[1.0.0,2.0.0)",
colors.provider.ejb.blue;version="[1.0.0,2.0.0)"
Application-ImportService:
colors.adjustment.api.BrightnessService
colors.web
colors.blender

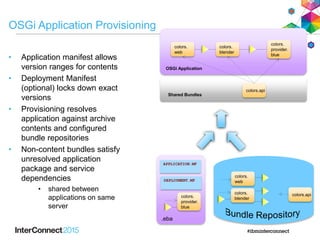

OSGi Application Provisioning
• Application manifest allows
version ranges for contents
• Deployment Manifest
(optional) locks down exact
versions
• Provisioning resolves
application against archive
contents and configured
bundle repositories
• Non-content bundles satisfy
unresolved application
package and service
dependencies
• shared between
applications on same
server
.eba
APPLICATION.MF
DEPLOYMENT.MF
colors.api
colors.
web
colors.
blendercolors.
provider.
blue
Shared Bundles
colors.
blender
OSGi Application
colors.
provider.
blue
colors.api
colors.
web
Dismantling the
Monolith
Adoption Strategies

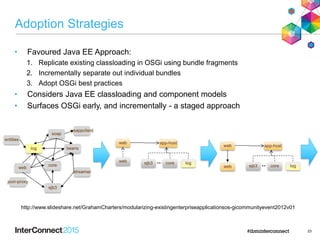

• Favoured Java EE Approach:
1. Replicate existing classloading in OSGi using bundle fragments
2. Incrementally separate out individual bundles
3. Adopt OSGi best practices
• Considers Java EE classloading and component models
• Surfaces OSGi early, and incrementally - a staged approach
23
beans
core
ejb3
entities
json-proxy
soap
wsappclient
streamer
web
app-host
logcoreejb3
wab
web
app-host
logcoreejb3
wab
web
log
http://www.slideshare.net/GrahamCharters/modularizing-existingenterpriseapplicationsos-gicommunityevent2012v01

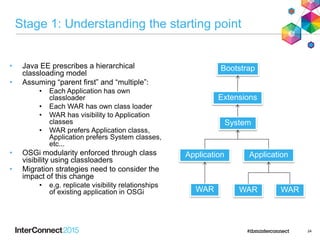

Stage 1: Understanding the starting point
• Java EE prescribes a hierarchical
classloading model
• Assuming “parent first” and “multiple”:
• Each Application has own
classloader
• Each WAR has own class loader
• WAR has visibility to Application
classes
• WAR prefers Application classs,
Application prefers System classes,
etc...
• OSGi modularity enforced through class
visibility using classloaders
• Migration strategies need to consider the
impact of this change
• e.g. replicate visibility relationships
of existing application in OSGi
24
Bootstrap
Extensions
System
Application Application
WAR WAR WAR

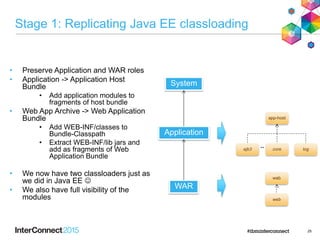

Stage 1: Replicating Java EE classloading
• Preserve Application and WAR roles
• Application -> Application Host
Bundle
• Add application modules to
fragments of host bundle
• Web App Archive -> Web Application
Bundle
• Add WEB-INF/classes to
Bundle-Classpath
• Extract WEB-INF/lib jars and
add as fragments of Web
Application Bundle
• We now have two classloaders just as
we did in Java EE 
• We also have full visibility of the
modules
25
System
Application
WAR
app-host
logcoreejb3
wab
web

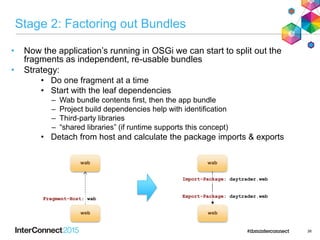

Stage 2: Factoring out Bundles
• Now the application’s running in OSGi we can start to split out the
fragments as independent, re-usable bundles
• Strategy:
• Do one fragment at a time
• Start with the leaf dependencies
– Wab bundle contents first, then the app bundle
– Project build dependencies help with identification
– Third-party libraries
– “shared libraries” (if runtime supports this concept)
• Detach from host and calculate the package imports & exports
26
wab
web
wab
web
Fragment-Host: wab Export-Package: daytrader.web
Import-Package: daytrader.web

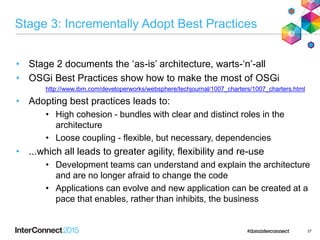

Stage 3: Incrementally Adopt Best Practices
• Stage 2 documents the ‘as-is’ architecture, warts-‘n’-all
• OSGi Best Practices show how to make the most of OSGi
http://www.ibm.com/developerworks/websphere/techjournal/1007_charters/1007_charters.html
• Adopting best practices leads to:
• High cohesion - bundles with clear and distinct roles in the
architecture
• Loose coupling - flexible, but necessary, dependencies
• ...which all leads to greater agility, flexibility and re-use
• Development teams can understand and explain the architecture
and are no longer afraid to change the code
• Applications can evolve and new application can be created at a
pace that enables, rather than inhibits, the business
27
Case Study:
Acme Air

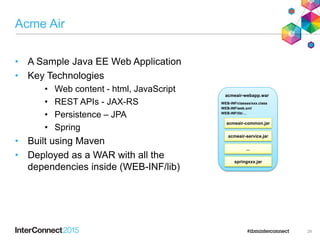

Acme Air
• A Sample Java EE Web Application
• Key Technologies
• Web content - html, JavaScript
• REST APIs - JAX-RS
• Persistence – JPA
• Spring
• Built using Maven
• Deployed as a WAR with all the
dependencies inside (WEB-INF/lib)
acmeair-webapp.war
acmeair-common.jar
acmeair-service.jar
springxxx.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
WEB-INF/lib/…
...
29
Stage 1:
30

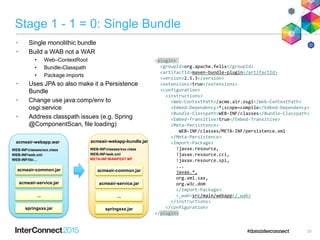

Stage 1 - 1 = 0: Single Bundle
• Single monolithic bundle
• Build a WAB not a WAR
• Web–ContextRoot
• Bundle-Classpath
• Package imports
• Uses JPA so also make it a Persistence
Bundle
• Change use java:comp/env to
osgi:service
• Address classpath issues (e.g. Spring
@ComponentScan, file loading)
31
acmeair-webapp.war
acmeair-common.jar
acmeair-service.jar
springxxx.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
WEB-INF/lib/…
acmeair-webapp-bundle.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
...
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>2.5.3</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Web-ContextPath>/acme.air.osgi</Web-ContextPath>
<Embed-Dependency>*;scope=compile</Embed-Dependency>
<Bundle-Classpath>WEB-INF/classes</Bundle-Classpath>
<Embed-Transitive>true</Embed-Transitive>
<Meta-Persistence>
WEB-INF/classes/META-INF/persistence.xml
</Meta-Persistence>
<Import-Package>
!javax.resource,
!javax.resource.cci,
!javax.resource.spi,
...
javax.*,
org.xml.sax,
org.w3c.dom
</Import-Package>
<_wab>src/main/webapp</_wab>
</instructions>
</configuration>
</plugin>
acmeair-common.jar
acmeair-service.jar
springxxx.jar
...

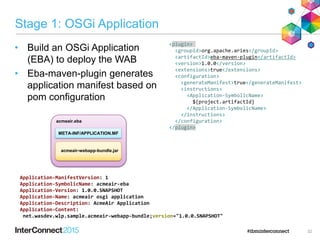

Stage 1: OSGi Application
• Build an OSGi Application
(EBA) to deploy the WAB
• Eba-maven-plugin generates
application manifest based on
pom configuration
32
acmeair-webapp-bundle.jar
acmeair.eba
META-INF/APPLICATION.MF
<plugin>
<groupId>org.apache.aries</groupId>
<artifactId>eba-maven-plugin</artifactId>
<version>1.0.0</version>
<extensions>true</extensions>
<configuration>
<generateManifest>true</generateManifest>
<instructions>
<Application-SymbolicName>
${project.artifactId}
</Application-SymbolicName>
</instructions>
</configuration>
</plugin>
Application-ManifestVersion: 1
Application-SymbolicName: acmeair-eba
Application-Version: 1.0.0.SNAPSHOT
Application-Name: acmeair osgi application
Application-Description: AcmeAir Application
Application-Content:
net.wasdev.wlp.sample.acmeair-webapp-bundle;version="1.0.0.SNAPSHOT"

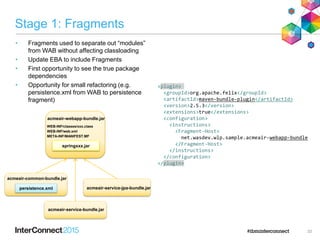

Stage 1: Fragments
• Fragments used to separate out “modules”
from WAB without affecting classloading
• Update EBA to include Fragments
• First opportunity to see the true package
dependencies
• Opportunity for small refactoring (e.g.
persistence.xml from WAB to persistence
fragment)
33
acmeair-webapp-bundle.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
springxxx.jar
acmeair-common-bundle.jar
acmeair-service-bundle.jar
acmeair-service-jpa-bundle.jar
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>2.5.3</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Fragment-Host>
net.wasdev.wlp.sample.acmeair-webapp-bundle
</Fragment-Host>
</instructions>
</configuration>
</plugin>
persistence.xml

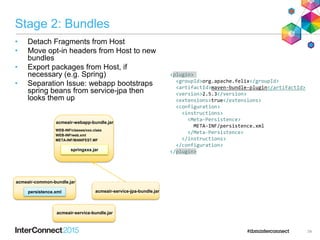

Stage 2: Bundles
• Detach Fragments from Host
• Move opt-in headers from Host to new
bundles
• Export packages from Host, if
necessary (e.g. Spring)
• Separation Issue: webapp bootstraps
spring beans from service-jpa then
looks them up
34
acmeair-webapp-bundle.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
springxxx.jar
acmeair-service-bundle.jar
acmeair-service-jpa-bundle.jar
acmeair-common-bundle.jar
persistence.xml
<plugin>
<groupId>org.apache.felix</groupId>
<artifactId>maven-bundle-plugin</artifactId>
<version>2.5.3</version>
<extensions>true</extensions>
<configuration>
<instructions>
<Meta-Persistence>
META-INF/persistence.xml
</Meta-Persistence>
</instructions>
</configuration>
</plugin>

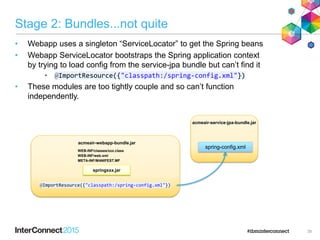

Stage 2: Bundles...not quite
• Webapp uses a singleton “ServiceLocator” to get the Spring beans
• Webapp ServiceLocator bootstraps the Spring application context
by trying to load config from the service-jpa bundle but can’t find it
• @ImportResource({"classpath:/spring-config.xml"})
• These modules are too tightly couple and so can’t function
independently.
35
acmeair-webapp-bundle.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
springxxx.jar
acmeair-service-jpa-bundle.jar
@ImportResource({"classpath:/spring-config.xml"})
spring-config.xml

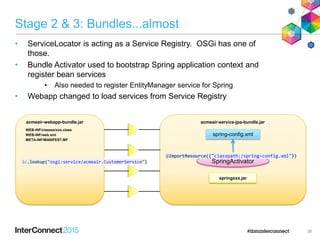

Stage 2 & 3: Bundles...almost
• ServiceLocator is acting as a Service Registry. OSGi has one of
those.
• Bundle Activator used to bootstrap Spring application context and
register bean services
• Also needed to register EntityManager service for Spring
• Webapp changed to load services from Service Registry
36
acmeair-webapp-bundle.jar
WEB-INF/classes/xxx.class
WEB-INF/web.xml
META-INF/MANIFEST.MF
springxxx.jar
acmeair-service-jpa-bundle.jar
spring-config.xml
SpringActivator
@ImportResource({"classpath:/spring-config.xml"})
ic.lookup("osgi:service/acmeair.CustomerService")

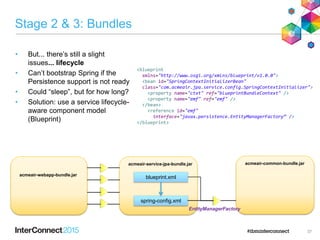

Stage 2 & 3: Bundles
• But... there’s still a slight
issues... lifecycle
• Can’t bootstrap Spring if the
Persistence support is not ready
• Could “sleep”, but for how long?
• Solution: use a service lifecycle-
aware component model
(Blueprint)
37
acmeair-webapp-bundle.jar
acmeair-service-jpa-bundle.jar
spring-config.xml
acmeair-common-bundle.jar
EntityManagerFactory
<blueprint
xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0">
<bean id="SpringContextInitializerBean"
class="com.acmeair.jpa.service.config.SpringContextInitializer">
<property name="ctxt" ref="blueprintBundleContext" />
<property name="emf" ref="emf" />
</bean>
<reference id="emf"
interface="javax.persistence.EntityManagerFactory“ />
</blueprint>
blueprint.xml

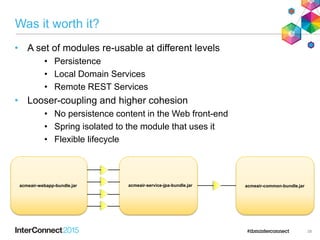

Was it worth it?
• A set of modules re-usable at different levels
• Persistence
• Local Domain Services
• Remote REST Services
• Looser-coupling and higher cohesion
• No persistence content in the Web front-end
• Spring isolated to the module that uses it
• Flexible lifecycle
38
acmeair-webapp-bundle.jar acmeair-service-jpa-bundle.jar acmeair-common-bundle.jar
What’s New

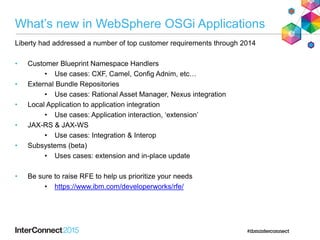

What’s new in WebSphere OSGi Applications
Liberty had addressed a number of top customer requirements through 2014
• Customer Blueprint Namespace Handlers
• Use cases: CXF, Camel, Config Adnim, etc…
• External Bundle Repositories
• Use cases: Rational Asset Manager, Nexus integration
• Local Application to application integration
• Use cases: Application interaction, ‘extension’
• JAX-RS & JAX-WS
• Use cases: Integration & Interop
• Subsystems (beta)
• Uses cases: extension and in-place update
• Be sure to raise RFE to help us prioritize your needs
• https://www.ibm.com/developerworks/rfe/
Summary

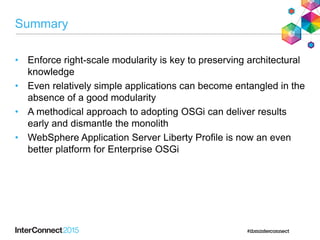

Summary
• Enforce right-scale modularity is key to preserving architectural
knowledge
• Even relatively simple applications can become entangled in the
absence of a good modularity
• A methodical approach to adopting OSGi can deliver results
early and dismantle the monolith
• WebSphere Application Server Liberty Profile is now an even
better platform for Enterprise OSGi
Notices and Disclaimers
Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or
transmitted in any form without written permission from IBM.
U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with
IBM.
Information in these presentations (including information relating to products that have not yet been announced by IBM) has been
reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM
shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY,
EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF
THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT
OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of the
agreements under which they are provided.
Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without
notice.
Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are
presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual
performance, cost, savings or other results in other operating environments may vary.
References in this document to IBM products, programs, or services does not imply that IBM intends to make such products,
programs or services available in all countries in which IBM operates or does business.
Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not
necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither
intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation.
It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal
counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s
business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or
represent or warrant that its services or products will ensure that the customer is in compliance with any law.
Notices and Disclaimers (con’t)
Information concerning non-IBM products was obtained from the suppliers of those products, their published
announcements or other publicly available sources. IBM has not tested those products in connection with this
publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM
products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products.
IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to
interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE.
The provision of the information contained herein is not intended to, and does not, grant any right or license under any
IBM patents, copyrights, trademarks or other intellectual property right.
• IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document
Management System™, Global Business Services ®, Global Technology Services ®, Information on Demand,
ILOG, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™,
PureApplication®, pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®,
pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®,
urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of
International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and
service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on
the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.
Thank You
Your Feedback is
Important!
Access the InterConnect 2015
Conference CONNECT Attendee
Portal to complete your session
surveys from your smartphone,
laptop or conference kiosk.

More Related Content

What's hot

OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...
OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...
OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...
mfrancis

Alfresco WCM Roadmap 2010 (Cheetah & Swift)
Alfresco WCM Roadmap 2010 (Cheetah & Swift)Alfresco WCM Roadmap 2010 (Cheetah & Swift)
Alfresco WCM Roadmap 2010 (Cheetah & Swift)
Alfresco Software


What's hot (20)

What's New in NetBeans IDE 7.x
What's New in NetBeans IDE 7.xWhat's New in NetBeans IDE 7.x
What's New in NetBeans IDE 7.x

OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...
OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...
OSGi-friendly bytecode weaving – enhance your classes, not your dependency gr...

Developing modular Java applications
Developing modular Java applicationsDeveloping modular Java applications
Developing modular Java applications

Core JavaScript
Core JavaScriptCore JavaScript
Core JavaScript

Introduction To J Boss Seam
Introduction To J Boss SeamIntroduction To J Boss Seam
Introduction To J Boss Seam

MyFaces CODI Conversations
MyFaces CODI ConversationsMyFaces CODI Conversations
MyFaces CODI Conversations

Core java kvr - satya
Core  java kvr - satyaCore  java kvr - satya
Core java kvr - satya

Oracle History #5
Oracle History #5Oracle History #5
Oracle History #5

Java & J2EE Struts with Hibernate Framework
Java & J2EE Struts with Hibernate FrameworkJava & J2EE Struts with Hibernate Framework
Java & J2EE Struts with Hibernate Framework

Alfresco WCM Roadmap 2010 (Cheetah & Swift)
Alfresco WCM Roadmap 2010 (Cheetah & Swift)Alfresco WCM Roadmap 2010 (Cheetah & Swift)
Alfresco WCM Roadmap 2010 (Cheetah & Swift)

Fun with EJB 3.1 and Open EJB
Fun with EJB 3.1 and Open EJBFun with EJB 3.1 and Open EJB
Fun with EJB 3.1 and Open EJB

Domino java
Domino javaDomino java
Domino java

Interview preparation net_asp_csharp
Interview preparation net_asp_csharpInterview preparation net_asp_csharp
Interview preparation net_asp_csharp

JEE Course - JEE Overview
JEE Course - JEE  OverviewJEE Course - JEE  Overview
JEE Course - JEE Overview

Java 7 workshop
Java 7 workshopJava 7 workshop
Java 7 workshop

Introduction to Java
Introduction to Java Introduction to Java
Introduction to Java

DB2 and PHP in Depth on IBM i
DB2 and PHP in Depth on IBM iDB2 and PHP in Depth on IBM i
DB2 and PHP in Depth on IBM i

Jsp Tutorial
Jsp TutorialJsp Tutorial
Jsp Tutorial

Strategic Modernization with PHP on IBM i
Strategic Modernization with PHP on IBM iStrategic Modernization with PHP on IBM i
Strategic Modernization with PHP on IBM i

OpenNTF Domino API (ODA): Super-Charging Domino Development
OpenNTF Domino API (ODA): Super-Charging Domino DevelopmentOpenNTF Domino API (ODA): Super-Charging Domino Development
OpenNTF Domino API (ODA): Super-Charging Domino Development


Similar to Monoliths are so 2001 – What you need is Modularity

Enterprise OSGi at eBay
Enterprise OSGi at eBayEnterprise OSGi at eBay
Enterprise OSGi at eBay
Tony Ng

Best Practices for Enterprise OSGi Applications - Emily Jiang
Best Practices for Enterprise OSGi Applications - Emily JiangBest Practices for Enterprise OSGi Applications - Emily Jiang
Best Practices for Enterprise OSGi Applications - Emily Jiang
mfrancis

Travelling Light for the Long Haul - Ian Robinson
Travelling Light for the Long Haul -  Ian RobinsonTravelling Light for the Long Haul -  Ian Robinson
Travelling Light for the Long Haul - Ian Robinson
mfrancis

Travelling light for the long haul
Travelling light for the long haulTravelling light for the long haul
Travelling light for the long haul
Ian Robinson

NA Developer Day - Taking your COBOL apps to Net & JVM
NA Developer Day - Taking your COBOL apps to Net & JVM NA Developer Day - Taking your COBOL apps to Net & JVM
NA Developer Day - Taking your COBOL apps to Net & JVM
Micro Focus

Building a server platform with os gi
Building a server platform with os giBuilding a server platform with os gi
Building a server platform with os gi
Dileepa Jayakody

Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...
Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...
Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...
mfrancis


Similar to Monoliths are so 2001 – What you need is Modularity (20)

Enterprise OSGi at eBay
Enterprise OSGi at eBayEnterprise OSGi at eBay
Enterprise OSGi at eBay

Spring MVC framework
Spring MVC frameworkSpring MVC framework
Spring MVC framework

Best Practices for Enterprise OSGi Applications - Emily Jiang
Best Practices for Enterprise OSGi Applications - Emily JiangBest Practices for Enterprise OSGi Applications - Emily Jiang
Best Practices for Enterprise OSGi Applications - Emily Jiang

EJB 3.0 - Yet Another Introduction
EJB 3.0 - Yet Another IntroductionEJB 3.0 - Yet Another Introduction
EJB 3.0 - Yet Another Introduction

Travelling Light for the Long Haul - Ian Robinson
Travelling Light for the Long Haul -  Ian RobinsonTravelling Light for the Long Haul -  Ian Robinson
Travelling Light for the Long Haul - Ian Robinson

Travelling light for the long haul
Travelling light for the long haulTravelling light for the long haul
Travelling light for the long haul

NA Developer Day - Taking your COBOL apps to Net & JVM
NA Developer Day - Taking your COBOL apps to Net & JVM NA Developer Day - Taking your COBOL apps to Net & JVM
NA Developer Day - Taking your COBOL apps to Net & JVM

Building a server platform with os gi
Building a server platform with os giBuilding a server platform with os gi
Building a server platform with os gi

Java Spring
Java SpringJava Spring
Java Spring

Enterprise service bus part 2
Enterprise service bus part 2Enterprise service bus part 2
Enterprise service bus part 2

Enterprise Spring Building Scalable Applications
Enterprise Spring Building Scalable ApplicationsEnterprise Spring Building Scalable Applications
Enterprise Spring Building Scalable Applications

COBOL deployment to .Net or JVM - Developer Day
COBOL deployment to .Net or JVM - Developer DayCOBOL deployment to .Net or JVM - Developer Day
COBOL deployment to .Net or JVM - Developer Day

COBOL deployment to .NET or JVM
COBOL deployment to .NET or JVMCOBOL deployment to .NET or JVM
COBOL deployment to .NET or JVM

Java Core | Java 8 and OSGi Modularisation | Tim Ellison & Neil Bartlett
Java Core | Java 8 and OSGi Modularisation | Tim Ellison & Neil BartlettJava Core | Java 8 and OSGi Modularisation | Tim Ellison & Neil Bartlett
Java Core | Java 8 and OSGi Modularisation | Tim Ellison & Neil Bartlett

Java EE 7 Soup to Nuts at JavaOne 2014
Java EE 7 Soup to Nuts at JavaOne 2014Java EE 7 Soup to Nuts at JavaOne 2014
Java EE 7 Soup to Nuts at JavaOne 2014

Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...
Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...
Building a Modular Server Platform with OSGi - Harshana Eranga Martin, Dileep...

Building a Modular Server Platform with OSGi
Building a Modular Server Platform with OSGiBuilding a Modular Server Platform with OSGi
Building a Modular Server Platform with OSGi

Intorduction to struts
Intorduction to strutsIntorduction to struts
Intorduction to struts

OSGi enRoute Unveiled - P Kriens
OSGi enRoute Unveiled - P KriensOSGi enRoute Unveiled - P Kriens
OSGi enRoute Unveiled - P Kriens

OSGi introduction
OSGi introductionOSGi introduction
OSGi introduction


More from Graham Charters

More from Graham Charters (9)

Explore Jakarta EE and MicroProfile on Azure with Open Liberty & OpenShift
Explore Jakarta EE and MicroProfile on Azure with Open Liberty & OpenShiftExplore Jakarta EE and MicroProfile on Azure with Open Liberty & OpenShift
Explore Jakarta EE and MicroProfile on Azure with Open Liberty & OpenShift

How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?How to get along with HATEOAS without letting the bad guys steal your lunch?
How to get along with HATEOAS without letting the bad guys steal your lunch?

Cutting through the fog of microservices: lightsabers optional
Cutting through the fog of microservices: lightsabers optionalCutting through the fog of microservices: lightsabers optional
Cutting through the fog of microservices: lightsabers optional

Are you ready for cloud-native Java?
Are you ready for cloud-native Java?Are you ready for cloud-native Java?
Are you ready for cloud-native Java?

Optimizing Spring Boot apps for Docker
Optimizing Spring Boot apps for DockerOptimizing Spring Boot apps for Docker
Optimizing Spring Boot apps for Docker

A first look at Open Liberty
A first look at Open LibertyA first look at Open Liberty
A first look at Open Liberty

Microservices and OSGi: Better together?
Microservices and OSGi: Better together?Microservices and OSGi: Better together?
Microservices and OSGi: Better together?

Get Rapid Right-sized and Recent with the Liberty Repository
Get Rapid Right-sized and Recent with the Liberty RepositoryGet Rapid Right-sized and Recent with the Liberty Repository
Get Rapid Right-sized and Recent with the Liberty Repository

Towards a Modularity Maturity Model
Towards a Modularity Maturity ModelTowards a Modularity Maturity Model
Towards a Modularity Maturity Model


Recently uploaded

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc


Recently uploaded (20)

ERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage IntacctERP Contender Series: Acumatica vs. Sage Intacct
ERP Contender Series: Acumatica vs. Sage Intacct

Quantum Leap in Next-Generation Computing
Quantum Leap in Next-Generation ComputingQuantum Leap in Next-Generation Computing
Quantum Leap in Next-Generation Computing

WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...
WSO2 Micro Integrator for Enterprise Integration in a Decentralized, Microser...

DBX First Quarter 2024 Investor Presentation
DBX First Quarter 2024 Investor PresentationDBX First Quarter 2024 Investor Presentation
DBX First Quarter 2024 Investor Presentation

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDM

How to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cfHow to Check CNIC Information Online with Pakdata cf
How to Check CNIC Information Online with Pakdata cf

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

Introduction to Multilingual Retrieval Augmented Generation (RAG)
Introduction to Multilingual Retrieval Augmented Generation (RAG)Introduction to Multilingual Retrieval Augmented Generation (RAG)
Introduction to Multilingual Retrieval Augmented Generation (RAG)

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

Repurposing LNG terminals for Hydrogen Ammonia: Feasibility and Cost Saving
Repurposing LNG terminals for Hydrogen Ammonia: Feasibility and Cost SavingRepurposing LNG terminals for Hydrogen Ammonia: Feasibility and Cost Saving
Repurposing LNG terminals for Hydrogen Ammonia: Feasibility and Cost Saving

TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...
TrustArc Webinar - Unified Trust Center for Privacy, Security, Compliance, an...

TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....
TEST BANK For Principles of Anatomy and Physiology, 16th Edition by Gerard J....

CNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In PakistanCNIC Information System with Pakdata Cf In Pakistan
CNIC Information System with Pakdata Cf In Pakistan

WSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering DevelopersWSO2's API Vision: Unifying Control, Empowering Developers
WSO2's API Vision: Unifying Control, Empowering Developers

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

Less Is More: Utilizing Ballerina to Architect a Cloud Data Platform
Less Is More: Utilizing Ballerina to Architect a Cloud Data PlatformLess Is More: Utilizing Ballerina to Architect a Cloud Data Platform
Less Is More: Utilizing Ballerina to Architect a Cloud Data Platform

Working together SRE & Platform Engineering
Working together SRE & Platform EngineeringWorking together SRE & Platform Engineering
Working together SRE & Platform Engineering

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptx


Monoliths are so 2001 – What you need is Modularity

  • 1. © 2015 IBM Corporation Monoliths are so 2001 – What you need is Modularity Graham Charters, STSM, WebSphere Liberty Repository & OSGi Applications Architect Ian Robinson, Distinguished Engineer, WebSphere Foundation Chief Architect
  • 2. Agenda • Monoliths & Modularity • Modularity and Java • Introduction to OSGi • Dismantling the Monolith • A Case Study – Acme Air • What’s new in OSGi Applications • Summary 1
  • 4. Why Monoliths • No project sets out to create a monolith • Projects evolve • Teams evolve • Architecture knowledge is lost leading to sub-optimal decisions
  • 5. How do we preserve knowledge? • Design documentation? • Wiki? • Email? • Work items? • IRC? • Brain? • Developers make the decisions, and where do they hang out? 4 We need to capture and enforce the architectural knowledge in the code
  • 6. Modularity • Concept of Modularity in Software dates back to the 1960 • For a module systems to preserve architectural knowledge it needs the follow qualities • Reflect the right level(s) of architectural granularity • Support the Reuse/Release Equivalence Principle • Capture modularity information in the code • Enforce modularity 5 None of your business What I can provide to you What I will need from you
  • 8. 7 Base Java modularity is inadequate • Classes too fine-grained • Jars are packaging with no explicit requirements/capabilities • Linear classpath Java EE modularity is inadequate • Across apps - each archive typically contains all required libraries • Common libraries/frameworks get installed with each application • Multiple copies of libraries in memory • Within apps - 3rd party libraries consume other 3rd party libraries leading to conflicting versions on the application classpath. webB.war WEB-INF/classes/servletB.class WEB-INF/lib/json4j.jar WEB-INF/lib/commons-logging.jar WEB-INF/lib/junit.jar… webC.war WEB-INF/classes/servletC.class WEB-INF/lib/json4j.jar WEB-INF/lib/commons-logging.jar WEB-INF/lib/junit.jar… plankton.v1 plankton.v2 Modularity Issues in Java EE
  • 10. 9 Bundle Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Manifest-Version: 1.0 Bundle-ManifestVersion: 2 Bundle-Name: My Example Bundle Bundle-SymbolicName: com.my.bundle Bundle-Version: 1.0.0 Export-Package: com.something.i.provide;version="1.0.0" Import-Package: com.something.i.need;version="[1.1,2.0)" Bundle Bundle Bundle Manifest-Version : 1.0 Bundle-ManifestVersi Manifest-Version : 1.0 Bundle-ManifestVersi Manifest-Version : 1.0 Bundle-ManifestVersi OSGi Modules (aka Bundles) • A Jar plus OSGi Manifest, includes: • Bundle Identity • Exported Packages • Imported Packages • Dependency resolution “wires” bundles into a dependency graph • Each gets its own class loader • Classloading delegates via graph Classloader Classloader Classloader Classloader
  • 11. 10 Dynamic Bundle Lifecycle • Bundles have a dynamic lifecycle • Can come and go independently • APIs enable graceful reaction to changes Bundle INSTALLED RESOLVED UNINSTALLED STARTING ACTIVE STOPPING install update refresh uninstall update refresh stop policy resolve uninstall
  • 12. 11 Local Services • Publish/find/bind service model • Fully dynamic • Local • Non-durable • Primary mechanism for bundle collaboration • POJO advertized with properties and/or interface and/or class service Provider Bundle Consumer Bundle registerget listen
  • 14. Background • First surfaced to applications in a WAS v7 Feature Pack • http://www-01.ibm.com/software/webservers/appserv/was/featurepacks/ • Modular development, deployment and management • Blueprint (Standardized Spring Component Model) • Web applications (Java EE 5) • Remote Services and Heterogeneous Assembly (SCA) • Included in the WAS Base in v8 and continually extended: • Java EE 6 Web technologies • Post-deployment configuration • Performance metrics • In-place Update • Application Extension • Modular EJB • Blueprint Role-based Security • OSGi Applications Web Console • Liberty Profile support 13
  • 15. Component Models Category Full Profile Liberty Profile Presentation Servlet, JSP, JSF Servlet, JSP, JSF Business Blueprint*, EJB Blueprint* Persistence JPA, JDBC JPA, JDBC Integration JAX-RS, JMS, SCA JAX-RS, JAX-WS, JMS 14 Component models for enterprise Web applications Re-use rather than re-invent • Java EE, Spring *some differences in supported namespaces
  • 16. Web Application Bundle • Web Application Bundle (WAB) = WAR + OSGi metadata • Web-ContextPath: header used to specify default context root • OSGi Manages • Module Lifecycle • Classloading (opportunity to split out WEB-INF/lib) • Service Integration • Web Container Manages • Web component life-cycle, serving, etc... webC.war logging f/w persistence f/w MVC f/w webB.war logging f/w persistence f/w MVC f/w webA.war logging f/w persistence f/w ... WEB-INF/classes/servletA.class WEB-INF/web.xml WEB-INF/lib/… webA.jar WEB-INF/classes/servletA.class WEB-INF/web.xml META-INF/MANIFEST.MF webA.jar WEB-INF/classes/servletA.class WEB-INF/web.xml META-INF/MANIFEST.MF webA.jar WEB-INF/classes/servletA.class WEB-INF/web.xml META-INF/MANIFEST.MF logging f/w persistence f/w ... These can become shared bundles
  • 17. Bundle Blueprint Components and Service • Dependency Injection container • Standardizing established Spring conventions • Configuration and dependencies declared in Blueprint XML • Standardization of Spring “application context” XML • Extended for OSGi: publish/consume components as OSGi services • Simplifies unit test outside either Java EE or OSGi r/t • Integrated into server runtime to simplify deployment & support 16 dependencies injected publishes service consumes service Blueprint container scoped by a bundle (one per bundle). Multiple <blueprints /> per container. A static assembly and configuration of beans (POJOs) Blueprint managed bundle
  • 18. Brightness Blueprint Extensions • Namespaces extend core component model • Transactions • Resource References (Full Profile) • JPA integration • Security (Full Profile) • Third-party (Liberty 8.5.5.3) <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0" xmlns:sec="http://www.ibm.com/appserver/schemas/8.0/blueprint/security" xmlns:tx="http://aries.apache.org/xmlns/transactions/v1.0.0"> <service id="adjustmentService" ref="BrightnessDeltaBean" interface="colors.adjustment.api.BrightnessService"> </service> <bean id="BrightnessDeltaBean" class="colors.brightness.BrightnessDelta"> <sec:access-constraint method="setBrightnessDelta" role="adjuster" /> <tx:transaction method="*" value="Required" /> <jpa:context property="em" unitname="brightnessUnit"/> <property name="delta" value="100"/> </bean> </blueprint>
  • 19. EJB Bundle • EJB Bundle = EJB Jar + OSGi Metadata • Export-EJB: Opt-in header for EJB Bundles – Existence: process bundle for EJBs – Absence: do not process bundle for EJBs, even if it contains them • Header value governs registration of EJBs as OSGi Services – Excludes Message-Driven and Stateful beans – Best practice: only export EJBs to be shared outside bundle • EJBs run in the same WAS EJB Container • Uses OSGi for Classloading and Life-cycle 18 Example Meaning Export-EJB: Process all EJBs and register them as OSGi services Export-EJB: BlogBiz, BlogPersistence Process all EJBs, register BlogBiz and BlogPersistence as services if they exist Export-EJB: NONE Process all EJBs but don’t register them as OSGi services
  • 20. Persistence Bundle • Persistence Bundle = Persistence Archive + OSGi Metadata • Meta-Persistence: opt-in header • Identifies the location of the persistence xml file • Defaults to META-INF/persistence.xml • Datasource lookup mechanisms: <jta-data-source> <!-- component name is the name of a blueprint resource reference --> blueprint:comp/blueprint_component_name </jta-data-source> <jta-data-source> osgi:service/javax.sql.DataSource/(osgi.jndi.serviceName= jndi_name_of_the_data_source) </jta-data-source> <jta-data-source> jndi_name_of_the_data_source </jta-data-source>
  • 21. .eba OSGi Application • Isolated, cohesive collection of bundles • Defined by application manifest • Configuration by exception • Deployed as .eba archive (zip file) • Provisioning resolves application against archive contents and configured bundle repositories APPLICATION.MF Application-Name: Color Blender Application Application-SymbolicName: colors.blender.simple.app Application-ManifestVersion: 1.0 Application-Version: 1.0.1 Manifest-Version: 1.0 Application-Content: colors.blender;version="[1.0.0,2.0.0)", colors.provider.green;version="[1.0.0,2.0.0)", colors.provider.red;version="[1.0.0,2.0.0)", colors.web;version="[1.0.0,2.0.0)", colors.provider.ejb.blue;version="[1.0.0,2.0.0)" Application-ImportService: colors.adjustment.api.BrightnessService Application-Name: Color Blender Application Application-SymbolicName: colors.blender.simple.app Application-ManifestVersion: 1.0 Application-Version: 1.0.1 Manifest-Version: 1.0 Application-Content: colors.blender;version="[1.0.0,2.0.0)", colors.provider.green;version="[1.0.0,2.0.0)", colors.provider.red;version="[1.0.0,2.0.0)", colors.web;version="[1.0.0,2.0.0)", colors.provider.ejb.blue;version="[1.0.0,2.0.0)" Application-ImportService: colors.adjustment.api.BrightnessService colors.web colors.blender
  • 22. OSGi Application Provisioning • Application manifest allows version ranges for contents • Deployment Manifest (optional) locks down exact versions • Provisioning resolves application against archive contents and configured bundle repositories • Non-content bundles satisfy unresolved application package and service dependencies • shared between applications on same server .eba APPLICATION.MF DEPLOYMENT.MF colors.api colors. web colors. blendercolors. provider. blue Shared Bundles colors. blender OSGi Application colors. provider. blue colors.api colors. web
  • 24. Adoption Strategies • Favoured Java EE Approach: 1. Replicate existing classloading in OSGi using bundle fragments 2. Incrementally separate out individual bundles 3. Adopt OSGi best practices • Considers Java EE classloading and component models • Surfaces OSGi early, and incrementally - a staged approach 23 beans core ejb3 entities json-proxy soap wsappclient streamer web app-host logcoreejb3 wab web app-host logcoreejb3 wab web log http://www.slideshare.net/GrahamCharters/modularizing-existingenterpriseapplicationsos-gicommunityevent2012v01
  • 25. Stage 1: Understanding the starting point • Java EE prescribes a hierarchical classloading model • Assuming “parent first” and “multiple”: • Each Application has own classloader • Each WAR has own class loader • WAR has visibility to Application classes • WAR prefers Application classs, Application prefers System classes, etc... • OSGi modularity enforced through class visibility using classloaders • Migration strategies need to consider the impact of this change • e.g. replicate visibility relationships of existing application in OSGi 24 Bootstrap Extensions System Application Application WAR WAR WAR
  • 26. Stage 1: Replicating Java EE classloading • Preserve Application and WAR roles • Application -> Application Host Bundle • Add application modules to fragments of host bundle • Web App Archive -> Web Application Bundle • Add WEB-INF/classes to Bundle-Classpath • Extract WEB-INF/lib jars and add as fragments of Web Application Bundle • We now have two classloaders just as we did in Java EE  • We also have full visibility of the modules 25 System Application WAR app-host logcoreejb3 wab web
  • 27. Stage 2: Factoring out Bundles • Now the application’s running in OSGi we can start to split out the fragments as independent, re-usable bundles • Strategy: • Do one fragment at a time • Start with the leaf dependencies – Wab bundle contents first, then the app bundle – Project build dependencies help with identification – Third-party libraries – “shared libraries” (if runtime supports this concept) • Detach from host and calculate the package imports & exports 26 wab web wab web Fragment-Host: wab Export-Package: daytrader.web Import-Package: daytrader.web
  • 28. Stage 3: Incrementally Adopt Best Practices • Stage 2 documents the ‘as-is’ architecture, warts-‘n’-all • OSGi Best Practices show how to make the most of OSGi http://www.ibm.com/developerworks/websphere/techjournal/1007_charters/1007_charters.html • Adopting best practices leads to: • High cohesion - bundles with clear and distinct roles in the architecture • Loose coupling - flexible, but necessary, dependencies • ...which all leads to greater agility, flexibility and re-use • Development teams can understand and explain the architecture and are no longer afraid to change the code • Applications can evolve and new application can be created at a pace that enables, rather than inhibits, the business 27
  • 30. Acme Air • A Sample Java EE Web Application • Key Technologies • Web content - html, JavaScript • REST APIs - JAX-RS • Persistence – JPA • Spring • Built using Maven • Deployed as a WAR with all the dependencies inside (WEB-INF/lib) acmeair-webapp.war acmeair-common.jar acmeair-service.jar springxxx.jar WEB-INF/classes/xxx.class WEB-INF/web.xml WEB-INF/lib/… ... 29
  • 32. Stage 1 - 1 = 0: Single Bundle • Single monolithic bundle • Build a WAB not a WAR • Web–ContextRoot • Bundle-Classpath • Package imports • Uses JPA so also make it a Persistence Bundle • Change use java:comp/env to osgi:service • Address classpath issues (e.g. Spring @ComponentScan, file loading) 31 acmeair-webapp.war acmeair-common.jar acmeair-service.jar springxxx.jar WEB-INF/classes/xxx.class WEB-INF/web.xml WEB-INF/lib/… acmeair-webapp-bundle.jar WEB-INF/classes/xxx.class WEB-INF/web.xml META-INF/MANIFEST.MF ... <plugin> <groupId>org.apache.felix</groupId> <artifactId>maven-bundle-plugin</artifactId> <version>2.5.3</version> <extensions>true</extensions> <configuration> <instructions> <Web-ContextPath>/acme.air.osgi</Web-ContextPath> <Embed-Dependency>*;scope=compile</Embed-Dependency> <Bundle-Classpath>WEB-INF/classes</Bundle-Classpath> <Embed-Transitive>true</Embed-Transitive> <Meta-Persistence> WEB-INF/classes/META-INF/persistence.xml </Meta-Persistence> <Import-Package> !javax.resource, !javax.resource.cci, !javax.resource.spi, ... javax.*, org.xml.sax, org.w3c.dom </Import-Package> <_wab>src/main/webapp</_wab> </instructions> </configuration> </plugin> acmeair-common.jar acmeair-service.jar springxxx.jar ...
  • 33. Stage 1: OSGi Application • Build an OSGi Application (EBA) to deploy the WAB • Eba-maven-plugin generates application manifest based on pom configuration 32 acmeair-webapp-bundle.jar acmeair.eba META-INF/APPLICATION.MF <plugin> <groupId>org.apache.aries</groupId> <artifactId>eba-maven-plugin</artifactId> <version>1.0.0</version> <extensions>true</extensions> <configuration> <generateManifest>true</generateManifest> <instructions> <Application-SymbolicName> ${project.artifactId} </Application-SymbolicName> </instructions> </configuration> </plugin> Application-ManifestVersion: 1 Application-SymbolicName: acmeair-eba Application-Version: 1.0.0.SNAPSHOT Application-Name: acmeair osgi application Application-Description: AcmeAir Application Application-Content: net.wasdev.wlp.sample.acmeair-webapp-bundle;version="1.0.0.SNAPSHOT"
  • 34. Stage 1: Fragments • Fragments used to separate out “modules” from WAB without affecting classloading • Update EBA to include Fragments • First opportunity to see the true package dependencies • Opportunity for small refactoring (e.g. persistence.xml from WAB to persistence fragment) 33 acmeair-webapp-bundle.jar WEB-INF/classes/xxx.class WEB-INF/web.xml META-INF/MANIFEST.MF springxxx.jar acmeair-common-bundle.jar acmeair-service-bundle.jar acmeair-service-jpa-bundle.jar <plugin> <groupId>org.apache.felix</groupId> <artifactId>maven-bundle-plugin</artifactId> <version>2.5.3</version> <extensions>true</extensions> <configuration> <instructions> <Fragment-Host> net.wasdev.wlp.sample.acmeair-webapp-bundle </Fragment-Host> </instructions> </configuration> </plugin> persistence.xml
  • 35. Stage 2: Bundles • Detach Fragments from Host • Move opt-in headers from Host to new bundles • Export packages from Host, if necessary (e.g. Spring) • Separation Issue: webapp bootstraps spring beans from service-jpa then looks them up 34 acmeair-webapp-bundle.jar WEB-INF/classes/xxx.class WEB-INF/web.xml META-INF/MANIFEST.MF springxxx.jar acmeair-service-bundle.jar acmeair-service-jpa-bundle.jar acmeair-common-bundle.jar persistence.xml <plugin> <groupId>org.apache.felix</groupId> <artifactId>maven-bundle-plugin</artifactId> <version>2.5.3</version> <extensions>true</extensions> <configuration> <instructions> <Meta-Persistence> META-INF/persistence.xml </Meta-Persistence> </instructions> </configuration> </plugin>
  • 36. Stage 2: Bundles...not quite • Webapp uses a singleton “ServiceLocator” to get the Spring beans • Webapp ServiceLocator bootstraps the Spring application context by trying to load config from the service-jpa bundle but can’t find it • @ImportResource({"classpath:/spring-config.xml"}) • These modules are too tightly couple and so can’t function independently. 35 acmeair-webapp-bundle.jar WEB-INF/classes/xxx.class WEB-INF/web.xml META-INF/MANIFEST.MF springxxx.jar acmeair-service-jpa-bundle.jar @ImportResource({"classpath:/spring-config.xml"}) spring-config.xml
  • 37. Stage 2 & 3: Bundles...almost • ServiceLocator is acting as a Service Registry. OSGi has one of those. • Bundle Activator used to bootstrap Spring application context and register bean services • Also needed to register EntityManager service for Spring • Webapp changed to load services from Service Registry 36 acmeair-webapp-bundle.jar WEB-INF/classes/xxx.class WEB-INF/web.xml META-INF/MANIFEST.MF springxxx.jar acmeair-service-jpa-bundle.jar spring-config.xml SpringActivator @ImportResource({"classpath:/spring-config.xml"}) ic.lookup("osgi:service/acmeair.CustomerService")
  • 38. Stage 2 & 3: Bundles • But... there’s still a slight issues... lifecycle • Can’t bootstrap Spring if the Persistence support is not ready • Could “sleep”, but for how long? • Solution: use a service lifecycle- aware component model (Blueprint) 37 acmeair-webapp-bundle.jar acmeair-service-jpa-bundle.jar spring-config.xml acmeair-common-bundle.jar EntityManagerFactory <blueprint xmlns="http://www.osgi.org/xmlns/blueprint/v1.0.0"> <bean id="SpringContextInitializerBean" class="com.acmeair.jpa.service.config.SpringContextInitializer"> <property name="ctxt" ref="blueprintBundleContext" /> <property name="emf" ref="emf" /> </bean> <reference id="emf" interface="javax.persistence.EntityManagerFactory“ /> </blueprint> blueprint.xml
  • 39. Was it worth it? • A set of modules re-usable at different levels • Persistence • Local Domain Services • Remote REST Services • Looser-coupling and higher cohesion • No persistence content in the Web front-end • Spring isolated to the module that uses it • Flexible lifecycle 38 acmeair-webapp-bundle.jar acmeair-service-jpa-bundle.jar acmeair-common-bundle.jar
  • 41. What’s new in WebSphere OSGi Applications Liberty had addressed a number of top customer requirements through 2014 • Customer Blueprint Namespace Handlers • Use cases: CXF, Camel, Config Adnim, etc… • External Bundle Repositories • Use cases: Rational Asset Manager, Nexus integration • Local Application to application integration • Use cases: Application interaction, ‘extension’ • JAX-RS & JAX-WS • Use cases: Integration & Interop • Subsystems (beta) • Uses cases: extension and in-place update • Be sure to raise RFE to help us prioritize your needs • https://www.ibm.com/developerworks/rfe/
  • 43. Summary • Enforce right-scale modularity is key to preserving architectural knowledge • Even relatively simple applications can become entangled in the absence of a good modularity • A methodical approach to adopting OSGi can deliver results early and dismantle the monolith • WebSphere Application Server Liberty Profile is now an even better platform for Enterprise OSGi

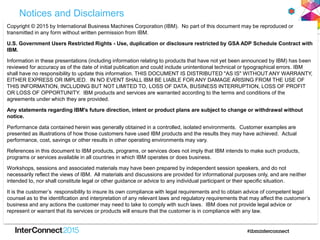

  • 44. Notices and Disclaimers Copyright © 2015 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM. U.S. Government Users Restricted Rights - Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM. Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. THIS DOCUMENT IS DISTRIBUTED "AS IS" WITHOUT ANY WARRANTY, EITHER EXPRESS OR IMPLIED. IN NO EVENT SHALL IBM BE LIABLE FOR ANY DAMAGE ARISING FROM THE USE OF THIS INFORMATION, INCLUDING BUT NOT LIMITED TO, LOSS OF DATA, BUSINESS INTERRUPTION, LOSS OF PROFIT OR LOSS OF OPPORTUNITY. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided. Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice. Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary. References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or does business. Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation. It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or warrant that its services or products will ensure that the customer is in compliance with any law.

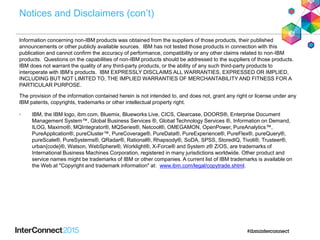

  • 45. Notices and Disclaimers (con’t) Information concerning non-IBM products was obtained from the suppliers of those products, their published announcements or other publicly available sources. IBM has not tested those products in connection with this publication and cannot confirm the accuracy of performance, compatibility or any other claims related to non-IBM products. Questions on the capabilities of non-IBM products should be addressed to the suppliers of those products. IBM does not warrant the quality of any third-party products, or the ability of any such third-party products to interoperate with IBM’s products. IBM EXPRESSLY DISCLAIMS ALL WARRANTIES, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. The provision of the information contained herein is not intended to, and does not, grant any right or license under any IBM patents, copyrights, trademarks or other intellectual property right. • IBM, the IBM logo, ibm.com, Bluemix, Blueworks Live, CICS, Clearcase, DOORS®, Enterprise Document Management System™, Global Business Services ®, Global Technology Services ®, Information on Demand, ILOG, Maximo®, MQIntegrator®, MQSeries®, Netcool®, OMEGAMON, OpenPower, PureAnalytics™, PureApplication®, pureCluster™, PureCoverage®, PureData®, PureExperience®, PureFlex®, pureQuery®, pureScale®, PureSystems®, QRadar®, Rational®, Rhapsody®, SoDA, SPSS, StoredIQ, Tivoli®, Trusteer®, urban{code}®, Watson, WebSphere®, Worklight®, X-Force® and System z® Z/OS, are trademarks of International Business Machines Corporation, registered in many jurisdictions worldwide. Other product and service names might be trademarks of IBM or other companies. A current list of IBM trademarks is available on the Web at "Copyright and trademark information" at: www.ibm.com/legal/copytrade.shtml.
  • 46. Thank You Your Feedback is Important! Access the InterConnect 2015 Conference CONNECT Attendee Portal to complete your session surveys from your smartphone, laptop or conference kiosk.
