Monitoring CloudStack and components

Monitoring CloudStack and Components
August, 22nd 2017
Alexander Stock
Cloud Infrastructure Architect
©2017itelligenceclassification:public|version:1.105/17/2017

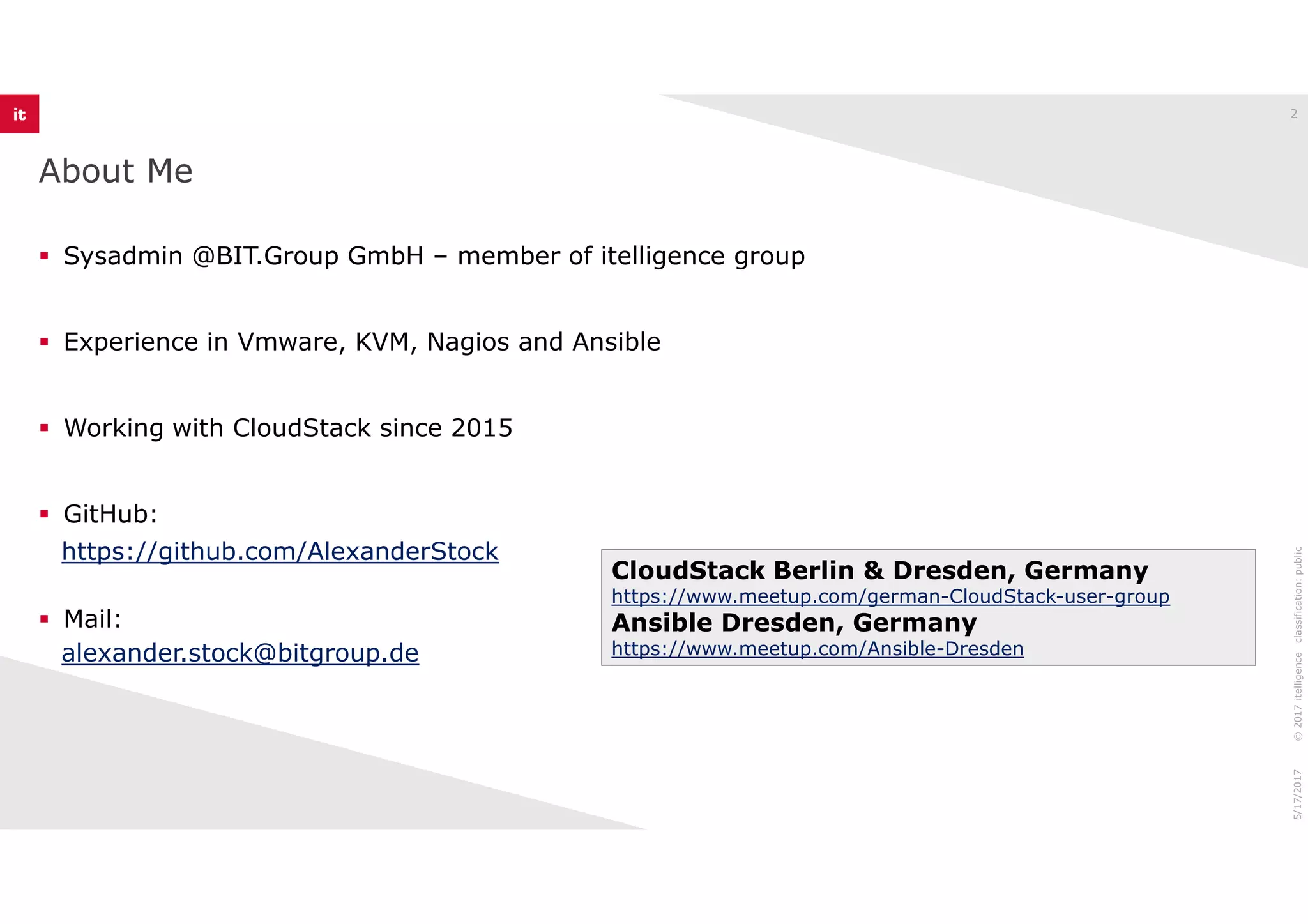

About Me
2
Sysadmin @BIT.Group GmbH – member of itelligence group
Experience in Vmware, KVM, Nagios and Ansible
Working with CloudStack since 2015
GitHub:
https://github.com/AlexanderStock
Mail:
alexander.stock@bitgroup.de
©2017itelligenceclassification:public5/17/2017
CloudStack Berlin & Dresden, Germany
https://www.meetup.com/german-CloudStack-user-group
Ansible Dresden, Germany
https://www.meetup.com/Ansible-Dresden

Overview BIT.Group GmbH – member of itelligence group
3
350+ employees in Dresden, Bautzen, Hanover and Shanghai
SAP Consulting, Development and Support
SAP partner and service provider for SAP SE
©2017itelligenceclassification:external
IT Consulting
Development
Cloud IT Infrastructure Management
SAP BASIS
SAP Solution Manager
Application Lifecycle Management
International
BIT Service Desk
SAP Service & Support
ITIL SAP HANA
Workshops
IT Service Management
SAP partner
5/17/2017

Since June 2016 BIT.Group GmbH
officially part of itelligence and
NTT DATA Group
Know-how, flexibility and
internationality as part of NTT DATA network

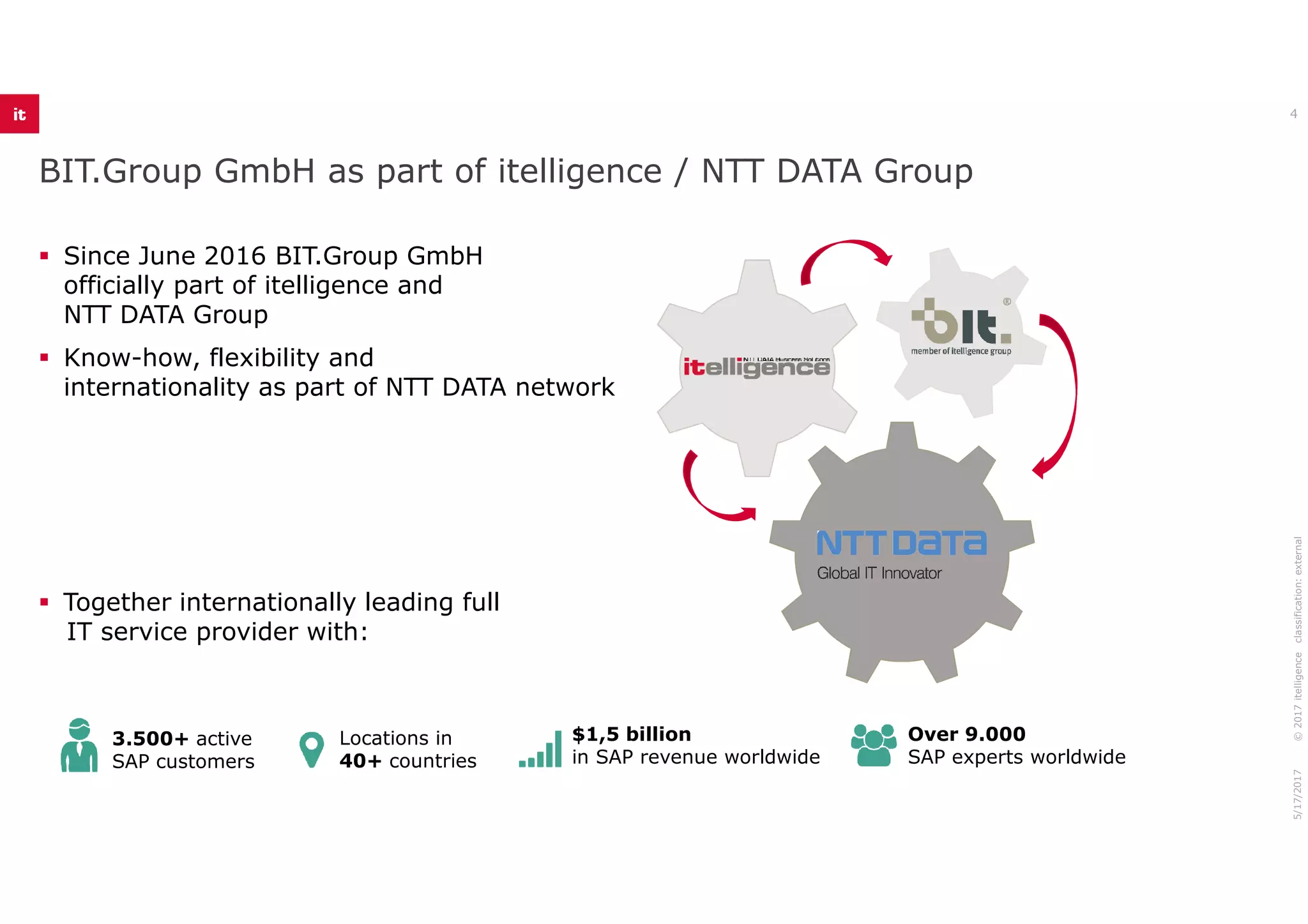

BIT.Group GmbH as part of itelligence / NTT DATA Group
4
Together internationally leading full
IT service provider with:
©2017itelligenceclassification:external
3.500+ active
SAP customers
Locations in
40+ countries
$1,5 billion
in SAP revenue worldwide
Over 9.000
SAP experts worldwide
5/17/2017

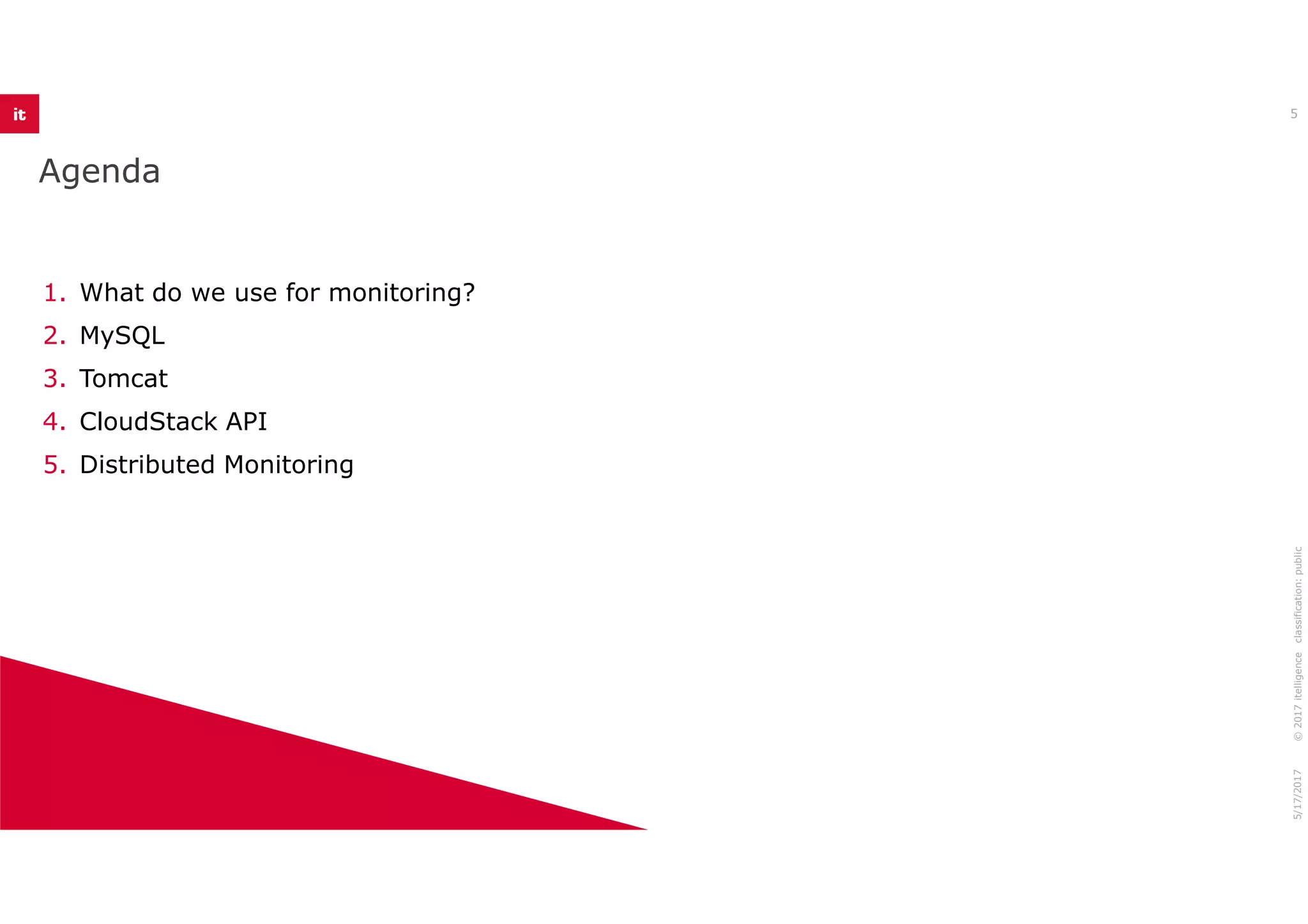

Agenda
1. What do we use for monitoring?
2. MySQL
3. Tomcat
4. CloudStack API
5. Distributed Monitoring
5
5. Distributed Monitoring

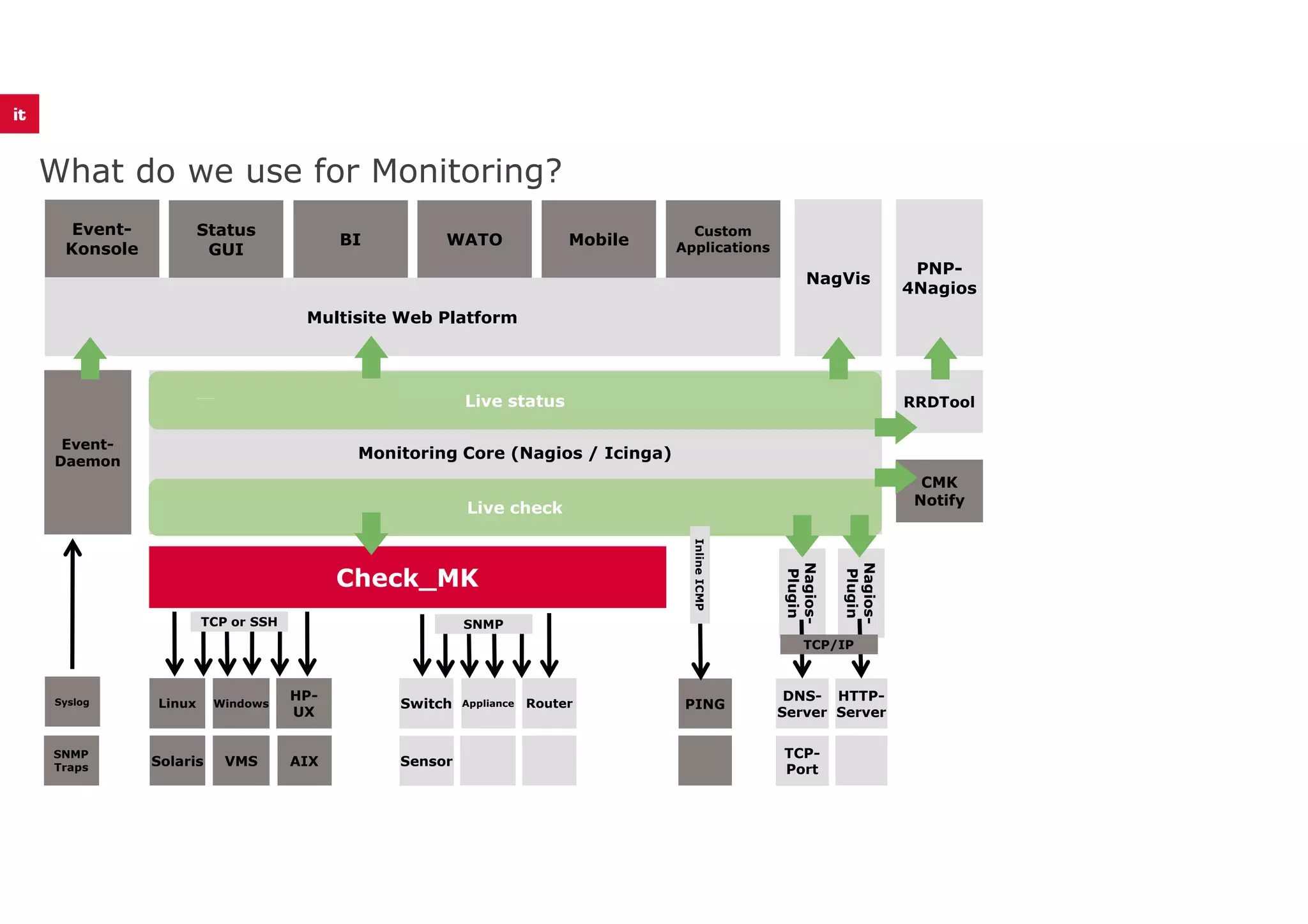

What do we use for Monitoring?
6

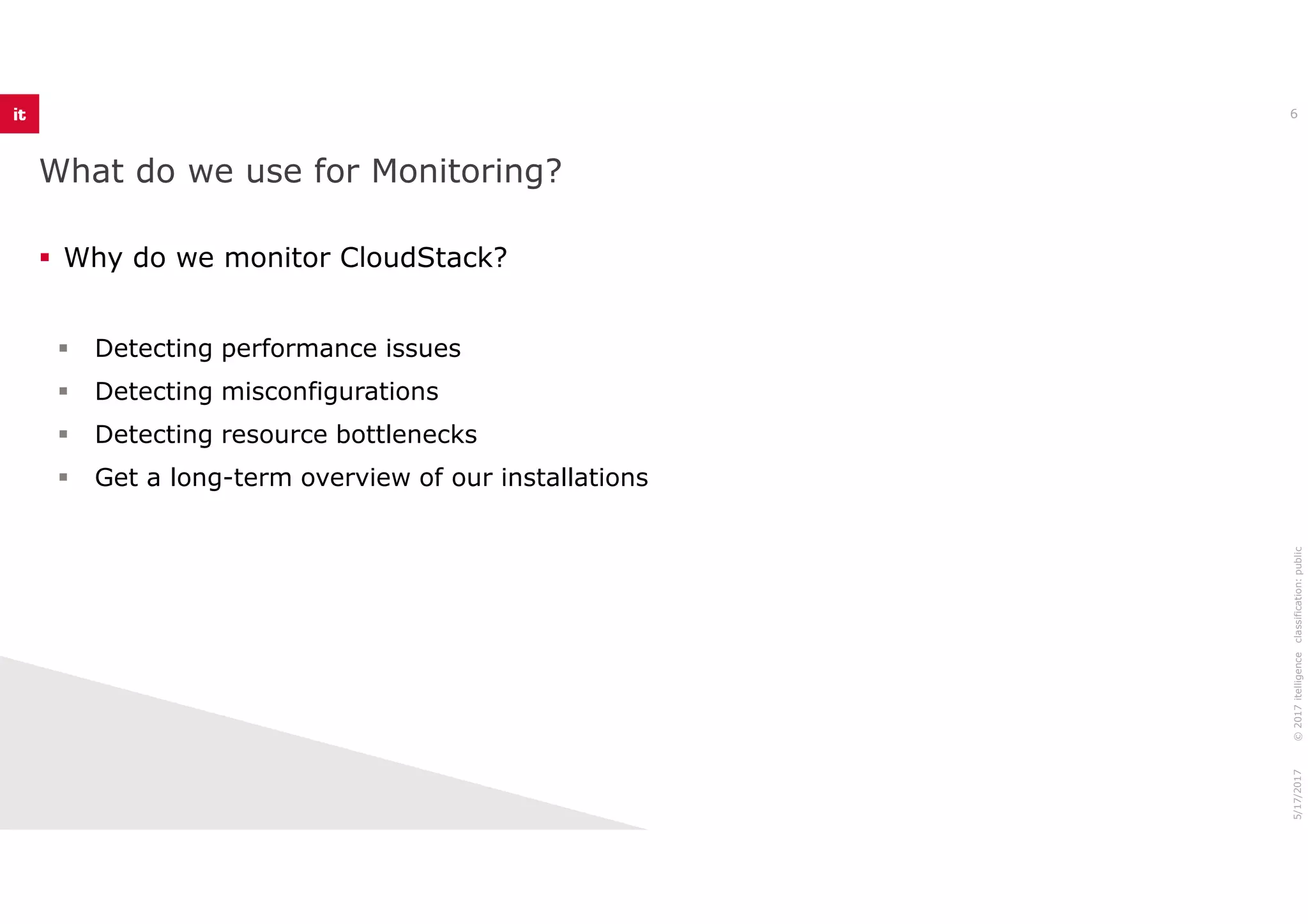

Why do we monitor CloudStack?
Detecting performance issues
Detecting misconfigurations
Detecting resource bottlenecks
Get a long-term overview of our installationsGet a long-term overview of our installations

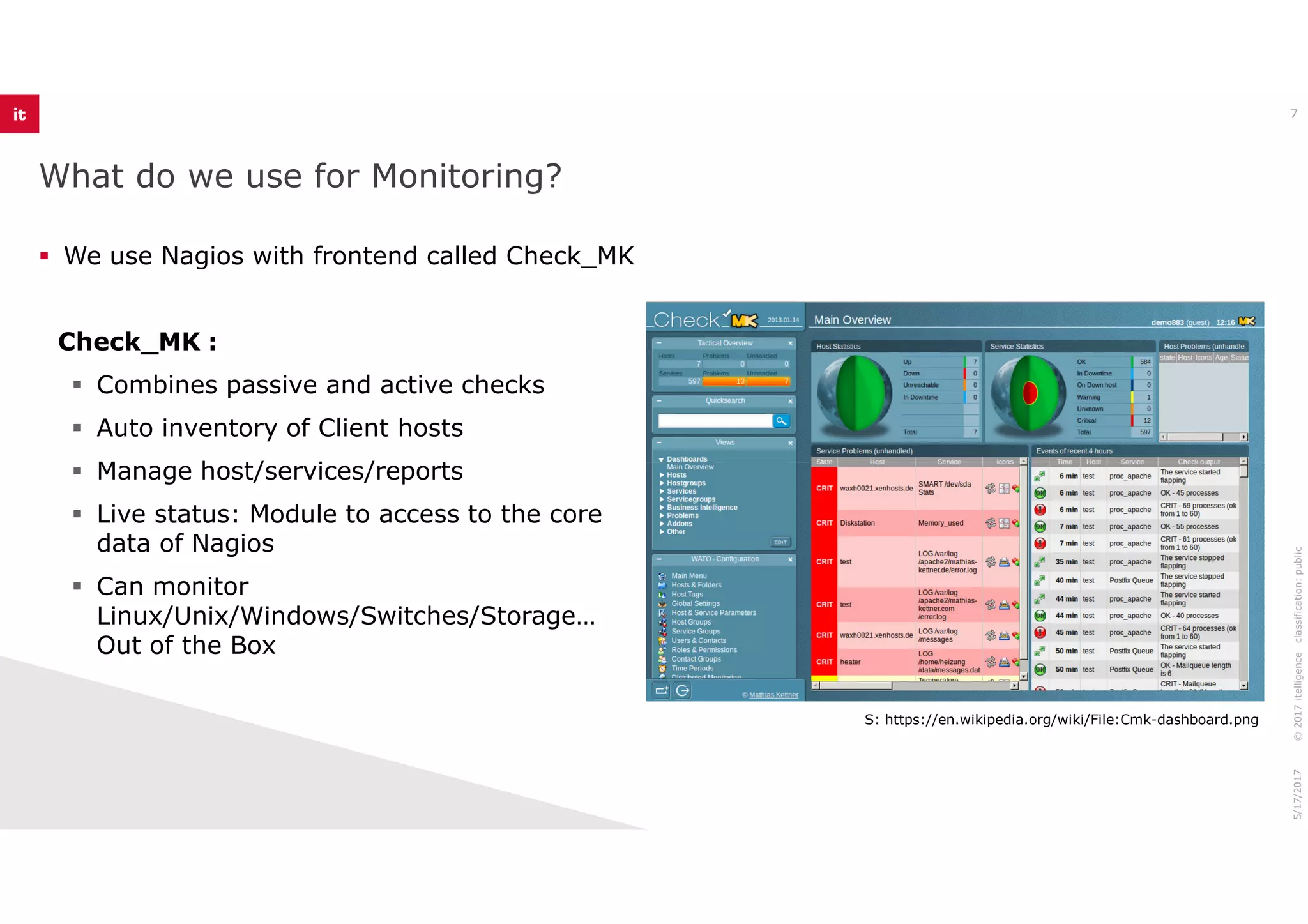

We use Nagios with frontend called Check_MK
Check_MK :
Combines passive and active checks
Auto inventory of Client hosts
Manage host/services/reports
7
Manage host/services/reports
Live status: Module to access to the core
data of Nagios
Can monitor
Linux/Unix/Windows/Switches/Storage…
Out of the Box
S: https://en.wikipedia.org/wiki/File:Cmk-dashboard.png

Event-
Konsole
Status
GUI
BI WATO Mobile
Custom
Applications
Multisite Web Platform
NagVis
Event-
Daemon
PNP-
4Nagios
RRDTool
Monitoring Core (Nagios / Icinga)
Live status
Syslog
SNMP
Traps
Linux
Solaris VMS
Windows
HP-
UX
AIX
Switch
Sensor
Appliance Router PING
DNS-
Server
HTTP-
Server
TCP-
Port
Daemon
CMK
Notify
Monitoring Core (Nagios / Icinga)
Check_MK
Live check
Nagios-
Plugin
Nagios-
Plugin
TCP or SSH
TCP/IP
SNMP
InlineICMP

9

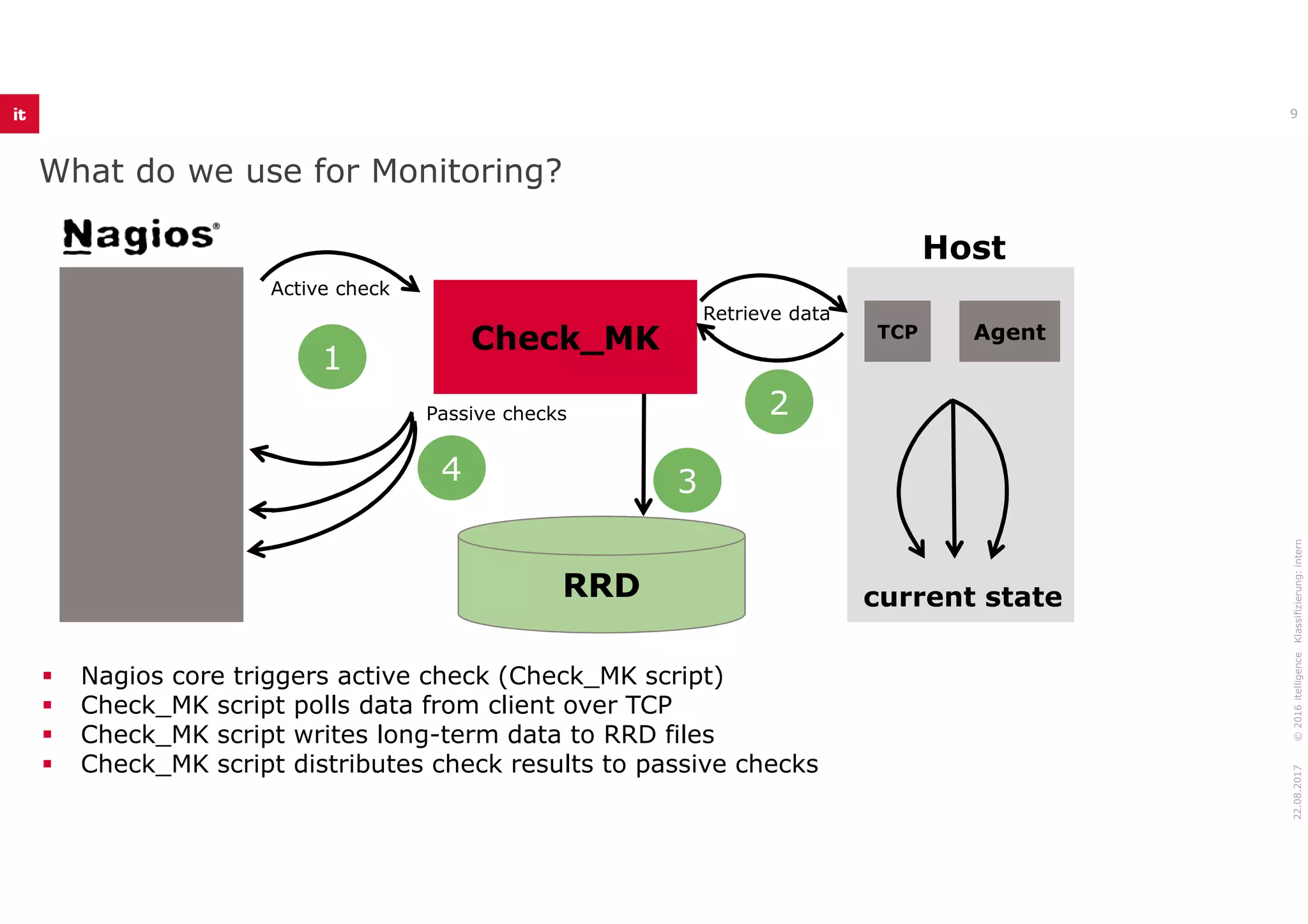

Check_MK
Host
1
2
34
AgentTCP
Active check
Passive checks
Retrieve data
22.08.2017©2016itelligenceKlassifizierung:intern
Nagios core triggers active check (Check_MK script)
Check_MK script polls data from client over TCP
Check_MK script writes long-term data to RRD files
Check_MK script distributes check results to passive checks
RRD
34
current state

MySQL
10

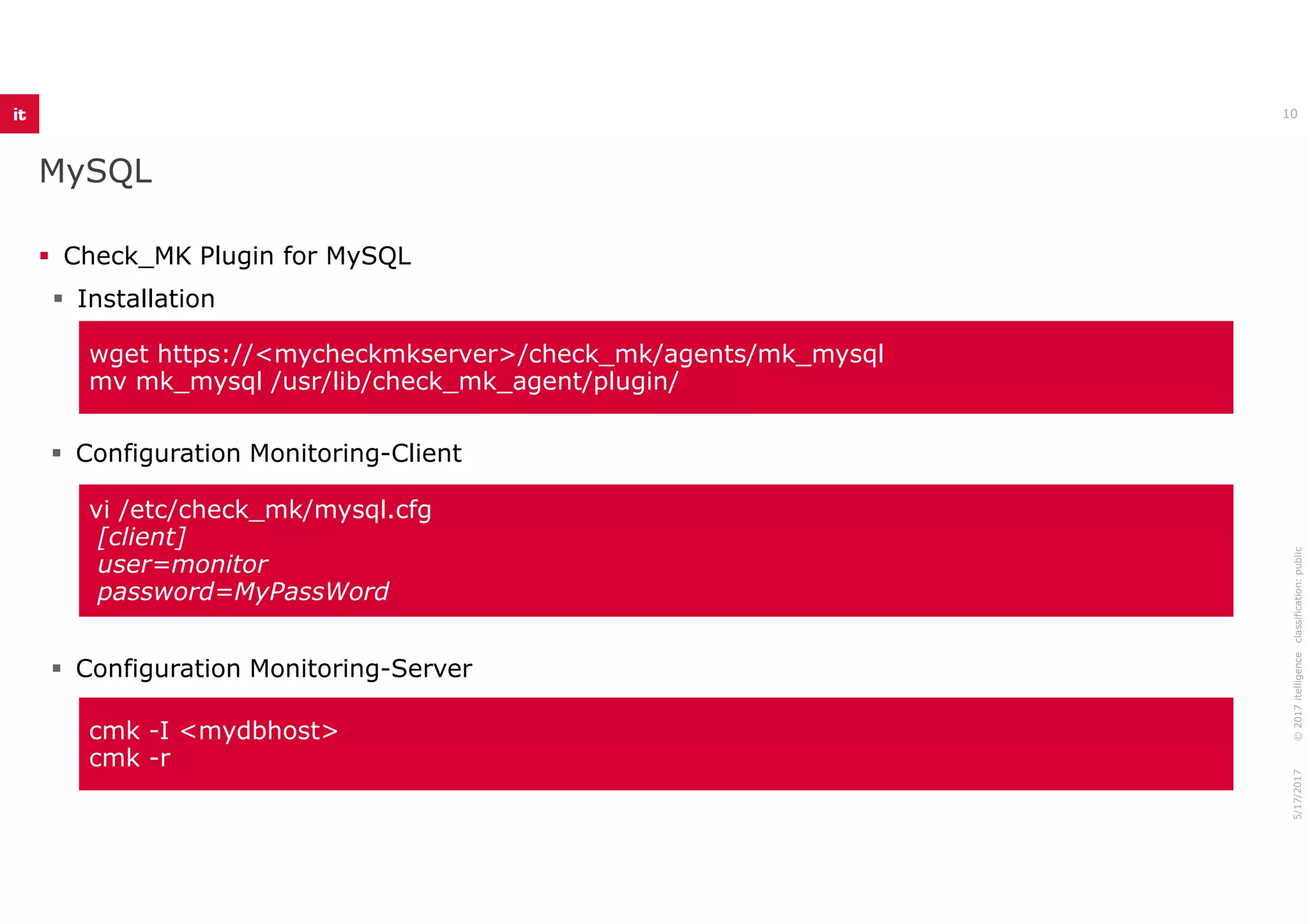

Check_MK Plugin for MySQL
Installation
Configuration Monitoring-Client
wget https://<mycheckmkserver>/check_mk/agents/mk_mysql
mv mk_mysql /usr/lib/check_mk_agent/plugin/
Configuration Monitoring-Server
vi /etc/check_mk/mysql.cfg
[client]
user=monitor
password=MyPassWord
cmk -I <mydbhost>
cmk -r

MySQL
11

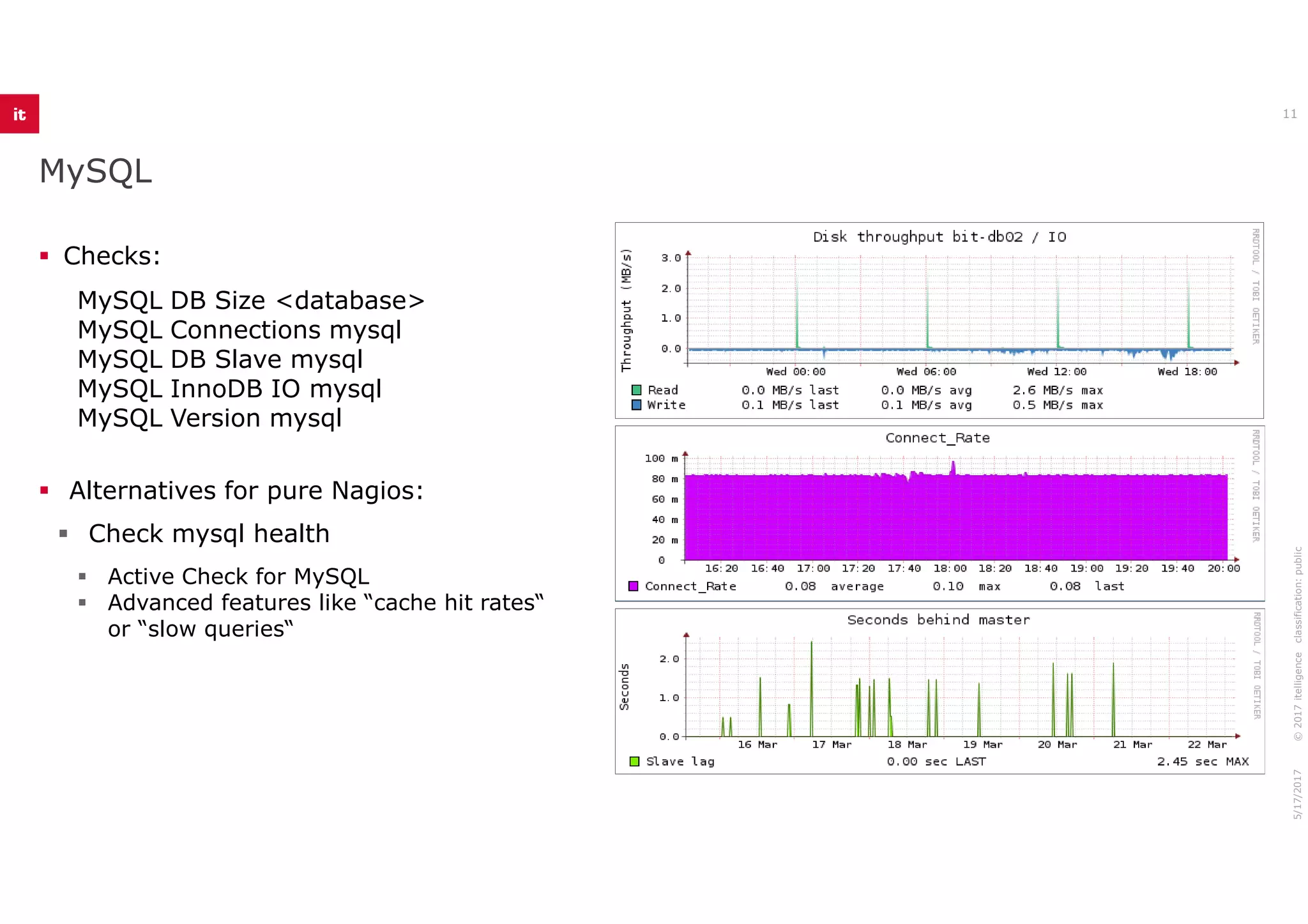

Checks:
MySQL DB Size <database>
MySQL Connections mysql
MySQL DB Slave mysql
MySQL InnoDB IO mysql
MySQL Version mysql
Alternatives for pure Nagios:
Check mysql health
Active Check for MySQL
Advanced features like “cache hit rates“
or “slow queries“

Tomcat
12

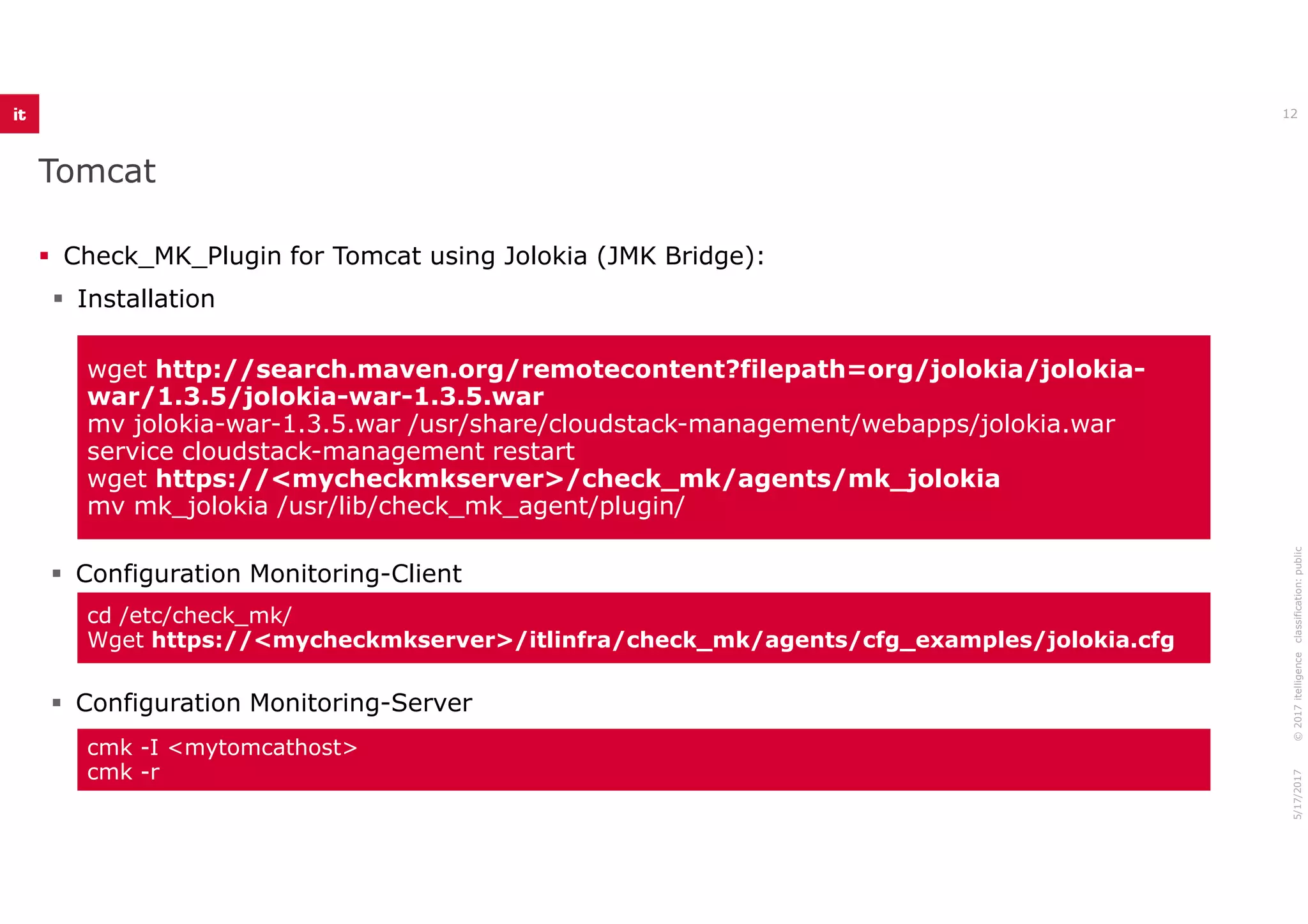

Check_MK_Plugin for Tomcat using Jolokia (JMK Bridge):
Installation
wget http://search.maven.org/remotecontent?filepath=org/jolokia/jolokia-
war/1.3.5/jolokia-war-1.3.5.war
mv jolokia-war-1.3.5.war /usr/share/cloudstack-management/webapps/jolokia.war
service cloudstack-management restart
Configuration Monitoring-Server
cd /etc/check_mk/
Wget https://<mycheckmkserver>/itlinfra/check_mk/agents/cfg_examples/jolokia.cfg
cmk -I <mytomcathost>
cmk -r
service cloudstack-management restart
wget https://<mycheckmkserver>/check_mk/agents/mk_jolokia
mv mk_jolokia /usr/lib/check_mk_agent/plugin/

Tomcat
13

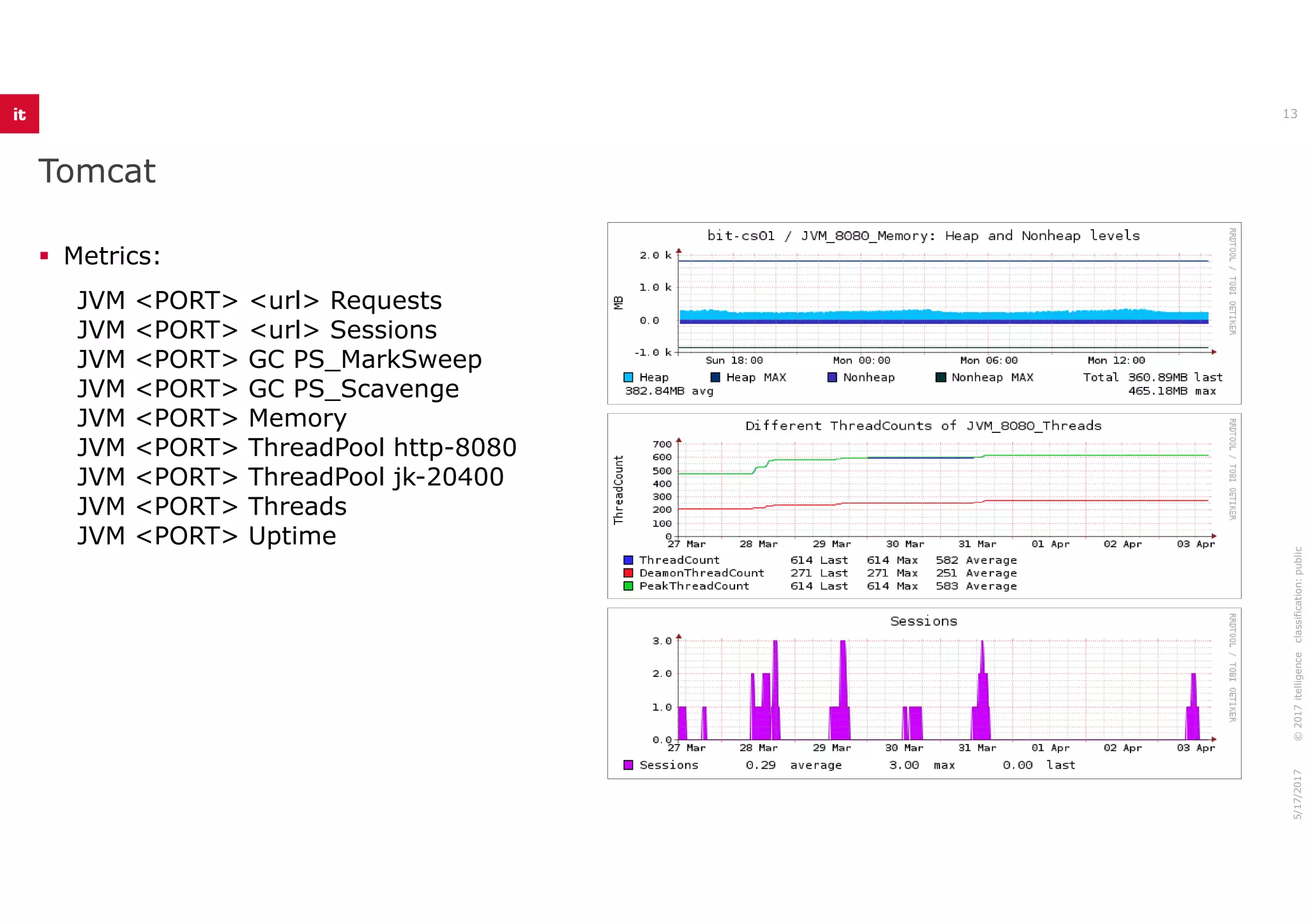

Metrics:
JVM <PORT> <url> Requests
JVM <PORT> <url> Sessions
JVM <PORT> GC PS_MarkSweep
JVM <PORT> GC PS_Scavenge
JVM <PORT> Memory
JVM <PORT> ThreadPool http-8080
JVM <PORT> ThreadPool jk-20400JVM <PORT> ThreadPool jk-20400
JVM <PORT> Threads
JVM <PORT> Uptime

CloudStack API
14

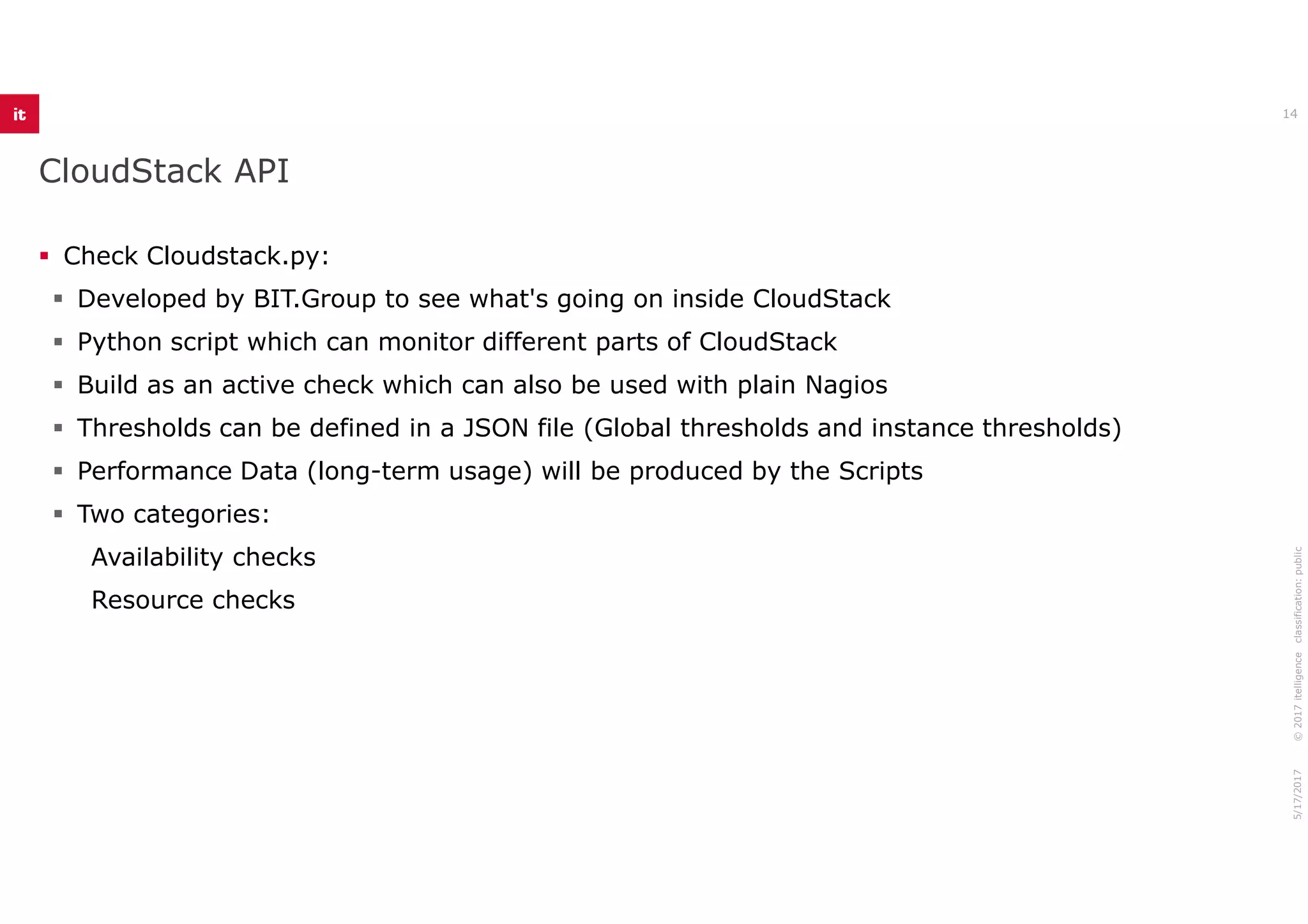

Check Cloudstack.py:
Developed by BIT.Group to see what's going on inside CloudStack
Python script which can monitor different parts of CloudStack
Build as an active check which can also be used with plain Nagios
Thresholds can be defined in a JSON file (Global thresholds and instance thresholds)
Performance Data (long-term usage) will be produced by the ScriptsPerformance Data (long-term usage) will be produced by the Scripts
Two categories:
Availability checks
Resource checks

CloudStack API
15

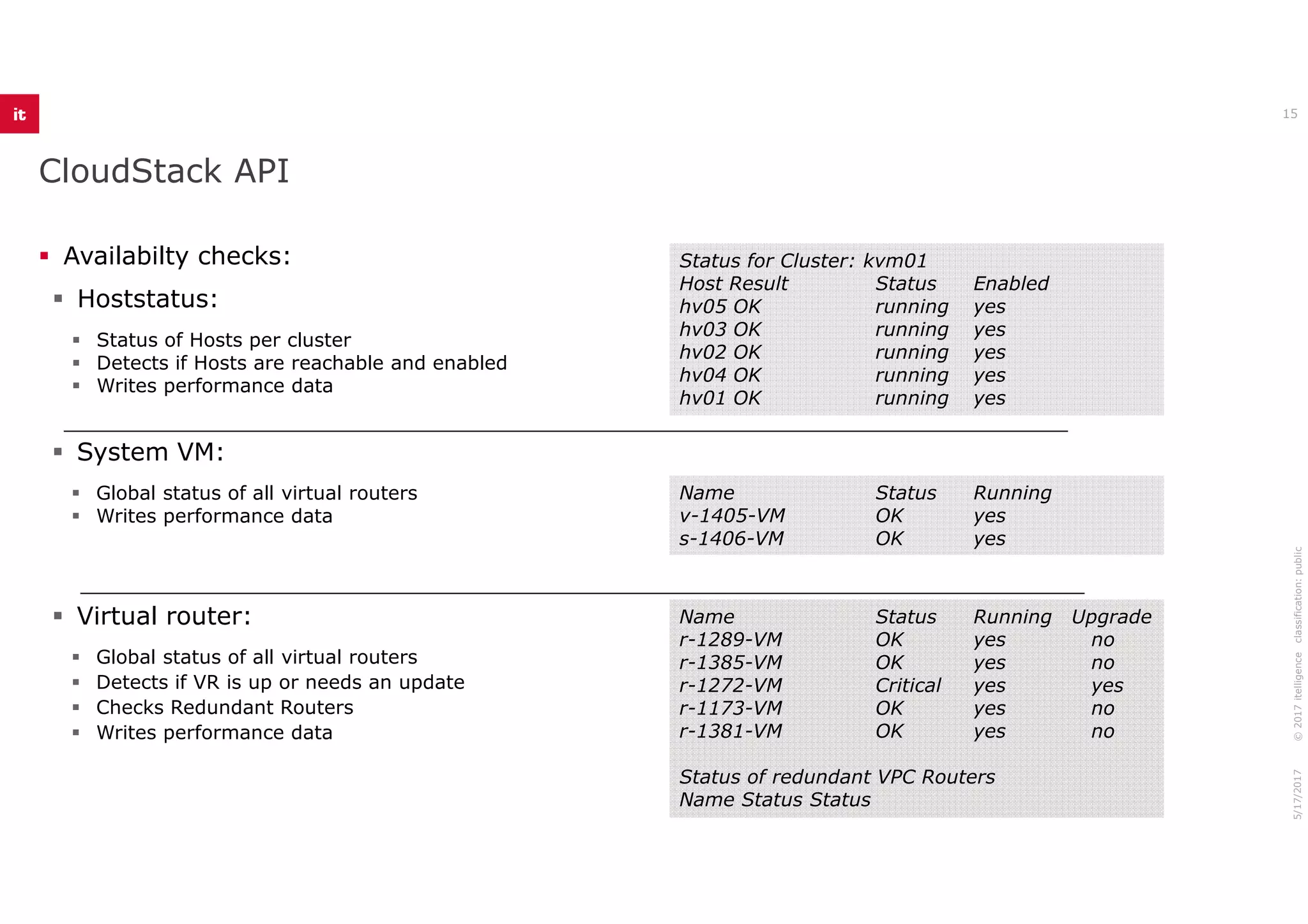

Availabilty checks:
Hoststatus:
Status of Hosts per cluster
Detects if Hosts are reachable and enabled
Writes performance data
System VM:
Status for Cluster: kvm01
Host Result Status Enabled
hv05 OK running yes
hv03 OK running yes
hv02 OK running yes
hv04 OK running yes
hv01 OK running yes
System VM:
Global status of all virtual routers
Virtual router:
Global status of all virtual routers
Detects if VR is up or needs an update
Checks Redundant Routers
Name Status Running
v-1405-VM OK yes
s-1406-VM OK yes
Name Status Running Upgrade
r-1289-VM OK yes no
r-1385-VM OK yes no
r-1272-VM Critical yes yes
r-1173-VM OK yes no
r-1381-VM OK yes no
Status of redundant VPC Routers
Name Status Status

CloudStack API
16

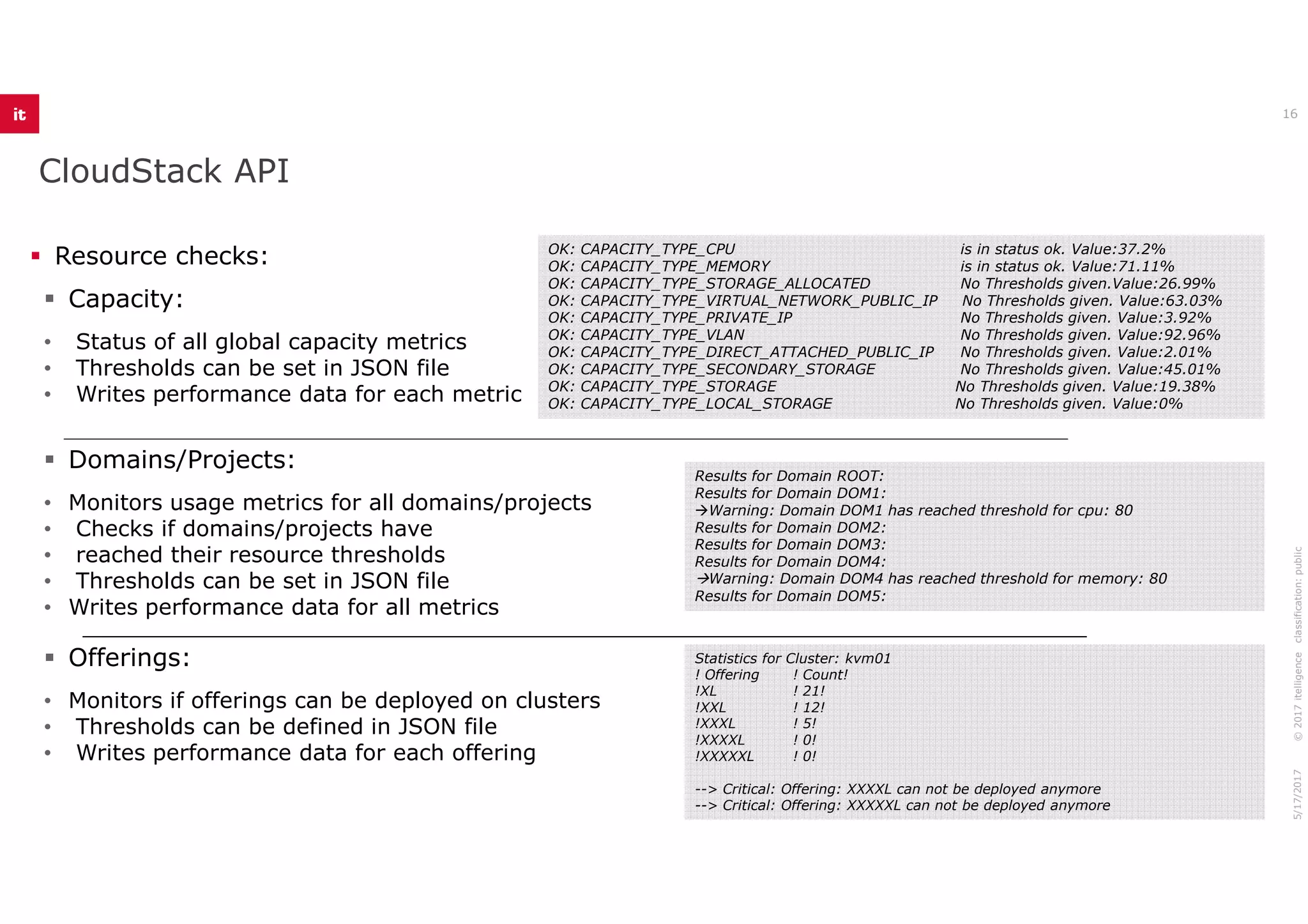

Resource checks:
Capacity:
• Status of all global capacity metrics
• Thresholds can be set in JSON file
• Writes performance data for each metric
Domains/Projects:
OK: CAPACITY_TYPE_CPU is in status ok. Value:37.2%
OK: CAPACITY_TYPE_MEMORY is in status ok. Value:71.11%
OK: CAPACITY_TYPE_STORAGE_ALLOCATED No Thresholds given.Value:26.99%
OK: CAPACITY_TYPE_VIRTUAL_NETWORK_PUBLIC_IP No Thresholds given. Value:63.03%
OK: CAPACITY_TYPE_PRIVATE_IP No Thresholds given. Value:3.92%
OK: CAPACITY_TYPE_VLAN No Thresholds given. Value:92.96%
OK: CAPACITY_TYPE_DIRECT_ATTACHED_PUBLIC_IP No Thresholds given. Value:2.01%
OK: CAPACITY_TYPE_SECONDARY_STORAGE No Thresholds given. Value:45.01%
OK: CAPACITY_TYPE_STORAGE No Thresholds given. Value:19.38%
OK: CAPACITY_TYPE_LOCAL_STORAGE No Thresholds given. Value:0%
Domains/Projects:
• Monitors usage metrics for all domains/projects
• Checks if domains/projects have
• reached their resource thresholds
• Thresholds can be set in JSON file
• Writes performance data for all metrics
Offerings:
• Monitors if offerings can be deployed on clusters
• Thresholds can be defined in JSON file
• Writes performance data for each offering
Results for Domain ROOT:
Results for Domain DOM1:
Warning: Domain DOM1 has reached threshold for cpu: 80
Warning: Domain DOM4 has reached threshold for memory: 80
Statistics for Cluster: kvm01
! Offering ! Count!
!XL ! 21!
!XXL ! 12!
!XXXL ! 5!
!XXXXL ! 0!
!XXXXXL ! 0!
--> Critical: Offering: XXXXL can not be deployed anymore
--> Critical: Offering: XXXXXL can not be deployed anymore

CloudStack API
17

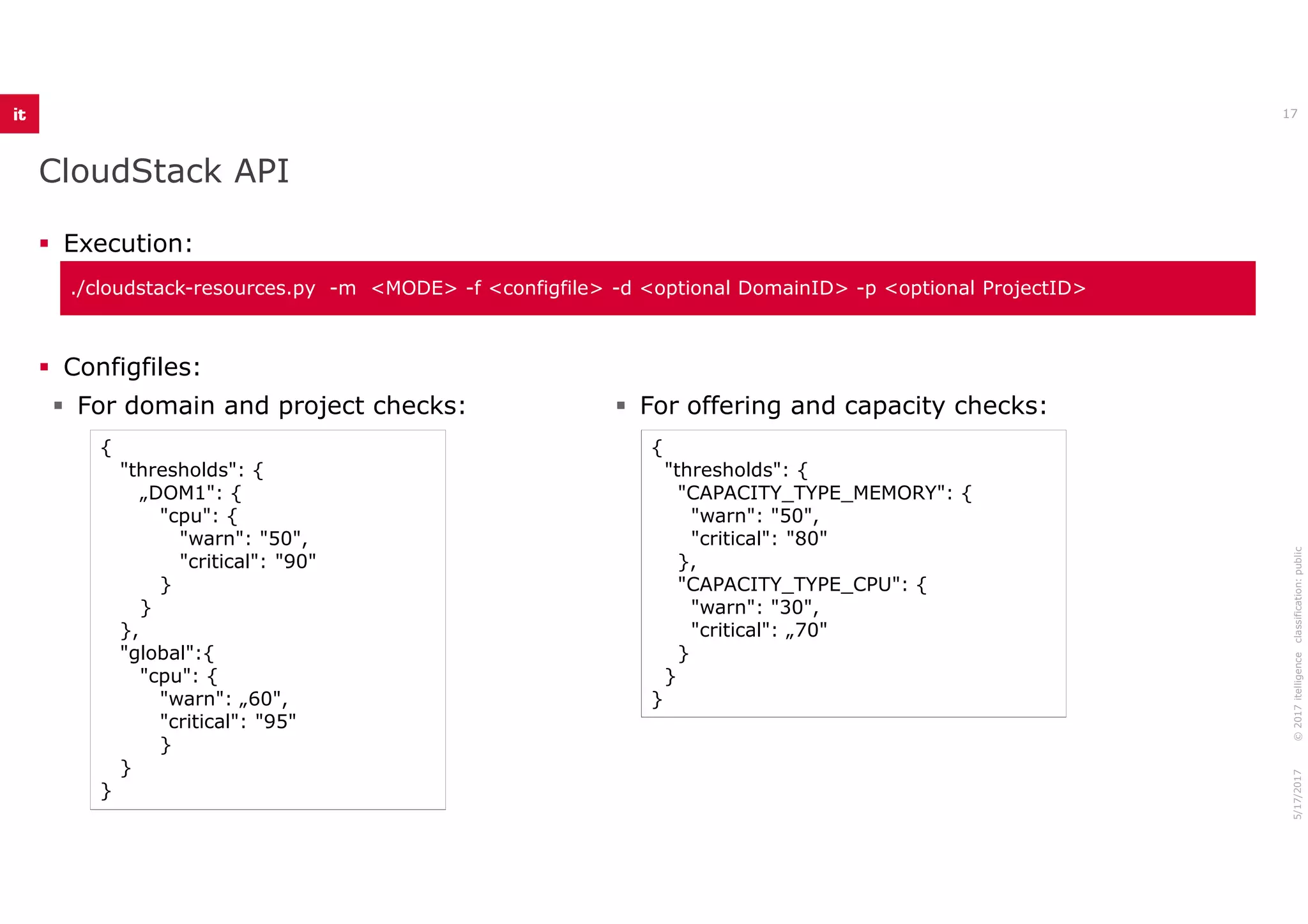

Execution:
Configfiles:
For domain and project checks: For offering and capacity checks:
{
"thresholds": {
{
"thresholds": {
./cloudstack-resources.py -m <MODE> -f <configfile> -d <optional DomainID> -p <optional ProjectID>
"thresholds": {
„DOM1": {
"cpu": {
"warn": "50",
"critical": "90"
}
}
},
"global":{
"cpu": {
"warn": „60",
"critical": "95"
}
}
}
"thresholds": {
"CAPACITY_TYPE_MEMORY": {
"warn": "50",
"critical": "80"
},
"CAPACITY_TYPE_CPU": {
"warn": "30",
"critical": „70"
}
}
}

CloudStack API
18

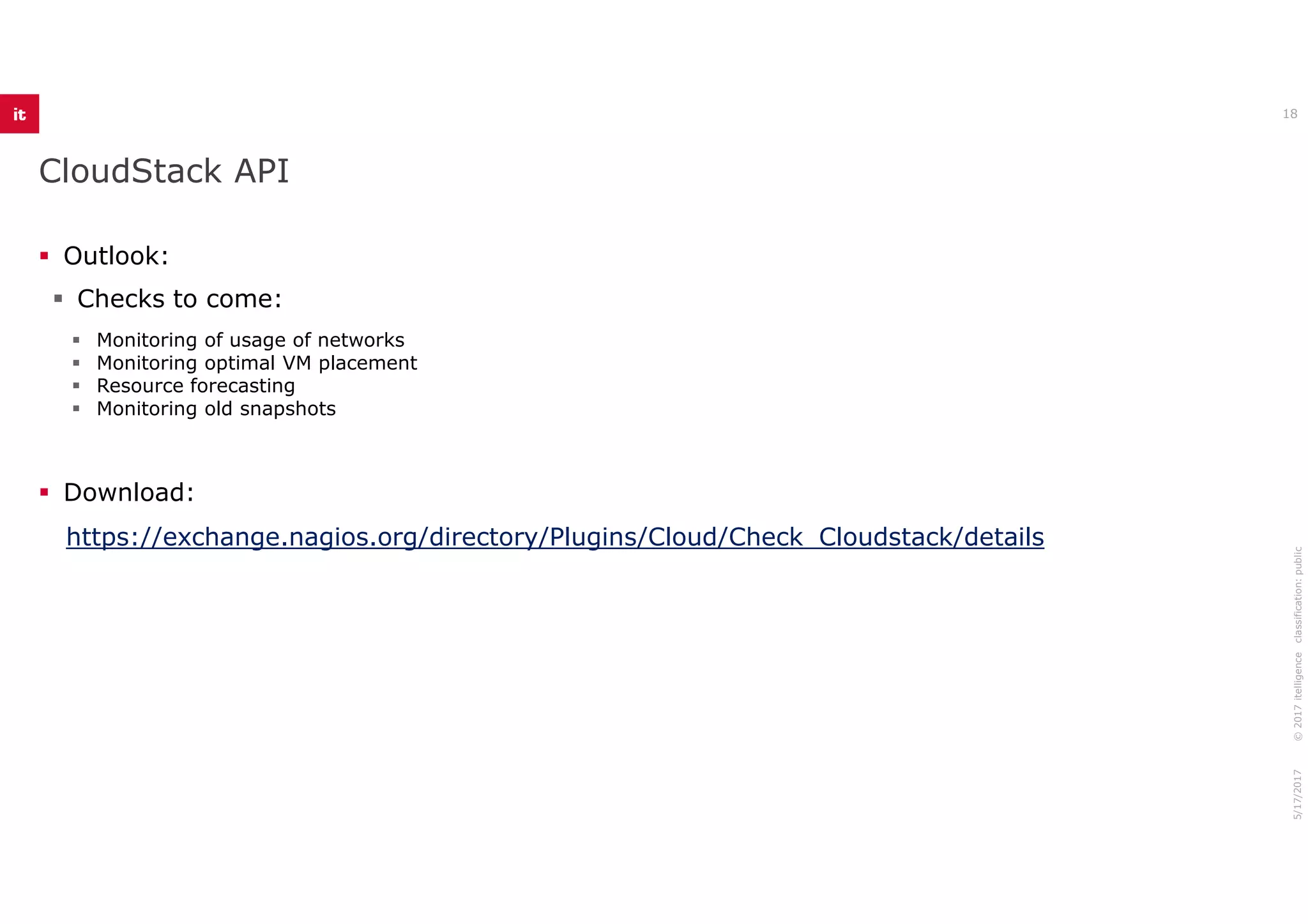

Outlook:
Checks to come:
Monitoring of usage of networks
Monitoring optimal VM placement
Resource forecasting
Monitoring old snapshots
Download:
https://exchange.nagios.org/directory/Plugins/Cloud/Check_Cloudstack/details

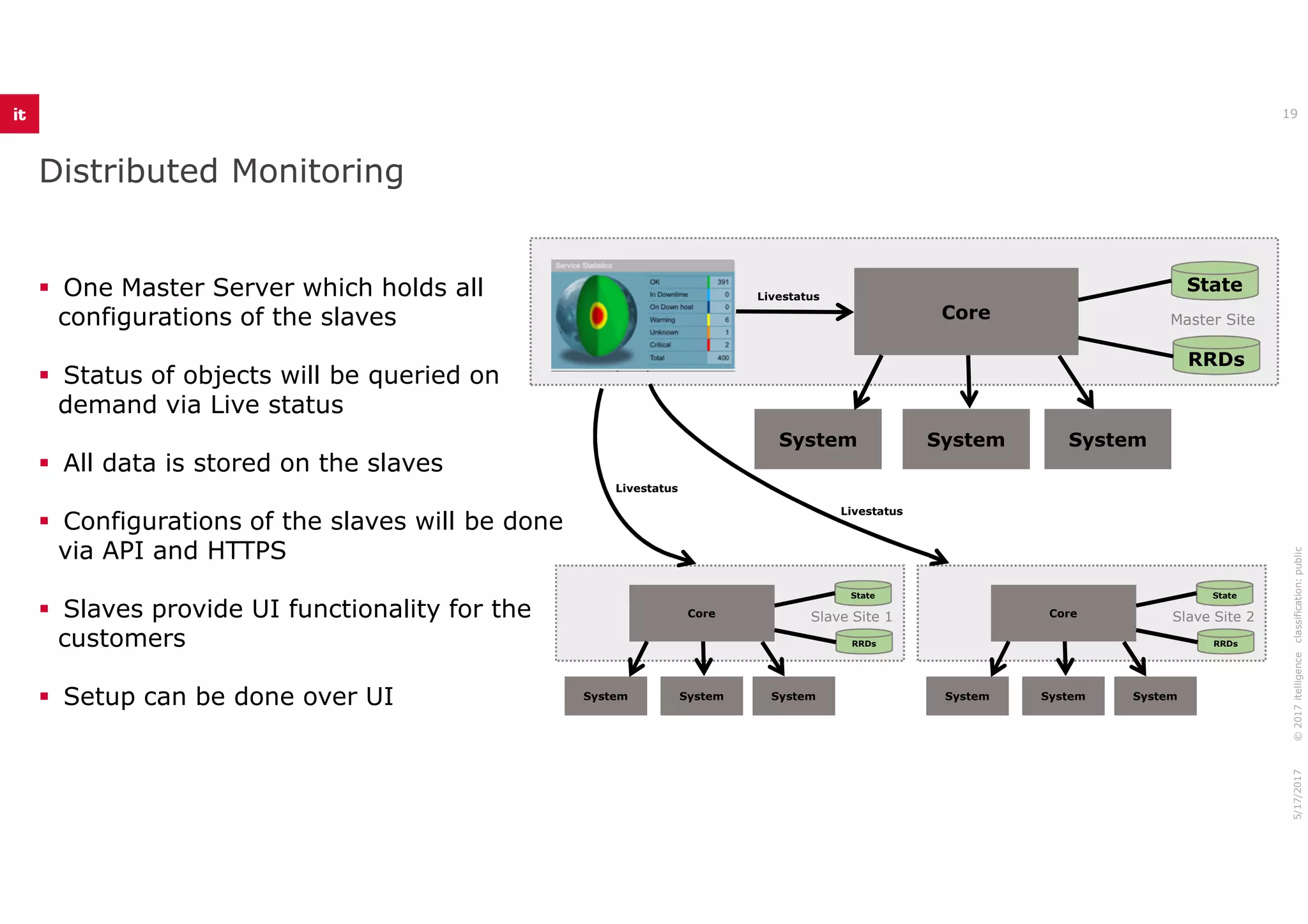

Distributed Monitoring
19
One Master Server which holds all
configurations of the slaves
Status of objects will be queried on
demand via Live status
All data is stored on the slaves
Core
State
System System System
RRDs
Livestatus
Master Site
All data is stored on the slaves
Configurations of the slaves will be done
via API and HTTPS
Slaves provide UI functionality for the
customers
Setup can be done over UI
Core
State
RRDs
Core
State
RRDs
Slave Site 2Slave Site 1
Livestatus
Livestatus

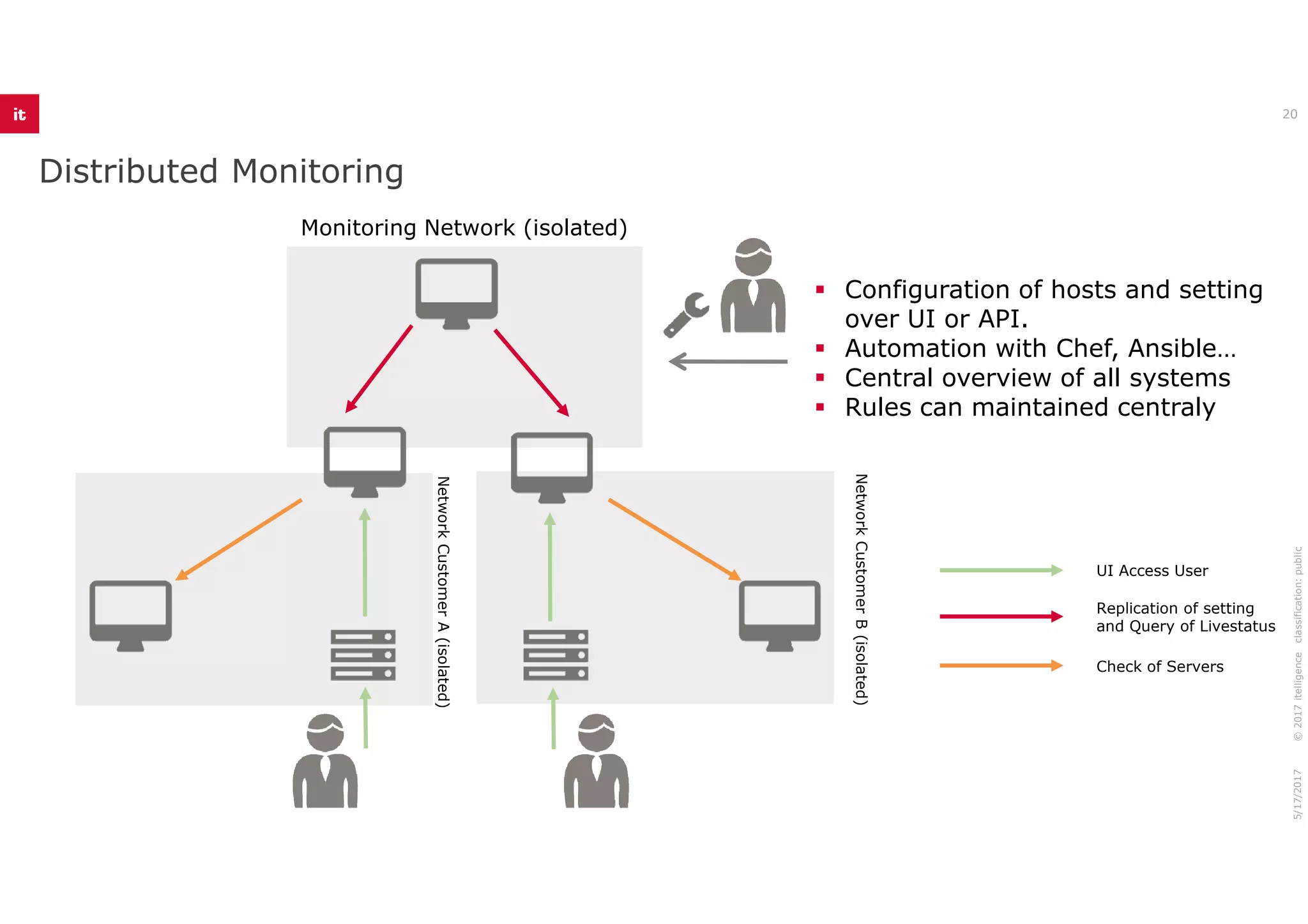

Distributed Monitoring
20
Configuration of hosts and setting
over UI or API.
Automation with Chef, Ansible…
Central overview of all systems
Rules can maintained centraly
Monitoring Network (isolated)
NetworkCustomerA(isolated)
NetworkCustomerB(isolated)
UI Access User
Replication of setting
and Query of Livestatus
Check of Servers

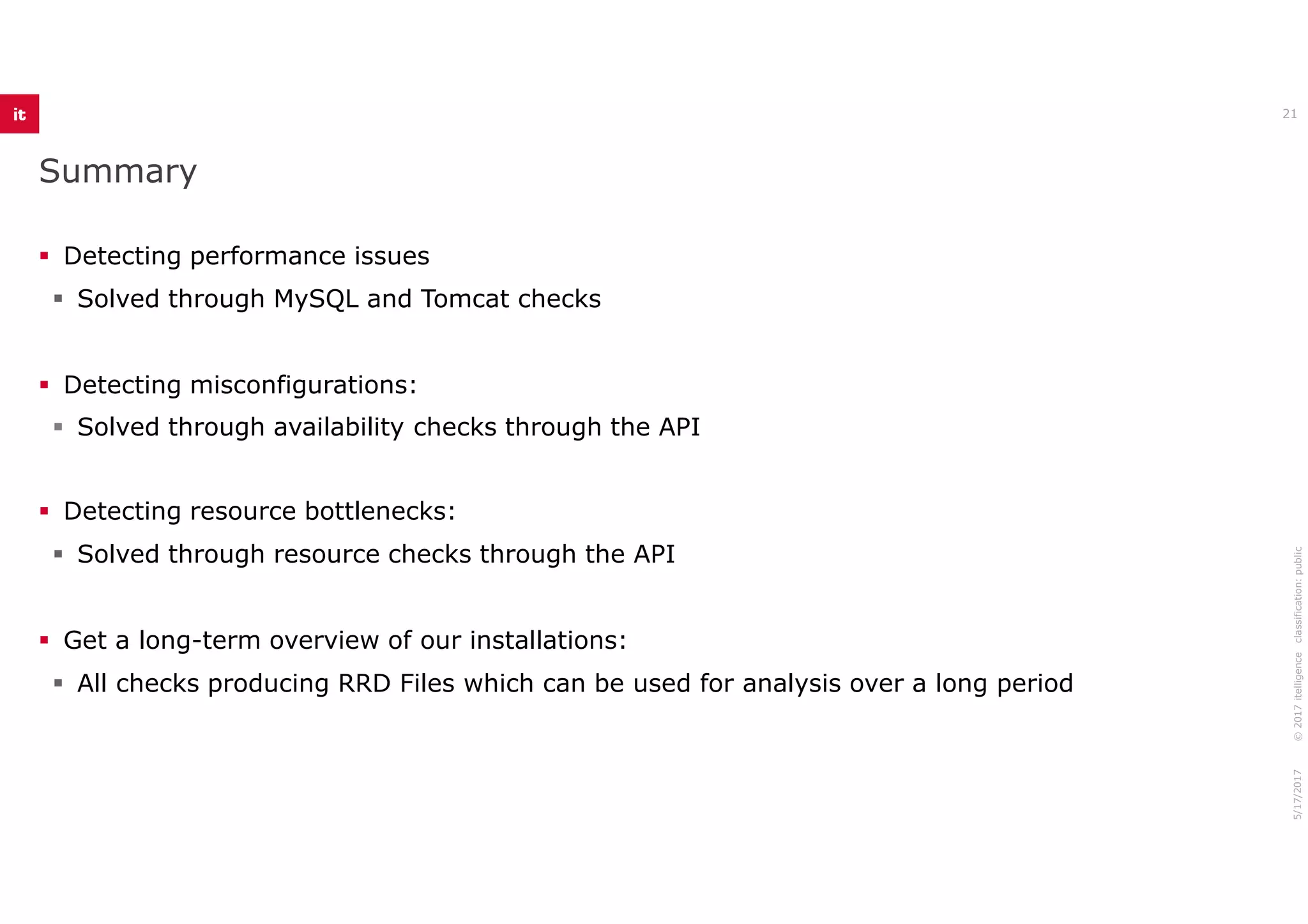

Summary
21
Detecting performance issues
Solved through MySQL and Tomcat checks
Detecting misconfigurations:
Solved through availability checks through the API
Detecting resource bottlenecks:
Solved through resource checks through the API
Get a long-term overview of our installations:
All checks producing RRD Files which can be used for analysis over a long period

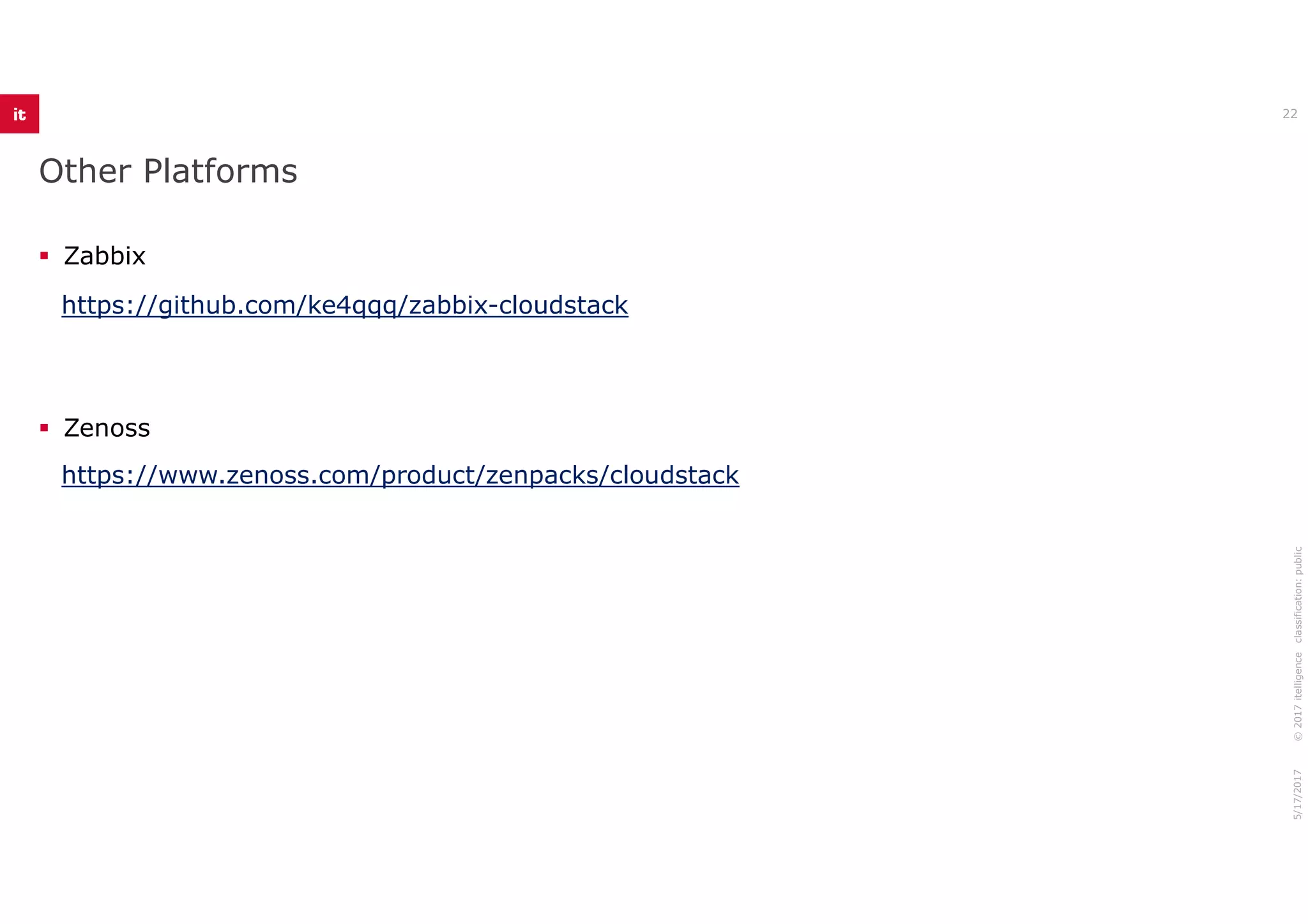

Other Platforms
22
Zabbix
Zenoss
https://github.com/ke4qqq/zabbix-cloudstack
https://www.zenoss.com/product/zenpacks/cloudstackhttps://www.zenoss.com/product/zenpacks/cloudstack

classification:public|author:AlexanderStock|version:1.1
Questions?
Alexander Stock
Cloud Infrastructure Architect
alexander.stock@bitgroup.de
BIT.Group GmbH – member of itelligence group
We make the most of SAP® solutions!
5/17/2017©2017itelligenceclassification:public|author:AlexanderStock|version:1.1
Contact
Questions?`

No part of this publication may be reproduced or transmitted in any form or for any purpose without the express permission of itelligence AG. The information contained herein may be changed without prior notice.
Some software products marketed by itelligence AG and its distributors contain proprietary software components of other software vendors. All product and service names mentioned and associated logos displayed are the
trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary.
Copyright itelligence AG - All rights reserved
8/22/2017©2017itelligence
trademarks of their respective companies. Data contained in this document serves informational purposes only. National product specifications may vary.
The information in this document is proprietary to itelligence. This document is a preliminary version and not subject to your license agreement or any other agreement with itelligence. This document contains only
intended strategies, developments and product functionalities and is not intended to be binding upon itelligence to any particular course of business, product strategy, and/or development. itelligence assumes no
responsibility for errors or omissions in this document. itelligence does not warrant the accuracy or completeness of the information, text, graphics, links, or other items contained within this material. This document is
provided without a warranty of any kind, either express or implied, including but not limited to the implied warranties of merchantability, fitness for a particular purpose, or non-infringement.
itelligence shall have no liability for damages of any kind including without limitation direct, special, indirect, or consequential damages that may result from the use of these materials. This limitation shall not apply in
cases of intent or gross negligence.
The statutory liability for personal injury and defective products is not affected. itelligence has no control over the information that you may access through the use of hot links contained in these materials and does not
endorse your use of third-party Web pages nor provide any warranty whatsoever relating to third-party Web pages.

Monitoring CloudStack and components

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Monitoring CloudStack and components

Similar to Monitoring CloudStack and components (20)

More from ShapeBlue

More from ShapeBlue (20)

Recently uploaded

Recently uploaded (20)

Monitoring CloudStack and components
