MongoDB is a document-oriented NoSQL database that uses a document-data model. It provides horizontal scaling with auto-sharding and replication. MongoDB can store documents in collections without a defined schema and support dynamic queries and indexing. RealNetworks uses MongoDB with Scala and other technologies for an Android app to send notifications to devices with installed RealNetworks applications at scale.

1. MongoDB
A NoSQL Document Oriented Database

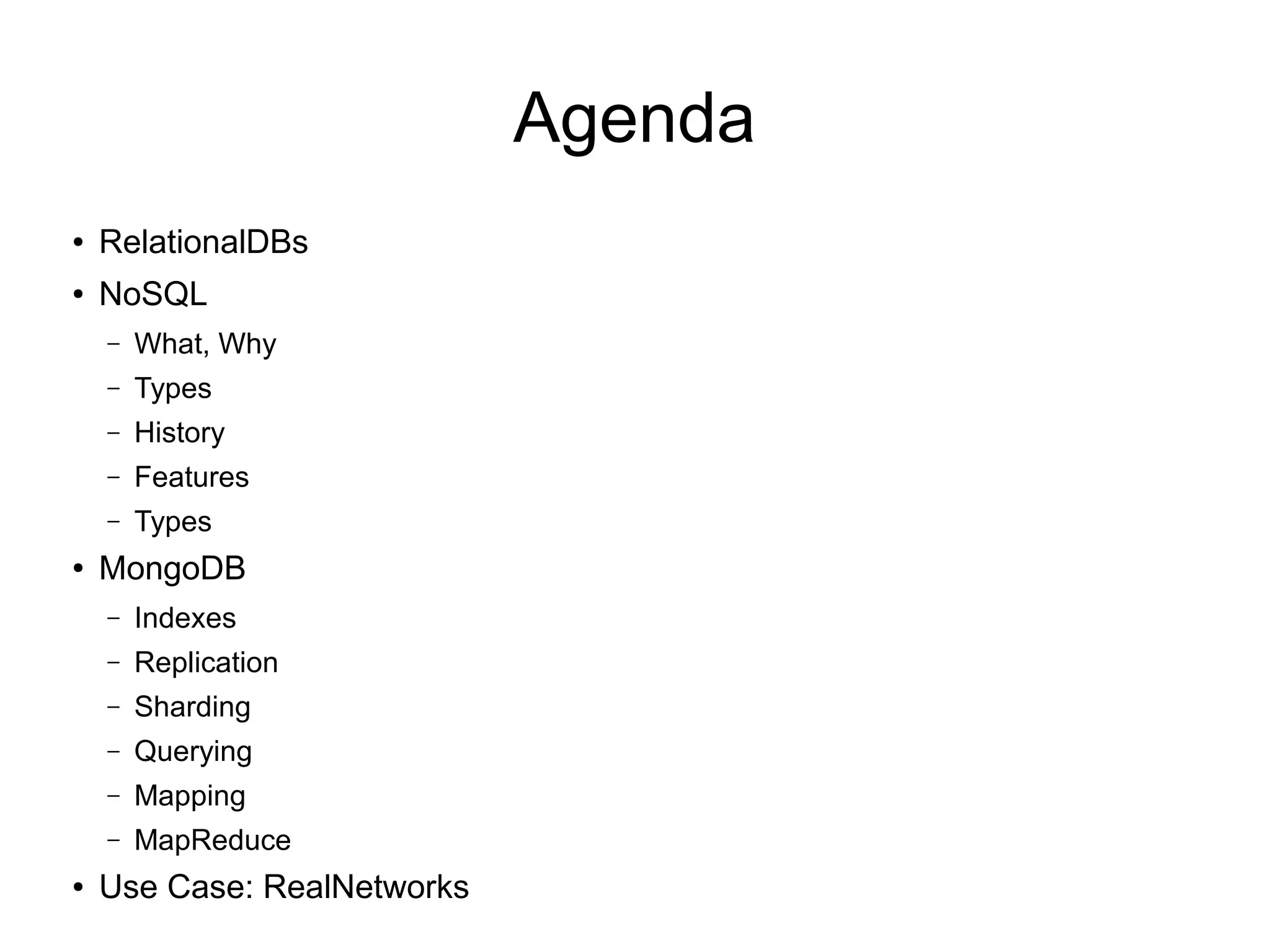

2. Agenda
● RelationalDBs
● NoSQL
– What, Why
– Types
– History
– Features
– Types
● MongoDB
– Indexes
– Replication
– Sharding
– Querying
– Mapping
– MapReduce
● Use Case: RealNetworks

3. Relational DBs
● Born in the 70s
– storage is expensive
– schemas are simple
● Based on Relational Model
– Mathematical model for describing data structure
– Data represented in „tuples“, grouped into „relations“
● Queries based on Relational Algebra
– union, intersection, difference, cartesian product, selection,
projection, join, division
● Constraints
– Foreign Keys, Primary Keys, Indexes
– Domain Integrity (DataTypes)

5. Joins

6. Relational Dbs
● Normalization
– minimize redundancy
– avoid duplication

7. Normalization

8. Relational DBs - Transactions
● Atomicity
– If one part of the transaction fails, the whole transaction fails
● Consistency
– Transaction leaves the DB in a valid state
● Isolation
– One transaction doesn't see an intermediate state of the other
● Durability
– Transaction gets persisted

9. Relational Dbs - Use

10. NoSQL – Why?
● Web2.0
– Huge DataVolumes
– Need for Speed
– Accesibility
● RDBMS are difficult to scale
● Storage gets cheap
● Commodity machines get cheap

11. NoSQL – What?
● Simple storage of data
● Looser consistency model (eventual consistency), in
order to achieve:
– higher availability
– horizontal scaling
● No JOINs
● Optimized for big data, when no relational features are
needed

12. Vertical Scale
Horizontal Scale

13. Vertical Scale
Horizontal Scale
Enforces parallel computing

14. Eventual Consistency
● RDBMS: all users see a consistent view
of the data
● ACID gets difficult when distributing
data across nodes
● Eventual Consistency: inconsistencies
are transitory. The DB may have some
inconsistencies at a point of time, but will
eventually get consistent.
● BASE (in contrast to ACID)– Basically
Available Soft-state Eventually

15. CAP Theorem
All nodes see
the same data
at the same time
Requests always
get an immediate response
System continues to work,
even if a part of it breaks

16. NoSQL - History
● Term first used in 1998 by C. Strozzi to name
his RelationalDB that didn't use SQL
● Term reused in 2009 by E.Evans to name the
distributed Dbs that didn't provide ACID
● Some people traduce it as „Not Only SQL“
● Should actually be called „NoRel“ (no
Relational)

17. NoSQL – Some Features
● Auto-Sharding
● Replication
● Caching
● Dynamic Schema

18. NoSQL - Types
● Document
– „Map“ key-value, with a „Document“ (xml, json, pdf, ..) as
value
– MongoDB, CouchDB
● Key-Value
– „Map“ key-value, with an „Object“ (Integer, String, Order, ..)
as value
– Cassandra, Dynamo, Voldemort
● Graph
– Data stored in a graph structure – nodes have pointer to
adjacent ones
– Neo4J

19. MongoDB
● OpenSource NoSQL Document DB written in
C++
● Started in 2009
● Commercial Support by 10gen
● From humongous (huge)
● http://www.mongodb.org/

20. MongoDB – Document Oriented
● No Document Structure - schemaless
● Atomicity: only at document level (no
transactions across documents)
● Normalization is not easy to achieve:
– Embed: +duplication, +performance
– Reference: -duplication, +roundtrips

21. MongoDB
●
> db.users.save(
{ name: 'ruben',
surname : 'inoto',
age : '36' } )
●
> db.users.find()
– { "_id" : ObjectId("519a3dd65f03c7847ca5f560"),
"name" : "ruben",
"surname" : "inoto",
"age" : "36" }
● > db.users.update(
{ name: 'ruben' },
{ $set: { 'age' : '24' } } )
Documents are stored in BSON format

22. MongoDB - Querying
● find(): Returns a cursor containing a number of documents
– All users
– db.users.find()
– User with id 42
– db.users.find({ _id: 42})
– Age between 20 and 30
– db.users.find( { age: { $gt: 20, $lt: 30 } } )
– Subdocuments: ZIP 5026
– db.users.find( { address.zip: 5026 } )
– OR: ruben or younger than 30
– db.users.find({ $or: [
{ name : "ruben" },
{ age: { $lt: 30 } }
]})
– Projection: Deliver only name and age
– db.users.find({ }, { name: 1, age: 1 })
{
"_id": 42,
"name": "ruben",
"surname": "inoto",
„age“: „36“,
"address": {
"street": "Glaserstraße",
"zip": "5026" }
}

23. MongoDB - Saving
● Insert
– db.test.save( { _id: "42", name: "ruben" } )
● Update
– db.test.update( { _id : "42" }, { name : "harald" } )
– db.test.update( { _id : "42" }, { name : "harald", age : 39 } )
● Atomic Operators ($inc)
– db.test.update( { _id : "42" }, { $inc: { age : 1 } } )
● Arrays
– { _id : "48", name : "david", hobbies : [ "bike", "judo" ] }
– Add element to array atomic ($push)
● db.test.update( { _id : "48" }, { $push: { hobbies : "swimming" } } )
– $each, $pop, $pull, $addToSet...

24. MongoDB - Delete
● db.test.remove ( { _id : „42“ } )

25. MongoDB – Indexes
● Indexes on any attribute
– > db.users.ensureIndex( { 'age' : 1 } )
● Compound indexes
– > db.users.ensureIndex( { 'age' : 1 }, { 'name':
1 } )
● Unique Indexes
● >v2.4 → Text Indexing (search)

26. SQL → Mongo Mapping (I)
SQL Statement Mongo Query Language
CREATE TABLE USERS (a Number, b
Number)
implicit
INSERT INTO USERS VALUES(1,1) db.users.insert({a:1,b:1})
SELECT a,b FROM users db.users.find({}, {a:1,b:1})
SELECT * FROM users db.users.find()
SELECT * FROM users WHERE age=33 db.users.find({age:33})
SELECT * FROM users WHERE age=33
ORDER BY name
db.users.find({age:33}).sort({name:1})

27. SQL → Mongo Mapping (I)
SQL Statement Mongo Query Language
SELECT * FROM users WHERE age>33 db.users.find({'age':{$gt:33}})})
CREATE INDEX myindexname ON
users(name)
db.users.ensureIndex({name:1})
SELECT * FROM users WHERE a=1 and
b='q'
db.users.find({a:1,b:'q'})
SELECT * FROM users LIMIT 10 SKIP 20 db.users.find().limit(10).skip(20)
SELECT * FROM users LIMIT 1 db.users.findOne()
EXPLAIN PLAN FOR SELECT * FROM users
WHERE z=3
db.users.find({z:3}).explain()
SELECT DISTINCT last_name FROM users db.users.distinct('last_name')
SELECT COUNT(*)
FROM users where AGE > 30
db.users.find({age: {'$gt': 30}}).count()

28. Embed vs Reference

29. Relational

30. Document
user: {
id: "1",
name: "ruben"
}
order: {
id: "a",
user_id: "1",
items: [ {
product_id: "x",
quantity: 10,
price: 300
},
{
product_id: "y",
quantity: 5,
price: 300
}]
}
referenced
embedded

31. MongoDB – Replication (I)
● Master-slave replication: primary and secondary nodes
● replica set: cluster of mongod instances that replicate amongst one
another and ensure automated failover
WriteConcern

32. MongoDB – Replication (II)
● adds redundancy
● helps to ensure high availability – automatic
failover
● simplifies backups

33. WriteConcerns
● Errors Ignored
– even network errors are ignored
● Unacknowledged
– at least network errors are handled
● Acknowledged
– constraints are handled (default)
● Journaled
– persisted to journal log
● Replica ACK
– 1..n
– Or 'majority'

34. MongoDB – Sharding (I)
● Scale Out
● Distributes data to nodes automatically
● Balances data and load accross machines

35. MongoDB – Sharding (II)
● A sharded Cluster is composed of:
– Shards: holds data.
● Either one mongod instance (primary daemon process –
handles data requests), or a replica set
– config Servers:
● mongod instance holding cluster metadata
– mongos instances:
● route application calls to the shards
● No single point of failure

36. MongoDB – Sharding (III)

37. MongoDB – Sharding (IV)

38. MongoDB – Sharding (V)
● Collection has a shard key: existing field(s) in
all documents
● Documents get distributed according to ranges
● In a shard, documents are partitioned into
chunks
● Mongo tries to keep all chunks at the same size

39. MongoDB – Sharding (VI)
● Shard Balancing
– When a shard has too many chunks, mongo moves
chunks to other shards
● Only makes sense with huge amount of data

40. Object Mappers
● C#, PHP, Scala, Erlang, Perl, Ruby
● Java
– Morphia
– Spring MongoDB
– mongo-jackson-mapper
– jongo
● ..

41. Jongo - Example
DB db = new MongoClient().getDB("jongo");
Jongo jongo = new Jongo(db);
MongoCollection users = jongo.getCollection("users");
User user = new User("ruben", "inoto", new Address("Musterstraße", "5026"));
users.save(user);
User ruben = users.findOne("{name: 'ruben'}").as(User.class);
public class User {
private String name;
private String surname;
private Address address;
public class Address {
private String street;
private String zip;
{
"_id" : ObjectId("51b0e1c4d78a1c14a26ada9e"),
"name" : "ruben",
"surname" : "inoto",
"address" : {
"street" : "Musterstraße",
"zip" : "5026"
}
}

42. TTL (TimeToLive)
● Data with an expiryDate
● After the specified TimeToLive, the data will be
removed from the DB
● Implemented as an Index
● Useful for logs, sessions, ..
db.broadcastMessages.ensureIndex( { "createdAt": 1 }, { expireAfterSeconds: 3600 } )

43. MapReduce
● Programming model for processing large data sets with a
parallel, distributed algorithm.
● Handles complex aggregation tasks
● Problem can be distributed in smaller tasks, distributed across
nodes
● map phase: selects the data
– Associates a value with a key and a value pair
– Values will be grouped by the key, and passed to the reduce function
● reduce phase: transforms the data
– Accepts two arguments: key and values
– Reduces to a single object all the values associated with the key

44. MapReduce

45. MapReduce Use Example
● Problem: Count how much money each
customer has paid in all its orders

46. Solution - Relational
select customer_id, sum(price * quantity)
from orders
group by customer_id
order_id customer_id price quantity
a 1 350 2
b 2 100 2
c 1 20 1
customer_id total
1 720
2 200

47. Solution - Sequential
var customerTotals = new Map();
for (Order order: orders) {
var newTotal = order.price * order.quantity;
if (customerTotals.containsKey(order.customerId)) {
newTotal += customerTotals.get(order.customerId);
}
customerTotals.put(order.customerId, newTotal);
}
[{
order_id: "a",
customer_id: "1",
price: 350,
quantity: 2
},
{
order_id: "b",
customer_id: "2",
price: 100,
quantity: 2
},
{
order_id: "c",
customer_id: "1",
price: 20,
quantity: 1
}]
{ „1“: 720 }
{ „2“: 200 }

48. Solution - MapReduce
db.orders.insert([
{
order_id: "a",
customer_id: "1",
price: 350
quantity: 2
},
{
order_id: "b",
customer_id: "2",
price: 100,
quantity: 2
},
{
order_id: "c",
customer_id: "1",
price: 20,
quantity: 1
}
]);
var mapOrders = function() {
var totalPrice = this.price * this.quantity;
emit(this.customer_id, totalPrice);
};
var reduceOrders = function(customerId, tempTotal) {
return Array.sum(tempTotal);
};
db.orders.mapReduce(
mapOrders,
reduceOrders,
{ out: "map_reduce_orders" }
);
> db.map_reduce_orders.find().pretty();
{ "_id" : "1", "value" : 720 }
{ "_id" : "2", "value" : 200 }

49. MapReduce

50. Who is using Mongo?
● Craigslist
● SourceForge
● Disney
● TheGuardian
● Forbes
● CERN
● ….

51. „Real“ Use Case – Android
Notifications
● App to send „notifications“ (messages) to devices
with an installed RealNetworks application (Music,
RBT)
● Scala, Scalatra, Lift, Jersey, Guice,
ProtocolBuffers
● MongoDB, Casbah, Salat
● Mongo Collections
– Devices: deviceId, msisdn, application
– Messages: message, audience
– SentMessages: deviceId, message, status

52. Criticism
● Loss of data
– Specially in a cluster

53. Conclusion
● Not a silver bullet
● Makes sense when:
– Eventual consistency is acceptable
– Prototyping
– Performance
– Object model doesn't suit in a Relational DB
● Easy to learn
