1. Mobile Systems and Smartphone Security
(MOBISEC)
Prof: Yanick Fratantonio
EURECOM
Reverse Engineering
1

2. - The "art" of reverse engineering
- Pros / cons of various approaches
- Actual tools + demo
This class
2

3. - The goal: understand what X does and how it does it
- "X" could be an Android app, a MS Windows program, OS functionality,
a piece of hardware, a mechanical/physical engine, ...
- "[...] process by which a man-made object is deconstructed to reveal its
designs, architecture, or to extract knowledge from the object." (wiki)
- Why is it an "art"?
- There is no "recipe" that works in all cases
- Learn from experience which approaches work best
- I'll teach you the principles & starting points, I can't teach you everything
The "Art" of Reverse Engineering
3

4. - Input: the APK of the Android app
- Goals
- Understand what an app does from a high-level point of view
- Understand the tech details on how an app does something
- Find security vulnerabilities ~> exploit them to gain some advantage
- Steal private information, read private file, steal its permissions, etc.
Reversing an Android app
4

5. - Don't just start reading everything in details!
- You should proceed depending on what's your goal
- Generic understanding on what the app does?
- Find ways to attack the app?
- How does the app interact with network endpoints?
- How does it store private information?
- Check whether a specific functionality can be abused?
- ...
Efficient/effective Reversing
5

6. - Begin from an high-level point of view
- Start the app in an emulator and see the first UIs
- What are the "claimed" functionality?
- In a way, it will set your expectations right...
- ... and if something seems off, well, that's interesting
Generic understanding on what the app does?
6

7. - Start from the "entry points"
- Attack surface analysis
- Check the app's components (activities, etc.)
- Can they be reachable from another app?
- Check how the app interacts with the external world
- File-system, network, inter-component communications, etc.
Find ways to attack the app?
7

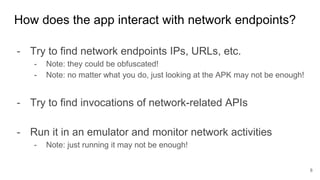

8. - Try to find network endpoints IPs, URLs, etc.
- Note: they could be obfuscated!
- Note: no matter what you do, just looking at the APK may not be enough!
- Try to find invocations of network-related APIs
- Run it in an emulator and monitor network activities
- Note: just running it may not be enough!
How does the app interact with network endpoints?
8

9. - What is "private information"?
- It really depends on the app...
- Examples
- User account credentials
- User sensitive data (messages, photos, etc.),
- Information accessed via security-relevant permissions
- Once you know what you are looking for, it becomes
similar to the "network" case
How does it store private information?
9

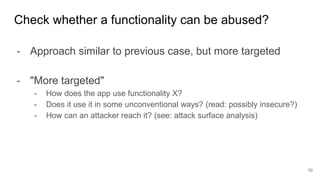

10. - Approach similar to previous case, but more targeted
- "More targeted"
- How does the app use functionality X?
- Does it use it in some unconventional ways? (read: possibly insecure?)
- How can an attacker reach it? (see: attack surface analysis)
Check whether a functionality can be abused?
10

11. - Top-down mentality:
- Start with high-level understanding of the app's organization/functionality,
then drill down on the tech details depending on your needs
- Start with the various entry points, explore the different functionalities,
explore the app as a "user"
- Perform attack surface analysis
- Keep a flexible mindset!
Generic Suggestions
11

12. - Static analysis vs. dynamic analysis
- Static analysis: inspect the app without running it
- Dynamic analysis: run the app and check what it does
- They are complementar: taken independently are limited
- Key skill: understand which one to use and when
Two Main Approaches
12

13. - Key point: you do not run the app
- You inspect it "statically"
- Take the app, unpack it, check what's inside
- Manifest analysis, disassemble/decompile .dex, check .so files, etc.
Overview on Static Analysis
13

14. - Key point: you actually run the app.
- You want to know what's going on "at run-time"
- Actual values at run-time (useful when strings are obfuscated)
- Trace of API invocation
- Trace of syscalls
- Two main techniques
- Debugging
- Instrumentation
Overview on Dynamic Analysis
14

15. - You run the app and you "attach" a debugger
- You can ask debuggers a number of things
- Stop the execution when you reach point XYZ
- Tell me the content of this field / memory location
- Single-step through instructions
- Helpful to understand the state / context at a given point
Debugging
15

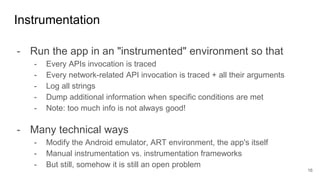

16. - Run the app in an "instrumented" environment so that
- Every APIs invocation is traced
- Every network-related API invocation is traced + all their arguments
- Log all strings
- Dump additional information when specific conditions are met
- Note: too much info is not always good!
- Many technical ways
- Modify the Android emulator, ART environment, the app's itself
- Manual instrumentation vs. instrumentation frameworks
- But still, somehow it is still an open problem
Instrumentation
16

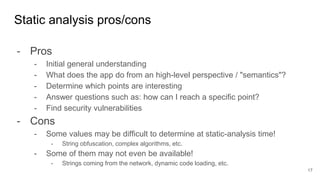

17. - Pros
- Initial general understanding
- What does the app do from an high-level perspective / "semantics"?
- Determine which points are interesting
- Answer questions such as: how can I reach a specific point?
- Find security vulnerabilities
- Cons
- Some values may be difficult to determine at static-analysis time!
- String obfuscation, complex algorithms, etc.
- Some of them may not even be available!
- Strings coming from the network, dynamic code loading, etc.
Static analysis pros/cons
17

18. - Pros
- Dump actual values at run-time
- Dump network traffic (both sent and received), no reconstruction needed
- Stop analysis at any-point and do context/memory inspection
- "Is this API ever invoked?", "With which arguments?"
- Verify that a security vulnerability is actually exploitable
- Cons
- Limited code coverage: Where should I click? Input to insert?
- How can I reach a specific point?
- Is what I'm seeing "bad"? Missing context!
- It can be evaded (app can understand it is under analysis / bypass it)
Dynamic analysis pros/cons
18

19. Usual Workflow
19
Static Analysis Dynamic Analysis
Key: learn when to switch between static and dynamic analysis

20. - Activity with an "access code" input field and a button
- Protected functionality is behind this activity
- Clicking around will not help you
- Complex "access code" check will make static analysis
tricky
Example where both are useful
20

21. Alright, practical stuff now
21

22. Can I haz APKs?
22
- The input: an app's APK
- Where to find the APKs?
- Install them from Google Play Store on your device and pull
- But it's tricky... see next slides
- APKMirror, copies of APKs from the Play Store
- PlayDrone, AndroidZoo, Koodous
- Self-contained package shared by security researchers

23. - APK path: /data/app/<package-name-prefixed-string>/*
- /data/app/com.facebook.katana-iz-DZLKZM-0t4w1giP_FWA==/base.apk
- If device is rooted: easy, just get the APK
- Trickier if the device is not rooted
- $ ls /data/app ~> "ls: /data/app: Permission denied"
Pulling Play Store's APKs from your device
23

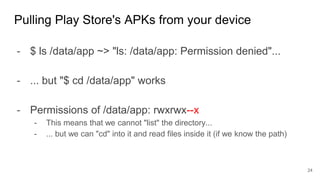

24. - $ ls /data/app ~> "ls: /data/app: Permission denied"...
- ... but "$ cd /data/app" works
- Permissions of /data/app: rwxrwx--x
- This means that we cannot "list" the directory...
- ... but we can "cd" into it and read files inside it (if we know the path)
Pulling Play Store's APKs from your device
24

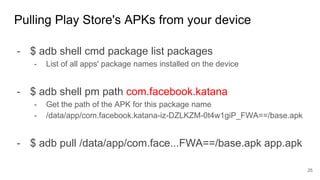

25. - $ adb shell cmd package list packages
- List of all apps' package names installed on the device
- $ adb shell pm path com.facebook.katana
- Get the path of the APK for this package name
- /data/app/com.facebook.katana-iz-DZLKZM-0t4w1giP_FWA==/base.apk
- $ adb pull /data/app/com.face...FWA==/base.apk app.apk
Pulling Play Store's APKs from your device
25

26. - If you have a real device, it's trivial
- Play Store app should be already there
- If you don't have a real device, use an emulator
- The easy way: "Target API 28 (Google APIs)"
- This will contain the Play Store (but it's not rooted)
- The trickier way: "Target API 28"
- No Google-related APIs (but it's rooted)
- Install Google apps via https://opengapps.org/
- Tutorial: link
Installing apps from the Play Store
26

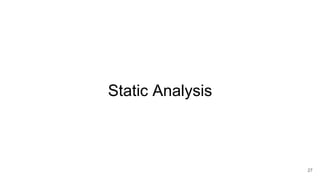

27. Static Analysis
27

28. - AndroidManifest.xml
- Entrypoints enumeration, tell us what to expect when we run it
- assets/, res/
- Resources, strings, binary blobs, etc.
- Not very important, unless referenced in "interesting" ways
- Suggestion: quickly check for weird things, but don't lose too much time
- classes.dex (classes2.dex, ...)
- The juicy part: disassemble / decompile them
- libs/*.so: native code
- META-INF/*
Static Analysis
28

29. - We have seen most of them last time
- apktool, smali, baksmali, strings
- APK Studio (UI for apktool)
- dex2jar
- jadx, jd-gui, bytecodeviewer
- IDA pro, JEB
- Generic workflow
- Start from the (main) entry points and try to understand what's going on
- It's normal to end up using strings + grep
- Collect info for dynamic analysis: "How can I arrive to this point?"
Tools for classes.dex
29

30. - Encrypted strings / values
- Complex algorithms
- DexClassLoader
- Find the loaded classes.dex and unpack it separately
- Reflective calls
Non-trivial aspects to reverse
30

31. - Tricky to reverse engineer
- Easier to at least detect its usage
- You should be able to see the "native" keyword
- You should be able to see System.loadLibrary("mylib")
- More in the next deck of slides
Native code reversing
31

32. - Files
- MANIFEST.MF: hashes of all files inside the APK
- CERT.SF: like MANIFEST.MMF, but signed with the RSA key
- CERT.RSA: info about public key used to sign CERT.SF (DER format)
- Dump
- $ openssl pkcs7 -in CERT.RSA -inform DER -print
- Verify it
- $ apksigner verify app-name.apk
META-INF/*
32

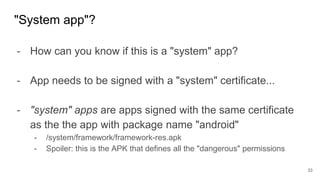

33. - How can you know if this is a "system" app?
- App needs to be signed with a "system" certificate...
- "system" apps are apps signed with the same certificate
as the the app with package name "android"
- /system/framework/framework-res.apk
- Spoiler: this is the APK that defines all the "dangerous" permissions
"System app"?
33

34. Dynamic Analysis
34

35. Debugger
35
- Set breakpoints, single step, check "run-time" values
- If it's your own app / you have the source code
- Debugging is easy via Android Studio
- Start it in "debug" mode, put breakpoints, and run it
- Android Studio will auto-attach to it
- If it's not your own app: trickier
- IDA Dalvik debugging plugin (very expensive :-( )
- NetBeans seems an (horrible) alternative: link (didn't work for me)
- Decompile it and add the source code to empty project! (link)

36. - Run the app where "all actions are logged"
- API trace
- Network activities
- etc.
- Various techniques
- Modify the app itself
- Code injection
- Modify the Android emulator
- Modify the Android framework
Instrumented Environments
36

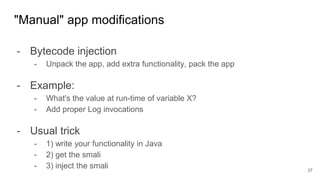

37. - Bytecode injection
- Unpack the app, add extra functionality, pack the app
- Example:
- What's the value at run-time of variable X?
- Add proper Log invocations
- Usual trick
- 1) write your functionality in Java
- 2) get the smali
- 3) inject the smali
"Manual" app modifications
37

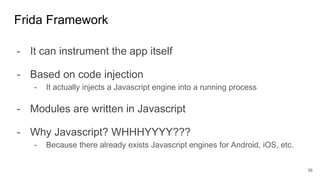

38. - It can instrument the app itself
- Based on code injection
- It actually injects a Javascript engine into a running process
- Modules are written in Javascript
- Why Javascript? WHHHYYYY???
- Because there already exists Javascript engines for Android, iOS, etc.
Frida Framework
38

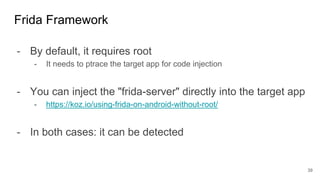

39. - By default, it requires root
- It needs to ptrace the target app for code injection
- You can inject the "frida-server" directly into the target app
- https://koz.io/using-frida-on-android-without-root/
- In both cases: it can be detected
Frida Framework
39

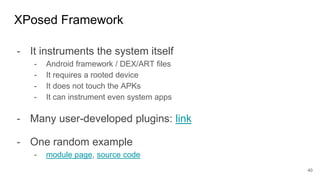

40. - It instruments the system itself
- Android framework / DEX/ART files
- It requires a rooted device
- It does not touch the APKs
- It can instrument even system apps
- Many user-developed plugins: link
- One random example
- module page, source code
XPosed Framework
40

41. - Android-related variant of Cuckoo sandbox
- It will list the URLs contacted, the DNS queries, API
traces, etc.
- Open source: github
Cuckoo Droid
41

42. - Online service: https://www.joesecurity.org/
- It doesn't require setting anything up
- In the past it was accepting public submissions
- Not sure about now...
- Example report: link
Joe Sandbox
42

43. - Online service similar to Joe Sandbox
- You submit the app => static/dynamic analysis report
- I was involved in maintaining it, but we didn't have enough
resources / time
- ⇒ discontinued, RIP
Andrubis
43

44. - Great overview on Android app reversing: link
- Reversing app for vending machines: link
- Frida docs: https://www.frida.re/docs/home/
More Resources
44
