1. 1
WE CONNECT
REAL WORLD
Rev. 4 10/2016

2. 1 COMPANY
2 INTRODUCTION
3 BENEFITS
4 FEATURES
5 APPLICATIONS
6 SOFTWARE
7 OMNIA FAMILY
miniOMNIAlog

3. 1COMPANY
3
Next Industries designs and manufactures high accuracy data
loggers, gateway and sensors provided with Internet of
Things technology.
Thanks to wireless connectivity our devices are able to
communicate with cloud and manage alarm or notifications,
thus being “intelligent”. The so called “intelligent systems”
are devices that transform the way you work, live and connect
to the world through internet in open source, ecologic
and sustainable way.

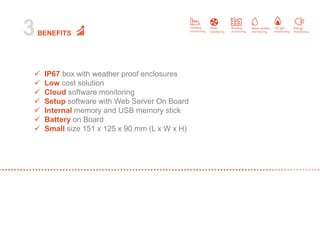

4. 3BENEFITS
 IP67 box with weather proof enclosures
 Low cost solution
 Cloud software monitoring
 Setup software with Web Server On Board
 Internal memory and USB memory stick
 Battery on Board
 Small size 151 x 125 x 90 mm (L x W x H)

5. 4FEATURES
 4 differential analog channels
 Measures: mV, mA, mV/V, NTC,Thermocouple,
Vibrating Wire (depends on the models)
 0,05% F.S. Accuracy
 2G-3G, WMBUS ,SIGFOX
 Web Server on board
 Internet Of Things Technology
 Cloud Base Dashbord Managemen

6. 4FEATURES
BUILT YOUR SISTEMS
Step 1: Connect Sensors To Device*
+
*analog and modbus interface

7. 4FEATURES
BUILT YOUR SISTEMS
Step 2: Choose Wireless Interface

8. 4FEATURES
BUILT YOUR SISTEMS
Step 3: View Data in Cloud

9. 5APPLICATIONS
APPLICATION 1 - AGRICOLTURE
Our data loggers can be used in the Agriculture
industry to monitor temperature, humidity, soil
moisture, light level in various processes, for both
plants and flowers including also green houses,
shipment and storage. It is known that these
parameters directly influence both the quality of the
products and their operation costs, so only benefit will
come from the use of a wireless network or portable
USB device.

10. 5APPLICATIONS

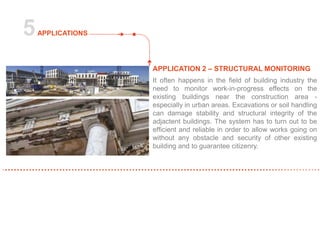

APPLICATION 2 – STRUCTURAL MONITORING
It often happens in the field of building industry the
need to monitor work-in-progress effects on the
existing buildings near the construction area -
especially in urban areas. Excavations or soil handling
can damage stability and structural integrity of the
adjactent buildings. The system has to turn out to be
efficient and reliable in order to allow works going on
without any obstacle and security of other existing
building and to guarantee citizenry.

11. 5APPLICATIONS
APPLICATION 3 – BIOGAS MONITORING
It is possible to produce biogas by aerobic or
anaerobic “digestion”, starting from various
biodegradable materials. The gas obtained in this
way contains 60/70% of methane and can be used to
fuel the boiler required by the digester but also for
electric generator engines. Feed rate controlling
would have improved the production process and this
kind of measurment is also generally required for
certification purposes.

12. 5APPLICATIONS
APPLICATION 4 - LABORATORIES
Our data loggers can be used in a wide range of
laboratories as Climate Monitoring, Autoclaves,
Incubators, Laboratories Ovens, Freezers and others
applications where accuracy, reliability and
documentation are required, using different
parameters including: very high temperatures in
ovens and autoclaves, low temperatures in
refrigerators and freezers, humidity, Ph, pressure,
differential PRESS pressure, CO2 and more.

13. OMNIAlog configurations:
 8 channels MAVT
 8 channels 6 DI /6 DO
 16 channels MAVT
 16 channels GT
 24 channels
 Vibrating Wire interface
 Measures : mV, mA, mV/V, NTC, Thermocouple
7OMNIAlog FAMILY
13
NI-10 configurations:
 Vibrating Wire interface sensors (with Thermistor) to digital datalogger
 Modbus-RTU protocol over RS485 (isolated) interface for digital
datalogger connection
 Programmable Address (allows daisy chain connection)
 Slim size for DIN Panel Mount
OMNIAlog Cabinet:
 Large capacity to hold and connect OMNIAlog devices
 High-quality stainless steel enclosure, installed on wall or
support frame, permits long term installation also in aggressive
environment.
 Supplied with OMNIAlog module, rack and LAN cable for
PC/Laptop connection
 Rack for up to N.8 multiplexer boards
OMNIALOG FTC
 Up to 4 thermocouple temperature inputs
 Up to 4 0-30V Voltage Inputs
 Temperature on board
 USB memory stick included
 Ethernet
 Supports J,K,R,S,T,N,E and B type thermocouples

14. Next Industries S.r.L
Via Serpero 4/F2 - 20060 Masate (MI) Italy - T+39 02.95764356
14
FURTHER DETAILS ON:
www.ruggedaq.com
