The document provides information about the ENH202 and ENH500 wireless outdoor CPE products, including their key specifications and features. The products are designed for long range outdoor wireless connectivity with high gain antennas, high power output, and multiple operation modes. They provide wireless speeds up to 300Mbps with security features and flexibility for different application scenarios. The ENH202 operates in the 2.4GHz band with 802.11b/g/n support while the ENH500 supports 802.11a/n in the 5GHz band.

1. ENH202
ENH500

2. Agenda
• Product information
• Key Selling Points
• Application scenario
• Product comparison
• Product feature highlights

3. Product information
Specification briefing
Category: Outdoor CPE
Model: ENH202/ENH500
Marketing name: Wireless outdoor AP/CB
Key words: ENH202: High power, 802.11b/g/n, 2T2R, 300Mbps, 24V PoE
ENH500: High power, 802.11a/n, 2T2R, 300Mbps, 24V PoE
Product introduction
• The ENH202/ENH500 are wireless outdoor CPEs featured with high gain antenna dual polarization (10dBi for
ENH202, 13dBi for ENH500) with high output power and high sensitivity that can extend the transmission range
to deliver a stable wireless connection.
• The ENH202 and ENH500 integrate 4 operation modes: access point, client bridge, client router and WDS. With
integrated high gain dual-polarized antenna, it is convenient to build up to a 20km long range wireless link while reducing
dead spots. Advanced multi-function operation modes offer flexibility in constructing scalable wireless networks for all
possible applications. The ENH202 and ENH500 are designed to deliver reliable service under harsh outdoor environment
with certified IP65 protection. They are tailored to accommodate multimedia streaming services with data-rate up to
300Mbps.

4. Product information
Package content and physical appearance – ENH202

5. Product information

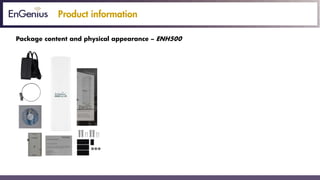

Package content and physical appearance – ENH500

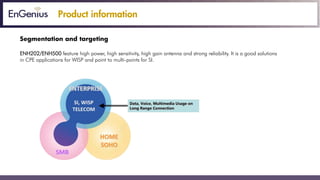

6. Product information
Segmentation and targeting
ENH202/ENH500 feature high power, high sensitivity, high gain antenna and strong reliability. It is a good solutions
in CPE applications for WISP and point to multi-points for SI.

7. Product information

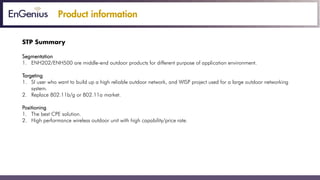

STP Summary
Segmentation
1. ENH202/ENH500 are middle-end outdoor products for different purpose of application environment.
Targeting
1. SI user who want to build up a high reliable outdoor network, and WISP project used for a large outdoor networking
system.
2. Replace 802.11b/g or 802.11a market.
Positioning
1. The best CPE solution.
2. High performance wireless outdoor unit with high capability/price rate.

8. Key Selling Points
High output power and best sensitivity

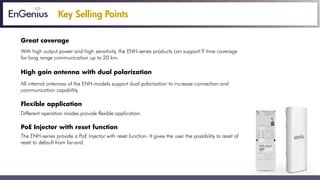

9. Key Selling Points
Great coverage
With high output power and high sensitivity, the ENH-series products can support 9 time coverage
for long range communication up to 20 km.
High gain antenna with dual polarization
All internal antennas of the ENH-models support dual polarization to increase connection and
communication capability.
Flexible application
Different operation modes provide flexible application.
PoE Injector with reset function
The ENH-series provide a PoE Injector with reset function. It gives the user the possibility to reset of
reset to default from far-end.

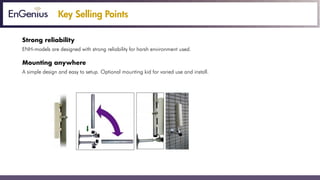

10. Key Selling Points
Strong reliability
ENH-models are designed with strong reliability for harsh environment used.
Mounting anywhere
A simple design and easy to setup. Optional mounting kid for varied use and install.

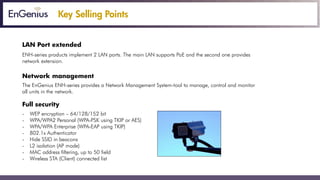

11. Key Selling Points
LAN Port extended
ENH-series products implement 2 LAN ports. The main LAN supports PoE and the second one provides
network extension.
Network management
The EnGenius ENH-series provides a Network Management System-tool to manage, control and monitor
all units in the network.
Full security
- WEP encryption – 64/128/152 bit
- WPA/WPA2 Personal (WPA-PSK using TKIP or AES)
- WPA/WPA Enterprise (WPA-EAP using TKIP)
- 802.1x Authenticator
- Hide SSID in beacons
- L2 isolation (AP mode)
- MAC address filtering, up to 50 field
- Wireless STA (Client) connected list

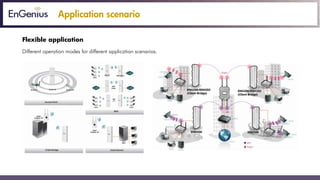

12. Application scenario
Flexible application
Different operation modes for different application scenarios.

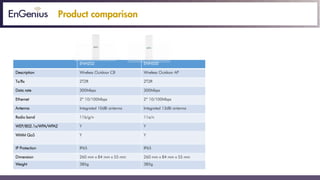

13. Product comparison
ENH202 ENH500
Description Wireless Outdoor CB Wireless Outdoor AP
Tx/Rx 2T2R 2T2R
Data rate 300Mbps 300Mbps
Ethernet 2* 10/100Mbps 2* 10/100Mbps
Antenna Integrated 10dBi antenna Integrated 13dBi antenna
Radio band 11b/g/n 11a/n
WEP/802.1x/WPA/WPA2 Y Y
WMM QoS Y Y
IP Protection IP65 IP65
Dimension 260 mm x 84 mm x 55 mm 260 mm x 84 mm x 55 mm
Weight 385g 385g

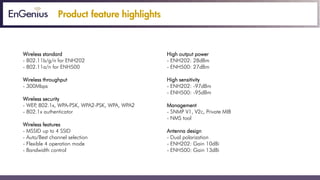

14. Product feature highlights
Wireless standard High output power
- 802.11b/g/n for ENH202 - ENH202: 28dBm
- 802.11a/n for ENH500 - ENH500: 27dBm
Wireless throughput High sensitivity
- 300Mbps - ENH202: -97dBm
- ENH500: -95dBm
Wireless security
- WEP, 802.1x, WPA-PSK, WPA2-PSK, WPA, WPA2 Management
- 802.1x authenticator - SNMP V1, V2c, Private MIB
- NMS tool
Wireless features
- MSSID up to 4 SSID Antenna design
- Auto/Best channel selection - Dual polarization
- Flexible 4 operation mode - ENH202: Gain 10dBi
- Bandwidth control - ENH500: Gain 13dBi

15. Product feature highlights
High output power
- 2.4GHz: 25dBm
High sensitivity
- 2.4GHz: -96dBm
Management
- SNMP V1, V2c, v3, Private MIB
- EZ Controller
Antenna design
- 2* N-type connector
Certification
- FCC, CE, IC
Reliability
- IP68, Ethernet surge protection
Wireless standard
- 802.11b/g/n
Wireless throughput
- 2.4GHz: 2T2R, 300Mbps
Wireless security
- WEP, 802.1x, WPA-PSK, WPA2-PSK, WPA, WPA2
- 802.1x Authenticator
Wireless features
- MSSIDs up to 8 SSIDs
- Auto/Best channel selection
- Flexible operation mode
- VLAN support (with tag/untagged)
- AP/CB/WDS AP/WDS BR/WDS STA
ENH220EXT
