Innovative mobile apps – migrate MBO apps to SAP Mobile Platform 3.0

Migrating MBO Apps from Sybase Unwired Platform
to OData on SAP Mobile Platform 3.0 or HANA
Cloud Platform mobile services (HCPms)
This paper explains the steps of converting MBO based apps on Sybase Unwired
Platform (SUP) to OData on SAP Mobile Platform 3.0 or HANA Cloud Platform mobile
services (HCPms)
The general theme of this approach is to keep certain aspects of an application, such
as the existing client user interface and services, and replace the underlying
communication and mobile enabling services with the new SAP Mobile Platform 3.0
SDKs and HCPms.
Innovapptive Thought Leadership - Migration to SAP Mobile Platform 3.0

2

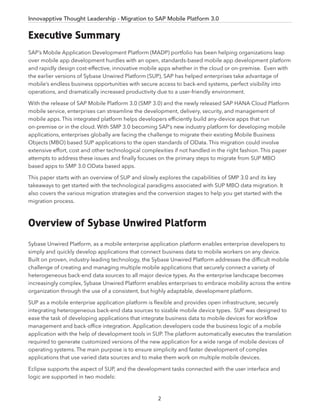

Executive Summary
SAP’s Mobile Application Development Platform (MADP) portfolio has been helping organizations leap
over mobile app development hurdles with an open, standards-based mobile app development platform
and rapidly design cost-effective, innovative mobile apps whether in the cloud or on-premise. Even with
the earlier versions of Sybase Unwired Platform (SUP), SAP has helped enterprises take advantage of
mobile’s endless business opportunities with secure access to back-end systems, perfect visibility into
operations, and dramatically increased productivity due to a user-friendly environment.
With the release of SAP Mobile Platform 3.0 (SMP 3.0) and the newly released SAP HANA Cloud Platform
mobile service, enterprises can streamline the development, delivery, security, and management of
mobile apps. This integrated platform helps developers efficiently build any-device apps that run
on-premise or in the cloud. With SMP 3.0 becoming SAP’s new industry platform for developing mobile
applications, enterprises globally are facing the challenge to migrate their existing Mobile Business
Objects (MBO) based SUP applications to the open standards of OData. This migration could involve
extensive effort, cost and other technological complexities if not handled in the right fashion. This paper
attempts to address these issues and finally focuses on the primary steps to migrate from SUP MBO
based apps to SMP 3.0 OData based apps.
This paper starts with an overview of SUP and slowly explores the capabilities of SMP 3.0 and its key
takeaways to get started with the technological paradigms associated with SUP MBO data migration. It
also covers the various migration strategies and the conversion stages to help you get started with the
migration process.
Overview of Sybase Unwired Platform
Sybase Unwired Platform, as a mobile enterprise application platform enables enterprise developers to
simply and quickly develop applications that connect business data to mobile workers on any device.
Built on proven, industry-leading technology, the Sybase Unwired Platform addresses the difficult mobile
challenge of creating and managing multiple mobile applications that securely connect a variety of
heterogeneous back-end data sources to all major device types. As the enterprise landscape becomes
increasingly complex, Sybase Unwired Platform enables enterprises to embrace mobility across the entire
organization through the use of a consistent, but highly adaptable, development platform.
SUP as a mobile enterprise application platform is flexible and provides open infrastructure, securely
integrating heterogeneous back-end data sources to sizable mobile device types. SUP was designed to
ease the task of developing applications that integrate business data to mobile devices for workflow
management and back-office integration. Application developers code the business logic of a mobile
application with the help of development tools in SUP. The platform automatically executes the translation
required to generate customized versions of the new application for a wide range of mobile devices of
operating systems. The main purpose is to ensure simplicity and faster development of complex
applications that use varied data sources and to make them work on multiple mobile devices.
Eclipse supports the aspect of SUP, and the development tasks connected with the user interface and
logic are supported in two models:

3

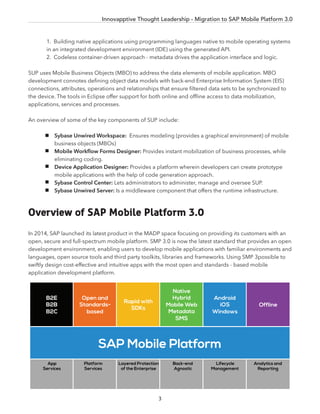

1. Building native applications using programming languages native to mobile operating systems
in an integrated development environment (IDE) using the generated API.
2. Codeless container-driven approach - metadata drives the application interface and logic.
SUP uses Mobile Business Objects (MBO) to address the data elements of mobile application. MBO
development connotes defining object data models with back-end Enterprise Information System (EIS)
connections, attributes, operations and relationships that ensure filtered data sets to be synchronized to
the device. The tools in Eclipse offer support for both online and offline access to data mobilization,
applications, services and processes.
An overview of some of the key components of SUP include:
Sybase Unwired Workspace: Ensures modeling (provides a graphical environment) of mobile
business objects (MBOs)
Mobile Workflow Forms Designer: Provides instant mobilization of business processes, while
eliminating coding.
Device Application Designer: Provides a platform wherein developers can create prototype
mobile applications with the help of code generation approach.
Sybase Control Center: Lets administrators to administer, manage and oversee SUP.
Sybase Unwired Server: Is a middleware component that offers the runtime infrastructure.
Overview of SAP Mobile Platform 3.0
In 2014, SAP launched its latest product in the MADP space focusing on providing its customers with an
open, secure and full-spectrum mobile platform. SMP 3.0 is now the latest standard that provides an open
development environment, enabling users to develop mobile applications with familiar environments and
languages, open source tools and third party toolkits, libraries and frameworks. Using SMP 3possible to
swiftly design cost-effective and intuitive apps with the most open and standards - based mobile
application development platform.
SAP Mobile Platform
B2E
B2B
B2C
Open and
Standards-
based
Rapid with
SDKs
Native
Hybrid
Mobile Web
Metadata
SMS
Android
iOS
Windows
Offline
App
Services
Platform
Services
Layered Protection
of the Enterprise
Back-end
Agnostic
Lifecycle
Management
Analytics and
Reporting

4
From a technological point-of-view it’s easy to see how SMP is
superior compared to its earlier versions. Key beneﬁts are -
Using a single architecture, multiple services, you can scale
the complexity of mobile apps
Open source and open standard based mobile platform:
Supports OSGi Spring, HTML5, HTTP Rest, OData and
Cordova
Data integration capabilities (both SAP and non-SAP
servers) using Integration Gateway and is deployed on the
SMP 3.0 server.
Bonds the technology divide with OData
Renders support for all major operating systems
Provides Kapsel architecture (container) to support ofﬂine
capabilities
Provides native OData SDK.
Offers platform SDK - mobile application framework.
Offers Agentry, which is an open UI framework that lets
developers to work on their own customer UI
representation of an Agentry screen.
SMP 3.0 Toolkit
SMP 3.0 is the best in breed technology platform, converging the
cutting edge technologies such as SUP, Syclo Agentry, Sybase
Mobilizer and SAP integration gateway. SMP services can be
leveraged for a variety of functions like -
Data authentication
Secure data access
Integration of SAP and non-SAP back-end software
AppBuilder for
designing your UI5 app.
OData Modeler that lets
you build your data
model.
Mobile application
workbench that lets you
customize your apps.
Agentry Eclipse tooling
that lets you customize
your Syclo Apps
SMS builder that lets you
develop SMS based
apps.
Integration Gateway that
enables you to map
backend interfaces to
OData

5

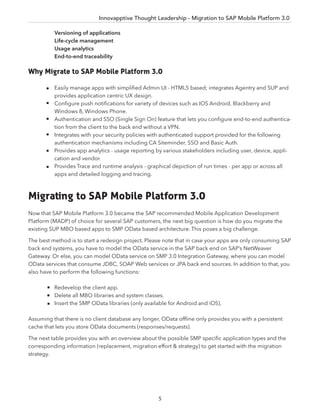

Versioning of applications
Life-cycle management
Usage analytics
End-to-end traceability
Why Migrate to SAP Mobile Platform 3.0
Easily manage apps with simplified Admin UI - HTML5 based; integrates Agentry and SUP and
provides application centric UX design.
Configure push notifications for variety of devices such as IOS Android, Blackberry and
Windows 8, Windows Phone.
Authentication and SSO (Single Sign On) feature that lets you configure end-to-end authentica-
tion from the client to the back end without a VPN.
Integrates with your security policies with authenticated support provided for the following
authentication mechanisms including CA Siteminder, SSO and Basic Auth.
Provides app analytics - usage reporting by various stakeholders including user, device, appli-
cation and vendor.
Provides Trace and runtime analysis - graphical depiction of run times - per app or across all
apps and detailed logging and tracing.
Migrating to SAP Mobile Platform 3.0
Now that SAP Mobile Platform 3.0 became the SAP recommended Mobile Application Development
Platform (MADP) of choice for several SAP customers, the next big question is how do you migrate the
existing SUP MBO based apps to SMP OData based architecture. This poses a big challenge.
The best method is to start a redesign project. Please note that in case your apps are only consuming SAP
back end systems, you have to model the OData service in the SAP back end on SAP’s NetWeaver
Gateway. Or else, you can model OData service on SMP 3.0 Integration Gateway, where you can model
OData services that consume JDBC, SOAP Web services or JPA back end sources. In addition to that, you
also have to perform the following functions:
Redevelop the client app.
Delete all MBO libraries and system classes.
Insert the SMP OData libraries (only available for Android and iOS).
Assuming that there is no client database any longer, OData offline only provides you with a persistent
cache that lets you store OData documents (responses/requests).
The next table provides you with an overview about the possible SMP specific application types and the
corresponding information (replacement, migration effort & strategy) to get started with the migration
strategy.

6
Strategies for Migration
It is possible to migrate all SAP applications including SAP® Mobile Platform 2.x, Agentry applications,
MBO applications and OData applications to SAP Mobile Platform 3.0. You can choose three different
strategies if you intend to migrate to SAP mobile platform 3.0, depending on your situation.
Redeploy
Some of the applications that can be redeployed to SAP Mobile Platform 3.0 are -
Agentry
Mobiliser
SAP Mobile Platform version 2.3. Agentry
Mobiliser applications
One thing to be noted here is no built-in upgrade support exists to migrate applications from version 2.x
to version 3.0, which entails you to set up parallel infrastructure in a production environment with a
scheduled switchover. This might again require you to redeploy application clients.
Redevelop
Based on the type of the application that needs to be migrated, you may need to redevelop SAP Mobile
Platform 2.x MBO applications - both native ofﬂine-able applications and hybrid web container applica-
tions with the help of online MBOs. Apart from that, you may also need to pool up efforts to redevelop
applications that use HTTP and on device portal (ODP).
The basic philosophy behind this strategy is to retain certain areas of an application such as the existing

7

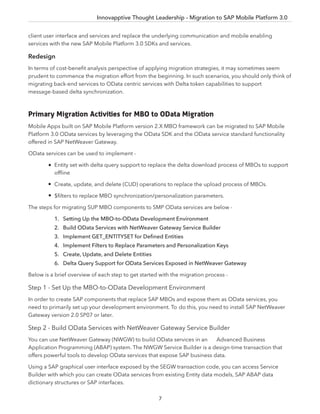

client user interface and services and replace the underlying communication and mobile enabling
services with the new SAP Mobile Platform 3.0 SDKs and services.
Redesign
In terms of cost-benefit analysis perspective of applying migration strategies, it may sometimes seem
prudent to commence the migration effort from the beginning. In such scenarios, you should only think of
migrating back-end services to OData centric services with Delta token capabilities to support
message-based delta synchronization.
Primary Migration Activities for MBO to OData Migration
Mobile Apps built on SAP Mobile Platform version 2.X MBO framework can be migrated to SAP Mobile
Platform 3.0 OData services by leveraging the OData SDK and the OData service standard functionality
offered in SAP NetWeaver Gateway.
OData services can be used to implement -
Entity set with delta query support to replace the delta download process of MBOs to support
offline
Create, update, and delete (CUD) operations to replace the upload process of MBOs.
$filters to replace MBO synchronization/personalization parameters.
The steps for migrating SUP MBO components to SMP OData services are below -
1. Setting Up the MBO-to-OData Development Environment
2. Build OData Services with NetWeaver Gateway Service Builder
3. Implement GET_ENTITYSET for Defined Entities
4. Implement Filters to Replace Parameters and Personalization Keys
5. Create, Update, and Delete Entities
6. Delta Query Support for OData Services Exposed in NetWeaver Gateway
Below is a brief overview of each step to get started with the migration process -
Step 1 - Set Up the MBO-to-OData Development Environment
In order to create SAP components that replace SAP MBOs and expose them as OData services, you
need to primarily set up your development environment. To do this, you need to install SAP NetWeaver
Gateway version 2.0 SP07 or later.
Step 2 - Build OData Services with NetWeaver Gateway Service Builder
You can use NetWeaver Gateway (NWGW) to build OData services in an Advanced Business
Application Programming (ABAP) system. The NWGW Service Builder is a design-time transaction that
offers powerful tools to develop OData services that expose SAP business data.
Using a SAP graphical user interface exposed by the SEGW transaction code, you can access Service
Builder with which you can create OData services from existing Entity data models, SAP ABAP data
dictionary structures or SAP interfaces.
7

Mobile Quality Management for SAP® ERP
8
Step 3 - Implement GET_ENTITYSET for Defined Entities
A GET_ENTITYSET method corresponds to a QUERY operation that returns zero to many entries. Its
primary role is to generate the entity collection and is the equivalent of downloading and synchronizing
MBOs.
Each entity has a corresponding service implementation that executes at runtime. In order to support the
maintenance of the entity, you can implement standard operations such as create, read, update, and
delete (CRUD) as well as query. For each entity type, a standard set of five method shells are generated -
<Entity>_GET_ENTITYSET - corresponds to a common “Get List” query and is also functionally
equivalent to a full MBO download. A standard GET_ENTITYSET operation call returns the
entire entity collection without any filters.
<Entity>_GET_ENTITY - corresponds to a read operation.

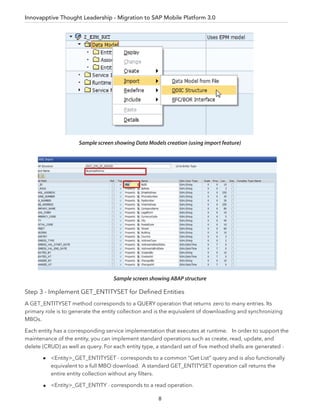

Sample screen showing Data Models creation (using import feature)
Sample screen showing ABAP structure

9
<Entity>_CREATE_ENTITY
<Entity>_UPDATE_ENTITY
<Entity>_DELETE_ENTITY
The actual implementation varies from simple to complex, based on the entity, operation type, and the
corresponding business object in the business back-end.
Step 4 - Implement Filters to Replace Parameters and Personalization Keys
You can use the OData $filter system query option to query a subset of entries from a collection of
entries, using an expression specified in the query option.
These example expressions illustrate the $filter option -
.../SalesOrders?$filter=SoID eq '500000000'
returns the sales order with SoID equal to ‘500000000’
…/SalesOrders?$filter=BuyerName eq 'SAP'
returns sales orders bought from SAP
In order to meet the requirements set for MBOs, including those defined by load parameters,
synchronization parameters and personalization keys, filtering along with delta query options can be
used. However, on account of internal differences between the MBO model and the OData standard, a
direct mapping between respective features cannot be achieved and expect limitations from either
perspective.
Step 5 - Create, Update and Delete Entities
Implement CREATE_ENTITY, UPDATE_ENTITY, and DELETE_ENTITY methods, which replace SAP Mobile
Platform 2.X MBO equivalent operations.
You can modify the MBO definition with create, update, and delete operations, and map them to insert,
update, or delete MBO records at the client side with respective BAPI operations that are called and
executed on the SAP backend. An OData service provides equivalent functionality by utilizing the REST
compliant, HTTP based requests using the POST, PUT and DELETE methods to create, update, or
delete entities respectively.
Sample screen shot for implementing GetEntitySet

10

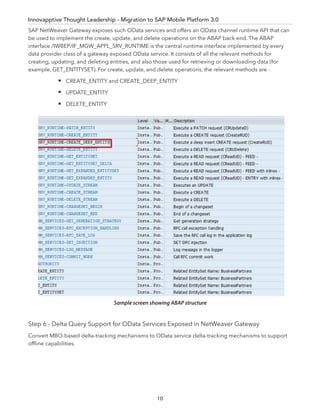

SAP NetWeaver Gateway exposes such OData services and offers an OData channel runtime API that can
be used to implement the create, update, and delete operations on the ABAP back-end. The ABAP
interface /IWBEP/IF_MGW_APPL_SRV_RUNTIME is the central runtime interface implemented by every
data provider class of a gateway exposed OData service. It consists of all the relevant methods for
creating, updating, and deleting entities, and also those used for retrieving or downloading data (for
example, GET_ENTITYSET). For create, update, and delete operations, the relevant methods are -
CREATE_ENTITY and CREATE_DEEP_ENTITY
UPDATE_ENTITY
DELETE_ENTITY
Step 6 - Delta Query Support for OData Services Exposed in NetWeaver Gateway
Convert MBO-based delta-tracking mechanisms to OData service delta-tracking mechanisms to support
ofﬂine capabilities.
Sample screen showing ABAP structure

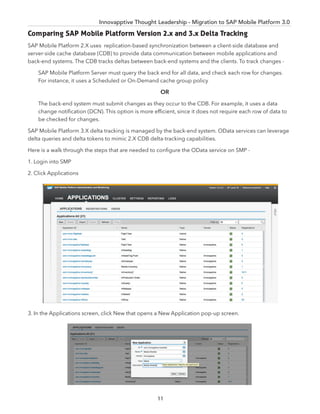

Comparing SAP Mobile Platform Version 2.x and 3.x Delta Tracking
SAP Mobile Platform 2.X uses replication-based synchronization between a client-side database and
server-side cache database (CDB) to provide data communication between mobile applications and
back-end systems. The CDB tracks deltas between back-end systems and the clients. To track changes -
SAP Mobile Platform Server must query the back end for all data, and check each row for changes.
For instance, it uses a Scheduled or On-Demand cache group policy
OR
The back-end system must submit changes as they occur to the CDB. For example, it uses a data
change notification (DCN). This option is more efficient, since it does not require each row of data to
be checked for changes.
SAP Mobile Platform 3.X delta tracking is managed by the back-end system. OData services can leverage
delta queries and delta tokens to mimic 2.X CDB delta-tracking capabilities.
Here is a walk through the steps that are needed to configure the OData service on SMP -
1. Login into SMP
2. Click Applications
3. In the Applications screen, click New that opens a New Application pop-up screen.
11

12

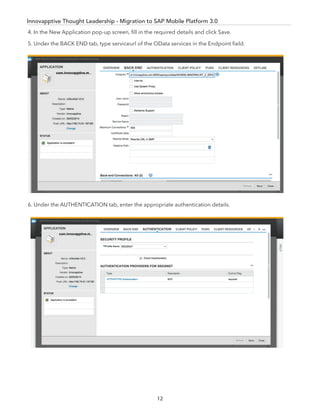

4. In the New Application pop-up screen, ﬁll in the required details and click Save.
5. Under the BACK END tab, type serviceurl of the OData services in the Endpoint ﬁeld.
6. Under the AUTHENTICATION tab, enter the appropriate authentication details.

Migration of MBO components API to SMP OData services
The subsequent steps illustrate the migration of SUP MBO components API to SMP OData services API on
mobile app. For each step, there is a block of code that needs to be executed to move to the next step.
The following are the steps for migration -
Step 1 - Remove the MBO generated code and libraries from the project
Step 2 - Remove SUP registration code
Step 3 - Add OData SDK libraries into the project from mobile SDK installation
Step 4 - Register SMP OData
-(void)registerUserDelegate:(id<SMPUserManagerDelegate>)delegate{
ServerSettings *serverSettings = [ServerSettings getFromUserDefaults]
/***
Create Client Connection object with app id, domine, and security
configuration .
***/
SMPClientConnection *clientConnection = [SMPClientConnection
initializeWithAppID:serverSettings.appID domain:@"default"
secConfiguration:serverSettings.securityConfiguration];
if ([self.appConnectionID length]>0 ) {
[clientConnection setApplicationConnectionID:self.appConnectionID];
}
/***
Set the Host and port for Connection object.
***/
[clientConnection setConnectionProfileWithHost:serverSettings.smpHostAddress
port:serverSettings.mbsPort farm:nil relayServerUrlTemplate:nil enableHTTP:YES];
/***
Registoring user async we must provide usermanager registrator handler.
And it must implement the userRegistrationFailed: and
userRegistrationSuccessful:
***/
self.userRegistorDelegate =delegate;
SMPUserManager *userManager =[SMPUserManager
initializeWithConnection:clientConnection];
NSError *error;
if ([self.appConnectionID length] ==0 )
{

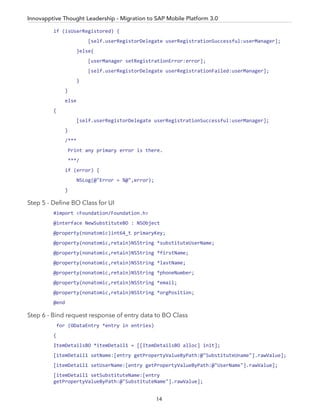

BOOL isUserRegistored = [userManager registerUser:self.gateWayUserName
password:self.gateWayUserPassword error:&error isSyncFlag:YES];
13

if (isUserRegistored) {
[self.userRegistorDelegate userRegistrationSuccessful:userManager];
}else{
[userManager setRegistrationError:error];
[self.userRegistorDelegate userRegistrationFailed:userManager];
}
}
else
{
}
/***
Print any primary error is there.
***/
if (error) {
NSLog(@"Error = %@",error);
}
Step 5 - Deﬁne BO Class for UI
#import <Foundation/Foundation.h>
@interface NewSubstituteBO : NSObject
@property(nonatomic)int64_t primaryKey;
@property(nonatomic,retain)NSString *substituteUserName;
@property(nonatomic,retain)NSString *firstName;
@property(nonatomic,retain)NSString *lastName;
@property(nonatomic,retain)NSString *phoneNumber;
@property(nonatomic,retain)NSString *email;
@property(nonatomic,retain)NSString *orgPosition;
@end
Step 6 - Bind request response of entry data to BO Class
for (ODataEntry *entry in entries)
{
ItemDetailsBO *itemDetail1 = [[ItemDetailsBO alloc] init];
[itemDetail1 setName:[entry getPropertyValueByPath:@"SubstituteUname"].rawValue];
[itemDetail1 setUserName:[entry getPropertyValueByPath:@"UserName"].rawValue];
[itemDetail1 setSubstituteName:[entry
getPropertyValueByPath:@"SubstituteName"].rawValue];
14

15
[itemDetail1 setSubstitutePernr:[entry
getPropertyValueByPath:@"SubstitutePernr"].rawValue];
}
Step 7 - Set Up Cache
-(void)setUPCache{
/***Get Encrypt for application, stor the key in userdefaults, and set the
encrypt key everytime application lunches to EncryptinKeyManager.***/
NSUserDefaults *userDefaults = [NSUserDefaults standardUserDefaults];
NSString *key= [userDefaults objectForKey:ENCRIPT_KEY];
}
if (key == nil) {
key = [EncryptionKeyManager getEncryptionKey:nil];
[userDefaults setObject:key forKey:ENCRIPT_KEY];
[userDefaults synchronize];
}
else{
NSError *error = nil;
[EncryptionKeyManager setEncryptionKey:key withError:&error];
}
/***Initialize the Cache once for the application launch.***/
id<Caching>defaultCache = [[Cache alloc] init];
[defaultCache setIsPersistable:YES];
NSError* error = nil;
if (![defaultCache initializeCacheWithError:&error]) {
NSLog(@"Initialize Error : %@@", error);
return;
}
}
Step 8 - Store entries data to cache
/**
** Merge Entries to Cache.
**/
-(void)mergeEntriesWithFeed:(ODataFeed*)feed forUrlKey:(NSString*)urlKey

{
id<Caching> cache = [[Cache alloc] init];
NSError* error = nil;
[cache mergeEntriesFromFeed:feed forUrlKey:urlKey withError:&error
withCompletionBlock:^(NSNotification *notification) {
NSLog(@"%@", notification);
}];
if(error)
{
NSLog(@"Merge Error: %@@", error);
}
}
Step 9 - Read entries from cache
/**
** Read Server Entries From Cache.
**/
-(NSMutableArray*)readServerEntriesFromCacheForURlKey:(NSString*)urlKey
{
// Fetching the Entries From Cache.
id<Caching> cache1 = [[Cache alloc] init];
NSError* error1 = nil;
NSMutableArray* cachedEntries = (NSMutableArray*)[cache1
readEntriesForUrlKey:urlKey withError:&error1];
if (error1)
{
NSLog(@"Read Error : %@", error1);
return nil;
}
return cachedEntries;
}
Step 10 - Enable Ofﬂine POST, PUT and DELETE
[RequestBuilder setDelegate:self];
[RequestBuilder setDidFinishSelector:@selector(OfflineRequestSuccesSelector:)];
[RequestBuilder setDidFailSelector:@selector(offlineRequestFailedSelector:)];
16

Migrating to SAP HANA Cloud Platform mobile services
(HCPms)
The final section of this white paper illustrates how you can migrate SUP MBO components to SMP OData
based apps on SAP HANA Cloud Platform mobile services (HCPms).
But, before we proceed with the migration steps on HCPms, it is essential to understand the SAP HANA
Cloud Platform offering and then proceed with the technical details of how to enable SAP HANA Cloud
Platform mobile services and subsequently understand how you can install and configure the SAP HANA
Cloud Connector.
What is the SAP HANA Cloud Platform (HCP) ?
SAP HANA Cloud Platform (HCP) is the in-memory Platform-as-a-Service offering from SAP that lets
customers and developers to build, extend and run applications on SAP HANA in the cloud. It offers
flexible subscription models and services for infrastructure, database and application development,
providing an instant access to the full power of SAP HANA.
SAP HANA Cloud Platform provides a wide variety of benefits for developers and SAP customers -
it powers applications that deliver real-time insights to drive more effective and timely decision making.
Using SAP HANA Cloud Platform, you can dramatically quicken analytics, business processes, sentiment
data processing and predictive analytics to run your business in real-time.
17
Image Credit : SAP

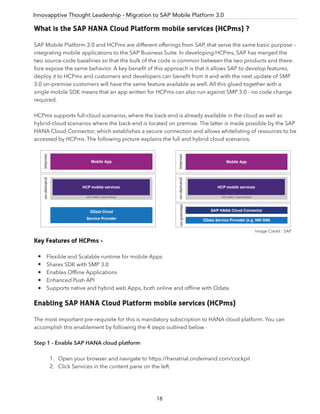

What is the SAP HANA Cloud Platform mobile services (HCPms) ?
SAP Mobile Platform 3.0 and HCPms are different offerings from SAP, that serve the same basic purpose –
integrating mobile applications to the SAP Business Suite. In developing HCPms, SAP has merged the
two source-code baselines so that the bulk of the code is common between the two products and there-
fore expose the same behavior. A key benefit of this approach is that it allows SAP to develop features,
deploy it to HCPms and customers and developers can benefit from it and with the next update of SMP
3.0 on-premise customers will have the same feature available as well. All this glued together with a
single mobile SDK means that an app written for HCPms can also run against SMP 3.0 - no code change
required.
HCPms supports full-cloud scenarios, where the back-end is already available in the cloud as well as
hybrid-cloud scenarios where the back-end is located on premise. The latter is made possible by the SAP
HANA Cloud Connector, which establishes a secure connection and allows whitelisting of resources to be
accessed by HCPms. The following picture explains the full and hybrid cloud scenarios.
Key Features of HCPms -
Flexible and Scalable runtime for mobile Apps
Shares SDK with SMP 3.0
Enables Offline Applications
Enhanced Push API
Supports native and hybrid web Apps, both online and offline with Odata
Enabling SAP HANA Cloud Platform mobile services (HCPms)
The most important pre-requisite for this is mandatory subscription to HANA cloud platform. You can
accomplish this enablement by following the 4 steps outlined below -
Step 1 - Enable SAP HANA cloud platform
1. Open your browser and navigate to https://hanatrial.ondemand.com/cockpit
2. Click Services in the content pane on the left.
Image Credit : SAP
18

3. Under the list of services, look for SAP HANA cloud platform and click Enable.
4. Wait for a couple of seconds. The screens gets updated (as shown in the below screen shot).
Step 2 - Subscribe mobile services Admin Cockpit to your HCP account.
1. Click Subscriptions in the Content pane
2. Click New Subscription.
3. Select sapmobile and hcpmsadmin from the Provider Account and Application Name fields
respectively.
4. Click Create to confirm that displays the following screen -
5. Now click the link hcpmsadmin and click Roles in the Content pane
6. Next click New Role.
7. In the dialog box that opens, type HanaMobileAdmin as the role name and click Confirm.
8. In the SAP HANA Cloud Platform Cockpit screen, click Assign (in the lower part of the screen).
9. Assign your user to the newly created role by entering your SCN ID in the displayed dialog box.
Note: Ensure that you select the HanaMobileAdmin role in the role list.
If you had followed all the steps, the screen should be displayed -
19

20

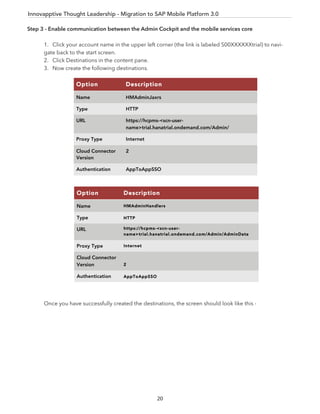

Step 3 - Enable communication between the Admin Cockpit and the mobile services core
1. Click your account name in the upper left corner (the link is labeled S00XXXXXXtrial) to navi-
gate back to the start screen.
2. Click Destinations in the content pane.
3. Now create the following destinations.
Once you have successfully created the destinations, the screen should look like this -
Option Description
Name HMAdminJaxrs
Type HTTP
URL https://hcpms-<scn-user-
name>trial.hanatrial.ondemand.com/Admin/
Proxy Type Internet
Cloud Connector
Version
2
Authentication AppToAppSSO
Option Description
Name HMAdminHandlers
Type HTTP
URL https://hcpms-<scn-user-
name>trial.hanatrial.ondemand.com/Admin/AdminData
Proxy Type Internet
Cloud Connector
Version 2
Authentication AppToAppSSO

21

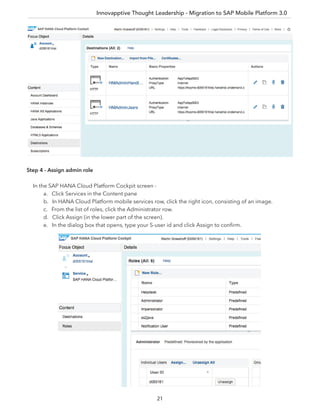

Step 4 - Assign admin role
In the SAP HANA Cloud Platform Cockpit screen -
a. Click Services in the Content pane
b. In HANA Cloud Platform mobile services row, click the right icon, consisting of an image.
c. From the list of roles, click the Administrator row.
d. Click Assign (in the lower part of the screen).
e. In the dialog box that opens, type your S-user id and click Assign to conﬁrm.

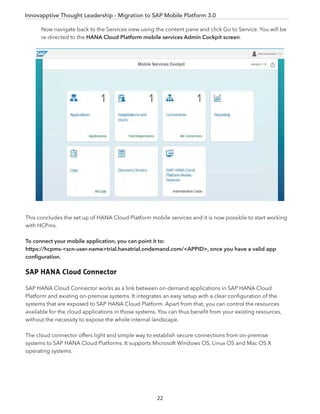

Now navigate back to the Services view using the content pane and click Go to Service. You will be
re-directed to the HANA Cloud Platform mobile services Admin Cockpit screen.
This concludes the set up of HANA Cloud Platform mobile services and it is now possible to start working
with HCPms.
To connect your mobile application, you can point it to:
https://hcpms-<scn-user-name>trial.hanatrial.ondemand.com/<APPID>, once you have a valid app
configuration.
SAP HANA Cloud Connector
SAP HANA Cloud Connector works as a link between on-demand applications in SAP HANA Cloud
Platform and existing on-premise systems. It integrates an easy setup with a clear configuration of the
systems that are exposed to SAP HANA Cloud Platform. Apart from that, you can control the resources
available for the cloud applications in those systems. You can thus benefit from your existing resources,
without the necessity to expose the whole internal landscape.
The cloud connector offers light and simple way to establish secure connections from on-premise
systems to SAP HANA Cloud Platforms. It supports Microsoft Windows OS, Linux OS and Mac OS X
operating systems.
22

23
Installing and Configuring the SAP HANA Cloud Connector
Installation
Note: This white paper covers the installation steps for Microsoft Windows OS only.
Prerequisites
Microsoft Windows 7 or Windows Server 2008 R2, 64-bit operating system.
Download either the ZIP archive for the developer's use case on Windows, or the MSI installer for
productive usage from the SAP Development Tools for Eclipse Page.
Install Microsoft Visual Studio C++ 2010 runtime libraries.
Install Java 6 or Java 7.
Set up Environment variable <JAVA_HOME> for the Java installation directory, so that the bin
subfolder can be found. Alternatively, when using the ZIP file, you can add the relevant bin
directory to the <PATH> variable.
Developer's Use Case
1. Extract the <sapcc-<version>-windows-x64.zip> zIP file to an arbitrary directory on your local file
system.
2. Make modifications to this directory and start Cloud connector 2.x via the go.bat batch file.
3. Continue with the Next Steps section.
Note: Cloud connector 2.x is not started as a service in the Developer's use case, and hence will not
automatically start after a reboot of your system.
Productive Use Case
1. Start the <sapcc-<version>-windows-x64.msi> installer by double-clicking it.
2. The installer notifies that you are now guided through the installation process. Click Next.
3. The installer reminds you that you need to have at least Java 6 installed. If you have met this
requirement, click Next.
4. You can select the port on which the administration UI is reachable. Either leave the default 8443
or choose a different port if needed. Then click Next.
5. Navigate to the installation directory for your SAP HANA Cloud connector and click Next.
6. Now, decide whether the Cloud connector should be started immediately after finishing the
setup. If you do not want to start immediately, clear the checkbox and then click Next.
7. After you have completed all the installation options and if you really want to install, again click
Next.
8. Wait for a few seconds to complete the installation. Then click Close.
9. Continue with the Next Steps section.
Note: Cloud Connector 2.x is started as a Windows Service in the Productive use case. Hence, installation
requires administration permissions. After installation, the service should be administrated under Control
Panel > Administrative Tools > Services. The service name is SAP HANA Cloud Connector 2.0. Make sure

that the service is executed with a user that has limited privileges. Generally, privileges that are allowed for
service users are defined by your company policy. Later, you should adjust the folder and file permissions
to be manageable by only this user and system administrators.
Next Steps
1. In the browser, type: https://<hostname>:8443, where <hostname> is the host name of the
machine on which you have installed the Cloud connector.
If you access the Cloud connector locally from the same machine, you can just enter localhost.
2. Continue with initial configuration of the Cloud connector 2.x. It works in the same way as for
version 1.x.

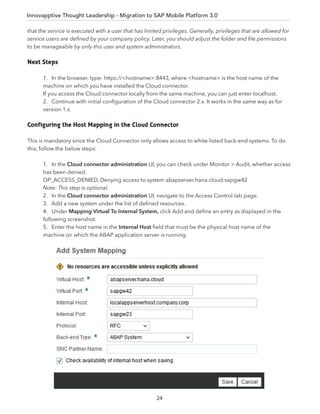

Configuring the Host Mapping in the Cloud Connector
This is mandatory since the Cloud Connector only allows access to white-listed back-end systems. To do
this, follow the below steps:
1. In the Cloud connector administration UI, you can check under Monitor > Audit, whether access
has been denied.
OP_ACCESS_DENIED, Denying access to system abapserver.hana.cloud:sapgw42
Note: This step is optional.
2. In the Cloud connector administration UI, navigate to the Access Control tab page.
3. Add a new system under the list of defined resources.
4. Under Mapping Virtual To Internal System, click Add and define an entry as displayed in the
following screenshot.
5. Enter the host name in the Internal Host field that must be the physical host name of the
machine on which the ABAP application server is running.
24

25

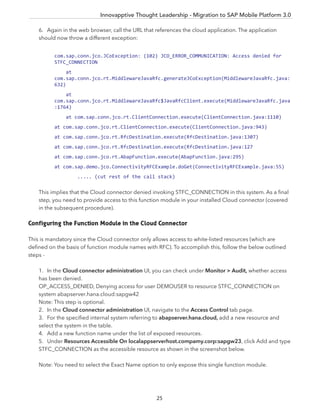

6. Again in the web browser, call the URL that references the cloud application. The application
should now throw a different exception:
com.sap.conn.jco.JCoException: (102) JCO_ERROR_COMMUNICATION: Access denied for
STFC_CONNECTION
at
com.sap.conn.jco.rt.MiddlewareJavaRfc.generateJCoException(MiddlewareJavaRfc.java:
632)
at
com.sap.conn.jco.rt.MiddlewareJavaRfc$JavaRfcClient.execute(MiddlewareJavaRfc.java
:1764)
at com.sap.conn.jco.rt.ClientConnection.execute(ClientConnection.java:1110)
at com.sap.conn.jco.rt.ClientConnection.execute(ClientConnection.java:943)
at com.sap.conn.jco.rt.RfcDestination.execute(RfcDestination.java:1307)
at com.sap.conn.jco.rt.RfcDestination.execute(RfcDestination.java:127
at com.sap.conn.jco.rt.AbapFunction.execute(AbapFunction.java:295)
at com.sap.demo.jco.ConnectivityRFCExample.doGet(ConnectivityRFCExample.java:55)
..... (cut rest of the call stack)
This implies that the Cloud connector denied invoking STFC_CONNECTION in this system. As a final
step, you need to provide access to this function module in your installed Cloud connector (covered
in the subsequent procedure).
Configuring the Function Module in the Cloud Connector
This is mandatory since the Cloud connector only allows access to white-listed resources (which are
defined on the basis of function module names with RFC). To accomplish this, follow the below outlined
steps -
1. In the Cloud connector administration UI, you can check under Monitor > Audit, whether access
has been denied.
OP_ACCESS_DENIED, Denying access for user DEMOUSER to resource STFC_CONNECTION on
system abapserver.hana.cloud:sapgw42
Note: This step is optional.
2. In the Cloud connector administration UI, navigate to the Access Control tab page.
3. For the specified internal system referring to abapserver.hana.cloud, add a new resource and
select the system in the table.
4. Add a new function name under the list of exposed resources.
5. Under Resources Accessible On localappserverhost.compamy.corp:sapgw23, click Add and type
STFC_CONNECTION as the accessible resource as shown in the screenshot below.
Note: You need to select the Exact Name option to only expose this single function module.

26
6. Again in the web browser, call the URL that references the cloud application. The application
should now return with a message displaying the export parameters of the function module after a
successful invocation.
With this ﬁnal function module conﬁguration in the Cloud Connector, you are done with the process of
migrating SUP MBO based apps to SMP OData based apps on SAP HANA Cloud Platform.
Summary
With the progression of SAP Mobile technology, it is evident that SAP Mobile Platform 3.0 has proliferat-
ed the market and is here to stay as the technology of choice for integration of mobile solutions to the
SAP Business Suite. Considering the key takeaways and value it adds to any business, it makes sense to
migrate existing SUP MBO apps to SAP OData based apps, albeit cautiously - factors such as technologi-
cal landscape, migration efforts and the sheer necessity need to be considered and evaluated before
embarking on the migration strategy.
Further, if you are interested to build a successful cloud based enterprise mobility strategy, the last
section of the white paper might interest you, where exhaustive migration steps – from SUP MBO apps to
SMP OData based apps on SAP HANA Cloud Platform has been deliberated to help you get started with
your cloud based mobile deployments.

For more information
To learn more about Innovapptive’s mPower™ App Suite, Enterprise Mobility Strategy
and Consulting, Rapid Deployment Solutions and Custom Development Services,
contact your Innovapptive sales representative, visit us at www.innovapptive.com or
you can email Innovapptive directly at sales@innovapptive.com
Innovapptive is an SAP mobile application development and services partner, a
provider of a cloud based mobile application management platform, 30+ SAP-certi-
fied mobile apps, and a 2014 SAP Pinnacle Award finalist. Innovapptive offers an array
of SAP Mobile products and services that accelerates customer’s time to market and
value of their SAP mobile deployments. Innovapptive’s products, the mPower™ App
store, a cloud based mobile application management solution and the mPower™ App
Suite, prepackaged with an SAP certified add on, allow customers to achieve infinite
number of customization through simple SAP configurations. The mPower™ App Suite
and the mPower™ App Store provides customers a comprehensive portfolio of
end-to-end mobile solutions to instantly take their enterprise mobile. The team at
Innovapptive brings a unique and unparalleled combination of SAP, mobile and
industry experience and have transformed large global 2000 customers such as MARS
Chocolate, AMGEN, Forest City Enterprises, Semperian, EBY-Brown and Vallourec USA
Corp to name a few.
© Copyright Innovapptive Inc. 2014
Innovapptive Inc.
7322 Southwest Freeway, Suite 1816
Houston, TX 77074
USA
Produced in the United States of America
November 2014
All Rights Reserved
About Innovapptive
27

Innovative mobile apps – migrate MBO apps to SAP Mobile Platform 3.0

More Related Content

What's hot

Similar to Innovative mobile apps – migrate MBO apps to SAP Mobile Platform 3.0

More from Innovapptive Global Solutions Pvt Ltd.

Recently uploaded

Innovative mobile apps – migrate MBO apps to SAP Mobile Platform 3.0
