1. Design Patterns, Microservice
Architecture and Mulesoft
Prepared by: René Lucena
Date: 08/15/2016
Presented By:
Mountain State Software Solutions LLC

2. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
• What is a “Microservice”?
- New way to create corporate applications, where applications are
broken down into smaller, independent services, that are not dependent upon a
specific coding language.
In simple terms  just a small, strong, very reliable little piece of software.

3. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
• What is Microservice architecture/Microservice application
network?
-“A microservices architectural style leverages the ideology of developing a single
application as a suite of small, narrowly focused, independently deployable services. Those services
are encapsulated for specific business capabilities and are deployed independently using a fully
automated mechanism. Additionally, each microservice runs in its own process.”

4. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
• What is a Monolithic application?
-A single-tiered software application in which the user interface and data access
code are combined into a single program from a single platform. A monolithic
application is self-contained, and independent from other computing applications.
-In simple terms  one HUGE, hard to manage, uncontrollable thing.

5. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
• What happens to Monolithic applications?
-The large monolithic code base intimidates developers, especially ones who are
new to the team. The application can be difficult to understand and modify. As a
result, development typically slows down. Also, because there are not hard module
boundaries, modularity breaks down over time. Moreover, because it can be
difficult to understand how to correctly implement a change the quality of the code
declines over time. It’s a downwards spiral.
-In simple terms  a big mess.

6. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena

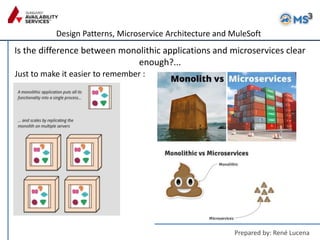

Is the difference between monolithic applications and microservices clear
enough?...
Just to make it easier to remember :

7. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
• What are we going to do about all this (for the time being)?
- Keep applications as lean as possible
- Application should be able to deploy independently
- Project teams need to easily discover services as potential reuse candidates. These
services should provide documentation, test consoles, etc so re-using is significantly easier
than building from scratch.
- Evaluate if business functions may need to become their own microservice. For example
sgas-batch-billing, think about separating complex business functions (like aria account
creation and update), customers, etc.
- CAREFULLY EVALUATE new business functionality that your jira tasks demands, also be
careful when coupling to an existing service. Discuss or consult a tech lead/architect to see
if new microservice needs to be created especially if you are not sure where your code is
supposed to go.

8. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena

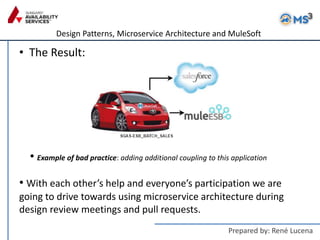

• The Result:
• With each other’s help and everyone’s participation we are
going to drive towards using microservice architecture during
design review meetings and pull requests.
• Example of bad practice: adding additional coupling to this application

9. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena

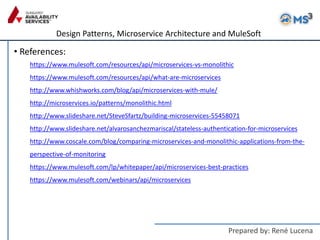

• References:
https://www.mulesoft.com/resources/api/microservices-vs-monolithic
https://www.mulesoft.com/resources/api/what-are-microservices
http://www.whishworks.com/blog/api/microservices-with-mule/
http://microservices.io/patterns/monolithic.html
http://www.slideshare.net/SteveSfartz/building-microservices-55458071
http://www.slideshare.net/alvarosanchezmariscal/stateless-authentication-for-microservices
http://www.coscale.com/blog/comparing-microservices-and-monolithic-applications-from-the-
perspective-of-monitoring
https://www.mulesoft.com/lp/whitepaper/api/microservices-best-practices
https://www.mulesoft.com/webinars/api/microservices

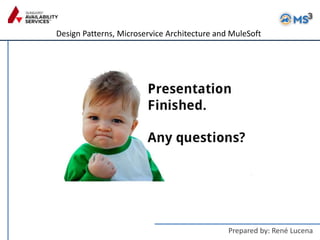

10. Design Patterns, Microservice Architecture and MuleSoft
Prepared by: René Lucena
