Micro app-framework

Micro-apps with Node.js,
browsers, phones
(Cordova) and electron"

About Michael Dawson
Loves the web and building software (with Node.js!)
Senior Software Developer @ IBM
IBM Runtime Technologies Node.js Technical Lead
Node.js collaborator and CTC member
Active in LTS, build, benchmarking , api
and post-mortem working groups
Contact me:
michael_dawson@ca.ibm.com
Twitter: @mhdawson1
https://www.linkedin.com/in/michael-dawson-6051282

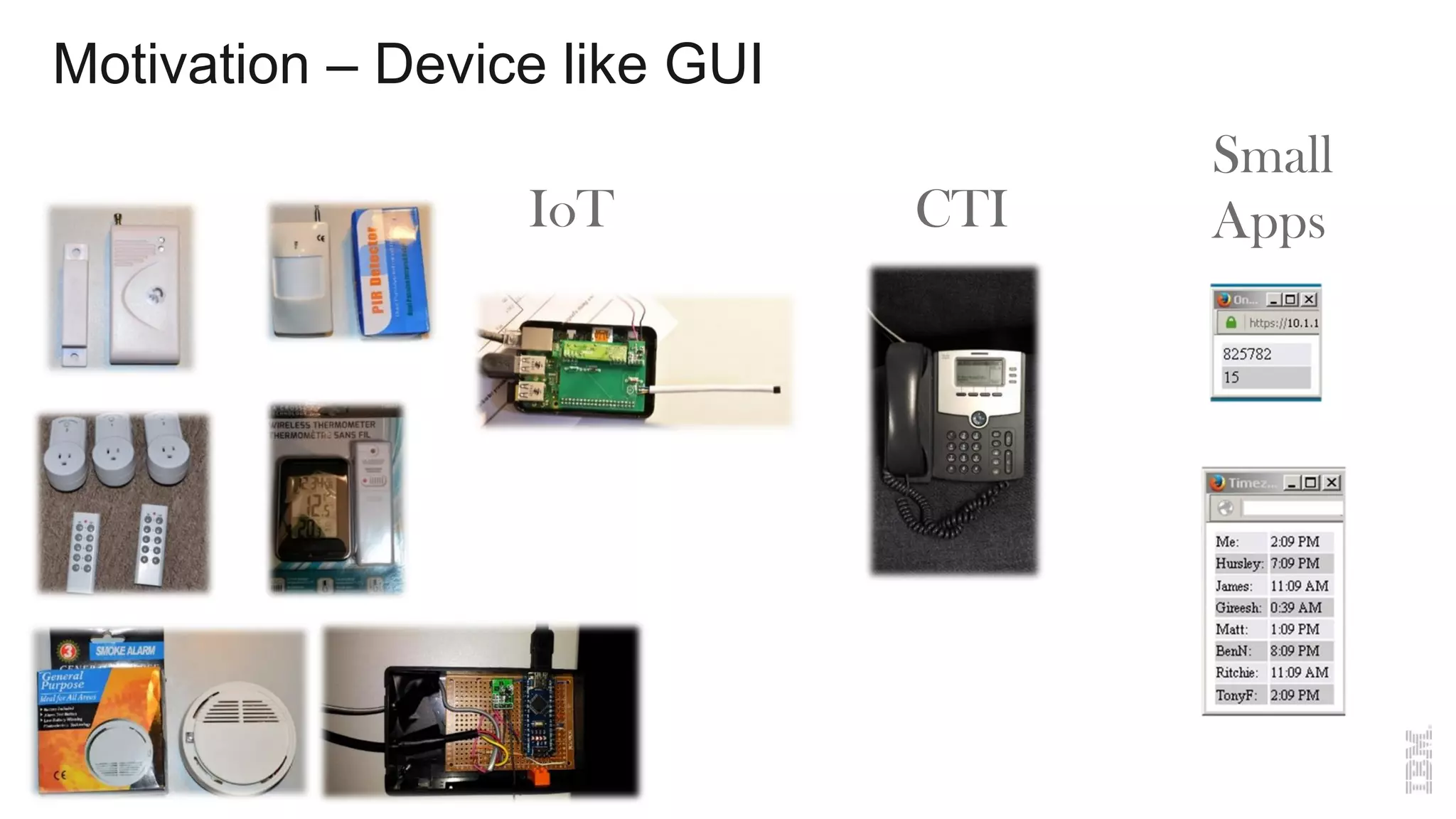

Motivation – Device like GUI
IoT CTI
Small
Apps

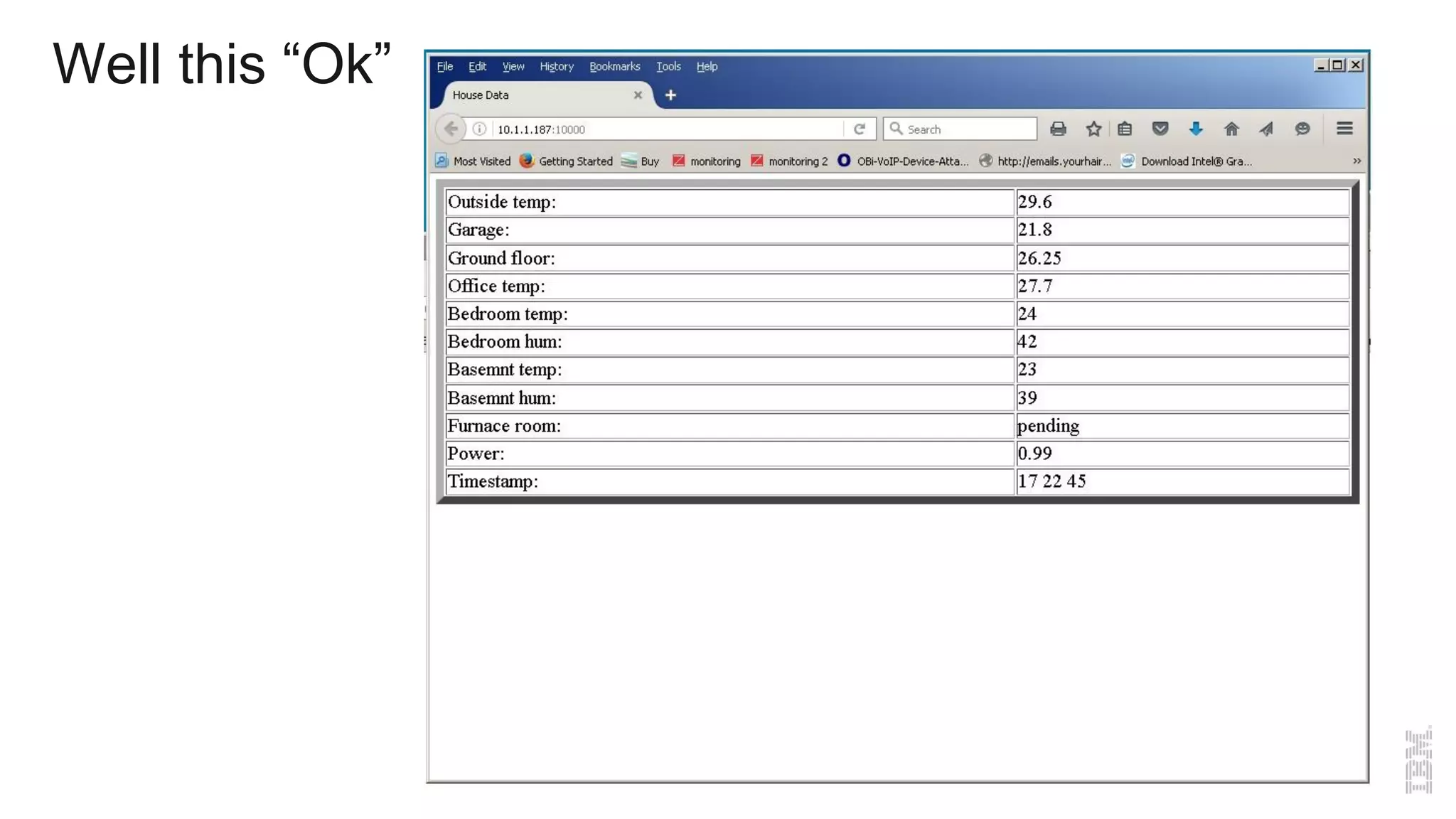

Solution - Node.js !
 Single page application(SPA)
 Server written in Node.js
 Presentation in Browser
 Remotely Accessible
 Deploy to Cloud

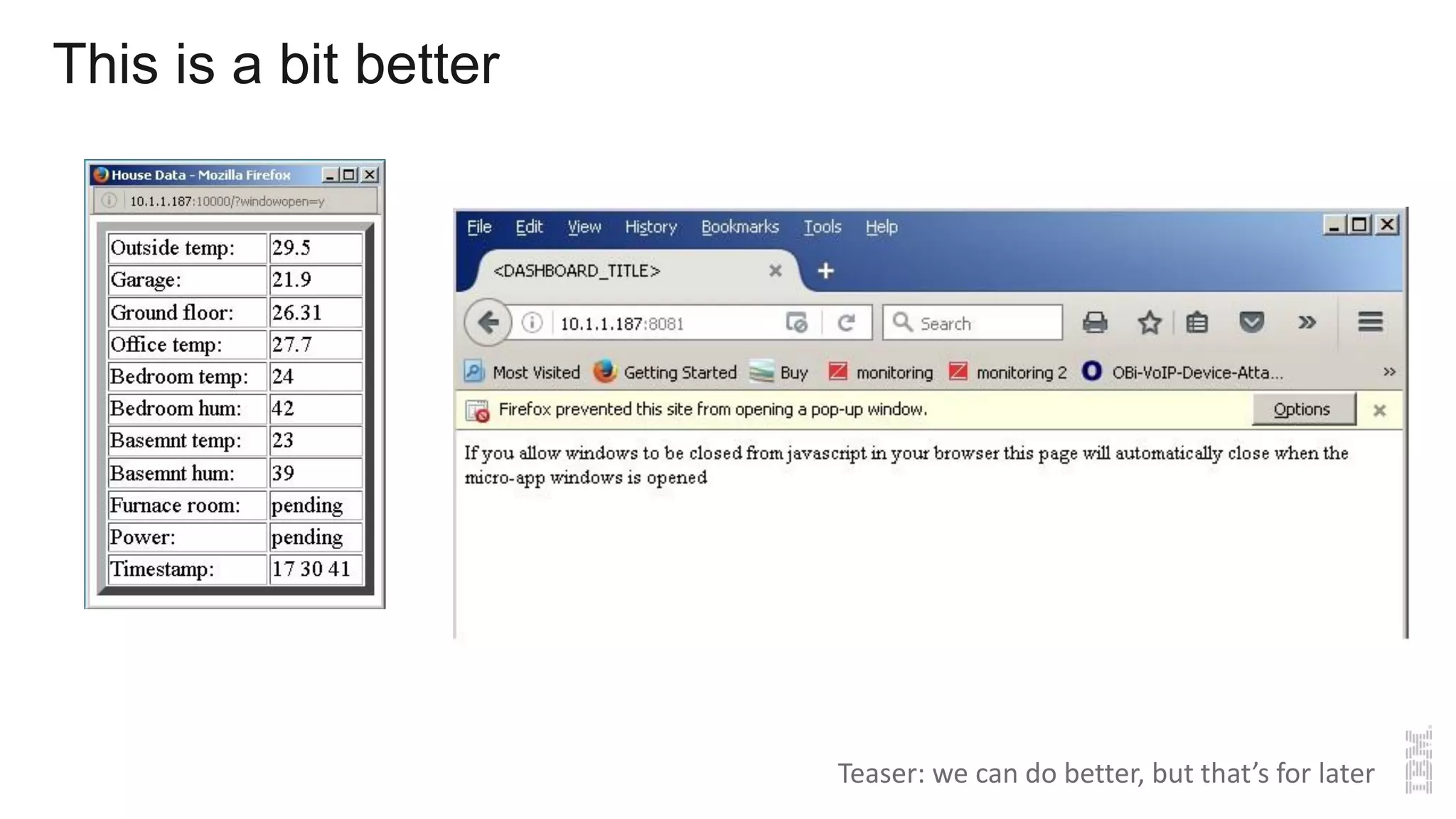

This is a bit better
Teaser: we can do better, but that’s for later

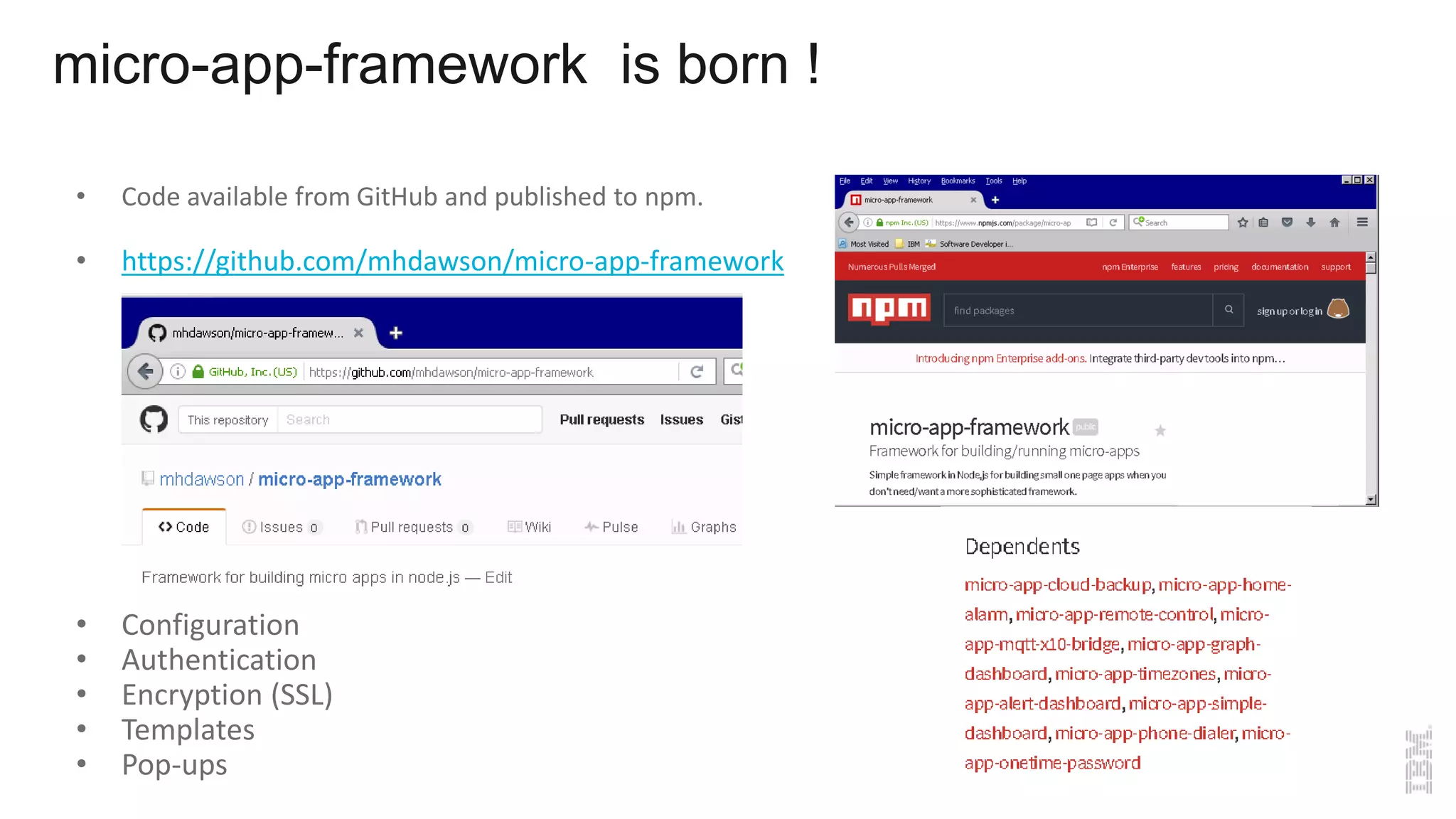

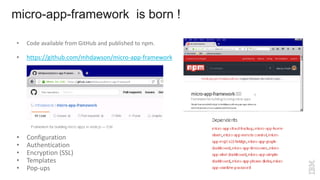

• Code available from GitHub and published to npm.
• https://github.com/mhdawson/micro-app-framework
• Configuration
• Authentication
• Encryption (SSL)
• Templates
• Pop-ups
micro-app-framework is born !

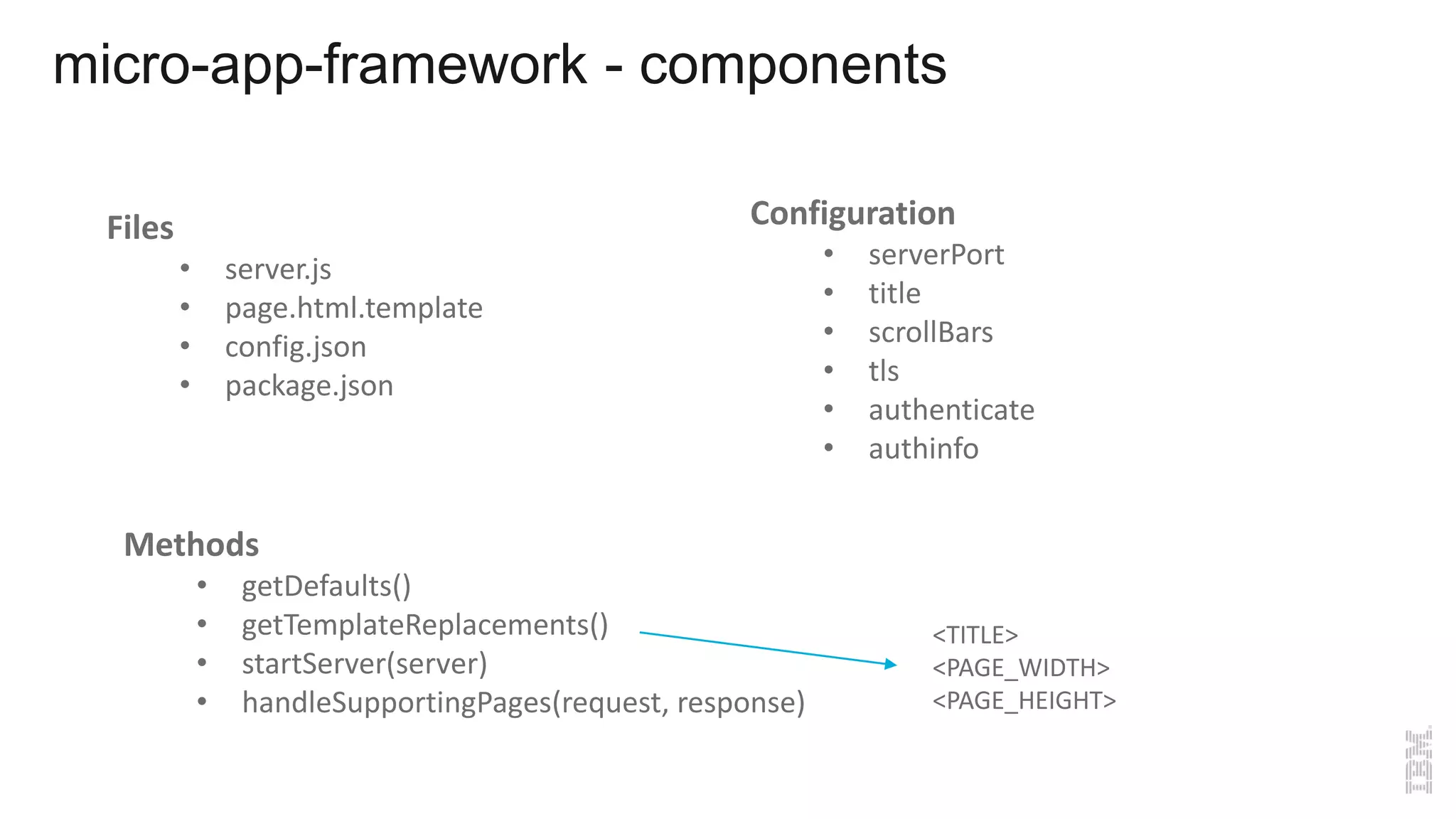

micro-app-framework - components
<TITLE>
<PAGE_WIDTH>
<PAGE_HEIGHT>
Configuration
• serverPort
• title
• scrollBars
• tls
• authenticate
• authinfo
Methods
• getDefaults()
• getTemplateReplacements()
• startServer(server)
• handleSupportingPages(request, response)
Files

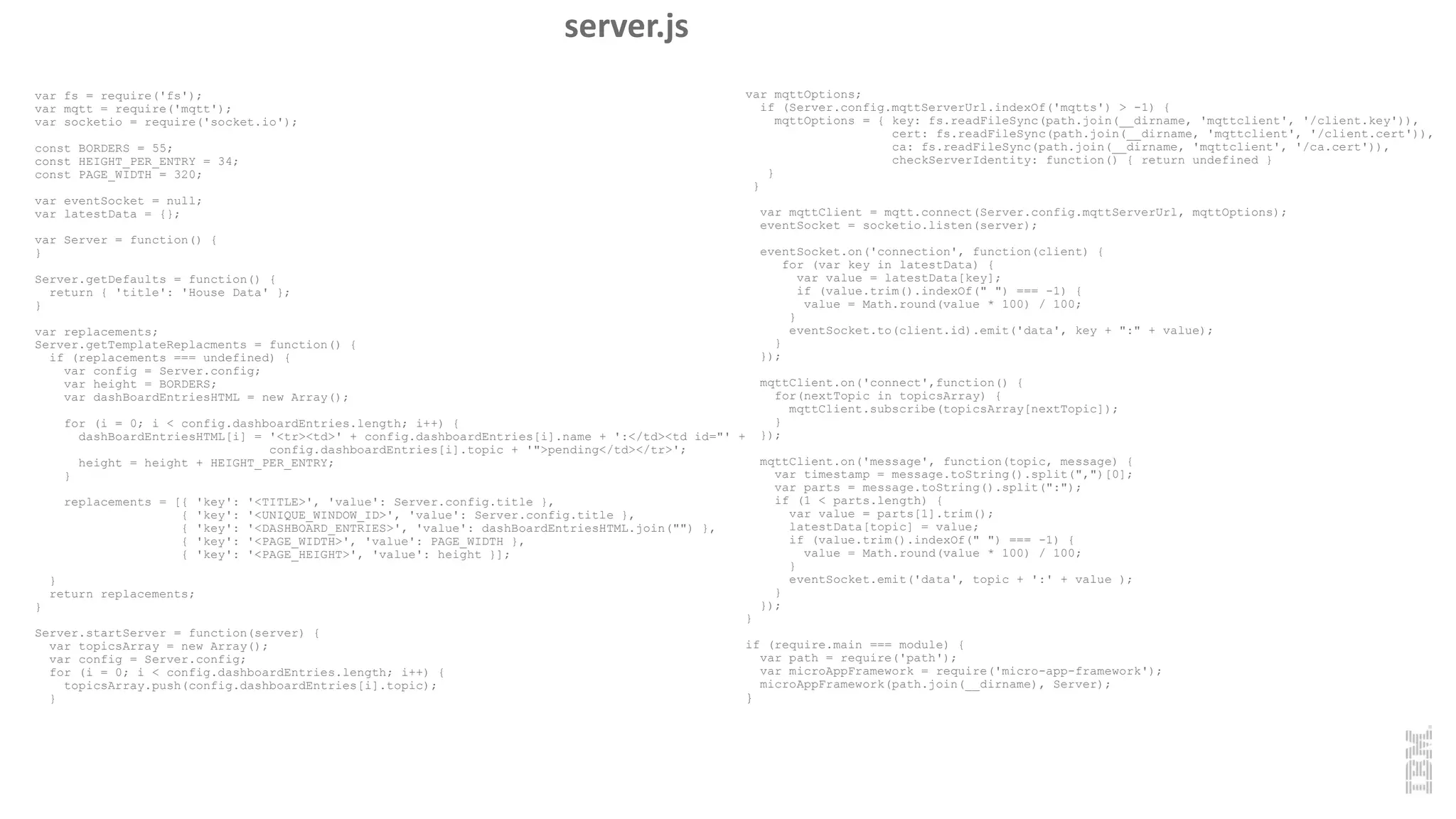

• server.js
• page.html.template
• config.json
• package.json

<html>
<head>
<script src="/socket.io/socket.io.js"></script>
<title><TITLE></title>
</head>
<body style="overflow-x:hidden;overflow-y:hidden;">
<script>
var socket = new io.connect('<URL_TYPE>://' +
window.location.host);
socket.on('data', function(data) {
var parts = data.split(":");
var topic = parts[0];
var value = parts[1];
var targetTD = document.getElementById(topic);
if (null != targetTD) {
targetTD.innerHTML=value;
}
})
</script>
<table BORDER="10" width="100%" style="font-size:25px">
<tbody>
<DASHBOARD_ENTRIES>
</tbody>
</table>
</body>
</html>
{

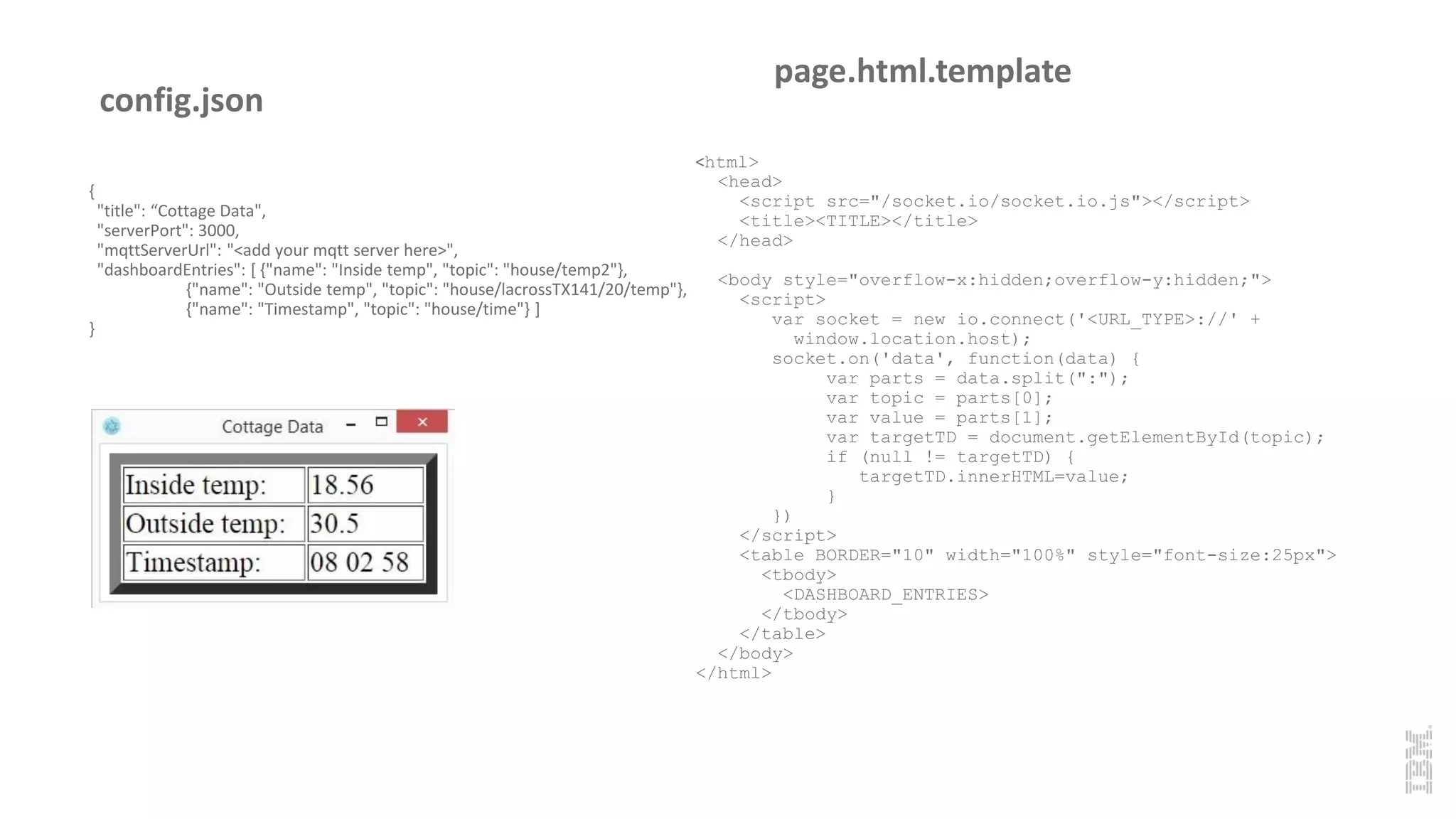

"title": “Cottage Data",
"serverPort": 3000,
"mqttServerUrl": "<add your mqtt server here>",
"dashboardEntries": [ {"name": "Inside temp", "topic": "house/temp2"},
{"name": "Outside temp", "topic": "house/lacrossTX141/20/temp"},
{"name": "Timestamp", "topic": "house/time"} ]
}
config.json
page.html.template

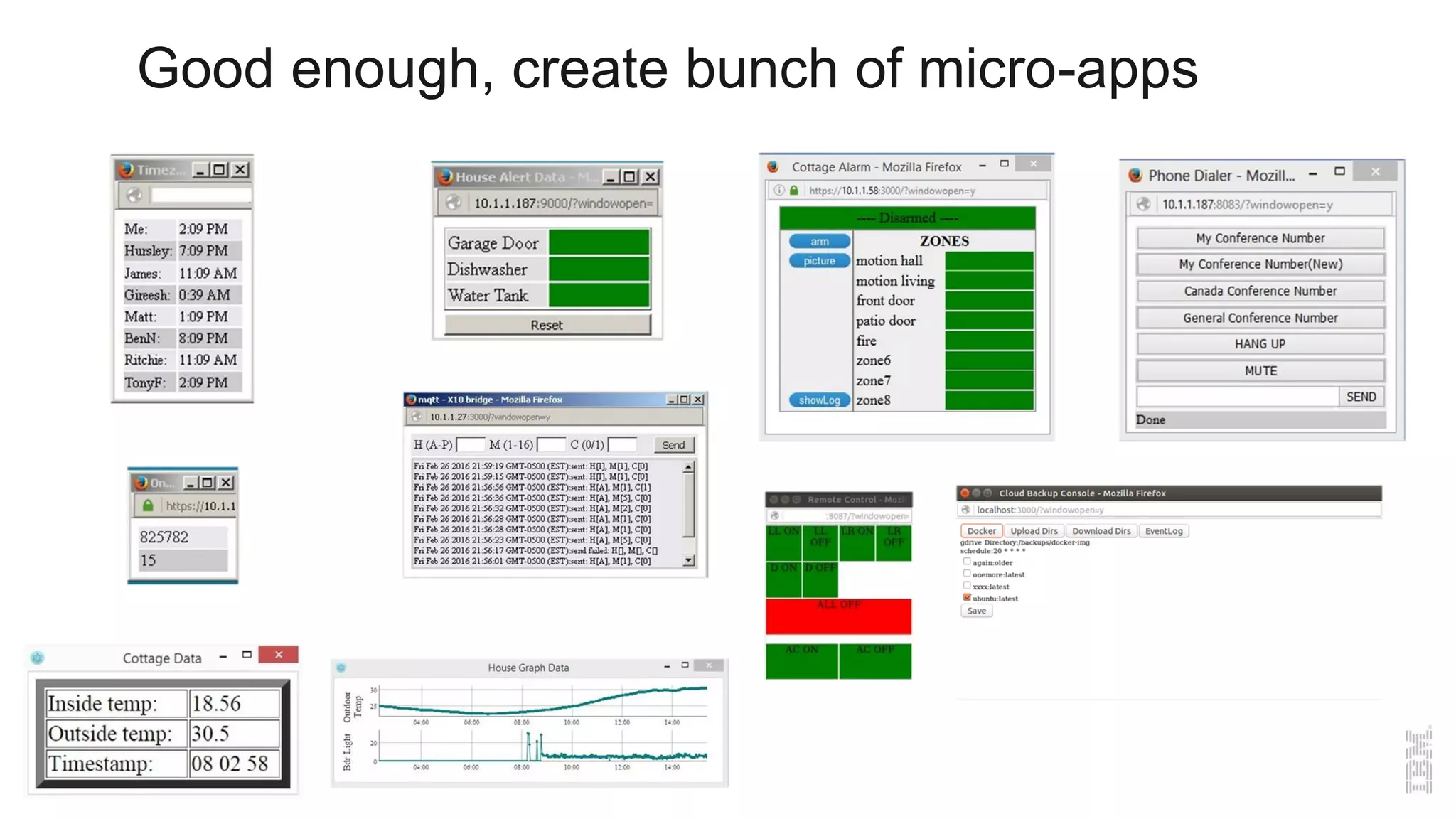

Good enough, create bunch of micro-apps

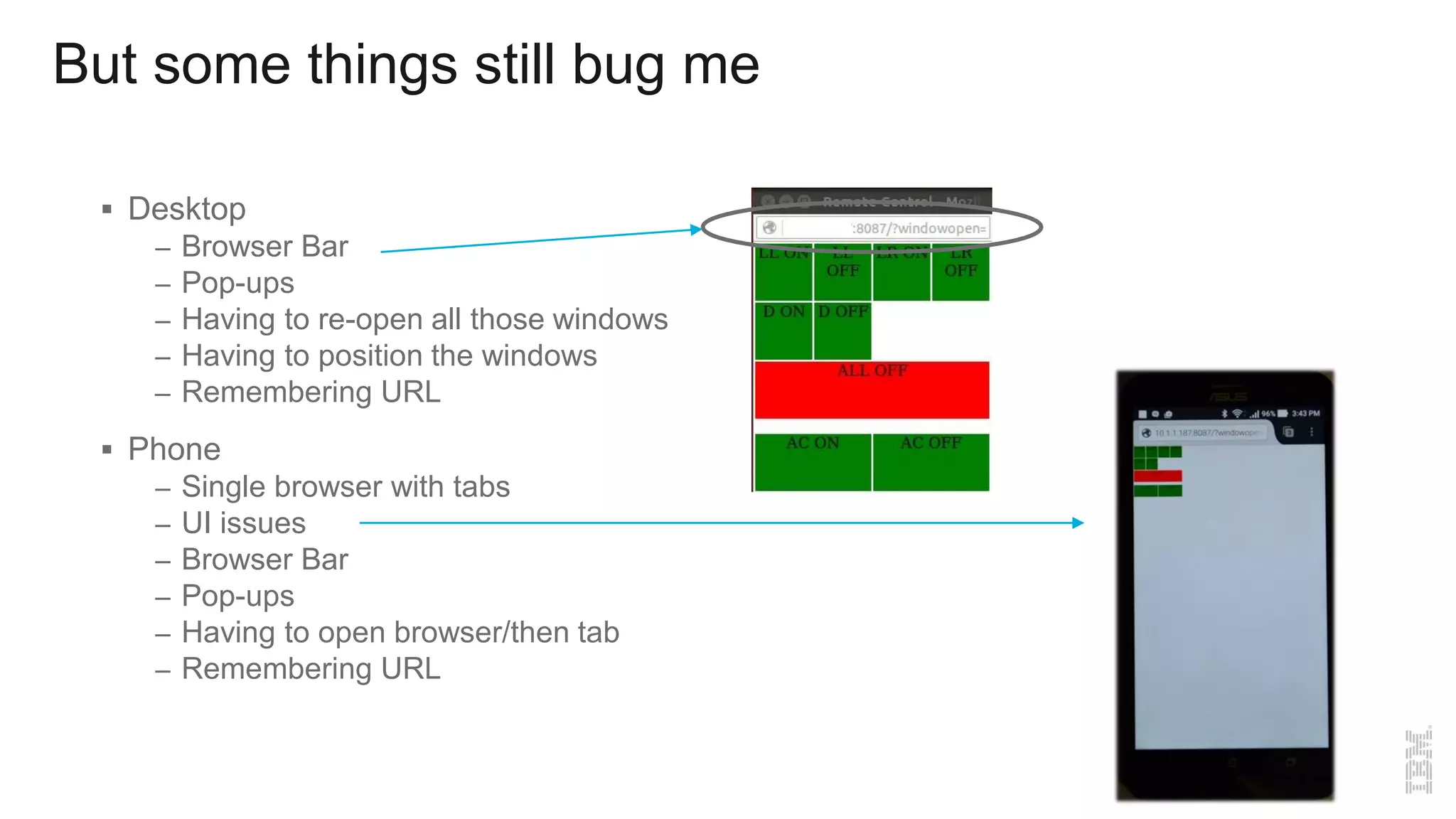

But some things still bug me
 Desktop
– Browser Bar
– Pop-ups
– Having to re-open all those windows
– Having to position the windows
– Remembering URL
 Phone
– Single browser with tabs
– UI issues
– Browser Bar
– Pop-ups
– Having to open browser/then tab
– Remembering URL

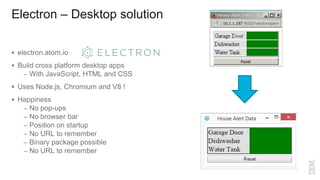

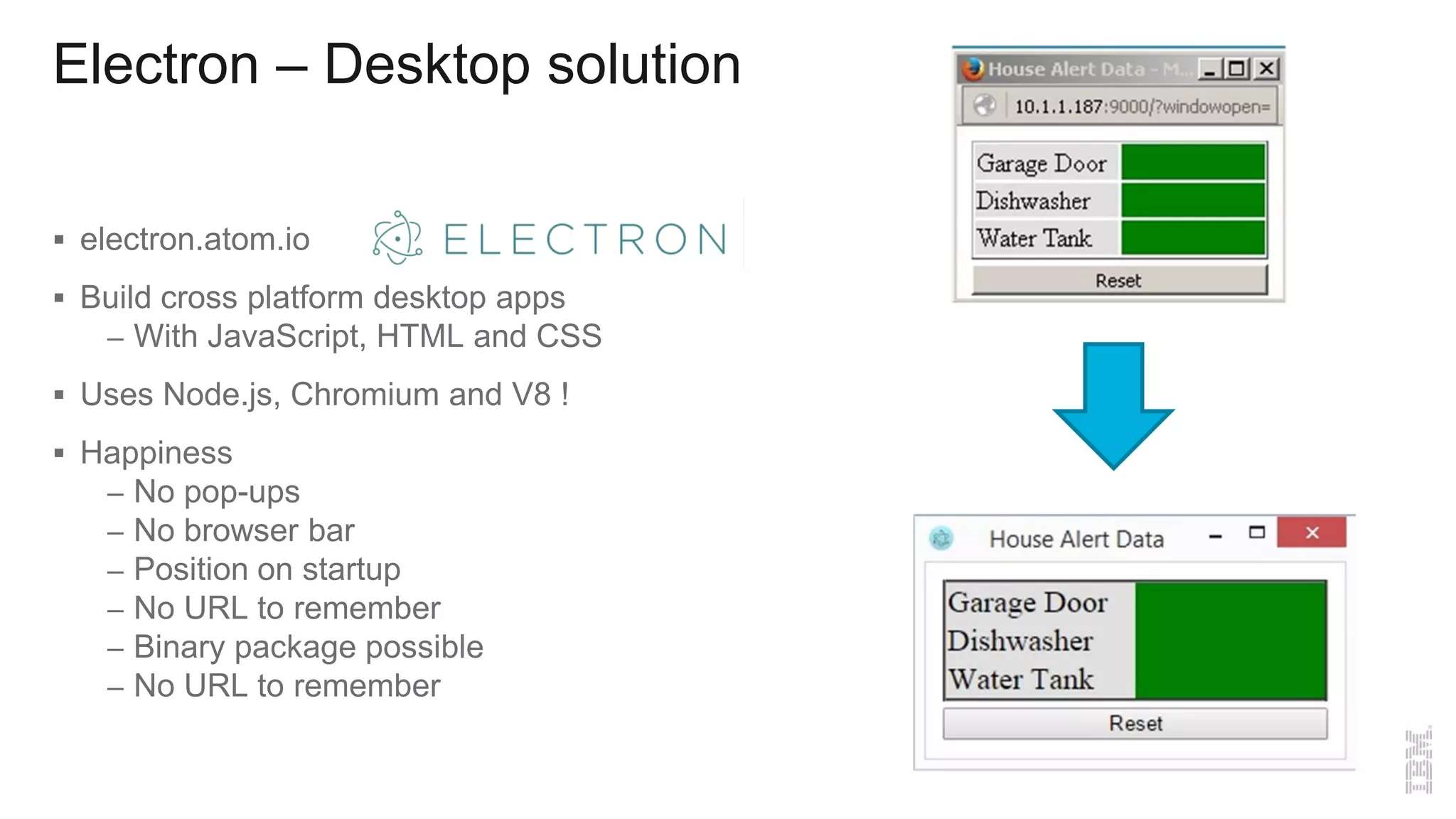

Electron – Desktop solution
 electron.atom.io
 Build cross platform desktop apps
– With JavaScript, HTML and CSS
 Uses Node.js, Chromium and V8 !
 Happiness
– No pop-ups
– No browser bar
– Position on startup
– No URL to remember
– Binary package possible

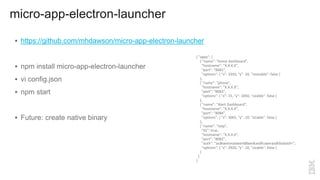

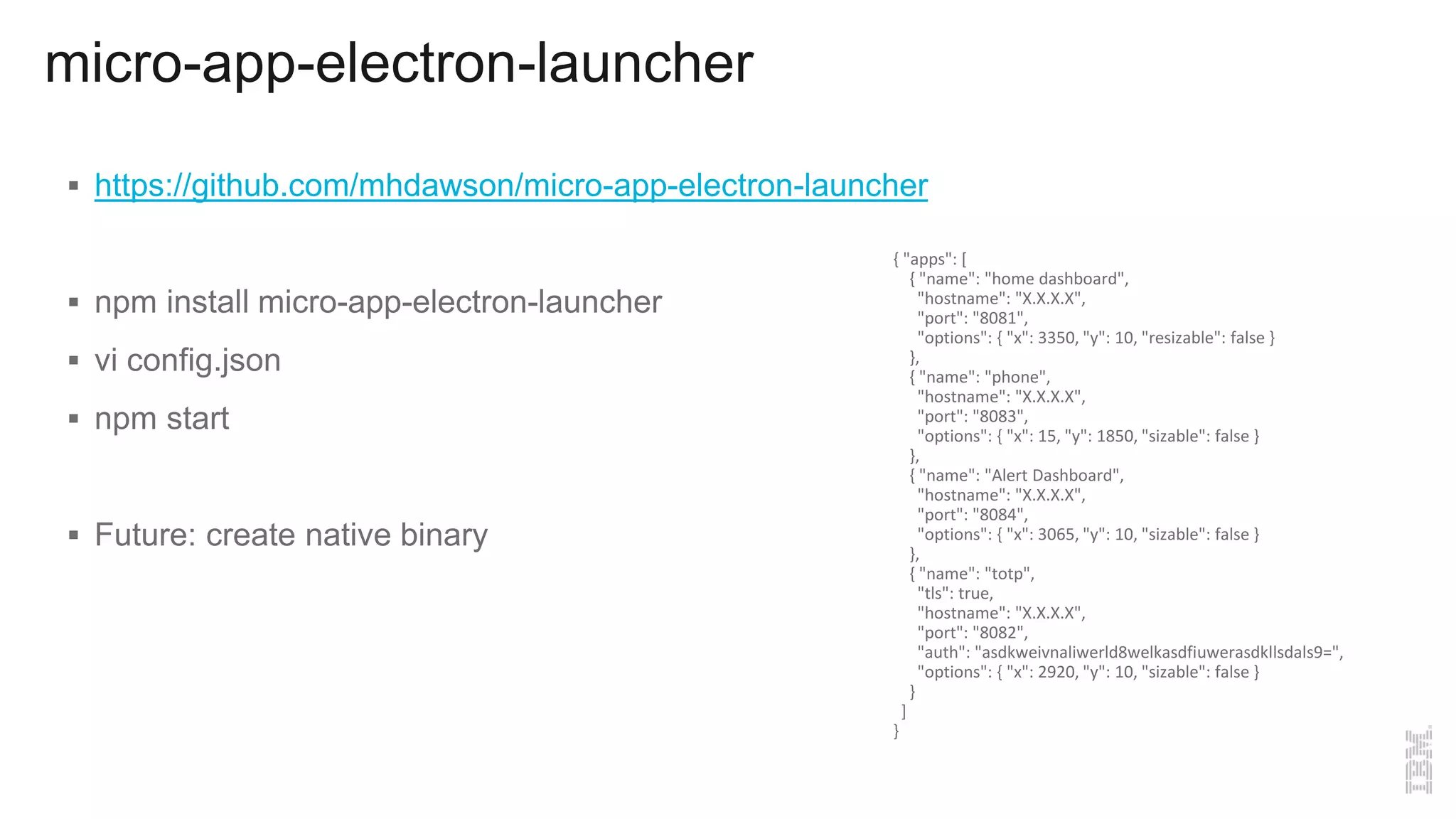

micro-app-electron-launcher
 https://github.com/mhdawson/micro-app-electron-launcher
 npm install micro-app-electron-launcher
 vi config.json
 npm start
 Future: create native binary
{ "apps": [
{ "name": "home dashboard",
"hostname": "X.X.X.X",
"port": "8081",
"options": { "x": 3350, "y": 10, "resizable": false }
},
{ "name": "phone",
"port": "8083",
"options": { "x": 15, "y": 1850, "sizable": false }
},
{ "name": "Alert Dashboard",
"port": "8084",
},
{ "name": "totp",
"tls": true,
"port": "8082",
"auth": "asdkweivnaliwerld8welkasdfiuwerasdkllsdals9=",
}
]
}

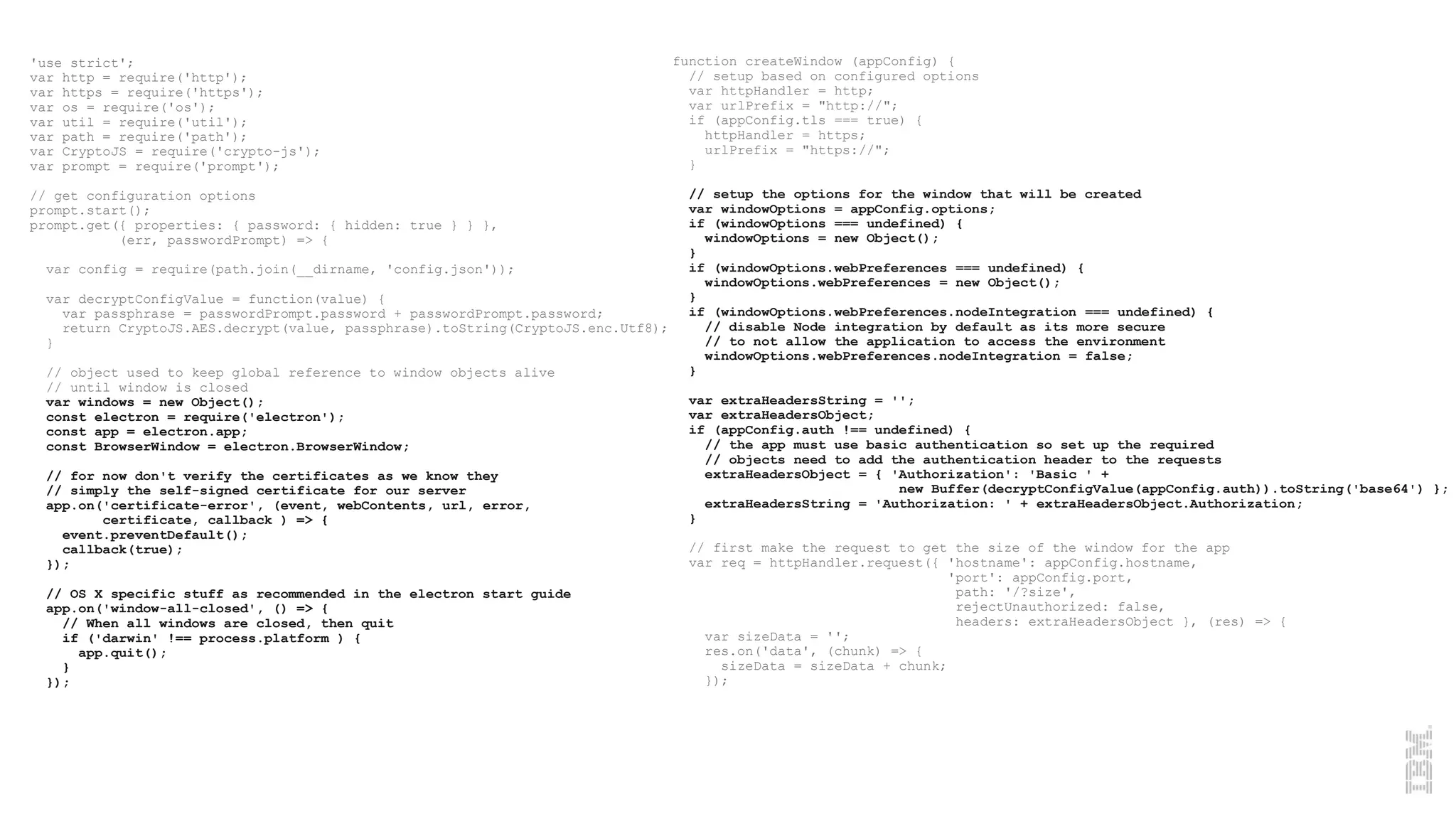

'use strict';
var http = require('http');
var https = require('https');
var os = require('os');
var util = require('util');
var path = require('path');
var CryptoJS = require('crypto-js');
var prompt = require('prompt');
// get configuration options
prompt.start();
prompt.get({ properties: { password: { hidden: true } } },
(err, passwordPrompt) => {
var config = require(path.join(__dirname, 'config.json'));
var decryptConfigValue = function(value) {
var passphrase = passwordPrompt.password + passwordPrompt.password;
return CryptoJS.AES.decrypt(value, passphrase).toString(CryptoJS.enc.Utf8);
}
// object used to keep global reference to window objects alive
// until window is closed
var windows = new Object();
const electron = require('electron');
const app = electron.app;
const BrowserWindow = electron.BrowserWindow;
// for now don't verify the certificates as we know they
// simply the self-signed certificate for our server
app.on('certificate-error', (event, webContents, url, error,
certificate, callback ) => {
event.preventDefault();
callback(true);
});
// OS X specific stuff as recommended in the electron start guide
app.on('window-all-closed', () => {
// When all windows are closed, then quit
if ('darwin' !== process.platform ) {
app.quit();
}
});
function createWindow (appConfig) {
// setup based on configured options
var httpHandler = http;
var urlPrefix = "http://";
if (appConfig.tls === true) {
httpHandler = https;
urlPrefix = "https://";
}
// setup the options for the window that will be created
var windowOptions = appConfig.options;
if (windowOptions === undefined) {
windowOptions = new Object();
}
if (windowOptions.webPreferences === undefined) {
windowOptions.webPreferences = new Object();
}
if (windowOptions.webPreferences.nodeIntegration === undefined) {
// disable Node integration by default as its more secure
// to not allow the application to access the environment
windowOptions.webPreferences.nodeIntegration = false;
}
var extraHeadersString = '';
var extraHeadersObject;
if (appConfig.auth !== undefined) {
// the app must use basic authentication so set up the required
// objects need to add the authentication header to the requests
extraHeadersObject = { 'Authorization': 'Basic ' +
new Buffer(decryptConfigValue(appConfig.auth)).toString('base64') };
extraHeadersString = 'Authorization: ' + extraHeadersObject.Authorization;
}
// first make the request to get the size of the window for the app
var req = httpHandler.request({ 'hostname': appConfig.hostname,
'port': appConfig.port,
path: '/?size',
rejectUnauthorized: false,
headers: extraHeadersObject }, (res) => {
var sizeData = '';
res.on('data', (chunk) => {
sizeData = sizeData + chunk;
});

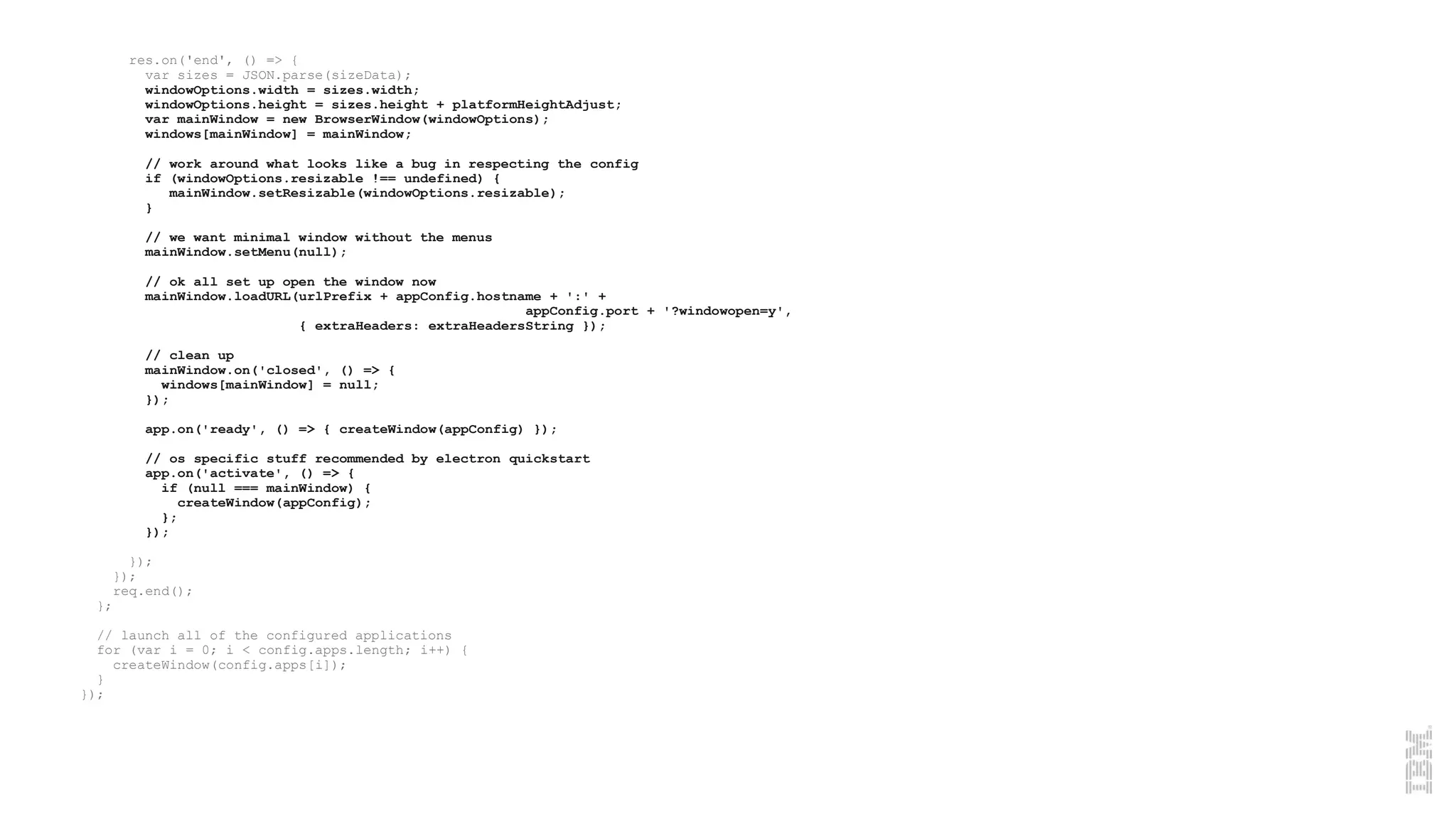

res.on('end', () => {
var sizes = JSON.parse(sizeData);
windowOptions.width = sizes.width;
windowOptions.height = sizes.height + platformHeightAdjust;
var mainWindow = new BrowserWindow(windowOptions);
windows[mainWindow] = mainWindow;
// work around what looks like a bug in respecting the config
if (windowOptions.resizable !== undefined) {
mainWindow.setResizable(windowOptions.resizable);
}
// we want minimal window without the menus
mainWindow.setMenu(null);
// ok all set up open the window now
mainWindow.loadURL(urlPrefix + appConfig.hostname + ':' +
appConfig.port + '?windowopen=y',
{ extraHeaders: extraHeadersString });
// clean up
mainWindow.on('closed', () => {
windows[mainWindow] = null;
});
app.on('ready', () => { createWindow(appConfig) });
// os specific stuff recommended by electron quickstart
app.on('activate', () => {
if (null === mainWindow) {
createWindow(appConfig);
};
});
});
});
req.end();
};
// launch all of the configured applications
for (var i = 0; i < config.apps.length; i++) {
createWindow(config.apps[i]);
}
});

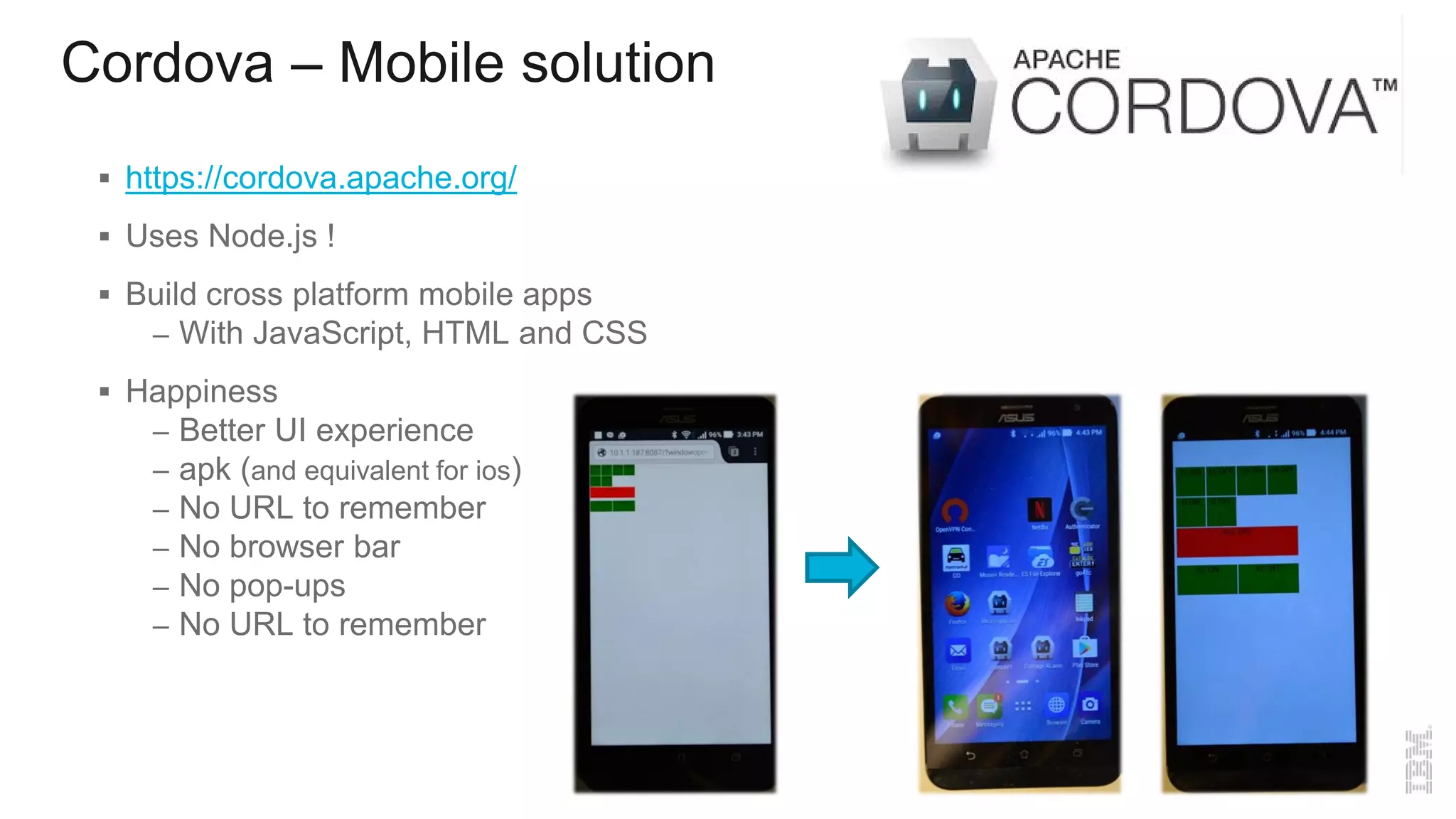

Cordova – Mobile solution
 https://cordova.apache.org/
 Uses Node.js !
 Build cross platform mobile apps
– With JavaScript, HTML and CSS
 Happiness
– Better UI experience
– apk (and equivalent for ios)
– No browser bar
– No pop-ups

micro-app-cordova-launcher
 https://github.com/mhdawson/micro-app-cordova-launcher/
 Install android SDK
 npm install -g cordova
 cordova create launcher myorg "Micro App Launcher"
 cordova platform add android
 patch for untrusted domains
 update www directory which project contents
 update domain limitations
 cordova build --release android -> apk
 Sign the application -> signed apk
 Install on phone
{ "apps": [
{ "name": "home",
"port": "8081"
},
{ "name": "cottage",
"port": "8081"
},
{ "name": "phone",
"port": "8083"
},
{ "name": "totp",
"tls": true,
"port": "8082",
"auth": "XXXXXXXXXXXXXX",
}
]
}

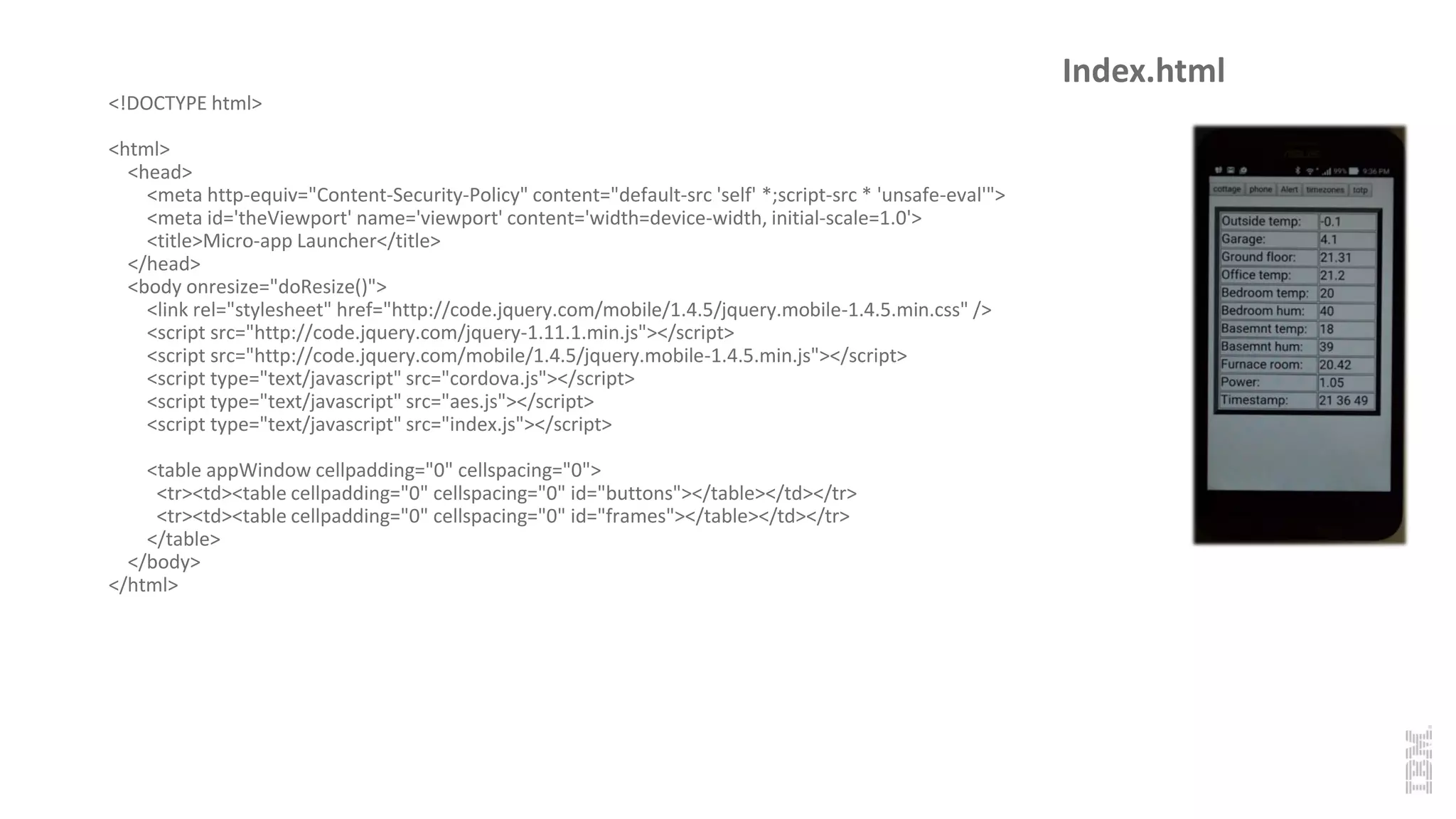

<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Security-Policy" content="default-src 'self' *;script-src * 'unsafe-eval'">
<meta id='theViewport' name='viewport' content='width=device-width, initial-scale=1.0'>
<title>Micro-app Launcher</title>
</head>
<body onresize="doResize()">
<link rel="stylesheet" href="http://code.jquery.com/mobile/1.4.5/jquery.mobile-1.4.5.min.css" />
<script src="http://code.jquery.com/jquery-1.11.1.min.js"></script>
<script src="http://code.jquery.com/mobile/1.4.5/jquery.mobile-1.4.5.min.js"></script>
<script type="text/javascript" src="cordova.js"></script>
<script type="text/javascript" src="aes.js"></script>
<script type="text/javascript" src="index.js"></script>
<table appWindow cellpadding="0" cellspacing="0">
<tr><td><table cellpadding="0" cellspacing="0" id="buttons"></table></td></tr>
<tr><td><table cellpadding="0" cellspacing="0" id="frames"></table></td></tr>
</table>
</body>
</html>
Index.html

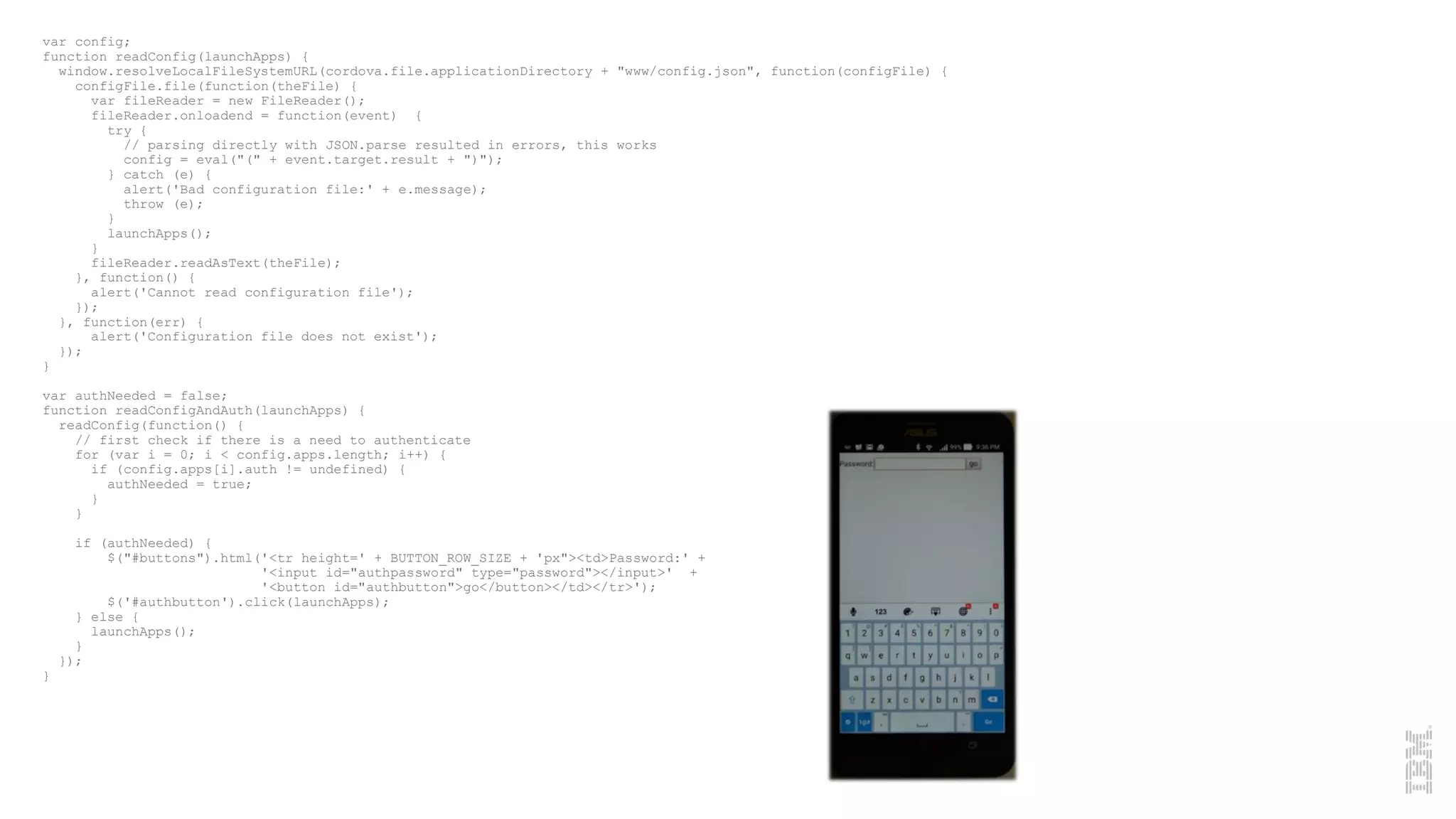

var config;
function readConfig(launchApps) {
window.resolveLocalFileSystemURL(cordova.file.applicationDirectory + "www/config.json", function(configFile) {
configFile.file(function(theFile) {
var fileReader = new FileReader();
fileReader.onloadend = function(event) {
try {
// parsing directly with JSON.parse resulted in errors, this works
config = eval("(" + event.target.result + ")");
} catch (e) {
alert('Bad configuration file:' + e.message);
throw (e);
}
launchApps();
}
fileReader.readAsText(theFile);
}, function() {
alert('Cannot read configuration file');
});
}, function(err) {
alert('Configuration file does not exist');
});
}
var authNeeded = false;
function readConfigAndAuth(launchApps) {
readConfig(function() {
// first check if there is a need to authenticate
if (config.apps[i].auth != undefined) {
authNeeded = true;
}
}
if (authNeeded) {
$("#buttons").html('<tr height=' + BUTTON_ROW_SIZE + 'px"><td>Password:' +
'<input id="authpassword" type="password"></input>' +
'<button id="authbutton">go</button></td></tr>');
$('#authbutton').click(launchApps);
} else {
launchApps();
}
});
}

var startHeight;
var startWidth;
var app = {
// constructor
initialize: function() {
this.bindEvents();
},
bindEvents: function() {
document.addEventListener('deviceready', this.start, false);
},
// load and run the micro-apps
start: function() {
startHeight = window.innerHeight;
startWidth = window.innerWidth;
readConfigAndAuth(function() {
try {
var pass;
if (authNeeded) {
pass = $('#authpassword').val();
}
var viewport= document.querySelector('meta[name="viewport"]');
window.resizeTo(startWidth, startHeight);
viewport.content = 'width=device-width minimum-scale=1.0, maximum-scale=1.0, initial-scale=1.0'
// create the frames for the applications
var frames = new Array();
frames[i] = '<table id="frame' + i + '"></table>';
}
$("#frames").hide();
$("#frames").html('<tr><td>' + frames.join('n') + '</td></tr>');
$("#frames").height(startHeight - BUTTON_ROW_SIZE - FRAME_ADJUST*2);
$("#frames").width(startWidth - FRAME_ADJUST);
$("#frames").show();
// basic setup of the frames
var frameId = '#frame' + i;
$(frameId).hide();
$(frameId).height(startHeight - BUTTON_ROW_SIZE - FRAME_ADJUST*2);
$(frameId).width(startWidth - FRAME_ADJUST);
// enable swipe to move through the configured apps
$(frameId).bind('swipeleft', showNext);
$(frameId).bind('swiperight', showPrevious);
}

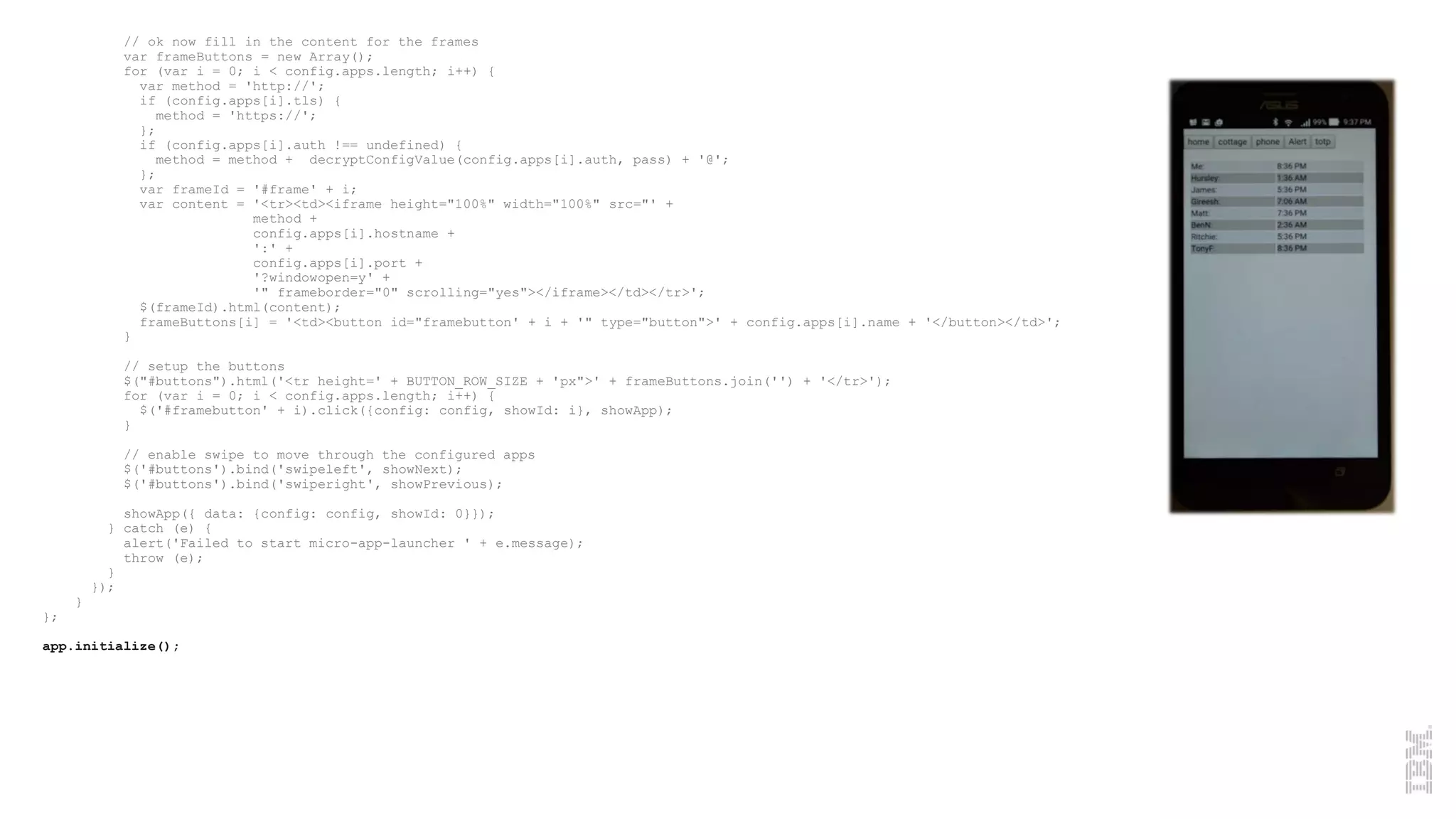

// ok now fill in the content for the frames
var frameButtons = new Array();
var method = 'http://';
if (config.apps[i].tls) {
method = 'https://';
};
if (config.apps[i].auth !== undefined) {
method = method + decryptConfigValue(config.apps[i].auth, pass) + '@';
};
var frameId = '#frame' + i;
var content = '<tr><td><iframe height="100%" width="100%" src="' +
method +
config.apps[i].hostname +
':' +
config.apps[i].port +
'?windowopen=y' +
'" frameborder="0" scrolling="yes"></iframe></td></tr>';
$(frameId).html(content);
frameButtons[i] = '<td><button id="framebutton' + i + '" type="button">' + config.apps[i].name + '</button></td>';
}
// setup the buttons
$("#buttons").html('<tr height=' + BUTTON_ROW_SIZE + 'px">' + frameButtons.join('') + '</tr>');
$('#framebutton' + i).click({config: config, showId: i}, showApp);
}
// enable swipe to move through the configured apps
$('#buttons').bind('swipeleft', showNext);
$('#buttons').bind('swiperight', showPrevious);
showApp({ data: {config: config, showId: 0}});
} catch (e) {
alert('Failed to start micro-app-launcher ' + e.message);
throw (e);
}
});
}
};
app.initialize();

Where to deploy micro-app server ?
 To the Cloud of course
 http://www.ibm.com/cloud-computing/bluemix/
 Lots of add on services to
– Watson
– Twillio (sms)
– Database
– Any many many more….

Copyrights and Trademarks
© IBM Corporation 2016. All Rights Reserved
IBM, the IBM logo, ibm.com are trademarks or registered
trademarks of International Business Machines Corp.,
registered in many jurisdictions worldwide. Other product and
service names might be trademarks of IBM or other companies.
A current list of IBM trademarks is available on the Web at
“Copyright and trademark information” at
www.ibm.com/legal/copytrade.shtml
Node.js is an official trademark of Joyent. IBM SDK for Node.js is not formally
related to or endorsed by the official Joyent Node.js open source or
commercial project.
Java, JavaScript and all Java-based trademarks and logos are trademarks or
registered trademarks of Oracle and/or its affiliates.
Apache Cordova is an official trademark of the Apache Software Foundation
npm is a trademark of npm, Inc.

Micro app-framework

Recommended

Recommended

More Related Content

What's hot

What's hot (19)

Viewers also liked

Viewers also liked (6)

Similar to Micro app-framework

Similar to Micro app-framework (20)

More from Michael Dawson

More from Michael Dawson (18)

Recently uploaded

Recently uploaded (20)

Micro app-framework
