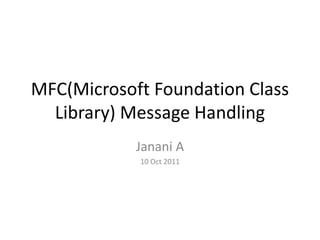

1. MFC(Microsoft Foundation Class
Library) Message Handling
Janani A
10 Oct 2011

2. Agenda
• Win32 application
• MFC
• Macros
• Message mapping

3. A Windows program
InitApplication()

4. Windows Program (contd…)
InitInstance()
Run()
Message Handler

5. MFC - Overview
• An "application framework" for programming in Microsoft
Windows.
• It's easy to extend or override the basic functionality that MFC
provides.
• Object Linking and Embedding (OLE), Data Access Objects
(DAO) and Open Database Connectivity (ODBC) etc

6. Execution begins here…
int AFXAPI AfxWinMain(HINSTANCE hInstance, HINSTANCE hPrevInstance, LPTSTR lpCmdLine, int nCmdShow)
{
ASSERT(hPrevInstance == NULL);
int nReturnCode = -1;
CWinApp* pApp = AfxGetApp();
// AFX internal initialization
if (!AfxWinInit(hInstance, hPrevInstance, lpCmdLine, nCmdShow))
goto InitFailure;
// App global initializations (rare)
ASSERT_VALID(pApp);
if (pApp != NULL && !pApp->InitApplication())
goto InitFailure;
ASSERT_VALID(pApp);
// Perform specific initializations
if (!pApp->InitInstance())
{
if (pApp->m_pMainWnd != NULL)
{
TRACE(traceAppMsg, 0, "Warning: Destroying non-NULL m_pMainWndn");
pApp->m_pMainWnd->DestroyWindow();
}
nReturnCode = pApp->ExitInstance();
goto InitFailure;
}
ASSERT_VALID(pApp);
nReturnCode = pApp->Run();
ASSERT_VALID(pApp);
InitFailure:
AfxWinTerm();
return nReturnCode;
}

7. The Windows program using MFC
class MyApp : public CWinApp
{
public:
virtual BOOL InitInstance();
};
class MyWnd : public CFrameWnd
{
public:
MyWnd()
{
Create (NULL, "My Application");
}
afx_msg void OnLButtonDown(UINT nFlags, CPoint point);
DECLARE_MESSAGE_MAP()
};
BEGIN_MESSAGE_MAP(MyWnd, CFrameWnd)
ON_WM_LBUTTONDOWN()
END_MESSAGE_MAP()
void MyWnd:: OnLButtonDown(UINT nFlags, CPoint point)
{
MessageBox(TEXT("Left mouse button pressed..."),NULL,MB_OK);
}
BOOL MyApp:: InitInstance()
{
m_pMainWnd = new MyWnd();
m_pMainWnd -> ShowWindow(m_nCmdShow);
m_pMainWnd -> UpdateWindow();
return TRUE;
}
MyApp intApp;

8. Macros
//DECLARE_MESSAGE_MAP()
#define DECLARE_MESSAGE_MAP()
private :
static const AFX_MSGMAP_ENTRY _messageEntries[];
protected:
static const AFX_MSGMAP messageMap;
virtual const AFX_MSGMAP* GetMessageMap() const;
//BEGIN_MESSAGE_MAP()
#define BEGIN_MESSAGE_MAP(theClass, baseClass)
const AFX_MSGMAP* theClass::GetMessageMap() const
{ return &theClass::messageMap; }
AFX_DATADEF const AFX_MSGMAP theClass::messageMap =
{ &baseClass::messageMap, &theClass::_messageEntries[0] };
const AFX_MSGMAP_ENTRY theClass::_messageEntries[] =
{
#define END_MESSAGE_MAP()
{0, 0, 0, 0, AfxSig_end, (AFX_PMSG)0 }
};
#define ON_WM_LBUTTONDOWN()
{ WM_LBUTTONDOWN, 0, 0, 0, AfxSig_vwp,
(AFX_PMSG)(AFX_PMSGW)(void (AFX_MSG_CALL CWnd::*)(UINT, CPoint))&OnLButtonDown },

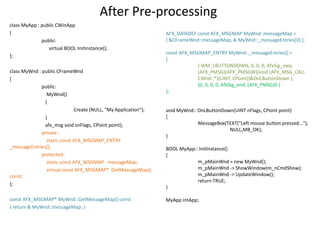

9. After Pre-processing
class MyApp : public CWinApp
{
public:
virtual BOOL InitInstance();
};
class MyWnd : public CFrameWnd
{
public:
MyWnd()
{
Create (NULL, "My Application");
}
afx_msg void snFlags, CPoint point);
private :
static const AFX_MSGMAP_ENTRY
_messageEntries[];
protected:
static const AFX_MSGMAP messageMap;
virtual const AFX_MSGMAP* GetMessageMap()
const;
};
const AFX_MSGMAP* MyWnd::GetMessageMap() const
{ return & MyWnd::messageMap; }
AFX_DATADEF const AFX_MSGMAP MyWnd::messageMap =
{ &CFrameWnd::messageMap, & MyWnd::_messageEntries[0] };
const AFX_MSGMAP_ENTRY MyWnd::_messageEntries[] =
{
{ WM_LBUTTONDOWN, 0, 0, 0, AfxSig_vwp,
(AFX_PMSG)(AFX_PMSGW)(void (AFX_MSG_CALL
CWnd::*)(UINT, CPoint))&OnLButtonDown },
{0, 0, 0, 0, AfxSig_end, (AFX_PMSG)0 }
};
void MyWnd:: OnLButtonDown(UINT nFlags, CPoint point)
{
MessageBox(TEXT("Left mouse button pressed..."),
NULL,MB_OK);
}
BOOL MyApp:: InitInstance()
{
m_pMainWnd = new MyWnd();
m_pMainWnd -> ShowWindow(m_nCmdShow);
m_pMainWnd -> UpdateWindow();
return TRUE;
}
MyApp intApp;

10. Message map structures

11. Message Handling
• The CCmdTarget class: Base class for CFrameWnd,
CView, CWinApp, CDocument, CWnd with functions/
handlers for polymorphism. Override base functions
for custom behavior.
• Message Maps: Map the message codes to handlers
(CCmdTarget). Declare with
DECLARE_MESSAGE_MAP

12. References
• http://msdn.microsoft.com/en-us/library/d06h2x6e(v=vs.80).aspx
• http://www.functionx.com/visualc/
• MFC Internals- Inside The Microsoft Foundation Class, George Shepherd
and Scot Wingo
• http://home.arcor.de/it-
solution/cpp/books/Professional%20MFC/CH03_7.HTM
• afxmsg_.h
