This document provides specifications and information for Top Coat, a two-part epoxy coating that can be applied to commercial freezers, shipping floors, ramps, loading docks, decks, parking garages, chemical tank pads, foundations, and steps. It is available in various colors in 4-gallon kits for glossy or non-slip finishes. The coating has a Shore D hardness of 68, tensile strength of 2705 psi, 11% tensile elongation, and bonds well to concrete. It is self-leveling with low odor and is chemical resistant and flexible. Curing times vary depending on temperature.
Both 2016 shanghai development of innovative ultra high temperature coatings ...

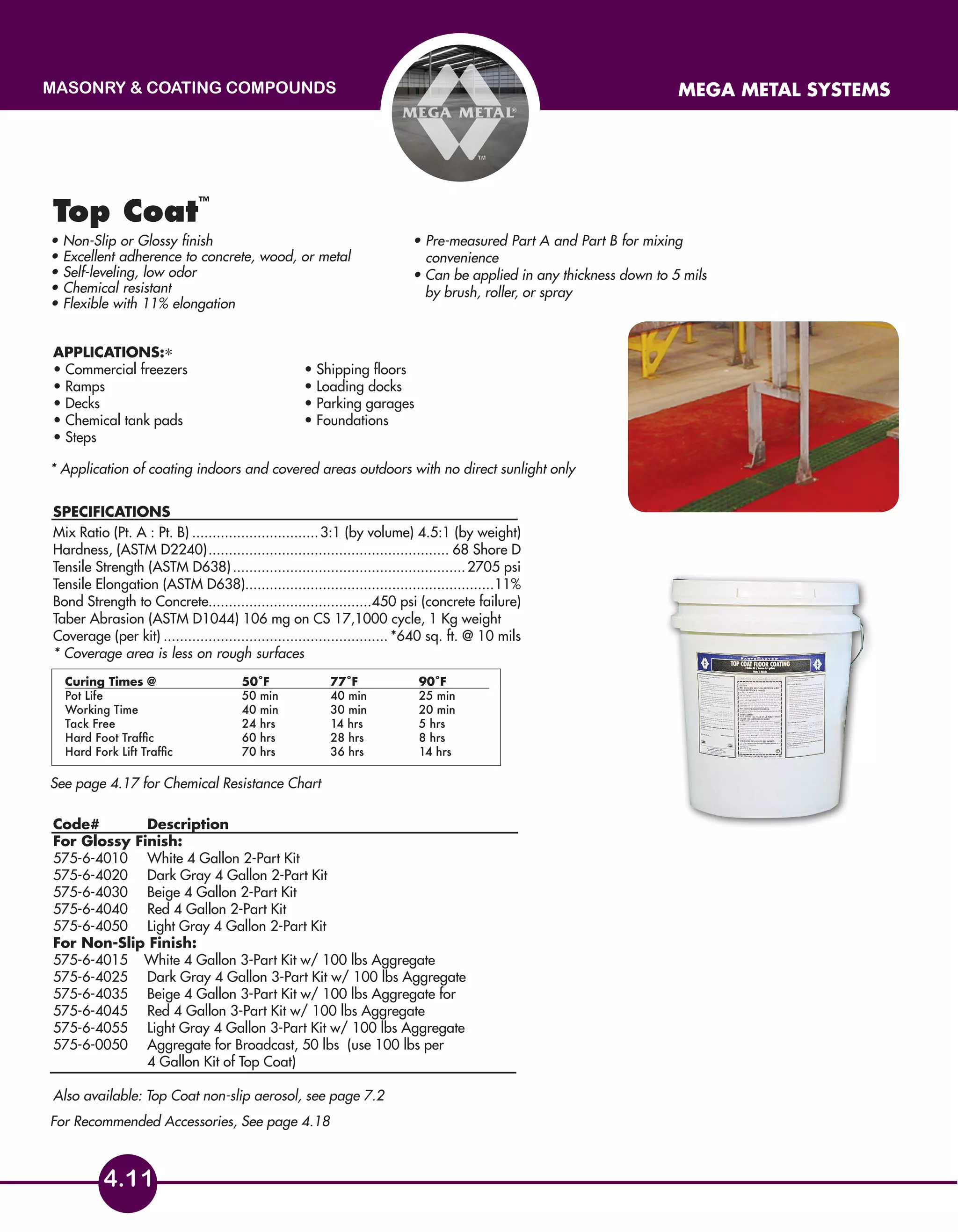

MEGA TOP COAT PDF
1. masonry & coating compounds mega metal systems
4.11
For Recommended Accessories, See page 4.18
Top Coat
™
Applications:
• Commercial freezers • Shipping floors
• Ramps • Loading docks
• Decks • Parking garages
• Chemical tank pads • Foundations
• Steps
SPECIFICATIONS
Mix Ratio (Pt. A : Pt. B)................................3:1 (by volume) 4.5:1 (by weight)
Hardness, (ASTM D2240)............................................................ 68 Shore D
Tensile Strength (ASTM D638)..........................................................2705 psi
Tensile Elongation (ASTM D638).............................................................11%
Bond Strength to Concrete........................................450 psi (concrete failure)
Taber Abrasion (ASTM D1044) 106 mg on CS 17,1000 cycle, 1 Kg weight
Coverage (per kit)........................................................ *640 sq. ft. @ 10 mils
* Coverage area is less on rough surfaces
Code# Description
For Glossy Finish:
575-6-4010 White 4 Gallon 2-Part Kit
575-6-4020 Dark Gray 4 Gallon 2-Part Kit
575-6-4030 Beige 4 Gallon 2-Part Kit
575-6-4040 Red 4 Gallon 2-Part Kit
575-6-4050 Light Gray 4 Gallon 2-Part Kit
For Non-Slip Finish:
575-6-4015 White 4 Gallon 3-Part Kit w/ 100 lbs Aggregate
575-6-4025 Dark Gray 4 Gallon 3-Part Kit w/ 100 lbs Aggregate
575-6-4035 Beige 4 Gallon 3-Part Kit w/ 100 lbs Aggregate for
575-6-4045 Red 4 Gallon 3-Part Kit w/ 100 lbs Aggregate
575-6-4055 Light Gray 4 Gallon 3-Part Kit w/ 100 lbs Aggregate
575-6-0050 Aggregate for Broadcast, 50 lbs (use 100 lbs per
4 Gallon Kit of Top Coat)
Also available: Top Coat non-slip aerosol, see page 7.2
• Non-Slip or Glossy finish
• Excellent adherence to concrete, wood, or metal
• Self-leveling, low odor
• Chemical resistant
• Flexible with 11% elongation
• Pre-measured Part A and Part B for mixing
convenience
• Can be applied in any thickness down to 5 mils
by brush, roller, or spray
Curing Times @ 50˚F 77˚F 90˚F
Pot Life 50 min 40 min 25 min
Working Time 40 min 30 min 20 min
Tack Free 24 hrs 14 hrs 5 hrs
Hard Foot Traffic 60 hrs 28 hrs 8 hrs
Hard Fork Lift Traffic 70 hrs 36 hrs 14 hrs
*
* Application of coating indoors and covered areas outdoors with no direct sunlight only
See page 4.17 for Chemical Resistance Chart
