Talk @DroidCon Paris - 23rd September 2014 How Meetic Mobile App Team is using Calaba.sh to deliver better quality software.

1. Green Light for the Apps!
Using Calaba.sh @Meetic
DroidCon Paris
September 23rd 2014
Cédric Creusot
Jean-Loup Yu

2. About us
Cédric Creusot
Android Developer
Meetic HQ
@Calimeraw
Jean-Loup Yu
Head of Mobile Development
Meetic HQ
@djelmen

3. Agenda
About Meetic
Mobile @Meetic
Green light to submit
Why Calaba.sh?
Hands on
Experience Sharing

4. About Meetic
The French Success Story

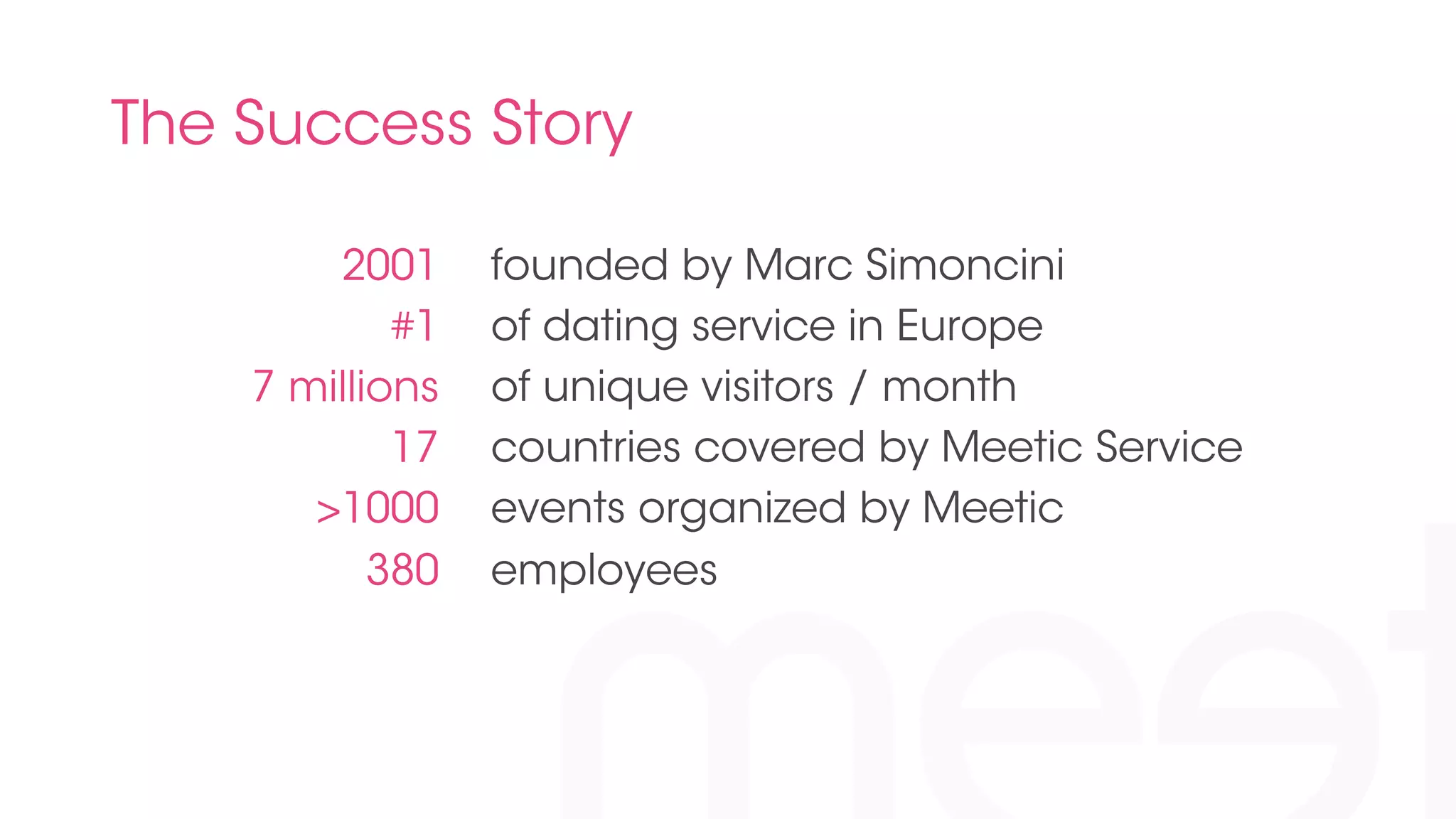

5. The Success Story
founded by Marc Simoncini
of dating service in Europe
of unique visitors / month
countries covered by Meetic Service
events organized by Meetic
employees
2001
#1
7 millions
17
>1000
380

6. Mobile @Meetic
Scaling in 2014

7. Mobile Apps Team – start of 2014
Tech
Product
Design
4
2
1

8. Mobile Apps Team - now
Tech
Product
Design
14
3
3

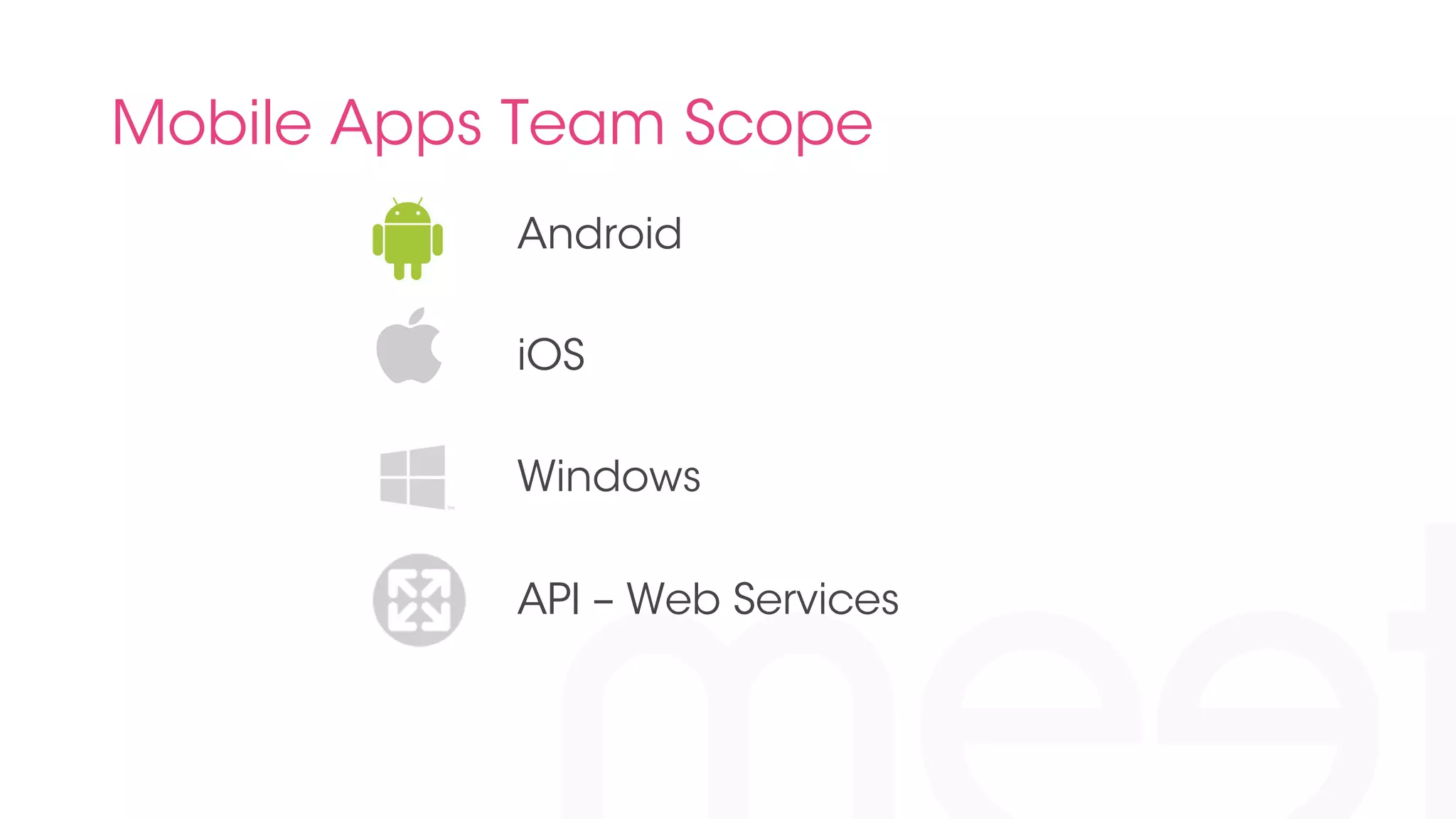

9. Mobile Apps Team Scope
Android
iOS
Windows
API – Web Services

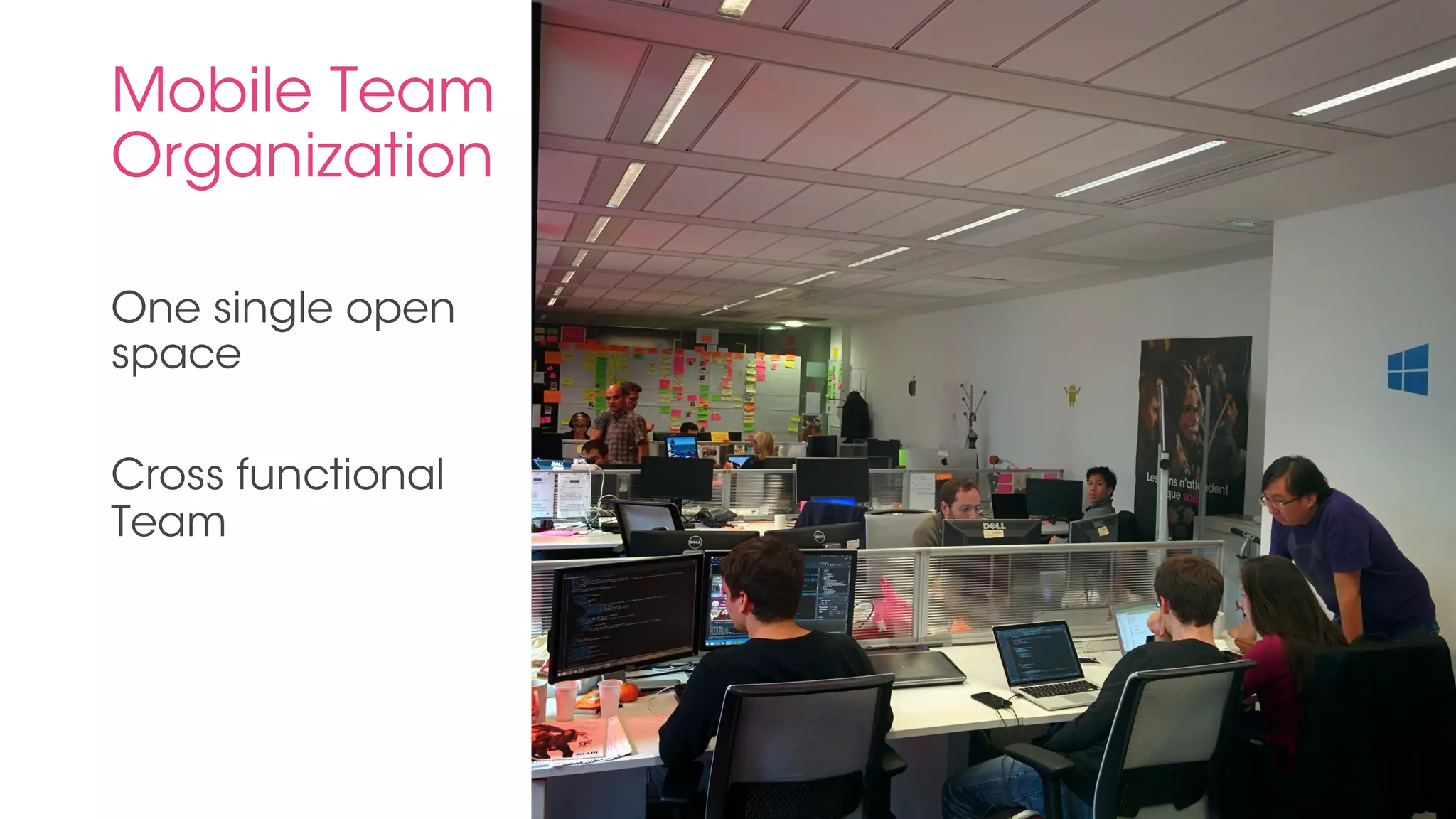

10. Mobile Team
Organization
One single open
space
Cross functional
Team

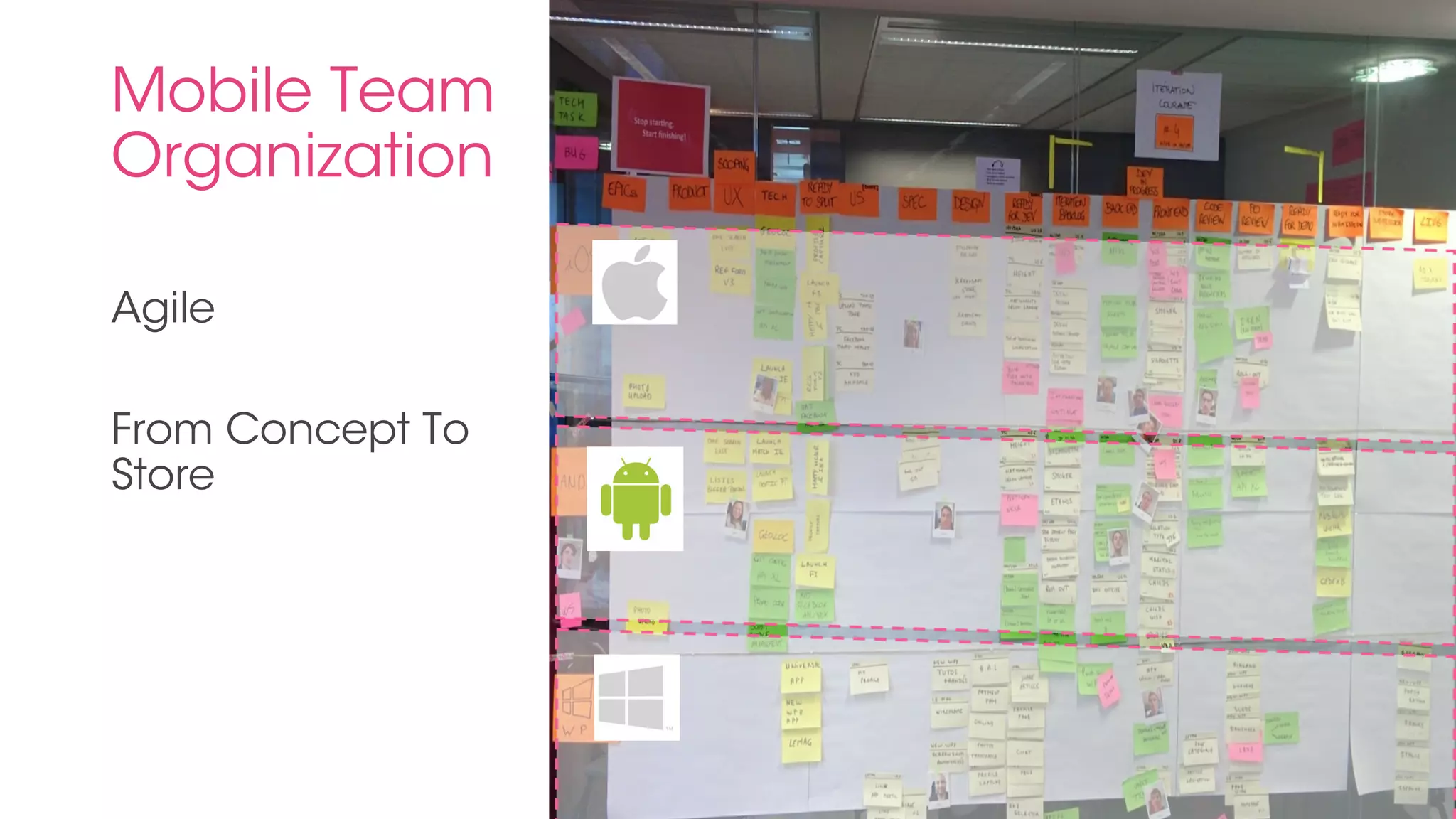

11. Mobile Team
Organization
Agile
From Concept To
Store

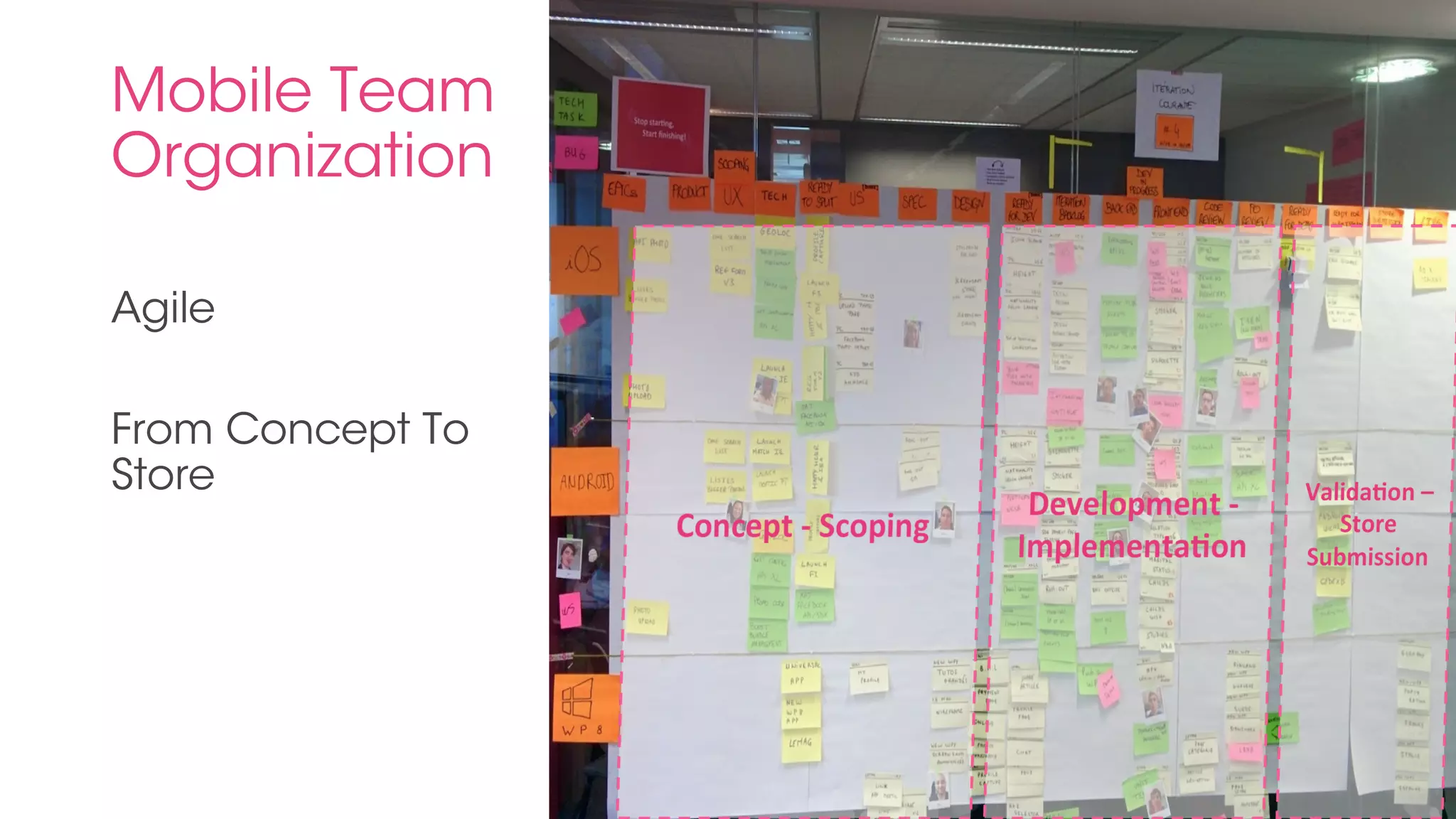

12. Mobile Team
Organization
Agile
From Concept To
Store

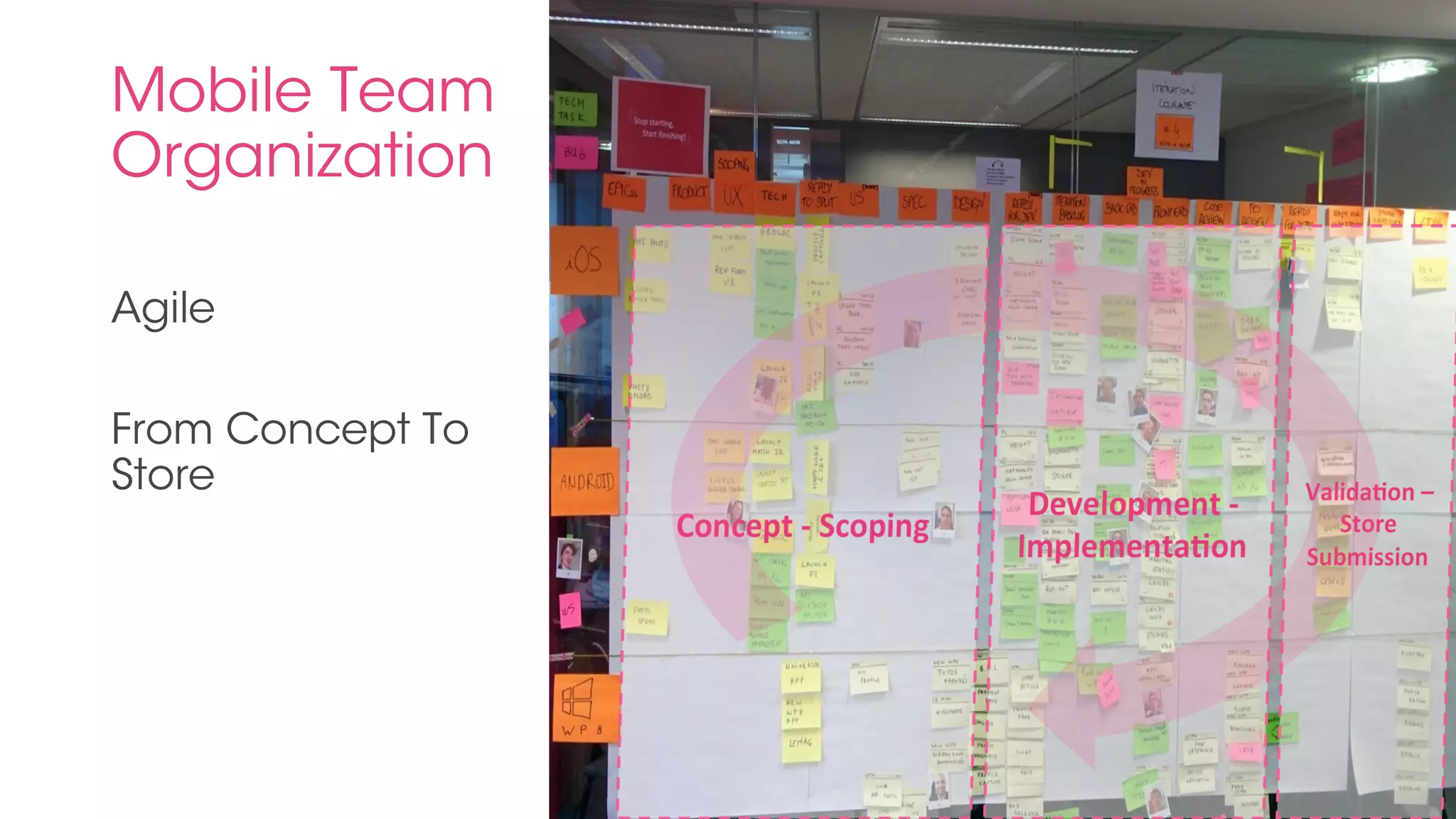

13. Mobile Team
Organization
Agile
From Concept To
Store

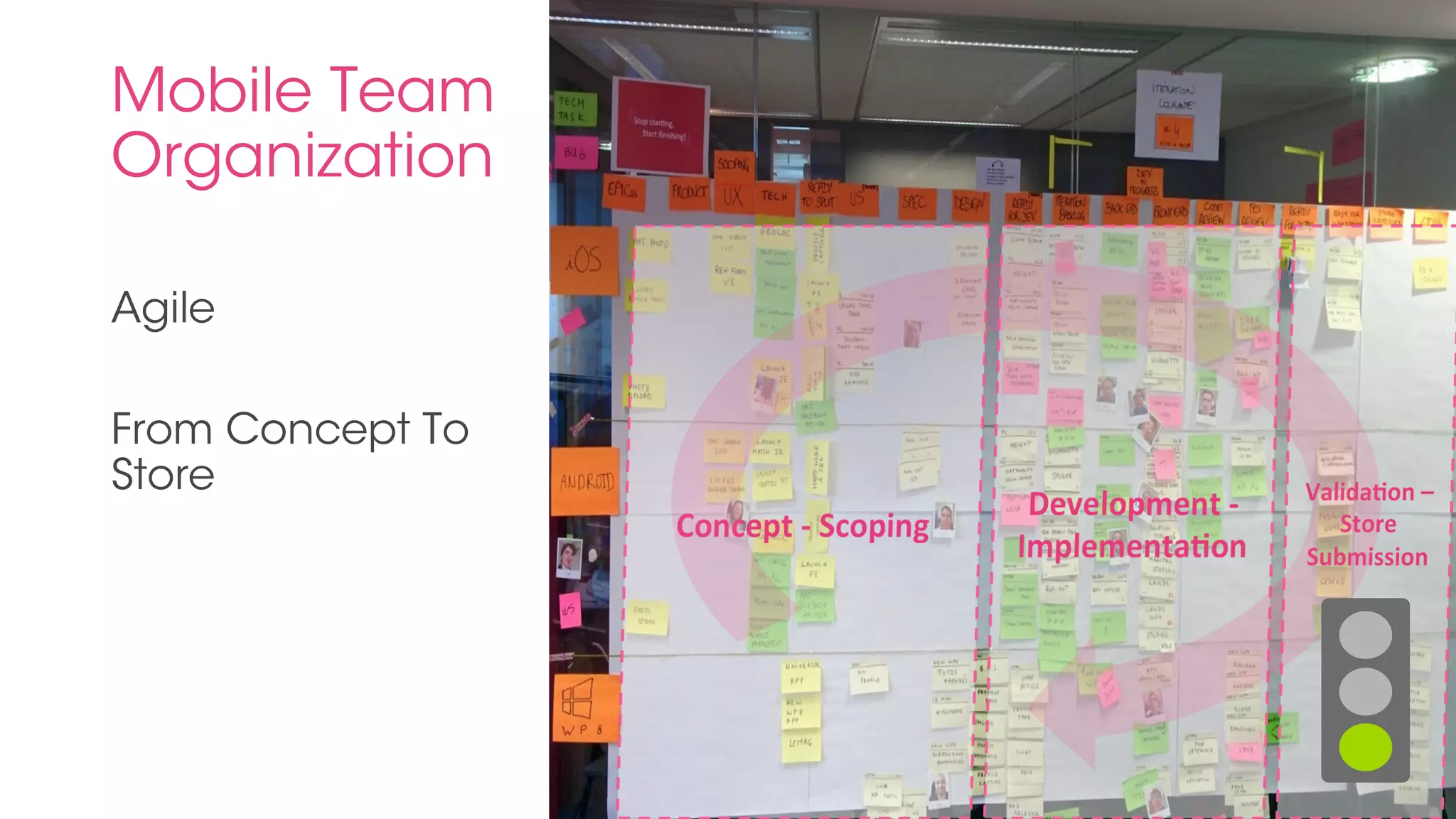

14. Mobile Team
Organization
Agile
From Concept To
Store

15. Green light to submit
Apps Quality Status

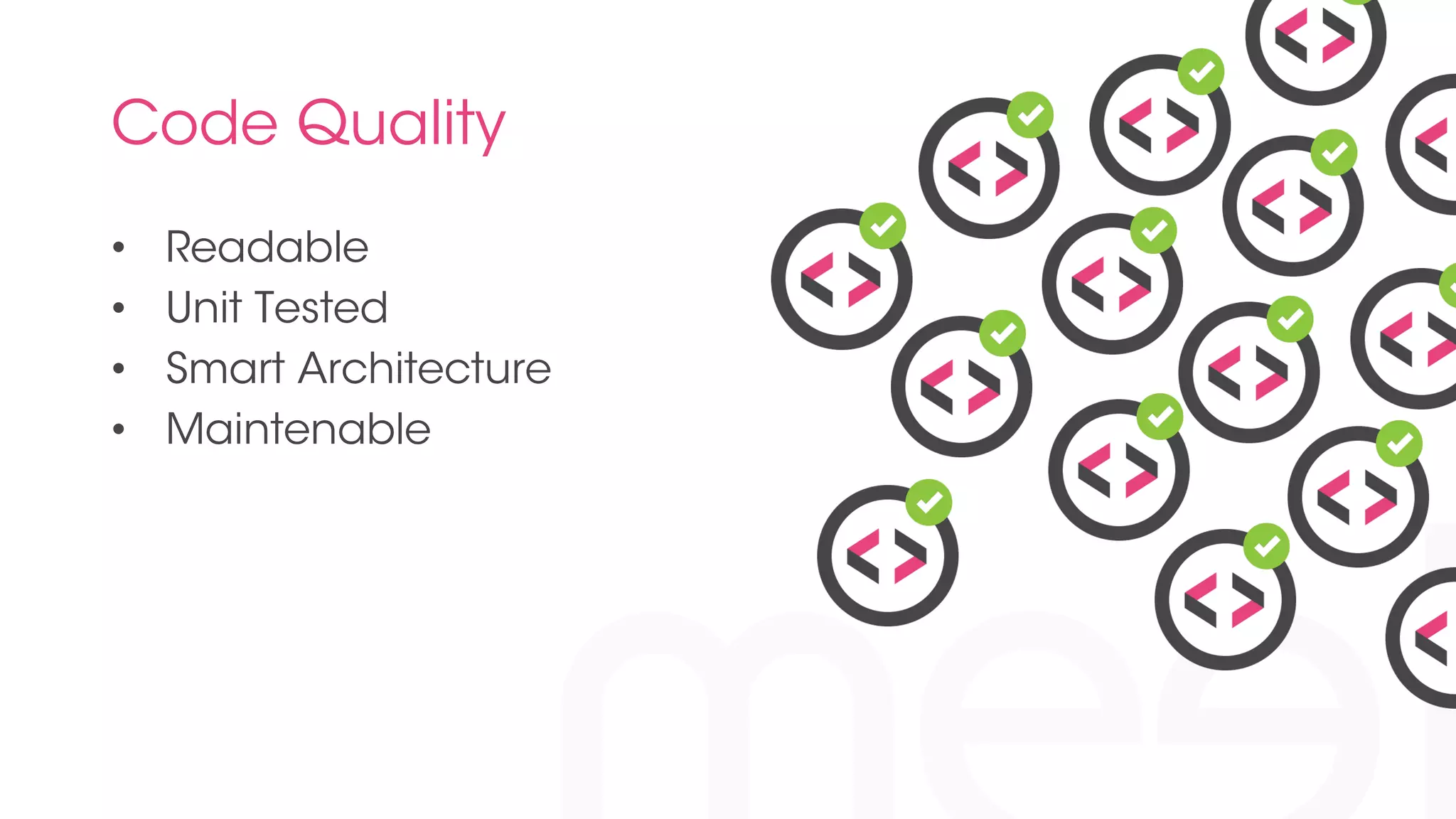

16. Code Quality
• Readable
• Unit Tested
• Smart Architecture
• Maintenable

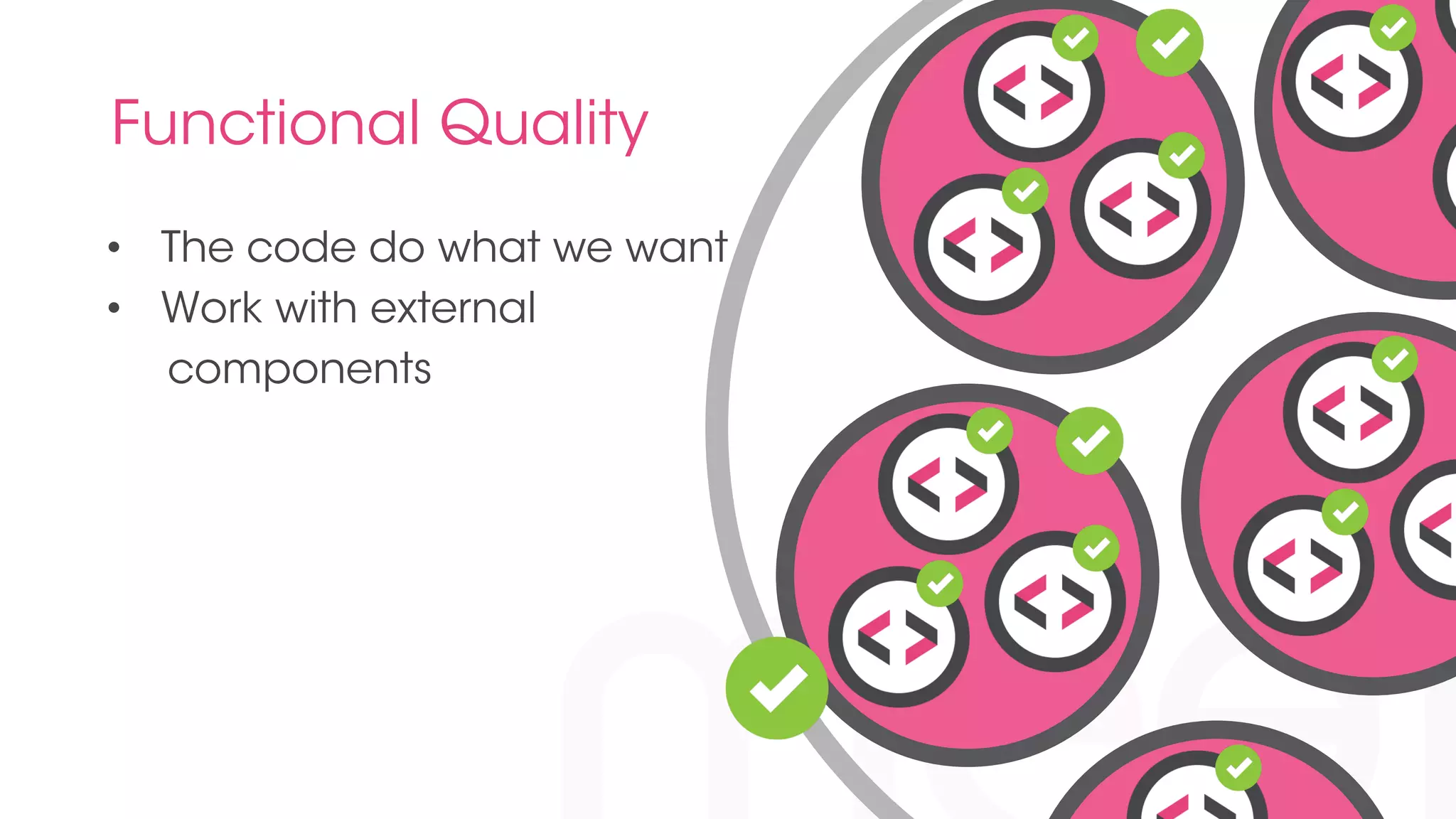

17. Functional Quality
• The code do what we want
• Work with external
components

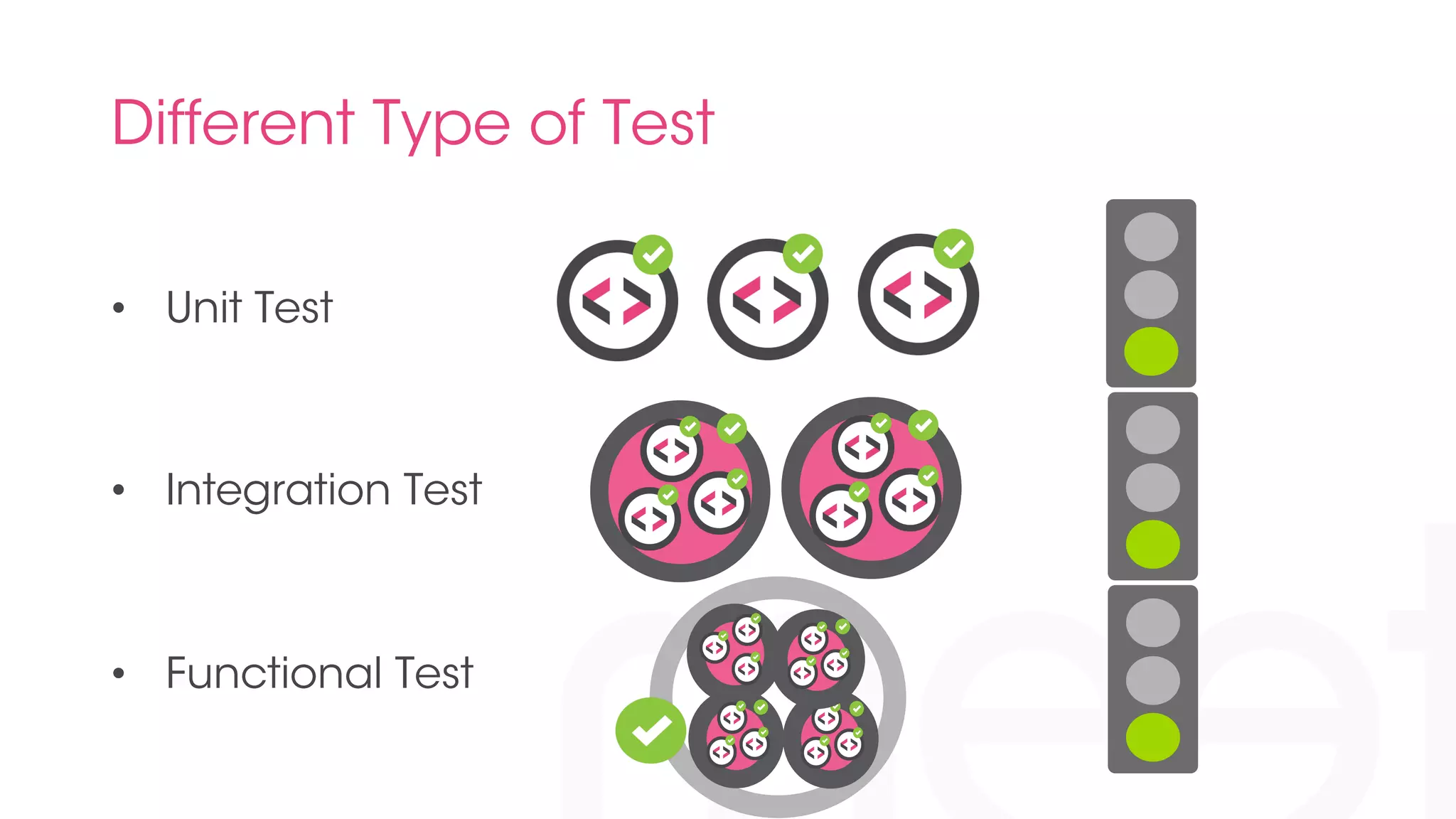

18. Different Type of Test
• Unit Test
• Integration Test
• Functional Test

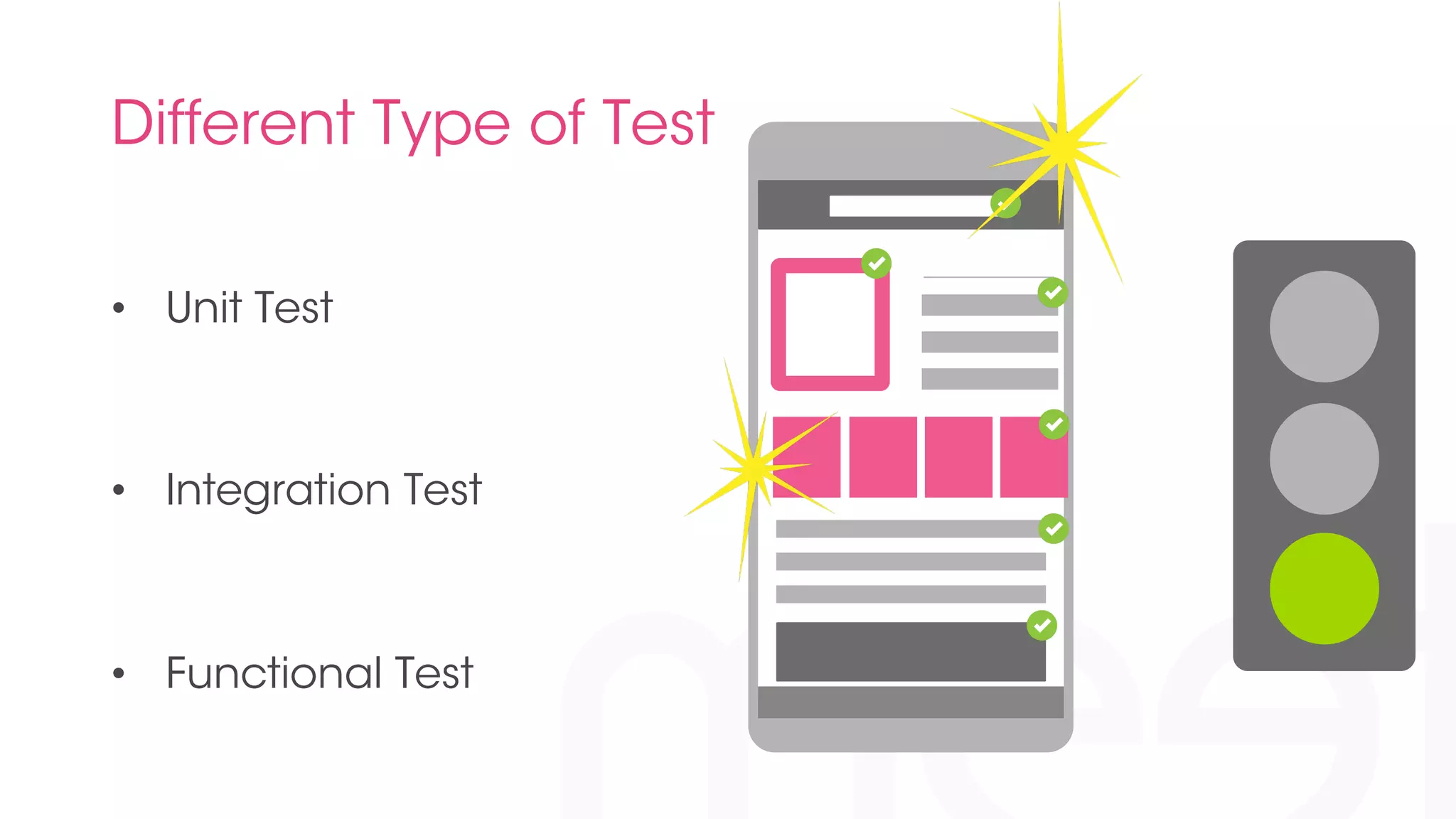

19. Different Type of Test
• Unit Test
• Integration Test
• Functional Test

20. Functional Test Tools

21. Why Calaba.sh?
The Functional Tool Choice

22. Specification written with Gherkin
All the test cases in Meetic
look like:
• Given <the context>
• When <users do actions>
• Then <expected result>

23. Multi-platform Support
Android
iOS

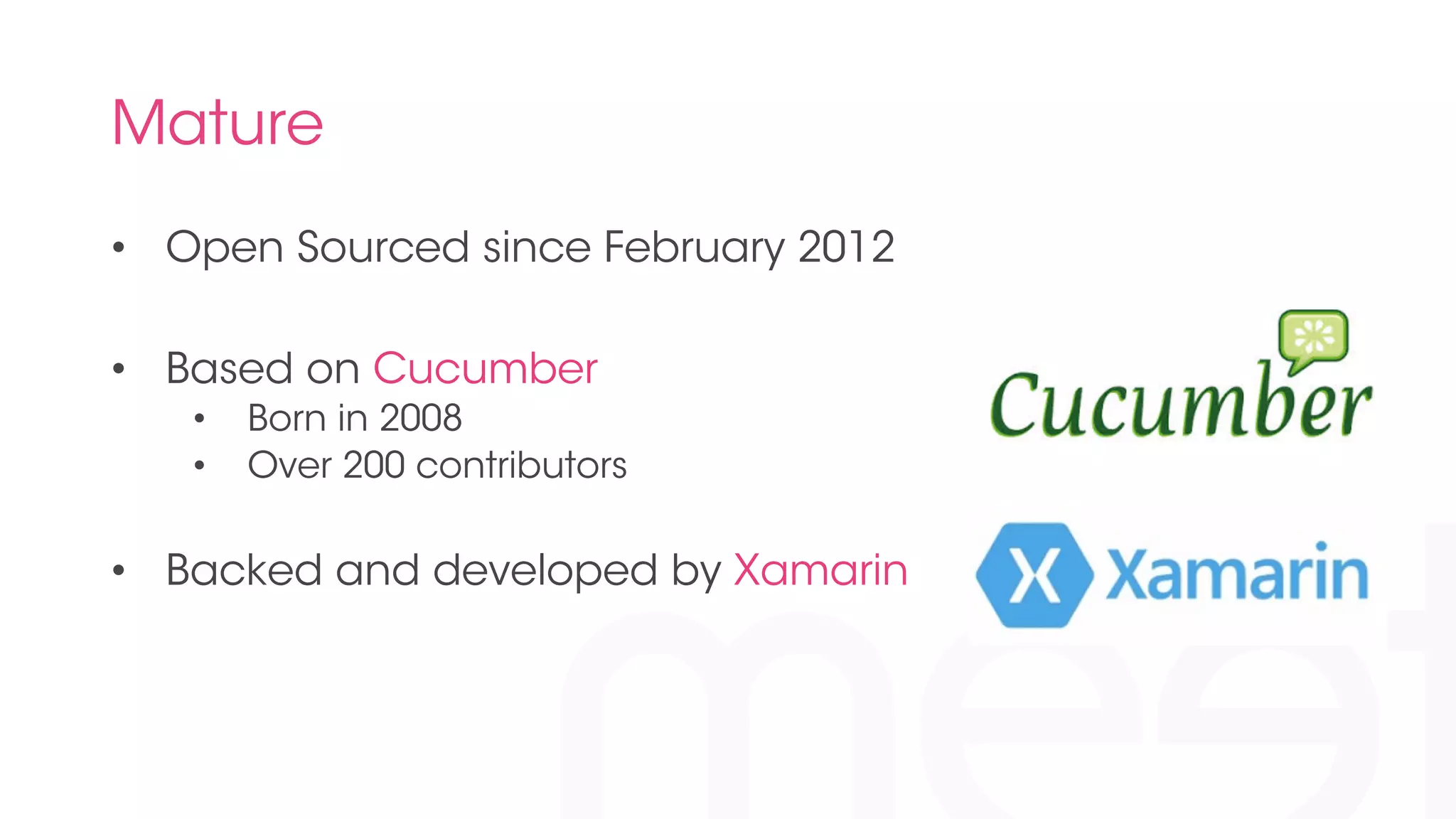

24. Mature
• Open Sourced since February 2012
• Based on Cucumber
• Born in 2008
• Over 200 contributors
• Backed and developed by Xamarin

25. Hands On
Code inside

26. The Feature Scenario
@login!
Feature: Login feature!
As a Meetic user!
In order to enjoy the service!
I want to be able to log into the service!
!
Scenario: Wrong Login!
Given I am on the Login screen!
When I enter my credentials calabash_error@calabash.com and foobar!
And I press confirm!
Then I should see an error message!

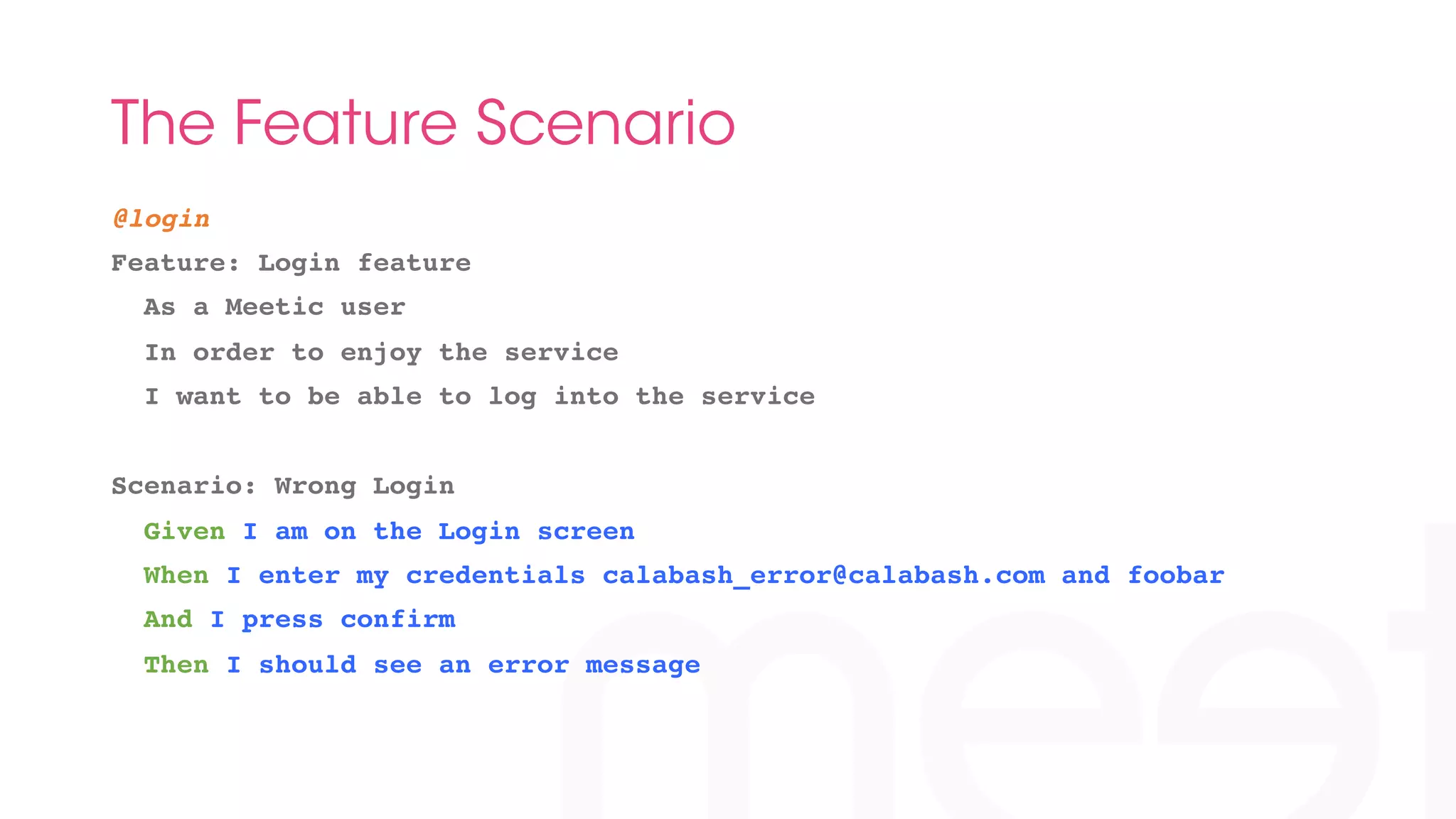

27. The Feature Scenario
@login!
Feature: Login feature!
As a Meetic user!
In order to enjoy the service!
I want to be able to log into the service!
!
Scenario: Wrong Login!
Given I am on the Login screen!
When I enter my credentials calabash_error@calabash.com and foobar!
And I press confirm!
Then I should see an error message!

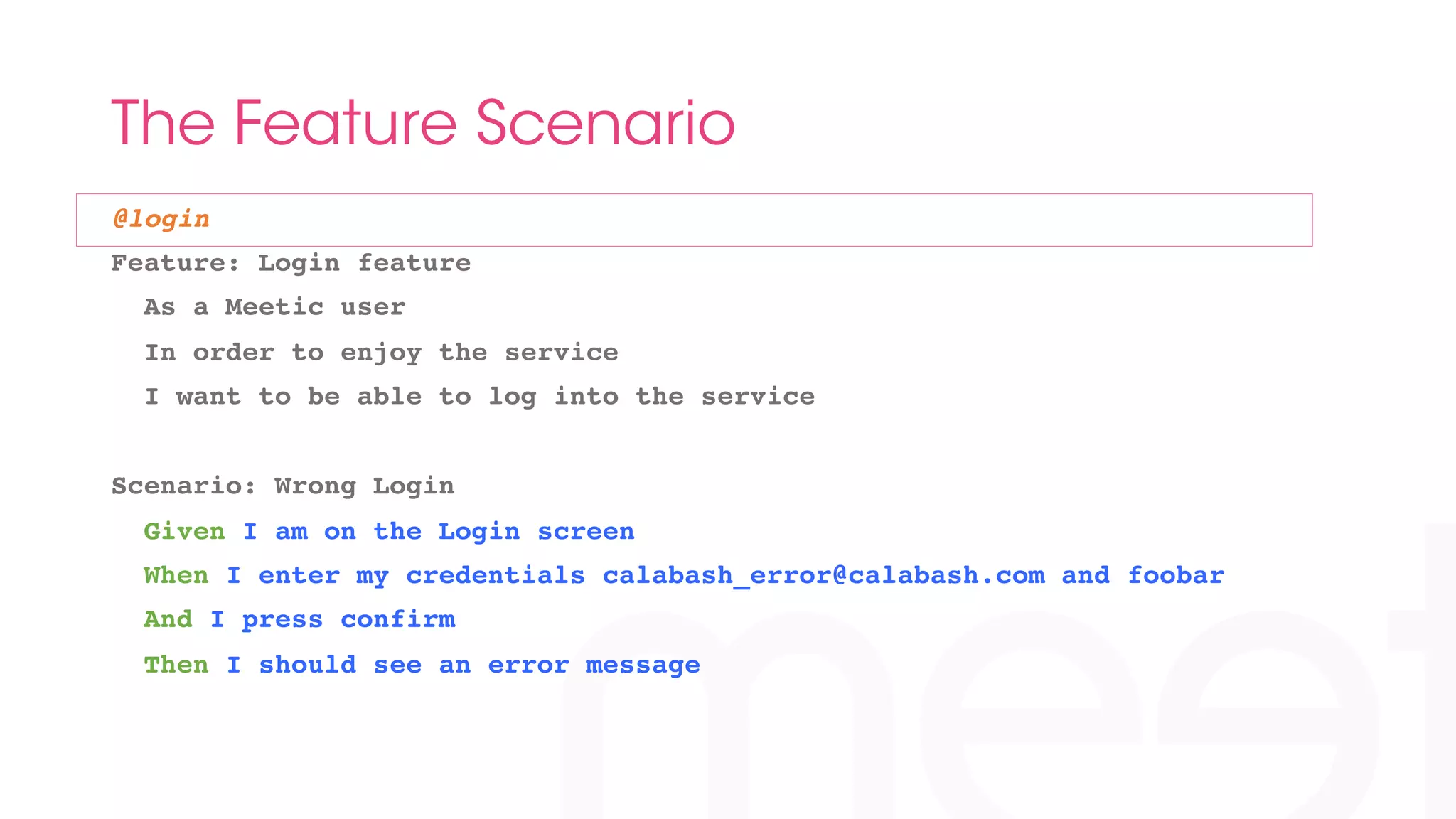

28. The Feature Scenario
@login!
Feature: Login feature!
As a Meetic user!
In order to enjoy the service!
I want to be able to log into the service!
!
Scenario: Wrong Login!
Given I am on the Login screen!
When I enter my credentials calabash_error@calabash.com and foobar!
And I press confirm!
Then I should see an error message!

29. The Feature Scenario
@login!
Feature: Login feature!
As a Meetic user!
In order to enjoy the service!
I want to be able to log into the service!
!
Scenario: Wrong Login!
Given I am on the Login screen!
When I enter my credentials calabash_error@calabash.com and foobar!
And I press confirm!
Then I should see an error message!

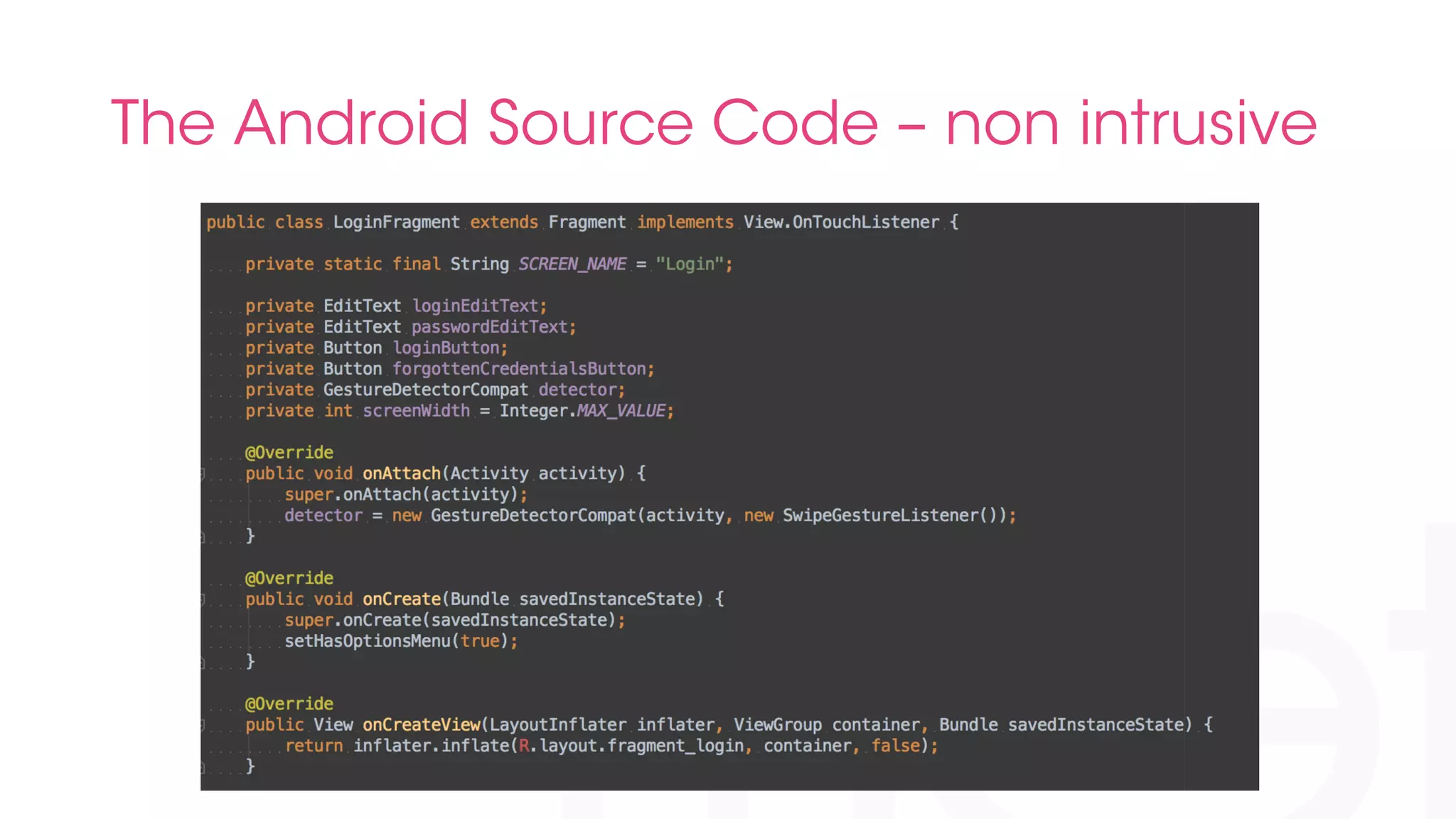

30. The Android Source Code – non intrusive

31. An example step definition – the glue
When(/^I enter my credentials (S*) and (S*)$/) do |login, password|!
wait_for_screen :login!
!
step 'I enter text "" into field with id "loginEdit"'!
step "I enter text "#{login}" into field with id "loginEdit""!
step 'I enter text "" into field with id "passwordEdit"'!
step "I enter text "#{password}" into field with id "passwordEdit""!
end!
!
!
!

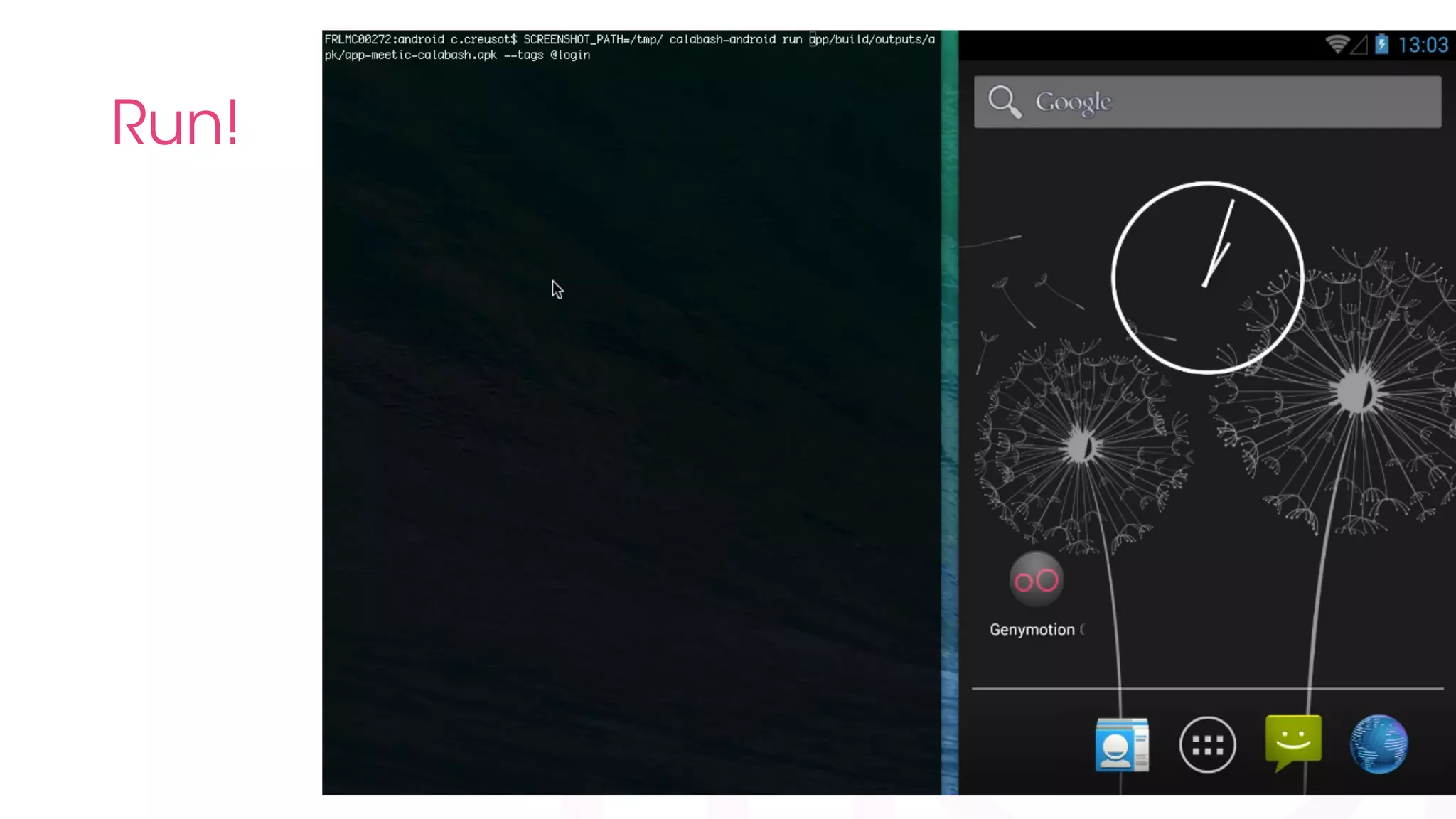

32. Run!

33. The result – human readable

34. How does it works?
Step definitions,
Ruby client library
Features
Running environment
Instrumentation
Test server
Your app
Devices/Emulators
Source: http://blog.lesspainful.com/2012/03/07/Calabash-Android/

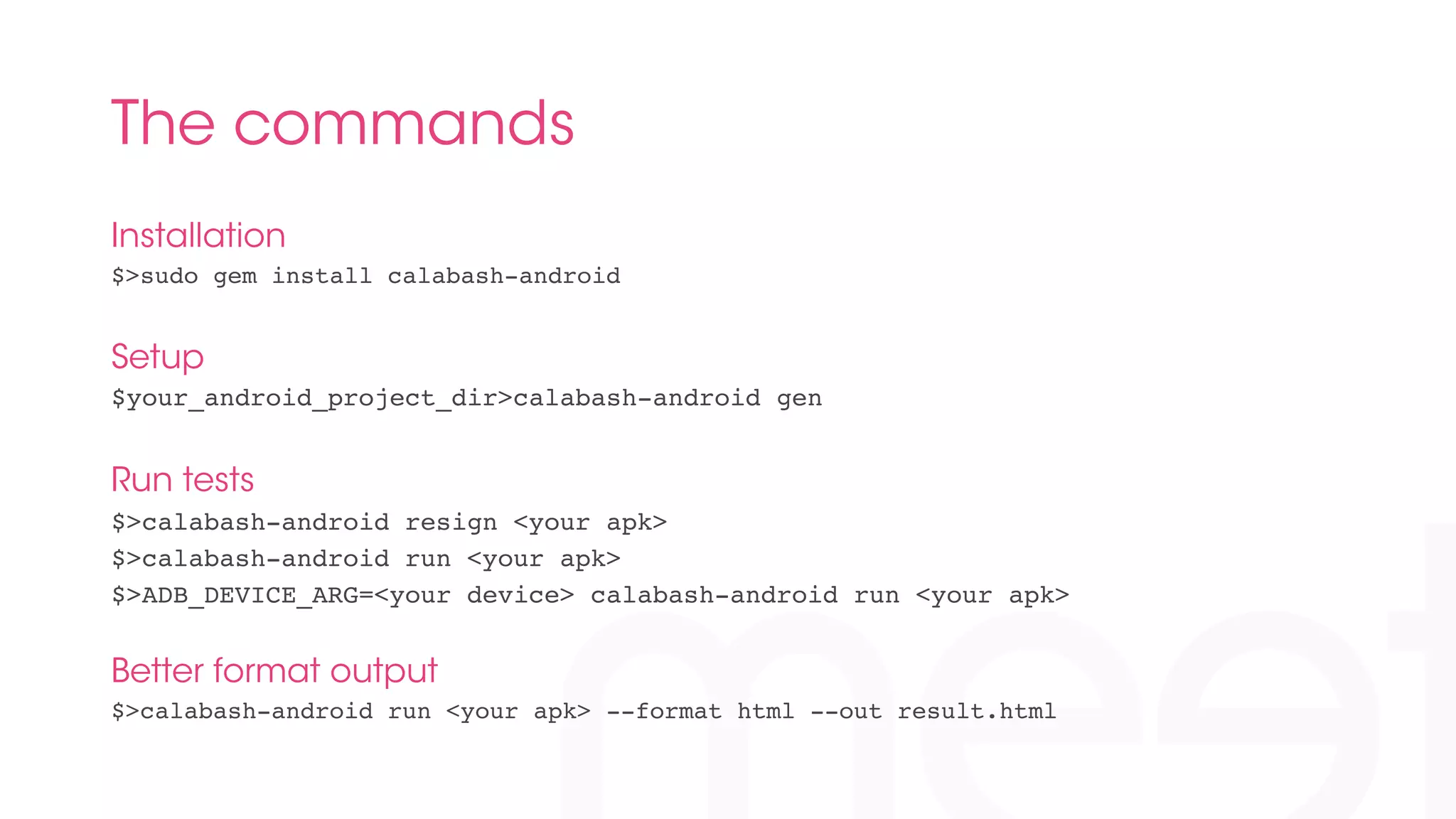

35. The commands
Installation
$>sudo gem install calabash-android!
Setup
$your_android_project_dir>calabash-android gen!
Run tests
$>calabash-android resign <your apk>!
$>calabash-android run <your apk>!
$>ADB_DEVICE_ARG=<your device> calabash-android run <your apk>!
!
Better format output
$>calabash-android run <your apk> --format html --out result.html!
!
!

36. Industrialization

37. Automated Tests
• Map of our code
• Ease the issue localisation

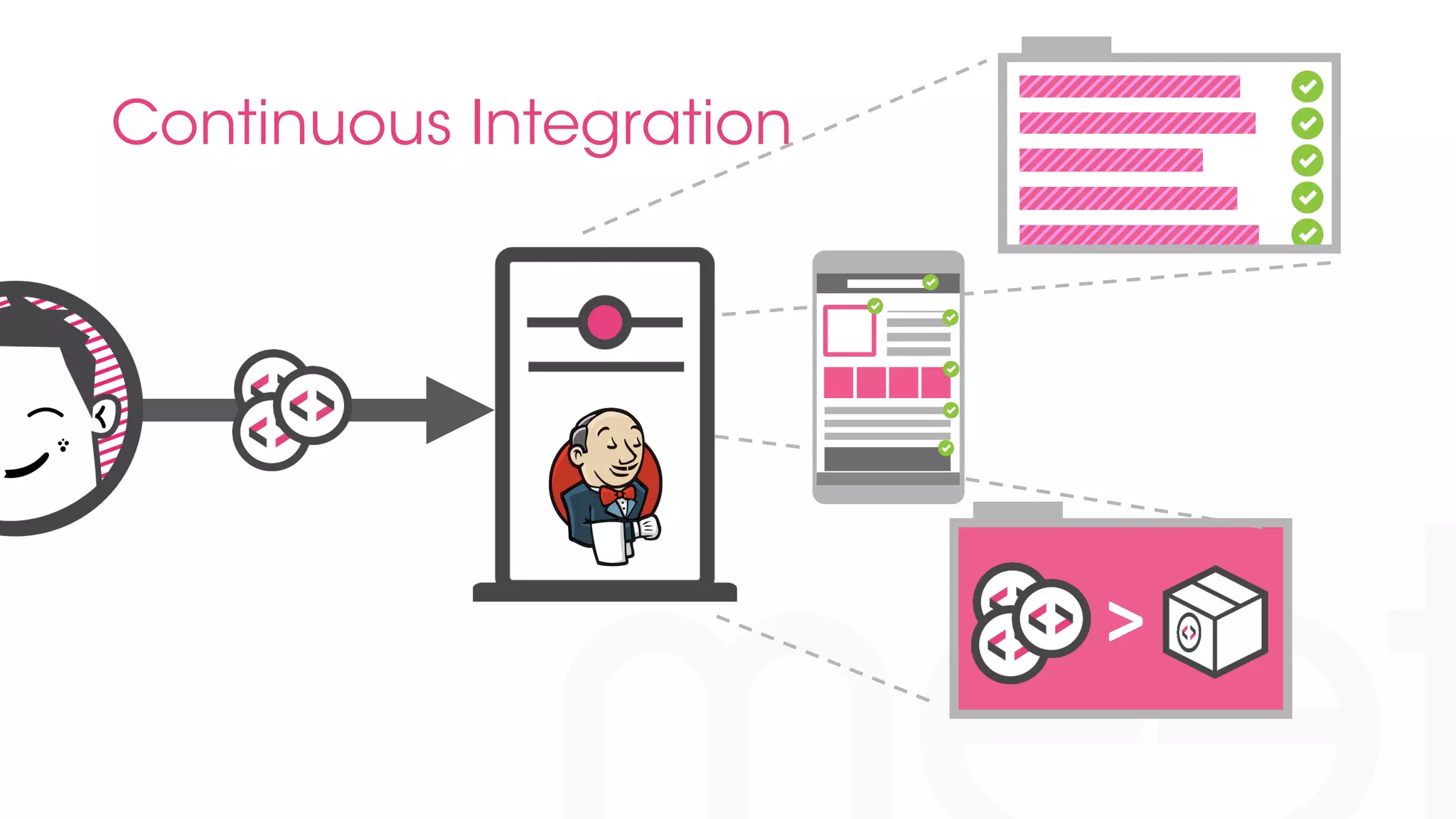

38. Continuous Integration
>

39. Experience Sharing

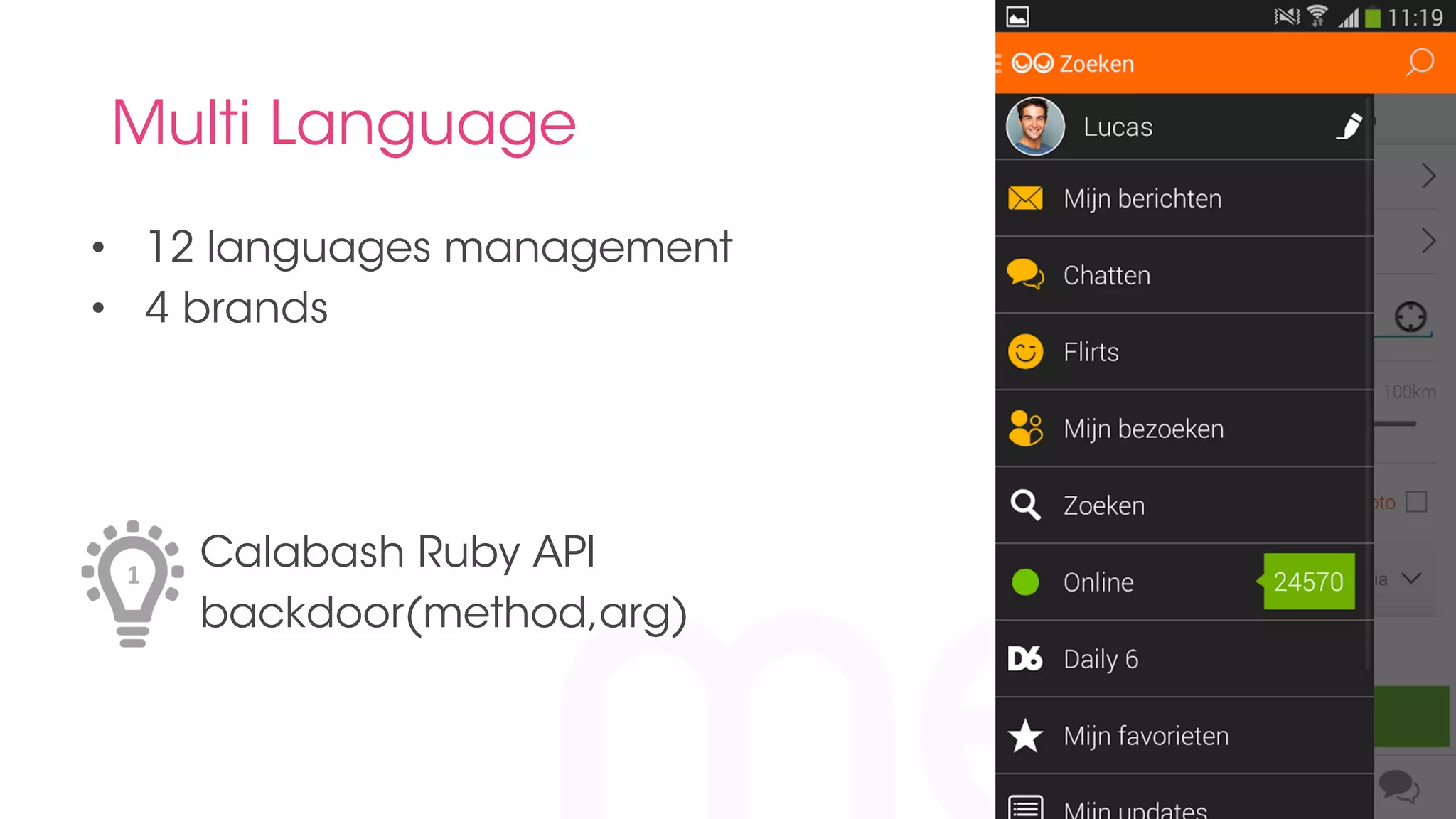

40. Multi Language
• 12 languages management
• 4 brands
Calabash Ruby API
backdoor(method,arg)
1

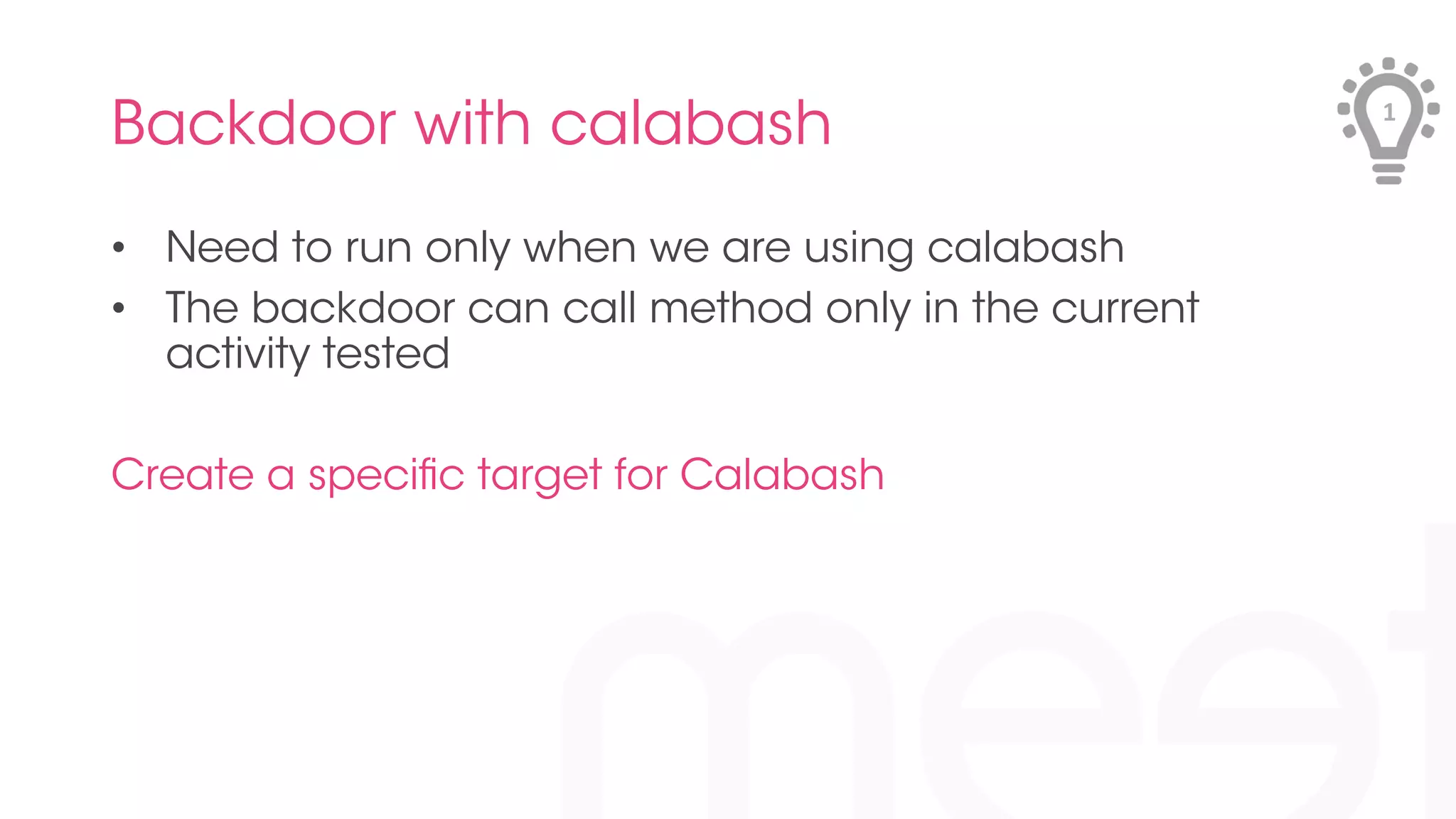

41. Backdoor with calabash
• Need to run only when we are using calabash
• The backdoor can call method only in the current
activity tested
Create a specific target for Calabash
1

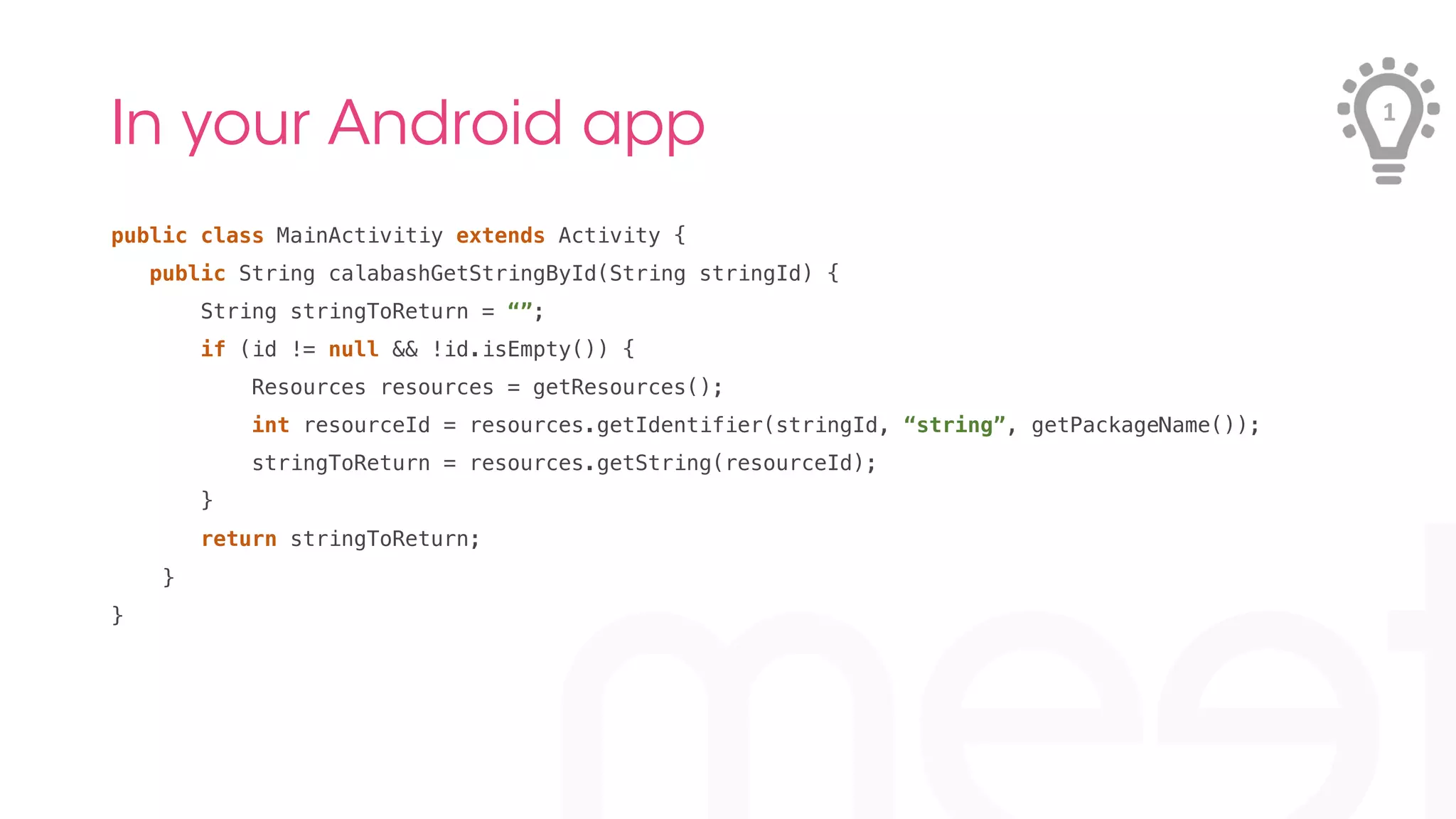

42. In your Android app
public class MainActivitiy extends Activity {!
public String calabashGetStringById(String stringId) {!
String stringToReturn = “”;!
if (id != null && !id.isEmpty()) {!
Resources resources = getResources();!
int resourceId = resources.getIdentifier(stringId, “string”, getPackageName());!
stringToReturn = resources.getString(resourceId);!
}!
return stringToReturn;!
} !
}!
1

43. In your glue
Given(/^I see the title “([^”]*)”$/) do |key_string|!
title = backdoor(“calabashGetStringById”, key_string)!
wait_for_text(title)!
end!
1

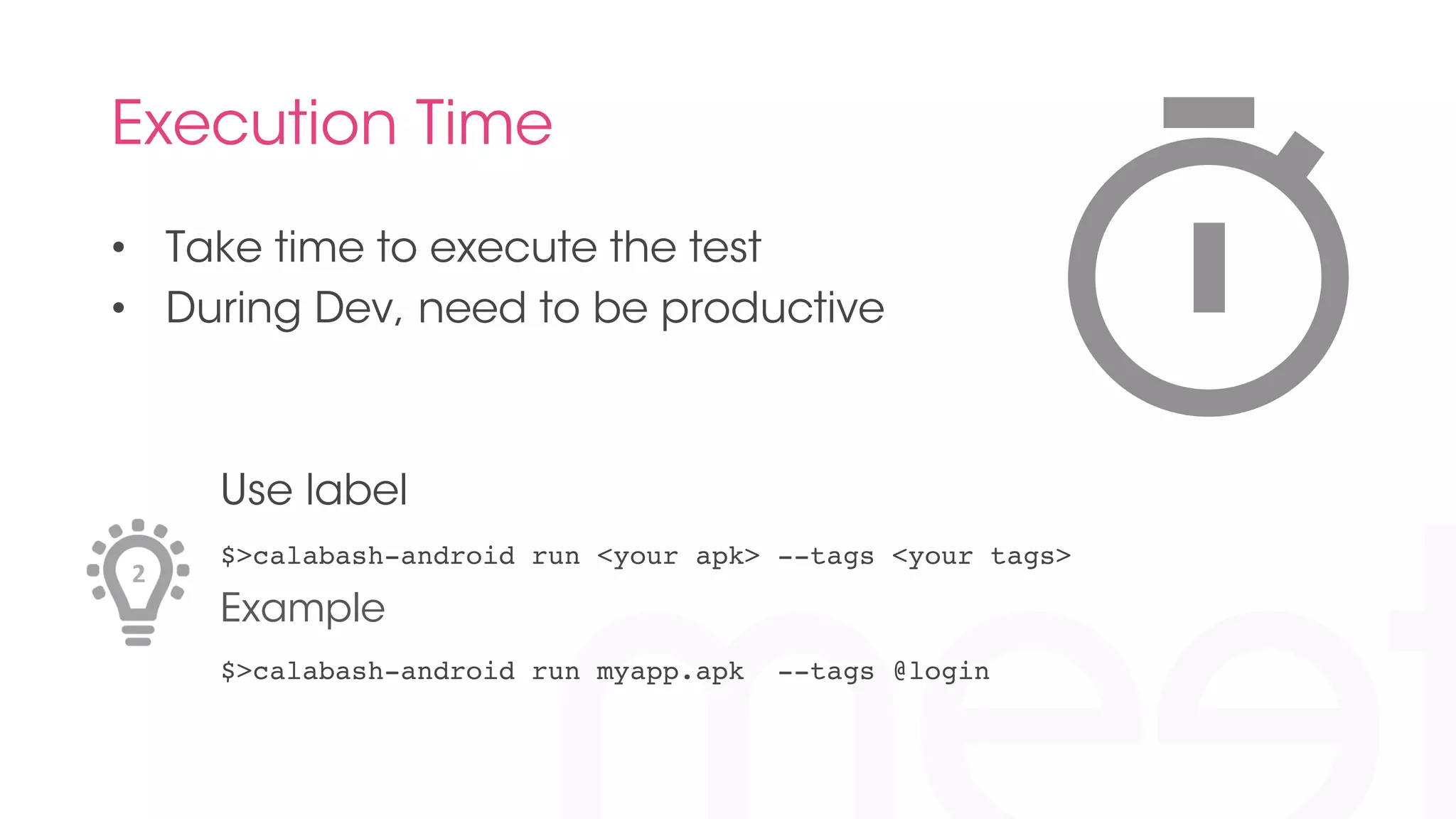

44. Execution Time
• Take time to execute the test
• During Dev, need to be productive
Use label
$>calabash-android run <your apk> --tags <your tags>!
Example
$>calabash-android run myapp.apk --tags @login!
2

45. Dedicated Environment
• Control the Data Set
• Setup the Back End
Huge amount of work!
Mock usage
3

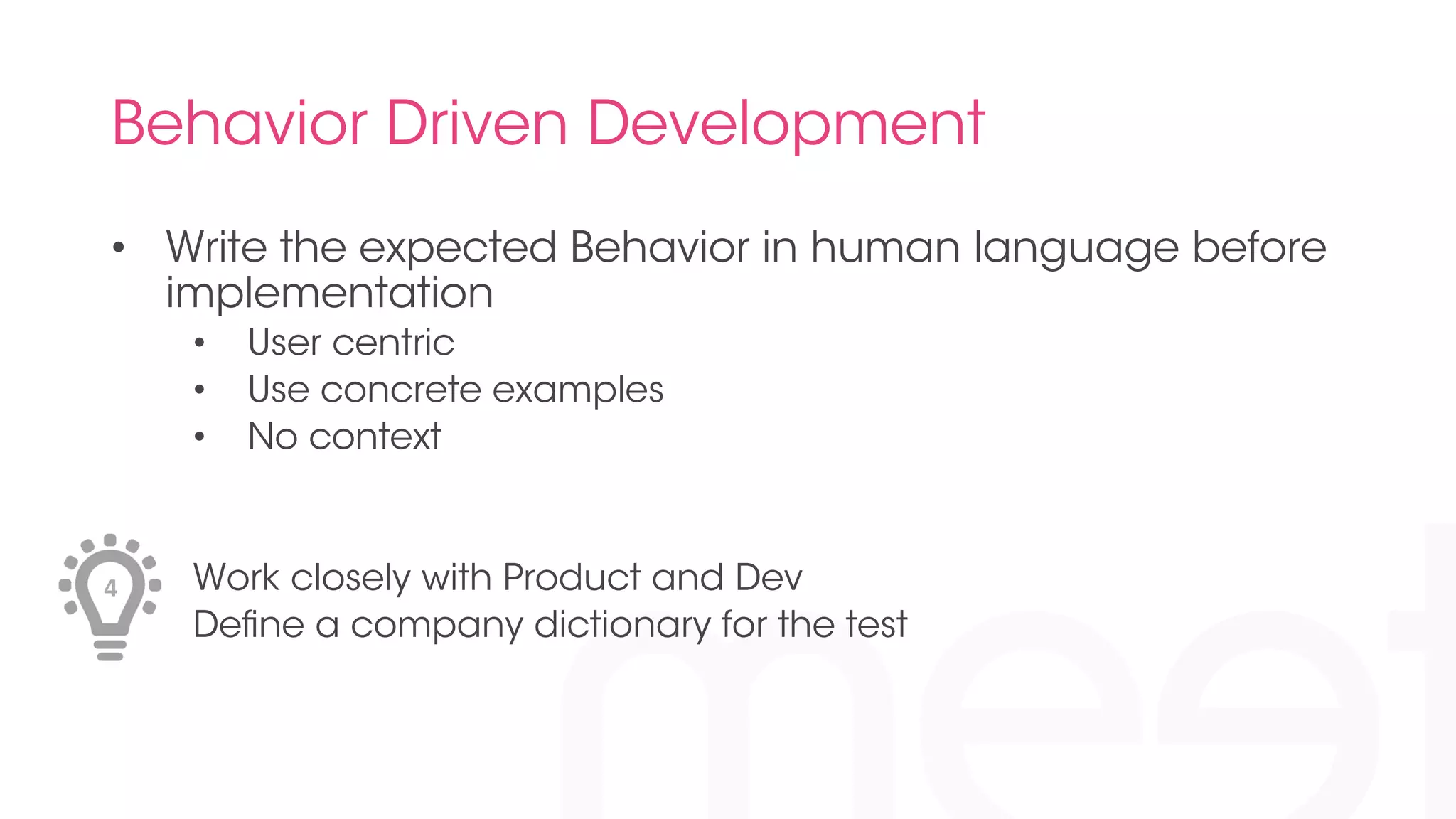

46. Behavior Driven Development
• Write the expected Behavior in human language before
implementation
• User centric
• Use concrete examples
• No context
Work closely with Product and Dev
Define a company dictionary for the test
4

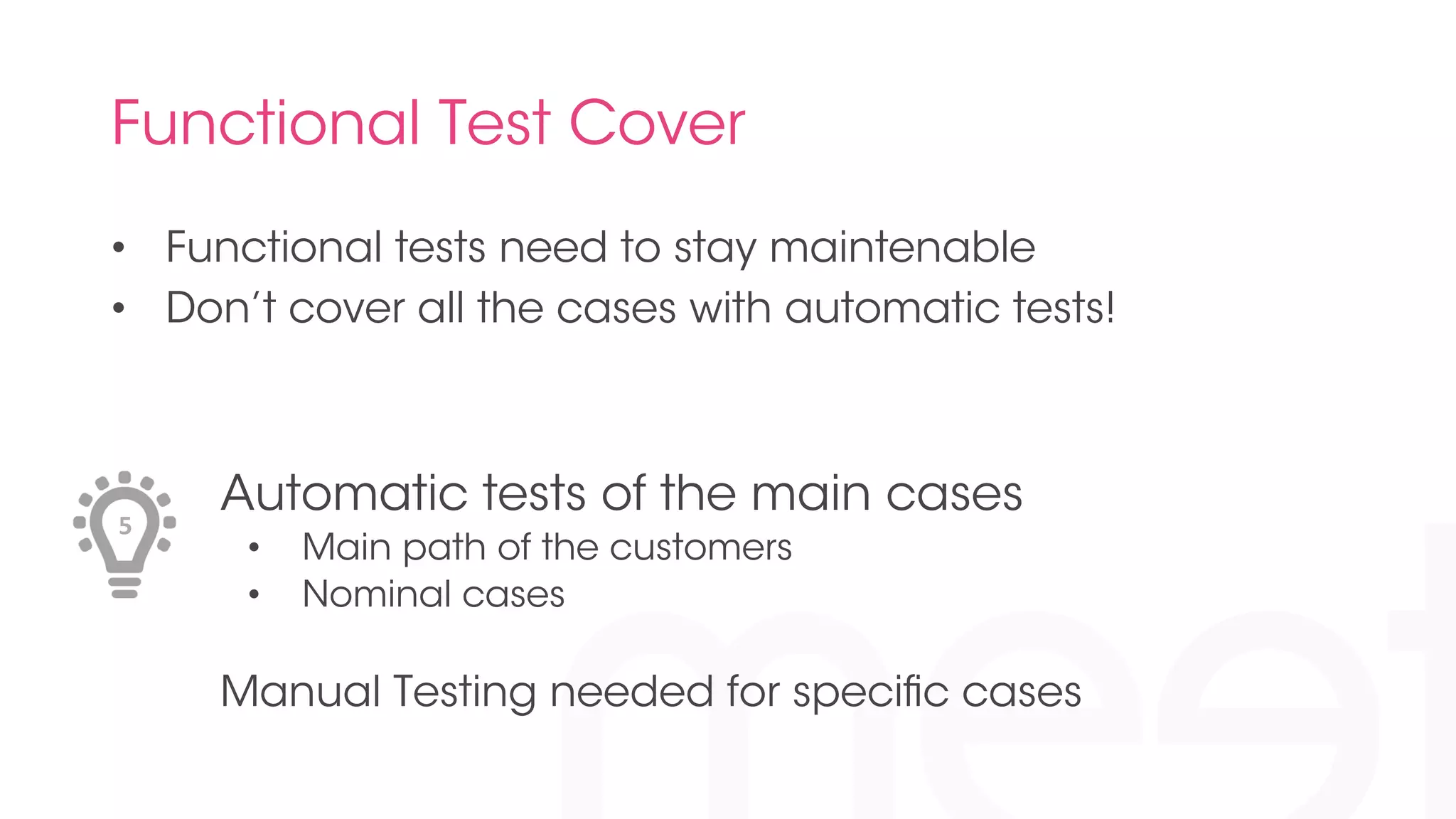

47. Functional Test Cover
• Functional tests need to stay maintenable
• Don’t cover all the cases with automatic tests!
Automatic tests of the main cases
• Main path of the customers
• Nominal cases
Manual Testing needed for specific cases
5

48. Conclusion
We are hiring!
http://jobs.meetic.fr/

49. Any Question ?
Thanks!
