APIs are proliferating on the web, providing app developers with ready access to a wide range of data and services, yet very few apps take advantage of more than one or two API providers. Arbitrary inconsistencies between APIs -- from authentication to input/output formats to details as small as timestamps or pagination -- mean every new API brings its own unnecessarily redundent learning curve, draining developer's most precious resource: time. Temboo is part of an emerging class of services for managing and scaling API usage. By NORMALIZING access to APIs (as well as their associated documentation and credentials) these services do for development what PaaS and server virtualization have already done for app deployment and infrastructure. "Code virtualization", whereby all the tedious details of API access are abstracted away in standardized cloud-based processes, will free developers to spend their time writing only the code that actually makes their app unique. And that means more unique apps for everyone.

2. COPYRIGHT TEMBOO 2013

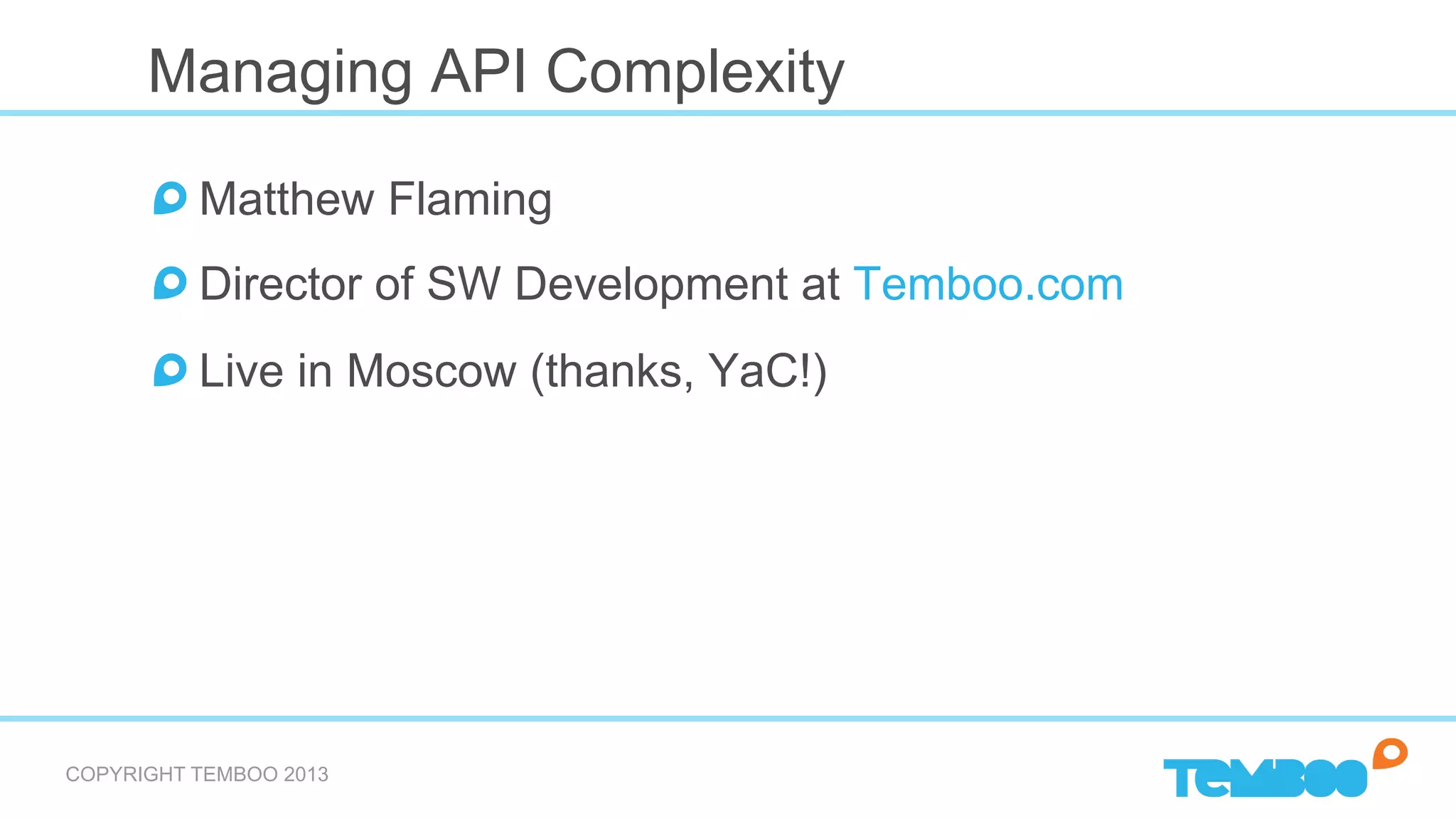

Managing API Complexity
! Matthew Flaming
! Director of SW Development at Temboo.com
! Live in Moscow (thanks, YaC!)

3. COPYRIGHT TEMBOO 2013

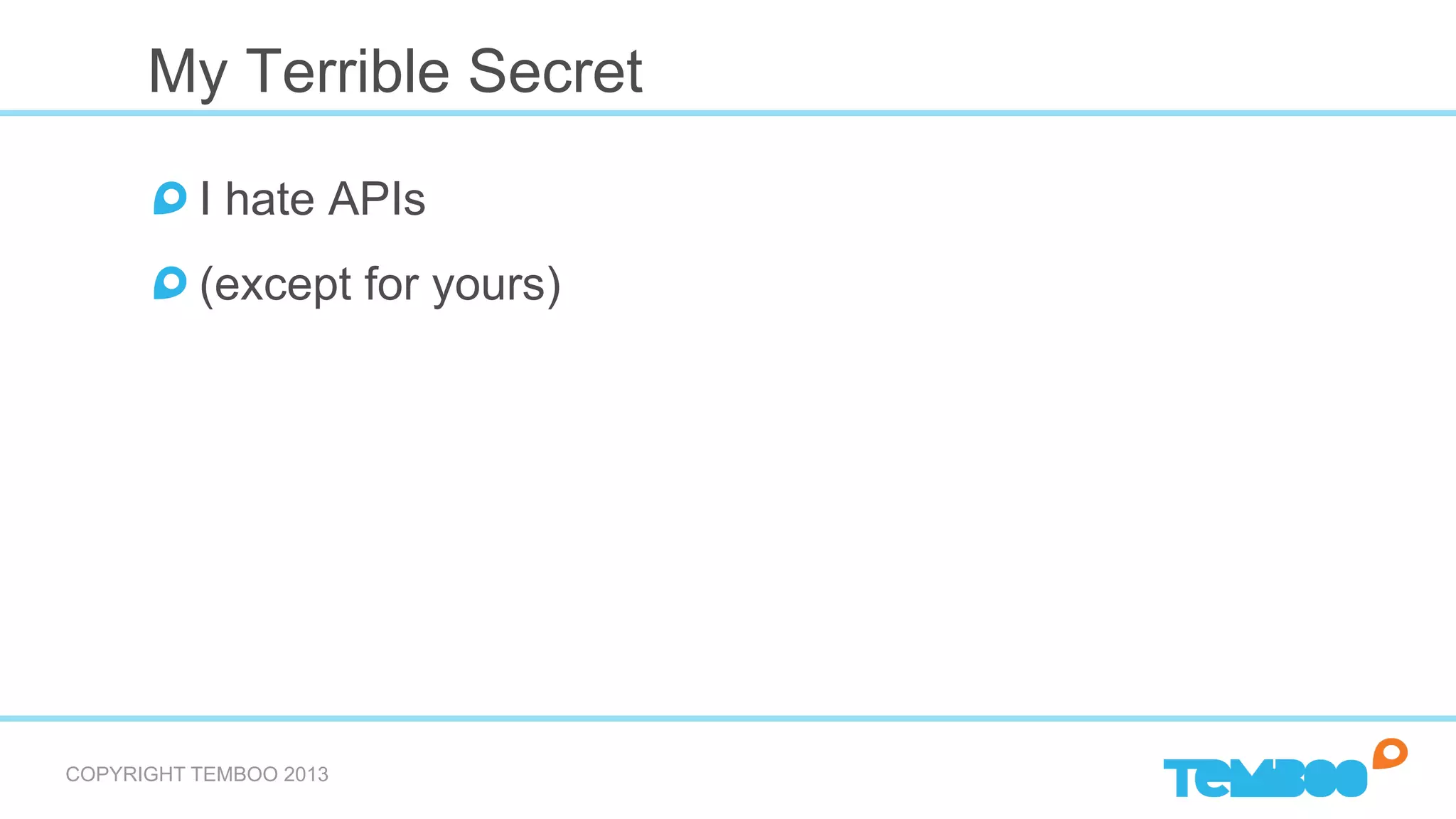

My Terrible Secret
! I hate APIs
! (except for yours)

4. COPYRIGHT TEMBOO 2013
One API is Great

5. COPYRIGHT TEMBOO 2013
Many APIs, not so much

6. COPYRIGHT TEMBOO 2013

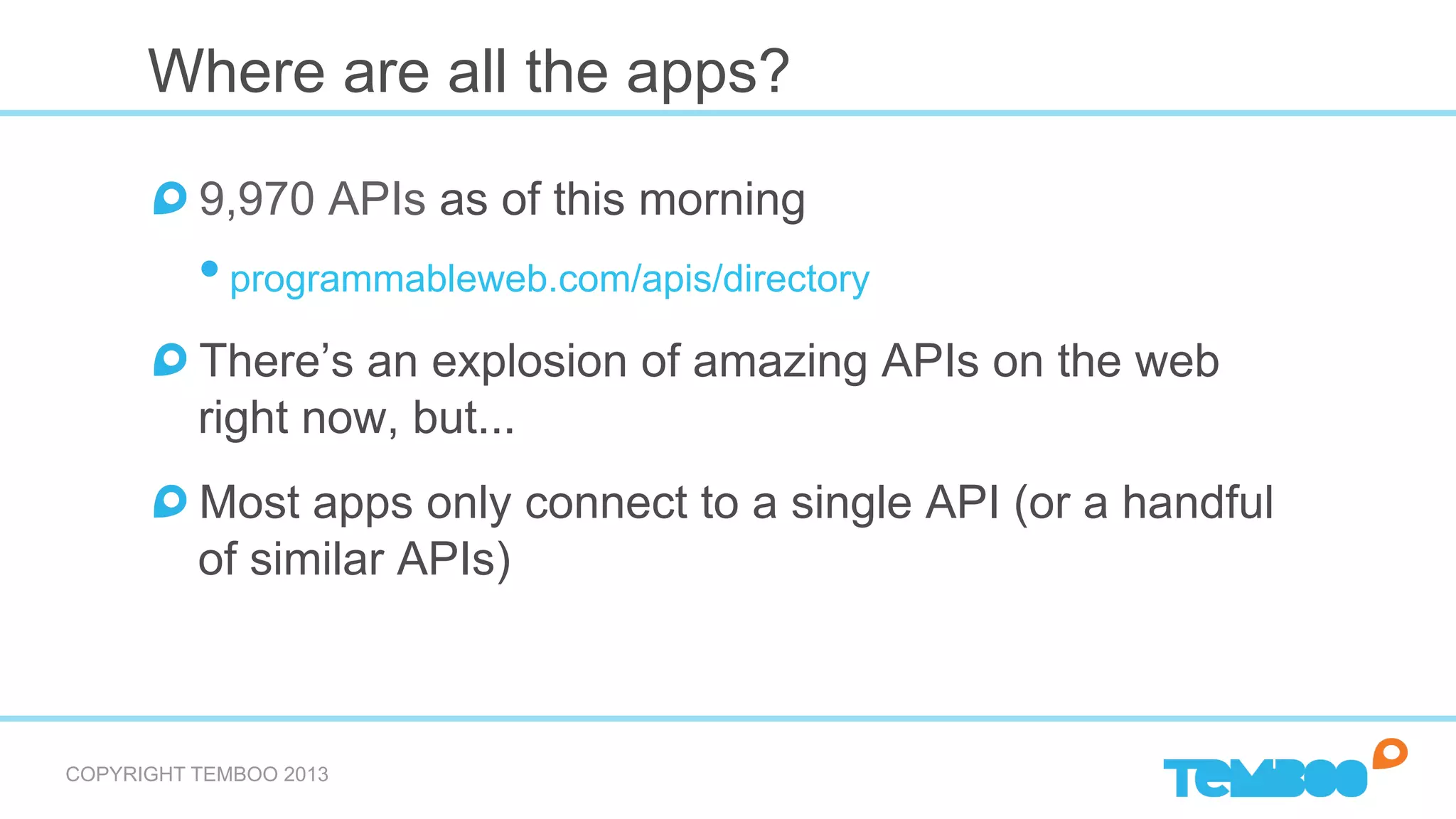

Where are all the apps?
! 9,970 APIs as of this morning
• programmableweb.com/apis/directory
! There’s an explosion of amazing APIs on the web
right now, but...
! Most apps only connect to a single API (or a handful
of similar APIs)

7. COPYRIGHT TEMBOO 2013

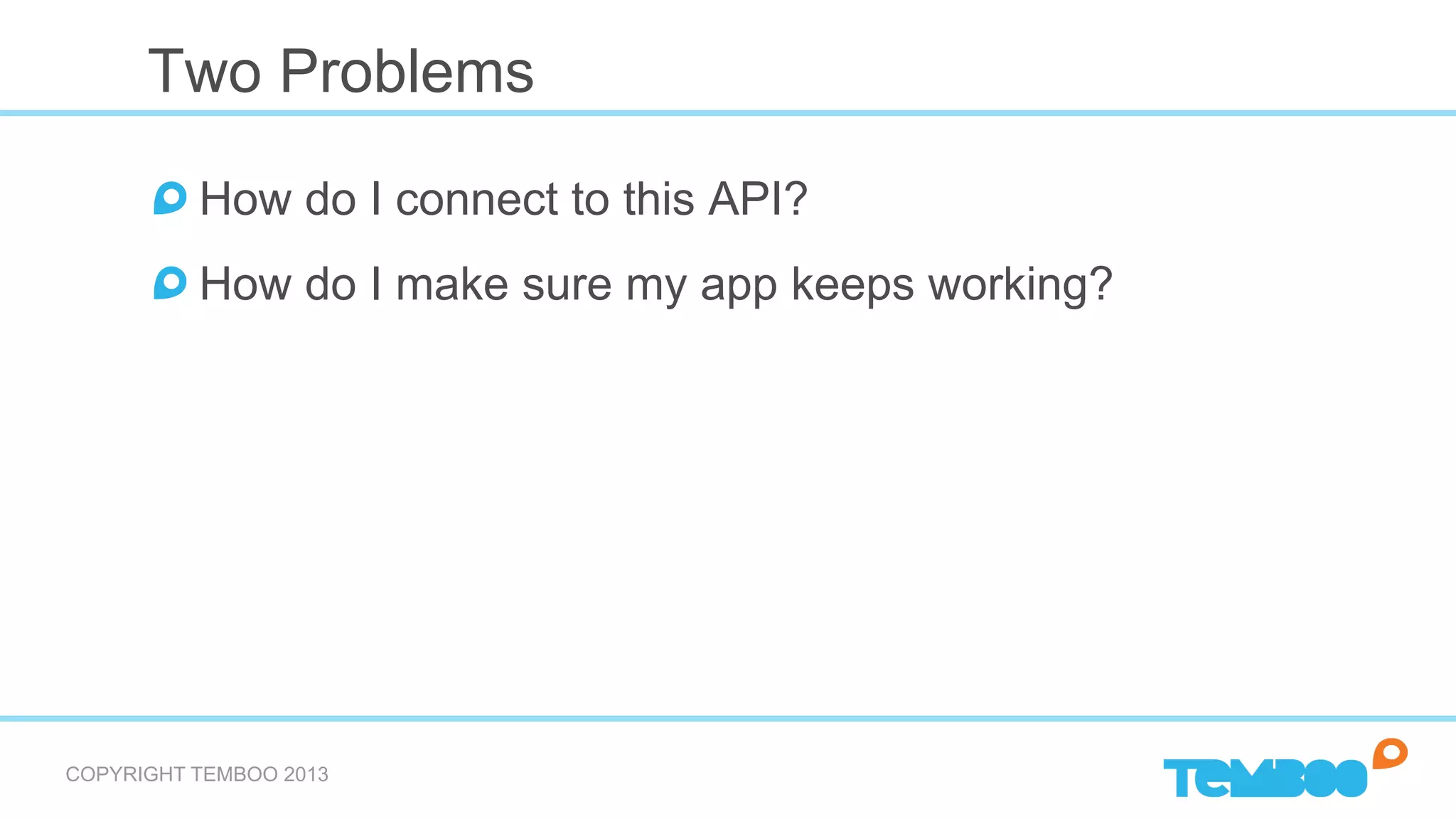

Two Problems
! How do I connect to this API?
! How do I make sure my app keeps working?

8. COPYRIGHT TEMBOO 2013

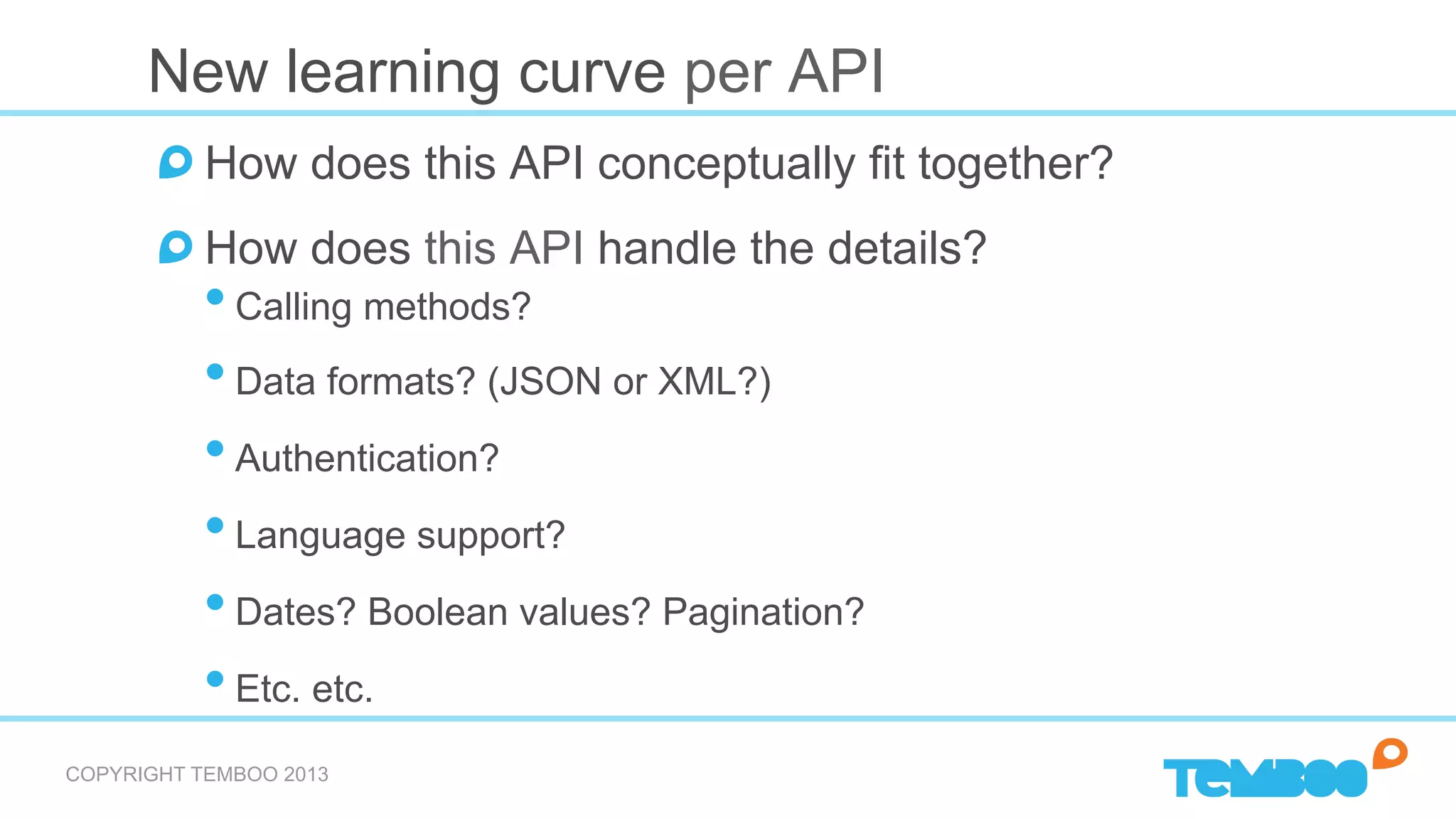

New learning curve per API
! How does this API conceptually fit together?
! How does this API handle the details?
• Calling methods?
• Data formats? (JSON or XML?)
• Authentication?
• Language support?
• Dates? Boolean values? Pagination?
• Etc. etc.

9. COPYRIGHT TEMBOO 2013

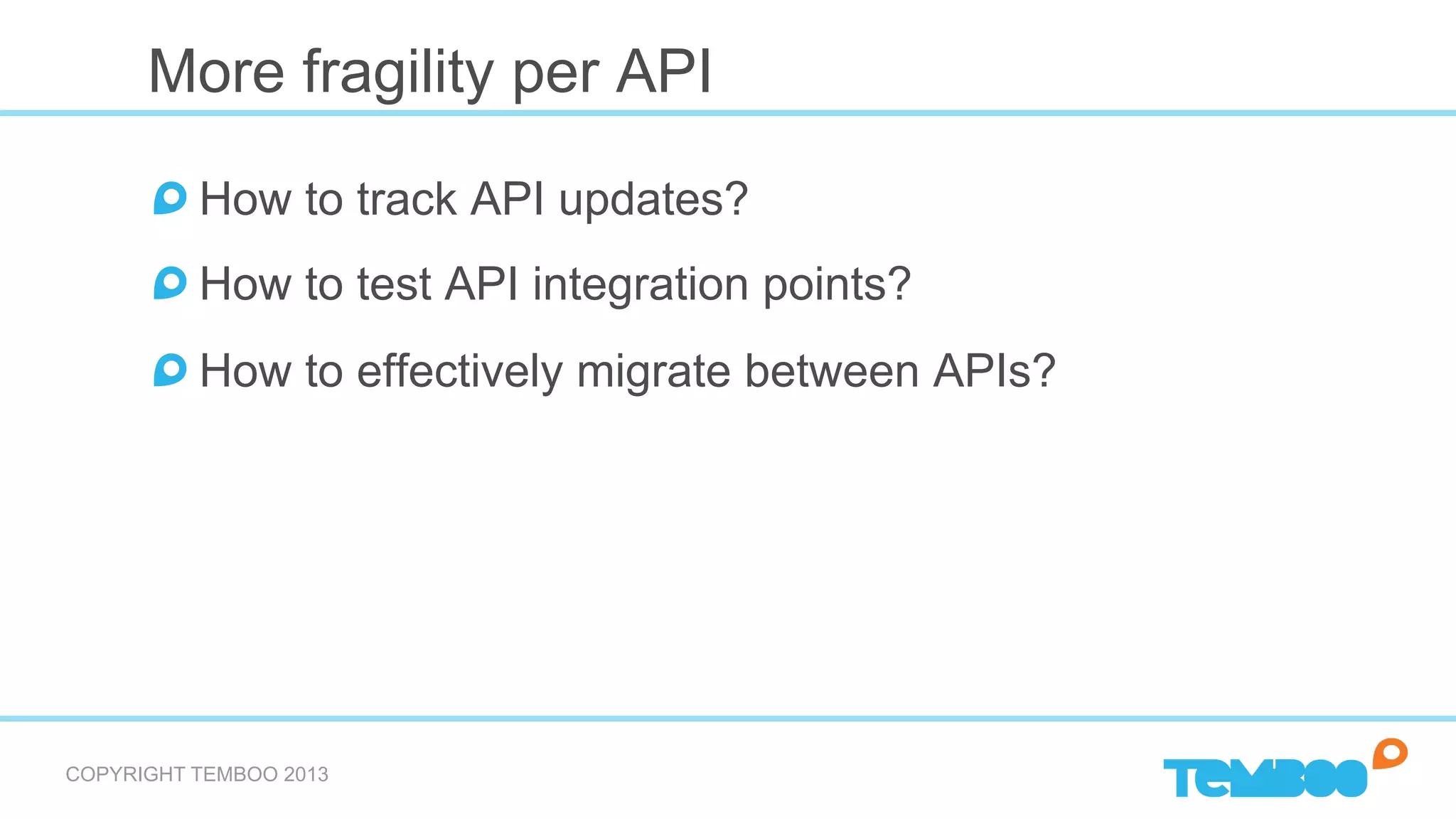

More fragility per API
! How to track API updates?
! How to test API integration points?
! How to effectively migrate between APIs?

10. COPYRIGHT TEMBOO 2013

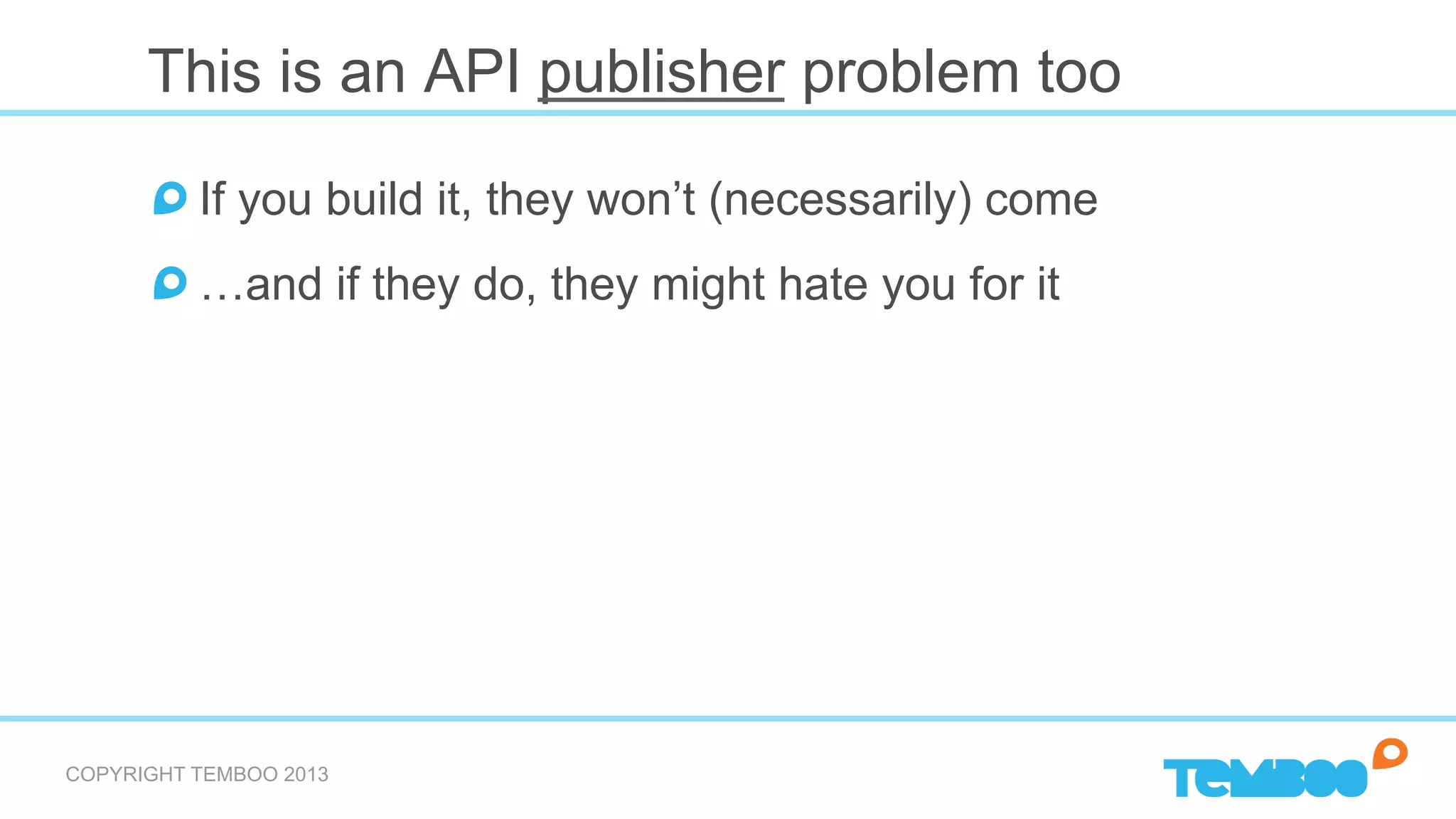

This is an API publisher problem too
! If you build it, they won’t (necessarily) come
! …and if they do, they might hate you for it

11. COPYRIGHT TEMBOO 2013

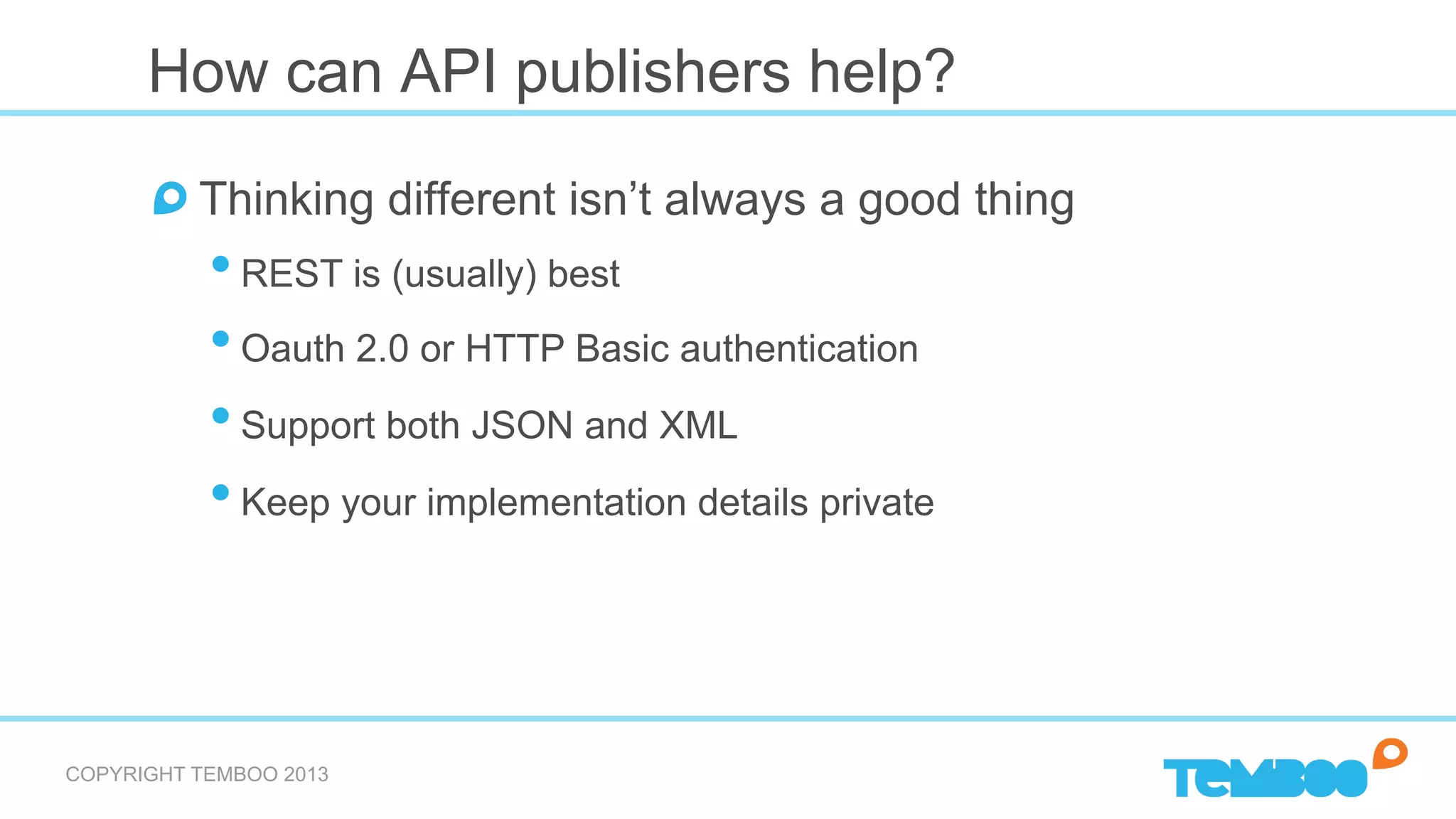

How can API publishers help?
! Thinking different isn’t always a good thing
• REST is (usually) best
• Oauth 2.0 or HTTP Basic authentication
• Support both JSON and XML
• Keep your implementation details private

12. COPYRIGHT TEMBOO 2013

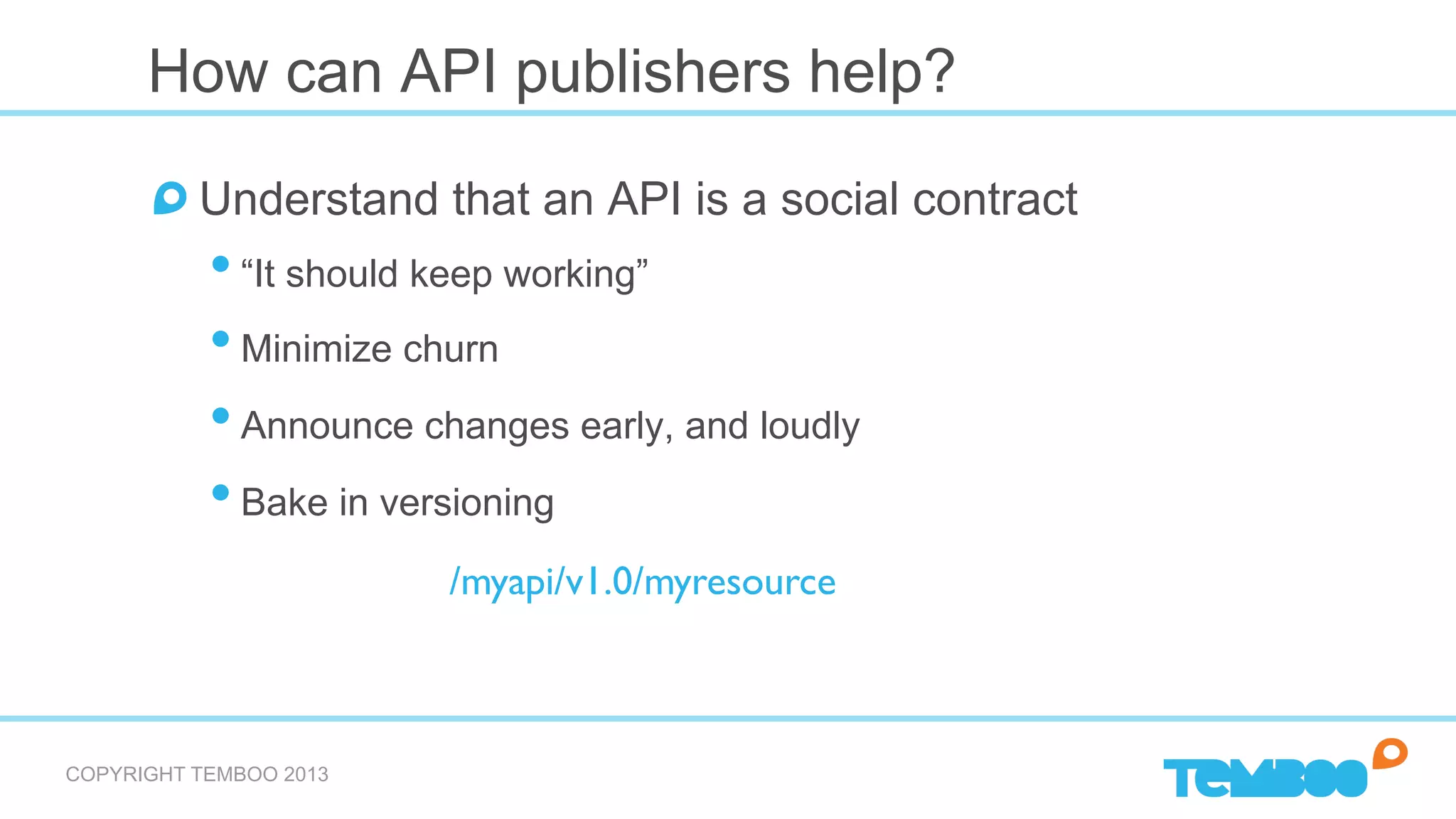

How can API publishers help?
! Understand that an API is a social contract
• “It should keep working”
• Minimize churn
• Announce changes early, and loudly
• Bake in versioning
/myapi/v1.0/myresource

13. COPYRIGHT TEMBOO 2013

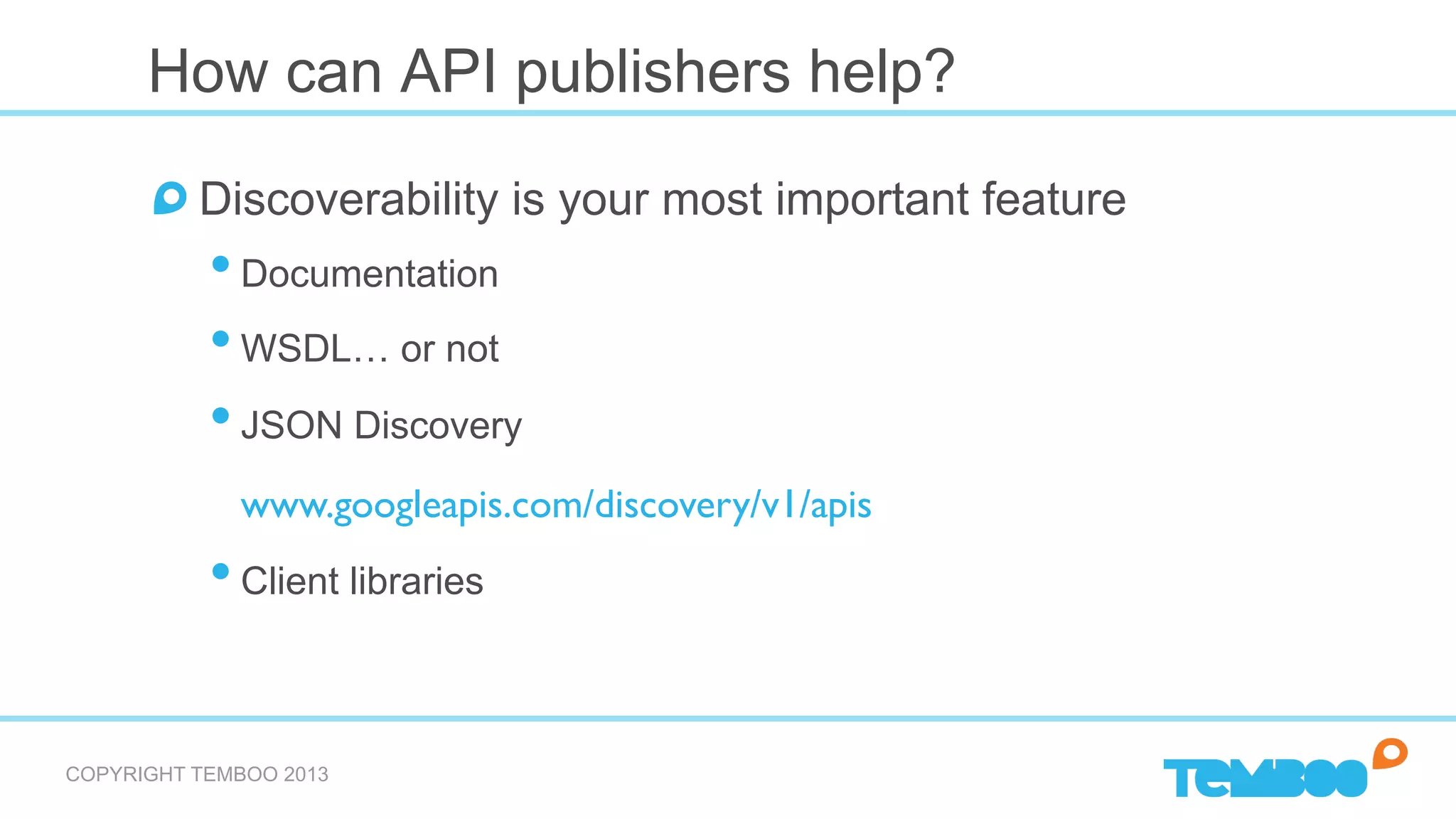

How can API publishers help?
! Discoverability is your most important feature
• Documentation
• WSDL… or not
• JSON Discovery
www.googleapis.com/discovery/v1/apis
• Client libraries

14. COPYRIGHT TEMBOO 2013

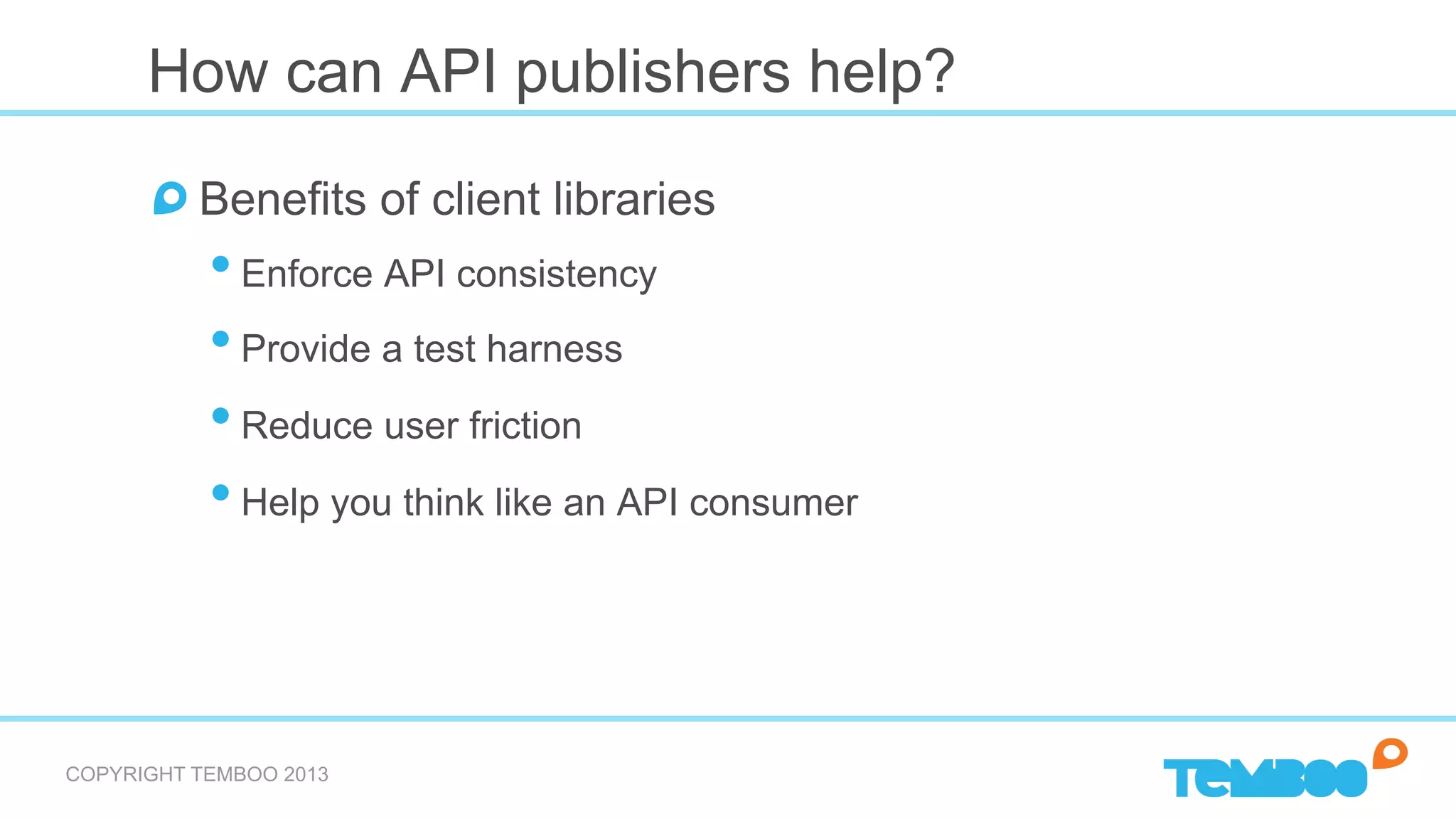

How can API publishers help?
! Benefits of client libraries
• Enforce API consistency
• Provide a test harness
• Reduce user friction
• Help you think like an API consumer

15. COPYRIGHT TEMBOO 2013

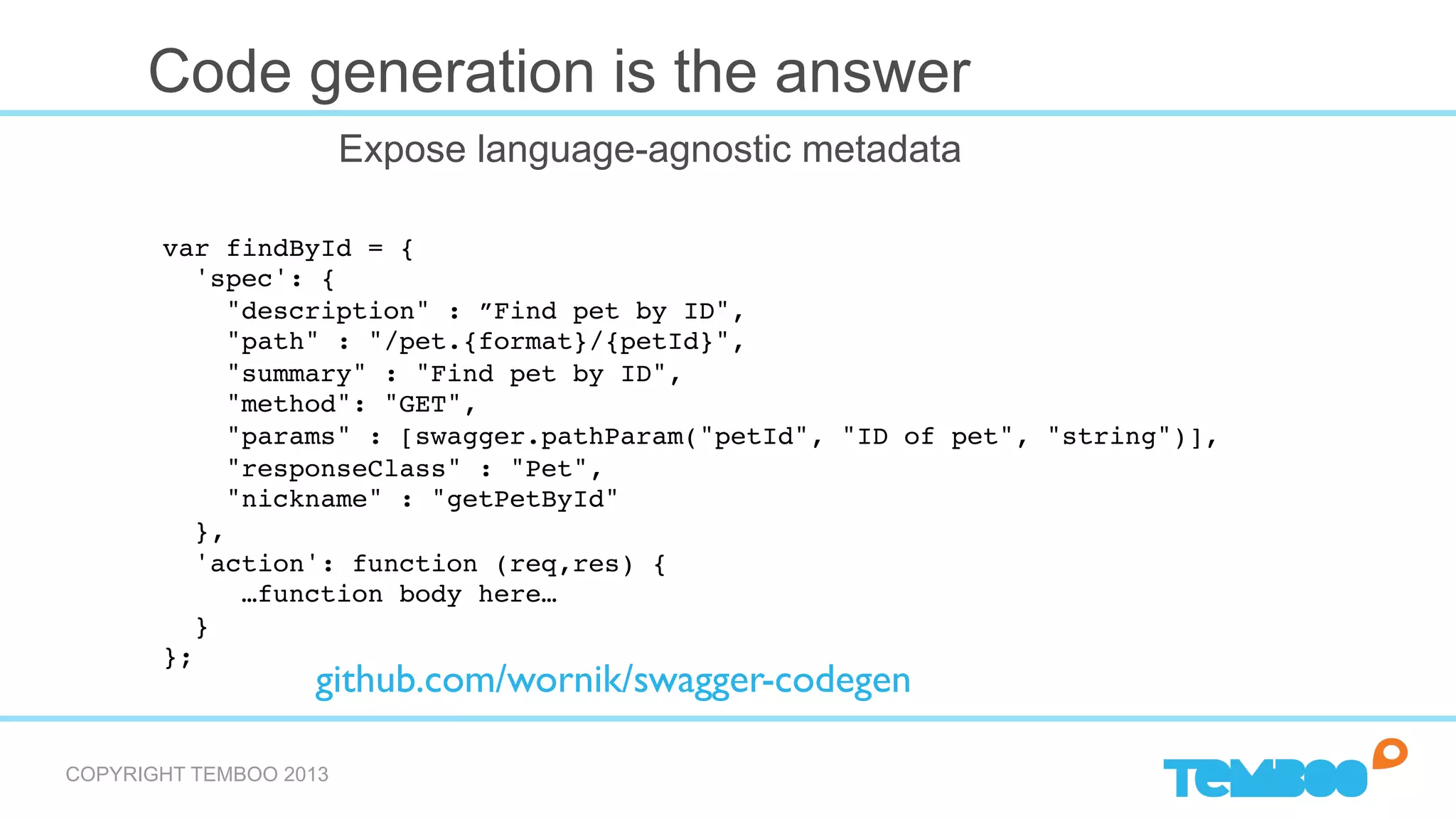

Code generation is the answer
Expose language-agnostic metadata
github.com/wornik/swagger-codegen
var findById = {!
'spec': {!
"description" : ”Find pet by ID",!
"path" : "/pet.{format}/{petId}",!
"summary" : "Find pet by ID",!
"method": "GET",!
"params" : [swagger.pathParam("petId", "ID of pet", "string")],!
"responseClass" : "Pet",!
"nickname" : "getPetById"!
},!
'action': function (req,res) {!
…function body here…!
}!
};!

16. COPYRIGHT TEMBOO 2013

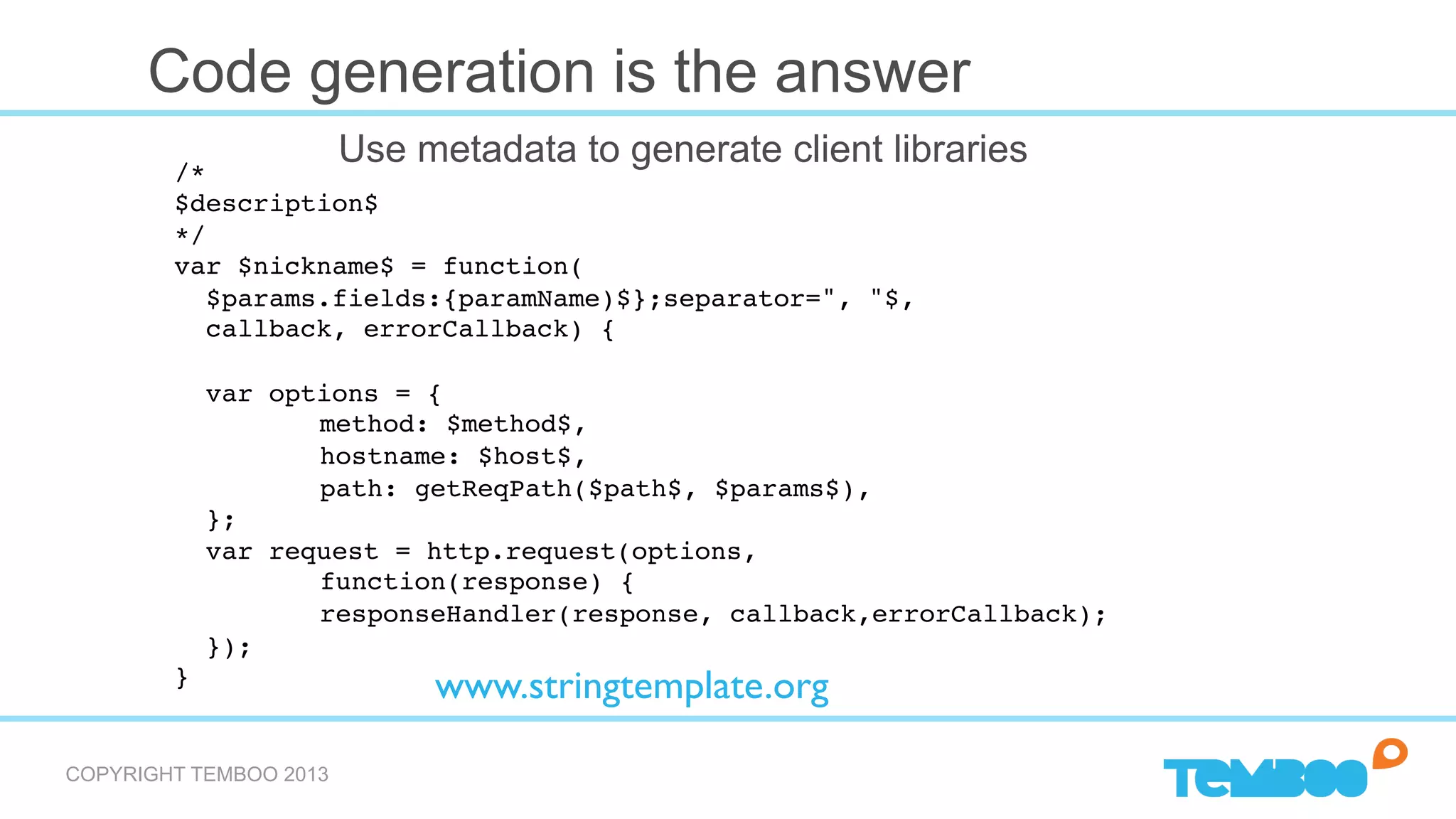

Code generation is the answer
Use metadata to generate client libraries
www.stringtemplate.org
/*!
$description$!
*/!
var $nickname$ = function(!
$params.fields:{paramName)$};separator=", "$,!
callback, errorCallback) { !
!
var options = { !
!method: $method$, !
!hostname: $host$, !
!path: getReqPath($path$, $params$), !
}; !
var request = http.request(options, !
!function(response) { !
!responseHandler(response, callback,errorCallback); !
});!
}!

17. COPYRIGHT TEMBOO 2013

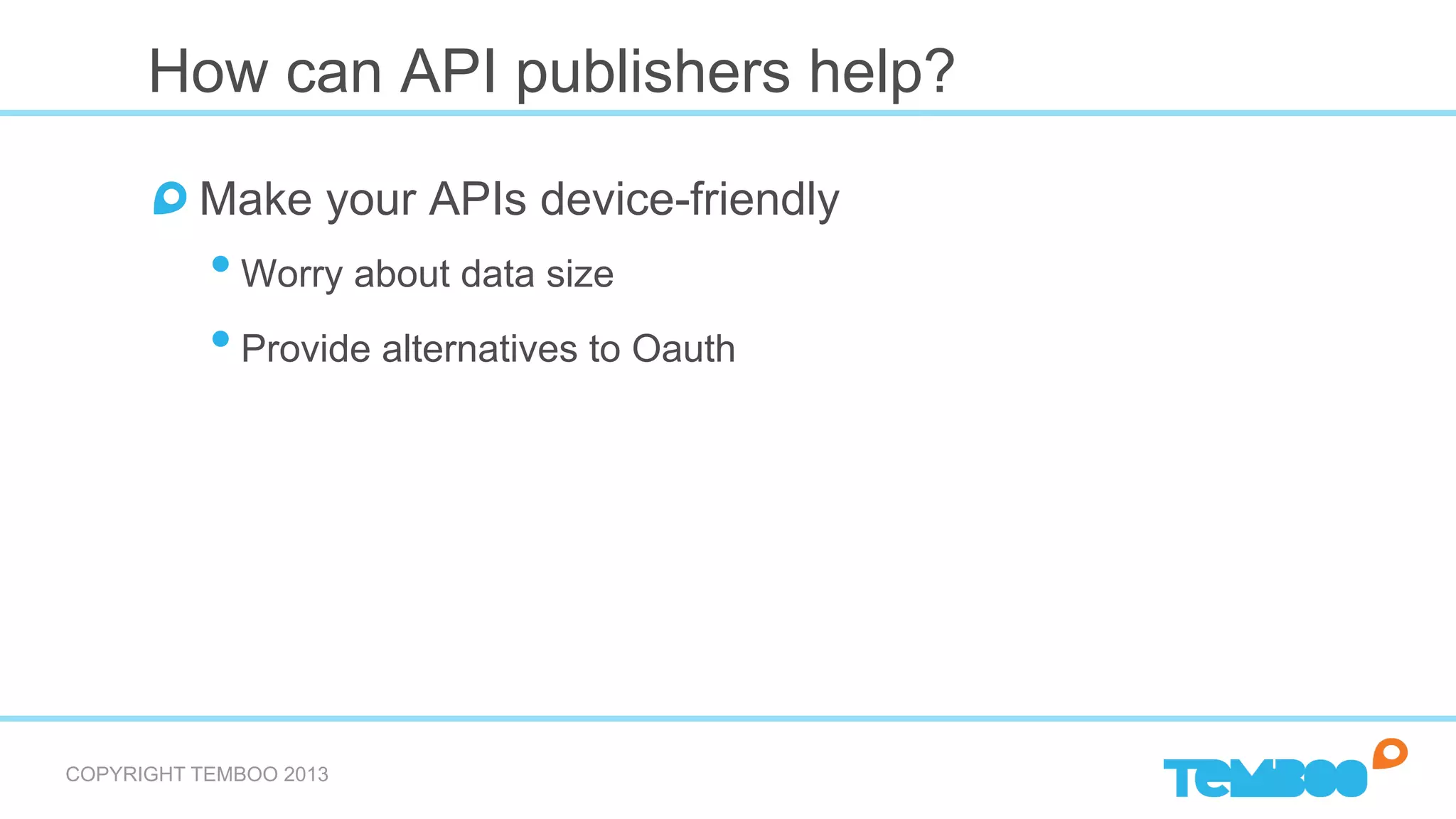

How can API publishers help?
! Make your APIs device-friendly
• Worry about data size
• Provide alternatives to Oauth

18. COPYRIGHT TEMBOO 2013

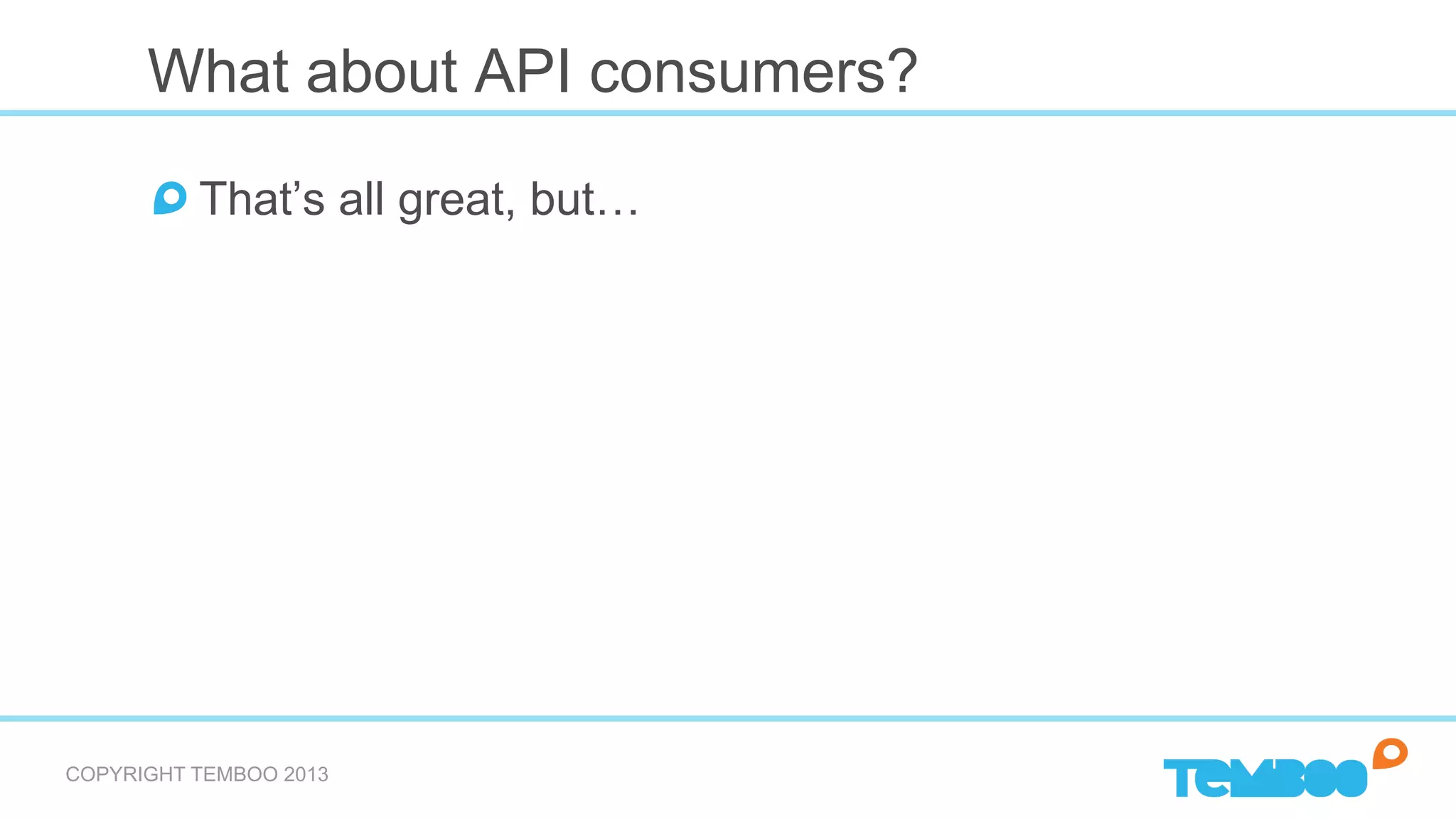

What about API consumers?
! That’s all great, but…

19. COPYRIGHT TEMBOO 2013

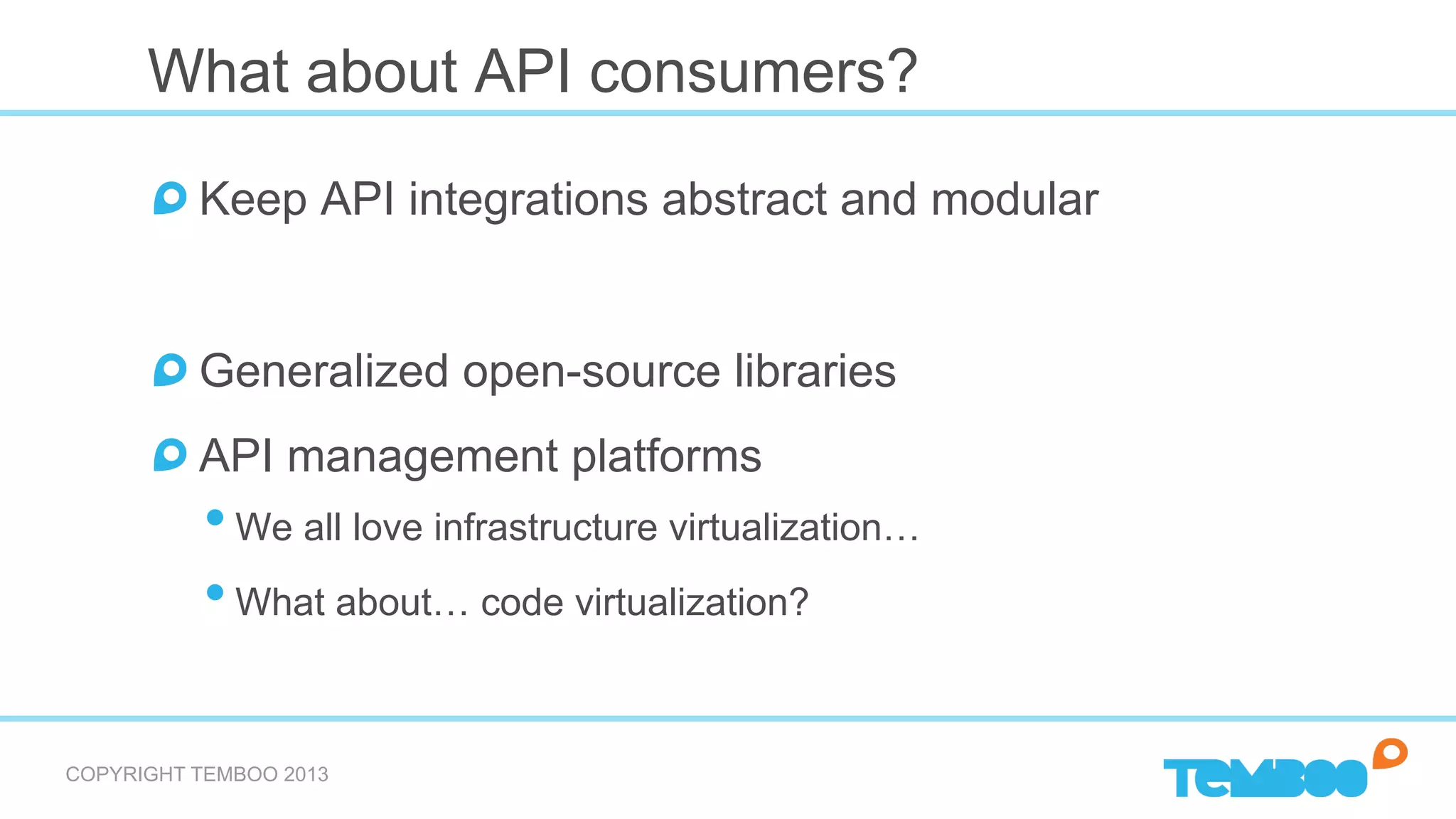

What about API consumers?
! Keep API integrations abstract and modular
! Generalized open-source libraries
! API management platforms
• We all love infrastructure virtualization…
• What about… code virtualization?

20. COPYRIGHT TEMBOO 2013

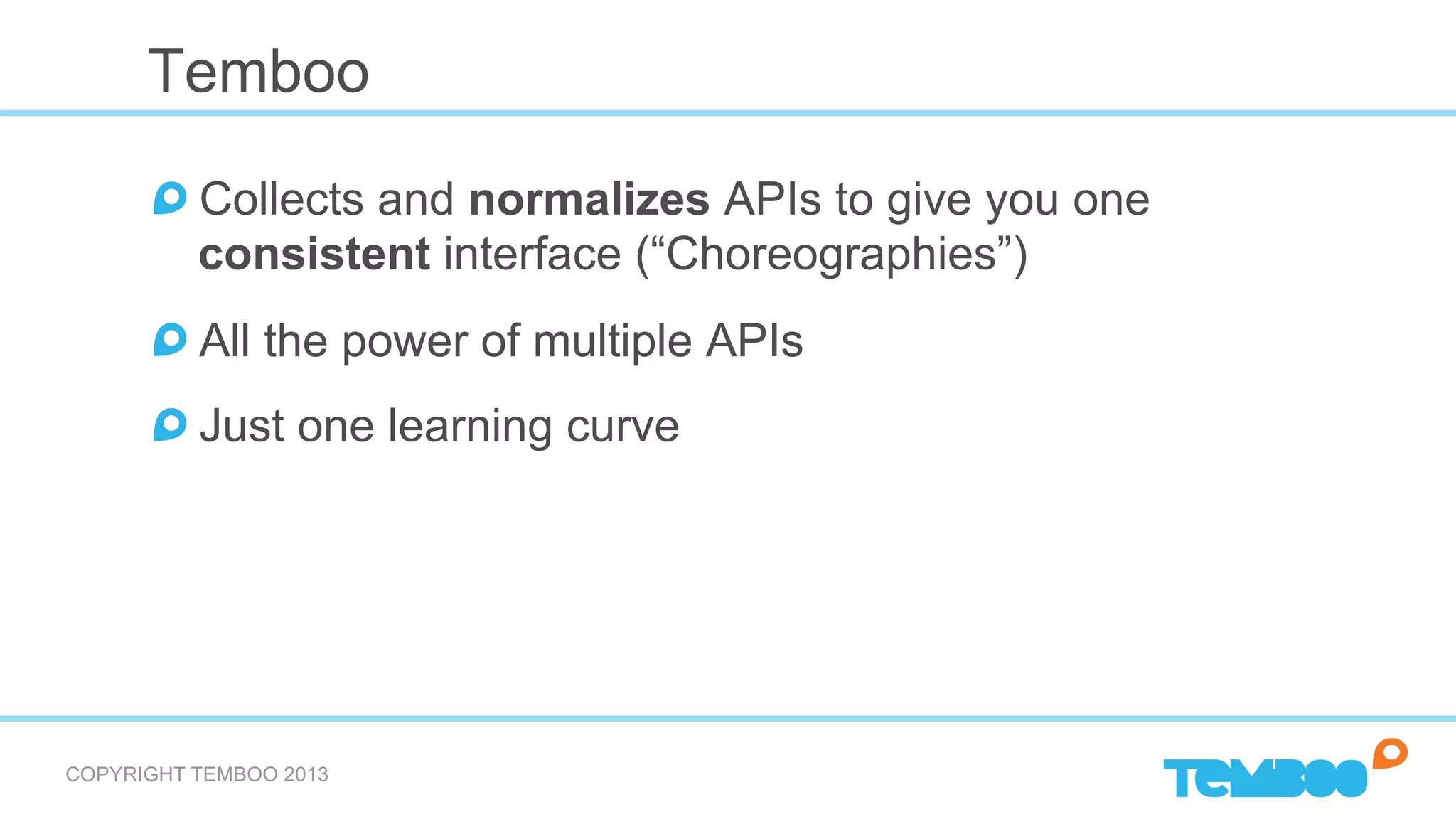

Temboo
! Collects and normalizes APIs to give you one
consistent interface (“Choreographies”)
! All the power of multiple APIs
! Just one learning curve

21. COPYRIGHT TEMBOO 2013
Temboo

22. COPYRIGHT TEMBOO 2013

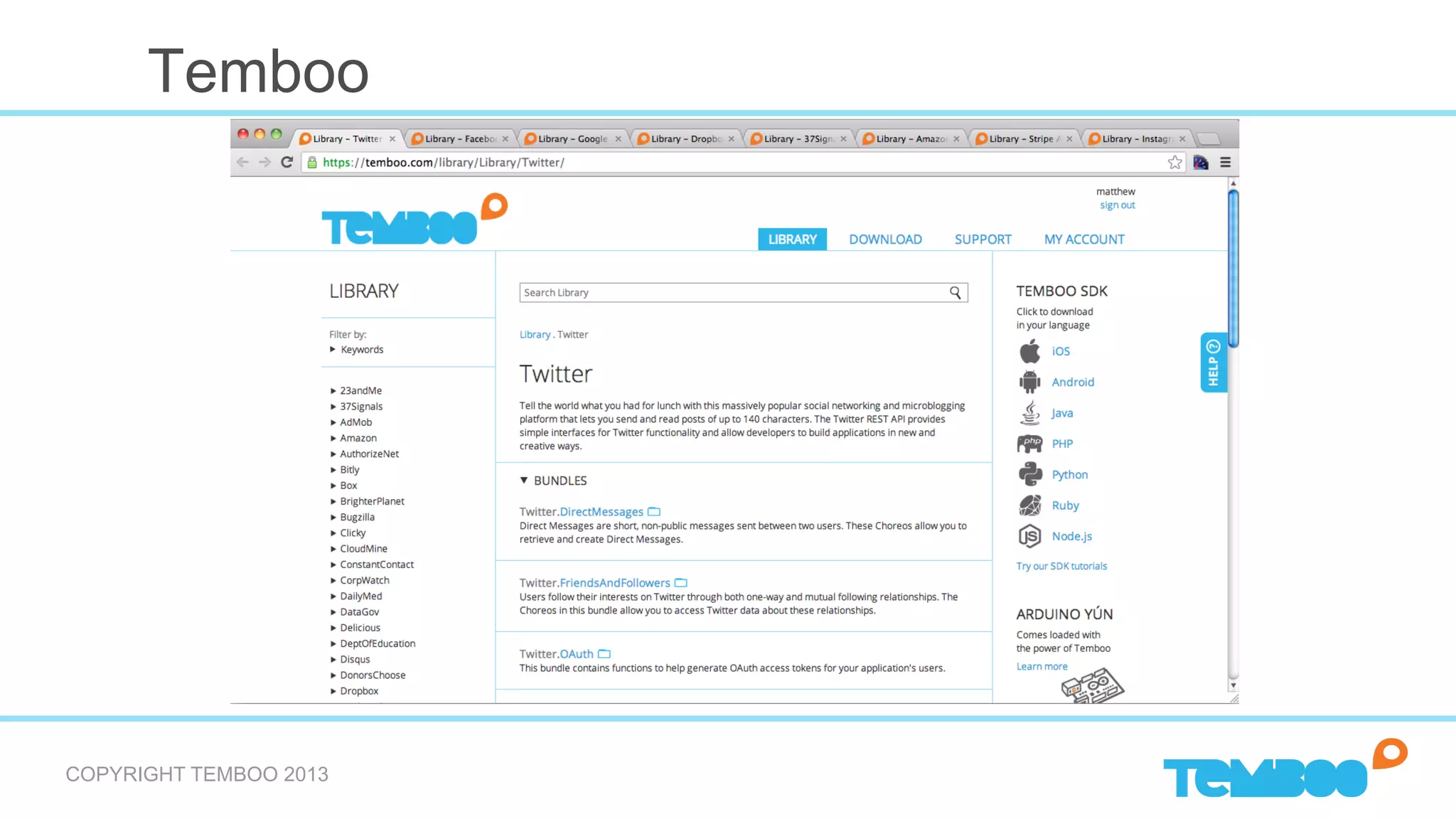

Temboo

23. COPYRIGHT TEMBOO 2013

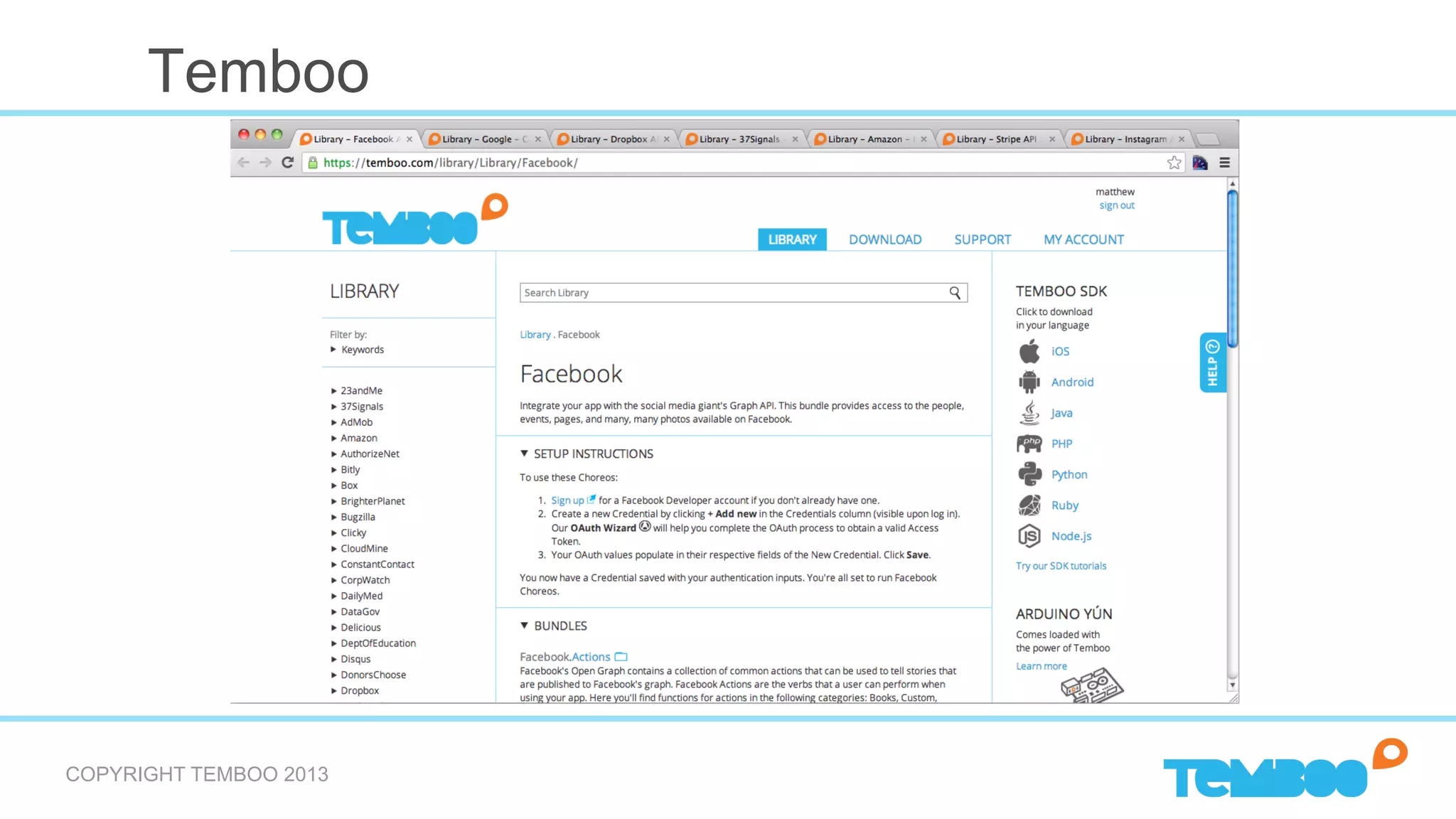

Temboo

24. COPYRIGHT TEMBOO 2013
Temboo

25. COPYRIGHT TEMBOO 2013
Temboo

26. COPYRIGHT TEMBOO 2013
Temboo

27. COPYRIGHT TEMBOO 2013
Temboo

28. COPYRIGHT TEMBOO 2013
Temboo

29. COPYRIGHT TEMBOO 2013
Temboo

30. COPYRIGHT TEMBOO 2013
Temboo
! Search Twitter (PHP)
$session = new Temboo_Session('matthew', ’myApp', ’demo');!
!
// Instantiate the Choreo!
$choreo = new Twitter_Search_Tweets($session);!
!
// Get an input object for the Choreo and set credential!
$inputs = $choreo ->newInputs();!
$inputs->setCredential('TwitterOAuthCredential');!
!
// Set inputs!
$inputs->setQuery("Yac2013");!
!
// Execute Choreo and get results!
$results = $choreo->execute($inputs)->getResults();!

31. COPYRIGHT TEMBOO 2013

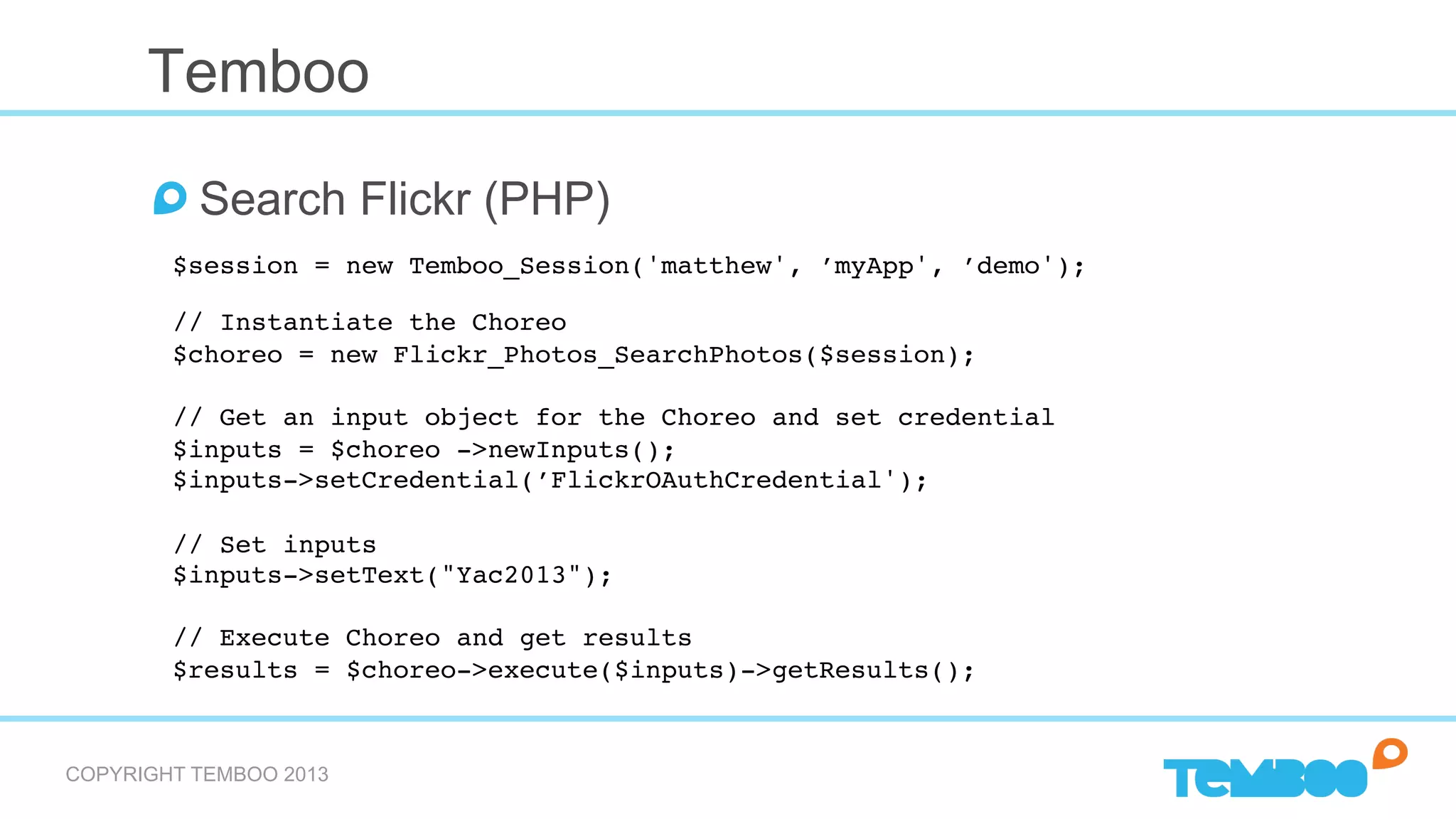

Temboo
! Search Flickr (PHP)
$session = new Temboo_Session('matthew', ’myApp', ’demo');!
!
// Instantiate the Choreo!
$choreo = new Flickr_Photos_SearchPhotos($session);!
!
// Get an input object for the Choreo and set credential!
$inputs = $choreo ->newInputs();!
$inputs->setCredential(’FlickrOAuthCredential');!
!
// Set inputs!
$inputs->setText("Yac2013");!
!
// Execute Choreo and get results!
$results = $choreo->execute($inputs)->getResults();!

32. COPYRIGHT TEMBOO 2013
Temboo
! Search Dropbox (PHP)
$session = new Temboo_Session('matthew', ’myApp', ’demo');!
!
// Instantiate the Choreo!
$choreo = new Dropbox_FilesAndMetadata_SearchFilesAndFolders($session);!
!
// Get an input object for the Choreo and set credential!
$inputs = $choreo ->newInputs();!
$inputs->setCredential(’DropboxOAuthCredential');!
!
// Set inputs!
$inputs->setQuery("Yac2013");!
!
// Execute Choreo and get results!
$results = $choreo->execute($inputs)->getResults();!

33. COPYRIGHT TEMBOO 2013

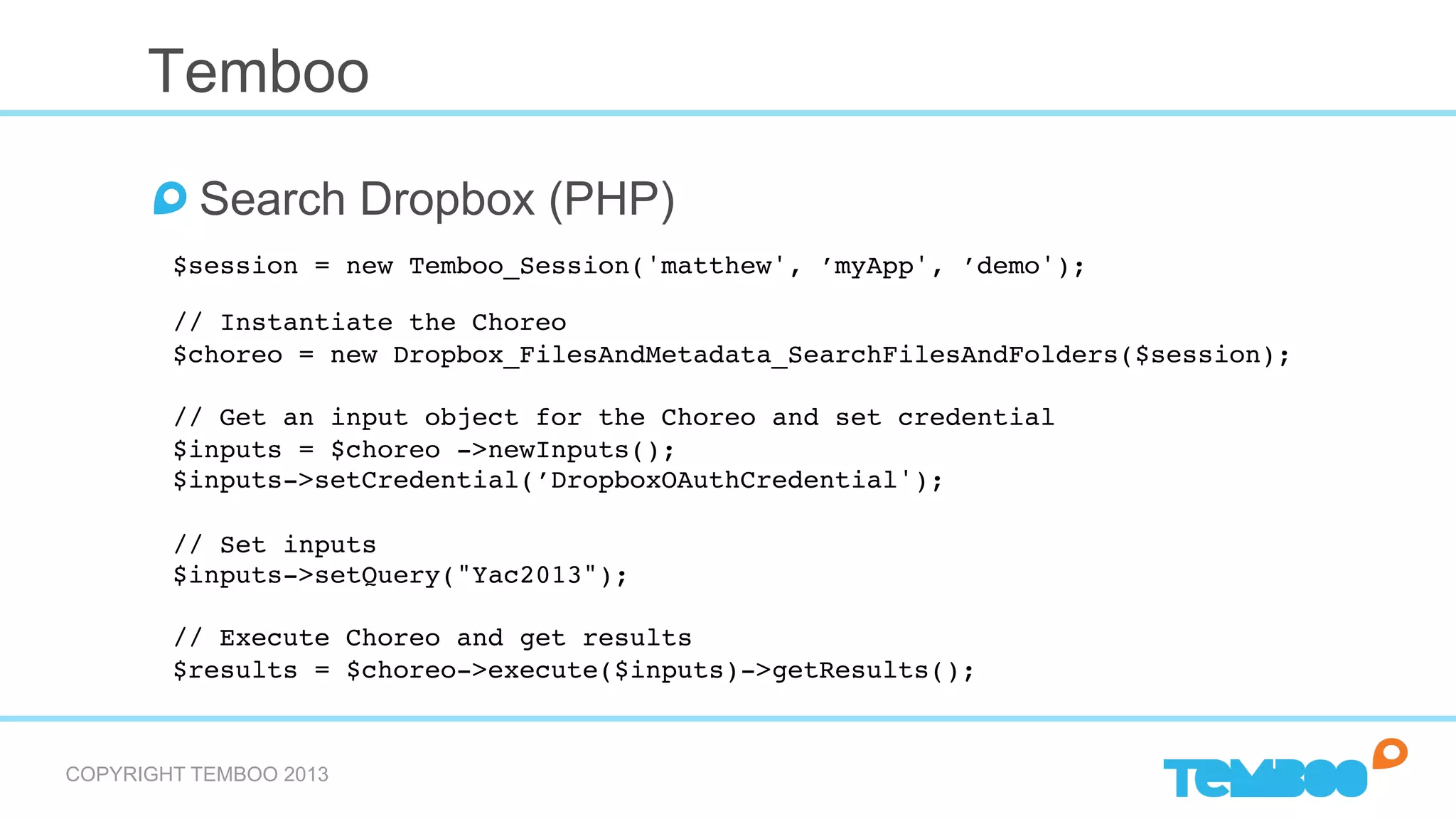

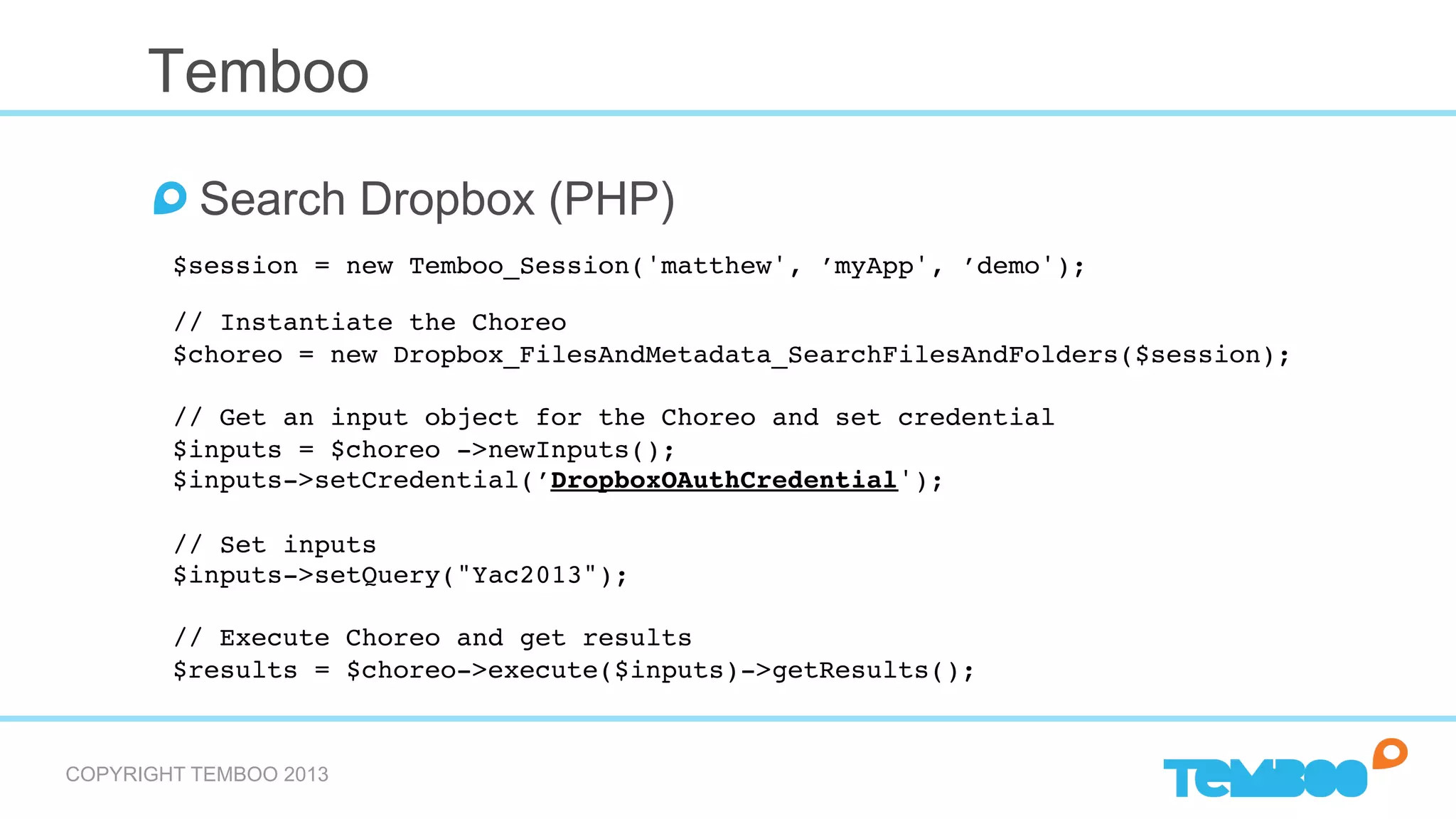

Temboo
! Search Dropbox (PHP)
$session = new Temboo_Session('matthew', ’myApp', ’demo');!
!
// Instantiate the Choreo!
$choreo = new Dropbox_FilesAndMetadata_SearchFilesAndFolders($session);!
!
// Get an input object for the Choreo and set credential!
$inputs = $choreo ->newInputs();!
$inputs->setCredential(’DropboxOAuthCredential');!
!
// Set inputs!
$inputs->setQuery("Yac2013");!
!
// Execute Choreo and get results!
$results = $choreo->execute($inputs)->getResults();!

34. COPYRIGHT TEMBOO 2013

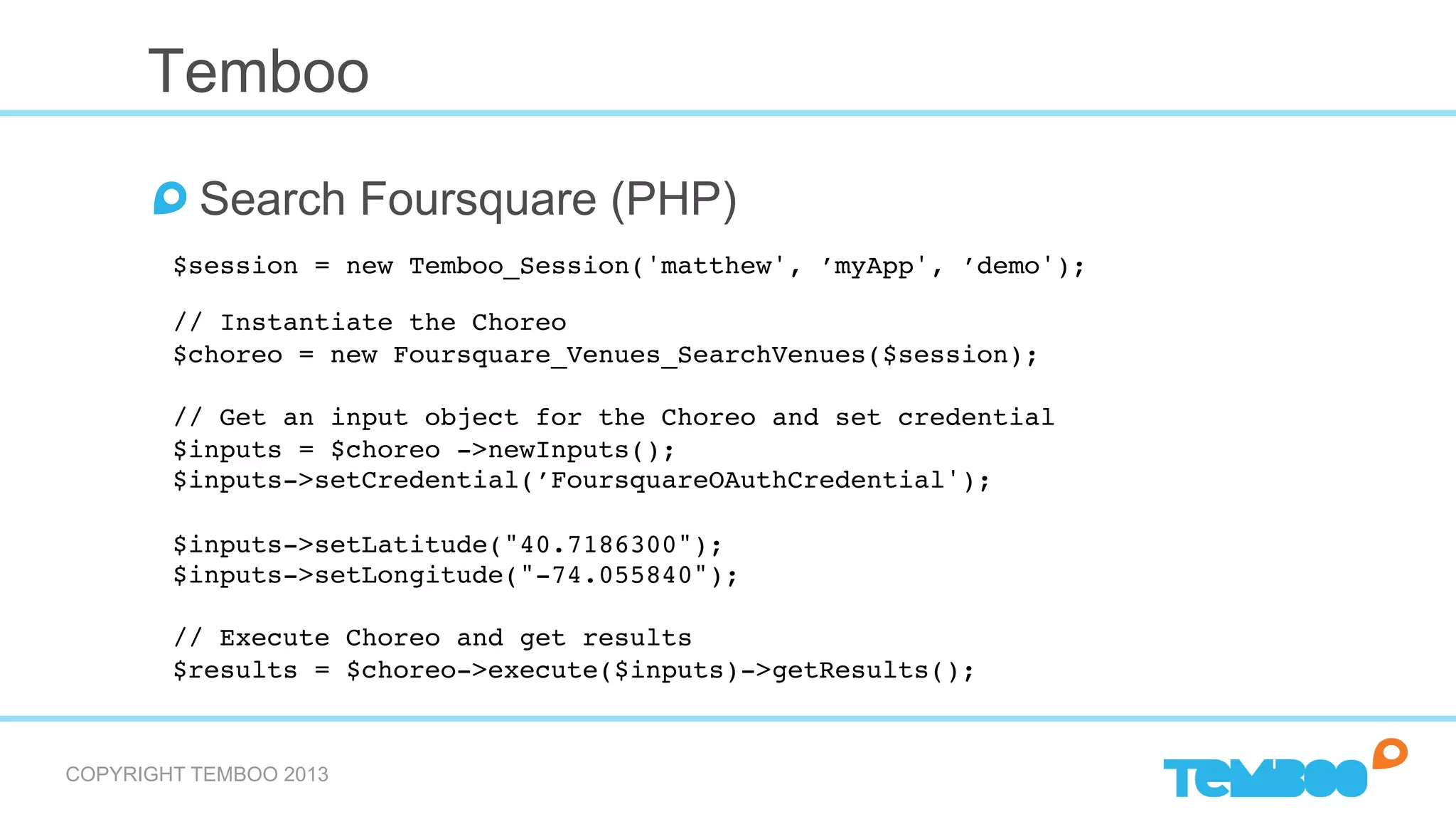

Temboo
! Search Foursquare (PHP)
$session = new Temboo_Session('matthew', ’myApp', ’demo');!
!
// Instantiate the Choreo!
$choreo = new Foursquare_Venues_SearchVenues($session);!
!
// Get an input object for the Choreo and set credential!
$inputs = $choreo ->newInputs();!
$inputs->setCredential(’FoursquareOAuthCredential');!
!
$inputs->setLatitude("40.7186300");!
$inputs->setLongitude("-74.055840");!
!
// Execute Choreo and get results!
$results = $choreo->execute($inputs)->getResults();!

35. COPYRIGHT TEMBOO 2013

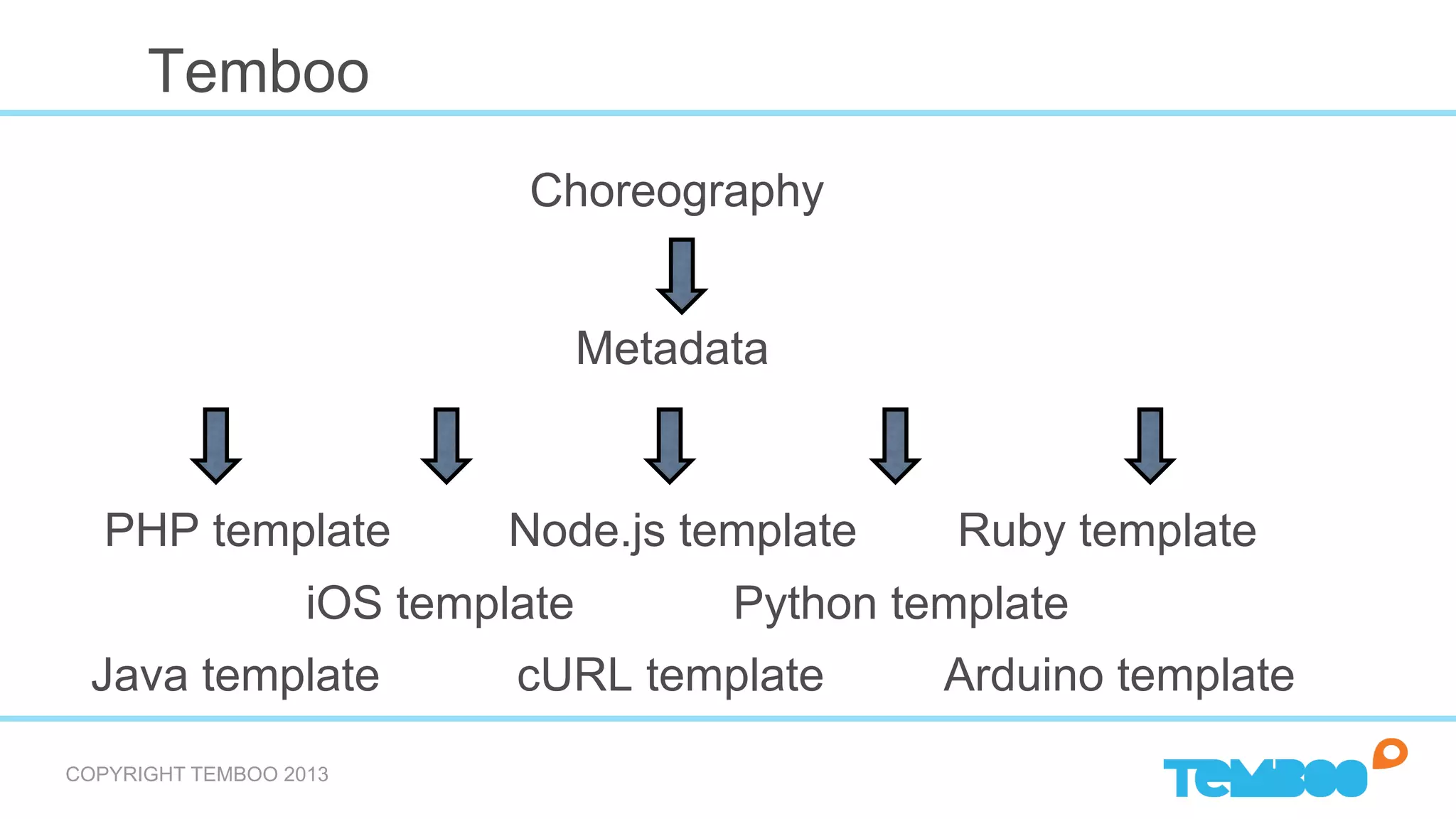

Temboo
Choreography
Metadata
PHP template Node.js template Ruby template
iOS template Python template
Java template cURL template Arduino template

36. COPYRIGHT TEMBOO 2013

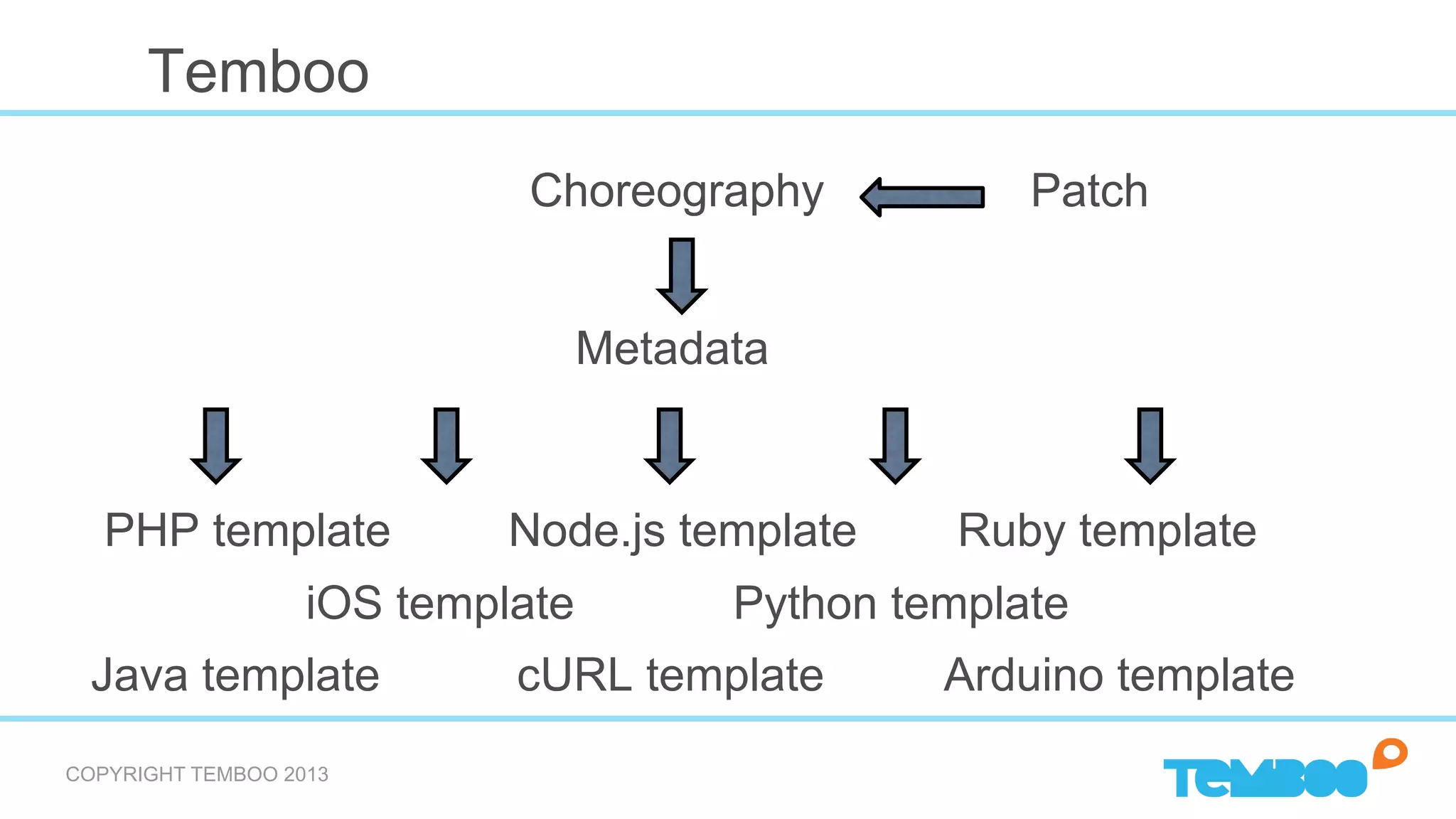

Temboo
Choreography
Metadata
PHP template Node.js template Ruby template
iOS template Python template
Java template cURL template Arduino template
Patch

37. COPYRIGHT TEMBOO 2013

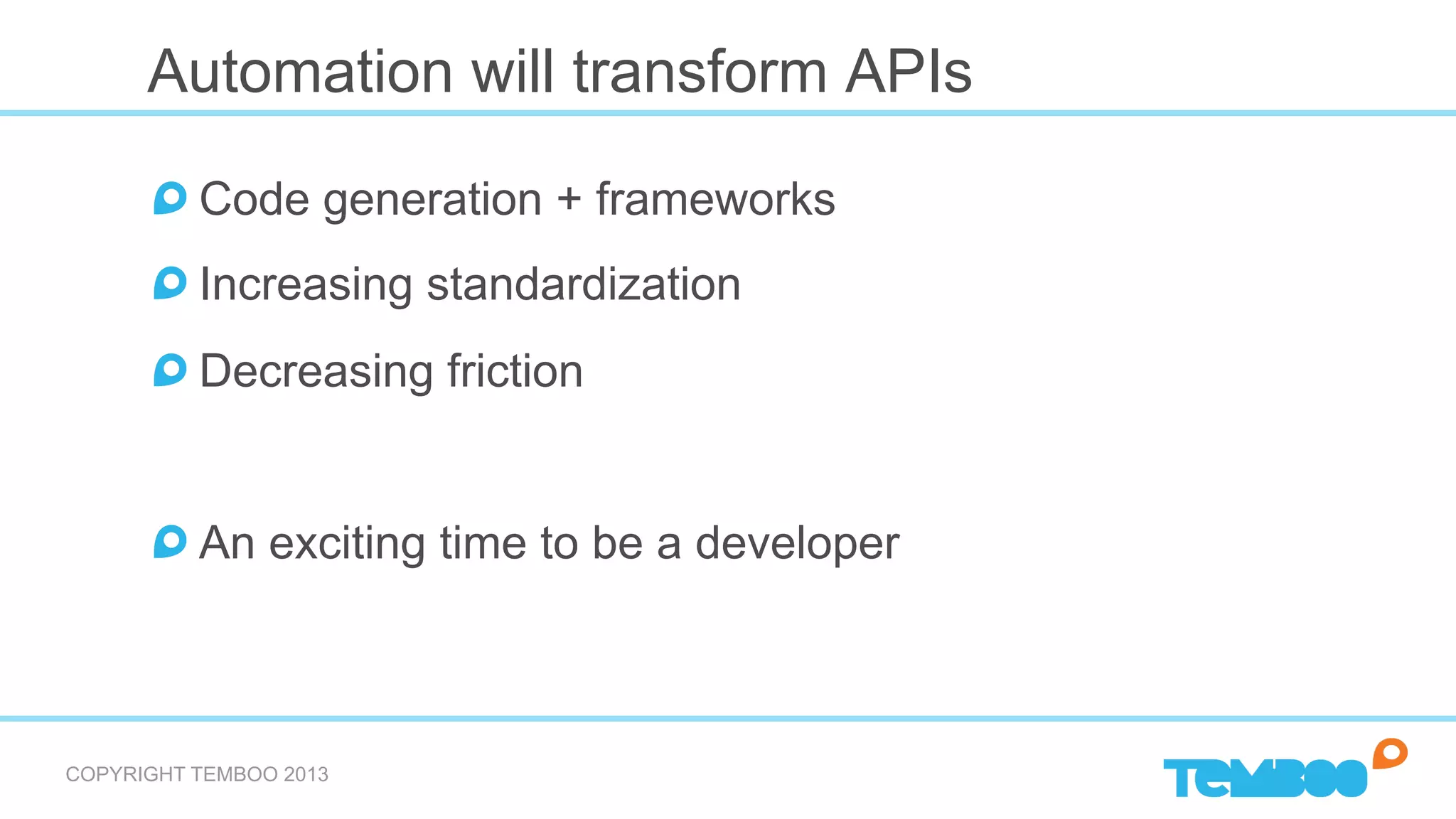

Automation will transform APIs
! Code generation + frameworks
! Increasing standardization
! Decreasing friction
! An exciting time to be a developer

38. COPYRIGHT TEMBOO 2013
Thanks!
matthew.flaming@temboo.com
@mflaming
@temboo
