This document discusses different types of mechanical joints used in manufacturing, including fasteners, swaging, press fitting, and integral hinges. Swaging involves bending and crimping plastic parts to join them, either with or without heat. Snap fits use locating and locking features molded into the parts themselves to mechanically join components together, and are commonly used in toys, appliances, automotive parts, and electronics.

1. PRESENTED BY:-
BADAL PANCHAL (ROLL NO-T3730)
CLASS :- TYPPE
YEAR :-2013-2014

2. TYPES OF MECHANICAL
JOINTS
By using
fasteners
Swaging
Press fitting
Integral or
living hinges

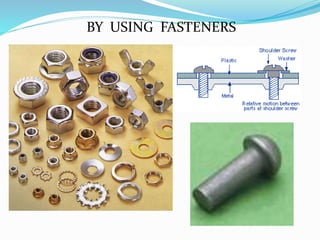

3. BY USING FASTENERS

4. SWAGING
Swaging involves bending and crimping a plastic
part with or without heat to join two parts.

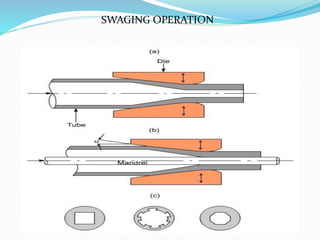

5. SWAGING OPERATION

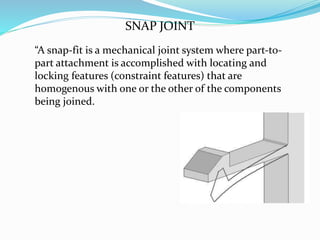

6. “A snap-fit is a mechanical joint system where part-to-
part attachment is accomplished with locating and
locking features (constraint features) that are
homogenous with one or the other of the components
being joined.
SNAP JOINT

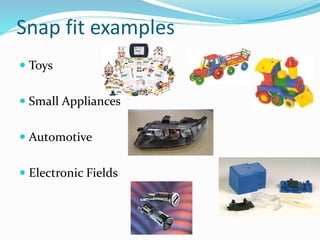

7. Snap fit examples
 Toys
 Small Appliances
 Automotive
 Electronic Fields

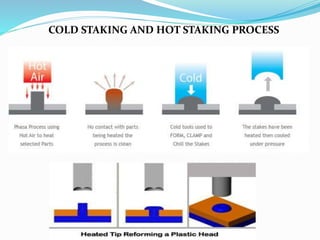

8. COLD STAKING AND HOT STAKING PROCESS

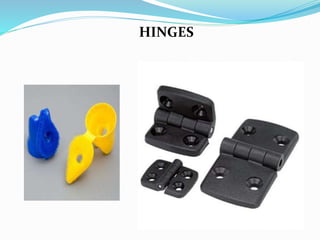

9. HINGES
