Maze & Associates PCI Compliance Tracker for Local Governments
The document provides steps for organizations to document how they handle credit card information to be compliant with PCI standards. It outlines documenting merchant level and acquirers, payment applications, physical locations and electronic storage of cardholder data, data transmission flows, and policies needed to address PCI requirements. Completing these documentation steps will help organizations implement applicable PCI controls and determine their validation requirements.
More Related Content
Similar to Maze & Associates PCI Compliance Tracker for Local Governments
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Maze & Associates PCI Compliance Tracker for Local Governments

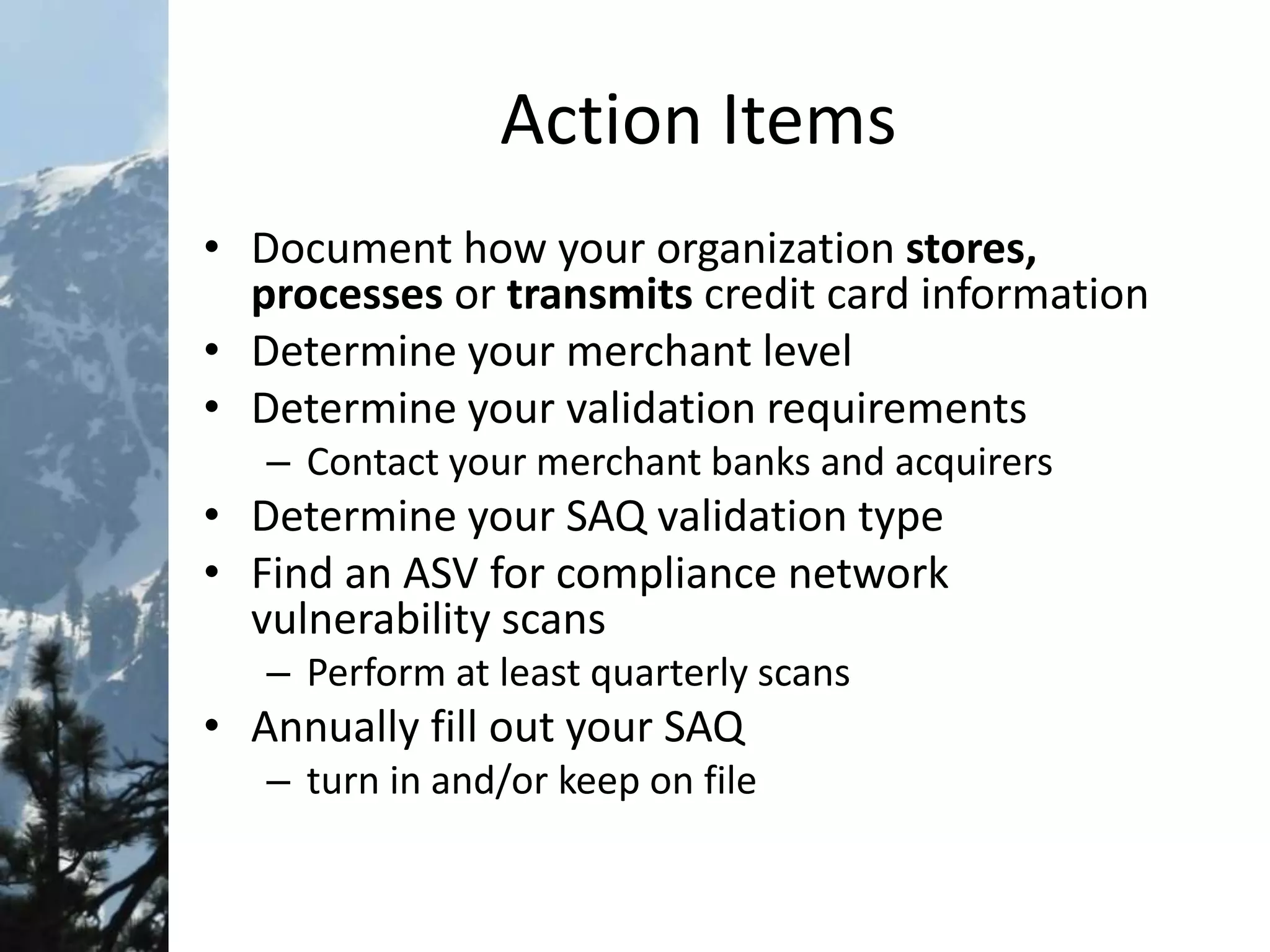

- 2. Action Items • Documenthow your organization stores, processes or transmits credit card information • Determine your merchant level • Determine your validation requirements – Contact your merchant banks and acquirers • Determine your SAQ validation type • Find an ASV for compliance network vulnerability scans – Perform at least quarterly scans • Annually fill out your SAQ – turn in and/or keep on file

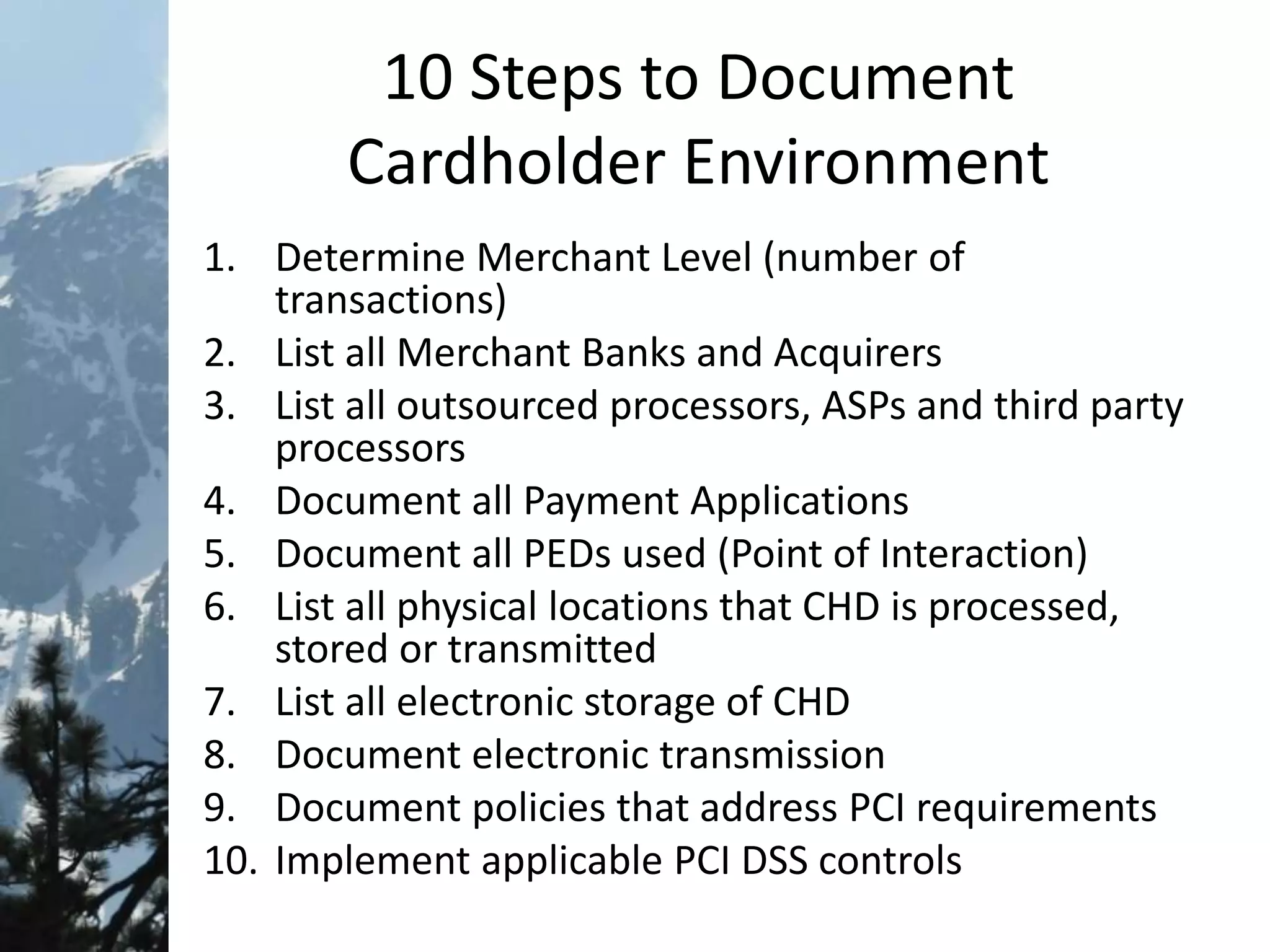

- 3. 10 Steps toDocument Cardholder Environment 1. Determine Merchant Level (number of transactions) 2. List all Merchant Banks and Acquirers 3. List all outsourced processors, ASPs and third party processors 4. Document all Payment Applications 5. Document all PEDs used (Point of Interaction) 6. List all physical locations that CHD is processed, stored or transmitted 7. List all electronic storage of CHD 8. Document electronic transmission 9. Document policies that address PCI requirements 10. Implement applicable PCI DSS controls

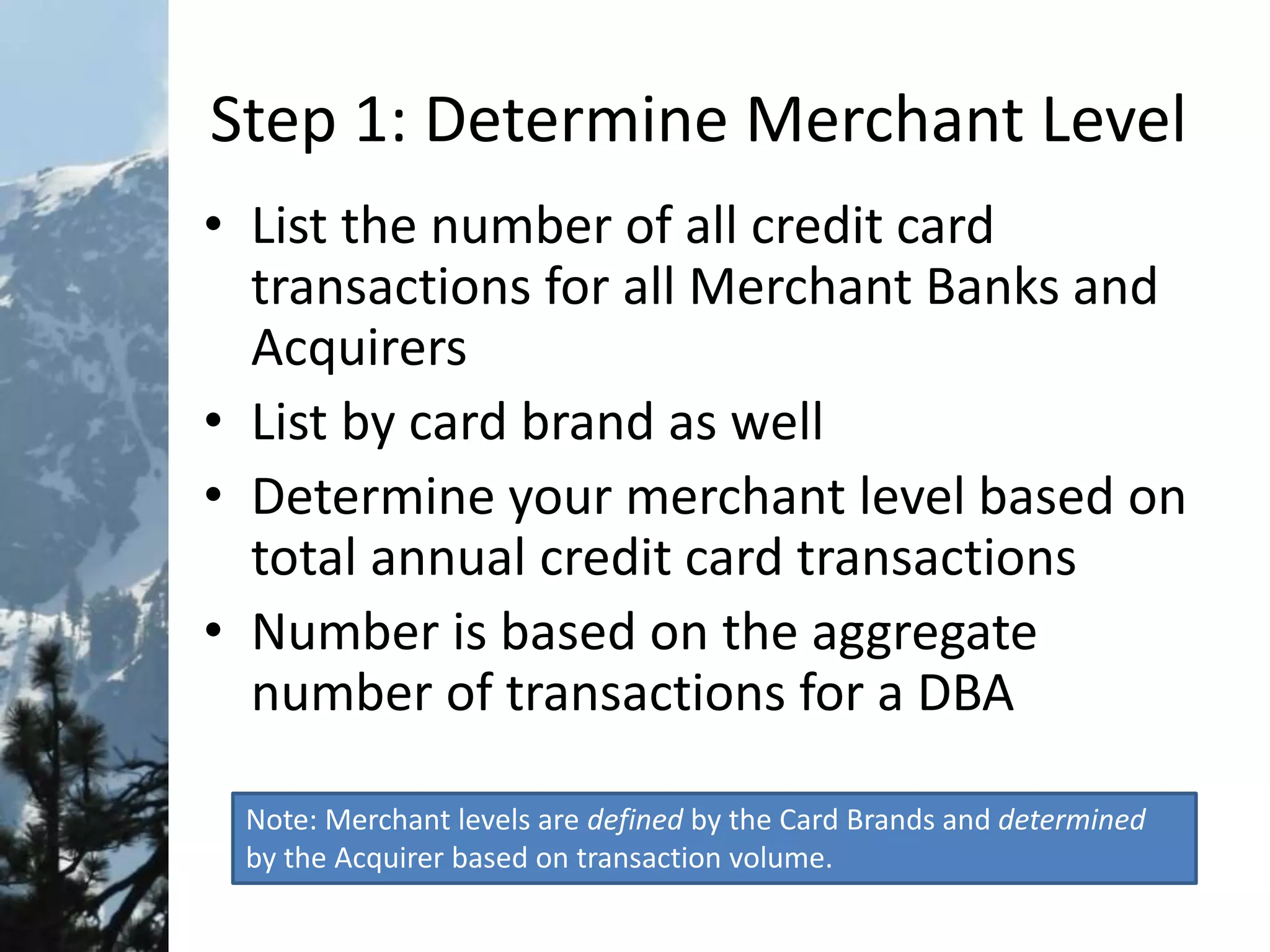

- 4. Step 1: DetermineMerchant Level • List the number of all credit card transactions for all Merchant Banks and Acquirers • List by card brand as well • Determine your merchant level based on total annual credit card transactions • Number is based on the aggregate number of transactions for a DBA Note: Merchant levels are defined by the Card Brands and determined by the Acquirer based on transaction volume.

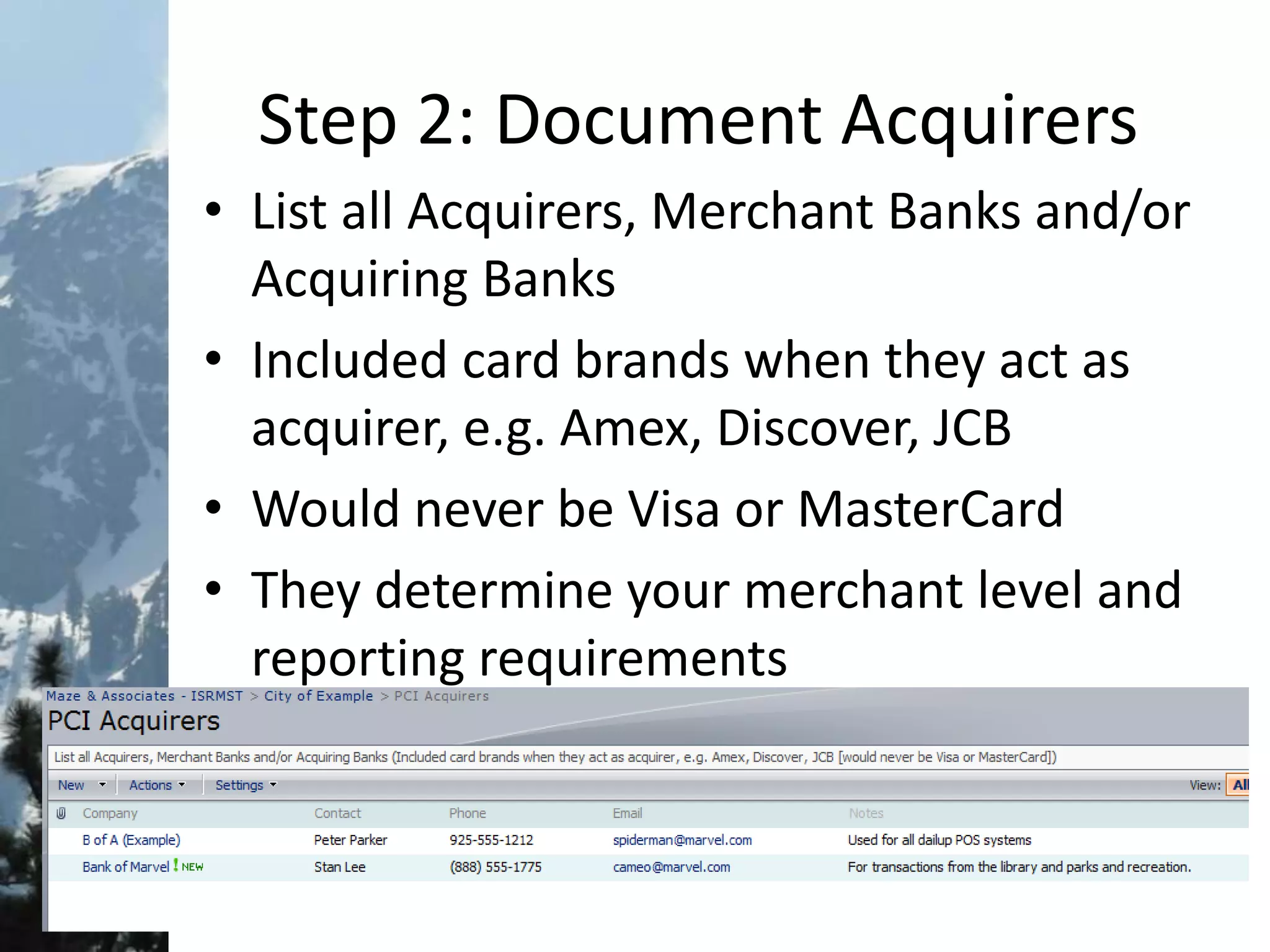

- 5. Step 2: DocumentAcquirers • List all Acquirers, Merchant Banks and/or Acquiring Banks • Included card brands when they act as acquirer, e.g. Amex, Discover, JCB • Would never be Visa or MasterCard • They determine your merchant level and reporting requirements

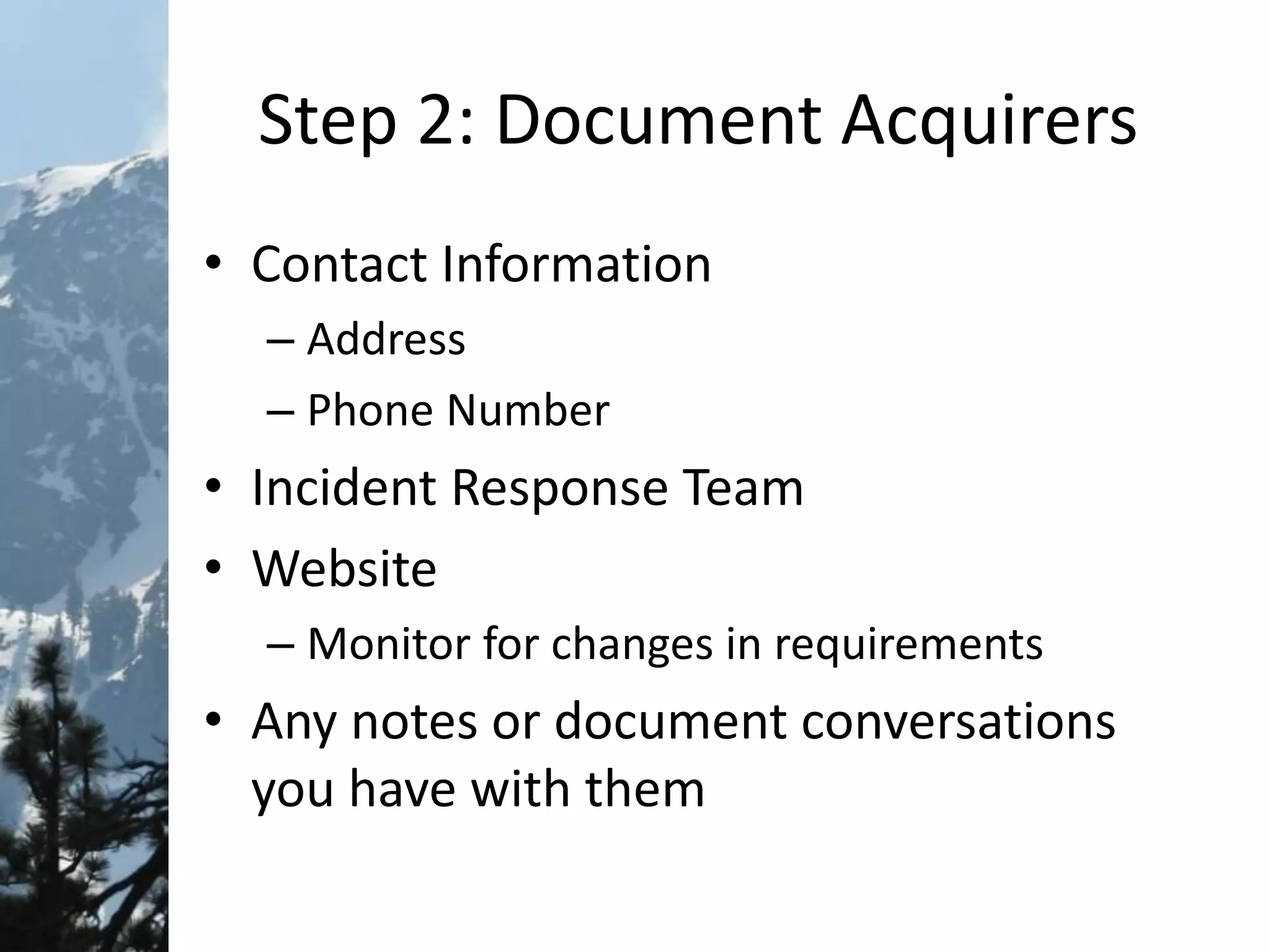

- 6. Step 2: DocumentAcquirers • Contact Information – Address – Phone Number • Incident Response Team • Website – Monitor for changes in requirements • Any notes or document conversations you have with them

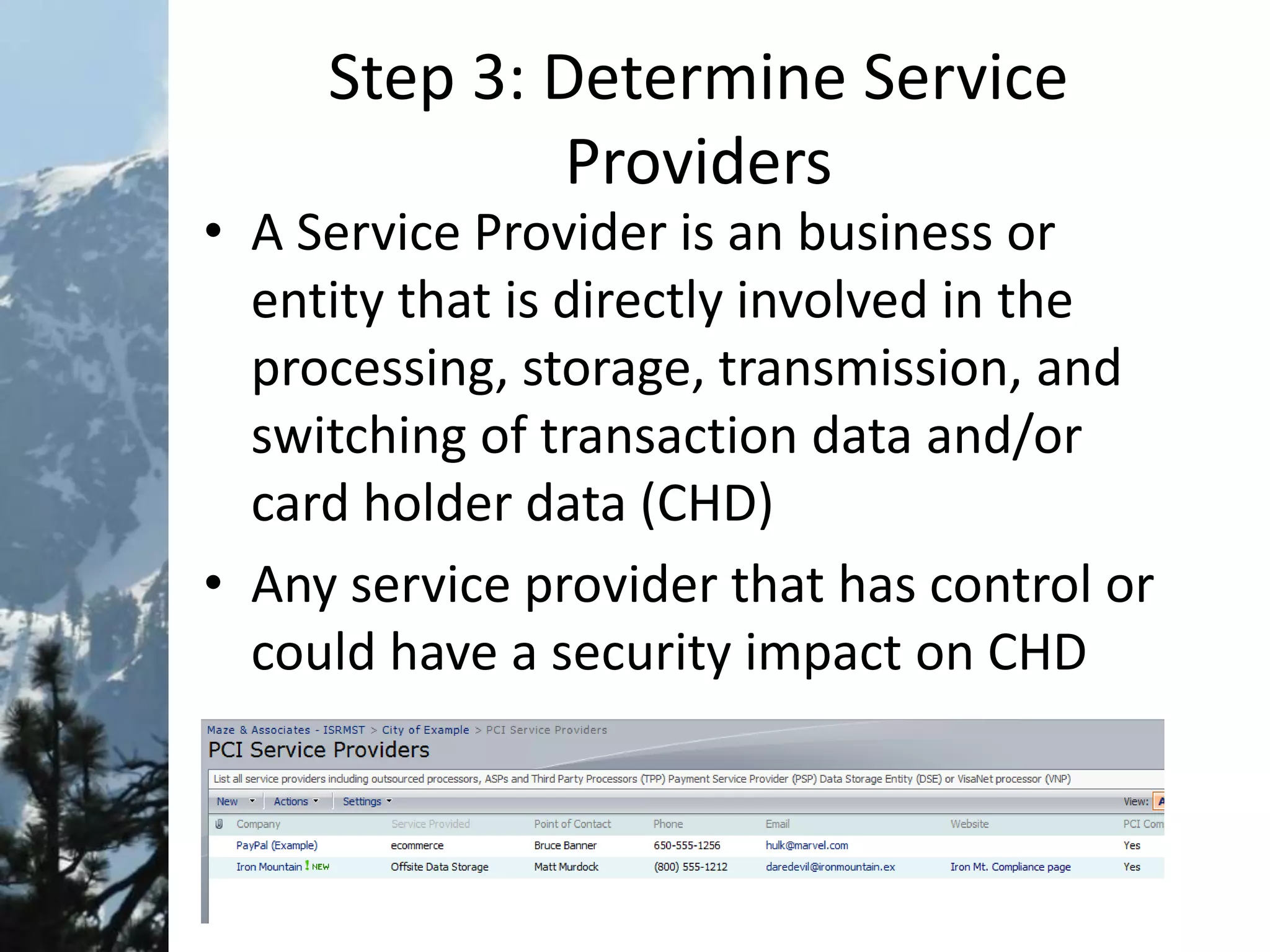

- 7. Step 3: DetermineService Providers • A Service Provider is an business or entity that is directly involved in the processing, storage, transmission, and switching of transaction data and/or card holder data (CHD) • Any service provider that has control or could have a security impact on CHD

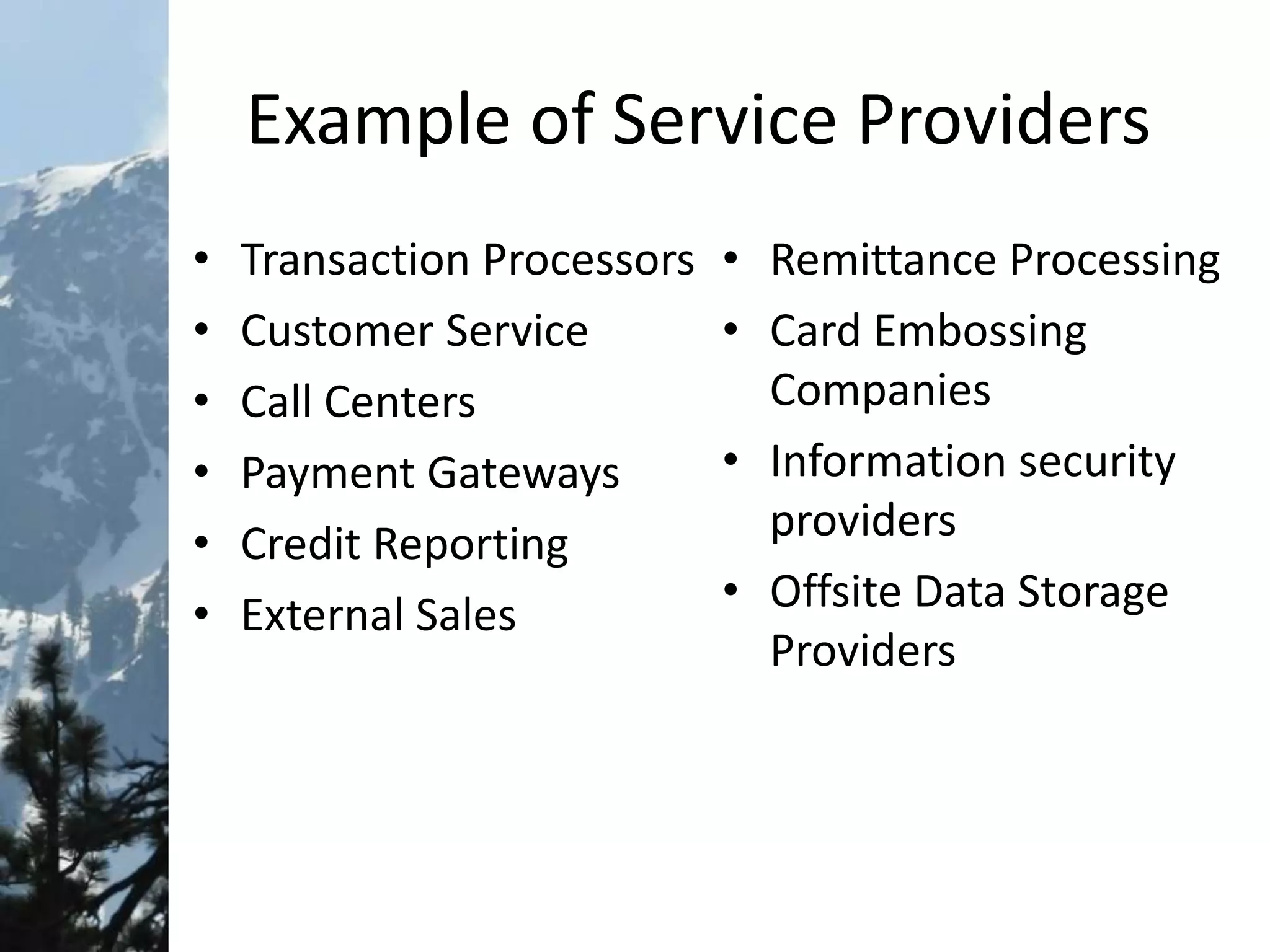

- 8. Example of ServiceProviders • Transaction Processors • Customer Service • Call Centers • Payment Gateways • Credit Reporting • External Sales • Remittance Processing • Card Embossing Companies • Information security providers • Offsite Data Storage Providers

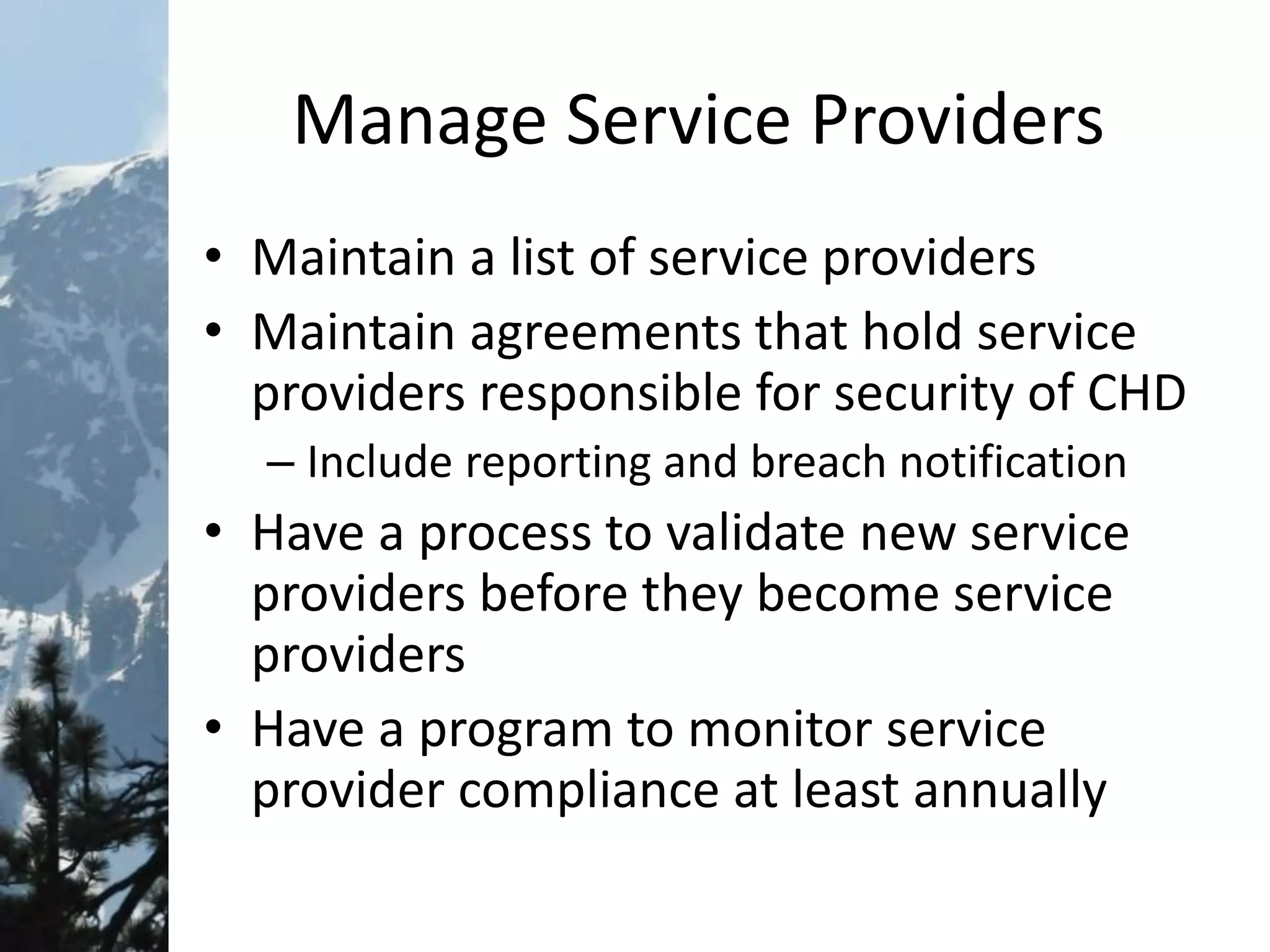

- 9. Manage Service Providers •Maintain a list of service providers • Maintain agreements that hold service providers responsible for security of CHD – Include reporting and breach notification • Have a process to validate new service providers before they become service providers • Have a program to monitor service provider compliance at least annually

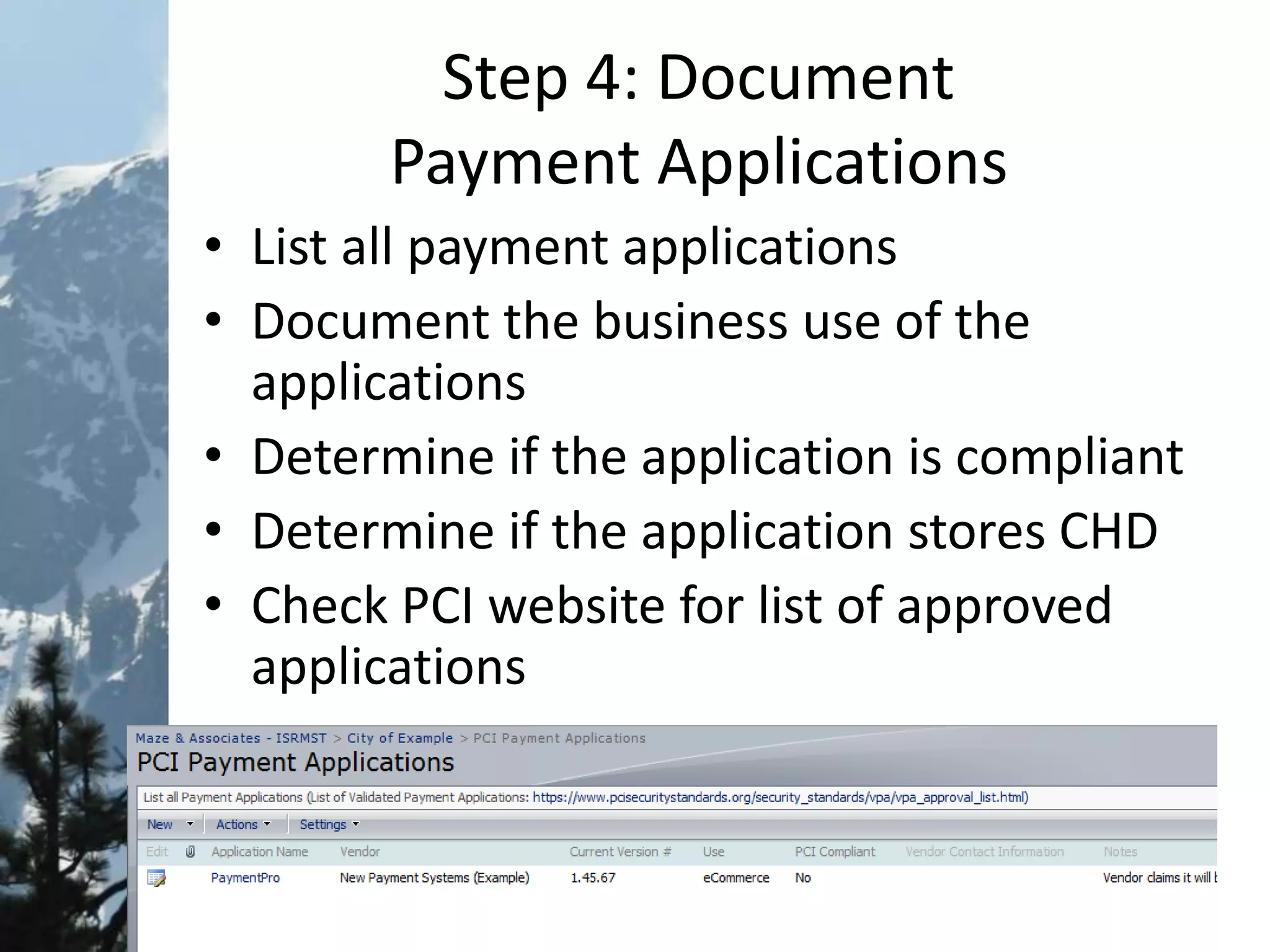

- 10. Step 4: Document PaymentApplications • List all payment applications • Document the business use of the applications • Determine if the application is compliant • Determine if the application stores CHD • Check PCI website for list of approved applications

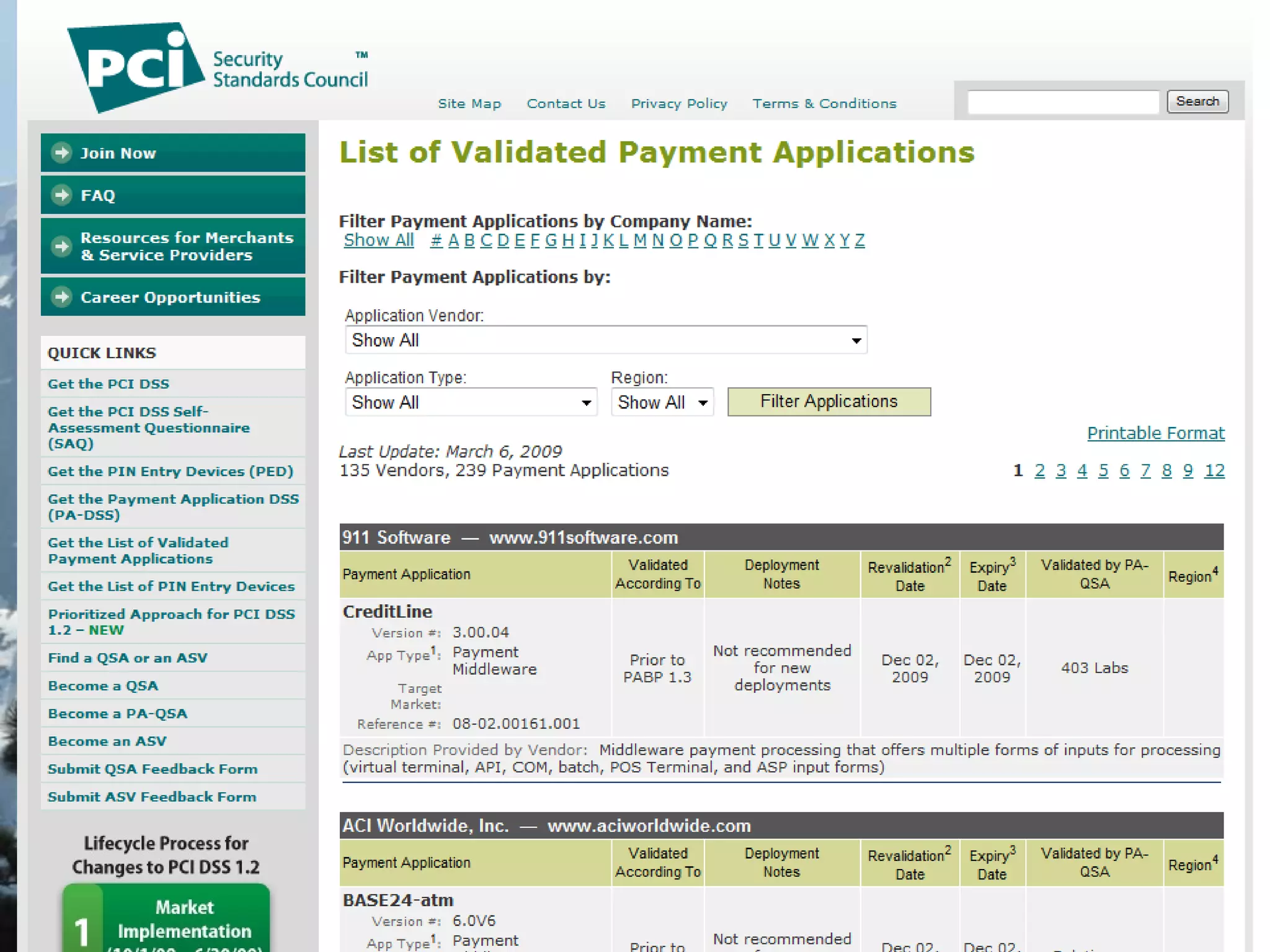

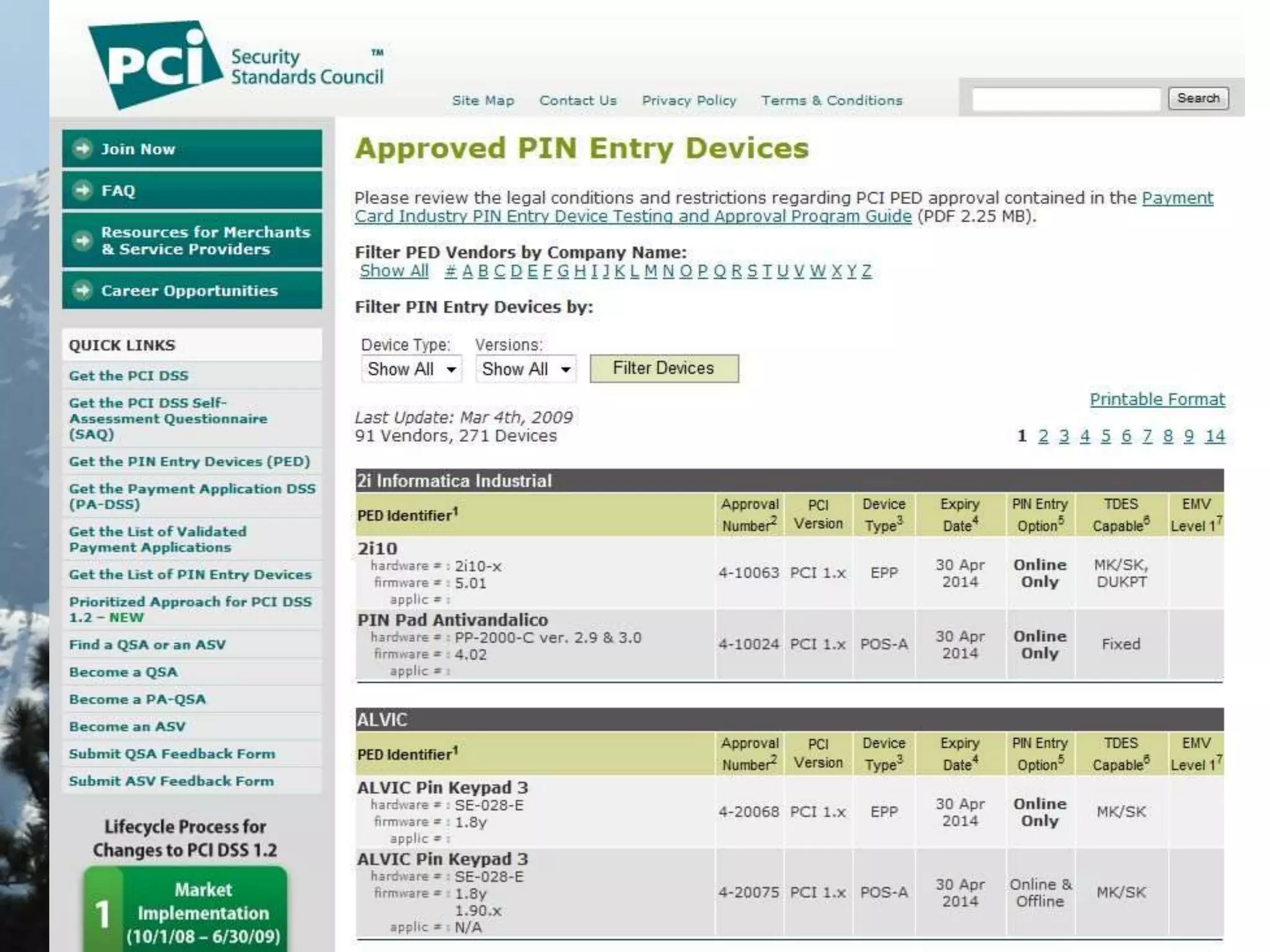

- 11. Action Items • Contactthe vendor, make sure payment applications are PA DSS complaint or will be. • Contact your PIN device supplier, make sure you have compliant PIN Entry Devices. https://www.pcisecuritystandards.org/security_standards/ped/pedapprovallist.ht ml https://www.pcisecuritystandards.org/security_standards/vpa/

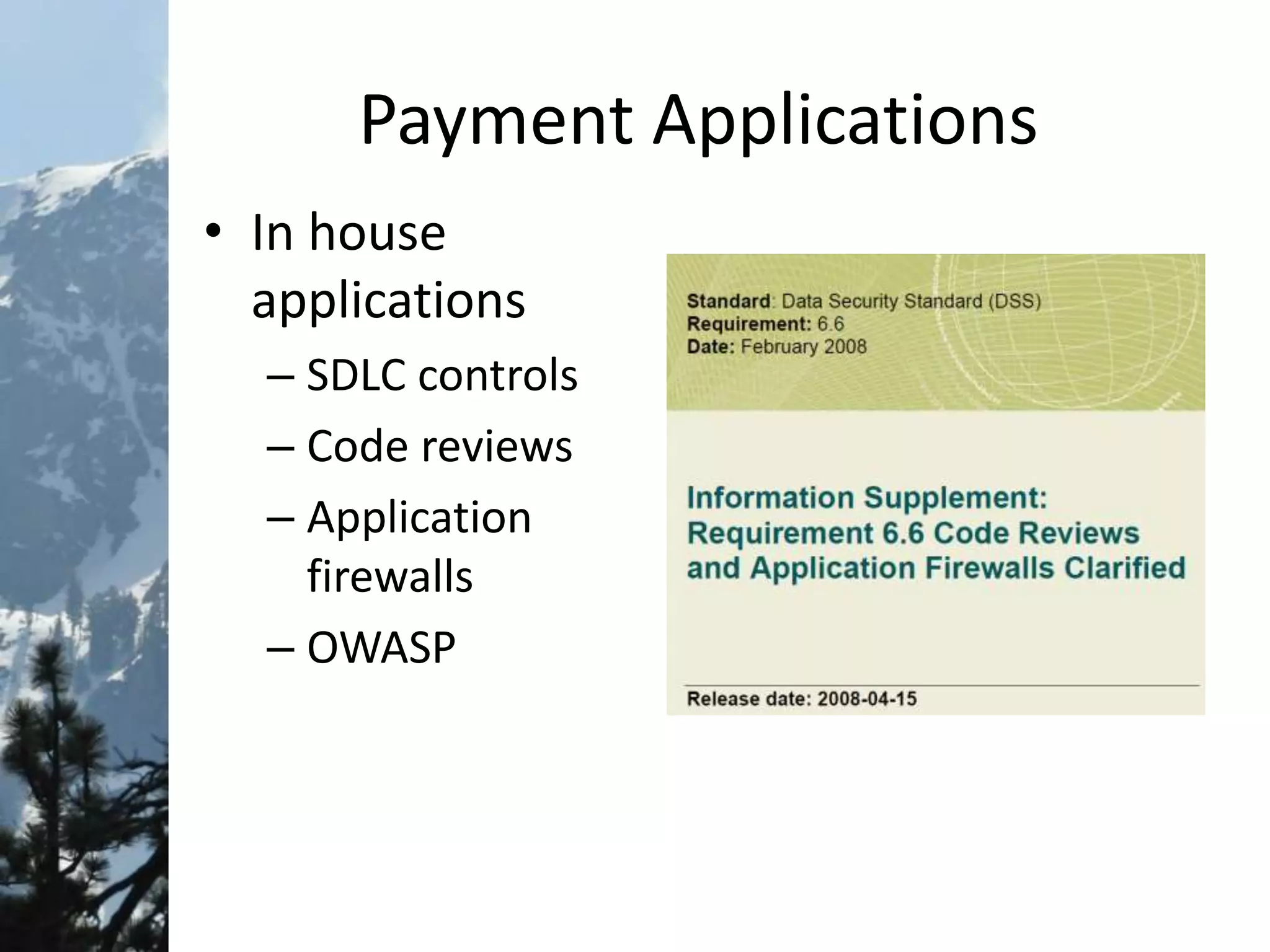

- 12. Payment Applications • Inhouse applications – SDLC controls – Code reviews – Application firewalls – OWASP

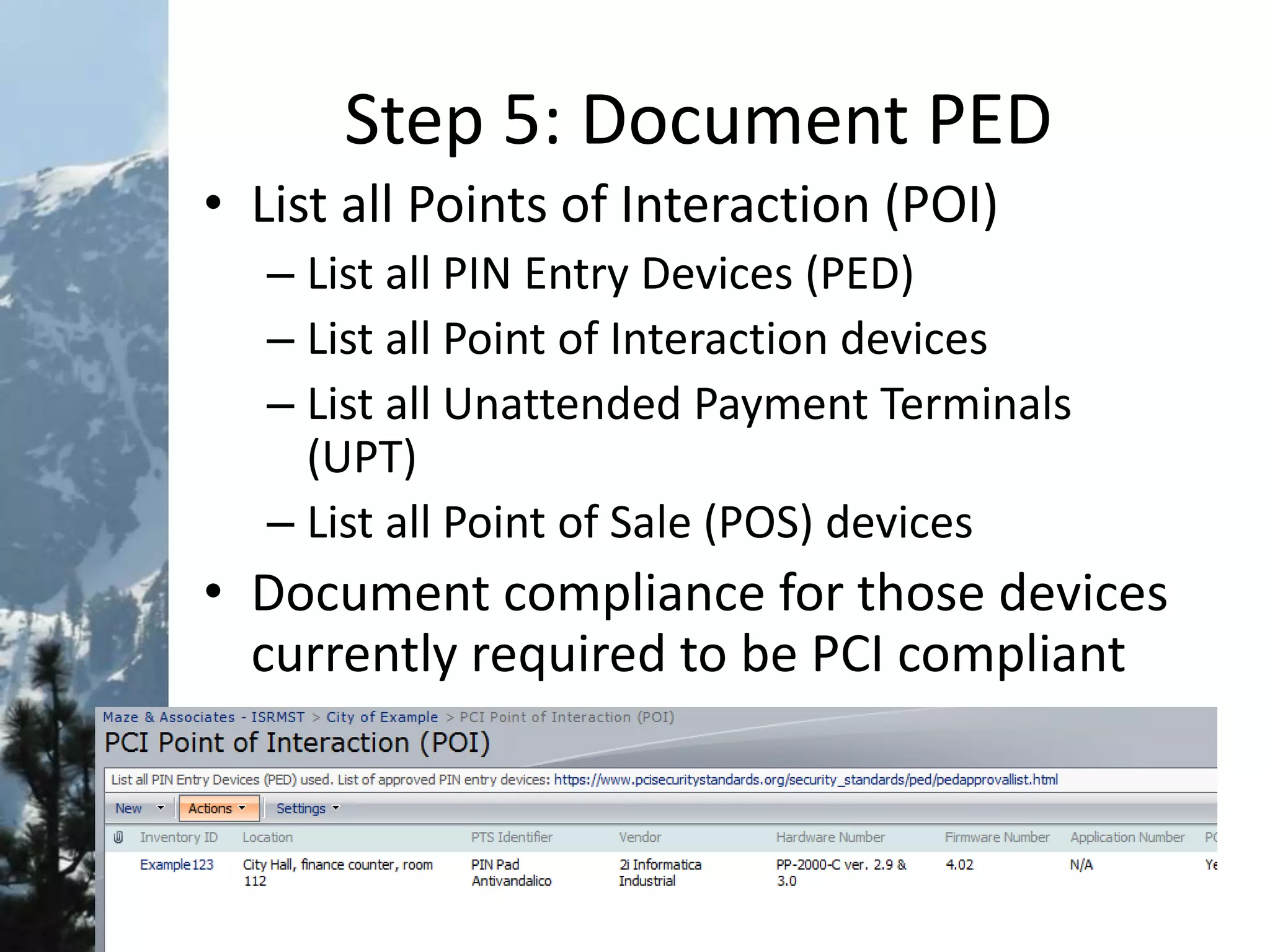

- 13. Step 5: DocumentPED • List all Points of Interaction (POI) – List all PIN Entry Devices (PED) – List all Point of Interaction devices – List all Unattended Payment Terminals (UPT) – List all Point of Sale (POS) devices • Document compliance for those devices currently required to be PCI compliant

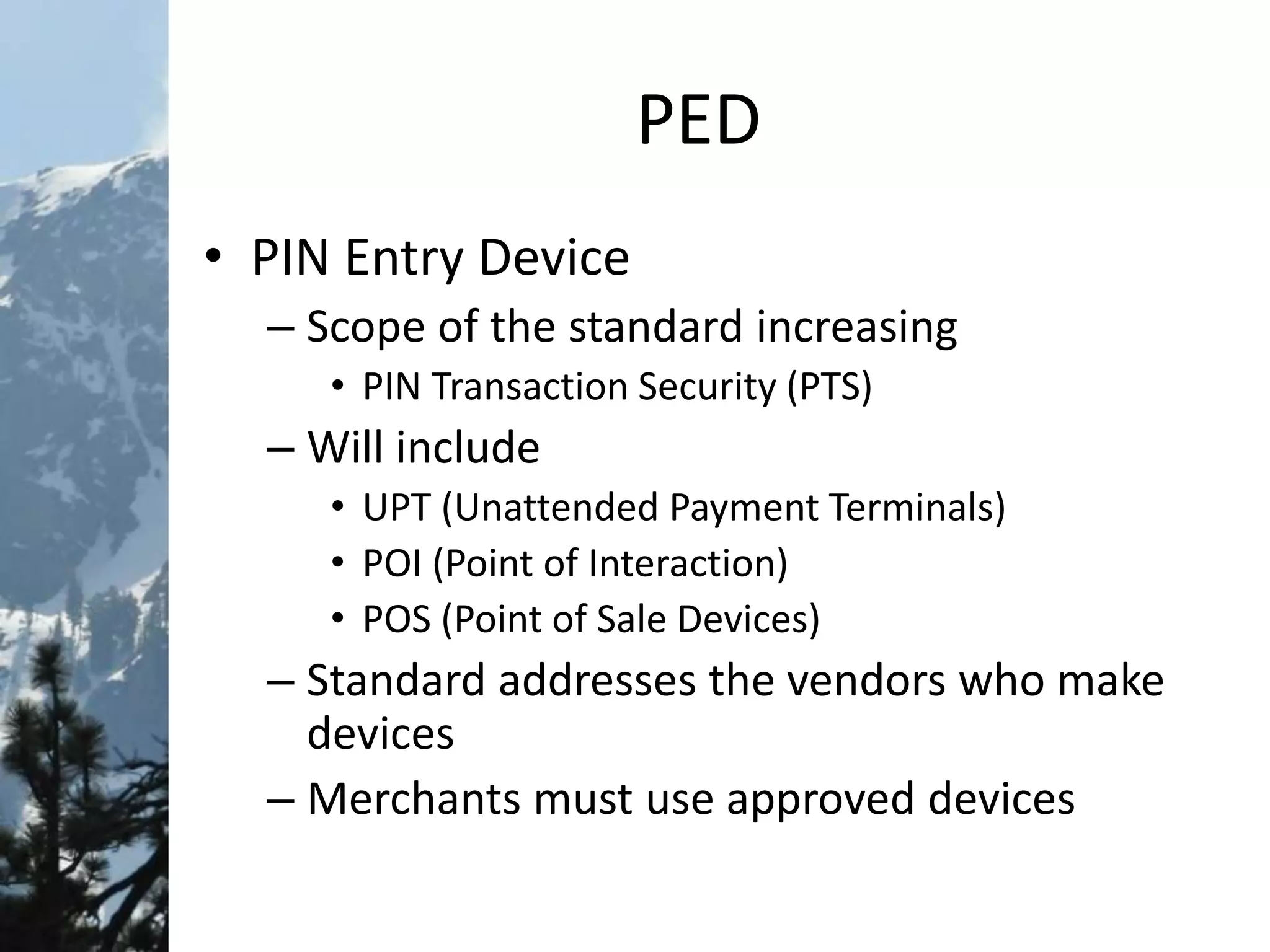

- 15. PED • PIN EntryDevice – Scope of the standard increasing • PIN Transaction Security (PTS) – Will include • UPT (Unattended Payment Terminals) • POI (Point of Interaction) • POS (Point of Sale Devices) – Standard addresses the vendors who make devices – Merchants must use approved devices

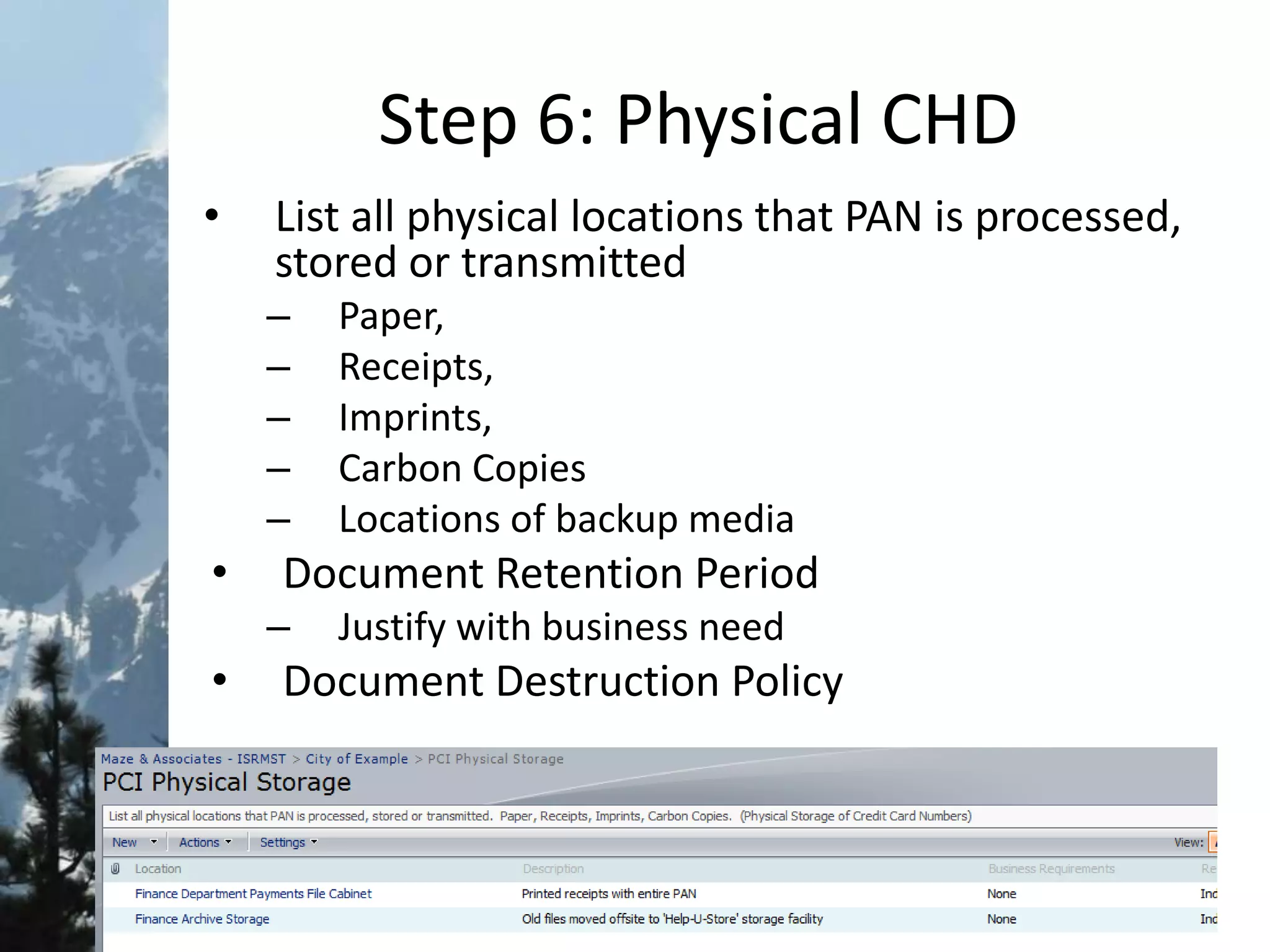

- 16. Step 6: PhysicalCHD • List all physical locations that PAN is processed, stored or transmitted – Paper, – Receipts, – Imprints, – Carbon Copies – Locations of backup media • Document Retention Period – Justify with business need • Document Destruction Policy

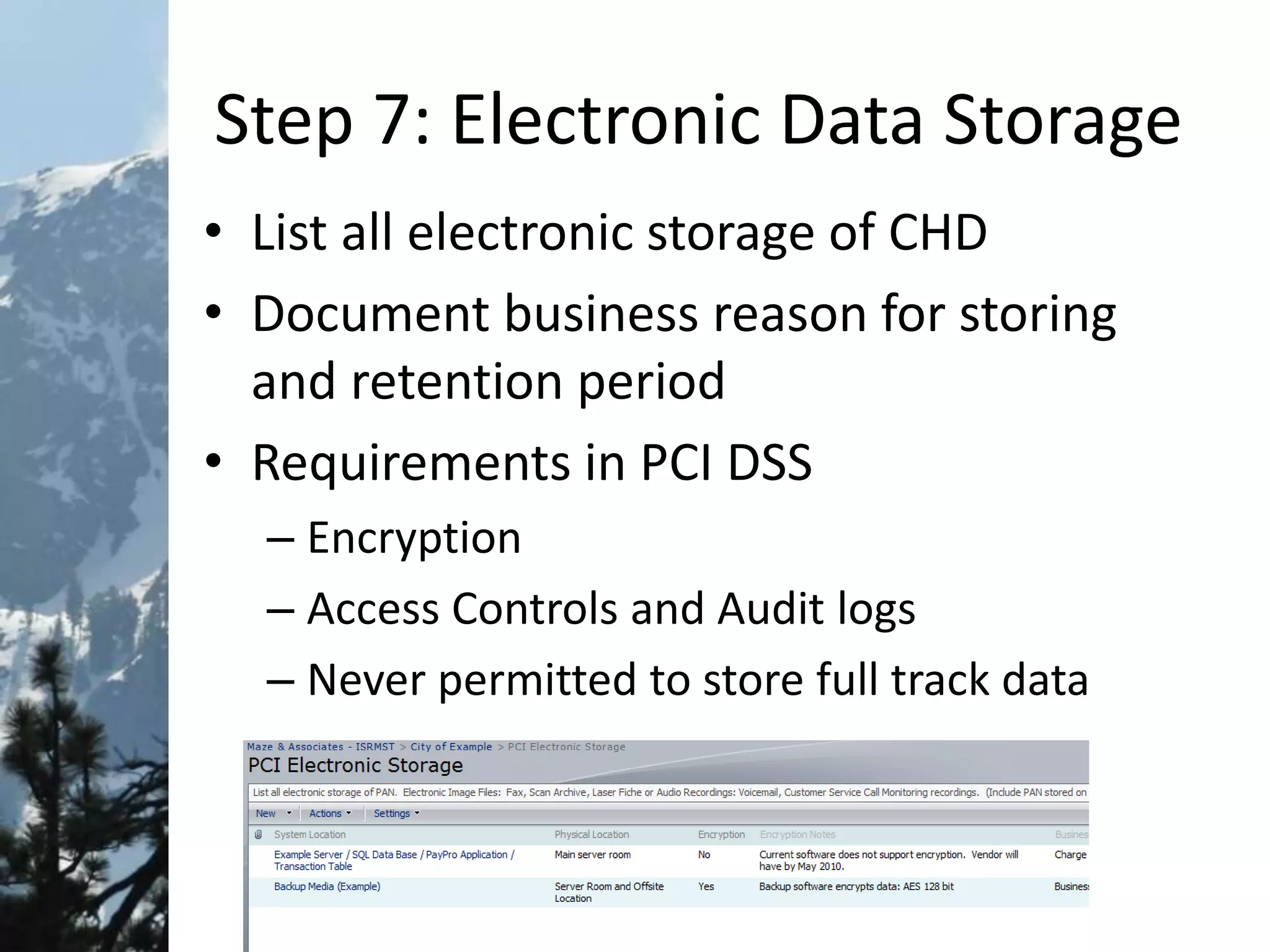

- 17. Step 7: ElectronicData Storage • List all electronic storage of CHD • Document business reason for storing and retention period • Requirements in PCI DSS – Encryption – Access Controls and Audit logs – Never permitted to store full track data

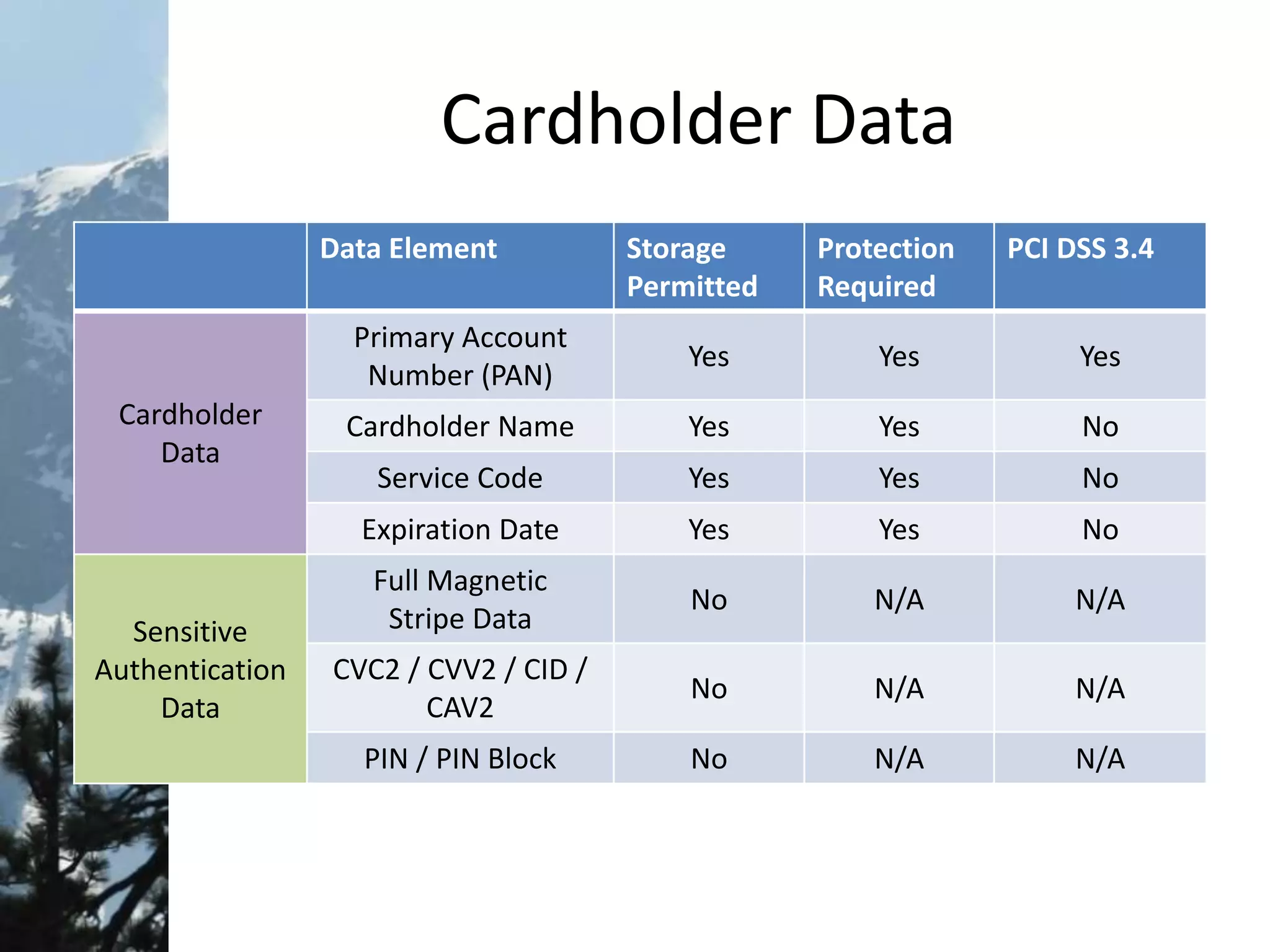

- 18. Cardholder Data Data ElementStorage Permitted Protection Required PCI DSS 3.4 Cardholder Data Primary Account Number (PAN) Yes Yes Yes Cardholder Name Yes Yes No Service Code Yes Yes No Expiration Date Yes Yes No Sensitive Authentication Data Full Magnetic Stripe Data No N/A N/A CVC2 / CVV2 / CID / CAV2 No N/A N/A PIN / PIN Block No N/A N/A

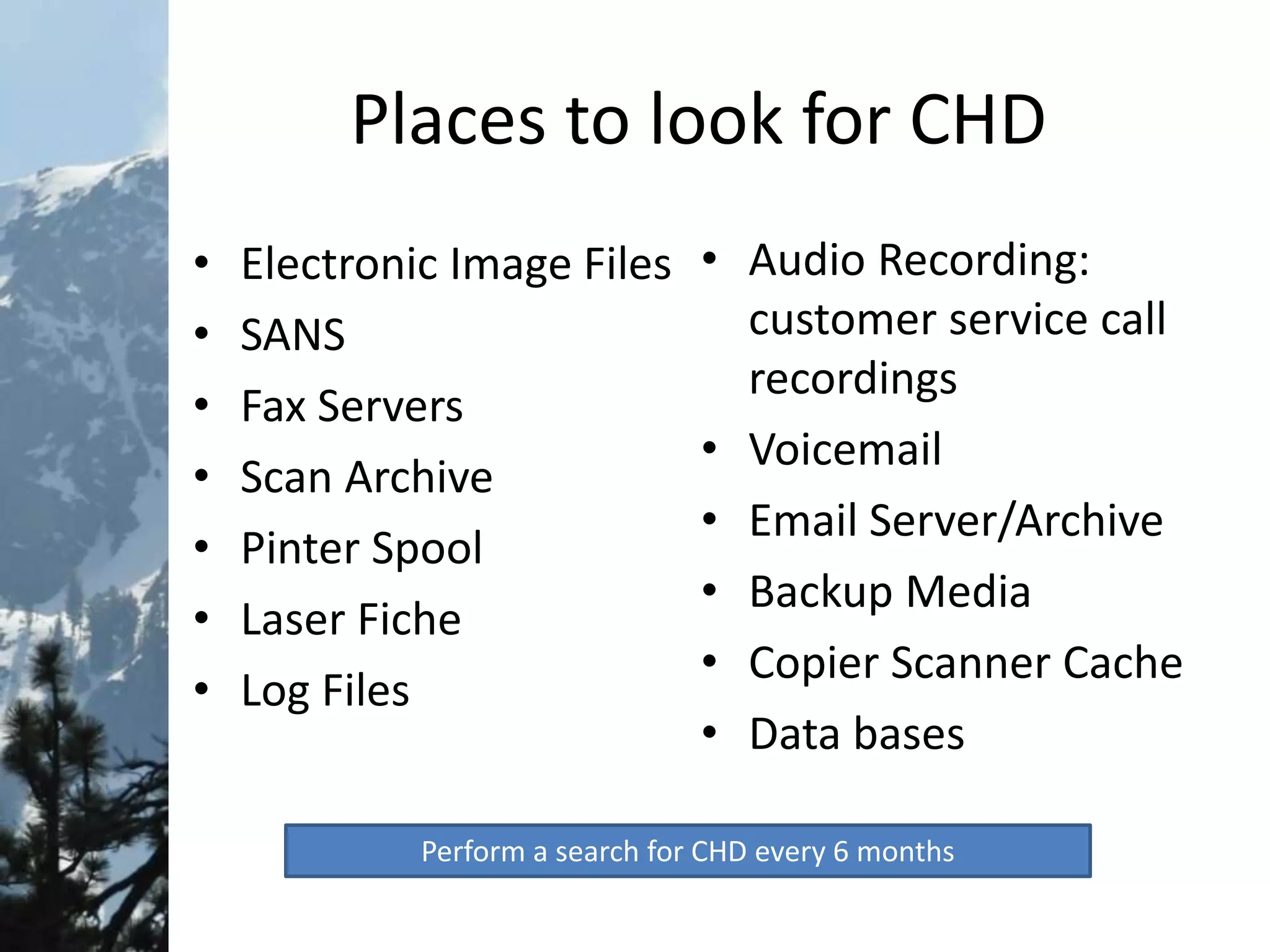

- 19. Places to lookfor CHD • Electronic Image Files • SANS • Fax Servers • Scan Archive • Pinter Spool • Laser Fiche • Log Files • Audio Recording: customer service call recordings • Voicemail • Email Server/Archive • Backup Media • Copier Scanner Cache • Data bases Perform a search for CHD every 6 months

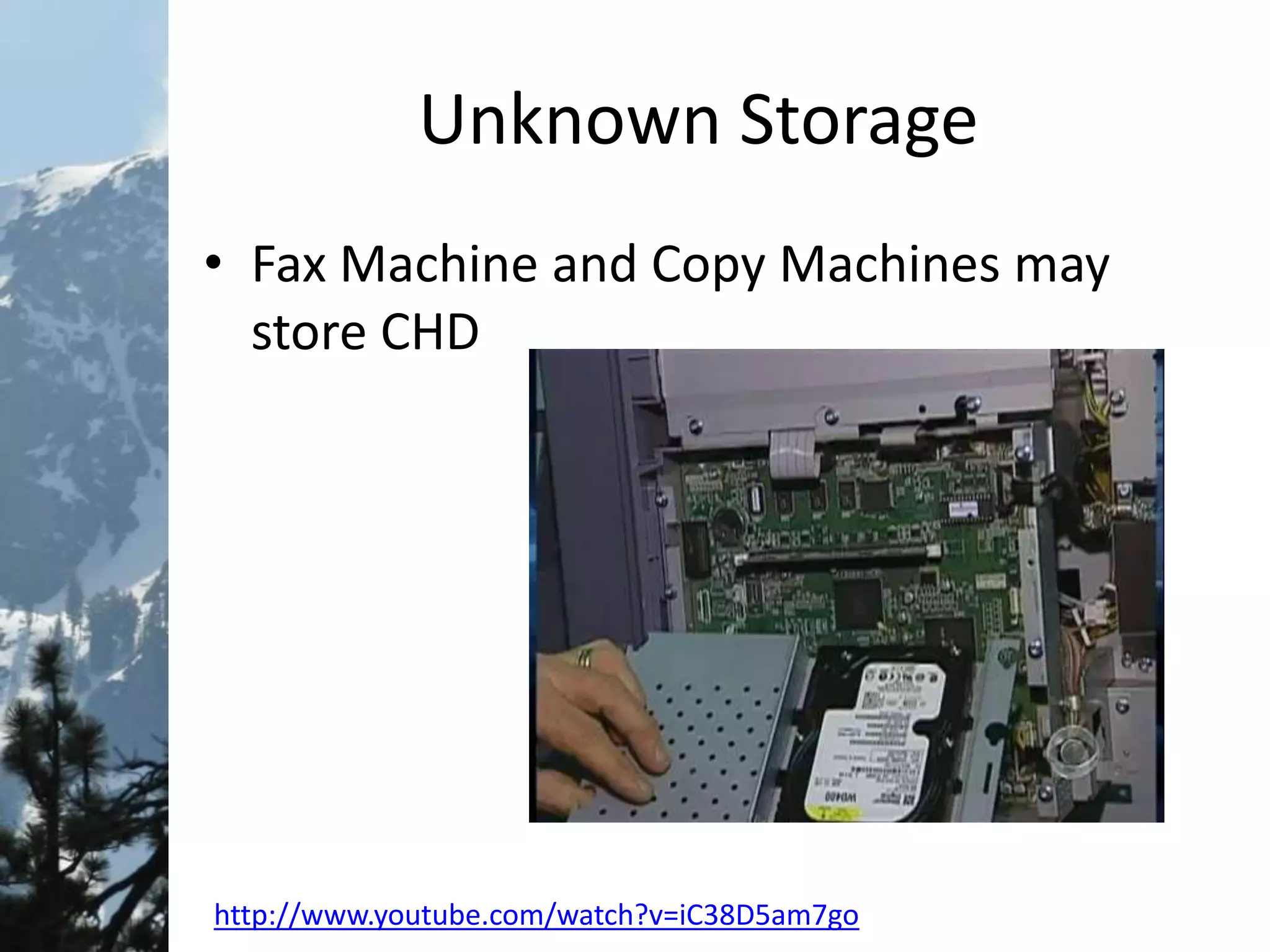

- 20. Unknown Storage • FaxMachine and Copy Machines may store CHD http://www.youtube.com/watch?v=iC38D5am7go

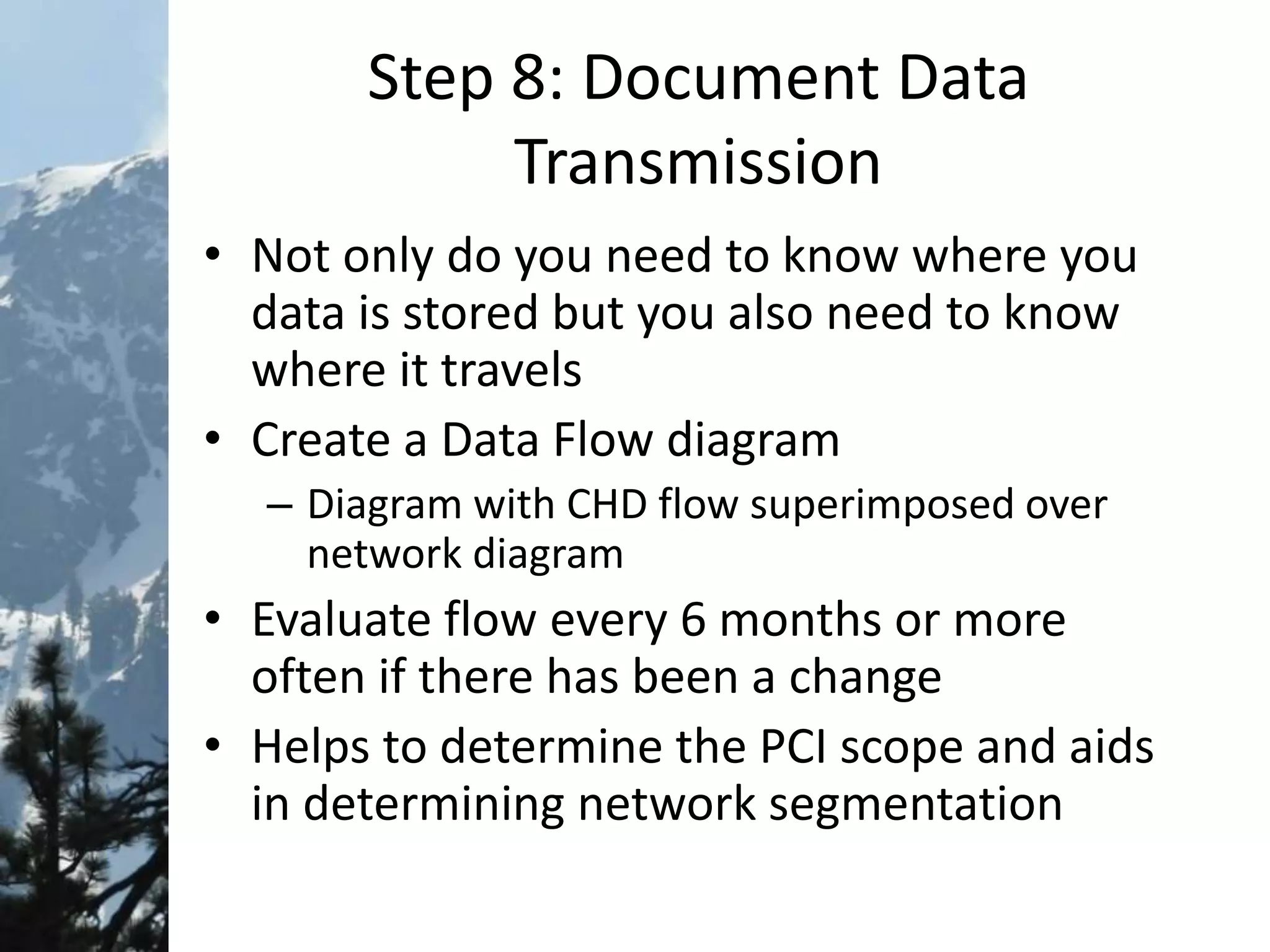

- 21. Step 8: DocumentData Transmission • Not only do you need to know where you data is stored but you also need to know where it travels • Create a Data Flow diagram – Diagram with CHD flow superimposed over network diagram • Evaluate flow every 6 months or more often if there has been a change • Helps to determine the PCI scope and aids in determining network segmentation

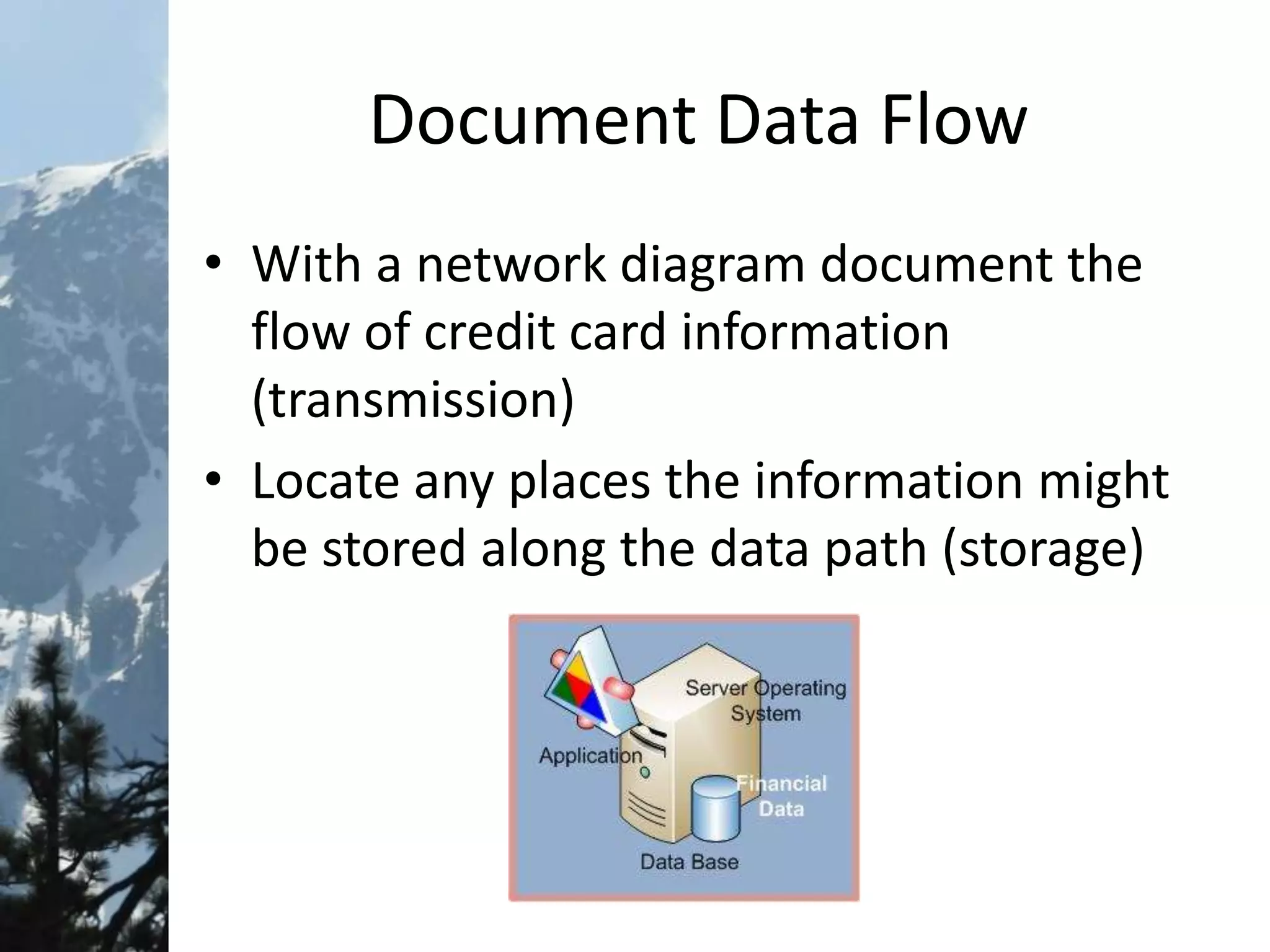

- 22. Document Data Flow •With a network diagram document the flow of credit card information (transmission) • Locate any places the information might be stored along the data path (storage)

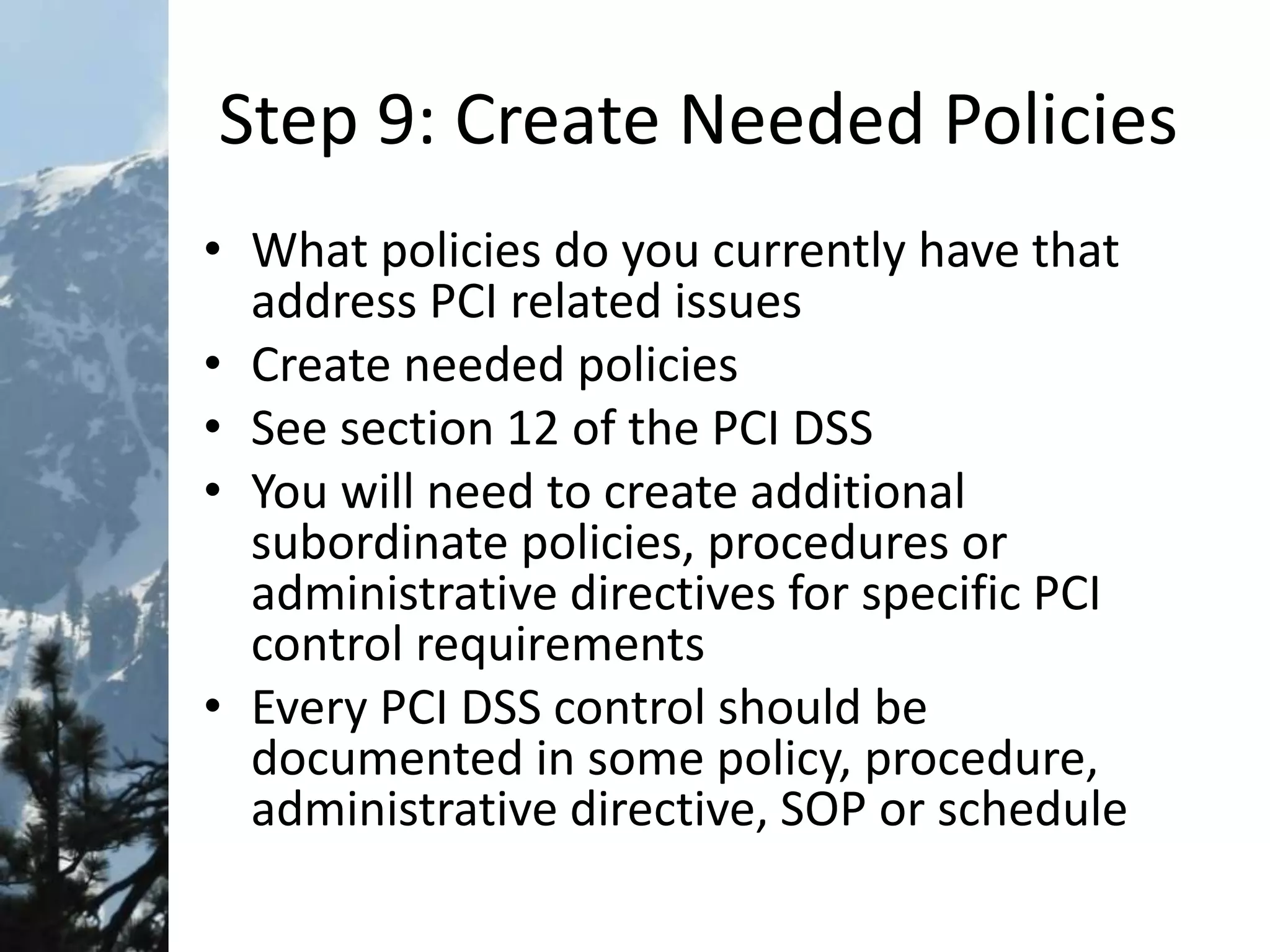

- 23. Step 9: CreateNeeded Policies • What policies do you currently have that address PCI related issues • Create needed policies • See section 12 of the PCI DSS • You will need to create additional subordinate policies, procedures or administrative directives for specific PCI control requirements • Every PCI DSS control should be documented in some policy, procedure, administrative directive, SOP or schedule

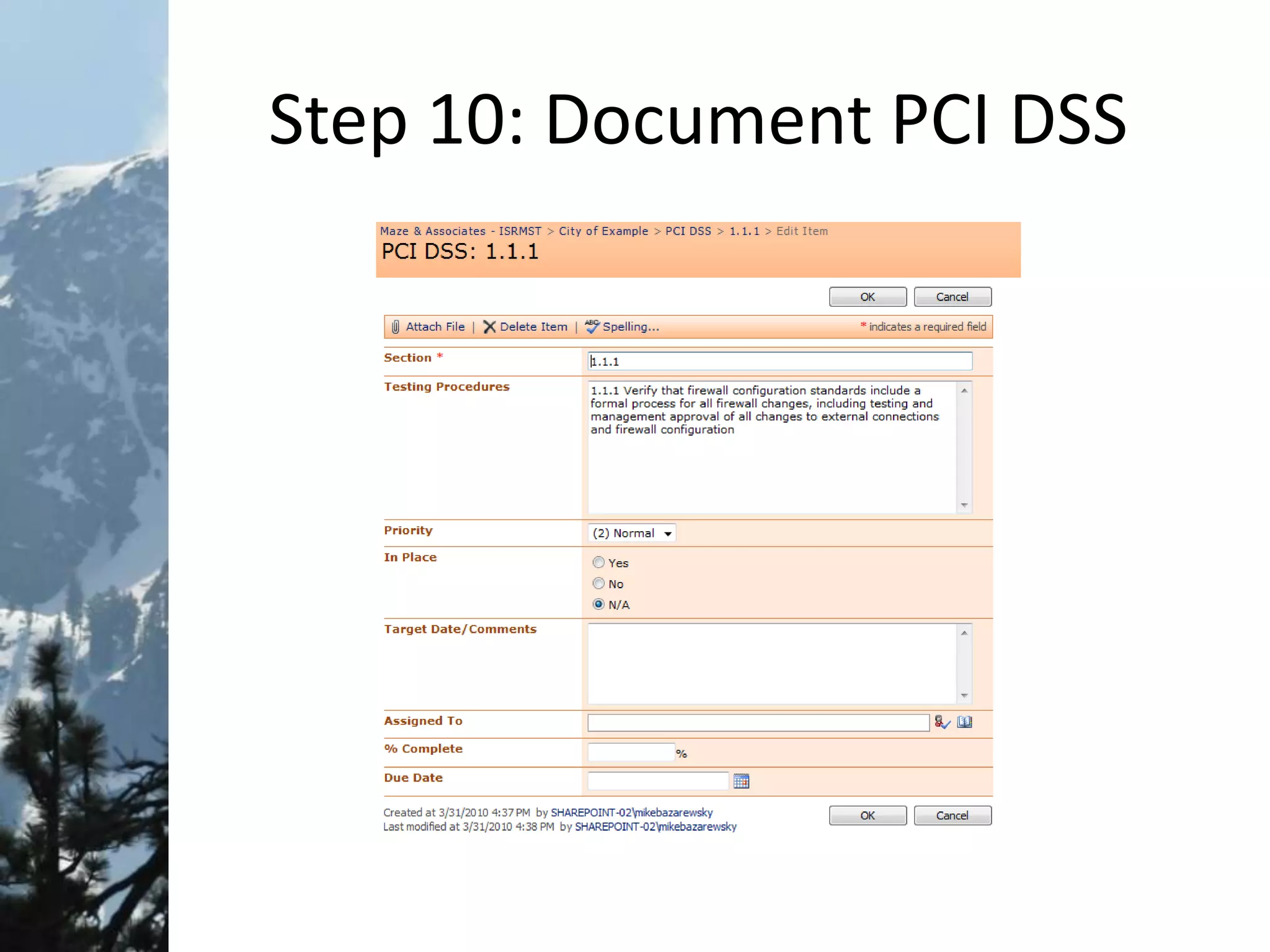

- 24. Step 10: DocumentPCI DSS

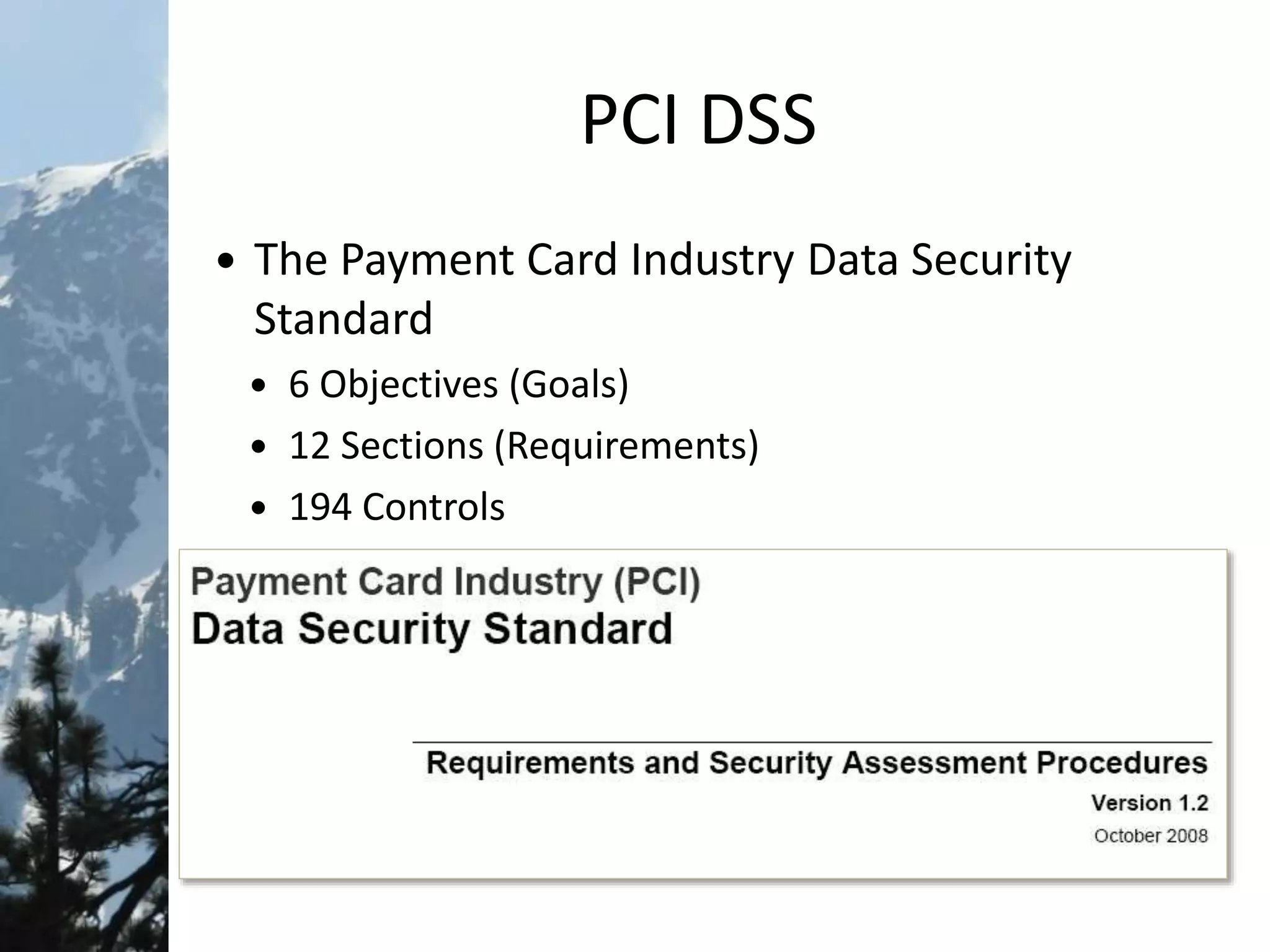

- 25. PCI DSS ThePayment Card Industry Data Security Standard 6 Objectives (Goals) 12 Sections (Requirements) 194 Controls

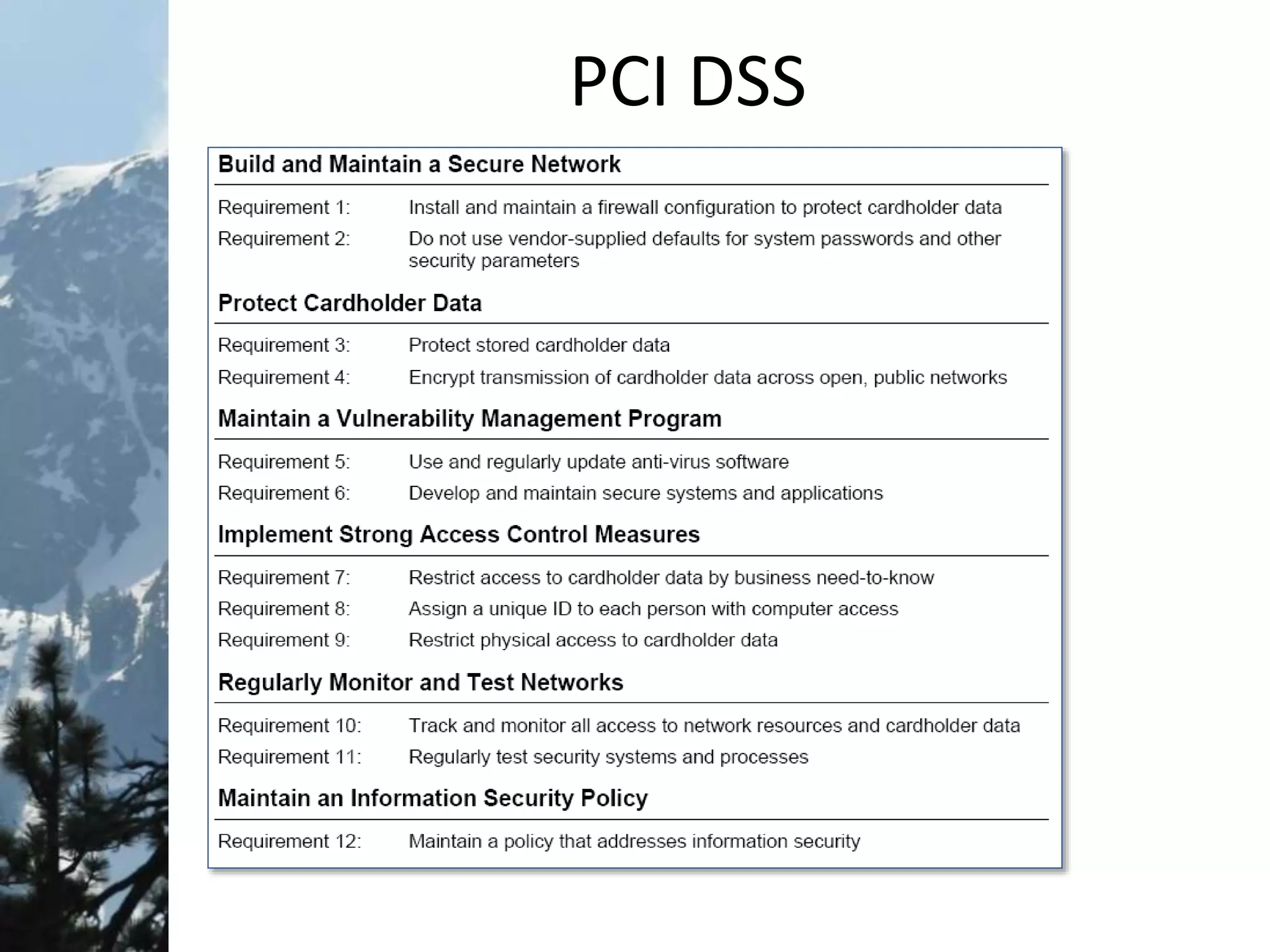

- 26.

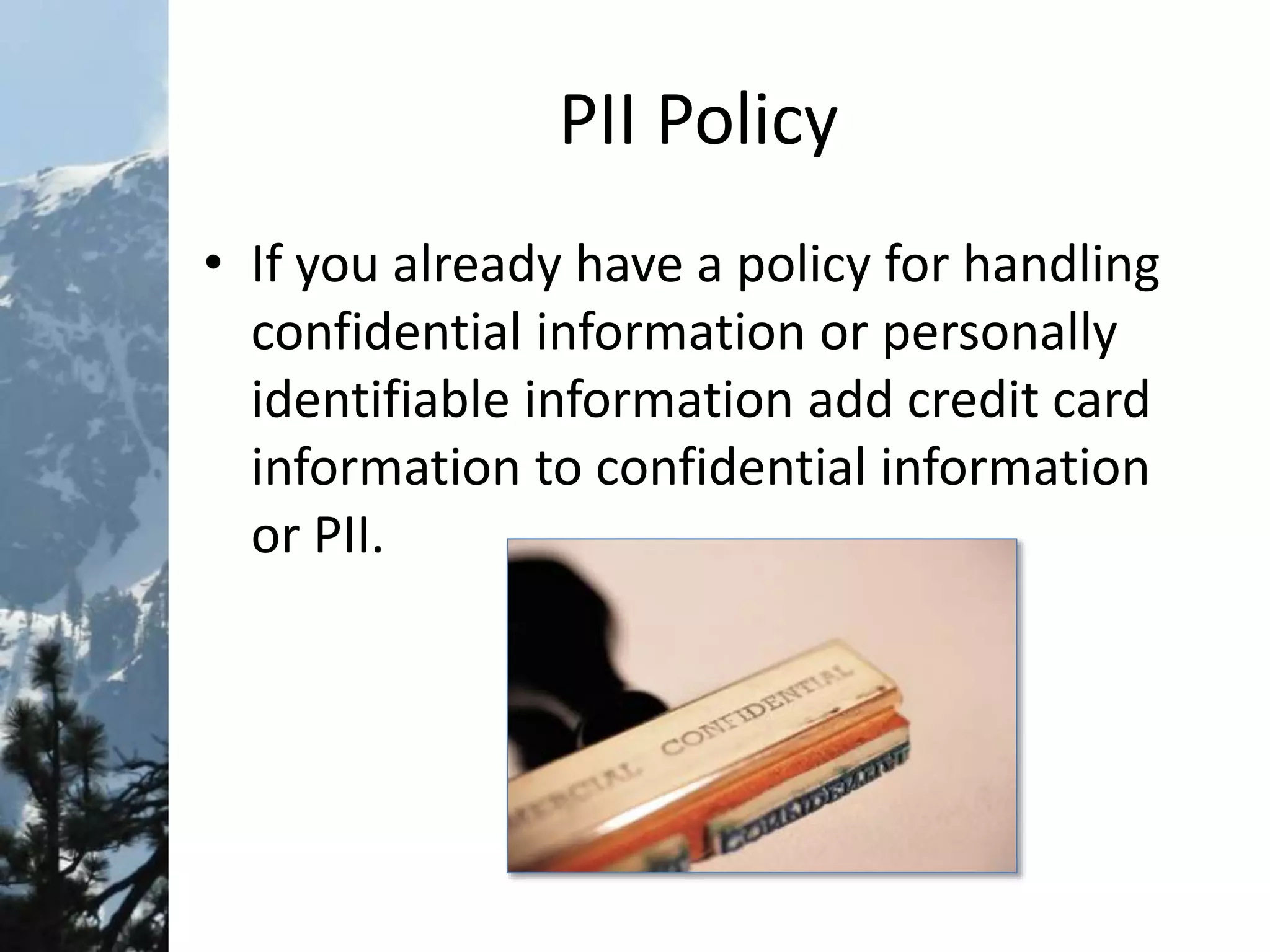

- 27. PII Policy • Ifyou already have a policy for handling confidential information or personally identifiable information add credit card information to confidential information or PII.

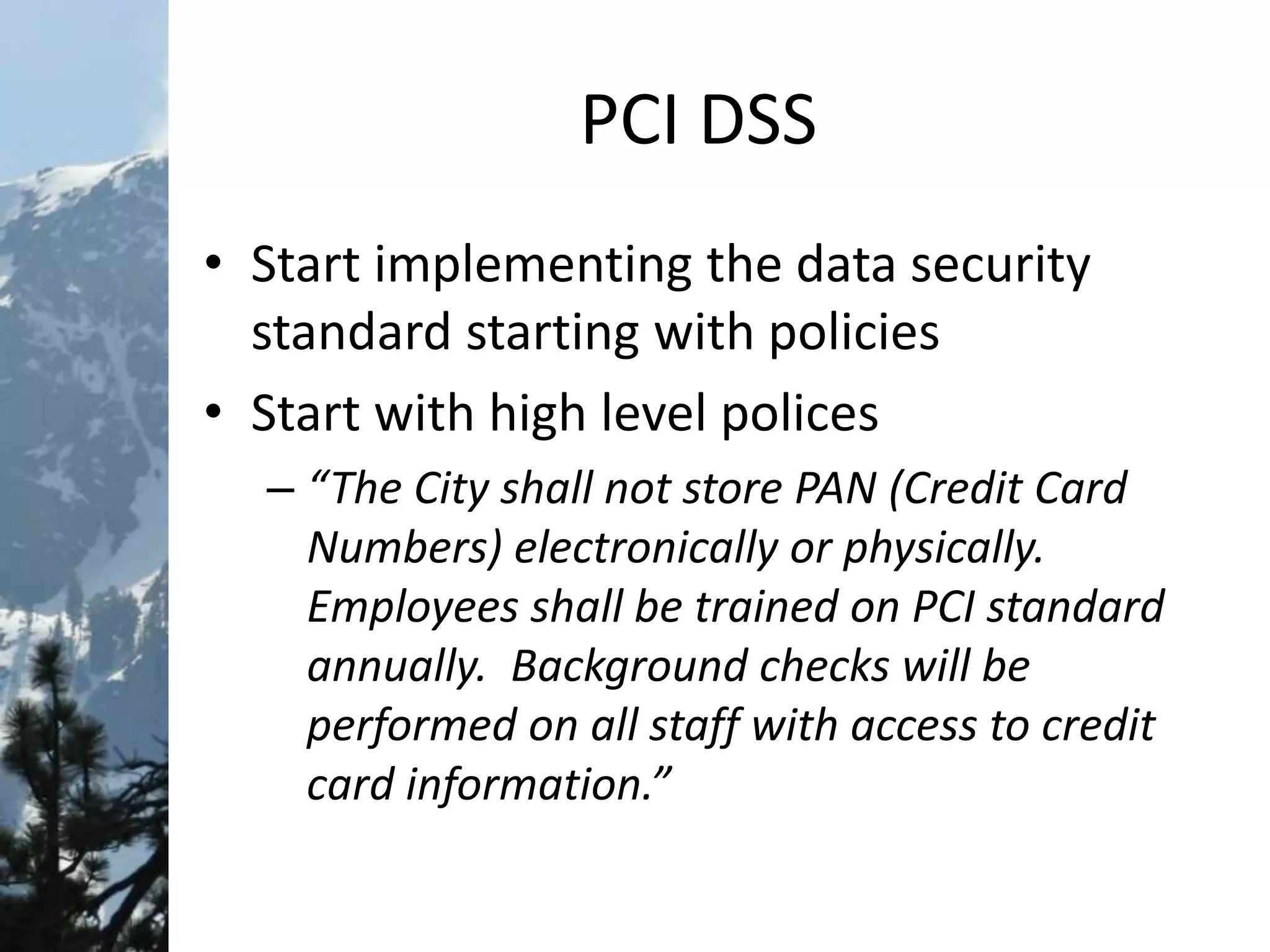

- 28. PCI DSS • Startimplementing the data security standard starting with policies • Start with high level polices – “The City shall not store PAN (Credit Card Numbers) electronically or physically. Employees shall be trained on PCI standard annually. Background checks will be performed on all staff with access to credit card information.”

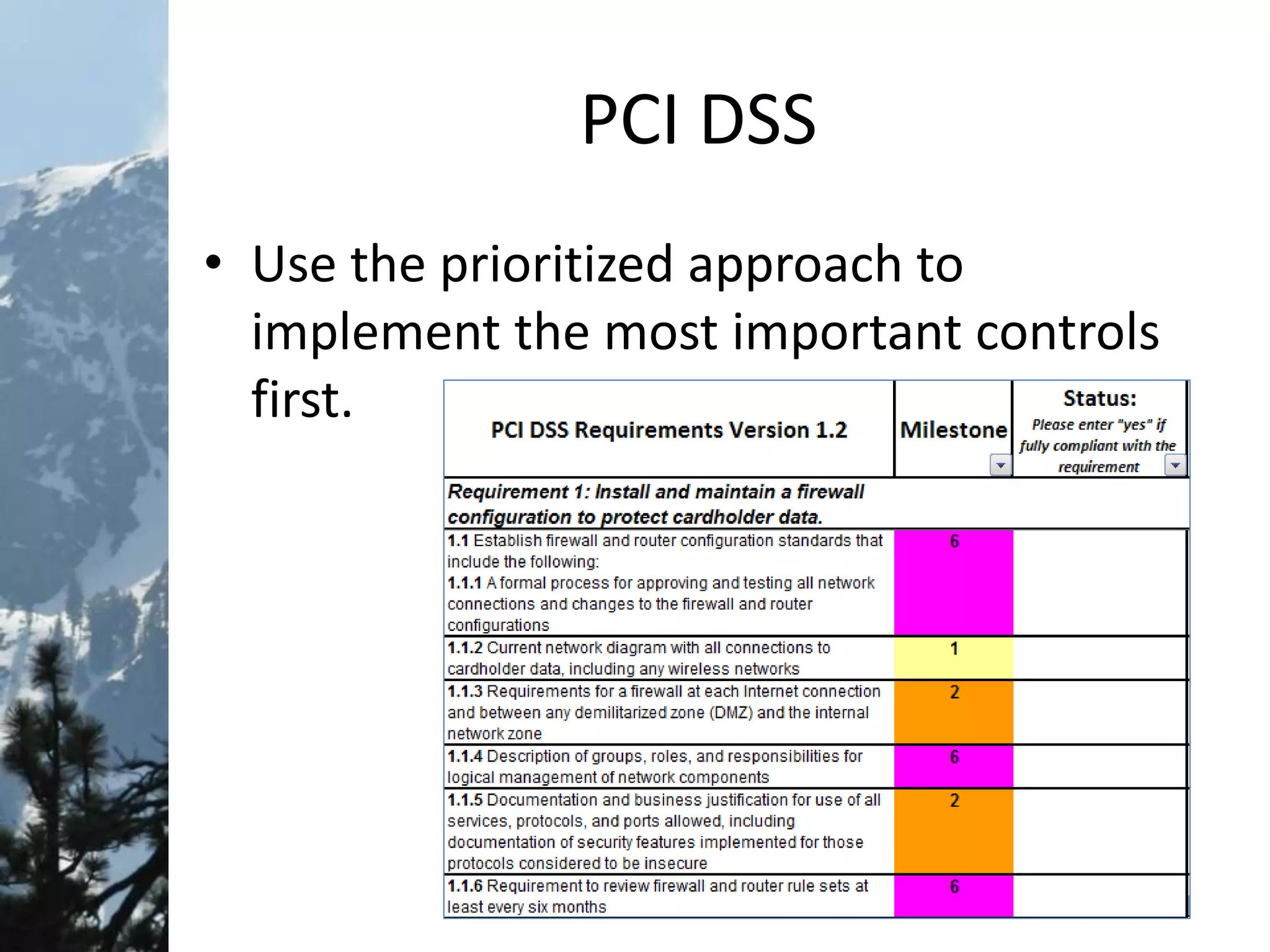

- 29. PCI DSS • Usethe prioritized approach to implement the most important controls first.

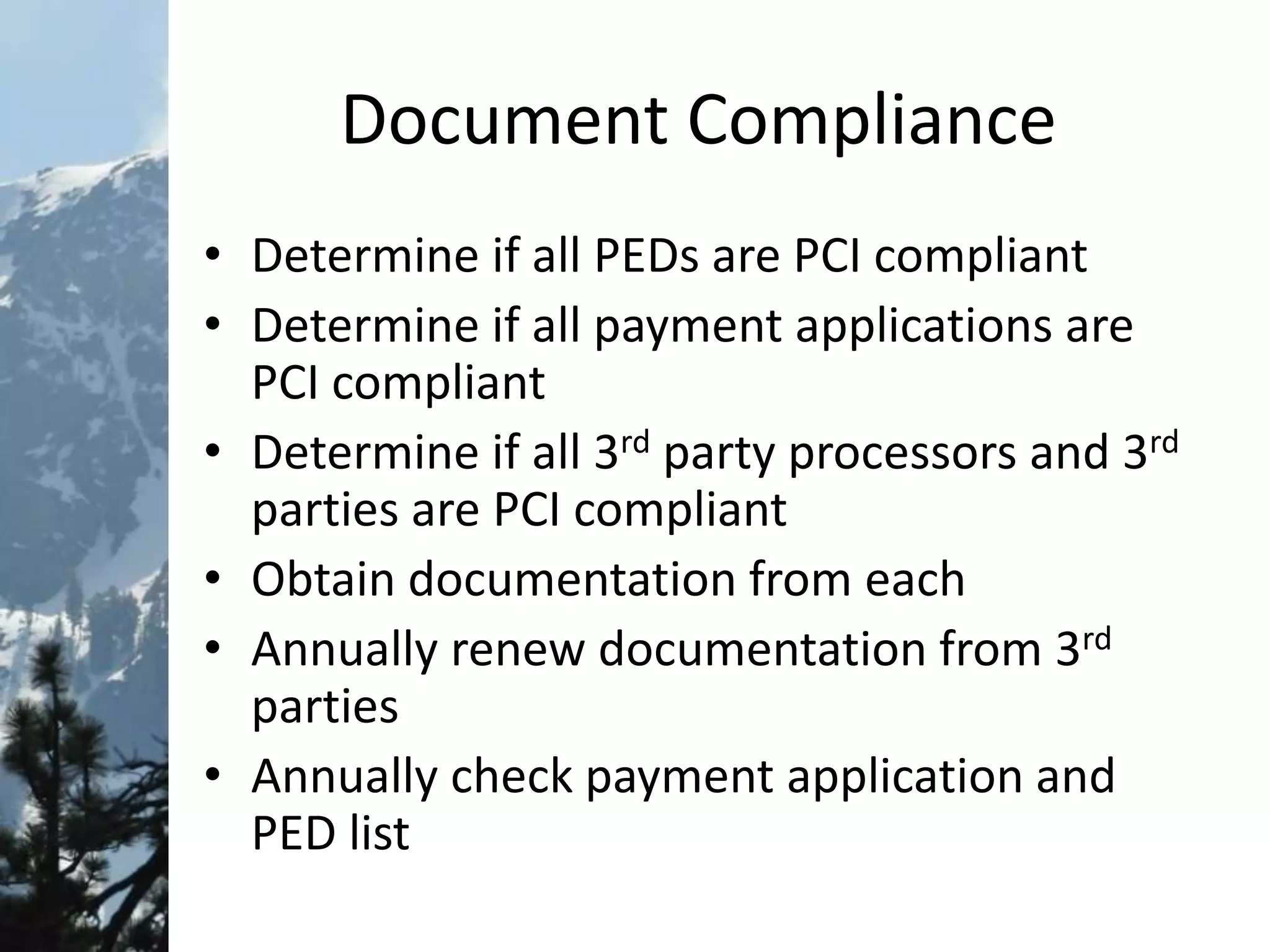

- 30. Document Compliance • Determineif all PEDs are PCI compliant • Determine if all payment applications are PCI compliant • Determine if all 3rd party processors and 3rd parties are PCI compliant • Obtain documentation from each • Annually renew documentation from 3rd parties • Annually check payment application and PED list
Editor's Notes
- #27 The standard has approximately 194 controls in 12 sections. The 12 sections are group into 6 objectives. The 6 objectives are; build and maintain a secure network, protect cardholder data, maintain a vulnerability management program, implement strong access control measures, regularly monitor and test networks, maintain an information security policy.
