The document describes the Matrix ETERNITY PE, an enterprise-grade IP-PBX for businesses. The ETERNITY PE comes in various models with different port capacities. It supports a wide range of interfaces including analog, digital, VoIP, and wireless interfaces. The system provides rich features and is highly scalable and flexible. It can be used for applications such as IP-PBX, hospitality PBX, and universal gateway solutions.

1. Warm Welcome

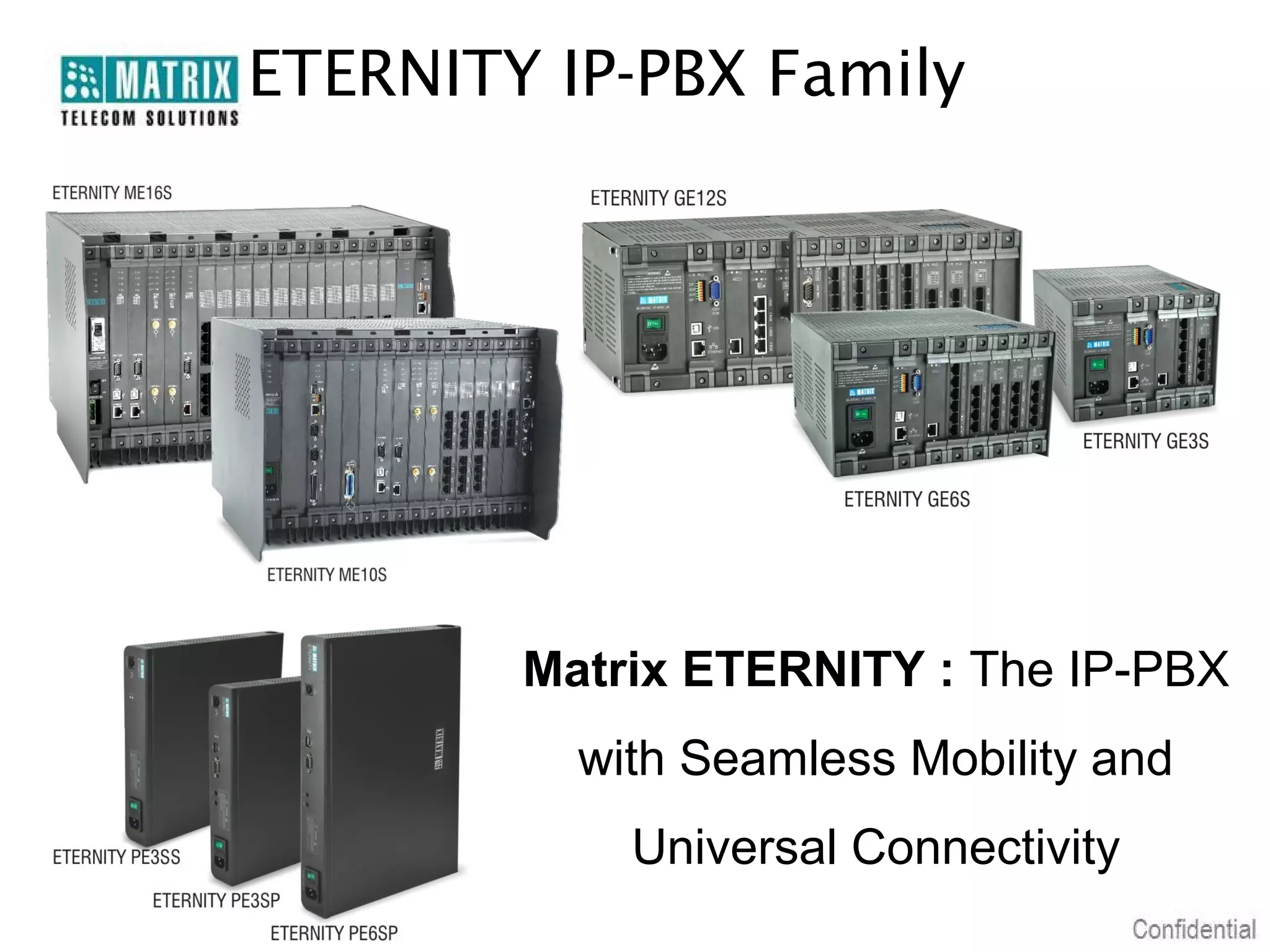

2. ETERNITY IP-PBX Family
Matrix ETERNITY : The IP-PBX
with Seamless Mobility and
Universal Connectivity

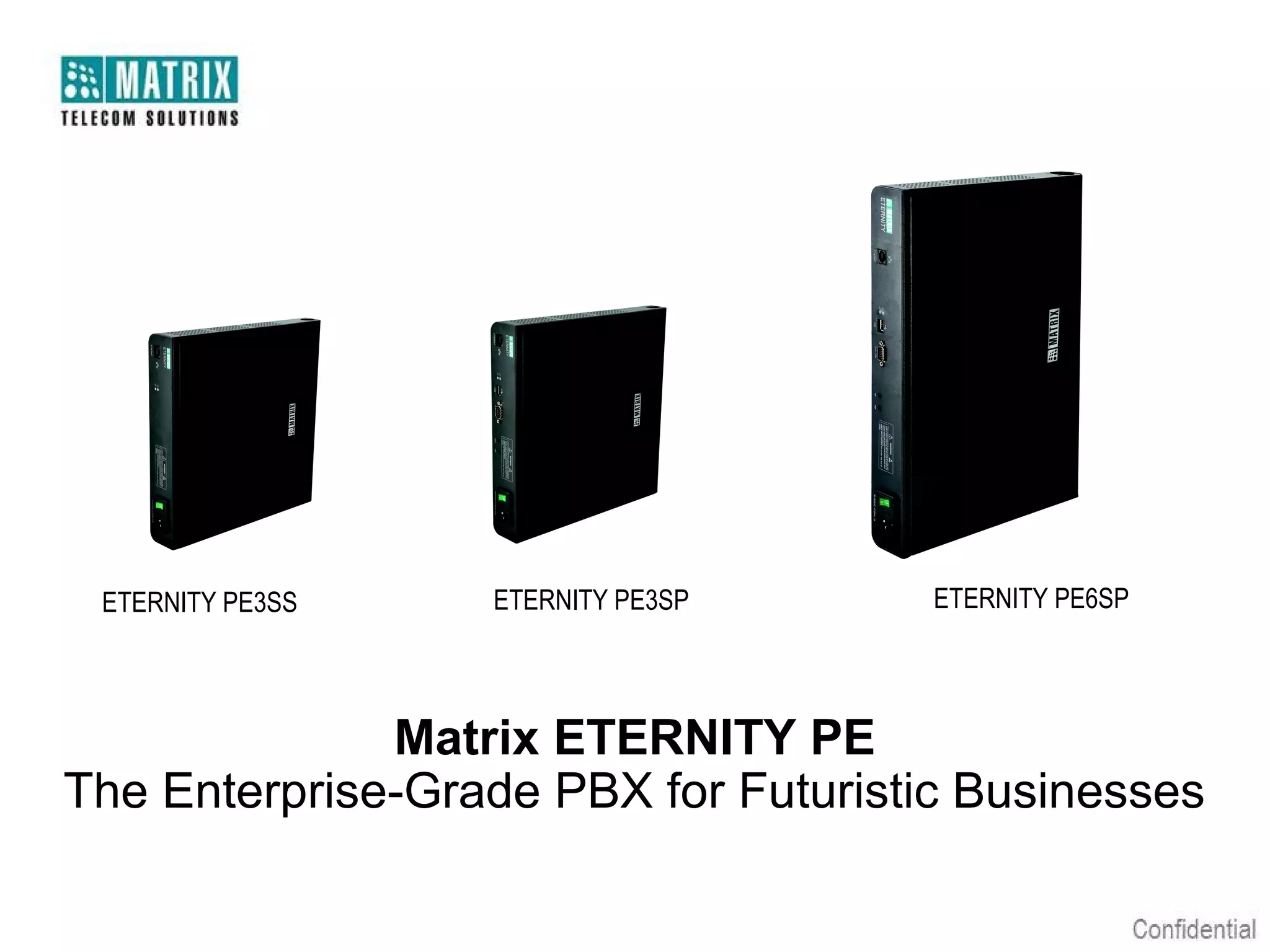

3. ETERNITY PE3SS ETERNITY PE3SP ETERNITY PE6SP
Matrix ETERNITY PE
The Enterprise-Grade PBX for Futuristic Businesses

4. Introduction
 Integrated Digital Voice Communication Switch
 Field Proven and Time-Tested
 Widely Deployed (Asia, Australia, Europe, Africa and North
America)

5. Key Aspects
 Flexible and Scalable Communication Platform
 Rich Feature and Functions
 Intuitive User Interface
 Flexible Call Management
 Easy Installation and Setup
 Comprehensive Monitoring and Management Reports
 Universal Connectivity and Routing
 All-In-One High Integration
 A Perfect Blend of Innovation, Intelligence and Integration

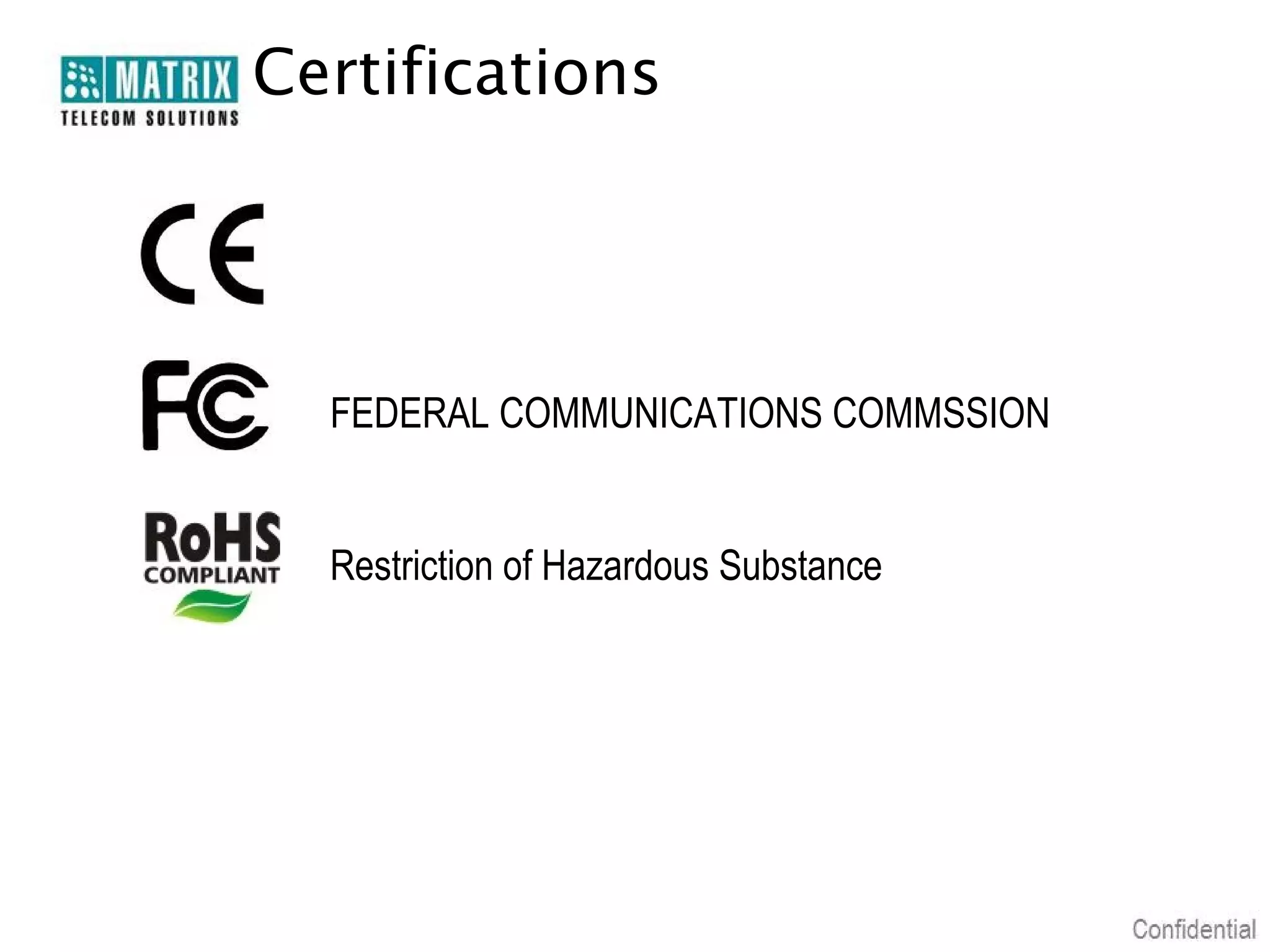

6. Certifications
Conformité Européene
FEDERAL COMMUNICATIONS COMMSSION
Restriction of Hazardous Substance

7. Applications
 IP-PBX for Enterprise
 PBX-KTS Solution form SMB
 Hotel-Motel PBX Solution
 GSM/3G PBX
 Universal Least Cost Router
 GSM/3G-T1/E1 ISDN PRI Gateway
 GSM/3G-VoIP Gateway

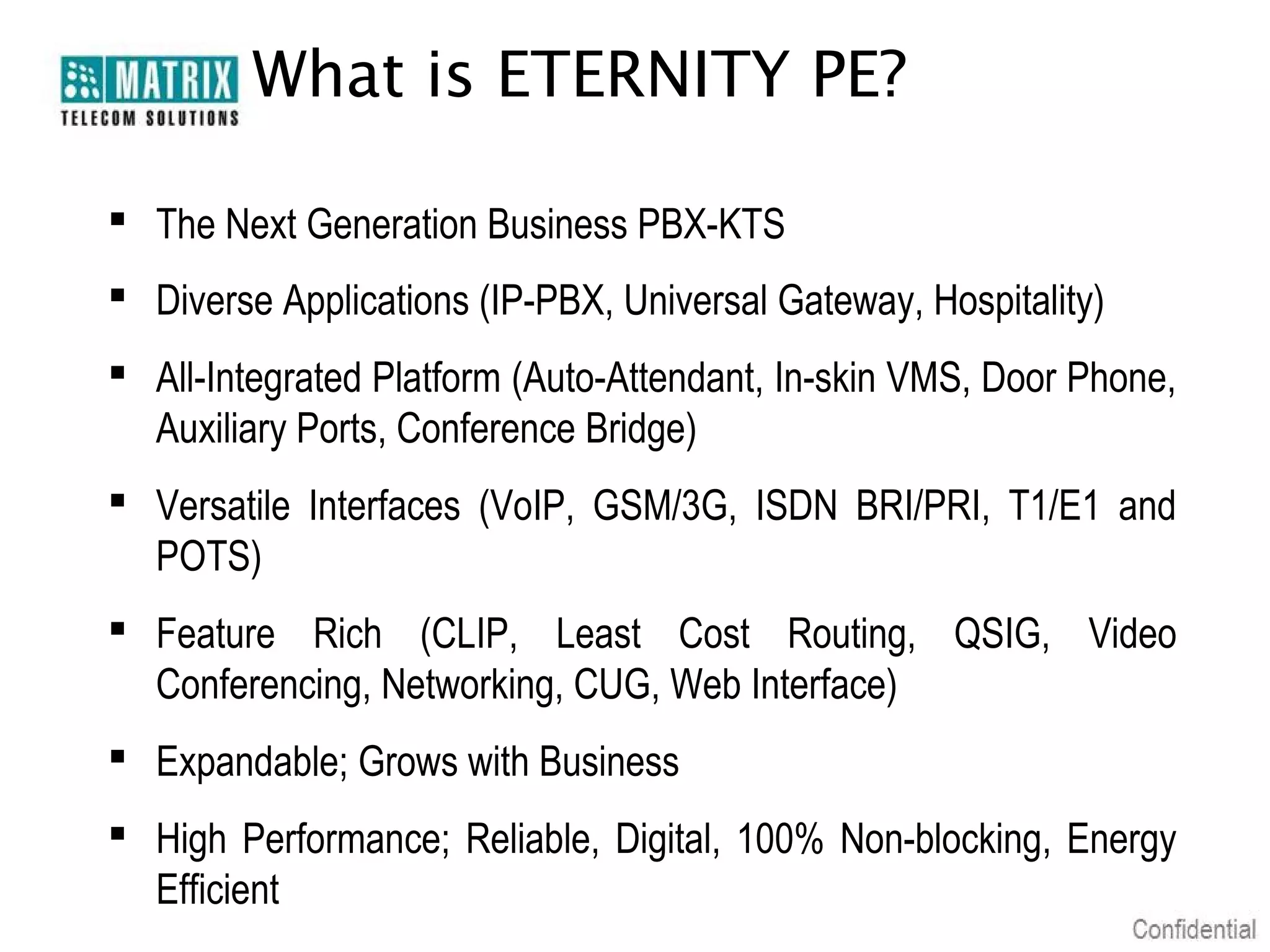

8. What is ETERNITY PE?
 The Next Generation Business PBX-KTS
 Diverse Applications (IP-PBX, Universal Gateway, Hospitality)
 All-Integrated Platform (Auto-Attendant, In-skin VMS, Door Phone,
Auxiliary Ports, Conference Bridge)
 Versatile Interfaces (VoIP, GSM/3G, ISDN BRI/PRI, T1/E1 and
POTS)
 Feature Rich (CLIP, Least Cost Routing, QSIG, Video
Conferencing, Networking, CUG, Web Interface)
 Expandable; Grows with Business
 High Performance; Reliable, Digital, 100% Non-blocking, Energy
Efficient

9. ETERNITY PE Family

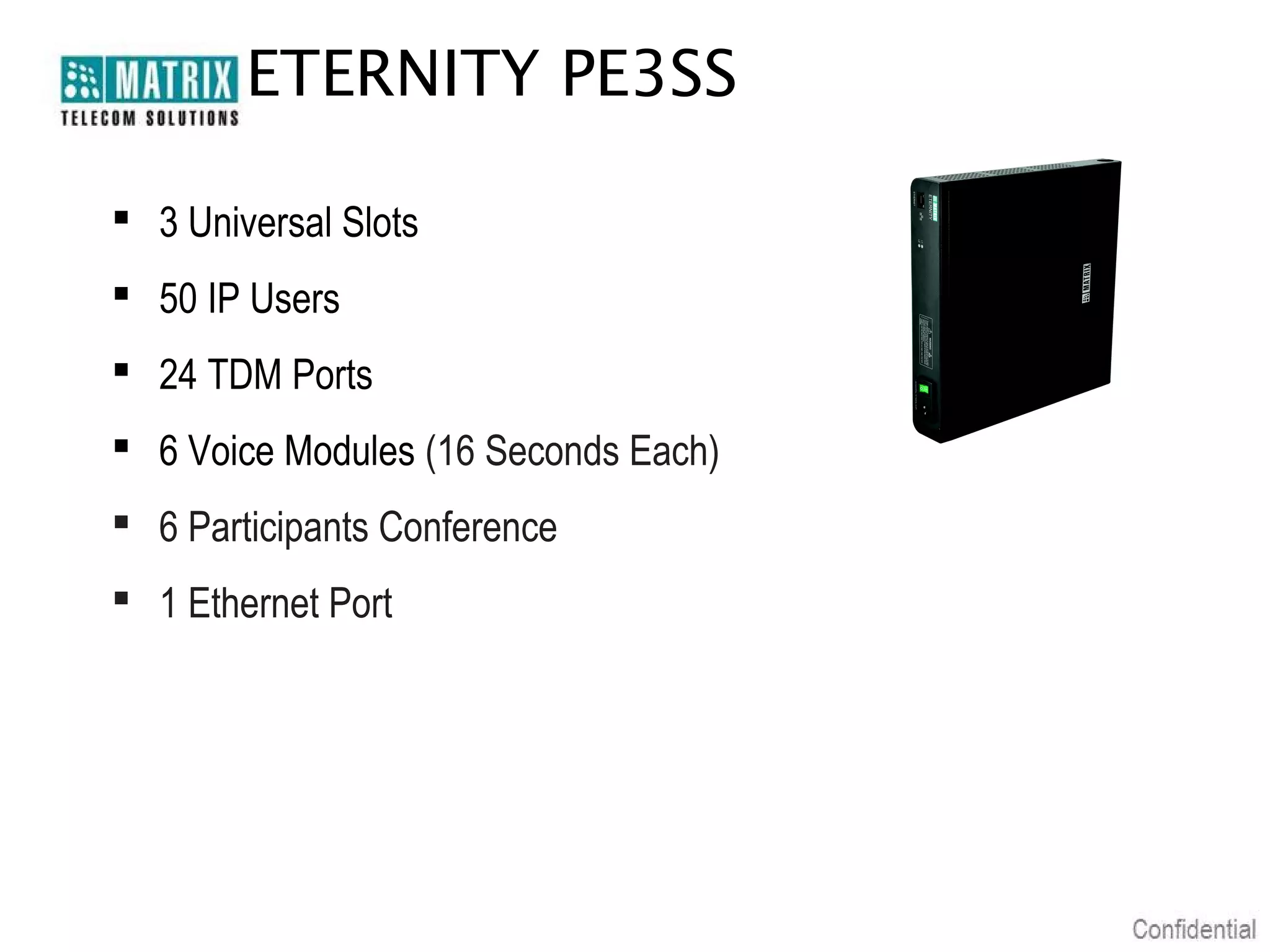

10. ETERNITY PE3SS
 3 Universal Slots
 50 IP Users
 24 TDM Ports
 6 Voice Modules (16 Seconds Each)
 6 Participants Conference
 1 Ethernet Port

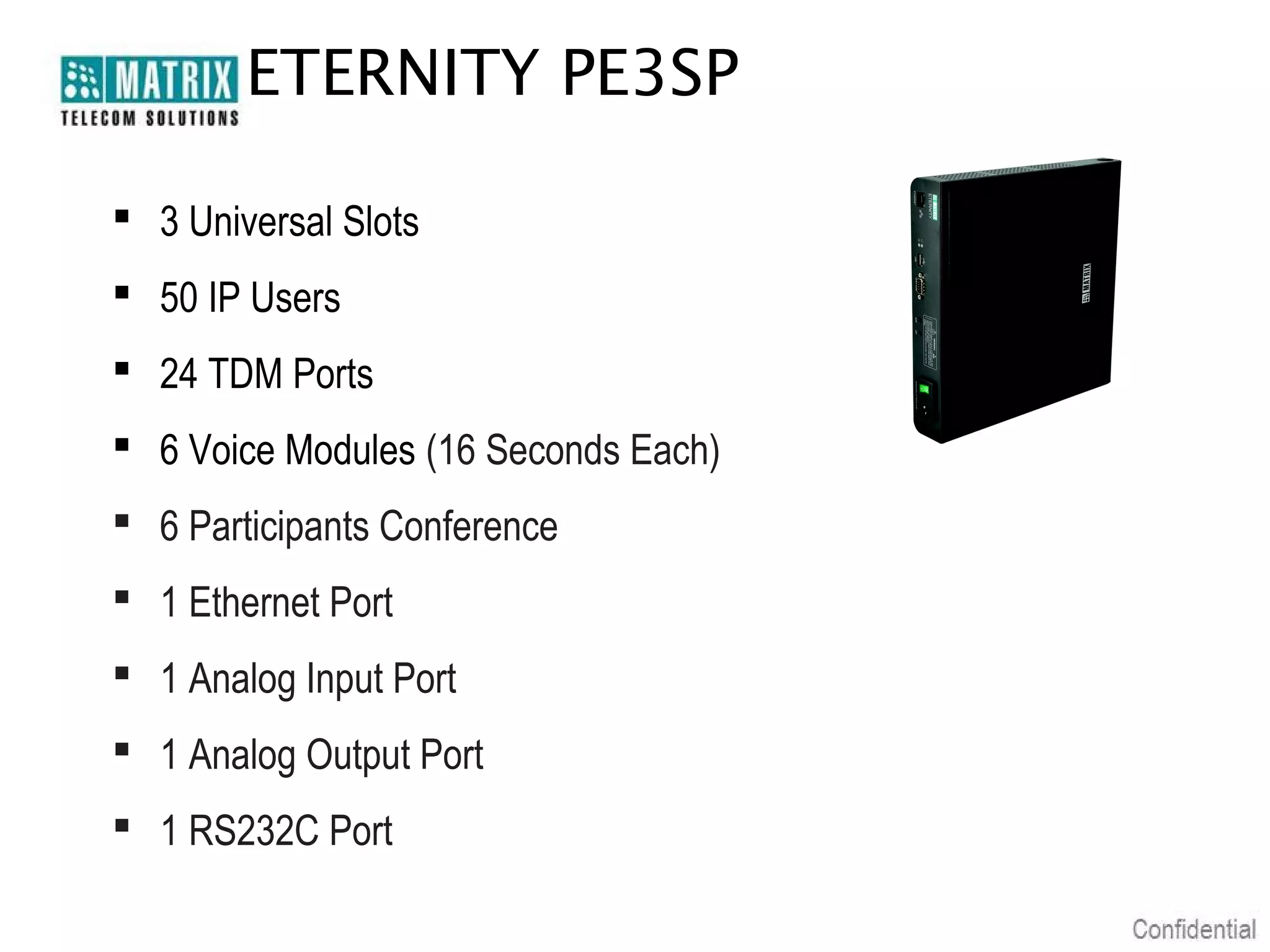

11. ETERNITY PE3SP
 3 Universal Slots
 50 IP Users
 24 TDM Ports
 6 Voice Modules (16 Seconds Each)
 6 Participants Conference
 1 Ethernet Port
 1 Analog Input Port
 1 Analog Output Port
 1 RS232C Port

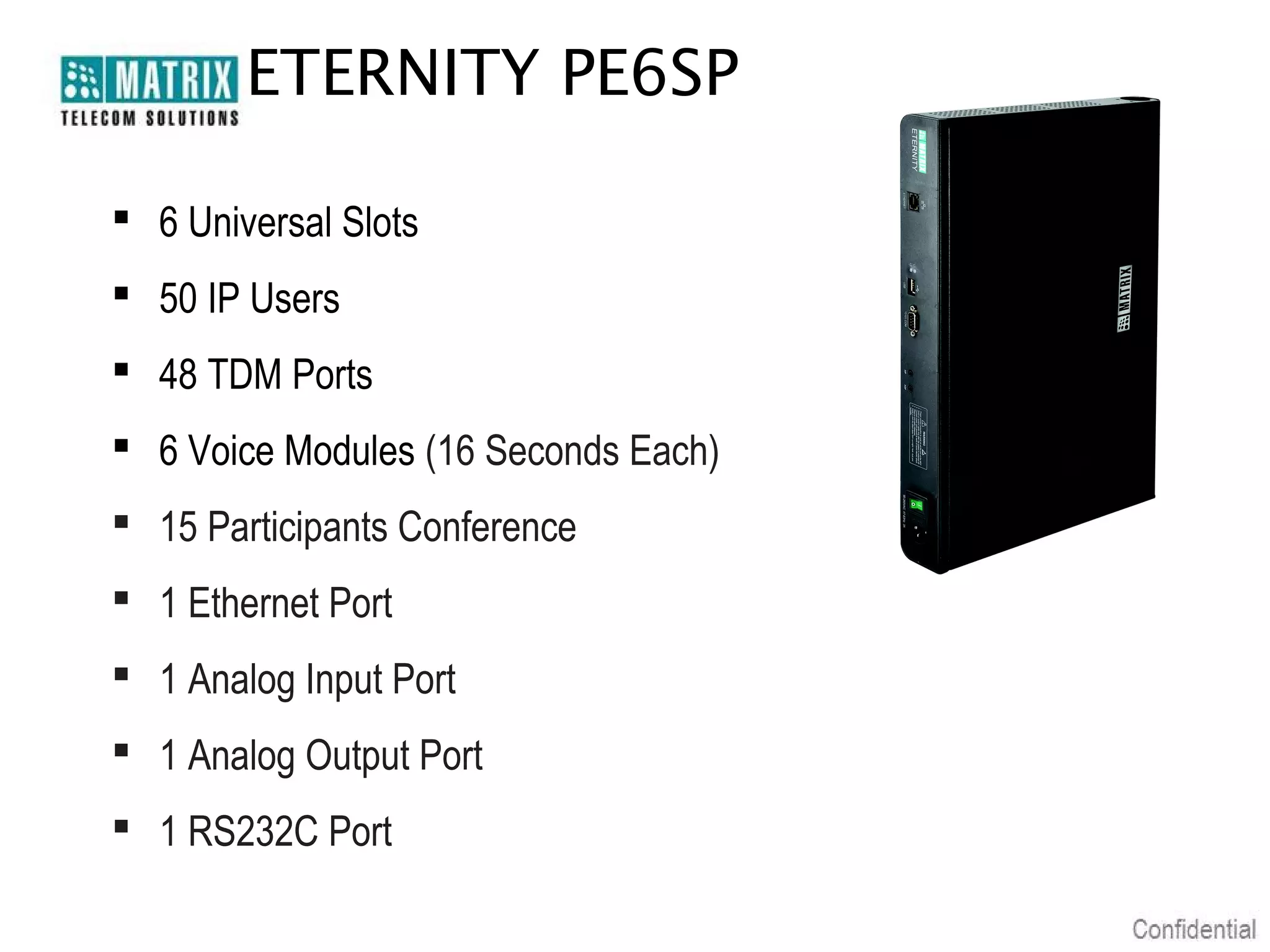

12. ETERNITY PE6SP
 6 Universal Slots
 50 IP Users
 48 TDM Ports
 6 Voice Modules (16 Seconds Each)
 15 Participants Conference
 1 Ethernet Port
 1 Analog Input Port
 1 Analog Output Port
 1 RS232C Port

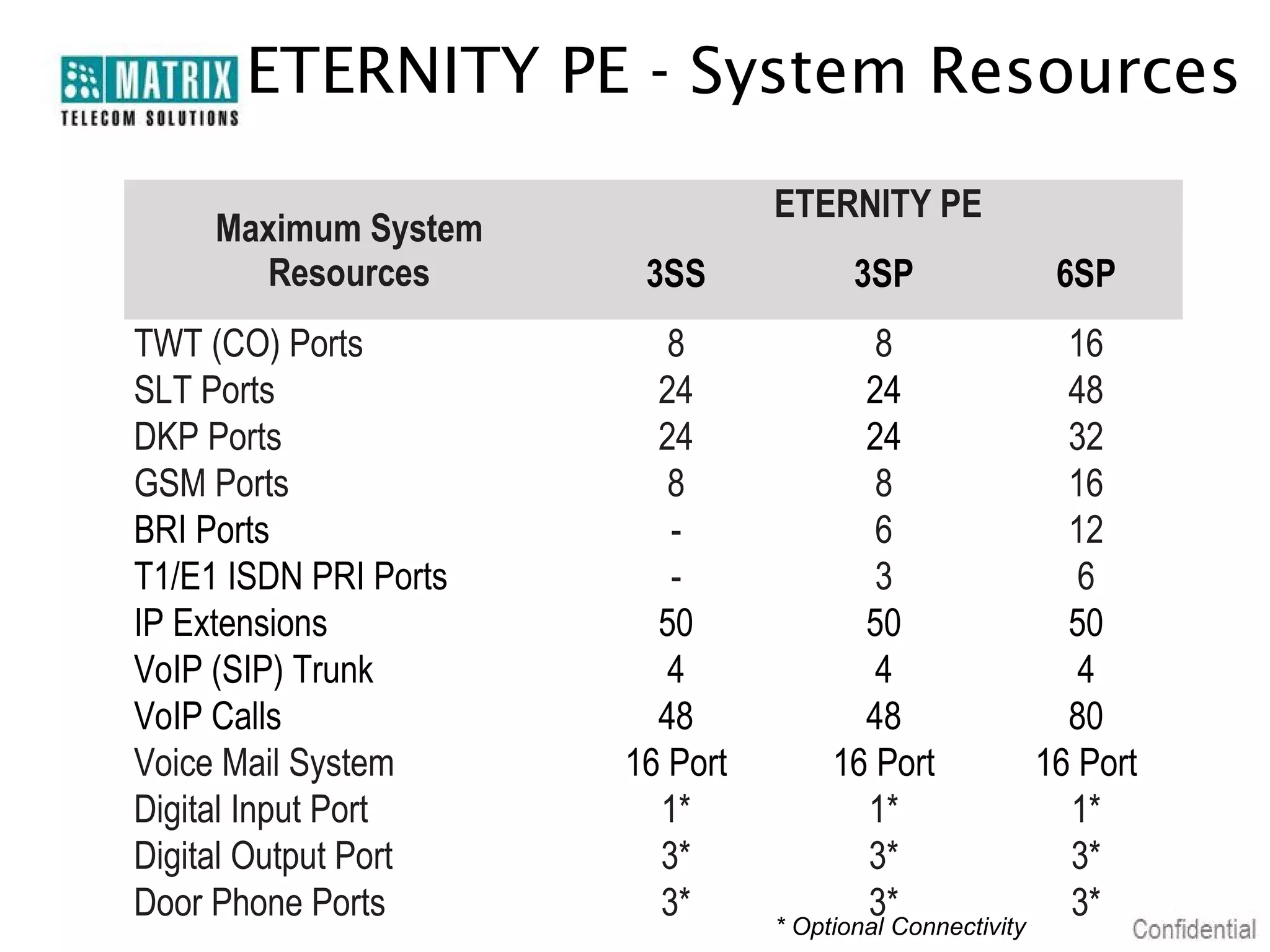

13. ETERNITY PE - System Resources
ETERNITY PE
Maximum System
Resources 3SS 3SP 6SP
TWT (CO) Ports 8 8 16
SLT Ports 24 24 48
DKP Ports 24 24 32
GSM Ports 8 8 16
BRI Ports - 6 12
T1/E1 ISDN PRI Ports - 3 6
IP Extensions 50 50 50
VoIP (SIP) Trunk 4 4 4
VoIP Calls 48 48 80
Voice Mail System 16 Port 16 Port 16 Port
Digital Input Port 1* 1* 1*
Digital Output Port 3* 3* 3*
Door Phone Ports 3* 3* 3*
* Optional Connectivity

14. Platform Highlights
 Interchangeable Cards (ETERNITY PE Models)
 Expansion by Changing the Sub-Rack
 Sturdy Assembly (Fully Loaded Transportation)
 Common Software for ETERNITY PE/GE/ME Applications
 Interchangeable User Terminals (ETERNITY PE/GE/ME)

15. Network Interfaces

16. Interfaces: Trunk Side
 CO (TWT)
 ISDN BRI (2B+D) (TE Mode)
 ISDN T1/E1 ISDN PRI/QSIG (23B+D or 30B+D)
 GSM/3G (SIM)
 VoIP (SIP)

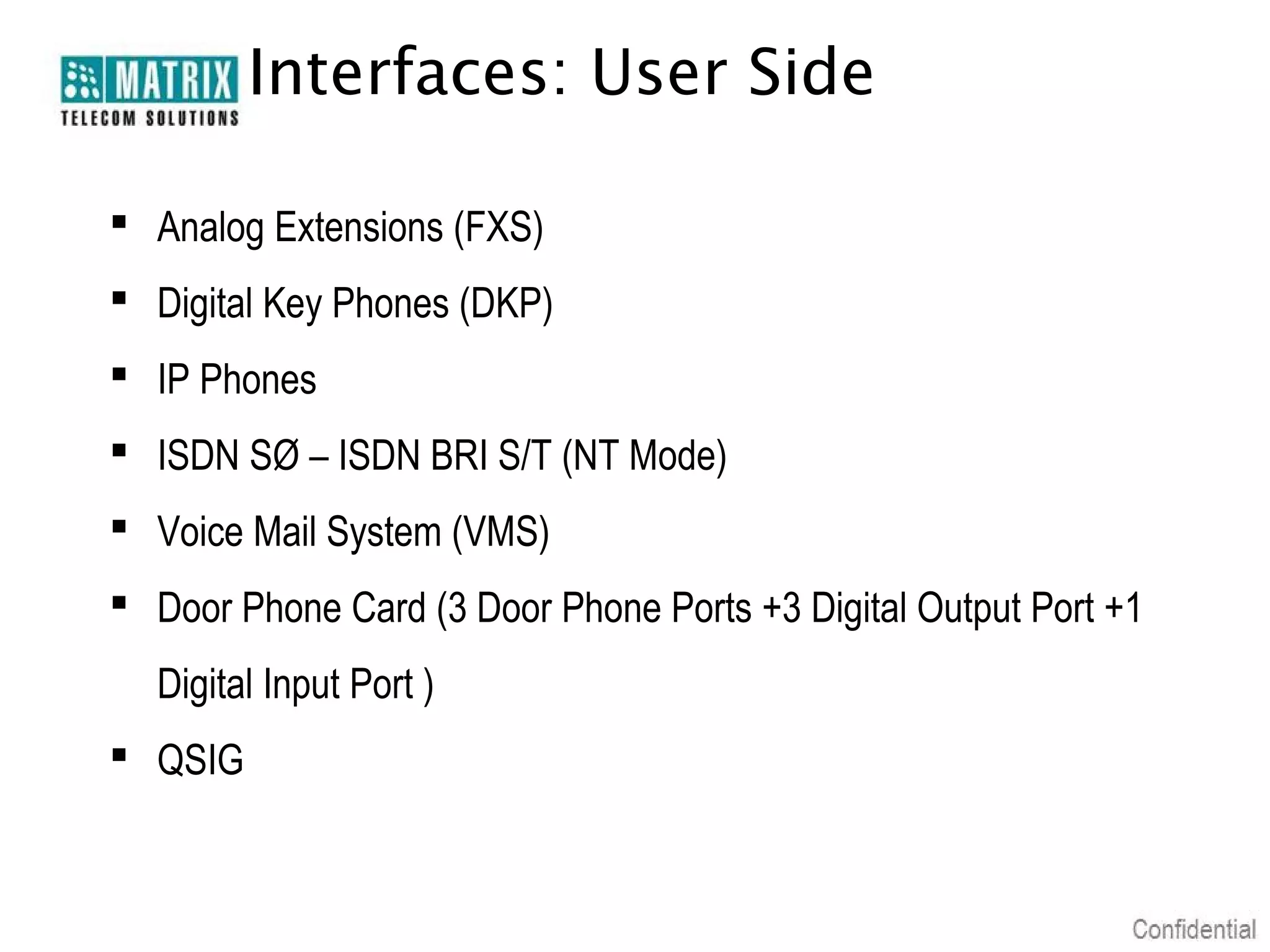

17. Interfaces: User Side
 Analog Extensions (FXS)
 Digital Key Phones (DKP)
 IP Phones
 ISDN SØ – ISDN BRI S/T (NT Mode)
 Voice Mail System (VMS)
 Door Phone Card (3 Door Phone Ports +3 Digital Output Port +1
Digital Input Port )
 QSIG

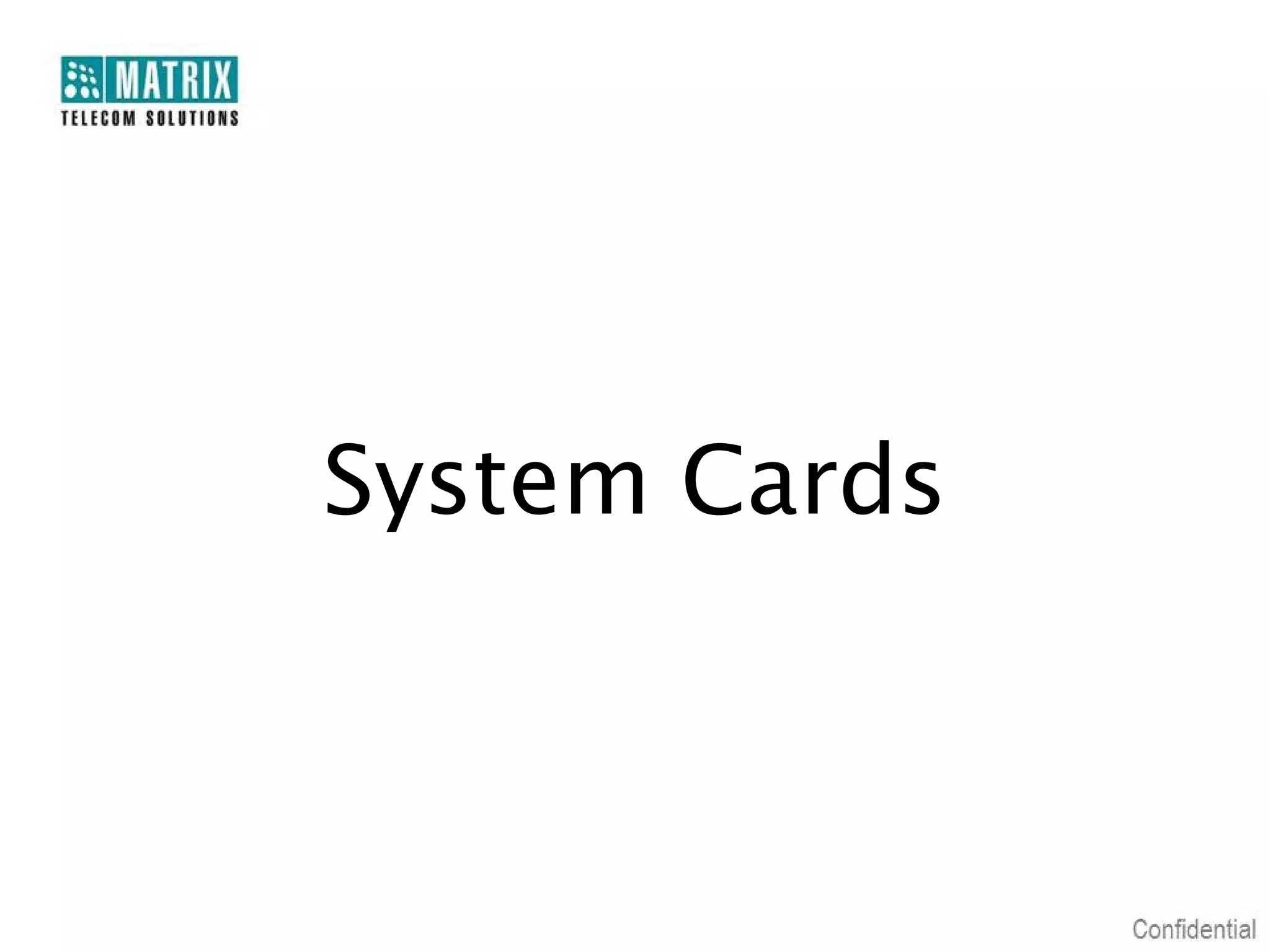

18. System Cards

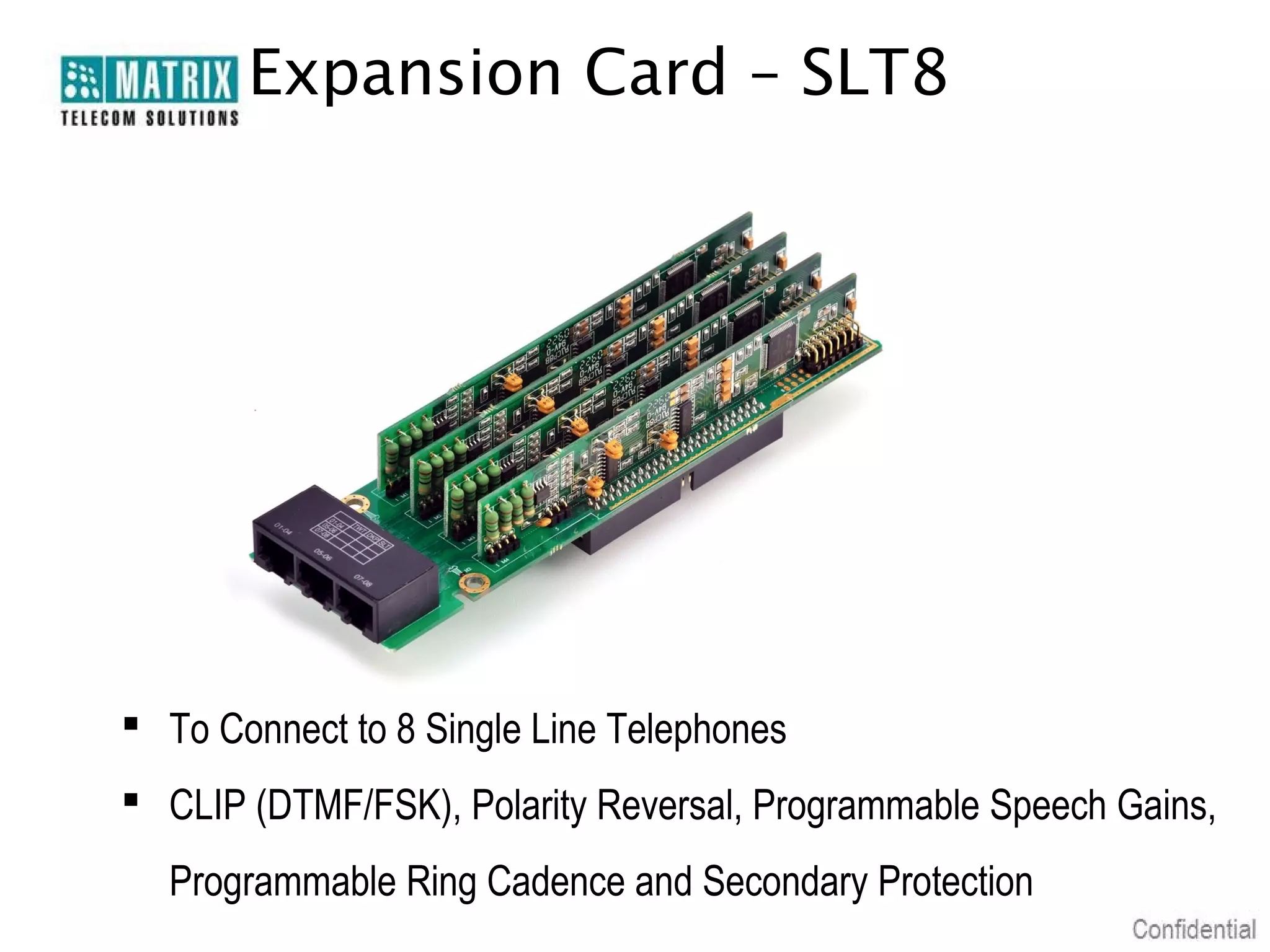

19. Expansion Card – SLT8
 To Connect to 8 Single Line Telephones
 CLIP (DTMF/FSK), Polarity Reversal, Programmable Speech Gains,
Programmable Ring Cadence and Secondary Protection

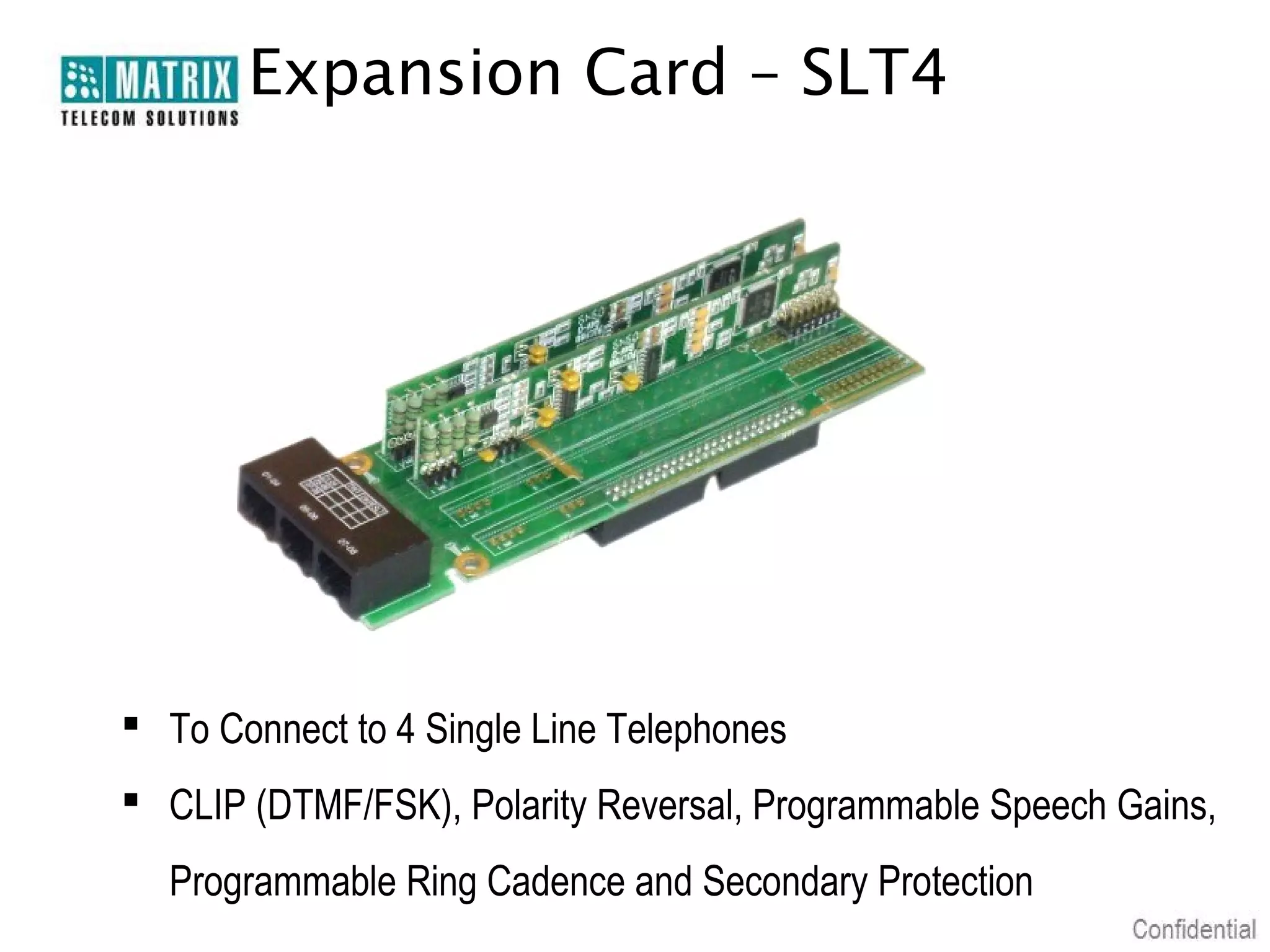

20. Expansion Card – SLT4
 To Connect to 4 Single Line Telephones
 CLIP (DTMF/FSK), Polarity Reversal, Programmable Speech Gains,
Programmable Ring Cadence and Secondary Protection

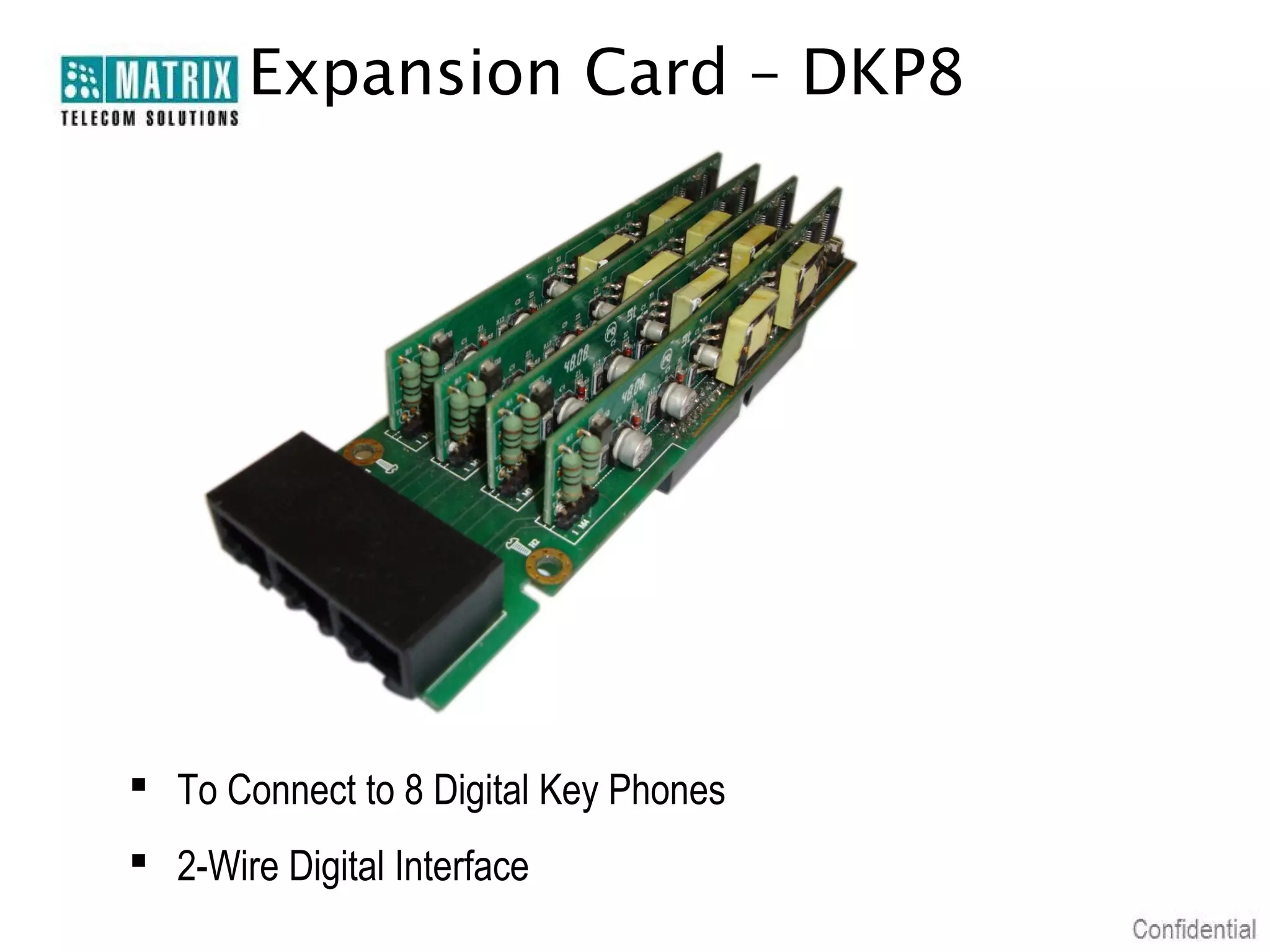

21. Expansion Card – DKP8
 To Connect to 8 Digital Key Phones
 2-Wire Digital Interface

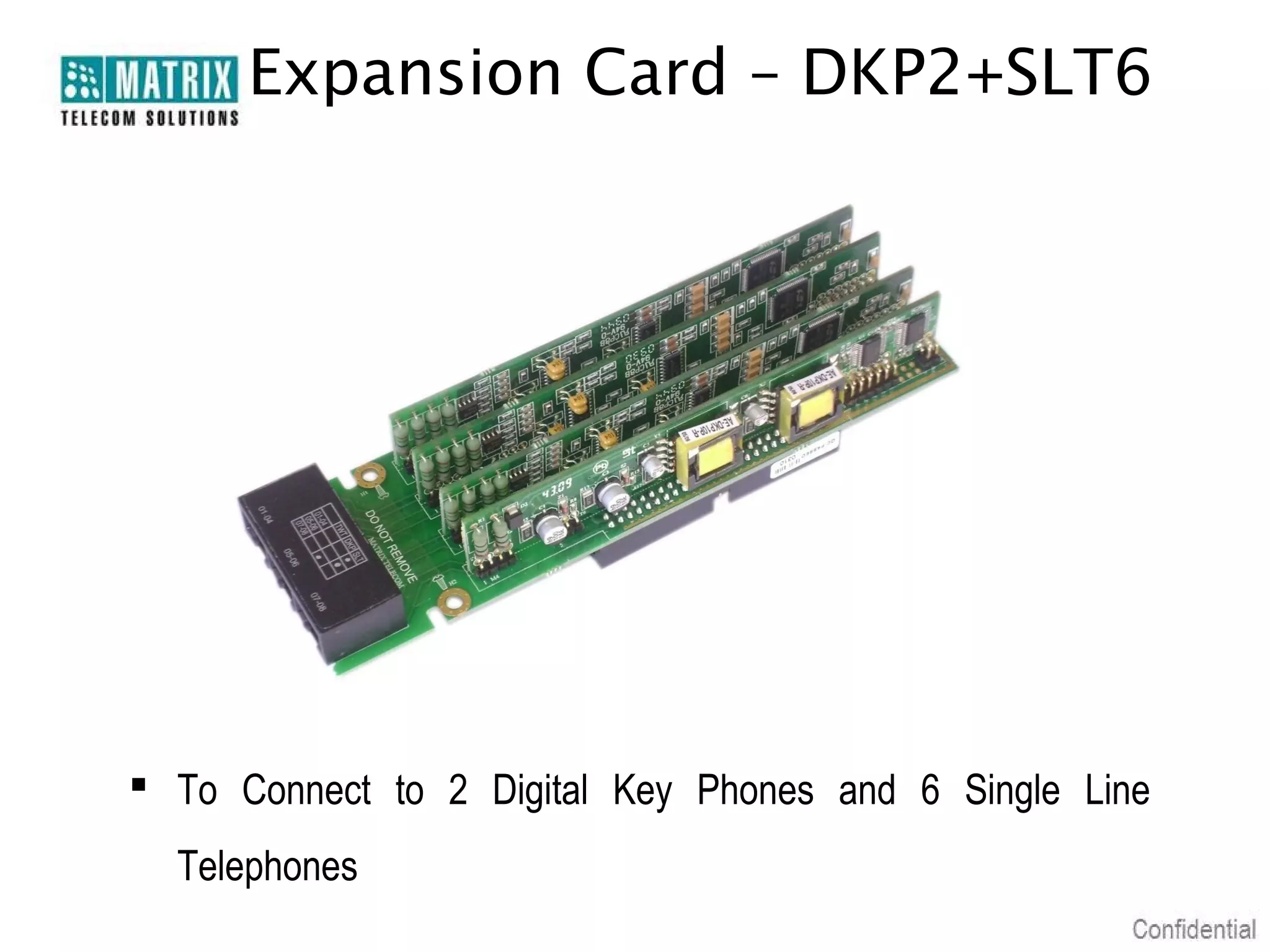

22. Expansion Card – DKP2+SLT6
 To Connect to 2 Digital Key Phones and 6 Single Line
Telephones

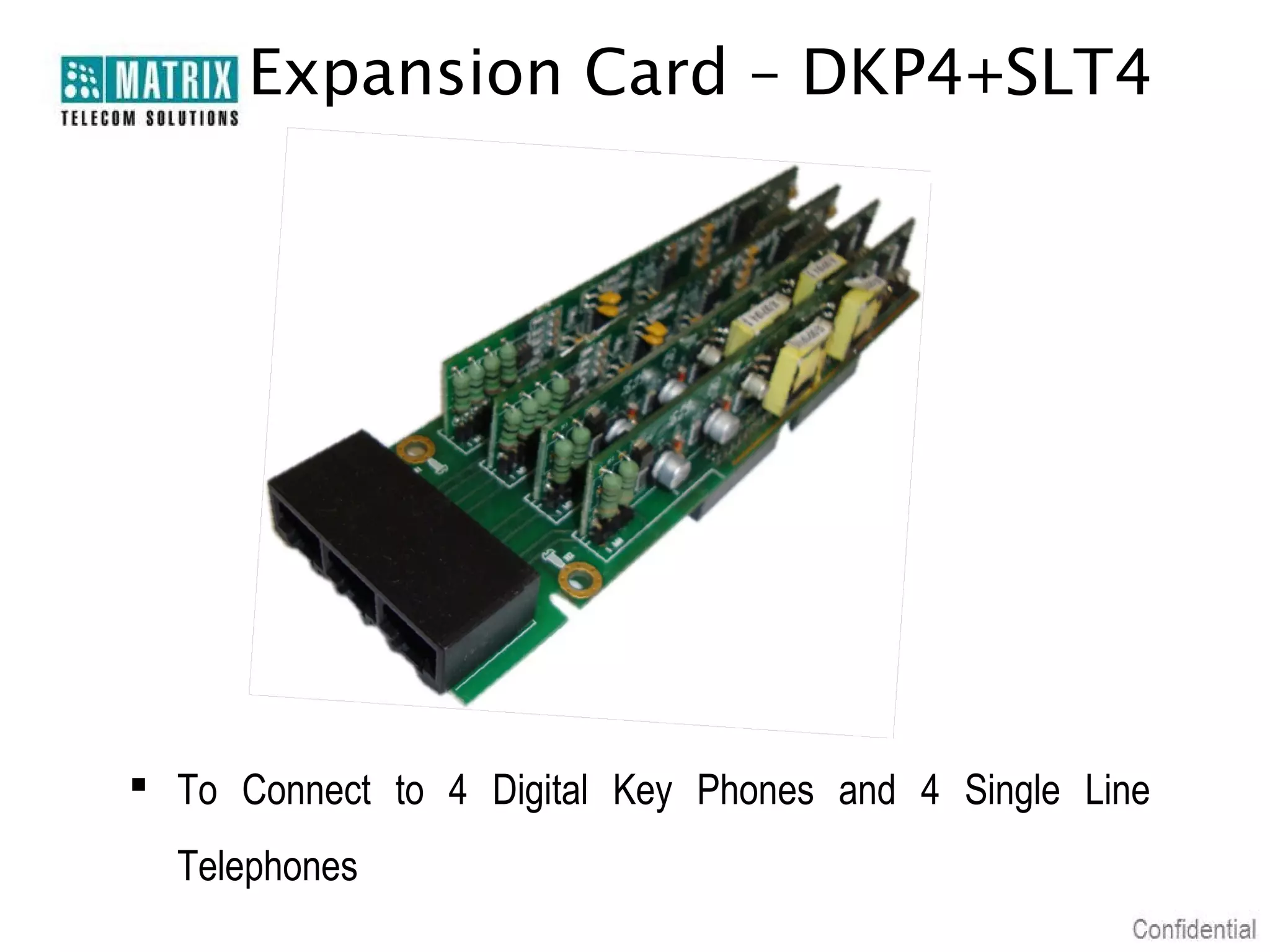

23. Expansion Card – DKP4+SLT4
 To Connect to 4 Digital Key Phones and 4 Single Line
Telephones

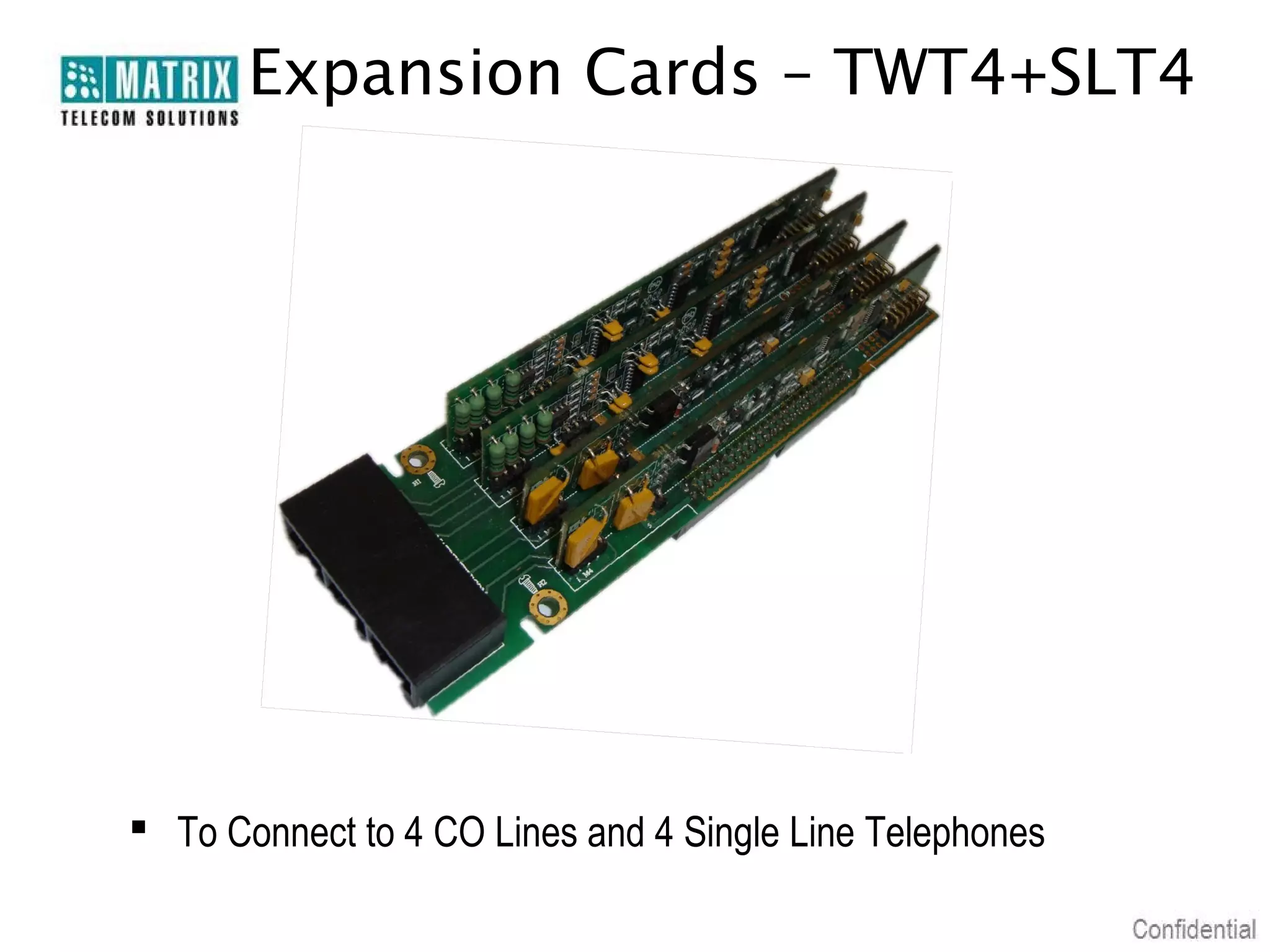

24. Expansion Cards – TWT4+SLT4
 To Connect to 4 CO Lines and 4 Single Line Telephones

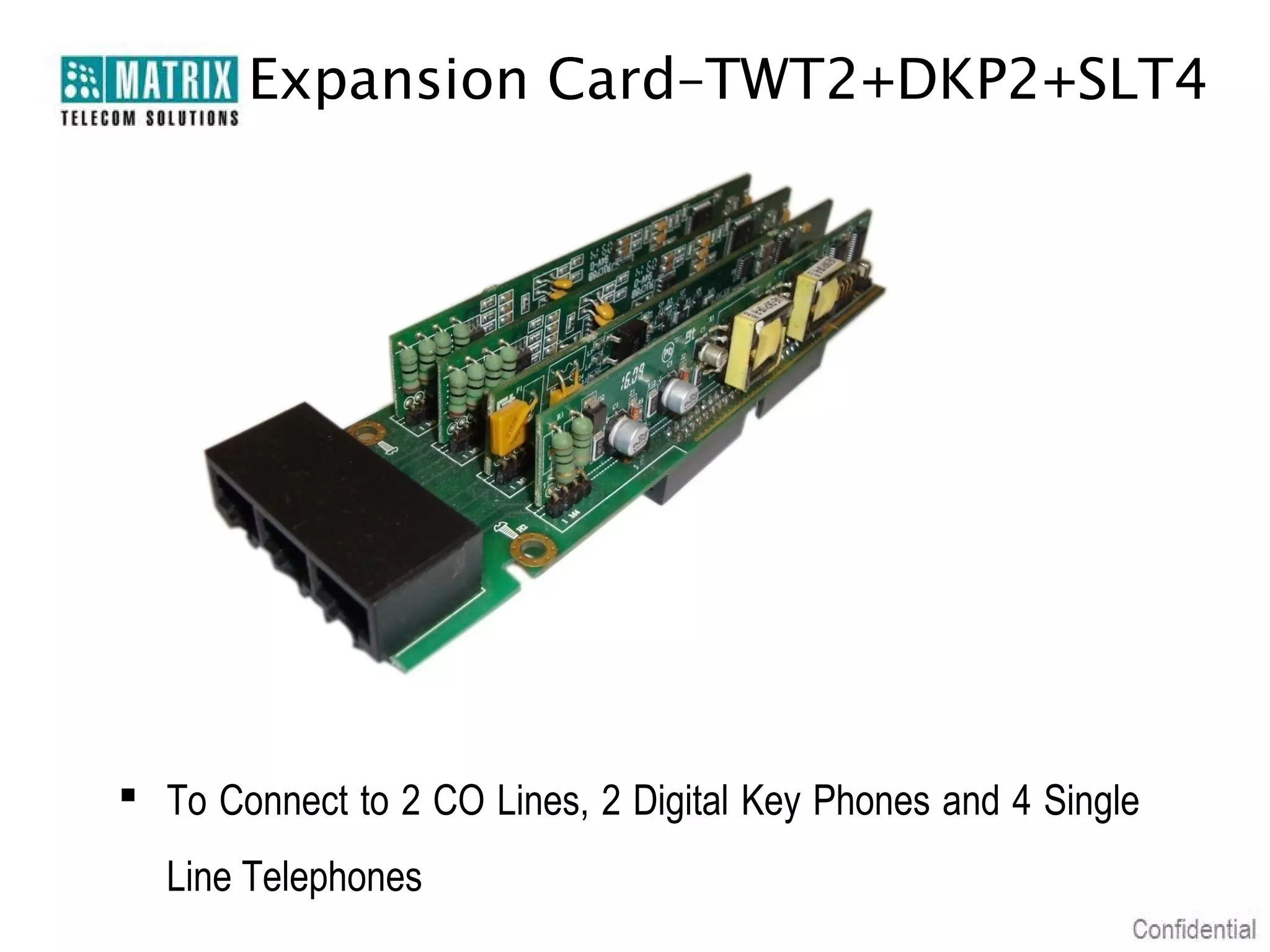

25. Expansion Card–TWT2+DKP2+SLT4
 To Connect to 2 CO Lines, 2 Digital Key Phones and 4 Single
Line Telephones

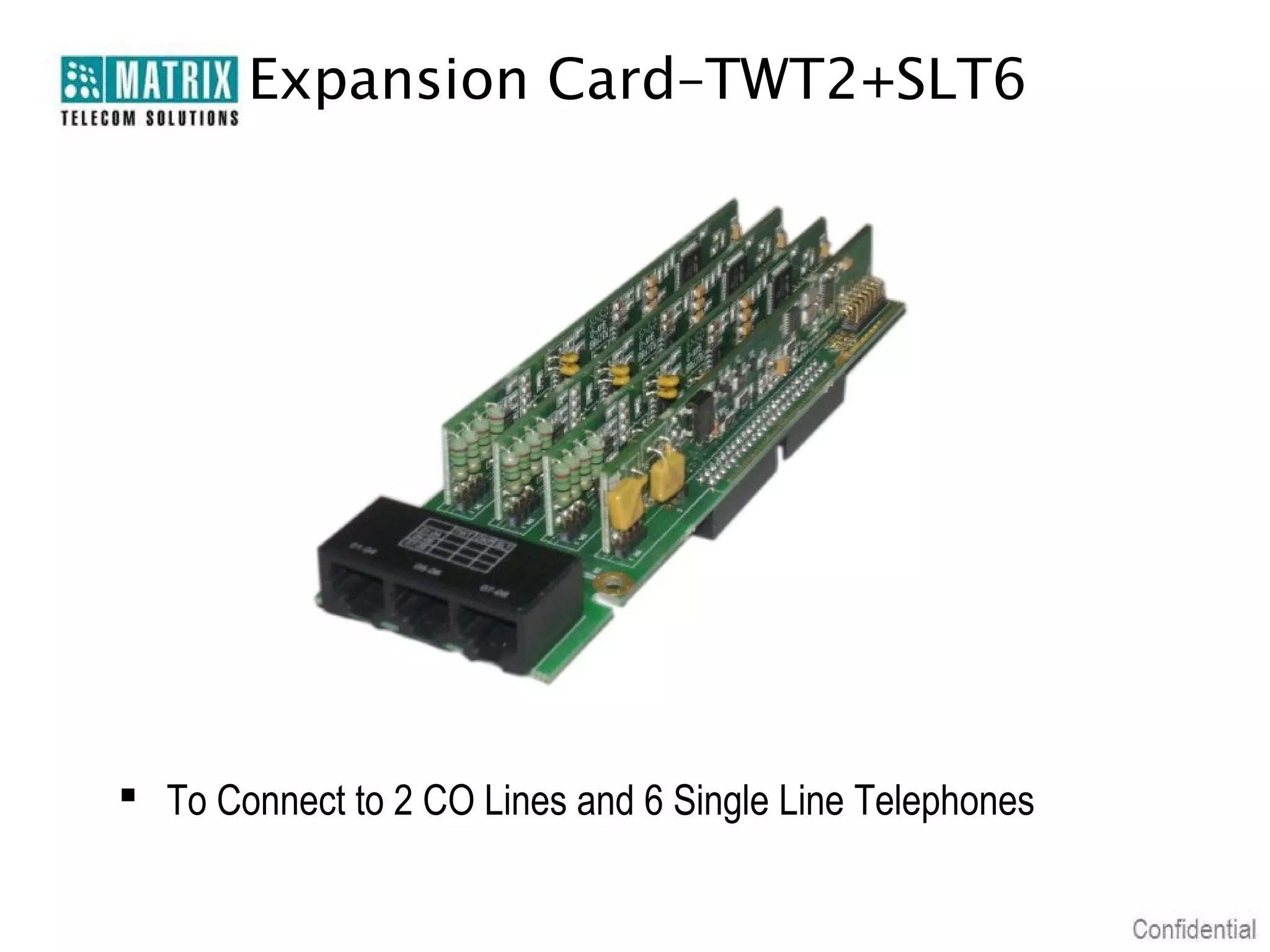

26. Expansion Card–TWT2+SLT6
 To Connect to 2 CO Lines and 6 Single Line Telephones

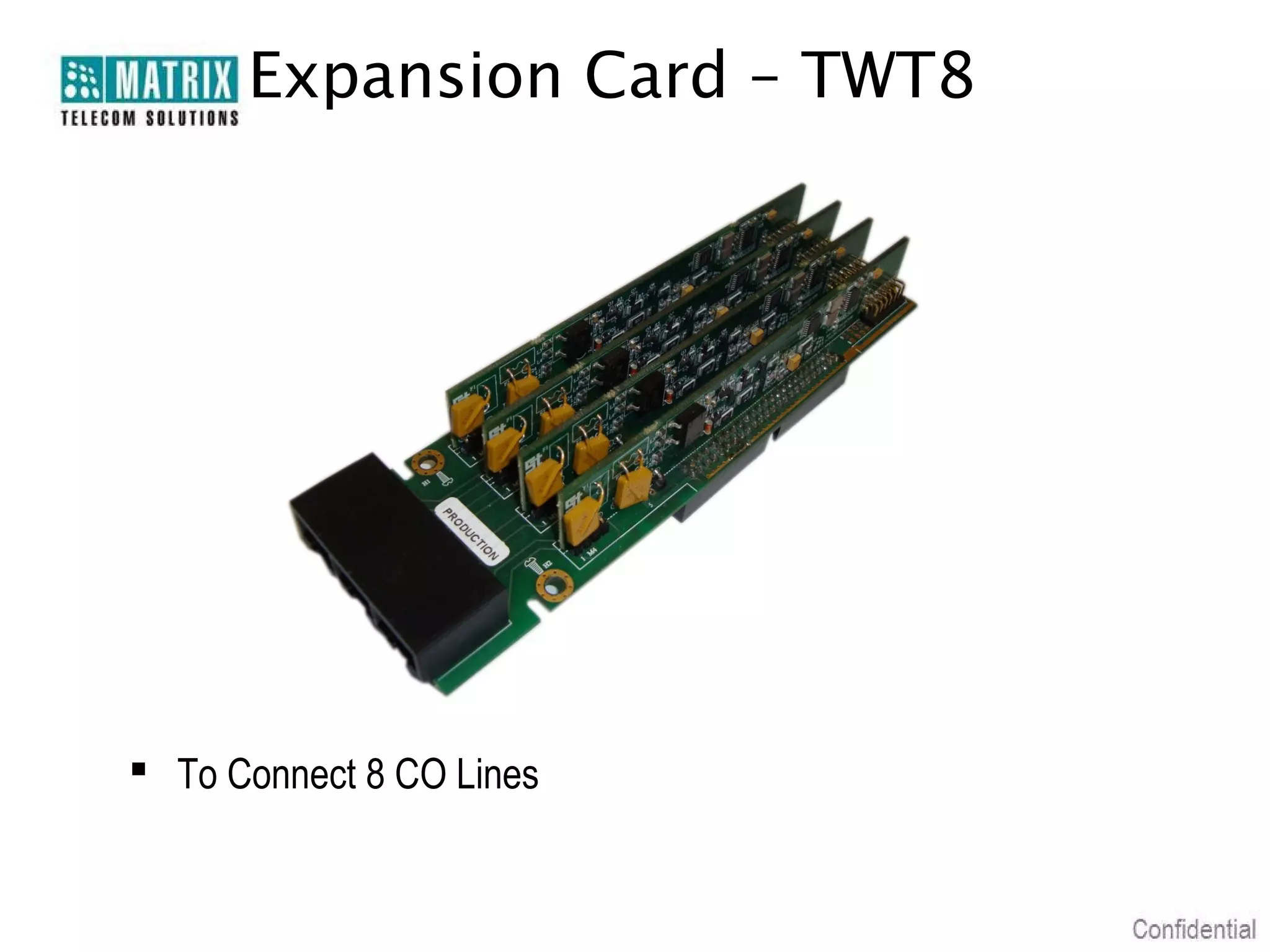

27. Expansion Card – TWT8
 To Connect 8 CO Lines

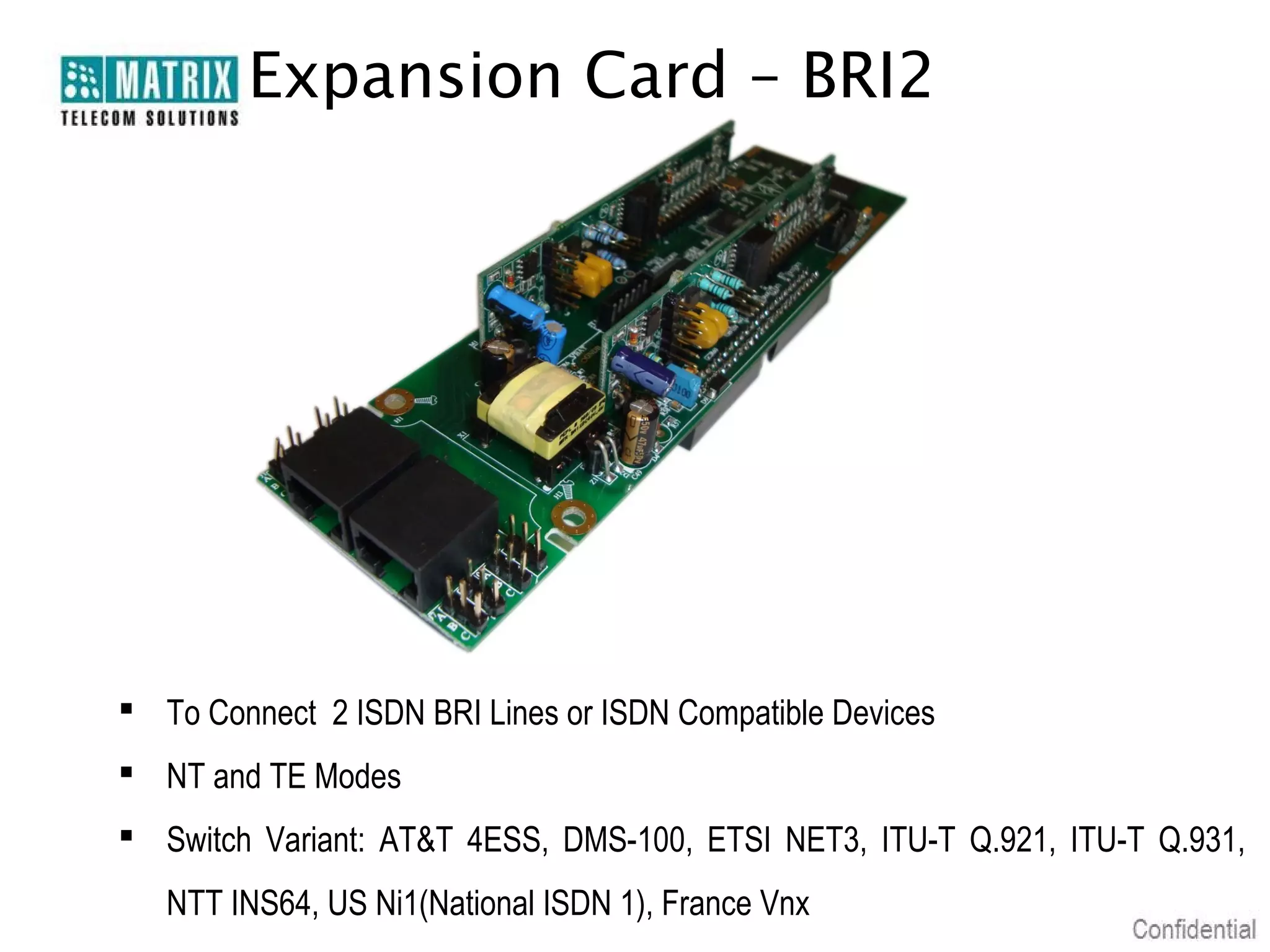

28. Expansion Card – BRI2
 To Connect 2 ISDN BRI Lines or ISDN Compatible Devices
 NT and TE Modes
 Switch Variant: AT&T 4ESS, DMS-100, ETSI NET3, ITU-T Q.921, ITU-T Q.931,
NTT INS64, US Ni1(National ISDN 1), France Vnx

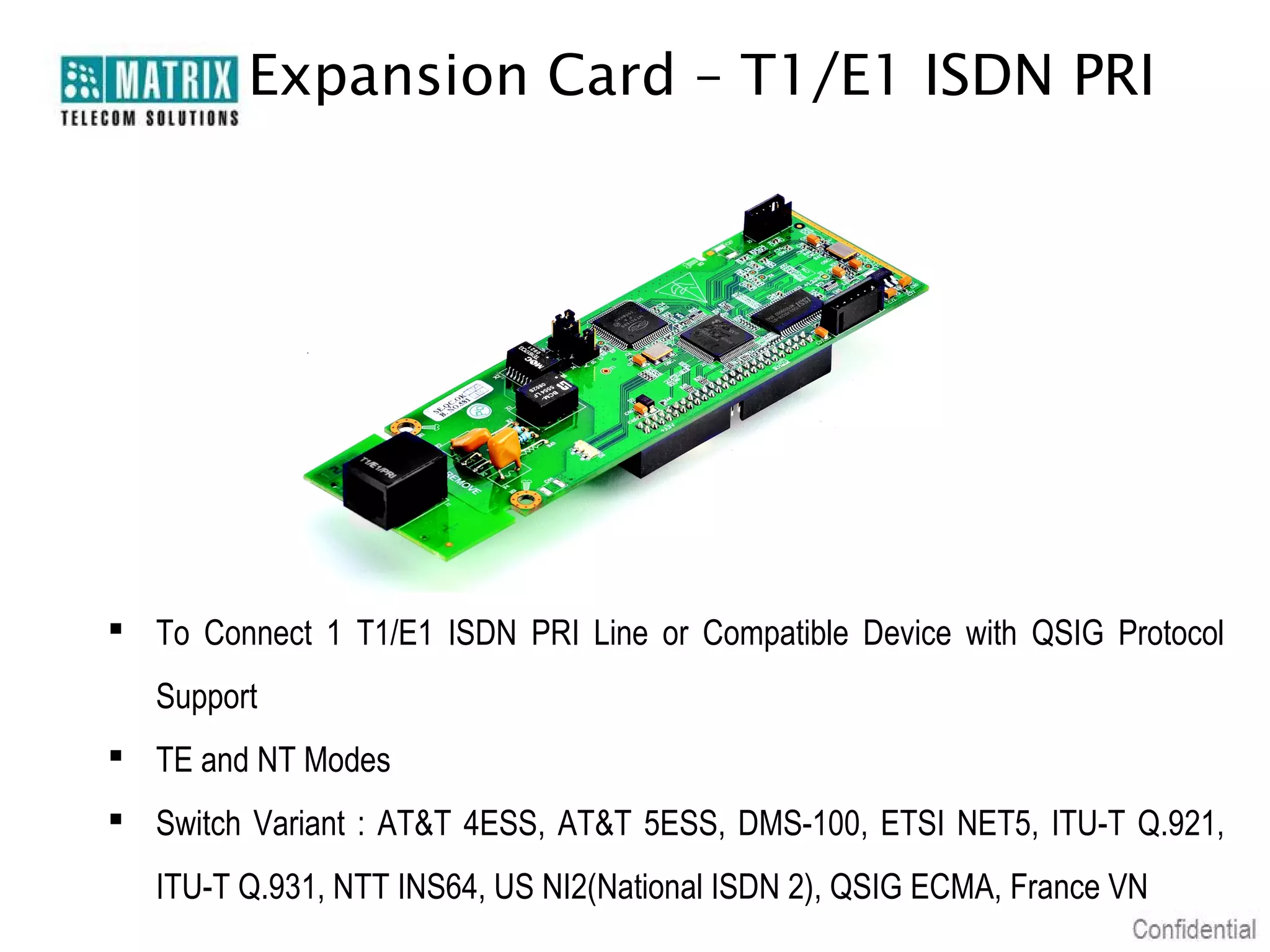

29. Expansion Card – T1/E1 ISDN PRI
 To Connect 1 T1/E1 ISDN PRI Line or Compatible Device with QSIG Protocol
Support
 TE and NT Modes
 Switch Variant : AT&T 4ESS, AT&T 5ESS, DMS-100, ETSI NET5, ITU-T Q.921,
ITU-T Q.931, NTT INS64, US NI2(National ISDN 2), QSIG ECMA, France VN

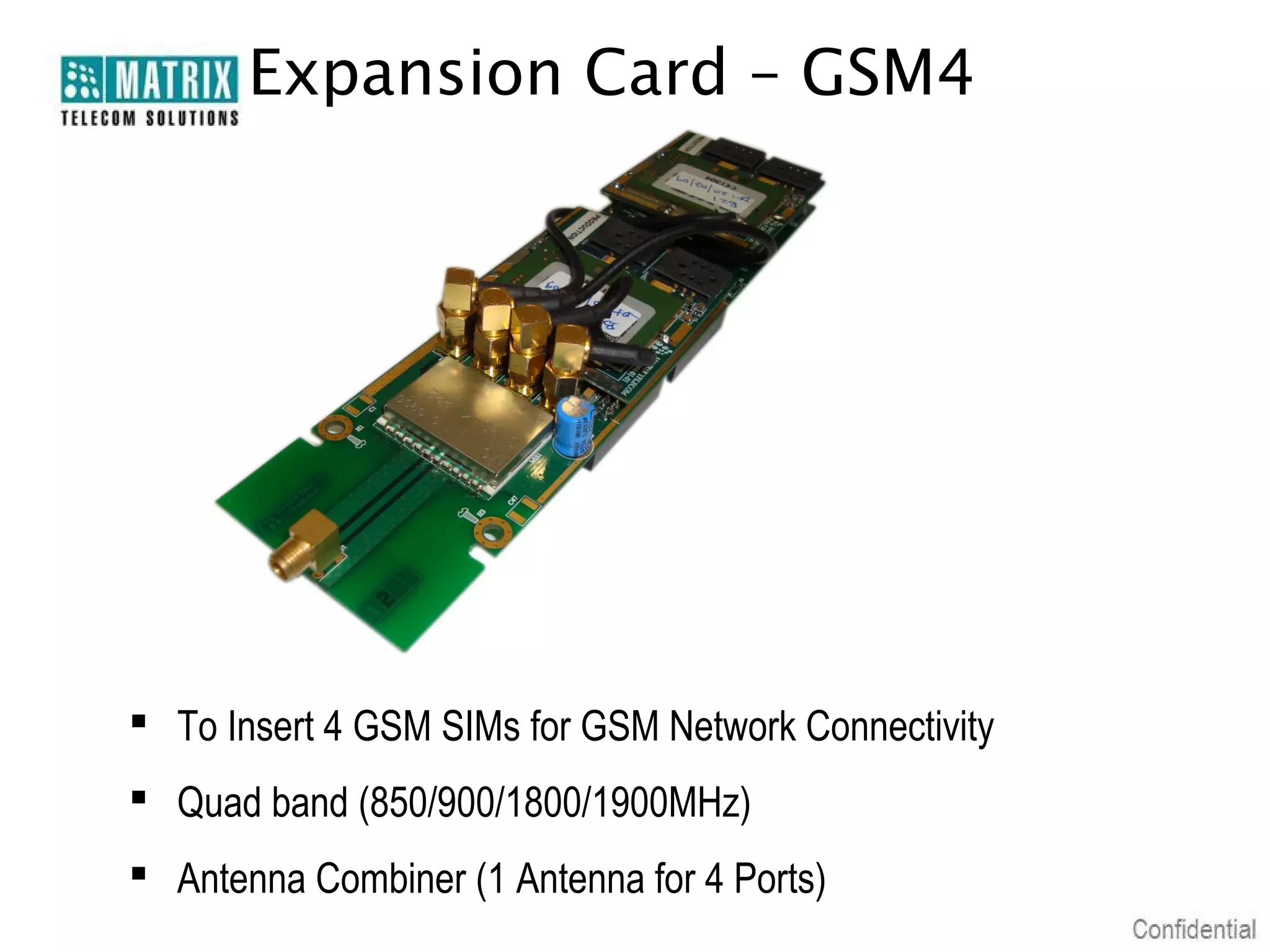

30. Expansion Card – GSM4
 To Insert 4 GSM SIMs for GSM Network Connectivity
 Quad band (850/900/1800/1900MHz)
 Antenna Combiner (1 Antenna for 4 Ports)

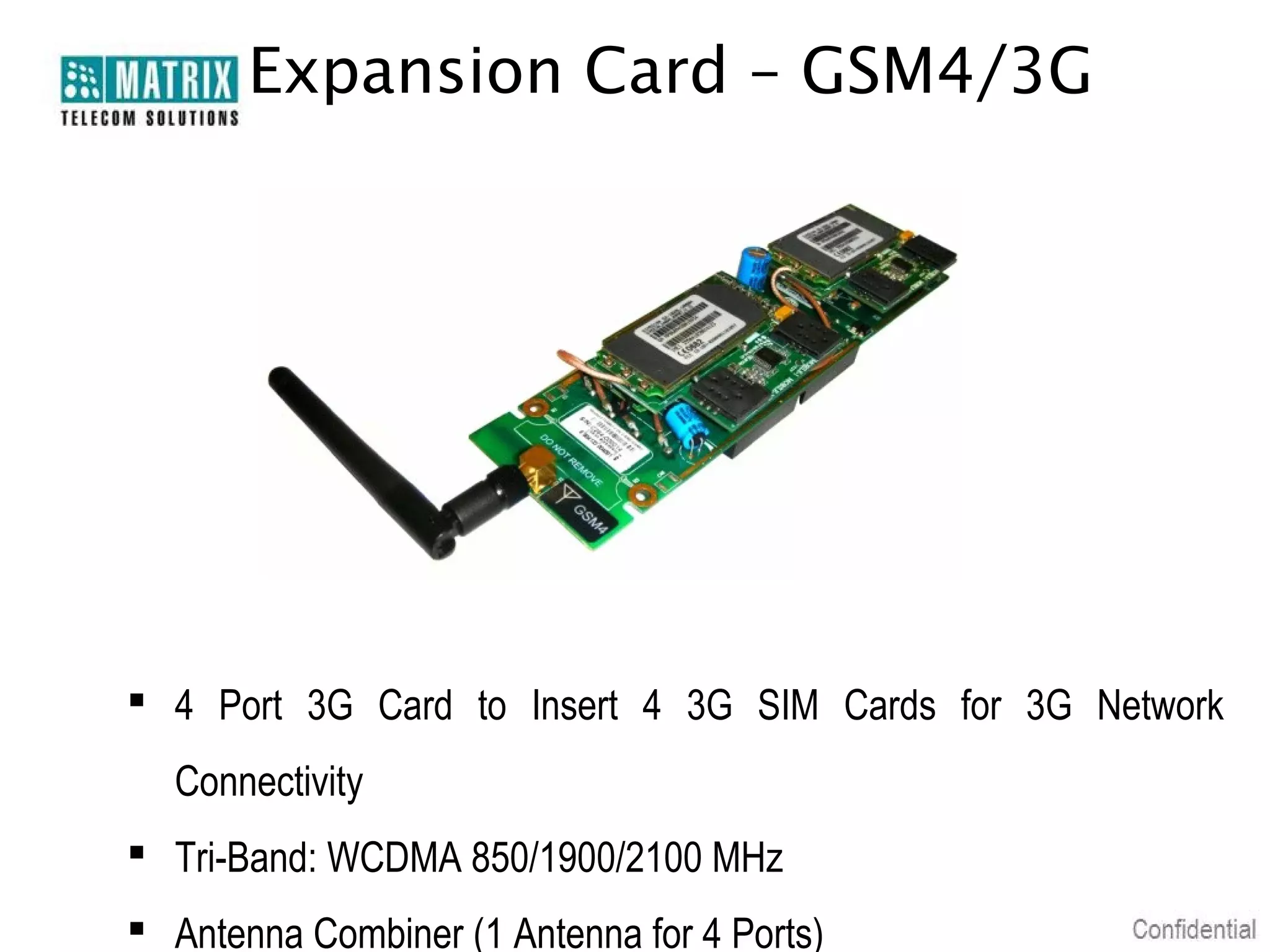

31. Expansion Card – GSM4/3G
 4 Port 3G Card to Insert 4 3G SIM Cards for 3G Network
Connectivity
 Tri-Band: WCDMA 850/1900/2100 MHz
 Antenna Combiner (1 Antenna for 4 Ports)

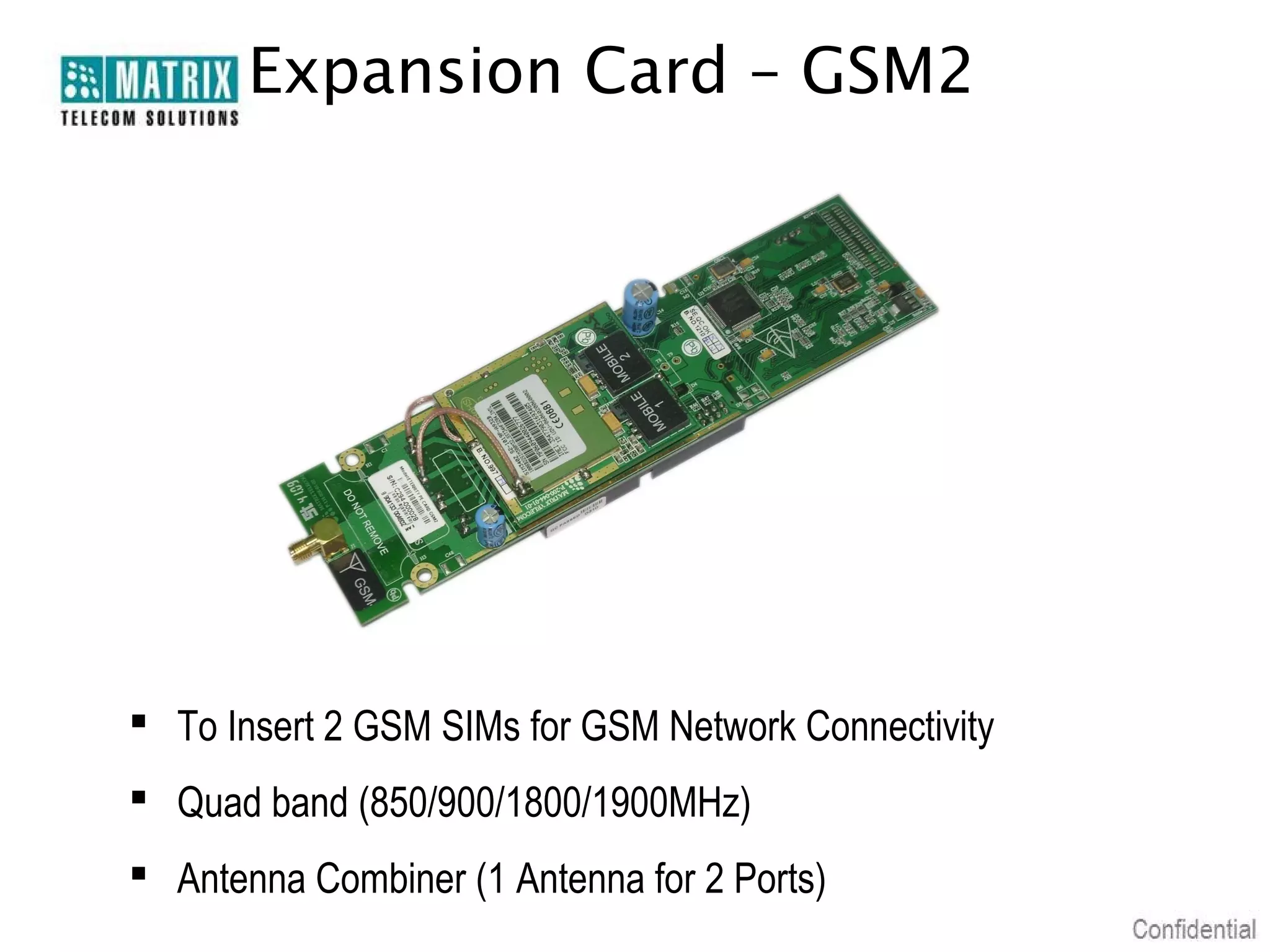

32. Expansion Card – GSM2
 To Insert 2 GSM SIMs for GSM Network Connectivity
 Quad band (850/900/1800/1900MHz)
 Antenna Combiner (1 Antenna for 2 Ports)

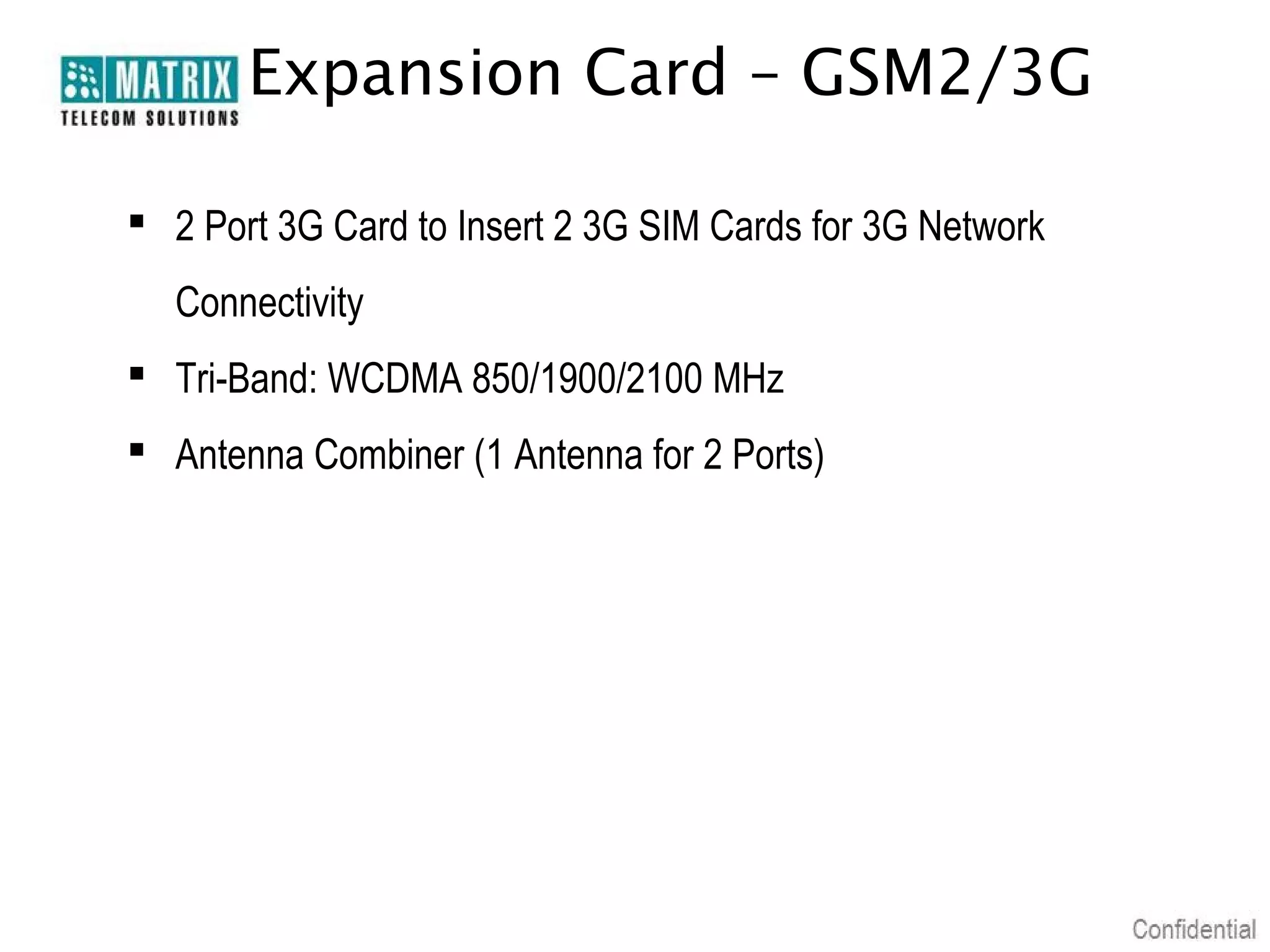

33. Expansion Card – GSM2/3G
 2 Port 3G Card to Insert 2 3G SIM Cards for 3G Network
Connectivity
 Tri-Band: WCDMA 850/1900/2100 MHz
 Antenna Combiner (1 Antenna for 2 Ports)

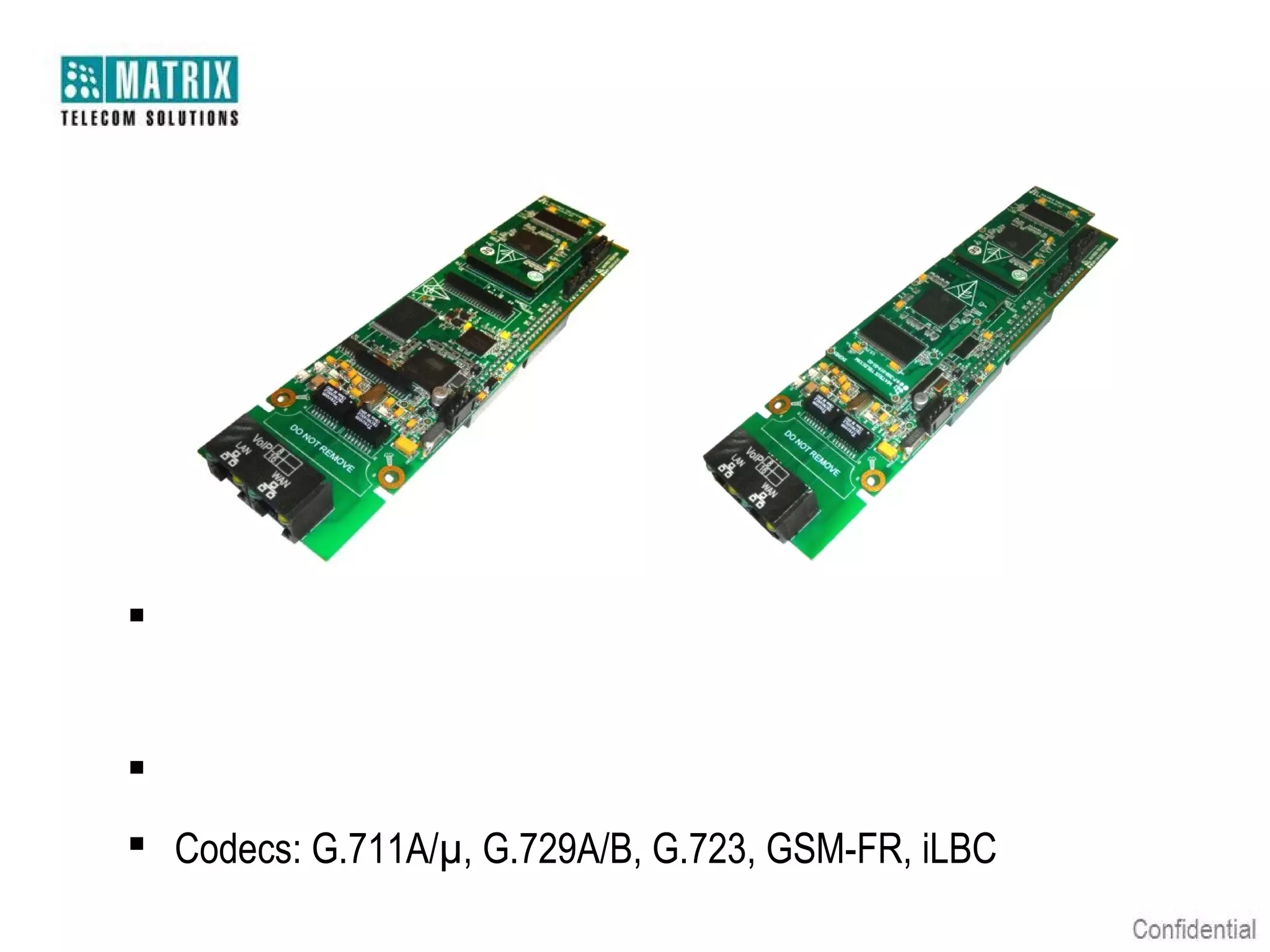

34. Expansion Card – VoIP8/16
 Expansion Card having Server and Trunks Personalities for 8/16
Concurrent Calls
 Register with any 3rd Party SIP Registrar Proxy or IP PBX
 Codecs: G.711A/µ, G.729A/B, G.723, GSM-FR, iLBC

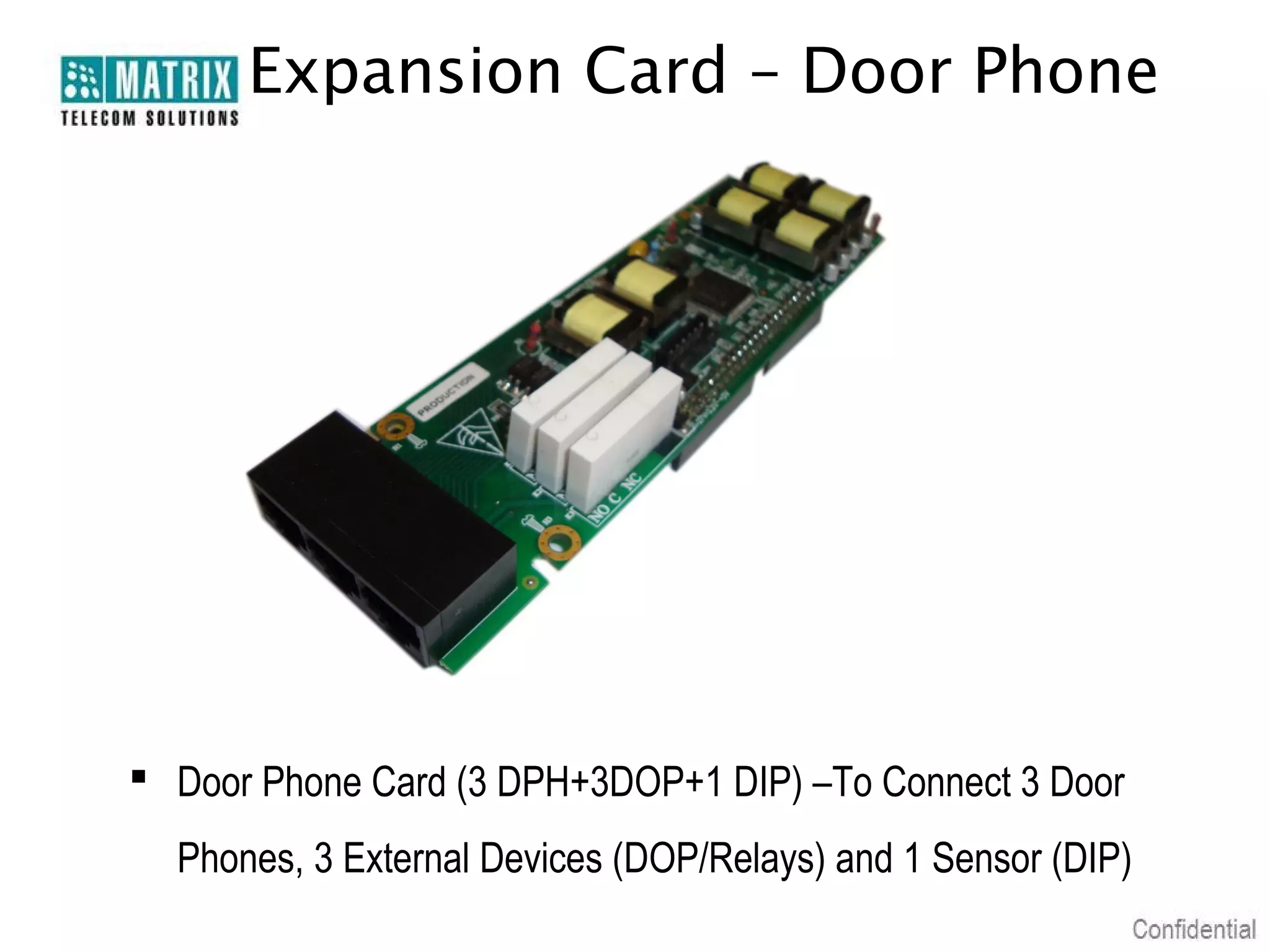

35. Expansion Card – Door Phone
 Door Phone Card (3 DPH+3DOP+1 DIP) –To Connect 3 Door
Phones, 3 External Devices (DOP/Relays) and 1 Sensor (DIP)

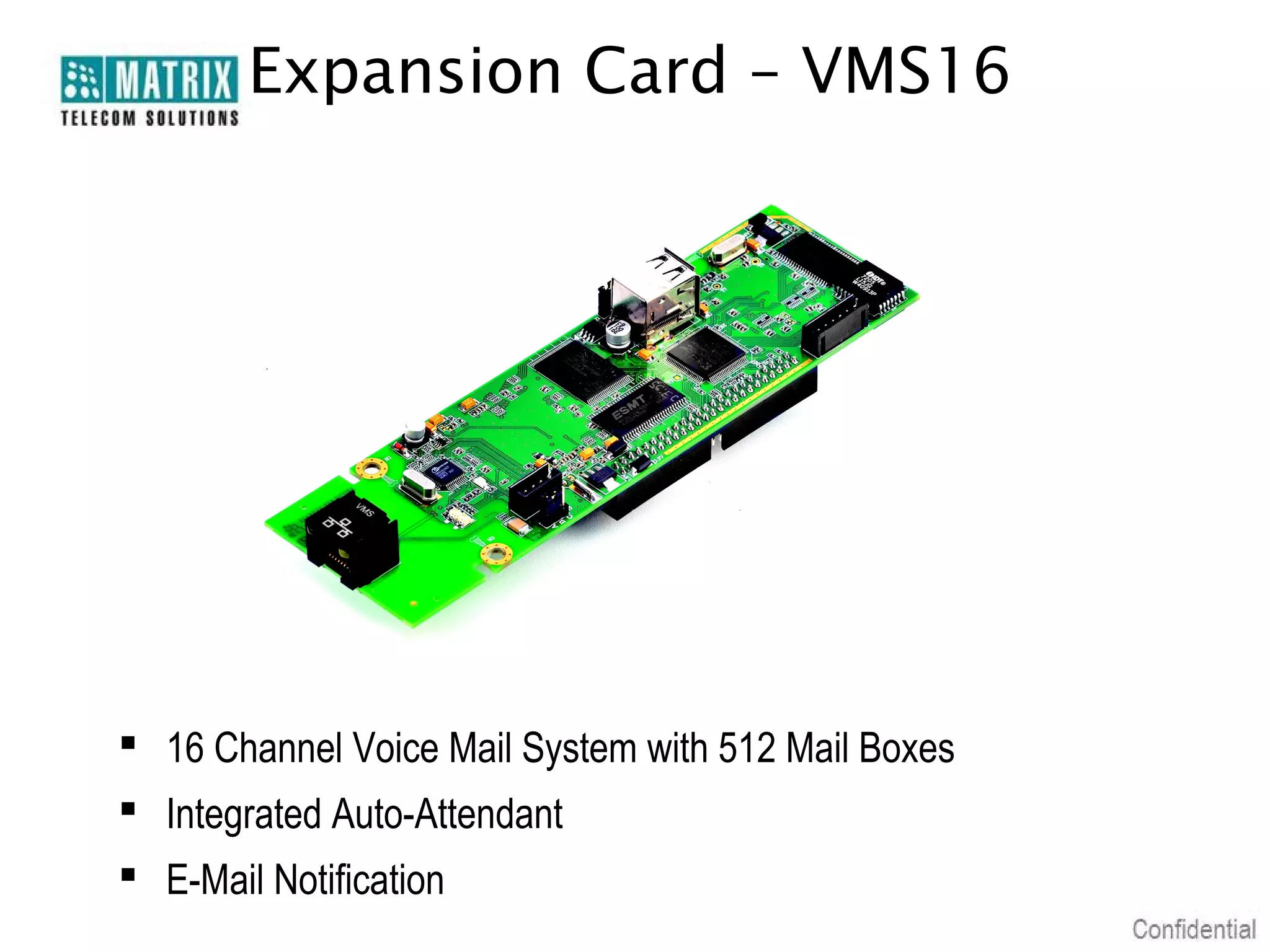

36. Expansion Card – VMS16
 16 Channel Voice Mail System with 512 Mail Boxes
 Integrated Auto-Attendant
 E-Mail Notification

37. Connectivity

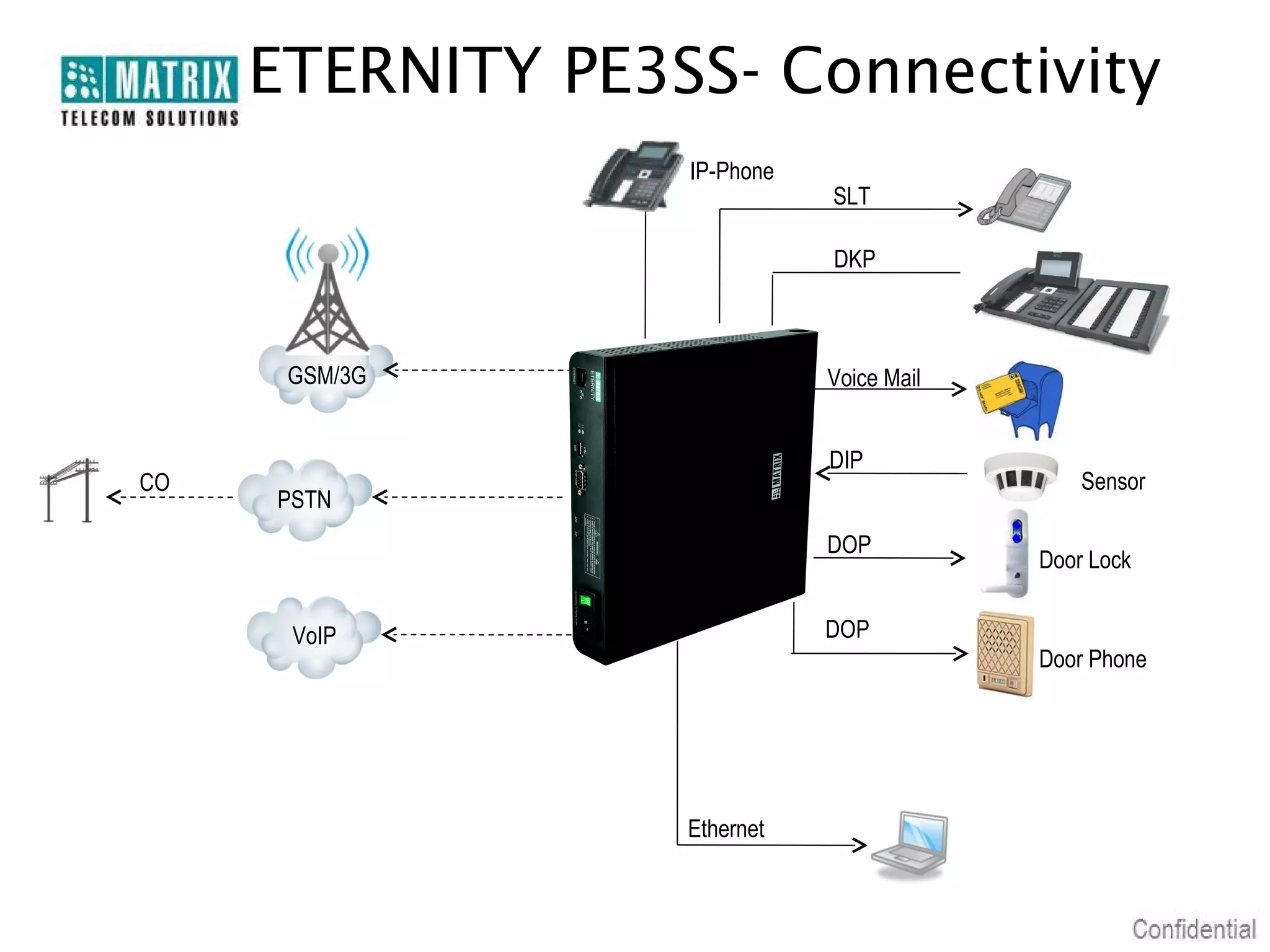

38. ETERNITY PE3SS- Connectivity
IP-Phone
SLT
DKP
GSM/3G Voice Mail
DIP
CO Sensor
PSTN
DOP
Door Lock
VoIP DOP
Door Phone
Ethernet

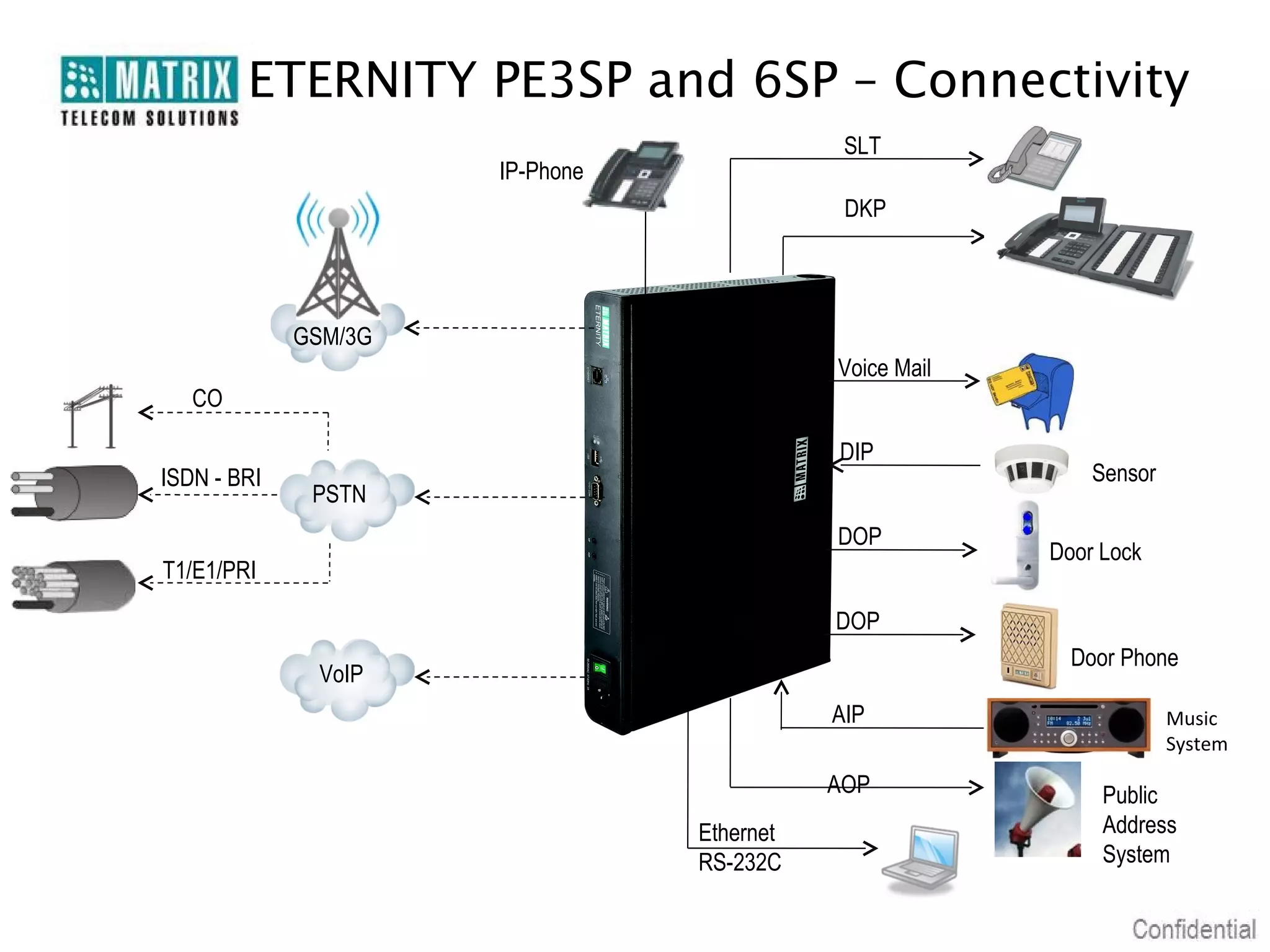

39. ETERNITY PE3SP and 6SP – Connectivity
SLT
IP-Phone
DKP
GSM/3G
Voice Mail
CO
DIP
ISDN - BRI Sensor
PSTN
DOP
Door Lock
T1/E1/PRI
DOP
Door Phone
VoIP
AIP Music
System
AOP Public
Ethernet Address
RS-232C System

40. User Terminals

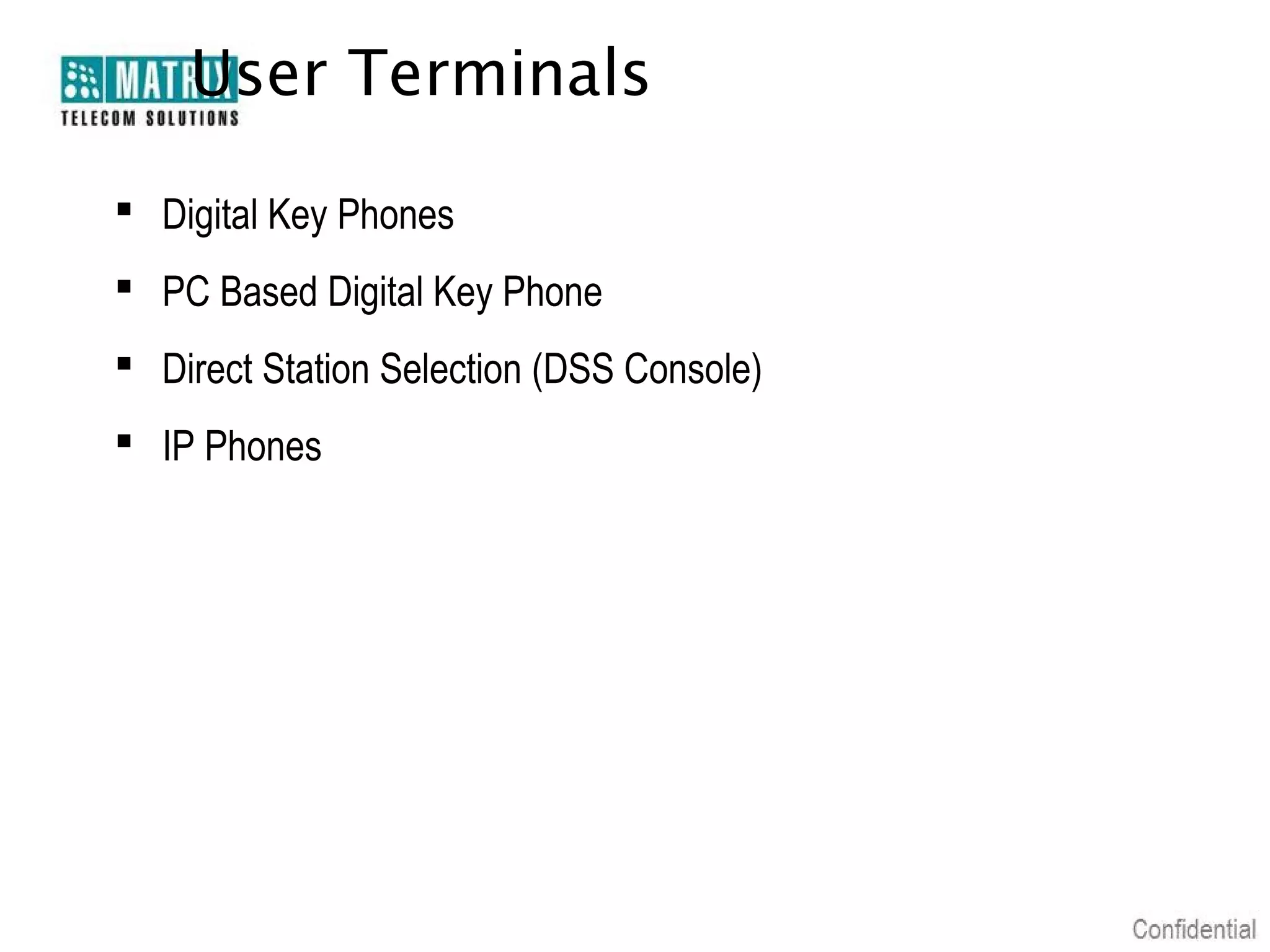

41. User Terminals
 Digital Key Phones
 PC Based Digital Key Phone
 Direct Station Selection (DSS Console)
 IP Phones

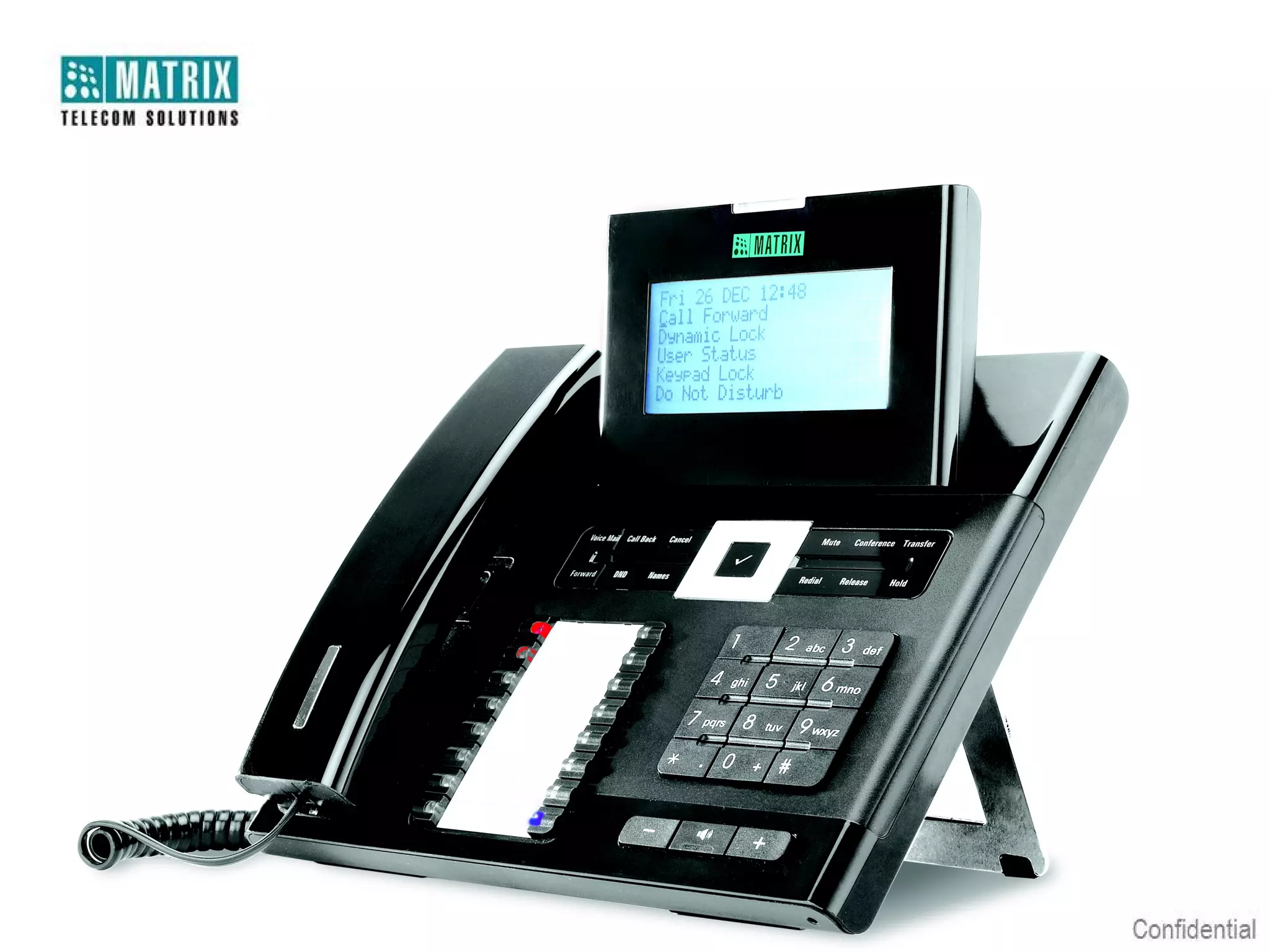

42. Digital Key Phone – EON48P Black/White

43. Digital Key Phone – EON48P
 6x24 Character LCD Display
 16 Programmable Keys
 17 Touch-Sense Keys
 Touch-Sense Keys for Navigation and One-touch Feature Access
 Full Duplex Speaker Phone
 Headset Interface
 LCD Contrast and Brightness Control
 English, French, German, Spanish, Portuguese and Italian Language
Support
 3-Position Desktop Mounting
 Wall Mounting

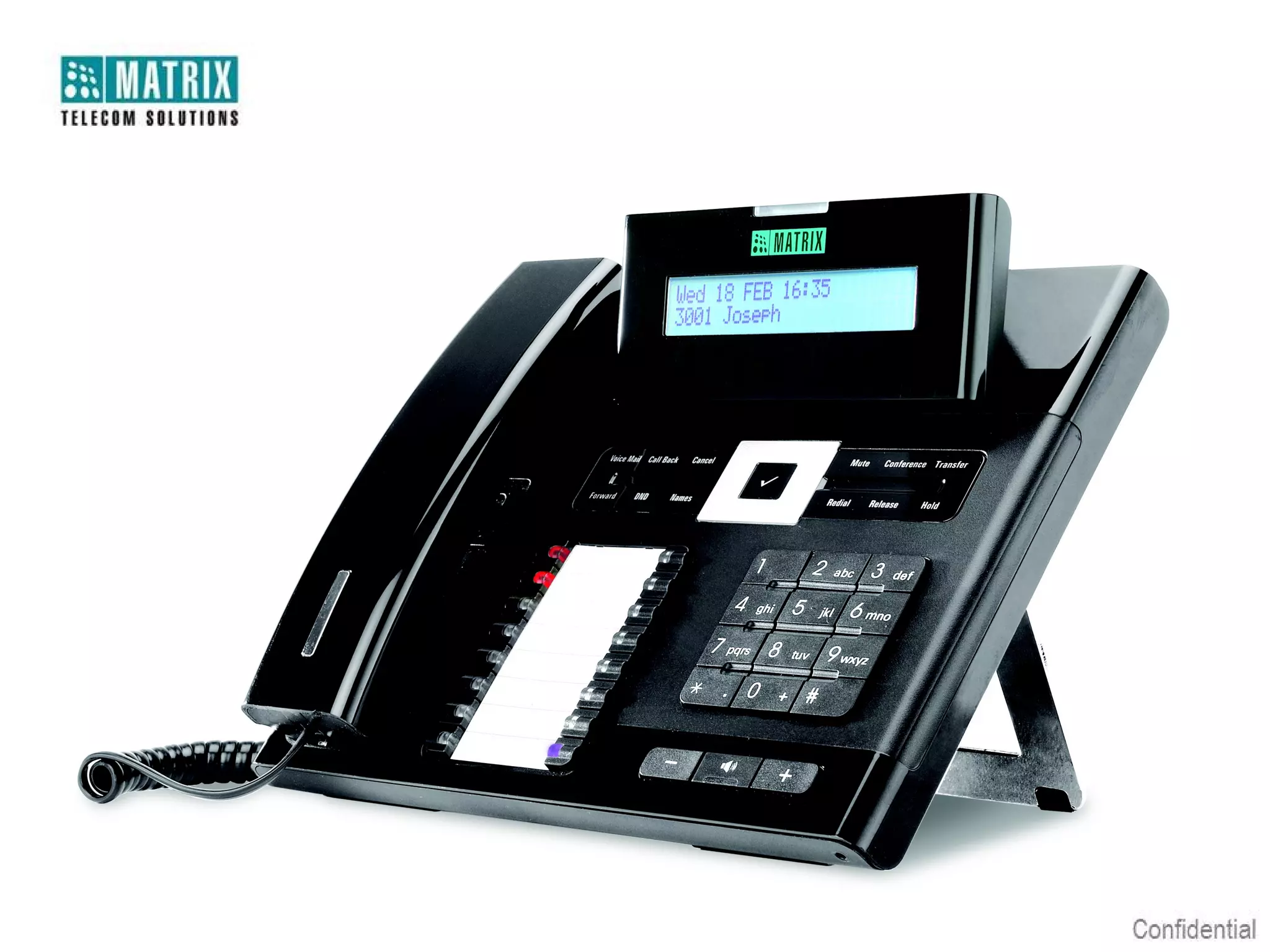

44. Digital Key Phone – EON48S Black/White

45. Digital Key Phone – EON48S
 2x24 Character LCD Display
 16 Programmable Keys
 17 Touch-Sense Keys
 Touch-Sense Keys for Navigation and One-touch Feature Access
 Full Duplex Speaker Phone
 Headset Interface
 LCD Contrast and Brightness Control
 English, French, German, Spanish, Portuguese and Italian Language
Support
 3-Position Desktop Mounting
 Wall Mounting

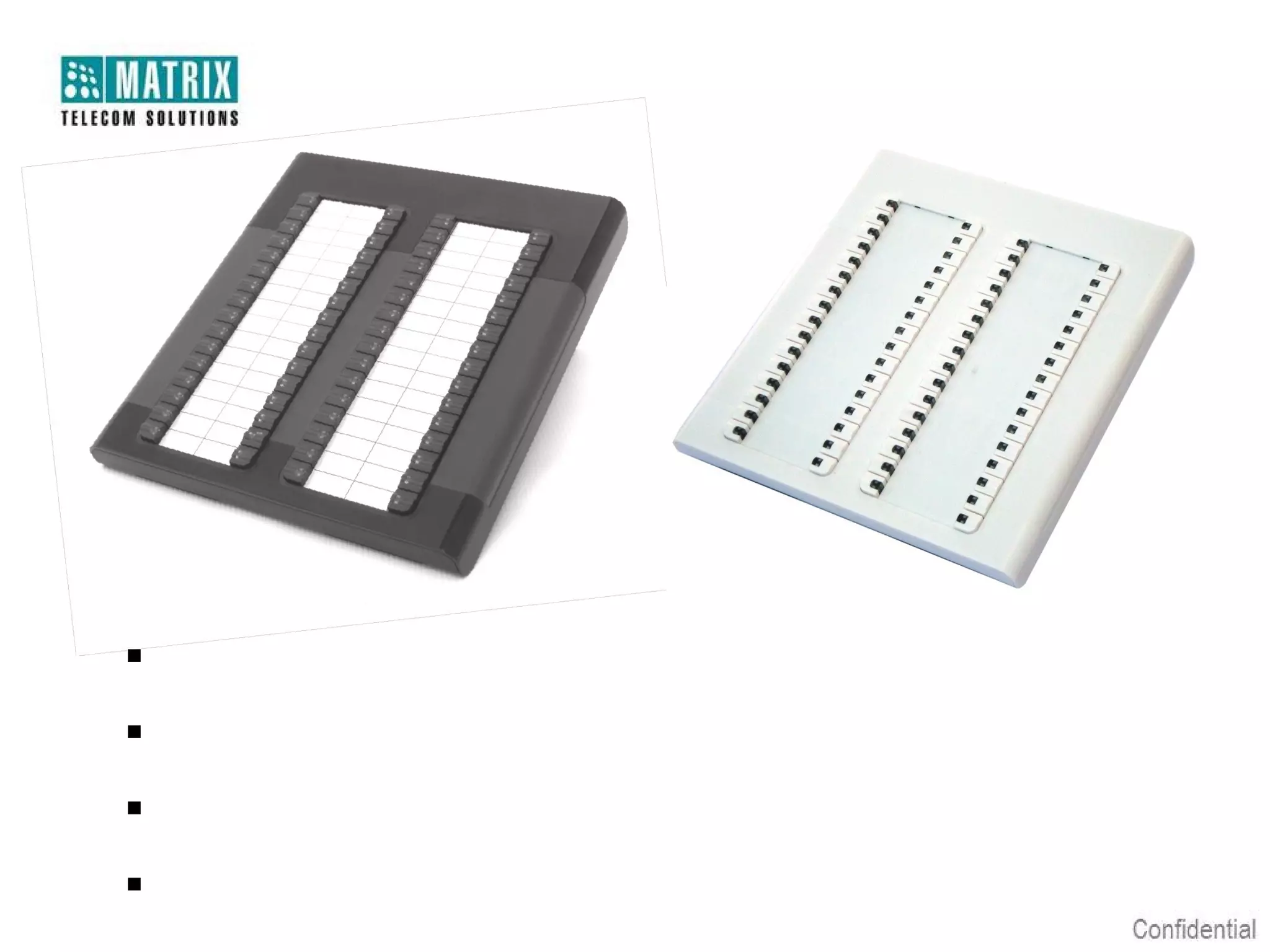

46. Direct Station Selection – DSS16X4
 Companion DSS for EON48
 64 Keys for Direct Station Selection
 DSS16X4 Use One DKP Port
 Dual Color LEDs for Port Status

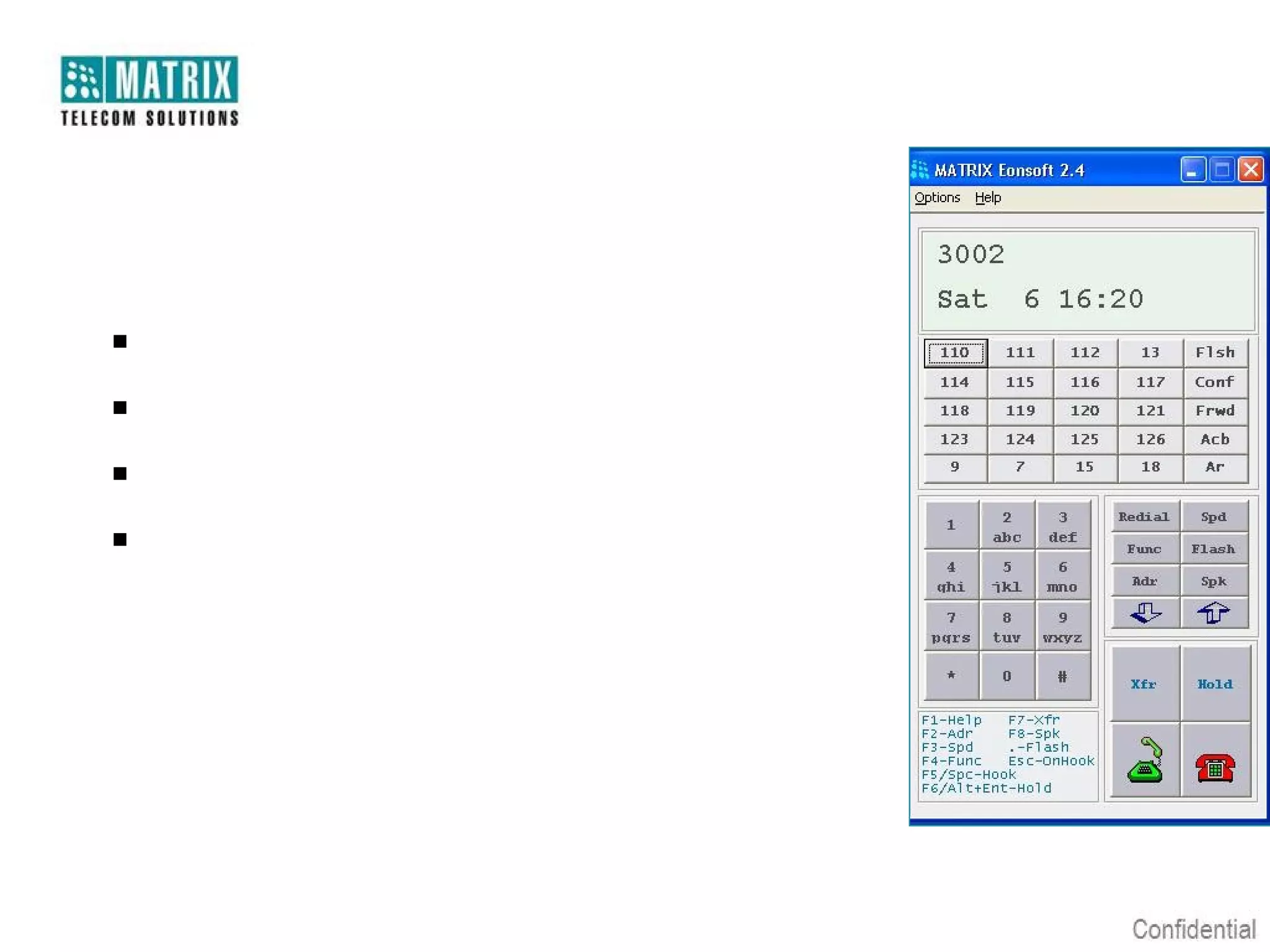

47. PC Based Digital Key Phone –
EONSOFT
 PC Based Digital Key Phone
 20 Programmable Keys
 Use One DKP Port
 Dual Color Button Display for Port Status

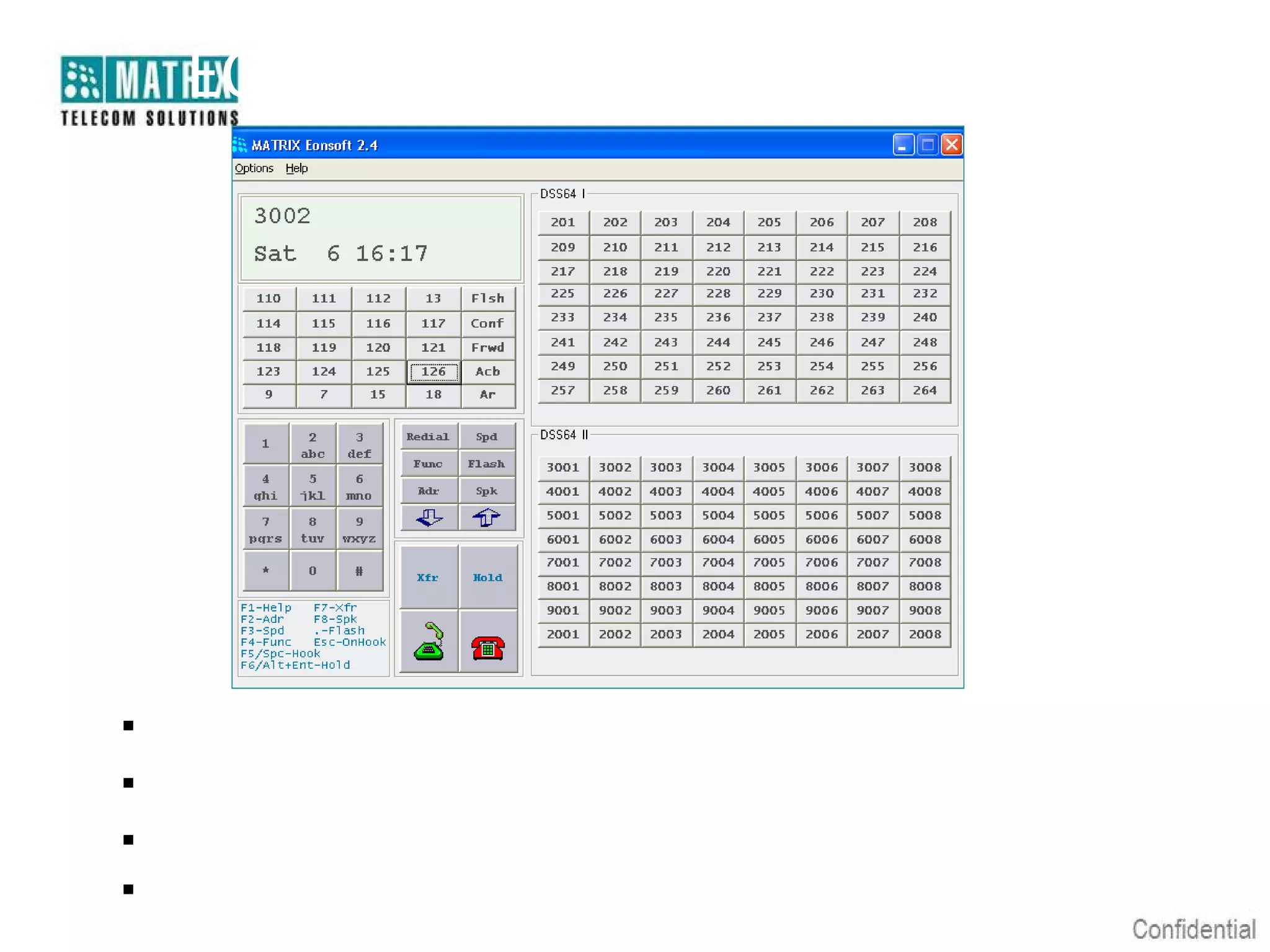

48. EONSOFT-Operator
 Runs on Microsoft Windows
 148 Keys for Direct Station Selection
 Use Only One DKP Port
 Dual Color Button Display for Port Status

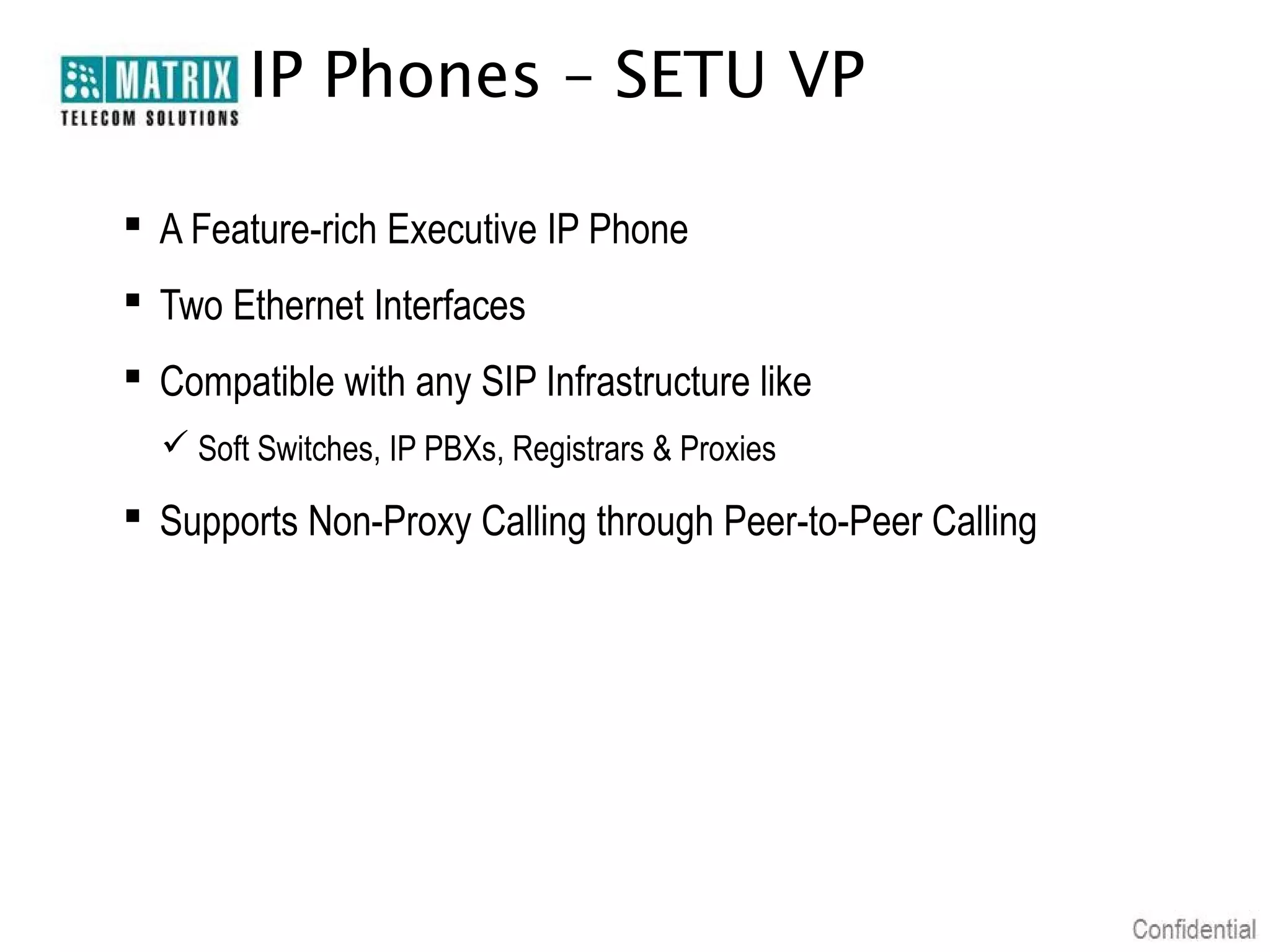

49. IP Phones – SETU VP
 A Feature-rich Executive IP Phone
 Two Ethernet Interfaces
 Compatible with any SIP Infrastructure like
 Soft Switches, IP PBXs, Registrars & Proxies
 Supports Non-Proxy Calling through Peer-to-Peer Calling

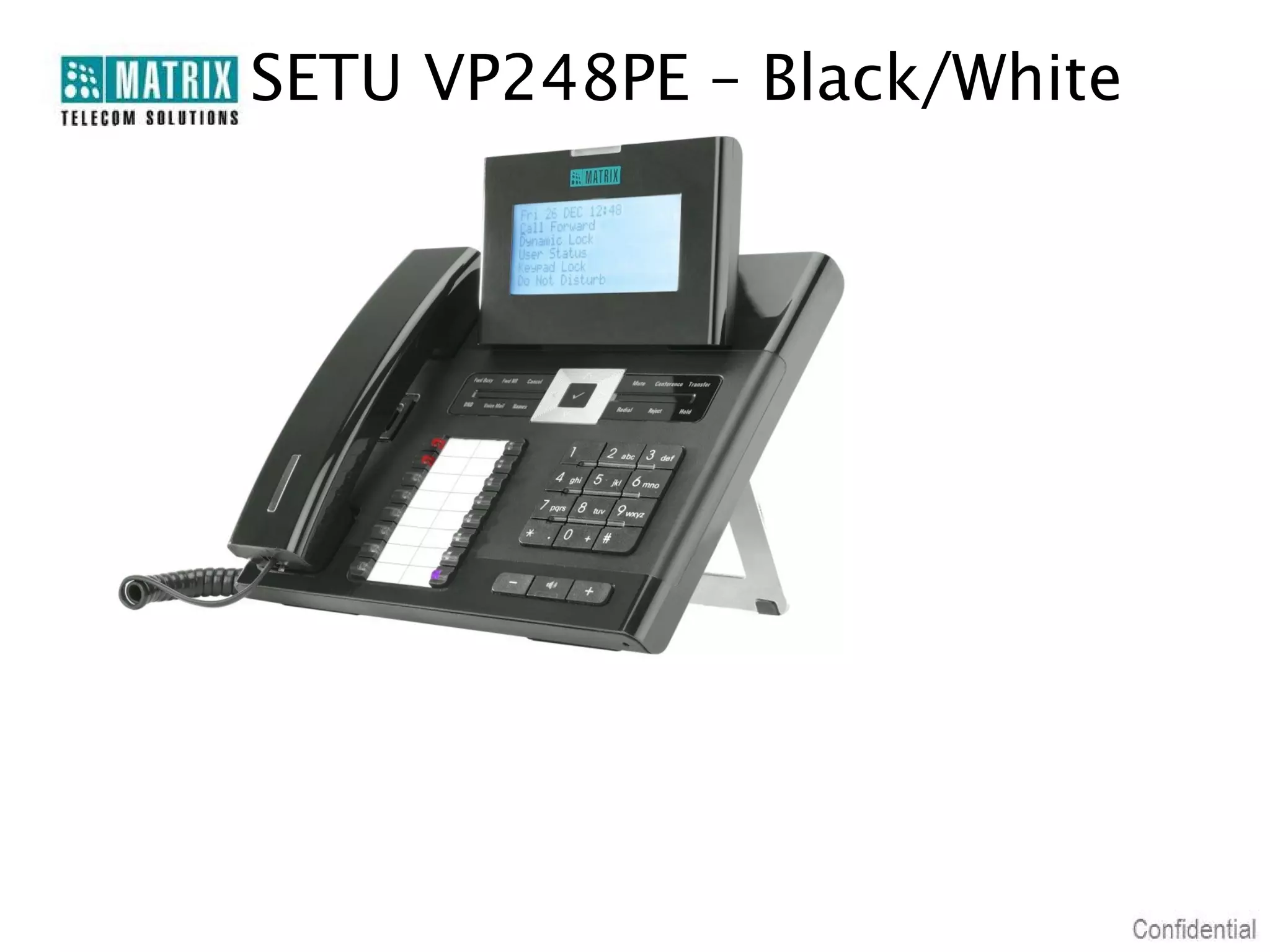

50. SETU VP248PE – Black/White
6

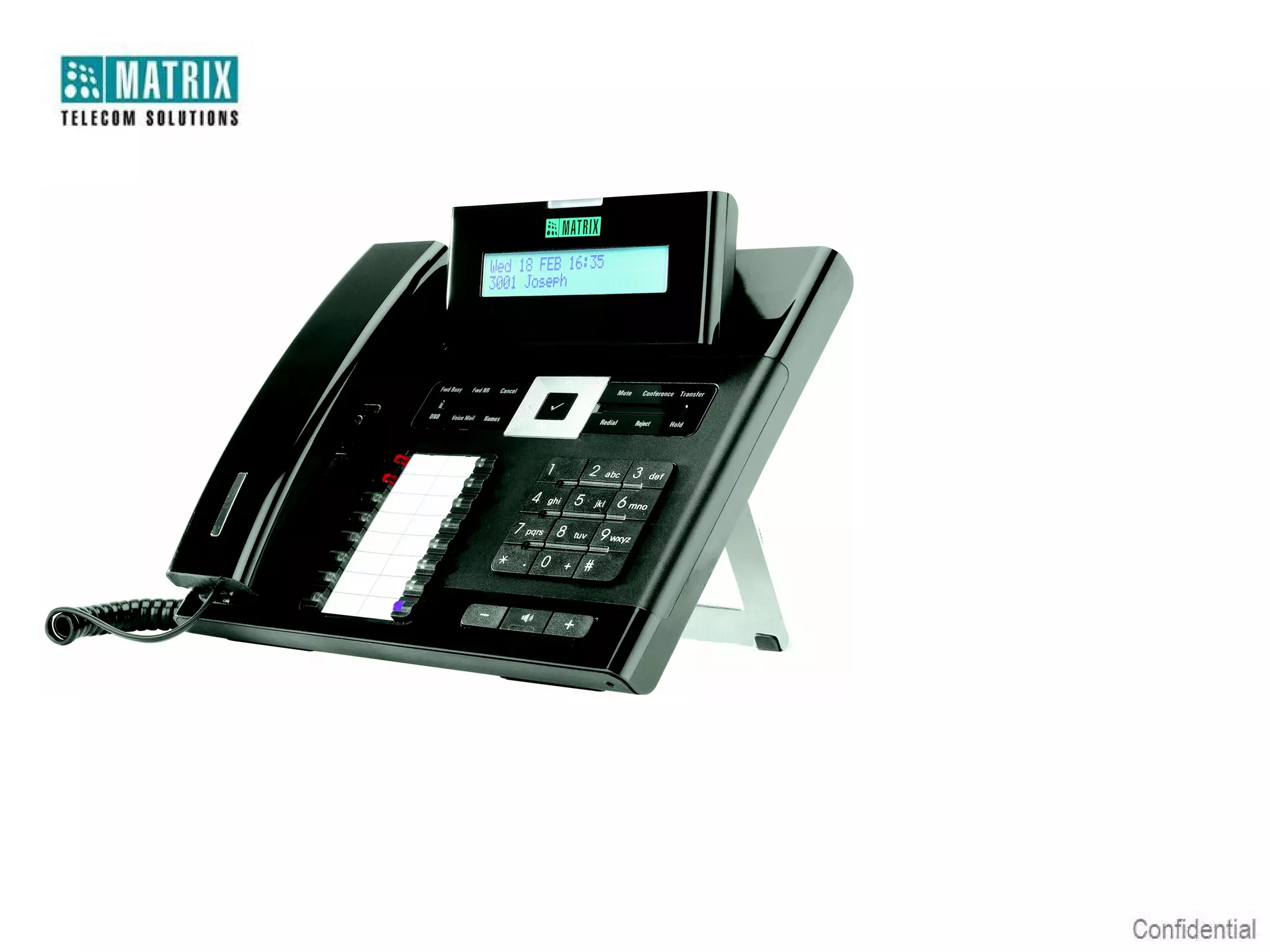

51. SETU VP248SE – Black/White
S

52. Specifications
Connector Type Application No. of
Ports
DC Jack To Connect Power Adaptor, 5V 2.5Amp. DC 1
RJ45,10/100BaseT To Connect Ethernet Cable through Router or Modem 2
Audio Jack To Connect Head Phone with Suitable Impedance 1
RJ 11 To Connect Handset with Speaker and MIC 1

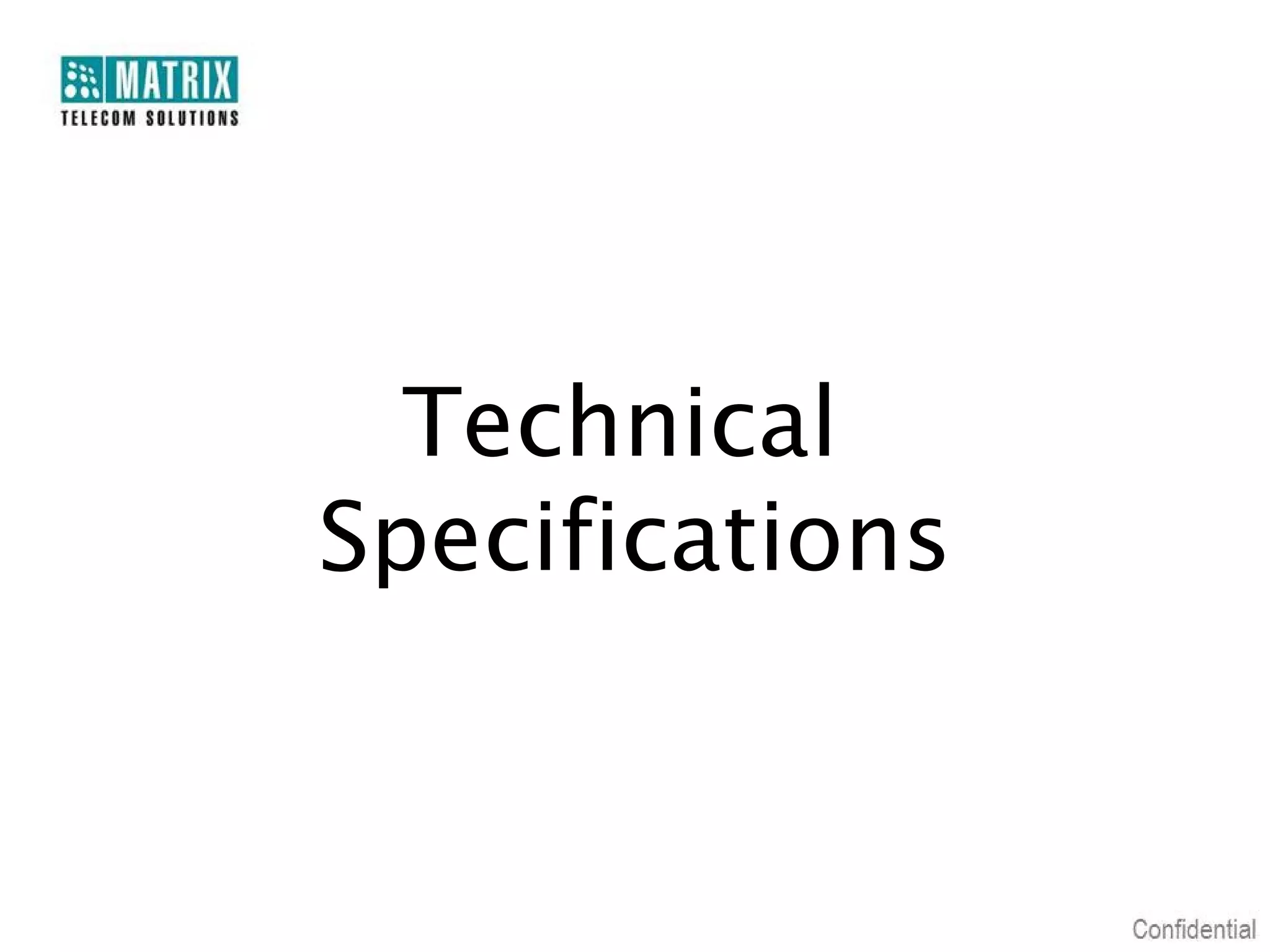

53. Technical
Specifications

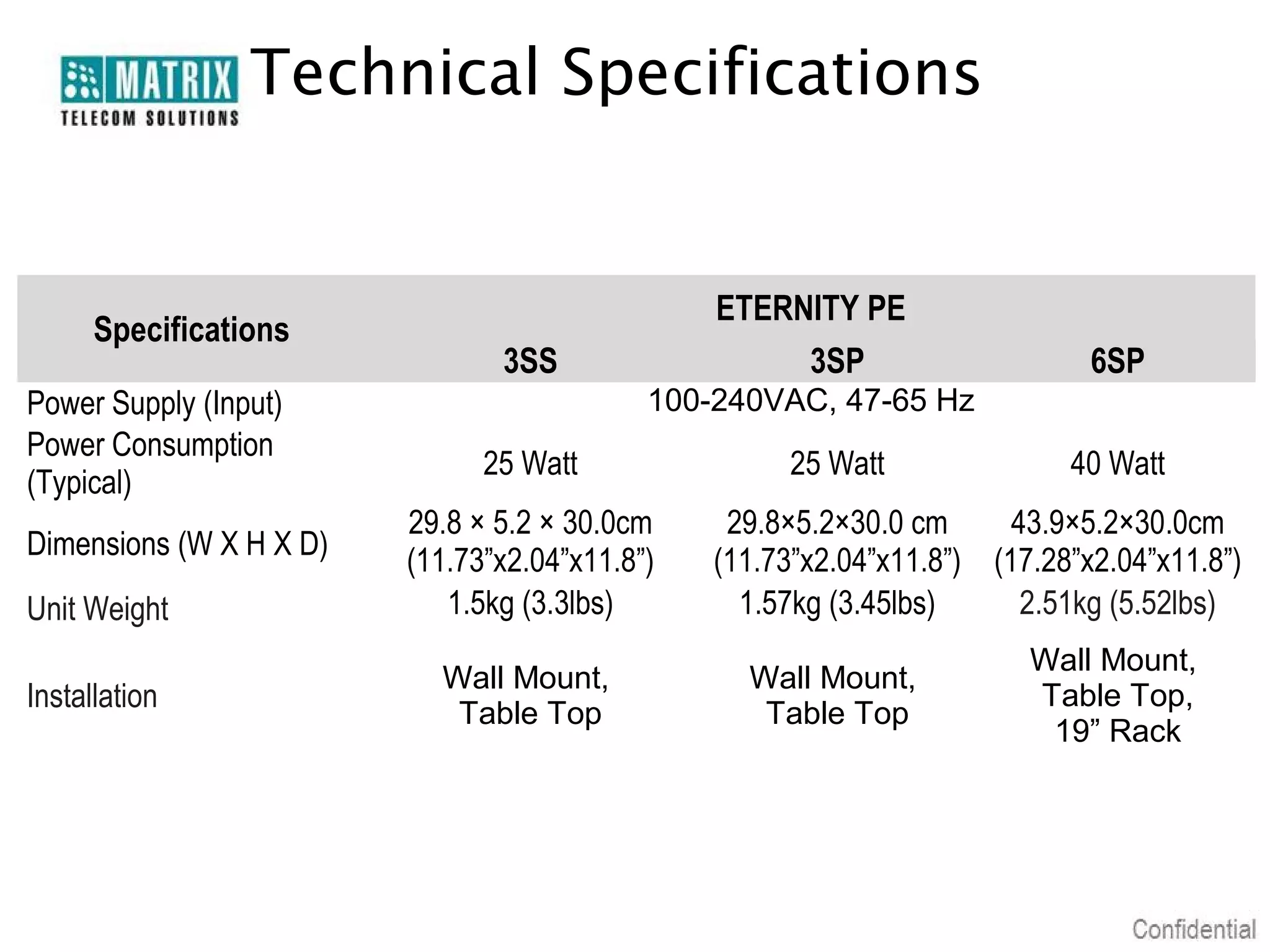

54. Technical Specifications
ETERNITY PE
Specifications
3SS 3SP 6SP
Power Supply (Input) 100-240VAC, 47-65 Hz
Power Consumption
25 Watt 25 Watt 40 Watt
(Typical)
29.8 × 5.2 × 30.0cm 29.8×5.2×30.0 cm 43.9×5.2×30.0cm
Dimensions (W X H X D) (11.73”x2.04”x11.8”) (11.73”x2.04”x11.8”) (17.28”x2.04”x11.8”)
Unit Weight 1.5kg (3.3lbs) 1.57kg (3.45lbs) 2.51kg (5.52lbs)
Wall Mount,
Wall Mount, Wall Mount,
Installation Table Top,
Table Top Table Top
19” Rack

55. Thank You

56.  Type of Presentation: Product Introduction
 Number of Slides: 56
 Revised On: January 17, 2010
 Version-Release Number: V2.R3
