Form 3 - Chapter 9 – Scale Drawing [Notes Completely]

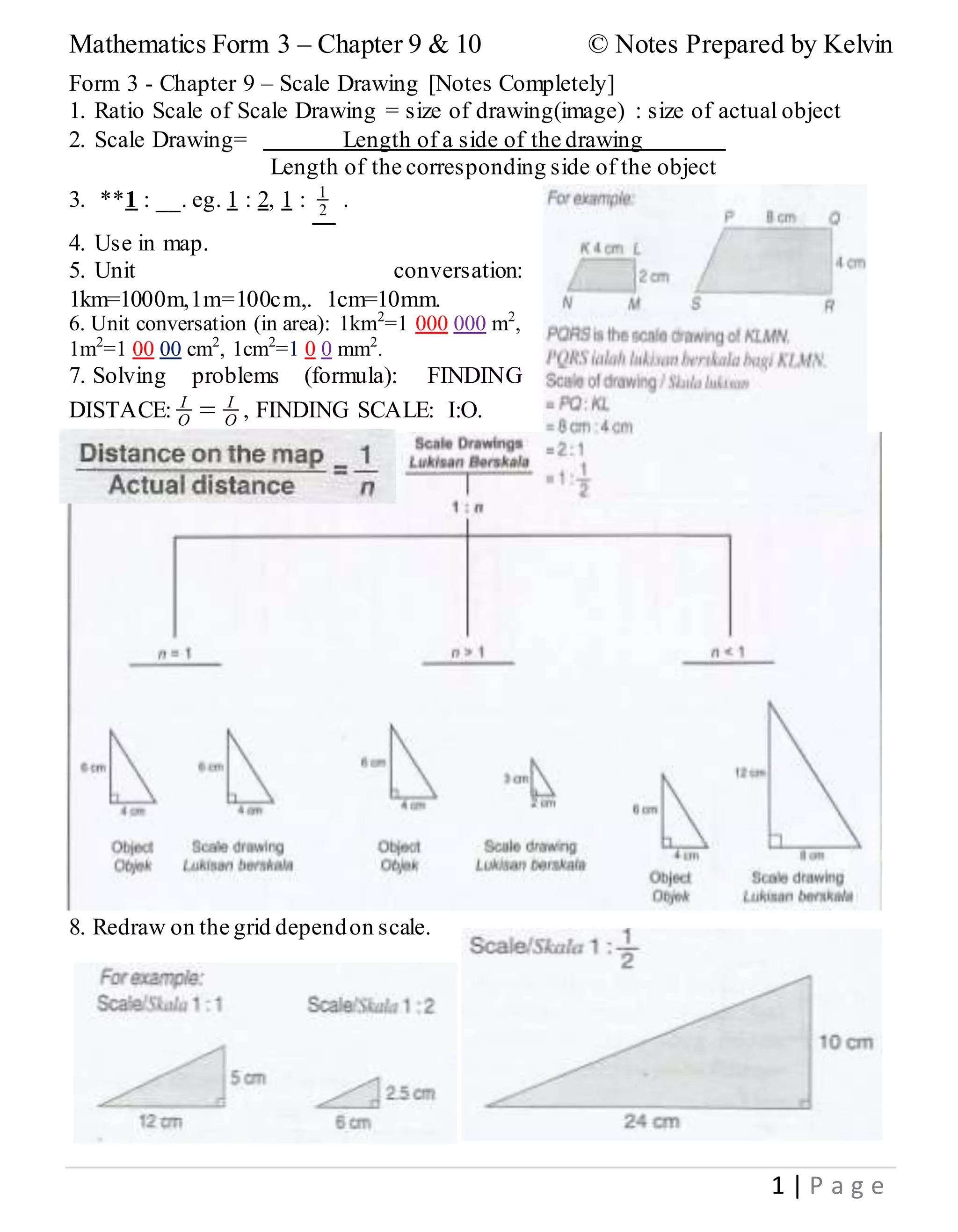

1. Ratio Scale of Scale Drawing = size of drawing(image) : size of actual object
2. Scale Drawing= Length of a side of the drawing .
Length of the corresponding side of the object
3. **1 : __. eg. 1 : 2, 1 : 2
1
.
4. Use in map.
5. Unit conversation:
1km=1000m,1m=100cm,. 1cm=10mm.
6. Unit conversation (in area): 1km2
=1 000 000 m2
,
1m2
=1 00 00 cm2
, 1cm2
=1 0 0 mm2
.
7. Solving problems (formula): FINDING
DISTACE: O
I
O
I
 , FINDING SCALE: I:O.
8. Redraw on the grid dependon scale.

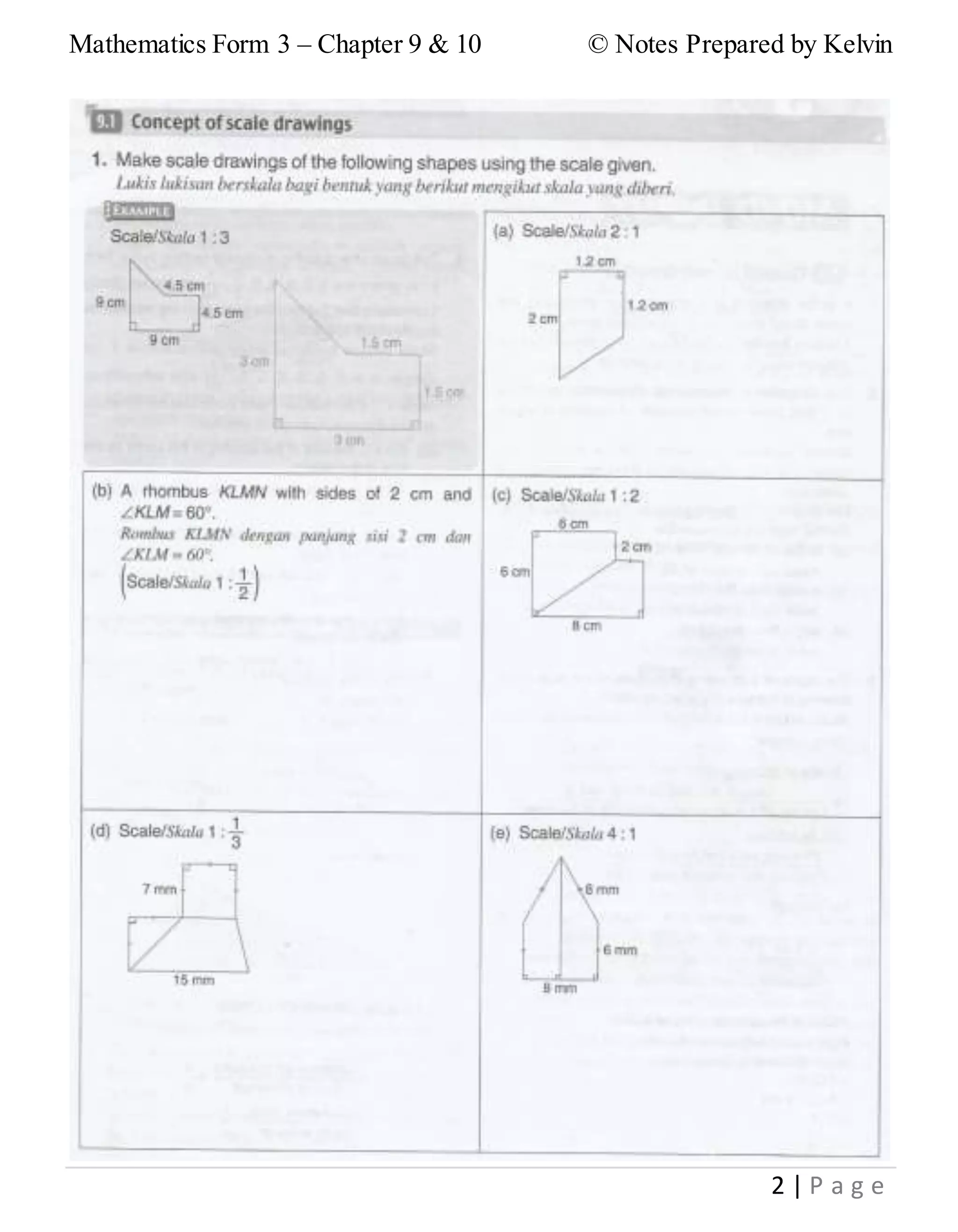

2. Mathematics Form 3 – Chapter 9 & 10 © Notes Prepared by Kelvin
2 | P a g e

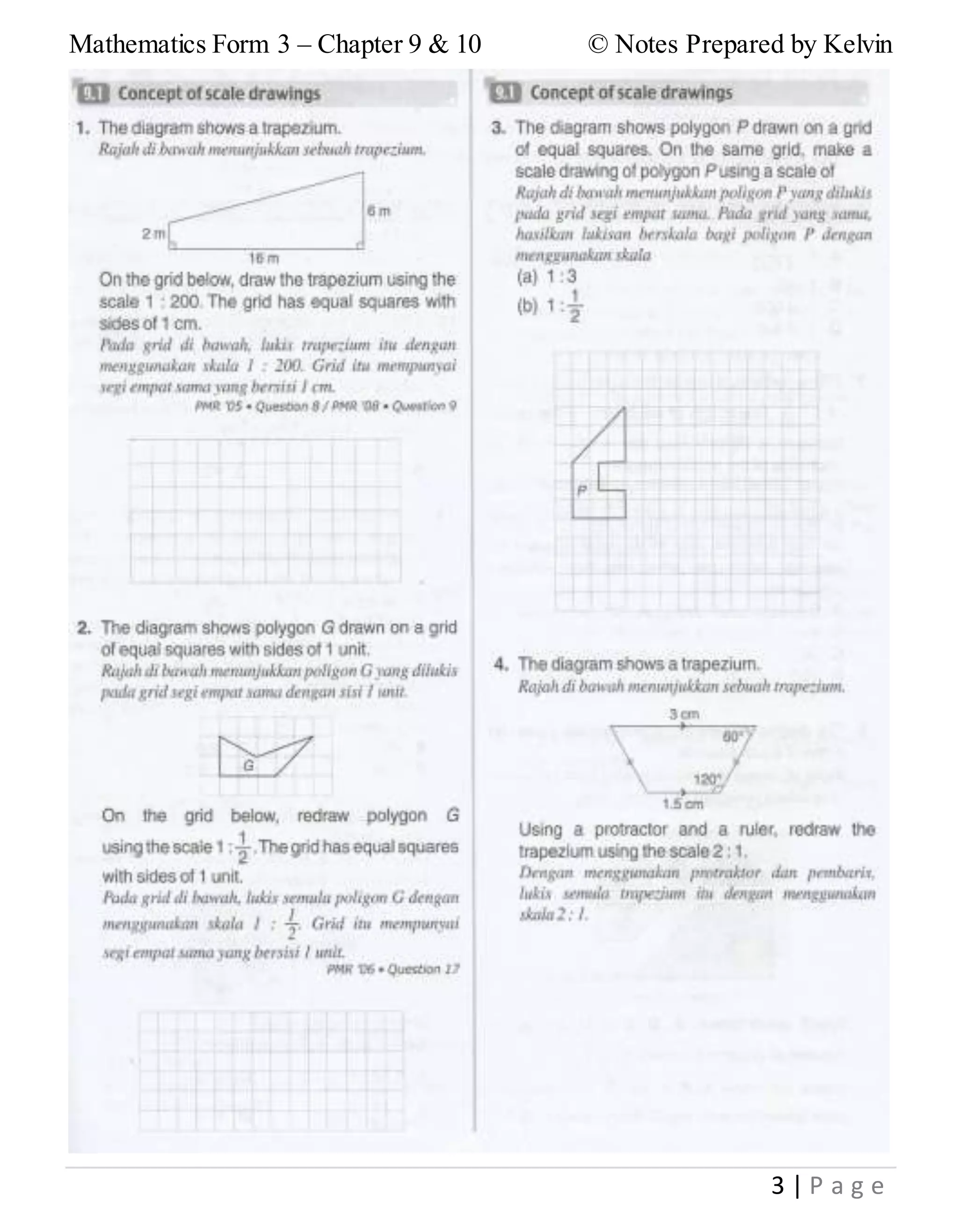

3. Mathematics Form 3 – Chapter 9 & 10 © Notes Prepared by Kelvin
3 | P a g e

4. Mathematics Form 3 – Chapter 9 & 10 © Notes Prepared by Kelvin
4 | P a g e

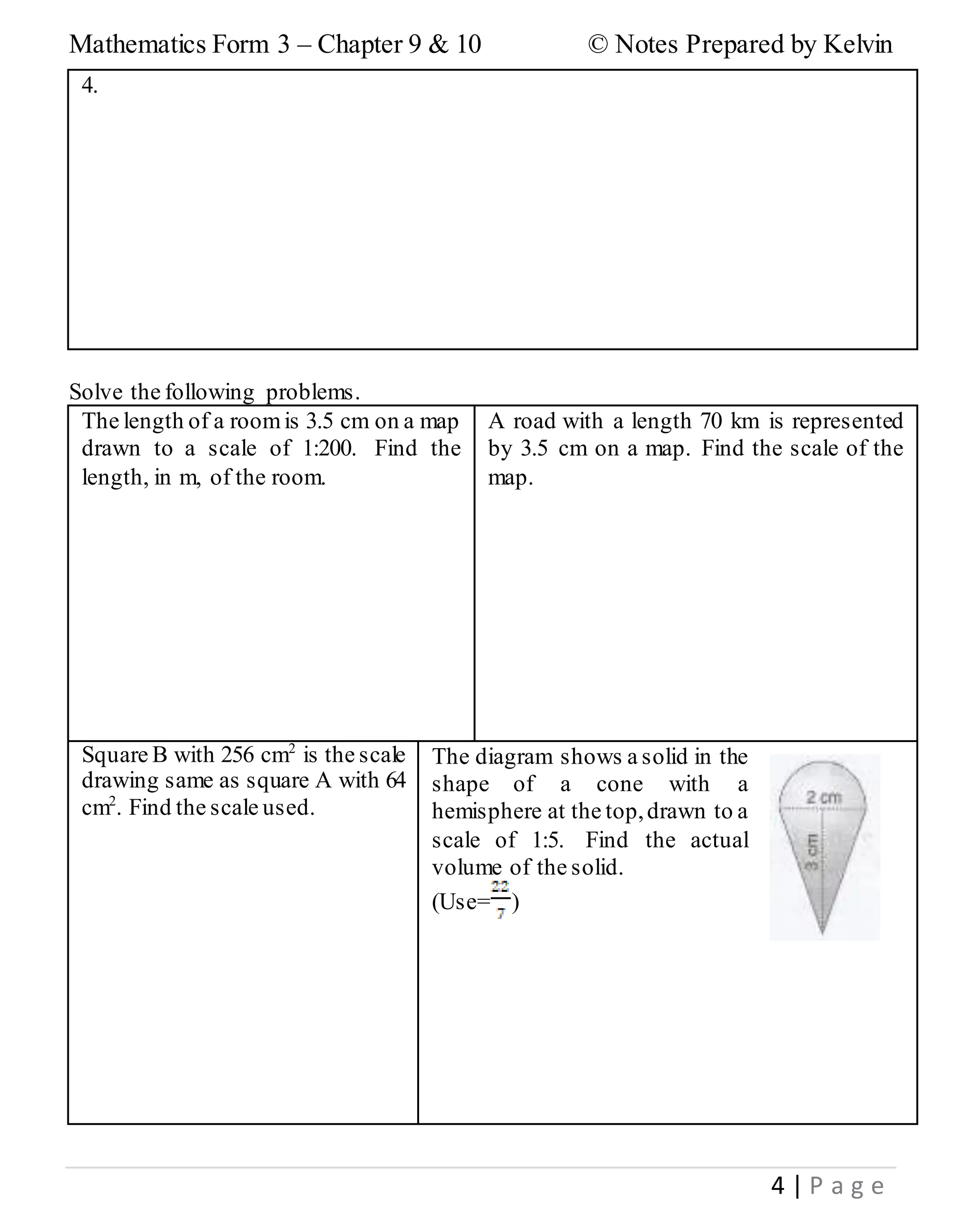

4.
Solve the following problems.
The length of a roomis 3.5 cm on a map
drawn to a scale of 1:200. Find the
length, in m, of the room.
A road with a length 70 km is represented
by 3.5 cm on a map. Find the scale of the
map.
Square B with 256 cm2
is the scale
drawing same as square A with 64
cm2
. Find the scale used.
The diagram shows a solid in the
shape of a cone with a
hemisphere at the top,drawn to a
scale of 1:5. Find the actual
volume of the solid.
(Use= )

5. Mathematics Form 3 – Chapter 9 & 10 © Notes Prepared by Kelvin
5 | P a g e

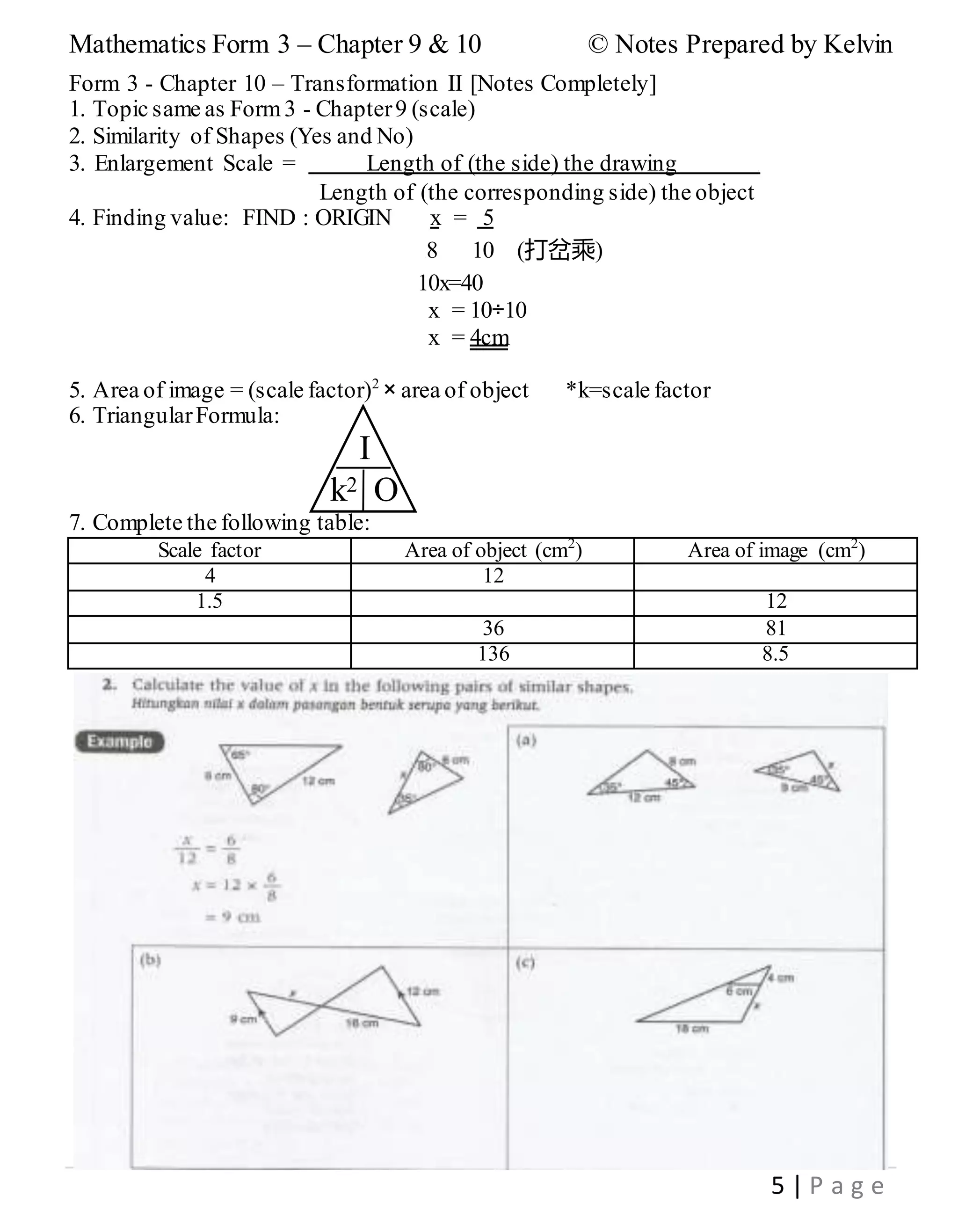

Form 3 - Chapter 10 – Transformation II [Notes Completely]
1. Topic same as Form3 - Chapter9 (scale)

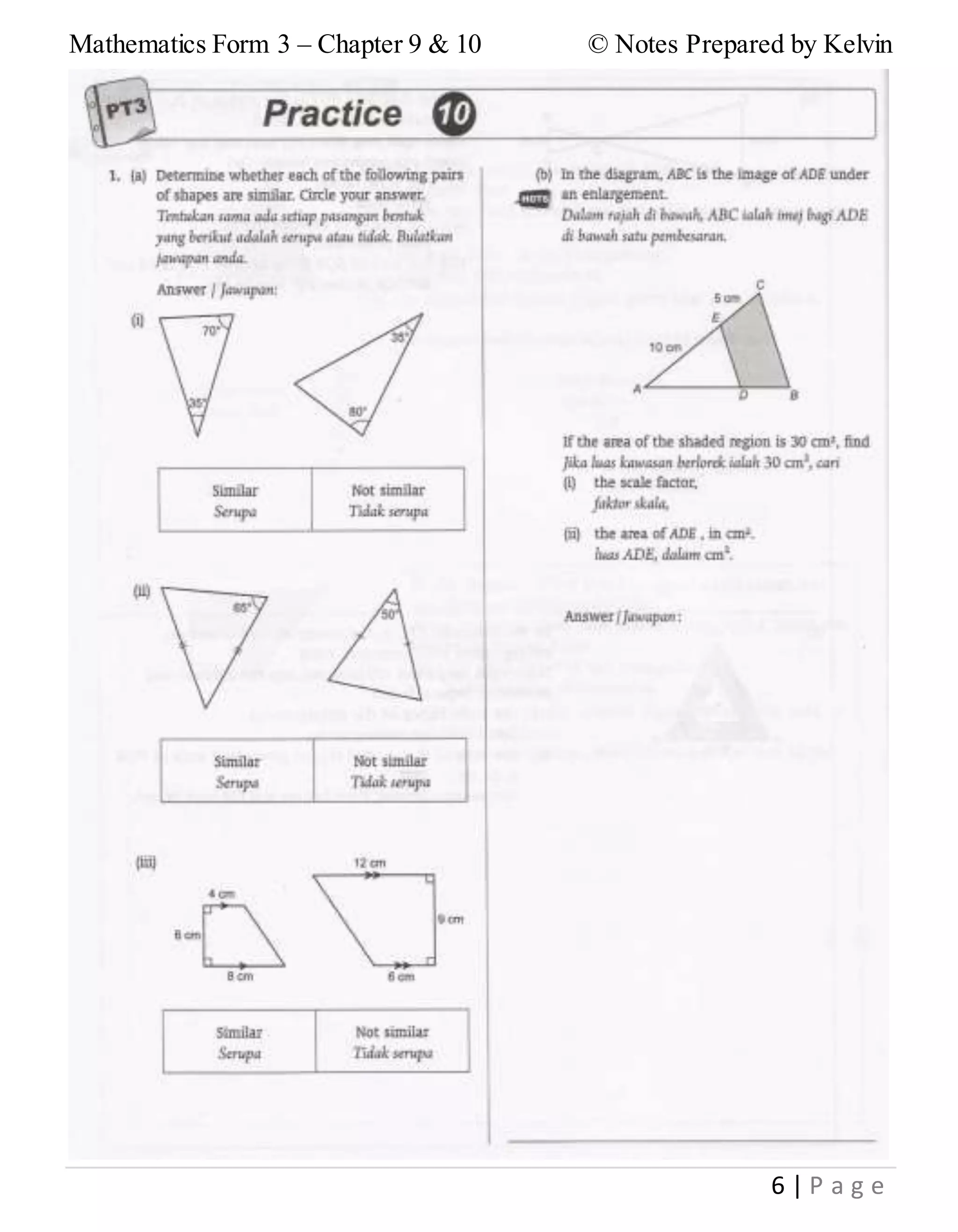

2. Similarity of Shapes (Yes and No)

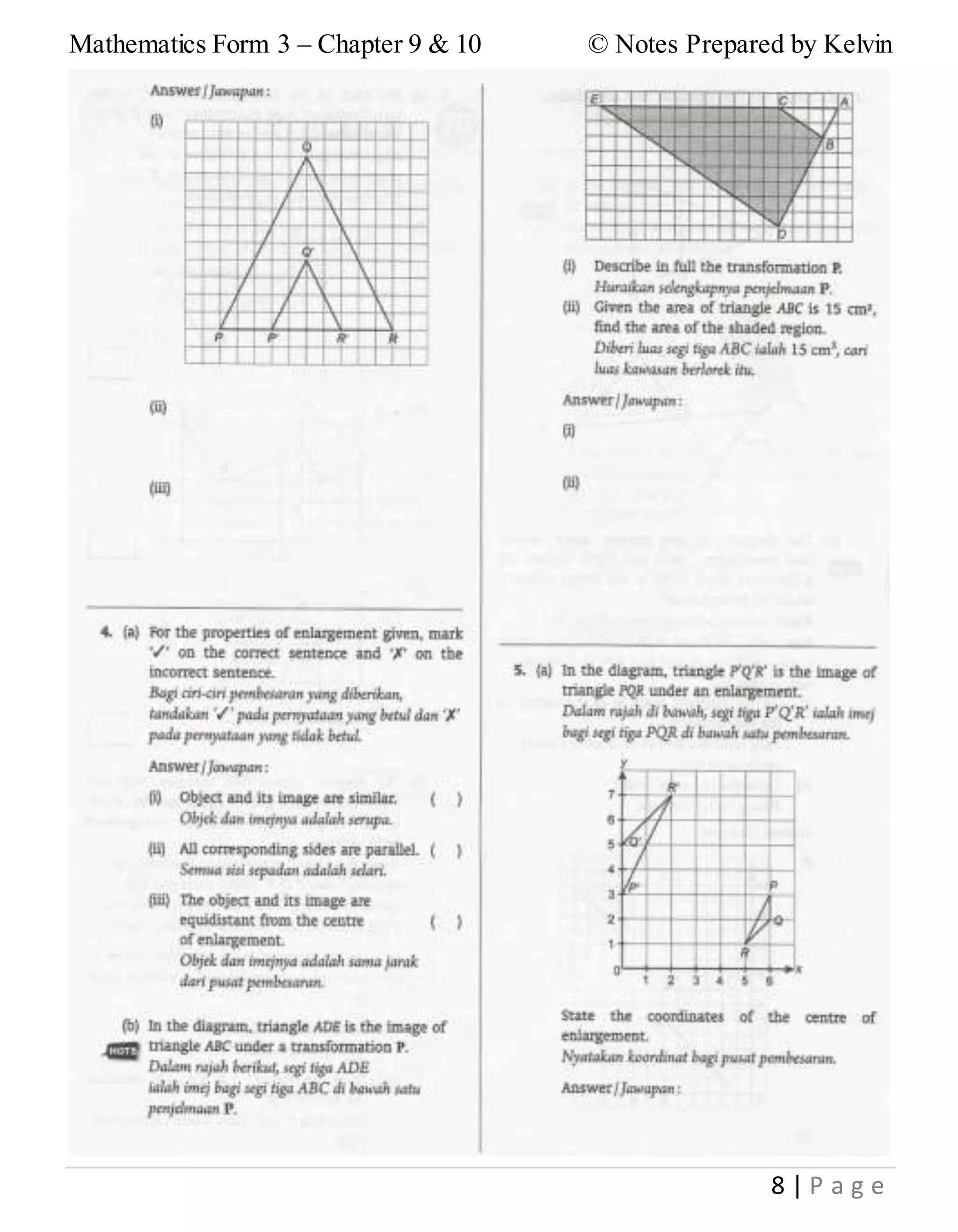

3. Enlargement Scale = Length of (the side) the drawing .
Length of (the corresponding side) the object
4. Finding value: FIND : ORIGIN x = 5
. 8 10 (打岔乘)
10x=40
x = 10÷10
x = 4cm

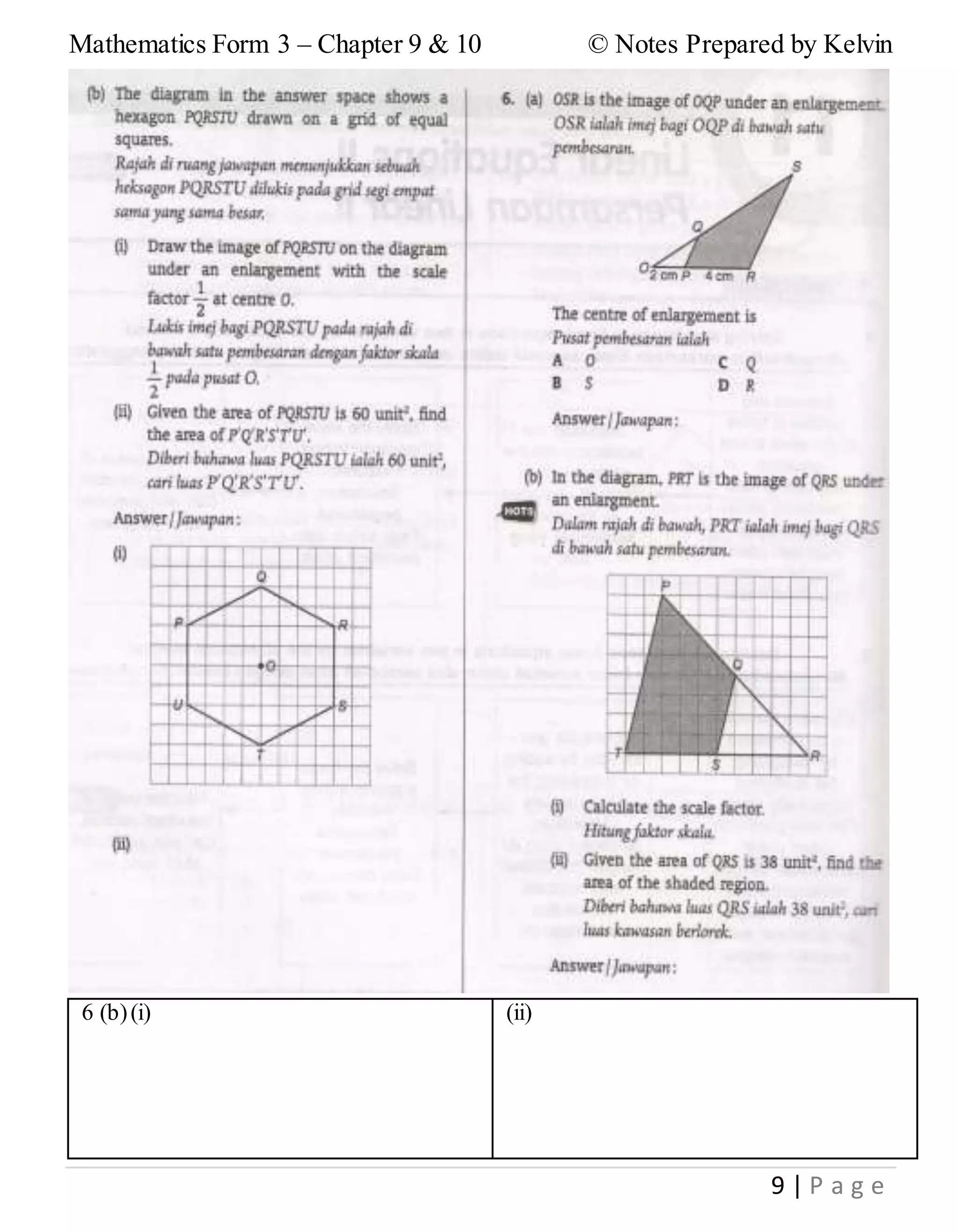

5. Area of image = (scale factor)2
× area of object *k=scale factor
6. TriangularFormula:
I
k2 O

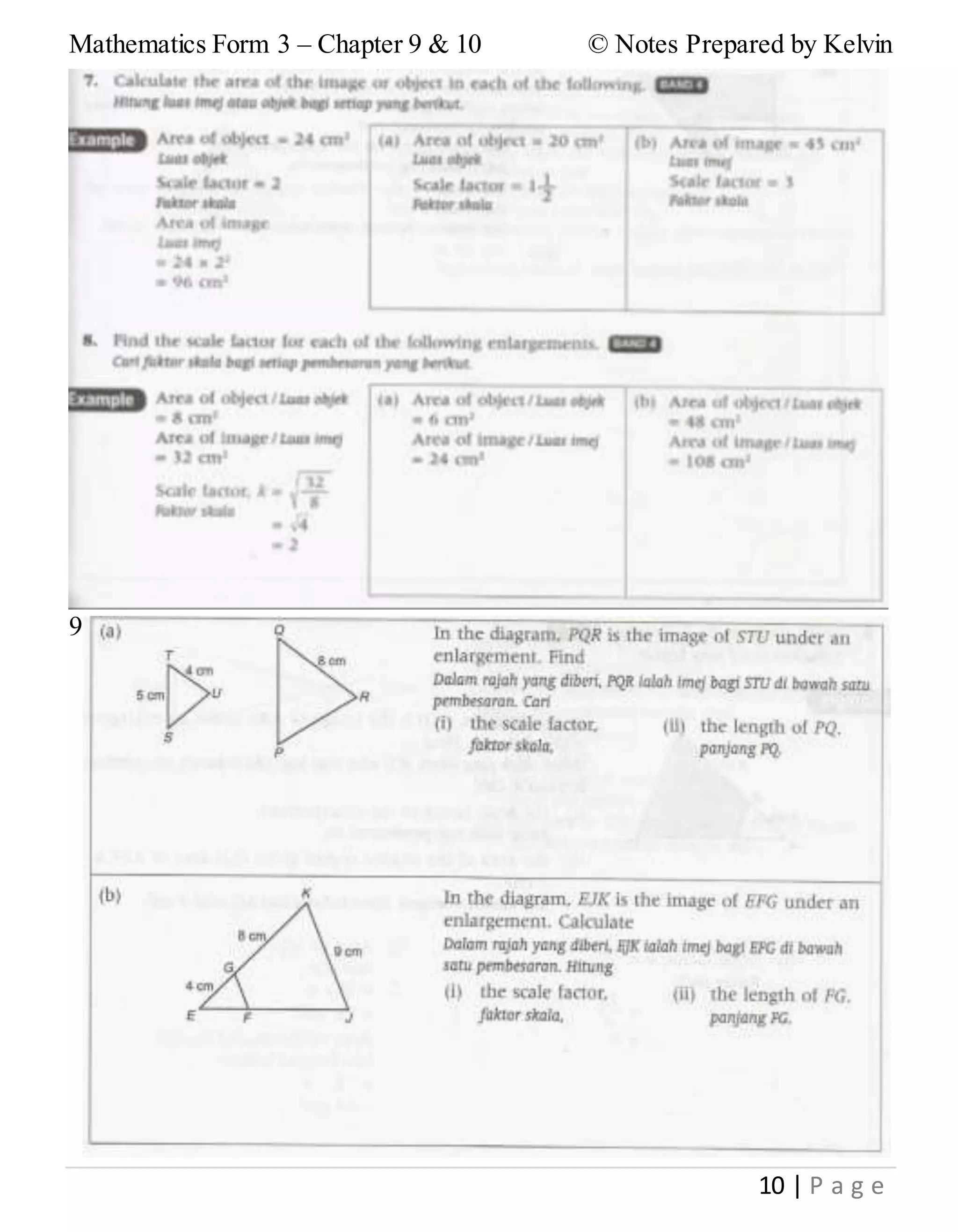

7. Complete the following table:
Scale factor Area of object (cm2
) Area of image (cm2
)
4 12
1.5 12
36 81
136 8.5
