Mass Transfer
Equipment Cost
Dr. K. Shahzad Baig
Memorial University of Newfoundland (MUN) Canada

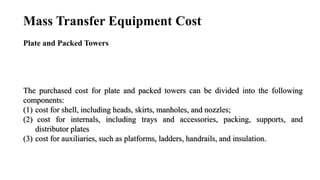

Mass Transfer Equipment Cost
Plate and Packed Towers
The purchased cost for plate and packed towers can be divided into the following
components:
(1) cost for shell, including heads, skirts, manholes, and nozzles;
(2) cost for internals, including trays and accessories, packing, supports, and
distributor plates
(3) cost for auxiliaries, such as platforms, ladders, handrails, and insulation.
Figure 16.1
Cross
sectional
view of a
finite stage
contactor
tower
Showing
examples of
various types
of trays
Figure 16.14
Cross
sectional view
of packed
tower in
operation

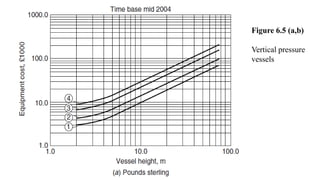

Figure 6.5 (a,b)
Vertical pressure
vessels

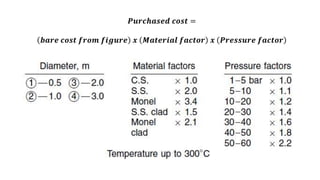

𝑷𝒖𝒓𝒄𝒉𝒂𝒔𝒆𝒅 𝒄𝒐𝒔𝒕 =
𝒃𝒂𝒓𝒆 𝒄𝒐𝒔𝒕 𝒇𝒓𝒐𝒎 𝒇𝒊𝒈𝒖𝒓𝒆 𝒙 𝑴𝒂𝒕𝒆𝒓𝒊𝒂𝒍 𝒇𝒂𝒄𝒕𝒐𝒓 𝒙 𝑷𝒓𝒆𝒔𝒔𝒖𝒓𝒆 𝒇𝒂𝒄𝒕𝒐𝒓

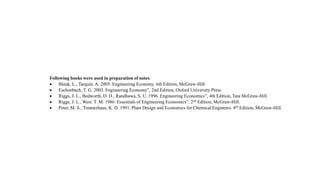

Following books were used in preparation of notes
 Blank, L., Tarquin. A. 2005. Engineering Economy. 6th Edition, McGraw-Hill.
 Eschenbach, T. G. 2003. Engineering Economy”, 2nd Edition, Oxford University Press
 Riggs, J. L., Bedworth, D. D., Randhawa, S. U. 1996. Engineering Economics”, 4th Edition, Tata McGraw-Hill.
 Riggs, J. L., West. T. M. 1986. Essentials of Engineering Economics”, 2nd Edition, McGraw-Hill.
 Peter, M. S., Timmerhaus, K. D. 1991. Plant Design and Economics for Chemical Engineers. 4th Edition, McGraw-Hill.

More Related Content

More from K. Shahzad Baig

HEAT-TRANSFER EQUIPMENT COSTS
HEAT-TRANSFER EQUIPMENT COSTSHEAT-TRANSFER EQUIPMENT COSTS
HEAT-TRANSFER EQUIPMENT COSTS
K. Shahzad Baig

Gross Profit, Net Profit
Gross Profit, Net ProfitGross Profit, Net Profit
Gross Profit, Net Profit
K. Shahzad Baig

Manufacturing Costs
Manufacturing Costs Manufacturing Costs
Manufacturing Costs
K. Shahzad Baig

Capital Investment
Capital InvestmentCapital Investment
Capital Investment
K. Shahzad Baig

Cost Indices for Industrial Application
Cost Indices for Industrial ApplicationCost Indices for Industrial Application
Cost Indices for Industrial Application
K. Shahzad Baig

Estimation of Capital Investments
Estimation of Capital  Investments Estimation of Capital  Investments
Estimation of Capital Investments
K. Shahzad Baig

Production Costs
Production CostsProduction Costs
Production Costs
K. Shahzad Baig

Location of an industry
Location of an industryLocation of an industry
Location of an industry
K. Shahzad Baig

Fluctuation of money value with time
Fluctuation of money value with timeFluctuation of money value with time
Fluctuation of money value with time
K. Shahzad Baig

Economics for Engineers, Why ?
Economics for Engineers, Why ?Economics for Engineers, Why ?
Economics for Engineers, Why ?
K. Shahzad Baig

Psychrometric chart, How to read
Psychrometric chart, How to readPsychrometric chart, How to read
Psychrometric chart, How to read
K. Shahzad Baig

The Scientific Methods
The Scientific MethodsThe Scientific Methods
The Scientific Methods
K. Shahzad Baig

The Nuclear Atom
The Nuclear Atom The Nuclear Atom
The Nuclear Atom
K. Shahzad Baig

The mole and chemical compounds
The mole and chemical compounds The mole and chemical compounds
The mole and chemical compounds
K. Shahzad Baig

The mole and Avogadro
The mole and Avogadro The mole and Avogadro
The mole and Avogadro
K. Shahzad Baig

The indivisible atom
The indivisible atomThe indivisible atom
The indivisible atom
K. Shahzad Baig

Chemical Reaction Stoichiometry
Chemical Reaction Stoichiometry Chemical Reaction Stoichiometry
Chemical Reaction Stoichiometry
K. Shahzad Baig

Chemical Reaction Analysis
Chemical Reaction Analysis Chemical Reaction Analysis
Chemical Reaction Analysis
K. Shahzad Baig

Pressure volume work
Pressure volume work Pressure volume work
Pressure volume work
K. Shahzad Baig

Oxidation reactions
Oxidation reactions Oxidation reactions
Oxidation reactions
K. Shahzad Baig


More from K. Shahzad Baig (20)

HEAT-TRANSFER EQUIPMENT COSTS
HEAT-TRANSFER EQUIPMENT COSTSHEAT-TRANSFER EQUIPMENT COSTS
HEAT-TRANSFER EQUIPMENT COSTS

Gross Profit, Net Profit
Gross Profit, Net ProfitGross Profit, Net Profit
Gross Profit, Net Profit

Manufacturing Costs
Manufacturing Costs Manufacturing Costs
Manufacturing Costs

Capital Investment
Capital InvestmentCapital Investment
Capital Investment

Cost Indices for Industrial Application
Cost Indices for Industrial ApplicationCost Indices for Industrial Application
Cost Indices for Industrial Application

Estimation of Capital Investments
Estimation of Capital  Investments Estimation of Capital  Investments
Estimation of Capital Investments

Production Costs
Production CostsProduction Costs
Production Costs

Location of an industry
Location of an industryLocation of an industry
Location of an industry

Fluctuation of money value with time
Fluctuation of money value with timeFluctuation of money value with time
Fluctuation of money value with time

Economics for Engineers, Why ?
Economics for Engineers, Why ?Economics for Engineers, Why ?
Economics for Engineers, Why ?

Psychrometric chart, How to read
Psychrometric chart, How to readPsychrometric chart, How to read
Psychrometric chart, How to read

The Scientific Methods
The Scientific MethodsThe Scientific Methods
The Scientific Methods

The Nuclear Atom
The Nuclear Atom The Nuclear Atom
The Nuclear Atom

The mole and chemical compounds
The mole and chemical compounds The mole and chemical compounds
The mole and chemical compounds

The mole and Avogadro
The mole and Avogadro The mole and Avogadro
The mole and Avogadro

The indivisible atom
The indivisible atomThe indivisible atom
The indivisible atom

Chemical Reaction Stoichiometry
Chemical Reaction Stoichiometry Chemical Reaction Stoichiometry
Chemical Reaction Stoichiometry

Chemical Reaction Analysis
Chemical Reaction Analysis Chemical Reaction Analysis
Chemical Reaction Analysis

Pressure volume work
Pressure volume work Pressure volume work
Pressure volume work

Oxidation reactions
Oxidation reactions Oxidation reactions
Oxidation reactions


Recently uploaded

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf
TechSoup

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)
nitinpv4ai

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17
Celine George

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
giancarloi8888

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts
Steve Thomason

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
سمير بسيوني

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
RidwanHassanYusuf

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub
danielkiash986

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"
National Information Standards Organization (NISO)

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Vivekanand Anglo Vedic Academy

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx
Fajar Baskoro

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf
BoudhayanBhattachari

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.
deepaannamalai16

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.
deepaannamalai16

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
zuzanka

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
Nguyen Thanh Tu Collection

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
GeorgeMilliken2

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
siemaillard

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names
History of Stoke Newington

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
National Information Standards Organization (NISO)


Recently uploaded (20)

Walmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdfWalmart Business+ and Spark Good for Nonprofits.pdf
Walmart Business+ and Spark Good for Nonprofits.pdf

Bonku-Babus-Friend by Sathyajith Ray (9)
Bonku-Babus-Friend by Sathyajith Ray  (9)Bonku-Babus-Friend by Sathyajith Ray  (9)
Bonku-Babus-Friend by Sathyajith Ray (9)

How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17How to Make a Field Mandatory in Odoo 17
How to Make a Field Mandatory in Odoo 17

REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdfREASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf
REASIGNACION 2024 UGEL CHUPACA 2024 UGEL CHUPACA.pdf

A Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two HeartsA Visual Guide to 1 Samuel | A Tale of Two Hearts
A Visual Guide to 1 Samuel | A Tale of Two Hearts

مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdfمصحف القراءات العشر   أعد أحرف الخلاف سمير بسيوني.pdf
مصحف القراءات العشر أعد أحرف الخلاف سمير بسيوني.pdf

BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptxBIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx
BIOLOGY NATIONAL EXAMINATION COUNCIL (NECO) 2024 PRACTICAL MANUAL.pptx

Pharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brubPharmaceutics Pharmaceuticals best of brub
Pharmaceutics Pharmaceuticals best of brub

Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"Benner "Expanding Pathways to Publishing Careers"
Benner "Expanding Pathways to Publishing Careers"

Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDFLifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF
Lifelines of National Economy chapter for Class 10 STUDY MATERIAL PDF

Pengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptxPengantar Penggunaan Flutter - Dart programming language1.pptx
Pengantar Penggunaan Flutter - Dart programming language1.pptx

B. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdfB. Ed Syllabus for babasaheb ambedkar education university.pdf
B. Ed Syllabus for babasaheb ambedkar education university.pdf

Standardized tool for Intelligence test.
Standardized tool for Intelligence test.Standardized tool for Intelligence test.
Standardized tool for Intelligence test.

HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.HYPERTENSION - SLIDE SHARE PRESENTATION.
HYPERTENSION - SLIDE SHARE PRESENTATION.

RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptxRESULTS OF THE EVALUATION QUESTIONNAIRE.pptx
RESULTS OF THE EVALUATION QUESTIONNAIRE.pptx

BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...
BÀI TẬP DẠY THÊM TIẾNG ANH LỚP 7 CẢ NĂM FRIENDS PLUS SÁCH CHÂN TRỜI SÁNG TẠO ...

What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...
What is Digital Literacy? A guest blog from Andy McLaughlin, University of Ab...

Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptxPrésentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx
Présentationvvvvvvvvvvvvvvvvvvvvvvvvvvvv2.pptx

The History of Stoke Newington Street Names
The History of Stoke Newington Street NamesThe History of Stoke Newington Street Names
The History of Stoke Newington Street Names

Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"
Jemison, MacLaughlin, and Majumder "Broadening Pathways for Editors and Authors"


Mass Transfer Equipment Cost

  • 1. Mass Transfer Equipment Cost Dr. K. Shahzad Baig Memorial University of Newfoundland (MUN) Canada
  • 2. Mass Transfer Equipment Cost Plate and Packed Towers The purchased cost for plate and packed towers can be divided into the following components: (1) cost for shell, including heads, skirts, manholes, and nozzles; (2) cost for internals, including trays and accessories, packing, supports, and distributor plates (3) cost for auxiliaries, such as platforms, ladders, handrails, and insulation.
  • 3. Figure 16.1 Cross sectional view of a finite stage contactor tower Showing examples of various types of trays
  • 4. Figure 16.14 Cross sectional view of packed tower in operation
  • 5. Figure 6.5 (a,b) Vertical pressure vessels
  • 6. 𝑷𝒖𝒓𝒄𝒉𝒂𝒔𝒆𝒅 𝒄𝒐𝒔𝒕 = 𝒃𝒂𝒓𝒆 𝒄𝒐𝒔𝒕 𝒇𝒓𝒐𝒎 𝒇𝒊𝒈𝒖𝒓𝒆 𝒙 𝑴𝒂𝒕𝒆𝒓𝒊𝒂𝒍 𝒇𝒂𝒄𝒕𝒐𝒓 𝒙 𝑷𝒓𝒆𝒔𝒔𝒖𝒓𝒆 𝒇𝒂𝒄𝒕𝒐𝒓

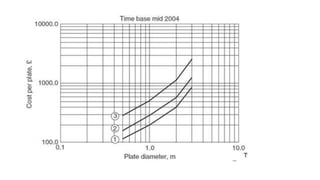

  • 7.

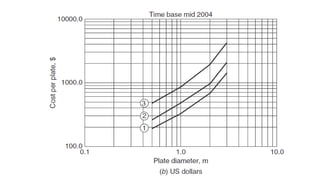

  • 8.

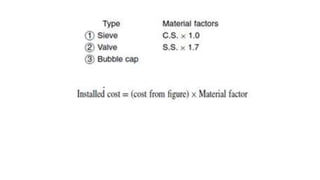

  • 9.

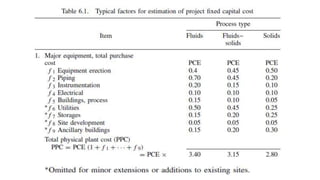

  • 10.
  • 11. Following books were used in preparation of notes  Blank, L., Tarquin. A. 2005. Engineering Economy. 6th Edition, McGraw-Hill.  Eschenbach, T. G. 2003. Engineering Economy”, 2nd Edition, Oxford University Press  Riggs, J. L., Bedworth, D. D., Randhawa, S. U. 1996. Engineering Economics”, 4th Edition, Tata McGraw-Hill.  Riggs, J. L., West. T. M. 1986. Essentials of Engineering Economics”, 2nd Edition, McGraw-Hill.  Peter, M. S., Timmerhaus, K. D. 1991. Plant Design and Economics for Chemical Engineers. 4th Edition, McGraw-Hill.
