This document provides an overview and summary of the Spill Prevention Control and Countermeasure (SPCC) regulation. It discusses who needs an SPCC plan, the requirements for SPCC plans including secondary containment and what must be included. It also covers qualified facilities that have a streamlined regulatory process for smaller oil storage facilities, allowing self-certification of their SPCC plan in lieu of professional engineering review and certification.
More Related Content
![CV - Philip Turner [Photo] - Nov 2015](https://cdn.slidesharecdn.com/ss_thumbnails/8619fc93-d68f-4941-b01d-15fec19080a6-151112143002-lva1-app6891-thumbnail.jpg?width=640&height=640&fit=bounds)
Marty' spcc plan power point
- 1. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Spill Prevention Control Countermeasure Regulation 40 CFR 112 Presented by Martin Bonnell, PE January 15, 2013
- 2. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLCPRESENTATION OVERVIEW • Introductions • Who needs a SPCC Plan & what is covered? • State and Federal Regulations • How is a SPCC Plan used and maintained? • What to do in the event of a product spill • Questions & Discussion
- 3. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLCWho Needs a SPCC Plan Owners or operators of petroleum facilities that have discharged or, due to their location, could reasonably be expected to discharge oil in harmful quantities into or upon the navigable waters of the United States or adjoining shorelines to prepare, in writing, an SPCC Plan.
- 4. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SPCC REQUIREMENTS • If the facility total aboveground storage in tanks or containers is > 1,320 gallons and/or > 42K gal underground storage (not 280/281 exempt) • It’s a non-transportation related facility (see 40 CFR Part 112 Appendices A & B) • And there is a reasonable chance of a discharge to waters of the U.S. or adjoining shorelines

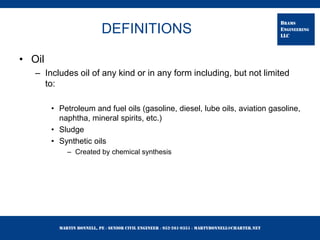

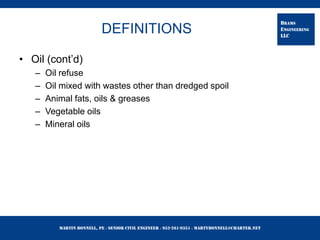

- 5. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC DEFINITIONS • Oil – Includes oil of any kind or in any form including, but not limited to: • Petroleum and fuel oils (gasoline, diesel, lube oils, aviation gasoline, naphtha, mineral spirits, etc.) • Sludge • Synthetic oils – Created by chemical synthesis
- 6. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC DEFINITIONS • Oil (cont’d) – Oil refuse – Oil mixed with wastes other than dredged spoil – Animal fats, oils & greases – Vegetable oils – Mineral oils
- 7. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC DENATURED ETHANOL • Denatured ethanol tanks are considered oil storage containers if the denaturant is an oil such as refined gasoline or natural gasoline • Shell capacity of tank used as storage capacity • These facilities may be subject to the SPCC & FRP requirements
- 8. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC NON-TRANSPORTATION-RELATED FACILITIES • Industrial, commercial, agricultural, or public facilities which use, store, drill for, produce, gather, process, refine or consumer oil or oil products • Waste treatment facilities or part thereof • Pipeline systems, highway vehicles & railroad cars used to transport oil exclusively within a facility
- 9. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC EPA Regulates: • Railroad cars after the transportation process ends and when they are operated as non-transportation-related storage at an SPCC regulated facility DOT Regulates: • Railroad cars from the time the oil is offered for transportation to a carrier until the time it reaches its destination and is accepted by the consignee

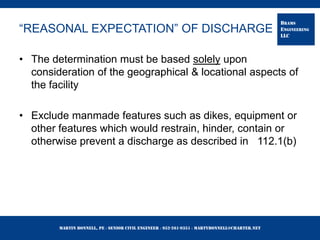

- 10. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC “REASONAL EXPECTATION” OF DISCHARGE • The determination must be based solely upon consideration of the geographical & locational aspects of the facility • Exclude manmade features such as dikes, equipment or other features which would restrain, hinder, contain or otherwise prevent a discharge as described in 112.1(b)

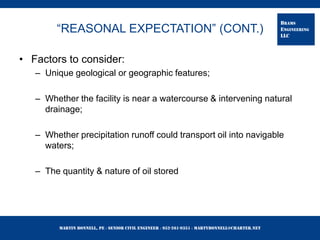

- 11. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC “REASONAL EXPECTATION” (CONT.) • Factors to consider: – Whether a past discharge of oil reached a navigable water or adjoining shoreline; – Whether the facility is adjacent to navigable waters or adjoining shoreline; – On-site conduits, such as sewer lines, storm sewers, certain underground features (e.g., power or cable lines, or groundwater);
- 12. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC “REASONAL EXPECTATION” (CONT.) • Factors to consider: – Unique geological or geographic features; – Whether the facility is near a watercourse & intervening natural drainage; – Whether precipitation runoff could transport oil into navigable waters; – The quantity & nature of oil stored

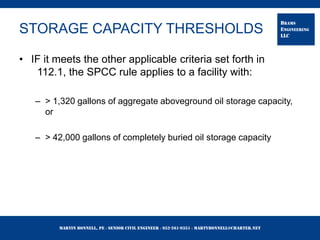

- 13. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC STORAGE CAPACITY THRESHOLDS • IF it meets the other applicable criteria set forth in 112.1, the SPCC rule applies to a facility with: – > 1,320 gallons of aggregate aboveground oil storage capacity, or – > 42,000 gallons of completely buried oil storage capacity

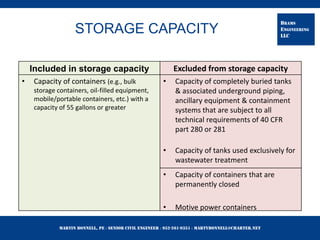

- 14. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC STORAGE CAPACITY Included in storage capacity • Capacity of containers (e.g., bulk storage containers, oil-filled equipment, mobile/portable containers, etc.) with a capacity of 55 gallons or greater Excluded from storage capacity • Capacity of completely buried tanks & associated underground piping, ancillary equipment & containment systems that are subject to all technical requirements of 40 CFR part 280 or 281 • Capacity of tanks used exclusively for wastewater treatment • Capacity of containers that are permanently closed • Motive power containers

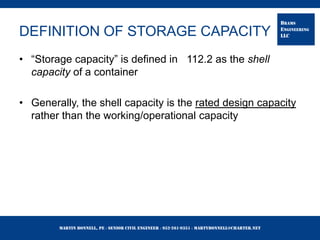

- 15. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLCDEFINITION OF STORAGE CAPACITY • “Storage capacity” is defined in 112.2 as the shell capacity of a container • Generally, the shell capacity is the rated design capacity rather than the working/operational capacity
- 16. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC DEFINITION OF “PERMANENTLY CLOSED” • For a tank to be “permanently closed”, the facility must do the following: – Remove all liquid & sludge from each container & connecting line – Disconnect & blank off all connecting lines & piping – Close & lock all valves (except ventilation valves) – Pose a conspicuous sign on each container stating it is permanently closed with the date of closing • Tanks can remain on site, but they are not included in the total storage capacity

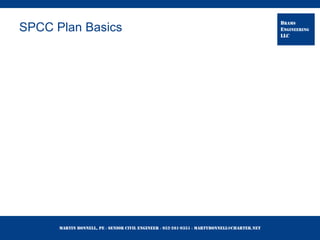

- 17. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SPCC Plan Basics

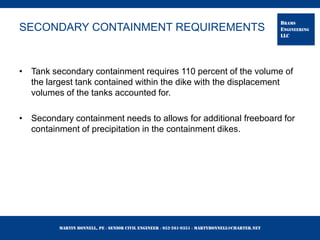

- 18. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SECONDARY CONTAINMENT REQUIREMENTS • Tank secondary containment requires 110 percent of the volume of the largest tank contained within the dike with the displacement volumes of the tanks accounted for. • Secondary containment needs to allows for additional freeboard for containment of precipitation in the containment dikes.
- 19. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Secondary Containment

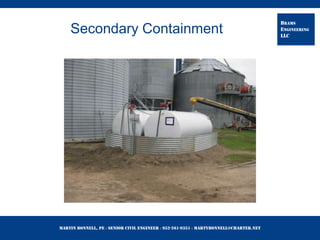

- 20. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Secondary Containment
- 21. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Drum Containment
- 22. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC RACK SPILL PAD CONTAINMENT • If transport truck makes hard connect to tank – the tank has a “Rack” and must have spill pad containment. • Spill Pad containment must be large enough to contain the largest compartment of the truck unloading at the petroleum facility.

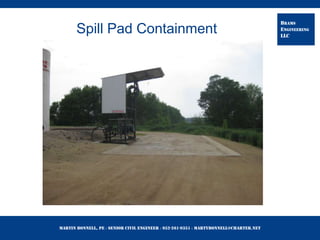

- 23. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Spill Pad Containment

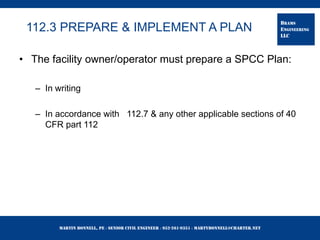

- 24. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.3 PREPARE & IMPLEMENT A PLAN • The facility owner/operator must prepare a SPCC Plan: – In writing – In accordance with 112.7 & any other applicable sections of 40 CFR part 112
- 25. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.3(c) MOBILE FACILITIES • Onshore & offshore mobile facilities must prepare, implement & maintain a Plan as required by the rule – Amend & implement a Plan, if necessary to ensure compliance with the rule, on or before 11/20/09 – Can be a general Plan; a new Plan is not required each time a facilities moves to a new site
- 26. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.3(d) PE CERTIFICATION • A licensed PE must review & certify a Plan & technical amendments • The certification does not relieve the owner/operator of his duty to prepare & fully implement a Plan

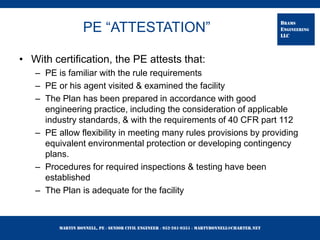

- 27. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC PE “ATTESTATION” • With certification, the PE attests that: – PE is familiar with the rule requirements – PE or his agent visited & examined the facility – The Plan has been prepared in accordance with good engineering practice, including the consideration of applicable industry standards, & with the requirements of 40 CFR part 112 – PE allow flexibility in meeting many rules provisions by providing equivalent environmental protection or developing contingency plans. – Procedures for required inspections & testing have been established – The Plan is adequate for the facility
- 28. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.3(e)(1) PLAN REQUIREMENTS • Maintain a complete copy of the Plan: – At the facility if it is attended at least 4 hours per day – At the nearest field office if the facility is attended for less than 4 hours per day • Have the Plan available to the RA for onsite review during normal working hours

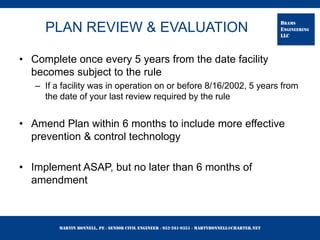

- 29. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC PLAN REVIEW & EVALUATION • Complete once every 5 years from the date facility becomes subject to the rule – If a facility was in operation on or before 8/16/2002, 5 years from the date of your last review required by the rule • Amend Plan within 6 months to include more effective prevention & control technology • Implement ASAP, but no later than 6 months of amendment
- 30. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC DOCUMENTING PLAN REVIEW • Must document Plan review & evaluation • Sign statement at beginning or end of Plan or in a log or an appendix – “I have completed review & evaluation of the SPCC Plan for (name of facility) on (date), and will (will not) amend the Plan as a result.” • PE must certify any technical amendment to Plan – Qualified Facilities exception
- 31. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Smaller Oil Storage Facilities
- 32. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.6 QUALIFIED FACILITY PLAN REQUIREMENTS • Smaller oil storage facility that is eligible for streamlined regulatory requirements – Self-certified SPCC Plan instead of one reviewed & certified by a Professional Engineer – Streamlined integrity testing & facility security requirements • Must meet eligibility criteria to use alternative option • EPA’s recent amendment would divide this group of facilities into tiers – Requirements described here would apply to “Tier I” facilities

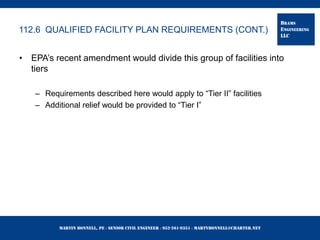

- 33. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC 112.6 QUALIFIED FACILITY PLAN REQUIREMENTS (CONT.) • EPA’s recent amendment would divide this group of facilities into tiers – Requirements described here would apply to “Tier II” facilities – Additional relief would be provided to “Tier I”

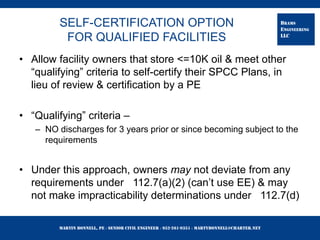

- 34. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SELF-CERTIFICATION OPTION FOR QUALIFIED FACILITIES • Allow facility owners that store <=10K oil & meet other “qualifying” criteria to self-certify their SPCC Plans, in lieu of review & certification by a PE • “Qualifying” criteria – – NO discharges for 3 years prior or since becoming subject to the requirements • Under this approach, owners may not deviate from any requirements under 112.7(a)(2) (can’t use EE) & may not make impracticability determinations under 112.7(d)
- 35. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC REPORTABLE DISCHARGE HISTORY • A single discharge of oil to navigable water or adjoining shorelines exceeding 1,000 gallons OR, • Two discharges to navigable water or adjoining shorelines each exceeding 42 gallons within any 12 month period • Count only the amount that reaches navigable water or adjoining shorelines

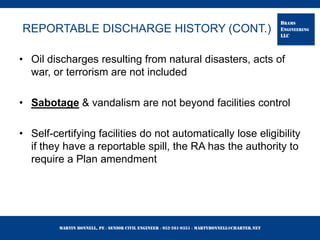

- 36. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC REPORTABLE DISCHARGE HISTORY (CONT.) • Oil discharges resulting from natural disasters, acts of war, or terrorism are not included • Sabotage & vandalism are not beyond facilities control • Self-certifying facilities do not automatically lose eligibility if they have a reportable spill, the RA has the authority to require a Plan amendment

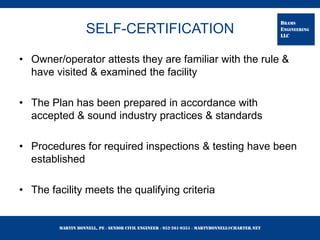

- 37. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SELF-CERTIFICATION • Owner/operator attests they are familiar with the rule & have visited & examined the facility • The Plan has been prepared in accordance with accepted & sound industry practices & standards • Procedures for required inspections & testing have been established • The facility meets the qualifying criteria
- 38. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC SELF-CERTIFICATION (CONT.) • The Plan does not deviate from rule requirements except as allowed & as certified by a PE • The Plan & staff responsible for implementing it have the full approval of management & the o/o has committed the necessary resources to fully implement the Plan • The Plan is being fully implemented

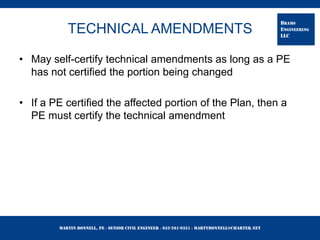

- 39. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC TECHNICAL AMENDMENTS • May self-certify technical amendments as long as a PE has not certified the portion being changed • If a PE certified the affected portion of the Plan, then a PE must certify the technical amendment

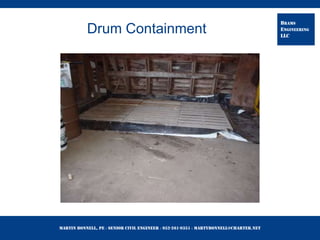

- 40. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Drum Containment
- 41. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC Tank Containment

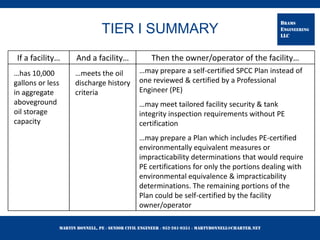

- 42. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC TIER I SUMMARY And a facility… Then the owner/operator of the facility…If a facility… …has 10,000 gallons or less in aggregate aboveground oil storage capacity …meets the oil discharge history criteria …may prepare a self-certified SPCC Plan instead of one reviewed & certified by a Professional Engineer (PE) …may meet tailored facility security & tank integrity inspection requirements without PE certification …may prepare a Plan which includes PE-certified environmentally equivalent measures or impracticability determinations that would require PE certifications for only the portions dealing with environmental equivalence & impracticability determinations. The remaining portions of the Plan could be self-certified by the facility owner/operator
- 43. Martin Bonnell, PE◊ Senior Civil Engineer ◊ 952-261-9351 ◊ martybonnell@charter.net BRAMS ENGINEERING LLC ASSISTANCE, SERVICES & PRODUCTS • Brams Engineering Services– Assistance drafting SPCC plans – Inspects and Prepares SPCC Plans – Prepares Tier I SPCC Plans for Owner/Operator Self Certification – Prepares Tier II SPCC Plans for Owner/Operators – Designs Tank Containment Basins – Responses to EPA Violation Letters
