WELCOME! Access Control Systems

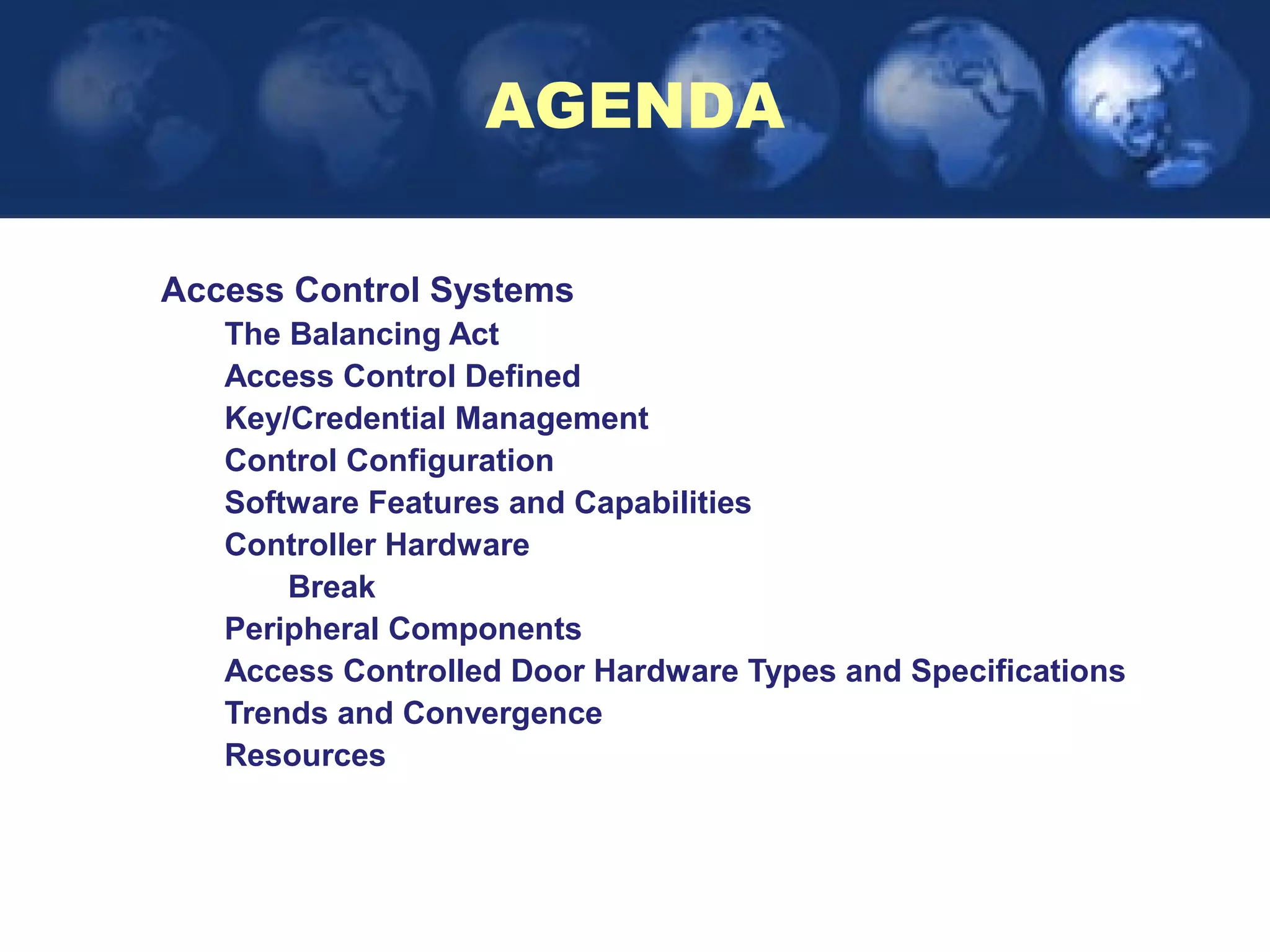

AGENDA Access Control Systems The Balancing Act Access Control Defined Key/Credential Management Control Configuration Software Features and Capabilities Controller Hardware Break Peripheral Components Access Controlled Door Hardware Types and Specifications Trends and Convergence Resources
How to get the most… HARVARD RESEARCH STUDY VERBAL COMMUNICATION Approx 100% was what the speaker wanted to say Approx 80% was said Approx 60% was heard Approx 40% was remembered after 3 hours Approx 15% was remembered after 3 days Approx 0-5% was remembered after 3 months VERBAL + VISUAL COMMUNICATION Approx 60% was remembered after 3 days Approx 40-50% was remembered after 3 months VERBAL + VISUAL + NOTES Approx 80% was remembered after 3 days Approx 60-70% was remembered after 3 months
How to get the most… Why are we here? Gain Knowledge. Asking Questions.
The Balancing Act • Security • Balancing Openness and Public Safety • Applying new technologies and lessons learned • Improving the physical security of buildings • Protecting people and assets while maintaining a pleasant work environment. • The challenge facing government officials, realtors and corporate building owners.
Security….”The Absolutes” • Our world is dangerous and will get more dangerous • We take security for granted till something goes wrong. • Security is inconvenient- and expensive • Paranoid or Prepared? Politics! • Constant vigilance – Almost overwhelming! • 100%, guaranteed security ?? No such thing ! • 100% security = 0% accessibility • 100% security = 0% productivity
Architects and Security • Buildings must be functional, comfortable, inspirational – SAFE • You don’t design a building for security. You secure the design of a building • Rethinking Security – new meaning to architects
Security Elements • Deterrence • Training, Fences, Signage, Lighting, Consequences • Delay • Locks, Doors • Detection • Alarms, CCTV, Metal Detectors, Motion & Sound Sensors • Communication • Voice, Data, Video • Response • Crisis Preparedness, Security Personnel, Police
Access Control Defined • WHO? • WHERE? / WHAT? • WHEN? / TIME?
The WHO • The person, or device, requesting access to an area, or asset, we want to control. • Authentication Methods …something the person / device… • HAS – Physical • KNOWS – Knowledge of • IS / ARE – Biometric
The WHERE / WHAT • The place or process we want to allow authorized persons to get to. • Physical and Logical • Controlled or Restricted area • As it relates to both manual and electronic access controls this is critical to our access management plan • Vending, gas dispensing, copier machine usage, time and attendance, meal plans and more
The WHEN • The time period or interval when access is granted or denied. • Can be managed with both on line and off line systems • Also used for setting events and logic statements for: • Triggers • Time Zones • Timing responses to alarms • Timing for routing of messages to other devices
Access Control Defined • WHO? • WHERE? / WHAT? • WHEN? / TIME?
Access Control is… AS SIMPLE AS A KEY
Ultimate Key Management Unauthorized key duplication remains the most violated security policy and one of the largest problem of facility managers • Knowing exactly who has keys • Knowing areas of access of each key holder • Knowing key blanks are not readily available • Knowing keys cannot be copied without proper authorization • Having a policy on lost keys • When issuing temporary use of keys, keeping record trail
Yesterday’s Key Control Conventional A conventional keyway is one which the manufacturer will sell to anyone, it may most Keyways common, or the most used, or the "standard" or it may be family of keyways D0 NOT Key # 123 DUPLICATE PLAIN STAMPED BOWS BOWS
5 Steps To Key Management COMPLETE KEY CONTROL STRONG CONTROLLED LEGAL AUDIT ENFORCEMENT UTILITY KEY CONTRACTS CONTROLS PATENT BLANKS Not a Not Agreements Know Must Be Design Available of Where Aware of Patent to all Control Blanks Unauthorized Customers Are Copies
Today’s Key Management 1. Patented keyways Blade Utility patent gives manufacturer exclusive manufacturing rights Security Manufacturer control distribution Ledge Security Leg Patent good for 20 years Millings for Imitation manufacturers cannot duplicate Keyway Blade Assures protection to facility / owner
Today’s Key Management 2A. Manufacturer Controls Policy 1. Verify all signatures 2. Policy and procedures in place 3. 4 Signature verification Controlled access to product areas Ship key blanks direct to end user Has return key policy Provides specially coined blanks
Today’s Key Management Request for New Key 2B. Facility/Owner Controls DATE: 07-04-05 Policy and procedures in place supported by TO: Lock shop upper management ISSUE TO: Bill Jones Locksmith administrator on staff NO. OF KEYS: 1 Locked storage APPROVED BY: C T Smith Supervisor approval of new keys Employee signs for key ISSUE TO : Bill Jones By Lock Shop Should have penalty attached KEY NUMBER: 123 All keys numbered and logged into system KEY SET: AB15 ISSUE DATE: 07-07-05 Procedure for keys to be returned ISSUED BY: CH DATE ISSUED: 07-07-05 should have penalty attached RECEIVED BY: Bill Jones RETURNED DATE Additional procedures: Cleaning crew Outside contractors
Today’s Key Management 3. Contracts and Agreements Protects facility / owner We agree Protects distributor Protects manufacturer Summarizes responsibilities to all parties Provides guide lines Eliminates misunderstanding

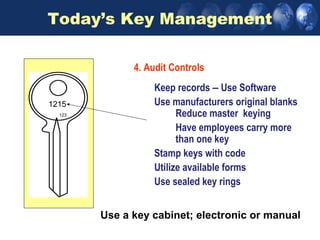

Today’s Key Management 4. Audit Controls Keep records – Use Software AB15 1215 Use manufacturers original blanks 123 Reduce master keying Have employees carry more than one key Stamp keys with code Utilize available forms Use sealed key rings Use a key cabinet; electronic or manual
Access Control is… AS SIMPLE AS A KEY
Access Control is… This is a key! This too!
The Credential • Most visible component of the system • Issued to personnel as “electronic keys” • Several Card Technologies • Badge Construction • Degree of Security Required • Durability • Reader Environment • Convenience and Price • Performance
Card / I D Technology Types • Barium Ferrite • Bar Codes • Magnetic Stripe • Wiegand • Proximity • Smart Card • Hybrid
Biometrics – Another Key • Biometrics and the “Smart Card” • Iris Scan • Finger Print • Facial Recognition • Retinal Scan • Voice Recognition • Hand Geometry • Others on the horizon
Credentials / Smartcards Access PC Login Control Time & Attendance Personal Data Photo Cafeteria Vending Free Free
Access Controls more about the “key” • The “Common Access Card” • FIPS 201 / HSPD12 • Database sharing trends • Communications options • Encryption – DES, AES • PINs
HSPD-12 Homeland Security Presidential Directive/Hspd-12 Subject: Policy for a Common Identification Standard for Federal Employees and Contractors (1) Wide variations in the quality and security of forms of identification used to gain access to secure Federal and other facilities where there is potential for terrorist attacks need to be eliminated. Therefore, it is the policy of the United States to enhance security, increase Government efficiency, reduce identity fraud, and protect personal privacy by establishing a mandatory, Government- wide standard for secure and reliable forms of identification issued by the Federal Government to its employees and contractors (including contractor employees).
CONTROL CONFIGURATIONS • Stand Alone Systems • Multi-Door Systems • Enterprise Integrated Systems
STAND ALONE SYSTEMS • Authentication Types; • PIN, Credential / Proximity, Biometric • Battery Operated or Wired • Keypad Programming • Computer Managed / PDA • Entry Automation • 1st Man In • Audit Trail • # Users • Labor vs. Hardwired System
Single-User Multi-Door Systems • Instant Local Notification • Multiple Reader Type • Input Output Linking • Dedicated PC
Multi-User / Multi-Door Systems • Instant Multiple Notification Options • LAN Access • Discretionary Reporting • Mandatory Controls
Enterprise Systems ACCESS CONTROL DIGITAL VIDEO SURVEILLANCE & MANAGEMENT IDENTITY MANAGEMENT INTEGRATED ALARM MANAGEMENT INFORMATION SECURITY MULTI-TENANT PROPERTY MANAGEMENT BUILDING AUTOMATION VISITOR MANAGEMENT ASSET WIRELESS MANAGEMENT ACCESS INTRUSION INTERCOM DETECTION COMMUNICATION FIRE ALARM SYSTEMS SYSTEMS
Enterprise Systems Human Access Credential Resources Control Biometric Management Templates Medical Visitor Information Management Bringing together ERP disparate databases Social Security or information Time and sources Incident Attendance Reporting Criminal Smart Cards History Active Payroll Directory/LDAP
System Architecture Life Safety Visitor Photo Imaging Management Management POTS CCTV System RS-232 Access Control Ethernet Network Dial-up Modem LAN/WAN Cellular Direct Connect RS-232 or RS-422 RS-422 Field Panel Door Controller Field Panel Field Panel RS-232 Modem HVAC Field Panel Field Panel Readers
SOFTWARE • Integrated solutions sets • Network ready • SQL and Oracle • Linux based embedded solutions • Partition-able database • Windows XP, NT, 2000, Vista Compatibility • Web enabled • Web Embedded
The Application Software • This is the GUI- It should be intuitive easy to train operators and managers • The database manager • Ability to partition and filter views based on passwords • Import and export features • Potential interface to HR database systems • May be Standalone or • Part of a network • Numerous work stations • Redundant emergency backup • Full set of utilities for storage and archiving
Desired Software Features • Migration path (scalability) • Alarm Monitor capacity • Anti-Pass back • Event Triggers • Time zones and Holidays • Clearance (area) controls • CCTV Matrix Switching • Digital Video recorder event linking
Desired Software Features •No limit on system scalability. • Unlimited Card Readers. • Unlimited Inputs/Outputs. • Unlimited Cardholders. • Unlimited Control Panels. • Unlimited Holidays. •Guard Tour application •Elevator Control •Full featured Badging •Real time status monitoring •Multiple reader technology support •Microsoft database •Report Manager •Visitor Management •ODBC and MDAC Compliant •Potential web access/enabled
Access Granted Transactions             
Access Denied Transactions             
Contact Transactions             

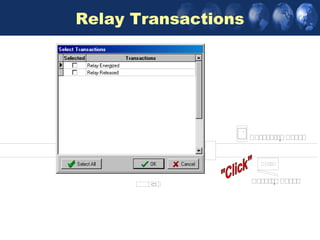

Relay Transactions             
Actions that effect Card Readers             
Actions that effect Contact Devices             
Actions that effect Relays             
Card Reader Triggers and Actions             
Integrated Applications • Photo I D Creation • Bio-metric enrollment • Alarm management • Access Management • Air Quality monitoring • Visitor Controls • Digital Video event linking • Event and data base linking • Camera Controls • Virtual CCTV Matrixes • CCTV Analytics • Smartcard Application Support
Access Control Panel Operation • Card is presented data sent to Panel • Panel compares information • Grants/Denies access • Based on Card Status • Time of Day • Cardholder’s access privileges • Other Administrator selected features
Access Control Panels • Contain Microprocessors • On-board Random Access Memory (RAM) • Upgradeable Software stored in Erasable Program Read Only Memory (EPROM) • System Administrator or authorized web client enters all information related to system at host computer or direct to board via web with on board software in panel • Information may be downloaded to Access Control Panel’s RAM
Access Control Panels • Once downloaded/programmed a Panel can process information locally. • “Intelligent” panels inform the Host of all actions taken, including time and date • Often referred to as “distributed processing” • Saves Host processing time
Access Control Panel Operations • May be configured many ways • Can store thousands & some users are requiring Millions of records! • Multiple access levels • Time Zones • Thousands of historical transactions • Quantum leaps in storage abound
Access Control Panel Operations • Can support Inputs • Can detect an input’s change of state, process the information and report it to the host computer/ or web based client on alarm • Typical Inputs include door monitor and request to exit (or bypass) devices • Can support Outputs • Door locking mechanisms • Sound or broadcast alarm devices • Lights, sirens, bells, digital dialers, etc. • Can be programmed so an Input activates or deactivates outputs automatically • Example: Glass break sensor (input) might activate a siren (output)

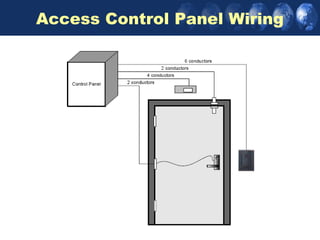

Access Control Panel Wiring
Access Control Panel Wiring • Three different approaches to cabling of readers • Bus Cabling • Readers can be wired to a common cable that runs back to the panel • Saves wiring costs when readers are close to each other • Star Cabling • Readers can be wired to the panel individually • Combination Bus and Star sometimes is best • Independent IP / Network Drop communications via Network
Access Control Panel Trends • Distributed intelligence • Embedded software – web enabled data management • FIPS- 201 for Federal Employees • Full feature set resident at the local panel • POTS pack up / cellular back up • HiCap memory backup • On line and off line capacity • Bio-metric / Smartcard • Integrated into lock hardware
QUESTIONS? Kevin Klemmer, PSP, CISSP SEE YOU IN 5 Minutes
Access Control Systems Access Control Hardware / Peripherals & IT Convergence Kevin Klemmer, PSP, CISSP
First Security Measures
The more things change… • Which one is the lock?
Modern Castle – Corporate Campus
Entrance to the Castle
Entrance to the Castle Often perceived 25 to 50% of the as the first line of cost of access defense. control implementation. The Opening
Systems Building Blocks

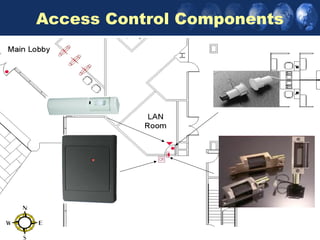

Access Control Components
The Basics: Electric Locks Maglocks Strikes Cylindrical Mortise Exits Peripherals
ELECTRIFIED HARDWARE Benefits of Electrified Hardware Safety Security Control & Monitoring Remote Locking Reduces Manpower Convenience ADA requirements Performs functions normally executed manually, usually from remote location or automated. Must specify a system with all components compatible. One component will not work without the others.
ACCESS CONTROL HARDWARE Components of a System
ACCESS CONTROL HARDWARE Parts of a Regulated Power Supply INPUT Reduces Voltage 120VA TRANSFORME C R RECTIFIER Converts AC to DC CAPACITOR Stores needed current FILTER Eliminates “Noise” OUTPUT REGULATOR Keeps Output Constant 24VDC
ACCESS CONTROL HARDWARE The power supply must furnish the SAME voltage as required by the load. The current (amps) available from the power supply must be EQUAL TO or GREATER THAN that required by the total load of the system.
ACCESS CONTROL HARDWARE Converts electrical energy into another form I.e., unlocks a solenoid, retracts a latch bolt, etc Performs the work required Electric Lock or Strike Electric Exit Device Closer / Holder Electromagnetic Holders
ACCESS CONTROL HARDWARE Terminology FAIL SAFE FAIL SECURE • Lock or locking device (non-fail safe) that remains • Lock or locking device UNLOCKED on loss of that remains LOCKED power on loss of power
ACCESS CONTROL HARDWARE Need to Know to Select Power Supply Electrical Characteristics of a Load • Current Draw In Amps • Voltage Required • Fail Safe / Fail Secure
ACCESS CONTROL HARDWARE Switches are used to control a locking device or to signal a monitoring device Key Pad Key Switch Toggle Switch Push Button Stand Alone System Access Control System
ACCESS CONTROL HARDWARE Switches are used to control a locking device or to signal a monitoring device Each switch has one movable contact, the POLE, and one or more fixed contacts, the THROWS Normally open SWITCH SYMBOL
ACCESS CONTROL HARDWARE Switches are used to control a locking device or to signal a monitoring device Each switch has one movable contact, the POLE, and one or more fixed contacts, the THROWS Normally closed SWITCH SYMBOL

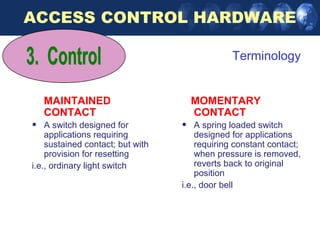

ACCESS CONTROL HARDWARE Terminology MAINTAINED MOMENTARY CONTACT CONTACT • A switch designed for • A spring loaded switch applications requiring designed for applications sustained contact; but with requiring constant contact; provision for resetting when pressure is removed, i.e., ordinary light switch reverts back to original position i.e., door bell
ACCESS CONTROL HARDWARE Carries current through system The more distance between the power source and the load, a heavier wire gauge is required # 1 TROUBLESHOOTING PROBLEM
ACCESS CONTROL HARDWARE Need to Know Size of Conductor (Gauge) Length of Conductor (Resistance) The farther the load is from the power supply, the more resistance is experienced; a heavier gauge wire is required
ACCESS CONTROL HARDWARE MINIMUM WIRE GAUGE FOR 24V DC or AC Distance in feet from Power Supply to Locking Device 25 50 100 150 200 250 300 400 500 0.25 18 18 18 18 18 18 18 18 16 0.50 18 18 18 18 16 16 16 14 14 0.75 18 18 18 18 16 16 14 14 A M 1.00 18 18 18 16 16 14 14 P S 1.50 18 18 18 16 16 14 2.00 18 18 16 16 14 2.50 18 18 16 14 3.00 18 16 14 3.50 18 16 14
ACCESS CONTROL HARDWARE Elements of a System HARDWARE SYSTEM ONE LIST THREE WIRING DIAGRAM OPERATIONS NARRATIVE TWO ELEVATION DRAWING FOUR
ACCESS CONTROL HARDWARE REQUIREMENTS 1. 2. • Outside Operation OPERATIONS HARDWARE • At Rest (while locked) NARRATIVE LIST • Electrically Unlock • Mechanically Unlock • Power Failure • LED’s 3. 4. • Inside Operation ELEVATION WIRING DRAWING DIAGRAM
ACCESS CONTROL HARDWARE 1. 2. 1. Power Supply OPERATIONS HARDWARE 2. Key Pad NARRATIVE LIST 3. Power Transfer 4. Electric Exit Device 3. 4. ELEVATION WIRING DRAWING DIAGRAM
ACCESS CONTROL HARDWARE Power 120VAC input Supply 1. 2. OPERATIONS HARDWARE NARRATIVE LIST 3. 4. ELEVATION WIRING DRAWING DIAGRAM
ACCESS CONTROL HARDWARE 1. 2. OPERATIONS HARDWARE NARRATIVE LIST 3. 4. ELEVATION WIRING DRAWING DIAGRAM
CHOICES Making Hardware Selections Based On Owner’s Instructions Cashier's Door from Drivers Lounge Closed and Locked at all Times Must Be Entered During Day Employees Secretary To Remotely Unlock Door Management Always Able To Enter * CASHIER DRIVERS LOUNGE
EXAMPLE 1. OPERATIONS 2. HARDWARE NARRATIVE LIST Door is normally closed, latched and secure from the outside. Depressing Load the push switch will unlock the electric Electric Strike strike to allow ingress. 712NFS 24VDC Door will relock as soon as push button returns to normal position. Switch Push Button Loss of power, the door will PB remain locked. Power Supply Enter by key at all times. Transformer Free egress from inside TP-24-2 at all times.
EXAMPLE Transformer GAGE AND NUMBER 24VAC output OF CONDUCTORS 3. ELEVATION TP-24-2 18 ga TO 120VAC INPUT RISER DIAGRAM 18 ga Rectifier 712NFS Electric PB Strike
EXAMPLE 4. WIRING DIAGRAM 120VAC Pushbutton Locked Un- Transformer Locked Electric Strike PUSH TO EXIT NC C Non- polarized NO + - Systems Wiring Diagram or Point to Point Wiring Diagram
COMPONENTS & ELEMENTS 4 COMPONENTS POWER LOAD SWITCH CONDUCTORS SUPPLY OPERATIONS HARDWARE ELEVATION WIRING NARRATIVE LIST DRAWING DIAGRAM 4 ELEMENTS
Access Control Trends Smaller, Faster, Better More Integrated Features Embedded Web Server Open Source WiFi - Wireless
Access Control Trends Embedded Prox Technology Monitoring Options Request To Exit Door Contact Keyswitch Monitoring Other options…
Convergence Analog to IP (Security to IT) Applications Convergence Physical and Cyber “Soon the security industry will move to systems in which there are no analog or proprietary wired devices at all; where all devices connect to the Ethernet infrastructure. The knowledge of how to design efficient network systems and how to secure those systems is paramount to successful security systems. This is the future of security technology” Thomas Norman, Protection Partners International Integrated Security Systems Design

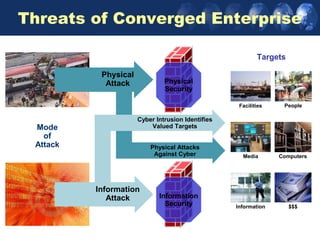

Threats of Converged Enterprise Targets Physical Attack Physical Security Facilities People Cyber Intrusion Identifies Mode Valued Targets of Attack Physical Attacks Against Cyber Media Computers Information Attack Information Security Information $$$
Convergence Migration Disparate Building Networks Intelligent Converged Environment IP Communications Fire Lighting Physical Elevator Security Visitor 24 / 7 Access Monitor Energy HVAC WAN
Convergence Benefits Benefits: Lighting  Safety and security Elevator  Environmental sustainability Services and Technologies  Occupant comfort 24/7 Monitor  Organizational flexibility  Streamlined operations HVAC  Reduced costs Fire  Energy savings  Managed services Video surveillance  Data mining  Process Measurement Access Energy
Resources
Resources Reduce security vulnerabilities in all types of facilities. The industry's first-ever guide for exterior and interior security features, NFPA 730: Guide for Premises Security addresses security in all occupancies from residential dwellings to large industrial complexes. Uniform guidelines help you assess vulnerability and design appropriate security plans. Provisions describe construction, protection, and occupancy features and practices intended to reduce security risks to life and property. Topics covered include: General requirements and facility classifications Security vulnerability assessment Exterior security devices and systems Physical security devices Interior security systems Security planning Measures to control security vulnerabilities in educational, healthcare, and other facilities The Guide also addresses protocols for special events, and the responsibilities of security personnel. (Approx. 88 pp., 2006)
Resources Ensure the quality and reliability of security system installations NFPA 731; Installation of Electronic Premises Security Systems is the first Standard developed primarily to define the means of signal initiation, transmission, notification, and annunciation, as well as the levels of performance and the reliability of electronic security systems. Requirements cover every step of security equipment installation, with provisions for the application, location, performance, testing, and maintenance of physical security systems and their components. Detailed chapters are included for: Intrusion detection systems Electronic access control systems Video surveillance systems Holdup, duress, and ambush systems Testing and inspection Rules address the protected premises from the property line to the interior of the premises. NFPA 731 also references or incorporates provisions from applicable UL, SIA, and other standards. (Approx. 43 pp., 2006)
ETHICS IN SECURITY Physical Security Professionals must adhere to the Code of Professional Responsibility, agreeing to: • Perform professional duties in accordance with the law and the highest moral principles. • Observe the precepts of truthfulness, honesty, and integrity. • Be faithful, competent, and diligent in discharging their professional duties. • Safeguard confidential and privileged information and exercise due care to prevent its improper disclosure. • Not maliciously injure the professional reputation or practice of colleagues, clients, or employees.
QUESTIONS? Thank You!
