Managing and supporting PowerApps & Flow at scale by Daniel Laskewitz
The document discusses how to establish governance over a Power Platform environment. It recommends establishing an environment strategy, setting up data loss prevention policies, leveraging built-in activity logs and analytics, installing a Center of Excellence starter kit, welcoming new users and identifying champions, and establishing automated audit processes. The agenda covers product discovery, security layers, demoing DLP policies, monitoring activity, leveraging management tools, and nurturing an app catalog.
More Related Content
Similar to Managing and supporting PowerApps & Flow at scale by Daniel Laskewitz
![[PU&D] Why the Microsoft 365 Administrator should care about the Power Platfo...](https://cdn.slidesharecdn.com/ss_thumbnails/sarabarbosaspswarsaw2020sarabarbosa-200404190120-thumbnail.jpg?width=640&height=640&fit=bounds)
![Getting Started with Apache Spark: Big Data Made Simple [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/apachesparkgettingstarted-260203175547-8361bcc3-thumbnail.jpg?width=640&height=640&fit=bounds)
Managing and supporting PowerApps & Flow at scale by Daniel Laskewitz
- 3. Microsoft Power Platform Onelow-code platform that spans Office 365, Dynamics 365, and standalone applications Analyze. Act. Automate. Assist.
- 4. Who is heretoday?
- 5. Who here hasa Microsoft 365 background?

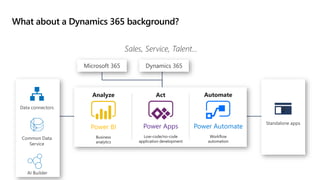

- 6. What about aDynamics 365 background?

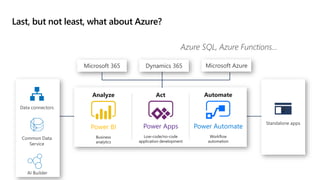

- 7. Last, but notleast, what about Azure?
- 8. Why are wehere today?
- 10. Our philosophy 1. Empoweranyone to be a maker, a #PowerAddict • Enable an open ecosystem for building • But an ecosystem that does not escalate privilege
- 11. Our philosophy… includesgovernance! 1. Empower anyone to be a maker, a #PowerAddict • Enable an open ecosystem for building • But an ecosystem that does not escalate privilege 2. But also empower admins with full visibility and the tools they need to balance business productivity with governance 1. Incent the right behavior 2. Implement strategy early 3. Treat exceptions as exceptions

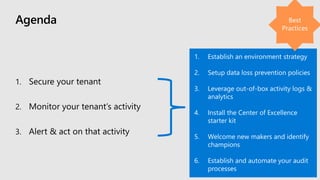

- 12. Agenda 1. Establish anenvironment strategy 2. Setup data loss prevention policies 3. Leverage out-of-box activity logs & analytics 4. Install the Center of Excellence starter kit 5. Welcome new makers and identify champions 6. Establish and automate your audit processes
- 13.
- 14. Who is buildingsolutions with the Power Apps? 2. Pro-dev / IT productivity Enables high productivity app development Reduces time to develop and deploy Centrally managed and rolled out Lower barrier of entry for app development Power users in business units close to the problem building solutions for their teams Often with IT oversight or in an approved sandbox 1. Citizen developer enablement Some organizations start with a centralized IT apps and then grow into organic development Far more start with organic solutions in business units and grow into a centralized IT Center of Excellence (CoE)

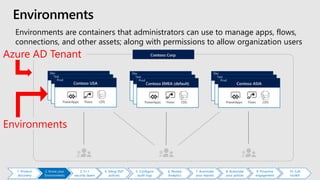

- 15. Environments Environments are containersthat administrators can use to manage apps, flows, connections, and other assets; along with permissions to allow organization users to use the resourcesAzure AD Tenant Environments 1. Product discovery 2. Know your Environments 3. 5+1 security layers 4. Setup DLP policies 5. Configure audit logs 6. Review Analytics 7. Automate your reports 8, Automate your polices 9. Proactive engagement 10. CoE toolkit

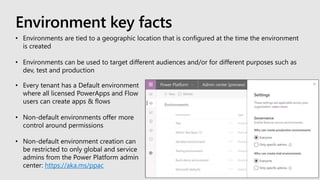

- 16. Environment key facts •Every tenant has a Default environment where all licensed PowerApps and Flow users can create apps & flows • Non-default environments offer more control around permissions • Non-default environment creation can be restricted to only global and service admins from the Power Platform admin center: https://aka.ms/ppac • Environments are tied to a geographic location that is configured at the time the environment is created • Environments can be used to target different audiences and/or for different purposes such as dev, test and production

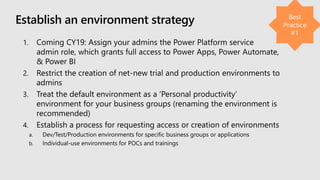

- 17. Establish an environmentstrategy

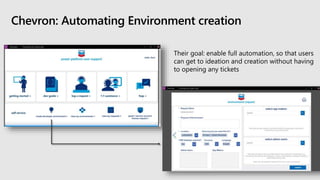

- 18. Chevron: Automating Environmentcreation

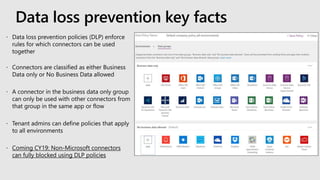

- 19. Data loss preventionkey facts

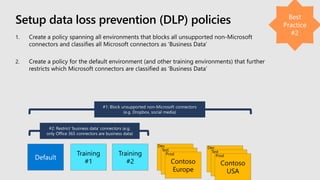

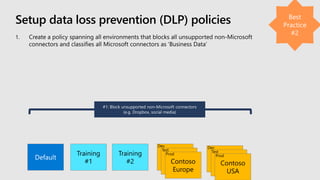

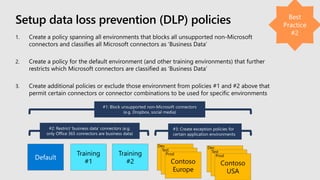

- 20. Setup data lossprevention (DLP) policies Training #1 Training #2 Contoso Europe Dev Test Prod Contoso USA Dev Test Prod
- 21. Setup data lossprevention (DLP) policies Training #1 Training #2 Contoso Europe Dev Test Prod Contoso USA Dev Test Prod
- 22. Setup data lossprevention (DLP) policies Training #1 Training #2 Contoso Europe Dev Test Prod Contoso USA Dev Test Prod
- 23.
- 24.

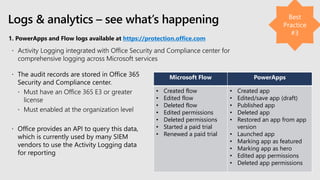

- 25. 1. PowerApps andFlow logs available at https://protection.office.com Logs & analytics – see what’s happening Microsoft Flow PowerApps • Created flow • Edited flow • Deleted flow • Edited permissions • Deleted permissions • Started a paid trial • Renewed a paid trial • Created app • Edited/save app (draft) • Published app • Deleted app • Restored an app from app version • Launched app • Marking app as featured • Marking app as hero • Edited app permissions • Deleted app permissions

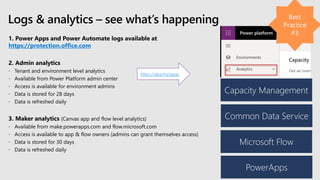

- 26. 1. Power Appsand Power Automate logs available at https://protection.office.com 2. Admin analytics Tenant and environment level analytics Available from Power Platform admin center Access is available for environment admins Data is stored for 28 days Data is refreshed daily Logs & analytics – see what’s happening Capacity Management Common Data Service Microsoft Flow PowerApps https://aka.ms/ppac
- 27. 1. Power Appsand Power Automate logs available at https://protection.office.com 2. Admin analytics Tenant and environment level analytics Available from Power Platform admin center Access is available for environment admins Data is stored for 28 days Data is refreshed daily 3. Maker analytics (Canvas app and flow level analytics) Available from make.powerapps.com and flow.microsoft.com Access is available to app & flow owners (admins can grant themselves access) Data is stored for 30 days Data is refreshed daily Logs & analytics – see what’s happening Capacity Management Common Data Service Microsoft Flow PowerApps https://aka.ms/ppac

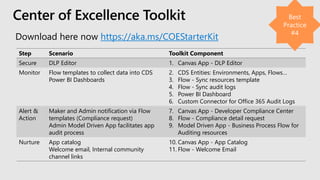

- 28. Center of ExcellenceToolkit https://aka.ms/COEStarterKit Step Scenario Toolkit Component Secure DLP Editor 1. Canvas App - DLP Editor Monitor Flow templates to collect data into CDS Power BI Dashboards 2. CDS Entities: Environments, Apps, Flows… 3. Flow - Sync resources template 4. Flow - Sync audit logs 5. Power BI Dashboard 6. Custom Connector for Office 365 Audit Logs Alert & Action Maker and Admin notification via Flow templates (Compliance request) Admin Model Driven App facilitates app audit process 7. Canvas App - Developer Compliance Center 8. Flow - Compliance detail request 9. Model Driven App - Business Process Flow for Auditing resources Nurture App catalog Welcome email, Internal community channel links 10. Canvas App - App Catalog 11. Flow - Welcome Email
- 29. Alert & acton that activity

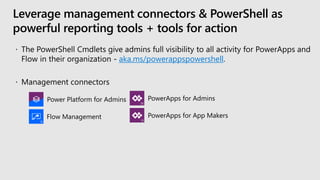

- 30. Leverage management connectors& PowerShell as powerful reporting tools + tools for action aka.ms/powerappspowershell PowerApps for Admins PowerApps for App Makers Power Platform for Admins Flow Management

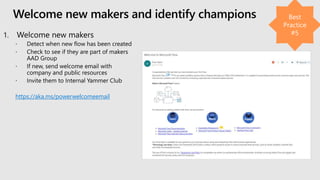

- 31. Welcome new makersand identify champions https://aka.ms/powerwelcomeemail

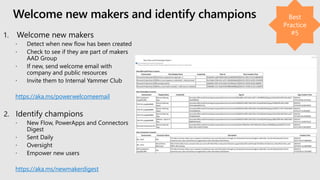

- 32. Welcome new makersand identify champions https://aka.ms/powerwelcomeemail https://aka.ms/newmakerdigest

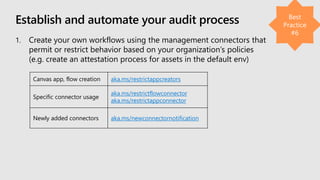

- 33. Establish and automateyour audit process Canvas app, flow creation aka.ms/restrictappcreators Specific connector usage aka.ms/restrictflowconnector aka.ms/restrictappconnector Newly added connectors aka.ms/newconnectornotification 1. Create your own workflows using the management connectors that permit or restrict behavior based on your organization’s policies (e.g. create an attestation process for assets in the default env)
- 34.

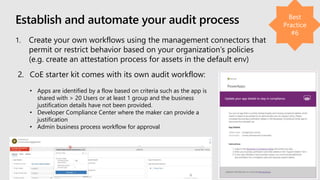

- 35. Establish and automateyour audit process 1. Create your own workflows using the management connectors that permit or restrict behavior based on your organization’s policies (e.g. create an attestation process for assets in the default env) 2. CoE starter kit comes with its own audit workflow: • Apps are identified by a flow based on criteria such as the app is shared with > 20 Users or at least 1 group and the business justification details have not been provided. • Developer Compliance Center where the maker can provide a justification • Admin business process workflow for approval

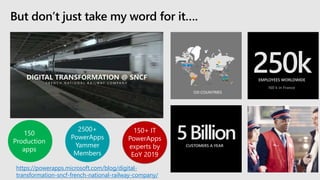

- 36. But don’t justtake my word for it…. 250k 5BillionCUSTOMERS A YEAR EMPLOYEES WORLDWIDE 120 COUNTRIES 160 k in France 150 Production apps 2500+ PowerApps Yammer Members 150+ IT PowerApps experts by EoY 2019 https://powerapps.microsoft.com/blog/digital- transformation-sncf-french-national-railway-company/

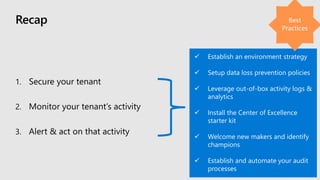

- 37. Recap Establish anenvironment strategy Setup data loss prevention policies Leverage out-of-box activity logs & analytics Install the Center of Excellence starter kit Welcome new makers and identify champions Establish and automate your audit processes
Editor's Notes
- #4 The Microsoft Power Platform – Empowering millions of people to achieve more Our vision for the Power Platform started from the recognition that data is increasingly flowing from everything, and a belief that organizations that harness their data – to gain insights then used to drive intelligent business processes – will outperform those that don’t. We also recognize there aren’t enough programmers, data scientists and tech professionals to go around. So our goal was to build a platform targeting these technology experts and the millions of other frontline workers who see opportunities every day to create something better than the status quo, but who’ve never been empowered to do anything about it. Our guiding vision was a framework we called the “Triple-A Loop” – a closed-loop system allowing users to gain insights from data (Analyze) used to drive intelligent business processes via apps they build (Act) and processes they automate (Automate). The Microsoft Power Platform implements this vision via three cloud-based services: Power BI, PowerApps and Flow. PowerApps is our low code application development platform – allowing anyone to build web and mobile applications without writing code. The natural connection between Power BI and PowerApps makes it effortless to put insights in the hands of maintenance workers, teachers, miners and others on the frontline, in tailored and often task-specific applications that supercharge their productivity and make their work perhaps a little less tedious. Like Power BI, PowerApps connects to hundreds of business systems and databases, making it easy to connect workers with the existing processes and data that makes the business tick. And all the data captured in PowerApps can make its way right back to those very systems for further analysis in Power BI creating a closed-loop process for continuous improvement. Additionally, PowerApps comes with a built-in, fully-managed, enterprise-grade datastore called the Common Data Service (CDS) for those applications that generate data not destined for a legacy system – and Power BI and Flow have deep connections to CDS making it that much easier to get even more value from data stored there. Extending the Power Platform via connectors to other Microsoft offerings allow our clients to leverage those investments and create productivity faster. With Office 365, we offer a complete intelligent solution that empowers your employees to creative, collaborate and work together with Office 365, Skype, Teams With Dynamics 365, our intelligent business applications, we offer a complete set of solutions across Marketing, Sales, Commerce, Service, Finance, Operations and Talent. With Microsoft Azure we are delivering the most productive, hybrid, intelligent, and trusted cloud to run your business. Azure is offered in 54 regions, more than any cloud provider; Offers 70+ compliance industries, the largest portfolio in the industry; 95% of Fortune 500 companies run on Azure
- #13 Secure your tenant Establish an environment strategy Setup DLP policies Monitor your tenant Activity logs Alert & action based on activity Deploying apps Application lifecycle management Azure DevOps task
- #14 Secure your tenant Establish an environment strategy Setup DLP policies Monitor your tenant Activity logs Alert & action based on activity Deploying apps Application lifecycle management Azure DevOps task
- #18 Every tenant has a default environment, created automatically. The geo is important because…
- #27 CDS is focused on database and model-driven app user activity PowerApps is targeted toward canvas app The data is stored only in the region that an environment is hosted in.
- #28 CDS is focused on database and model-driven app user activity PowerApps is targeted toward canvas app The data is stored only in the region that an environment is hosted in.
- #29 CDS is focused on database and model-driven app user activity PowerApps is targeted toward canvas app The data is stored only in the region that an environment is hosted in.
- #32 Full visibility: Power Platform APIs in an accessible connector interface, provide admin access to resources Customization : Pull the metadata you need to build the custom reports you want Flexibility: Build the policies you need to implement administration + governance requirements
- #39 Secure your tenant Establish an environment strategy Setup DLP policies Monitor your tenant Activity logs Alert & action based on activity Deploying apps Application lifecycle management Azure DevOps task
