1. LED ALUMINIUM ENCLOSURES
MANUFACTURERS

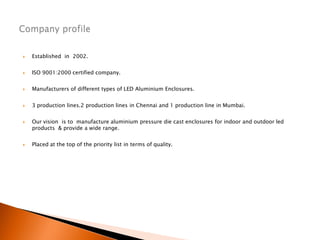

2.  Established in 2002.
 ISO 9001:2000 certified company.
 Manufacturers of different types of LED Aluminium Enclosures.
 3 production lines.2 production lines in Chennai and 1 production line in Mumbai.
 Our vision is to manufacture aluminium pressure die cast enclosures for indoor and outdoor led
products & provide a wide range.
 Placed at the top of the priority list in terms of quality.

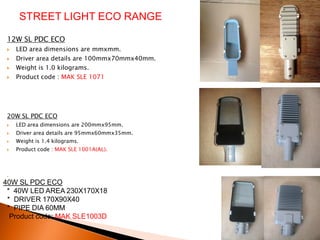

4. STREET LIGHT ECO RANGE
12W SL PDC ECO
 LED area dimensions are mmxmm.
 Driver area details are 100mmx70mmx40mm.
 Weight is 1.0 kilograms.
 Product code : MAK SLE 1071
20W SL PDC ECO
 LED area dimensions are 200mmx95mm.
 Driver area details are 95mmx60mmx35mm.
 Weight is 1.4 kilograms.
 Product code : MAK SLE 1001A(AL).
•
40W SL PDC ECO
* 40W LED AREA 230X170X18
* DRIVER 170X90X40
* PIPE DIA 60MM
Product code; MAK SLE1003D

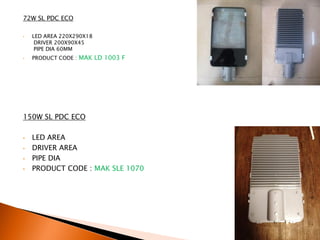

5. 72W SL PDC ECO
• LED AREA 220X290X18
DRIVER 200X90X45
PIPE DIA 60MM
• PRODUCT CODE : MAK LD 1003 F
150W SL PDC ECO
• LED AREA
• DRIVER AREA
• PIPE DIA
• PRODUCT CODE : MAK SLE 1070

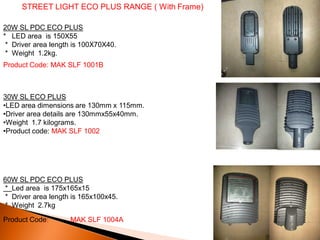

6. STREET LIGHT ECO PLUS RANGE ( With Frame)
20W SL PDC ECO PLUS
* LED area is 150X55
* Driver area length is 100X70X40.
* Weight 1.2kg.
Product Code: MAK SLF 1001B
30W SL ECO PLUS
•LED area dimensions are 130mm x 115mm.
•Driver area details are 130mmx55x40mm.
•Weight 1.7 kilograms.
•Product code: MAK SLF 1002
60W SL PDC ECO PLUS
* Led area is 175x165x15
* Driver area length is 165x100x45.
* Weight 2.7kg
Product Code: MAK SLF 1004A

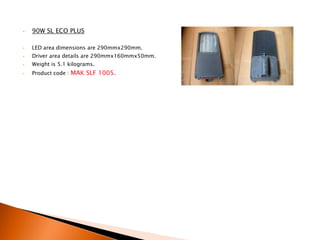

7. • 90W SL ECO PLUS
• LED area dimensions are 290mmx290mm.
• Driver area details are 290mmx160mmx50mm.
• Weight is 5.1 kilograms.
• Product code : MAK SLF 1005.

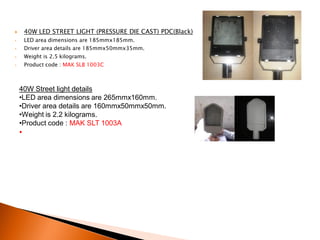

8.  40W LED STREET LIGHT (PRESSURE DIE CAST) PDC(Black)
• LED area dimensions are 185mmx185mm.
• Driver area details are 185mmx50mmx35mm.
• Weight is 2.5 kilograms.
• Product code : MAK SLB 1003C
40W Street light details
•LED area dimensions are 265mmx160mm.
•Driver area details are 160mmx50mmx50mm.
•Weight is 2.2 kilograms.
•Product code : MAK SLT 1003A
•

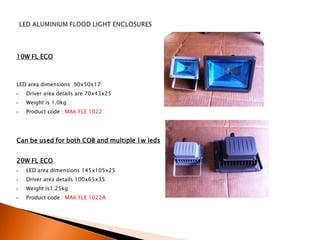

9. 10W FL ECO
LED area dimensions 90x50x17
• Driver area details are 70x43x25
• Weight is 1.0kg
• Product code : MAK FLE 1022
Can be used for both COB and multiple 1w leds
20W FL ECO
• LED area dimensions 145x105x25
• Driver area details 100x65x35
• Weight is1.25kg
• Product code : MAK FLE 1022A

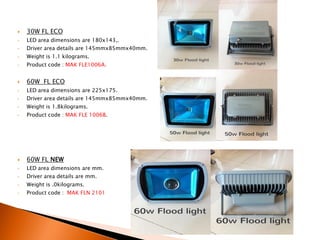

10.  30W FL ECO
• LED area dimensions are 180x143,.
• Driver area details are 145mmx85mmx40mm.
• Weight is 1.1 kilograms.
• Product code : MAK FLE1006A.
 60W FL ECO
• LED area dimensions are 225x175.
• Driver area details are 145mmx85mmx40mm.
• Weight is 1.8kilograms.
• Product code : MAK FLE 1006B.
 60W FL NEW
• LED area dimensions are mm.
• Driver area details are mm.
• Weight is .0kilograms.
• Product code : MAK FLN 2101

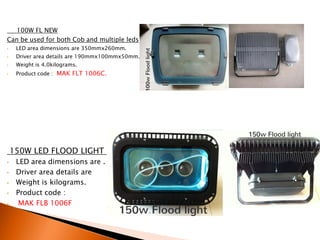

11. 100W FL NEW
Can be used for both Cob and multiple leds
• LED area dimensions are 350mmx260mm.
• Driver area details are 190mmx100mmx50mm.
• Weight is 4.0kilograms.
• Product code : MAK FLT 1006C.
150W LED FLOOD LIGHT (PDC)
• LED area dimensions are .
• Driver area details are
• Weight is kilograms.
• Product code :
• MAK FLB 1006F

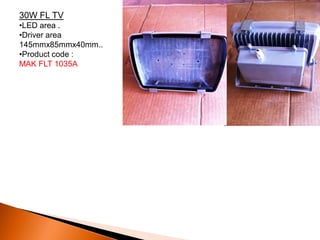

12. 30W FL TV
•LED area .
•Driver area
145mmx85mmx40mm..
•Product code :
MAK FLT 1035A

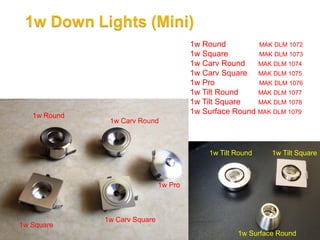

13. 1w Round MAK DLM 1072
1w Square MAK DLM 1073
1w Carv Round MAK DLM 1074
1w Carv Square MAK DLM 1075
1w Pro MAK DLM 1076
1w Tilt Round MAK DLM 1077
1w Tilt Square MAK DLM 1078
1w Round
1w Surface Round MAK DLM 1079
1w Carv Round
1w Tilt Round 1w Tilt Square
1w Pro
1w Carv Square
1w Square
1w Surface Round

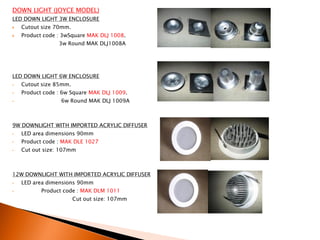

14. DOWN LIGHT (JOYCE MODEL)
LED DOWN LIGHT 3W ENCLOSURE
 Cutout size 70mm.
 Product code : 3wSquare MAK DLJ 1008.
3w Round MAK DLJ1008A
LED DOWN LIGHT 6W ENCLOSURE
• Cutout size 85mm.
• Product code : 6w Square MAK DLJ 1009.
• 6w Round MAK DLJ 1009A
9W DOWNLIGHT WITH IMPORTED ACRYLIC DIFFUSER
• LED area dimensions 90mm
• Product code : MAK DLE 1027
• Cut out size: 107mm
12W DOWNLIGHT WITH IMPORTED ACRYLIC DIFFUSER
• LED area dimensions 90mm
• Product code : MAK DLM 1011
Cut out size: 107mm

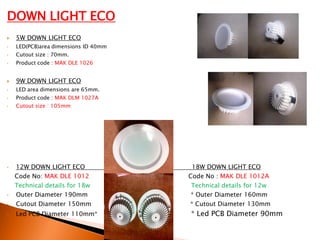

15. DOWN LIGHT ECO
 5W DOWN LIGHT ECO
• LED(PCB)area dimensions ID 40mm
• Cutout size : 70mm.
• Product code : MAK DLE 1026
 9W DOWN LIGHT ECO
• LED area dimensions are 65mm.
• Product code : MAK DLM 1027A
• Cutout size : 105mm
• 12W DOWN LIGHT ECO 18W DOWN LIGHT ECO
Code No: MAK DLE 1012 Code No : MAK DLE 1012A
Technical details for 18w Technical details for 12w
• Outer Diameter 190mm * Outer Diameter 160mm
• Cutout Diameter 150mm * Cutout Diameter 130mm
• Led PCB Diameter 110mm* * Led PCB Diameter 90mm

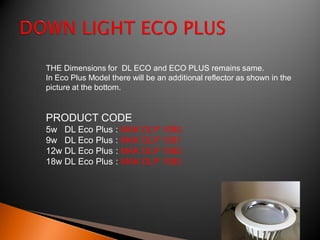

16. THE Dimensions for DL ECO and ECO PLUS remains same.
In Eco Plus Model there will be an additional reflector as shown in the
picture at the bottom.
PRODUCT CODE
5w DL Eco Plus : MAK DLP 1080
9w DL Eco Plus : MAK DLP 1081
12w DL Eco Plus : MAK DLP 1082
18w DL Eco Plus : MAK DLP 1083

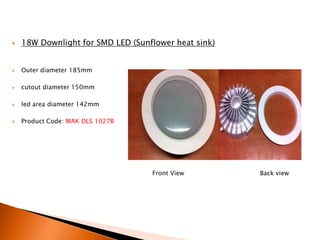

17.  18W Downlight for SMD LED (Sunflower heat sink)
 Outer diameter 185mm
 cutout diameter 150mm
 led area diameter 142mm
 Product Code: MAK DLS 1027B
Front View Back view

18. Outer Dia Cutout Dia
7w 100mm 75mm
12w 140mm 110mm
24w 180mm 160mm

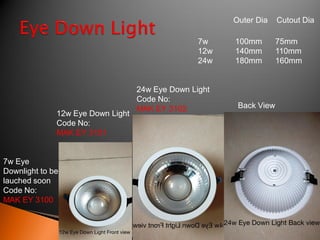

24w Eye Down Light
Code No:
MAK EY 3102 Back View
12w Eye Down Light
Code No:
MAK EY 3101
7w Eye
Downlight to be
lauched soon
Code No:
MAK EY 3100

19. Outer Dia Cutout Dia
7w 100mm 75mm
12w 140mm 110mm
18w 180mm 140mm
21w 200mm 150mm
24w 240mm 196mm
7w Code No: MAK WAV 3110
12w Code No: MAK WAV 3111
18w Code No: MAK WAV 3112
21w Code No: MAK WAV 3113 24w Code No: MAK WAV 3114 BACK VIEW

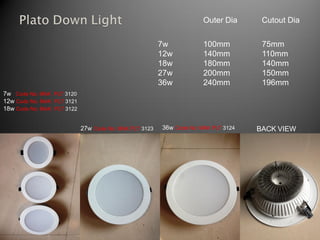

20. Outer Dia Cutout Dia
7w 100mm 75mm
12w 140mm 110mm
18w 180mm 140mm
27w 200mm 150mm
36w 240mm 196mm
7w Code No: MAK PLT 3120
12w Code No: MAK PLT 3121
18w Code No: MAK PLT 3122
27w Code No: MAK PLT 3123 36w Code No: MAK PLT 3124 BACK VIEW

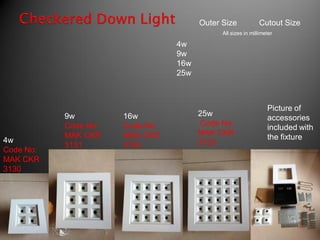

21. Outer Size Cutout Size
All sizes in millimeter
4w
9w
16w
25w
Picture of
9w 16w 25w
accessories
Code No: Code No: Code No:
included with
MAK CKR MAK CKR MAK CKR
4w the fixture
3131 3132 3133
Code No:
MAK CKR
3130

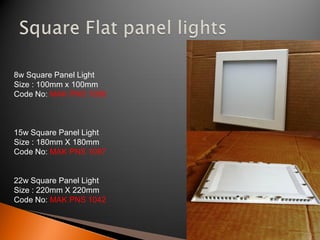

22. 8w Square Panel Light
Size : 100mm x 100mm
Code No: MAK PNS 1086
15w Square Panel Light
Size : 180mm X 180mm
Code No: MAK PNS 1087
22w Square Panel Light
Size : 220mm X 220mm
Code No: MAK PNS 1042

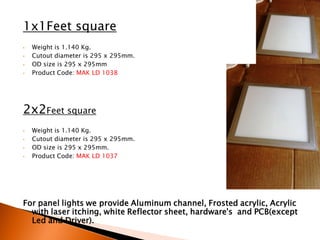

23. 1x1Feet square
• Weight is 1.140 Kg.
• Cutout diameter is 295 x 295mm.
• OD size is 295 x 295mm
• Product Code: MAK LD 1038
2x2Feet square
• Weight is 1.140 Kg.
• Cutout diameter is 295 x 295mm.
• OD size is 295 x 295mm.
• Product Code: MAK LD 1037
For panel lights we provide Aluminum channel, Frosted acrylic, Acrylic
with laser itching, white Reflector sheet, hardware's and PCB(except
Led and Driver).

24. 6w Round Panel Light
•Cutout diameter
•OD size is mm.
•Product Code: MAK PNR 1084
9w Round Panel Light
•Cutout diameter
•OD size is mm.
•Product Code: MAK LD 1085
12w Round Panel Light
•Cutout diameter is 163mm. Back View
•OD size is 180mm.
•Product Code: MAK LD 1039
18w Round Panel Light
•Cutout diameter is 223mm.
•OD size is 240mm.
•Product Code: MAK LD 1040

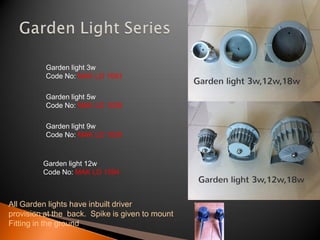

25. Garden light 3w
Code No: MAK LD 1093
Garden light 5w
Code No: MAK LD 1028
Garden light 9w
Code No: MAK LD 1029
Garden light 12w
Code No: MAK LD 1094
All Garden lights have inbuilt driver
provision at the back. Spike is given to mount
Fitting in the ground

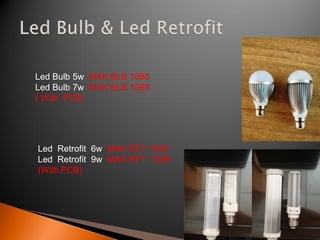

26. Led Bulb 5w MAK BLB 1088
Led Bulb 7w MAK BLB 1089
( With PCB)
Led Retrofit 6w MAK RFT 1098
Led Retrofit 9w MAK RFT 1099
(With PCB)

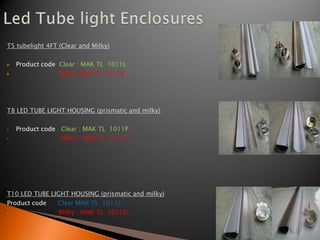

27. T5 tubelight 4FT (Clear and Milky)
 Product code Clear : MAK TL 1011L
 Milky: MAK TL 1011K
T8 LED TUBE LIGHT HOUSING (prismatic and milky)
• Product code Clear : MAK TL 1011P
• Milky : MAK TL 1011C
T10 LED TUBE LIGHT HOUSING (prismatic and milky)
Product code Clear MAK TL 1011J
• Milky : MAK TL 1011D
•

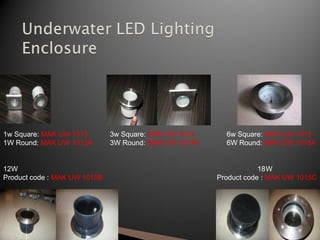

28. 1w Square: MAK UW 1013 3w Square: MAK UW 1014 6w Square: MAK UW 1015
1W Round: MAK UW 1013A 3W Round: MAK UW 1014A 6W Round: MAK UW 1015A
12W 18W
Product code : MAK UW 1015B Product code : MAK UW 1015C

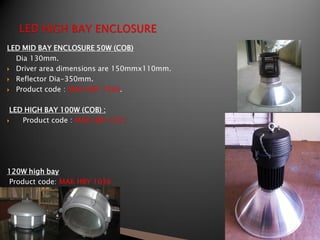

29. LED MID BAY ENCLOSURE 50W (COB)
Dia 130mm.
 Driver area dimensions are 150mmx110mm.
 Reflector Dia-350mm.
 Product code : MAK HBY 1020.
LED HIGH BAY 100W (COB) :
 Product code : MAK HBY 1021
120W high bay
Product code: MAK HBY 1036
.
120W

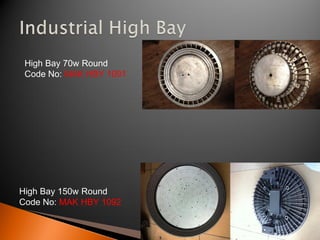

30. High Bay 70w Round
Code No: MAK HBY 1091
High Bay 150w Round
Code No: MAK HBY 1092

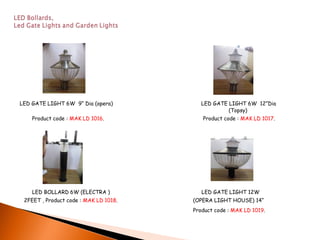

32. LED GATE LIGHT 6W 9“ Dia (opera) LED GATE LIGHT 6W 12”Dia
(Topsy)
Product code : MAK LD 1016. Product code : MAK LD 1017.
LED BOLLARD 6W (ELECTRA ) LED GATE LIGHT 12W
2FEET , Product code : MAK LD 1018. (OPERA LIGHT HOUSE) 14“
Product code : MAK LD 1019.

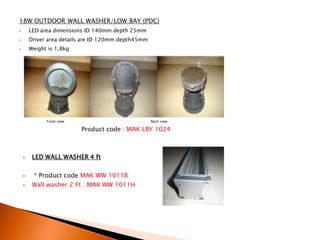

33. 18W OUTDOOR WALL WASHER/LOW BAY (PDC)
• LED area dimensions ID 140mm depth 25mm
• Driver area details are ID 120mm depth45mm
• Weight is 1.8kg
Front view Back view
Product code : MAK LBY 1024
 LED WALL WASHER 4 ft
 * Product code MAK WW 1011B
 Wall washer 2 Ft : MAK WW 1011H

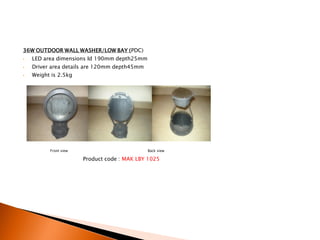

34. 36W OUTDOOR WALL WASHER/LOW BAY (PDC)
• LED area dimensions Id 190mm depth25mm
• Driver area details are 120mm depth45mm
• Weight is 2.5kg
Front view Back view
Product code : MAK LBY 1025

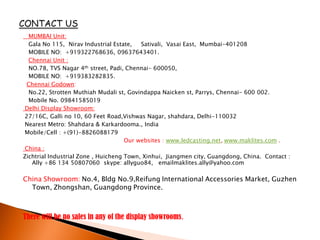

36. MUMBAI Unit:
Gala No 115, Nirav Industrial Estate, Sativali, Vasai East, Mumbai-401208
MOBILE NO: +919322768636, 09637643401.
Chennai Unit :
NO.78, TVS Nagar 4th street, Padi, Chennai- 600050,
MOBILE NO: +919383282835.
Chennai Godown:
No.22, Strotten Muthiah Mudali st, Govindappa Naicken st, Parrys, Chennai- 600 002.
Mobile No. 09841585019
Delhi Display Showroom:
27/16C, Galli no 10, 60 Feet Road,Vishwas Nagar, shahdara, Delhi-110032
Nearest Metro: Shahdara & Karkardooma., India
Mobile/Cell : +(91)-8826088179
Our websites : www.ledcasting.net, www.maklites.com .
China :
Zichtrial Industrial Zone , Huicheng Town, Xinhui, Jiangmen city, Guangdong, China. Contact :
Ally +86 134 50807060 skype: allyguo84, emailmaklites.ally@yahoo.com
China Showroom: No.4, Bldg No.9,Reifung International Accessories Market, Guzhen
Town, Zhongshan, Guangdong Province.
There will be no sales in any of the display showrooms.
