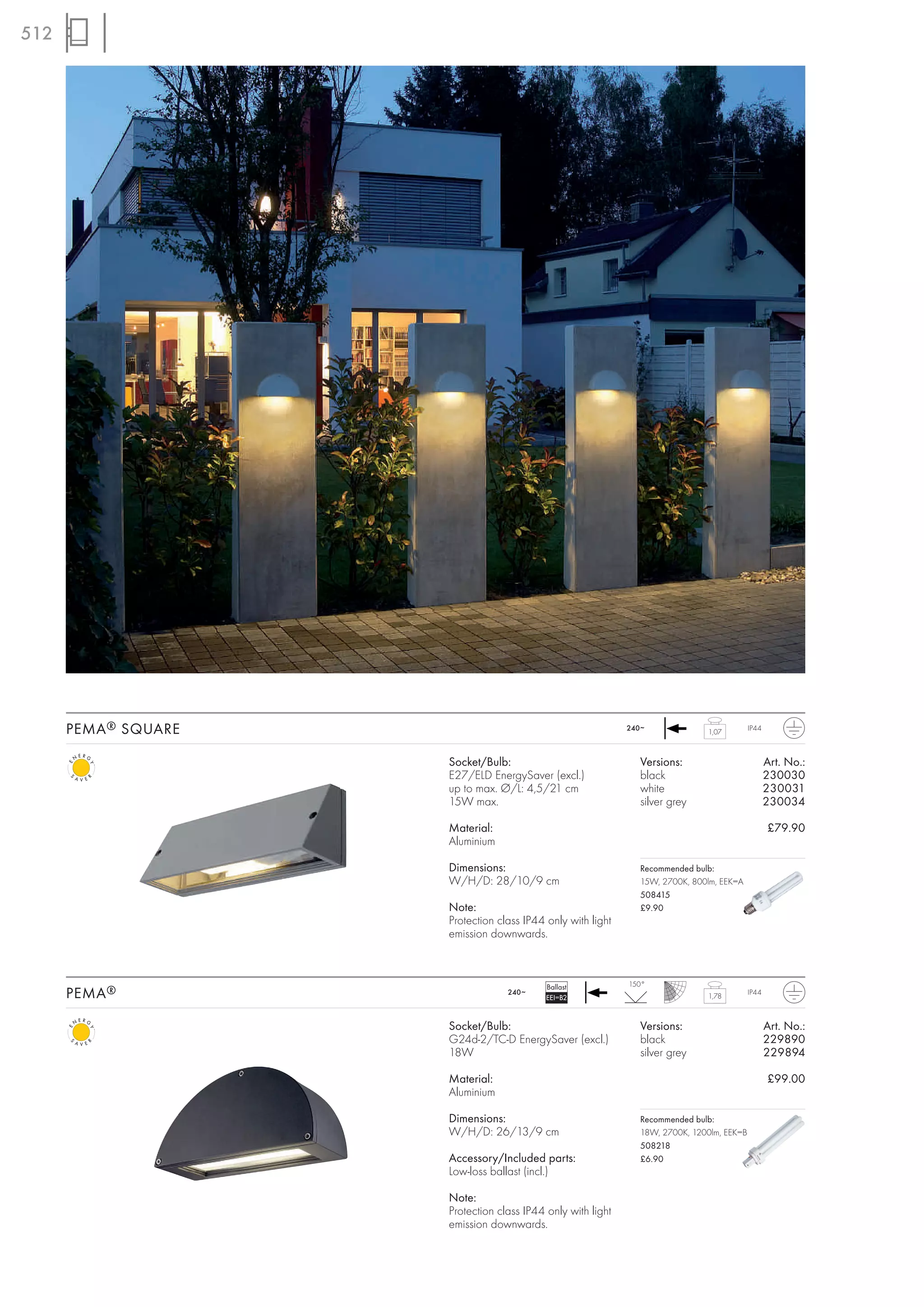

PEMA ® SQUARE 240~
1,07 IP44
Socket/Bulb: Versions: Art. No.:
E27/ELD EnergySaver (excl.) black 230030
up to max. Ø/L: 4,5/21 cm white 230031
15W max. silver grey 230034
Material: £79.90
Aluminium
Dimensions: Recommended bulb:
W/H/D: 28/10/9 cm 15W, 2700K, 800lm, EEK=A
508415
Note: £9.90
Protection class IP44 only with light
emission downwards.
Ballast 150°
PEMA ® 240~
EEI=B2 1,78 IP44
Socket/Bulb: Versions: Art. No.:
G24d-2/TC-D EnergySaver (excl.) black 229890
18W silver grey 229894
Material: £99.00
Aluminium
Dimensions: Recommended bulb:
W/H/D: 26/13/9 cm 18W, 2700K, 1200lm, EEK=B
508218
Accessory/Included parts: £6.90
Low-loss ballast (incl.)
Note:
Protection class IP44 only with light
emission downwards.
2. 513

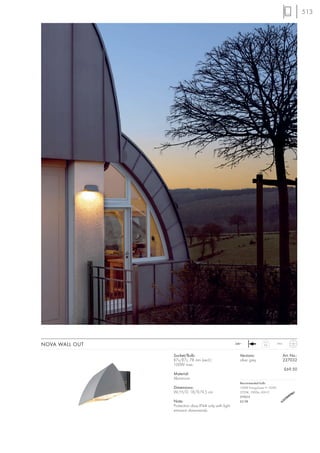

NOVA WALL OUT 240~
0,6 IP44
Socket/Bulb: Versions: Art. No.:
R7s/R7s, 78 mm (excl.) silver grey 227032
100W max.
£69.50
Material:
Aluminium
Recommended bulb:
Dimensions: 100W EnergySaver ≙ 150W
W/H/D: 18/9/9,5 cm 2700K, 1900lm, EEK=C
519215
Note: £2.98
Protection class IP44 only with light
emission downwards.
3. 514
rust-coloured
anthracite
BOX-L E27 240~
1,1 IP44
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) white 232491
up to max. L: 17,5 cm anthracite 232495
18W max. rust-coloured 232497
Material: £69.50
Aluminium/acrylic
Dimensions: Recommended bulb:
W/H/D: 25/11/11 cm 15W, 2700K, 800lm, EEK=A
508960
£9.90
THEOS 101 E27 Design by CDC 240~
1,15 IP44
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) Glass satined
up to max. L: 13 cm white 229611
24W max. alu brushed 229616
bronze 229618
Material:
Aluminium/glass £129.00
Dimensions:
W/H/D: 22,5/12,5/9 cm Recommended bulb:
15W, 2700K, 850lm, EEK=A
508740
£9.90
THEOS 102 E27 Design by CDC 240~ 1,15 IP44
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) Glass satined
up to max. L: 13 cm white 229621
24W max. alu brushed 229626
bronze 229628
Material:
Aluminium/glass £129.00
Dimensions:
W/H/D: 22,5/12,5/9 cm Recommended bulb:
15W, 2700K, 850lm, EEK=A
508740
£9.90
6. 517
Ballast

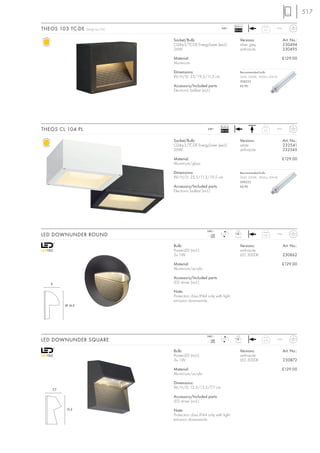

THEOS 103 TC-DE Design by CDC 240~
EEI=A2 2,2 IP44
Socket/Bulb: Versions: Art. No.:
G24q-3/TC-DE EnergySaver (excl.) silver grey 230494
26W anthracite 230495
Material: £129.00
Aluminium
Dimensions: Recommended bulb:
W/H/D: 23/19,5/11,3 cm 26W, 3000K, 1800lm, EEK=B
508222
Accessory/Included parts: £6.90
Electronic ballast (incl.)
Ballast

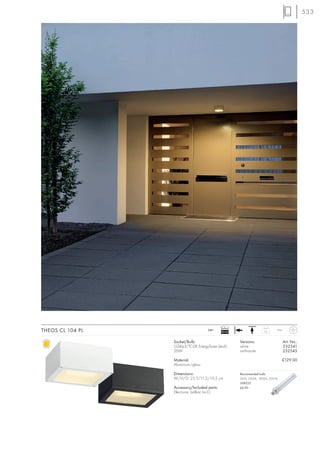

THEOS CL 104 PL 240~
EEI=A2 2,2 IP44
Socket/Bulb: Versions: Art. No.:
G24q-3/TC-DE EnergySaver (excl.) white 232541
26W anthracite 232545
Material: £129.00
Aluminium/glass
Dimensions: Recommended bulb:
W/H/D: 23,5/11,3/19,5 cm 26W, 3000K, 1800lm, EEK=B
508222
Accessory/Included parts: £6.90
Electronic ballast (incl.)
240~ LED
LED DOWNUNDER ROUND mA
350
LED
3 pce.
0,65 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) anthracite
3x 1W LED 3000K 230862
Material: £129.00
Aluminium/acrylic
Accessory/Included parts:
9
LED driver (incl.)
Note:
Protection class IP44 only with light
emission downwards.
Ø 16,5
240~ LED
LED DOWNUNDER SQUARE mA
350
LED
3 pce.
0,76
IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) anthracite
3x 1W LED 3000K 230872
Material: £129.00
Aluminium/acrylic
Dimensions:
7,7
W/H/D: 15,3/15,2/7,7 cm
Accessory/Included parts:
LED driver (incl.)
15,2 Note:
Protection class IP44 only with light
emission downwards.
7. 518
LED

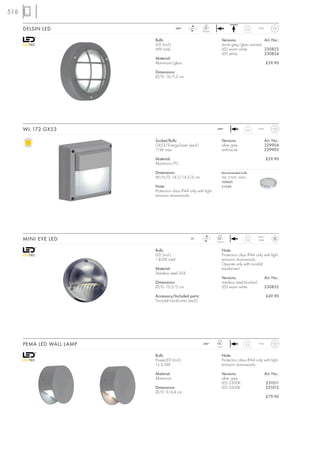

DELSIN LED 240~ LED
36 pce.
0,32 IP44
Bulb: Versions: Art. No.:
LED (incl.) stone grey/glass satined
4W total LED warm white 230822
LED white 230824
Material:
Aluminium/glass £39.90
Dimensions:
Ø/D: 14/5,2 cm
WL 172 GX53 240~ 0,51 IP44
Socket/Bulb: Versions: Art. No.:
GX53/EnergySaver (excl.) silver grey 229904
11W max. anthracite 229905
Material: £29.90
Aluminium/PC
Dimensions: Recommended bulb:
W/H/D: 14,5/14,5/6 cm 9W, 2700K, 260lm
508860
Note: £14.80
Protection class IP44 only with light
emission downwards.
LED IP20/
MINI EYE LED 12~ LED
12 pce.
0,4 IP44
Bulb: Note:
LED (incl.) Protection class IP44 only with light
1,85W total emission downwards.
Operate only with toroidal
Material: transformer!
Stainless steel 304
Versions: Art. No.:
Dimensions: stainless steel brushed
Ø/D: 10,5/5 cm LED warm white 230852
Accessory/Included parts: £49.90
Toroidal transformer (excl.)
LED
PEMA LED WALL LAMP 240~
1 pce.
0,3 IP44
Bulb: Note:
PowerLED (incl.) Protection class IP44 only with light
1x 3,3W emission downwards.
Material: Versions: Art. No.:
Aluminium silver grey
LED 5300K 231011
Dimensions: LED 3200K 231012
Ø/D: 9/4,4 cm
£79.90
9. 520

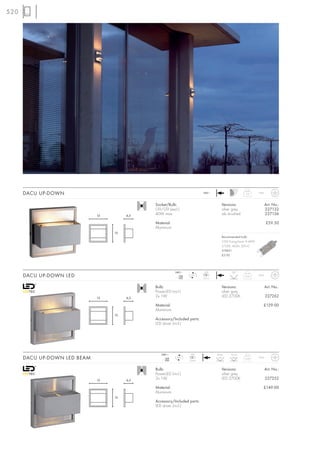

DACU UP-DOWN 240~
0,5 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 227132
13 6,5
40W max. alu brushed 227136
Material: £59.50
Aluminium
13
Recommended bulb:
33W EnergySaver ≙ 40W
2700K, 460lm, EEK=C
519451
£5.95
240~ LED 120°
DACU UP-DOWN LED mA
350
LED
2 pce.
0,55 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) silver grey
13 6,5
2x 1W LED 2700K 227262
Material: £129.00
Aluminium
13
Accessory/Included parts:
LED driver (incl.)
240~ LED Beam Flood
DACU UP-DOWN LED BEAM mA
350
LED
2 pce.
8° 120° 0,55 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) silver grey
13 6,5
2x 1W LED 2700K 227252
Material: £149.00
Aluminium
13
Accessory/Included parts:
LED driver (incl.)
10. 521
240~ LED
DACU LED Design by CDC mA
350
LED
2 pce.
0,35 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) silver grey
2x 1W LED 6000K 152041
LED 3000K 152042
Material:
Aluminium £99.00
Dimensions:
W/H/D: 13/13/6,2 cm
Accessory/Included parts:
LED driver (incl.)
DACU G9 Design by CDC 240~ 0,4 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 227102
40W max. alu brushed 227106
Material: £59.50
Aluminium
Dimensions: Recommended bulb:
W/H/D: 13/13/6,2 cm 33W EnergySaver ≙ 40W
2700K, 460lm, EEK=C
519451
£5.95
11. 522

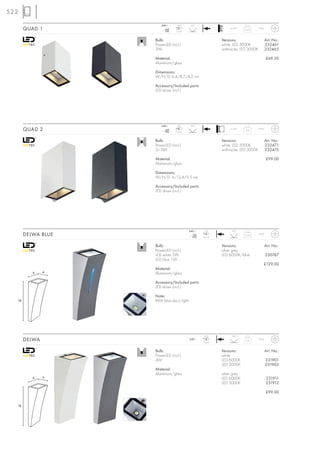

240~ LED 90°
QUAD 1 mA
700 1 pce.
ta 40° 0,25 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) white, LED 3000K 232461
3W anthracite, LED 3000K 232465
Material: £69.50
Aluminium/glass
Dimensions:
W/H/D: 6,4/8,7/4,2 cm
Accessory/Included parts:
LED driver (incl.)
240~ LED 60°
QUAD 2 mA
700 2 pce.
ta 40°
0,6
IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) white, LED 3000K 232471
2x 3W anthracite, LED 3000K 232475
Material: £99.00
Aluminium/glass
Dimensions:
W/H/D: 4/12,4/9,5 cm
Accessory/Included parts:
LED driver (incl.)
240~ LED 90°
DELWA BLUE mA
350 2 pce.
0,45 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) silver grey
LED white 5W LED 6000K/blue 230767
LED blue 1W
£129,00
Material:
6 6 Aluminium/glass
Accessory/Included parts:
LED driver (incl.)
Note:
18 With blue deco light.
LED 90°
DELWA 240~
1 pce.
0,4 IP44
Bulb: Versions: Art. No.:
PowerLED (incl.) white
4W LED 6000K 231901
LED 3000K 231902
Material:
Aluminium/glass silver grey
6 6 LED 6000K 231911
LED 3000K 231912
£99.00
18
12. 523
240~ LED

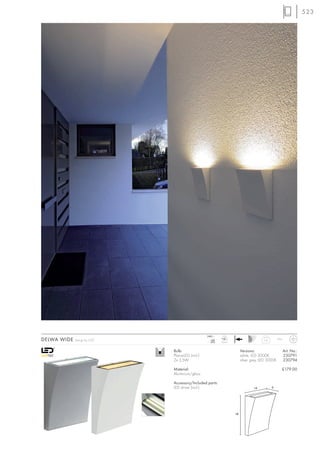

DELWA WIDE Design by CDC mA
350 2 pce.
0,8 IP44
Bulb: Versions: Art. No.:
PlanarLED (incl.) white, LED 3000K 230791
2x 3,5W silver grey, LED 3000K 230794
Material: £179.00
Aluminium/glass
Accessory/Included parts:
LED driver (incl.) 14 6
18
13. 524

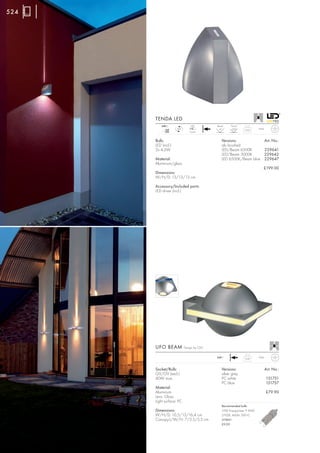

TENDA LED
240~ LED Beam Flood
mA LED 4° 120° 0,95 IP44
350 2 pce.
Bulb: Versions: Art. No.:
LED (incl.) alu brushed
2x 4,2W LED/Beam 6500K 229641
LED/Beam 3000K 229642
Material: LED 6500K/Beam blue 229647
Aluminium/glass
£199.00
Dimensions:
W/H/D: 13/13/13 cm
Accessory/Included parts:
LED driver (incl.)
UFO BEAM Design by CDC
240~ IP44
0,45
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey
40W max. PC white 151751
PC blue 151757
Material:
Aluminium £79.90
Lens: Glass
Light surface: PC
Recommended bulb:
Dimensions: 33W EnergySaver ≙ 40W
W/H/D: 10,5/13/16,4 cm 2700K, 460lm, EEK=C
Canopy-L/W/H: 7/3,5/5,5 cm 519451
£5.95
14. 525

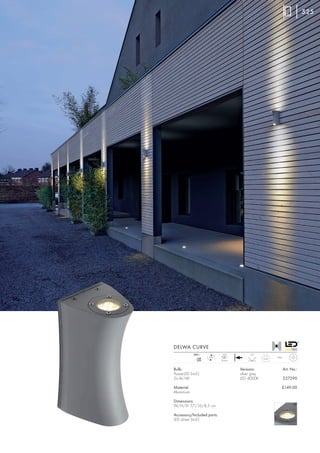

DELWA CURVE
240~ LED 25°
mA LED IP44
0,45
350 8 pce.
Bulb: Versions: Art. No.:
PowerLED (incl.) silver grey
2x 4x1W LED 4000K 227290
Material: £149.00
Aluminium
Dimensions:
W/H/D: 7,7/16/8,5 cm
Accessory/Included parts:
LED driver (incl.)
15. 526

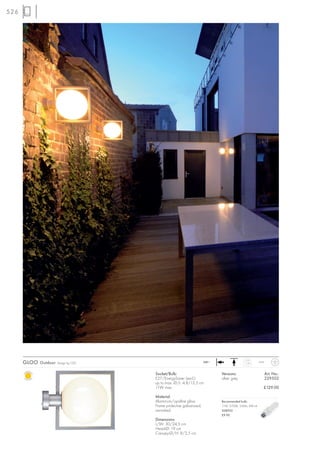

GLOO Outdoor Design by CDC 240~ 1,15 IP44
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) silver grey 229502
up to max. Ø/L: 4,8/13,5 cm
11W max. £129.00
Material:
Aluminium/opaline glass Recommended bulb:
Frame protective galvanized, 11W, 2700K, 530lm, EEK=A
varnished 508950
£9.90
Dimensions:
L/W: 30/24,5 cm
Head-Ø: 19 cm
Canopy-Ø/H: 8/2,5 cm
16. 527

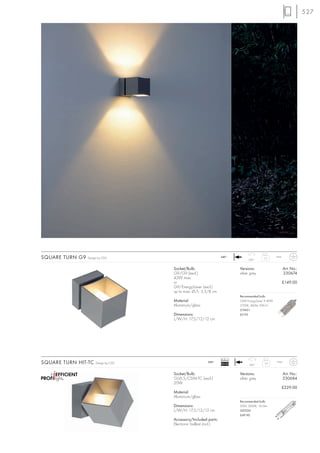

SQUARE TURN G9 Design by CDC 240~
360°
1,3 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 230674
42W max.
or £149.00
G9/EnergySaver (excl.)
up to max. Ø/L: 3,5/8 cm
Recommended bulb:
Material: 33W EnergySaver ≙ 40W
Aluminium/glass 2700K, 460lm, EEK=C
519451
Dimensions: £5.95
L/W/H: 17,5/12/12 cm
Ballast
SQUARE TURN HIT-TC Design by CDC 240~
EEI=A2 360°
1,4
IP44
Socket/Bulb: Versions: Art. No.:
GU6,5/CDM-TC (excl.) silver grey 230684
20W
£229.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 20W, 3000K, 1615lm
L/W/H: 17,5/12/12 cm 507020
£49.90
Accessory/Included parts:
Electronic ballast (incl.)
17. 528

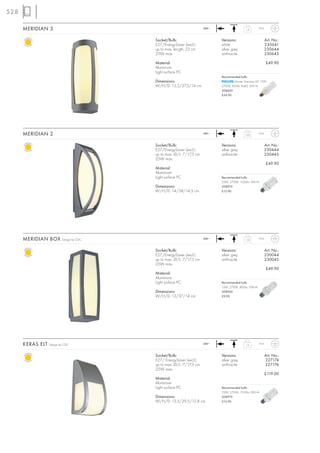

MERIDIAN 3 240~ 1,4 IP54
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) white 230641
up to max. length: 23 cm silver grey 230644
25W max. anthracite 230645
Material: £49.90
Aluminium
Light surface PC
Recommended bulb:
Dimensions: Master Stairway ELT 15W
W/H/D: 13,5/37,5/14 cm 2700K, 850lm, Ra82, EEK=A
508600
£24.90
MERIDIAN 2 240~ 1,05 IP54
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) silver grey 230444
up to max. Ø/L: 7/17,5 cm anthracite 230445
25W max.
£49.90
Material:
Aluminium
Light surface PC Recommended bulb:
23W, 2700K, 1350lm, EEK=A
Dimensions: 508970
W/H/D: 14/38/14,5 cm £12.90
MERIDIAN BOX Design by CDC 240~ 1,55 IP54
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) silver grey 230044
up to max. Ø/L: 7/17,5 cm anthracite 230045
25W max.
£49.90
Material:
Aluminium
Light surface PC Recommended bulb:
15W, 2700K, 800lm, EEK=A
Dimensions: 508960
W/H/D: 13/37/14 cm £9.90
KERAS ELT Design by CDC 240~
1,6 IP54
Socket/Bulb: Versions: Art. No.:
E27/ EnergySaver (excl.) silver grey 227174
up to max. Ø/L: 7/17,5 cm anthracite 227176
25W max.
£119.00
Material:
Aluminium
Light surface PC Recommended bulb:
23W, 2700K, 1350lm, EEK=A
Dimensions: 508970
W/H/D: 13,5/29,5/12,8 cm £12.90
20. 531

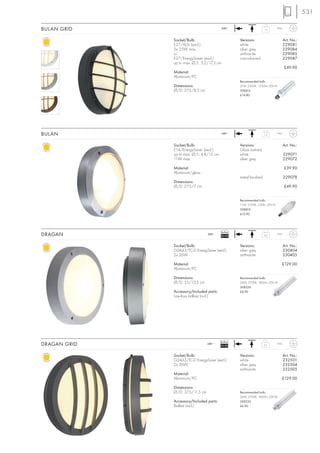

BULAN GRID 240~ 1,3 IP44
Socket/Bulb: Versions: Art. No.:
E27/AGL (excl.) white 229081
2x 25W max. silver grey 229084
or anthracite 229085
E27/EnergySaver (excl.) rust-coloured 229087
up to max. Ø/L: 5,2/17,3 cm
£49.90
Material:
Aluminium/PC
Recommended bulb:
Dimensions: 21W, 2500K, 1230lm, EEK=A
Ø/D: 27,5/8,5 cm 508416
£14.80
BULAN 240~ 1,7 IP44
Socket/Bulb: Versions: Art. No.:
E14/EnergySaver (excl.) Glass satined
up to max. Ø/L: 4,8/13 cm white 229071
11W max. silver grey 229072
Material: £39.90
Aluminium/glass
metal brushed 229078
Dimensions:
Ø/D: 27,5/7 cm £49.90
Recommended bulb:
11W, 2700K, 530lm, EEK=A
508810
£12.90
Ballast
DRAGAN 240~
EEI=B2 4,0 IP44
Socket/Bulb: Versions: Art. No.:
G24d-3/TC-D EnergySaver (excl.) silver grey 230404
2x 26W anthracite 230405
Material: £129.00
Aluminium/PC
Dimensions: Recommended bulb:
Ø/D: 35/10,5 cm 26W, 2700K, 1800lm, EEK=B
508226
Accessory/Included parts: £6.90
Low-loss ballast (incl.)
Ballast
DRAGAN GRID 240~
EEI=B2 3,5 IP44
Socket/Bulb: Versions: Art. No.:
G24d-3/TC-D EnergySaver (excl.) white 232501
2x 26W silver grey 232504
anthracite 232505
Material:
Aluminium/PC £129.00
Dimensions:
Ø/D: 37,5/11,5 cm Recommended bulb:
26W, 2700K, 1800lm, EEK=B
Accessory/Included parts: 508226
Ballast (incl.) £6.90
21. 532

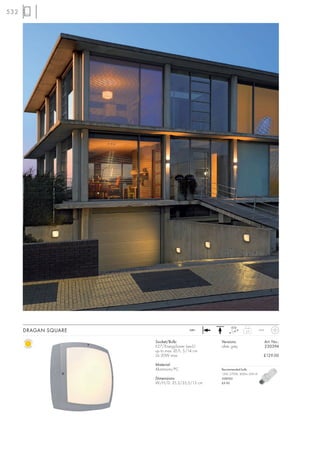

DRAGAN SQUARE 240~ 3,5 IP44
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) silver grey 230394
up to max. Ø/L: 5/14 cm
2x 20W max. £129.00
Material:
Aluminium/PC Recommended bulb:
15W, 2700K, 800lm, EEK=A
Dimensions: 508960
W/H/D: 35,5/35,5/13 cm £9.90
22. 533
Ballast
THEOS CL 104 PL 240~
EEI=A2 2,2 IP44
Socket/Bulb: Versions: Art. No.:
G24q-3/TC-DE EnergySaver (excl.) white 232541
26W anthracite 232545
Material: £129.00
Aluminium/glass
Dimensions: Recommended bulb:
W/H/D: 23,5/11,3/19,5 cm 26W, 3000K, 1800lm, EEK=B
508222
Accessory/Included parts: £6.90
Electronic ballast (incl.)
24. 535

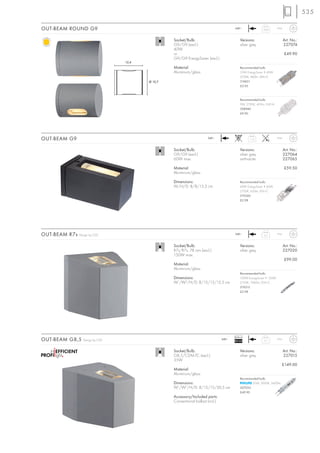

OUT-BEAM ROUND G9 240~
0,64 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 227074
40W
or £49.90
G9/G9 EnergySaver (excl.)
12,4
Material: Recommended bulb:
Aluminium/glass 33W EnergySaver ≙ 40W
2700K, 460lm, EEK=C
Ø 10,7 519451
£5.95
Recommended bulb:
9W, 2700K, 405lm, EEK=A
508940
£9.90
OUT-BEAM G9 240~ 1,15 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 227064
60W max. anthracite 227065
Material: £59.50
Aluminium/glass
Dimensions: Recommended bulb:
W/H/D: 8/8/15,3 cm 42W EnergySaver ≙ 60W
2700K, 620lm, EEK=C
519360
£2.98
OUT-BEAM R7s Design by CDC 240~
2,2 IP44
Socket/Bulb: Versions: Art. No.:
R7s/R7s, 78 mm (excl.) silver grey 227020
150W max.
£99.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 100W EnergySaver ≙ 150W
W1/W2/H/D: 8/15/15/15,5 cm 2700K, 1900lm, EEK=C
519215
£2.98
Ballast
OUT-BEAM G8,5 Design by CDC 240~
EEI=A3 3,7 IP44
Socket/Bulb: Versions: Art. No.:
G8,5/CDM-TC (excl.) silver grey 227015
35W
£149.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 35W, 3000K, 3400lm
W1/W2/H/D: 8/15/15/20,5 cm 507035
£49.90
Accessory/Included parts:
Conventional ballast (incl.)
25. 536

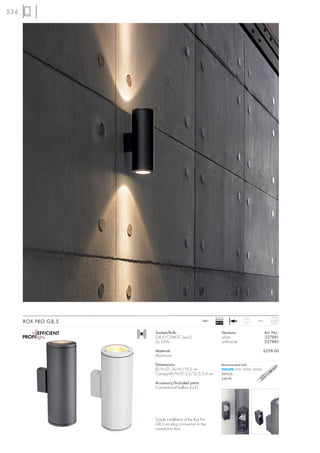

Ballast
ROX PRO G8,5 240~
EEI=A3 5,5 IP44
Socket/Bulb: Versions: Art. No.:
G8,5/CDM-TC (excl.) white 227881
2x 35W anthracite 227885
Material: £298.00
Aluminium
Dimensions: Recommended bulb:
Ø/H/D: 14/41/19,5 cm 35W, 3000K, 3400lm
Canopy-W/H/D: 5,2/12,5/5,4 cm 507035
£49.90
Accessory/Included parts:
Conventional ballast (incl.)
Simple installation of the Rox Pro
G8,5 via plug connection in the
connection box.
26. 537
Ballast 130°
THEOS FLOOD Rx7s 240~
EEI=A3 4,3 IP44
Socket/Bulb: Versions: Art. No.:
Rx7s/HQI-TS (excl.) white 228001
70W anthracite 228005
or
Rx7s/CDM-TD (excl.) £249.90
23 70W
Material: Recommended bulb:
10 Aluminium/glass 70W, 4200K, 6500lm, Ra85
509071
Accessory/Included parts: £24.90
17,5 5,5 Conventional ballast (incl.)
Ballast
THEOS FLOOD TC-D 240~
EEI=B2 3,8 IP44
Socket/Bulb: Versions: Art. No.:
G24d-3/TC-D EnergySaver (excl.) white 228011
2x 26W anthracite 228015
Material: £229.00
23 Aluminium/glass
Accessory/Included parts: Recommended bulb:
10 Low-loss ballast (incl.) 26W, 4000K, 1800lm, EEK=B
508326
£6.90
17,5 5,5
BOX R7s 240~ 1,26 IP44
Socket/Bulb: Versions: Art. No.:
R7s/R7s, 78mm (excl.) white 232481
80W max. anthracite 232485
rust-coloured 232487
Material:
Aluminium/glass £69.50
Dimensions:
W/H/D: 22/9/12 cm Recommended bulb:
Plusline ES
80W EnergySaver ≙ 100W
2700K, 1300lm, EEK=C
519231
£6.90
27. 538
SITRA DISPLAY Design by CDC 240~
180°
0,95 IP54
Socket/Bulb: Note:
GX53/GX53 EnergySaver (excl.) Lamp head is rotatable.
9W max.
or LED GX53, 2,8W (excl.) Versions: Art. No.:
or PowerLED GX53, stone grey 230384
3x 1,4W (excl.)
£99.00
Material:
Cast metal/aluminium
Recommended bulb:
Dimensions: 9W, 2700K, 260lm
W/H/D: 10/47/44 cm 508860
£14.80
45°
MYRA STRAIGHT 240~
350°
0,65 IP55
Socket/Bulb: Versions: Art. No.:
GU10/GU10 (excl.) silver grey 228842
50W max. anthracite 228845
Material: £99.00
Aluminium
Dimensions: Recommended bulb:
L/W/H: 50/8,5/11,5 cm 35W EnergySaver ≙ 50W
Head-L/Ø: 8/7 cm 20°, 2800K, 1200cd
Canopy-W/H/D: 8/10,5/5 cm 575370
£4.80
45°
MYRA CURVED 240~
350°
0,73 IP55
Socket/Bulb: Versions: Art. No.:
GU10/GU10 (excl.) silver grey 228812
50W max. anthracite 228815
Material: £99.00
Aluminium
Dimensions: Recommended bulb:
Total-L: ~80 cm 35W EnergySaver ≙ 50W
Head-L/Ø: 8/7 cm 20°, 2800K, 1200cd
Canopy-W/H/D: 8/10,5/5 cm 575370
£4.80
28. 539

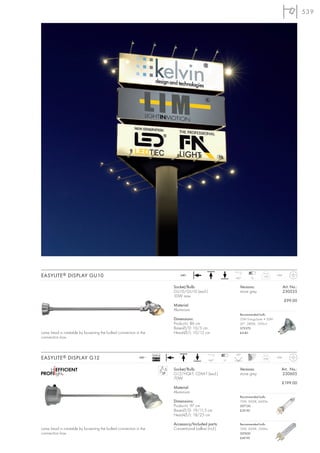

EASYLITE ® DISPLAY GU10 240~
160° 12
1,05 IP44
Socket/Bulb: Versions: Art. No.:
GU10/GU10 (excl.) stone grey 230535
50W max.
£99.00
Material:
Aluminium
Recommended bulb:
Dimensions: 35W EnergySaver ≙ 50W
Product-L: 86 cm 20°, 2800K, 1200cd
Base-Ø/D: 10/5 cm 575370
Lamp head is rotatable by loosening the bolted connection in the Head-Ø/L: 10/15 cm £4.80
connection box.
Ballast 30°
EASYLITE ® DISPLAY G12 240~
EEI=A3
EEI=A3 160° 12
3,95 IP44
Socket/Bulb: Versions: Art. No.:
G12/HQI-T; CDM-T (excl.) stone grey 230605
70W
£199.00
Material:
Aluminium
Recommended bulb:
Dimensions: 70W, 3000K, 6600lm
Product-L: 97 cm 507130
Base-Ø/D: 19/11,5 cm £39.90
Head-Ø/L: 18/25 cm
Accessory/Included parts: Recommended bulb:
Lamp head is rotatable by loosening the bolted connection in the Conventional ballast (incl.) 70W, 3000K, 7300lm
connection box. 507430
£49.90
29. 540

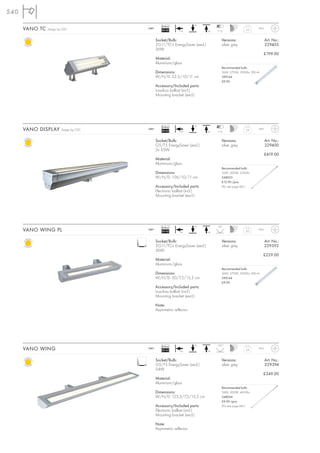

Ballast +A
VANO TC Design by CDC 240~
EEI=B2 +A +A 7-12
3,5 IP65
Socket/Bulb: Versions: Art. No.:
2G11/TC-L EnergySaver (excl.) silver grey 229405
36W
£199.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 36W, 2700K, 2900lm, EEK=A
W/H/D: 52,5/10/11 cm 590144
£9.90
Accessory/Included parts:
Low-loss ballast (incl.)
Mounting bracket (excl.)
Ballast +A
VANO DISPLAY Design by CDC 240~
EEI=A2 +A +A 7-12
7,9 IP65
Socket/Bulb: Versions: Art. No.:
G5/T5 EnergySaver (excl.) silver grey 229400
2x 35W
£419.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 35W, 3000K, 3320lm
W/H/D: 156/10/11 cm 548035
£12.90 /pce.
Accessory/Included parts: (PU see page 661)
Electronic ballast (incl.)
Mounting bracket (excl.)
Ballast +A 95°
VANO WING PL 240~
EEI=B2 +A +A
3,0 IP65
Socket/Bulb: Versions: Art. No.:
2G11/TC-L EnergySaver (excl.) silver grey 229392
36W
£229.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 36W, 2700K, 2900lm, EEK=A
W/H/D: 50/7,5/15,5 cm 590144
£9.90
Accessory/Included parts:
Low-loss ballast (incl.)
Mounting bracket (excl.)
Note:
Asymmetric reflector.
Ballast +A 105°
VANO WING 240~
EEI=A2 +A +A
5,4 IP65
Socket/Bulb: Versions: Art. No.:
G5/T5 EnergySaver (excl.) silver grey 229394
54W
£349.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 54W, 3000K, 4450lm
W/H/D: 123,5/7,5/15,5 cm 548054
£9.90 /pce.
Accessory/Included parts: (PU see page 661)
Electronic ballast (incl.)
Mounting bracket (excl.)
Note:
Asymmetric reflector.
30. 541
95° 95°

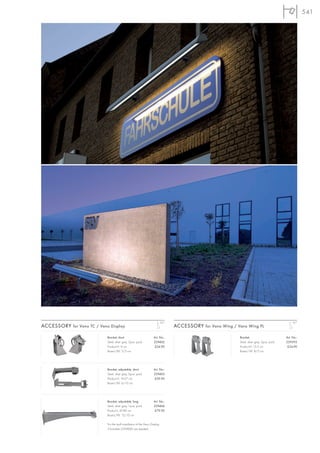

ACCESSORY for Vano TC / Vano Display ACCESSORY for Vano Wing / Vano Wing PL
Bracket, short Art. No.: Bracket Art. No.:
Steel, silver grey, 2pce. pack 229402 Steel, silver grey, 2pce. pack 229395
Product-H: 9 cm £24.90 Product-H: 13,5 cm £34.90
Base-L/W: 5/5 cm Base-L/W: 8/5 cm
Bracket, adjustable, short Art. No.:
Steel, silver grey, 2pce. pack 229403
Product-H: 19-27 cm £39.90
Base-L/W: 6/10 cm
Bracket, adjustable, long Art. No.:
Steel, silver grey, 1pce. pack 229406
Product-L: 47-80 cm £79.90
Base-L/W: 12/10 cm
For the wall installation of the Vano Display,
3 brackets (229406) are needed.
31. 542

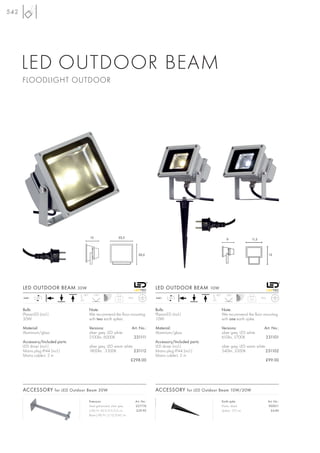

LED OUTDOOR BEAM
FLOODLIGHT OUTDOOR
13 22,5
9 11,5
20,5 13
LED OUTDOOR BEAM 30W LED OUTDOOR BEAM 10W
90° 130° 90° 120°
240~ LED IP65 240~ LED IP65
2,2 0,5
Bulb: Note: Bulb: Note:
PlanarLED (incl.) We recommend the floor mounting PlanarLED (incl.) We recommend the floor mounting
30W with two earth spikes. 10W with one earth spike.
Material: Versions: Art. No.: Material: Versions: Art. No.:
Aluminium/glass silver grey, LED white Aluminium/glass silver grey, LED white
2100lm, 6000K 231111 610lm, 5700K 231101
Accessory/Included parts: Accessory/Included parts:
LED driver (incl.) silver grey, LED warm white LED driver (incl.) silver grey, LED warm white
Mains plug IP44 (incl.) 1800lm, 3300K 231112 Mains plug IP44 (incl.) 540lm, 3300K 231102
Mains cable-L: 2 m Mains cable-L: 2 m
£298.00 £99.00
ACCESSORY for LED Outdoor Beam 30W ACCESSORY for LED Outdoor Beam 10W/30W
Extension Art. No.: Earth spike Art. No.:
Steel galvanized, silver grey 227774 Plastic, black 900011
L/W/H: 50,5/2,5/2,5 cm £29.90 Spike-L: 17,5 cm £4.80
Base-L/W/H: 2/12/0,45 cm
33. 544
180° 120°
LED FLOOD LIGHT 10W 240~ LED 1,1 IP65
Bulb: Versions: Art. No.:
PlanarLED (incl.) black matt, LED white,
10W 610lm, 5700K 231151
Material: black matt, LED warm white,
Aluminium/glass 540lm, 3300K 231152
Dimensions: £99.00
Product-W/H/D: 17/20/7 cm
Accessory/Included parts:
LED driver (incl.)
Mains plug IP44 (incl.)
Mains cable-L: 2 m
Note:
We recommend the floor mounting
with one earth spike.
180° 120°
LED FLOOD LIGHT 30W 240~ LED 3,1 IP65
Bulb: Versions: Art. No.:
PlanarLED (incl.) black matt, LED white,
30W 2100lm, 6000K 231161
Material: black matt, LED warm white,
Aluminium/glass 1800lm, 3300K 231162
Dimensions: £298.00
Product-W/H/D: 25/31,5/9 cm
Accessory/Included parts:
LED driver (incl.)
Mains plug IP44 (incl.)
Mains cable-L: 2 m
Note:
We recommend the floor mounting
with two earth spikes.
ACCESSORY for LED Flood Light 30W ACCESSORY for LED Flood Light 10W/30W
Extension Art. No.: Earth spike Art. No.:
Steel galvanized, black 227770 Plastic, black 900011
L/W/H: 50,5/2,5/2,5 cm £29.90 Spike-L: 17,5 cm £4.80
Base-L/W/H: 12/12/0,45 cm
34. 545
90°

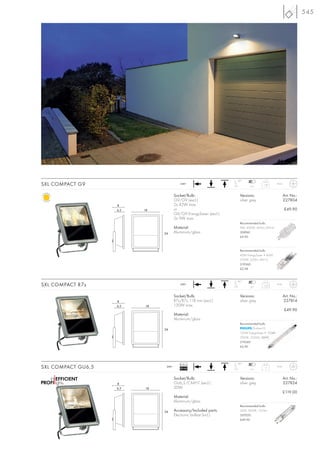

SXL COMPACT G9 240~
4-7
1,07 IP44
Socket/Bulb: Versions: Art. No.:
G9/G9 (excl.) silver grey 227804
8 2x 42W max.
6,5 18 or £49.90
G9/G9 EnergySaver (excl.)
2x 9W max.
Recommended bulb:
Material: 9W, 4000K, 405lm, EEK=A
24 Aluminium/glass 508941
£9.90
Recommended bulb:
42W EnergySaver ≙ 60W
2700K, 620lm, EEK=C
519360
£2.98
90°
SXL COMPACT R7s 240~
4-7
1,03 IP44
Socket/Bulb: Versions: Art. No.:
8 R7s/R7s, 118 mm (excl.) silver grey 227814
6,5 18 130W max.
£49.90
Material:
Aluminium/glass
Recommended bulb:
24 Plusline ES
120W EnergySaver ≙ 150W
2900K, 2250lm, EEI=C
519240
£6.90
Ballast 90°
SXL COMPACT GU6,5 240~
EEI=A2 4-7
1,1 IP44
Socket/Bulb: Versions: Art. No.:
8 GU6,5/CMH-T (excl.) silver grey 227824
6,5 18 20W
£119.00
Material:
Aluminium/glass
Recommended bulb:
24 Accessory/Included parts: 20W, 3000K, 1615lm
Electronic ballast (incl.) 507020
£49.90
36. 547

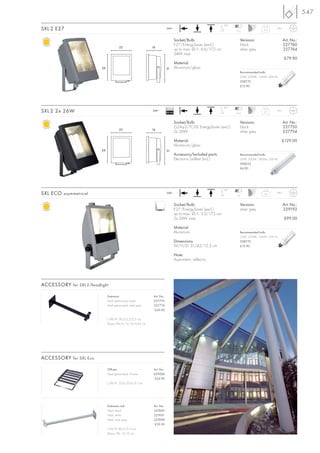

90°
SXL 2 E27 240~
7-12
2,5 IP65
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) black 227760
22 16
up to max. Ø/L: 6,6/17,3 cm silver grey 227764
24W max.
£79.90
Material:
29 31 Aluminium/glass
Recommended bulb:
23W, 2700K, 1350lm, EEK=A
508770
£12.90
Ballast 90°
SXL 2 2x 26W 240~
EEI=A2 7-12
2,7 IP65
Socket/Bulb: Versions: Art. No.:
G24q-3/TC-DE EnergySaver (excl.) black 227750
22 16
2x 26W silver grey 227754
Material: £129.00
Aluminium/glass
29 31
Accessory/Included parts: Recommended bulb:
Electronic ballast (incl.) 26W, 3000K, 1800lm, EEK=B
508222
£6.90
90°
SXL ECO asymmetrical 240~
10
3,6 IP65
Socket/Bulb: Versions: Art. No.:
E27/EnergySaver (excl.) silver grey 229192
up to max. Ø/L: 5,2/17,5 cm
2x 24W max. £99.00
Material:
Aluminium Recommended bulb:
23W, 2700K, 1350lm, EEK=A
Dimensions: 508770
W/H/D: 31/42/12,5 cm £12.90
Note:
Asymmetric reflector.
ACCESSORY for SXL 2 floodlight
Extension Art. No.:
Steel galvanized, black 227770
Steel galvanized, silver grey 227774
£29.90
L/W/H: 50,5/2,5/2,5 cm
Base-L/W/H: 12/12/0,45 cm
ACCESSORY for SXL Eco
Diffuser Art. No.:
Steel galvanized, chrome 229008
£24.90
L/W/H: 32,6/25,6/3,1 cm
Extension rod Art. No.:
Steel, black 227690
Steel, white 227691
Steel, silver grey 227698
£39.90
L/W/H: 80,5/3/3 cm
Base-L/W: 12/12 cm
37. 548

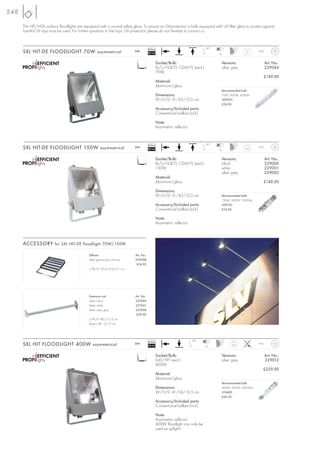

The HIT/HQI outdoor floodlights are equipped with a normal safety glass. To ensure an UV-protection a bulb equipped with UV filter glass to protect against
harmful UV rays must be used. For further questions to the topic UV protection please do not hesitate to contact us.
Ballast 90°
SXL HIT-DE FLOODLIGHT 70W asymmetrical 240~
EEI=A3 10
5,1 IP65
Socket/Bulb: Versions: Art. No.:
Rx7s/HQI-TS; CDM-TS (excl.) silver grey 229044
70W
£149.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 70W, 3000K, 6000lm
W/H/D: 31/42/12,5 cm 509070
£24.90
Accessory/Included parts:
Conventional ballast (incl.)
Note:
Asymmetric reflector.
Ballast 90°
SXL HIT-DE FLOODLIGHT 150W asymmetrical 240~
EEI=A3 10
6,0 IP65
Socket/Bulb: Versions: Art. No.:
Rx7s/HQI-TS, CDM-TS (excl.) black 229000
150W white 229001
silver grey 229002
Material:
Aluminium/glass £149.00
Dimensions:
W/H/D: 31/42/12,5 cm Recommended bulb:
150W, 3000K, 12000lm
Accessory/Included parts: 509150
Conventional ballast (incl.) £24.90
Note:
Asymmetric reflector.
ACCESSORY for SXL HIT-DE floodlight 70W/150W
Diffuser Art. No.:
Steel galvanized, chrome 229008
£24.90
L/W/H: 32,6/25,6/3,1 cm
Extension rod Art. No.:
Steel, black 227690
Steel, white 227691
Steel, silver grey 227698
£39.90
L/W/H: 80,5/3/3 cm
Base-L/W: 12/12 cm
Ballast 90°
SXL HIT FLOODLIGHT 400W asymmetrical 240~
EEI=A3 10
10,6 IP65
Socket/Bulb: Versions: Art. No.:
E40/HIT (excl.) silver grey 229012
400W
£229.00
Material:
Aluminium/glass
Recommended bulb:
Dimensions: 400W, 4200K, 42000lm
W/H/D: 41/54/16,5 cm 510400
£69.50
Accessory/Included parts:
Conventional ballast (incl.)
Note:
Asymmetric reflector.
400W floodlight can only be
used as uplight!
