• Reaxys has solubility data that can be used to create and study predictive
models
• Appears to have data more diverse than the well-studied “Huuskonen” data set.
• The nature/diversity of the training set is very important for predictive
models
• The best reported models have the smallest training sets.
• However, these training sets may not be useful for prediction of more diverse
compounds.
• Huuskonen-set-trained model predictions on Reaxys set is poor.
• Reaxys has a diverse set of structures and solubilities
• Each individual measurement is referenced.
• Good source for model making
2
What We Will Learn

3. Creating Solubility Models with Reaxys |
• In addition to the well-known reactions and compounds, Reaxys is filled with
hundreds of different measured properties reported for the compounds
• Each property is associated with a reference
• Each property has a “cluster” of values such as measurement temperature, pressure,
solvents etc. describing the conditions of the measurement.
• In many cases multiple measurements are reported by different authors at
different times for a particular value.
• A mean, median, and standard deviation can be assessed for the value. Each value is
associated with a reference.
• One can use this data, combined with the chemical structures of the
compounds to make structure-based predictive models for these properties.
• One can then predict the value of new or proposed compounds from their chemical
structures.
Reaxys Property Data

4. Creating Solubility Models with Reaxys | 4

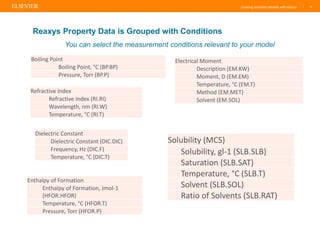

Reaxys Property Data is Grouped with Conditions
You can select the measurement conditions relevant to your model
Boiling Point
Boiling Point, °C (BP.BP)
Pressure, Torr (BP.P)
Refractive Index
Refractive Index (RI.RI)
Wavelength, nm (RI.W)
Temperature, °C (RI.T)
Dielectric Constant
Dielectric Constant (DIC.DIC)
Frequency, Hz (DIC.F)
Temperature, °C (DIC.T)
Electrical Moment
Description (EM.KW)
Moment, D (EM.EM)
Temperature, °C (EM.T)
Method (EM.MET)
Solvent (EM.SOL)
Enthalpy of Formation
Enthalpy of Formation, Jmol-1
(HFOR.HFOR)
Temperature, °C (HFOR.T)
Pressure, Torr (HFOR.P)
Solubility (MCS)
Solubility, gl-1 (SLB.SLB)
Saturation (SLB.SAT)
Temperature, °C (SLB.T)
Solvent (SLB.SOL)
Ratio of Solvents (SLB.RAT)

5. Creating Solubility Models with Reaxys |
• There are several ways to access this data
• API (Application Programming Interface) allows direct access
• Download tagged SD file from Reaxys after searching
• “Hop in to” links to automatically go to data
• Reaxys API allows direct access to the data
• XML-based interface
• KNIME, PiplelinePilot supported.
• Need to query based on measurement conditions, (temp, solvent), and nature
of molecules (organic, single-fragment)
• Form-based query
• “Advanced Query”
5
Model Making Tools

6. Creating Solubility Models with Reaxys | 6

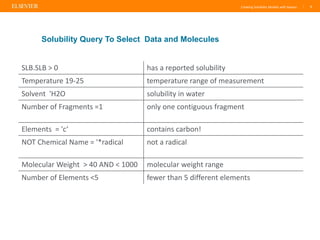

Solubility Query To Select Data and Molecules
SLB.SLB > 0 has a reported solubility
Temperature 19-25 temperature range of measurement
Solvent 'H2O solubility in water
Number of Fragments =1 only one contiguous fragment
Elements = 'c‘ contains carbon!
NOT Chemical Name = '*radical not a radical
Molecular Weight > 40 AND < 1000 molecular weight range
Number of Elements <5 fewer than 5 different elements

7. Creating Solubility Models with Reaxys | 7

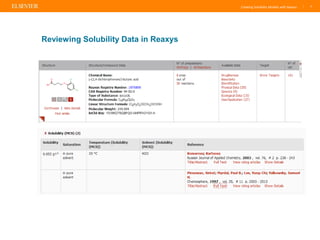

Reviewing Solubility Data in Reaxys

8. Creating Solubility Models with Reaxys | 8

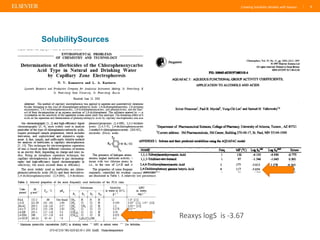

SolubilitySources
Reaxys logS is -3.67

9. Creating Solubility Models with Reaxys | 9

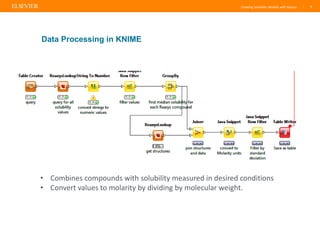

Data Processing in KNIME
• Combines compounds with solubility measured in desired conditions
• Convert values to molarity by dividing by molecular weight.

10. Creating Solubility Models with Reaxys |
• Used with data from Reaxys, and from the Huuskonen paper
• Uses “R” and stepwise multiple regression
• Results and error of prediction appear in a spreadsheet
10

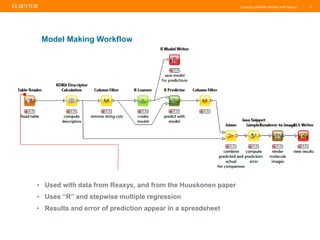

Model Making Workflow

11. Creating Solubility Models with Reaxys |
• Full compound set, no further
filtering
• 3590 compounds
• Standard error of prediction 1.1
log units
• Not spectacular, but useful
• Training set is larger range of
diversity than used in most
models
• r2 0.56
11

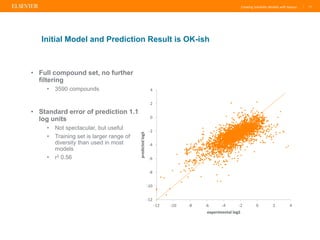

Initial Model and Prediction Result is OK-ish
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS

12. Creating Solubility Models with Reaxys | 12

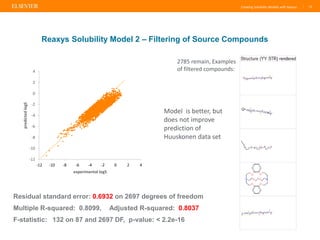

Reaxys Solubility Model 2 – Filtering of Source Compounds
Residual standard error: 0.6932 on 2697 degrees of freedom
Multiple R-squared: 0.8099, Adjusted R-squared: 0.8037
F-statistic: 132 on 87 and 2697 DF, p-value: < 2.2e-16
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
2785 remain, Examples
of filtered compounds:
Model is better, but
does not improve
prediction of
Huuskonen data set

13. Creating Solubility Models with Reaxys | 13
Comparison with Other Reports
Clark – fragment-based solubility model r2 0.73, SE 0.89
using “PHYSPROP” data set
Generalized Fragment-Substructure Based Property Prediction Method
Matthew Clark J. Chem. Inf. Model., 2005, 45 (1), pp 30–38
DOI: 10.1021/ci049744c

14. Creating Solubility Models with Reaxys | 14

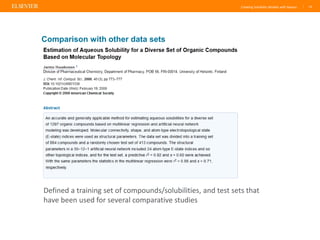

Comparison with other data sets
Defined a training set of compounds/solubilities, and test sets that
have been used for several comparative studies

15. Creating Solubility Models with Reaxys |
• Models made with Huuskonen structures and data using CDK descriptors
and R model
• Using published training, test sets.
• Models not as good as in publication; he used different descriptor
computation and statistical method. Standard error 0.67 log units.
15

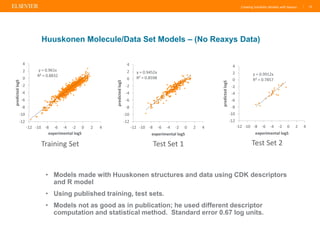

Huuskonen Molecule/Data Set Models – (No Reaxys Data)
y = 0.961x
R² = 0.8832
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
y = 0.9452x
R² = 0.8598
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
y = 0.9912x
R² = 0.7857
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
Training Set Test Set 1 Test Set 2

16. Creating Solubility Models with Reaxys |
• Same molecule sets – Model Trained with Reaxys Training Set
• Standard error 0.98 log units – not bad
16

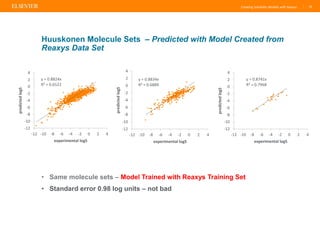

Huuskonen Molecule Sets – Predicted with Model Created from
Reaxys Data Set
y = 0.8824x
R² = 0.6522
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
y = 0.8834x
R² = 0.6889
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS
y = 0.8741x
R² = 0.7968
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS

17. Creating Solubility Models with Reaxys |
• Standard Error 3.5 log units
• Issue is likely that many molecules
from Reaxys are “outside” the
structural diversity of the Huuskonen
data set
• Illustrates a significant issue with
modeling –
• Generally predictions are best when
the molecule are similar to the training
set.
17

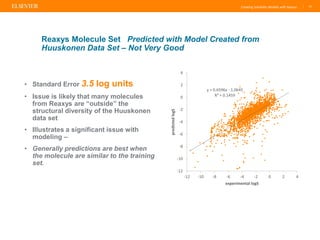

Reaxys Molecule Set Predicted with Model Created from
Huuskonen Data Set – Not Very Good
y = 0.6596x - 1.0645
R² = 0.1459
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
predictedlogS
experimental logS

18. Creating Solubility Models with Reaxys |
• Only a subset of solubilities of the Huuskonen set are found in Reaxys.
• Differences are generally due to multiple measurements being reported with
outliers
18
Does Reaxys Give The Same Solubility Values as Huuskonen Data
Set? Yes.
y = 1.0082x - 0.0367
R² = 0.9607
-12
-10
-8
-6
-4
-2
0
2
4
-12 -10 -8 -6 -4 -2 0 2 4
ReaxyslogS
Huuskonen logS

19. Creating Solubility Models with Reaxys |
• Similarity matrix of each data set computed set using fingerprints/Tanimoto
• Huuskonen set more similar to each other than Reaxys set
19
Reaxys Solubility Data Set is Structurally More Diverse
0
0.02
0.04
0.06
0.08
0.1
0.12
0.14
0.16
0.18
0.2
NormalizedFractionofPair-SimilarityCount
Similarity Value
Huuskonen
Reaxys
Reaxys has a higher
proportion of
molecules not similar
to others in the setNormalized
for different
data set
sizes

20. Creating Solubility Models with Reaxys |
• Reaxys has solubility data that can be used to create and study predictive
models
• Appears to have data more diverse than the well-studied “Huuskonen” data set.
• The nature/diversity of the training set is very important.
• The best reported models have the smallest training sets.
• However, these training sets may not be useful for prediction of more diverse
compounds.
• Huuskonen-set-trained model predictions on Reaxys set is poor.
• Generally good models can predict with a standard error of about 1 log unit – for
compounds similar to training set.
• Question: what is the accuracy of measurement?
•
𝜕𝑙𝑜𝑔𝑆
𝜕𝑔𝐿−1 =
1
2.303 ∗𝑔𝐿−1 ~ logS changes 0.4 log units/mg for a 1mg/L solubility
• Reaxys has a diverse set of structures and solubilities
• Each individual measurement is referenced.
• Good source for model making
20
What We Learned

21. Creating Solubility Models with Reaxys |
• Reaxys is a rich source of data for solubility and other properties.
• One can explore many subsets based on condition, molecule class etc.
• High diversity of molecules – organic, inorganic, peptides etc.
• Reaxys is a good source of data for making predictive models
• It provides not just the value, but the measurement conditions
• Selection of “good” measurements is an important factor in making models
• Reaxys contains hundreds of measured properties!
• Solubility is well studied
• Not as many models available for refractive index, magnetic susceptibility etc.
• Reaxys has only measured solubilities, SciFinder has predicted values
• We can see the effect of the training set and model quality in this presentation.
• Reaxys Medicinal Chemistry contains thousands of bioassay results on
thousands of targets that can be used for predictive models.
21
Conclusion
