This document describes a project to develop an Arduino-based automatic phase selector and IoT metering system for real-time energy monitoring. The system uses a Bluetooth module to allow users to select from available power sources like the electric utility, solar, and inverter. A Wi-Fi module is used to generate a webpage displaying source in use and power consumption data collected from the energy meter. The microcontroller interfaces the Bluetooth and Wi-Fi modules to update the information. The system aims to make electricity usage more user-friendly by providing selection options and consumption insights.

1. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Arduino Based Auto Phase Selector &
IoT Metering System For Real Time
Energy Monitoring
Submitted by :
ASHWANI VERMA (3012414009)
HUMENDRA KUMAR SHIWNA (3012414019)
KAUSHAL DADSENA (3012414021)
OM NARAYAN SINGH (3012414057)
VAMAN KANWAR (3012414049)
Supervised by :
DR. (MRS.) ARCHANA GUPTA
Professor

2. Content
• Introduction
• Literature review
• Problems Identification
• Objectives
• Methodology
• Block Diagram
• Proteus Circuit Diagram
• Results
• References
01

3. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

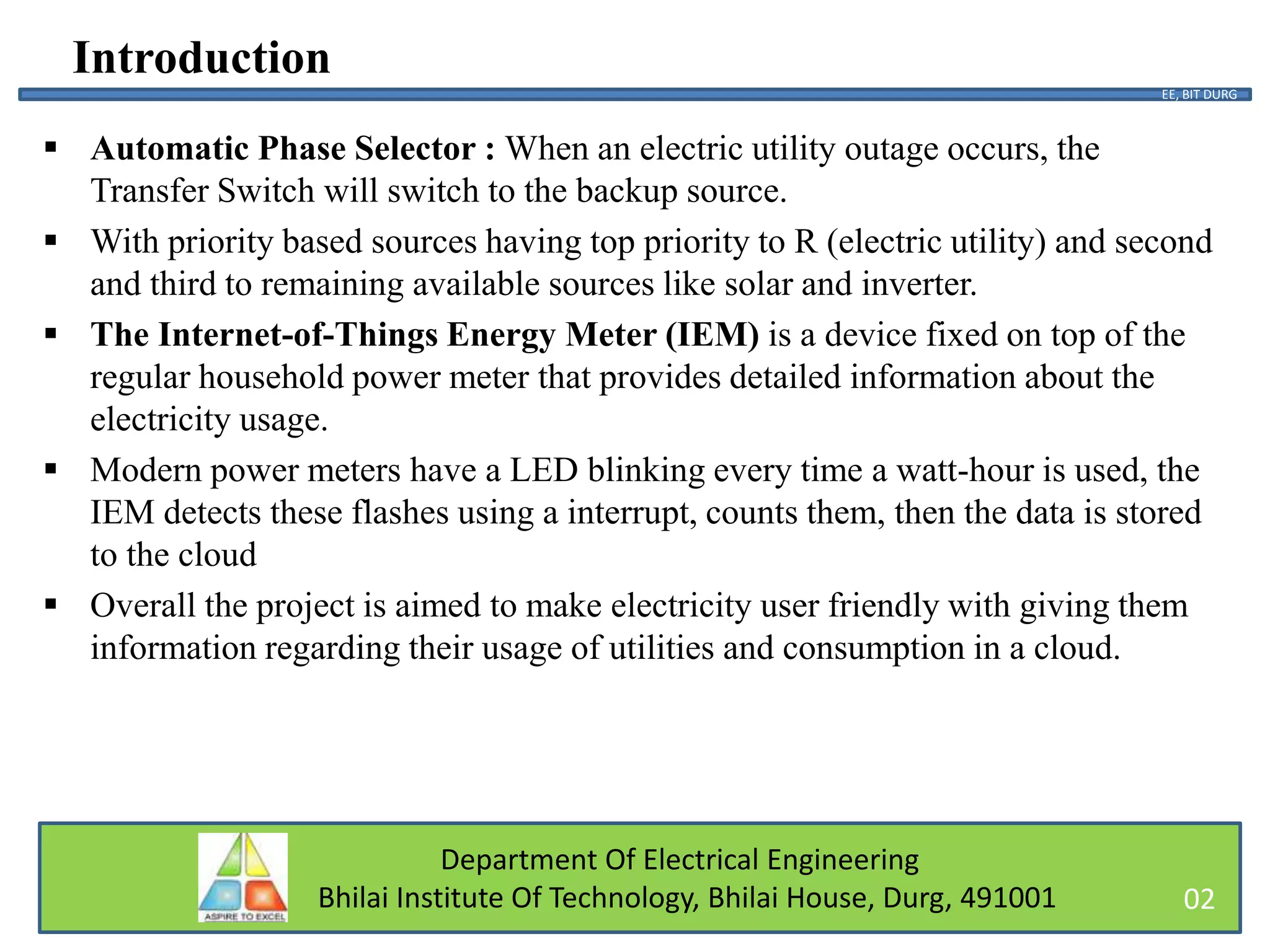

Introduction
 Automatic Phase Selector : When an electric utility outage occurs, the
Transfer Switch will switch to the backup source.
 With priority based sources having top priority to R (electric utility) and second
and third to remaining available sources like solar and inverter.
 The Internet-of-Things Energy Meter (IEM) is a device fixed on top of the
regular household power meter that provides detailed information about the
electricity usage.
 Modern power meters have a LED blinking every time a watt-hour is used, the
IEM detects these flashes using a interrupt, counts them, then the data is stored
to the cloud
 Overall the project is aimed to make electricity user friendly with giving them
information regarding their usage of utilities and consumption in a cloud.
EE, BIT DURG
02

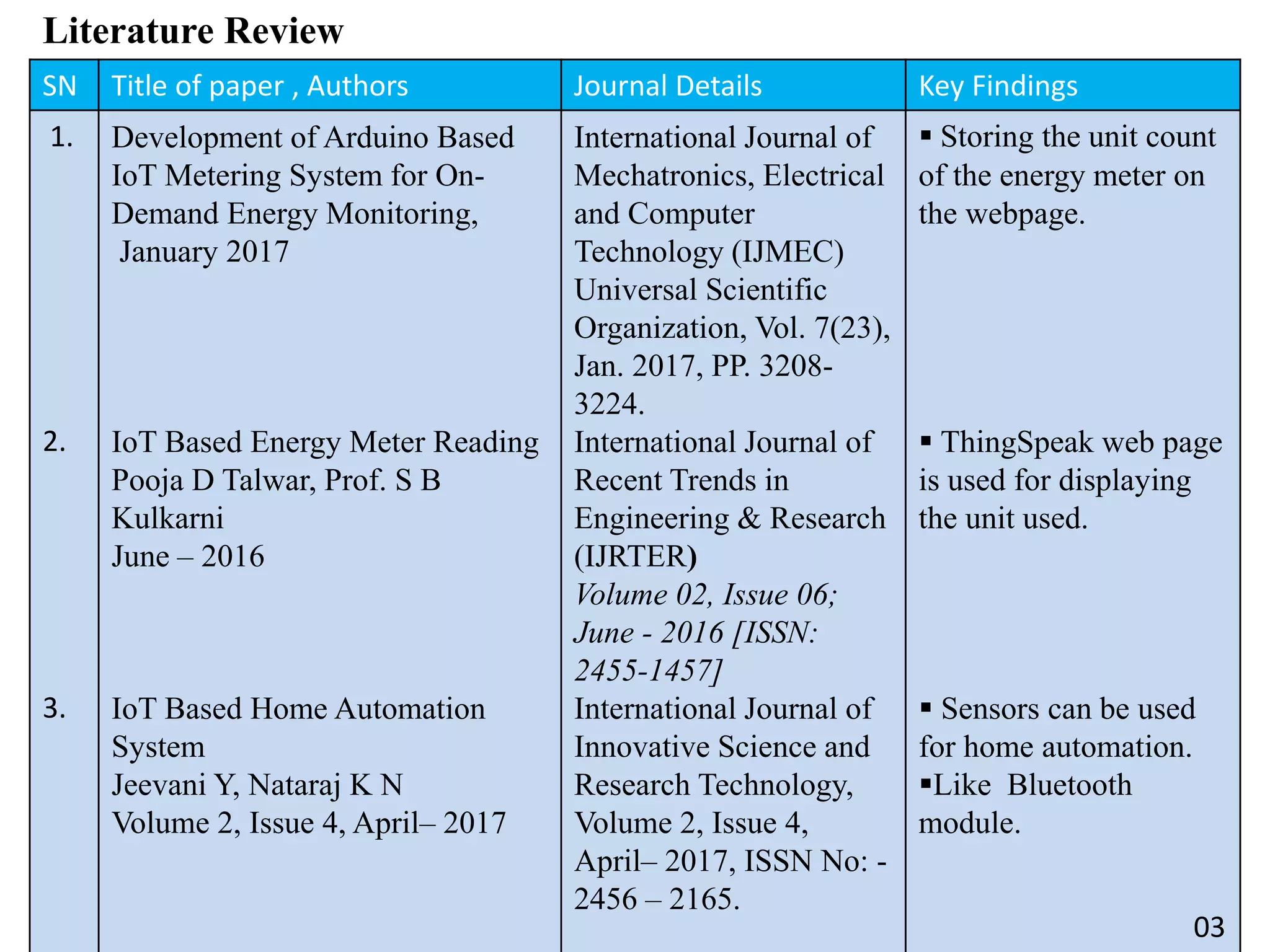

4. SN Title of paper , Authors Journal Details Key Findings
1.
2.
3.
Development of Arduino Based
IoT Metering System for On-
Demand Energy Monitoring,
January 2017
IoT Based Energy Meter Reading
Pooja D Talwar, Prof. S B
Kulkarni
June – 2016
IoT Based Home Automation
System
Jeevani Y, Nataraj K N
Volume 2, Issue 4, April– 2017
International Journal of
Mechatronics, Electrical
and Computer
Technology (IJMEC)
Universal Scientific
Organization, Vol. 7(23),
Jan. 2017, PP. 3208-
3224.
International Journal of
Recent Trends in
Engineering & Research
(IJRTER)
Volume 02, Issue 06;
June - 2016 [ISSN:
2455-1457]
International Journal of
Innovative Science and
Research Technology,
Volume 2, Issue 4,
April– 2017, ISSN No: -
2456 – 2165.
 Storing the unit count
of the energy meter on
the webpage.
 ThingSpeak web page
is used for displaying
the unit used.
 Sensors can be used
for home automation.
Like Bluetooth
module.
Literature Review
03

5. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

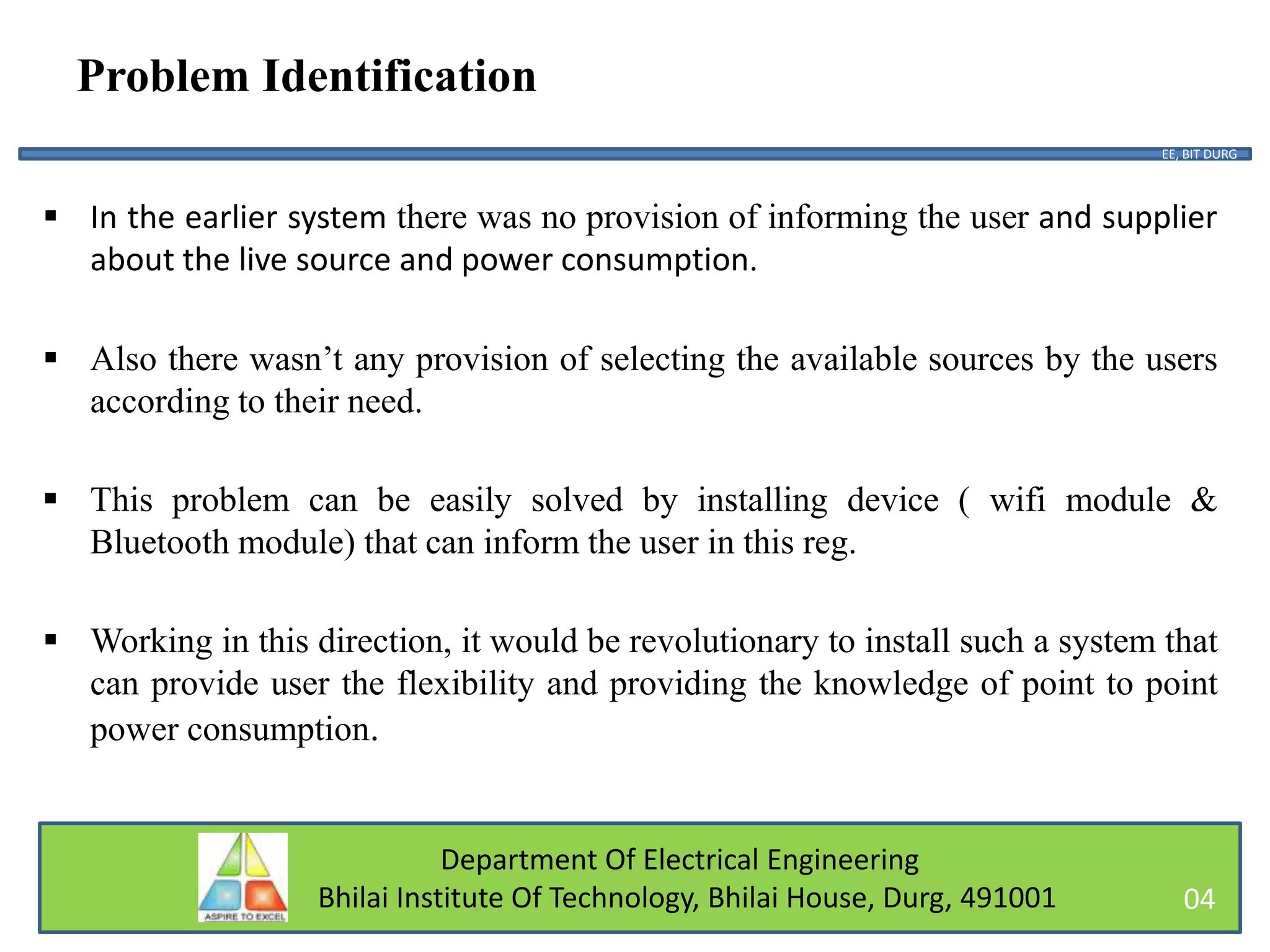

Problem Identification
 In the earlier system there was no provision of informing the user and supplier
about the live source and power consumption.
 Also there wasn’t any provision of selecting the available sources by the users
according to their need.
 This problem can be easily solved by installing device ( wifi module &
Bluetooth module) that can inform the user in this reg.
 Working in this direction, it would be revolutionary to install such a system that
can provide user the flexibility and providing the knowledge of point to point
power consumption.
EE, BIT DURG
04

6. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Objectives
 Our main objective is to :
 Develop a Arduino based auto phase selector & IoT metering system for
the real time monitoring for making electricity usage more user friendly.
 To install a Bluetooth module that provide the user an option to opt for a
desirous available sources.
 To install an IoT based webpage to collect energy consumption data and
sources in use.
 And program it and interface it with the main system so as to make it better to
be used by users and electricity grid for getting updated with having knowledge
of load under usage.
EE, BIT DURG
05

7. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

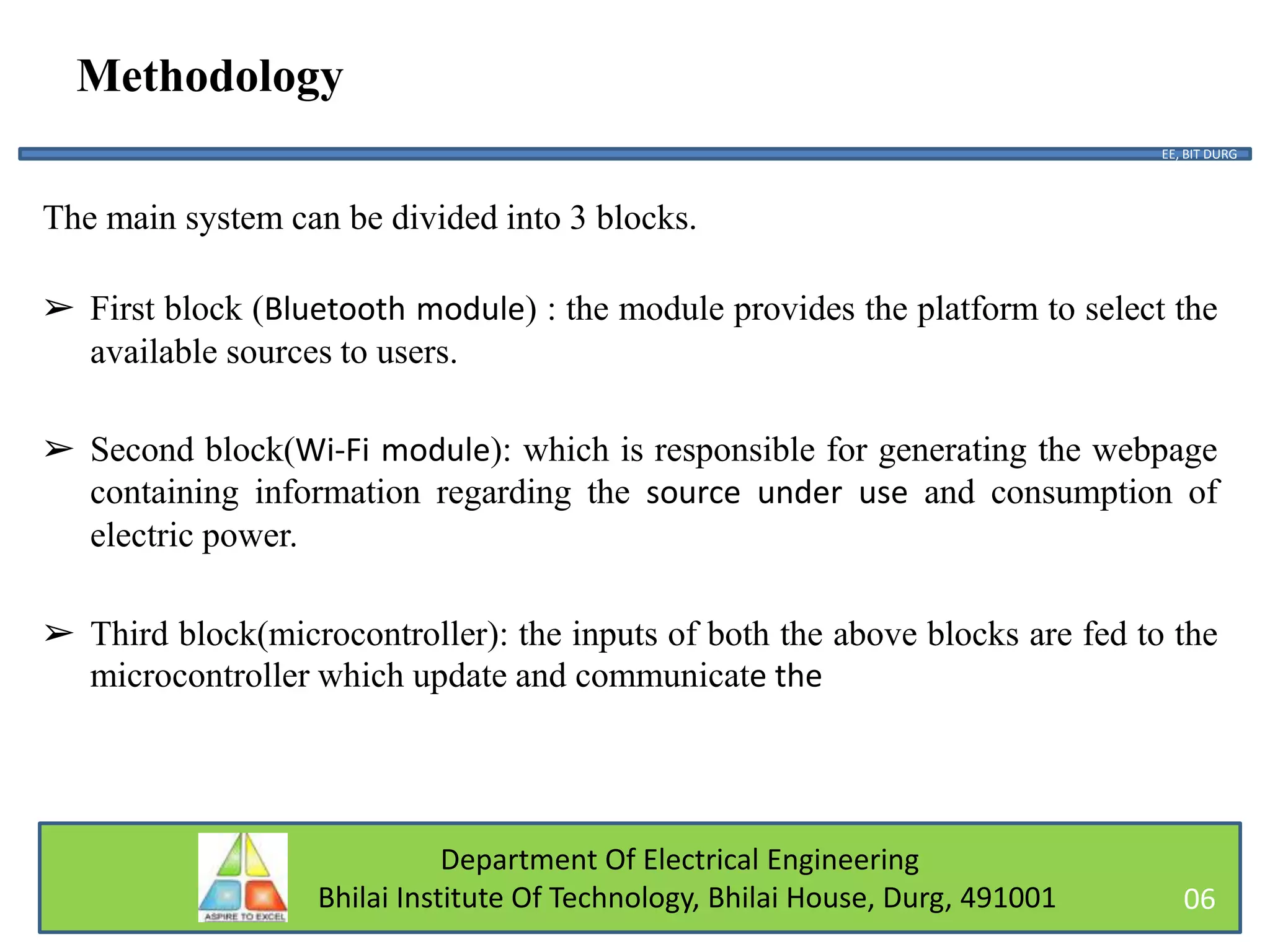

Methodology
The main system can be divided into 3 blocks.
➢ First block (Bluetooth module) : the module provides the platform to select the
available sources to users.
➢ Second block(Wi-Fi module): which is responsible for generating the webpage
containing information regarding the source under use and consumption of
electric power.
➢ Third block(microcontroller): the inputs of both the above blocks are fed to the
microcontroller which update and communicate the
EE, BIT DURG
06

8. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

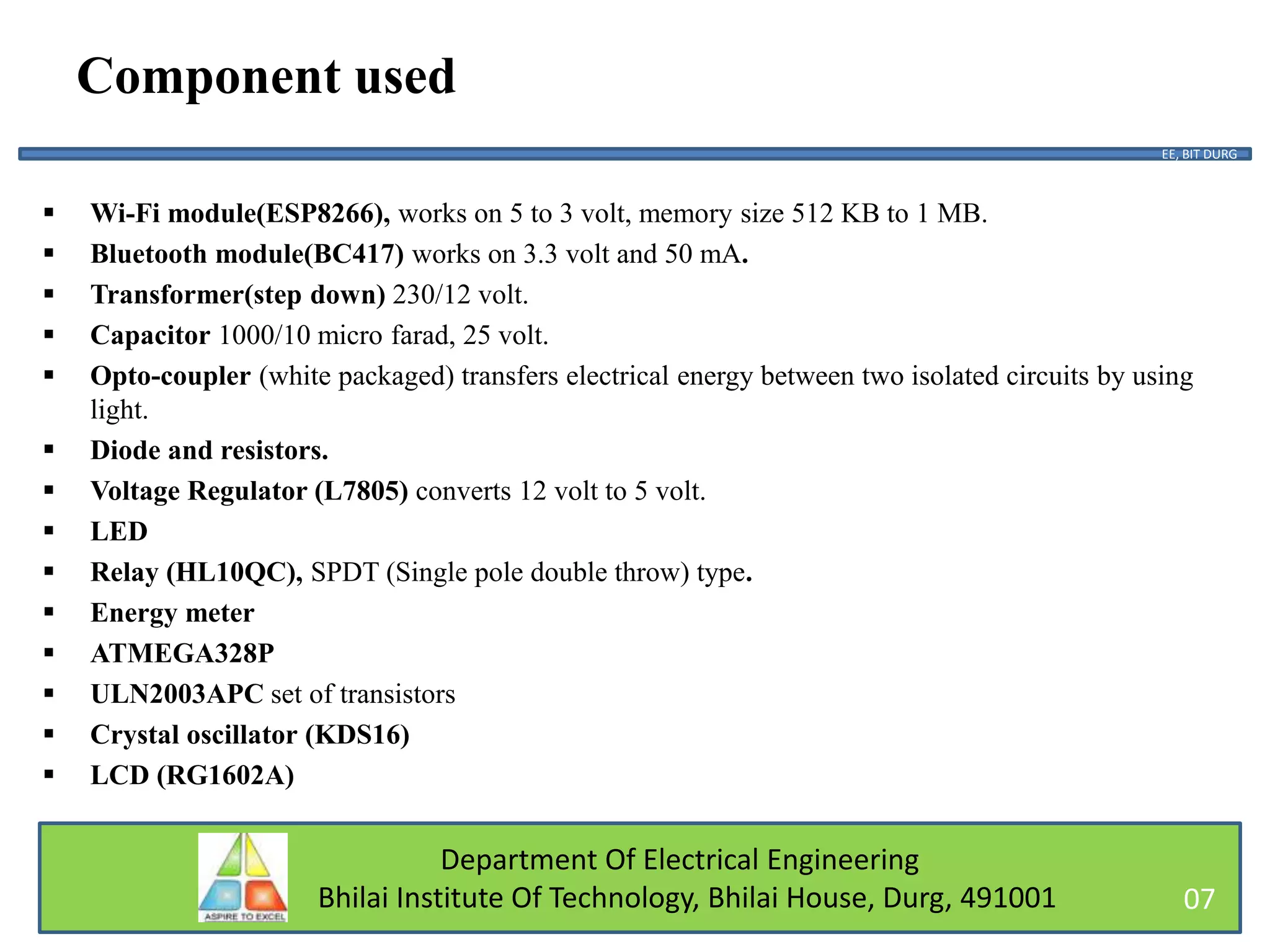

Component used
 Wi-Fi module(ESP8266), works on 5 to 3 volt, memory size 512 KB to 1 MB.
 Bluetooth module(BC417) works on 3.3 volt and 50 mA.
 Transformer(step down) 230/12 volt.
 Capacitor 1000/10 micro farad, 25 volt.
 Opto-coupler (white packaged) transfers electrical energy between two isolated circuits by using
light.
 Diode and resistors.
 Voltage Regulator (L7805) converts 12 volt to 5 volt.
 LED
 Relay (HL10QC), SPDT (Single pole double throw) type.
 Energy meter
 ATMEGA328P
 ULN2003APC set of transistors
 Crystal oscillator (KDS16)
 LCD (RG1602A)
EE, BIT DURG
07

9. Block Diagram Of Phase Selector
06

10. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Block Diagram
EE, BIT DURG
09

11. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Proteus Circuit Diagram 2
EE, BIT DURG
10

12. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Results
 Automatic phase changer
 Phase selection using Bluetooth module
 Real time monitoring of energy on webpage
EE, BIT DURG
11

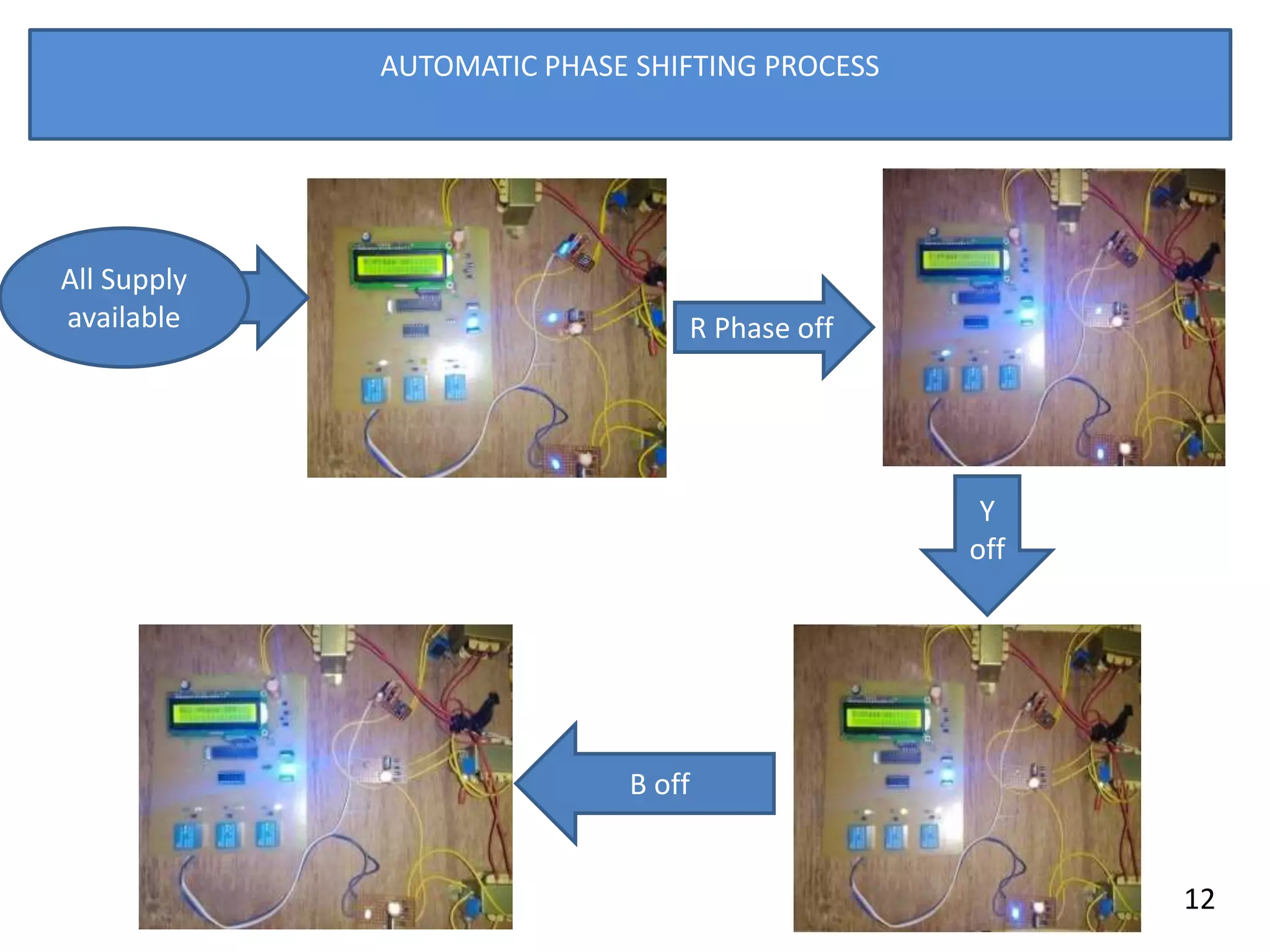

13. Y
off
B off
R Phase off
AUTOMATIC PHASE SHIFTING PROCESS
All Supply
available
12

14. Using Bluetooth module and Bluetooth
Terminal HC-05 (Android App)
When all phases are
available
13

15. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

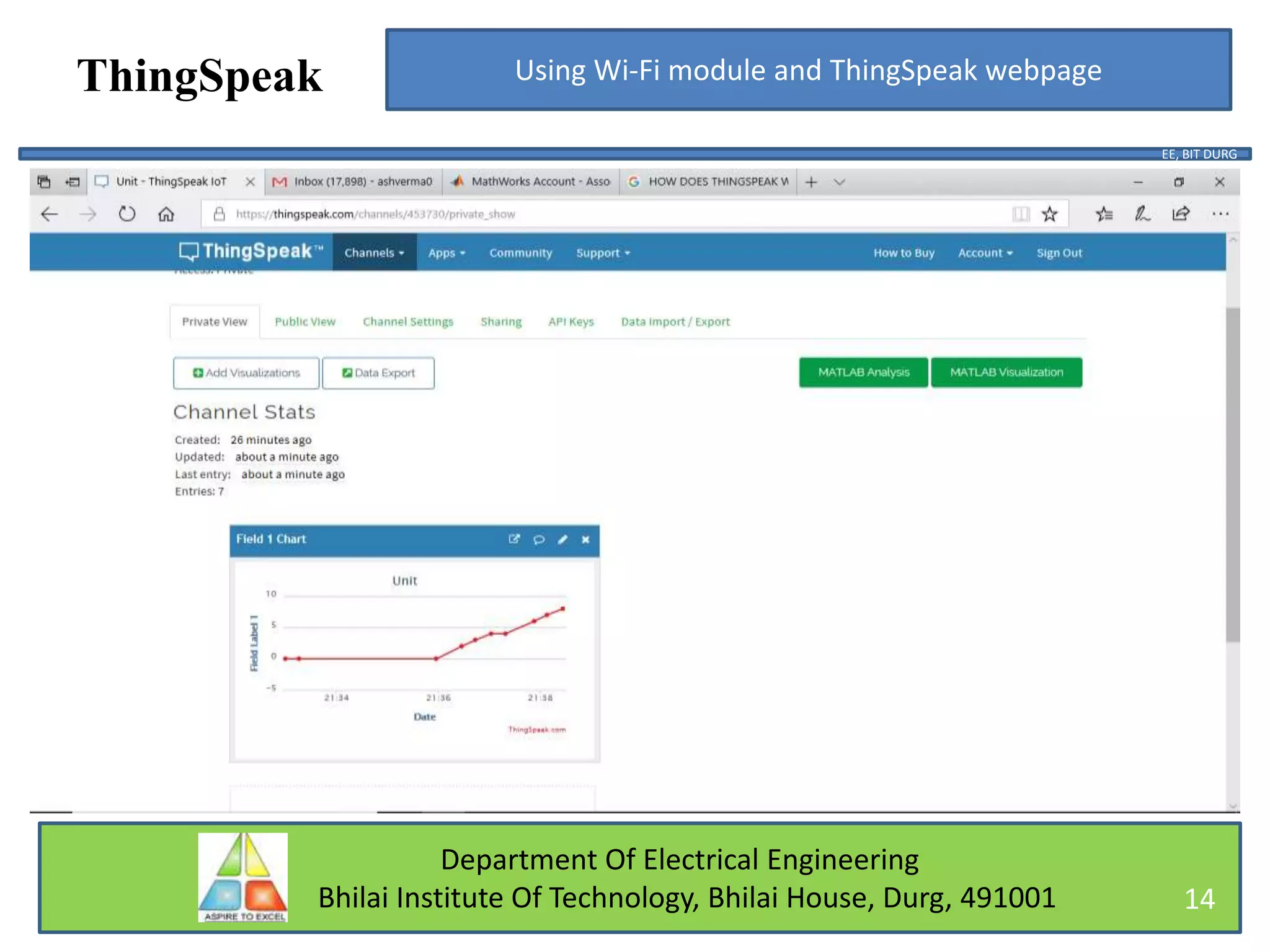

ThingSpeak
EE, BIT DURG
14
Using Wi-Fi module and ThingSpeak webpage

16. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001
Graph
EE, BIT DURG
15

17. Department Of Electrical Engineering
Bhilai Institute Of Technology, Bhilai House, Durg, 491001

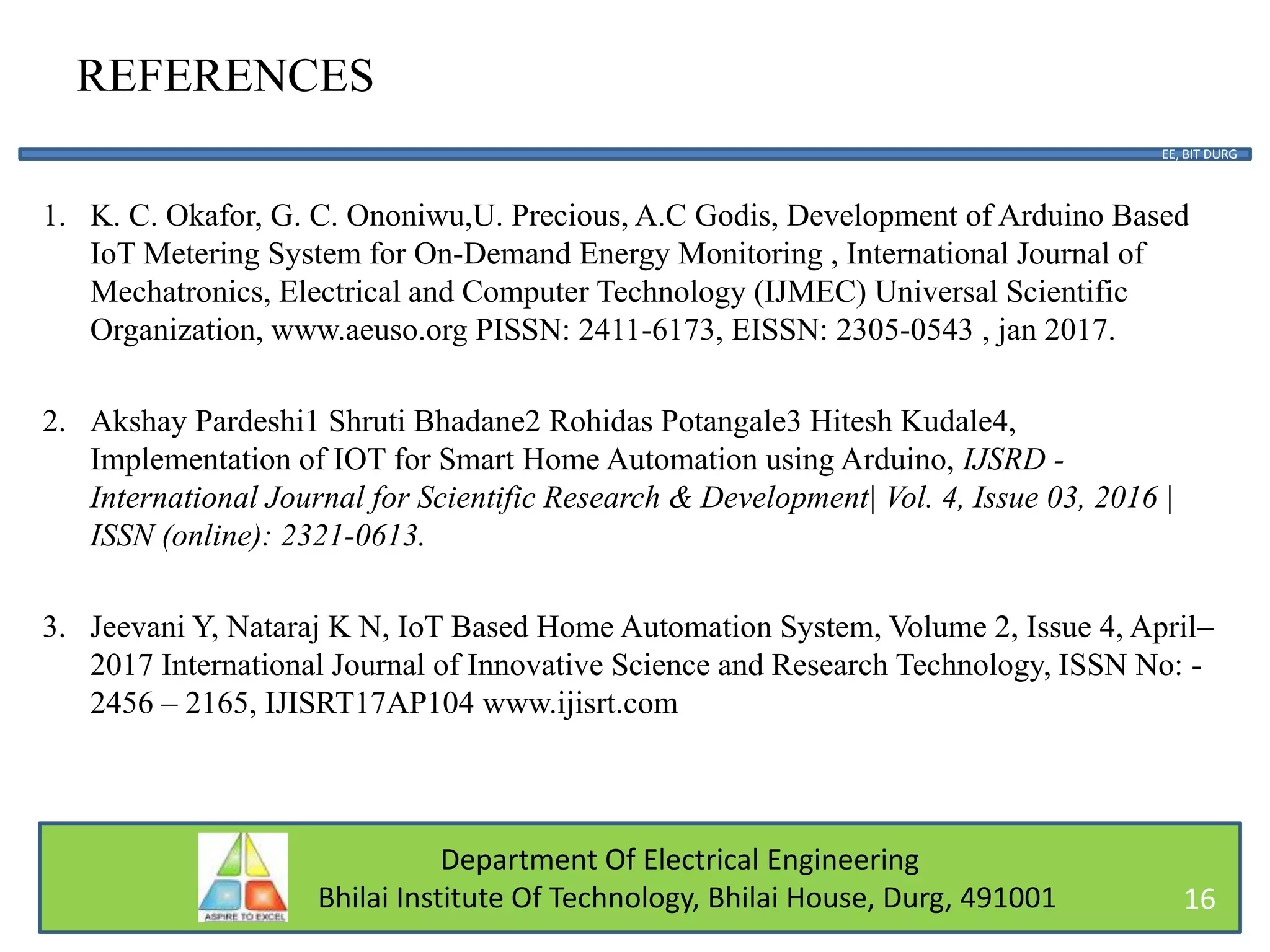

REFERENCES
1. K. C. Okafor, G. C. Ononiwu,U. Precious, A.C Godis, Development of Arduino Based
IoT Metering System for On-Demand Energy Monitoring , International Journal of
Mechatronics, Electrical and Computer Technology (IJMEC) Universal Scientific
Organization, www.aeuso.org PISSN: 2411-6173, EISSN: 2305-0543 , jan 2017.
2. Akshay Pardeshi1 Shruti Bhadane2 Rohidas Potangale3 Hitesh Kudale4,
Implementation of IOT for Smart Home Automation using Arduino, IJSRD -
International Journal for Scientific Research & Development| Vol. 4, Issue 03, 2016 |
ISSN (online): 2321-0613.
3. Jeevani Y, Nataraj K N, IoT Based Home Automation System, Volume 2, Issue 4, April–
2017 International Journal of Innovative Science and Research Technology, ISSN No: -
2456 – 2165, IJISRT17AP104 www.ijisrt.com
EE, BIT DURG
16
