1. City University
Report
On
Cisco Packet Tester Mail Server
Course Title: Computer Network Laboratory.
Course Code: CSE 318
Submitted To:
Pranab Bandhu Nath
Senior Lecturer
Dept. of CSE at
City University
Submitted By:
Sanower Hossain Rabbi
ID: 1915002510
Batch: 50th
Program: B.Sc. in CSE

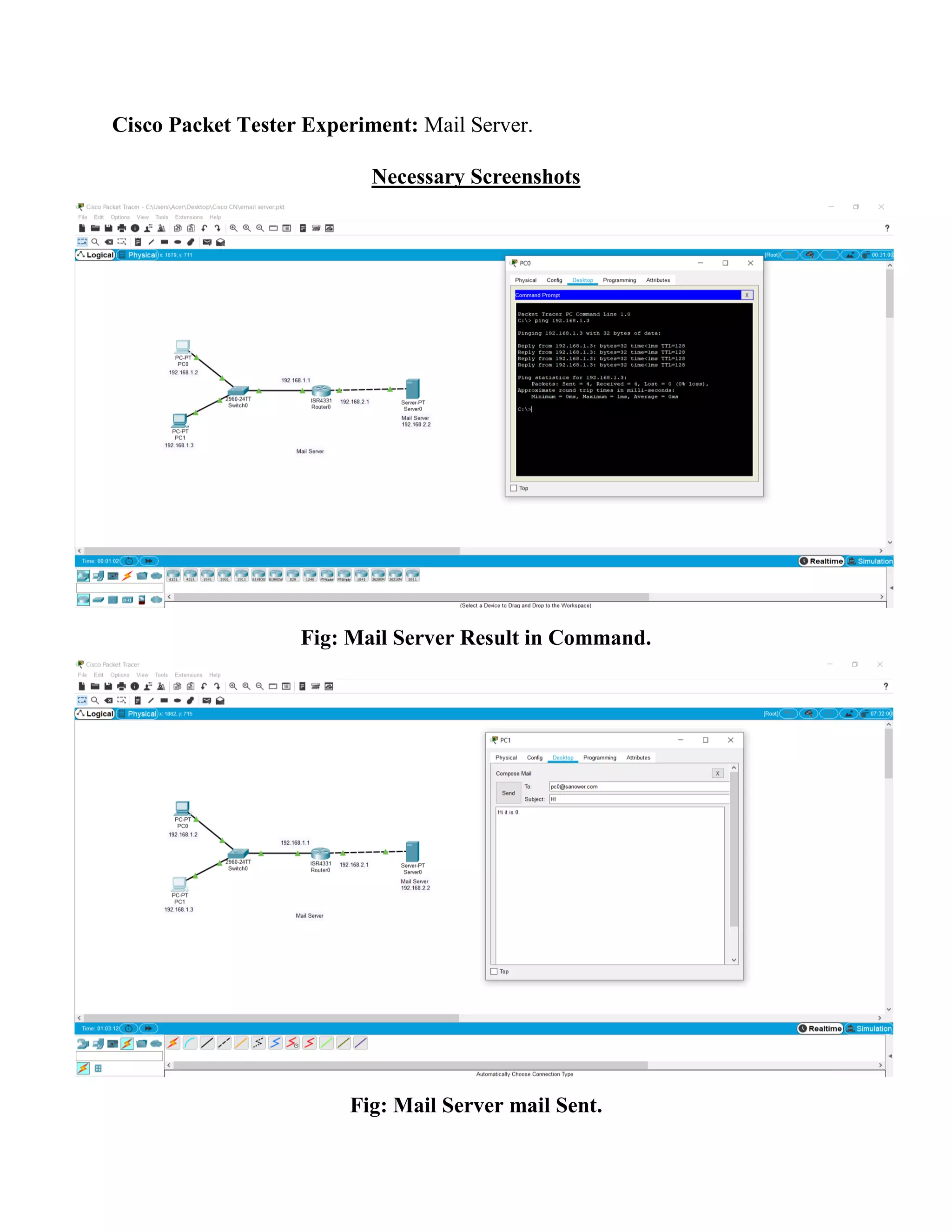

2. Cisco Packet Tester Experiment: Mail Server.
Necessary Screenshots
Fig: Mail Server Result in Command.
Fig: Mail Server mail Sent.

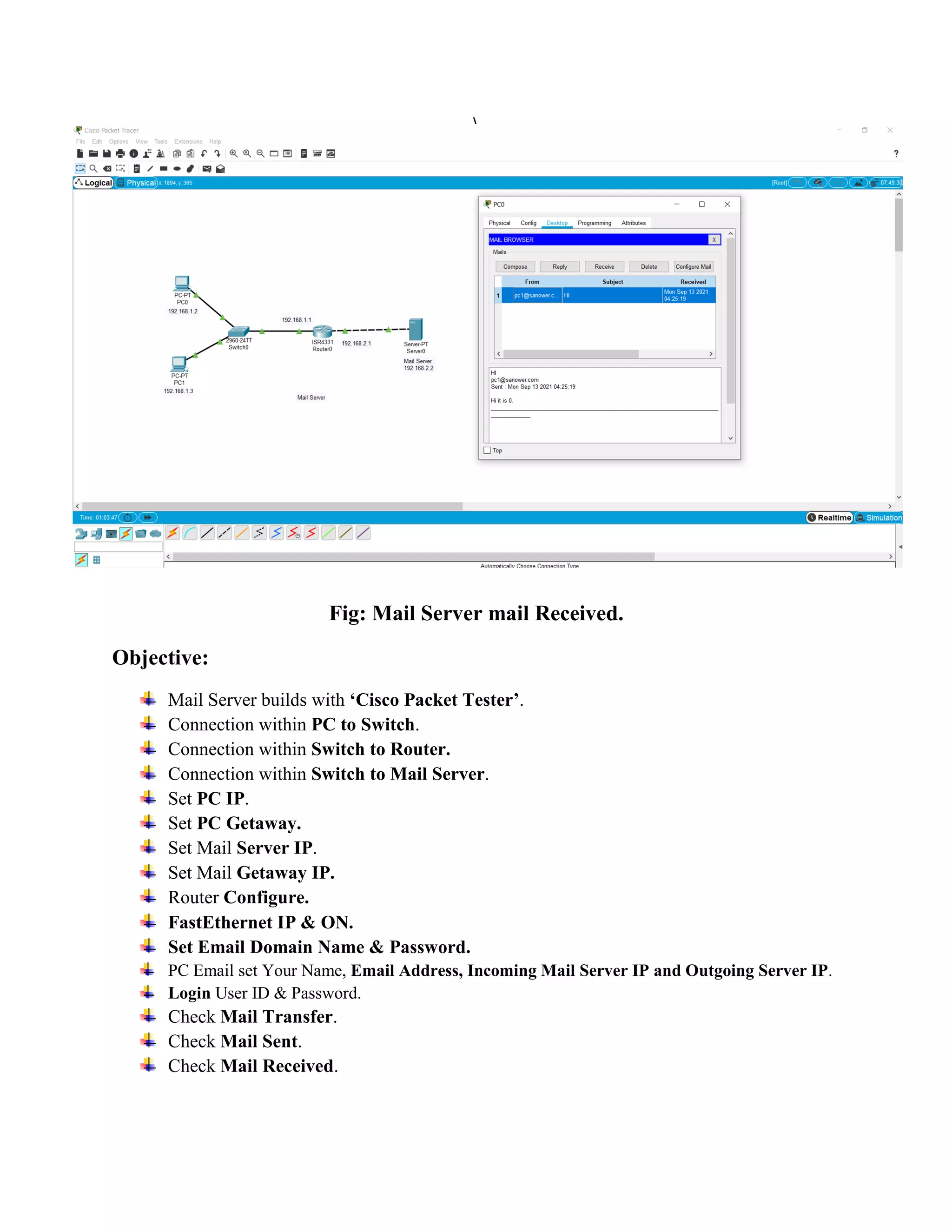

3. Fig: Mail Server mail Received.
Objective:
Mail Server builds with ‘Cisco Packet Tester’.
Connection within PC to Switch.
Connection within Switch to Router.
Connection within Switch to Mail Server.
Set PC IP.
Set PC Getaway.
Set Mail Server IP.
Set Mail Getaway IP.
Router Configure.
FastEthernet IP & ON.
Set Email Domain Name & Password.
PC Email set Your Name, Email Address, Incoming Mail Server IP and Outgoing Server IP.
Login User ID & Password.
Check Mail Transfer.
Check Mail Sent.
Check Mail Received.

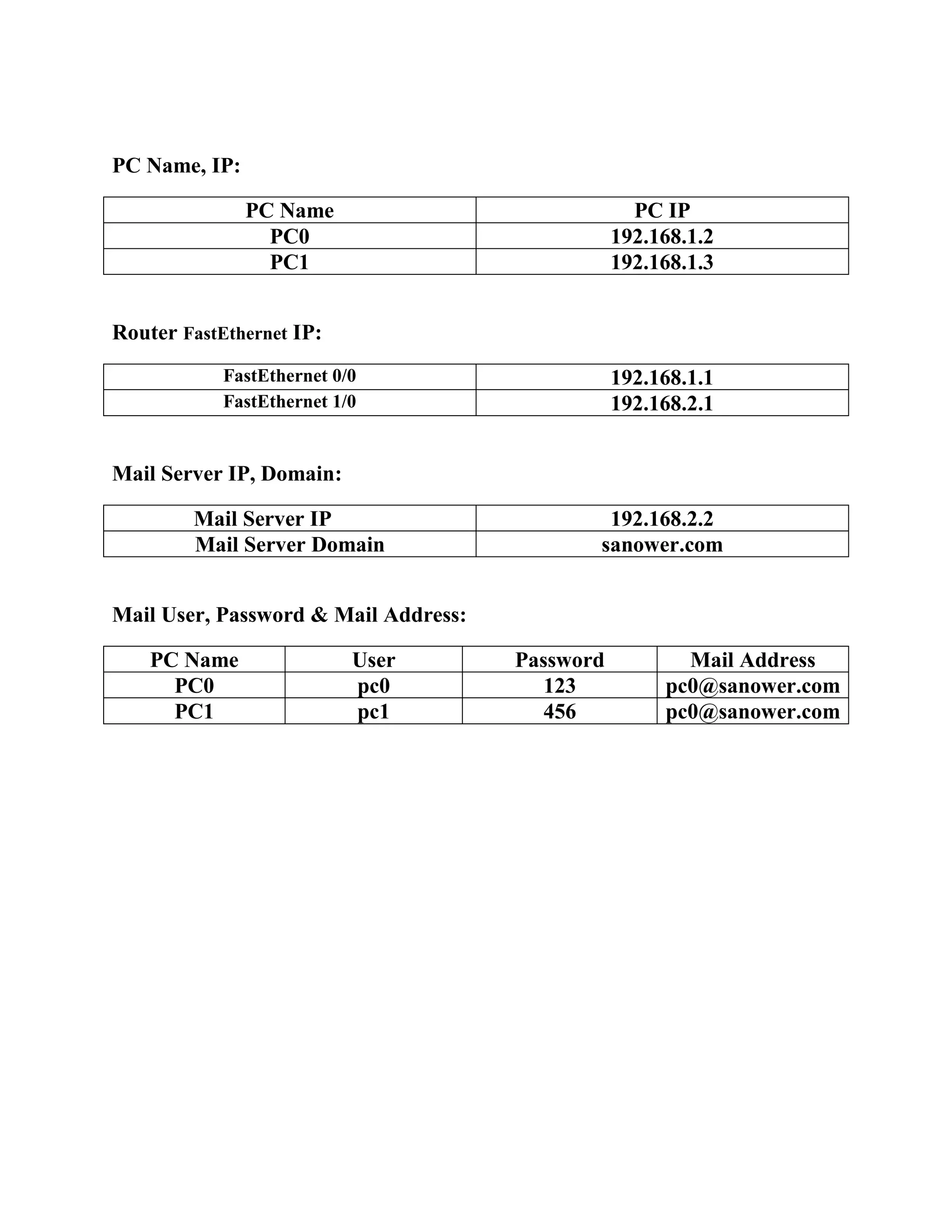

4. PC Name, IP:
PC Name PC IP
PC0 192.168.1.2
PC1 192.168.1.3
Router FastEthernet IP:
FastEthernet 0/0 192.168.1.1
FastEthernet 1/0 192.168.2.1
Mail Server IP, Domain:
Mail Server IP 192.168.2.2
Mail Server Domain sanower.com
Mail User, Password & Mail Address:
PC Name User Password Mail Address
PC0 pc0 123 pc0@sanower.com
PC1 pc1 456 pc0@sanower.com
