This experiment report summarizes a student's work connecting computers and switches in a local area network using Cisco Packet Tracer, and then extending the network to create a metropolitan area network connection. The student objectives were to first connect all devices with cables, then send data packets between computers, and finally construct and test a successful MAN connection extending between two LANs. The student reported their results and included the IP addresses assigned to each computer in the network.

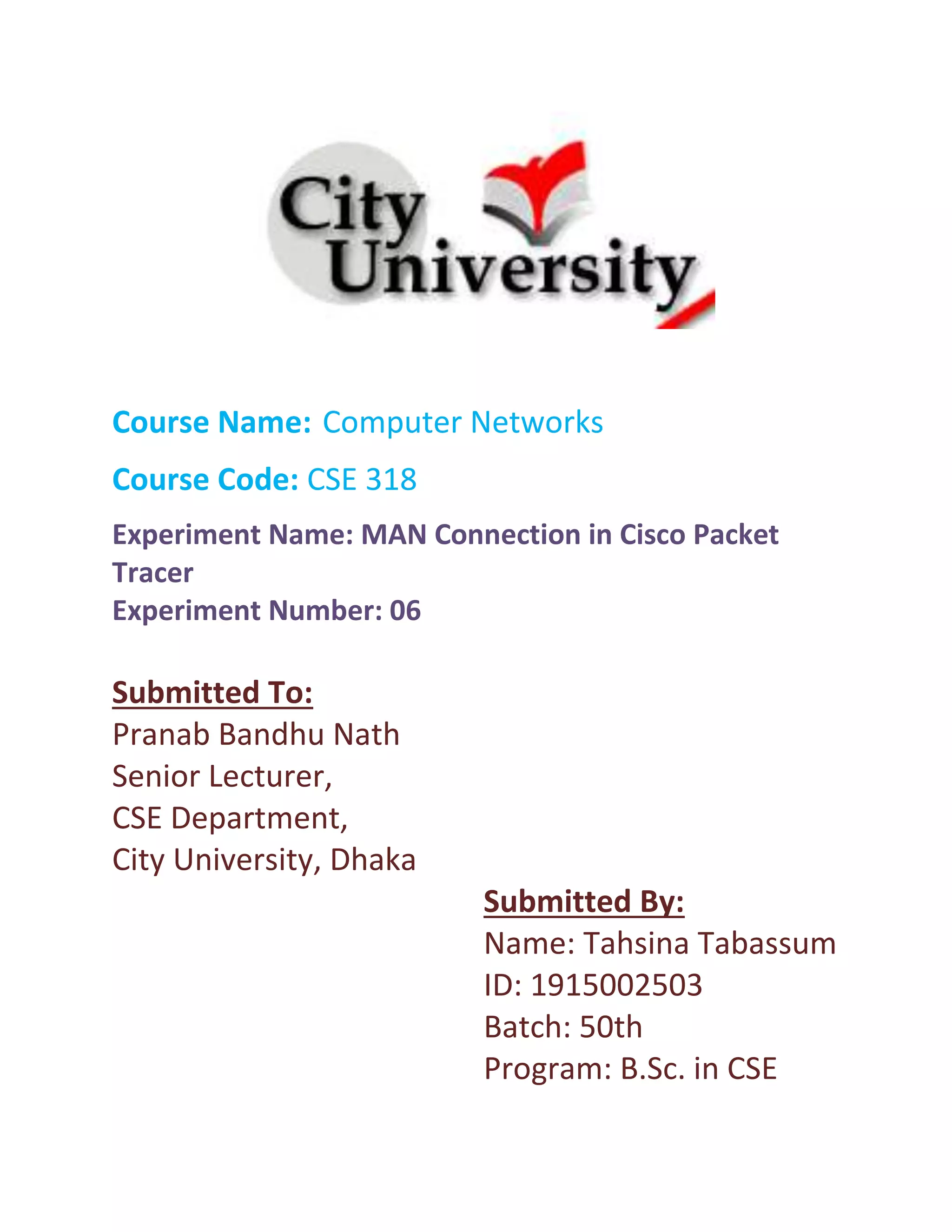

1. Course Name: Computer Networks
Course Code: CSE 318
Experiment Name: MAN Connection in Cisco Packet
Tracer
Experiment Number: 06
Submitted To:
Pranab Bandhu Nath
Senior Lecturer,
CSE Department,
City University, Dhaka
Submitted By:
Name: Tahsina Tabassum
ID: 1915002503
Batch: 50th
Program: B.Sc. in CSE

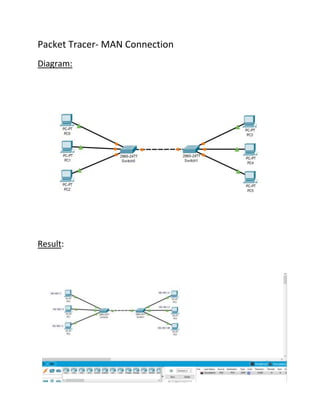

2. Packet Tracer- MAN Connection
Diagram:
Result:

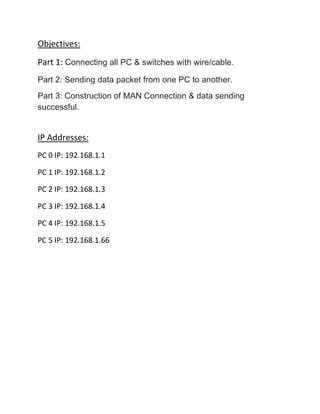

3. Objectives:
Part 1: Connecting all PC & switches with wire/cable.
Part 2: Sending data packet from one PC to another.
Part 3: Construction of MAN Connection & data sending
successful.
IP Addresses:
PC 0 IP: 192.168.1.1
PC 1 IP: 192.168.1.2
PC 2 IP: 192.168.1.3
PC 3 IP: 192.168.1.4
PC 4 IP: 192.168.1.5
PC 5 IP: 192.168.1.66
