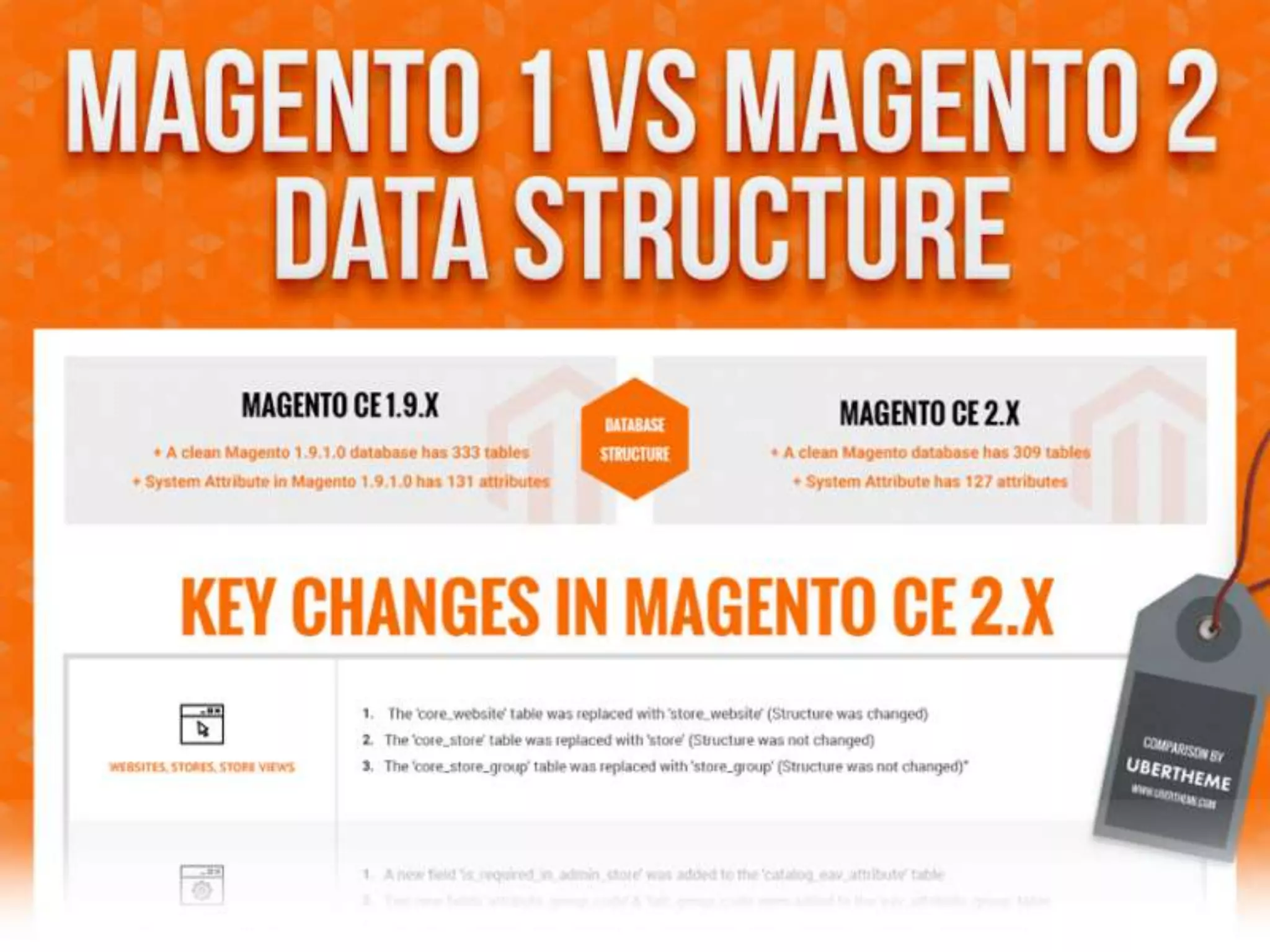

The difference between Magento 1 and Magento 2 database is huge. Here are a significant number of changes in the database structure that are worth highlighting.

2. The Ultimate Comparison
Magento 1 vs. Magento 2
Database Structure

3. 1. The ‘core_website’ table was replaced with ‘store_website’ (The structure was
changed)
2. The ‘core_store’ table was replaced with ‘store’ (The structure was not changed)
3. The ‘core_store_group’ table was replaced with ‘store_group’ (The structure was
not changed)
1 - Websites, Stores, Store Views

4. 1. A new field ‘is_required_in_admin_store’ was added to the ‘catalog_eav_attribute’
table
2. Two new fields ‘attribute_group_code’ & ‘tab_group_code’ were added to the
‘eav_attribute_group’ table
3. The product attribute ‘msrp_enabled’ was replaced with ‘msrp’. Magento 2 deleted
2 core attributes ‘group_price’, ‘msrp_enabled’ and the ‘group_price’ data was
converted to ‘tier_price’
4. The category attribute ‘thumbnail’ was deleted
2 - Core Product Attributes, Custom Product
Attributes

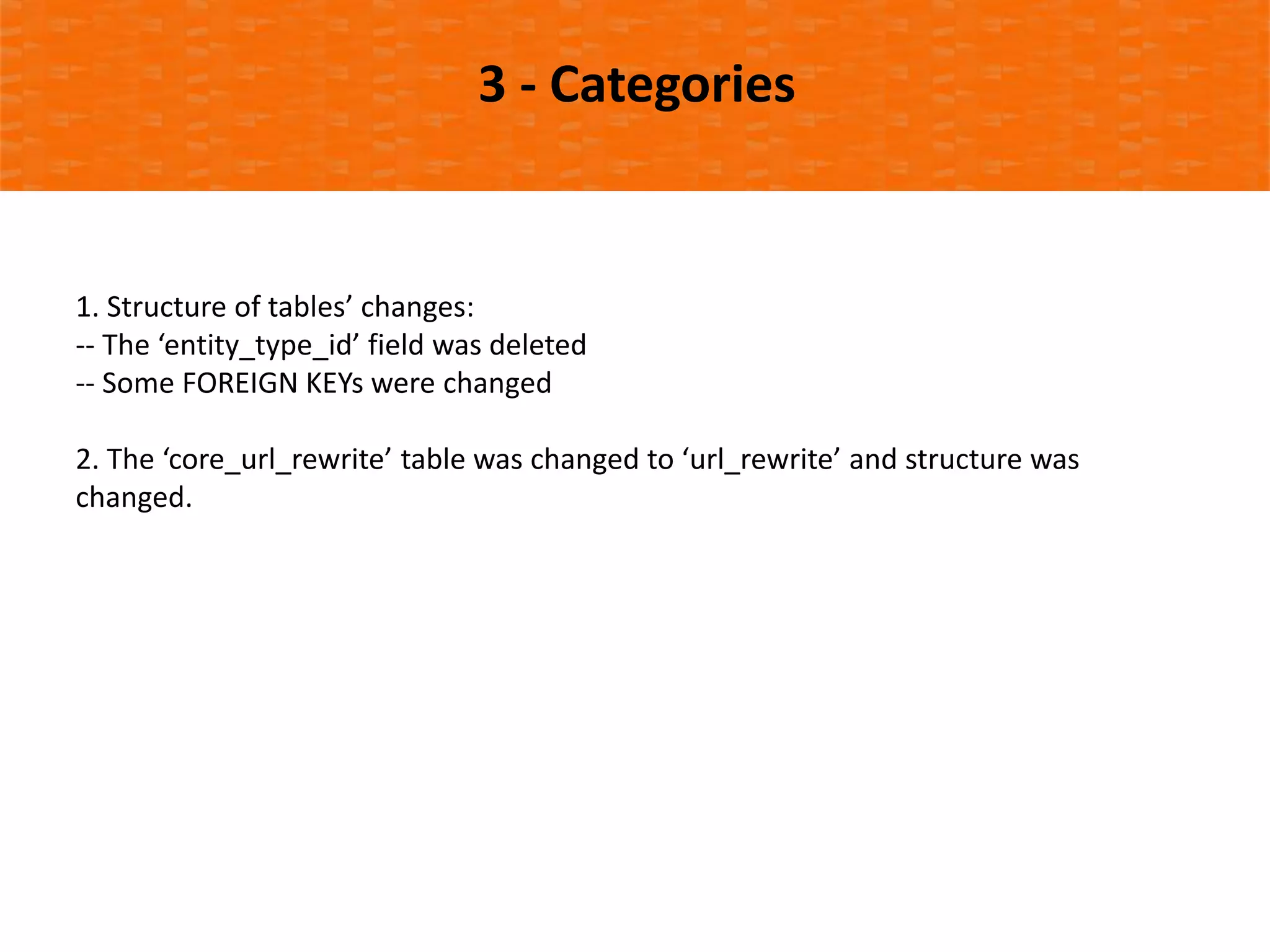

5. 1. Structure of tables’ changes:
-- The ‘entity_type_id’ field was deleted
-- Some FOREIGN KEYs were changed
2. The ‘core_url_rewrite’ table was changed to ‘url_rewrite’ and structure was
changed.
3 - Categories

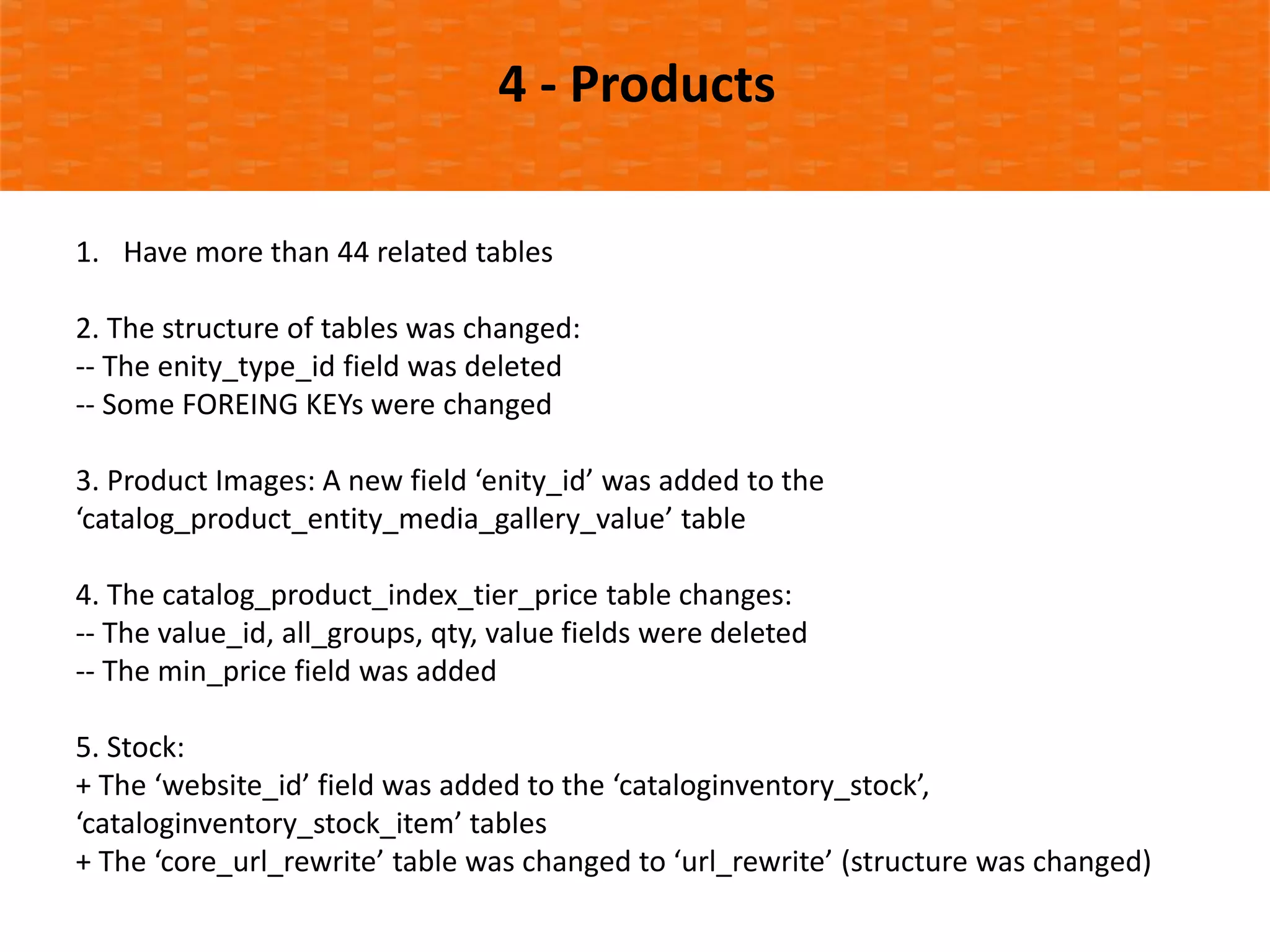

6. 1. Have more than 44 related tables
2. The structure of tables was changed:
-- The enity_type_id field was deleted
-- Some FOREING KEYs were changed
3. Product Images: A new field ‘enity_id’ was added to the
‘catalog_product_entity_media_gallery_value’ table
4. The catalog_product_index_tier_price table changes:
-- The value_id, all_groups, qty, value fields were deleted
-- The min_price field was added
5. Stock:
+ The ‘website_id’ field was added to the ‘cataloginventory_stock’,
‘cataloginventory_stock_item’ tables
+ The ‘core_url_rewrite’ table was changed to ‘url_rewrite’ (structure was changed)
4 - Products

7. 1. The ‘customer_entity’, ‘customer_address_entity ‘tables removed the
‘entity_type_id’, ‘attribute_set_id’ fields
2. The ‘customer_address_entity_datetime’, ‘customer_address_entity_decimal’,
‘customer_address_entity_int’, ‘customer_address_entity_text’,
‘customer_address_entity_varchar’, ‘customer_entity_datetime’,
‘customer_entity_decimal’, ‘customer_entity_int’, ‘customer_entity_text’,
‘customer_entity_varchar’ tables removed the ‘entity_type_id’ field
3. The ‘customer_eav_attribute’ table:
-- The ‘is_used_for_customer_segment’ field was deleted
-- Data model value was changed. For instance, the customer/attribute_data_postcode
was replaced with MagentoCustomerModelAttributeDataPostcode
5 - Customers

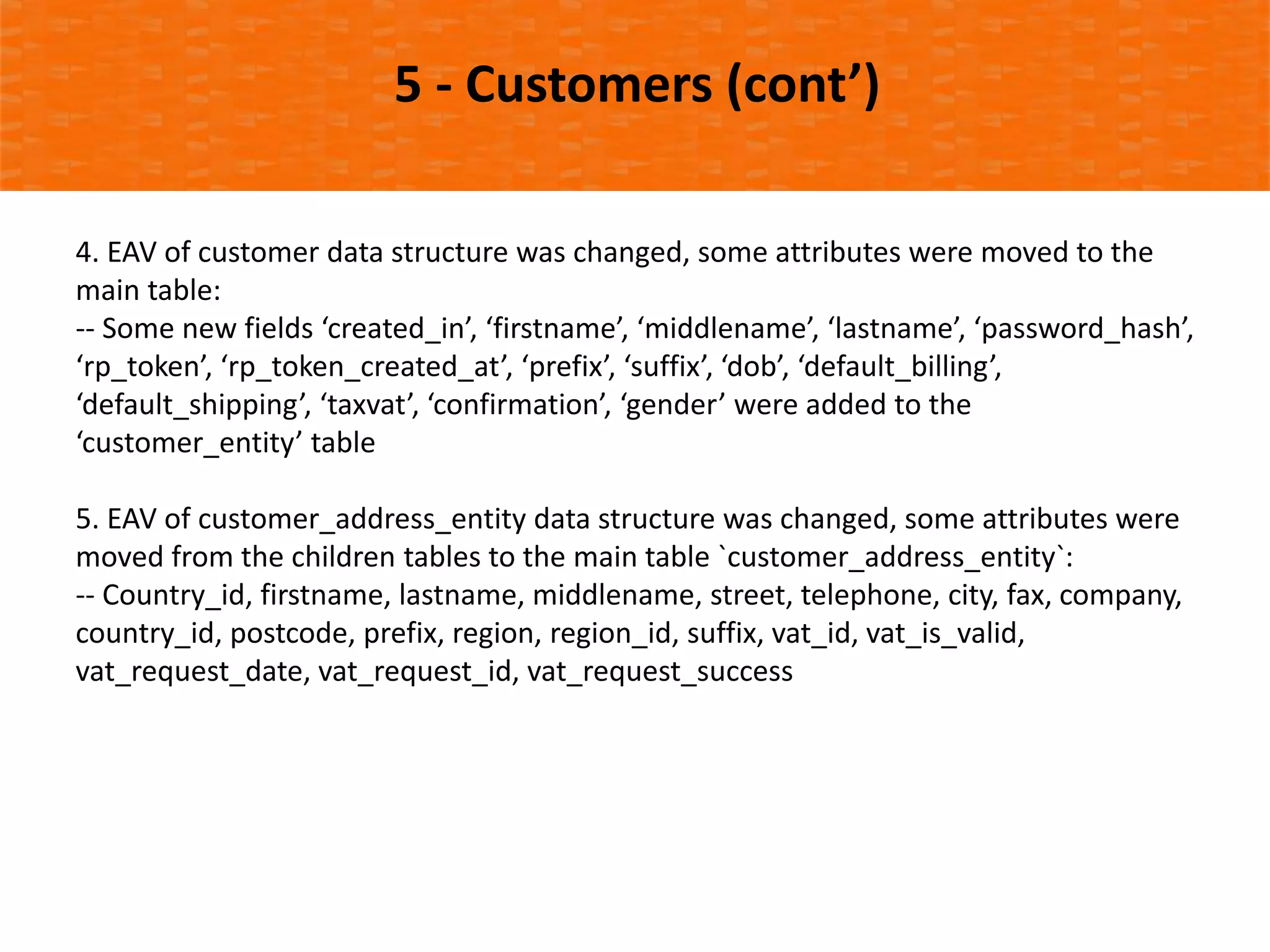

8. 4. EAV of customer data structure was changed, some attributes were moved to the
main table:
-- Some new fields ‘created_in’, ‘firstname’, ‘middlename’, ‘lastname’, ‘password_hash’,
‘rp_token’, ‘rp_token_created_at’, ‘prefix’, ‘suffix’, ‘dob’, ‘default_billing’,
‘default_shipping’, ‘taxvat’, ‘confirmation’, ‘gender’ were added to the
‘customer_entity’ table
5. EAV of customer_address_entity data structure was changed, some attributes were
moved from the children tables to the main table `customer_address_entity`:
-- Country_id, firstname, lastname, middlename, street, telephone, city, fax, company,
country_id, postcode, prefix, region, region_id, suffix, vat_id, vat_is_valid,
vat_request_date, vat_request_id, vat_request_success
5 - Customers (cont’)

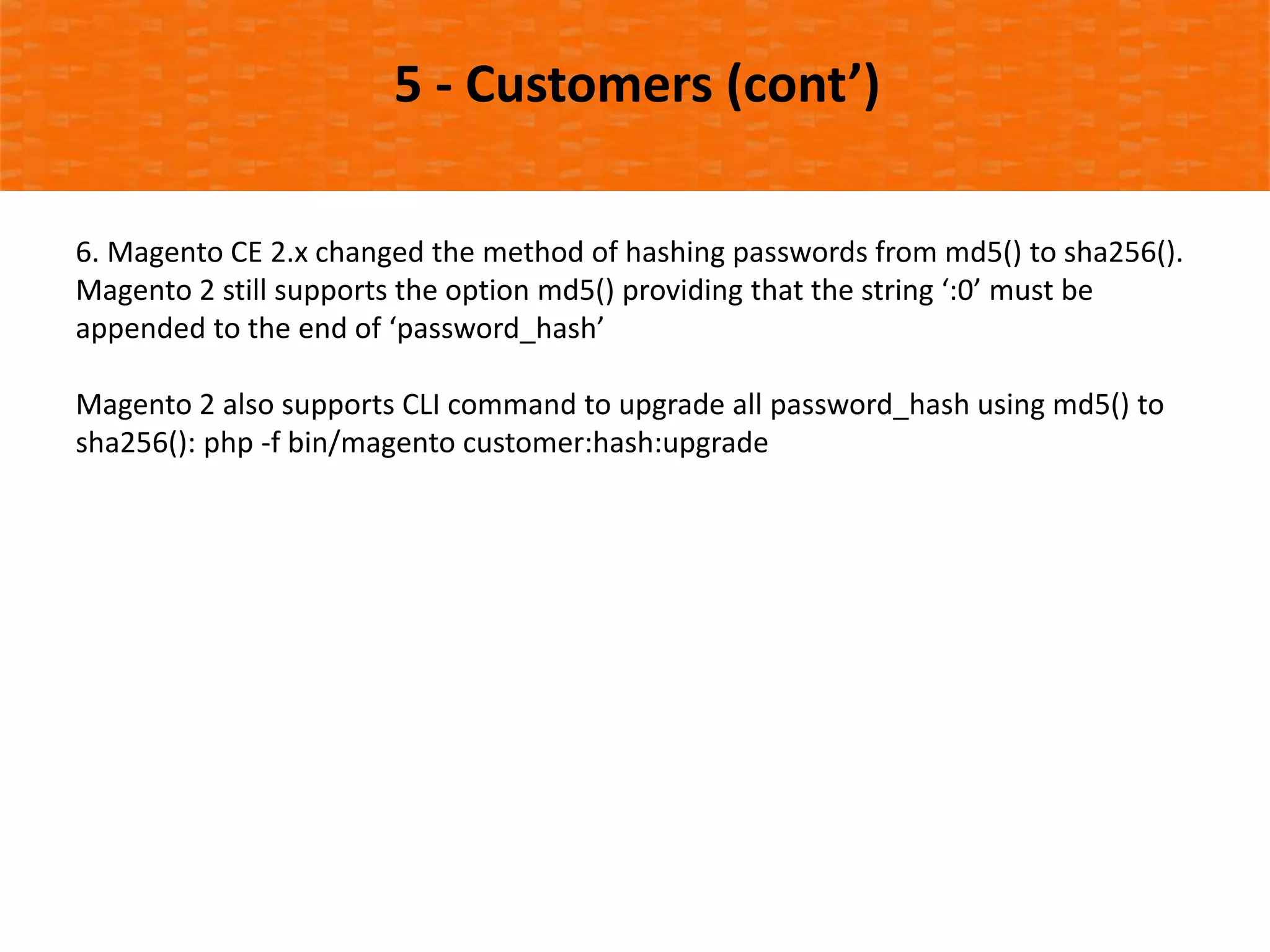

9. 6. Magento CE 2.x changed the method of hashing passwords from md5() to sha256().
Magento 2 still supports the option md5() providing that the string ‘:0’ must be
appended to the end of ‘password_hash’
Magento 2 also supports CLI command to upgrade all password_hash using md5() to
sha256(): php -f bin/magento customer:hash:upgrade
5 - Customers (cont’)

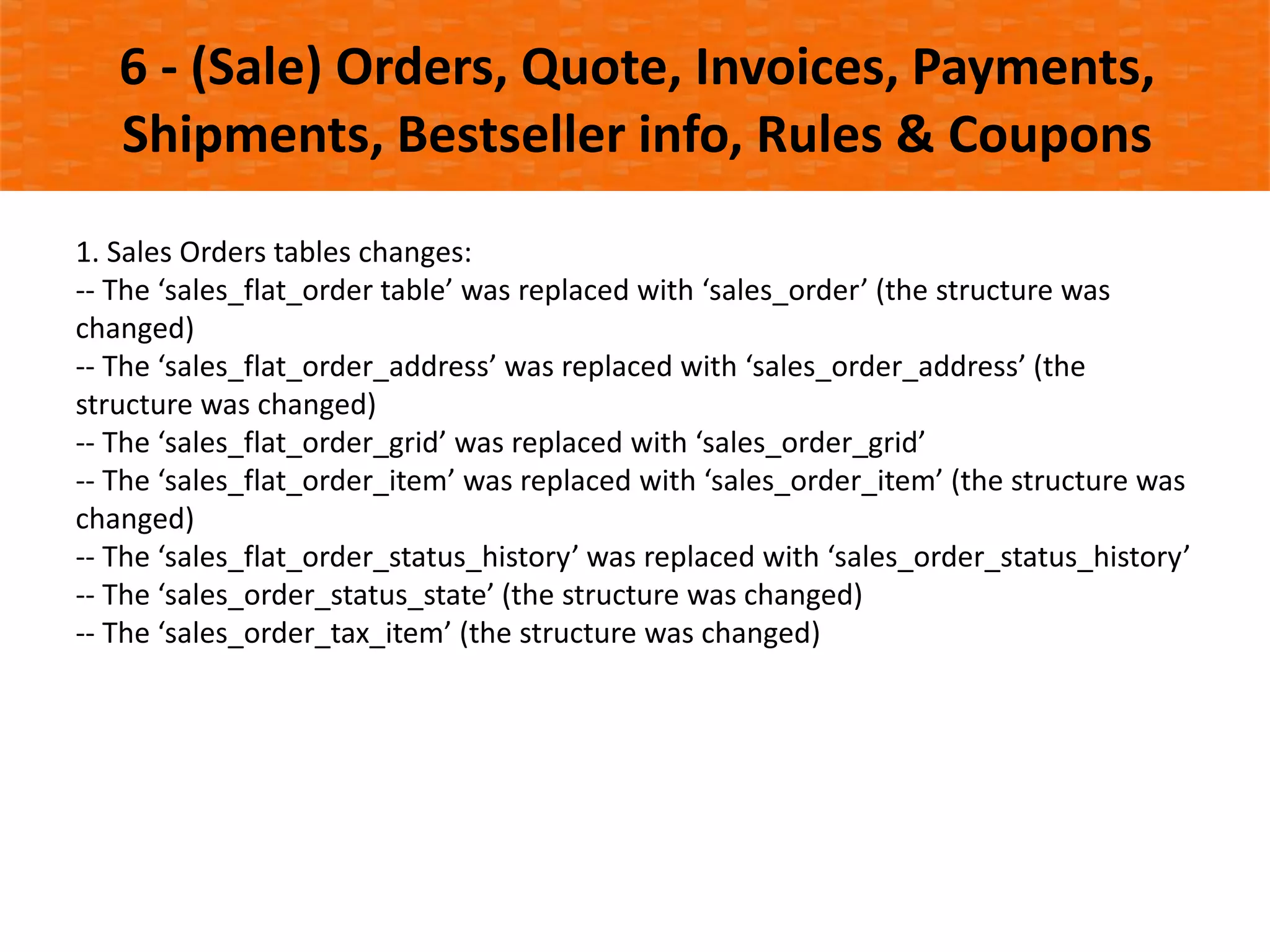

10. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons
1. Sales Orders tables changes:
-- The ‘sales_flat_order table’ was replaced with ‘sales_order’ (the structure was
changed)
-- The ‘sales_flat_order_address’ was replaced with ‘sales_order_address’ (the
structure was changed)
-- The ‘sales_flat_order_grid’ was replaced with ‘sales_order_grid’
-- The ‘sales_flat_order_item’ was replaced with ‘sales_order_item’ (the structure was
changed)
-- The ‘sales_flat_order_status_history’ was replaced with ‘sales_order_status_history’
-- The ‘sales_order_status_state’ (the structure was changed)
-- The ‘sales_order_tax_item’ (the structure was changed)

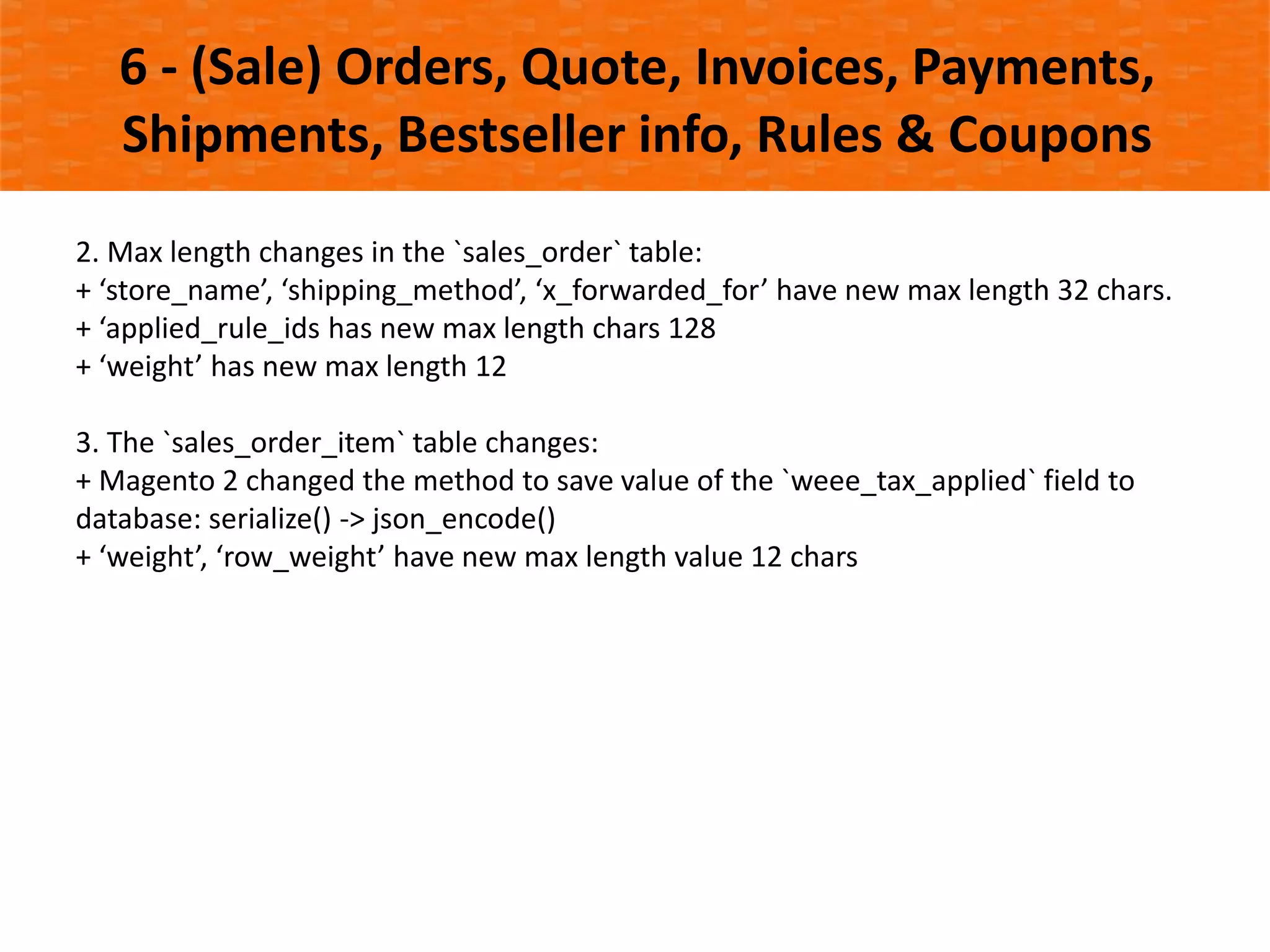

11. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons
2. Max length changes in the `sales_order` table:
+ ‘store_name’, ‘shipping_method’, ‘x_forwarded_for’ have new max length 32 chars.
+ ‘applied_rule_ids has new max length chars 128
+ ‘weight’ has new max length 12
3. The `sales_order_item` table changes:
+ Magento 2 changed the method to save value of the `weee_tax_applied` field to
database: serialize() -> json_encode()
+ ‘weight’, ‘row_weight’ have new max length value 12 chars

12. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons

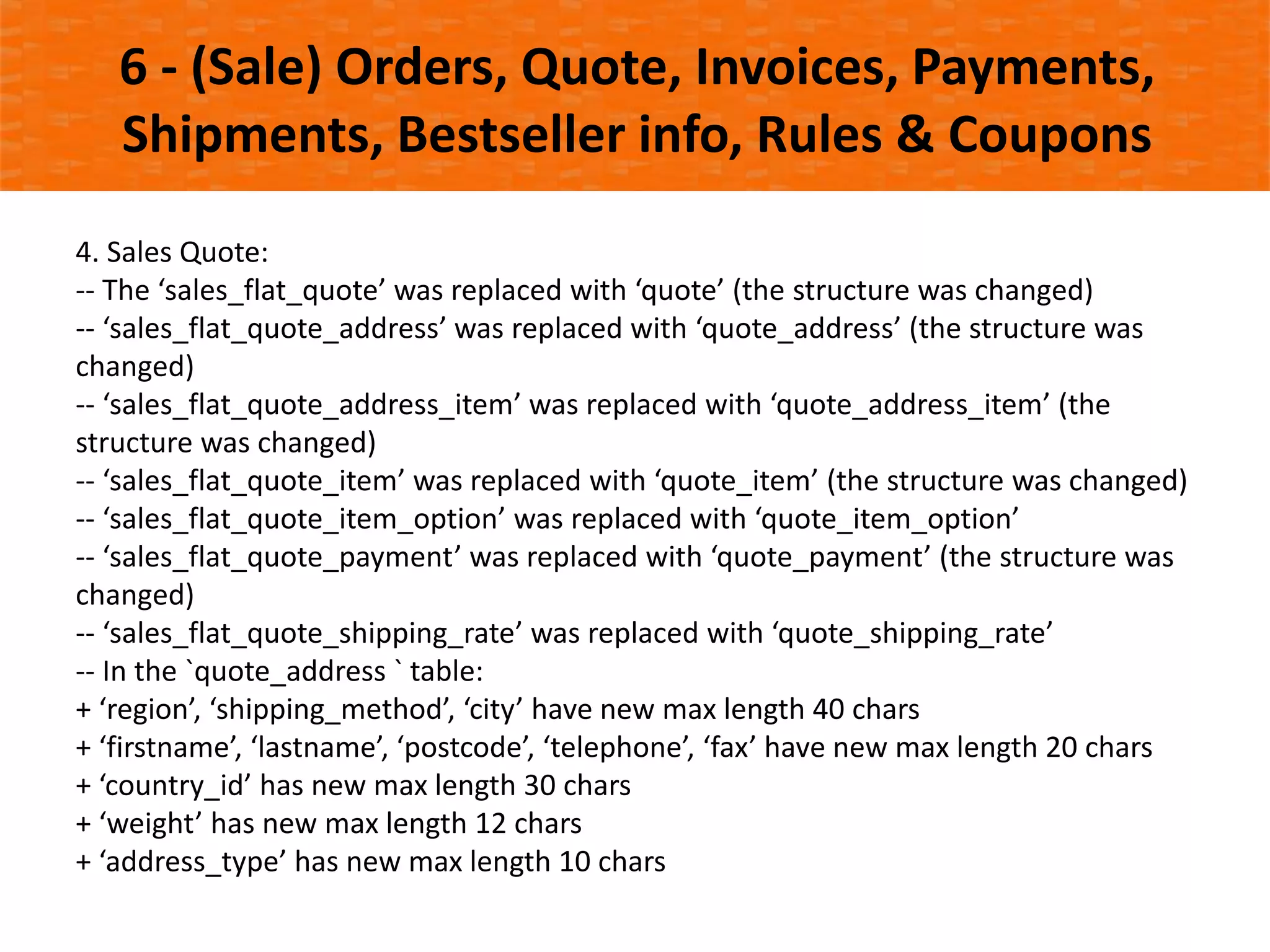

4. Sales Quote:
-- The ‘sales_flat_quote’ was replaced with ‘quote’ (the structure was changed)
-- ‘sales_flat_quote_address’ was replaced with ‘quote_address’ (the structure was
changed)
-- ‘sales_flat_quote_address_item’ was replaced with ‘quote_address_item’ (the
structure was changed)
-- ‘sales_flat_quote_item’ was replaced with ‘quote_item’ (the structure was changed)
-- ‘sales_flat_quote_item_option’ was replaced with ‘quote_item_option’
-- ‘sales_flat_quote_payment’ was replaced with ‘quote_payment’ (the structure was
changed)
-- ‘sales_flat_quote_shipping_rate’ was replaced with ‘quote_shipping_rate’
-- In the `quote_address ` table:
+ ‘region’, ‘shipping_method’, ‘city’ have new max length 40 chars
+ ‘firstname’, ‘lastname’, ‘postcode’, ‘telephone’, ‘fax’ have new max length 20 chars
+ ‘country_id’ has new max length 30 chars
+ ‘weight’ has new max length 12 chars
+ ‘address_type’ has new max length 10 chars

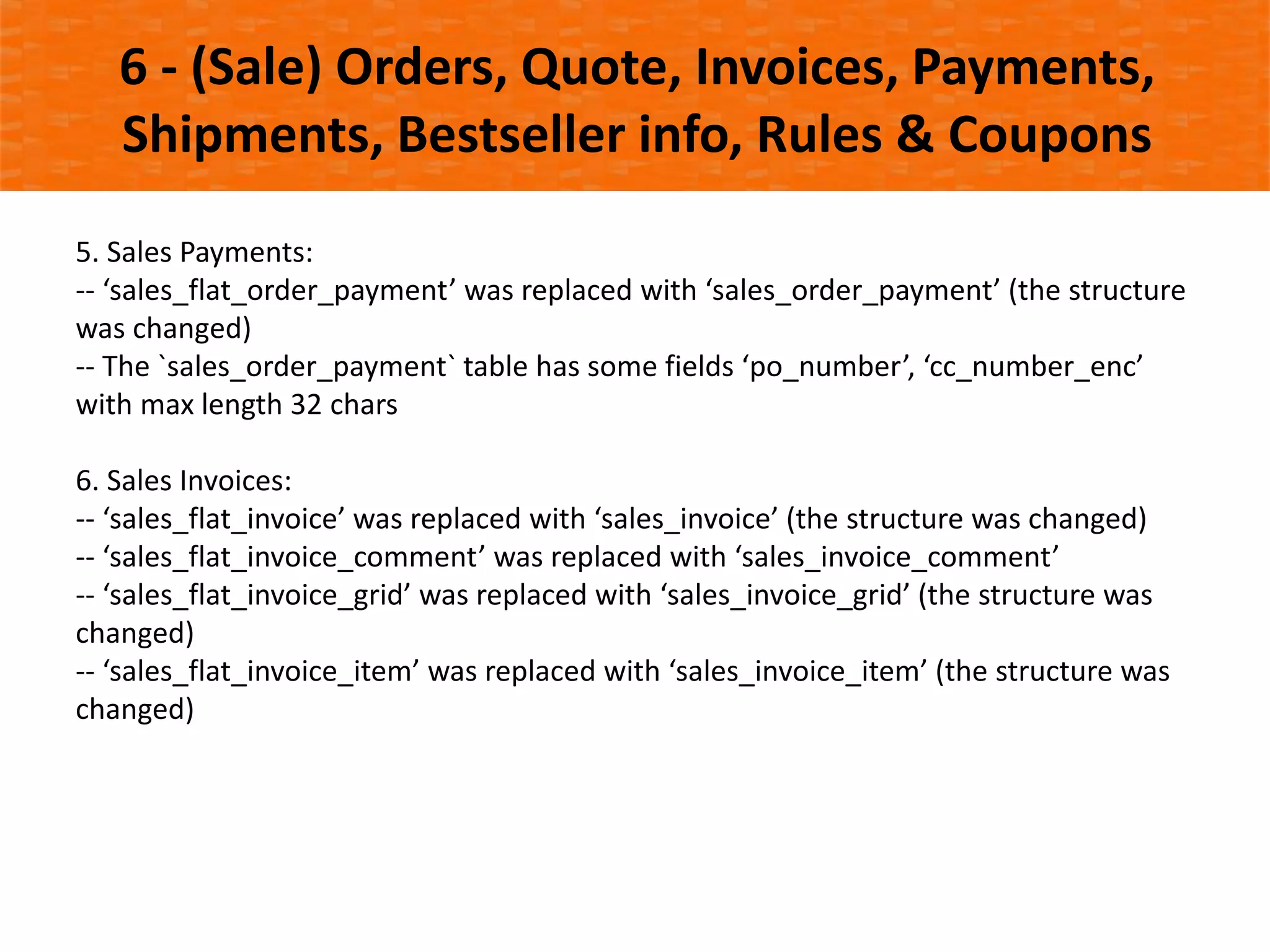

13. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons
5. Sales Payments:
-- ‘sales_flat_order_payment’ was replaced with ‘sales_order_payment’ (the structure
was changed)
-- The `sales_order_payment` table has some fields ‘po_number’, ‘cc_number_enc’
with max length 32 chars
6. Sales Invoices:
-- ‘sales_flat_invoice’ was replaced with ‘sales_invoice’ (the structure was changed)
-- ‘sales_flat_invoice_comment’ was replaced with ‘sales_invoice_comment’
-- ‘sales_flat_invoice_grid’ was replaced with ‘sales_invoice_grid’ (the structure was
changed)
-- ‘sales_flat_invoice_item’ was replaced with ‘sales_invoice_item’ (the structure was
changed)

14. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons

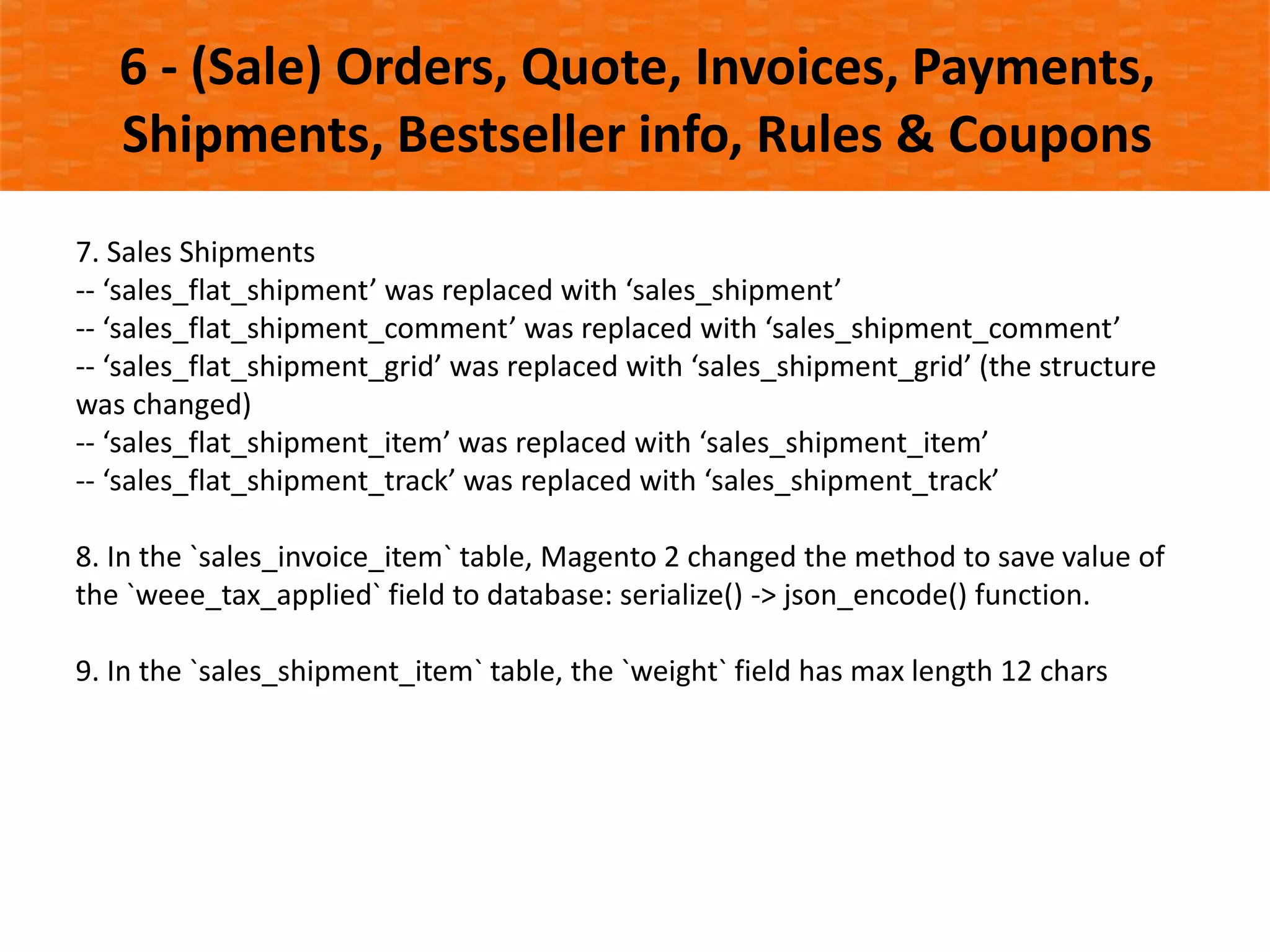

7. Sales Shipments
-- ‘sales_flat_shipment’ was replaced with ‘sales_shipment’
-- ‘sales_flat_shipment_comment’ was replaced with ‘sales_shipment_comment’
-- ‘sales_flat_shipment_grid’ was replaced with ‘sales_shipment_grid’ (the structure
was changed)
-- ‘sales_flat_shipment_item’ was replaced with ‘sales_shipment_item’
-- ‘sales_flat_shipment_track’ was replaced with ‘sales_shipment_track’
8. In the `sales_invoice_item` table, Magento 2 changed the method to save value of
the `weee_tax_applied` field to database: serialize() -> json_encode() function.
9. In the `sales_shipment_item` table, the `weight` field has max length 12 chars

15. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons

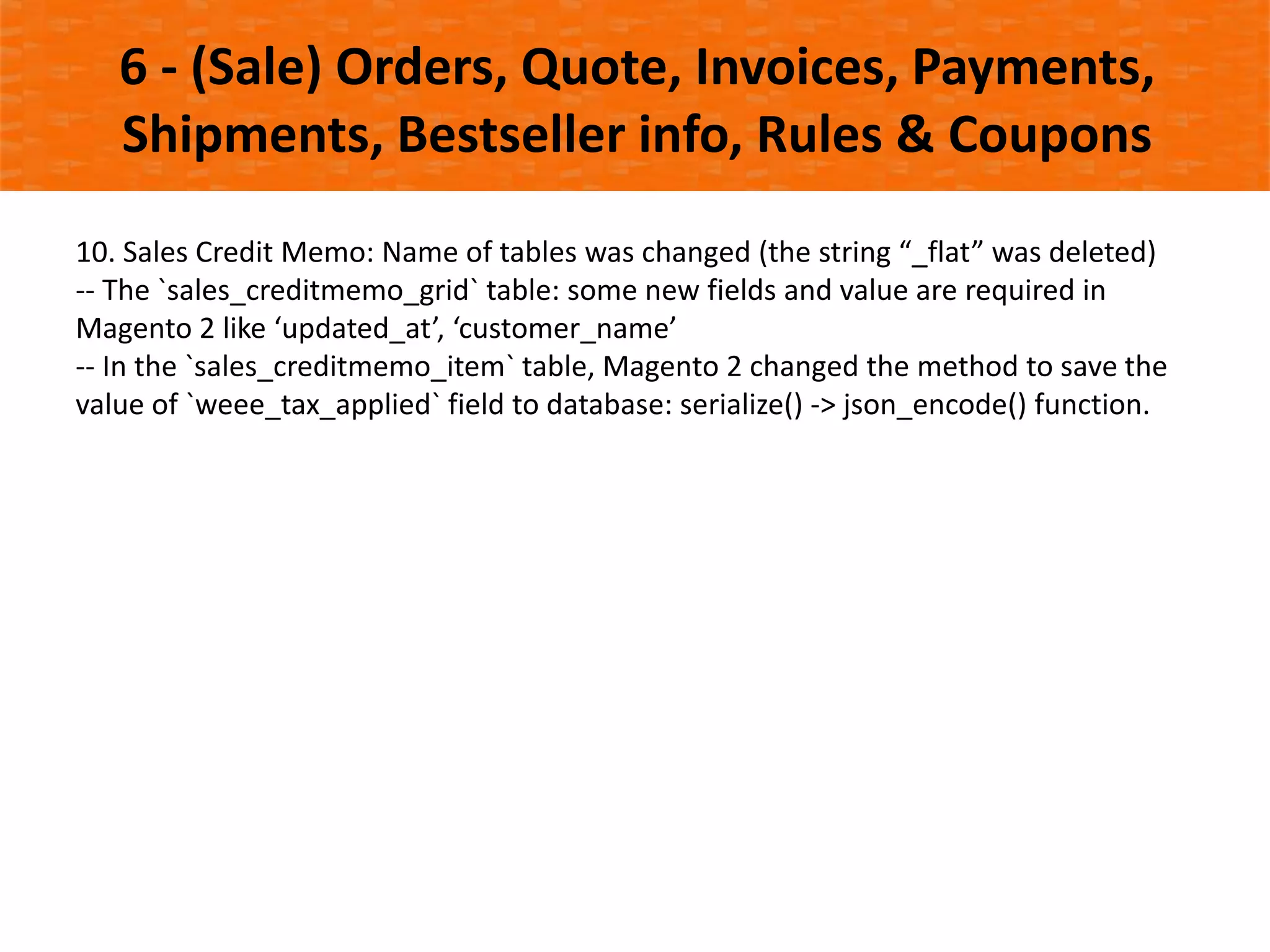

10. Sales Credit Memo: Name of tables was changed (the string “_flat” was deleted)
-- The `sales_creditmemo_grid` table: some new fields and value are required in
Magento 2 like ‘updated_at’, ‘customer_name’
-- In the `sales_creditmemo_item` table, Magento 2 changed the method to save the
value of `weee_tax_applied` field to database: serialize() -> json_encode() function.

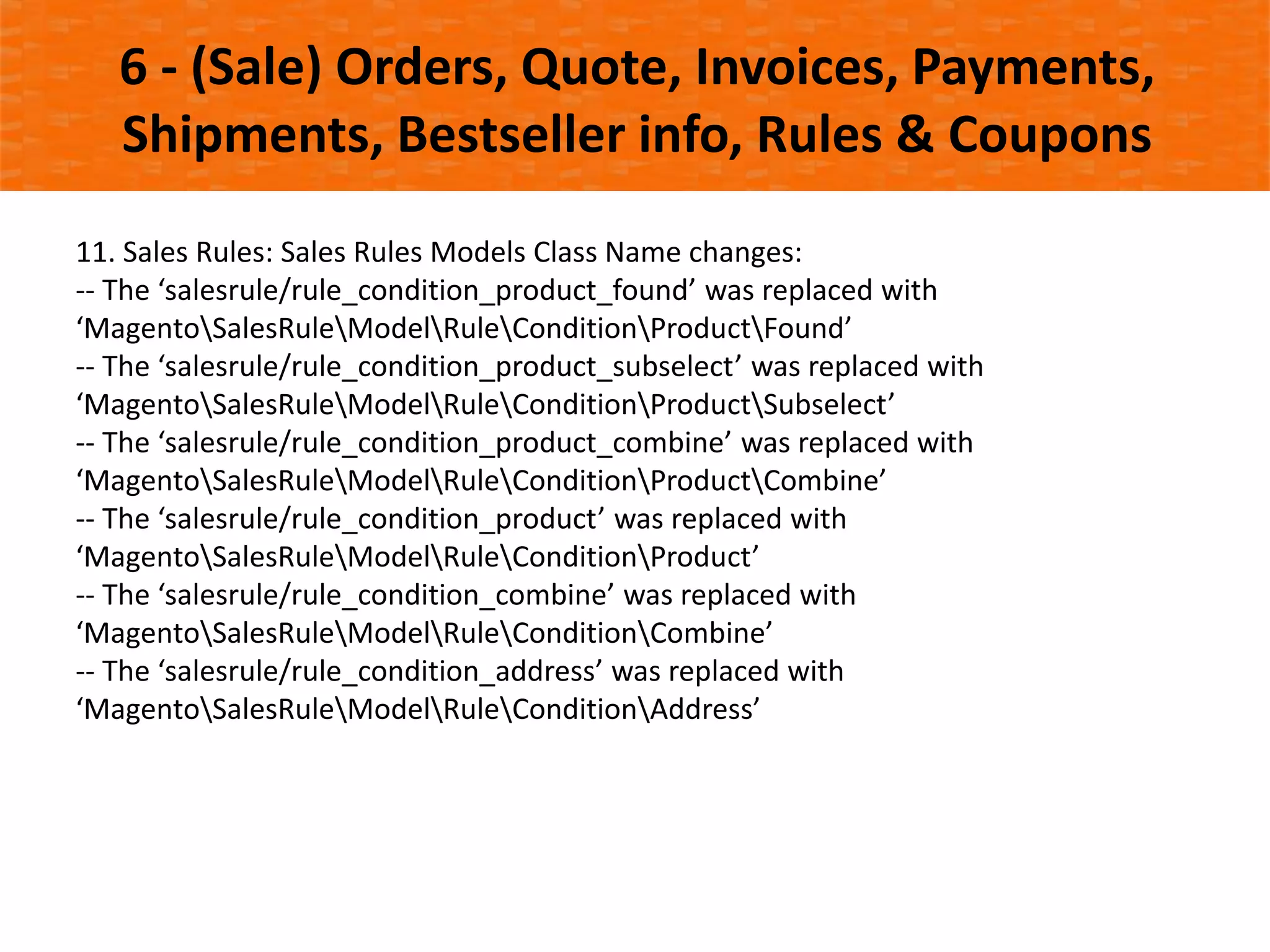

16. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons
11. Sales Rules: Sales Rules Models Class Name changes:
-- The ‘salesrule/rule_condition_product_found’ was replaced with
‘MagentoSalesRuleModelRuleConditionProductFound’
-- The ‘salesrule/rule_condition_product_subselect’ was replaced with
‘MagentoSalesRuleModelRuleConditionProductSubselect’
-- The ‘salesrule/rule_condition_product_combine’ was replaced with
‘MagentoSalesRuleModelRuleConditionProductCombine’
-- The ‘salesrule/rule_condition_product’ was replaced with
‘MagentoSalesRuleModelRuleConditionProduct’
-- The ‘salesrule/rule_condition_combine’ was replaced with
‘MagentoSalesRuleModelRuleConditionCombine’
-- The ‘salesrule/rule_condition_address’ was replaced with
‘MagentoSalesRuleModelRuleConditionAddress’

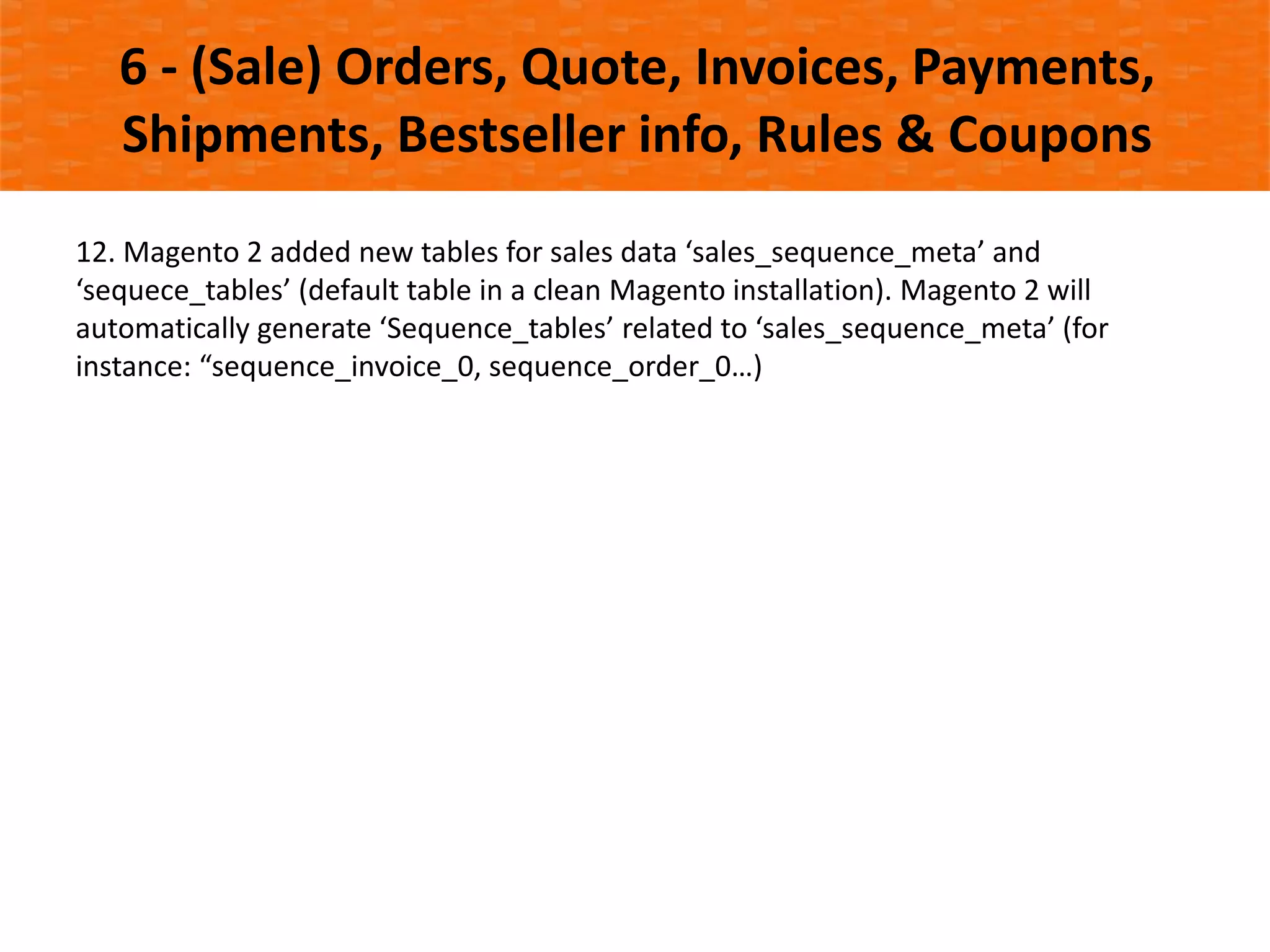

17. 6 - (Sale) Orders, Quote, Invoices, Payments,
Shipments, Bestseller info, Rules & Coupons
12. Magento 2 added new tables for sales data ‘sales_sequence_meta’ and
‘sequece_tables’ (default table in a clean Magento installation). Magento 2 will
automatically generate ‘Sequence_tables’ related to ‘sales_sequence_meta’ (for
instance: “sequence_invoice_0, sequence_order_0…)

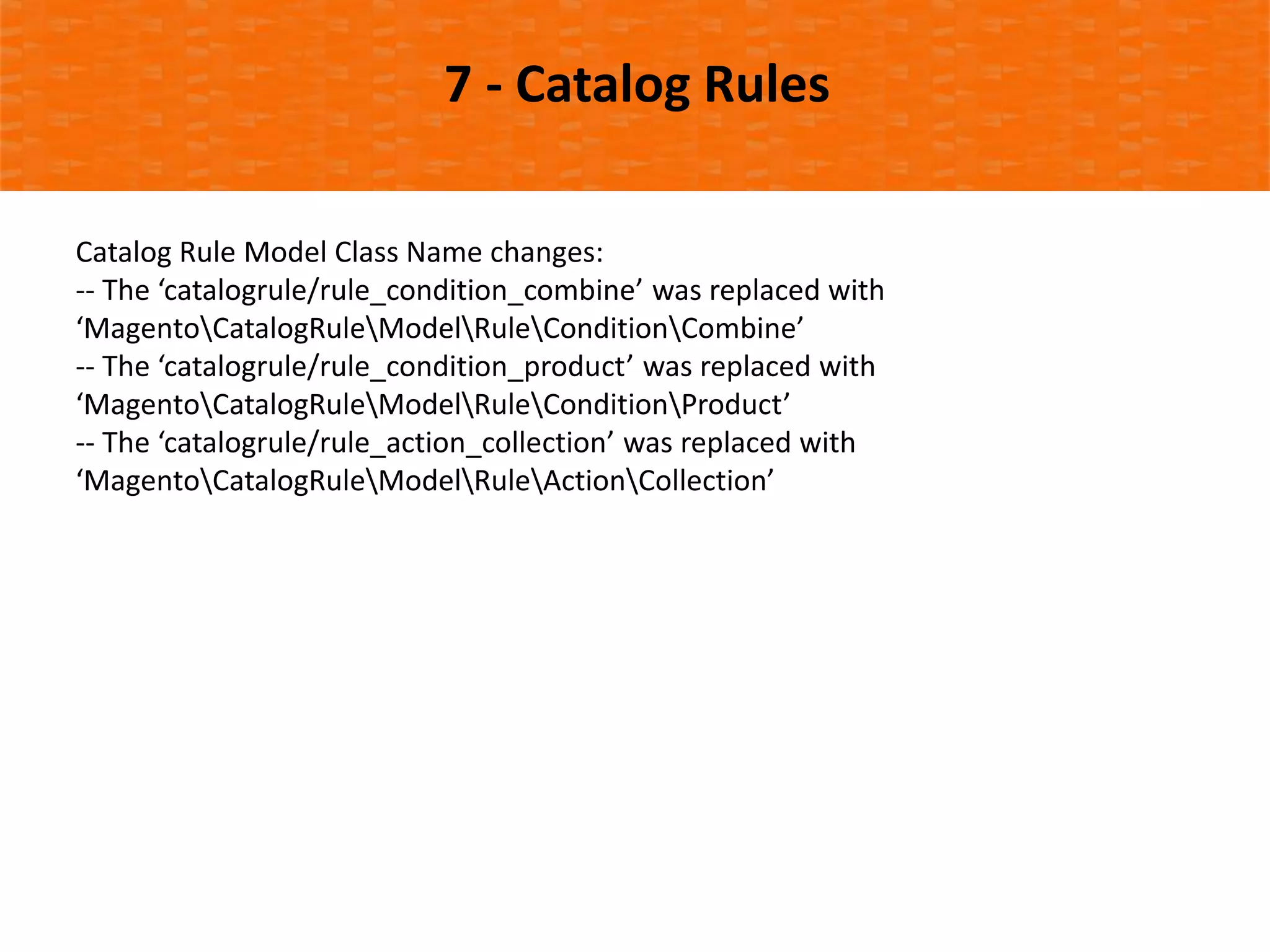

18. 7 - Catalog Rules
Catalog Rule Model Class Name changes:
-- The ‘catalogrule/rule_condition_combine’ was replaced with
‘MagentoCatalogRuleModelRuleConditionCombine’
-- The ‘catalogrule/rule_condition_product’ was replaced with
‘MagentoCatalogRuleModelRuleConditionProduct’
-- The ‘catalogrule/rule_action_collection’ was replaced with
‘MagentoCatalogRuleModelRuleActionCollection’

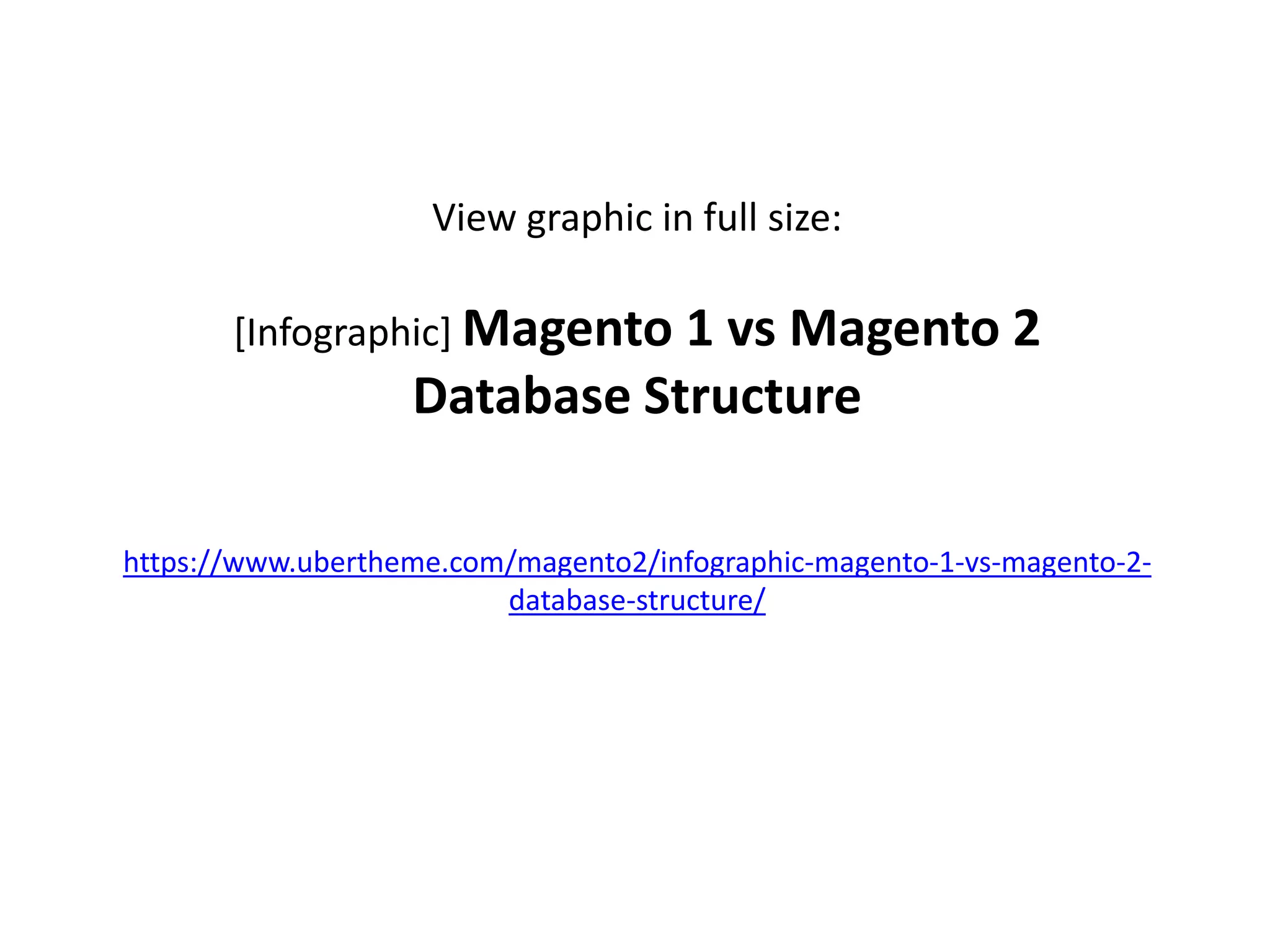

19. View graphic in full size:
[Infographic] Magento 1 vs Magento 2
Database Structure
https://www.ubertheme.com/magento2/infographic-magento-1-vs-magento-2-
database-structure/

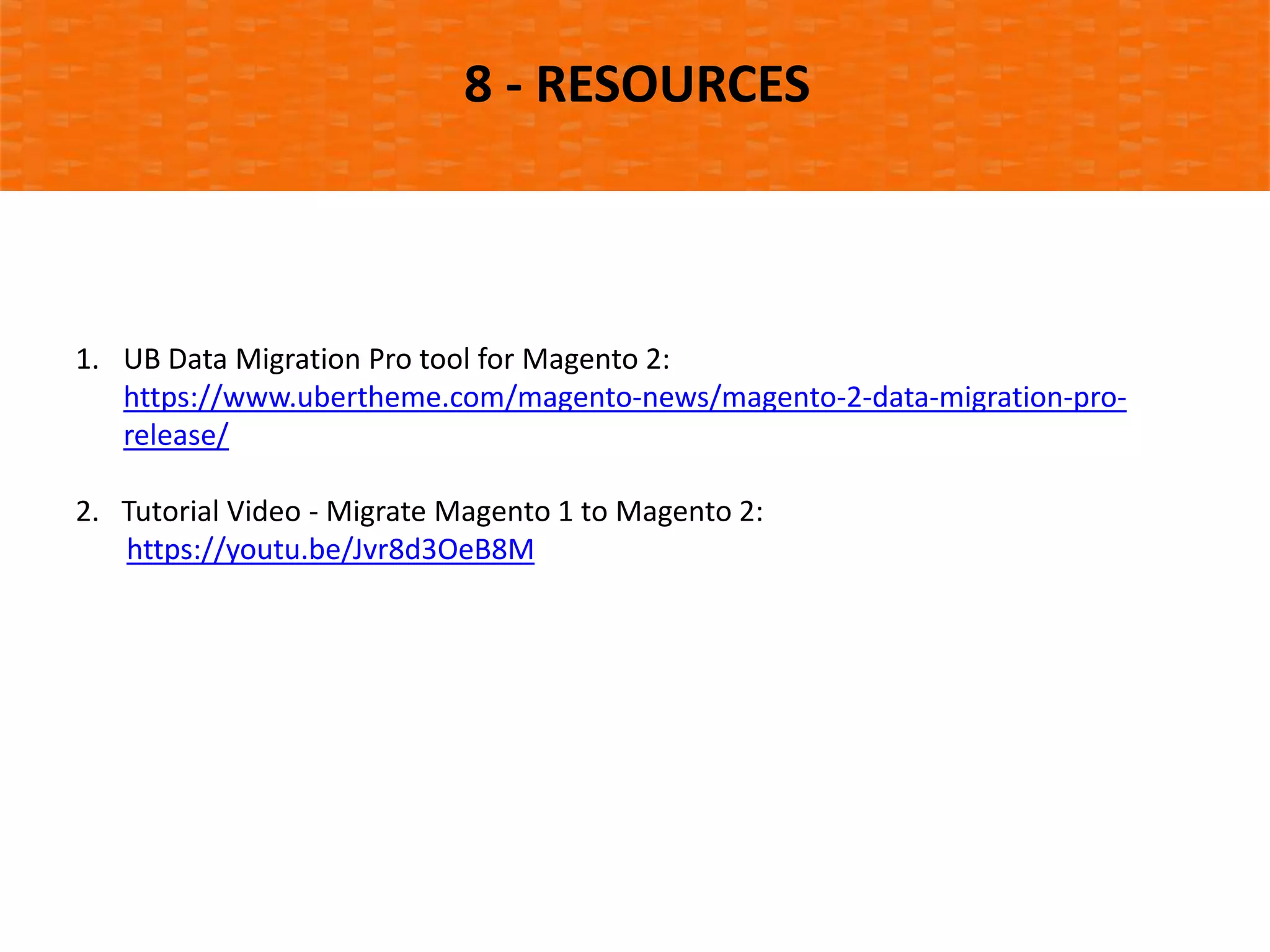

20. 8 - RESOURCES
1. UB Data Migration Pro tool for Magento 2:
https://www.ubertheme.com/magento-news/magento-2-data-migration-pro-
release/
2. Tutorial Video - Migrate Magento 1 to Magento 2:
https://youtu.be/Jvr8d3OeB8M

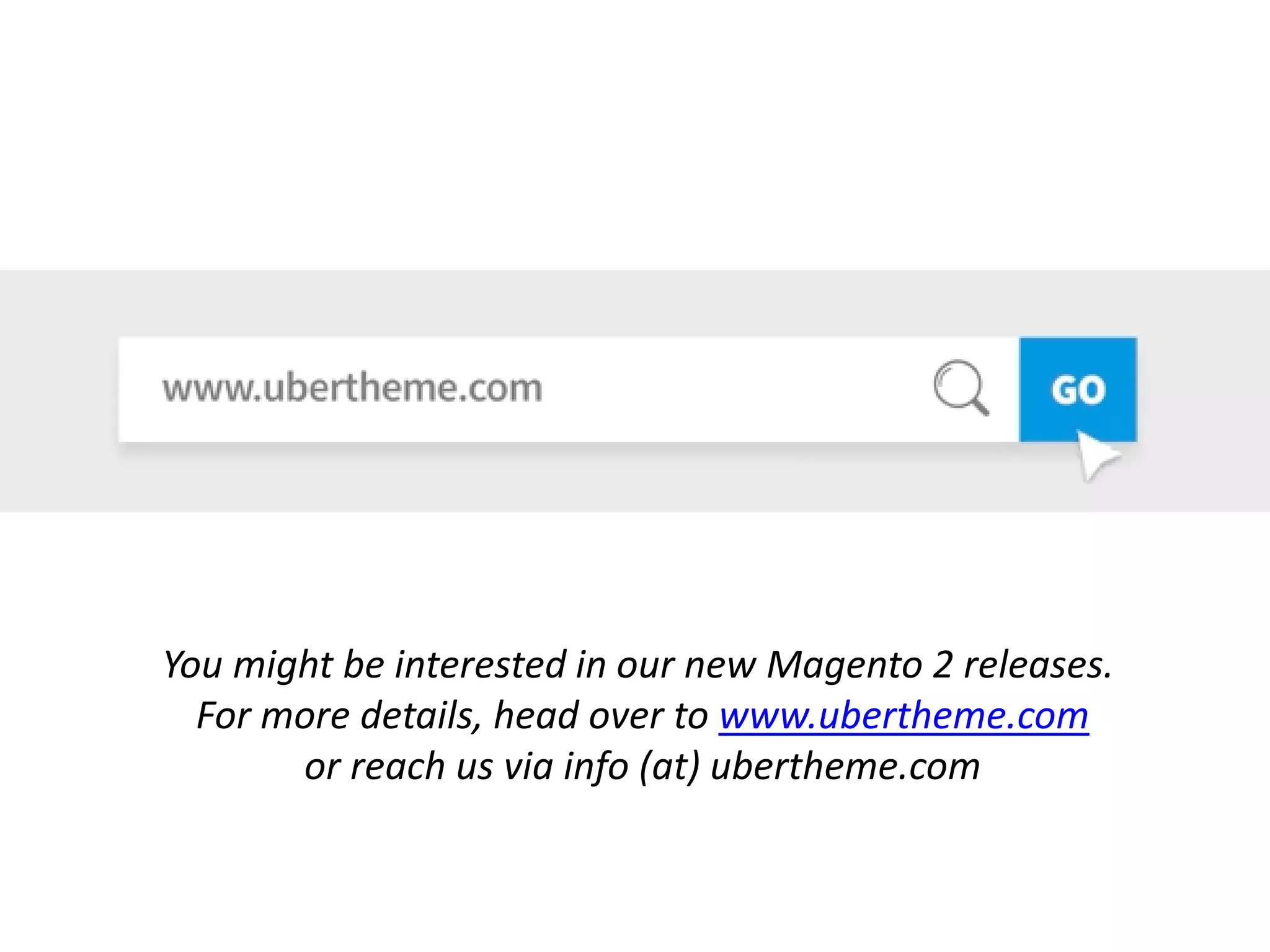

21. You might be interested in our new Magento 2 releases.
For more details, head over to www.ubertheme.com
or reach us via info (at) ubertheme.com
