Rapid and Reliable Developing with HTML5 & GWT. Manuel Carrasco Moñino proposes using modern web technologies like HTML5 and JavaScript to build rich internet applications that can run on desktops, mobile devices, and tablets from a single codebase. He suggests frameworks like Google Web Toolkit (GWT), Apache Cordova, PlayN, and NoSQL databases to develop cross-platform applications in a high-level language like Java. Carrasco provides examples of projects using these techniques and encourages contributing to open source.

1. Rapid and Reliable Developing with
HTML5 & GWT.
Manuel Carrasco Moñino
manolo@apache.org
http://twitter.com/dodotisMadrid Java User Group 4th Apr 2013

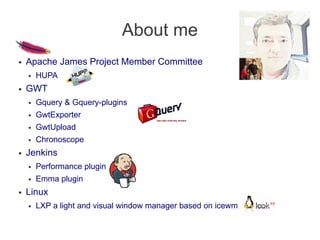

2. About me
● Apache James Project Member Committee
● HUPA
● GWT
● Gquery & Gquery-plugins
● GwtExporter
● GwtUpload
● Chronoscope
● Jenkins
● Performance plugin
● Emma plugin
● Linux
● LXP a light and visual window manager based on icewm

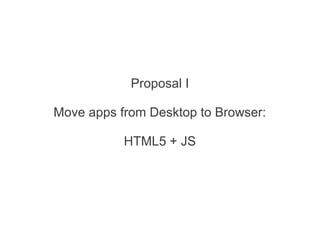

3. Proposal I
Move apps from Desktop to Browser:
HTML5 + JS

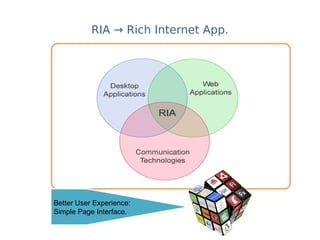

4. RIA → Rich Internet App.
Better User Experience:
Simple Page Interface.

5. History
1998 - 2002
2002 - 2004
2004 - 2008
2009 - 2012
Some technology demonstrations: desktop.com.
There are not commercial products
First products developed by pioneers: Backbase, GI, JackBe,
Laszlo Systems and Macromedia
Boon of AJAX technologies. 2007: Adobe Flex becomes
the dominant player in the RIA landscape
Companies have a strategic commitment
towards RIA and AJAX technologies.

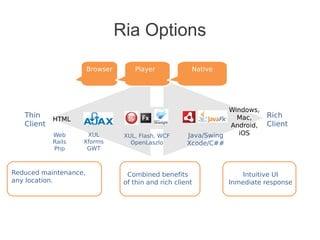

6. Ria Options
Browser Player Native
XUL
Xforms
GWT
XUL, Flash, WCF
OpenLaszlo
Java/Swing
Xcode/C##
Reduced maintenance,
any location.
Combined benefits
of thin and rich client
Intuitive UI
Inmediate response
Thin
Client
Rich
Client
HTML
Windows,
Mac,
Android,
iOSWeb
Rails
Php

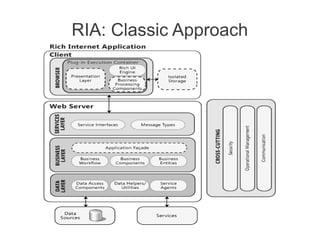

7. RIA: Classic Approach

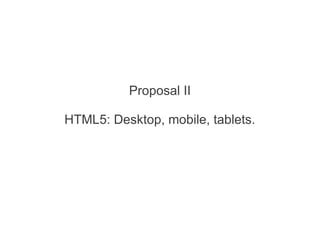

8. Proposal II
HTML5: Desktop, mobile, tablets.

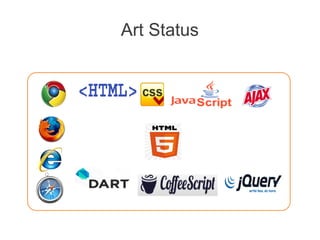

9. Art Status

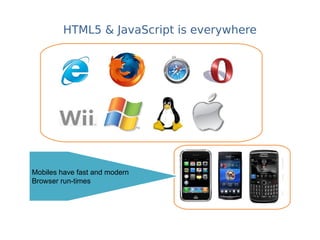

10. HTML5 & JavaScript is everywhere
Mobiles have fast and modern
Browser run-times

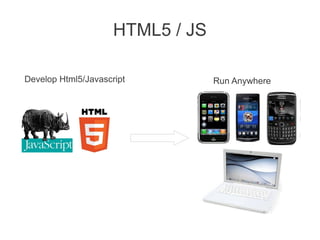

11. HTML5 / JS
Develop Html5/Javascript Run Anywhere

12. RIA: Pure HTML5/JS

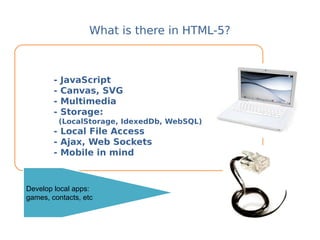

13. - JavaScript
- Canvas, SVG
- Multimedia
- Storage:
(LocalStorage, IdexedDb, WebSQL)
- Local File Access
- Ajax, Web Sockets
- Mobile in mind
Develop local apps:
games, contacts, etc
What is there in HTML-5?

14. Proposal III
Use HTML5 in your mobile native apps:
Apache cordova (a.k.a. Phonegap)

15. Apache Cordova (Phonegap)
●A framework for mobile applications that allows developers to implement
their projects using standard web technologies: HTML5, CSS3 and
Javascript
● It converts them into native applications for different mobile platforms with
access to much of the native API.

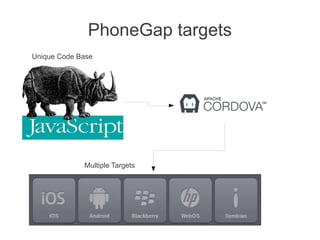

16. PhoneGap targets
Unique Code Base
Multiple Targets

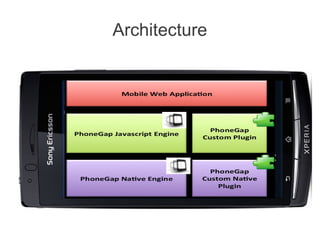

17. Architecture

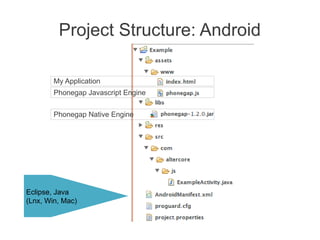

18. Project Structure: Android
My Application
Phonegap Native Engine
Phonegap Javascript Engine
Eclipse, Java
(Lnx, Win, Mac)

19. Project Structure: IOS
My Application
Phonegap Native Engine
Phonegap Javascript Engine
Xcode: Objetive C
(Mac)

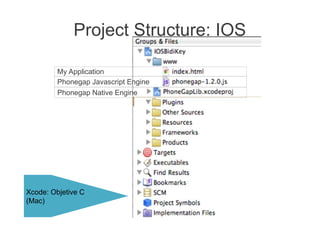

20. Project Structure: IOS
My Application
Phonegap Native Engine
Phonegap Javascript Engine
Xcode: Objetive C
(Mac)

21. Proposal IV
Use a high level language Java:
GWT (Google Web Toolkit)

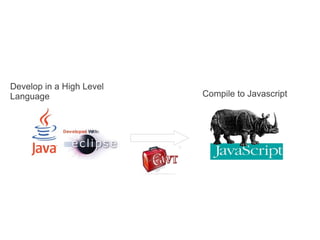

22. Develop in a High Level
Language Compile to Javascript

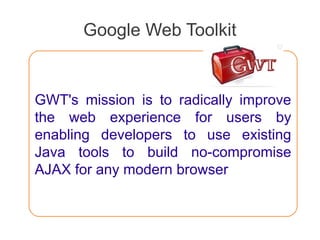

23. Google Web Toolkit
GWT's mission is to radically improve
the web experience for users by
enabling developers to use existing
Java tools to build no-compromise
AJAX for any modern browser

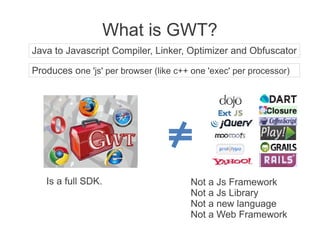

24. What is GWT?
Is a full SDK. Not a Js Framework
Not a Js Library
Not a new language
Not a Web Framework
Java to Javascript Compiler, Linker, Optimizer and Obfuscator
Produces one 'js' per browser (like c++ one 'exec' per processor)

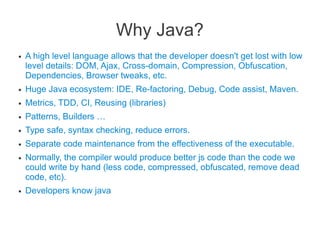

25. Why Java?
● A high level language allows that the developer doesn't get lost with low
level details: DOM, Ajax, Cross-domain, Compression, Obfuscation,
Dependencies, Browser tweaks, etc.
● Huge Java ecosystem: IDE, Re-factoring, Debug, Code assist, Maven.
● Metrics, TDD, CI, Reusing (libraries)
● Patterns, Builders …
● Type safe, syntax checking, reduce errors.
● Separate code maintenance from the effectiveness of the executable.
● Normally, the compiler would produce better js code than the code we
could write by hand (less code, compressed, obfuscated, remove dead
code, etc).
● Developers know java

26. Java Server
Side
Java Client
Side
Java Code (IDE)
GWT server
libs RPC/RF
GWT development
Debug/Hosted/Test
GWT Compiler
JRE Emulation
Browser libs
Widgets
Test Runner FF/IE/Ch-Plugin
Java HTTP
Server
J-Byte Code
3ª Party
Server libs
Browser
Any HTTP Server
(php, ruby, ...)
JavaScript.
Bundles (css, sprite).
3ª Party
Client libs
Toolkit (SDK)
JSON/XML/HTML/TXT
RPC/RF
JSON/XML/HTML/TXT
GWT Eclipse
Plugin
Mobile

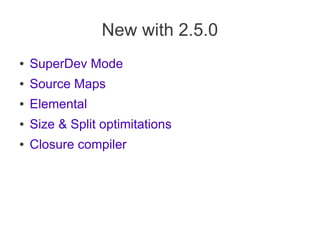

27. New with 2.5.0
● SuperDev Mode
● Source Maps
● Elemental
● Size & Split optimitations
● Closure compiler

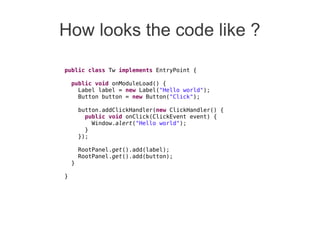

28. How looks the code like ?
public class Tw implements EntryPoint {
public void onModuleLoad() {
Label label = new Label("Hello world");
Button button = new Button("Click");
button.addClickHandler(new ClickHandler() {
public void onClick(ClickEvent event) {
Window.alert("Hello world");
}
});
RootPanel.get().add(label);
RootPanel.get().add(button);
}
}

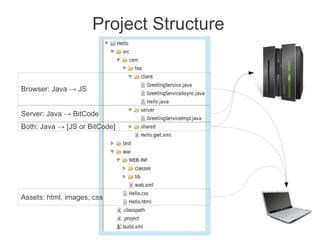

29. Project Structure
Browser: Java → JS
Both: Java → [JS or BitCode]
Server: Java → BitCode
Assets: html, images, css

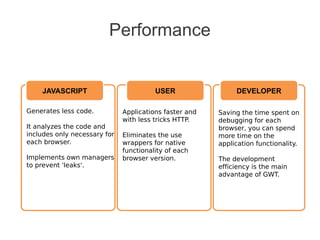

30. Performance
Generates less code.
It analyzes the code and
includes only necessary for
each browser.
Implements own managers
to prevent 'leaks'.
Applications faster and
with less tricks HTTP.
Eliminates the use
wrappers for native
functionality of each
browser version.
Saving the time spent on
debugging for each
browser, you can spend
more time on the
application functionality.
The development
efficiency is the main
advantage of GWT.
JAVASCRIPT USER DEVELOPER

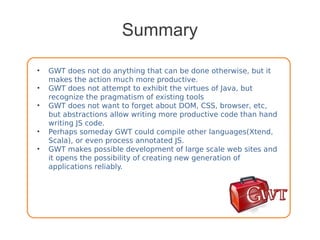

31. Summary
• GWT does not do anything that can be done otherwise, but it
makes the action much more productive.
• GWT does not attempt to exhibit the virtues of Java, but
recognize the pragmatism of existing tools
• GWT does not want to forget about DOM, CSS, browser, etc,
but abstractions allow writing more productive code than hand
writing JS code.
• Perhaps someday GWT could compile other languages(Xtend,
Scala), or even process annotated JS.
• GWT makes possible development of large scale web sites and
it opens the possibility of creating new generation of
applications reliably.

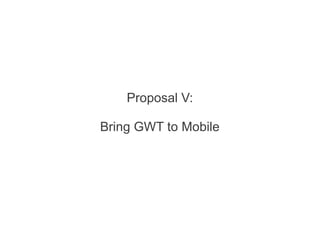

32. Proposal V:
Bring GWT to Mobile

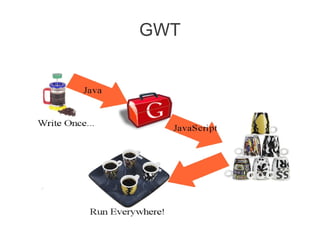

33. GWT

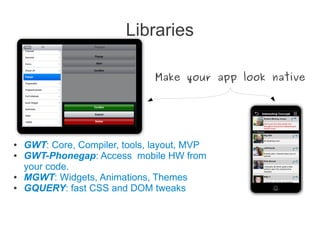

34. Libraries
● GWT: Core, Compiler, tools, layout, MVP
● GWT-Phonegap: Access mobile HW from
your code.
● MGWT: Widgets, Animations, Themes
● GQUERY: fast CSS and DOM tweaks
Make your app look native

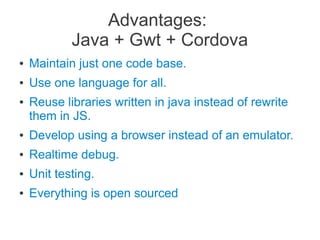

35. Advantages:
Java + Gwt + Cordova
● Maintain just one code base.
● Use one language for all.
● Reuse libraries written in java instead of rewrite
them in JS.
● Develop using a browser instead of an emulator.
● Realtime debug.
● Unit testing.
● Everything is open sourced

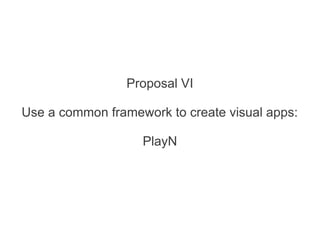

36. Proposal VI
Use a common framework to create visual apps:
PlayN

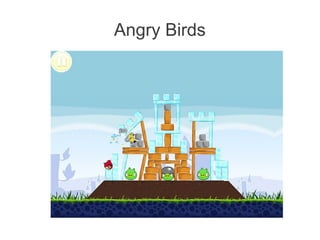

37. Angry Birds

38. Game problem

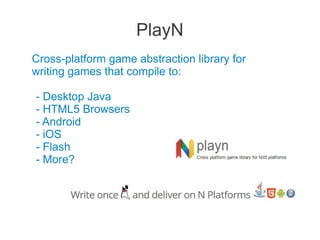

39. PlayN
Cross-platform game abstraction library for
writing games that compile to:
- Desktop Java
- HTML5 Browsers
- Android
- iOS
- Flash
- More?

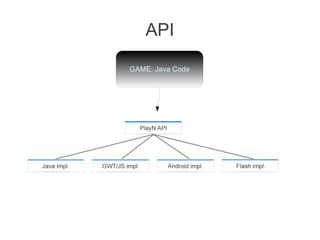

40. API
GAME: Java Code

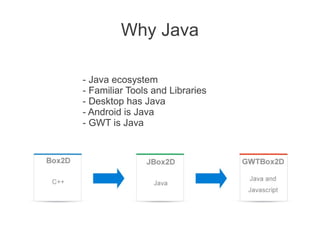

41. Why Java
- Java ecosystem
- Familiar Tools and Libraries
- Desktop has Java
- Android is Java
- GWT is Java

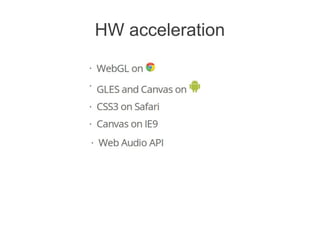

42. HW acceleration

43. The same code for all platforms

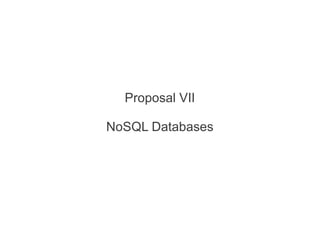

44. Proposal VII
NoSQL Databases

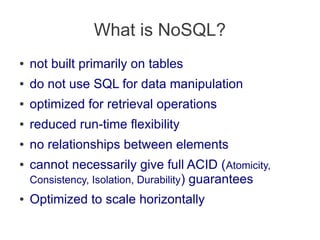

45. What is NoSQL?
● not built primarily on tables
● do not use SQL for data manipulation
● optimized for retrieval operations
● reduced run-time flexibility
● no relationships between elements
● cannot necessarily give full ACID (Atomicity,
Consistency, Isolation, Durability) guarantees
● Optimized to scale horizontally

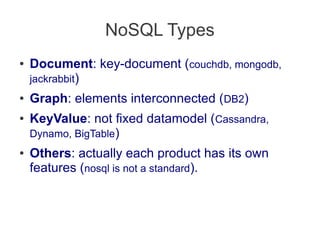

46. NoSQL Types
● Document: key-document (couchdb, mongodb,
jackrabbit)
● Graph: elements interconnected (DB2)
● KeyValue: not fixed datamodel (Cassandra,
Dynamo, BigTable)
● Others: actually each product has its own
features (nosql is not a standard).

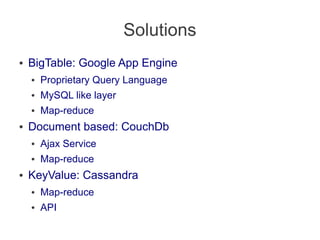

47. Solutions
● BigTable: Google App Engine
● Proprietary Query Language
● MySQL like layer
● Map-reduce
● Document based: CouchDb
● Ajax Service
● Map-reduce
● KeyValue: Cassandra
● Map-reduce
● API

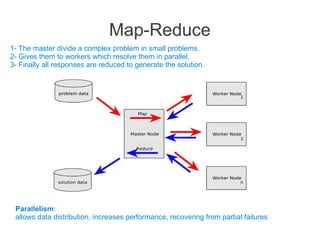

48. Map-Reduce
Parallelism:
allows data distribution, increases performance, recovering from partial failures
1- The master divide a complex problem in small problems.
2- Gives them to workers which resolve them in parallel.
3- Finally all responses are reduced to generate the solution.

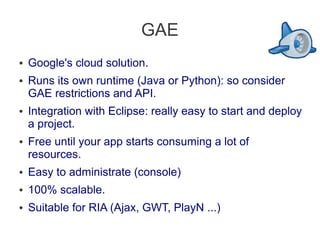

49. GAE
● Google's cloud solution.
● Runs its own runtime (Java or Python): so consider
GAE restrictions and API.
● Integration with Eclipse: really easy to start and deploy
a project.
● Free until your app starts consuming a lot of
resources.
● Easy to administrate (console)
● 100% scalable.
● Suitable for RIA (Ajax, GWT, PlayN ...)

50. CouchDB
● Light weight database. Developed by Apache in Erlang.
● Json oriented: documents are json, dialog is json.
● Js map-reduce
● HTTP service (not any proprietary protocol)
● Replica/Cluster out-of-the-box
● High performance and scalability
● Web administration Panel
● Ideal for Ajax apps
● Java Api to access it in a JPA like way
● Push to client mechanism

51. Real Case: Talkwheel

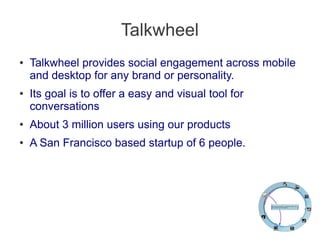

52. Talkwheel
● Talkwheel provides social engagement across mobile
and desktop for any brand or personality.
● Its goal is to offer a easy and visual tool for
conversations
● About 3 million users using our products
● A San Francisco based startup of 6 people.

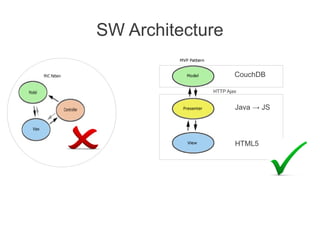

53. SW Architecture
CouchDB
HTTP Ajax
Java → JS
HTML5

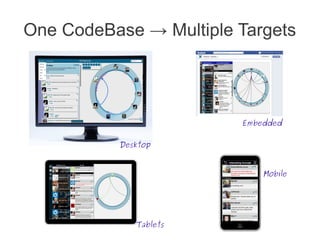

54. One CodeBase → Multiple Targets
Desktop
Embedded
Tablets
Mobile

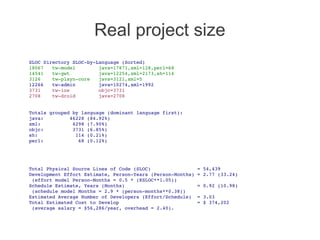

55. Real project size
SLOC Directory SLOC­by­Language (Sorted)
18067 tw­model java=17871,xml=128,perl=68
14541 tw­gwt java=12254,xml=2173,sh=114
3126 tw­playn­core java=3121,xml=5
12266 tw­admin java=10274,xml=1992
3731 tw­ios objc=3731
2708 tw­droid java=2708
Totals grouped by language (dominant language first):
java: 46228 (84.92%)
xml: 4298 (7.90%)
objc: 3731 (6.85%)
sh: 114 (0.21%)
perl: 68 (0.12%)
Total Physical Source Lines of Code (SLOC) = 54,439
Development Effort Estimate, Person­Years (Person­Months) = 2.77 (33.24)
(effort model Person­Months = 0.5 * (KSLOC**1.05))
Schedule Estimate, Years (Months) = 0.92 (10.98)
(schedule model Months = 2.9 * (person­months**0.38))
Estimated Average Number of Developers (Effort/Schedule) = 3.03
Total Estimated Cost to Develop = $ 374,202
(average salary = $56,286/year, overhead = 2.40).

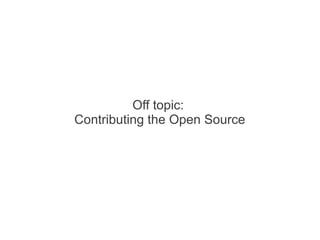

56. Off topic:
Contributing the Open Source

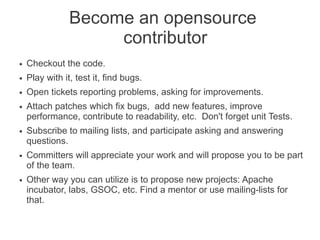

57. Become an opensource
contributor
● Checkout the code.
● Play with it, test it, find bugs.
● Open tickets reporting problems, asking for improvements.
● Attach patches which fix bugs, add new features, improve
performance, contribute to readability, etc. Don't forget unit Tests.
● Subscribe to mailing lists, and participate asking and answering
questions.
● Committers will appreciate your work and will propose you to be part
of the team.
● Other way you can utilize is to propose new projects: Apache
incubator, labs, GSOC, etc. Find a mentor or use mailing-lists for
that.
