This CloudxLab Spark MLlib tutorial helps you to understand Spark MLlib in detail. Below are the topics covered in this tutorial:
1) Introduction to Machine Learning
2) Applications of Machine Learning
3) Machine Learning - Types & Tools
4) Introduction to Spark MLlib
5) Movie Lens Recommendation - Collaborative Filtering in Spark MLlib
2. Spark - MLlib

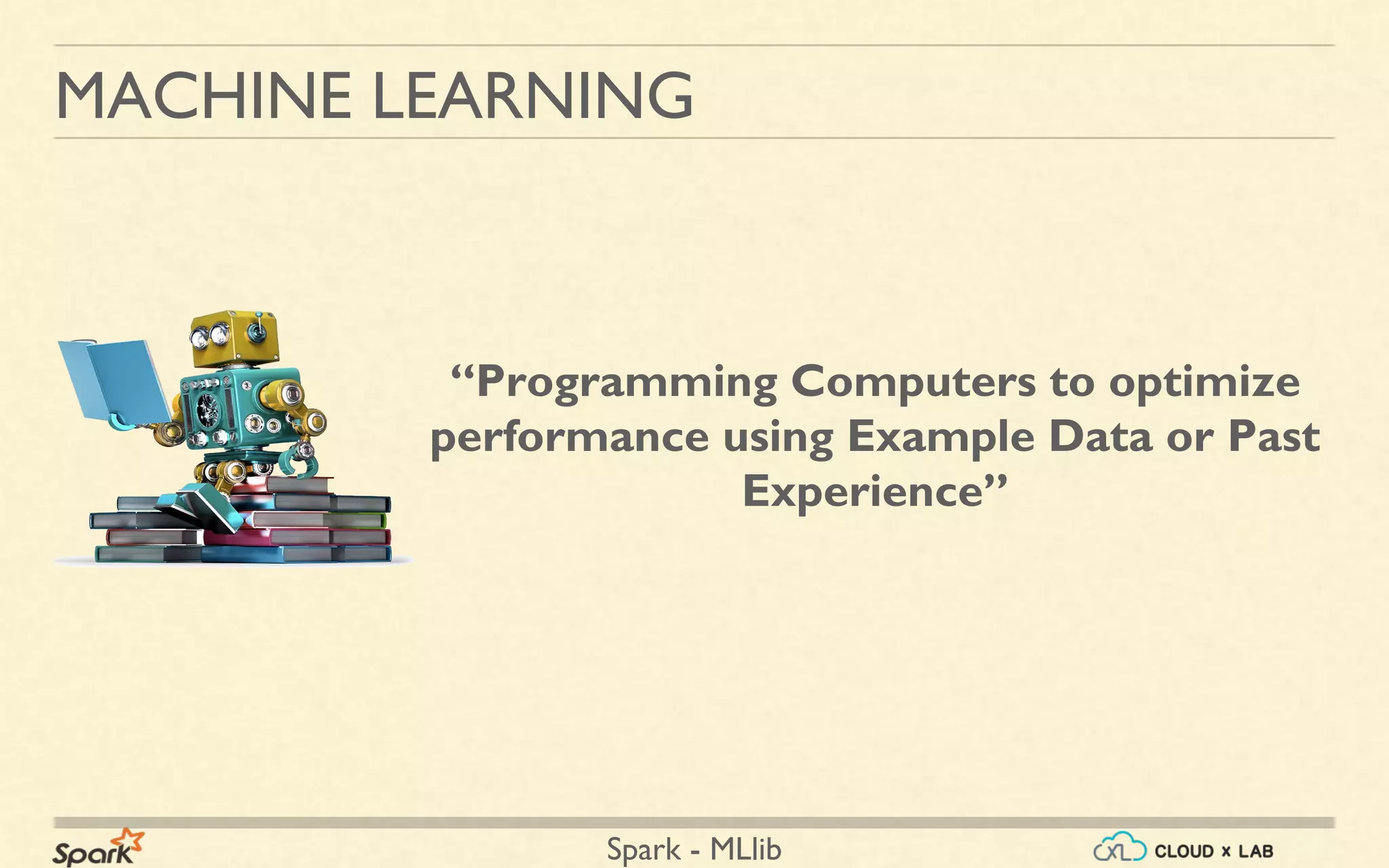

MACHINE LEARNING
“Programming Computers to optimize
performance using Example Data or Past
Experience”
3. Spark - MLlib

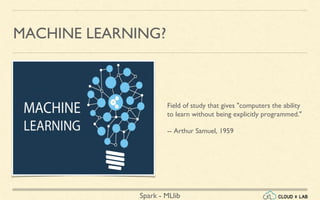

MACHINE LEARNING?
Field of study that gives "computers the ability
to learn without being explicitly programmed."
-- Arthur Samuel, 1959
4. Spark - MLlib

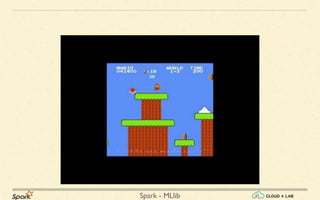

HAVE YOU PLAYED MARIO?
How much time did it take you to learn & win the princess?

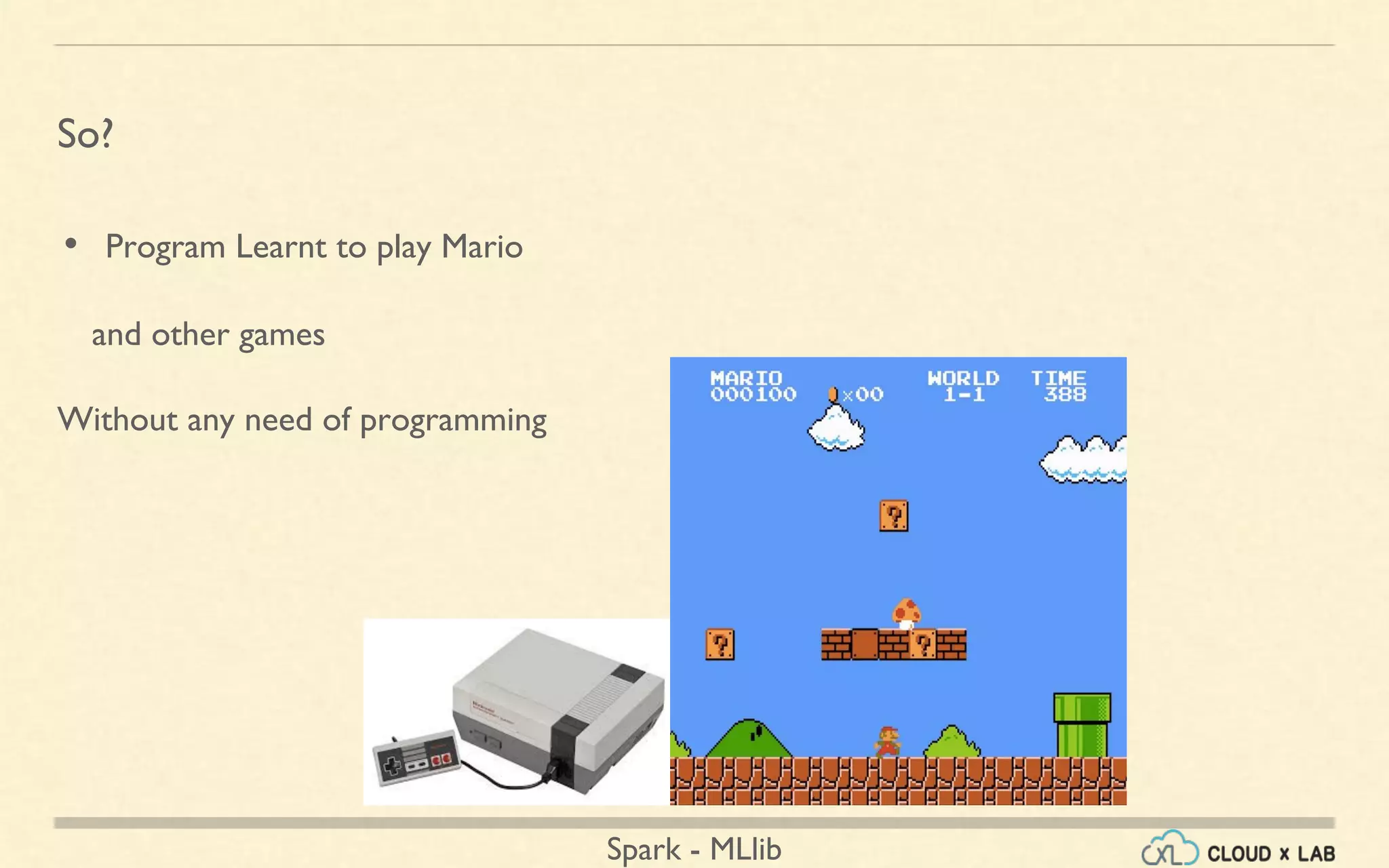

8. Spark - MLlib
• Program Learnt to play Mario
and other games
Without any need of programming
So?
9. Spark - MLlib
1. Write new rules as per the game
2. Just hook it to new game and let it play for a while

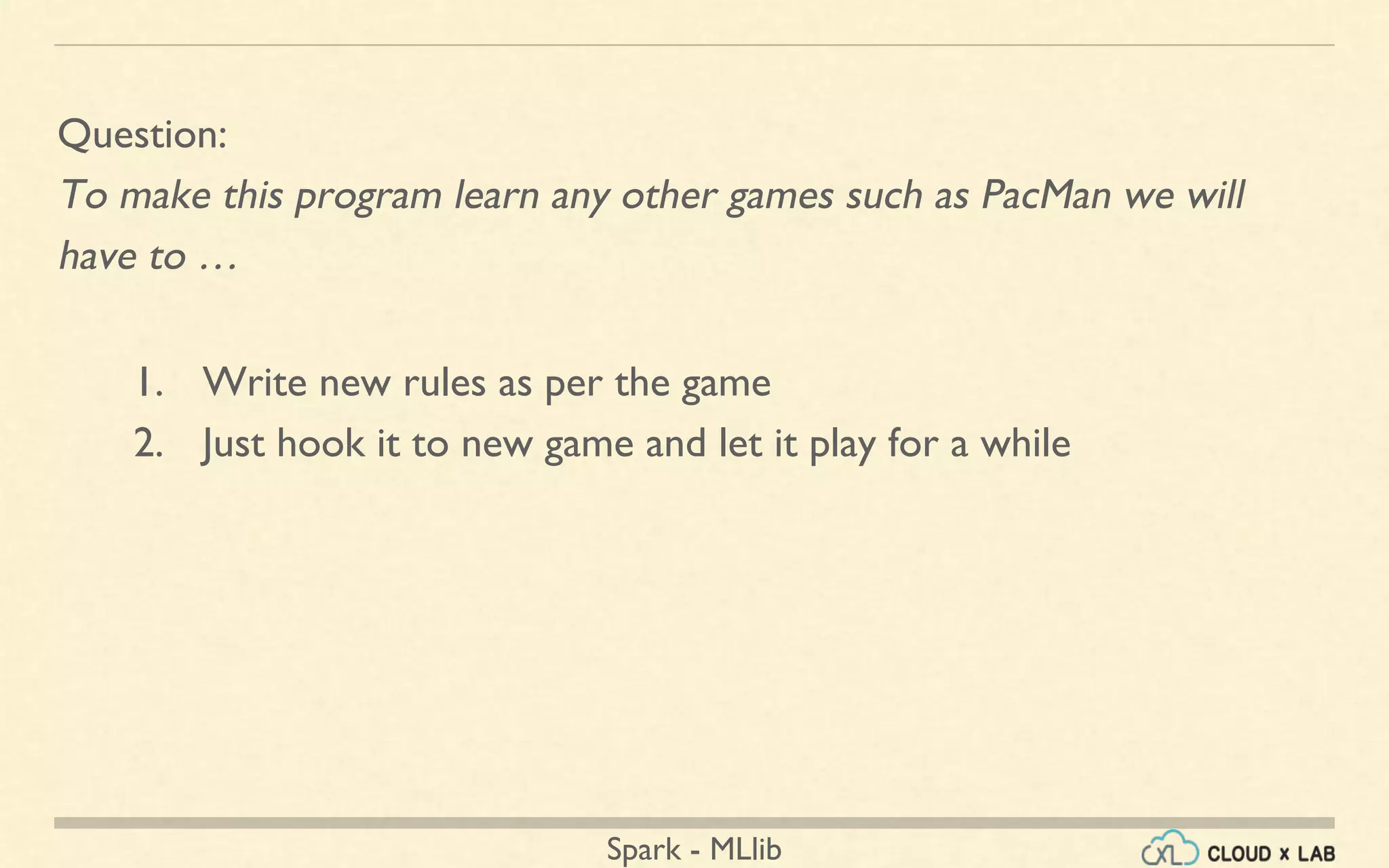

Question:
To make this program learn any other games such as PacMan we will
have to …

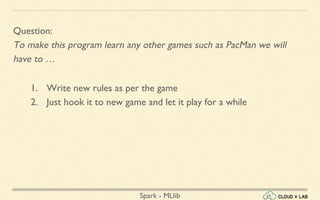

10. Spark - MLlib
1. Write new rules as per the game
2. Just hook it to new game and let it play for a while

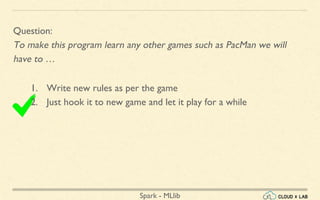

Question:
To make this program learn any other games such as PacMan we will
have to …
11. Spark - MLlib

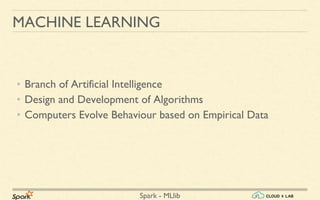

MACHINE LEARNING
• Branch of Artificial Intelligence
• Design and Development of Algorithms
• Computers Evolve Behaviour based on Empirical Data

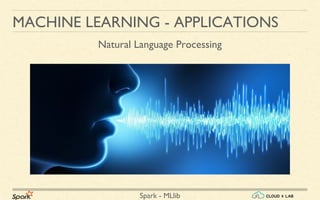

17. Spark - MLlib

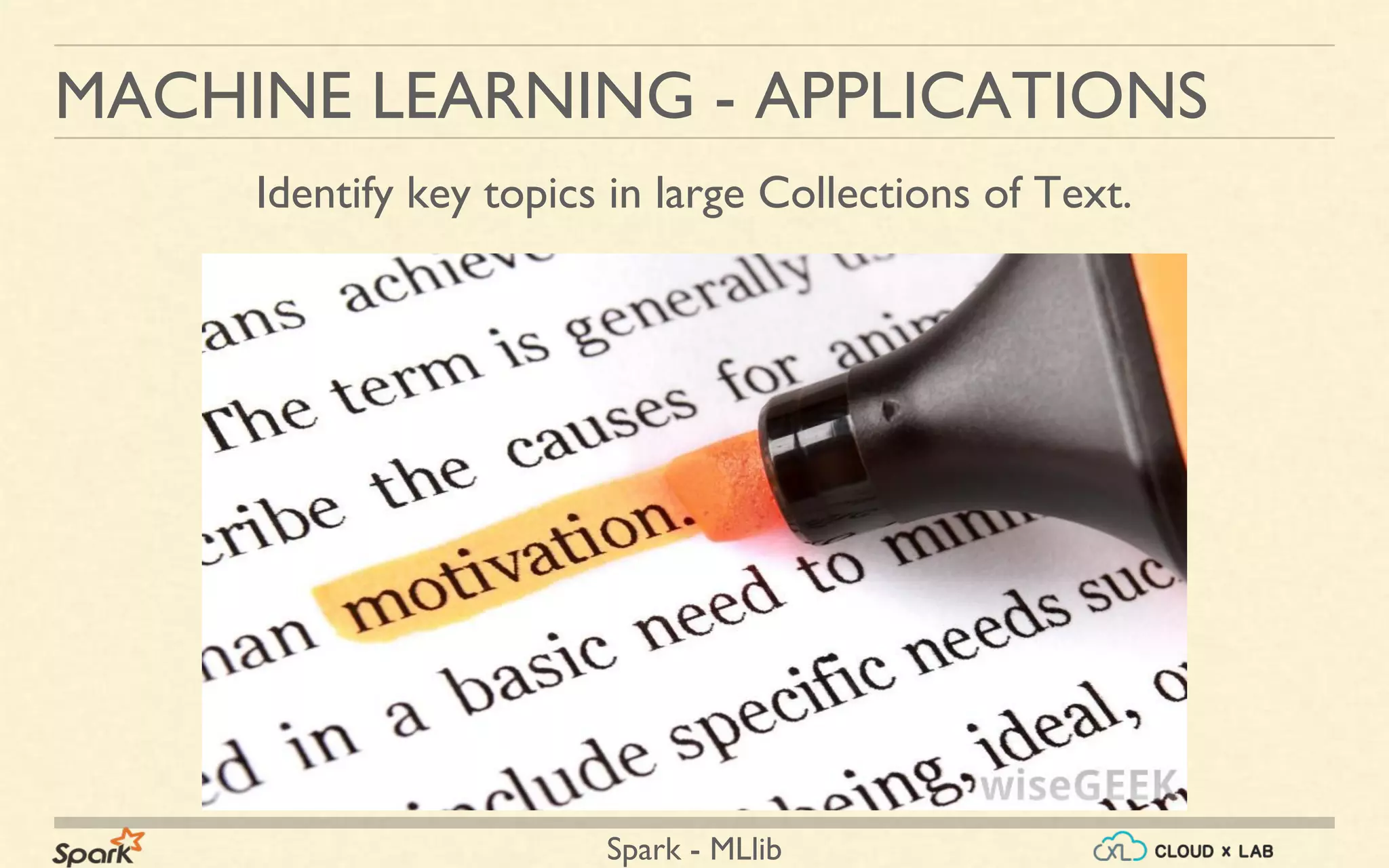

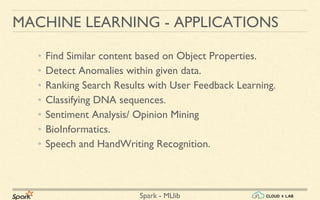

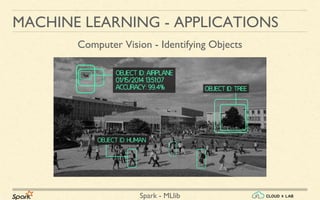

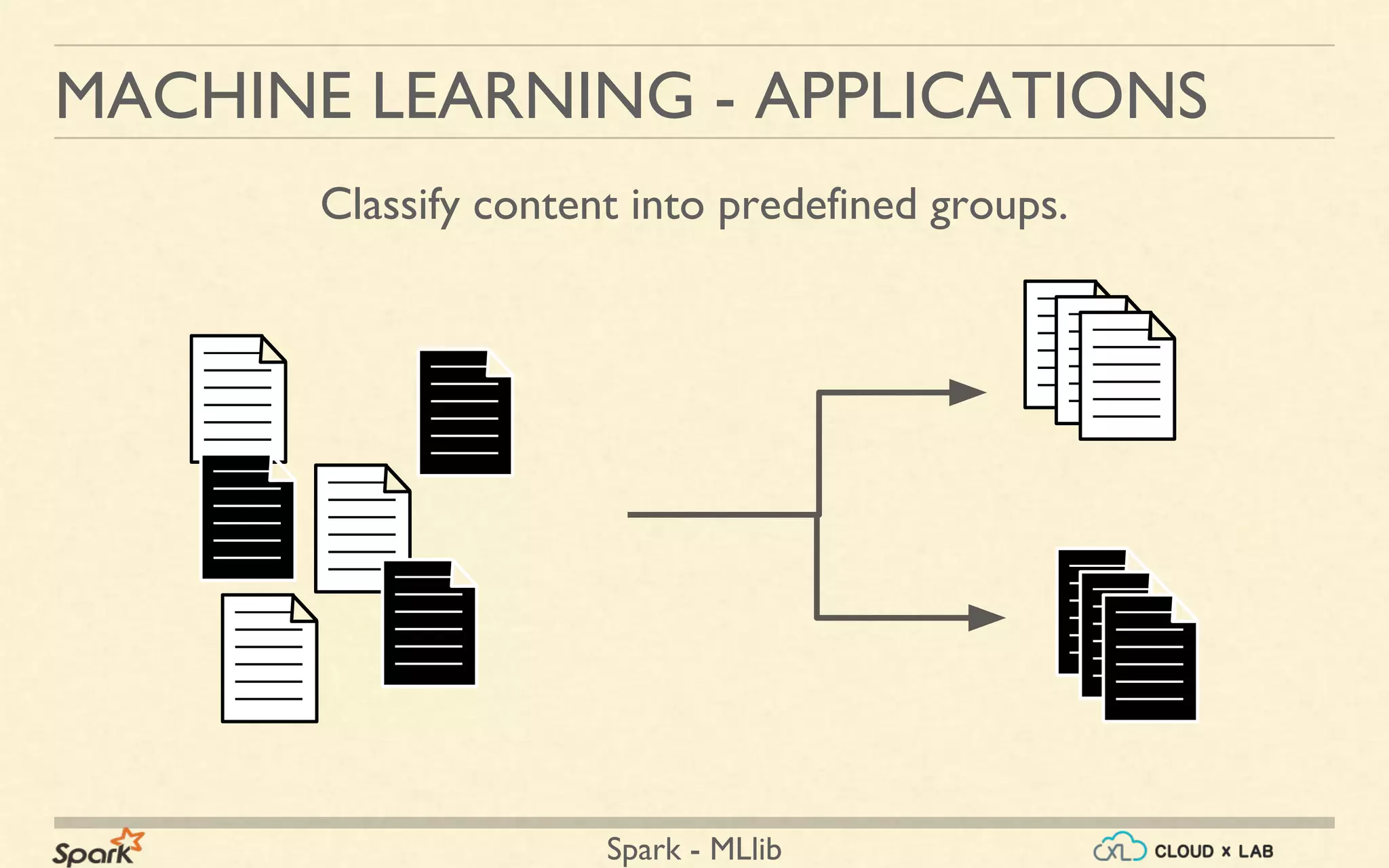

MACHINE LEARNING - APPLICATIONS
• Find Similar content based on Object Properties.
• Detect Anomalies within given data.
• Ranking Search Results with User Feedback Learning.
• Classifying DNA sequences.
• Sentiment Analysis/ Opinion Mining
• BioInformatics.
• Speech and HandWriting Recognition.
18. Spark - MLlib

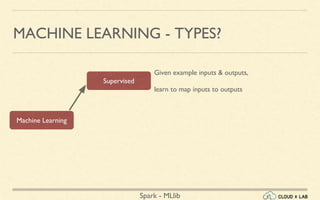

MACHINE LEARNING - TYPES?
Machine Learning
Supervised
Given example inputs & outputs,
learn to map inputs to outputs

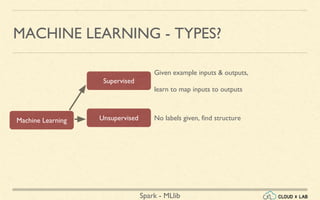

19. Spark - MLlib
MACHINE LEARNING - TYPES?
Machine Learning
Supervised
Unsupervised
Given example inputs & outputs,
learn to map inputs to outputs
No labels given, find structure
20. Spark - MLlib

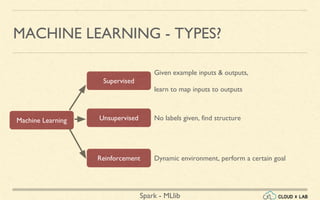

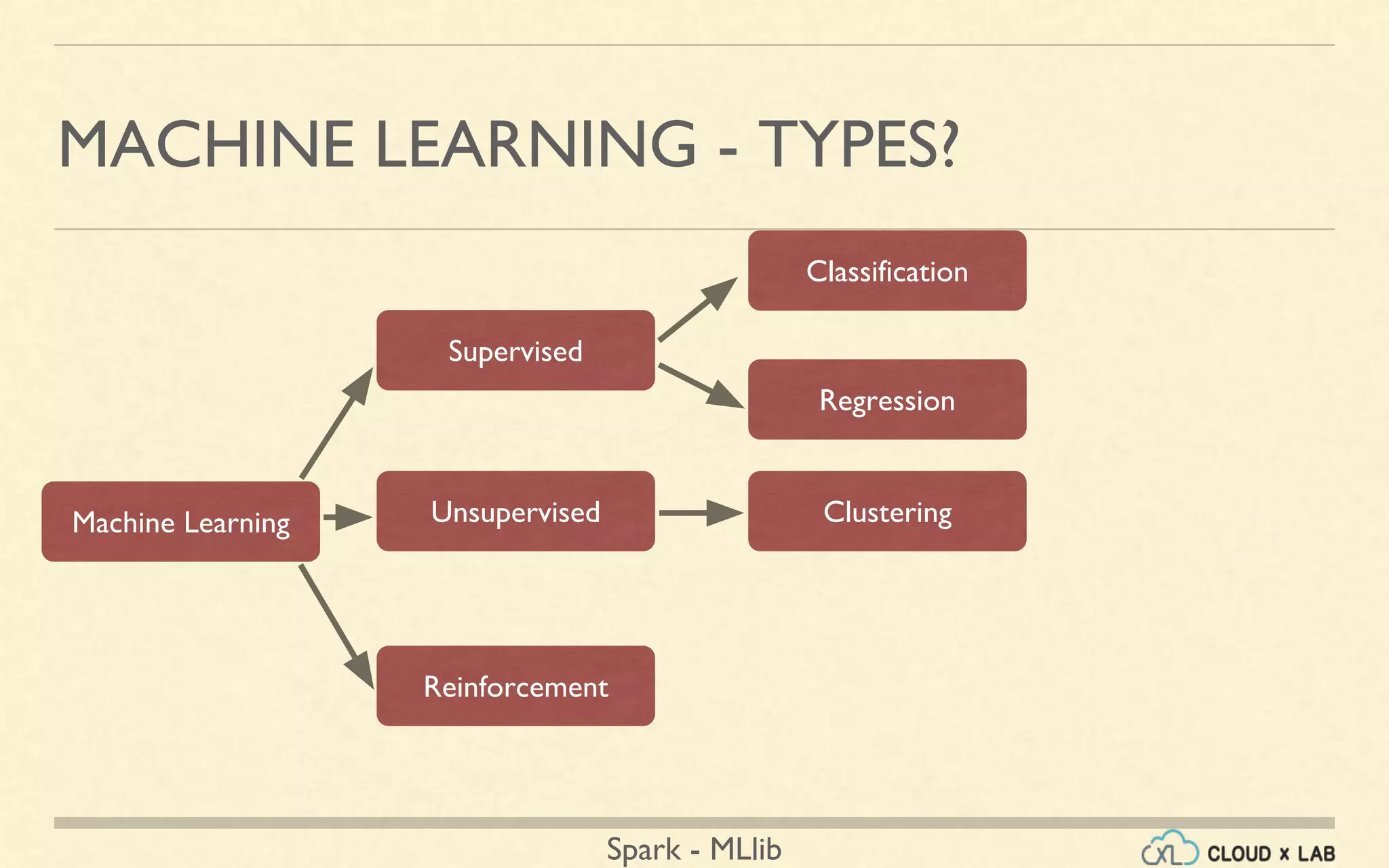

MACHINE LEARNING - TYPES?
Machine Learning
Supervised
Unsupervised
Reinforcement
Given example inputs & outputs,
learn to map inputs to outputs
No labels given, find structure
Dynamic environment, perform a certain goal
22. Spark - MLlib

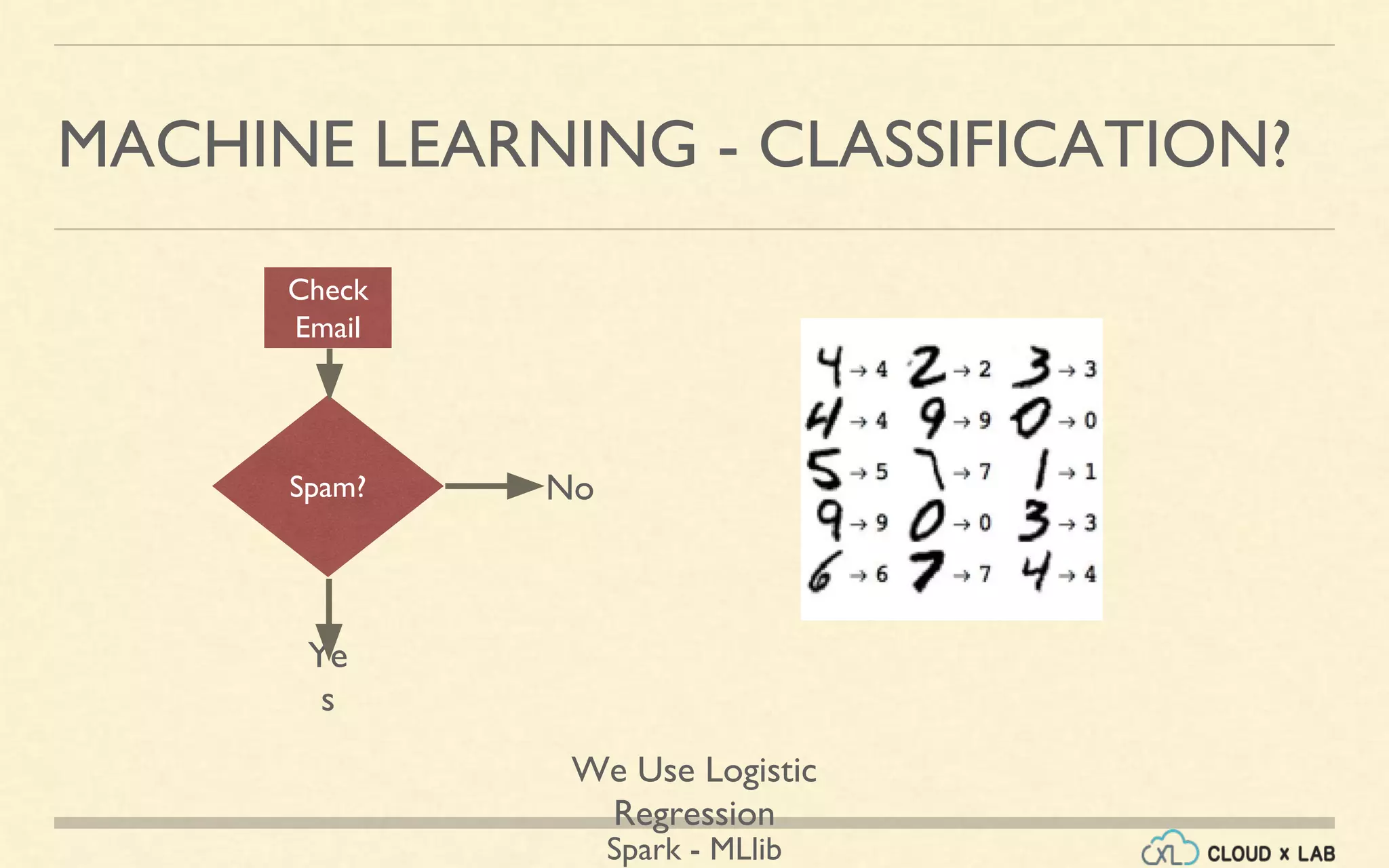

MACHINE LEARNING - CLASSIFICATION?
Spam?
Ye
s
No
Check
Email
We Use Logistic
Regression
23. Spark - MLlib

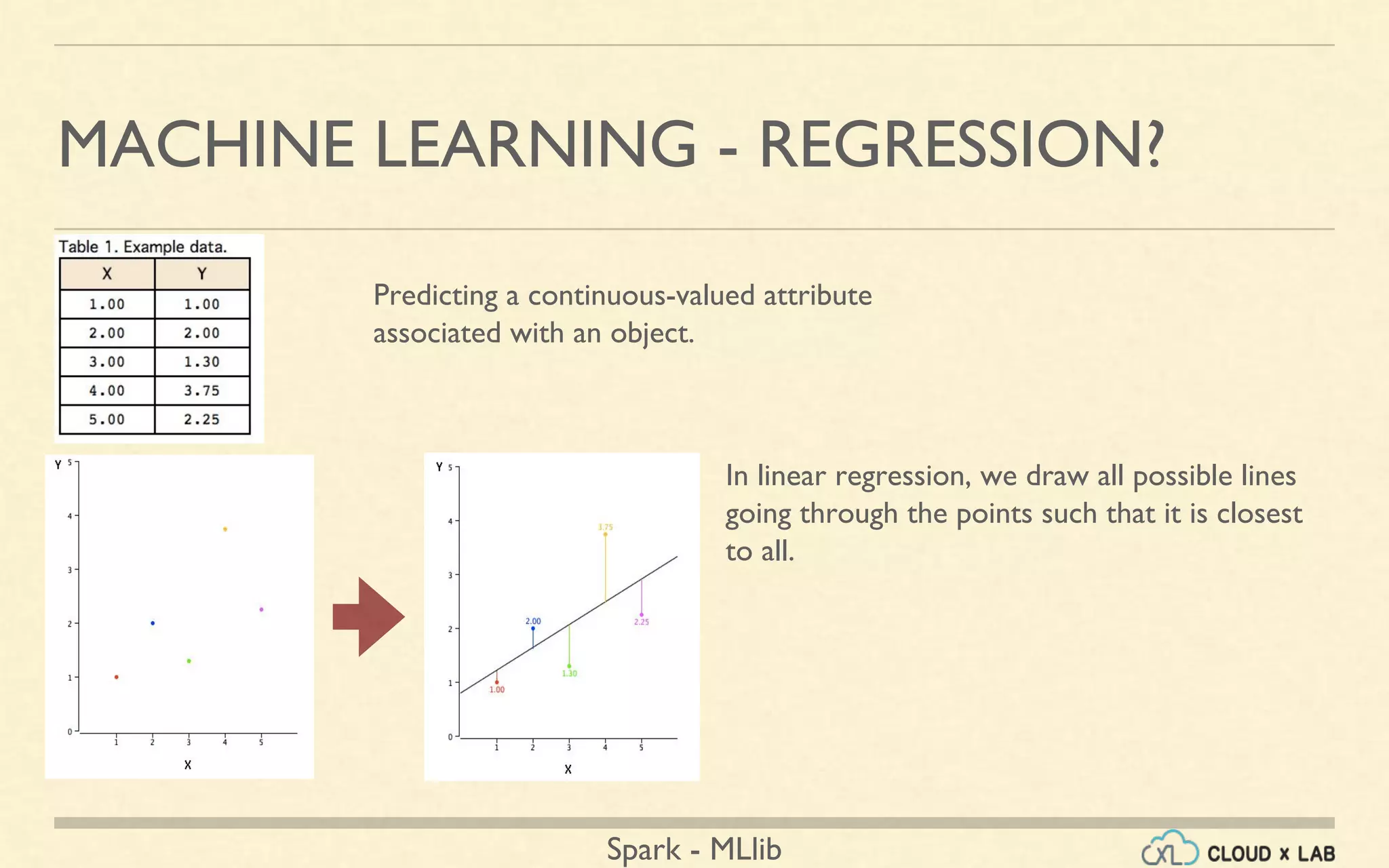

MACHINE LEARNING - REGRESSION?
Predicting a continuous-valued attribute
associated with an object.
In linear regression, we draw all possible lines
going through the points such that it is closest
to all.
24. Spark - MLlib

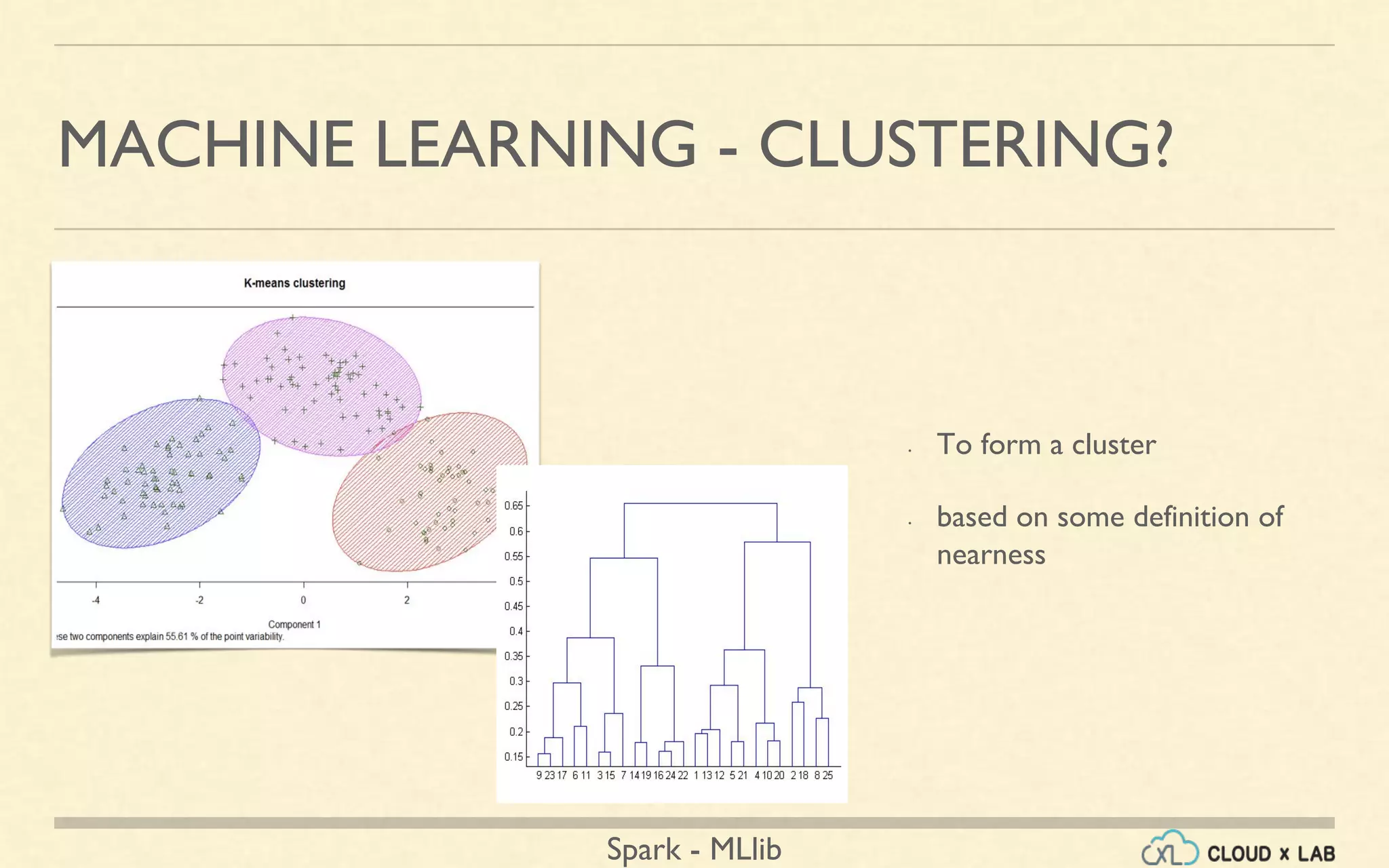

MACHINE LEARNING - CLUSTERING?
• To form a cluster
• based on some definition of
nearness

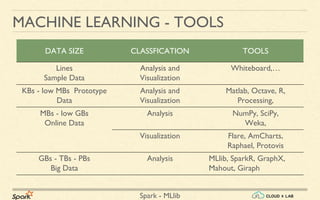

25. Spark - MLlib
MACHINE LEARNING - TOOLS
DATA SIZE CLASSFICATION TOOLS
Lines
Sample Data
Analysis and
Visualization
Whiteboard,…
KBs - low MBs Prototype
Data
Analysis and
Visualization
Matlab, Octave, R,
Processing,
MBs - low GBs
Online Data
Analysis NumPy, SciPy,
Weka,
Visualization Flare, AmCharts,
Raphael, Protovis
GBs - TBs - PBs
Big Data
Analysis MLlib, SparkR, GraphX,
Mahout, Giraph
26. Spark - MLlib

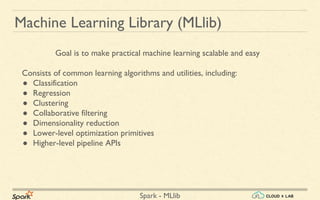

Machine Learning Library (MLlib)
Goal is to make practical machine learning scalable and easy
Consists of common learning algorithms and utilities, including:
● Classification
● Regression
● Clustering
● Collaborative filtering
● Dimensionality reduction
● Lower-level optimization primitives
● Higher-level pipeline APIs
27. Spark - MLlib

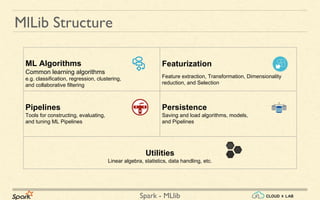

MlLib Structure
ML Algorithms
Common learning algorithms
e.g. classification, regression, clustering,
and collaborative filtering
Featurization
Feature extraction, Transformation, Dimensionality
reduction, and Selection
Pipelines
Tools for constructing, evaluating,
and tuning ML Pipelines
Persistence
Saving and load algorithms, models,
and Pipelines
Utilities
Linear algebra, statistics, data handling, etc.
28. Spark - MLlib

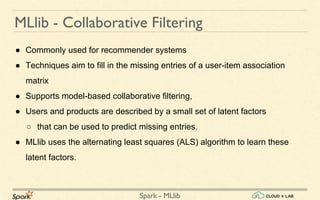

MLlib - Collaborative Filtering
● Commonly used for recommender systems
● Techniques aim to fill in the missing entries of a user-item association
matrix
● Supports model-based collaborative filtering,
● Users and products are described by a small set of latent factors
○ that can be used to predict missing entries.
● MLlib uses the alternating least squares (ALS) algorithm to learn these
latent factors.
30. Spark - MLlib

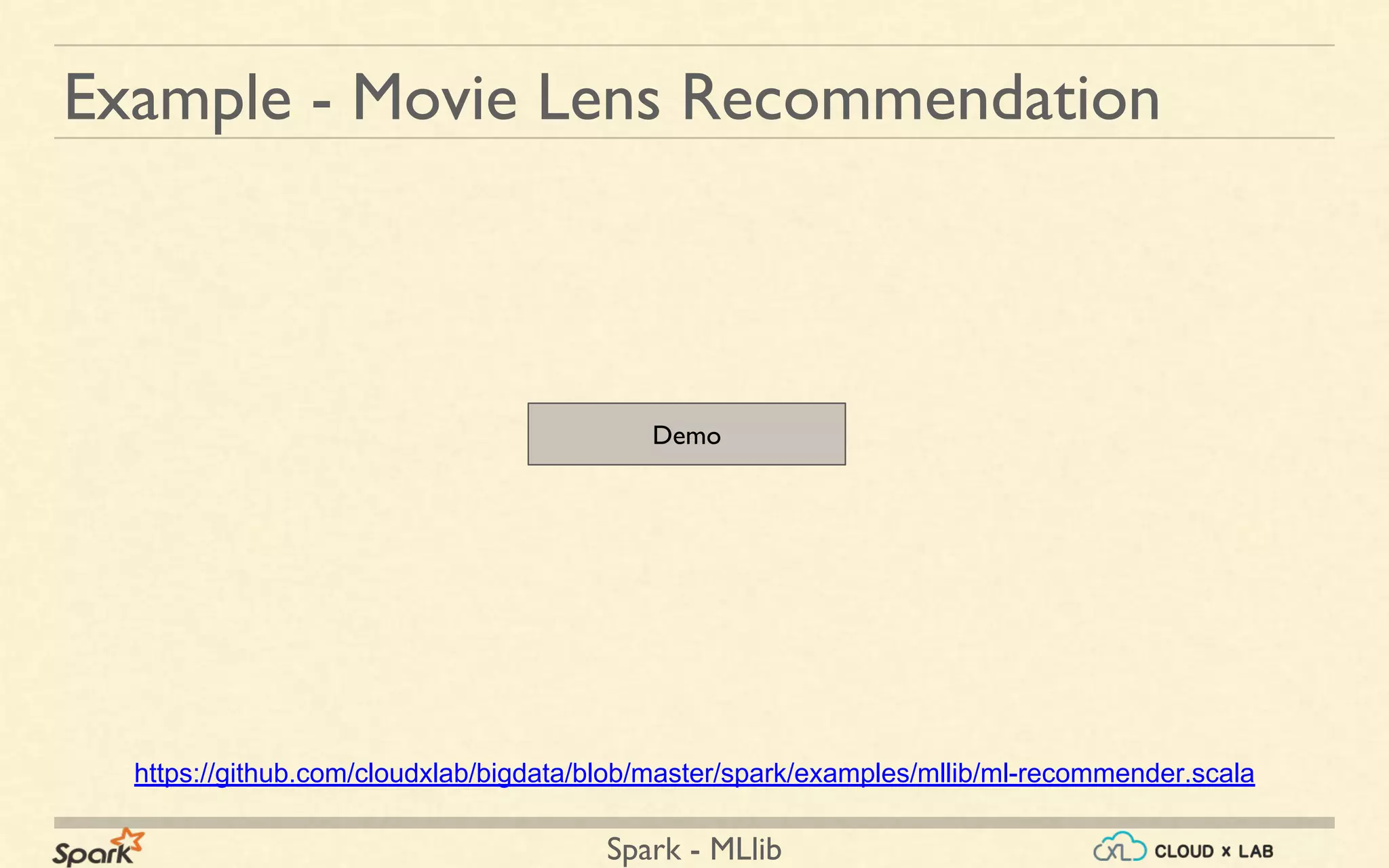

Example - Movie Lens Recommendation
https://github.com/cloudxlab/bigdata/blob/master/spark/examples/mllib/ml-recommender.scala
Demo
31. Spark - MLlib

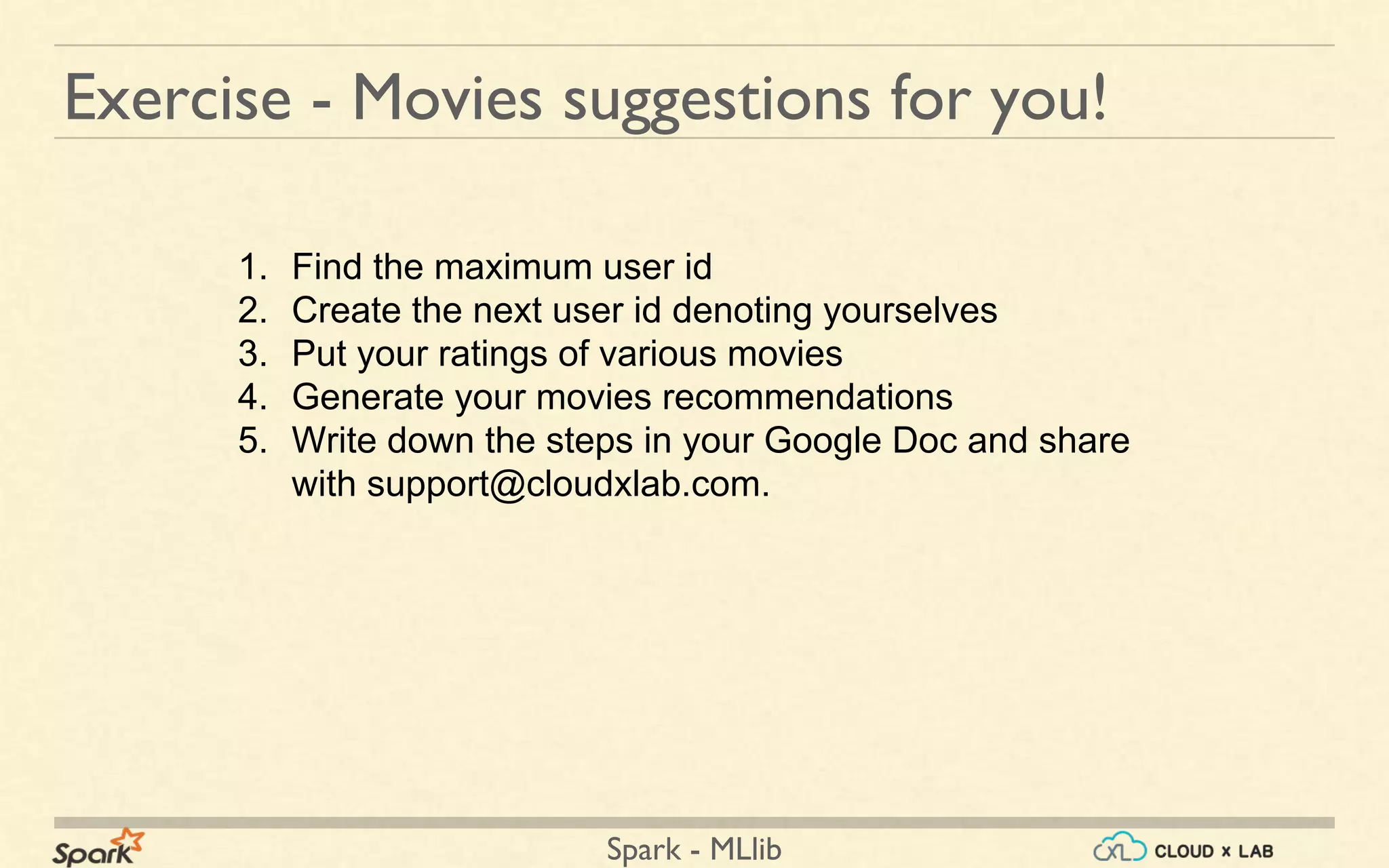

Exercise - Movies suggestions for you!
1. Find the maximum user id
2. Create the next user id denoting yourselves
3. Put your ratings of various movies
4. Generate your movies recommendations
5. Write down the steps in your Google Doc and share
with support@cloudxlab.com.

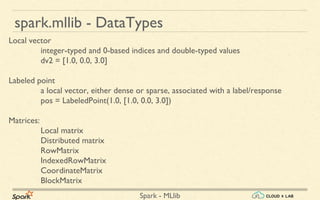

32. Spark - MLlib
spark.mllib - DataTypes
Local vector
integer-typed and 0-based indices and double-typed values
dv2 = [1.0, 0.0, 3.0]
Labeled point
a local vector, either dense or sparse, associated with a label/response
pos = LabeledPoint(1.0, [1.0, 0.0, 3.0])
Matrices:
Local matrix
Distributed matrix
RowMatrix
IndexedRowMatrix
CoordinateMatrix
BlockMatrix

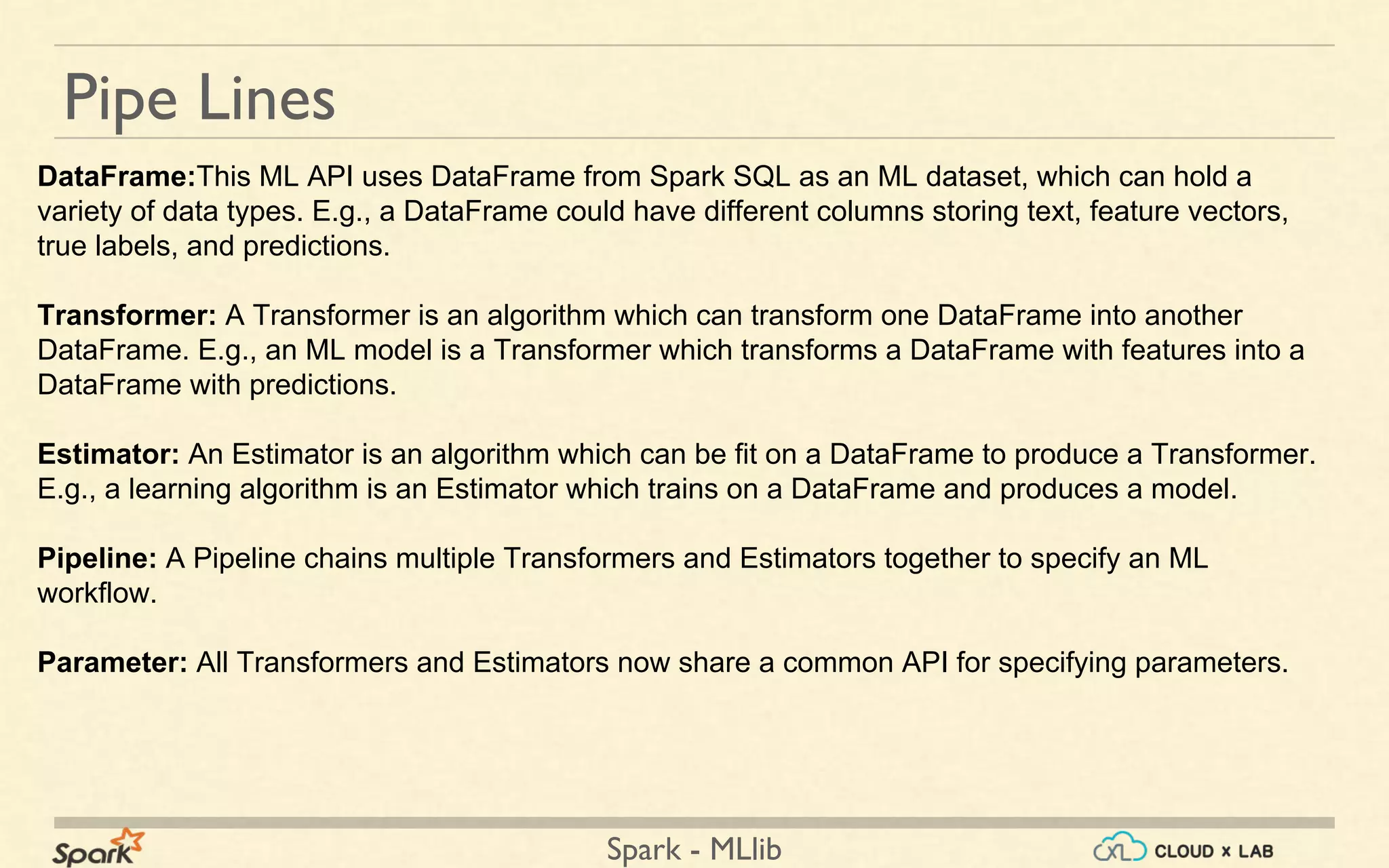

33. Spark - MLlib

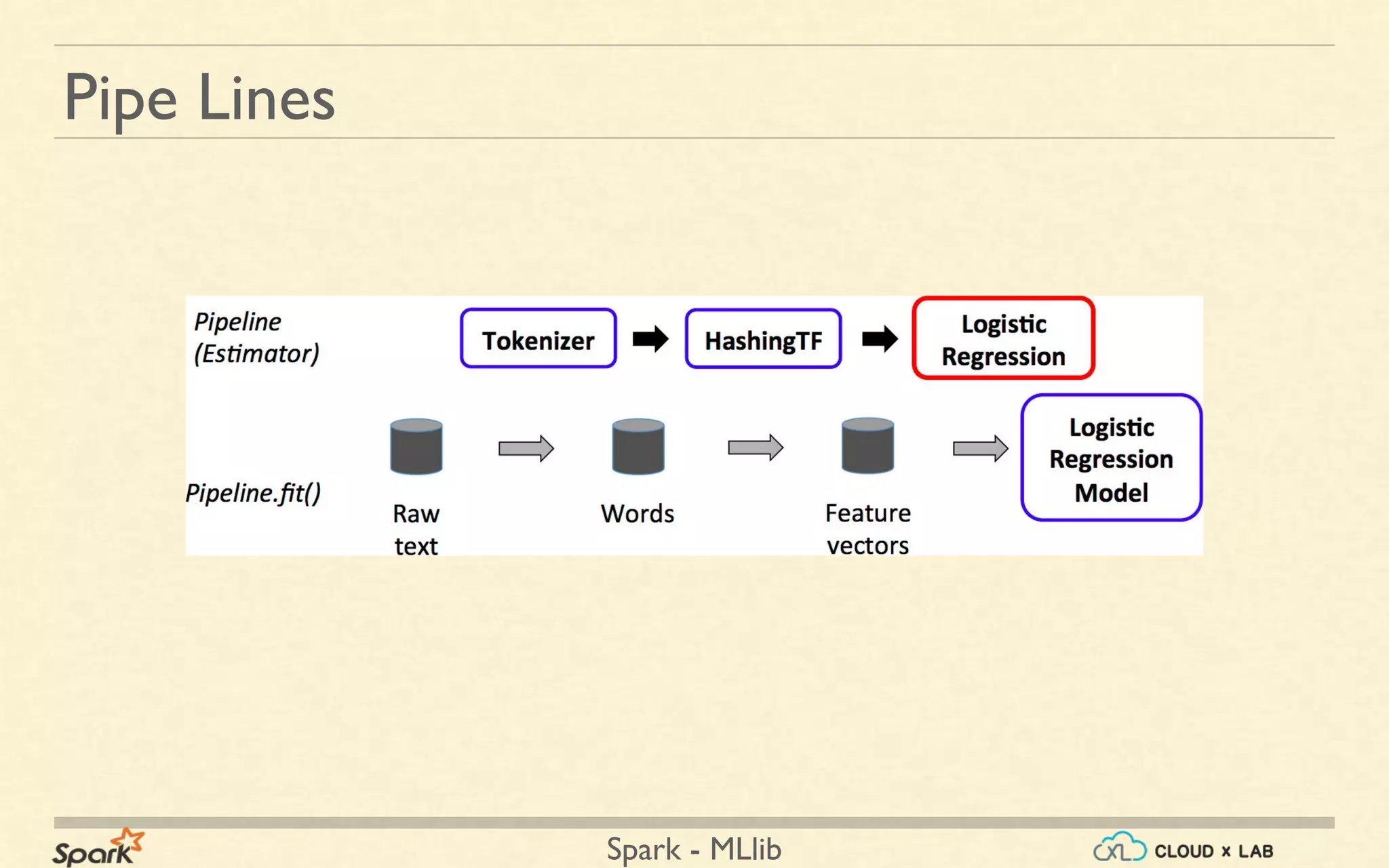

Pipe Lines
DataFrame:This ML API uses DataFrame from Spark SQL as an ML dataset, which can hold a
variety of data types. E.g., a DataFrame could have different columns storing text, feature vectors,
true labels, and predictions.
Transformer: A Transformer is an algorithm which can transform one DataFrame into another
DataFrame. E.g., an ML model is a Transformer which transforms a DataFrame with features into a
DataFrame with predictions.
Estimator: An Estimator is an algorithm which can be fit on a DataFrame to produce a Transformer.
E.g., a learning algorithm is an Estimator which trains on a DataFrame and produces a model.
Pipeline: A Pipeline chains multiple Transformers and Estimators together to specify an ML
workflow.
Parameter: All Transformers and Estimators now share a common API for specifying parameters.

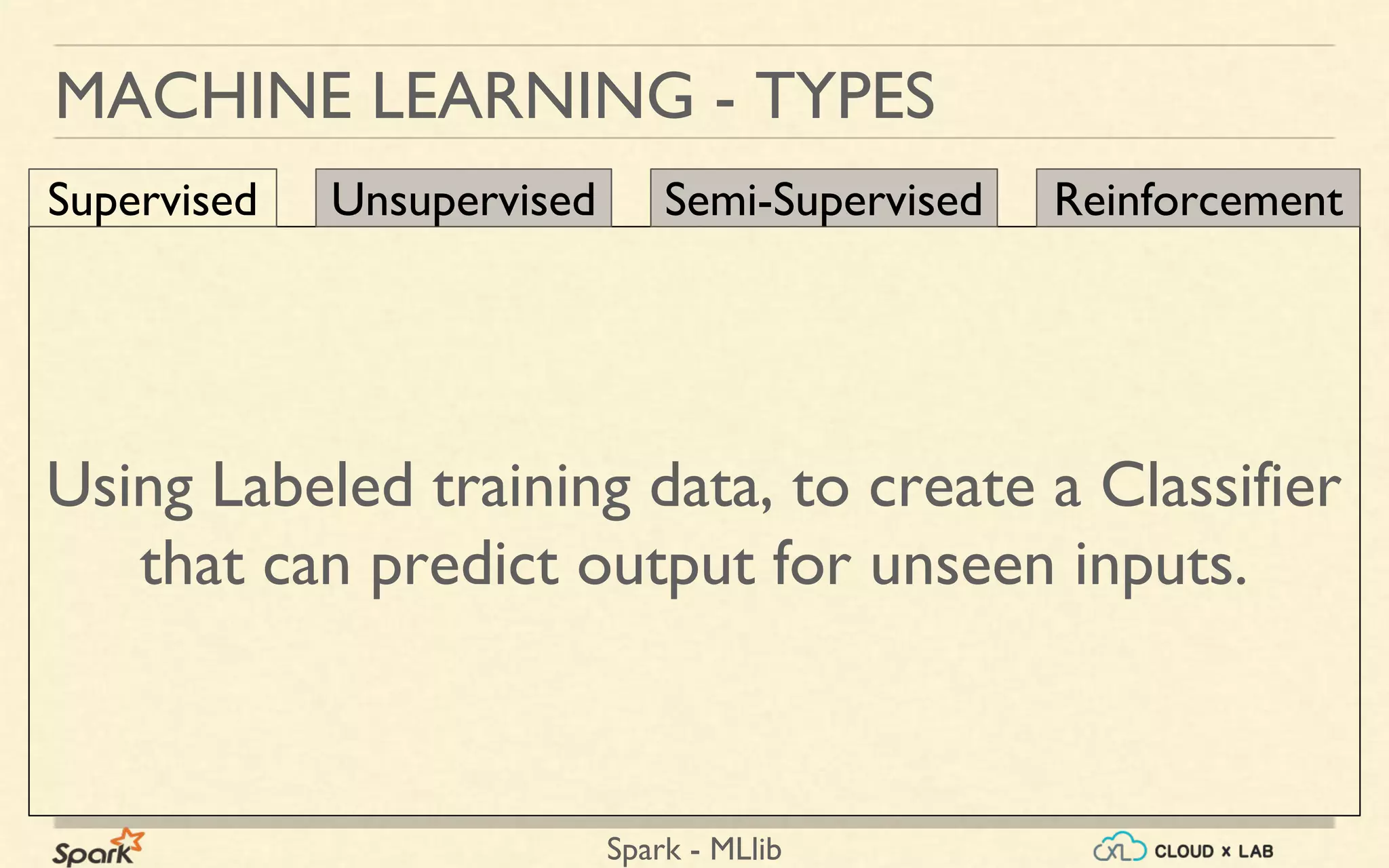

40. Spark - MLlib

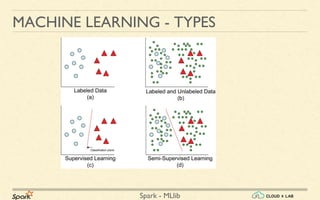

MACHINE LEARNING - TYPES
Using Labeled training data, to create a Classifier
that can predict output for unseen inputs.
Supervised Unsupervised Semi-Supervised Reinforcement
43. Spark - MLlib

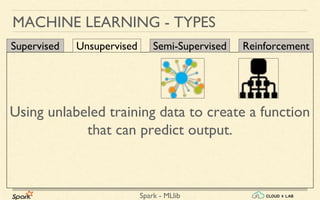

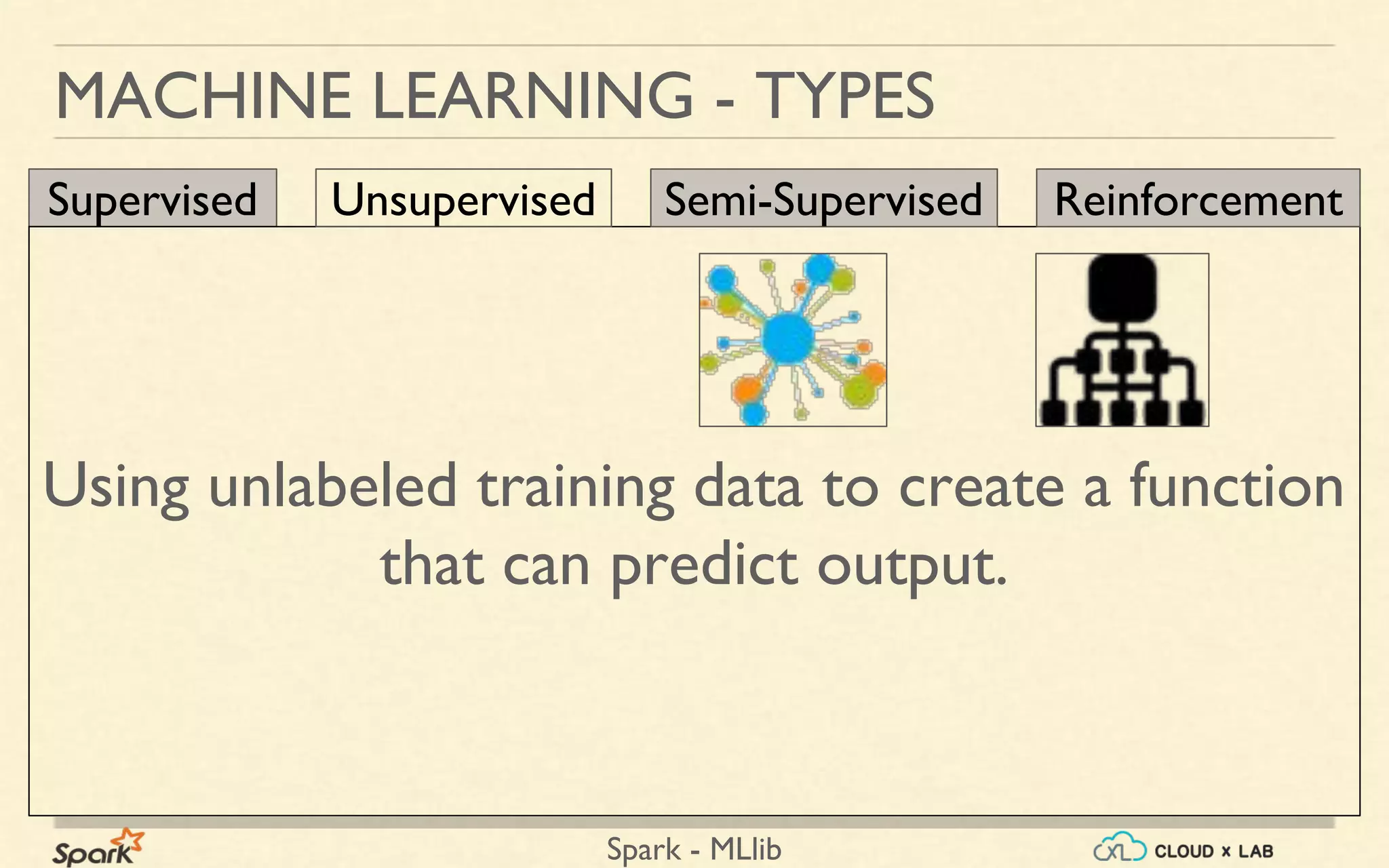

MACHINE LEARNING - TYPES
Supervised
Using unlabeled training data to create a function
that can predict output.
Unsupervised Semi-Supervised Reinforcement
44. Spark - MLlib

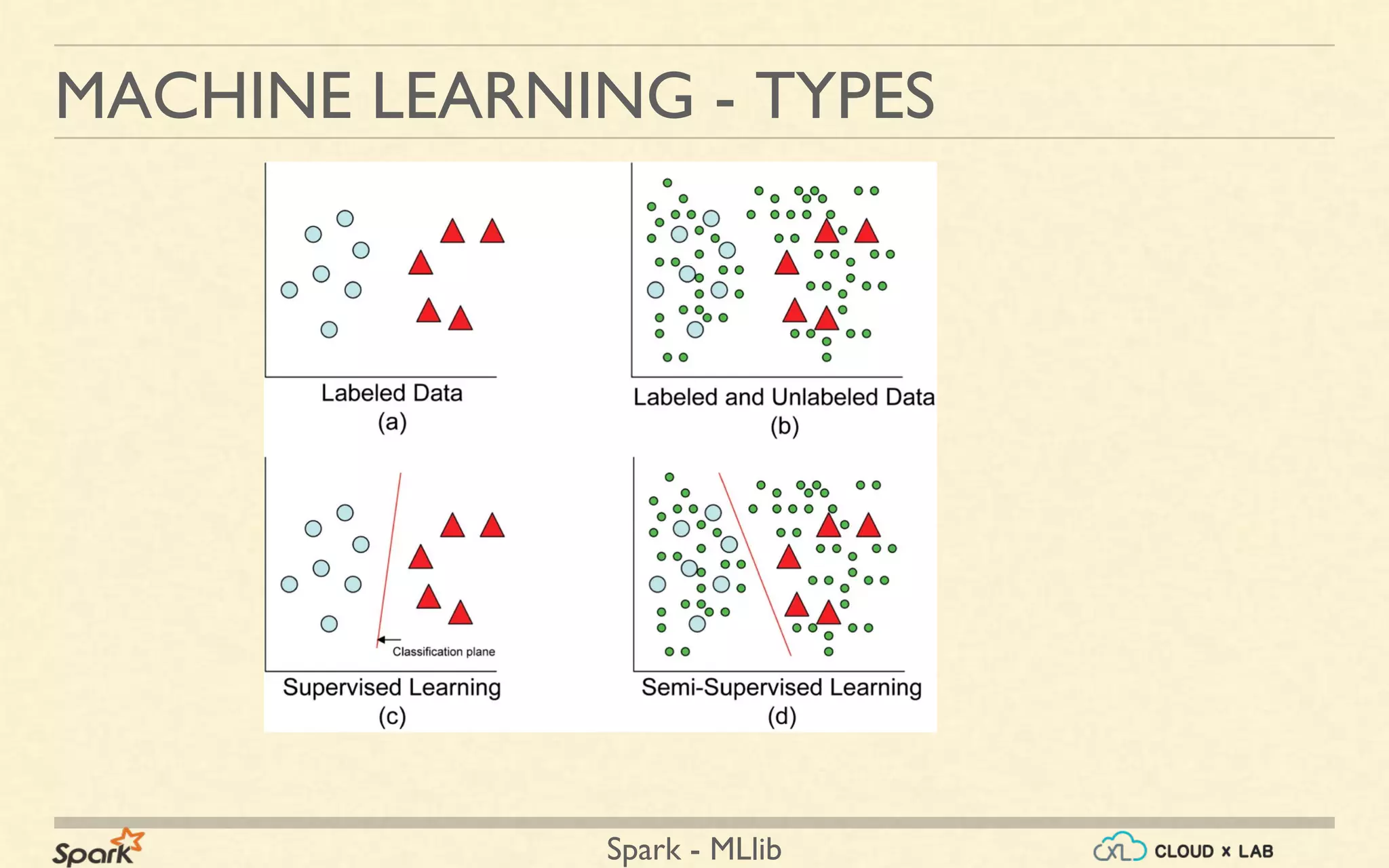

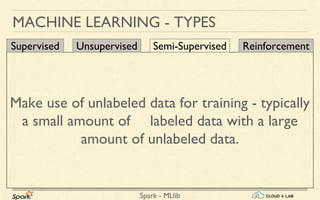

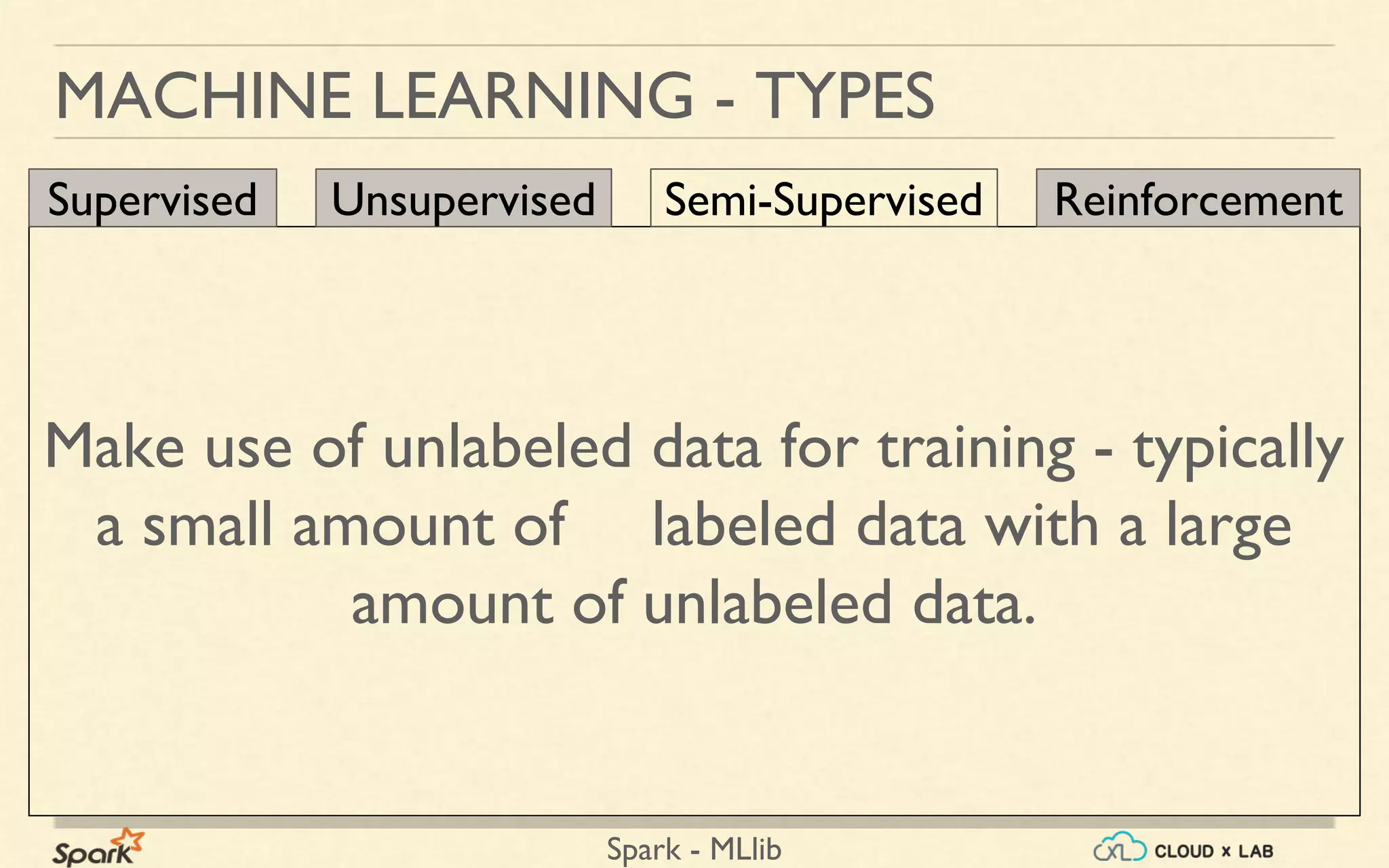

MACHINE LEARNING - TYPES
Make use of unlabeled data for training - typically
a small amount of labeled data with a large
amount of unlabeled data.
Supervised Unsupervised Semi-Supervised Reinforcement

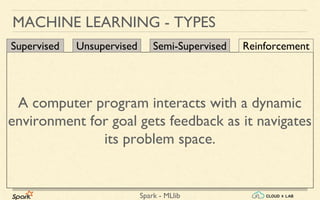

45. Spark - MLlib

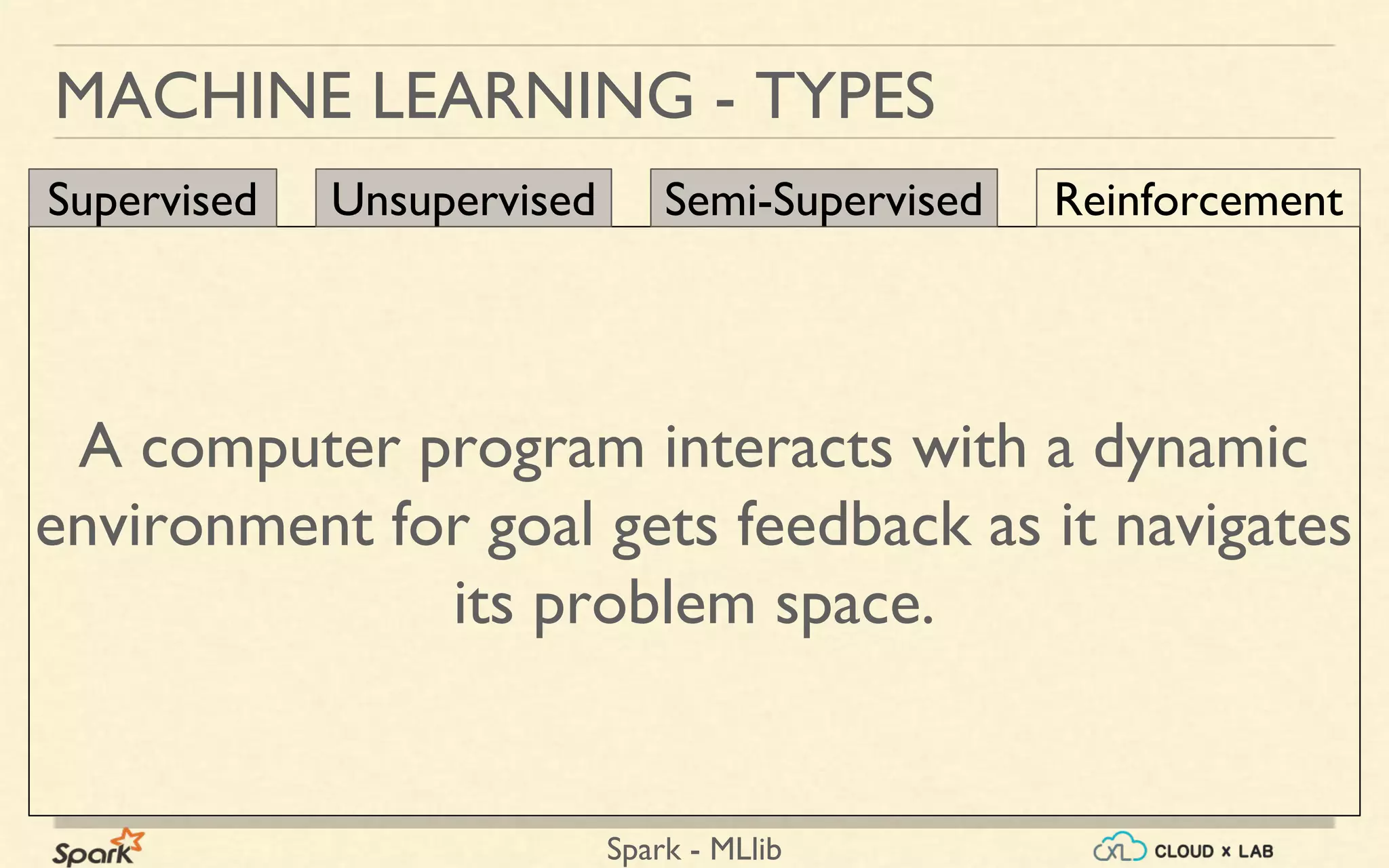

MACHINE LEARNING - TYPES
A computer program interacts with a dynamic
environment for goal gets feedback as it navigates
its problem space.
Supervised Unsupervised Semi-Supervised Reinforcement
47. Spark - MLlib

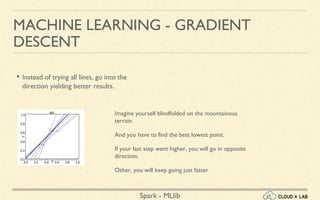

MACHINE LEARNING - GRADIENT
DESCENT
• Instead of trying all lines, go into the
direction yielding better results.
Imagine yourself blindfolded on the mountainous
terrain.
And you have to find the best lowest point.
If your last step went higher, you will go in opposite
direction.
Other, you will keep going just faster
48. Spark - MLlib

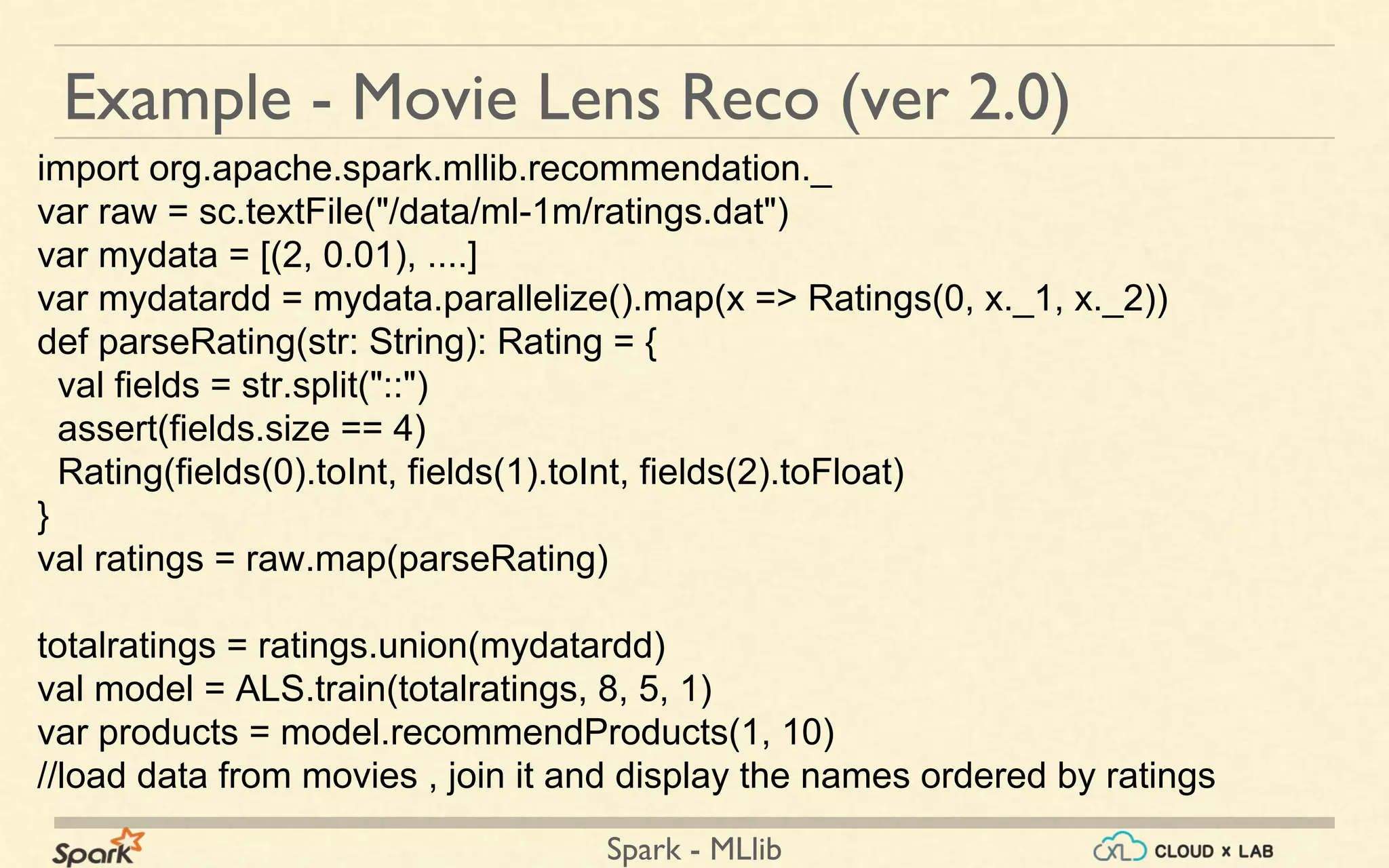

import org.apache.spark.mllib.recommendation._
var raw = sc.textFile("/data/ml-1m/ratings.dat")
var mydata = [(2, 0.01), ....]
var mydatardd = mydata.parallelize().map(x => Ratings(0, x._1, x._2))
def parseRating(str: String): Rating = {
val fields = str.split("::")
assert(fields.size == 4)
Rating(fields(0).toInt, fields(1).toInt, fields(2).toFloat)
}
val ratings = raw.map(parseRating)
totalratings = ratings.union(mydatardd)
val model = ALS.train(totalratings, 8, 5, 1)
var products = model.recommendProducts(1, 10)
//load data from movies , join it and display the names ordered by ratings
Example - Movie Lens Reco (ver 2.0)

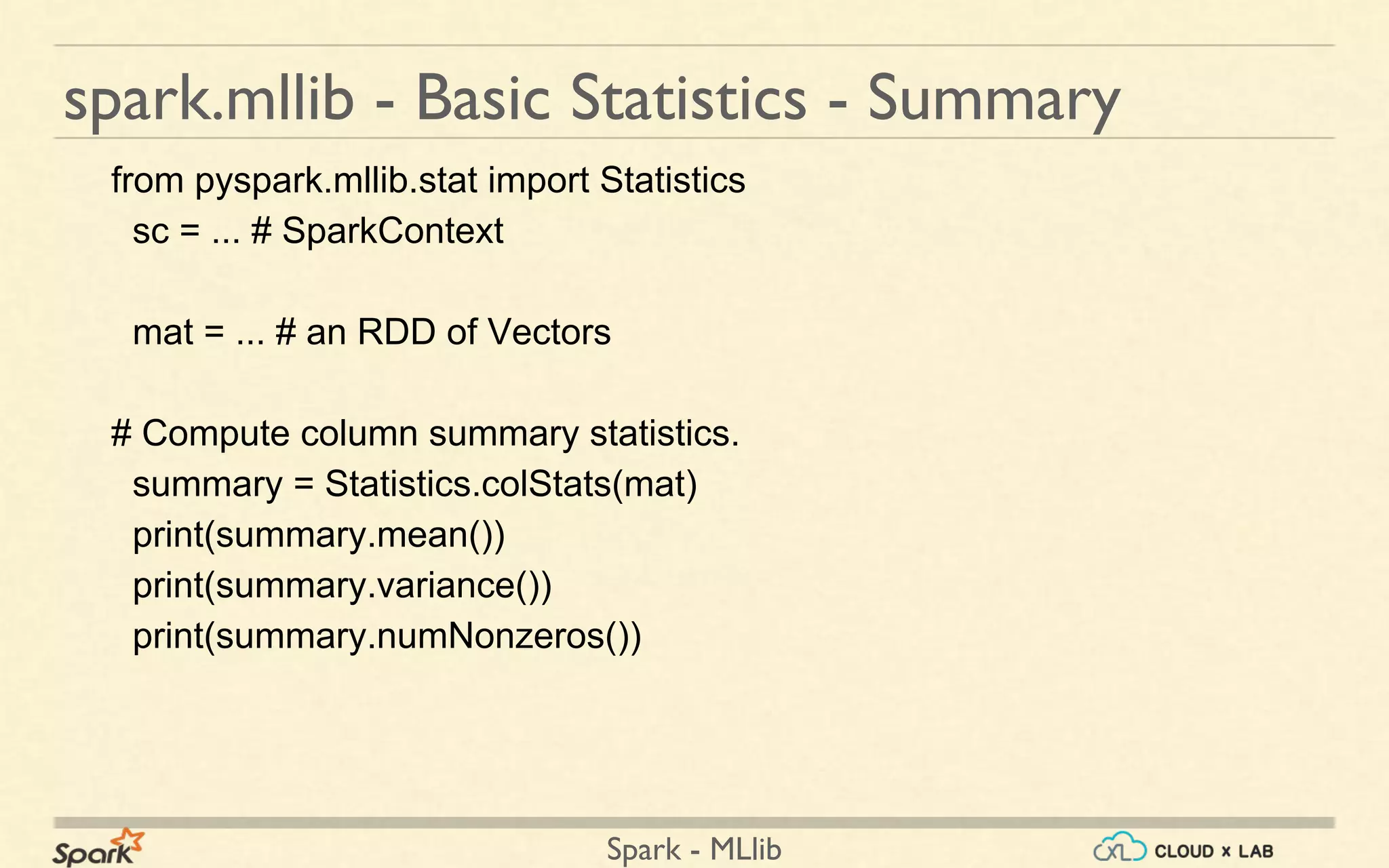

49. Spark - MLlib

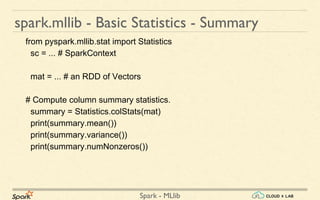

spark.mllib - Basic Statistics - Summary
from pyspark.mllib.stat import Statistics
sc = ... # SparkContext
mat = ... # an RDD of Vectors
# Compute column summary statistics.
summary = Statistics.colStats(mat)
print(summary.mean())
print(summary.variance())
print(summary.numNonzeros())
50. Spark - MLlib

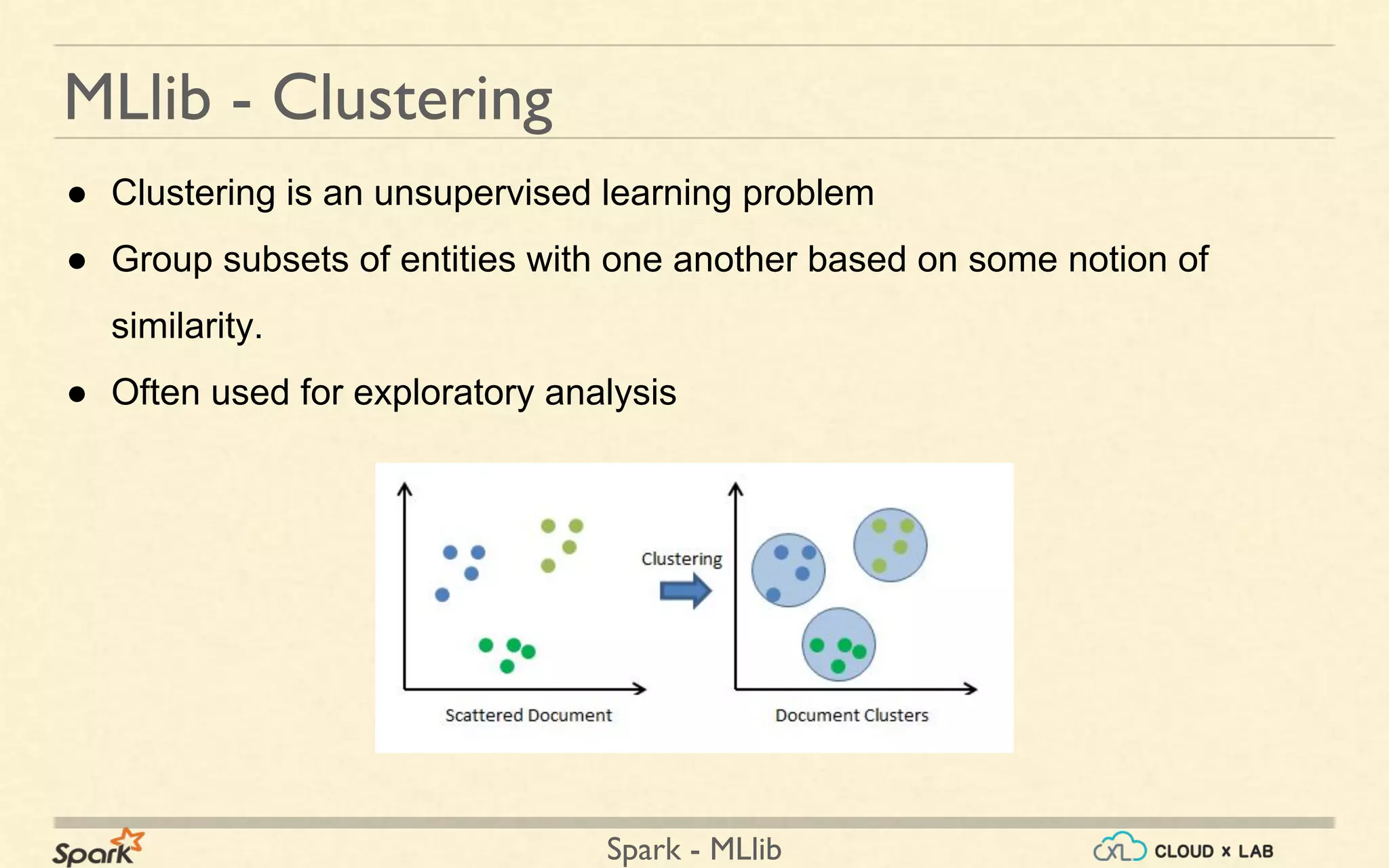

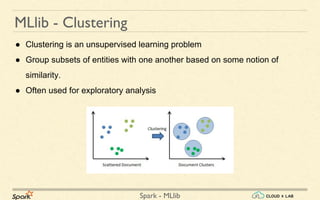

MLlib - Clustering
● Clustering is an unsupervised learning problem
● Group subsets of entities with one another based on some notion of
similarity.
● Often used for exploratory analysis

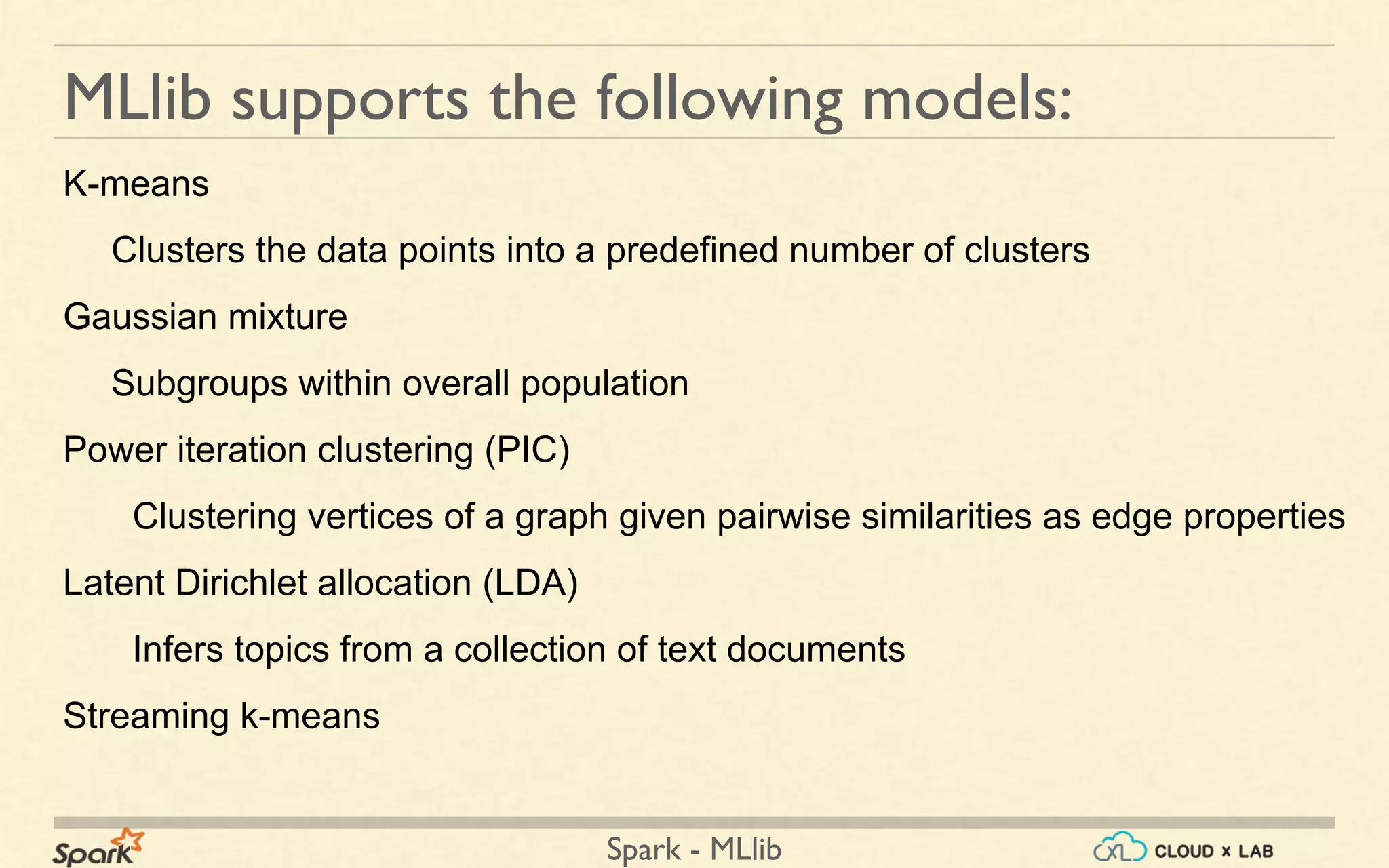

51. Spark - MLlib
MLlib supports the following models:
K-means
Clusters the data points into a predefined number of clusters
Gaussian mixture
Subgroups within overall population
Power iteration clustering (PIC)
Clustering vertices of a graph given pairwise similarities as edge properties
Latent Dirichlet allocation (LDA)
Infers topics from a collection of text documents
Streaming k-means
52. Spark - MLlib

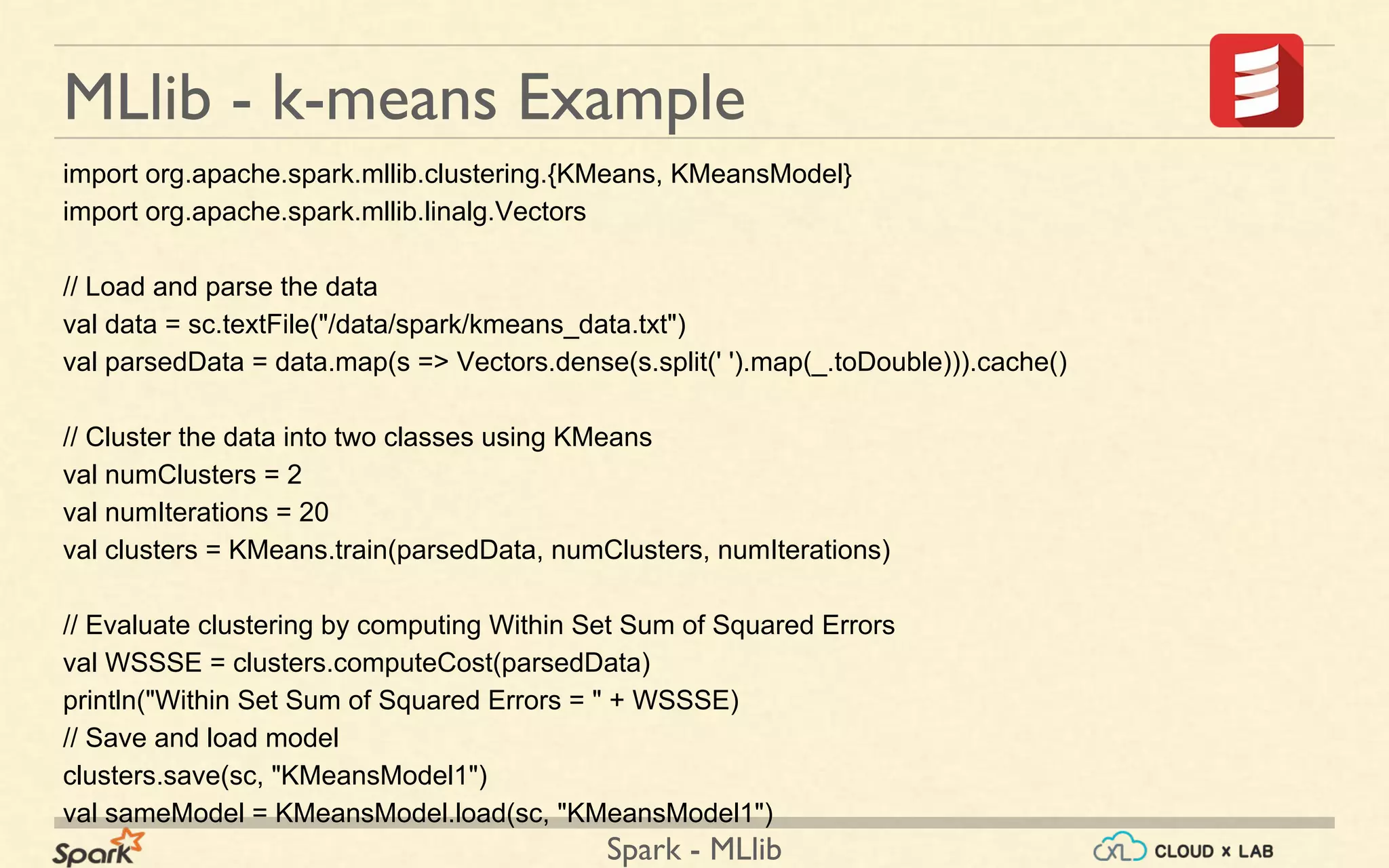

MLlib - k-means Example
import org.apache.spark.mllib.clustering.{KMeans, KMeansModel}
import org.apache.spark.mllib.linalg.Vectors
// Load and parse the data
val data = sc.textFile("/data/spark/kmeans_data.txt")
val parsedData = data.map(s => Vectors.dense(s.split(' ').map(_.toDouble))).cache()
// Cluster the data into two classes using KMeans
val numClusters = 2
val numIterations = 20
val clusters = KMeans.train(parsedData, numClusters, numIterations)
// Evaluate clustering by computing Within Set Sum of Squared Errors
val WSSSE = clusters.computeCost(parsedData)
println("Within Set Sum of Squared Errors = " + WSSSE)
// Save and load model
clusters.save(sc, "KMeansModel1")
val sameModel = KMeansModel.load(sc, "KMeansModel1")
53. Spark - MLlib

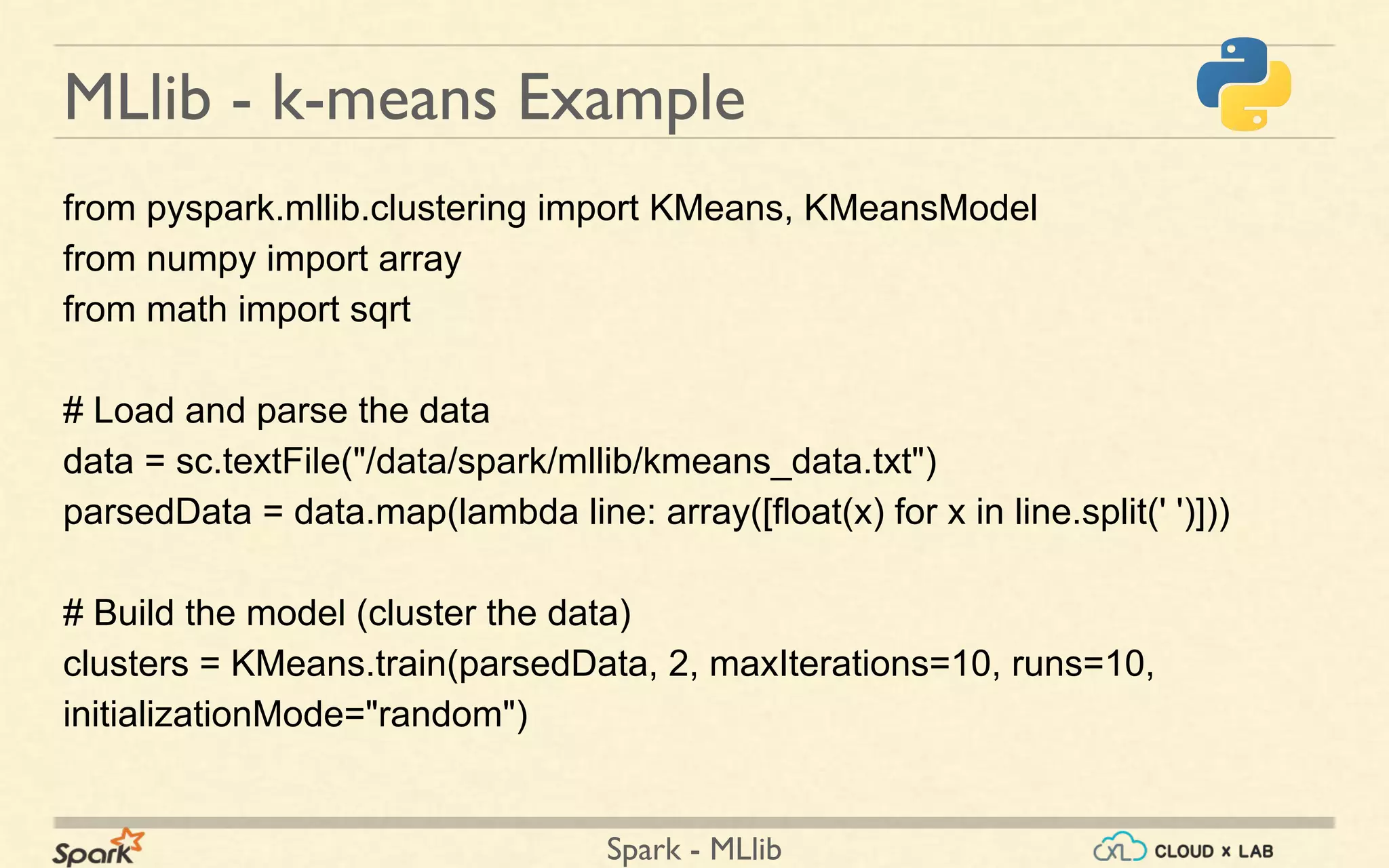

MLlib - k-means Example
from pyspark.mllib.clustering import KMeans, KMeansModel
from numpy import array
from math import sqrt
# Load and parse the data
data = sc.textFile("/data/spark/mllib/kmeans_data.txt")
parsedData = data.map(lambda line: array([float(x) for x in line.split(' ')]))
# Build the model (cluster the data)
clusters = KMeans.train(parsedData, 2, maxIterations=10, runs=10,
initializationMode="random")
54. Spark - MLlib

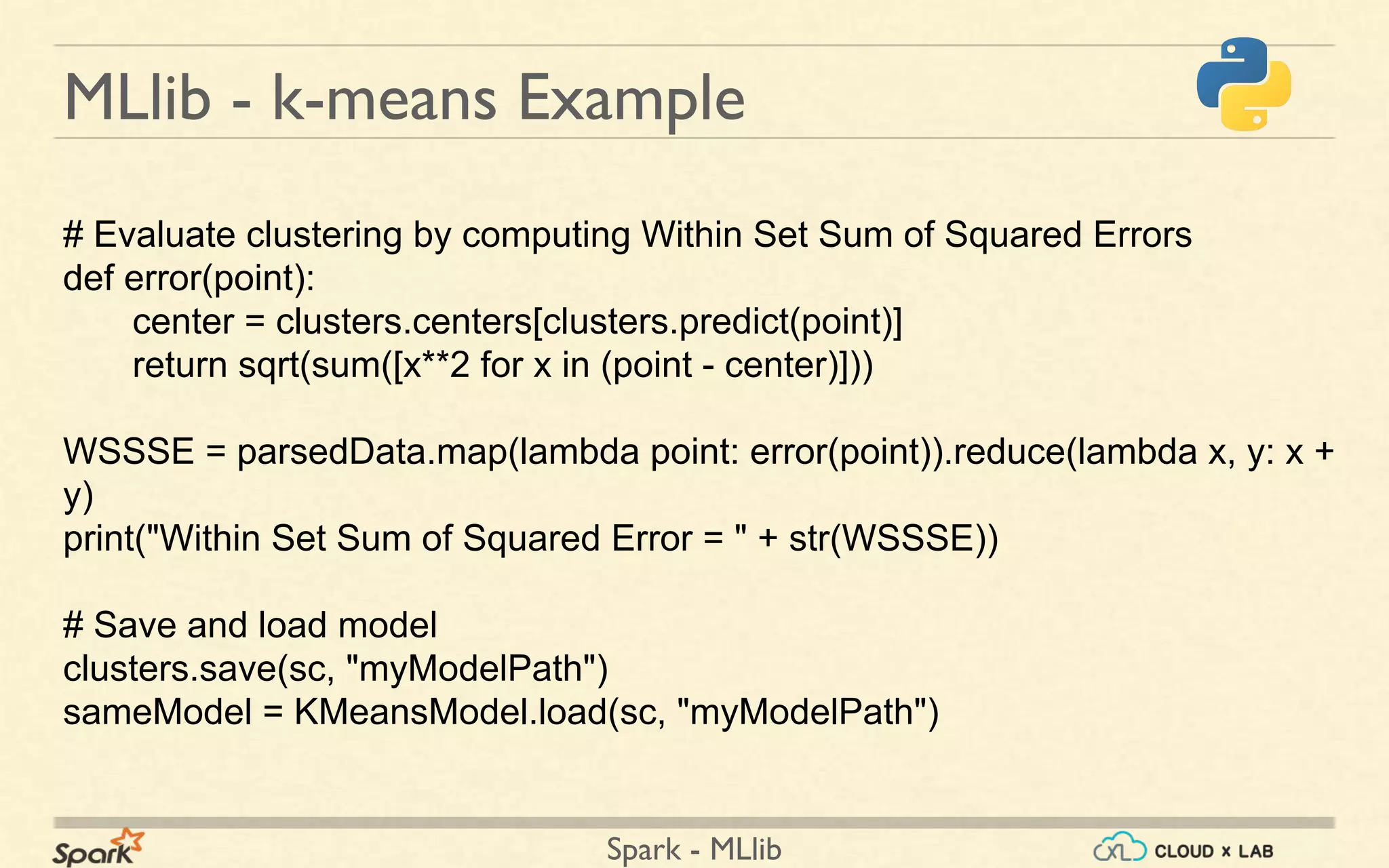

MLlib - k-means Example
# Evaluate clustering by computing Within Set Sum of Squared Errors
def error(point):
center = clusters.centers[clusters.predict(point)]
return sqrt(sum([x**2 for x in (point - center)]))
WSSSE = parsedData.map(lambda point: error(point)).reduce(lambda x, y: x +
y)
print("Within Set Sum of Squared Error = " + str(WSSSE))
# Save and load model
clusters.save(sc, "myModelPath")
sameModel = KMeansModel.load(sc, "myModelPath")
55. Spark - MLlib

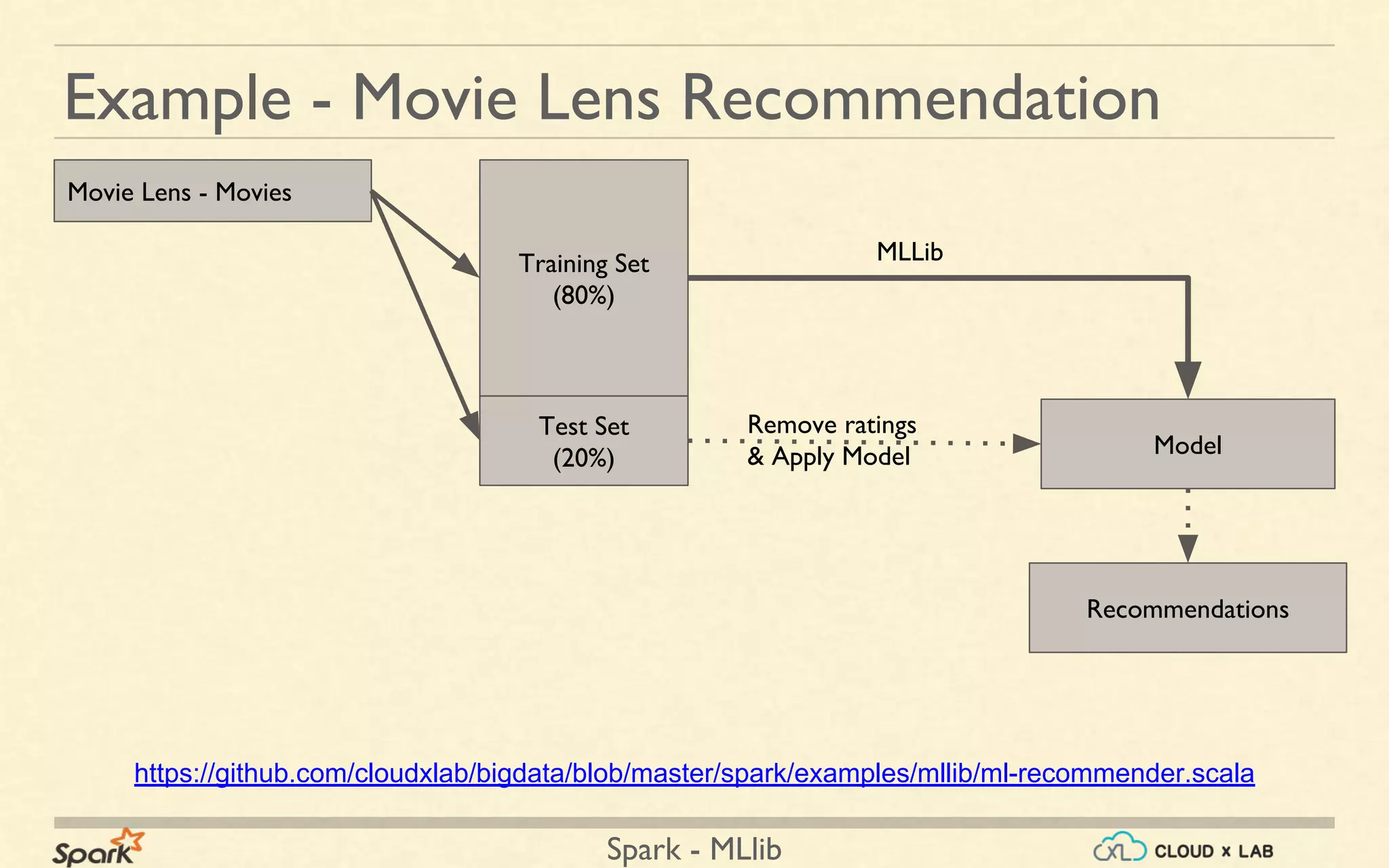

Example - Movie Lens Recommendation
https://github.com/cloudxlab/bigdata/blob/master/spark/examples/mllib/ml-recommender.scala
Movie Lens - Movies
Training Set
(80%)
Test Set
(20%) Model
MLLib
Recommendations
Remove ratings
& Apply Model
