Low Cost Housing Presentation
- 1. Alternative Cost Effective Housing- VillageConcept Giving Dignity to the People

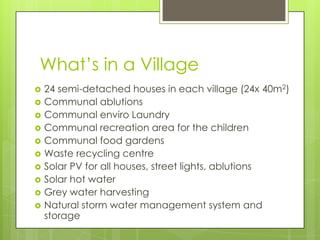

- 2. What’s in aVillage 24 semi-detached houses in each village (24x 40m2) Communal ablutions Communal enviro Laundry Communal recreation area for the children Communal food gardens Waste recycling centre Solar PV for all houses, street lights, ablutions Solar hot water Grey water harvesting Natural storm water management system and storage

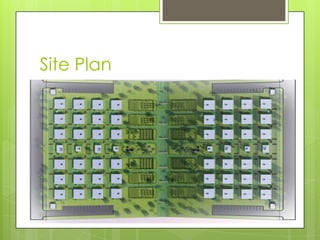

- 3.
- 4. Houses on SteepSlopes (1:3)
- 5.
- 6. Side Views onVillage

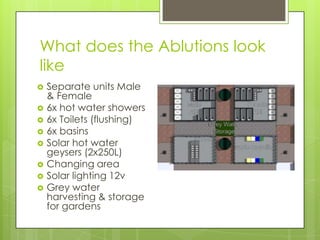

- 7. What does theAblutions look like Separate units Male & Female 6x hot water showers 6x Toilets (flushing) 6x basins Solar hot water geysers (2x250L) Changing area Solar lighting 12v Grey water harvesting & storage for gardens

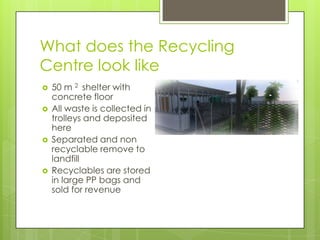

- 8. What does theRecycling Centre look like 50 m 2 shelter with concrete floor All waste is collected in trolleys and deposited here Separated and non recyclable remove to landfill Recyclables are stored in large PP bags and sold for revenue

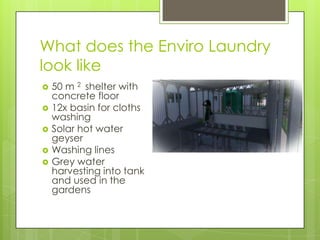

- 9. What does theEnviro Laundry look like 50 m 2 shelter with concrete floor 12x basin for cloths washing Solar hot water geyser Washing lines Grey water harvesting into tank and used in the gardens

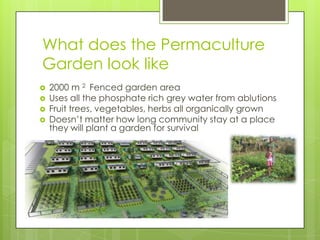

- 10. What does thePermaculture Garden look like 2000 m 2 Fenced garden area Uses all the phosphate rich grey water from ablutions Fruit trees, vegetables, herbs all organically grown Doesn’t matter how long community stay at a place they will plant a garden for survival

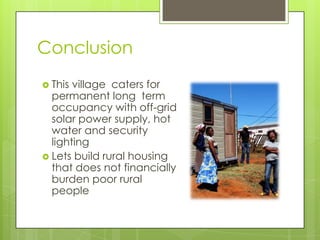

- 11. Conclusion This villagecaters for permanent long term occupancy with off-grid solar power supply, hot water and security lighting Lets build rural housing that does not financially burden poor rural people
