LOGISTIC SOLUTIONS ANDTECHNOLOGY
AN INNOVATION COMPANY INTHE LOGISTIC INDUSTRY
2

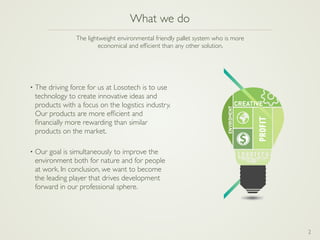

What we do
• The driving force for us at Losotech is to use
technology to create innovative ideas and
products with a focus on the logistics industry.
Our products are more efficient and
financially more rewarding than similar
products on the market.
• Our goal is simultaneously to improve the
environment both for nature and for people
at work. In conclusion, we want to become
the leading player that drives development
forward in our professional sphere.
The lightweight environmental friendly pallet system who is more
economical and efficient than any other solution.
3

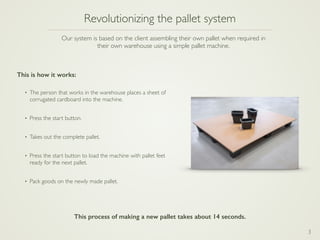

Revolutionizing the pallet system
• The person that works in the warehouse places a sheet of
corrugated cardboard into the machine.
• Press the start button.
• Takes out the complete pallet.
• Press the start button to load the machine with pallet feet
ready for the next pallet.
• Pack goods on the newly made pallet.
Our system is based on the client assembling their own pallet when required in
their own warehouse using a simple pallet machine.
This is how it works:
This process of making a new pallet takes about 14 seconds.
4

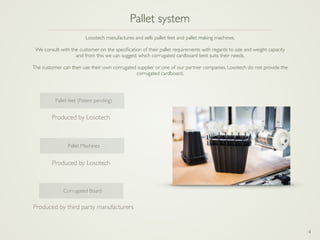

Produced by Losotech
Pallet feet (Patent pending)
Produced by Losotech
Pallet Machines
Produced by third party manufacturers
Corrugated Board
Pallet system
Losotech manufactures and sells pallet feet and pallet making machines.
We consult with the customer on the specification of their pallet requirements with regards to size and weight capacity
and from this we can suggest which corrugated cardboard best suits their needs.
The customer can then use their own corrugated supplier or one of our partner companies. Losotech do not provide the
corrugated cardboard.
5

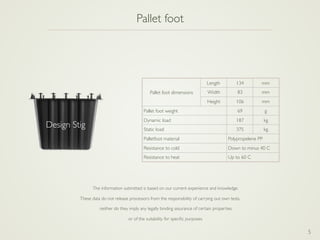

Design Stig
Pallet foot
Pallet foot dimensions
Length 134 mm
Width 83 mm
Height 106 mm
Pallet foot weight 69 g
Dynamic load 187 kg
Static load 375 kg
Palletfoot material Polypropelene PP
Resistance to cold Down to minus 40 C
Resistance to heat Up to 60 C
The information submitted is based on our current experience and knowledge.
These data do not release processors from the responsibility of carrying out own tests,
neither do they imply any legally binding assurance of certain properties
or of the suitability for specific purposes.
6

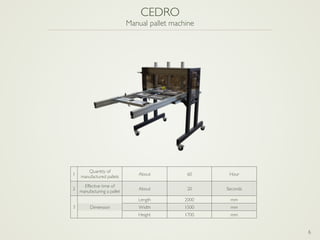

1
Quantity of
manufactured pallets
About 60 Hour
2
Effective time of
manufacturing a pallet
About 20 Seconds
3
Length 2000 mm
Dimension Width 1500 mm
Height 1700 mm
CEDRO
Manual pallet machine
7

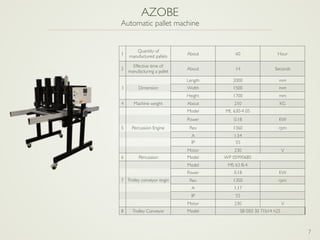

1
Quantity of
manufactured pallets
About 60 Hour
2
Effective time of
manufacturing a pallet
About 14 Seconds
3
Length 2000 mm
Dimension Width 1500 mm
Height 1700 mm
4 Machine weight About 210 KG
Model ML 630-4 05
Power 0.18 KW
5 Percussion Engine Rev 1360 rpm
A 1.54
IP 55
Motor 230 V
6 Percussion
Transmission
Model WP 059906B5
Model MS 63 B-4
Power 0.18 KW
7 Trolley conveyor engin Rev 1350 rpm
A 1.17
IP 55
Motor 230 V
8 Trolley Conveyor
Transmission
Model SB 050 30 71b14 h25
AZOBE
Automatic pallet machine
8

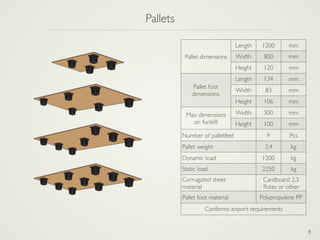

Pallet dimensions
Length 1200 mm
Width 800 mm
Height 120 mm
Pallet foot
dimensions
Length 134 mm
Width 83 mm
Height 106 mm
Max dimensions
on forklift
Width 300 mm
Height 100 mm
Number of palletfeet 9 Pcs
Pallet weight 2,4 kg
Dynamic load 1200 kg
Static load 2250 kg
Corrugated sheet
material
Cardboard 2,3
flutes or other
Pallet foot material Polypropylene PP
Conforms export requirements
Pallets
9

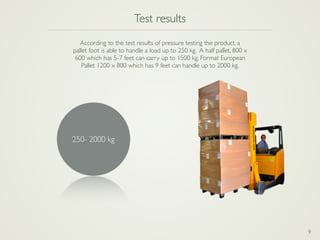

Test results
According to the test results of pressure testing the product, a

pallet foot is able to handle a load up to 250 kg. A half pallet, 800 x

600 which has 5-7 feet can carry up to 1500 kg. Format European

Pallet 1200 x 800 which has 9 feet can handle up to 2000 kg.
250- 2000 kg
10

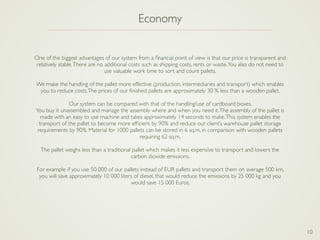

Economy
One of the biggest advantages of our system from a financial point of view is that our price is transparent and
relatively stable.There are no additional costs such as shipping costs, rents or waste.You also do not need to
use valuable work time to sort and count pallets.
We make the handling of the pallet more effective (production, intermediaries and transport) which enables
you to reduce costs.The prices of our finished pallets are approximately 30 % less than a wooden pallet.
Our system can be compared with that of the handling/use of cardboard boxes.
You buy it unassembled and manage the assembly where and when you need it.The assembly of the pallet is
made with an easy to use machine and takes approximately 14 seconds to make.This system enables the
transport of the pallet to become more efficient by 90% and reduce our client’s warehouse pallet storage
requirements by 90%. Material for 1000 pallets can be stored in 6 sq.m, in comparison with wooden pallets
requiring 62 sq.m.
The pallet weighs less than a traditional pallet which makes it less expensive to transport and lowers the
carbon dioxide emissions.
For example if you use 50 000 of our pallets instead of EUR pallets and transport them on average 500 km,
you will save approximately 10 000 liters of diesel, that would reduce the emissions by 25 000 kg and you
would save 15 000 Euros.
11
Handling
Losotech’s pallet system improves the employees physical work
conditions in a warehouse.The physical load when manually handling
our lighter pallet is drastically reduced and therefore reduces work
place injuries and the risk of serious work place accidents.
The pallet also eliminates the risk of injuries caused by nails, splinters or
broken wooden boards to the warehouse employee or the receiving
customer.
It is substantially easier for the receiver of the pallet to handle the pallet
after use.We are currently working with several chain stores and they
see this as very beneficial. It is harder to handle a traditional wooden
pallet in a shop (hard to lift, lack of space, unhygienic).
By using the materials, cardboard and plastic to transport goods
promotes better hygiene in both handling and in the transportation.
12
Environmentally Friendly
The Losotech pallet is the cleanest and most environmentally
friendly solution currently on the market. Our system involves
sending the pallet to the receiver and then the receiver
dismantles the used pallet and recycles the plastic and
cardboard separately.
We have made an LCA with Borås University in Sweden that
shows our pallet system only generates 1/8 (12%) of the
emissions that a traditional pallet does in a return flow.A
traditional pallet in a return system uses 8,5 times more
energy in comparison to our system.
The weight difference between our pallet and a traditional
wooden pallet is approximately 23 kilos which makes the
transport cleaner and more environmentally friendly.
Our system takes away the need to transport empty pallets by
90 % which generates considerable carbon dioxide emissions.
Our products are made out of recycled materials and are 100
% recyclable.
A Swedish invention with unique benefits

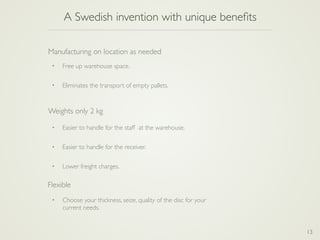

13
• Free up warehouse space.
• Eliminates the transport of empty pallets.
Manufacturing on location as needed
• Easier to handle for the staff at the warehouse.
• Easier to handle for the receiver.
• Lower freight charges.
Weights only 2 kg
• Choose your thickness, seize, quality of the disc for your
current needs.
Flexible
A Swedish invention with unique benefits
14
• Can be sent worldwide.
Hygienic
• Less carbon dioxide emissions.
• Locally produced pallet feet made of recycled plastic.
• Easy to recycle.
Environmental friendly
• No dependence on daily price of wooden pallets.
Self-sufficient

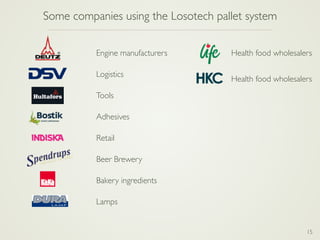

Some companies using the Losotech pallet system
15
Engine manufacturers
Logistics
Tools
Adhesives
Retail
Beer Brewery
Bakery ingredients
Lamps
Health food wholesalers
Health food wholesalers

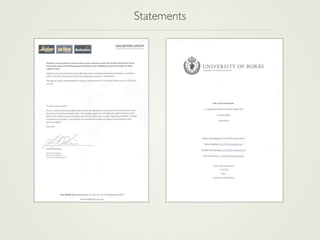

Statements
Thanks for your attention!
The function of Losotech pallets is shown on ourYoutube Channel
Just write Losotech in theYoutube search field and all our channel will appear!
