We have made a pre analysis of pollutions problem and we have thought to check smokes and gasses directly in the single flue, record data and visualize on different platform in base at the uses.

1. Monitoring
Francesco Cassini
Matteo Ginesi
Lorenzo Leschiera
IOT Final Project Presentation
prof. Ioannis Chatzigiannakis
Private Telemetry and Alert System for Citizens
Smart City Certification and Survellaince Network
Public database for Scientific Pollution Monitoring
Flue Smoke

2. OUR TEAM
Francesco Cassini
Cassini.785771@studenti.uniroma1.it
linkedin.com/in/francesco-cassini
Matteo Ginesi
ginesi.1832198@studenti.uniroma1.it
linkedin.com/in/matteo-ginesi
Lorenzo Leschiera
leschiera.1325697@studenti.uniroma1.it
linkedin.com/in/lorenzo-leschiera

3. FLUE Smoke and Gas Certification
- One check at year for gas boiler
- Two times for GPL and solid fuels
- Costs: from 50 to 80 Euro
- Necessity to be onplace

4. Boiler and Flue checks are necessary for…
- Correct working
- Fuel Consumption
- Air quality
- Private and Public Safety

5. Gas street pipes
explosion
(Rocca di Papa 2019)
Boiler apartment
accident
(Roma 2019)
Public
Safety
In
particular

6. Infact, the
Accidents
Reasons
Absence of Smog relevations detector
(29% of accidents)
Malfunctions of Devices
(27% of accidents)
GPL incorrect use procedures
(31% of accidents)
GPL absence of manteinance
(3% of accidents)

7. More…
Pollutions
Problem
Gas boilers, stove, fireplaces principal
contribute to pollutions
(60% of total pollutions in the air)
PM10 grown from 14.000 to 21.000 tons
(ISPRA pollution report 2016)
PM10 by cars reduced from 13 to 5.5
(ISPRA pollution report 2016)
Difficult to individuate immediately
a malfunctions, the source of smog

8. People interested
- Greta Turngreen
- Age: 85
- Retired teacher, widow, live alone, 2 sons
- Afraid unknown tecnicians at home
- Informed, keep the enviroment
- Small retirement pension, save money

9. What’s mean today «Wireless Flue Analyzer Kit»
Only Bluetooth or Wifi to enable a more bigger screen on tablet

11. FLUE GAS Sensors Network
Private Alert and Info
Online Certification
and City Monitoring
Public Big Data Analsys
Sensors LoRa Transmitter

12. Putting all together
Wireless +Exclusive of LoRa
Time of intervetion + Electric indipendent
Big and Usage Data + Public Network of Gateway
Less burocracy + Years of transmission
Cost of device + Long range
Elder security + Edge Cloud
Simple to install + Expandable

13. Big data
analysis
Private Alert
City Dataset

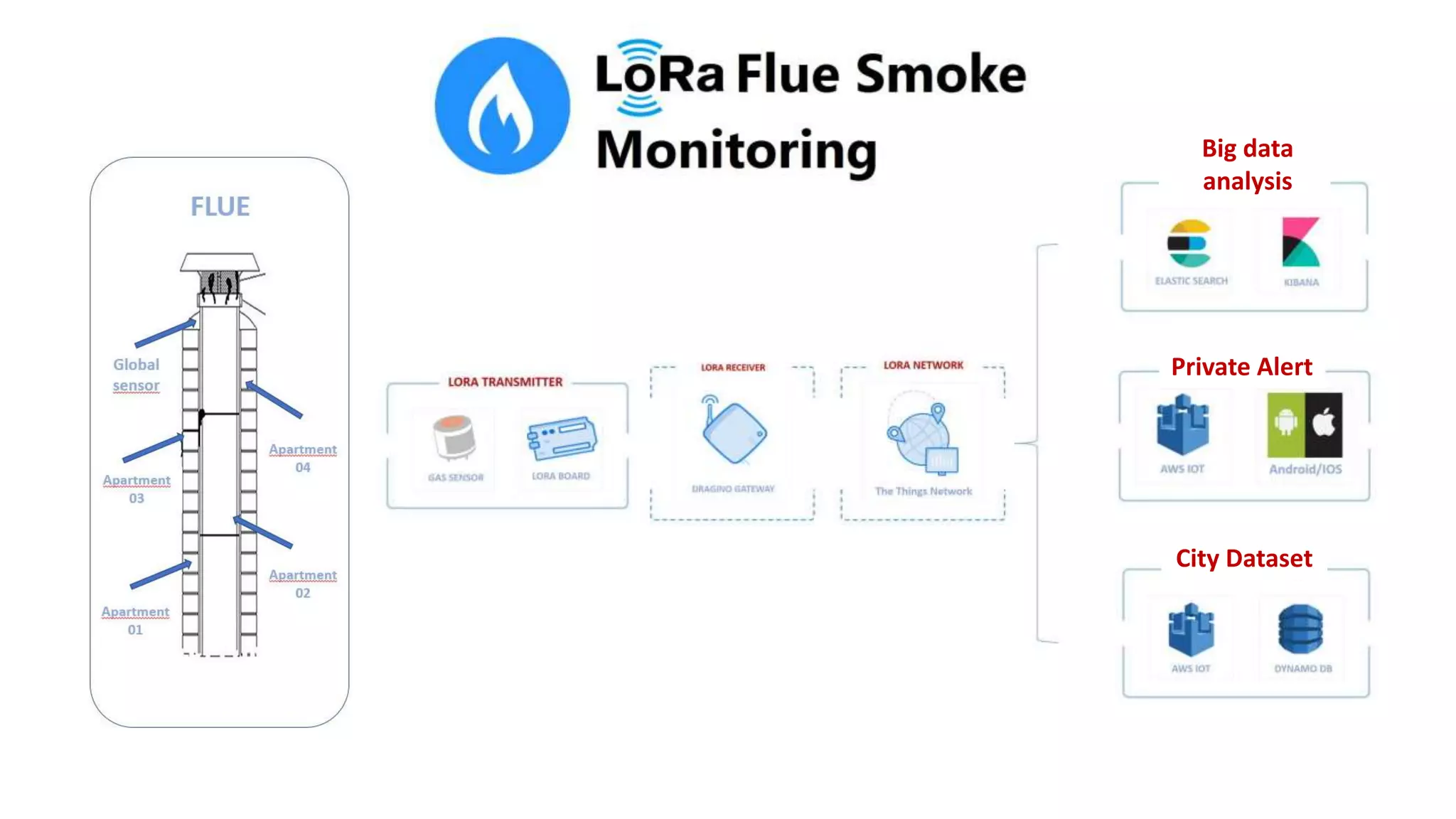

14. GAS SENSOR LORA BOARD
DRAGINO GATEWAY
FLUE
LORA TRANSMITTER
LORA RECEIVER
Global
sensor
Apartment
03
Apartment
01
Apartment
04
Apartment
02
Collect Data by Sensors
Multiusers LORA Gateway
Collects alert messages
from several LORA devices
Device with GAS sensor and
LORA transmitter
Get gas measure
and send data

15. AWS IOT DYNAMO DB
LORA NETWORK
NETWORK SERVER

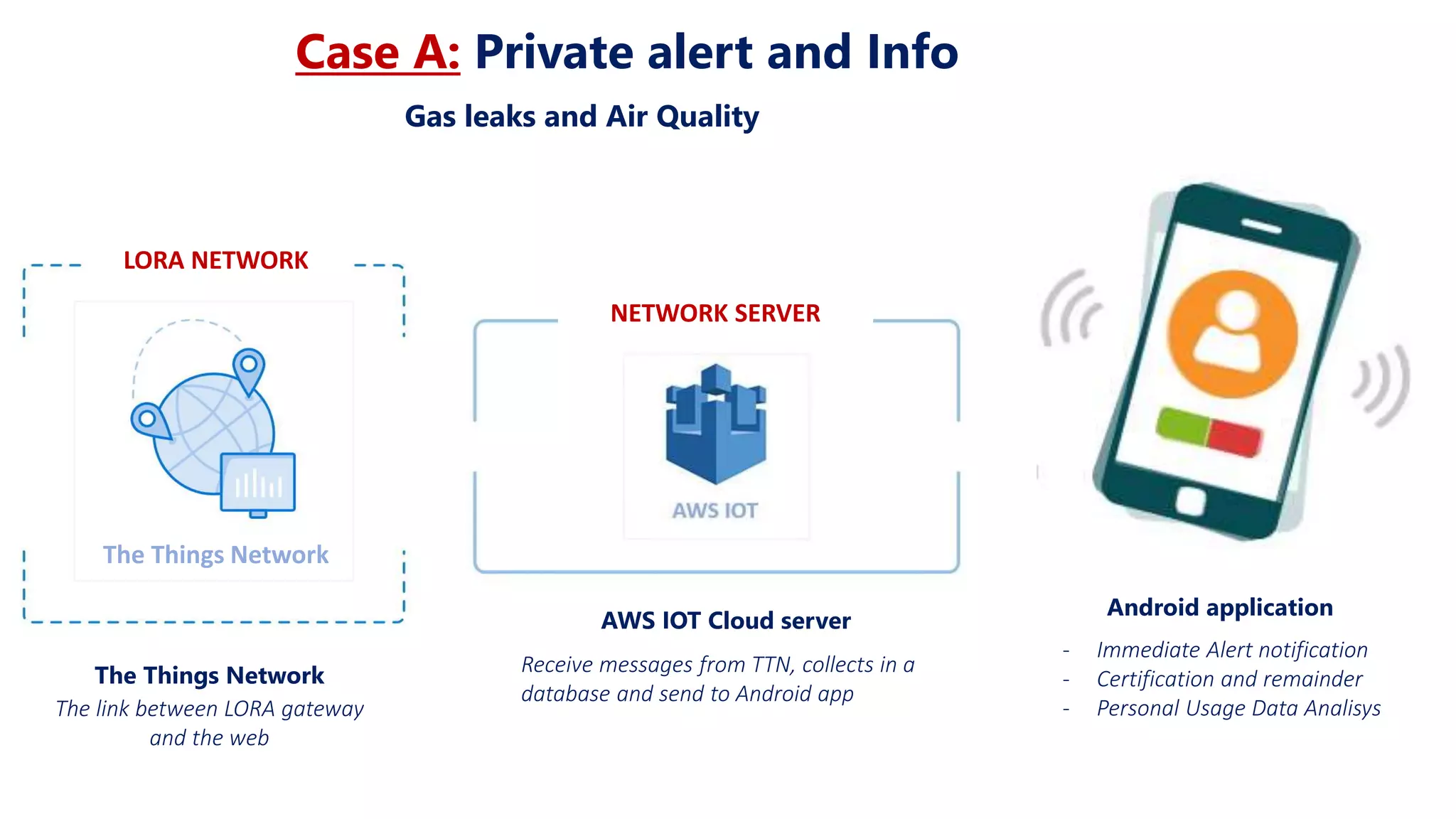

Case A: Private alert and Info
Gas leaks and Air Quality
The Things Network
The link between LORA gateway
and the web
Android application
- Immediate Alert notification
- Certification and remainder
- Personal Usage Data Analisys
AWS IOT Cloud server
Receive messages from TTN, collects in a
database and send to Android app
The Things Network

16. AWS IOT DYNAMO DB
LORA NETWORK
NETWORK SERVER
Case B: Online Certification and Network monitoring
Gas leaks and Air Quality
The Things Network
The link between LORA gateway
and the web
City Administration Database
- Public Sorvellaince
- Better certification management
- Smart City administration
AWS IOT Cloud server
Receive messages from TTN, collects in a
database and send to Android app
The Things Network

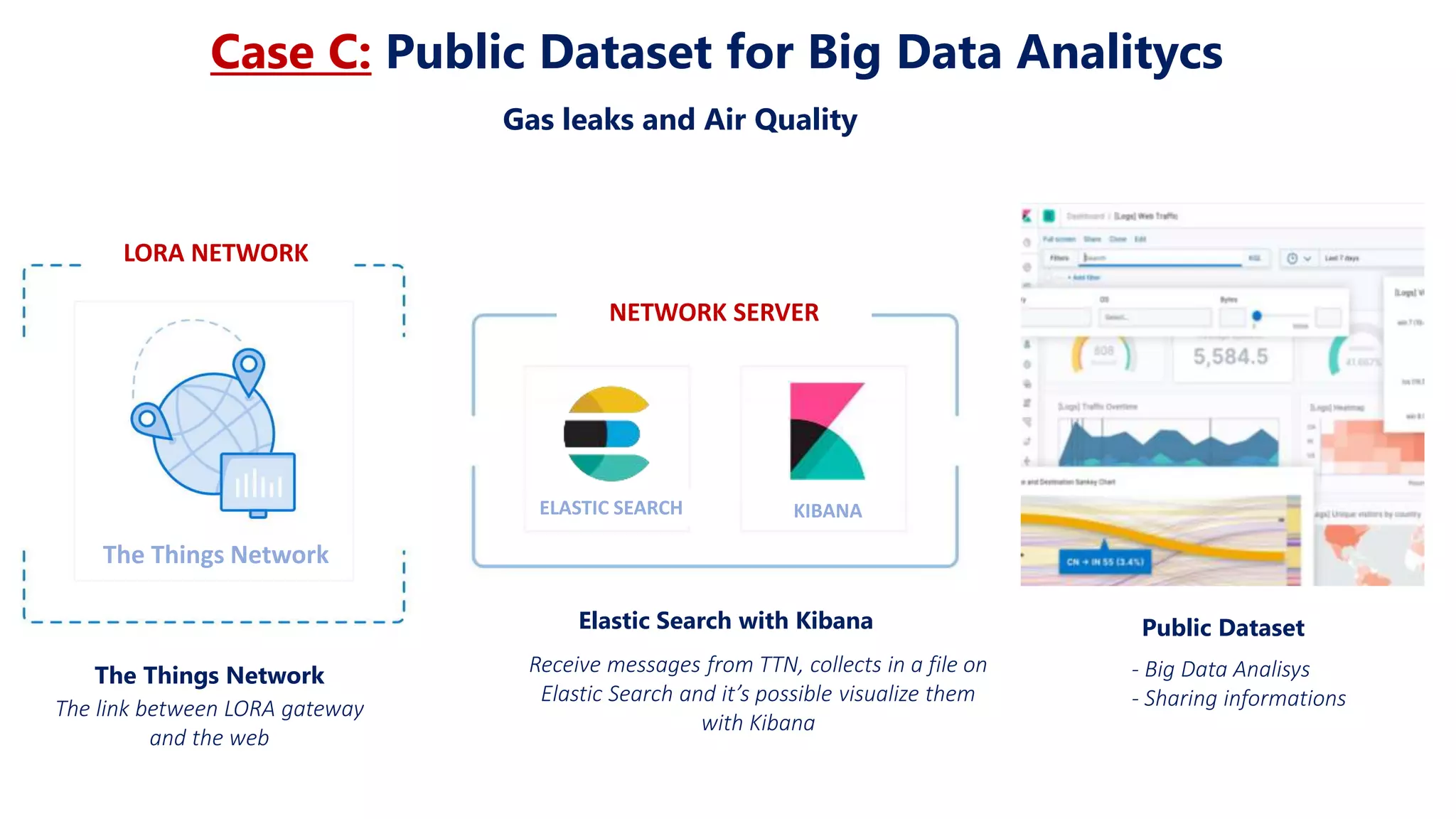

17. ELASTIC SEARCH KIBANA
LORA NETWORK
NETWORK SERVER
Case C: Public Dataset for Big Data Analitycs
Gas leaks and Air Quality
The Things Network
The link between LORA gateway
and the web
Public Dataset
- Big Data Analisys
- Sharing informations
Elastic Search with Kibana
Receive messages from TTN, collects in a file on
Elastic Search and it’s possible visualize them
with Kibana
The Things Network

18. Gas sensor detect out of range data from enviroment
Immediately send an alert through LORA network
1) Gas Sensor device with LORA transmitter

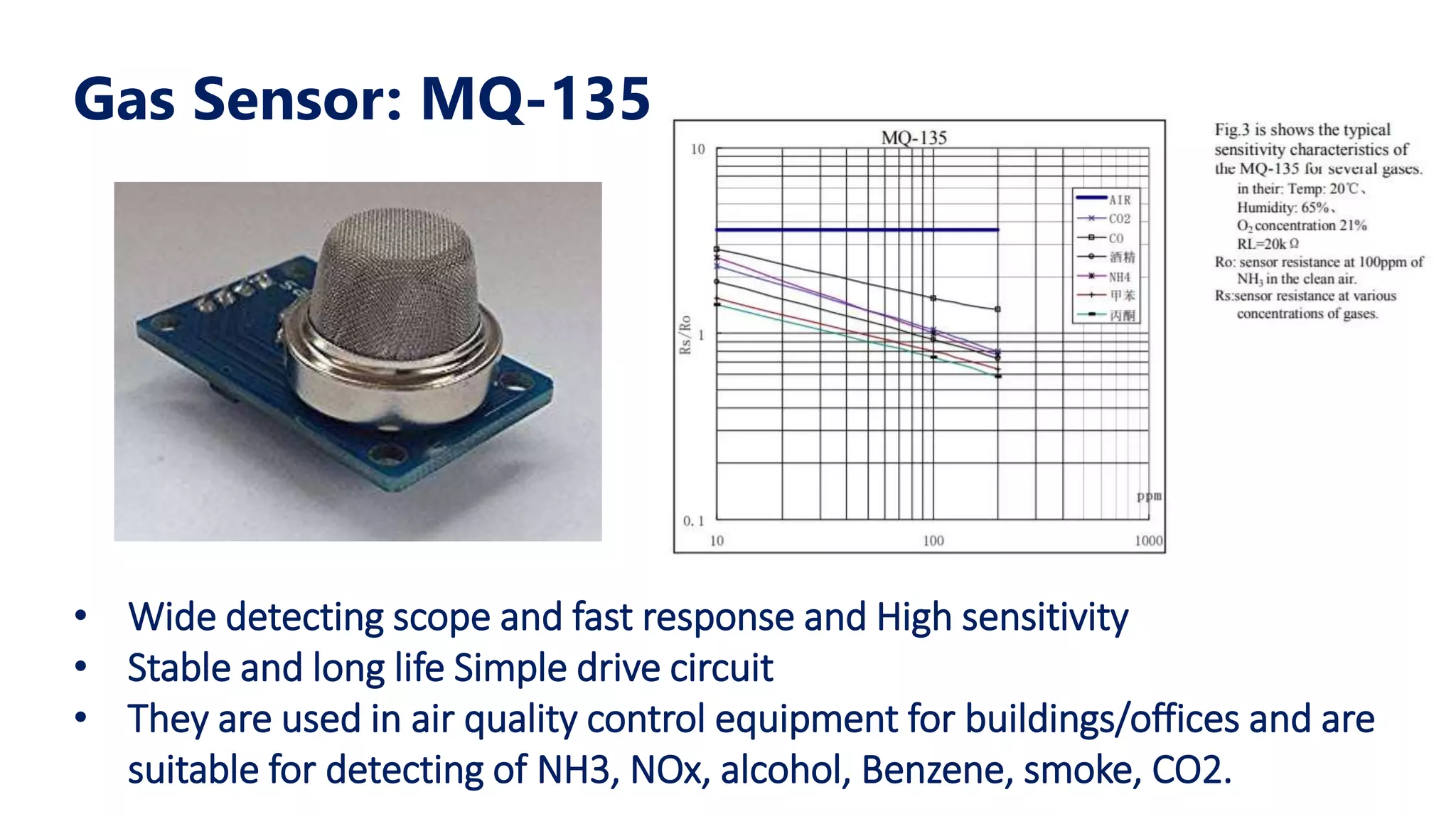

19. Gas Sensor: MQ-135
• Wide detecting scope and fast response and High sensitivity
• Stable and long life Simple drive circuit
• They are used in air quality control equipment for buildings/offices and are
suitable for detecting of NH3, NOx, alcohol, Benzene, smoke, CO2.

20. LoRaWAN Transreceiver – ST32 DISCOVERY
Init Radio
module
Init Analog
Input
LoRaWAN /
TTN credential
data
LoRa Event
Queue
Send data Recive Data

21. ST32 DISCOVERY - Code
mbed_app.json
LoRaWAN credentials for TTN
main.cpp
Sensor’s value reading and sending
data trough LoRaWAN

22. 2) LORA Gateway: DRAGINO LG01-S
- Very economic… but there are better choices!
- Is only single band!
- LoRa band available at 433/868/915/920 Mhz
- Max range in LoRa : 5 ~ 10km
- Low power consuption
- Multiuser

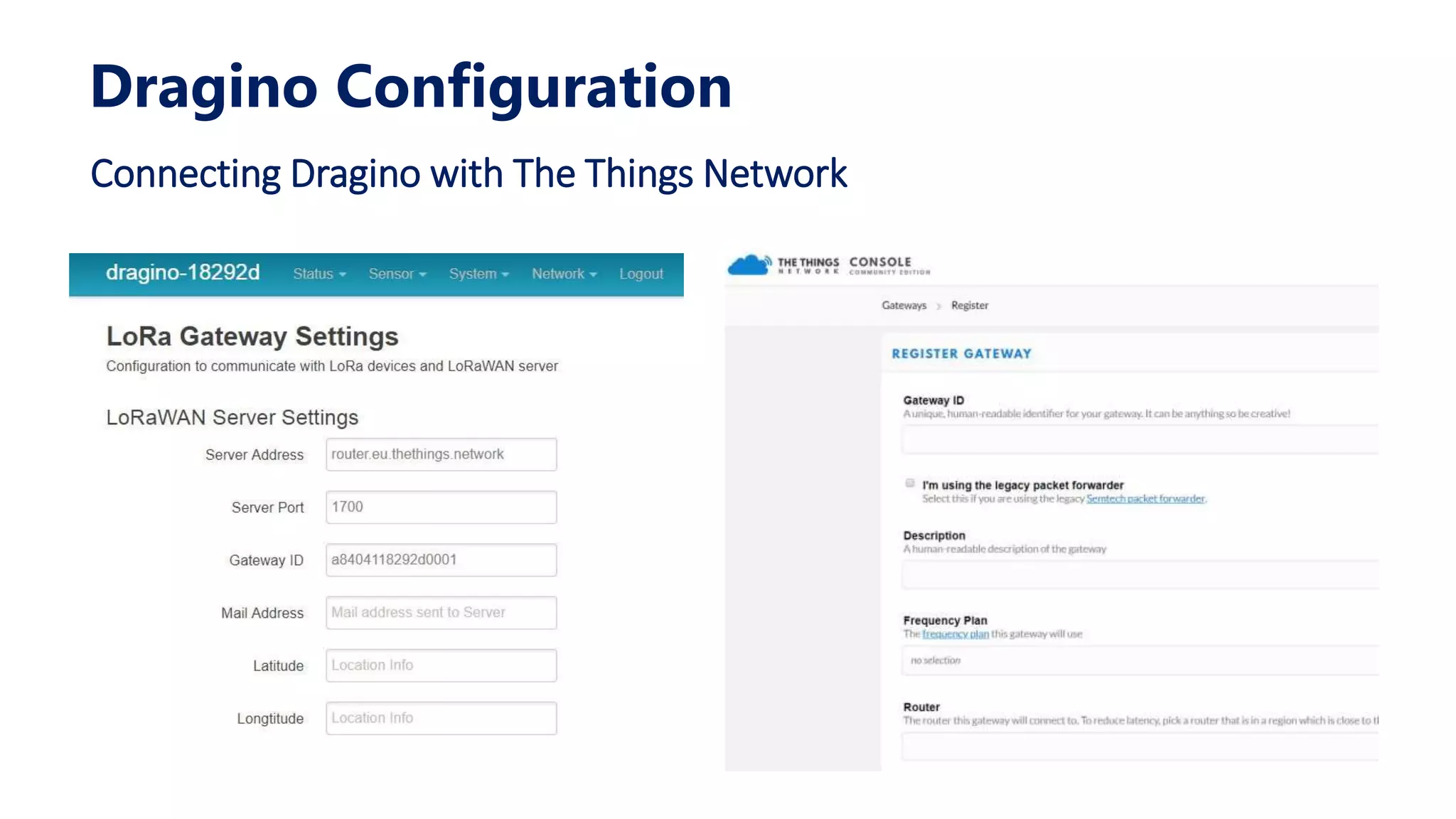

23. Dragino Configuration
Connecting Dragino with The Things Network

24. Dragino problem: a bad antenna connector!
We have to repair it!

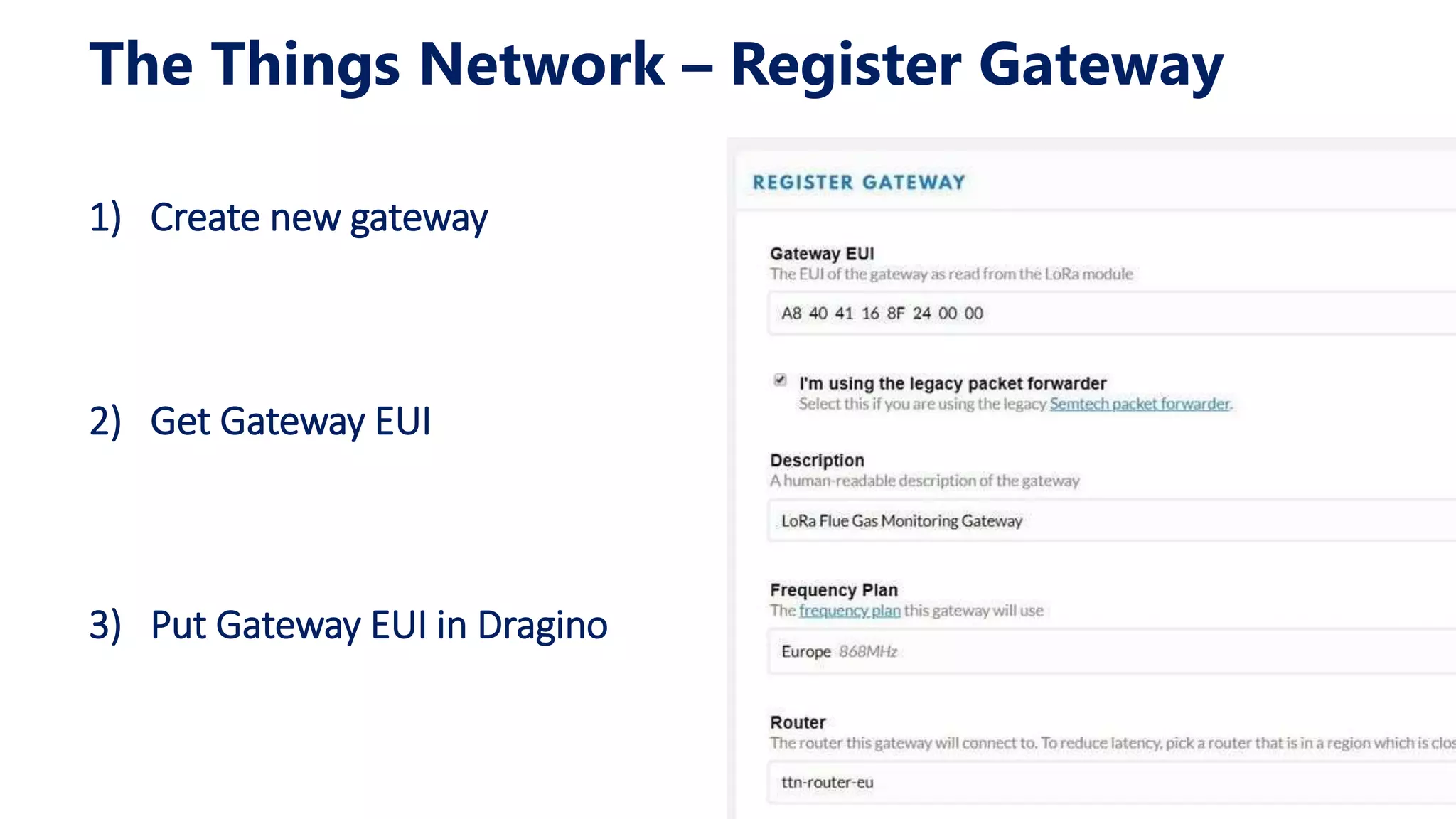

25. The Things Network – Register Gateway
1) Create new gateway
2) Get Gateway EUI
3) Put Gateway EUI in Dragino

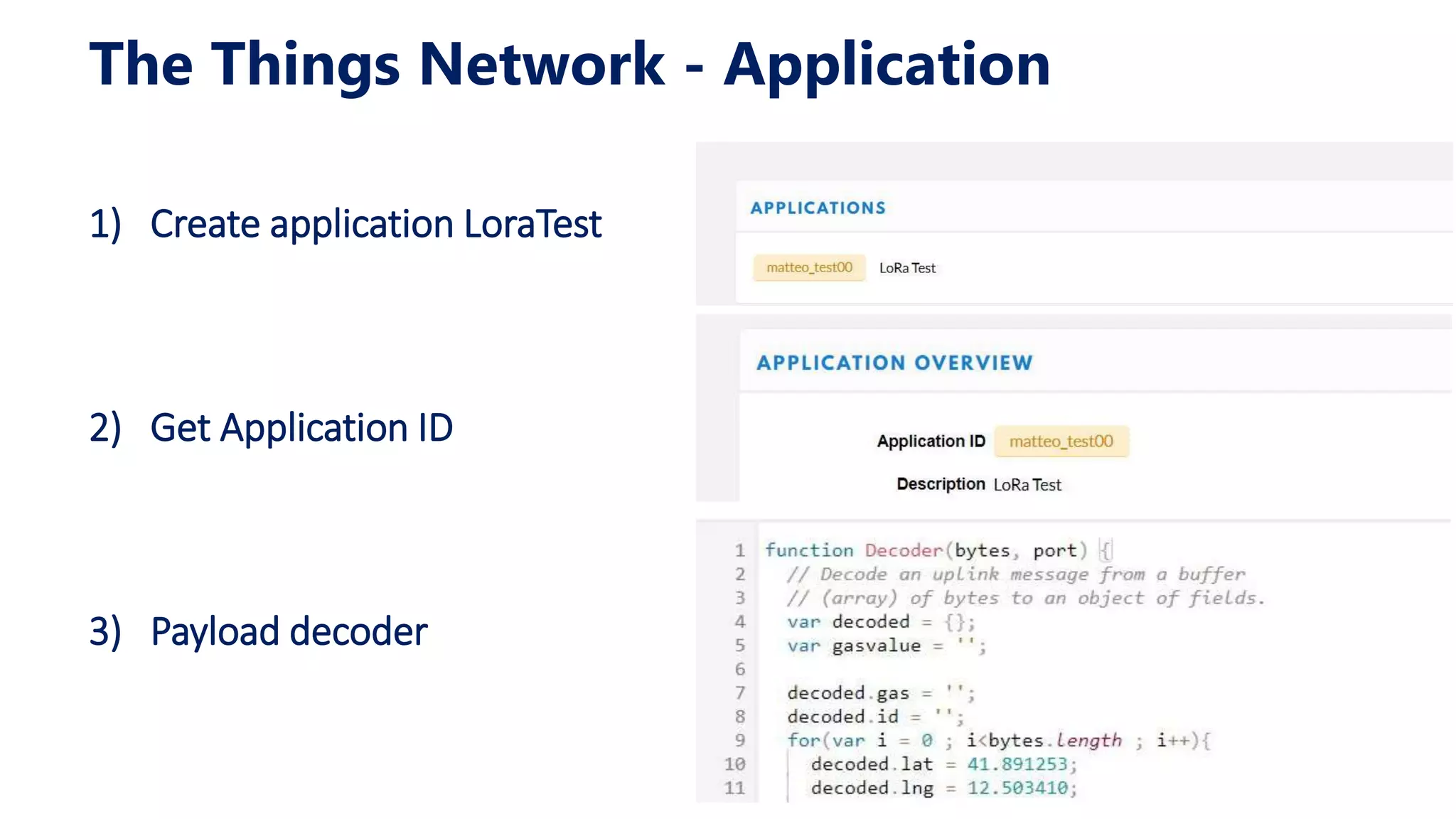

26. The Things Network - Application
1) Create application LoraTest
2) Get Application ID
3) Payload decoder

27. The Things Network - Devices
- Application is the hub for one
or more devices
- Device report the address of
phisical transmitter device
- There are two different methods:
APB and OTAA

28. The Things Network: Activation Notes
Over-the-Air Activation (OTAA)
Over-the-Air Activation (OTAA) is the preferred and most secure way to connect with The Things
Network. Devices perform a join-procedure with the network, during which a dynamic DevAddr is
assigned and security keys are negotiated with the device.
Activation by Personalization (ABP)
In some cases you might need to hardcode the DevAddr as well as the security keys in the device. This
means activating a device by personalization (ABP). This strategy might seem simpler, because you
skip the join procedure, but it has some downsides related to security

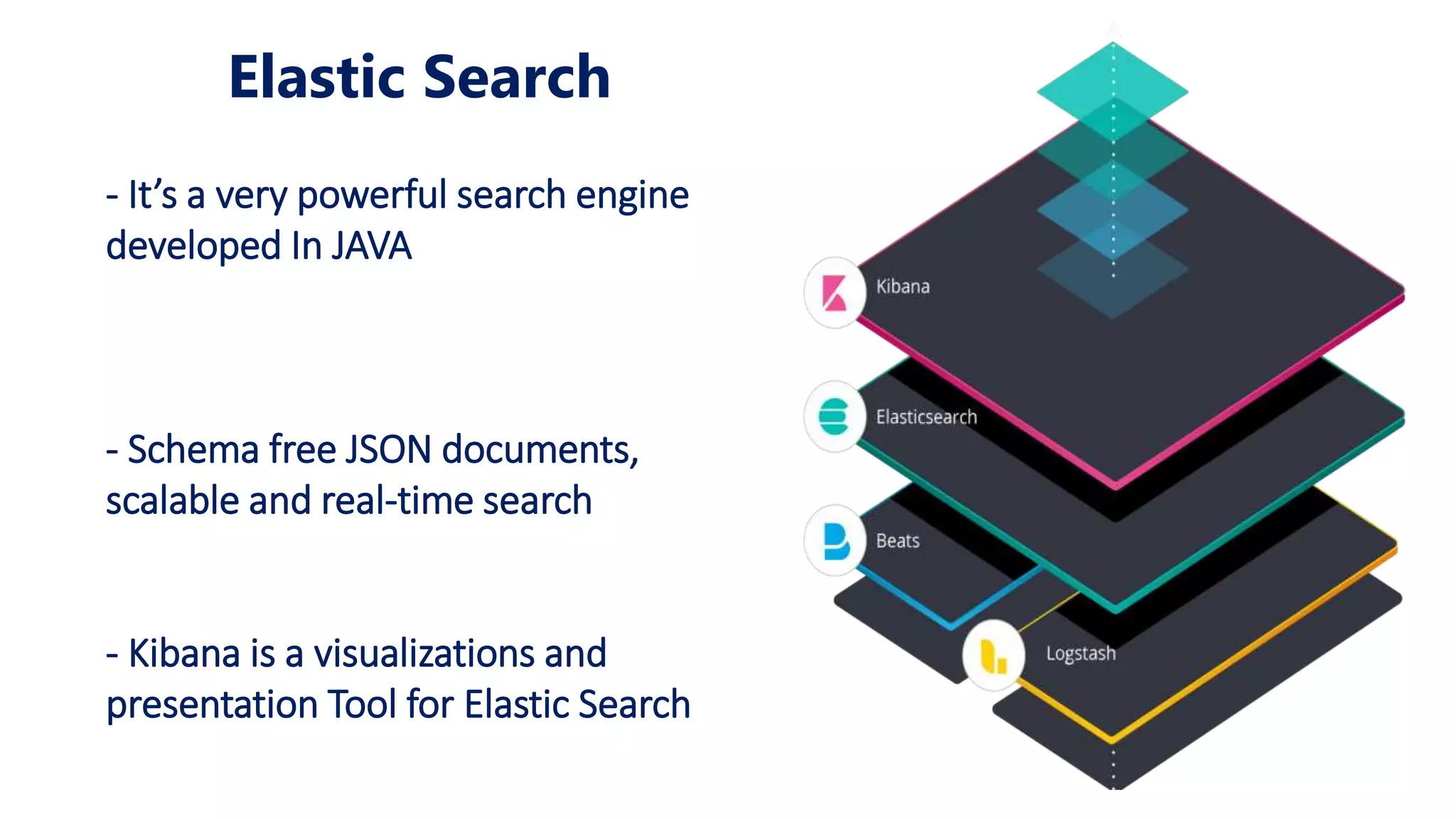

29. Elastic Search
- It’s a very powerful search engine
developed In JAVA
- Schema free JSON documents,
scalable and real-time search
- Kibana is a visualizations and
presentation Tool for Elastic Search

30. The Things Network – HTTP Integration
- TTN has several plugins to connect
with external services
- HTTP integration sends data in
JSON format to an endpoint
- Here we have to put the URL
endpoint of Elastic Search
(very carefully to create it!)

31. Elastic Search – API Console
- Through API Console is possible
interact with Elastic
- PUT, POST, GET, DELETE
cURL symilar syntax
- A simple GET indices search
to see if everything goes fine

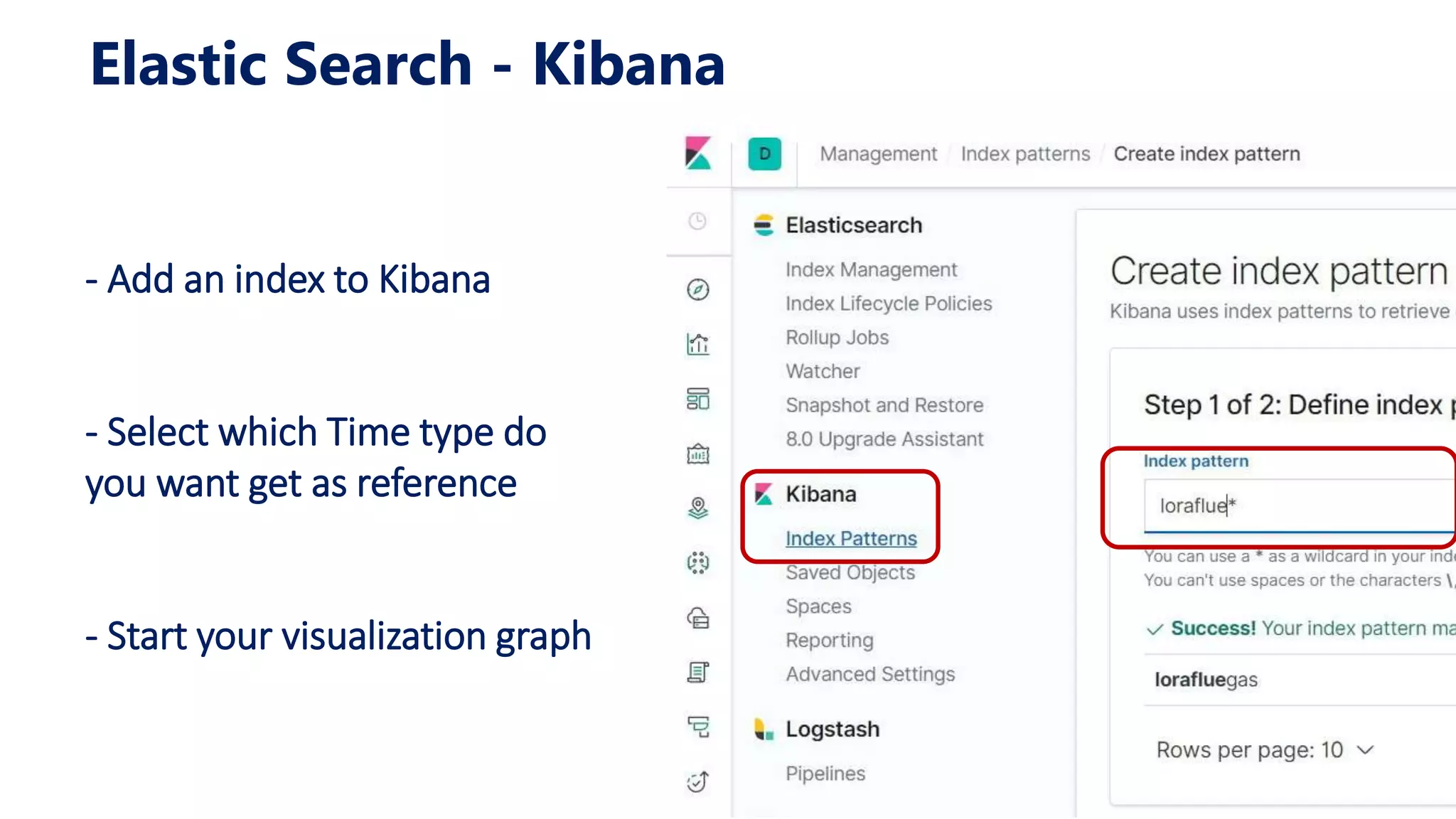

32. Elastic Search - Kibana
- Add an index to Kibana
- Select which Time type do
you want get as reference
- Start your visualization graph

33. Elastic Search - Kibana
- Several type of visualizations
in real time
- Discover: to see immediately
our data
- Visualize: to create interactive
dashboards

34. AWS – DynamoDB
- NoSQL database service that
supports key-value and
document data structures
- Each partition 10GB, 1000 Write
Capacity Units and 3000 Read
Capacity Units.
- Distributed System

35. AWS – DynamoDB
- Integration of AWS IoT with
DynamoDB
- Security policy of AWS
- Stores the received message on
DynamoDB

36. AWS – DynamoDB - RestFul
- Additional: Python (.NET) code to
RestFul
- PUT, POST, GET, DELETE
cURL symilar syntax
- Return all devices and all
value stored

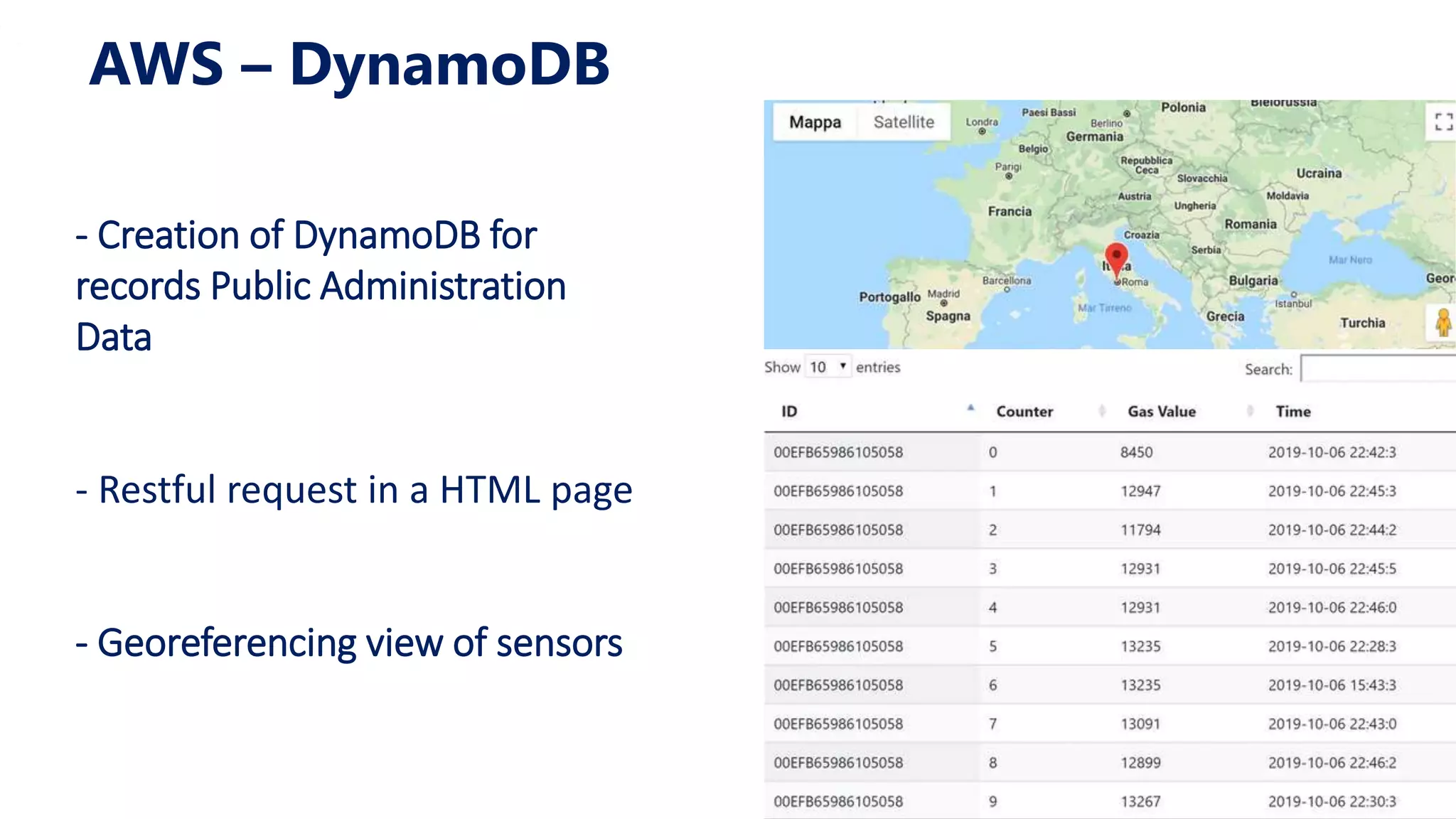

37. AWS – DynamoDB
- Creation of DynamoDB for
records Public Administration
Data
- Restful request in a HTML page
- Georeferencing view of sensors

38. AWS– Android
- Creations of republish of message
- Filter important messages

39. AWS– Android
- Android application for notification
- Using service android for
run in background
- Simple and expandible

40. AWS– Android
- Example of notification
- Very fast

41. POSSIBLE EXPANSIONS
Street gas leaks, hospital air pipes, enviroment at risk…
GAS TANK GAS BOILER GAS STREET PIPES

42. Previous Research
- 2013 publication
- Based on a ZigBee
(100 meters)
- Similar to BT or WI-FI
- Centralized solution
- No public database

43. DEMO
TIME

44. Linkedin Medium Hackster
https://www.hackster.io/16978
2/lora-flue-gas-monitoring-
system-e51259
YouTube
https://www.youtube.com/play
list?list=PLAr1WaZbNX6d71oqC
RcAHnkAAhue8hiqc
RESOURCE LINKS
linkedin.com/in/francesco-cassini
linkedin.com/in/matteo-ginesi
linkedin.com/in/lorenzo-leschiera
https://medium.com/@f
rancesco.cassini/lora-
flue-gas-monitoring-
system-27dc85aeaf66

45. SlideShare
presentation Github AMI 2019
https://ami2019.diag.uniroma1.
it/
ArmMBED
https://www.youtube.com/play
list?list=PLAr1WaZbNX6d71oqC
RcAHnkAAhue8hiqc
RESOURCE LINKS
You are reading it! https://github.com/fra
ncesco-AI/LoRa-Flue-
Smoke-Monitoring
