Logic Apps & BizTalk Server 2016

2. #gib2017
Who am I?
• Principal Consultant, Mexia
• Microsoft Azure MVP
• MCSA, MCT, MCPD, MCTS BizTalk & Azure
• Pluralsight Author
• www.mindovermessaging.com
• @daniel2me

3. #gib2017

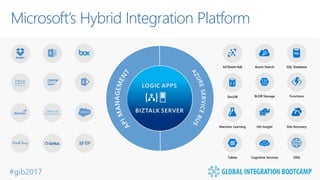

Microsoft’s Hybrid Integration Platform

4. #gib2017

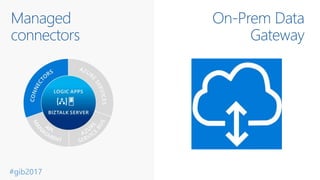

Managed
connectors
On-Prem Data
Gateway

5. #gib2017
BizTalk Connector

6. #gib2017

7. #gib2017
BizTalk Server
Partners

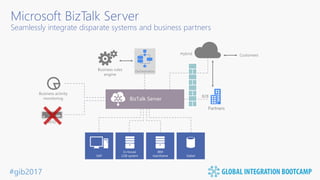

Microsoft BizTalk Server
Seamlessly integrate disparate systems and business partners

8. #gib2017

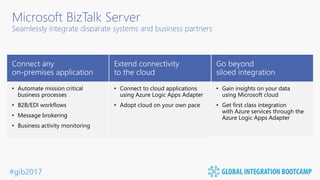

Microsoft BizTalk Server
Seamlessly integrate disparate systems and business partners

9. #gib2017

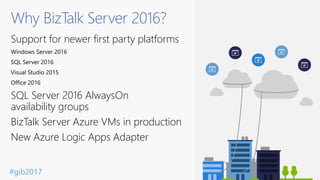

Why BizTalk Server 2016?
Support for newer first party platforms
SQL Server 2016 AlwaysOn
availability groups
BizTalk Server Azure VMs in production
New Azure Logic Apps Adapter

10. #gib2017
Logic App Adapter – Receive Location

11. #gib2017

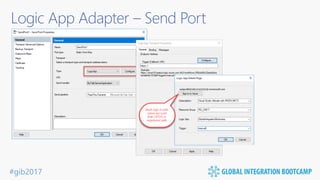

Logic App Adapter – Send Port

12. #gib2017

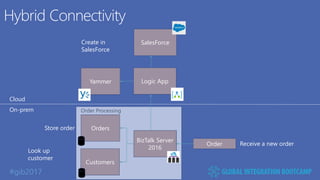

Yammer
Hybrid Connectivity
Logic App
Order
SalesForce
Orders
Create in
SalesForce
Store order
Look up
customer
Receive a new order
Cloud
On-prem
Customers
Order
BizTalk Server
2016
BizTalk Server
2016
Orders
Customers
Logic App
SalesForce
Yammer
Order Processing

13. #gib2017

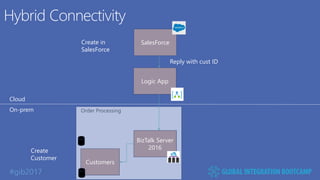

Hybrid Connectivity
Logic App
SalesForceCreate in
SalesForce
Reply with cust ID
Create
Customer
Cloud
On-prem
Customers
BizTalk Server
2016
BizTalk Server
2016
Customers
Logic App
SalesForce
Order Processing

14. #gib2017

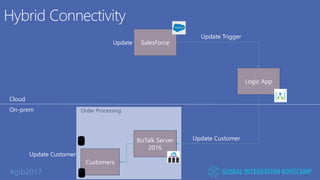

Hybrid Connectivity
SalesForce
Logic App
Update Trigger
Update Customer
Cloud
On-prem
Customers
BizTalk Server
2016
BizTalk Server
2016
Customers
SalesForce
Logic App
Order Processing
Update Customer
Update

15. #gib2017

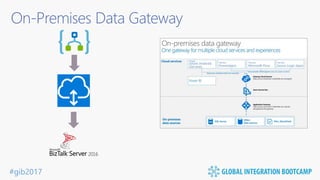

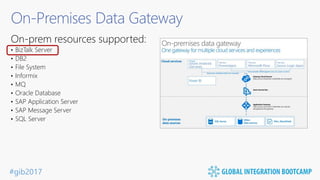

On-Premises Data Gateway
On-prem resources supported:
• BizTalk Server
• DB2
• File System
• Informix
• MQ
• Oracle Database
• SAP Application Server
• SAP Message Server
• SQL Server

16. #gib2017
On-Premises Data Gateway

17. #gib2017

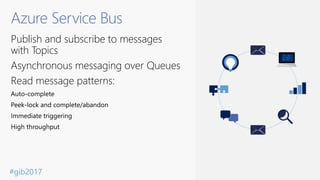

Azure Service Bus
Publish and subscribe to messages
with Topics
Asynchronous messaging over Queues
Read message patterns:

18. #gib2017

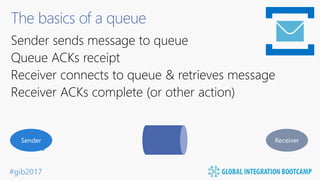

The basics of a queue
Sender sends message to queue
Queue ACKs receipt
Receiver connects to queue & retrieves message
Receiver ACKs complete (or other action)

19. #gib2017
Topics & Subscriptions
Sender only knows about Topic
Receivers only know about Subscriptions
Filters and Actions exist on Subscriptions
“type” = “order”
“type” = “quote”
Topic
Subscription 1
Subscription 2

20. #gib2017

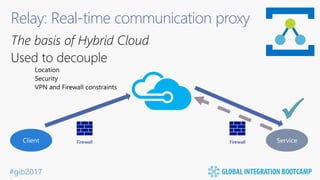

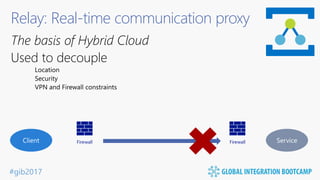

Relay: Real-time communication proxy
The basis of Hybrid Cloud
Used to decouple
Firewall Firewall

21. #gib2017
Relay: Real-time communication proxy
The basis of Hybrid Cloud
Used to decouple
Firewall Firewall


22. #gib2017

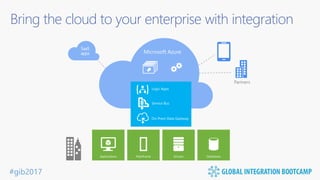

On-Prem Data Gateway
Microsoft Azure
Partners
Logic Apps
Service Bus
Bring the cloud to your enterprise with integration

23. #gib2017 Microsoft Ignite
Questions?

24. #gib2017
Lab #3
Logic Apps + BizTalk Server + Service Bus

25. #gib2017

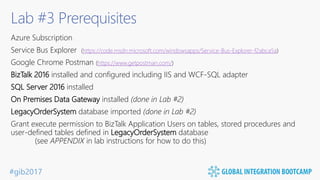

Lab #3 Prerequisites
Azure Subscription
Service Bus Explorer (https://code.msdn.microsoft.com/windowsapps/Service-Bus-Explorer-f2abca5a)
Google Chrome Postman (https://www.getpostman.com/)
BizTalk 2016 installed and configured including IIS and WCF-SQL adapter
SQL Server 2016 installed
On Premises Data Gateway installed (done in Lab #2)
LegacyOrderSystem database imported (done in Lab #2)
Grant execute permission to BizTalk Application Users on tables, stored procedures and
user-defined tables defined in LegacyOrderSystem database
(see APPENDIX in lab instructions for how to do this)

26. #gib2017
Lab #3 Steps
