1. Pieter Vandenheede
Integration Architect @ codit.eu
2016-06-30 BTUG.be
#Integrate2016 Recap
“A session about sessions”

2. Pieter Vandenheede
Integration Architect @ Codit
be.linkedin.com/in/pvandenheede
@PVandenheede
pieter.vandenheede@codit.eu
pvandenheede.wordpress.com
www.codit.eu/blog

3. The conference
380+ attendees
22 countries
187 companies
Streamed live
29 sessions
26 speakers
Networking
3 days
Microsoft Team
Latest updates
London
Integration
#Azure
#msbts

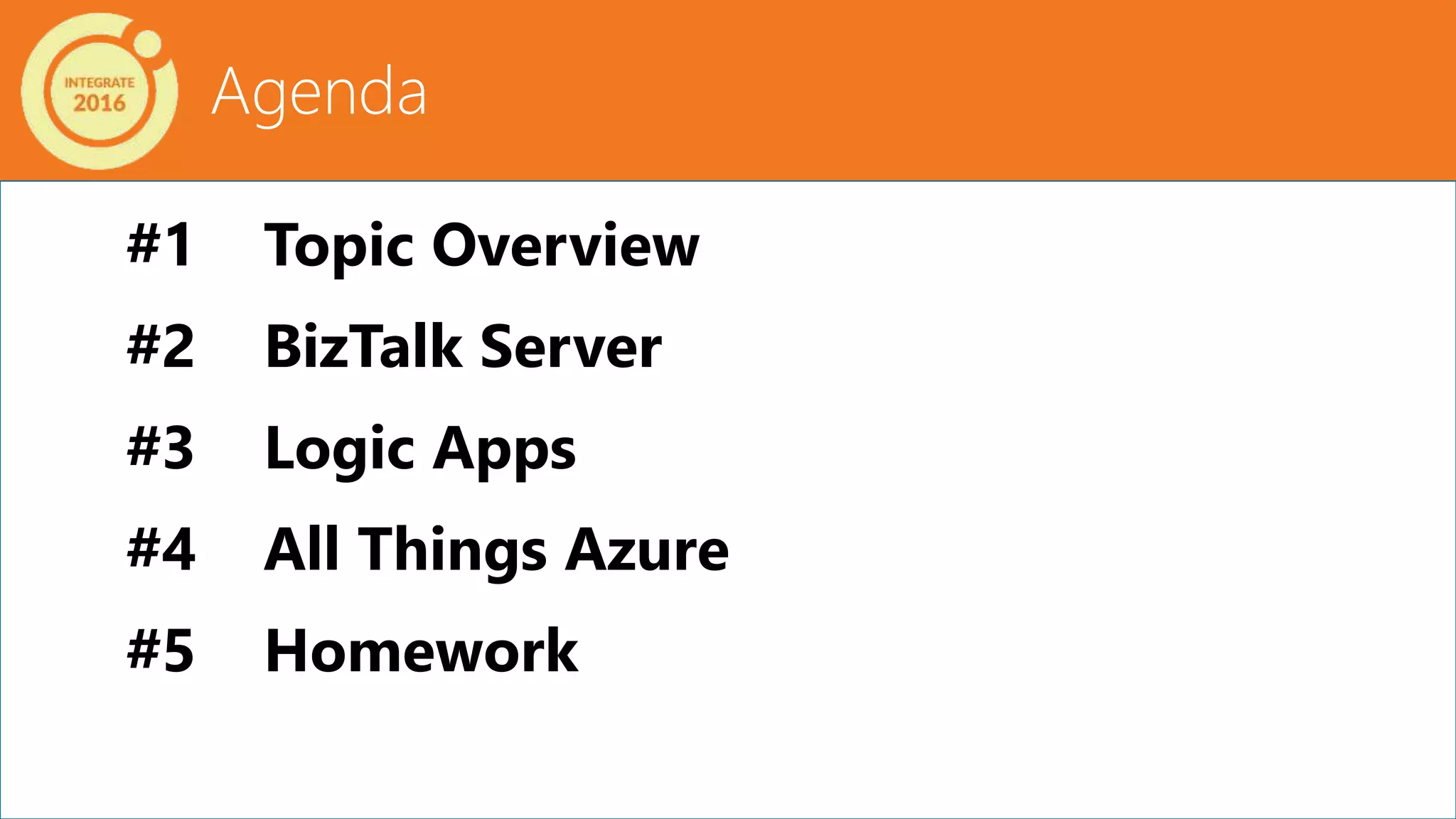

4. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

5. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

6. Topic Overview
0 1 2 3 4 5 6
API Management
Azure Functions
BizTalk Server
IoT
Logic Apps
Microsoft Flow
Other
Service Bus
Service Fabric

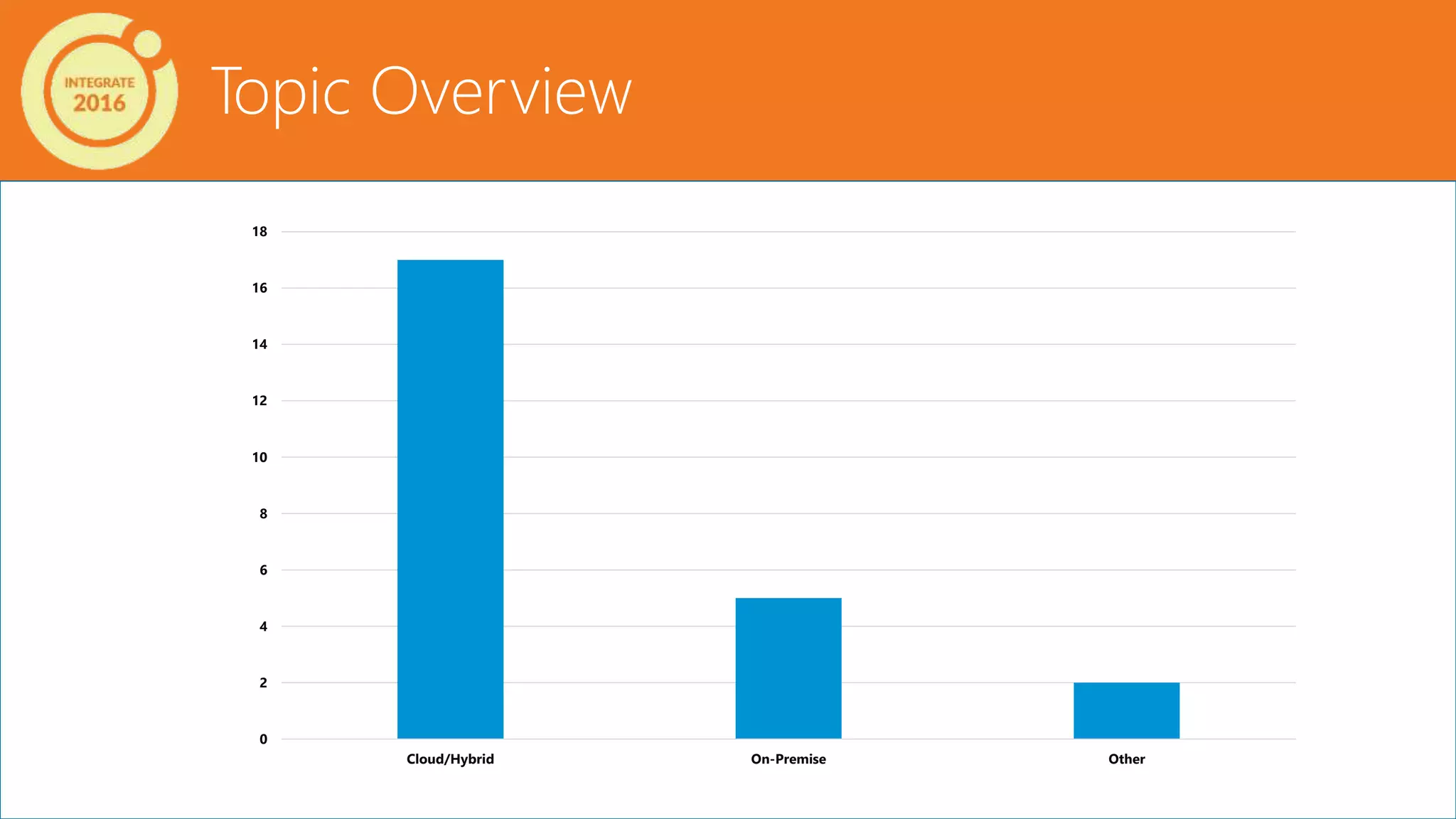

7. Topic Overview
0
2
4
6
8
10
12
14
16
18
Cloud/Hybrid On-Premise Other

8. Conclusion?

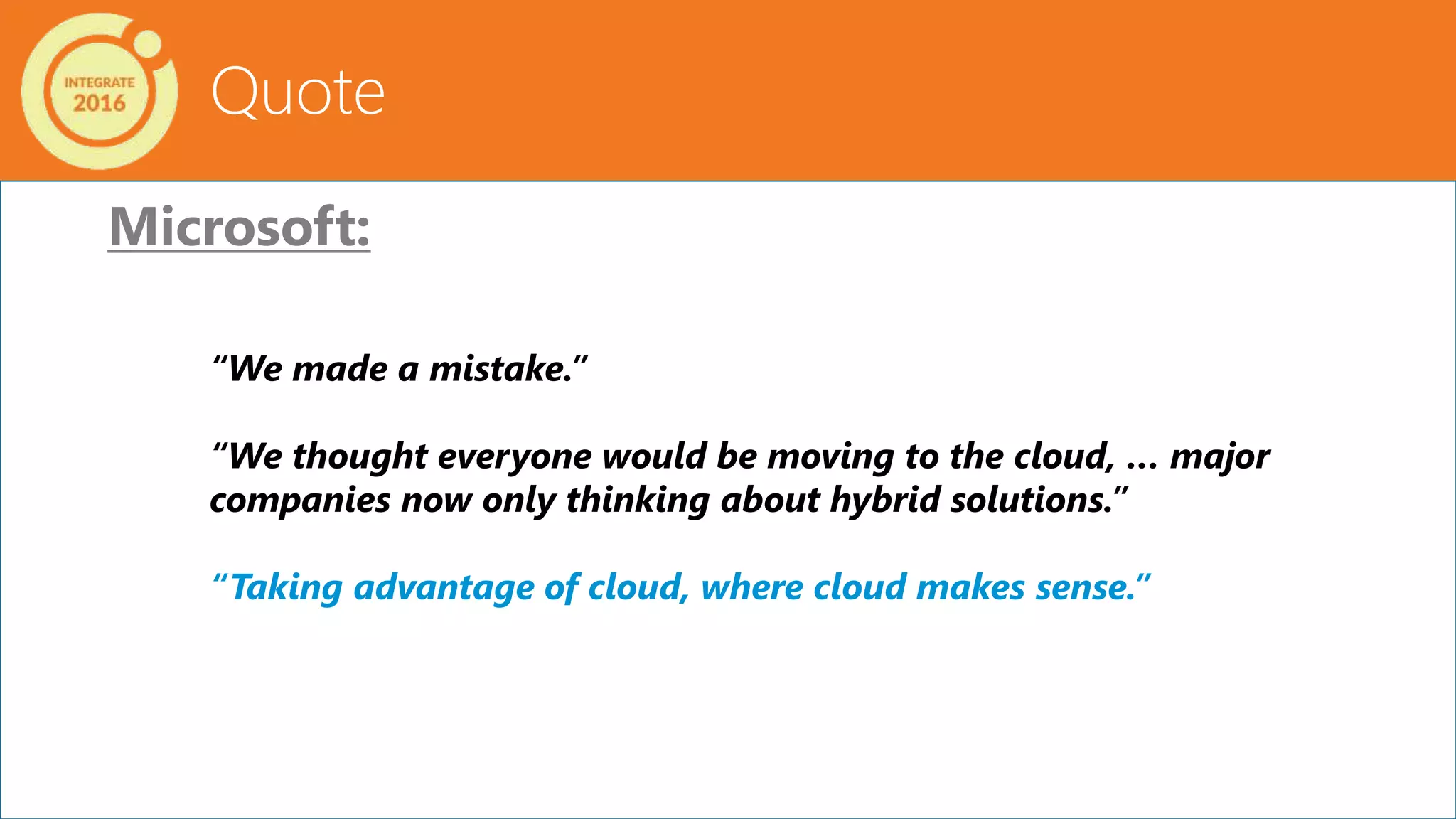

9. Quote
Microsoft:
“We made a mistake.”
“We thought everyone would be moving to the cloud, … major
companies now only thinking about hybrid solutions.”
“Taking advantage of cloud, where cloud makes sense.”

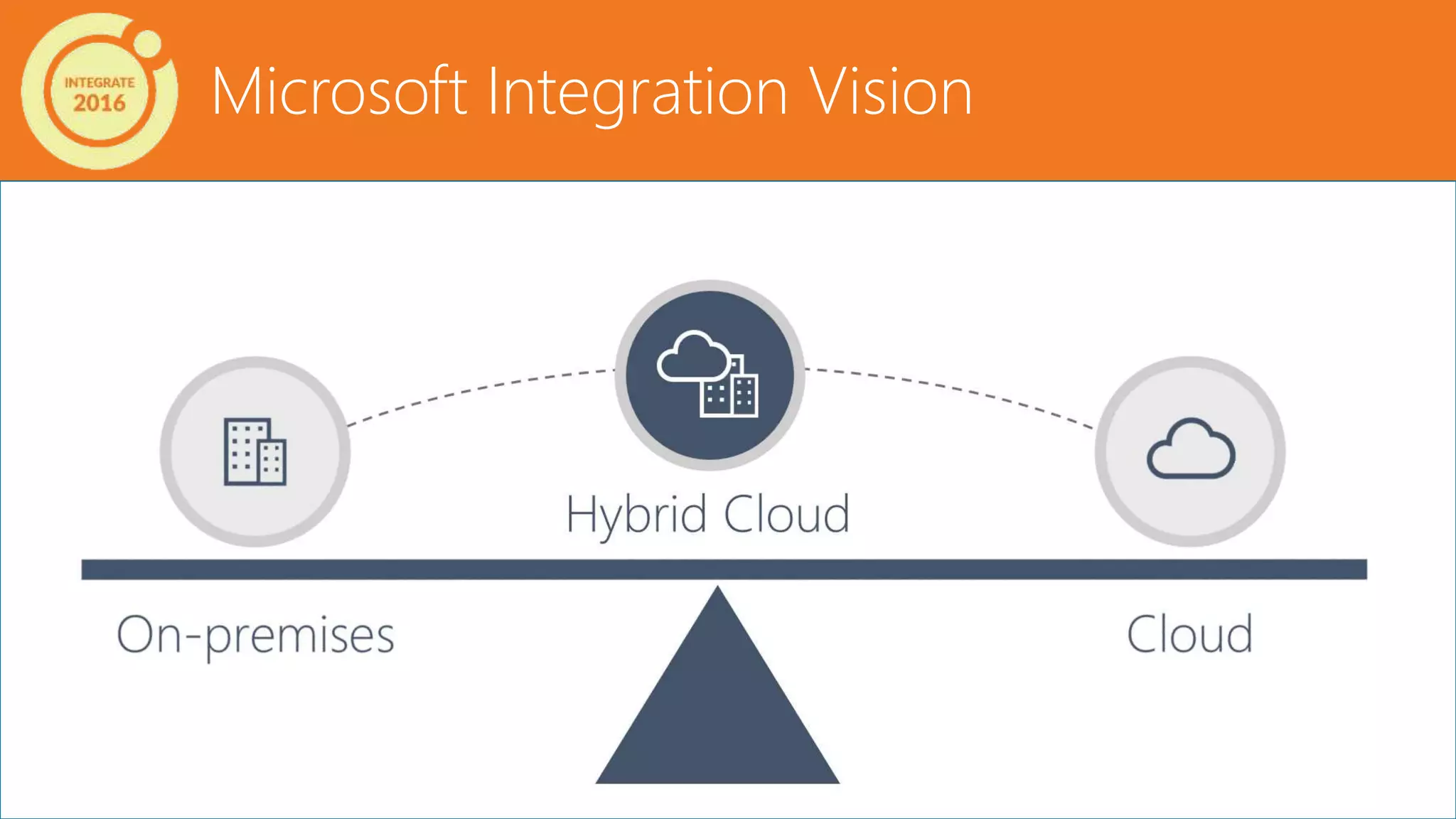

10. Microsoft Integration Vision

11. Microsoft Integration Vision

12. Quote
Microsoft:
“BizTalk Server remains at the center of our
integration vision …
… together with Logic Apps”
“BizTalk Server is NOT dead!”

13. Microsoft Integration Vision

14. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

15. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

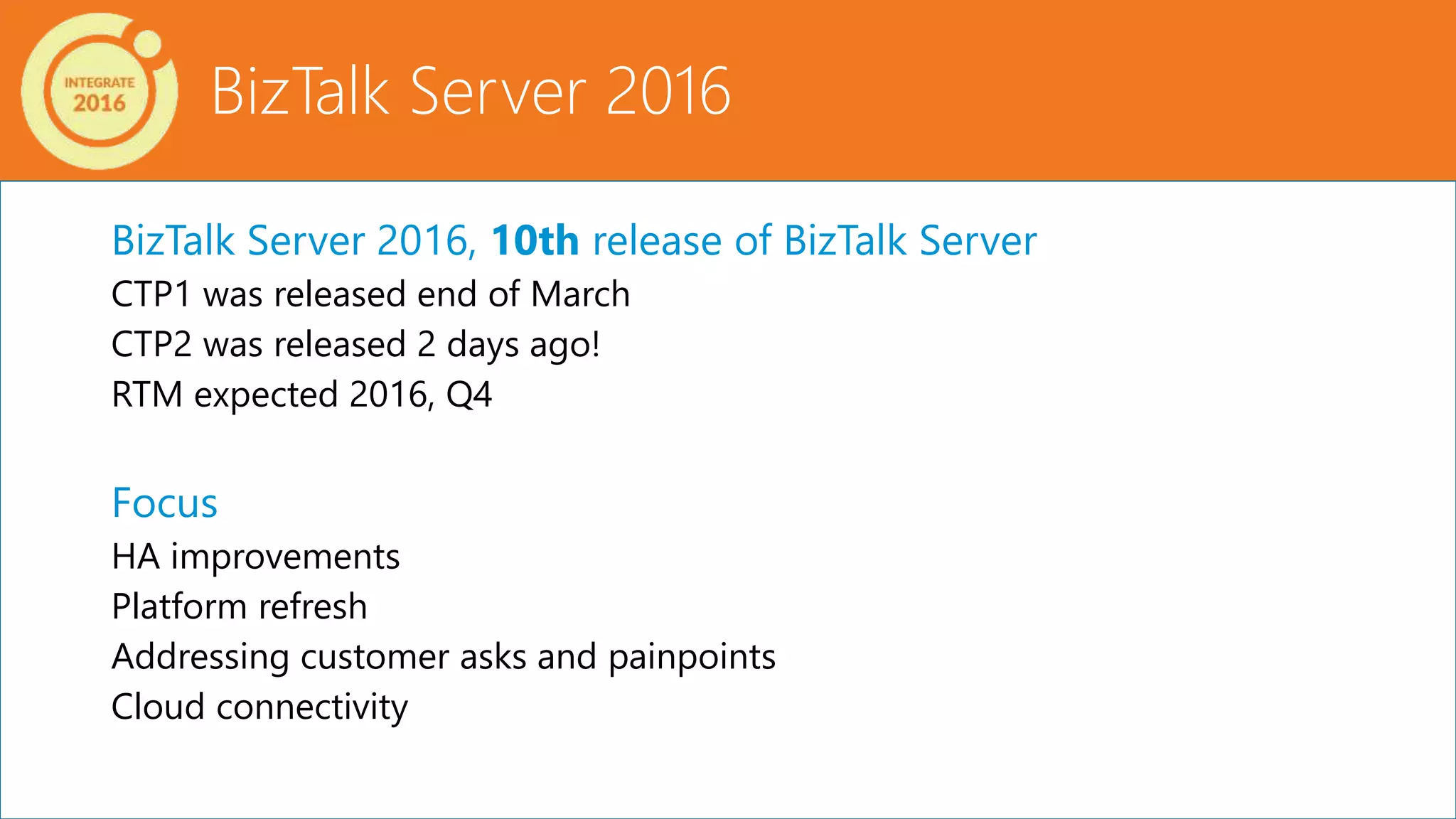

16. BizTalk Server 2016, 10th release of BizTalk Server
CTP1 was released end of March
CTP2 was released 2 days ago!
RTM expected 2016, Q4
Focus
HA improvements
Platform refresh
Addressing customer asks and painpoints
Cloud connectivity
BizTalk Server 2016

17. SQL Server 2016 AlwaysOn Support
Provides supported multi-node BizTalk deployment in Azure
Modern, consistent HA/DR capabilities
No more log shipping or active/passive clustering as HA solution
Platform Refresh
SQL 2016
Windows 2016
Visual Studio 2015
Office 2016/2013
What’s new in BizTalk Server 2016?

18. BizTalk Server 2016 improvements (1)

19. BizTalk Server 2016 improvements (2)
BizTalk Administration Console improvements
TPM exporting separated from application bindings + choose which
party/agreement/profile to export
Configure multiple hosts/host instances simultaneously
Application binding import has an option to import tracking settings or not
Filter artifacts with search capability
Save multiple suspended messages simultaneously

20. BizTalk Server 2016 improvements (2)
DEMO

21. BizTalk Server 2016 CTP2* + RTM
BizTalk Logic Apps Adapter
Easily consume Logic Apps and > 30 connectors
Logic Apps BizTalk Connector and actions
Easily connect to and consume BizTalk functionality
Seamless integration from Logic Apps to BizTalk
Repaint
Modern, consistent look and feel

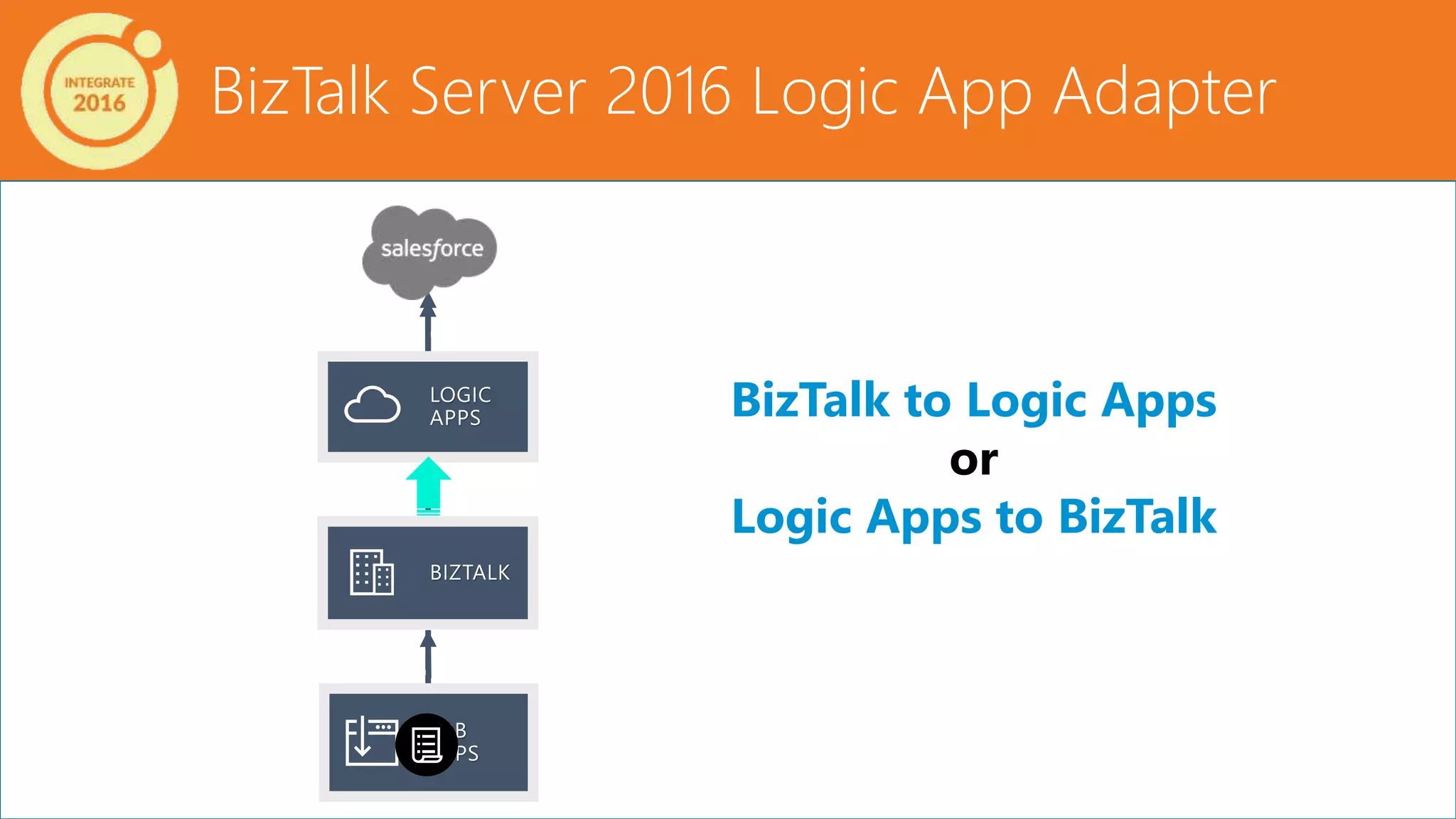

22. BizTalk Server 2016 Logic App Adapter
BizTalk to Logic Apps
or
Logic Apps to BizTalk

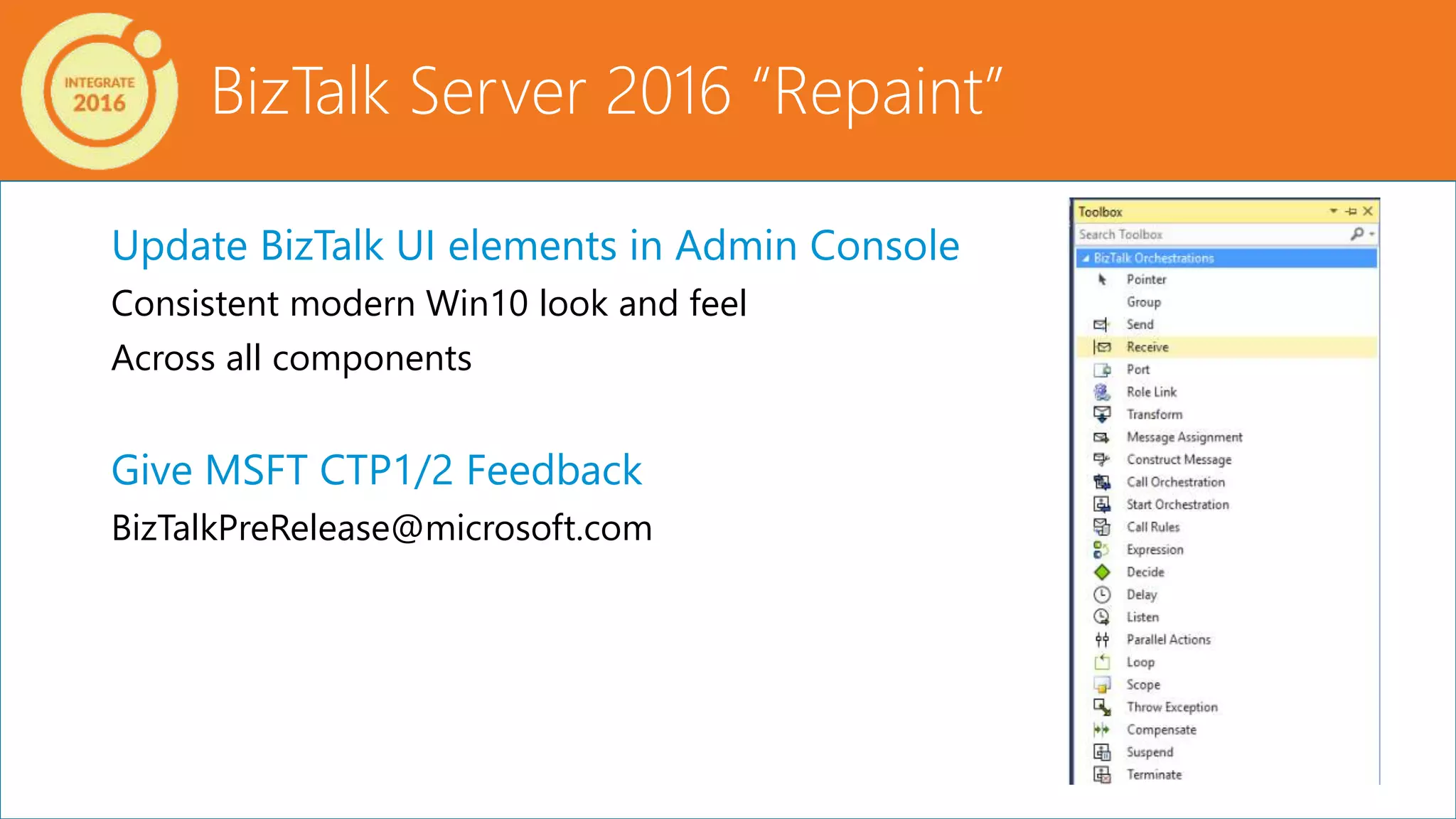

23. BizTalk Server 2016 “Repaint”
Update BizTalk UI elements in Admin Console
Consistent modern Win10 look and feel
Across all components
Give MSFT CTP1/2 Feedback
BizTalkPreRelease@microsoft.com

24. BizTalk Server 2016 “Repaint”

25. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

26. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

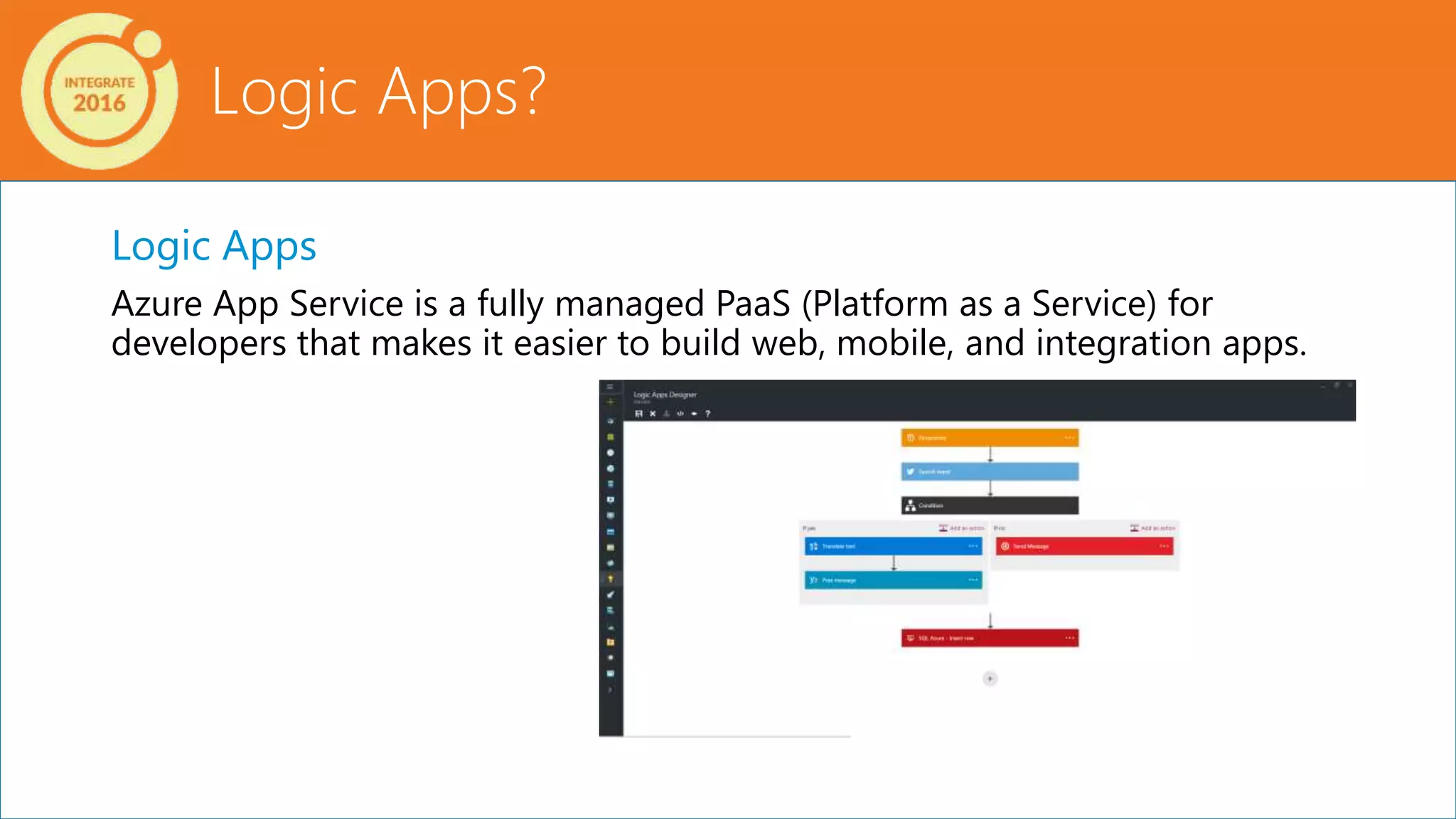

27. Logic Apps?
Logic Apps
Azure App Service is a fully managed PaaS (Platform as a Service) for
developers that makes it easier to build web, mobile, and integration apps.

28. Logic Apps?
Logic Apps
Azure App Service is a fully managed PaaS (Platform as a Service) for
developers that makes it easier to build web, mobile, and integration apps.
Concepts
Workflow – modeling your processes
Managed APIs – connectors to data/services
Triggers – connectors as a trigger (poll/push, e.g. mail, Twitter, …)
Actions – connectors as actions (do something…)
BizTalk capabilities – validation, transformation, rules, …

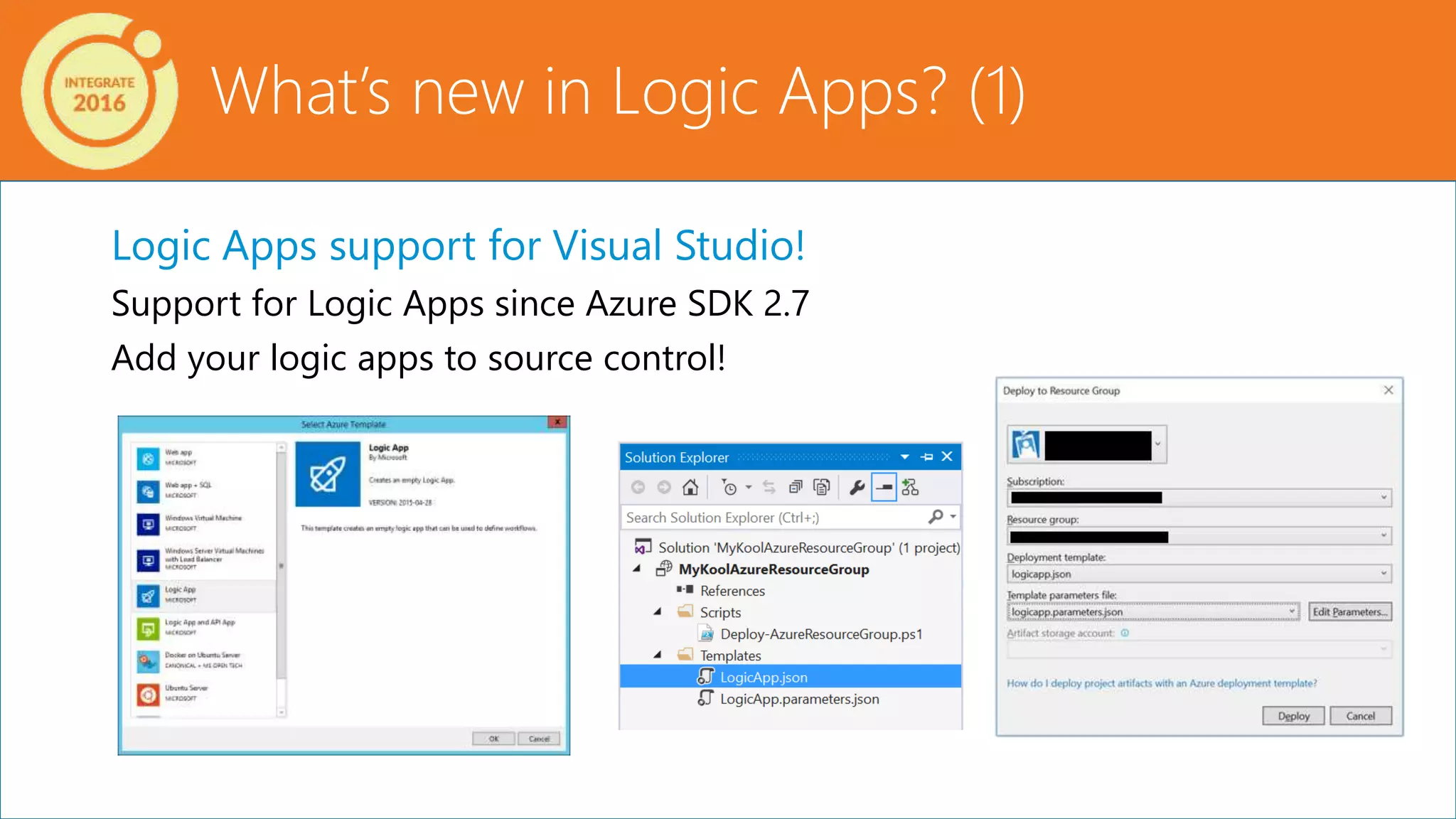

29. Logic Apps support for Visual Studio!
Support for Logic Apps since Azure SDK 2.7
Add your logic apps to source control!
What’s new in Logic Apps? (1)

30. More
Re-use existing BizTalk mapping file (.btm) – Full support for custom
functoids and custom code
New BizTalk connector (not part of schema update)
New action cards for loops
New “scope” concept: nesting conditions and/or components
Added tracking and chain tracking
Addition of context to track custom properties
What’s new in Logic Apps? (2)

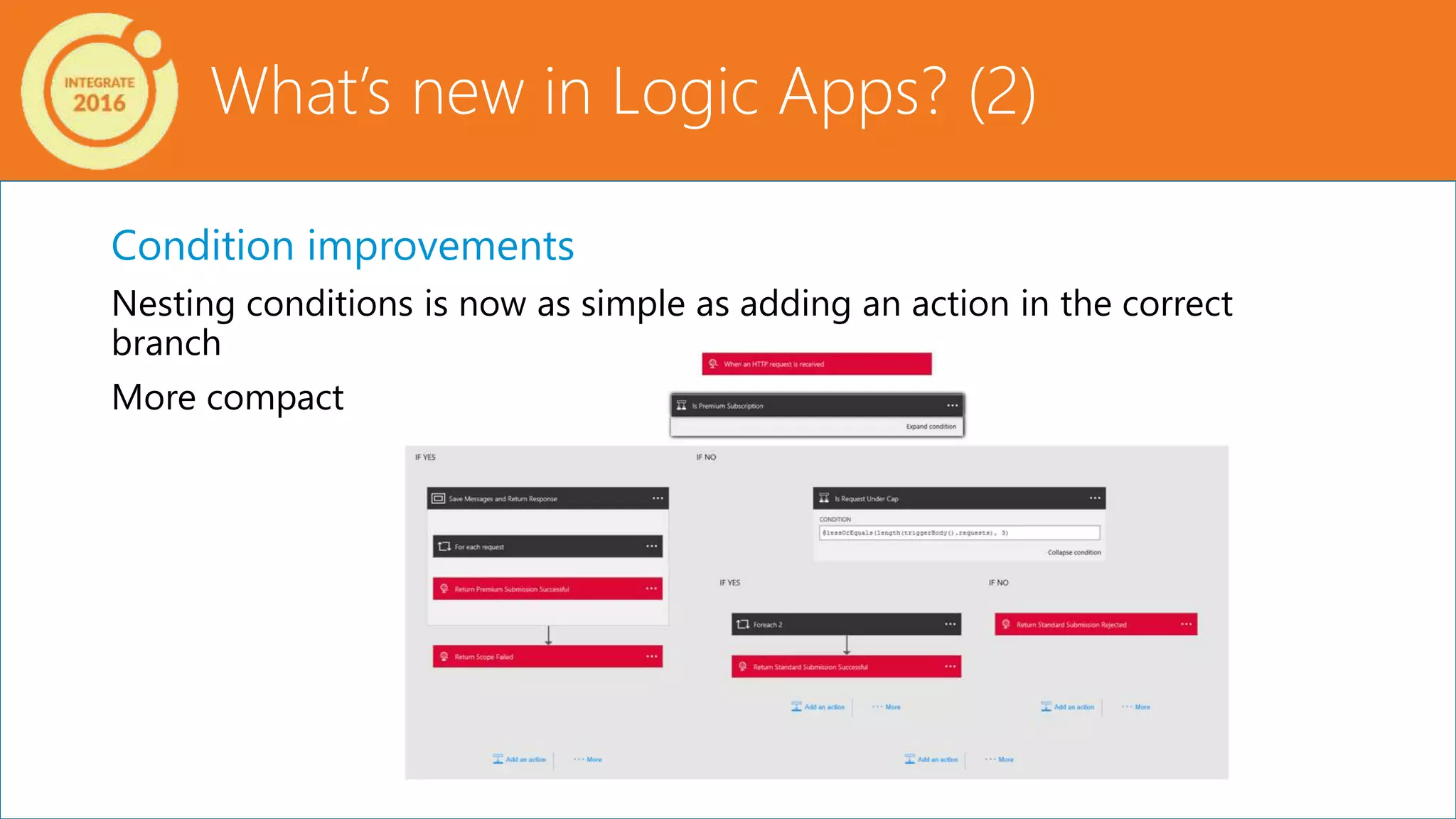

31. Condition improvements
Nesting conditions is now as simple as adding an action in the correct
branch
More compact
What’s new in Logic Apps? (2)

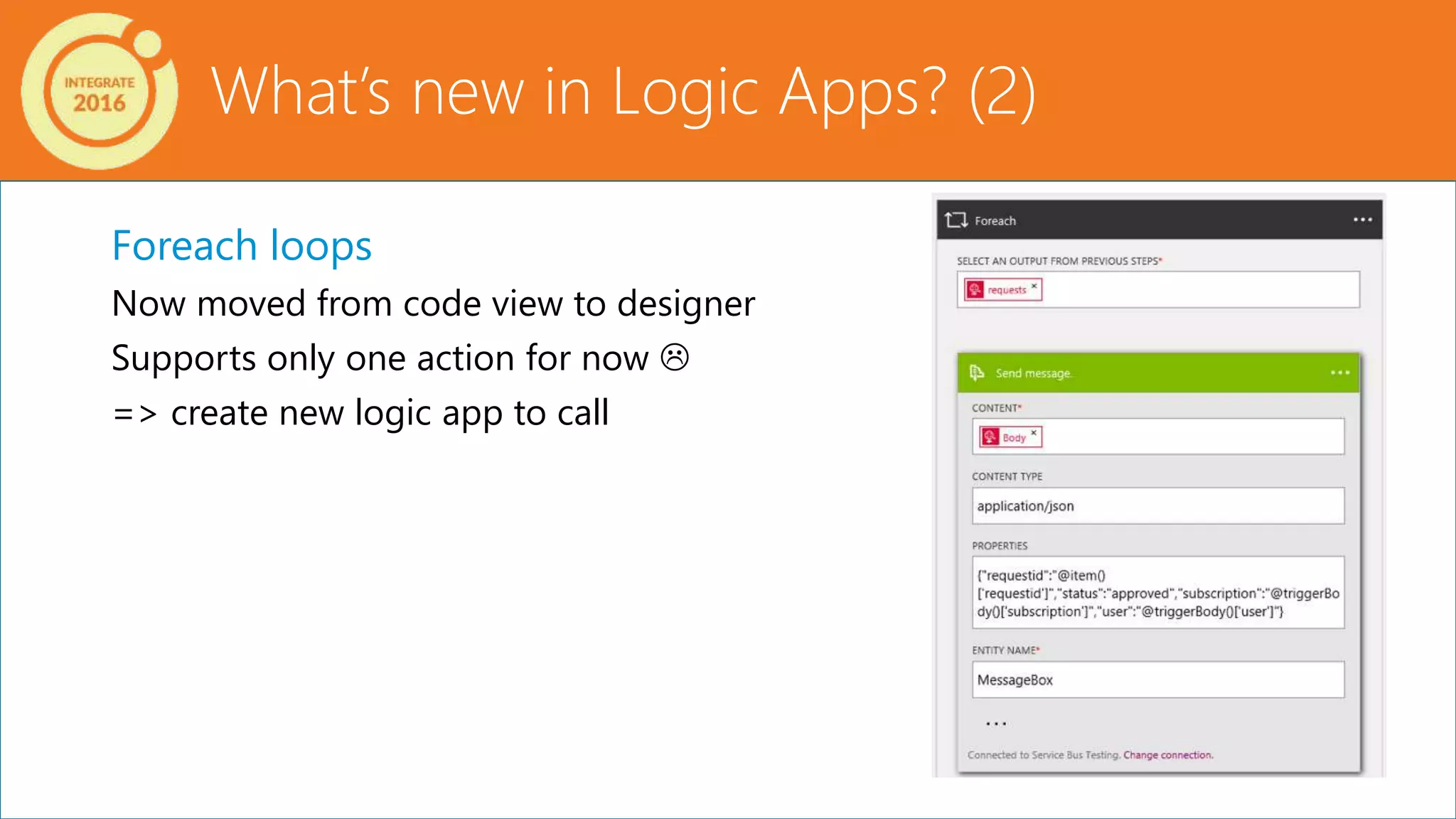

32. Foreach loops
Now moved from code view to designer
Supports only one action for now 
=> create new logic app to call
What’s new in Logic Apps? (2)

33. Do until
Gets own action card
What’s new in Logic Apps? (2)

34. Introduction of Scopes
Multiple actions can be executed as a single “group”
If all actions succeed, status is Succeeded
If any action fails, status is Failed
What’s new in Logic Apps? (2)

35. Other improvements
You can now rename action cards (up to 80 chars, charset limited)
Tracked properties are now “a thing”. Will be tracked in diagnostics (enable!)
What’s new in Logic Apps? (2)

36. Important
Logic Apps Schema definition changed
Existing Logic Apps will not be updated automatically
What’s new in Logic Apps? (2)

37. Still waiting for…
Proper Exception handling -> implement like BizTalk orchestration?
Multiple actions in a loop (ForEach and DoUntil)
What’s new in Logic Apps? (2)

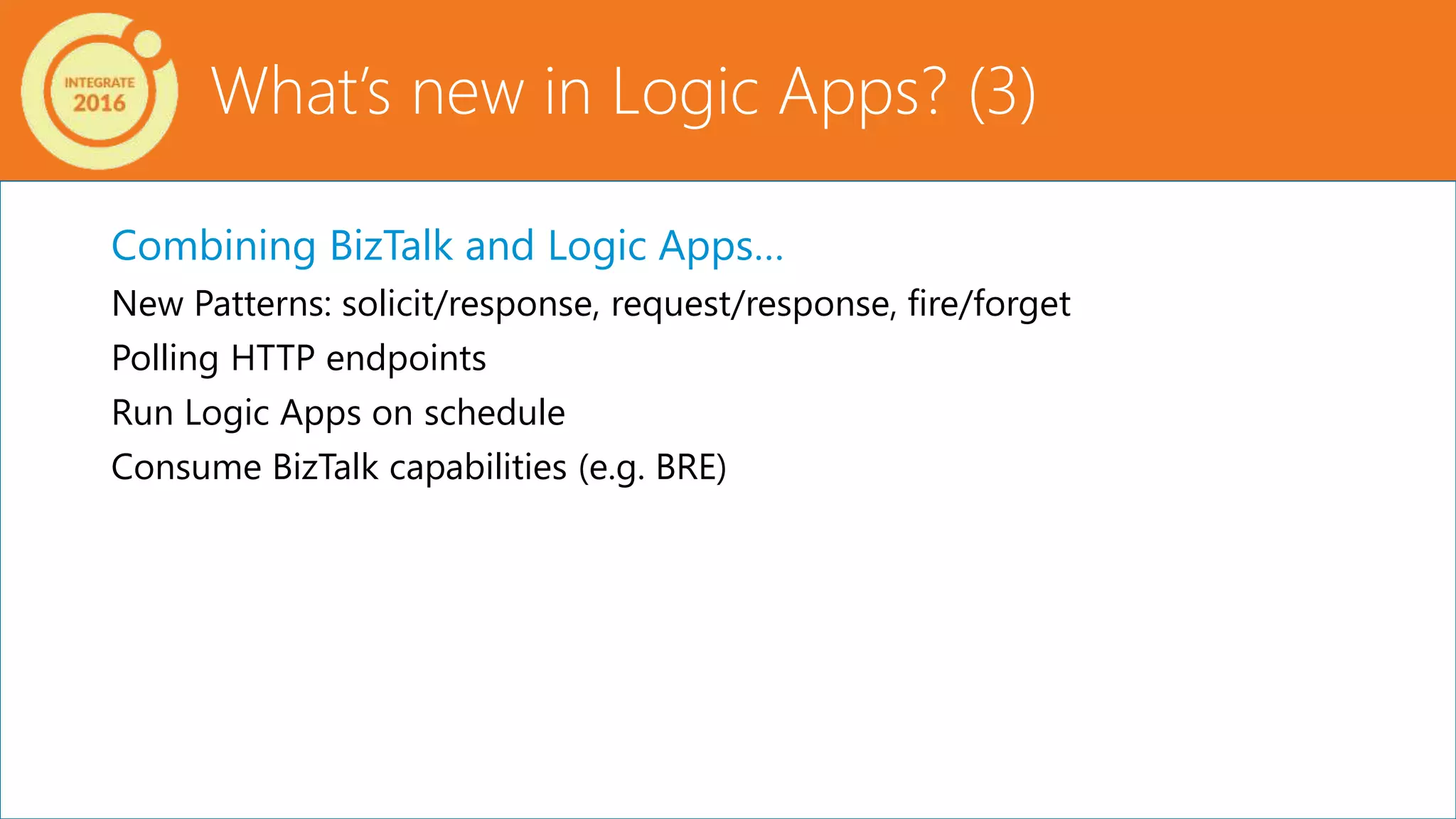

38. Combining BizTalk and Logic Apps…
New Patterns: solicit/response, request/response, fire/forget
Polling HTTP endpoints
Run Logic Apps on schedule
Consume BizTalk capabilities (e.g. BRE)
What’s new in Logic Apps? (3)

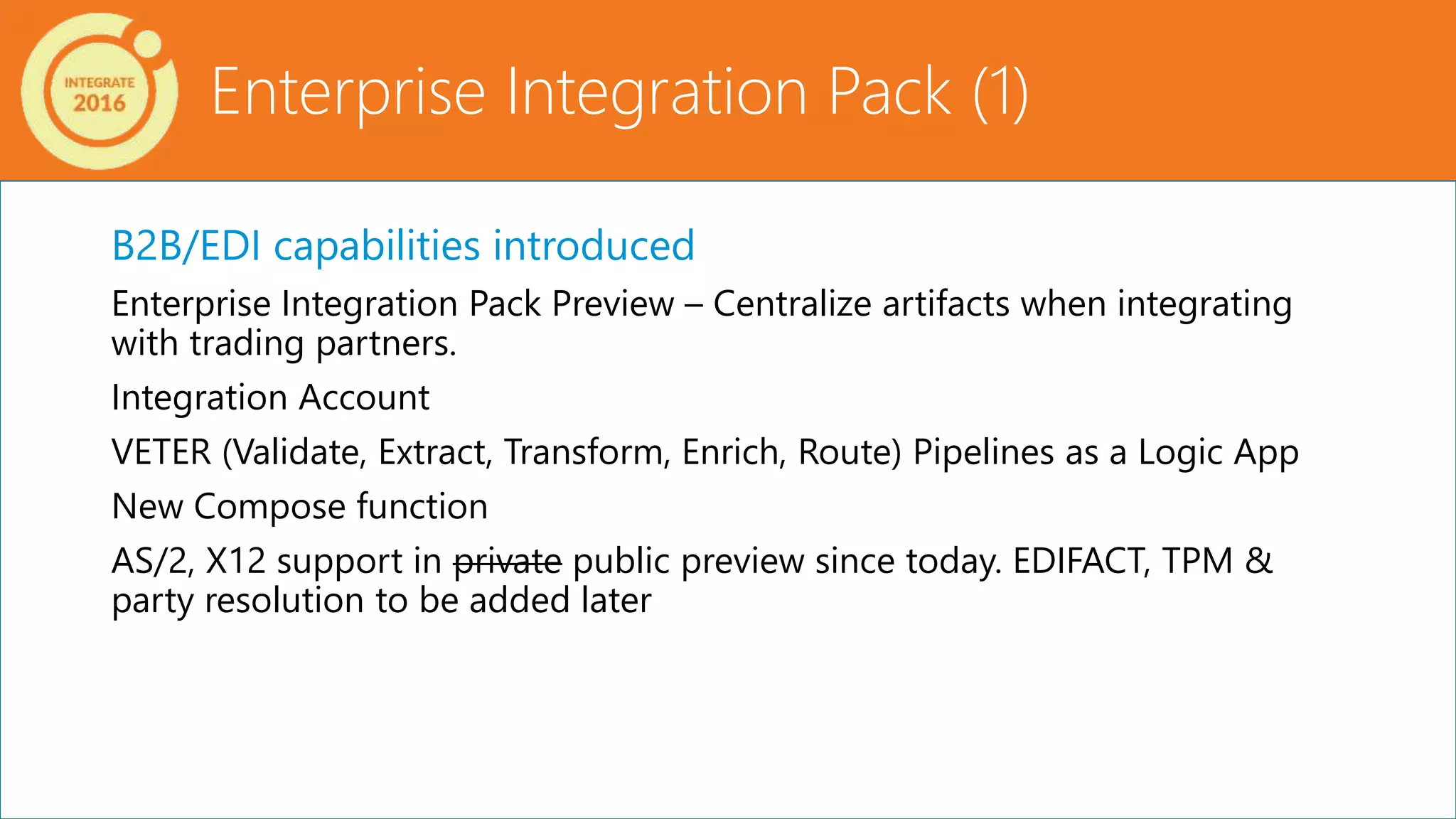

39. B2B/EDI capabilities introduced
Enterprise Integration Pack Preview – Centralize artifacts when integrating
with trading partners.
Integration Account
VETER (Validate, Extract, Transform, Enrich, Route) Pipelines as a Logic App
New Compose function
AS/2, X12 support in private public preview since today. EDIFACT, TPM &
party resolution to be added later
Enterprise Integration Pack (1)

40. Enterprise Integration Pack (2)
DEMO

41. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

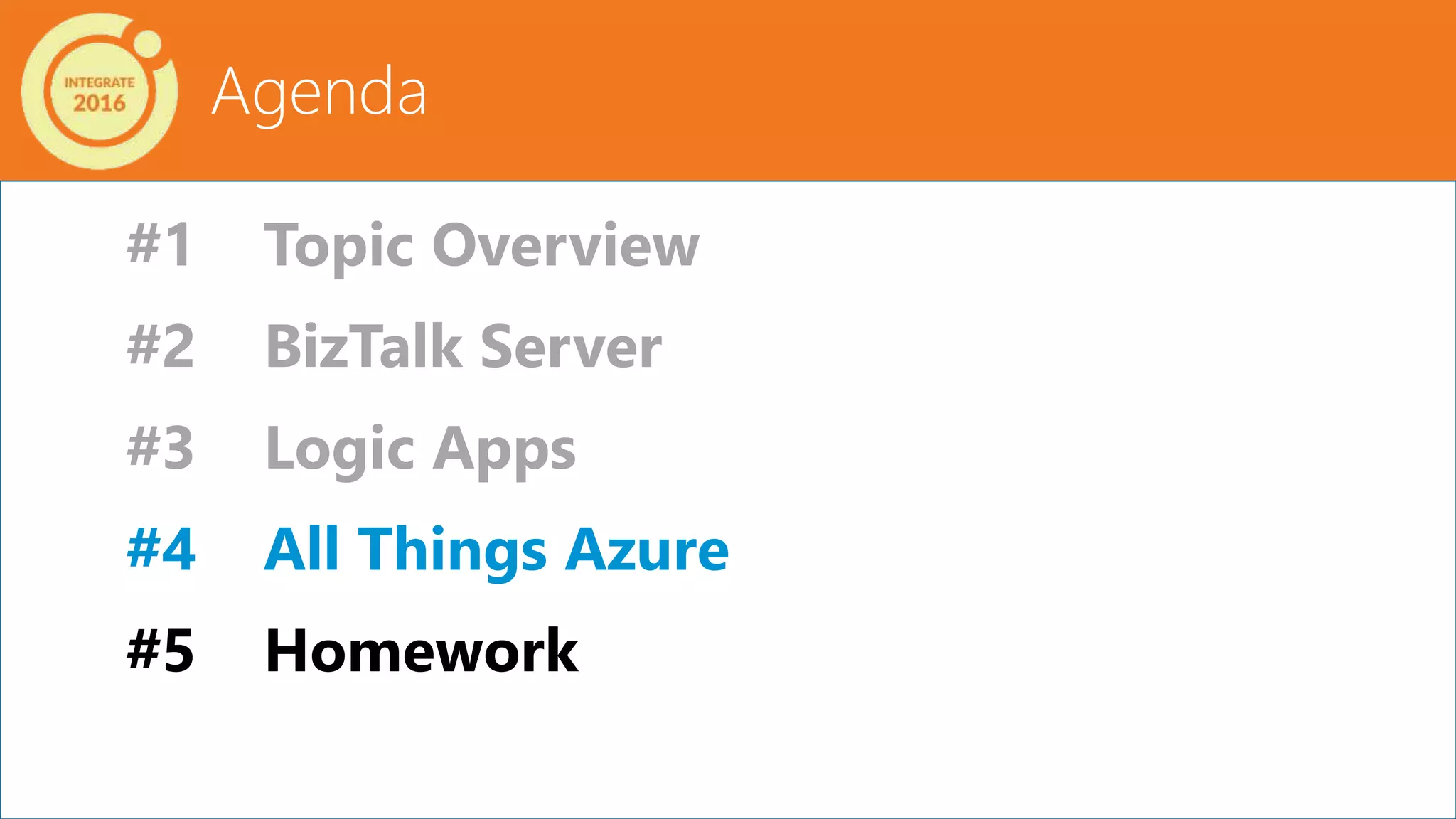

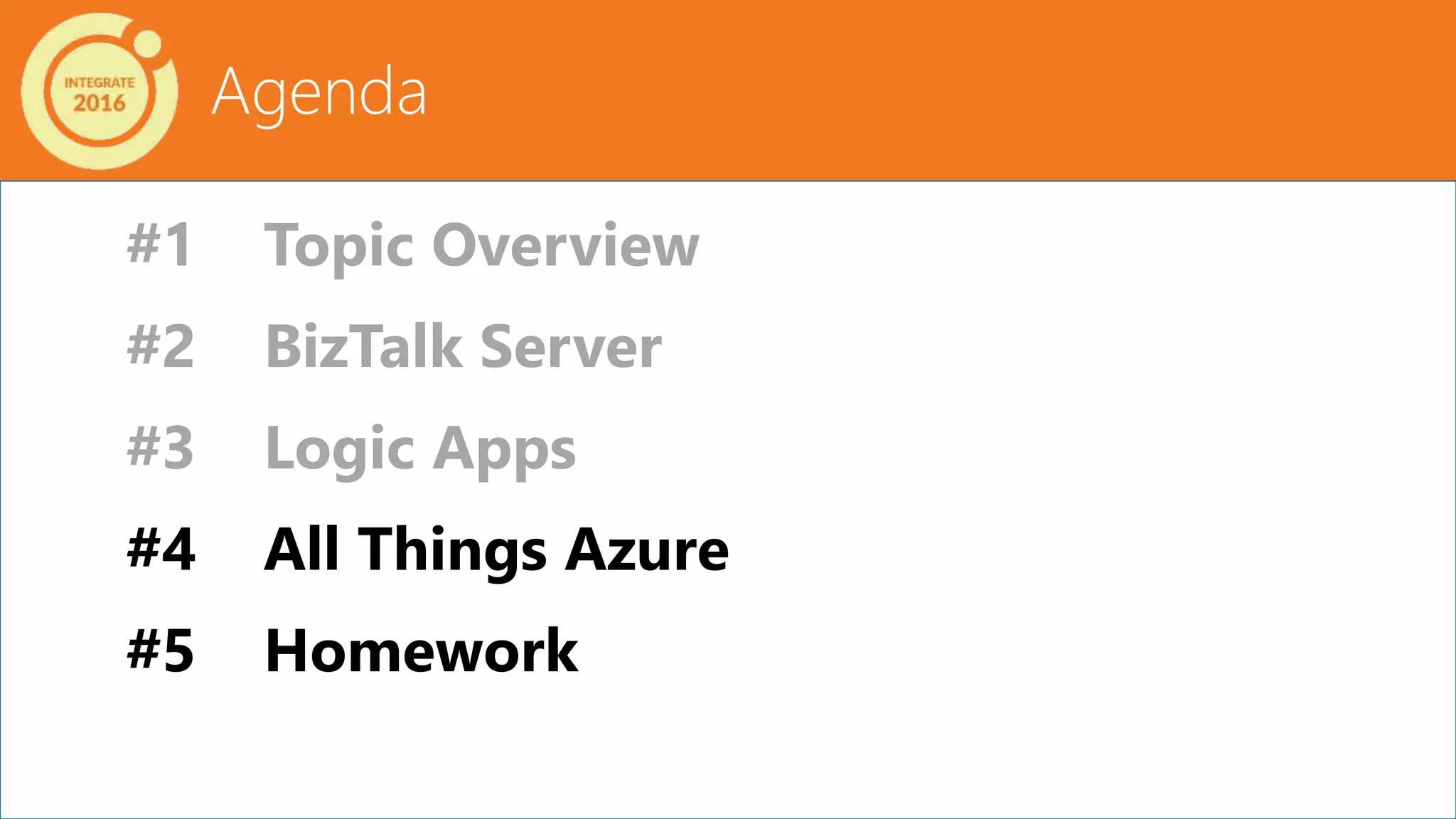

42. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

43. Microsoft Flow
Automation made easy
aka Logic Apps “Lite”
Aimed at business users (non-developers)
Automate mundane day-to-day tasks
Not yet another clone of IFTT or Zapier – more conditions, branches, steps
Built on Logic Apps engine
Upcoming feature: convert to Logic App in one-click

44. Microsoft Flow
DEMO

45. Azure Functions
Azure Functions
Expose simple services extremely fast, flexible, scalable
µServices -> Group functions together to form a bigger service or connect
to Logic Apps
Supported Languages include C#, node.js, PHP, etc…
Can be called from Logic Apps
Can be exposed as HTTP API endpoint
Can be scheduled

46. Azure messaging: Service Bus
Service Bus Announcements
Azure Service Bus Premium Messaging: dedicated resources; isolation from
other customers. Up to 4 Messaging Units (1 MU = +- 30,000 msg/sec, more
possible via MSFT support)
Azure Stack will contain both Windows Service Bus and Azure Event Hubs,
but not for this year. Service Bus will not be free anymore!
Roadmap: AMQP support for pub/sub (via OPC Foundation workgroup)

47. BizTalk360
BizTalk360
BizTalk360 Lite – SaaS model, no setup except for one agent
ServiceBus360 – Monitoring for Azure Service Bus

48. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

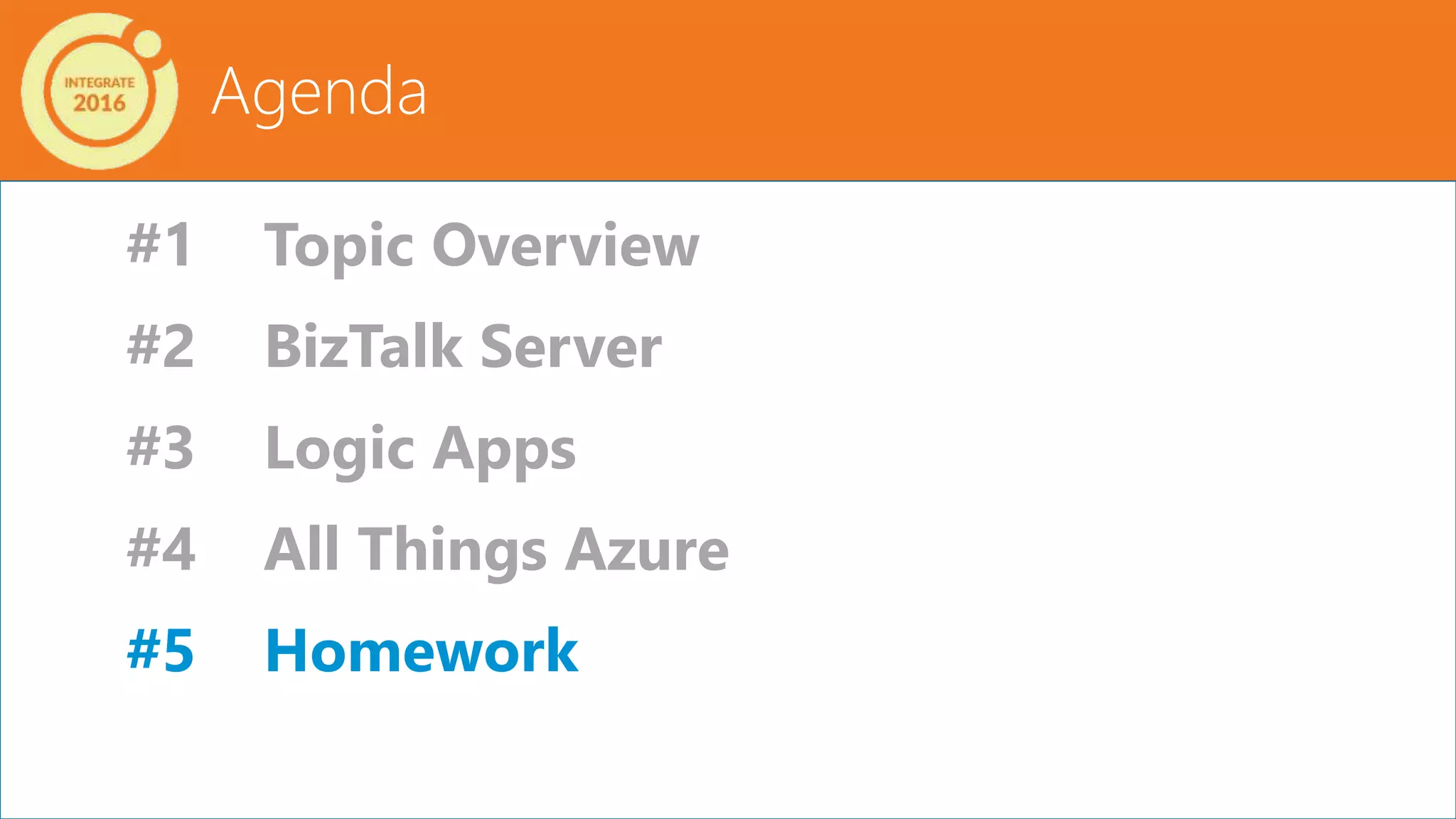

49. Agenda
#1 Topic Overview
#2 BizTalk Server
#3 Logic Apps
#4 All Things Azure
#5 Homework

50. M.I.S. (Most Interesting Sessions)
BizTalk Server
BizTalk 2016 Server: What’s new – Jon Fancey
BizTalk Server – Behind enemy lines - Johan Hedberg
A new set of BizTalk Server Tips and Tricks - Sandro Pereira
Azure IaaS Essentials for the BizTalk Developer - Stephen W Thomas

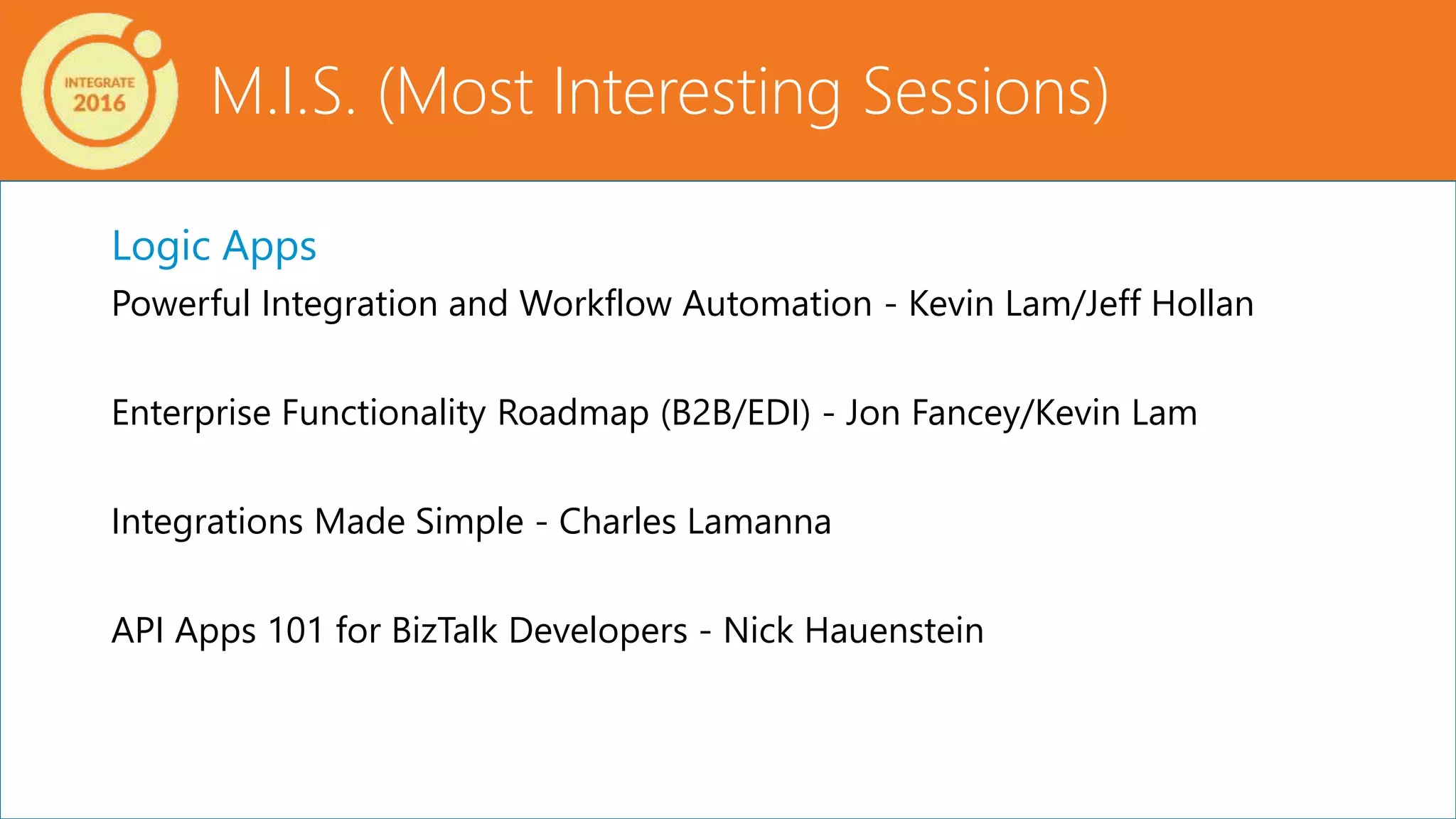

51. M.I.S. (Most Interesting Sessions)
Logic Apps
Powerful Integration and Workflow Automation - Kevin Lam/Jeff Hollan
Enterprise Functionality Roadmap (B2B/EDI) - Jon Fancey/Kevin Lam
Integrations Made Simple - Charles Lamanna
API Apps 101 for BizTalk Developers - Nick Hauenstein

52. M.I.S. (Most Interesting Sessions)
Azure
Leveraging Azure Functions & Azure App Service for integration scenarios -
Christopher Anderson
Azure Service Fabric: notes from the field - Sam Vanhoutte
Real World Industrial IoT – Kent Weare

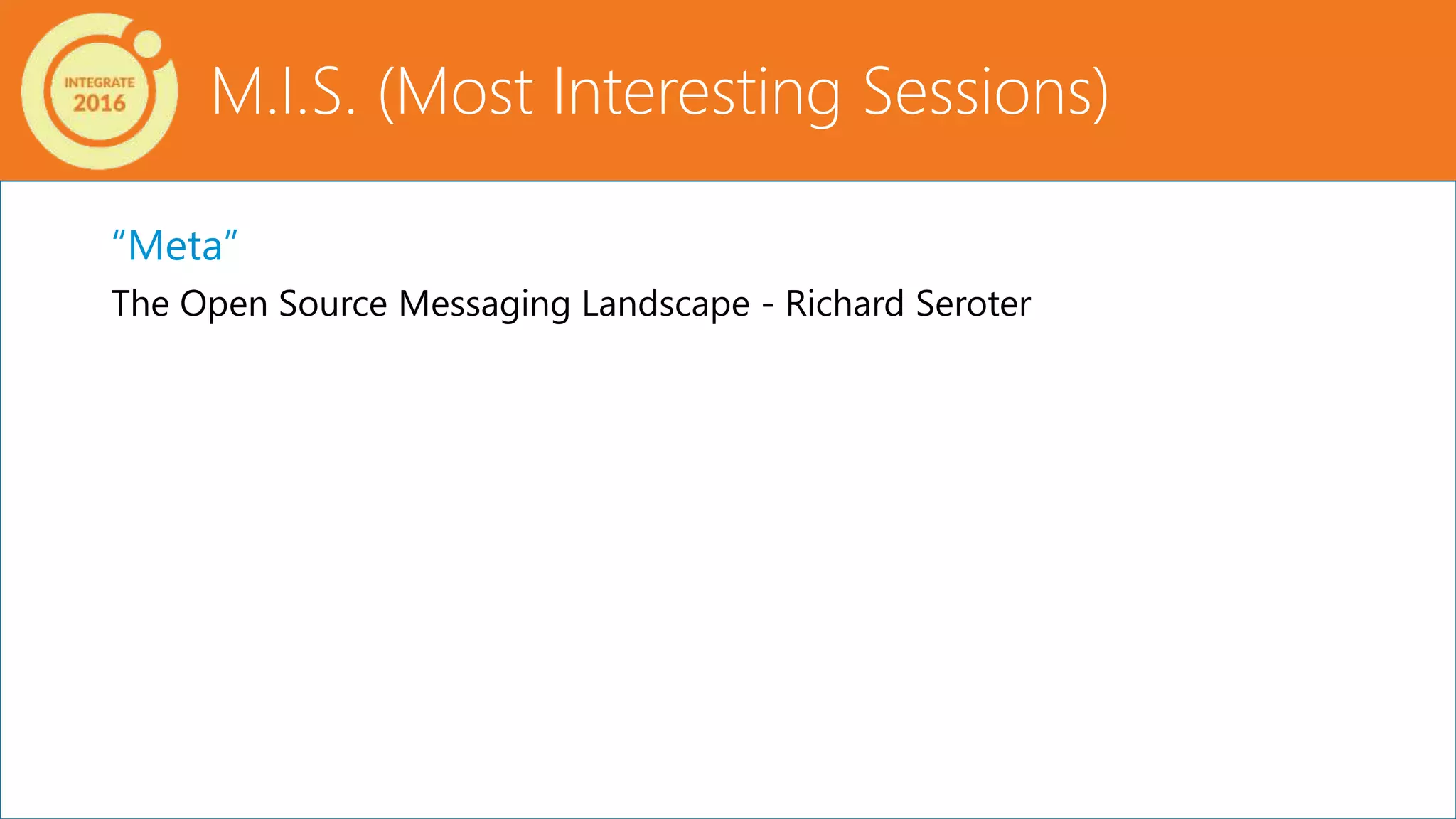

53. M.I.S. (Most Interesting Sessions)
“Meta”
The Open Source Messaging Landscape - Richard Seroter

54. Blogs on recaps
Codit
Day 1 – link
Day 2 – link
Day 3 – link
InfoQ
Day 1 – link
Wrap-up – link
Axon Olympus
Day 1 – link
Day 2 – link
Day 3 – link
Others
Rob Fox – link
Steef Jan Wiggers – link
Eldert Grootenboer – link
Gijs in ‘t Veld - link
BizTalk360
Day 1 – link
Day 2 – link
Summary – link

55. Any questions?
?
Thanks!
