1. Module 3: Linked List

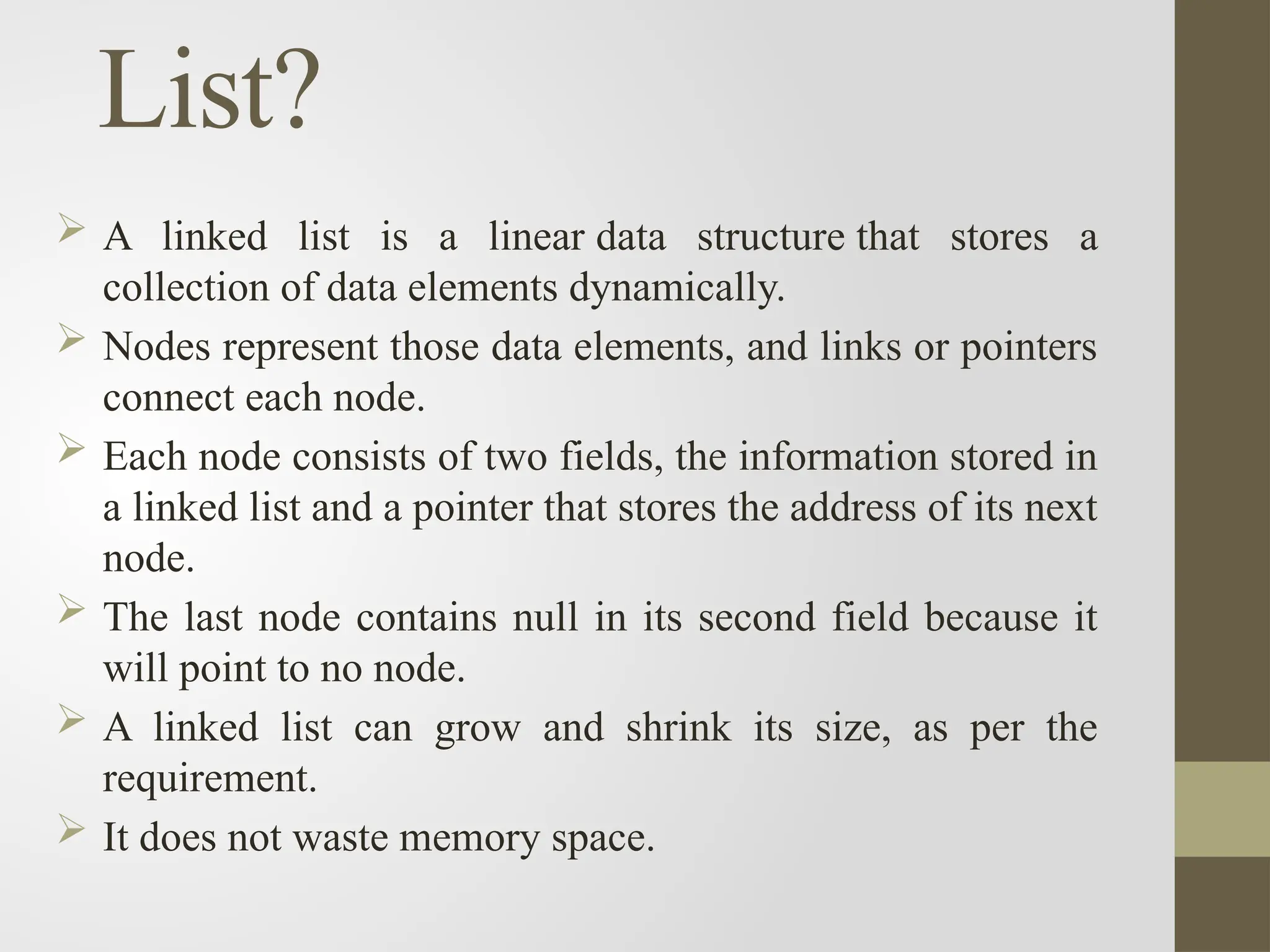

2. List?
 A linked list is a linear data structure that stores a
collection of data elements dynamically.
 Nodes represent those data elements, and links or pointers
connect each node.
 Each node consists of two fields, the information stored in
a linked list and a pointer that stores the address of its next
node.
 The last node contains null in its second field because it
will point to no node.
 A linked list can grow and shrink its size, as per the
requirement.
 It does not waste memory space.

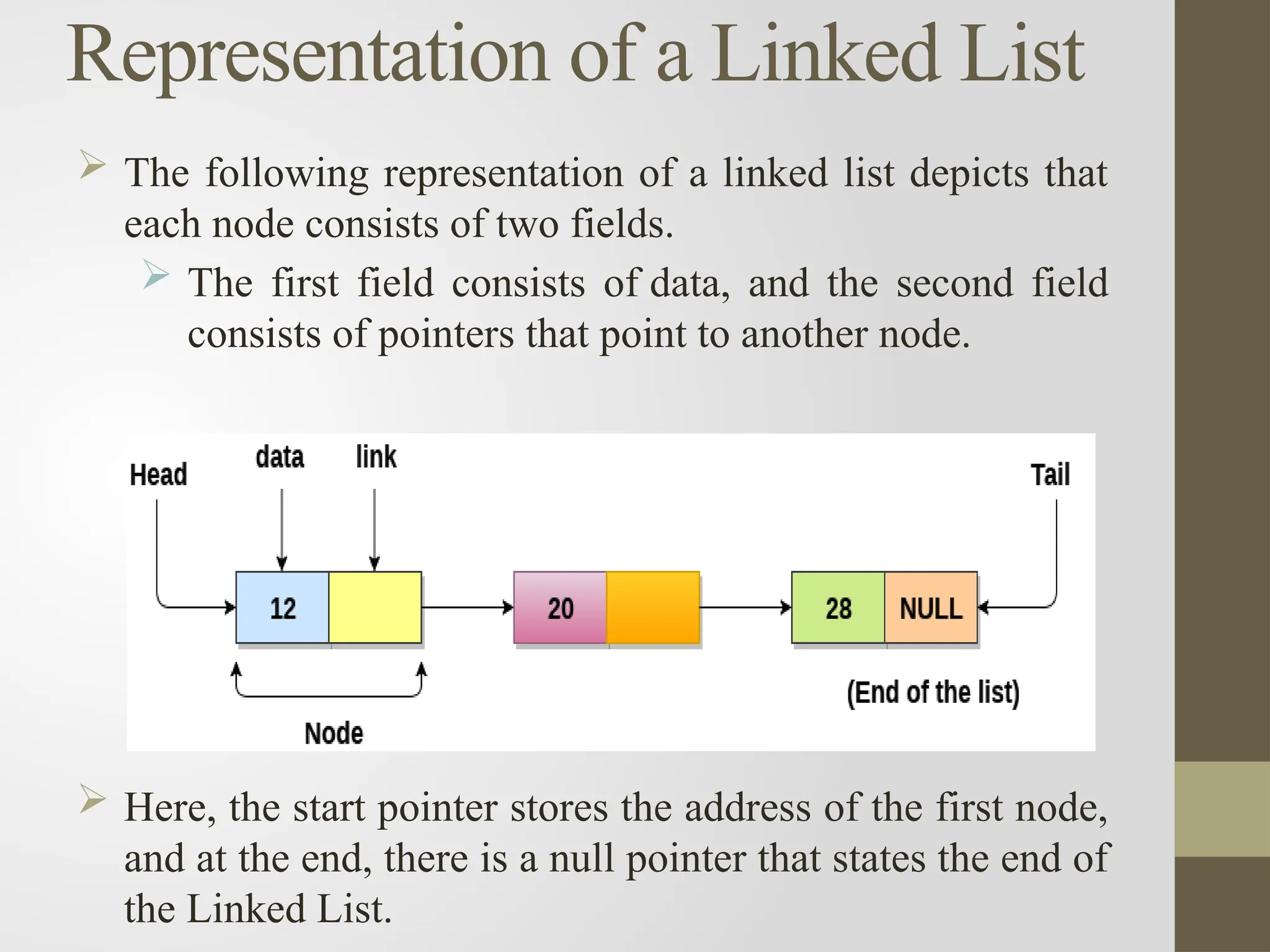

3. Representation of a Linked List
 The following representation of a linked list depicts that
each node consists of two fields.
 The first field consists of data, and the second field
consists of pointers that point to another node.
 Here, the start pointer stores the address of the first node,
and at the end, there is a null pointer that states the end of
the Linked List.

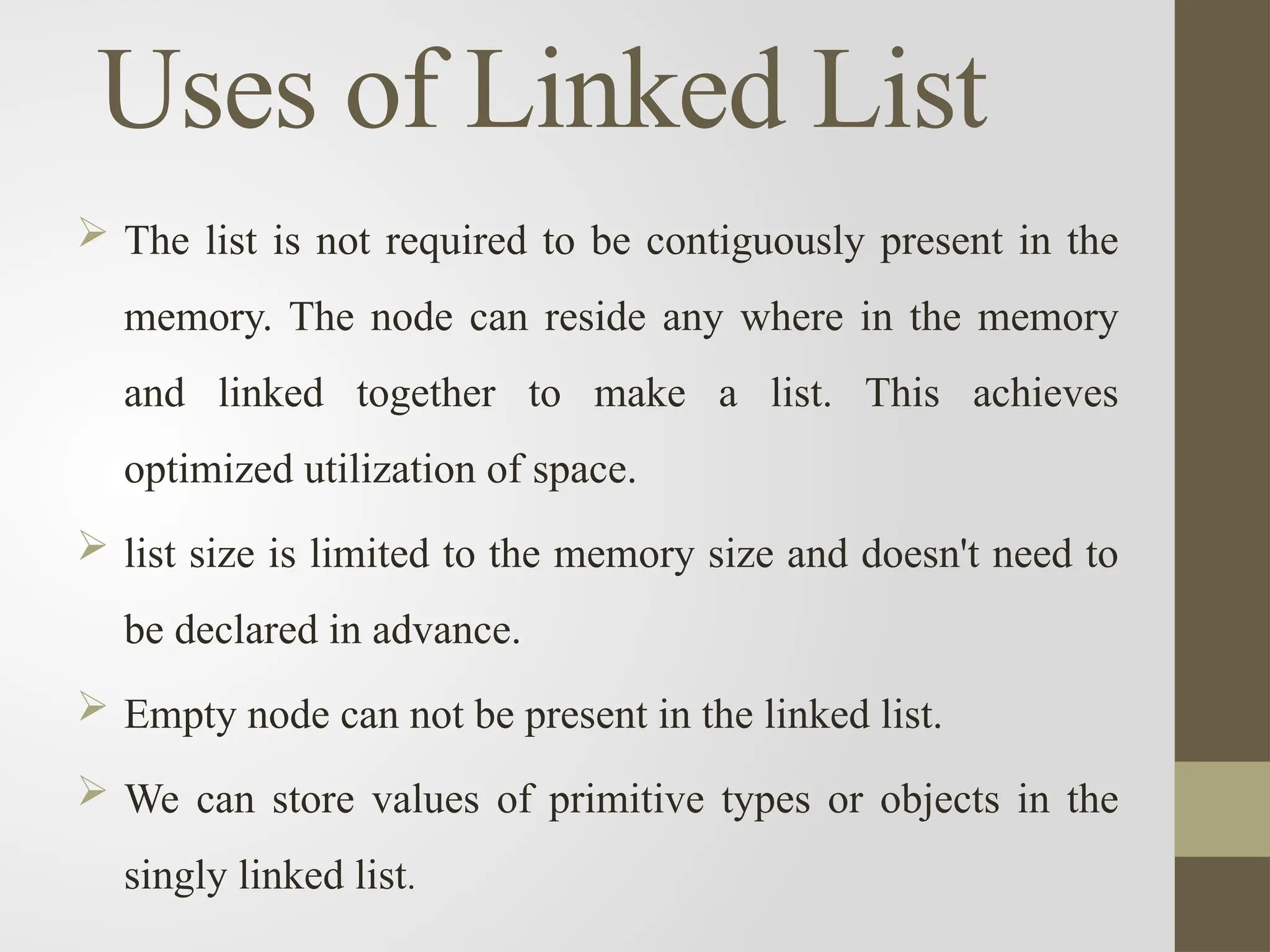

4. Uses of Linked List
 The list is not required to be contiguously present in the
memory. The node can reside any where in the memory
and linked together to make a list. This achieves
optimized utilization of space.
 list size is limited to the memory size and doesn't need to
be declared in advance.
 Empty node can not be present in the linked list.
 We can store values of primitive types or objects in the
singly linked list.

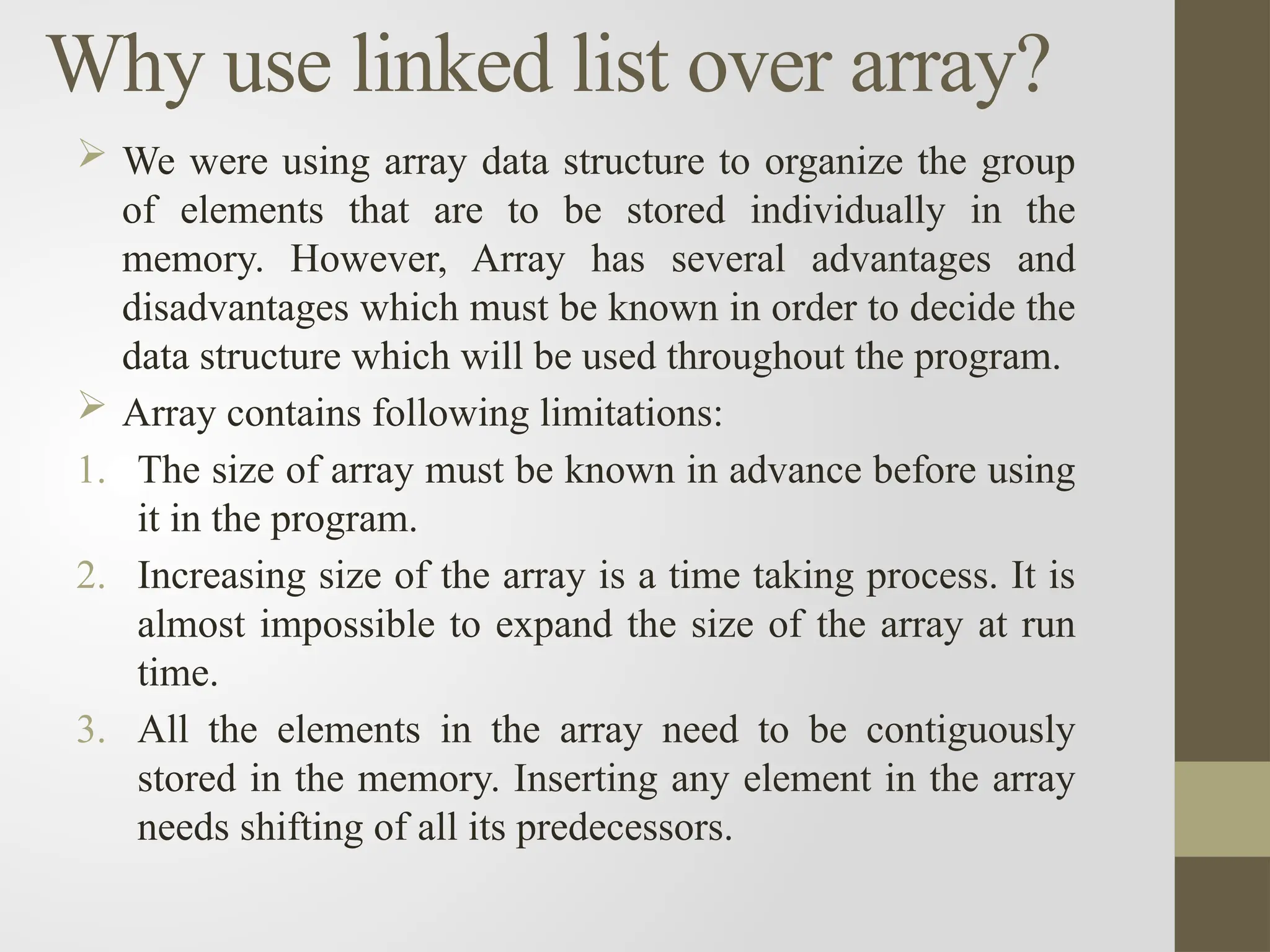

5. Why use linked list over array?
 We were using array data structure to organize the group
of elements that are to be stored individually in the
memory. However, Array has several advantages and
disadvantages which must be known in order to decide the
data structure which will be used throughout the program.
 Array contains following limitations:
1. The size of array must be known in advance before using
it in the program.
2. Increasing size of the array is a time taking process. It is
almost impossible to expand the size of the array at run
time.
3. All the elements in the array need to be contiguously
stored in the memory. Inserting any element in the array
needs shifting of all its predecessors.

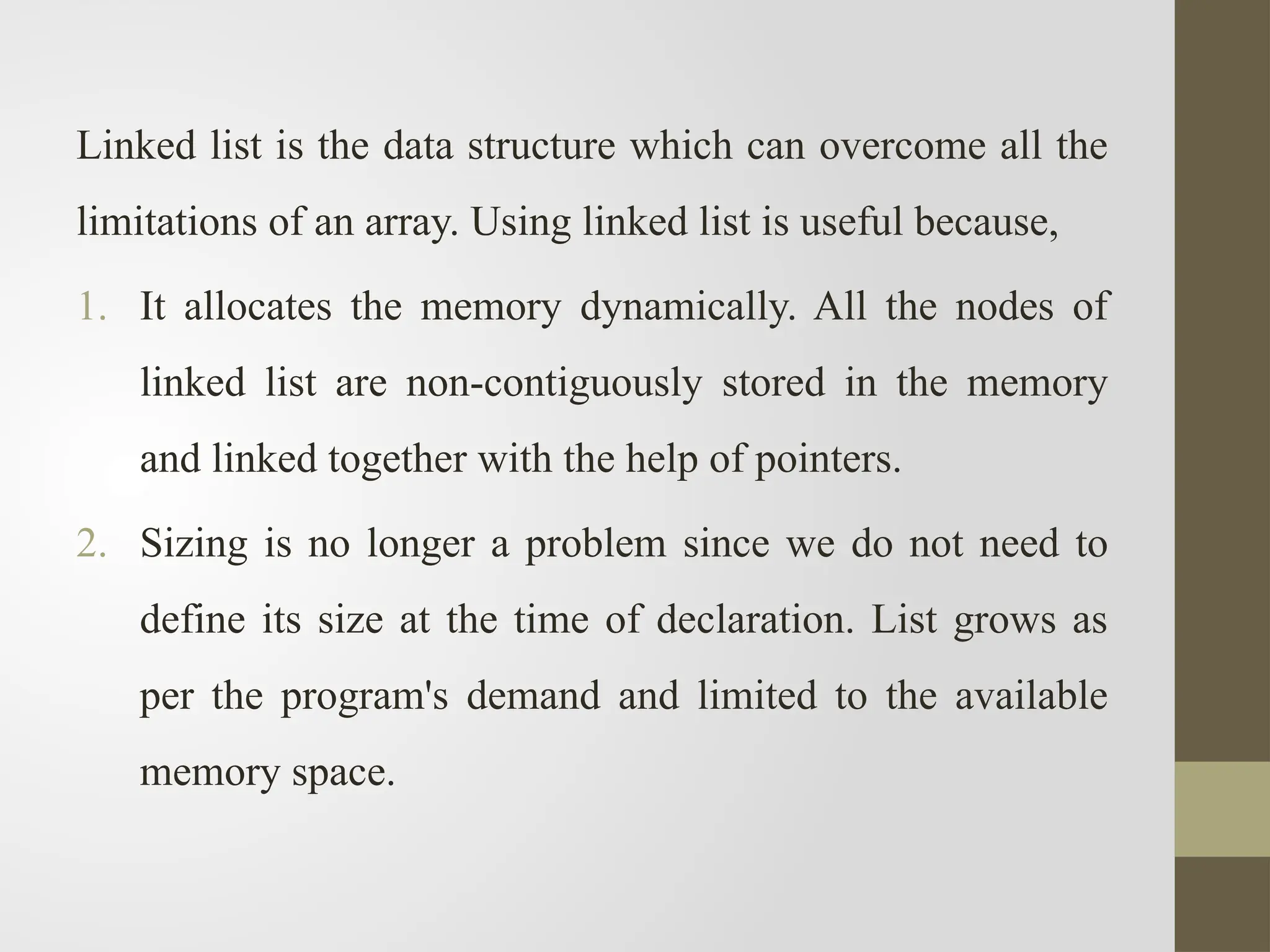

6. Linked list is the data structure which can overcome all the
limitations of an array. Using linked list is useful because,
1. It allocates the memory dynamically. All the nodes of
linked list are non-contiguously stored in the memory
and linked together with the help of pointers.
2. Sizing is no longer a problem since we do not need to
define its size at the time of declaration. List grows as
per the program's demand and limited to the available
memory space.

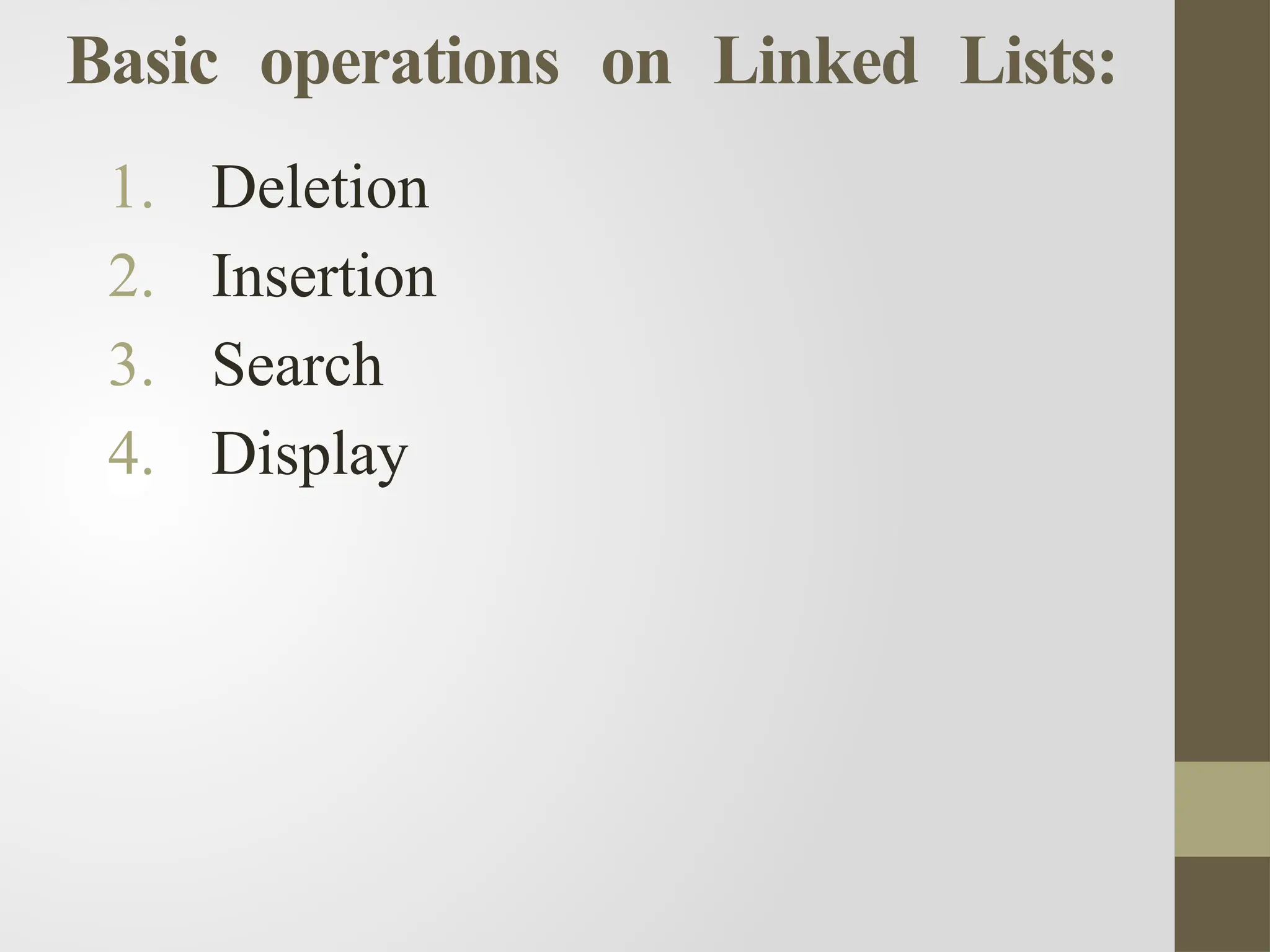

7. Basic operations on Linked Lists:
1. Deletion
2. Insertion
3. Search
4. Display

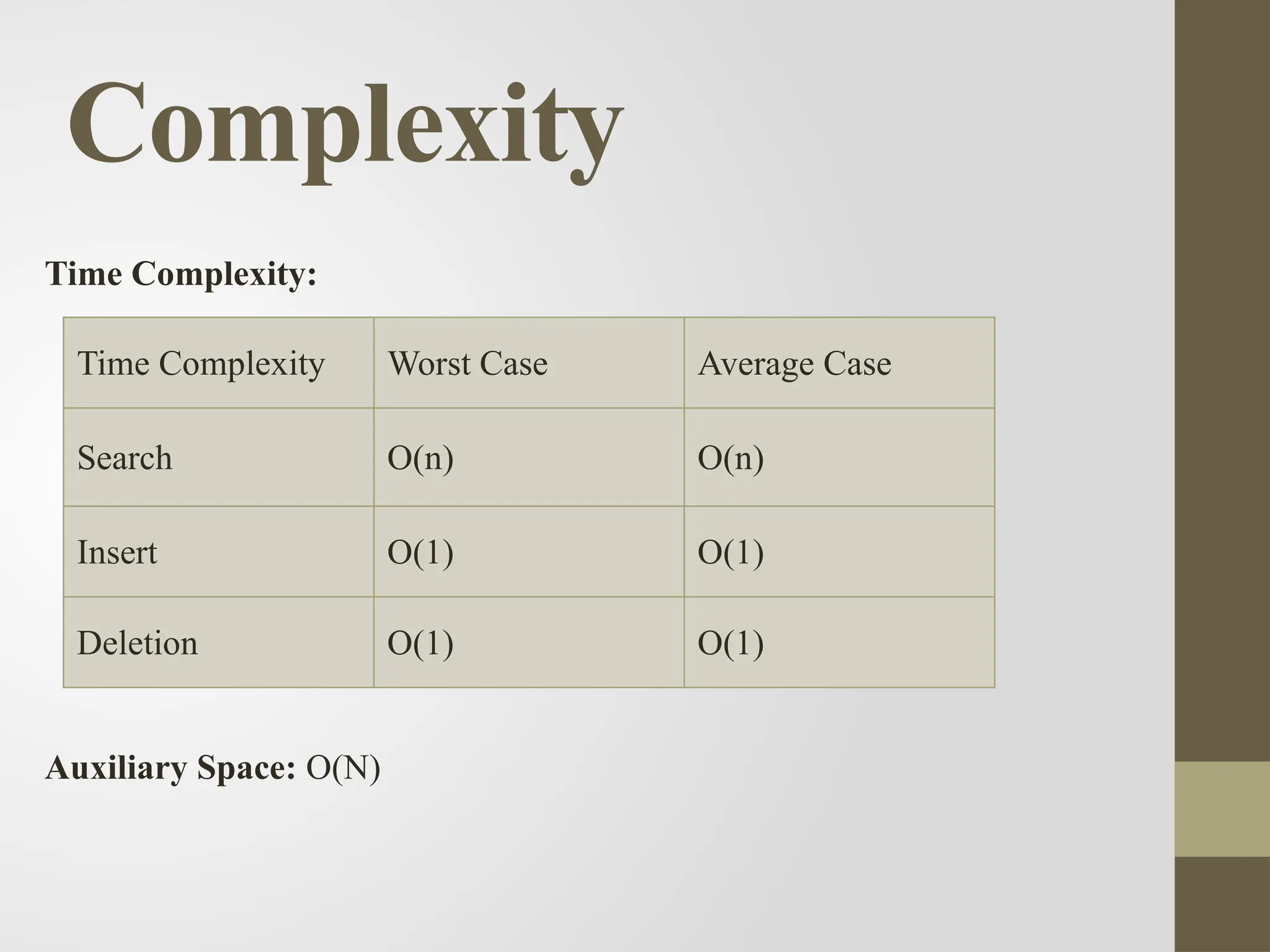

8. Complexity
Time Complexity:
Auxiliary Space: O(N)
Time Complexity Worst Case Average Case
Search O(n) O(n)
Insert O(1) O(1)
Deletion O(1) O(1)

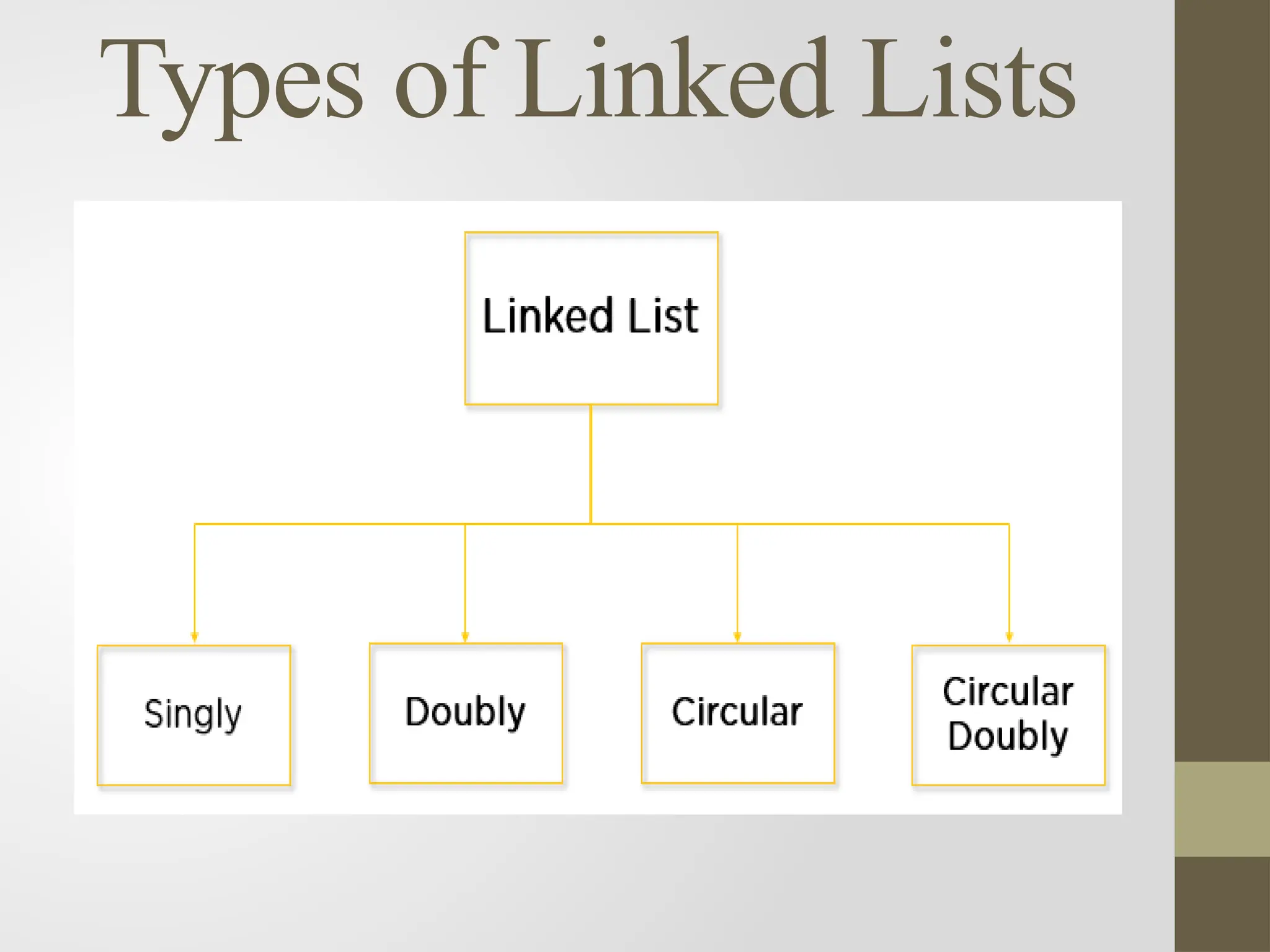

9. Types of Linked Lists

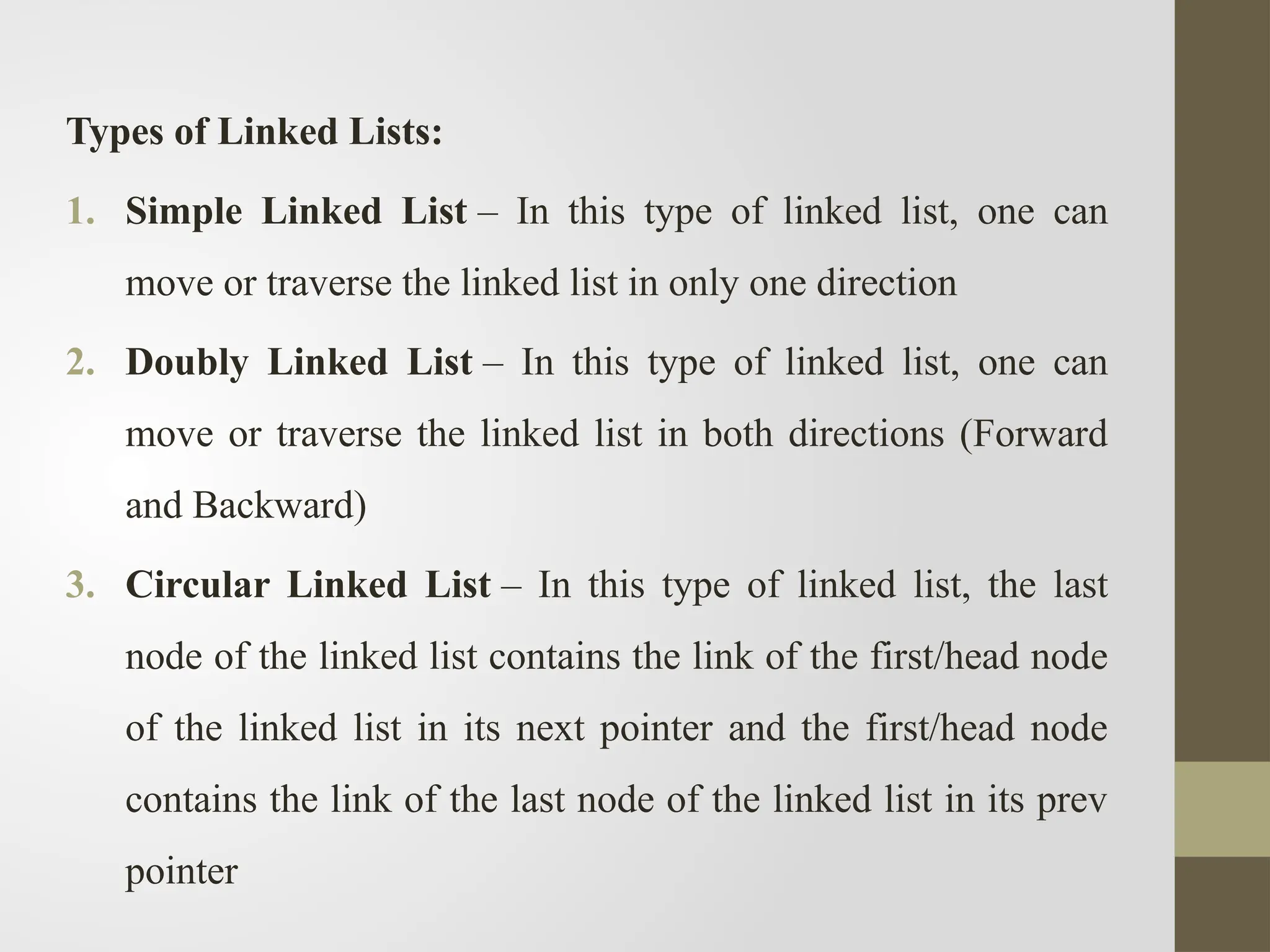

10. Types of Linked Lists:
1. Simple Linked List – In this type of linked list, one can
move or traverse the linked list in only one direction
2. Doubly Linked List – In this type of linked list, one can
move or traverse the linked list in both directions (Forward
and Backward)
3. Circular Linked List – In this type of linked list, the last
node of the linked list contains the link of the first/head node
of the linked list in its next pointer and the first/head node
contains the link of the last node of the linked list in its prev
pointer

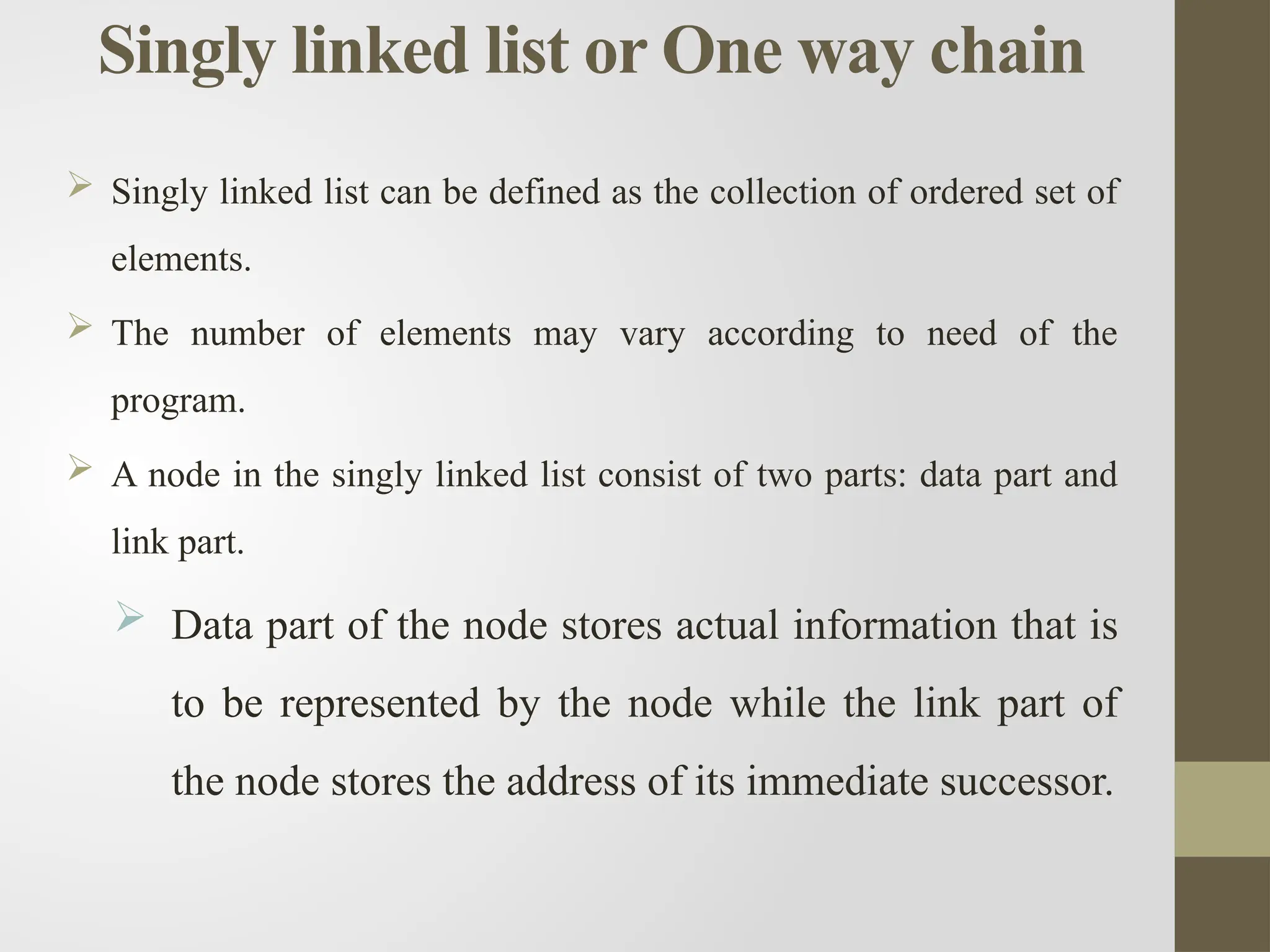

11. Singly linked list or One way chain
 Singly linked list can be defined as the collection of ordered set of
elements.
 The number of elements may vary according to need of the
program.
 A node in the singly linked list consist of two parts: data part and
link part.
 Data part of the node stores actual information that is
to be represented by the node while the link part of
the node stores the address of its immediate successor.

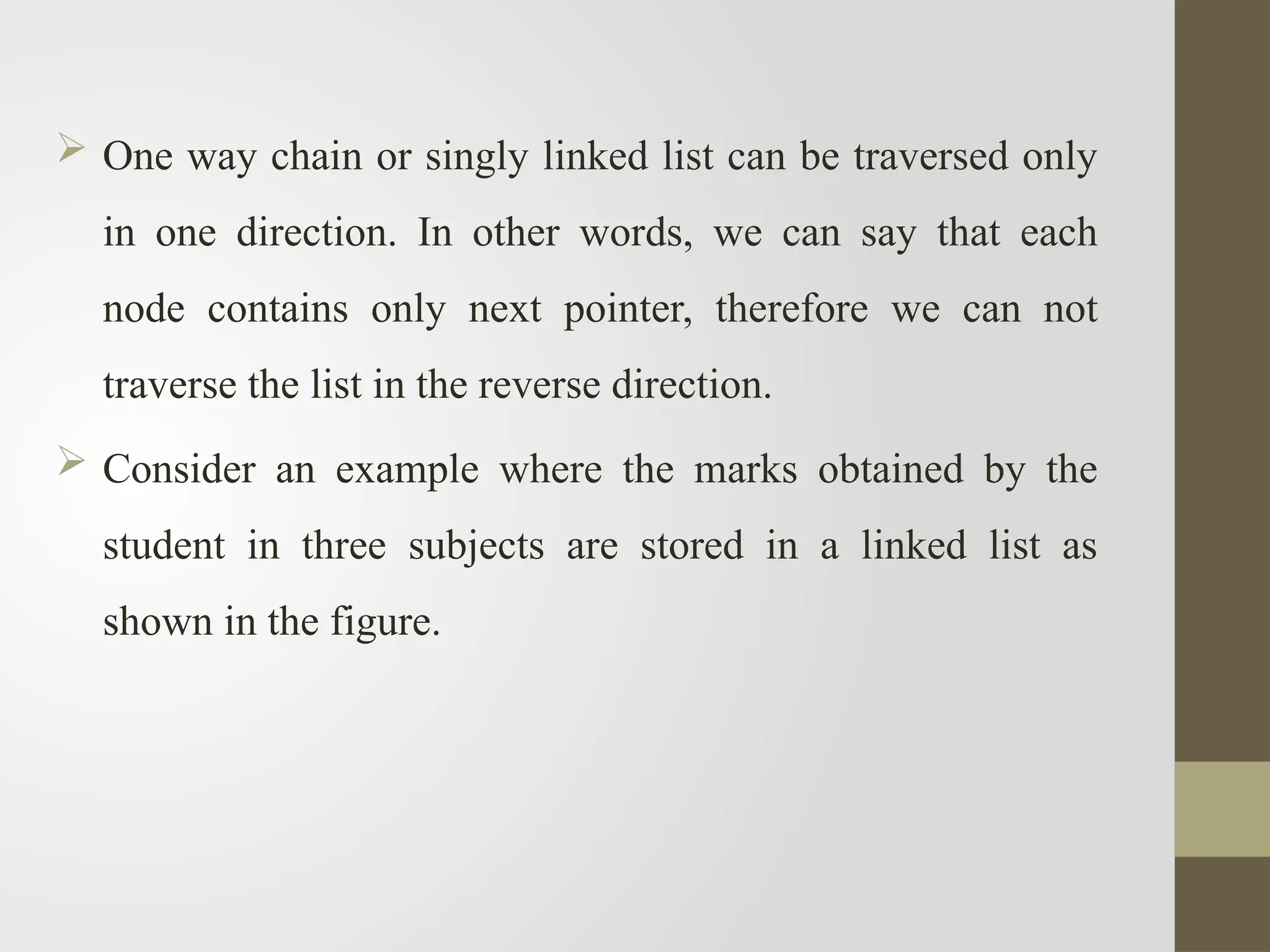

12.  One way chain or singly linked list can be traversed only
in one direction. In other words, we can say that each
node contains only next pointer, therefore we can not
traverse the list in the reverse direction.
 Consider an example where the marks obtained by the
student in three subjects are stored in a linked list as
shown in the figure.

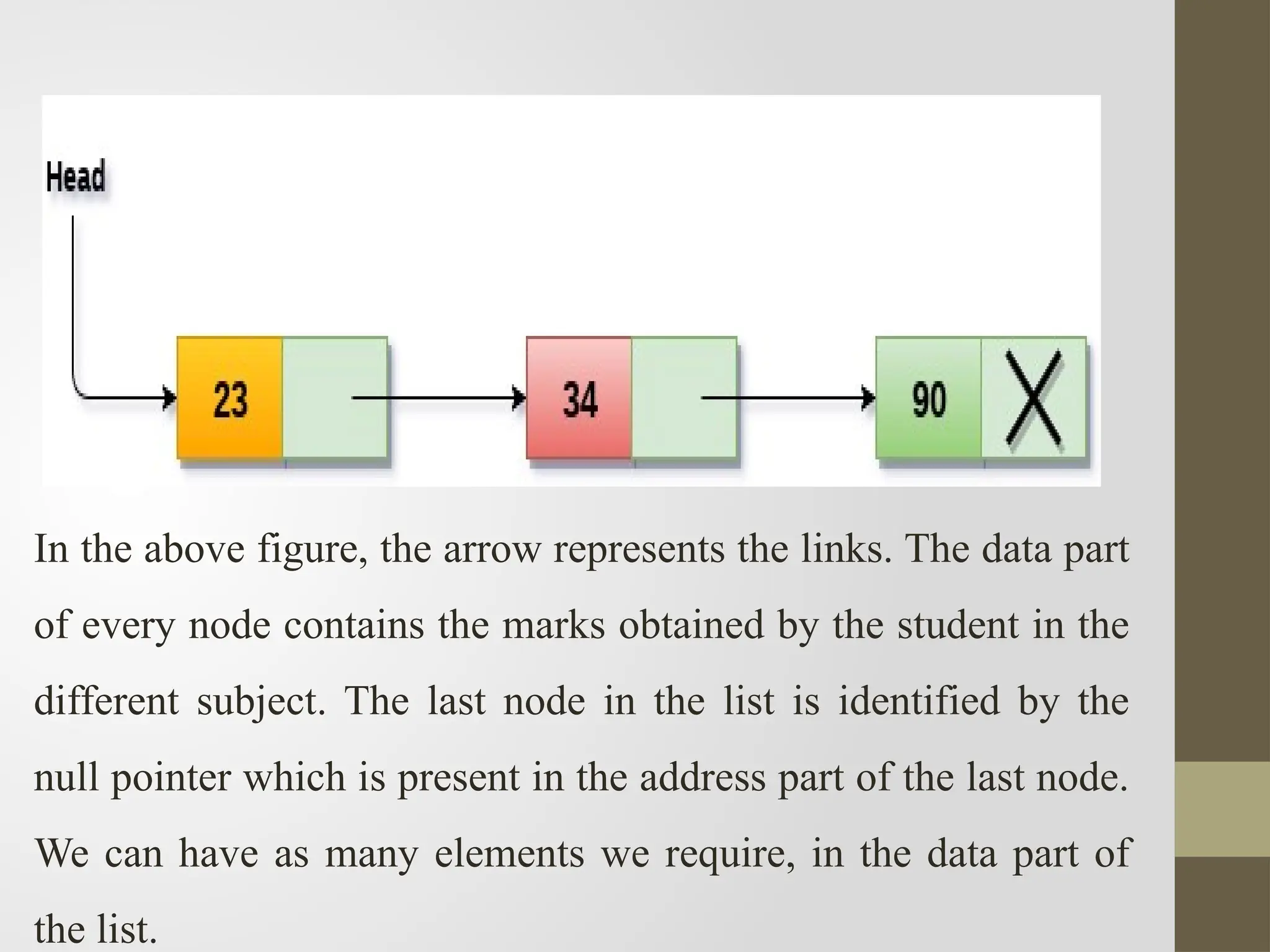

13. In the above figure, the arrow represents the links. The data part
of every node contains the marks obtained by the student in the
different subject. The last node in the list is identified by the
null pointer which is present in the address part of the last node.
We can have as many elements we require, in the data part of
the list.

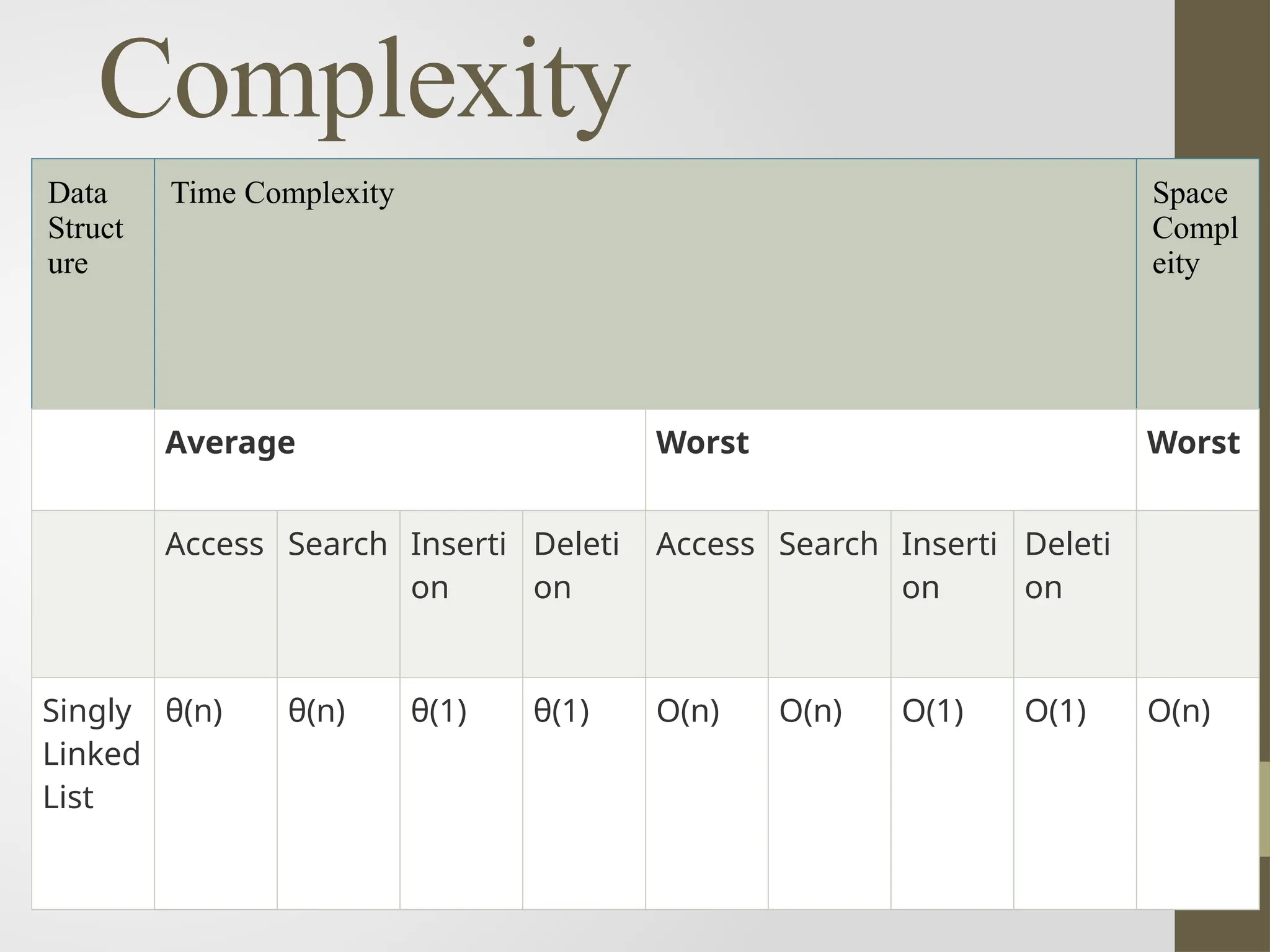

14. Complexity
Data
Struct
ure
Time Complexity Space
Compl
eity
Average Worst Worst
Access Search Inserti
on
Deleti
on
Access Search Inserti
on
Deleti
on
Singly
Linked
List
θ(n) θ(n) θ(1) θ(1) O(n) O(n) O(1) O(1) O(n)

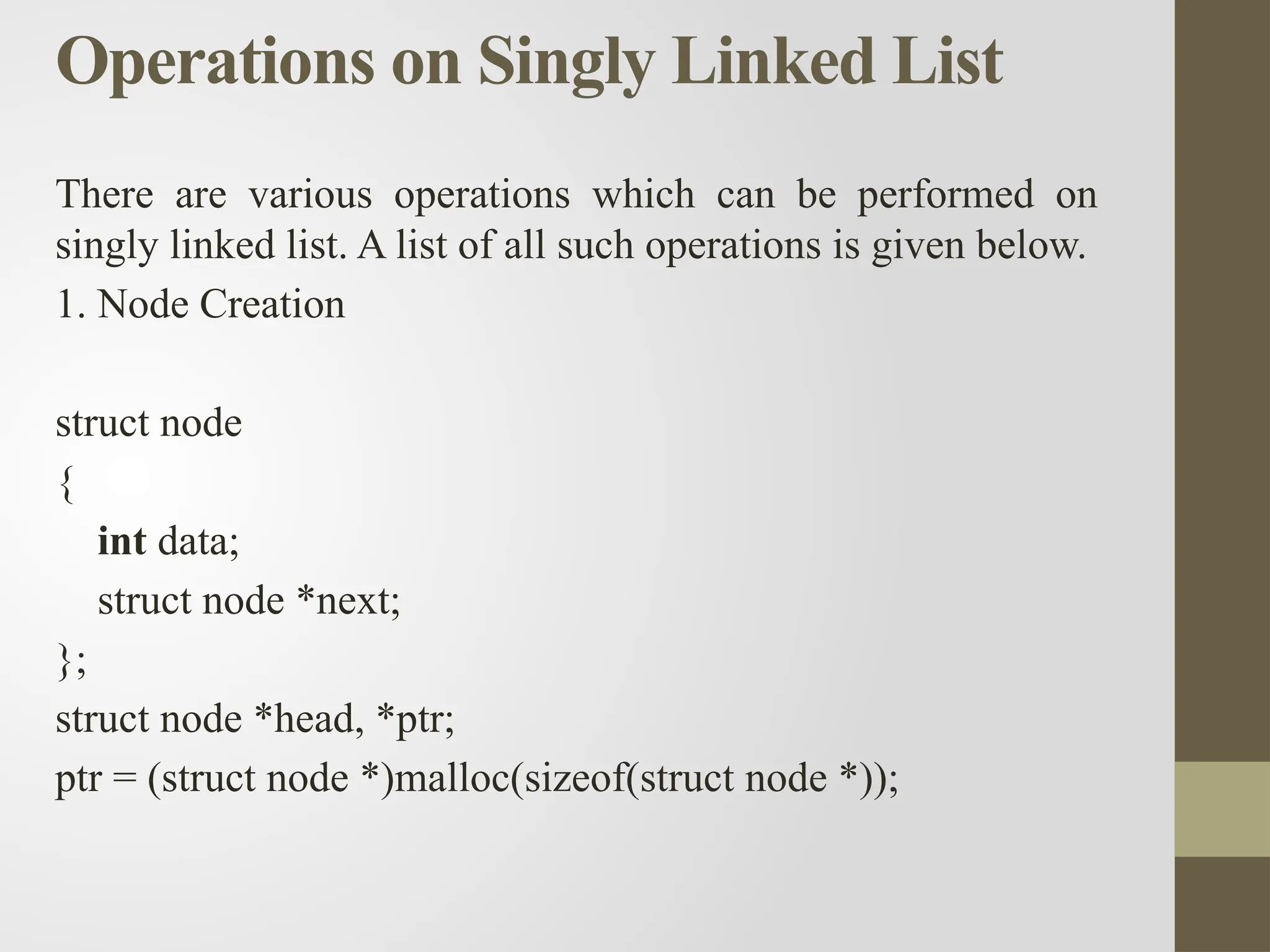

15. Operations on Singly Linked List
There are various operations which can be performed on
singly linked list. A list of all such operations is given below.
1. Node Creation
struct node
{
int data;
struct node *next;
};
struct node *head, *ptr;
ptr = (struct node *)malloc(sizeof(struct node *));

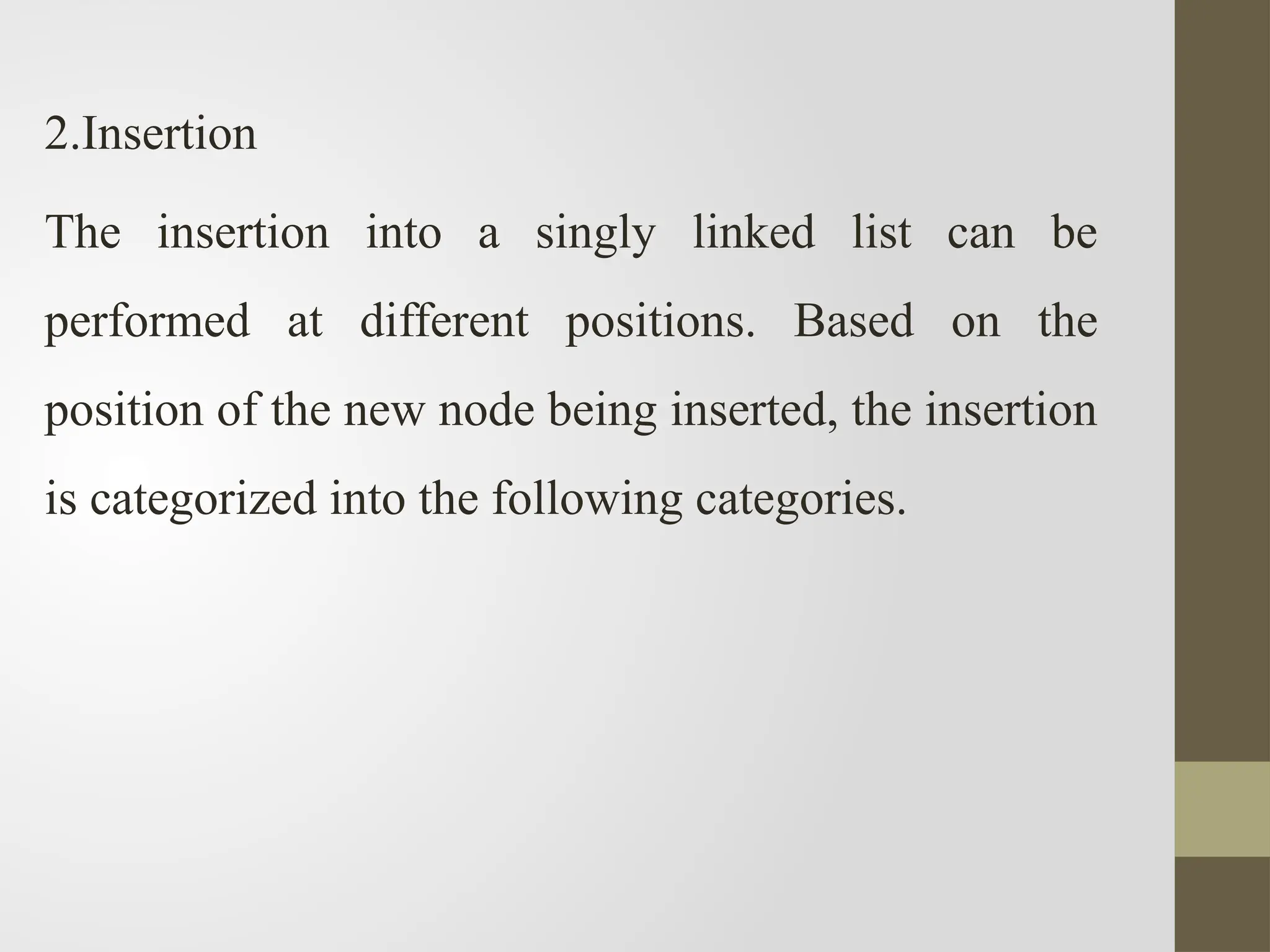

16. 2.Insertion
The insertion into a singly linked list can be
performed at different positions. Based on the
position of the new node being inserted, the insertion
is categorized into the following categories.

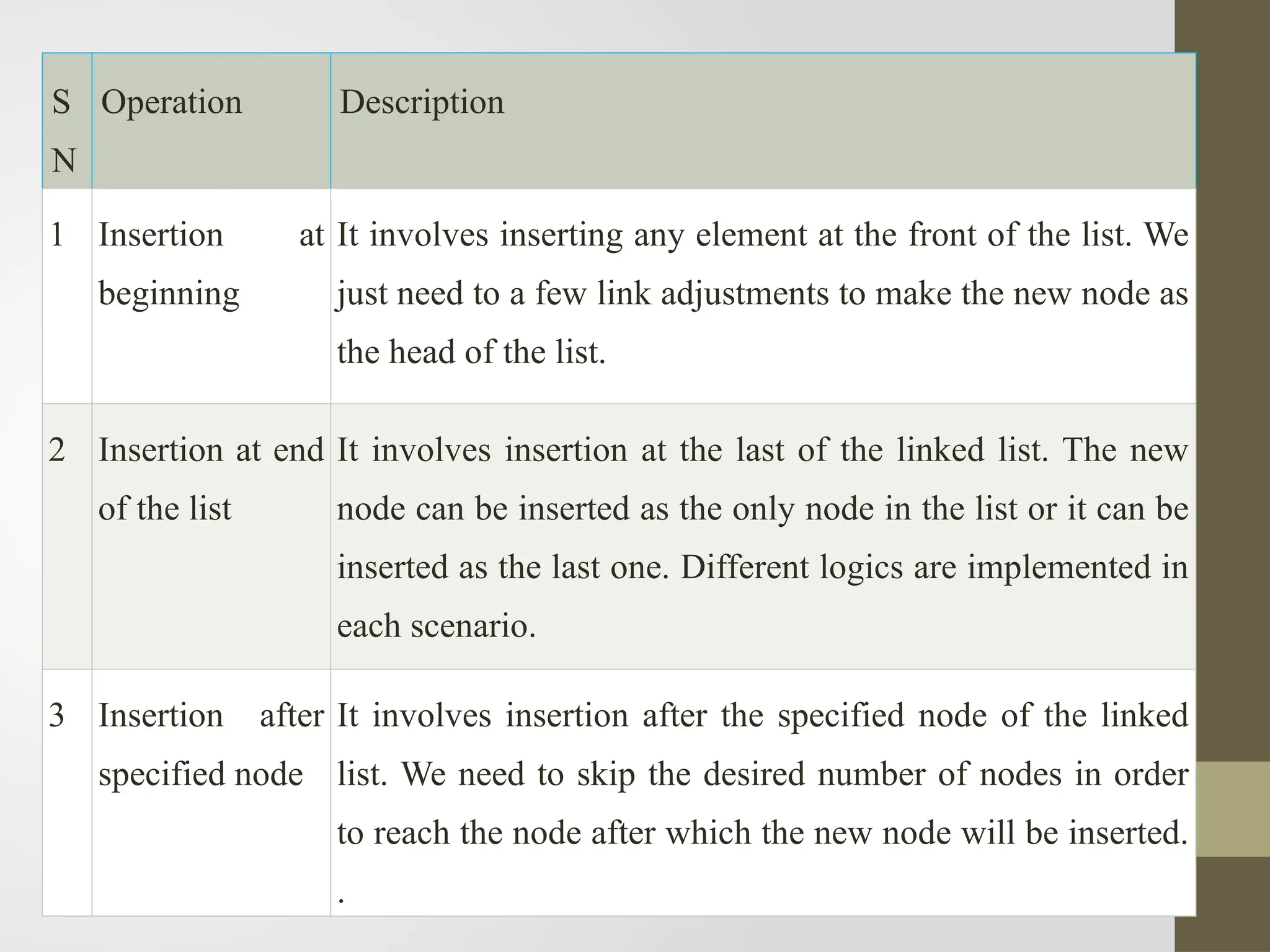

17. S
N
Operation Description
1 Insertion at
beginning
It involves inserting any element at the front of the list. We
just need to a few link adjustments to make the new node as
the head of the list.
2 Insertion at end
of the list
It involves insertion at the last of the linked list. The new
node can be inserted as the only node in the list or it can be
inserted as the last one. Different logics are implemented in
each scenario.
3 Insertion after
specified node
It involves insertion after the specified node of the linked
list. We need to skip the desired number of nodes in order
to reach the node after which the new node will be inserted.
.

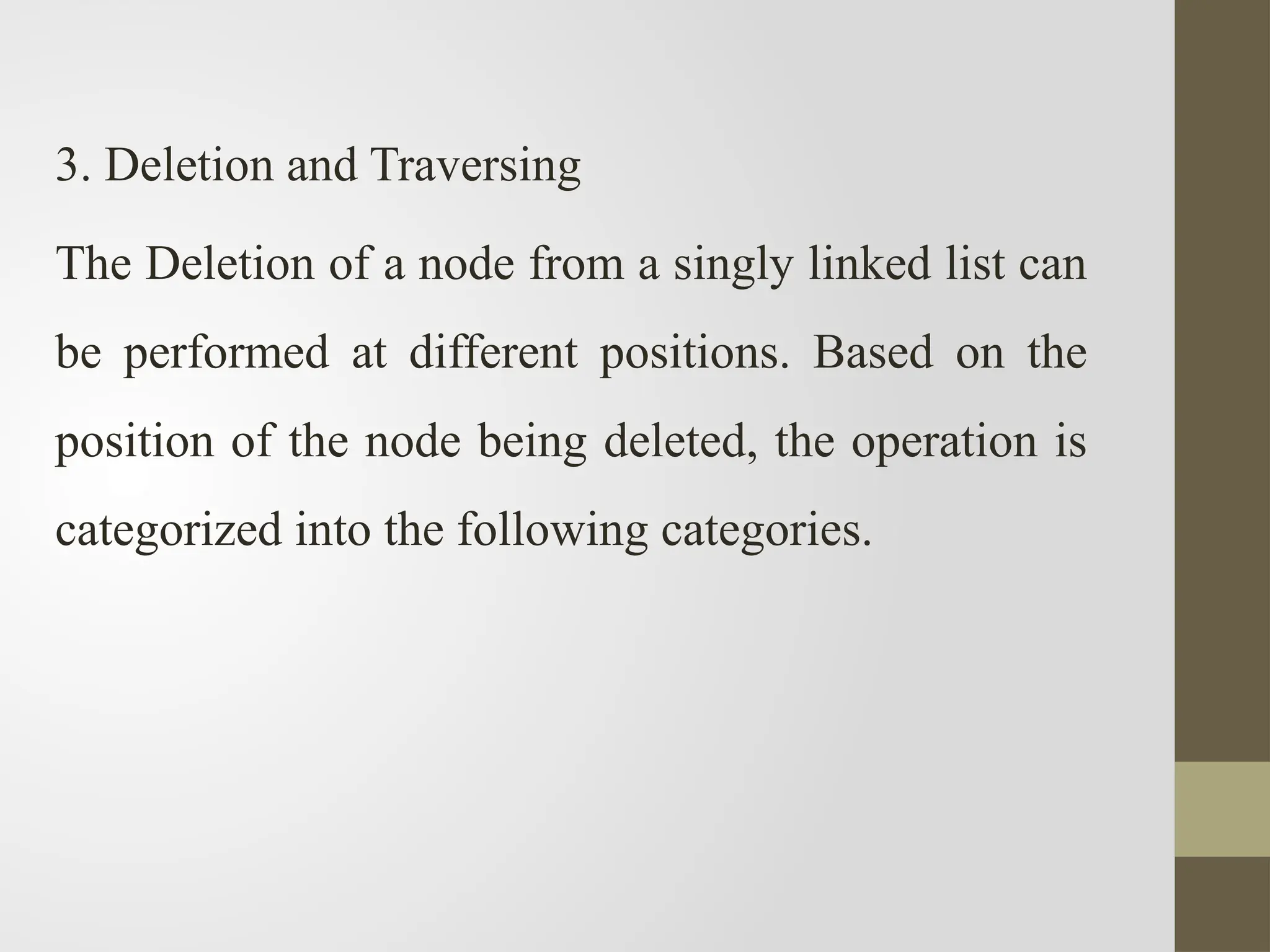

18. 3. Deletion and Traversing
The Deletion of a node from a singly linked list can
be performed at different positions. Based on the
position of the node being deleted, the operation is
categorized into the following categories.

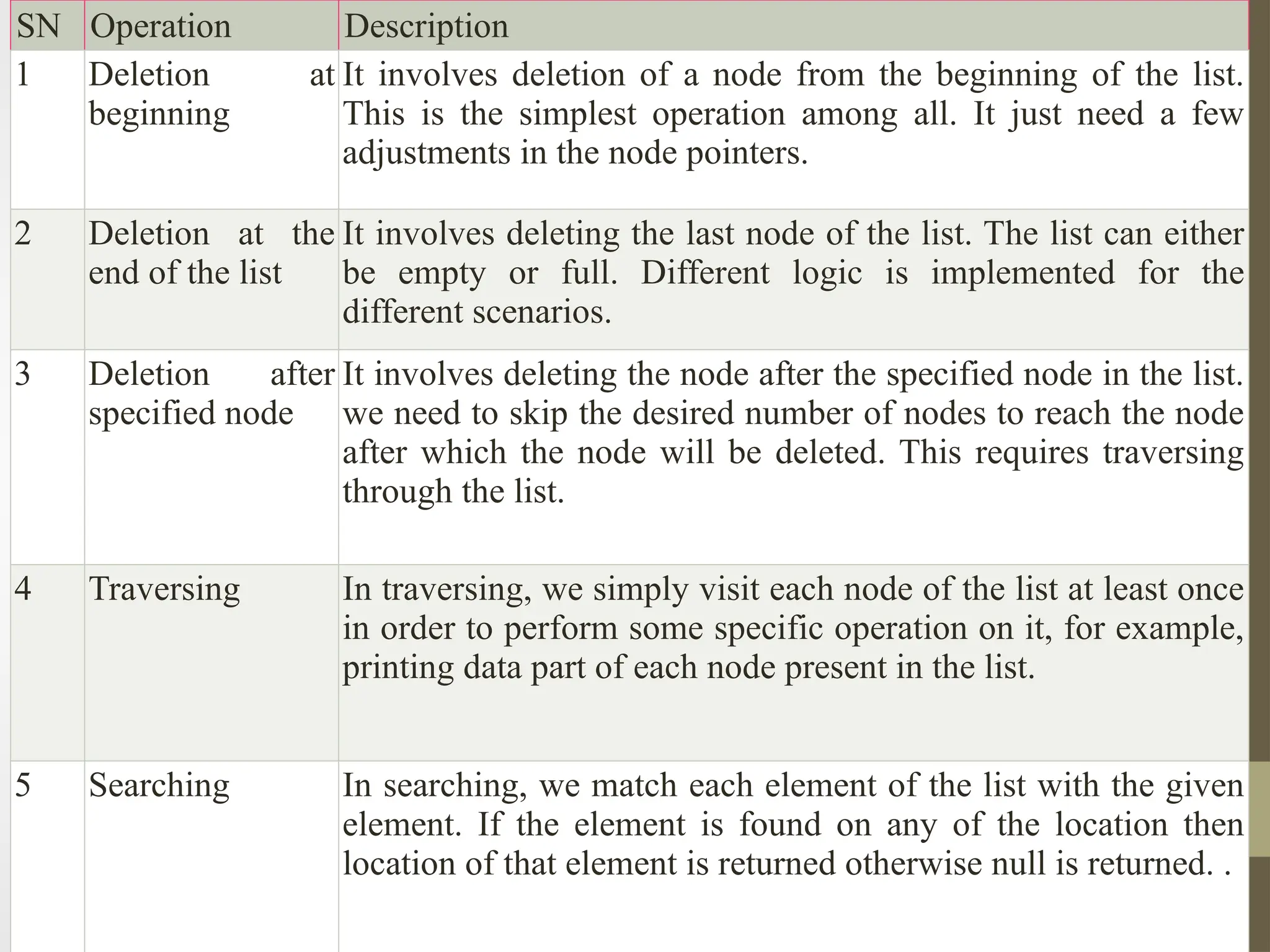

19. SN Operation Description

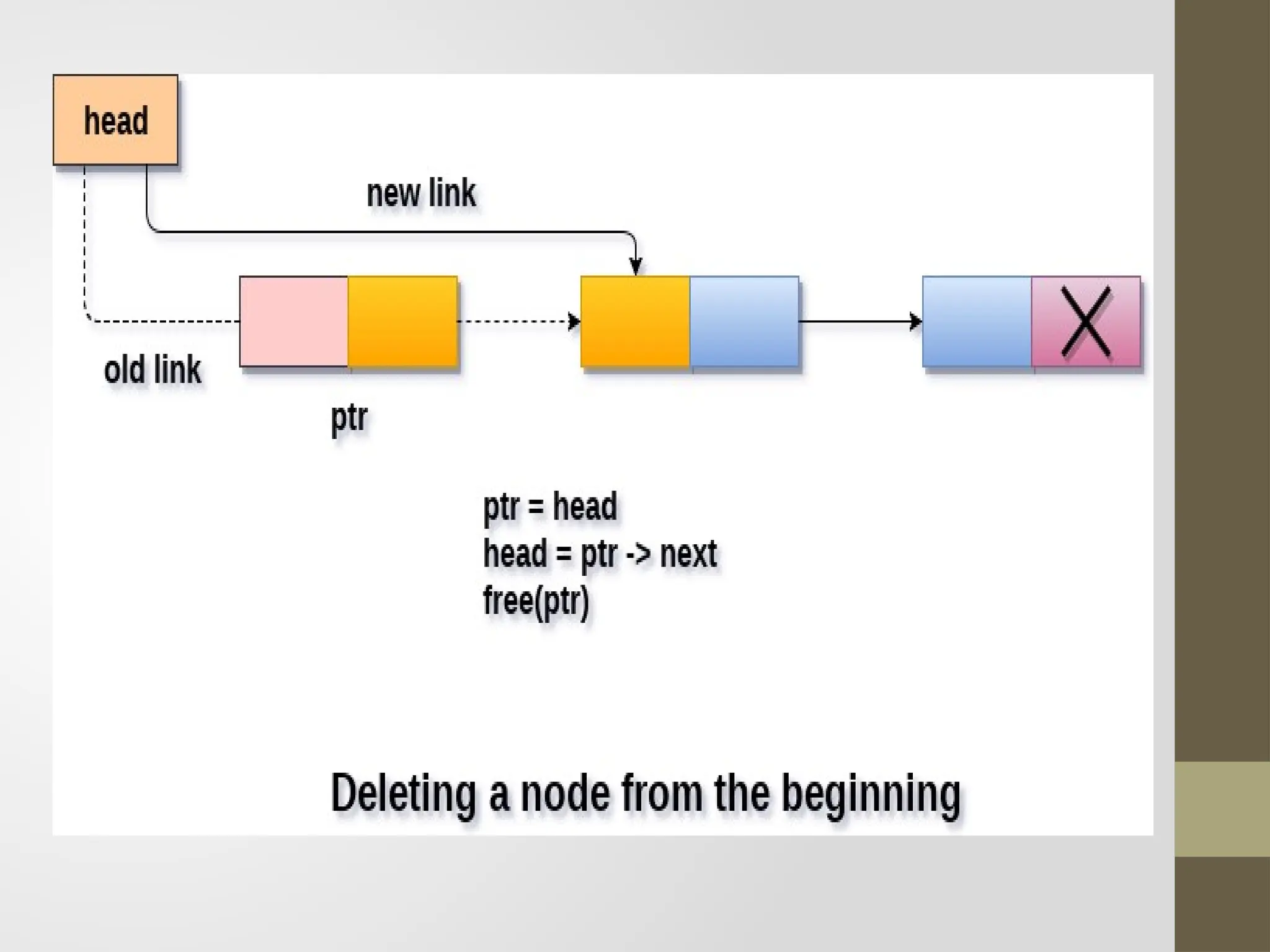

1 Deletion at
beginning
It involves deletion of a node from the beginning of the list.
This is the simplest operation among all. It just need a few
adjustments in the node pointers.
2 Deletion at the
end of the list
It involves deleting the last node of the list. The list can either
be empty or full. Different logic is implemented for the
different scenarios.
3 Deletion after
specified node
It involves deleting the node after the specified node in the list.
we need to skip the desired number of nodes to reach the node
after which the node will be deleted. This requires traversing
through the list.

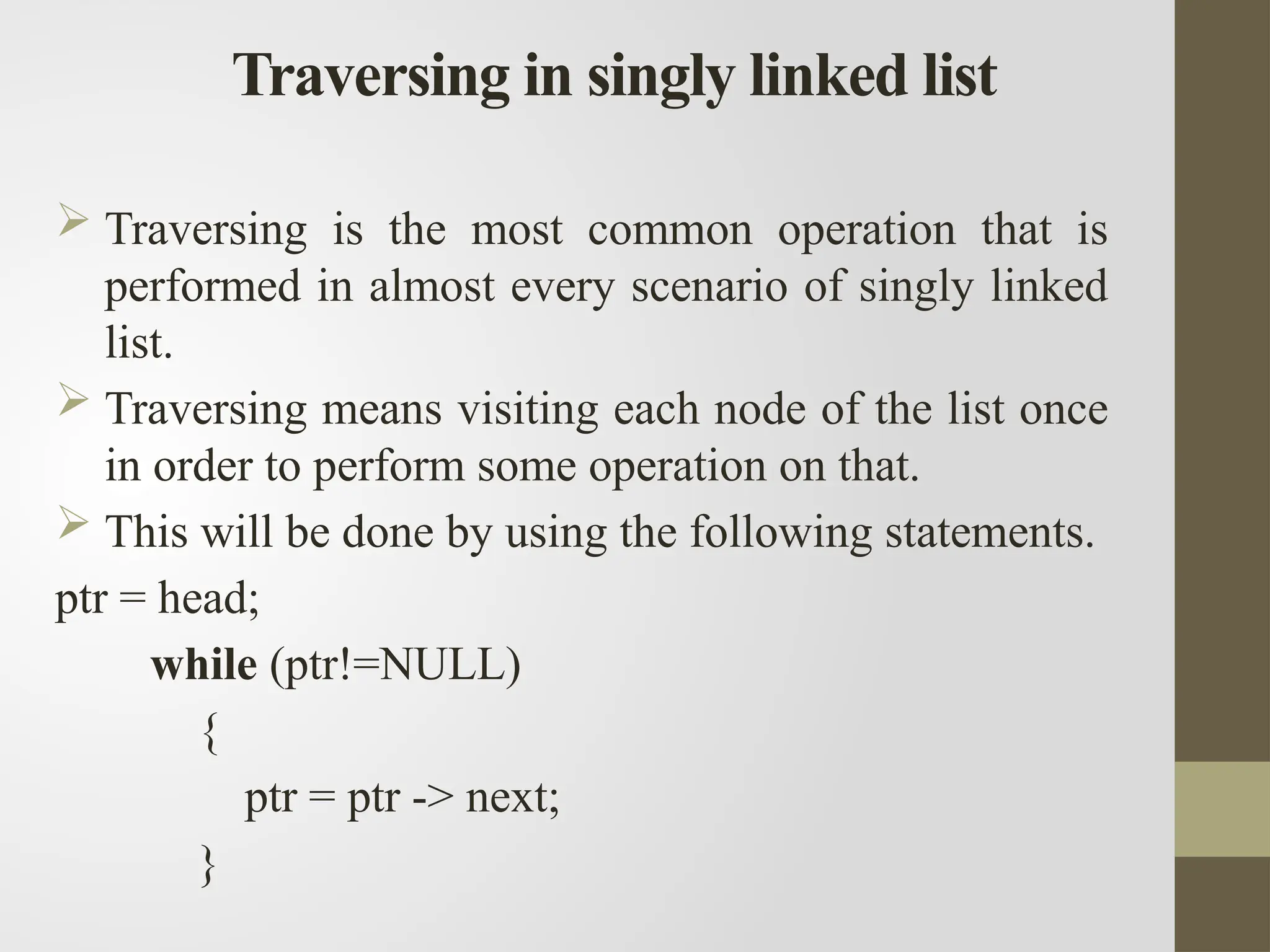

4 Traversing In traversing, we simply visit each node of the list at least once
in order to perform some specific operation on it, for example,
printing data part of each node present in the list.

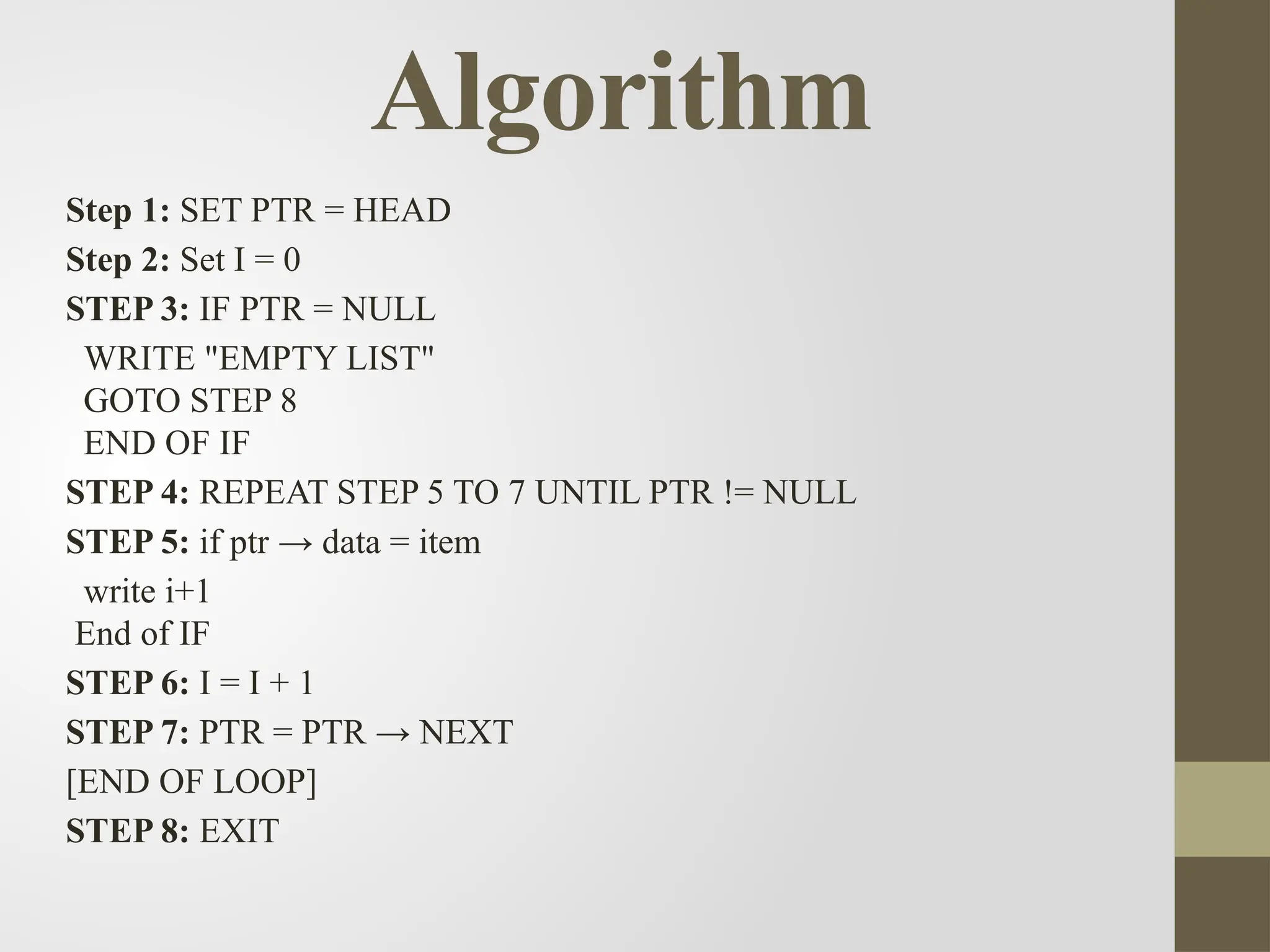

5 Searching In searching, we match each element of the list with the given
element. If the element is found on any of the location then
location of that element is returned otherwise null is returned. .

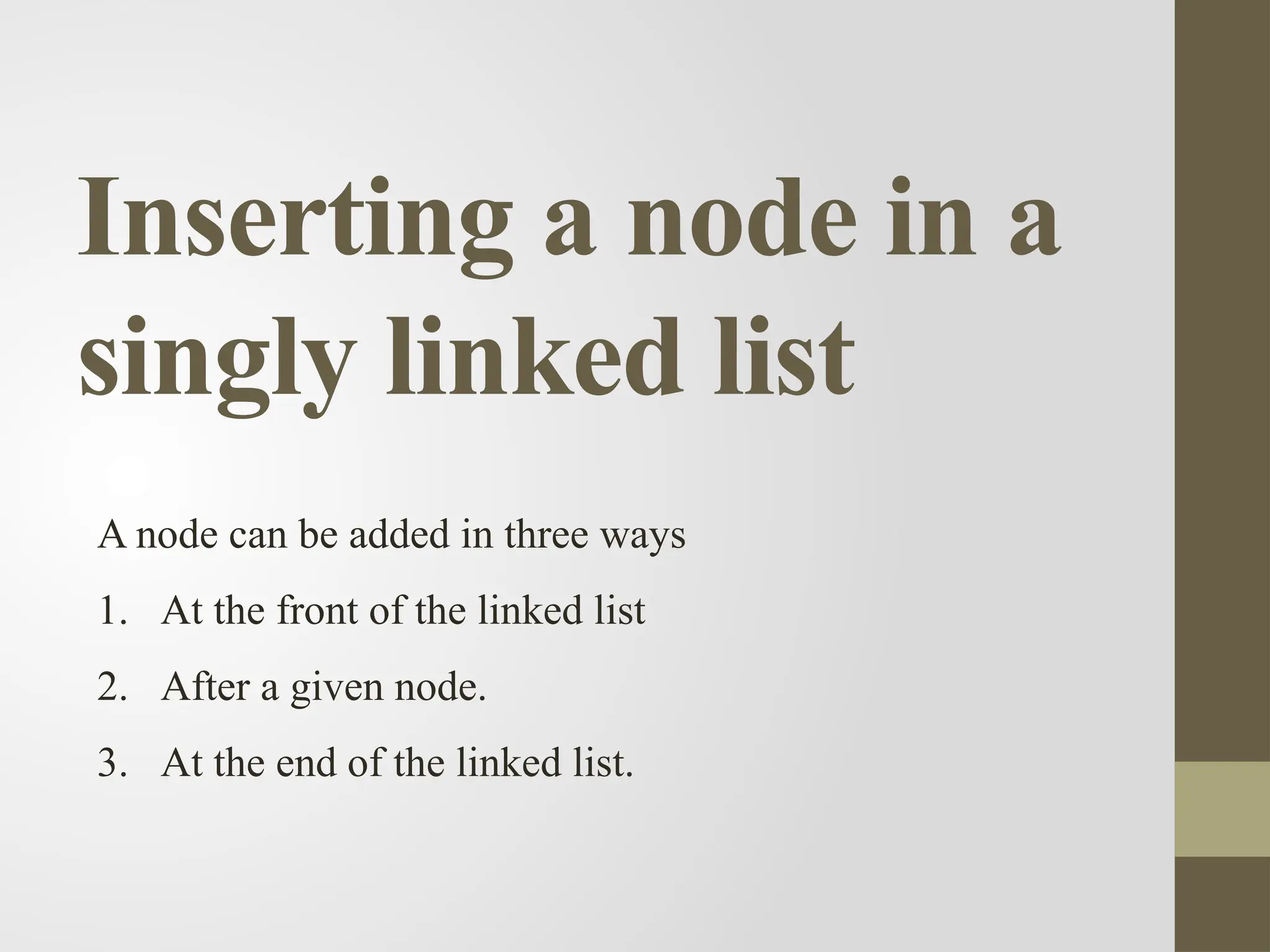

20. Inserting a node in a
singly linked list
A node can be added in three ways
1. At the front of the linked list
2. After a given node.
3. At the end of the linked list.

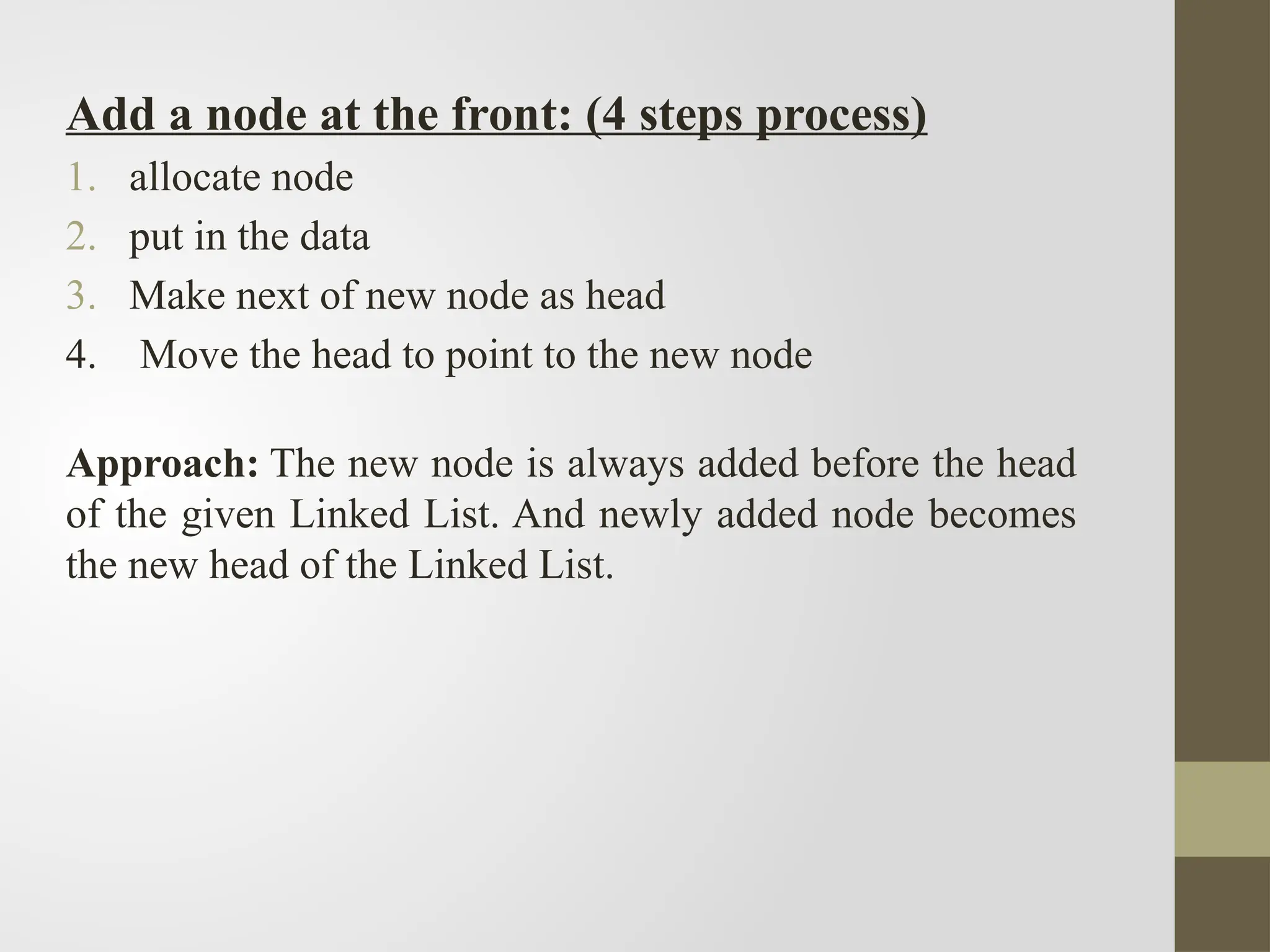

21. Add a node at the front: (4 steps process)
1. allocate node
2. put in the data
3. Make next of new node as head
4. Move the head to point to the new node
Approach: The new node is always added before the head
of the given Linked List. And newly added node becomes
the new head of the Linked List.

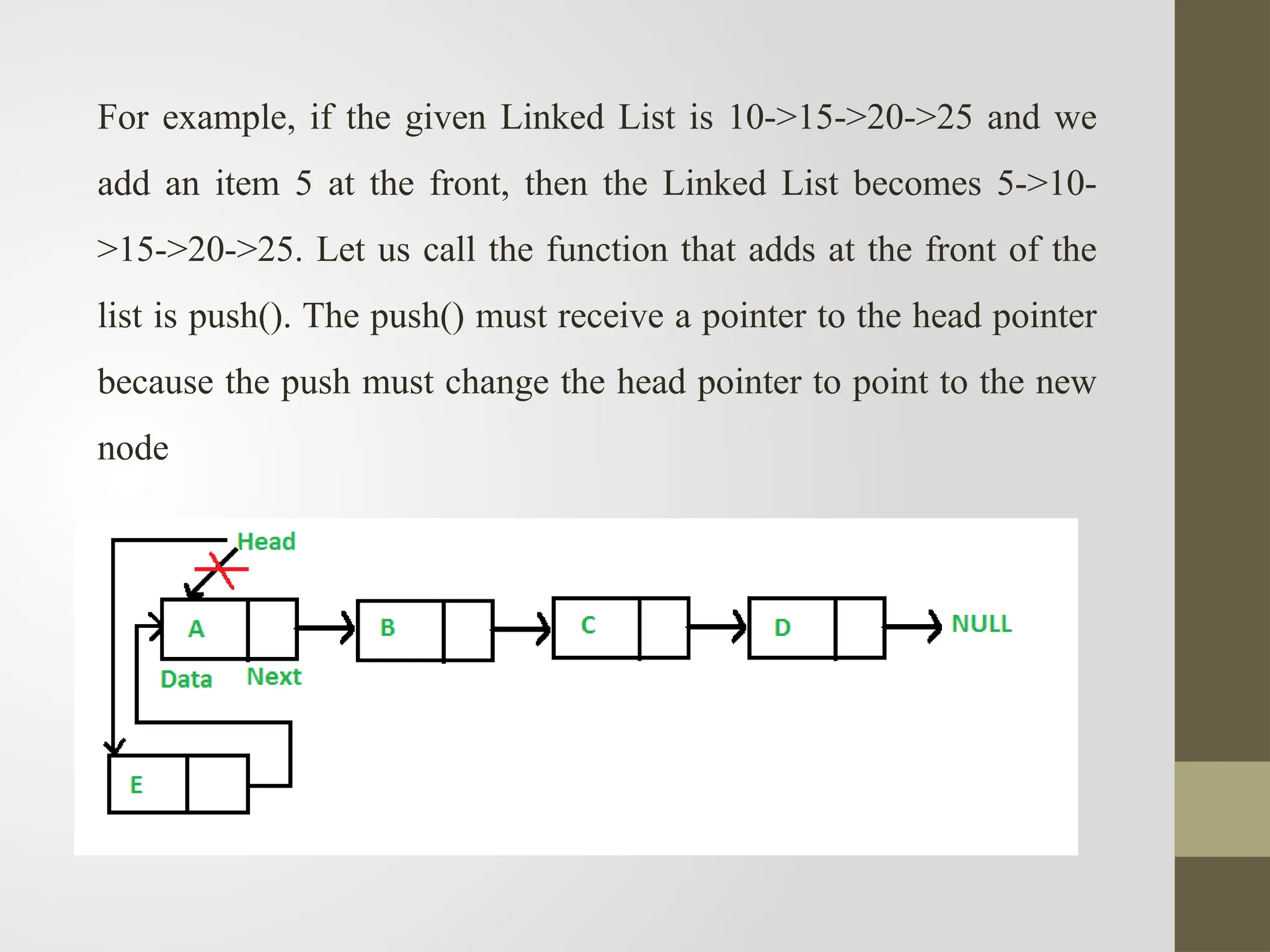

22. For example, if the given Linked List is 10->15->20->25 and we
add an item 5 at the front, then the Linked List becomes 5->10-
>15->20->25. Let us call the function that adds at the front of the
list is push(). The push() must receive a pointer to the head pointer
because the push must change the head pointer to point to the new
node

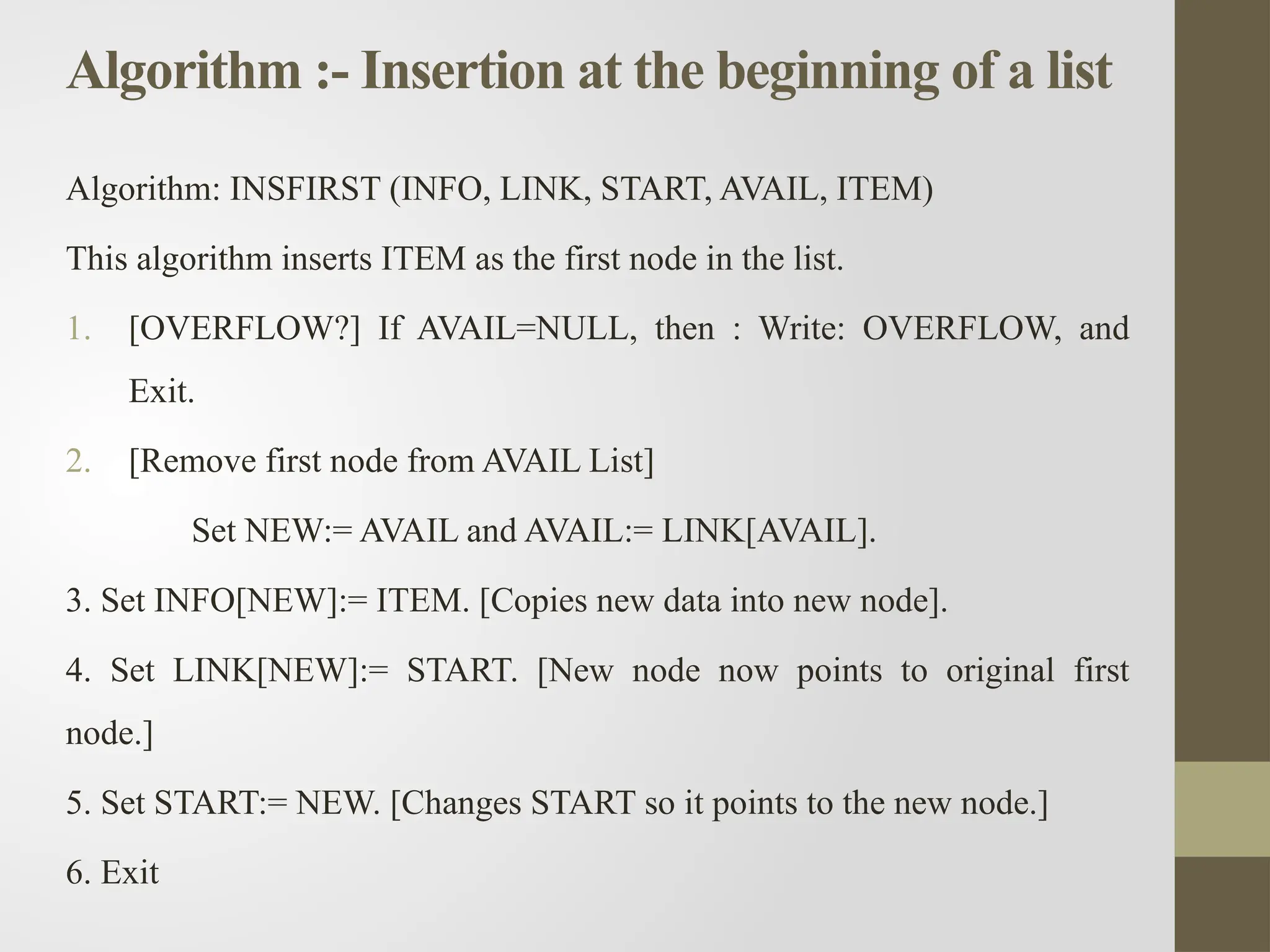

23. Algorithm :- Insertion at the beginning of a list
Algorithm: INSFIRST (INFO, LINK, START, AVAIL, ITEM)
This algorithm inserts ITEM as the first node in the list.
1. [OVERFLOW?] If AVAIL=NULL, then : Write: OVERFLOW, and
Exit.
2. [Remove first node from AVAIL List]
Set NEW:= AVAIL and AVAIL:= LINK[AVAIL].
3. Set INFO[NEW]:= ITEM. [Copies new data into new node].
4. Set LINK[NEW]:= START. [New node now points to original first
node.]
5. Set START:= NEW. [Changes START so it points to the new node.]
6. Exit

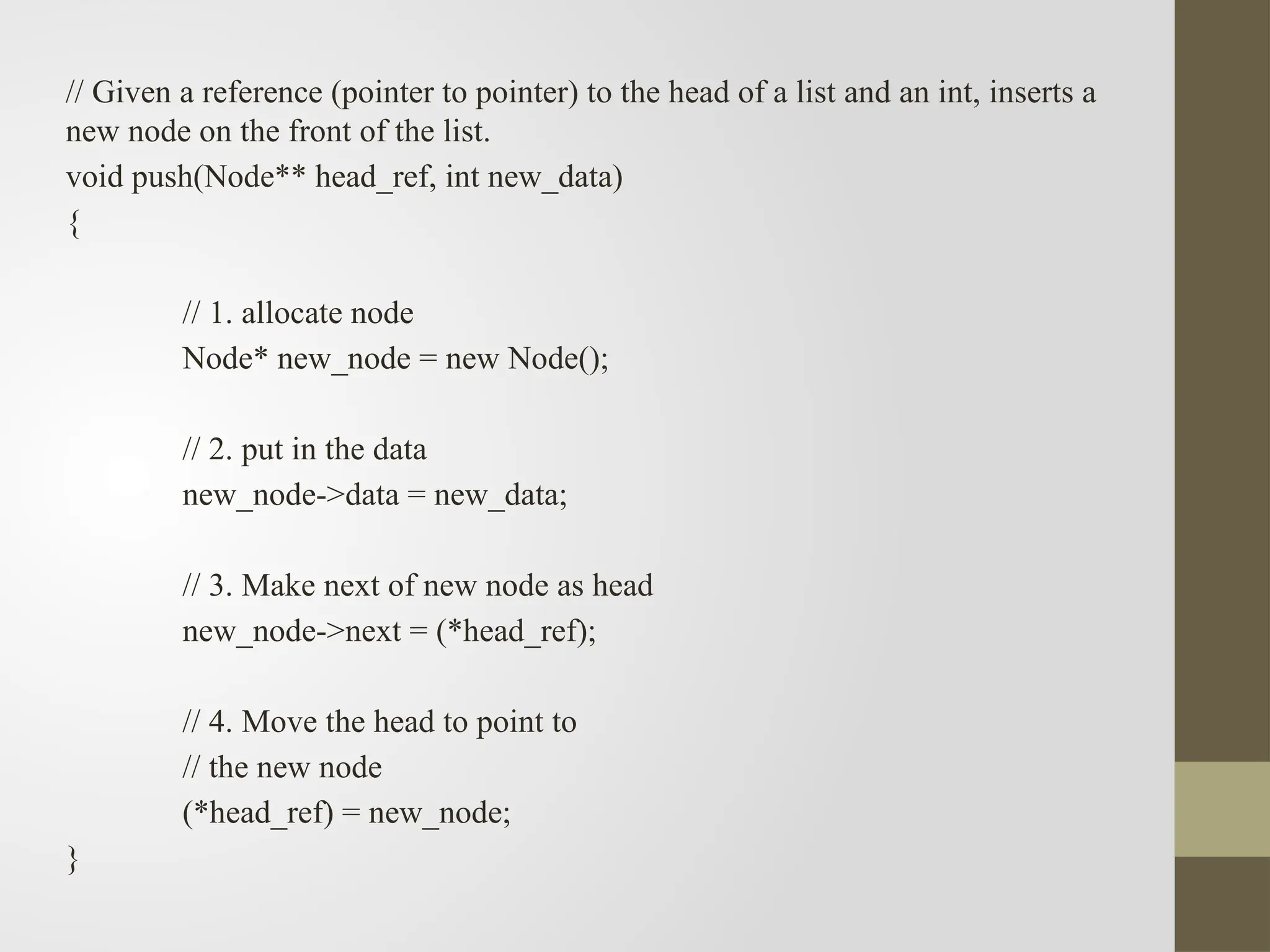

24. // Given a reference (pointer to pointer) to the head of a list and an int, inserts a
new node on the front of the list.
void push(Node** head_ref, int new_data)
{
// 1. allocate node
Node* new_node = new Node();
// 2. put in the data
new_node->data = new_data;
// 3. Make next of new node as head
new_node->next = (*head_ref);
// 4. Move the head to point to
// the new node
(*head_ref) = new_node;
}

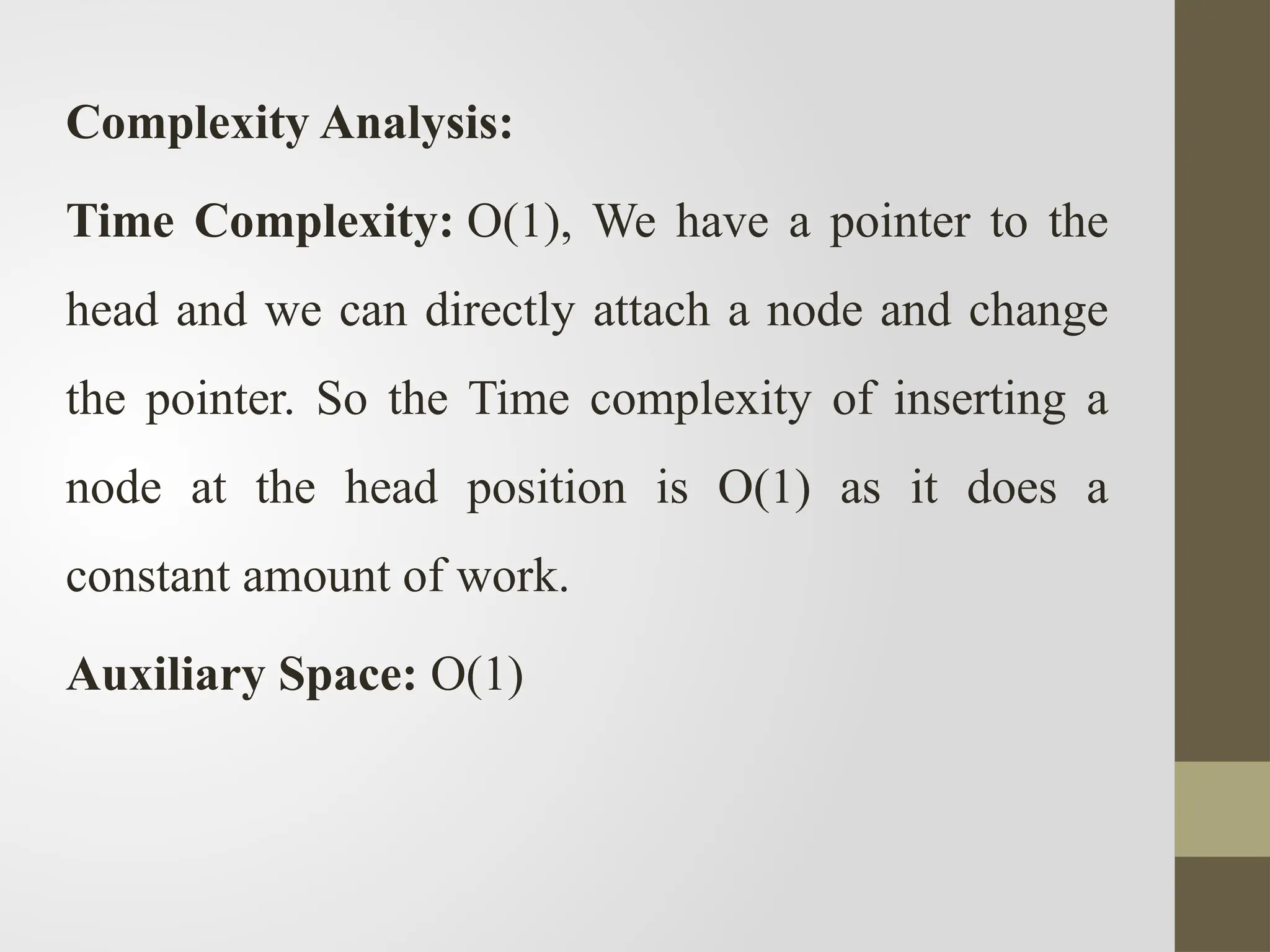

25. Complexity Analysis:
Time Complexity: O(1), We have a pointer to the
head and we can directly attach a node and change
the pointer. So the Time complexity of inserting a
node at the head position is O(1) as it does a
constant amount of work.
Auxiliary Space: O(1)

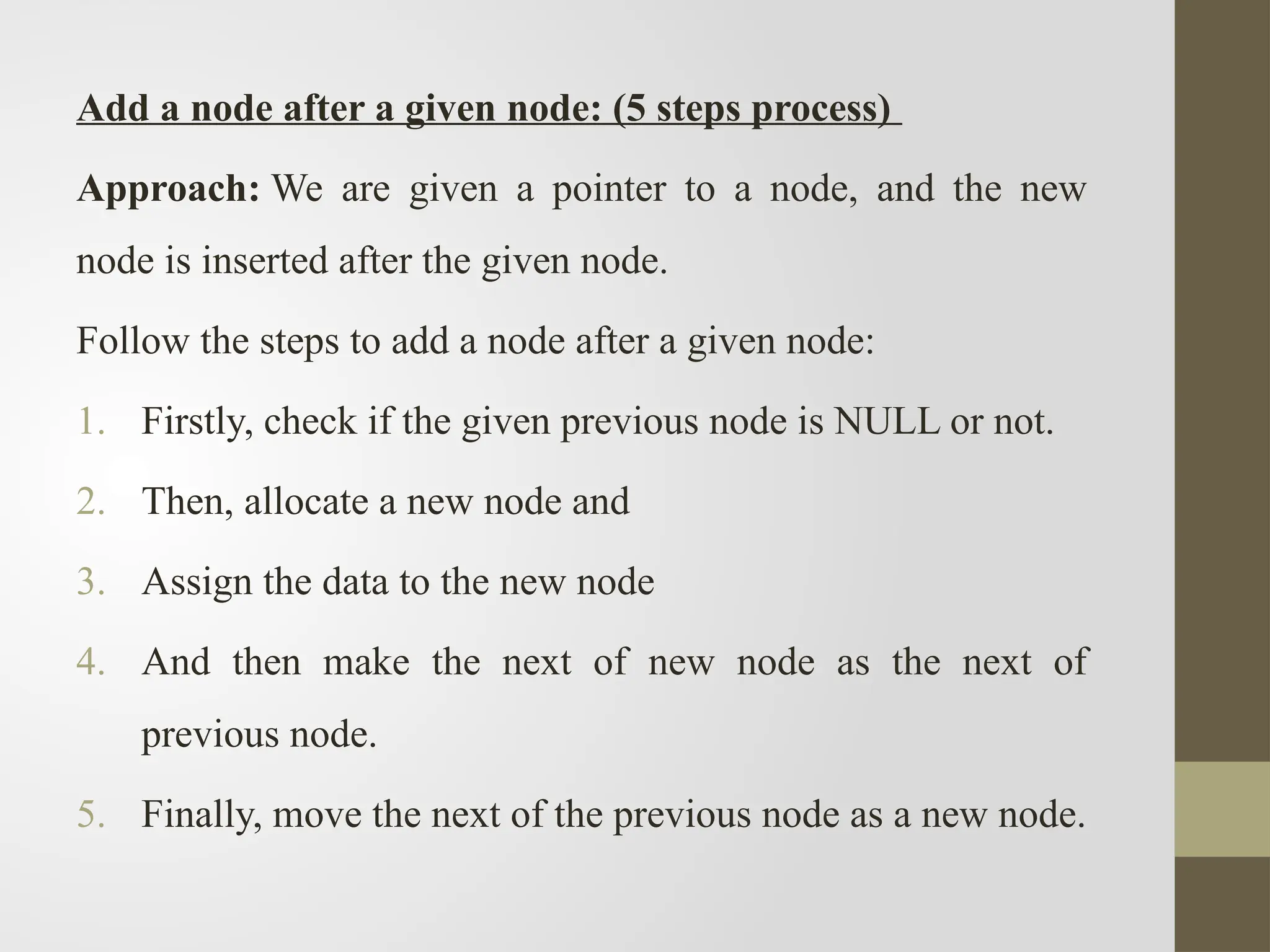

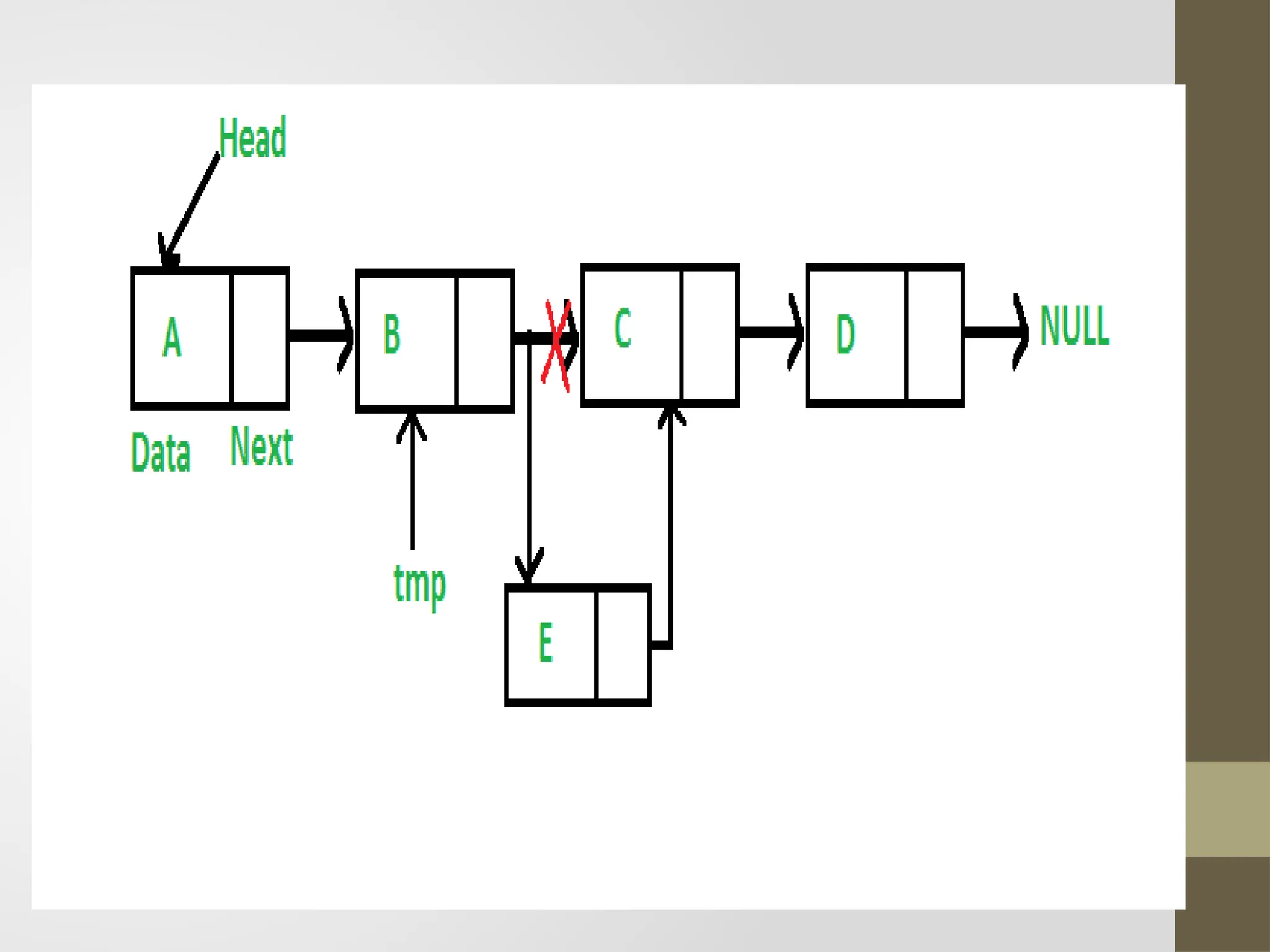

26. Add a node after a given node: (5 steps process)
Approach: We are given a pointer to a node, and the new
node is inserted after the given node.
Follow the steps to add a node after a given node:
1. Firstly, check if the given previous node is NULL or not.
2. Then, allocate a new node and
3. Assign the data to the new node
4. And then make the next of new node as the next of
previous node.
5. Finally, move the next of the previous node as a new node.

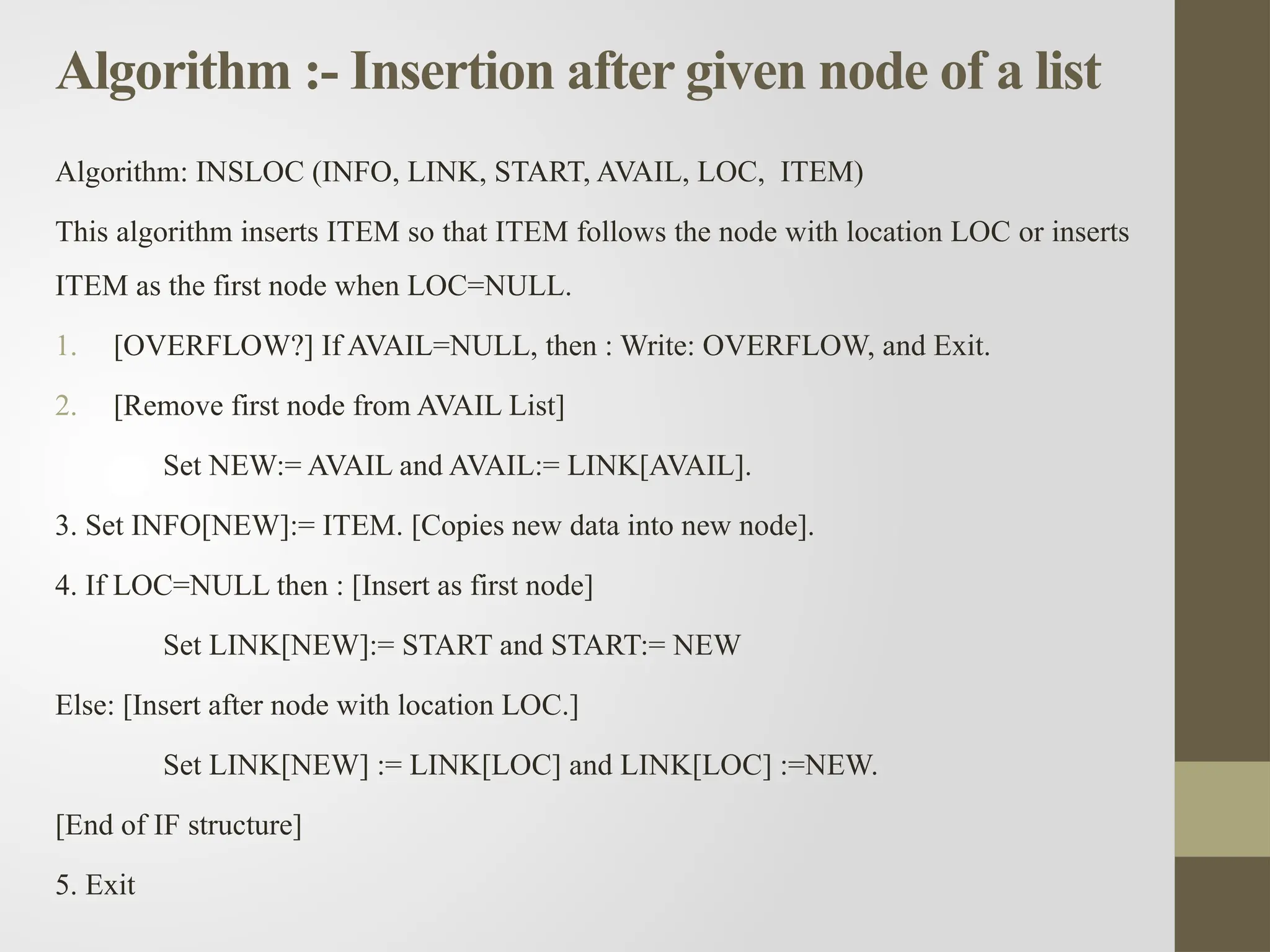

28. Algorithm :- Insertion after given node of a list
Algorithm: INSLOC (INFO, LINK, START, AVAIL, LOC, ITEM)
This algorithm inserts ITEM so that ITEM follows the node with location LOC or inserts
ITEM as the first node when LOC=NULL.
1. [OVERFLOW?] If AVAIL=NULL, then : Write: OVERFLOW, and Exit.
2. [Remove first node from AVAIL List]
Set NEW:= AVAIL and AVAIL:= LINK[AVAIL].
3. Set INFO[NEW]:= ITEM. [Copies new data into new node].
4. If LOC=NULL then : [Insert as first node]
Set LINK[NEW]:= START and START:= NEW
Else: [Insert after node with location LOC.]
Set LINK[NEW] := LINK[LOC] and LINK[LOC] :=NEW.
[End of IF structure]
5. Exit

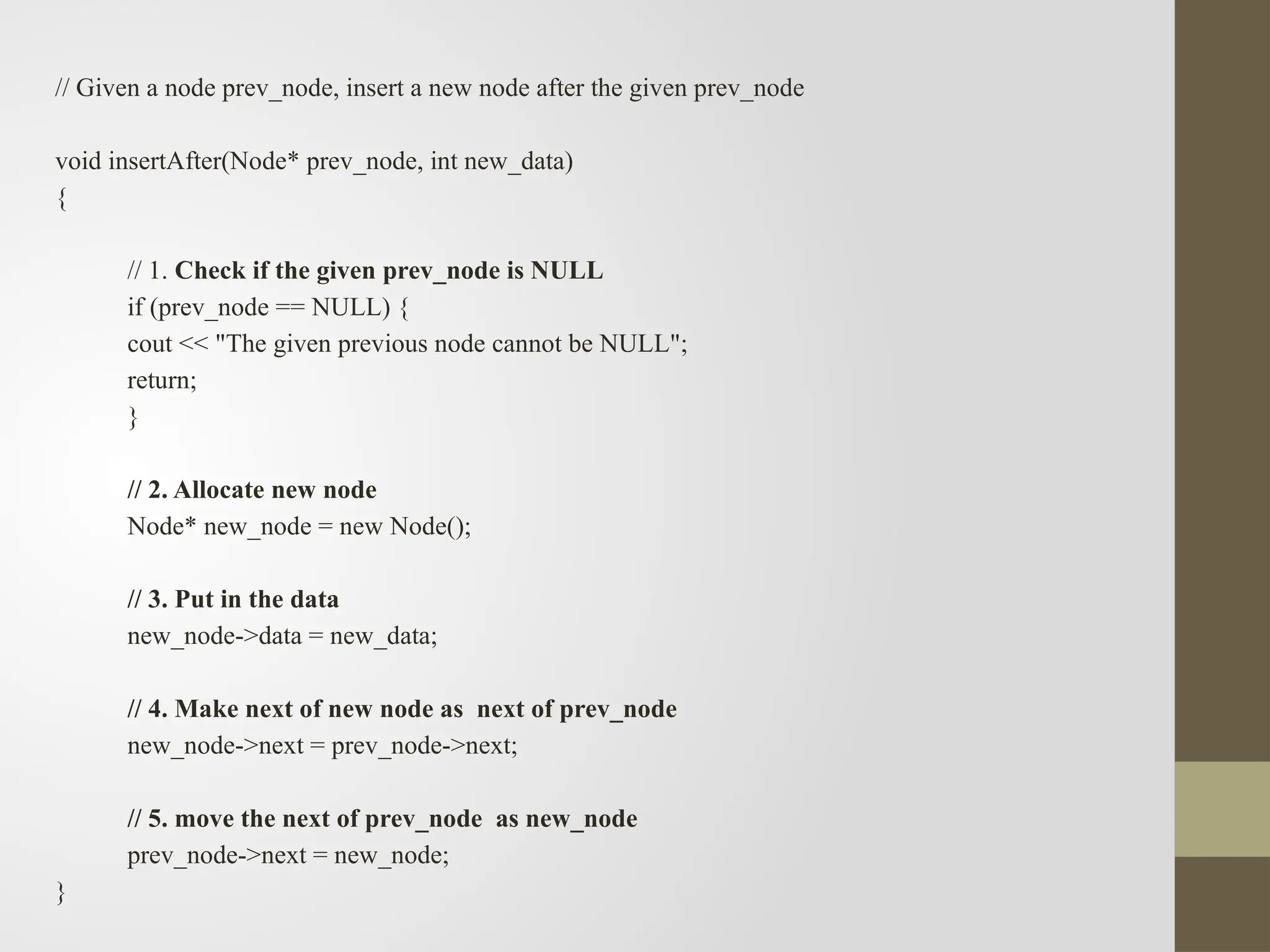

29. // Given a node prev_node, insert a new node after the given prev_node
void insertAfter(Node* prev_node, int new_data)
{
// 1. Check if the given prev_node is NULL
if (prev_node == NULL) {
cout << "The given previous node cannot be NULL";
return;
}
// 2. Allocate new node
Node* new_node = new Node();
// 3. Put in the data
new_node->data = new_data;
// 4. Make next of new node as next of prev_node
new_node->next = prev_node->next;
// 5. move the next of prev_node as new_node
prev_node->next = new_node;
}

30. Complexity Analysis:
Time complexity: O(N), where N is the size of the
linked list
Auxiliary Space: O(1) since using constant space
to modify pointers

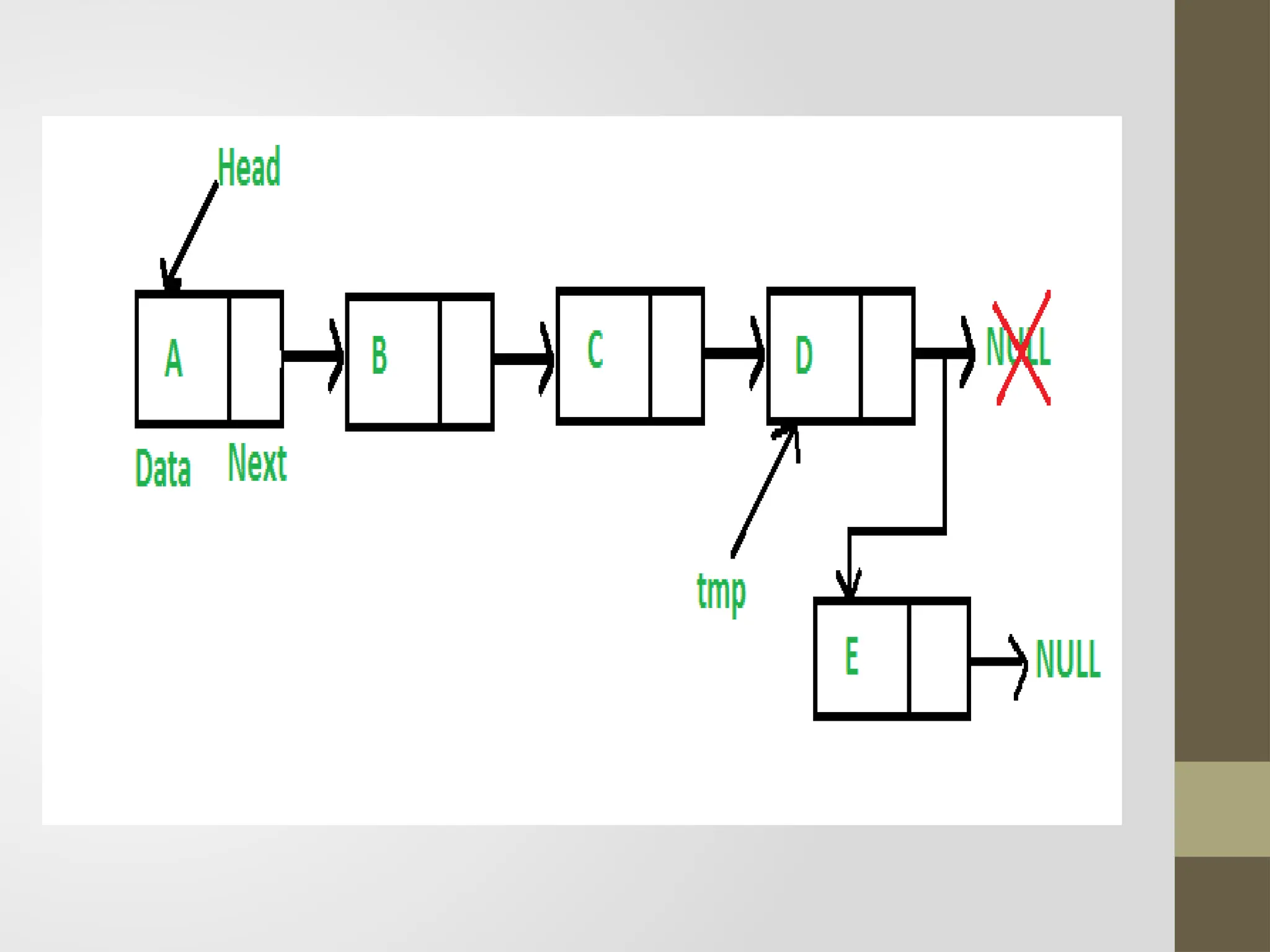

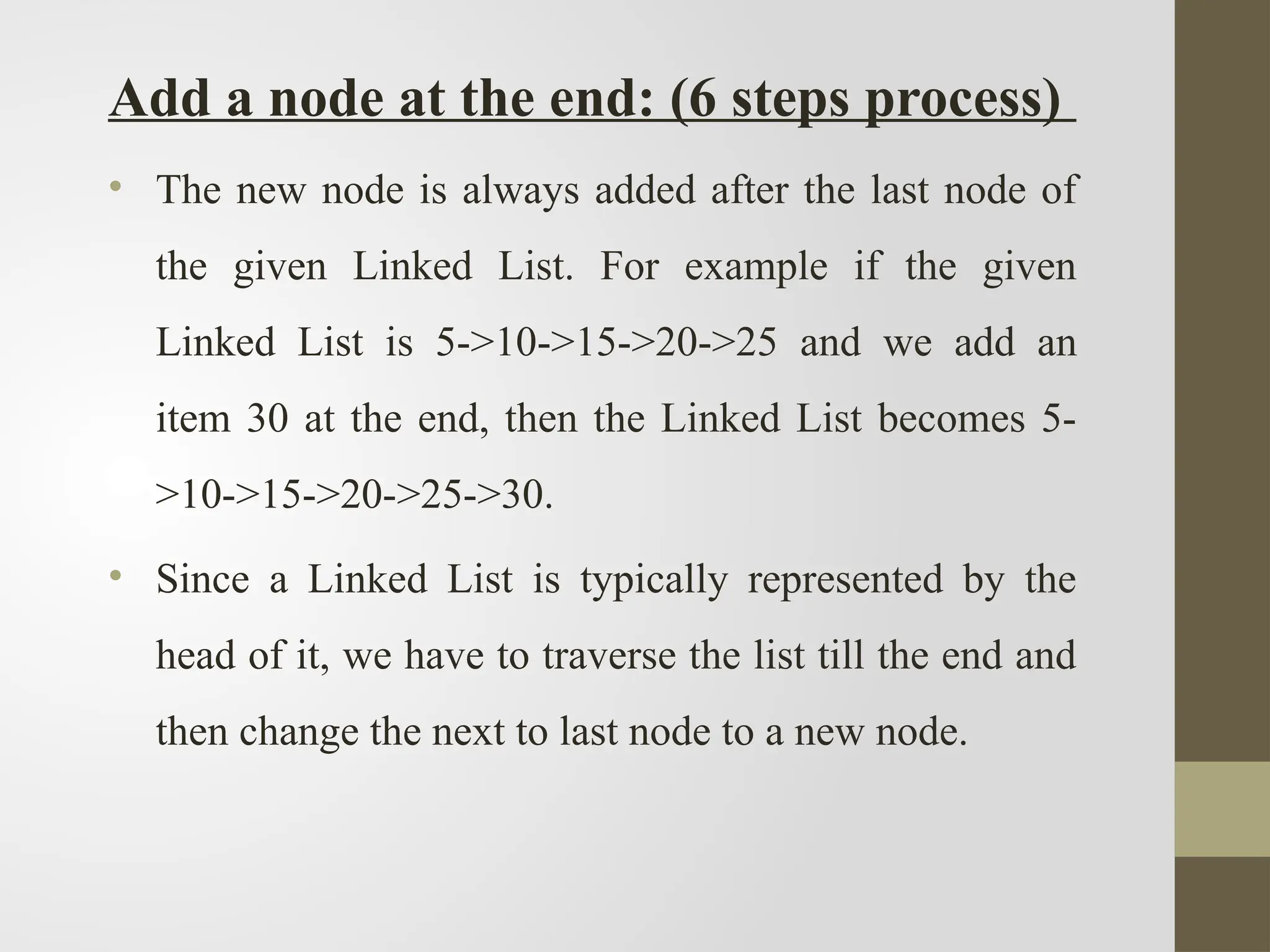

31. Add a node at the end: (6 steps process)
• The new node is always added after the last node of
the given Linked List. For example if the given
Linked List is 5->10->15->20->25 and we add an
item 30 at the end, then the Linked List becomes 5-
>10->15->20->25->30.
• Since a Linked List is typically represented by the
head of it, we have to traverse the list till the end and
then change the next to last node to a new node.

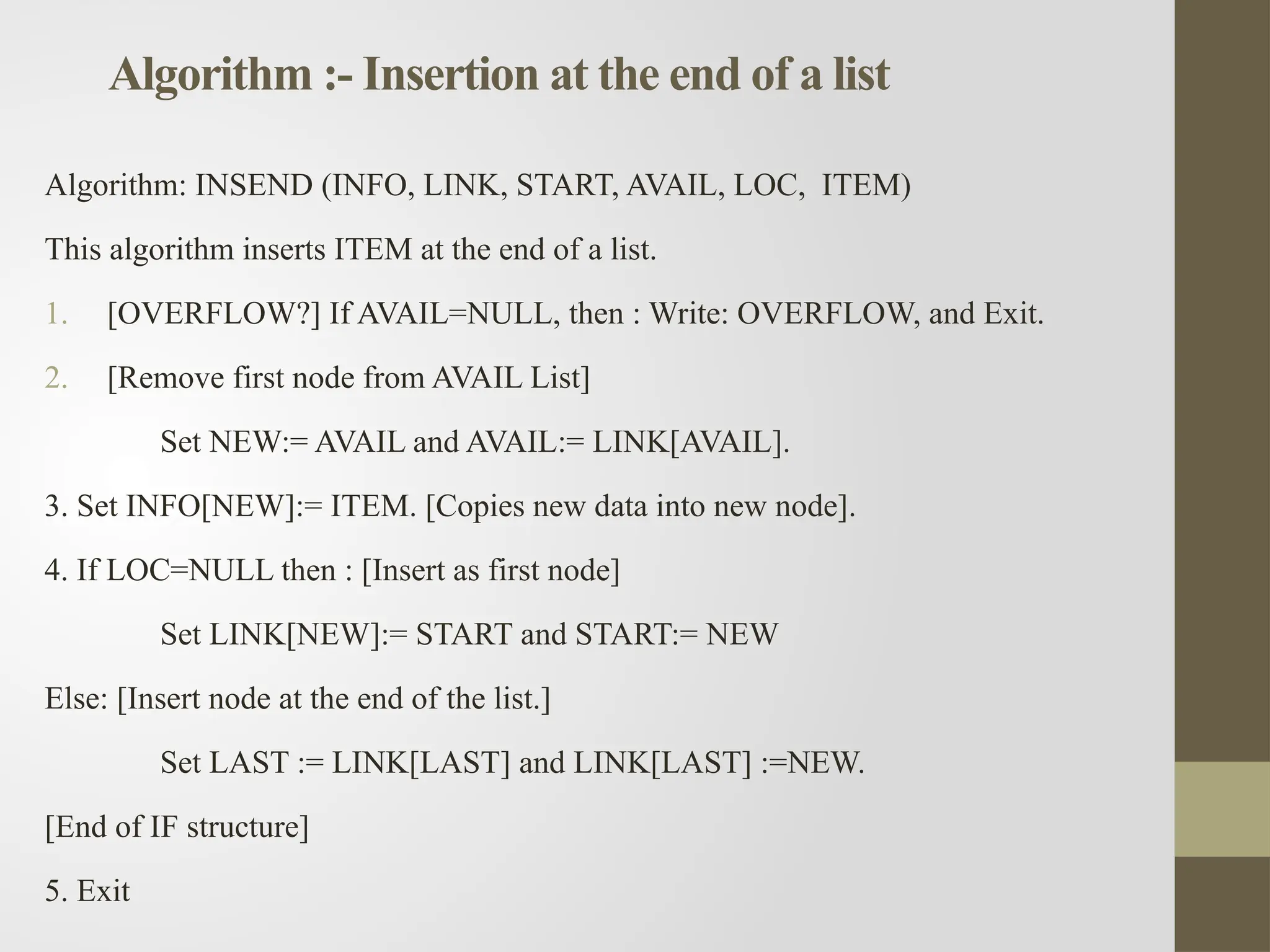

33. Algorithm :- Insertion at the end of a list
Algorithm: INSEND (INFO, LINK, START, AVAIL, LOC, ITEM)
This algorithm inserts ITEM at the end of a list.
1. [OVERFLOW?] If AVAIL=NULL, then : Write: OVERFLOW, and Exit.
2. [Remove first node from AVAIL List]
Set NEW:= AVAIL and AVAIL:= LINK[AVAIL].
3. Set INFO[NEW]:= ITEM. [Copies new data into new node].
4. If LOC=NULL then : [Insert as first node]
Set LINK[NEW]:= START and START:= NEW
Else: [Insert node at the end of the list.]
Set LAST := LINK[LAST] and LINK[LAST] :=NEW.
[End of IF structure]
5. Exit

34. // Given a reference (pointer to pointer) to the head
of a list and an int, appends a new node at the end
void append(Node** head_ref, int new_data)
{ // 1. allocate node
Node* new_node = new Node();
// Used in step 5
Node *last = *head_ref;
// 2. Put in the data
new_node->data = new_data;
// 3. This new node is going to be the last node,
so make next of it as NULL
new_node->next = NULL;
// 4. If the Linked List is empty, then make the
new node as head
if (*head_ref == NULL)
{
*head_ref = new_node;
return;
}
// 5. Else traverse till the last node
while (last->next != NULL)
{
last = last->next;
}
// 6. Change the next of last node
last->next = new_node;
return;
}

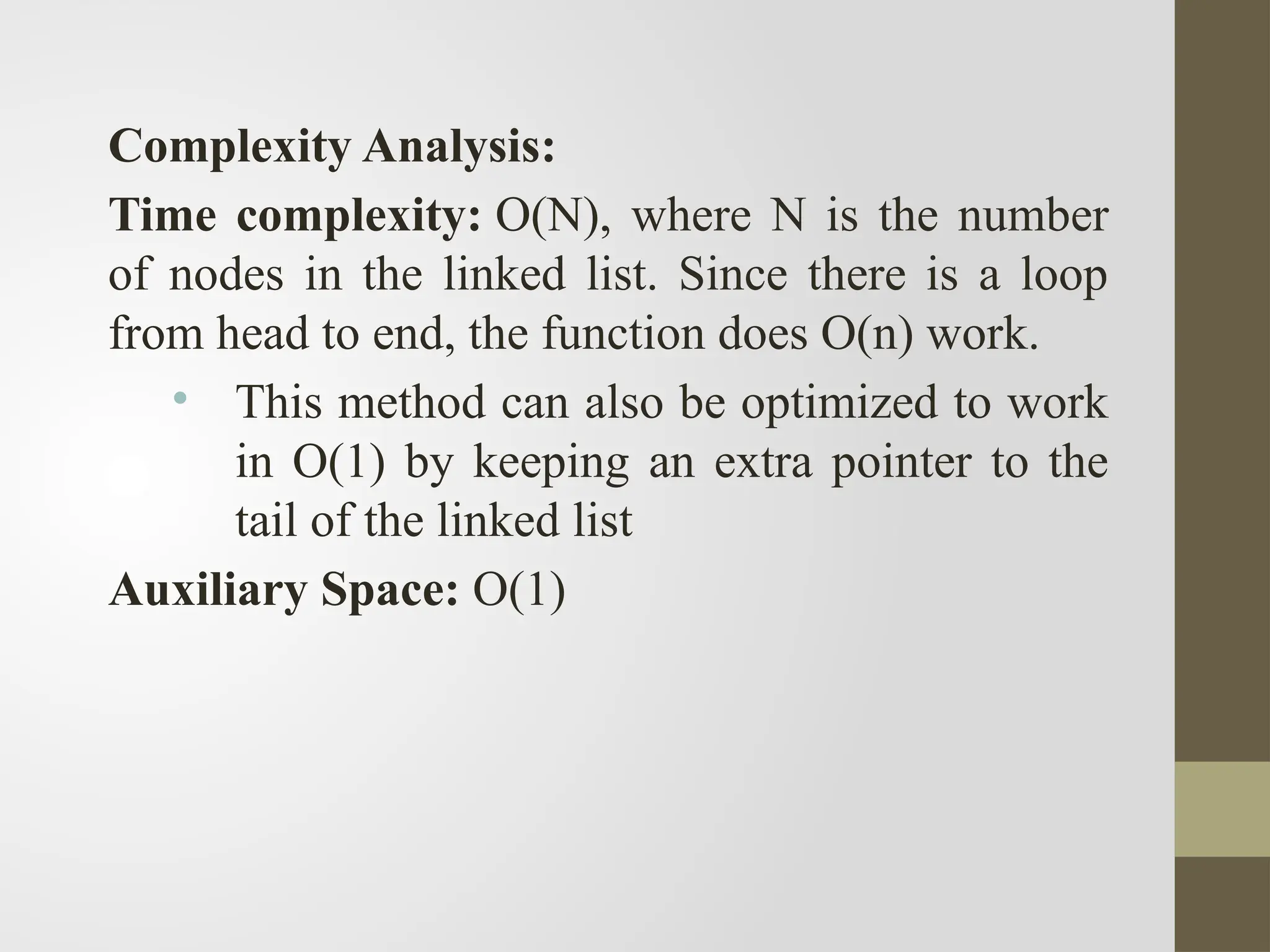

35. Complexity Analysis:
Time complexity: O(N), where N is the number
of nodes in the linked list. Since there is a loop
from head to end, the function does O(n) work.
• This method can also be optimized to work
in O(1) by keeping an extra pointer to the
tail of the linked list
Auxiliary Space: O(1)

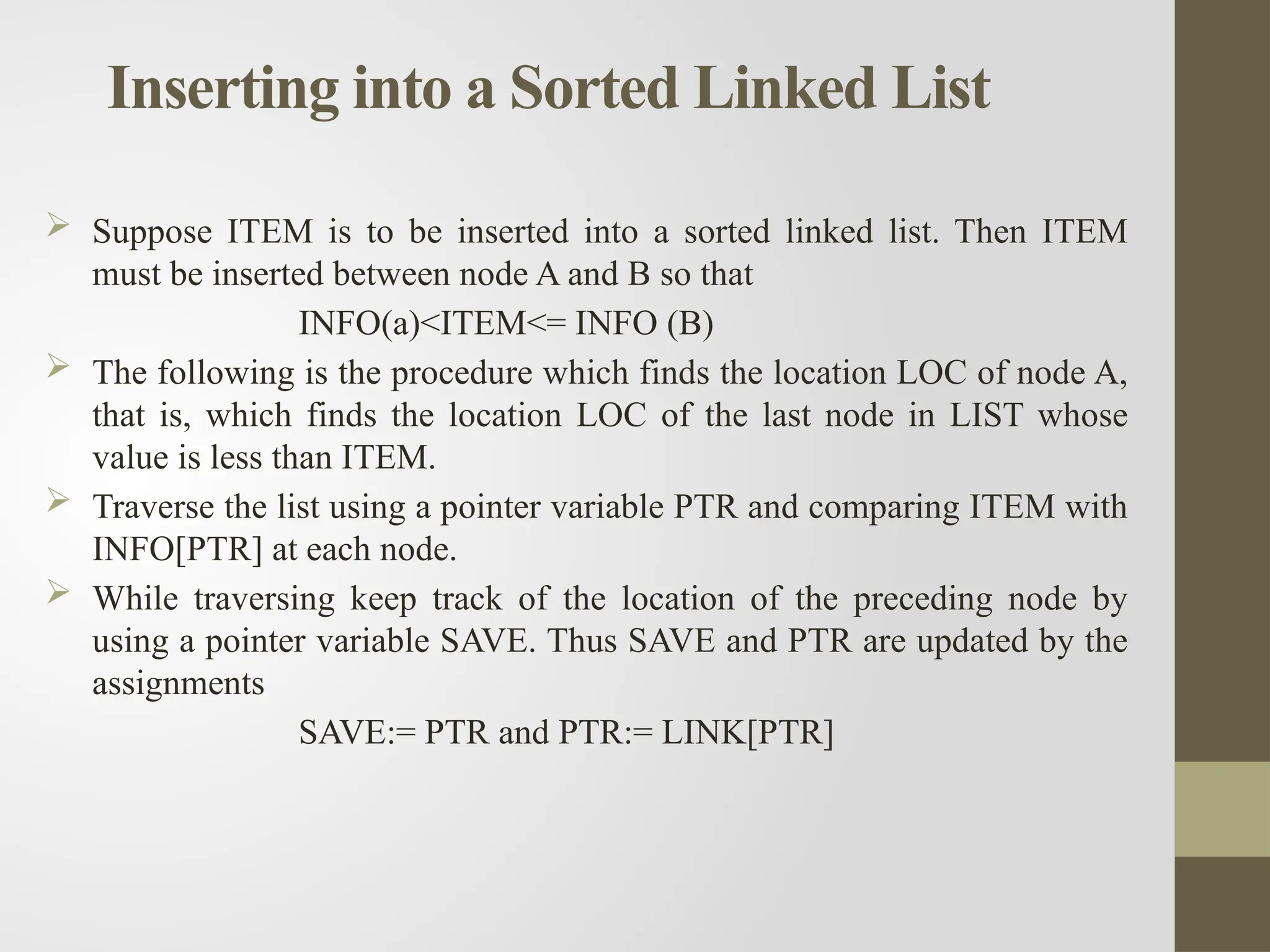

36. Inserting into a Sorted Linked List
 Suppose ITEM is to be inserted into a sorted linked list. Then ITEM
must be inserted between node A and B so that
INFO(a)<ITEM<= INFO (B)
 The following is the procedure which finds the location LOC of node A,
that is, which finds the location LOC of the last node in LIST whose
value is less than ITEM.
 Traverse the list using a pointer variable PTR and comparing ITEM with
INFO[PTR] at each node.
 While traversing keep track of the location of the preceding node by
using a pointer variable SAVE. Thus SAVE and PTR are updated by the
assignments
SAVE:= PTR and PTR:= LINK[PTR]

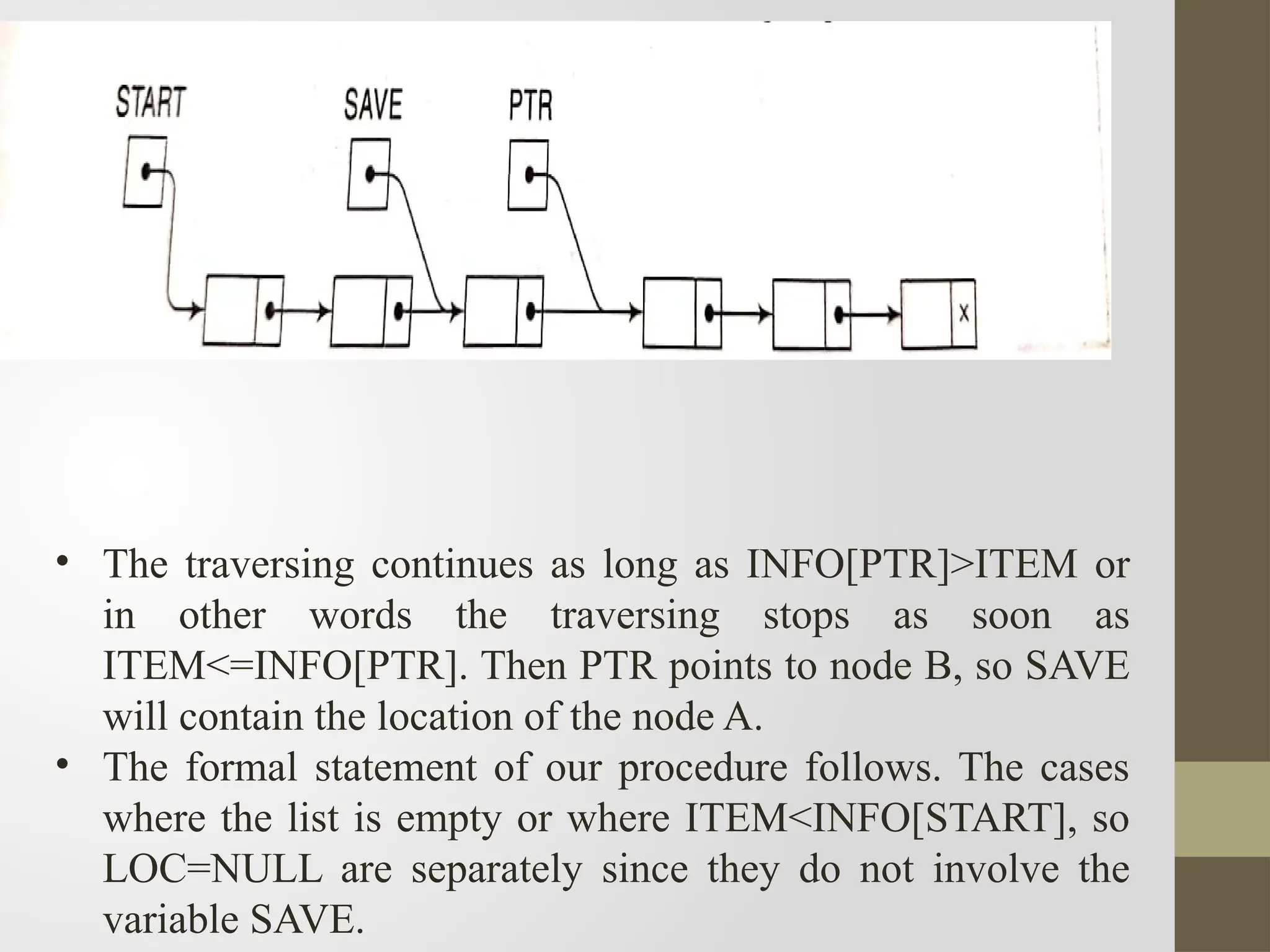

37. • The traversing continues as long as INFO[PTR]>ITEM or
in other words the traversing stops as soon as
ITEM<=INFO[PTR]. Then PTR points to node B, so SAVE
will contain the location of the node A.
• The formal statement of our procedure follows. The cases
where the list is empty or where ITEM<INFO[START], so
LOC=NULL are separately since they do not involve the
variable SAVE.

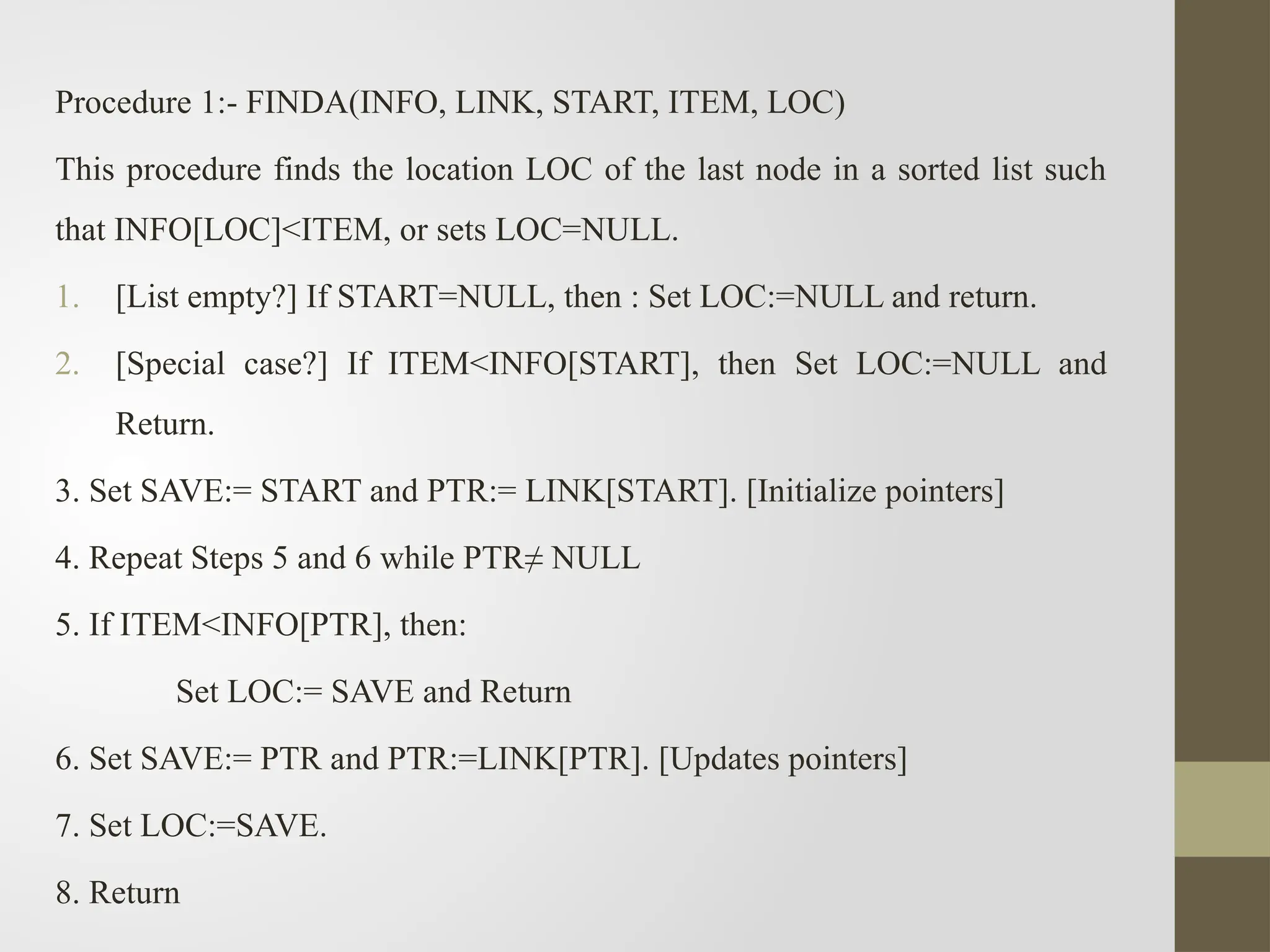

38. Procedure 1:- FINDA(INFO, LINK, START, ITEM, LOC)
This procedure finds the location LOC of the last node in a sorted list such
that INFO[LOC]<ITEM, or sets LOC=NULL.
1. [List empty?] If START=NULL, then : Set LOC:=NULL and return.
2. [Special case?] If ITEM<INFO[START], then Set LOC:=NULL and
Return.
3. Set SAVE:= START and PTR:= LINK[START]. [Initialize pointers]
4. Repeat Steps 5 and 6 while PTR≠ NULL
5. If ITEM<INFO[PTR], then:
Set LOC:= SAVE and Return
6. Set SAVE:= PTR and PTR:=LINK[PTR]. [Updates pointers]
7. Set LOC:=SAVE.
8. Return

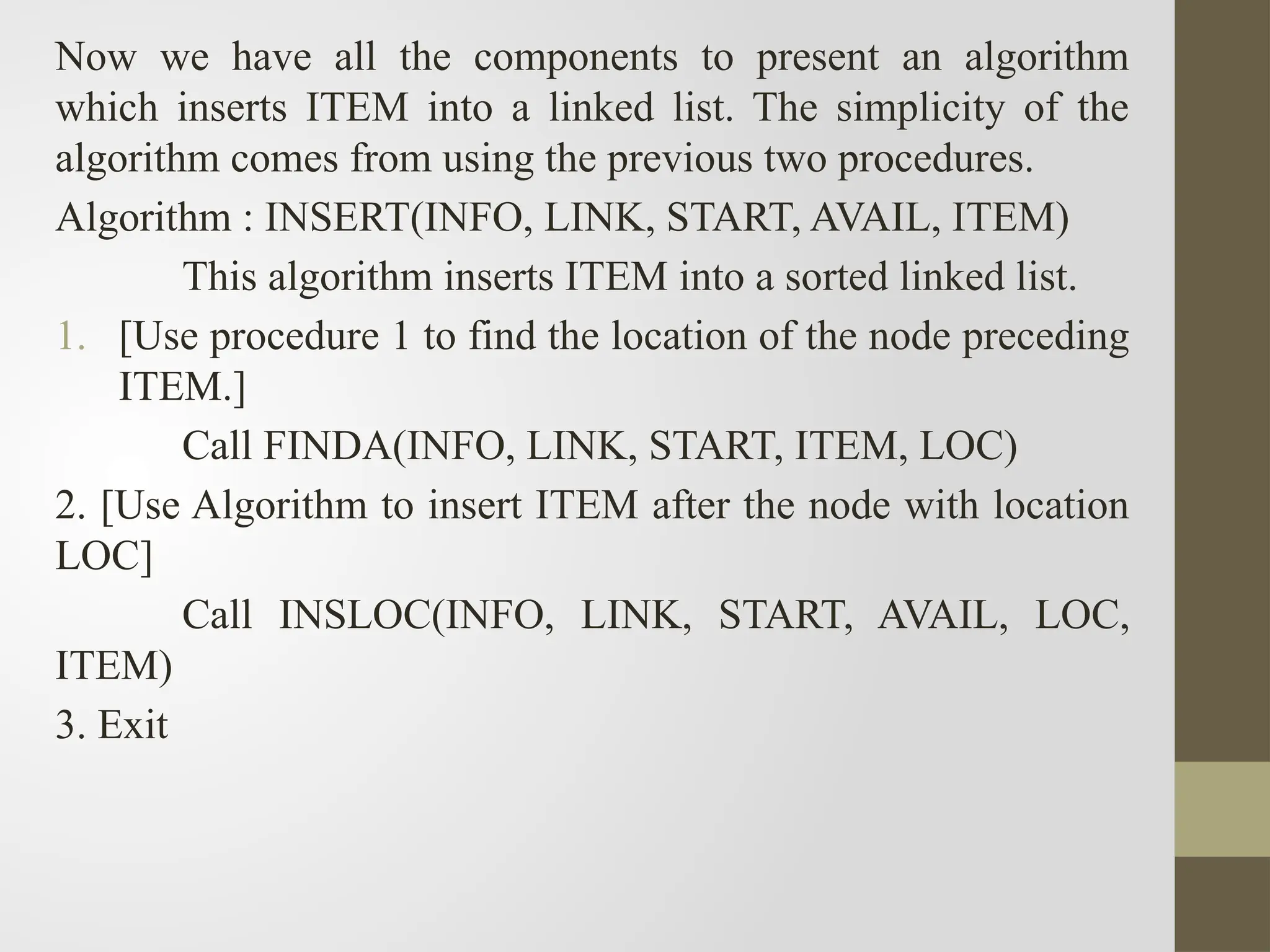

39. Now we have all the components to present an algorithm
which inserts ITEM into a linked list. The simplicity of the
algorithm comes from using the previous two procedures.
Algorithm : INSERT(INFO, LINK, START, AVAIL, ITEM)
This algorithm inserts ITEM into a sorted linked list.
1. [Use procedure 1 to find the location of the node preceding
ITEM.]
Call FINDA(INFO, LINK, START, ITEM, LOC)
2. [Use Algorithm to insert ITEM after the node with location
LOC]
Call INSLOC(INFO, LINK, START, AVAIL, LOC,
ITEM)
3. Exit

40. Deletion in singly linked list
A node can be deleted in three ways
1. At the front of the linked list
2. After a given node.
3. At the end of the linked list.

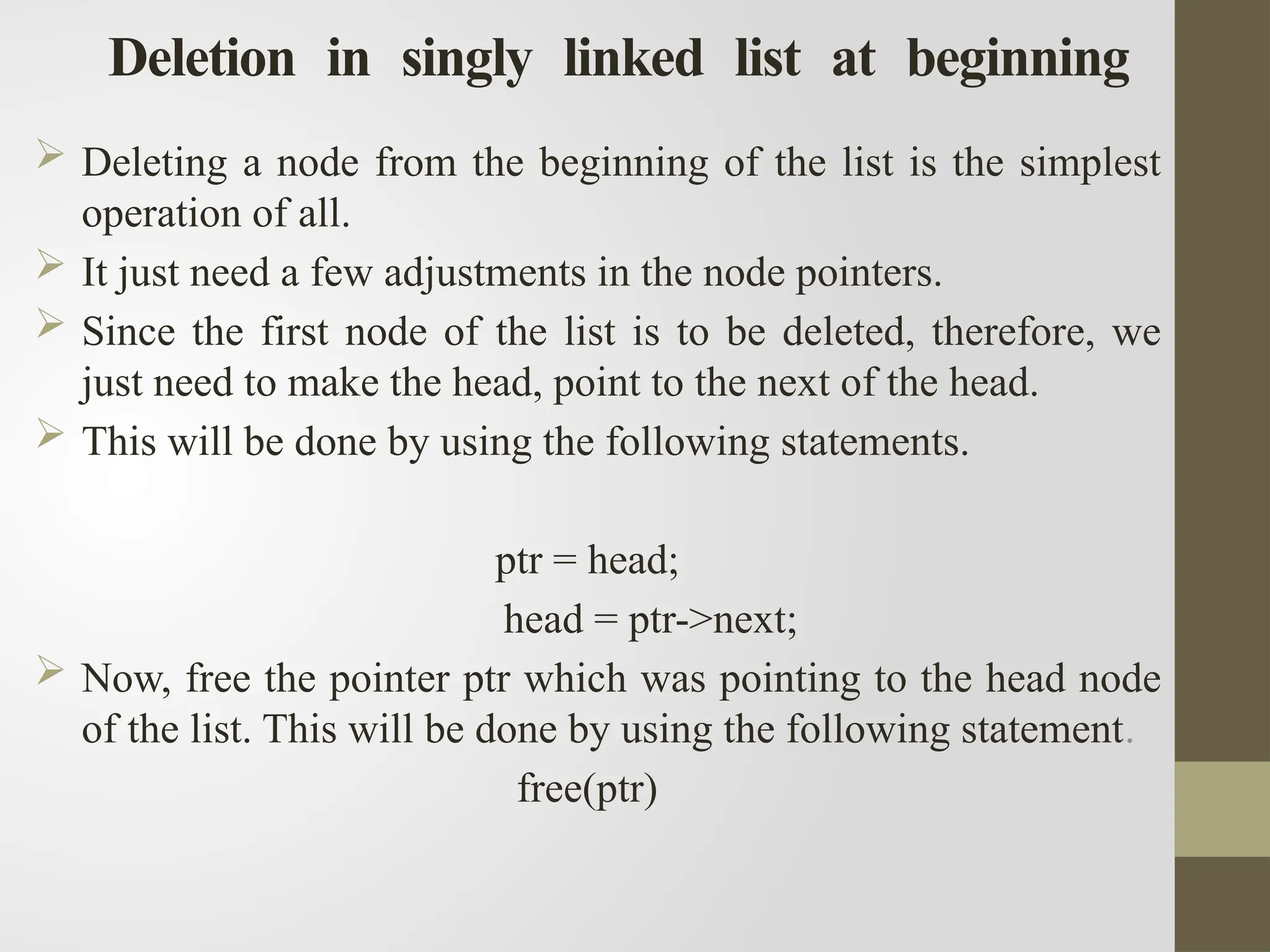

41. Deletion in singly linked list at beginning
 Deleting a node from the beginning of the list is the simplest
operation of all.
 It just need a few adjustments in the node pointers.
 Since the first node of the list is to be deleted, therefore, we
just need to make the head, point to the next of the head.
 This will be done by using the following statements.
ptr = head;
head = ptr->next;
 Now, free the pointer ptr which was pointing to the head node
of the list. This will be done by using the following statement.
free(ptr)

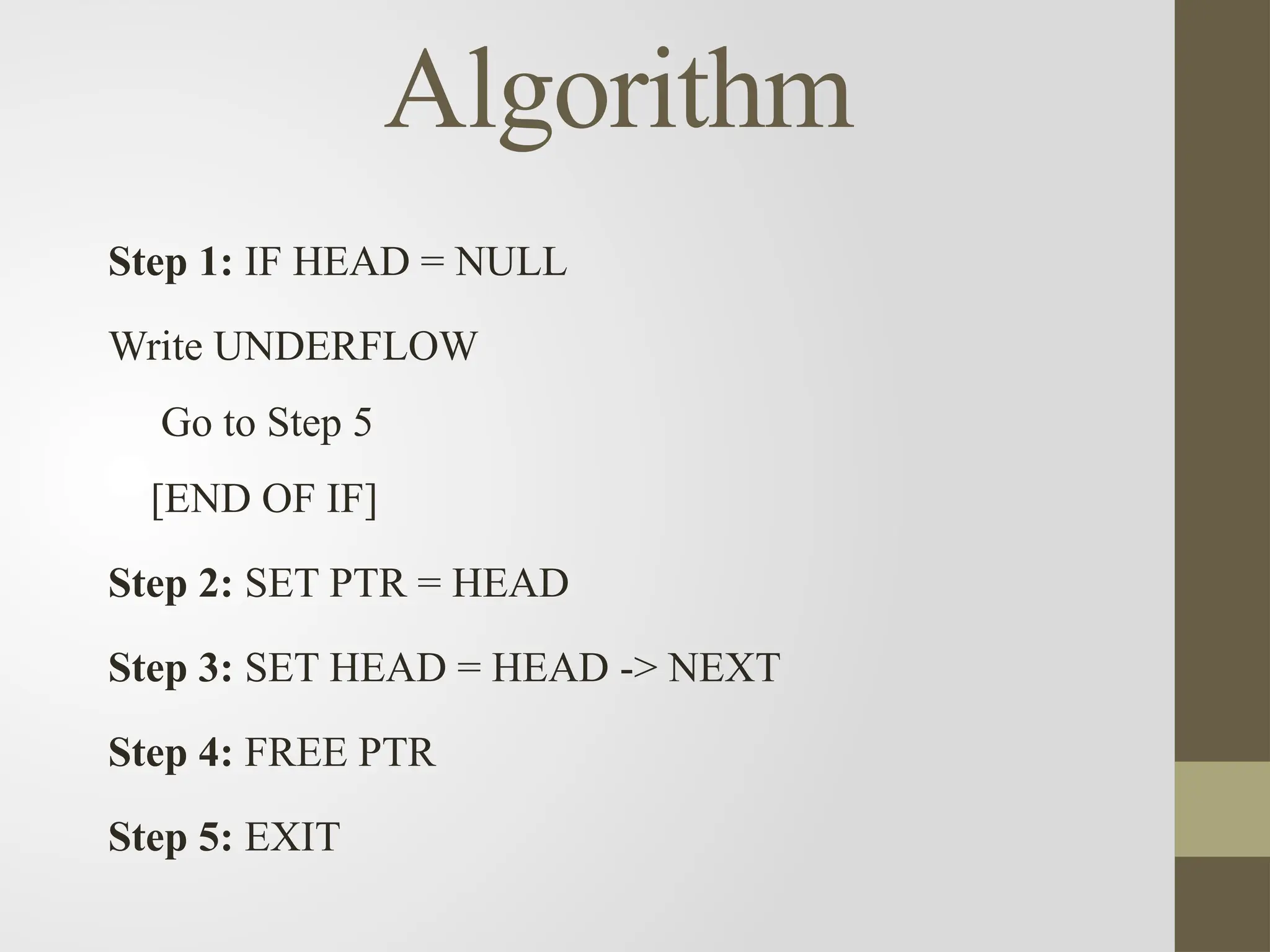

42. Algorithm
Step 1: IF HEAD = NULL
Write UNDERFLOW
Go to Step 5
[END OF IF]
Step 2: SET PTR = HEAD
Step 3: SET HEAD = HEAD -> NEXT
Step 4: FREE PTR
Step 5: EXIT

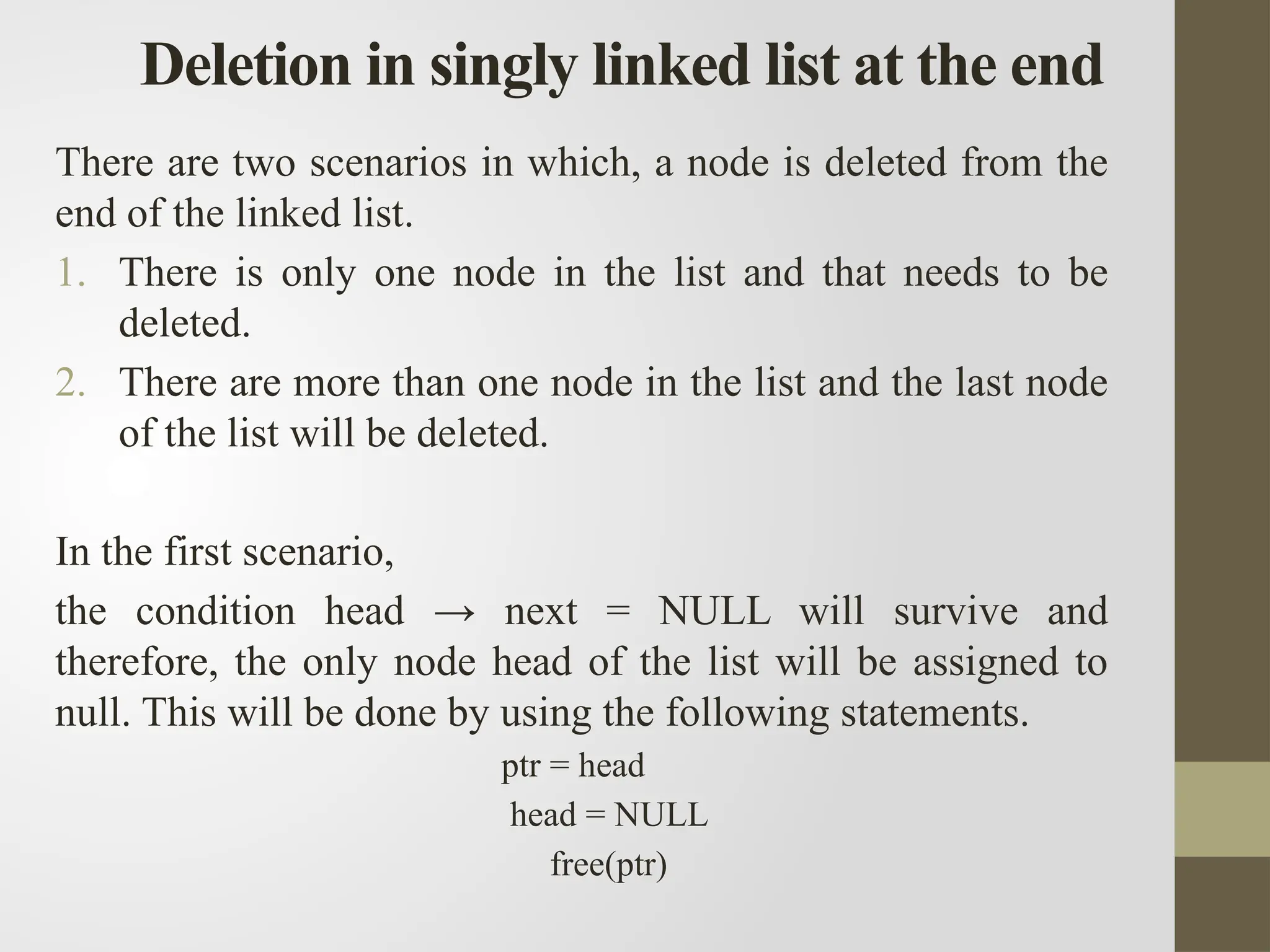

44. Deletion in singly linked list at the end
There are two scenarios in which, a node is deleted from the
end of the linked list.
1. There is only one node in the list and that needs to be
deleted.
2. There are more than one node in the list and the last node
of the list will be deleted.
In the first scenario,
the condition head → next = NULL will survive and
therefore, the only node head of the list will be assigned to
null. This will be done by using the following statements.
ptr = head
head = NULL
free(ptr)

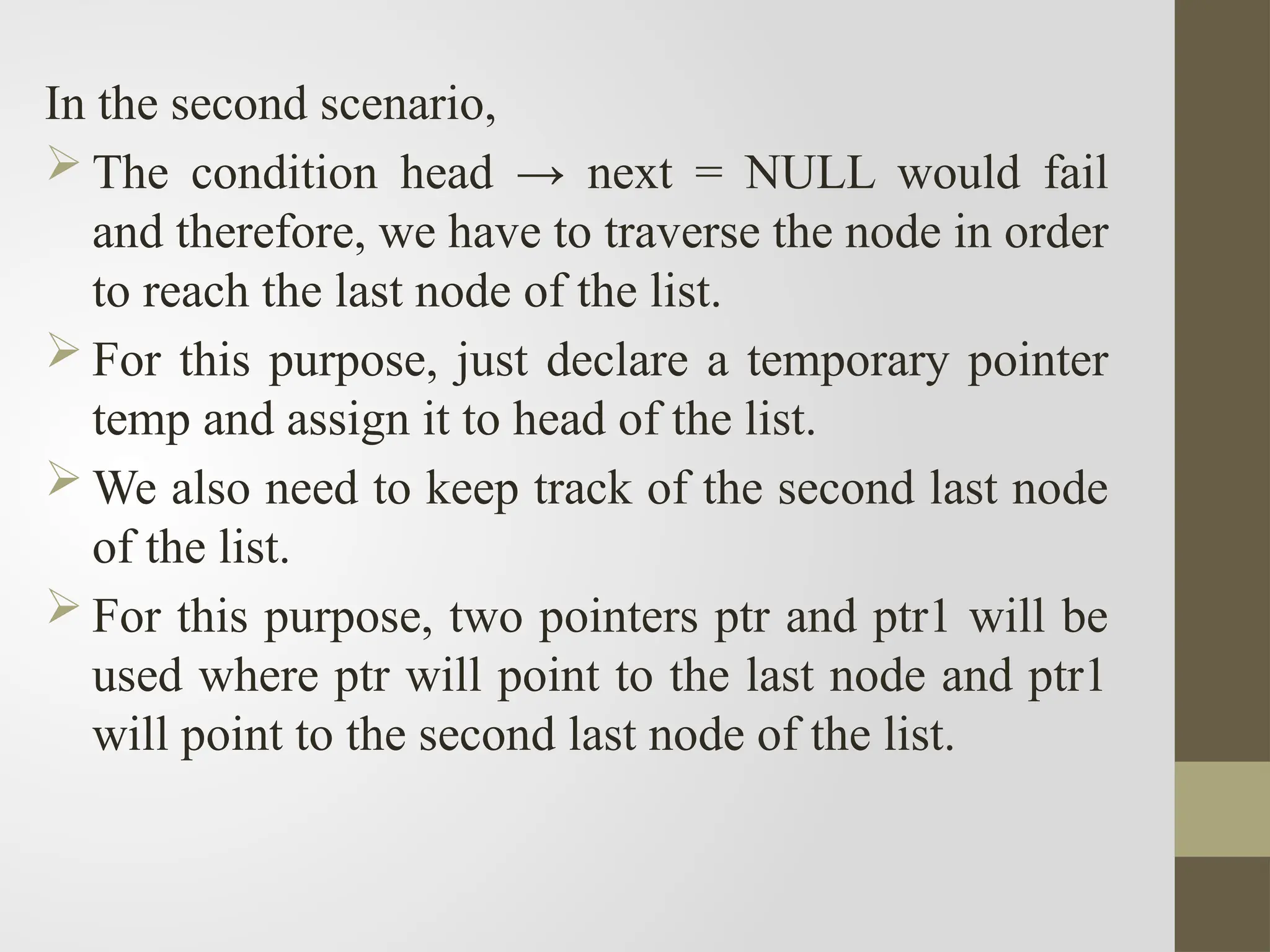

45. In the second scenario,
 The condition head → next = NULL would fail
and therefore, we have to traverse the node in order
to reach the last node of the list.
 For this purpose, just declare a temporary pointer
temp and assign it to head of the list.
 We also need to keep track of the second last node
of the list.
 For this purpose, two pointers ptr and ptr1 will be
used where ptr will point to the last node and ptr1
will point to the second last node of the list.

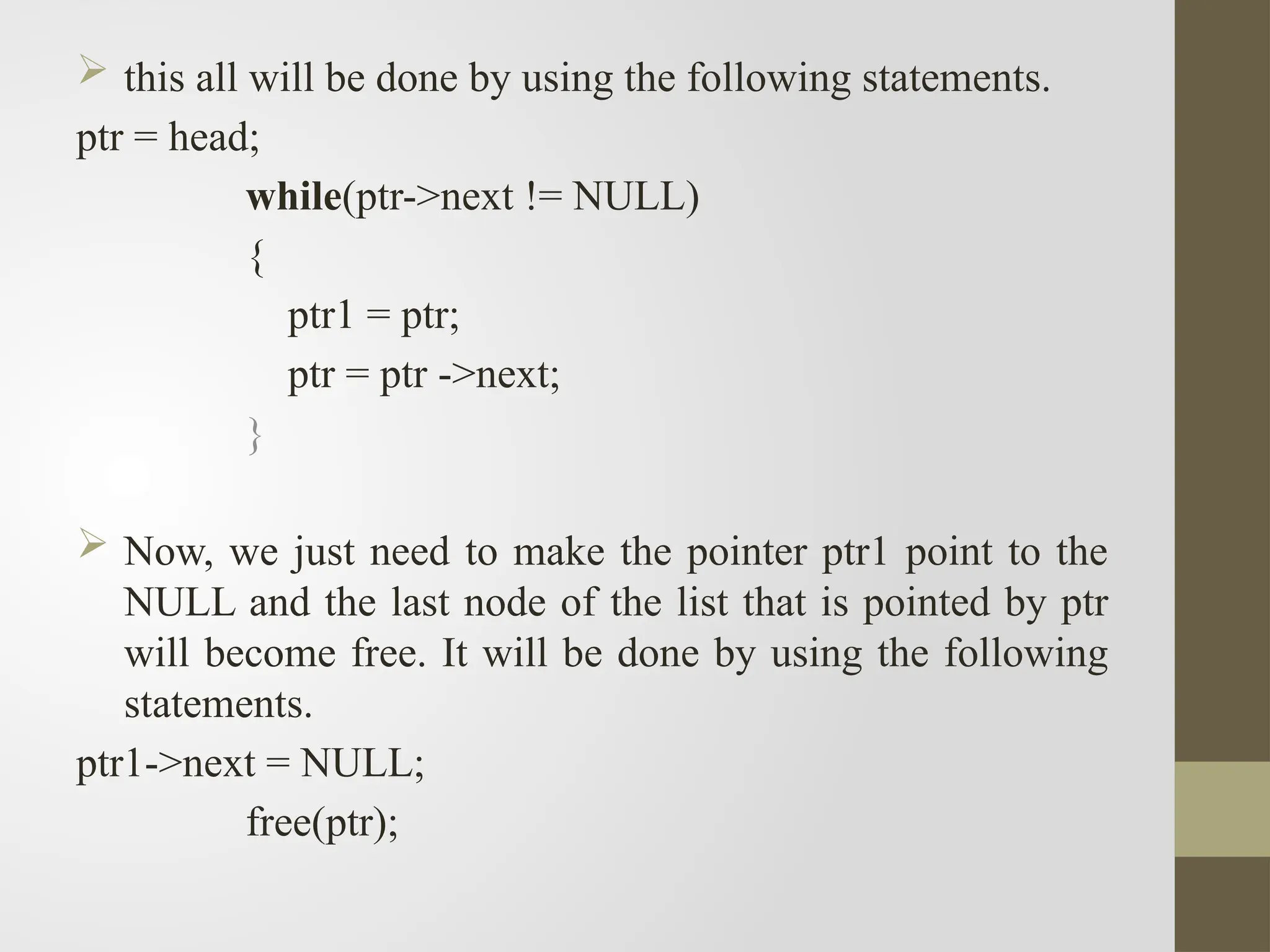

46.  this all will be done by using the following statements.
ptr = head;
while(ptr->next != NULL)
{
ptr1 = ptr;
ptr = ptr ->next;
}

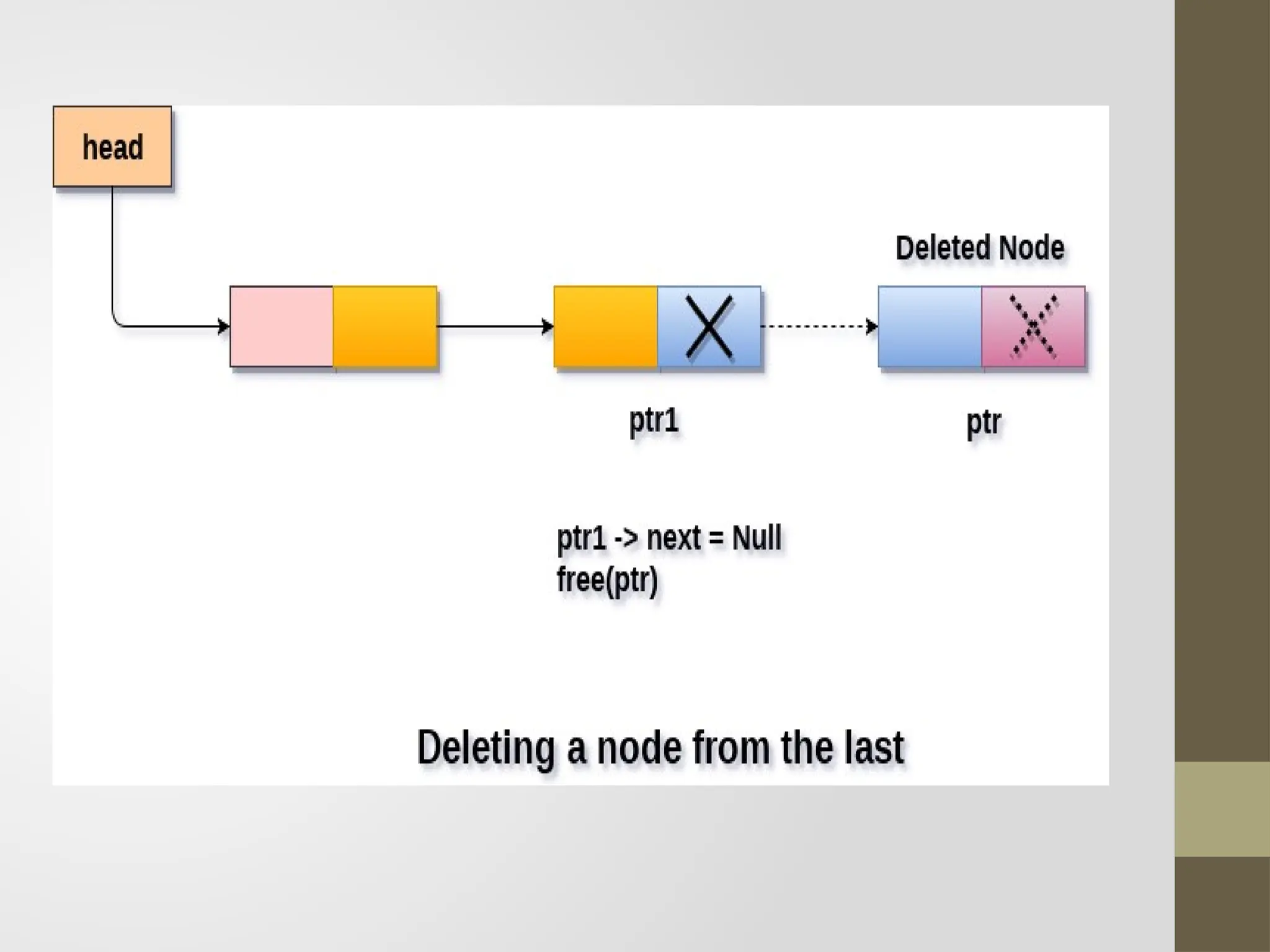

 Now, we just need to make the pointer ptr1 point to the
NULL and the last node of the list that is pointed by ptr
will become free. It will be done by using the following
statements.
ptr1->next = NULL;
free(ptr);

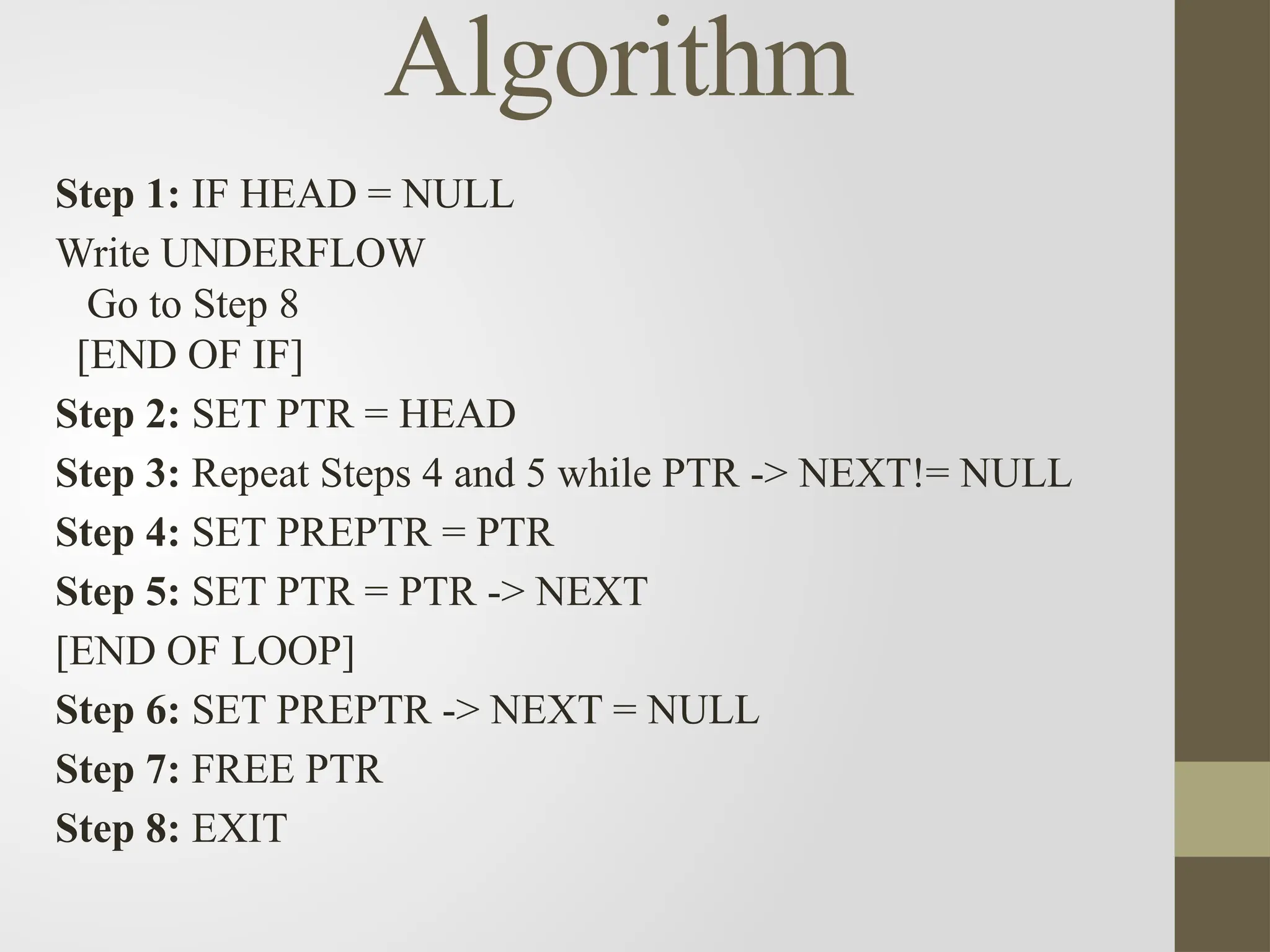

47. Algorithm
Step 1: IF HEAD = NULL
Write UNDERFLOW
Go to Step 8
[END OF IF]
Step 2: SET PTR = HEAD
Step 3: Repeat Steps 4 and 5 while PTR -> NEXT!= NULL
Step 4: SET PREPTR = PTR
Step 5: SET PTR = PTR -> NEXT
[END OF LOOP]
Step 6: SET PREPTR -> NEXT = NULL
Step 7: FREE PTR
Step 8: EXIT

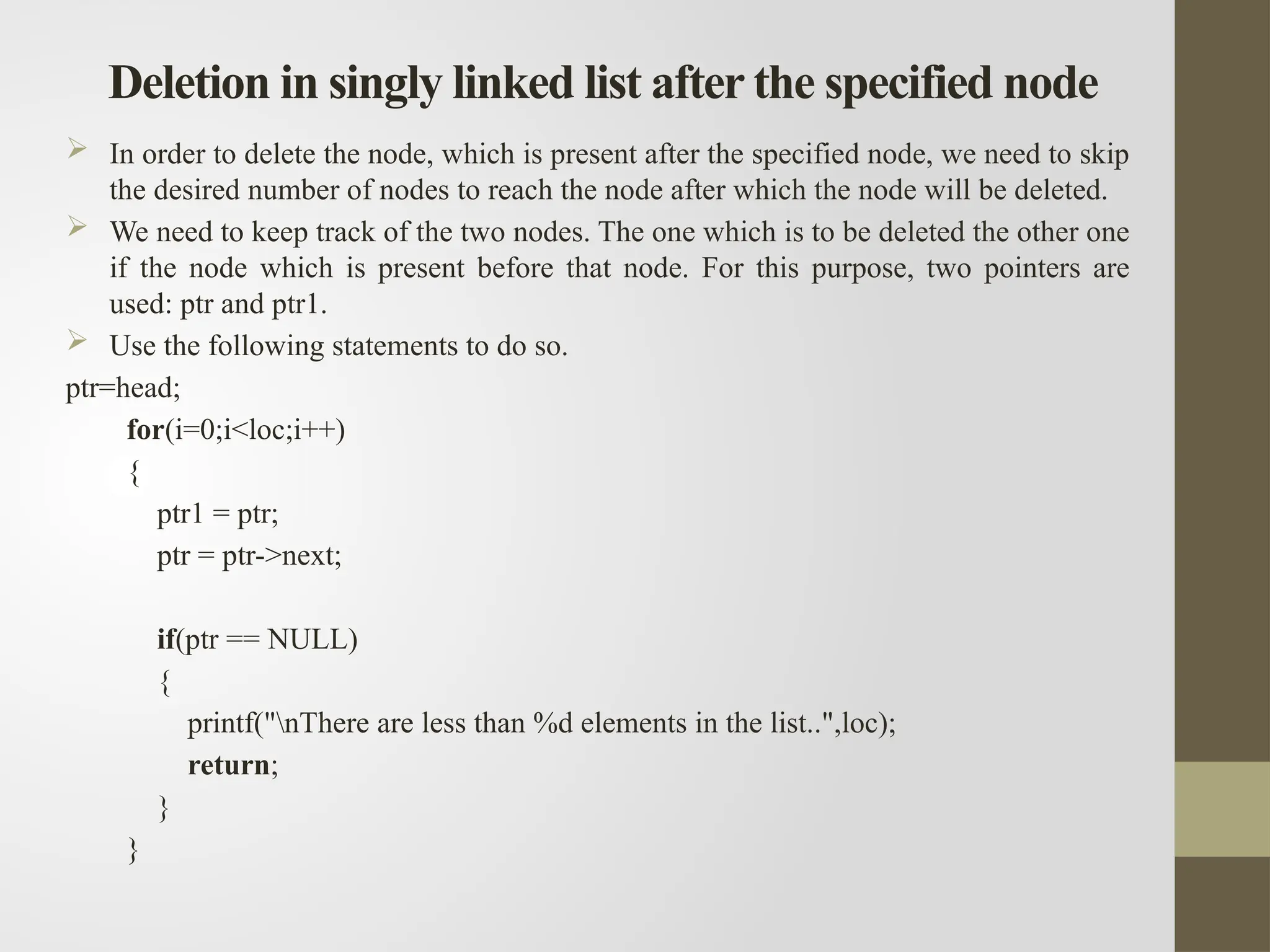

49. Deletion in singly linked list after the specified node
 In order to delete the node, which is present after the specified node, we need to skip
the desired number of nodes to reach the node after which the node will be deleted.
 We need to keep track of the two nodes. The one which is to be deleted the other one
if the node which is present before that node. For this purpose, two pointers are
used: ptr and ptr1.
 Use the following statements to do so.
ptr=head;
for(i=0;i<loc;i++)
{
ptr1 = ptr;
ptr = ptr->next;
if(ptr == NULL)
{
printf("nThere are less than %d elements in the list..",loc);
return;
}
}

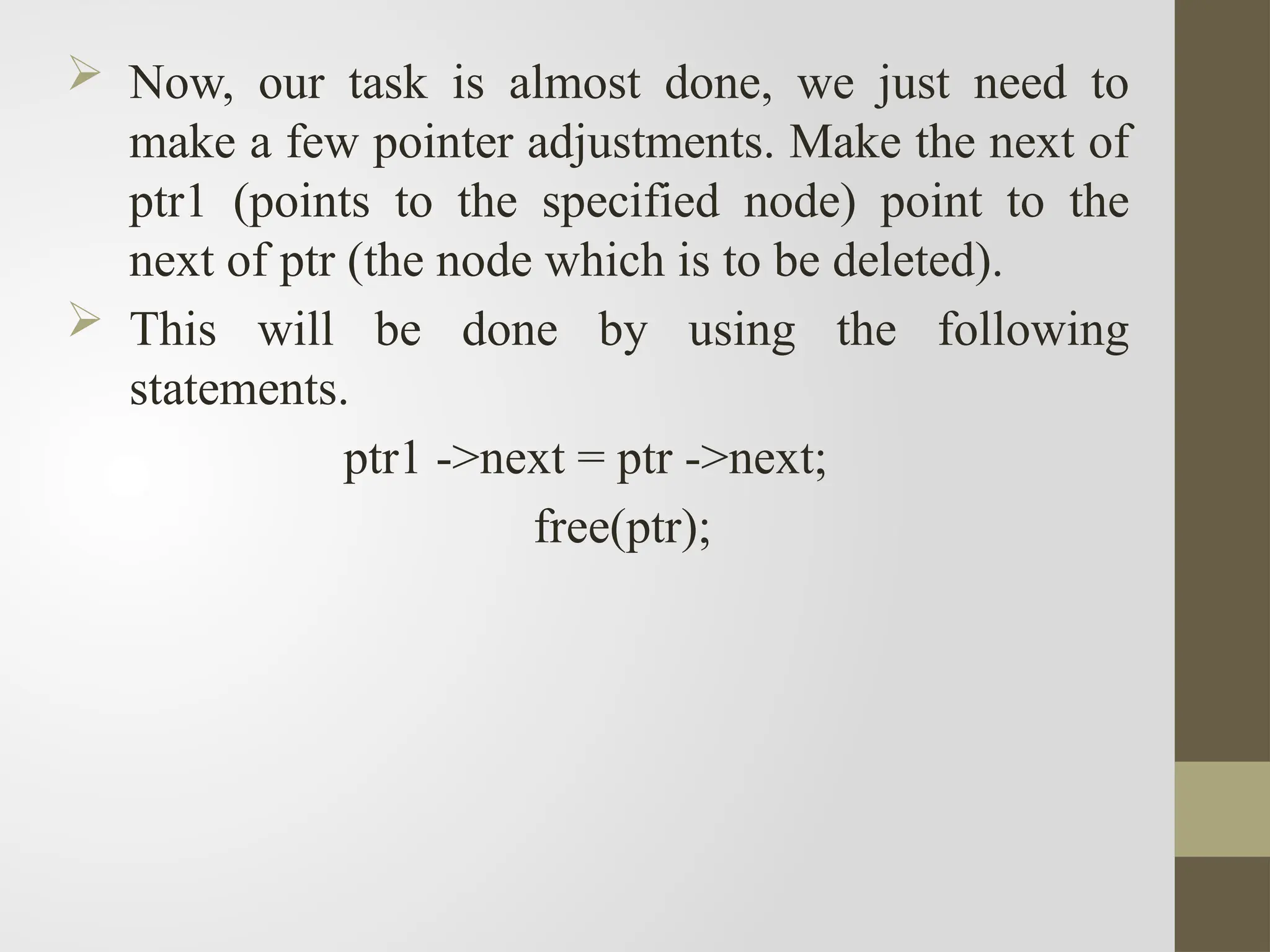

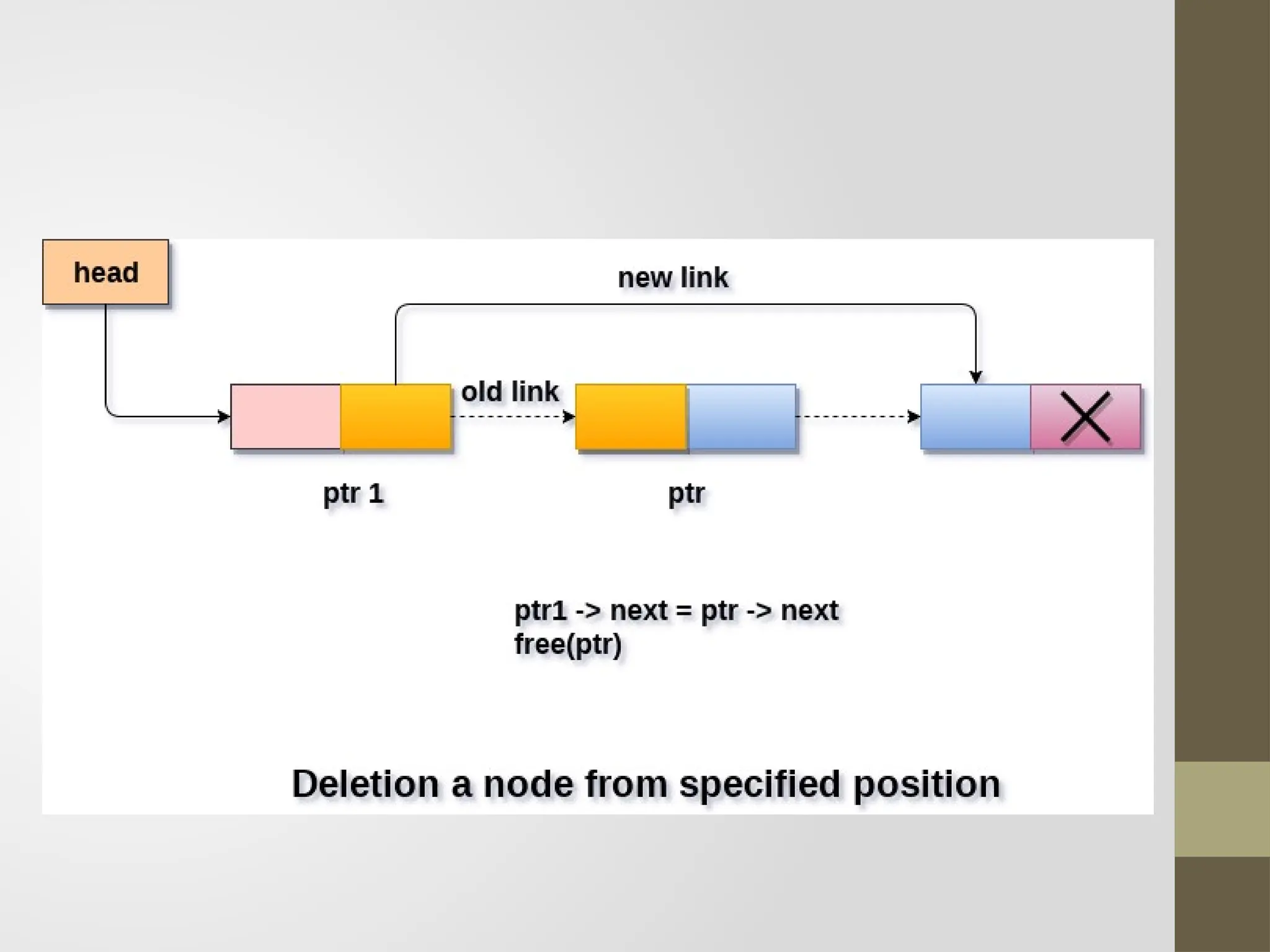

50.  Now, our task is almost done, we just need to
make a few pointer adjustments. Make the next of
ptr1 (points to the specified node) point to the
next of ptr (the node which is to be deleted).
 This will be done by using the following
statements.
ptr1 ->next = ptr ->next;
free(ptr);

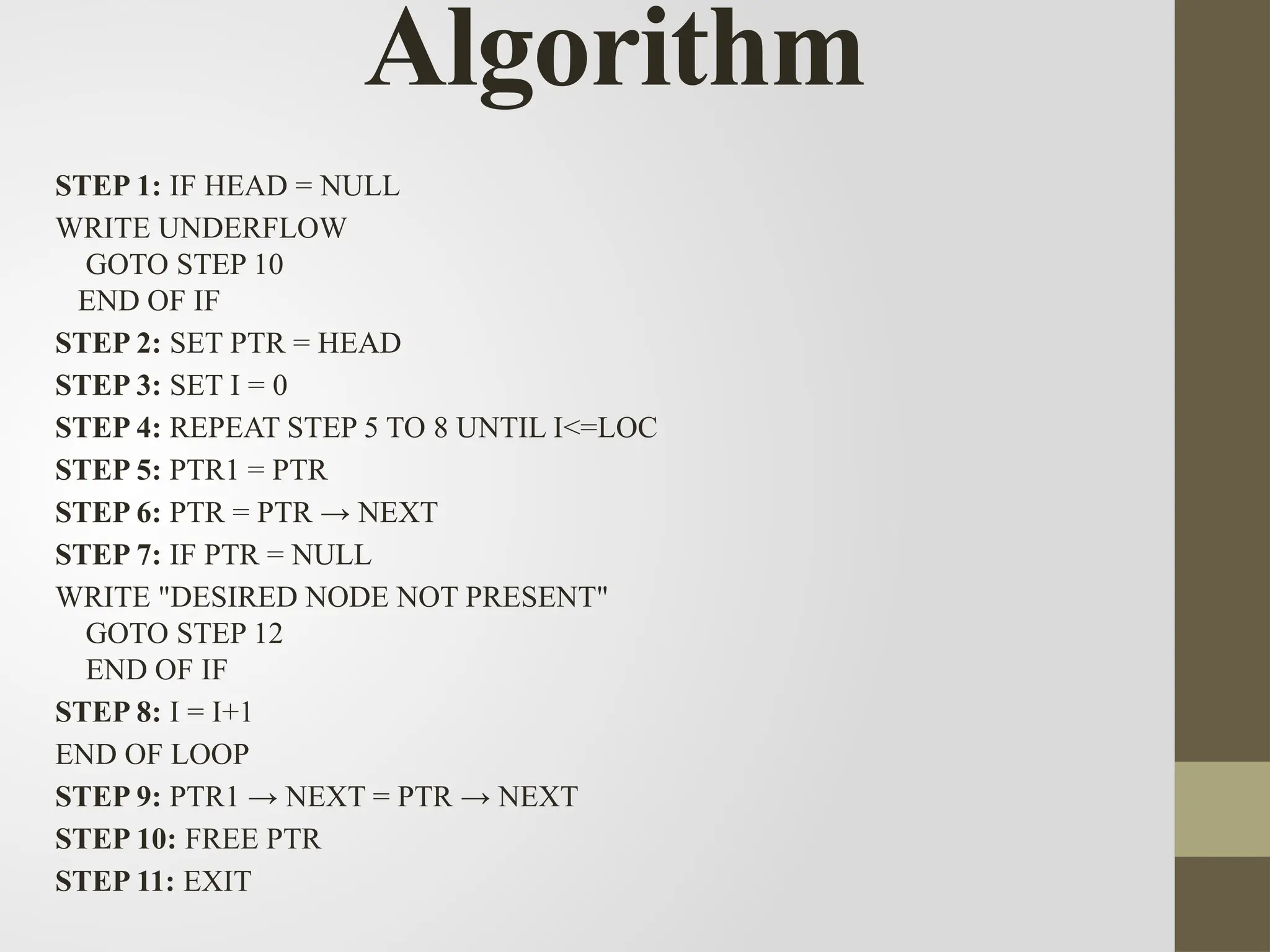

51. Algorithm
STEP 1: IF HEAD = NULL
WRITE UNDERFLOW
GOTO STEP 10
END OF IF
STEP 2: SET PTR = HEAD
STEP 3: SET I = 0
STEP 4: REPEAT STEP 5 TO 8 UNTIL I<=LOC
STEP 5: PTR1 = PTR
STEP 6: PTR = PTR → NEXT
STEP 7: IF PTR = NULL
WRITE "DESIRED NODE NOT PRESENT"
GOTO STEP 12
END OF IF
STEP 8: I = I+1
END OF LOOP
STEP 9: PTR1 → NEXT = PTR → NEXT
STEP 10: FREE PTR
STEP 11: EXIT

53. Traversing in singly linked list
 Traversing is the most common operation that is
performed in almost every scenario of singly linked
list.
 Traversing means visiting each node of the list once
in order to perform some operation on that.
 This will be done by using the following statements.
ptr = head;
while (ptr!=NULL)
{
ptr = ptr -> next;
}

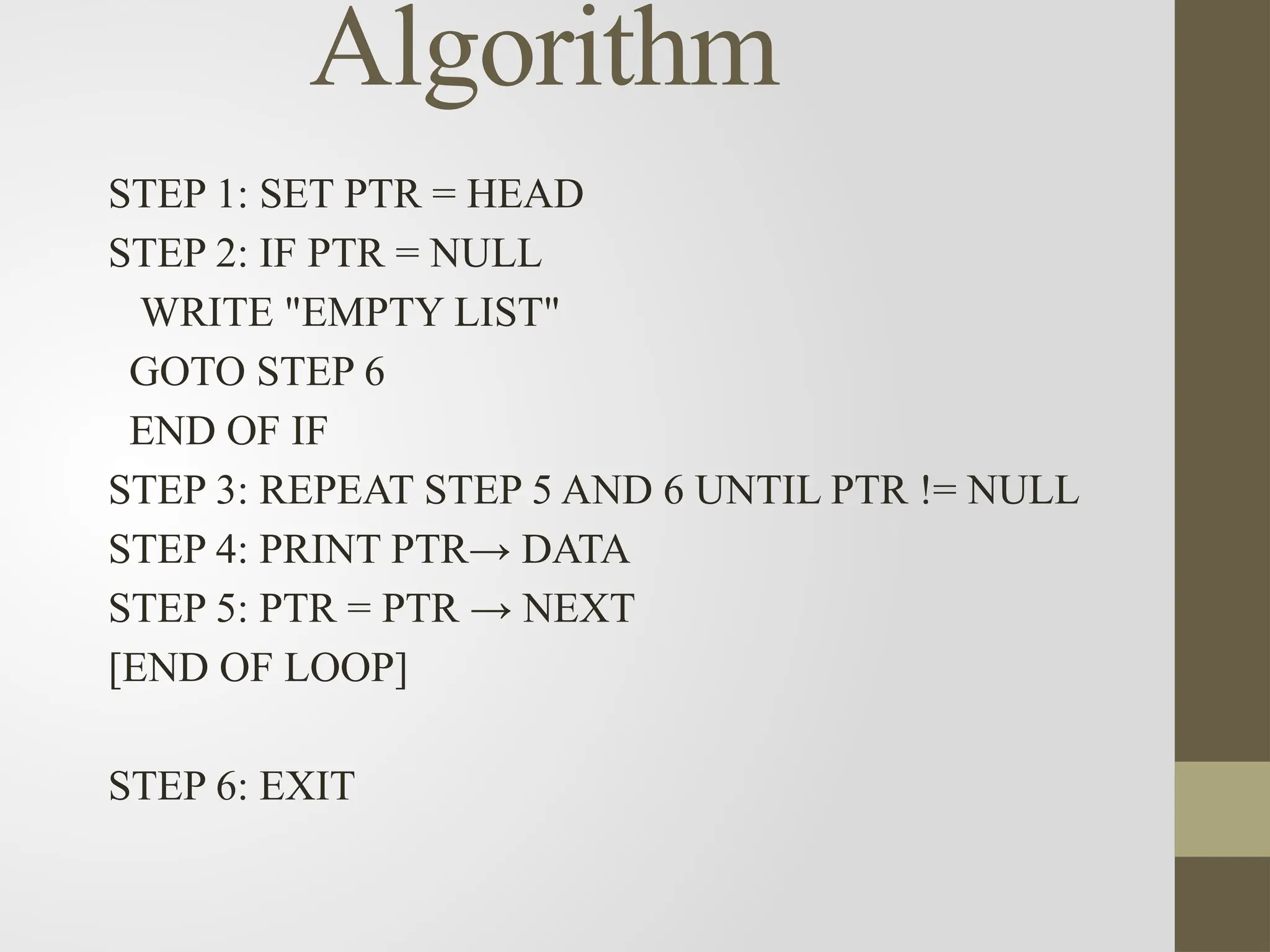

54. Algorithm
STEP 1: SET PTR = HEAD
STEP 2: IF PTR = NULL
WRITE "EMPTY LIST"
GOTO STEP 6
END OF IF
STEP 3: REPEAT STEP 5 AND 6 UNTIL PTR != NULL
STEP 4: PRINT PTR→ DATA
STEP 5: PTR = PTR → NEXT
[END OF LOOP]
STEP 6: EXIT

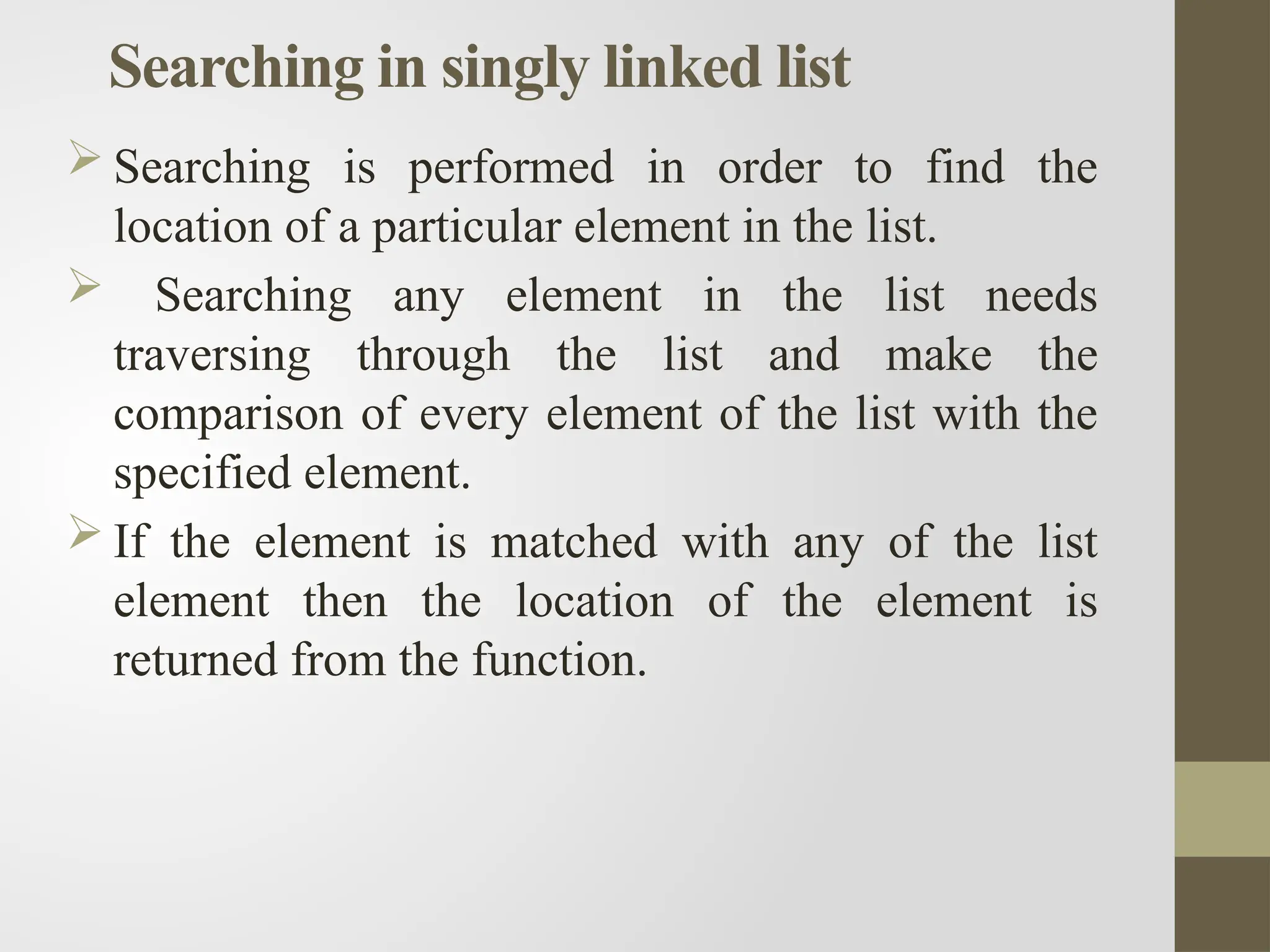

55. Searching in singly linked list
 Searching is performed in order to find the
location of a particular element in the list.
 Searching any element in the list needs
traversing through the list and make the
comparison of every element of the list with the
specified element.
 If the element is matched with any of the list
element then the location of the element is
returned from the function.

56. Algorithm
Step 1: SET PTR = HEAD
Step 2: Set I = 0
STEP 3: IF PTR = NULL
WRITE "EMPTY LIST"
GOTO STEP 8
END OF IF
STEP 4: REPEAT STEP 5 TO 7 UNTIL PTR != NULL
STEP 5: if ptr → data = item
write i+1
End of IF
STEP 6: I = I + 1
STEP 7: PTR = PTR → NEXT
[END OF LOOP]
STEP 8: EXIT
