1. Linked Data
Victor de Boer
Slide stolen from Christophe Gueret

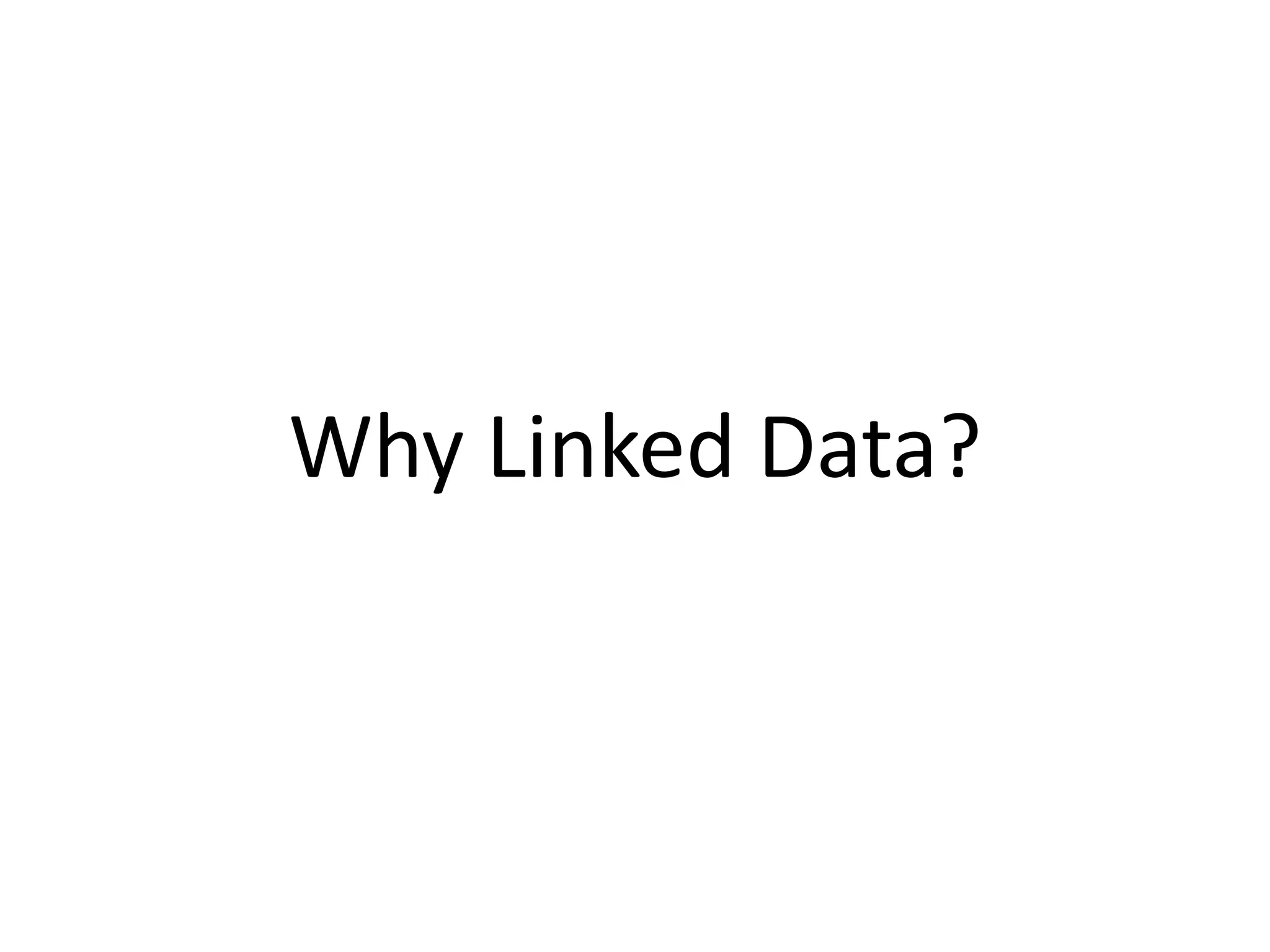

2. Why Linked Data?

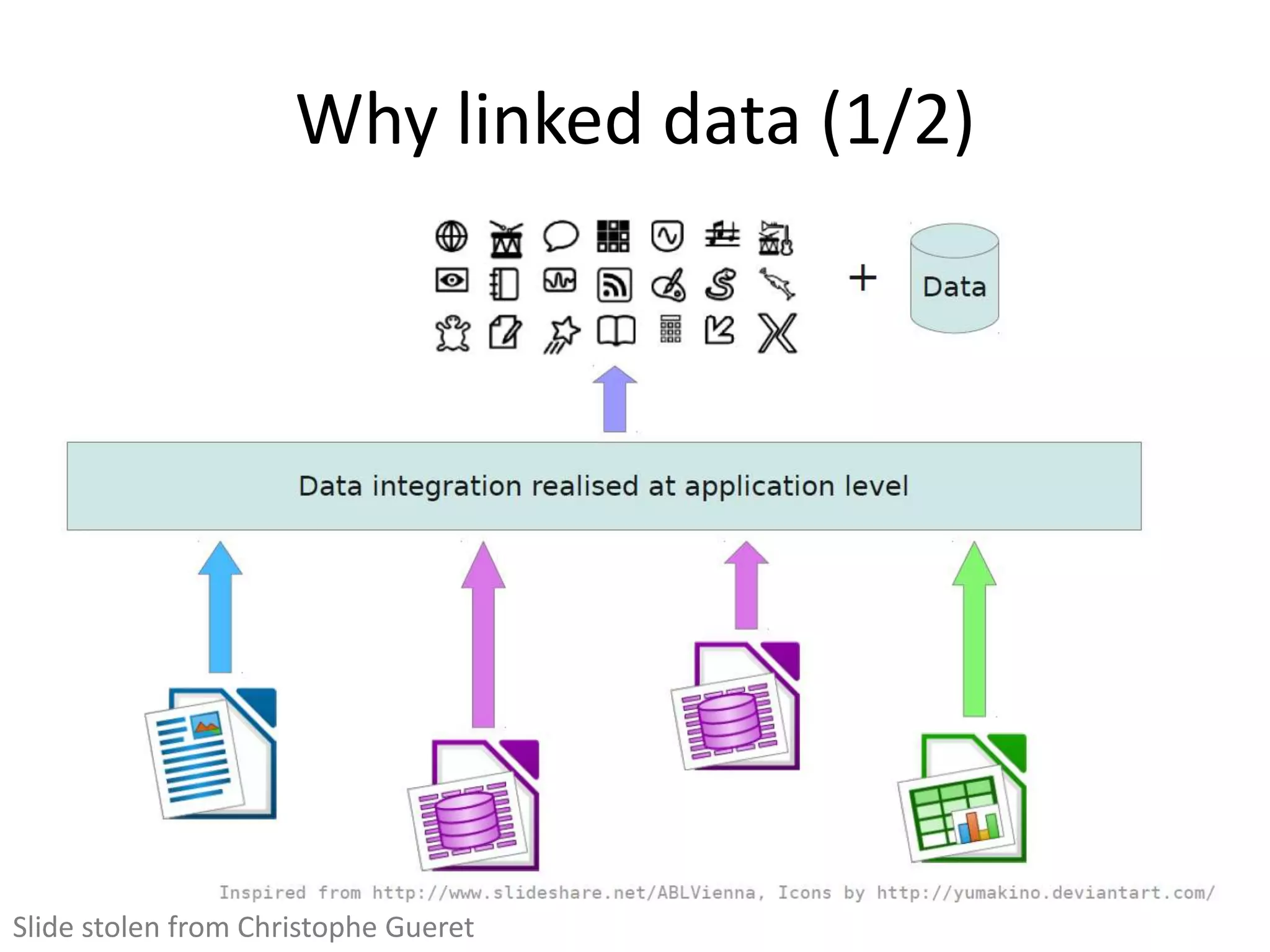

3. Why linked data (1/2)
Slide stolen from Christophe Gueret

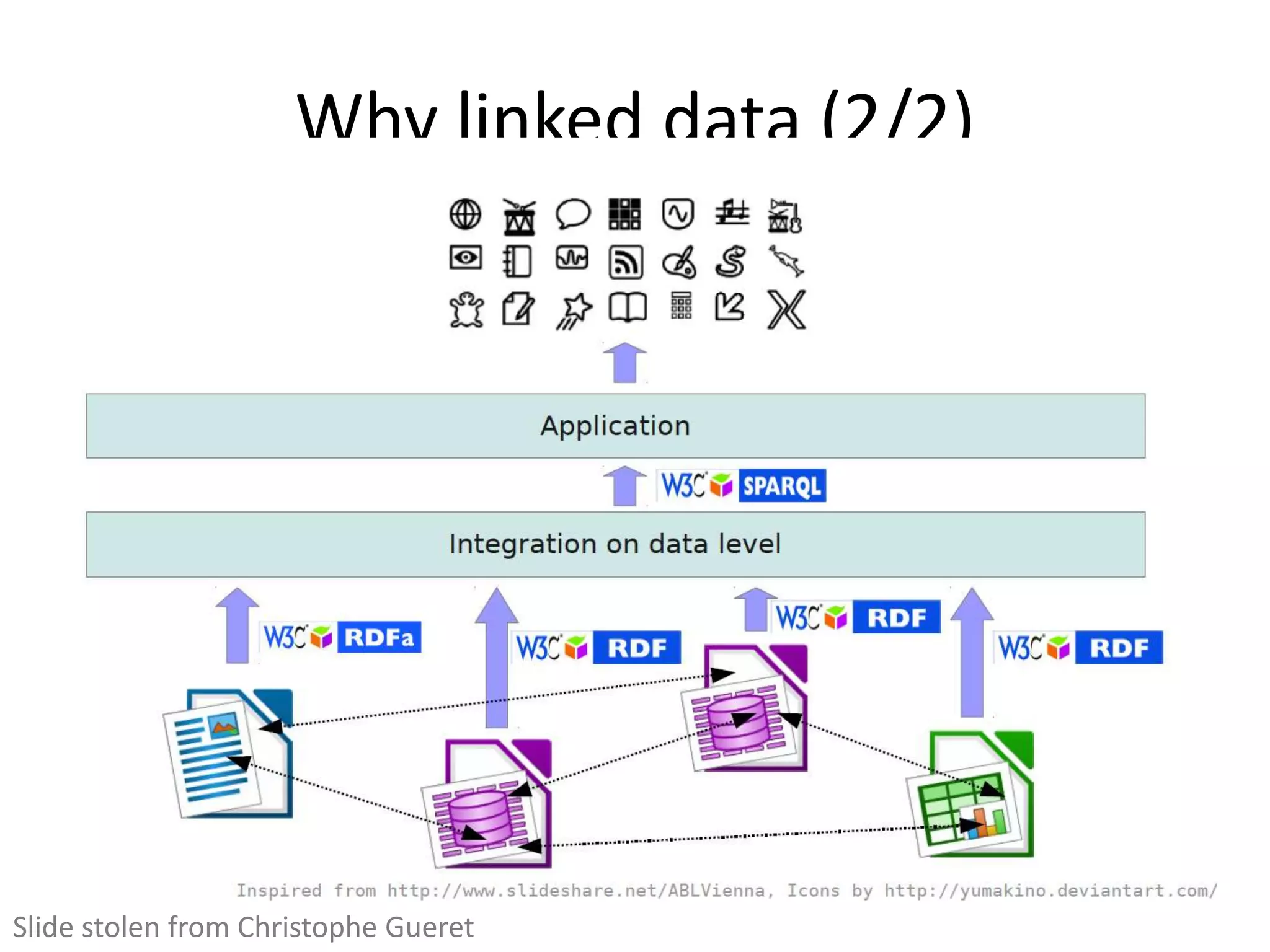

4. Why linked data (2/2)
Slide stolen from Christophe Gueret

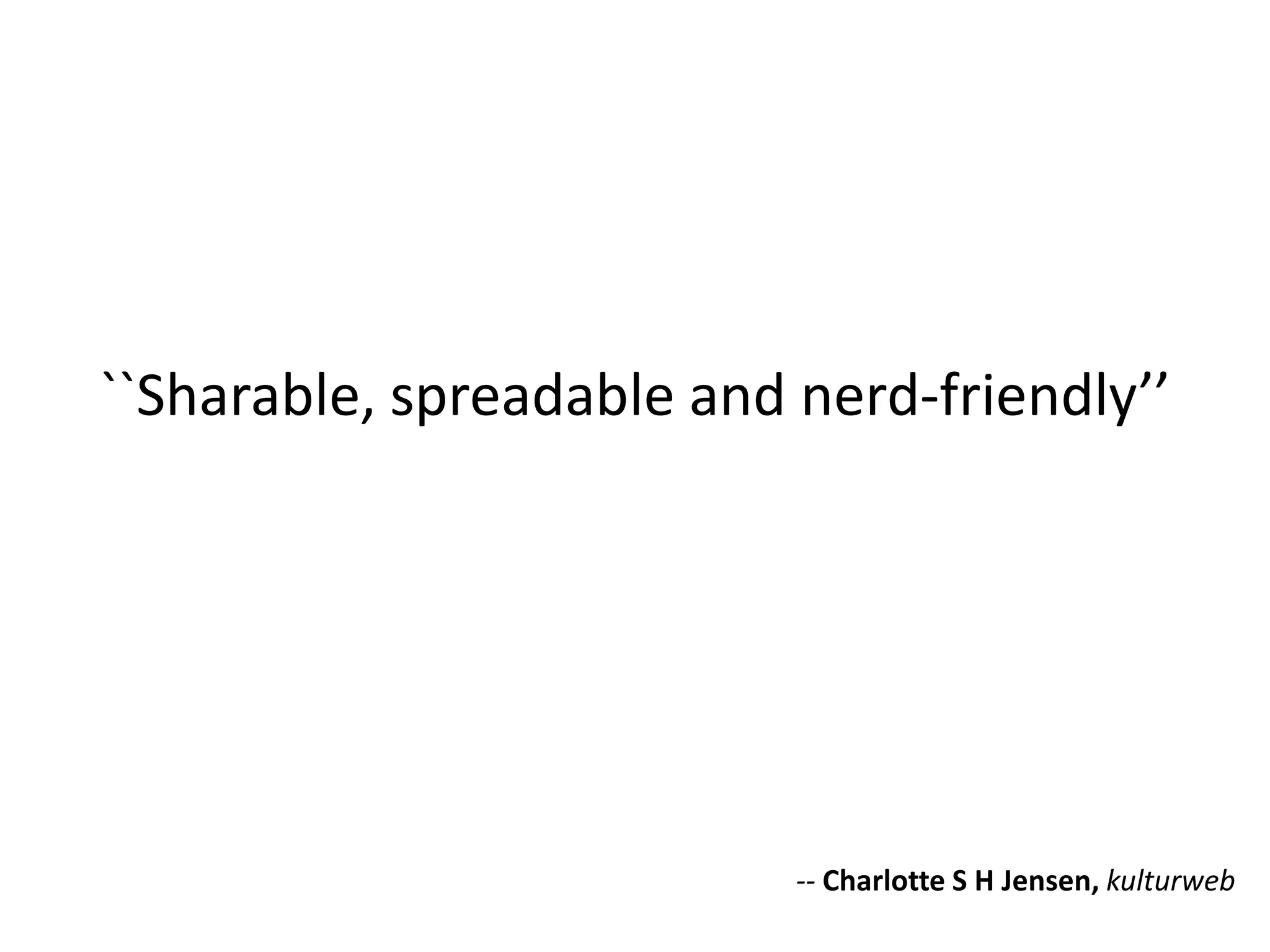

5. ``Sharable, spreadable and nerd-friendly’’
-- Charlotte S H Jensen, kulturweb

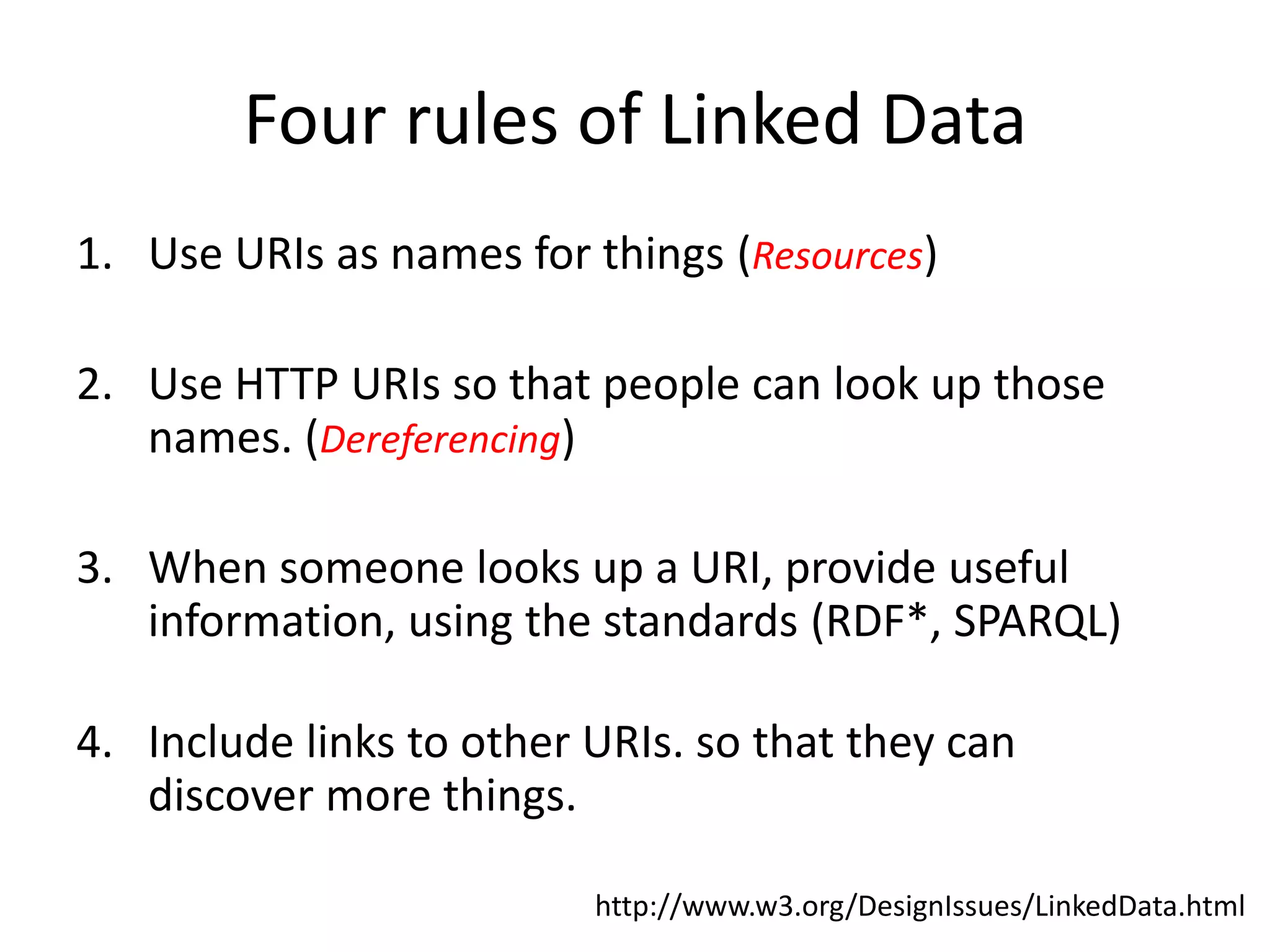

7. Four rules of Linked Data
1. Use URIs as names for things (Resources)
2. Use HTTP URIs so that people can look up those
names. (Dereferencing)
3. When someone looks up a URI, provide useful
information, using the standards (RDF*, SPARQL)
4. Include links to other URIs. so that they can
discover more things.
http://www.w3.org/DesignIssues/LinkedData.html

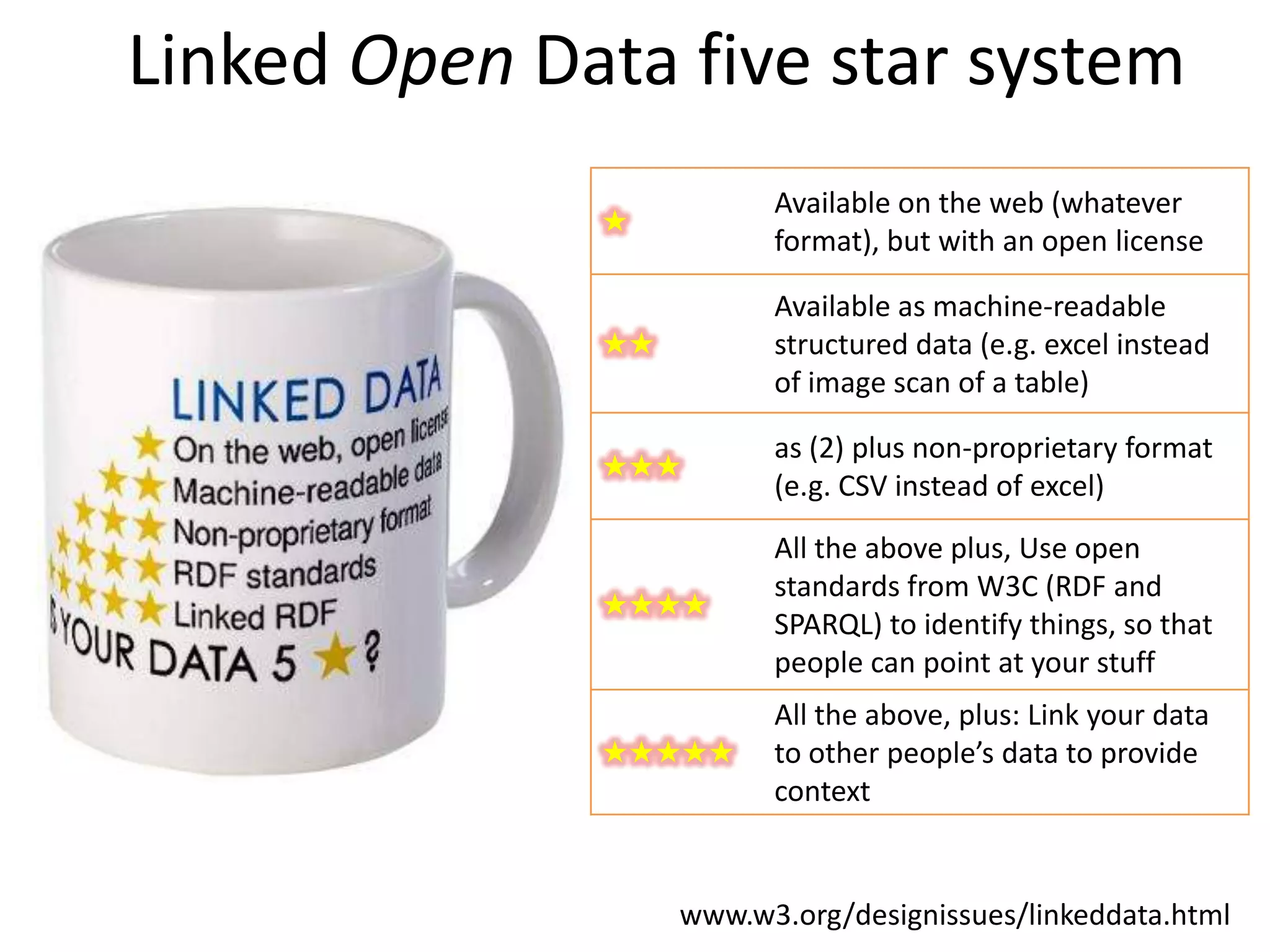

8. Linked Open Data five star system
Available on the web (whatever
★
format), but with an open license
Available as machine-readable
★★ structured data (e.g. excel instead
of image scan of a table)
as (2) plus non-proprietary format
★★★
(e.g. CSV instead of excel)
All the above plus, Use open
standards from W3C (RDF and
★★★★
SPARQL) to identify things, so that
people can point at your stuff
All the above, plus: Link your data
★★★★★ to other people’s data to provide
context
www.w3.org/designissues/linkeddata.html

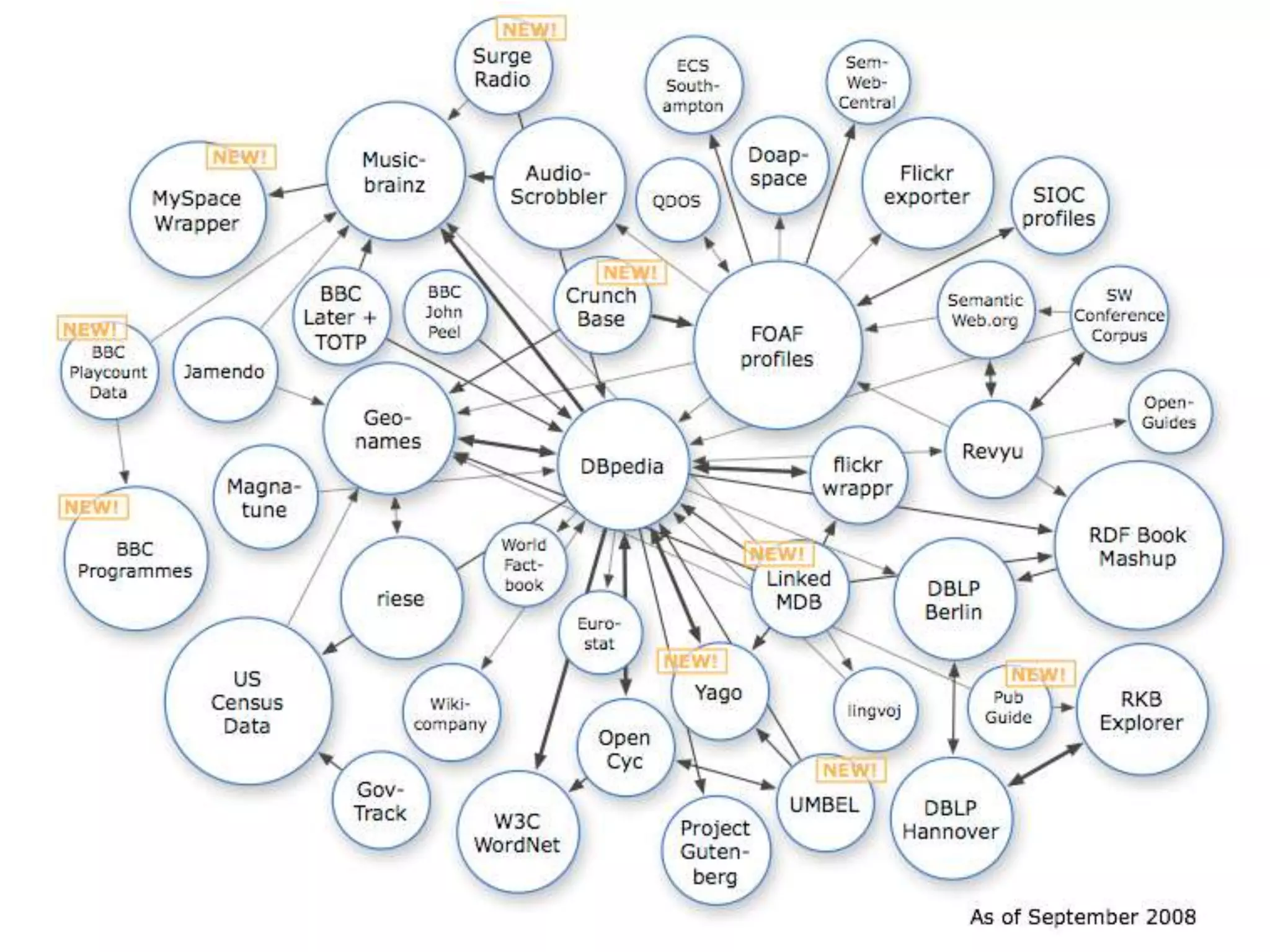

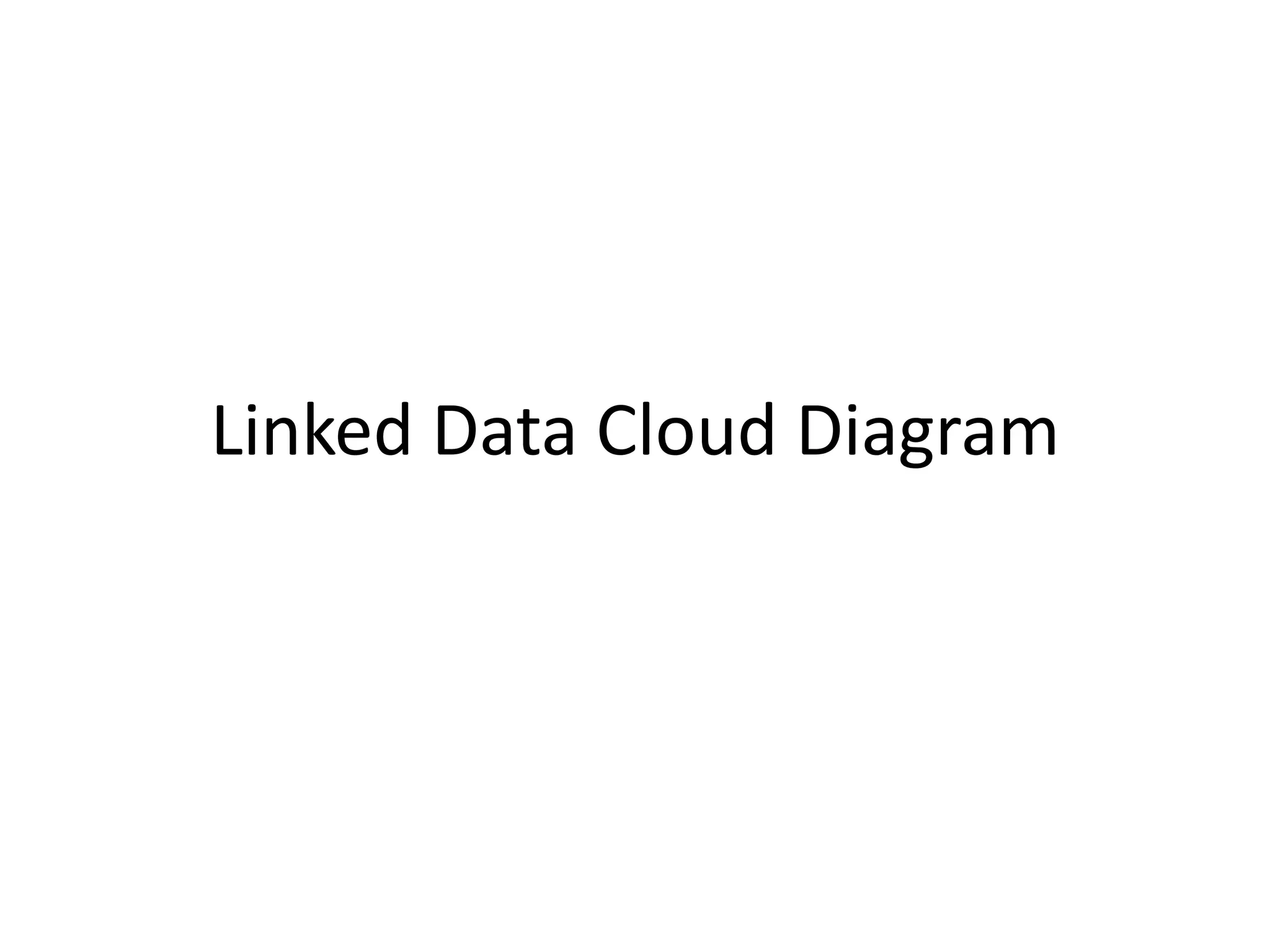

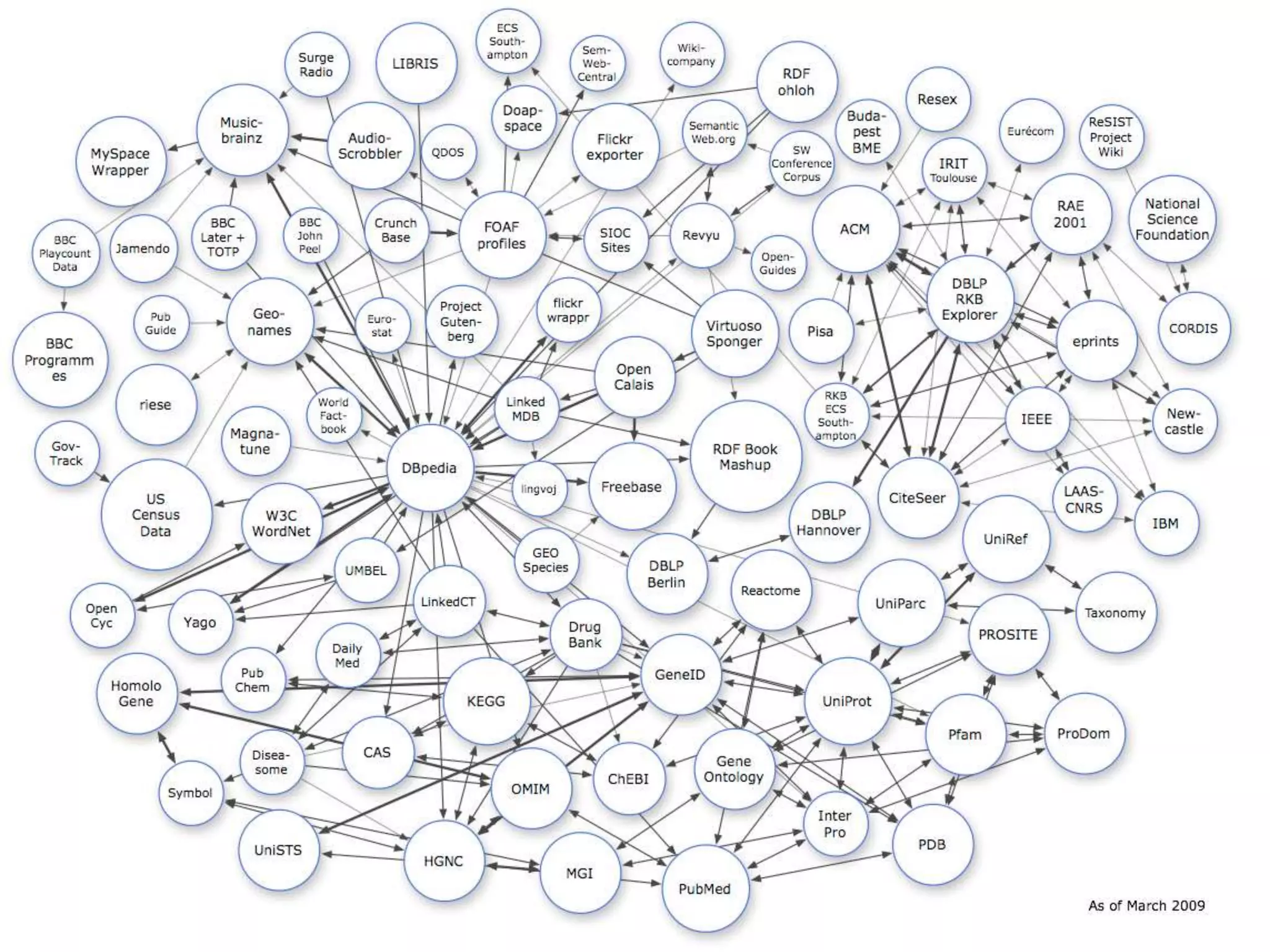

9. Linked Data Cloud Diagram

10. May 2007

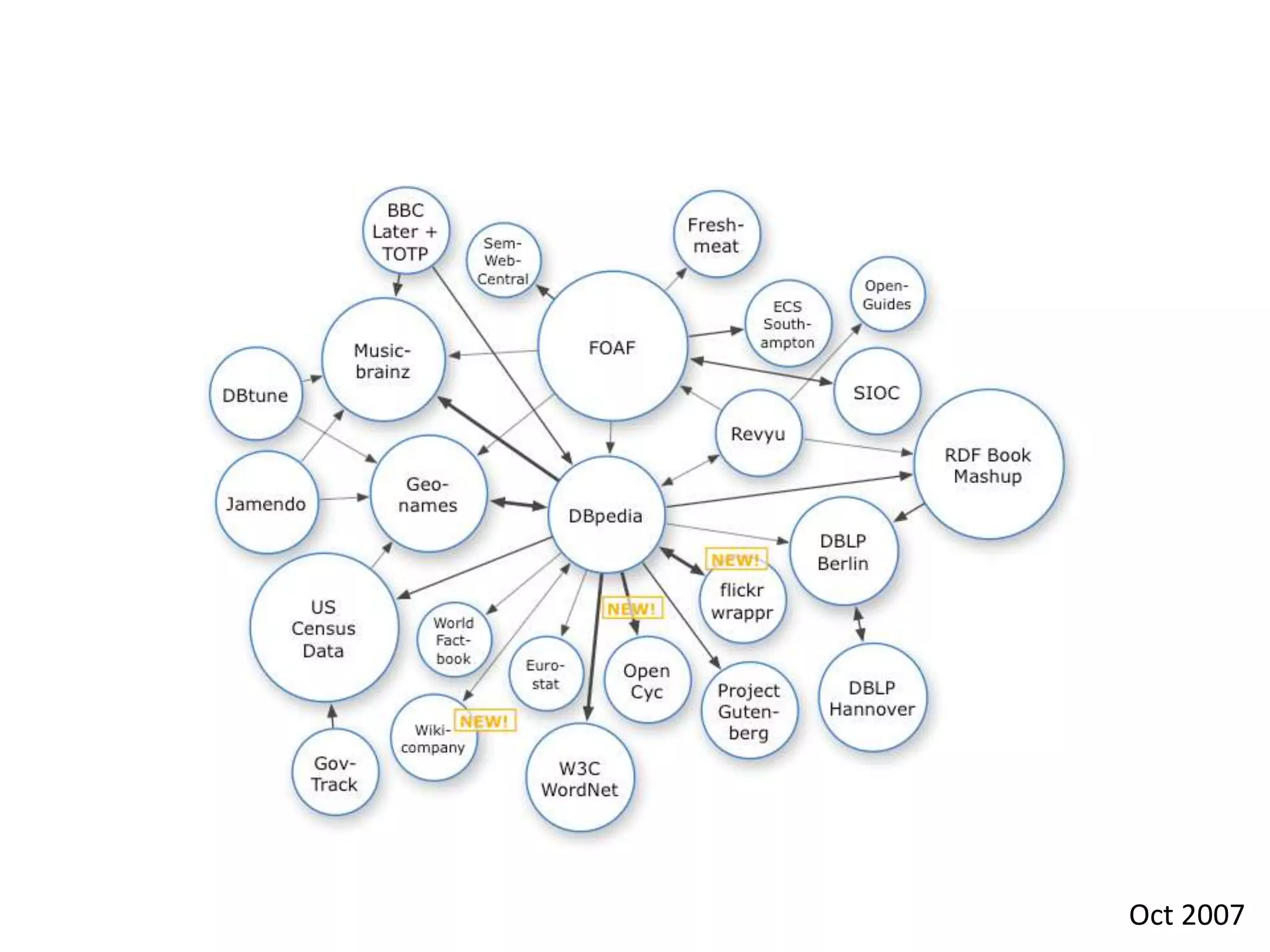

11. Oct 2007

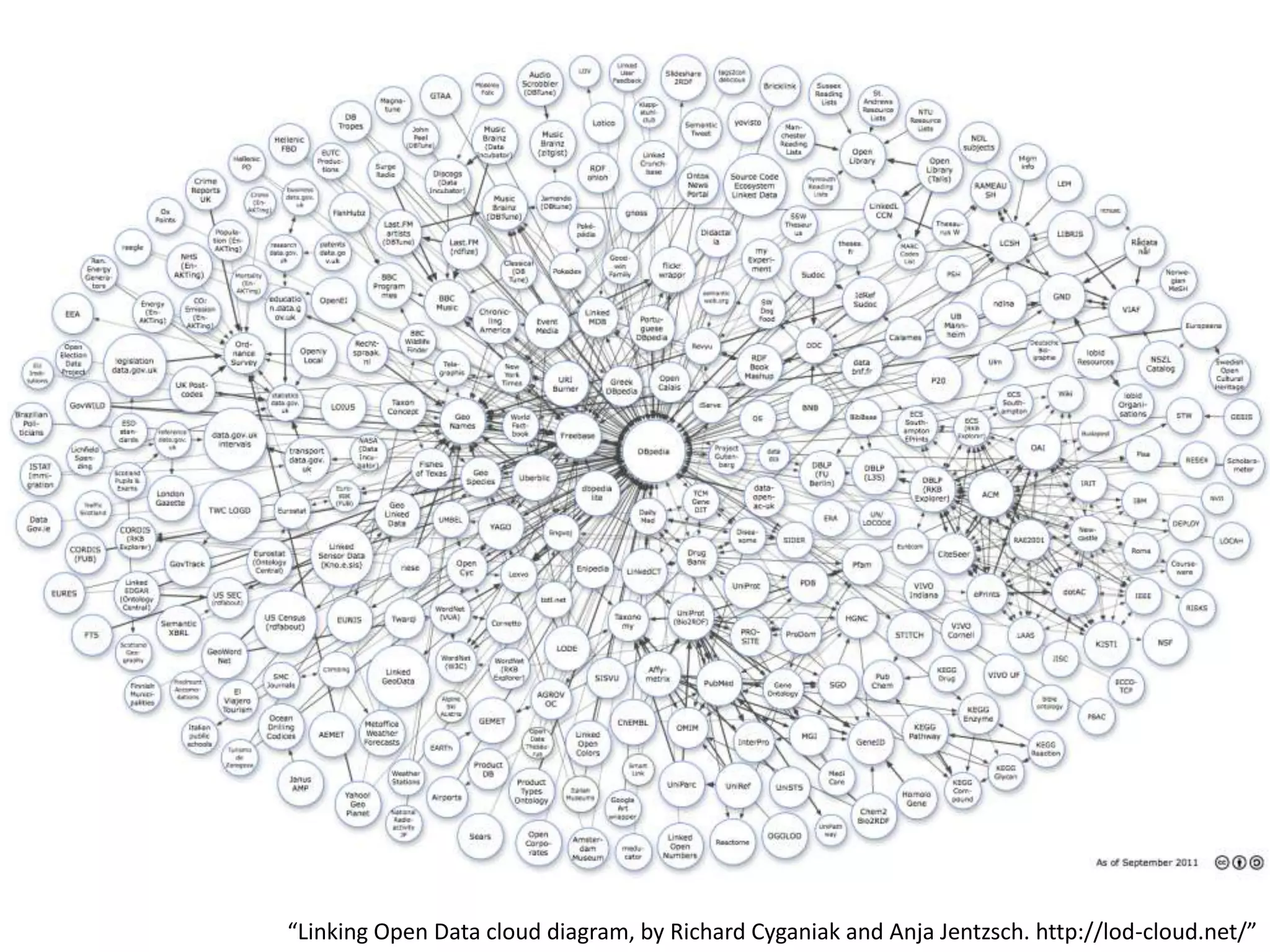

14. “Linking Open Data cloud diagram, by Richard Cyganiak and Anja Jentzsch. http://lod-cloud.net/”

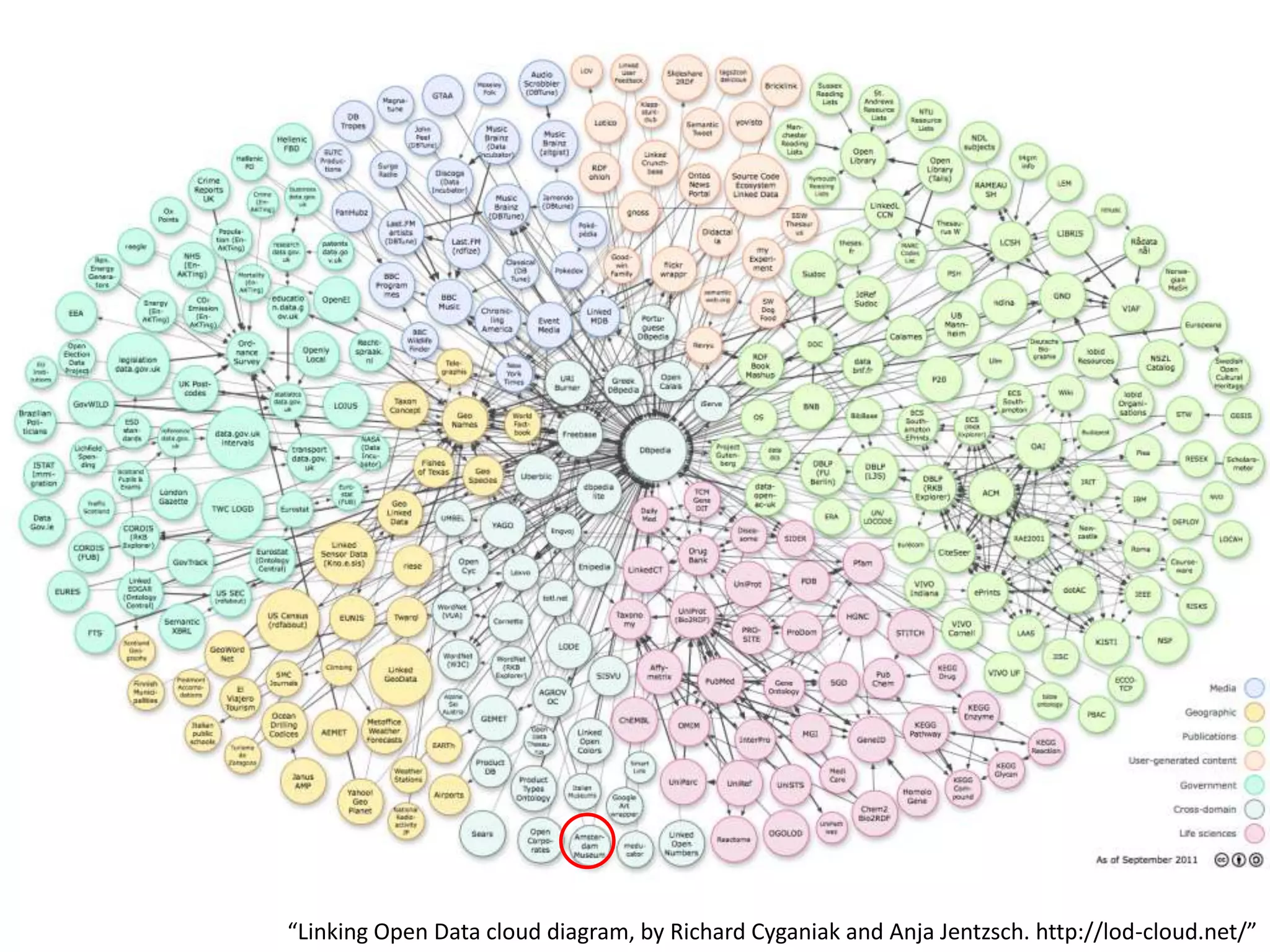

15. “Linking Open Data cloud diagram, by Richard Cyganiak and Anja Jentzsch. http://lod-cloud.net/”

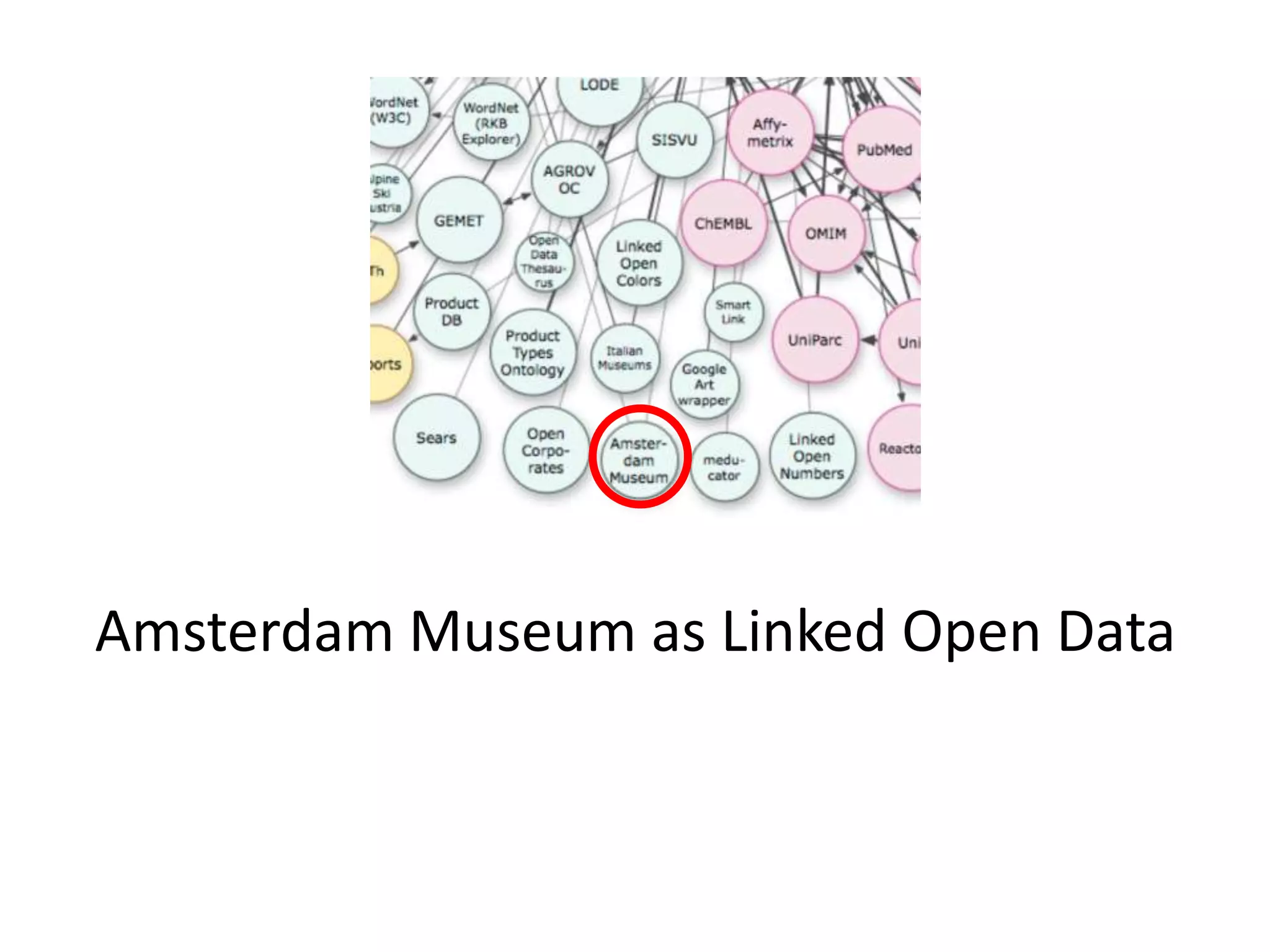

16. Amsterdam Museum as Linked Open Data

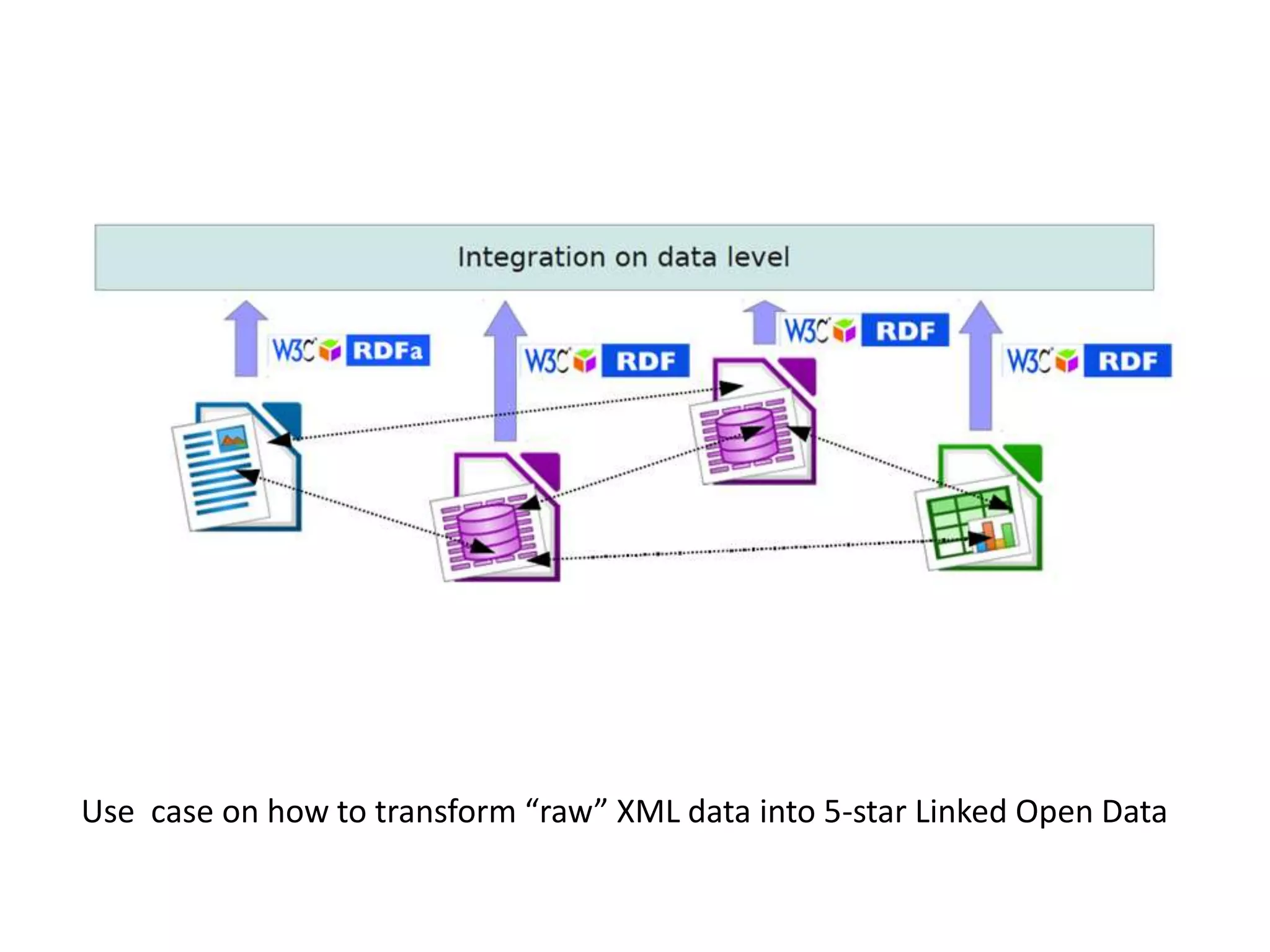

17. Use case on how to transform “raw” XML data into 5-star Linked Open Data

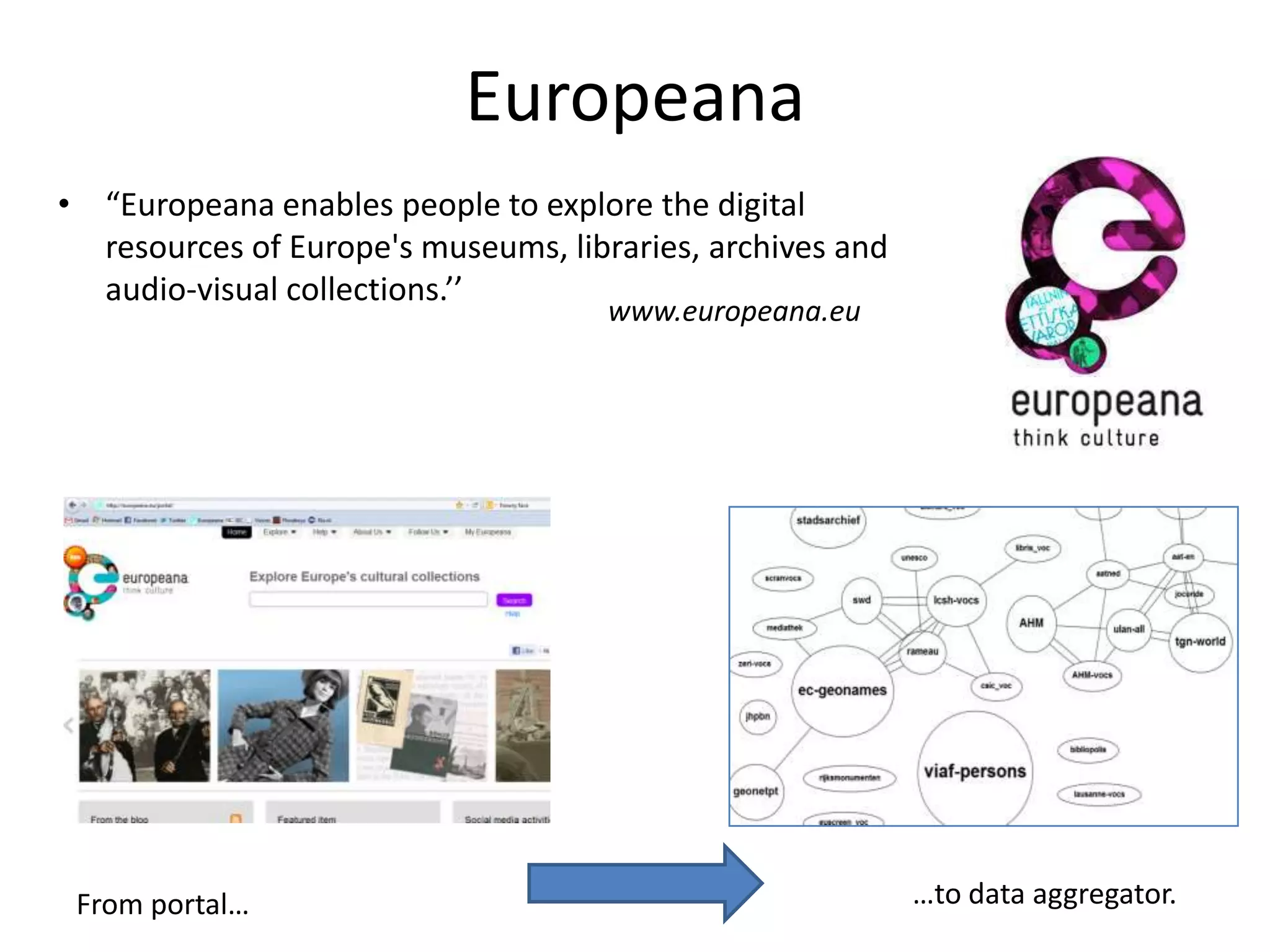

18. Europeana
• “Europeana enables people to explore the digital
resources of Europe's museums, libraries, archives and
audio-visual collections.’’
www.europeana.eu
From portal… …to data aggregator.

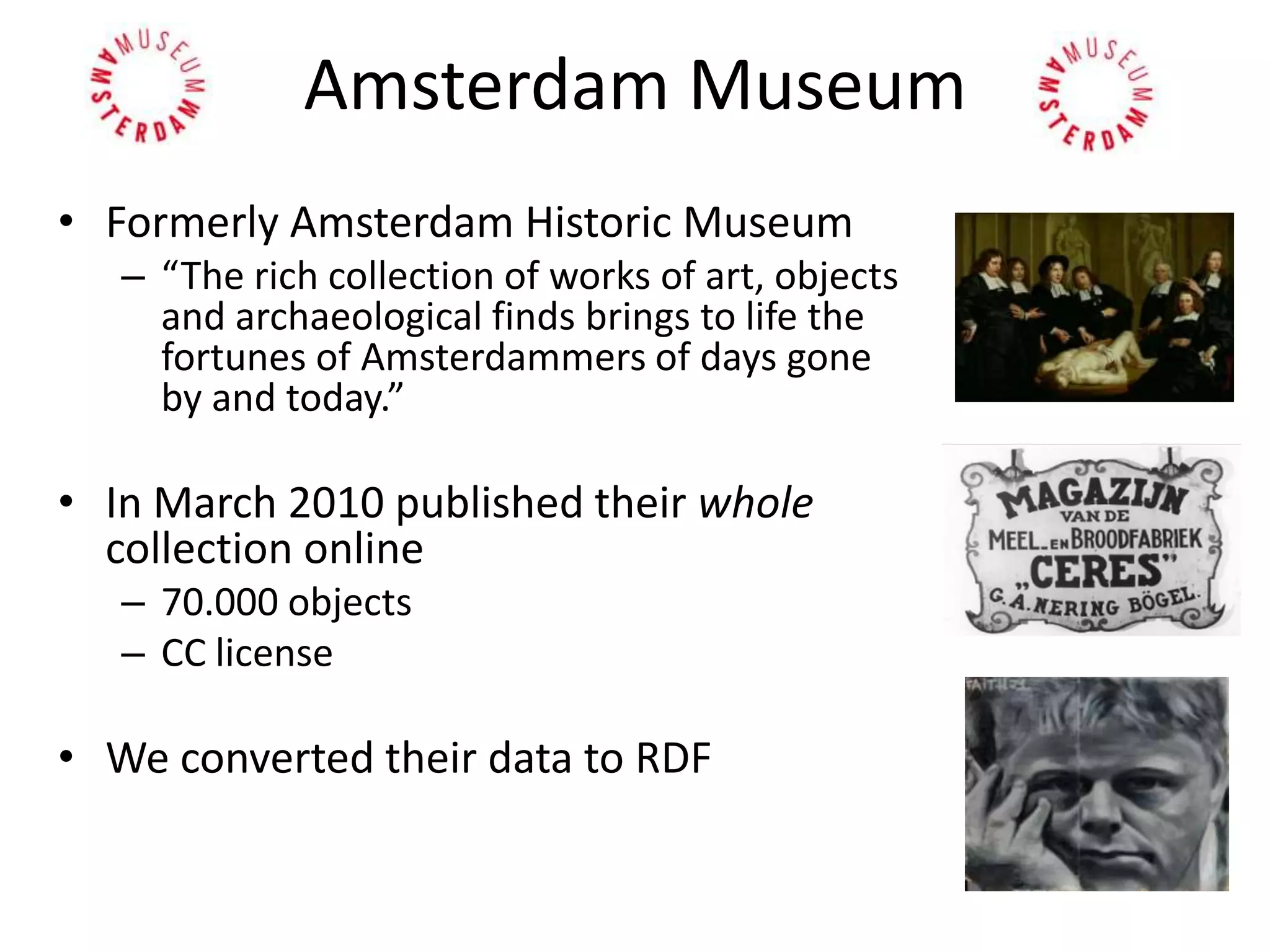

19. Amsterdam Museum
• Formerly Amsterdam Historic Museum
– “The rich collection of works of art, objects
and archaeological finds brings to life the
fortunes of Amsterdammers of days gone
by and today.”
• In March 2010 published their whole
collection online
– 70.000 objects
– CC license
• We converted their data to RDF

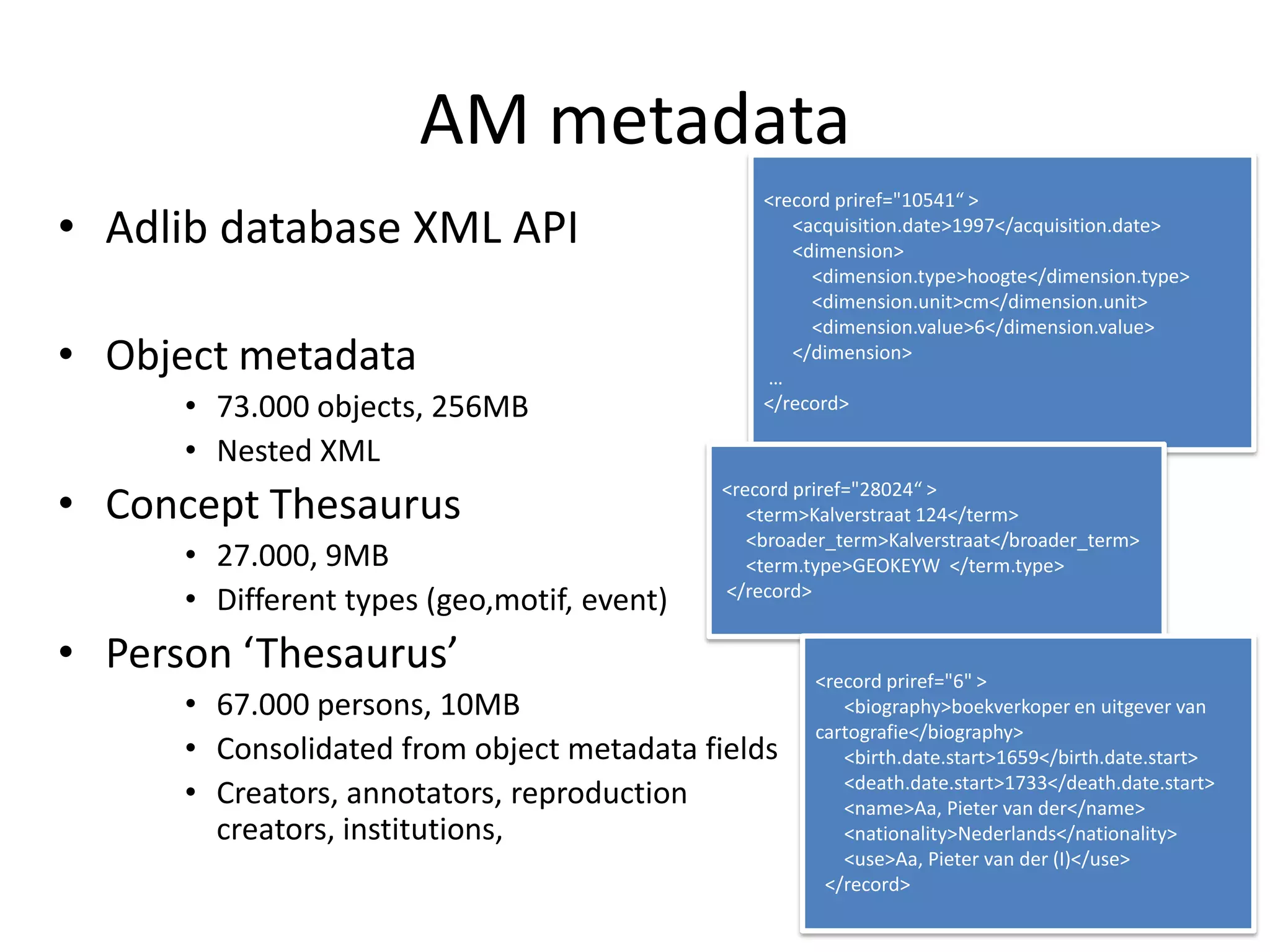

20. AM metadata
<record priref="10541“ >
• Adlib database XML API <acquisition.date>1997</acquisition.date>
<dimension>
<dimension.type>hoogte</dimension.type>
<dimension.unit>cm</dimension.unit>
<dimension.value>6</dimension.value>
• Object metadata …
</dimension>
• 73.000 objects, 256MB </record>
• Nested XML
• Concept Thesaurus <record priref="28024“ >
<term>Kalverstraat 124</term>
<broader_term>Kalverstraat</broader_term>
• 27.000, 9MB <term.type>GEOKEYW </term.type>
• Different types (geo,motif, event) </record>
• Person ‘Thesaurus’ <record priref="6" >
• 67.000 persons, 10MB <biography>boekverkoper en uitgever van
cartografie</biography>
• Consolidated from object metadata fields <birth.date.start>1659</birth.date.start>
• Creators, annotators, reproduction <death.date.start>1733</death.date.start>
<name>Aa, Pieter van der</name>
creators, institutions, <nationality>Nederlands</nationality>
<use>Aa, Pieter van der (I)</use>
</record>

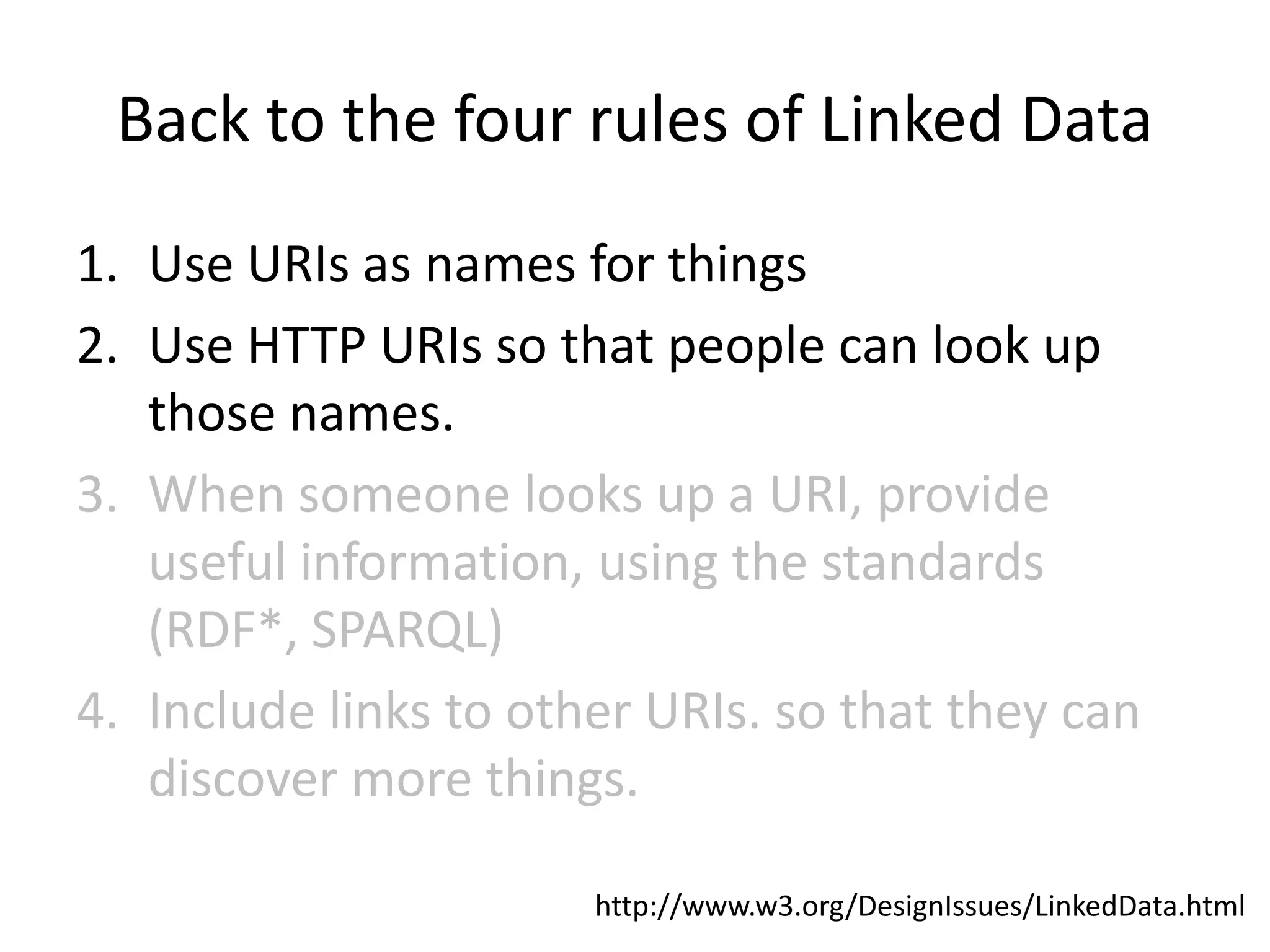

22. Back to the four rules of Linked Data
1. Use URIs as names for things
2. Use HTTP URIs so that people can look up
those names.
3. When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL)
4. Include links to other URIs. so that they can
discover more things.
http://www.w3.org/DesignIssues/LinkedData.html

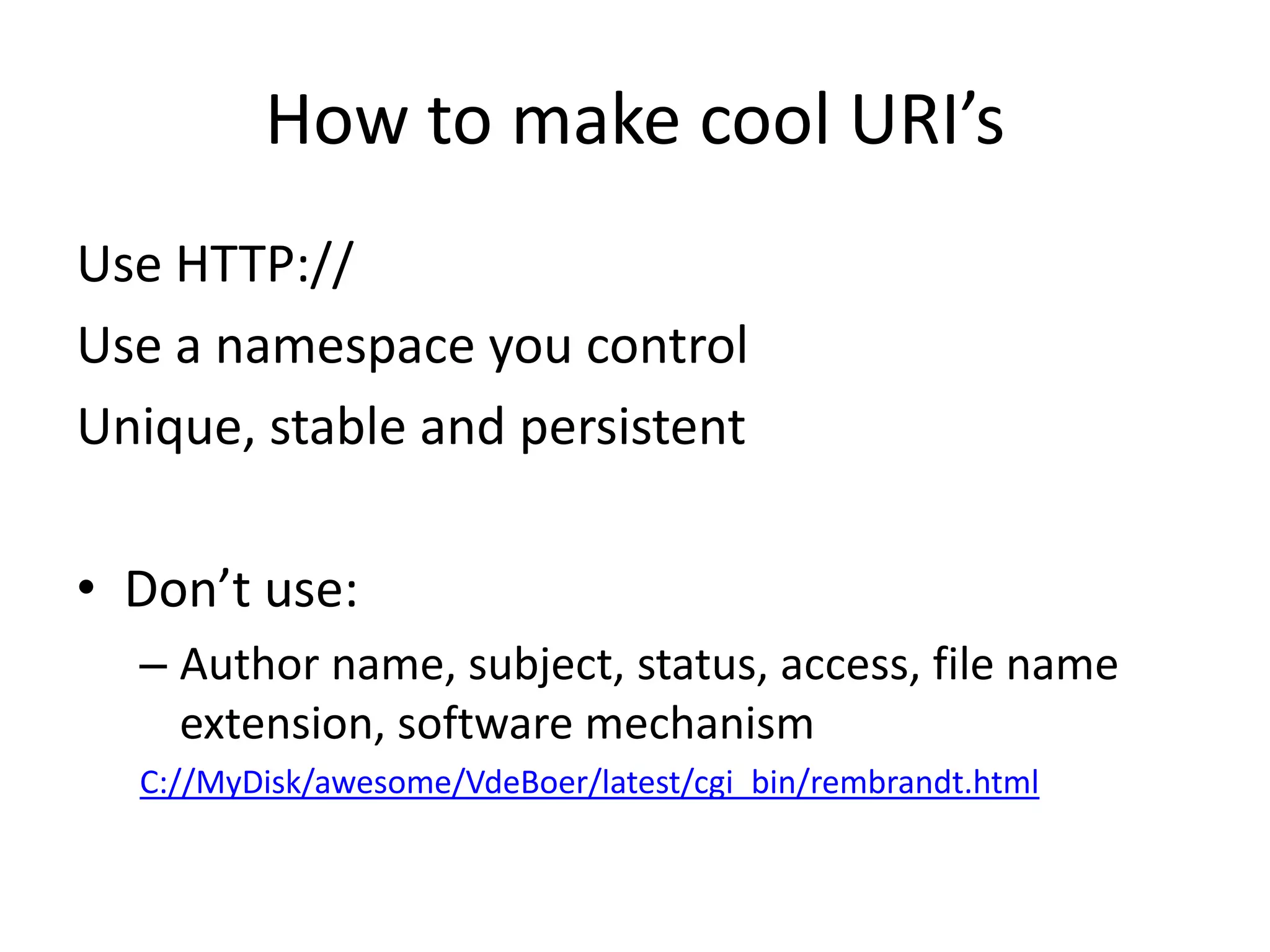

23. How to make cool URI’s
Use HTTP://
Use a namespace you control
Unique, stable and persistent
• Don’t use:
– Author name, subject, status, access, file name
extension, software mechanism
C://MyDisk/awesome/VdeBoer/latest/cgi_bin/rembrandt.html

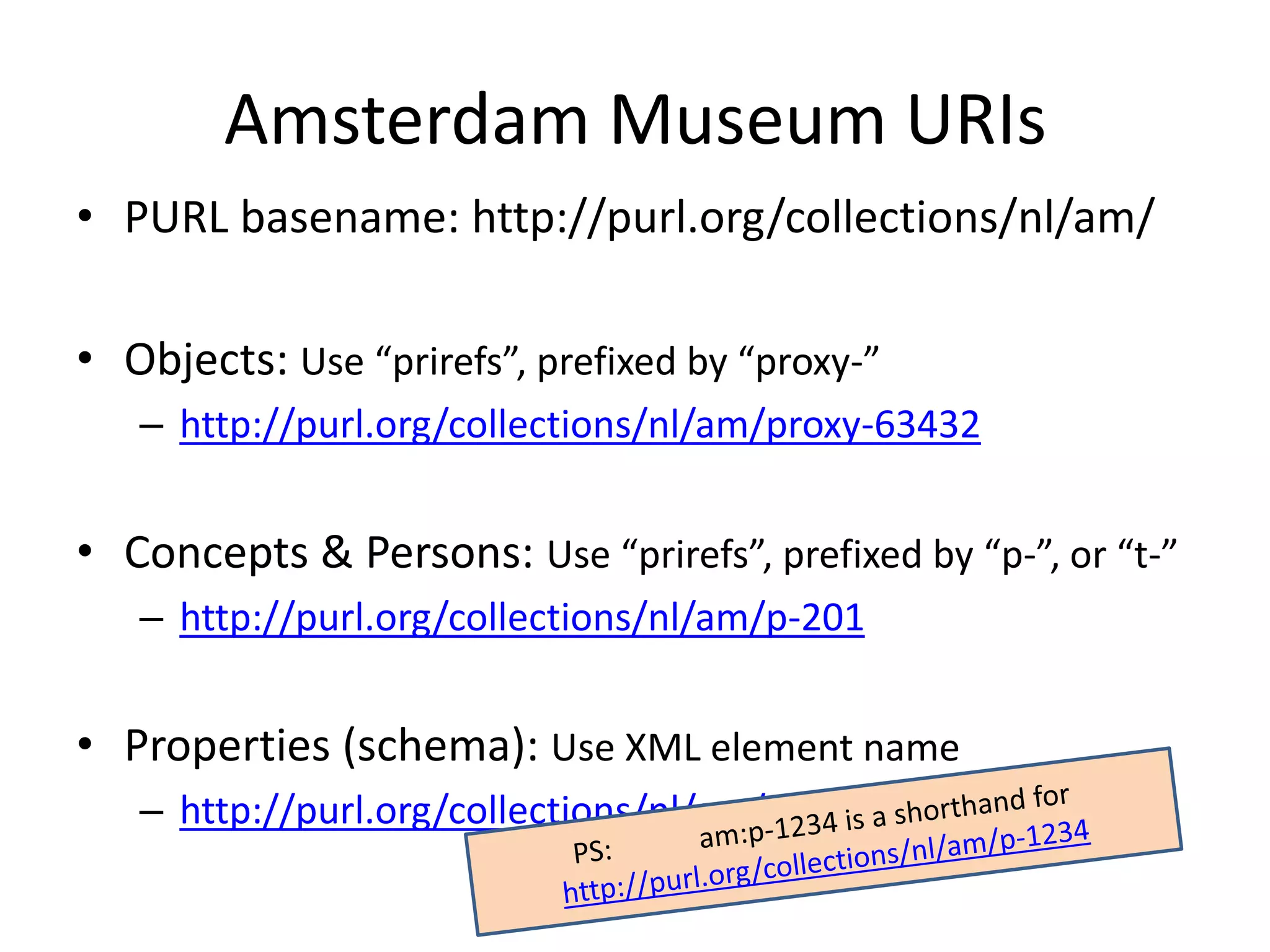

24. Amsterdam Museum URIs
• PURL basename: http://purl.org/collections/nl/am/
• Objects: Use “prirefs”, prefixed by “proxy-”
– http://purl.org/collections/nl/am/proxy-63432
• Concepts & Persons: Use “prirefs”, prefixed by “p-”, or “t-”
– http://purl.org/collections/nl/am/p-201
• Properties (schema): Use XML element name
– http://purl.org/collections/nl/am/acquisition.date

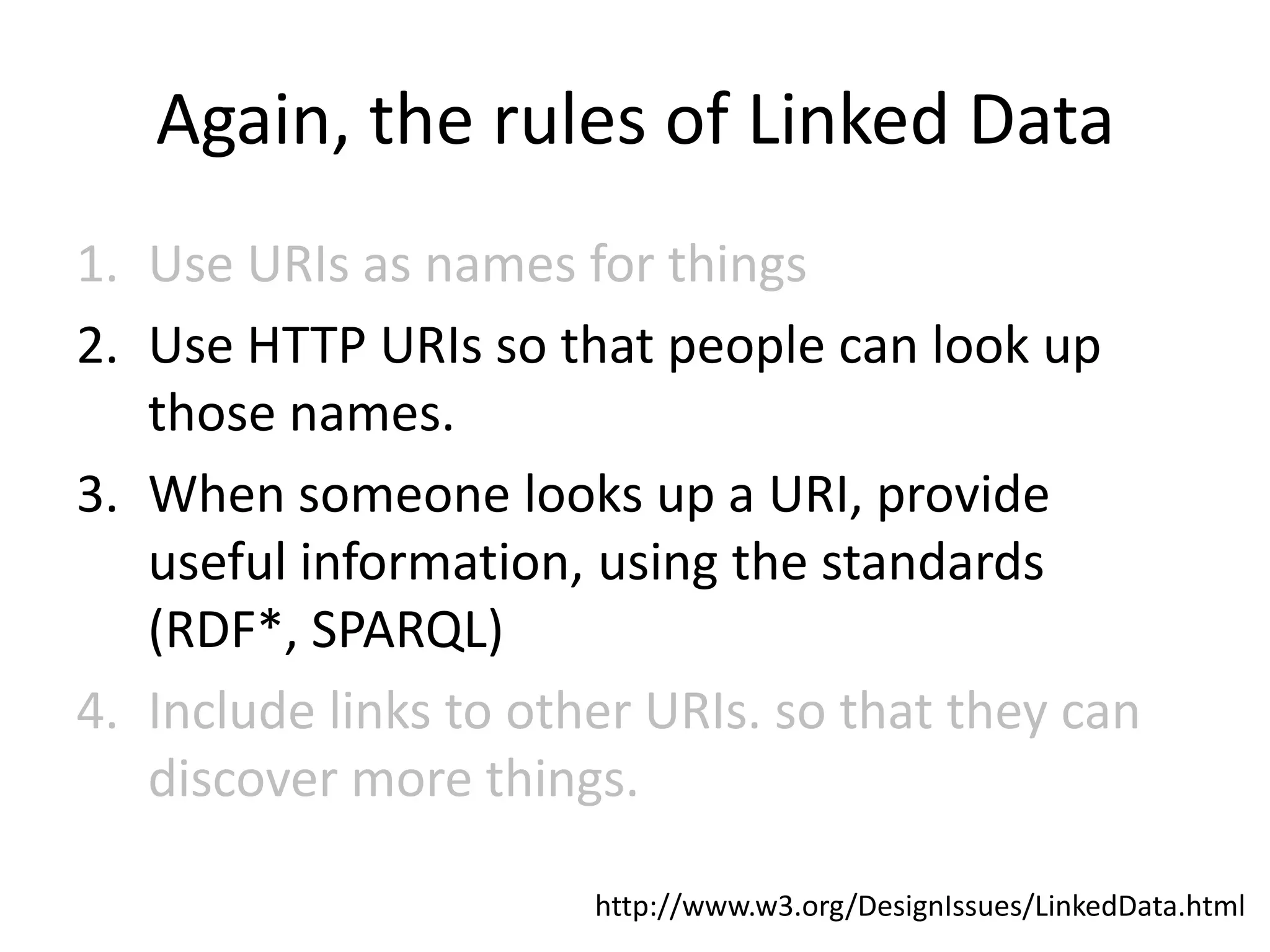

25. Again, the rules of Linked Data
1. Use URIs as names for things
2. Use HTTP URIs so that people can look up
those names.
3. When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL)
4. Include links to other URIs. so that they can
discover more things.
http://www.w3.org/DesignIssues/LinkedData.html

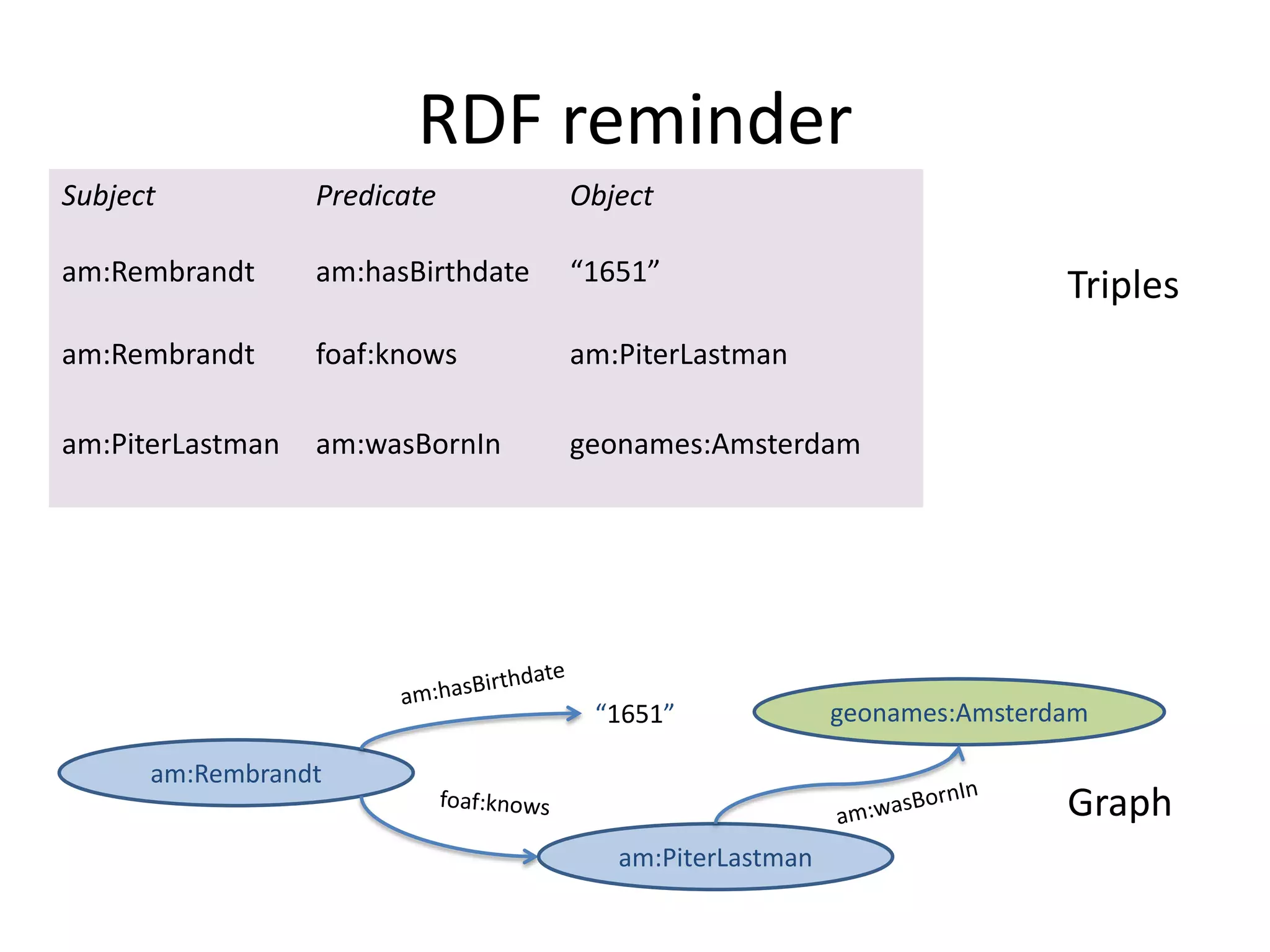

26. RDF reminder
Subject Predicate Object
am:Rembrandt am:hasBirthdate “1651”
Triples
am:Rembrandt foaf:knows am:PiterLastman
am:PiterLastman am:wasBornIn geonames:Amsterdam
“1651” geonames:Amsterdam
am:Rembrandt
Graph
am:PiterLastman

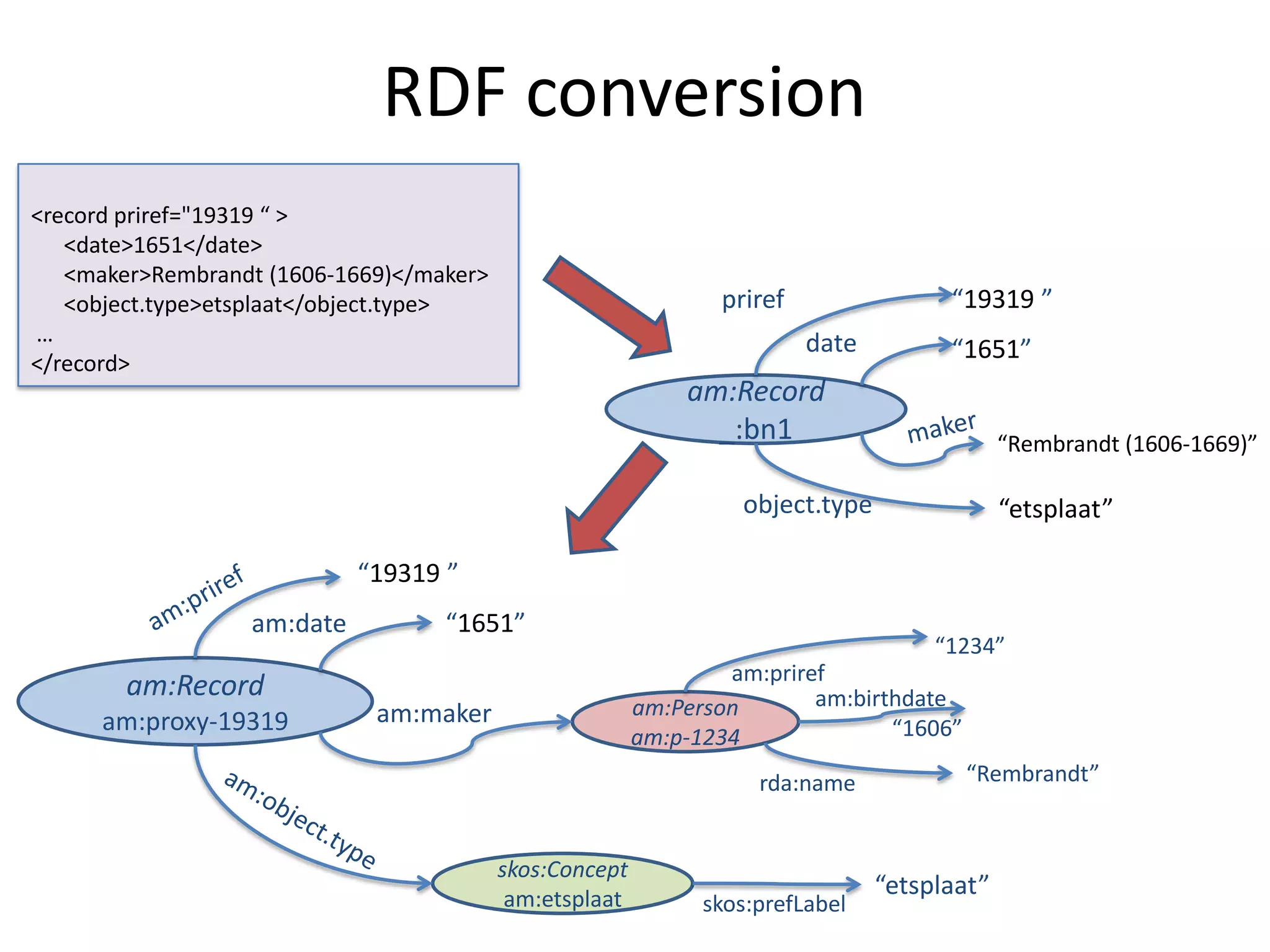

27. RDF conversion
<record priref="19319 “ >
<date>1651</date>
<maker>Rembrandt (1606-1669)</maker>
<object.type>etsplaat</object.type> priref “19319 ”
… date
</record>
“1651”
am:Record
_:bn1 “Rembrandt (1606-1669)”
object.type “etsplaat”
“19319 ”
am:date “1651”
“1234”
am:priref
am:Record am:birthdate
am:maker am:Person
am:proxy-19319 “1606”
am:p-1234
rda:name “Rembrandt”
skos:Concept
am:etsplaat
“etsplaat”
skos:prefLabel

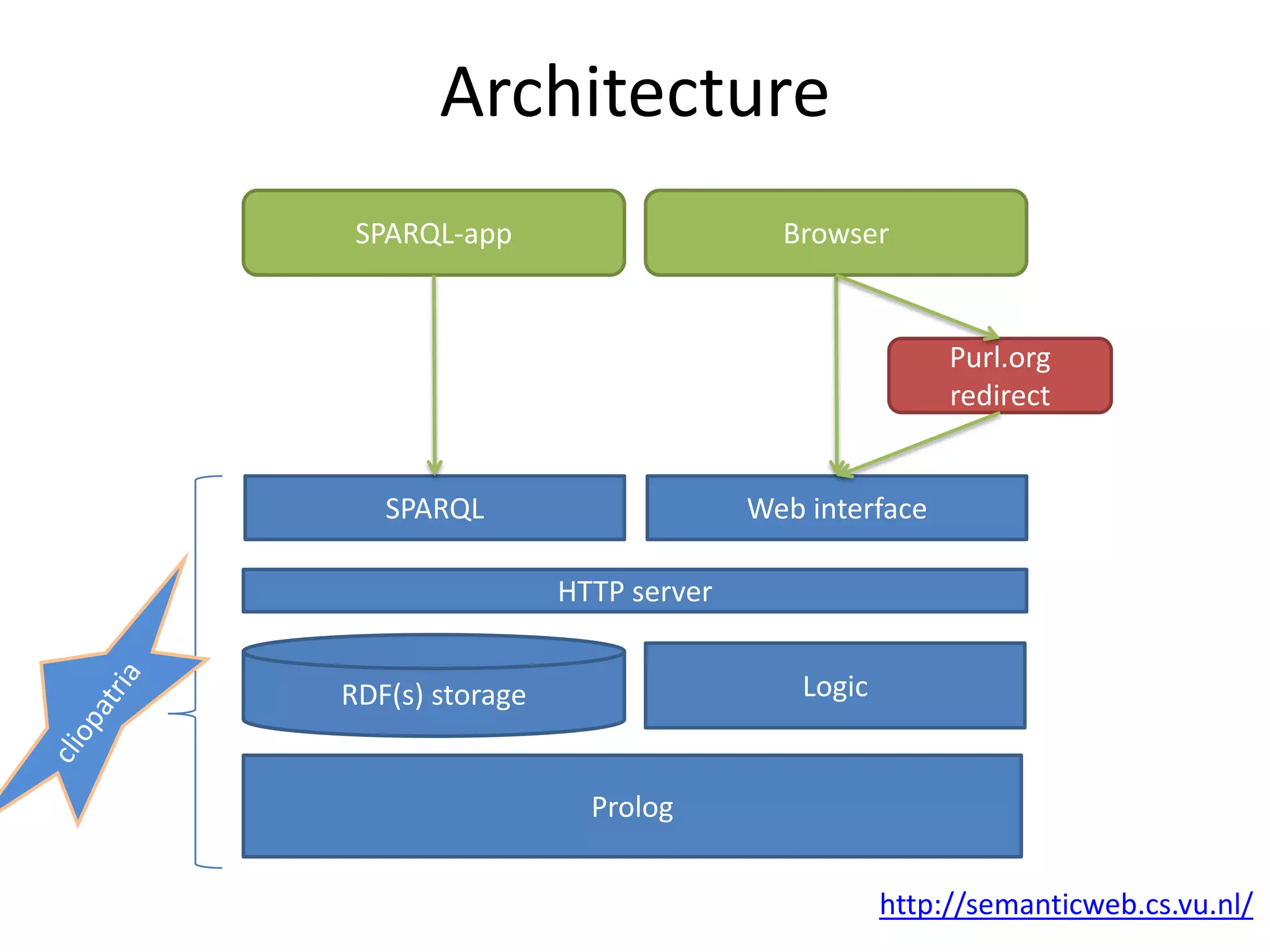

28. Architecture
SPARQL-app Browser
Purl.org
redirect
SPARQL Web interface
HTTP server
RDF(s) storage Logic
Prolog
http://semanticweb.cs.vu.nl/

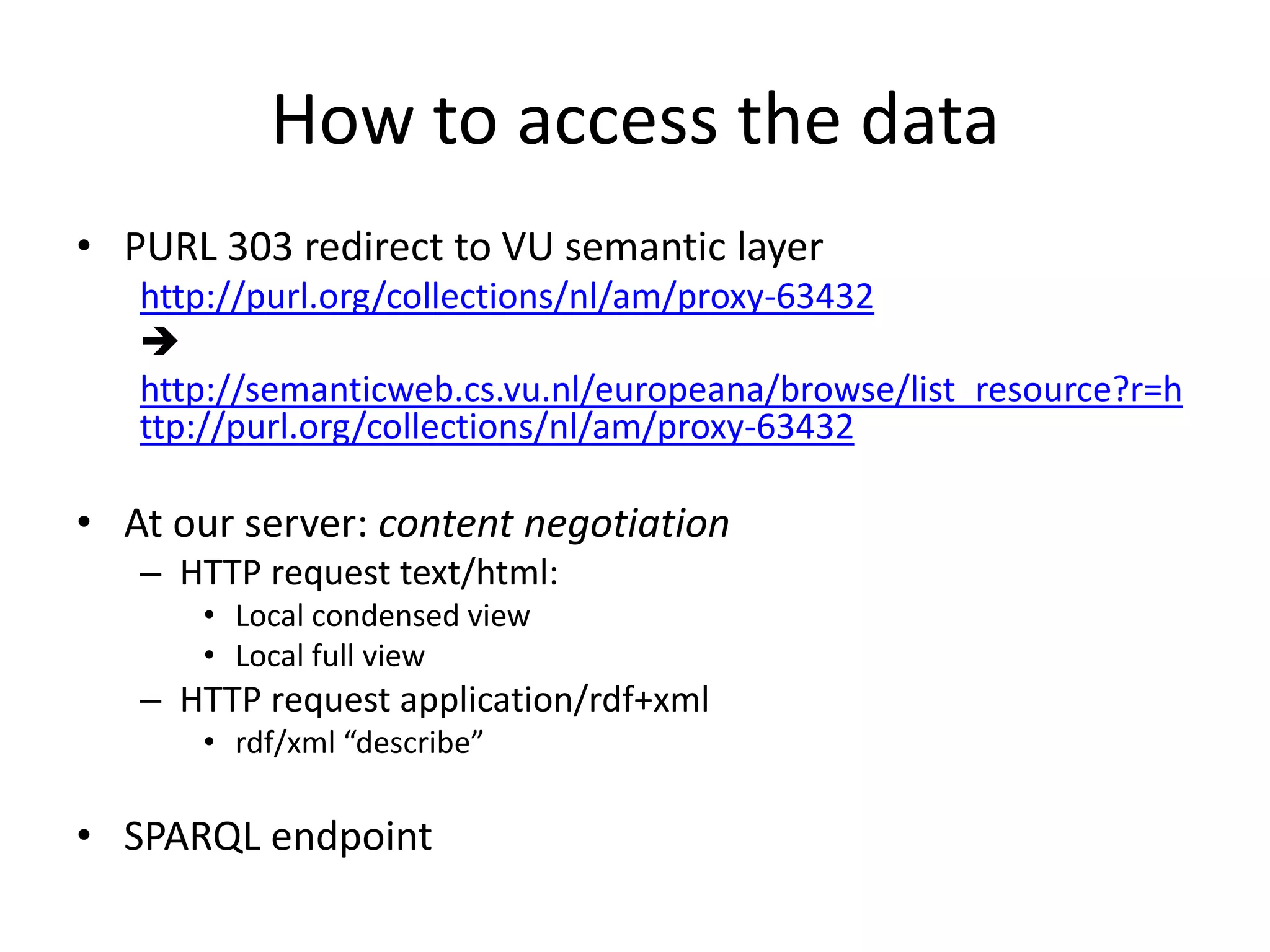

29. How to access the data
• PURL 303 redirect to VU semantic layer
http://purl.org/collections/nl/am/proxy-63432

http://semanticweb.cs.vu.nl/europeana/browse/list_resource?r=h
ttp://purl.org/collections/nl/am/proxy-63432
• At our server: content negotiation
– HTTP request text/html:
• Local condensed view
• Local full view
– HTTP request application/rdf+xml
• rdf/xml “describe”
• SPARQL endpoint

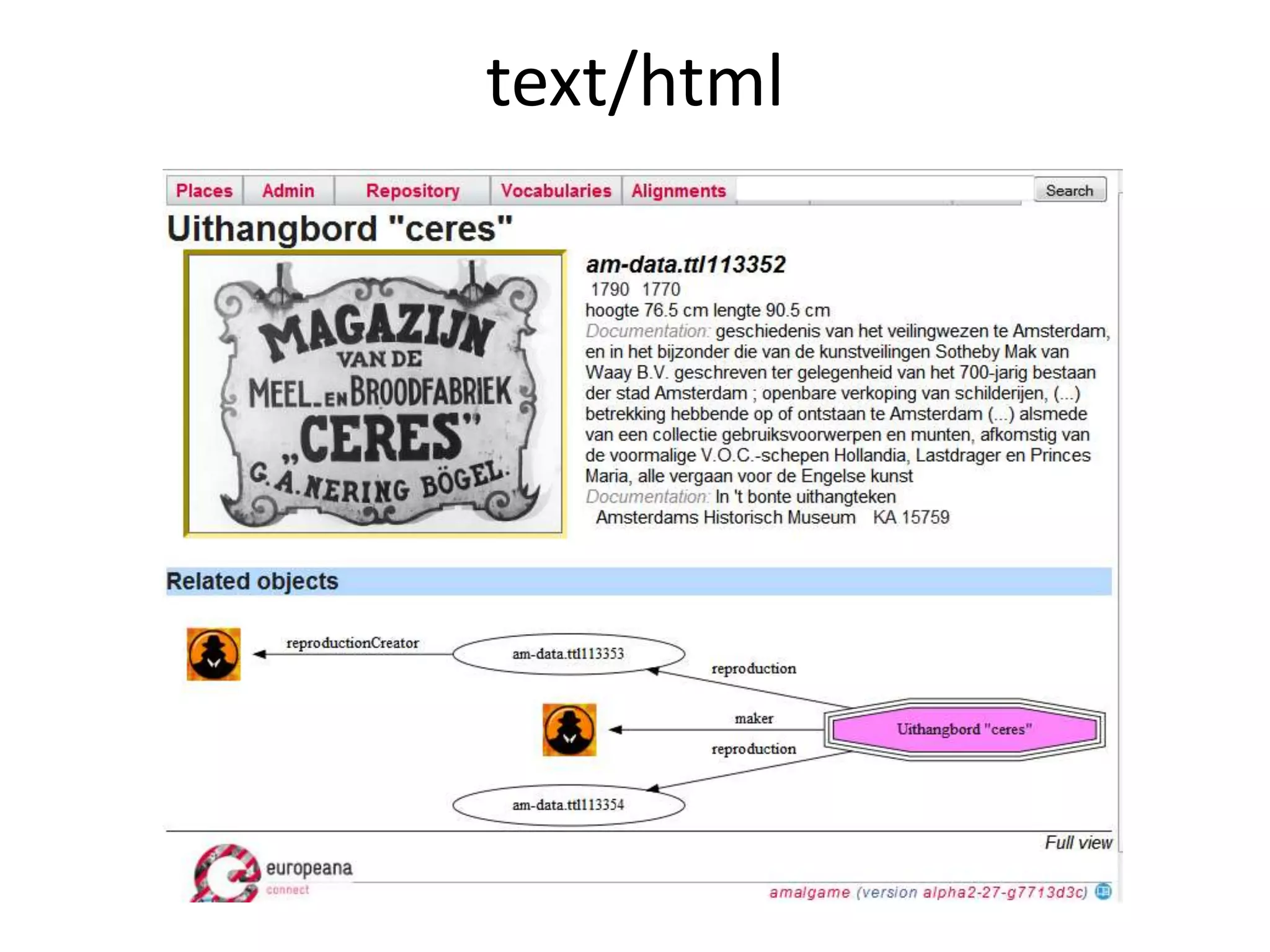

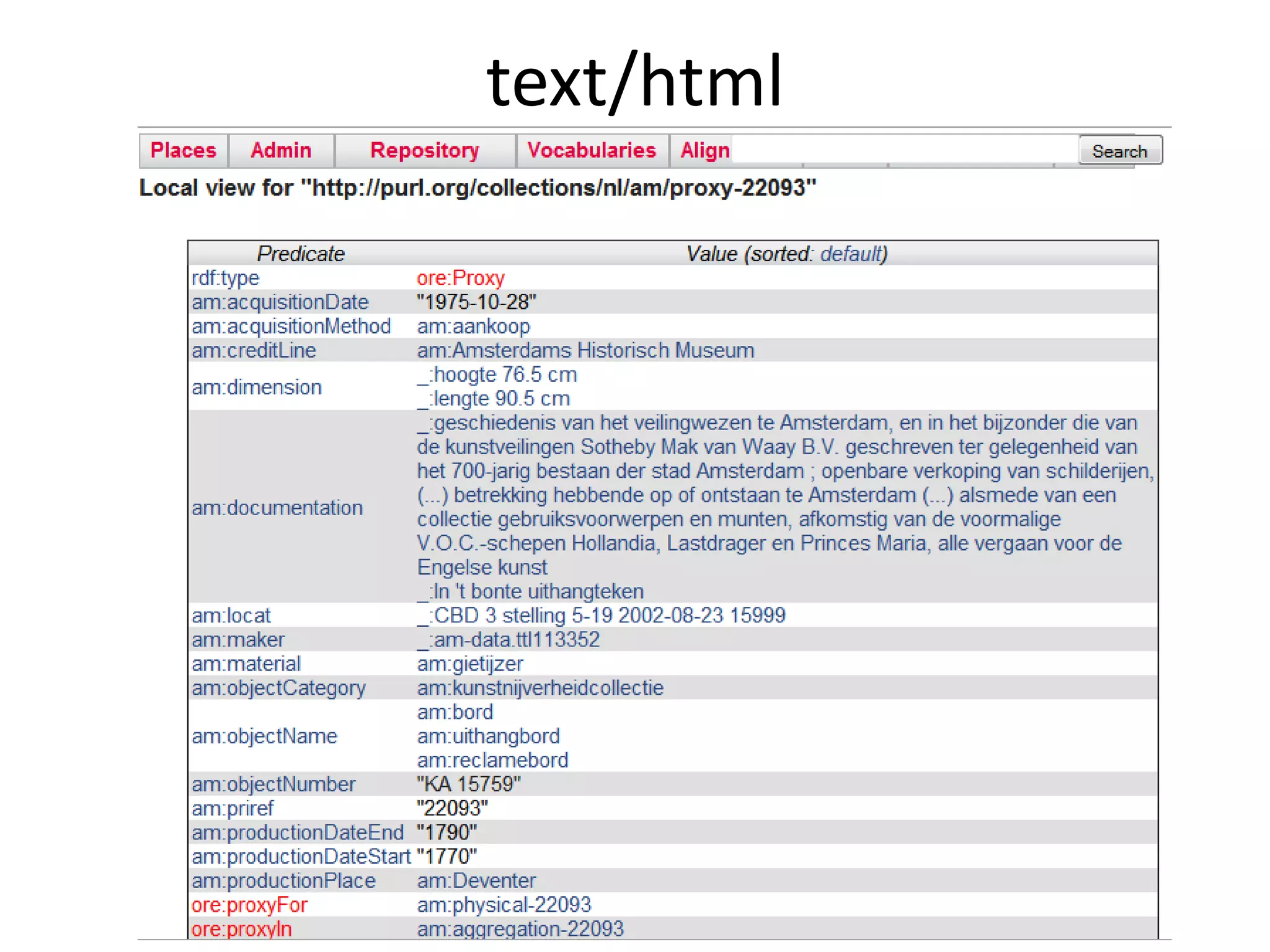

30. text/html

31. text/html

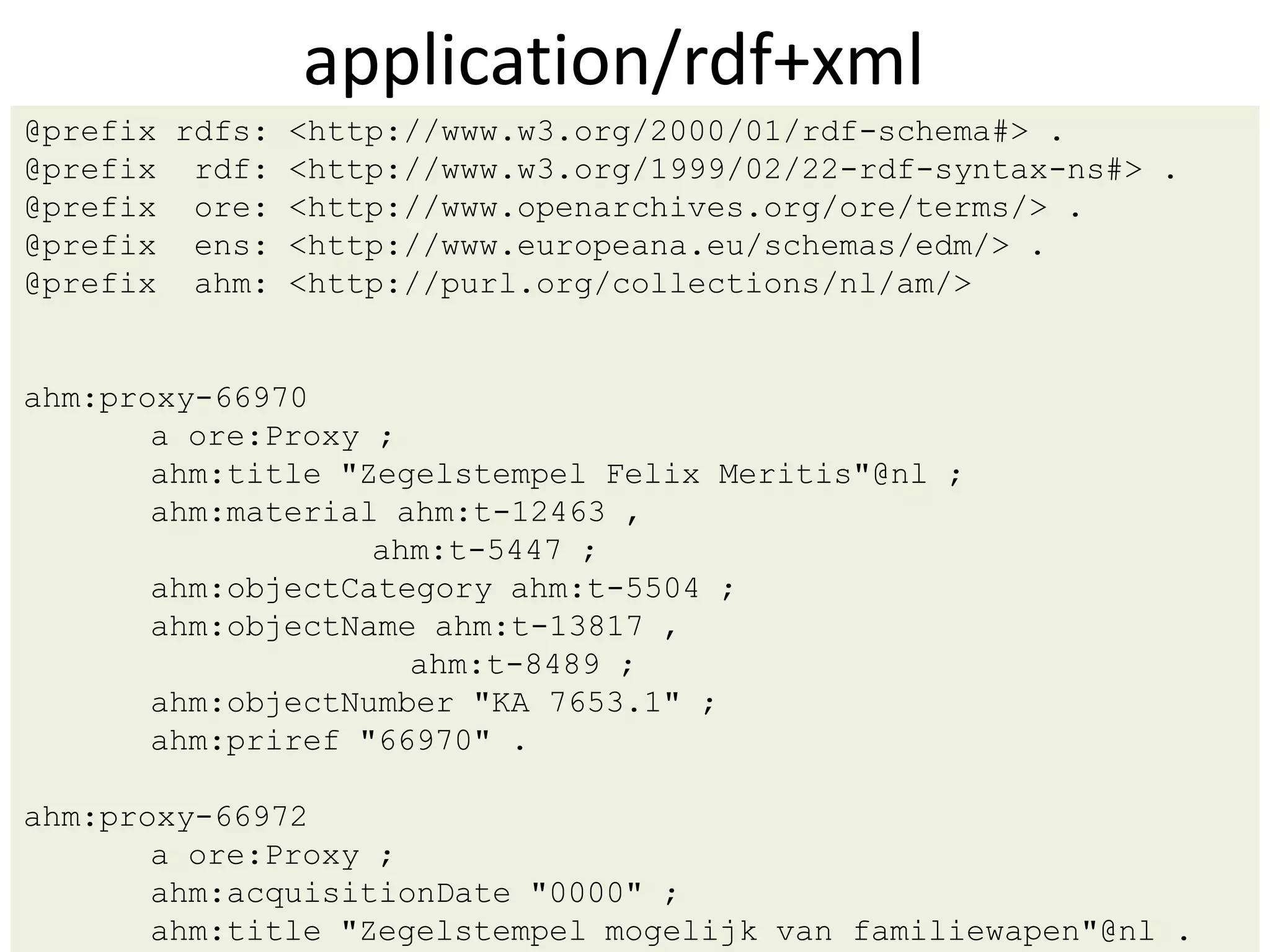

32. application/rdf+xml
@prefix rdfs: <http://www.w3.org/2000/01/rdf-schema#> .
@prefix rdf: <http://www.w3.org/1999/02/22-rdf-syntax-ns#> .
@prefix ore: <http://www.openarchives.org/ore/terms/> .
@prefix ens: <http://www.europeana.eu/schemas/edm/> .
@prefix ahm: <http://purl.org/collections/nl/am/>
ahm:proxy-66970
a ore:Proxy ;
ahm:title "Zegelstempel Felix Meritis"@nl ;
ahm:material ahm:t-12463 ,
ahm:t-5447 ;
ahm:objectCategory ahm:t-5504 ;
ahm:objectName ahm:t-13817 ,
ahm:t-8489 ;
ahm:objectNumber "KA 7653.1" ;
ahm:priref "66970" .
ahm:proxy-66972
a ore:Proxy ;
ahm:acquisitionDate "0000" ;
ahm:title "Zegelstempel mogelijk van familiewapen"@nl .

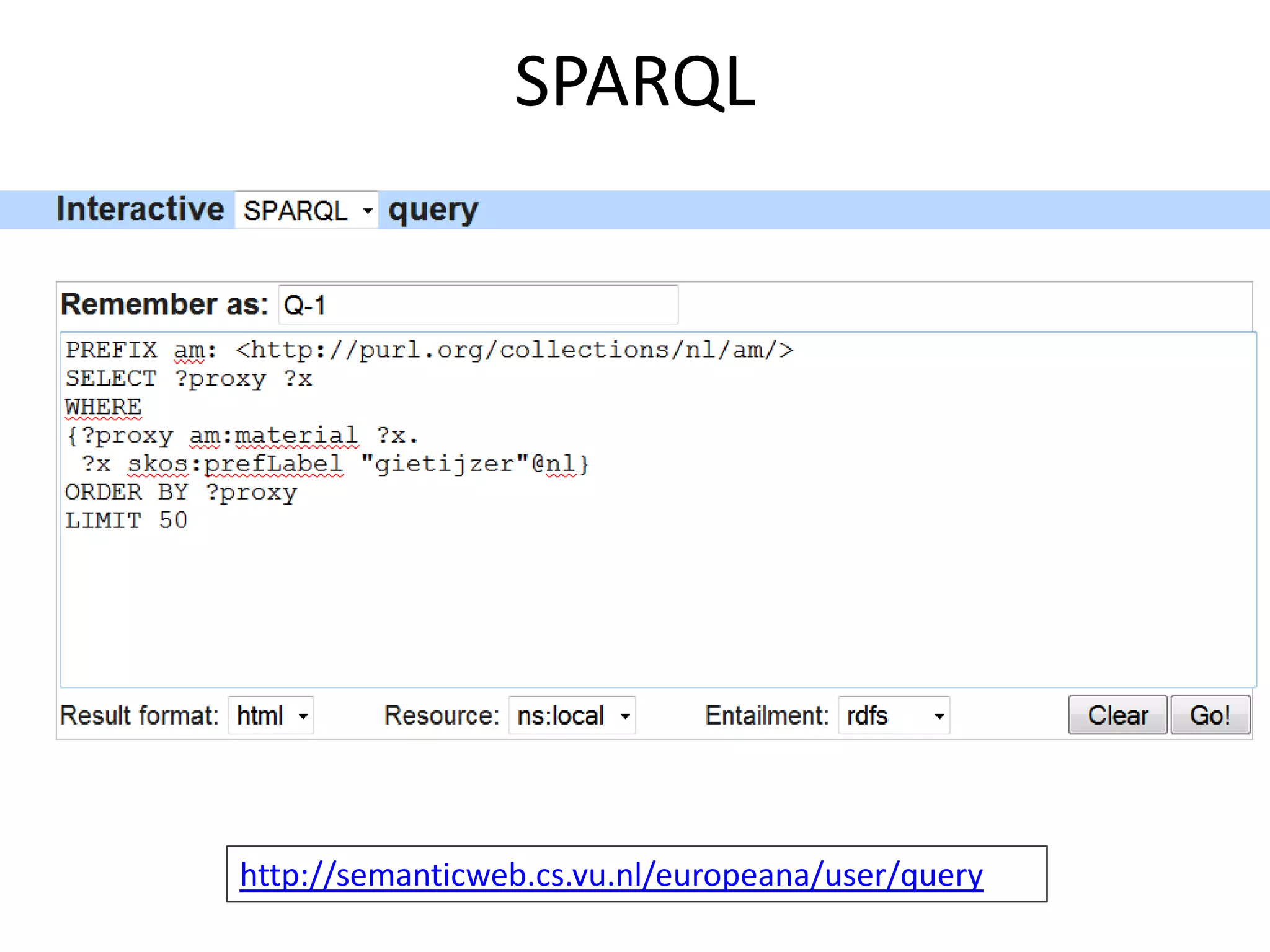

33. SPARQL
http://semanticweb.cs.vu.nl/europeana/user/query

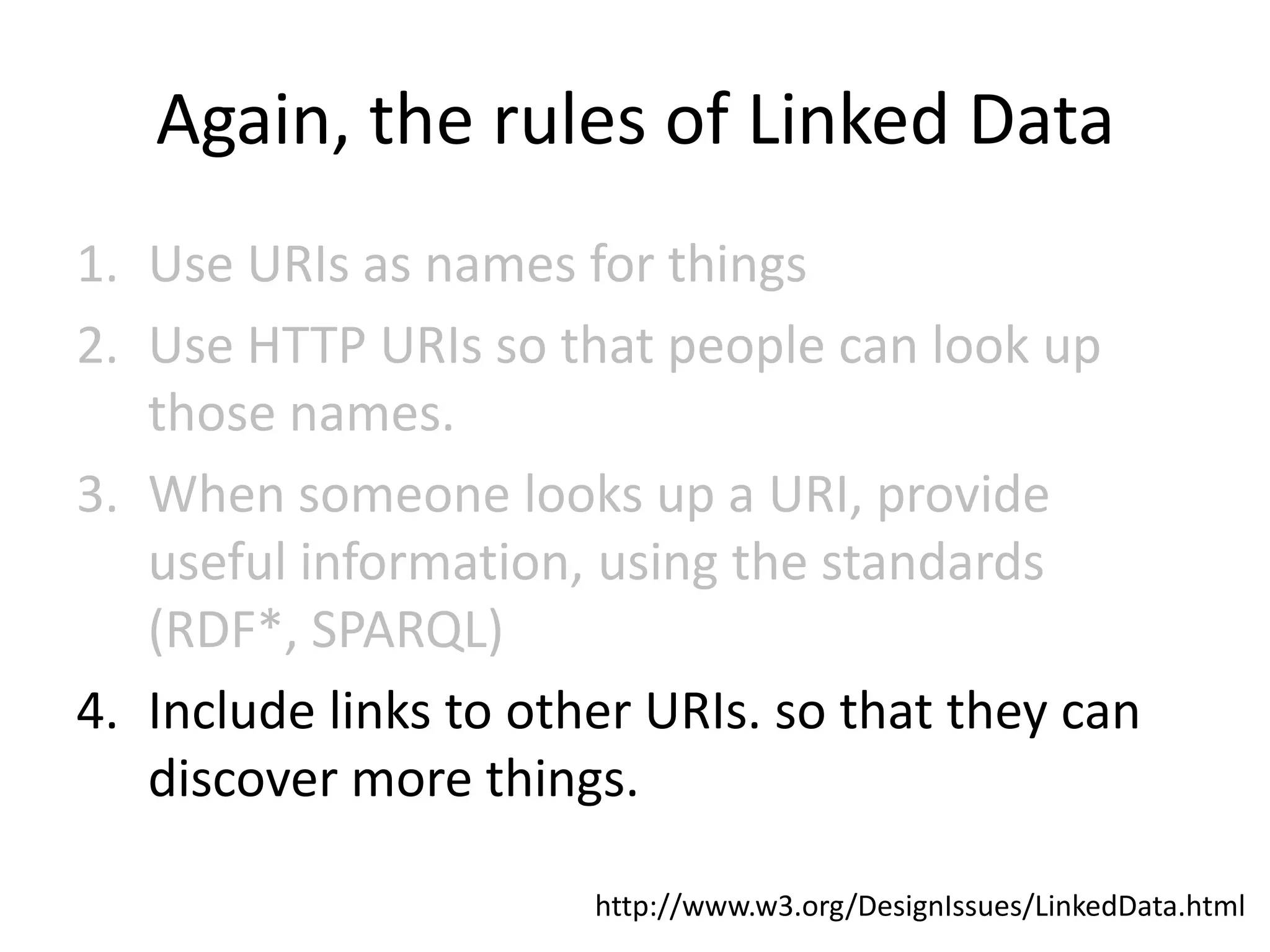

34. Again, the rules of Linked Data
1. Use URIs as names for things
2. Use HTTP URIs so that people can look up
those names.
3. When someone looks up a URI, provide
useful information, using the standards
(RDF*, SPARQL)
4. Include links to other URIs. so that they can
discover more things.
http://www.w3.org/DesignIssues/LinkedData.html

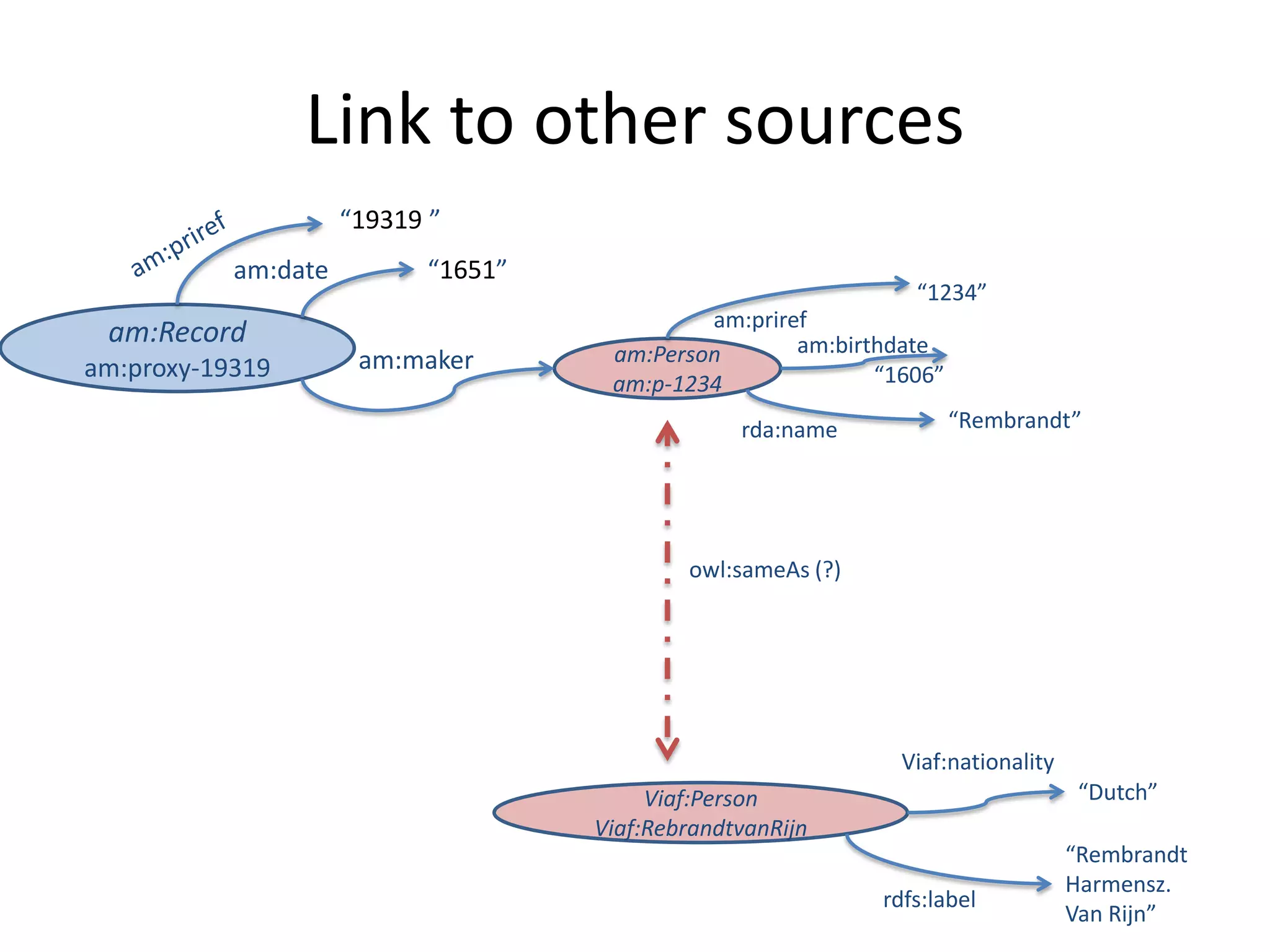

35. Link to other sources
“19319 ”
am:date “1651”
“1234”
am:priref
am:Record am:birthdate
am:maker am:Person
am:proxy-19319 “1606”
am:p-1234
rda:name “Rembrandt”
owl:sameAs (?)
Viaf:nationality
Viaf:Person “Dutch”
Viaf:RebrandtvanRijn
“Rembrandt
Harmensz.
rdfs:label
Van Rijn”

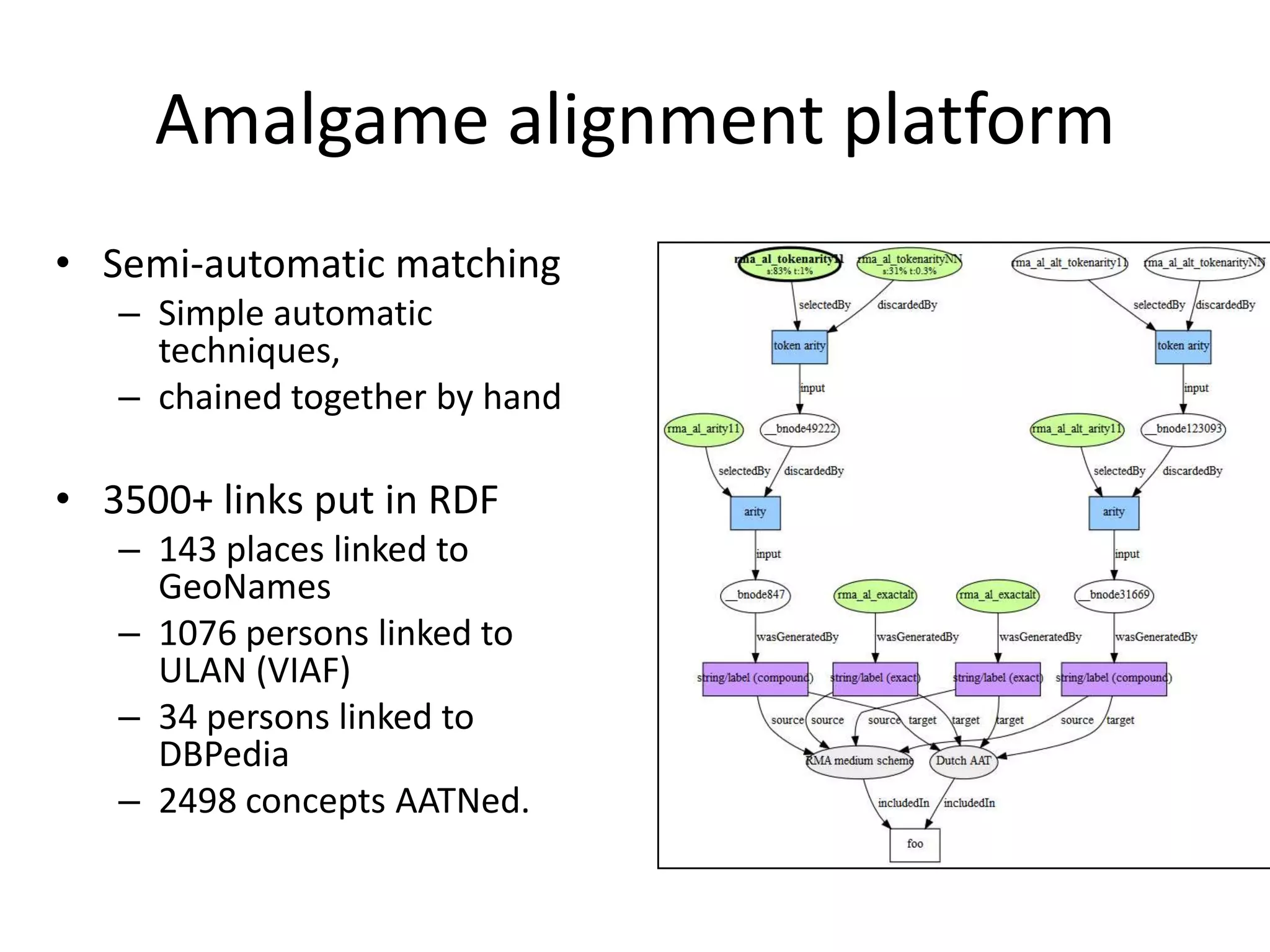

36. Amalgame alignment platform
• Semi-automatic matching
– Simple automatic
techniques,
– chained together by hand
• 3500+ links put in RDF
– 143 places linked to
GeoNames
– 1076 persons linked to
ULAN (VIAF)
– 34 persons linked to
DBPedia
– 2498 concepts AATNed.

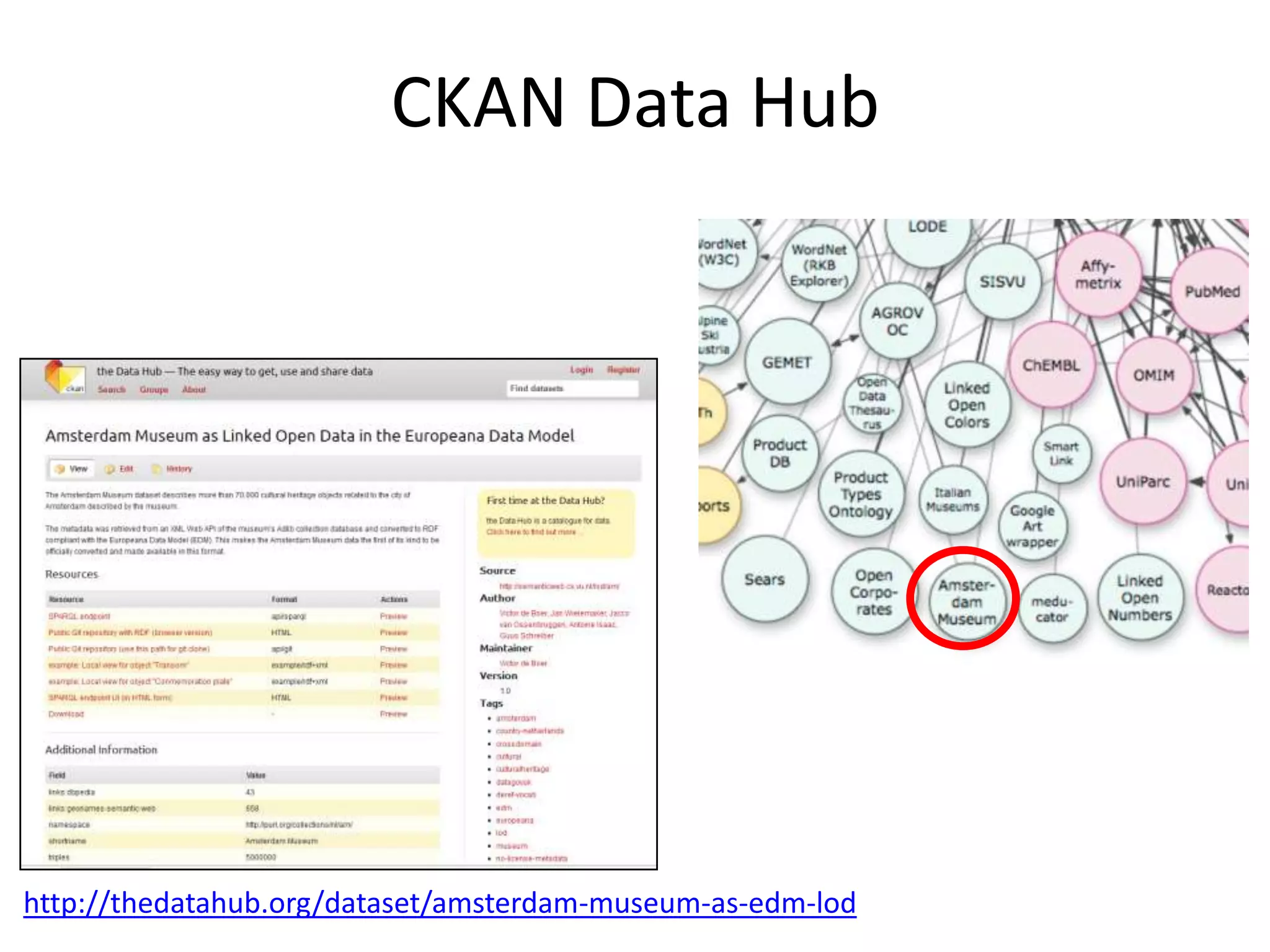

37. CKAN Data Hub
http://thedatahub.org/dataset/amsterdam-museum-as-edm-lod

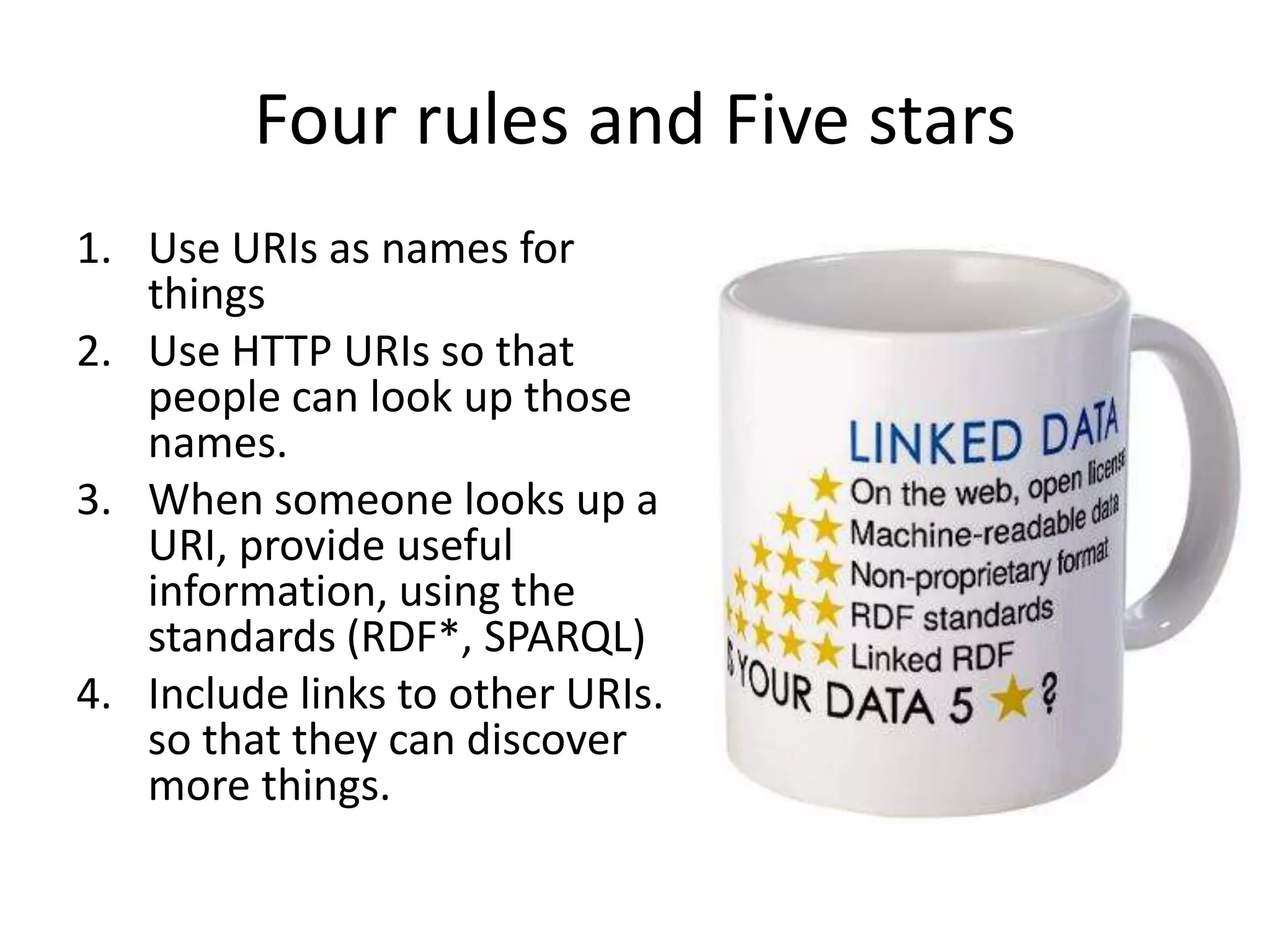

38. Four rules and Five stars
1. Use URIs as names for
things
2. Use HTTP URIs so that
people can look up those
names.
3. When someone looks up a
URI, provide useful
information, using the
standards (RDF*, SPARQL)
4. Include links to other URIs.
so that they can discover
more things.

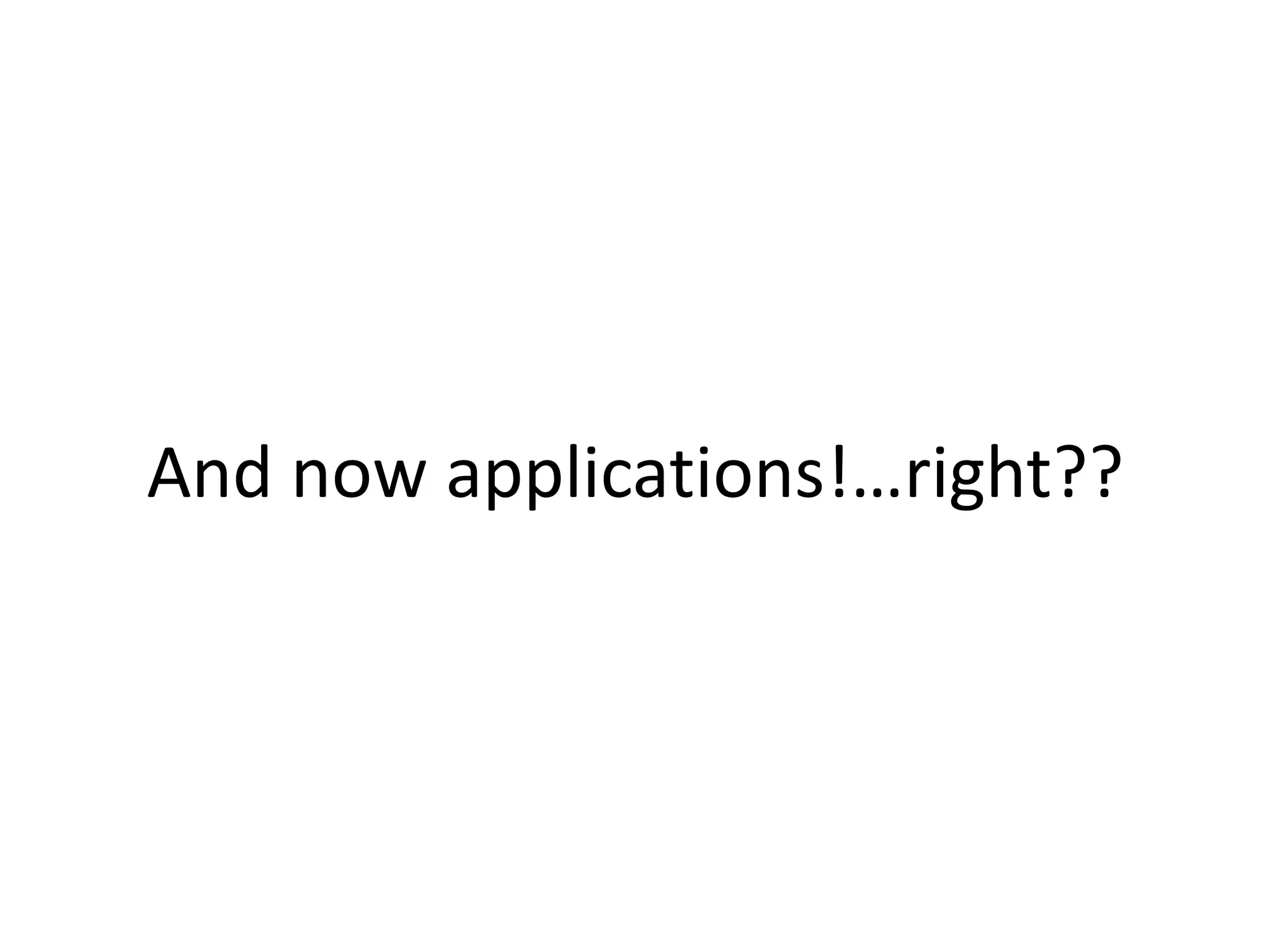

39. And now applications!…right??

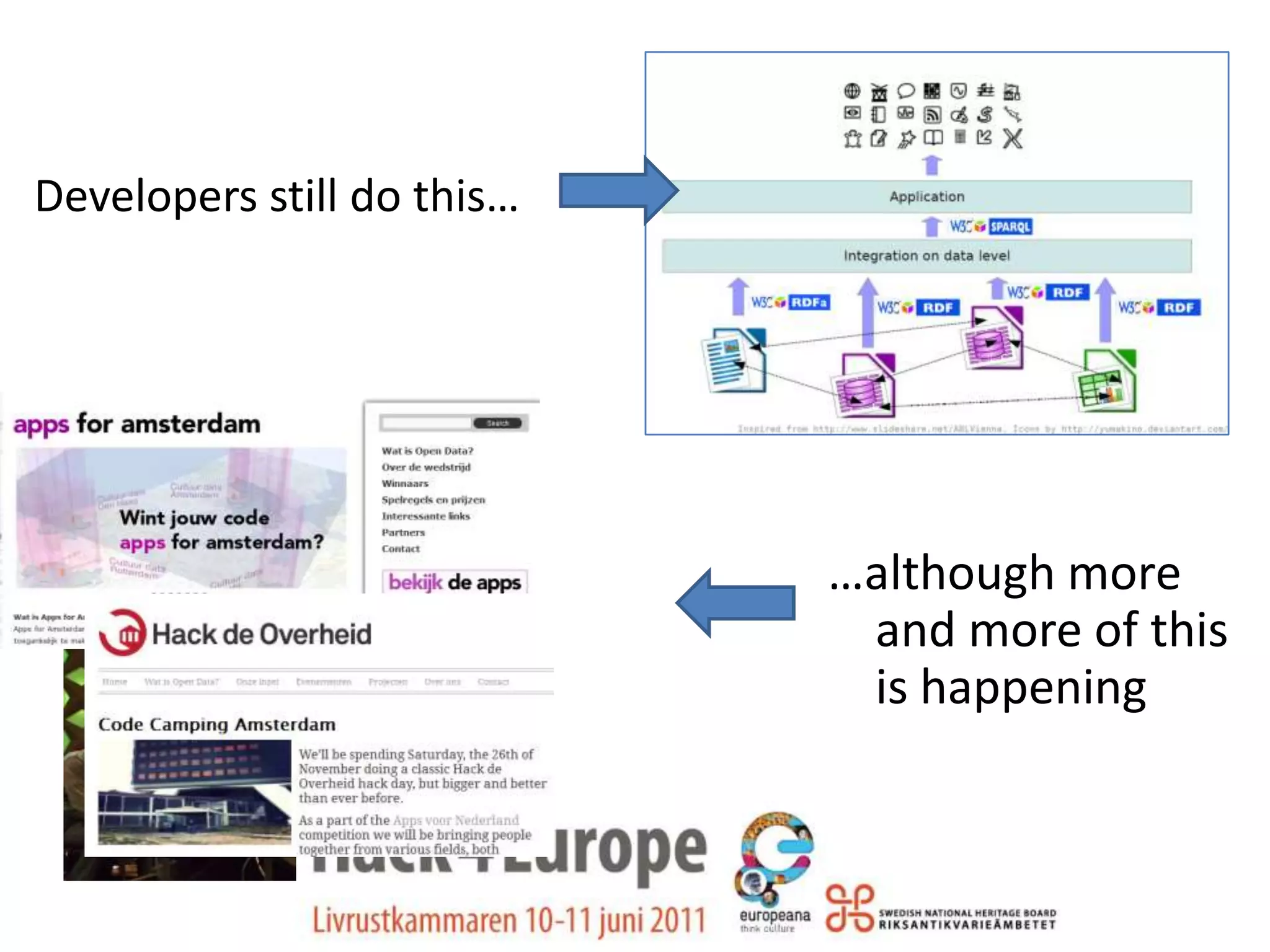

40. Developers still do this…
…although more
and more of this
is happening

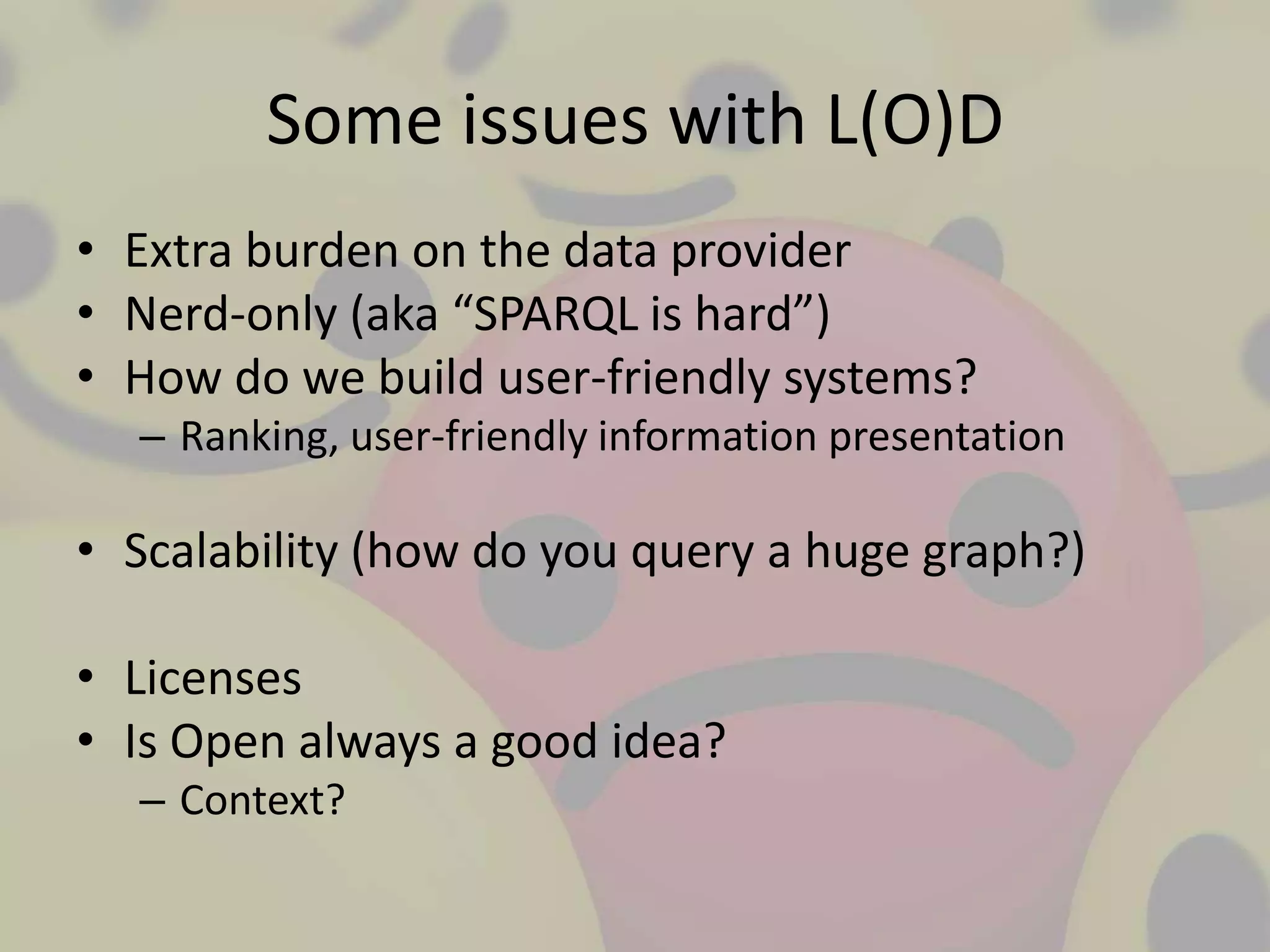

43. Some issues with L(O)D
• Extra burden on the data provider
• Nerd-only (aka “SPARQL is hard”)
• How do we build user-friendly systems?
– Ranking, user-friendly information presentation
• Scalability (how do you query a huge graph?)
• Licenses
• Is Open always a good idea?
– Context?

44. end

45. EDM

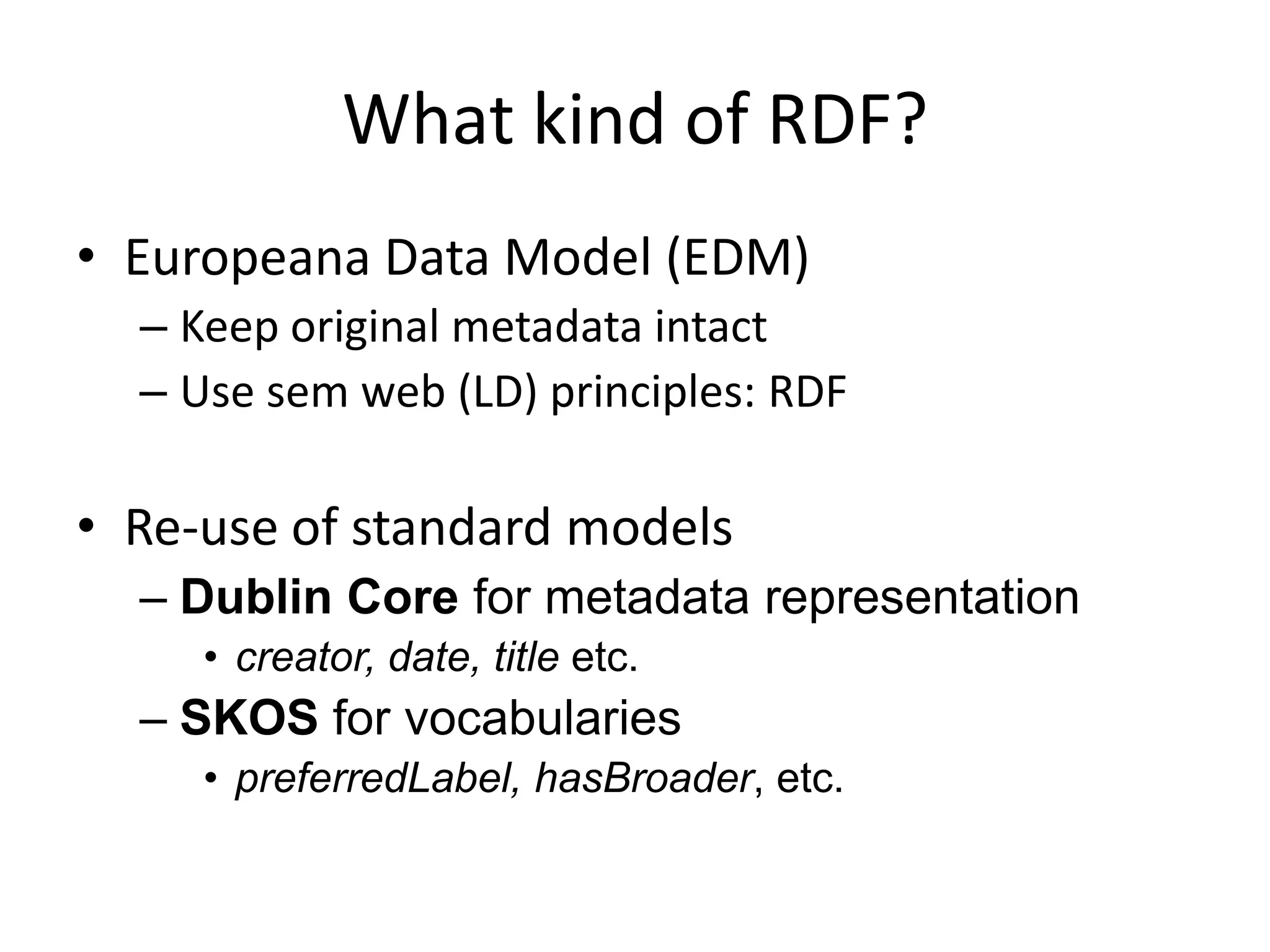

46. What kind of RDF?
• Europeana Data Model (EDM)
– Keep original metadata intact
– Use sem web (LD) principles: RDF
• Re-use of standard models
– Dublin Core for metadata representation
• creator, date, title etc.
– SKOS for vocabularies
• preferredLabel, hasBroader, etc.

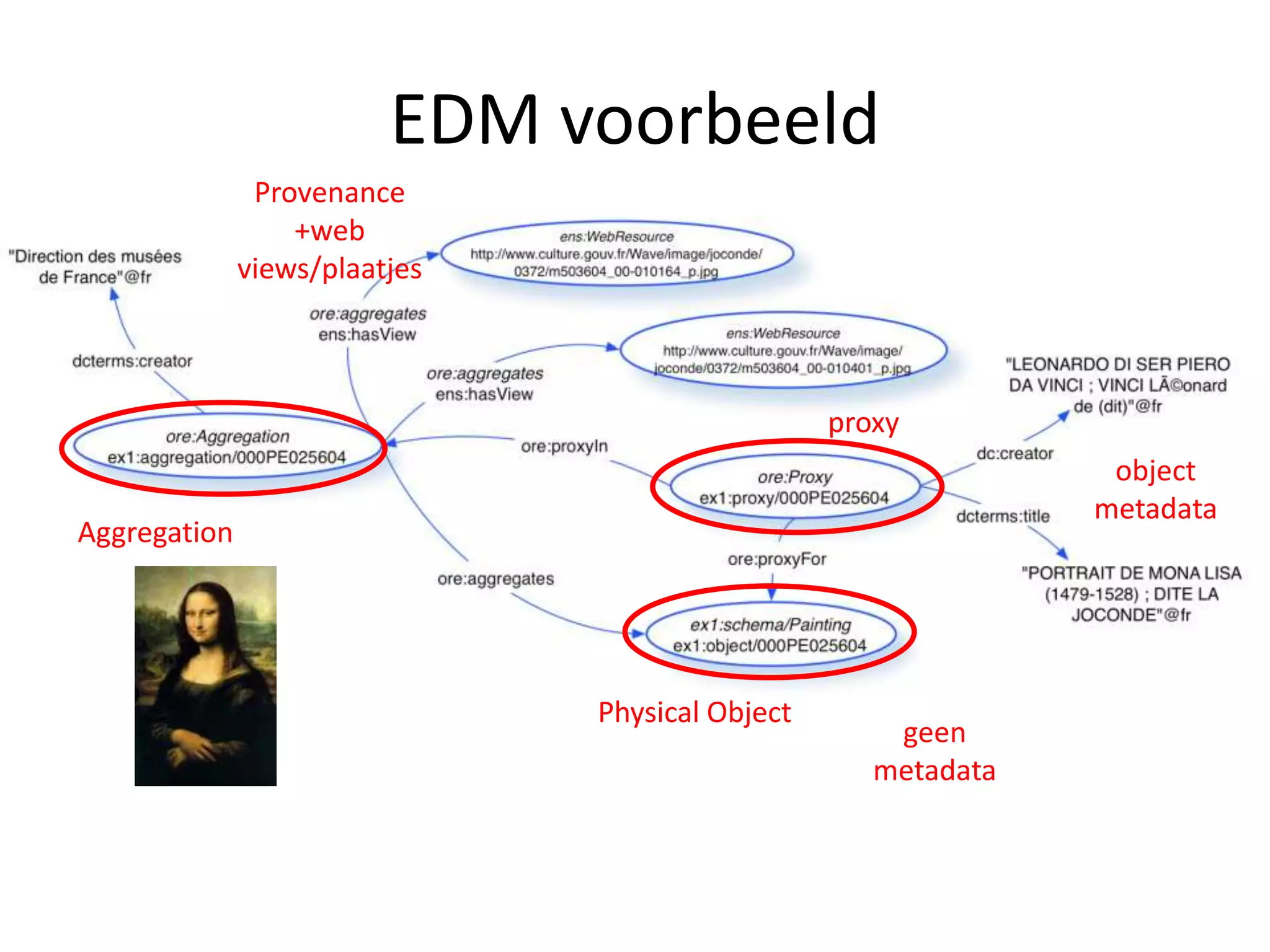

47. EDM voorbeeld
Provenance
+web
views/plaatjes
proxy
object
metadata
Aggregation
Physical Object
geen
metadata
